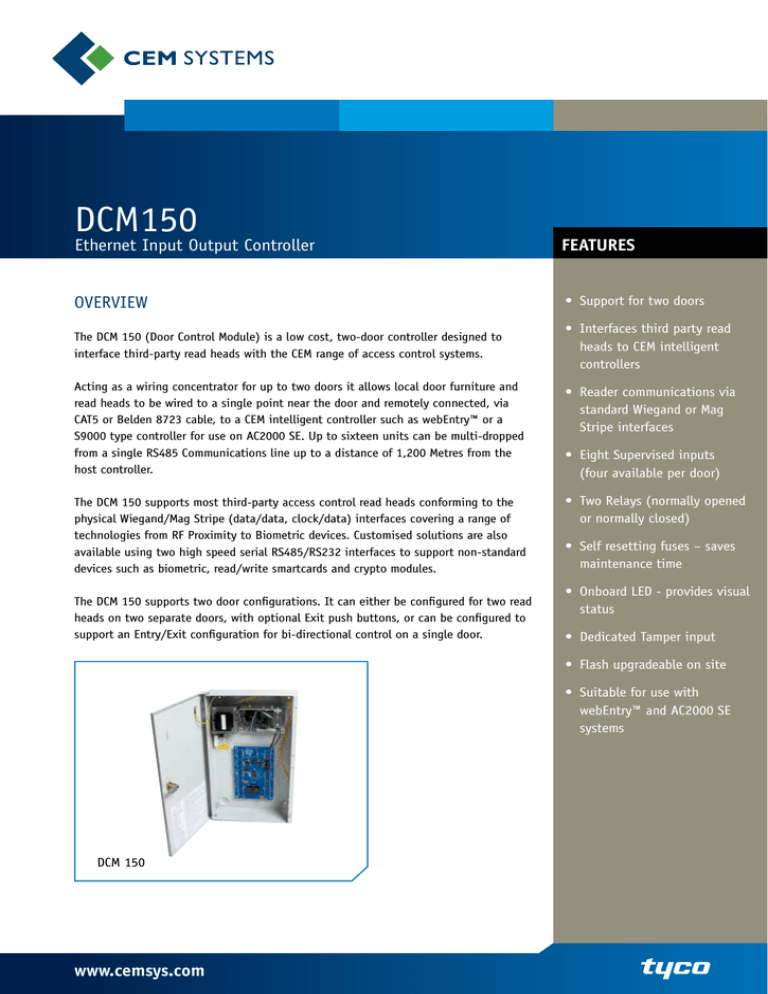

DCM150
Ethernet Input Output Controller
FEATURES
OVERVIEW
• Support for two doors
The DCM 150 (Door Control Module) is a low cost, two-door controller designed to
interface third-party read heads with the CEM range of access control systems.
• Interfaces third party read
heads to CEM intelligent
controllers
Acting as a wiring concentrator for up to two doors it allows local door furniture and
read heads to be wired to a single point near the door and remotely connected, via
CAT5 or Belden 8723 cable, to a CEM intelligent controller such as webEntry™ or a
S9000 type controller for use on AC2000 SE. Up to sixteen units can be multi-dropped
from a single RS485 Communications line up to a distance of 1,200 Metres from the
host controller.
• Reader communications via
standard Wiegand or Mag
Stripe interfaces
The DCM 150 supports most third-party access control read heads conforming to the
physical Wiegand/Mag Stripe (data/data, clock/data) interfaces covering a range of
technologies from RF Proximity to Biometric devices. Customised solutions are also
available using two high speed serial RS485/RS232 interfaces to support non-standard
devices such as biometric, read/write smartcards and crypto modules.
• Two Relays (normally opened
or normally closed)
The DCM 150 supports two door configurations. It can either be configured for two read
heads on two separate doors, with optional Exit push buttons, or can be configured to
support an Entry/Exit configuration for bi-directional control on a single door.
• Eight Supervised inputs
(four available per door)
• Self resetting fuses – saves
maintenance time
• Onboard LED - provides visual
status
• Dedicated Tamper input
• Flash upgradeable on site
• Suitable for use with
webEntry™ and AC2000 SE
systems
DCM 150
www.cemsys.com
CEM/B/040 Rev C
Product Highlights
Connect to existing read head technology
The DCM 150 is suitable for installations where customers
want to connect existing read head technology to any of CEM’s
intelligent controller products like webEntry or the S9032/
S9064 with AC2000 SE. Unlike the CEM range of card readers the
DCM 150 does not provide local database support for off-line
card validation.
Ease of Installation
Visual confirmation of board, relay and comms transmit/receive
status is provided via LEDs allowing easy installation and
simplifying the diagnostic process. An onboard LED provides
visual alerts to help when a number of DCM’s are banked in
close proximity to one another.
High quality connectors simplify the installation process and
allow simple drop in replacement in the event of hardware
failure. Board configuration is achieved via a small number of
jumpers and requires no specialist tools.
TECHNICAL SPECIFICATIONS
Physical
Size
- Board Only - Enclosure Weight
- Board Only 0.1Kg
- Enclosure 5.00kg
Housing Colour Power
- Board Only:
- Voltage - Current
Consumption Enclosure:
Voltage Current
Consumption Backup Battery Environmental
- Temperature - Humidity LED Indicators 180 x 120 x 20mm
(7.1” x 4.7” x 0.8”)
460 x 250 x 90mm
(18” x 10” x 3.5”)
Wall mounting 1.2mm steel enclosure
Grey
11 – 15Vdc
300mA (excluding locks
and heads)
220-230 VAC 50/60Hz.
450mA (excluding locks and heads)
Integral charging circuit provided with
enclosure and space battery
(Battery not supplied).
-20º to 70°C (-4° to 158°F)
95% non condensing
Power, Link to host, Comms Tx/Rx, Fault /
Tamper, Lock and Relay Status
Inputs continued
Outputs Reader capacity Configuration from host computer.
Break Glass Sense
Fire Alarm Sense
Power Fail
Tamper
Battery Low (reported internally)
Dedicated Power Fail Input
* = 4 state tamper protected inputs
Two 12V or 24V open collector outputs
limited to 1.5A
(Door Lock and External Sounder)
Two Relays rated at [email protected]
2 Weigand/Mag Stripe interfaces (data/
data, clock/data)
Operational parameters are downloaded
Communication Interface
To Readers - Connection To System Host - Connection Weigand/Mag Stripe interface (data/data,
clock/data)
2 part screw terminals
RS485 multidrop cable runs using copper
wire with maximum length of 1.2km
without repeater
2 part screw terminals
Product Codes
DCM/150/105 DCM/150/101 DCM 150 (Board Only)
DCM 150 (Includes enclosure, board &
power supply/battery charger)
Functionality
Inputs *
*
*
*
Door Position
Lock Status
Exit Push Button
General Purpose
