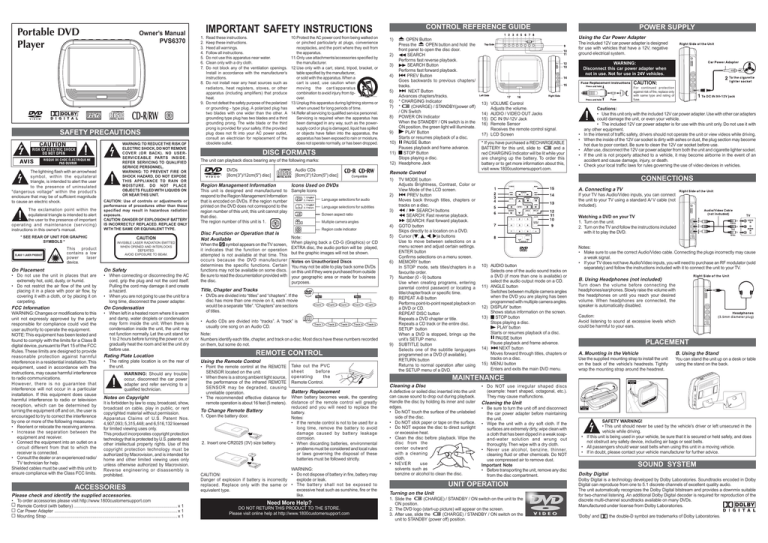

Portable DVD
Player
Owner’s Manual
PVS6370
SAFETY PRECAUTIONS
The lightning flash with an arrowhead
symbol, within the equilateral
triangle, is intended to alert the user
to the presence of uninsulated
"dangerous voltage" within the product's
enclosure that may be of sufficient magnitude
to cause an electric shock.
The exclamation point within the
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (ser vicing)
instructions in this owner's manual.
* SEE REAR OF UNIT FOR GRAPHIC
SYMBOLS *
This
product
contains a low
power
laser
device.
WARNING: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WARNING: TO PREVENT FIRE OR
SHOCK HAZARD, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR
MOISTURE. DO NOT PLACE
OBJECTS FILLED WITH LIQUIDS ON
OR NEAR THIS UNIT.
CAUTION: Use of controls or adjustments or
performance of procedures other than those
specified may result in hazardous radiation
exposure.
CAUTION: DANGER OF EXPLOSION IF BATTERY
IS INCORRECTLY REPLACED. REPLACE ONLY
WITH THE SAME OR EQUIVALENT TYPE.
CAUTION
INVISIBLE LASER RADIATION EMITTED
WHEN OPENED AND INTERLOCKS
DEFEATED.
AVOID EXPOSURE TO BEAM.
On Placement
On Safety
• Do not use the unit in places that are
extremely hot, cold, dusty, or humid.
• Do not restrict the air flow of the unit by
placing it in a place with poor air flow, by
covering it with a cloth, or by placing it on
carpeting.
• When connecting or disconnecting the AC
cord, grip the plug and not the cord itself.
Pulling the cord may damage it and create
a hazard.
• When you are not going to use the unit for a
long time, disconnect the power adapter.
FCC Information
On Condensation
WARNING: Changes or modifications to this
unit not expressly approved by the party
responsible for compliance could void the
user authority to operate the equipment.
NOTE: This equipment has been tested and
found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment, used in accordance with the
instructions, may cause harmful interference
to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause
harmful interference to radio or television
reception, which can be determined by
turning the equipment off and on, the user is
encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the
equipment and receiver.
• Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/
TV technician for help.
Shielded cables must be used with this unit to
ensure compliance with the Class FCC limits.
• When left in a heated room where it is warm
and damp, water droplets or condensation
may form inside the unit. When there is
condensation inside the unit, the unit may
not function normally. Let the unit stand for
1 to 2 hours before turning the power on, or
gradually heat the room and let the unit dry
before use.
1.
2.
3.
4.
5.
6.
7.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with a dry cloth.
Do not block any of the ventilation openings.
Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
9. Do not defeat the safety purpose of the polarized
or grounding - type plug. A polarized plug has
two blades with one wider than the other. A
grounding type plug has two blades and a third
grounding prong. The wide blade or the third
prong is provided for your safety. If the provided
plug does not fit into your AC power outlet,
consult an electrician for replacement of the
obsolete outlet.
WARNING: Should any trouble
occur, disconnect the car power
adapter and refer servicing to a
qualified technician.
Notes on Copyright
It is forbidden by law to copy, broadcast, show,
broadcast on cable, play in public, or rent
copyrighted material without permission.
Apparatus Claims of U.S. Patent Nos.
4,907,093; 5,315,448; and 6,516,132 licensed
for limited viewing uses only.
This product incorporates copyright protection
technology that is protected by U.S. patents and
other intellectual property rights. Use of this
copyright protection technology must be
authorized by Macrovision, and is intended for
home and other limited viewing uses only
unless otherwise authorized by Macrovision.
Reverse engineering or disassembly is
prohibited.
ACCESSORIES
Please check and identify the supplied accessories.
• To order accessories please visit http://www.1800customersupport.com
Remote Control (with battery) ....................................................................................... x 1
Car Power Adapter ....................................................................................................... x 1
Mounting Strap ............................................................................................................. x 1
10.Protect the AC power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
11.Only use attachments/accessories specified by
the manufacturer.
12.Use only with a cart, stand, tripod, bracket, or
table specified by the manufacturer,
or sold with the apparatus. When a
cart is used, use caution when
moving the car t/apparatus
combination to avoid injury from tipover.
13.Unplug this apparatus during lightning storms or
when unused for long periods of time.
14.Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as the powersupply cord or plug is damaged, liquid has spilled
or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
DISC FORMATS
The unit can playback discs bearing any of the following marks:
DVDs
[8cm(3")/12cm(5") disc]
Audio CDs
[8cm(3")12cm(5") disc]
OPEN Button
OPEN button and hold the
Press the
front panel to open the disc door.
SEARCH
2)
Performs fast reverse playback.
SEARCH Button
3)
Performs fast forward playback.
PREV Button
4)
Goes backwards to previous chapters/
tracks.
NEXT Button
5)
Advances chapters/tracks.
6) * CHARGING Indicator
(CHARGE) / STANDBY(power off)
7) *
/ ON Switch
8) POWER ON Indicator
When the STANDBY / ON switch is in the
ON position, the green light will illuminate.
PLAY Button
9)
Starts or resumes playback of a disc.
PAUSE Button
10)
Pauses playback and frame advance.
STOP Button
11)
Stops playing a disc.
12) Headphone Jack
Remote Control
Icons Used on DVDs
This unit is designed and manufactured to Sample lcons
respond to the Region Management Information
that is encoded on DVDs. If the region number
printed on the DVD does not correspond to the
region number of this unit, this unit cannot play
that disc.
The region number of this unit is 1.
Disc Function or Operation that is
Not Available
When the
symbol appears on the TV screen,
it indicates that the function or operation
attempted is not available at that time. This
occurs because the DVD manufacturer
determines the specific functions. Certain
functions may not be available on some discs.
Be sure to read the documentation provided with
the disc.
2)
Language selections for audio
Language selections for subtitles
3)
Screen aspect ratio
Multiple camera angles
Region code indicator
4)
Note:
When playing back a CD-G (Graphics) or CD
EXTRA disc, the audio portion will be played,
but the graphic images will not be shown.
5)
Notes on Unauthorized Discs
You may not be able to play back some DVDs
on this unit if they were purchased from outside
your geographic area or made for business
purposes.
6)
7)
Title, Chapter and Tracks
• DVDs are divided into “titles” and “chapters”. If the
disc has more than one movie on it, each movie
would be a separate “title”. “Chapters” are sections
of titles.
8)
• Audio CDs are divided into “tracks”. A “track” is
usually one song on an Audio CD.
Note:
Numbers identify each title, chapter, and track on a disc. Most discs have these numbers recorded
on them, but some do not.
REMOTE CONTROL
Using the Remote Control
• Point the remote control at the REMOTE
SENSOR located on the unit.
• When there is a strong ambient light source,
the performance of the infrared REMOTE
SENSOR may be degraded, causing
unreliable operation.
• The recommended effective distance for
remote operation is about 16 feet (5 meters).
To Change Remote Battery
1. Open the battery door.
2. Insert one CR2025 (3V) size battery.
Take out the PVC
sheet
before
operating
the
Remote Control.
Battery Replacement
When battery becomes weak, the operating
distance of the remote control will greatly
reduced and you will need to replace the
battery.
Notes:
• If the remote control is not to be used for a
long time, remove the battery to avoid
damage caused by batter y leakage
corrosion.
• When discarding batteries, environmental
problems must be considered and local rules
or laws governing the disposal of these
batteries must be followed strictly.
WARNING:
• Do not dispose of battery in fire, battery may
CAUTION:
explode or leak.
Danger of explosion if battery is incorrectly
replaced. Replace only with the same or • The batter y shall not be exposed to
excessive heat such as sunshine, fire or the
equivalent type.
like.
Need More Help?
DO NOT RETURN THIS PRODUCT TO THE STORE.
Please visit online help at http://www.1800customersupport.com
9)
TV MODE button
Adjusts Brightness, Contrast, Color or
View Mode of the LCD screen.
PREV button
Moves back through titles, chapters or
tracks on a disc.
/
SEARCH buttons
SEARCH: Fast reverse playback.
SEARCH: Fast forward playback.
GOTO button
Skips directly to a location on a DVD.
Cursor ( , , , )a buttons
Use to move between selections on a
menu screen and adjust certain settings.
ENTER button
Confirms selections on a menu screen.
MEMORY button
In STOP mode, sets titles/chapters in a
favourite order.
Number (0 - 9) buttons
Use when creating programs, entering
parental control password or locating a
title/chapter/track or specific time.
REPEAT A-B button
Performs point-to-point repeat playback on
a DVD or CD.
REPEAT DISC button
Repeats a DVD chapter or title.
Repeats a CD track or the entire disc.
SETUP button
When a DVD is stopped, brings up the
unit’s SETUP menu.
SUBTITLE button
Selects one of the subtitle languages
programmed on a DVD (if available).
RETURN button
Returns to normal operation after using
the SETUP menu of a DVD.
POWER SUPPLY
Using the Car Power Adapter
1)
1)
Region Management Information
Rating Plate Location
• The rating plate location is on the rear of
the unit.
CONTROL REFERENCE GUIDE
IMPORTANT SAFETY INSTRUCTIONS
The included 12V car power adapter is designed
for use with vehicles that have a 12V, negative
ground electrical system.
WARNING:
Disconnect this car power adapter when
not in use. Not for use in 24V vehicles.
CAUTION:
For continued protection
against risk of fire, replace only
with same type and rating of
fuse.
13) VOLUME Control
Adjusts the volume.
14) AUDIO / VIDEO OUT Jacks
15) DC IN 9V-12V Jack
16) Remote Sensor
Receives the remote control signal.
17) LCD Screen
* If you have purchased a RECHARGEABLE
and a
BATTERY for this unit, slide to
red CHARGING Indicator will be lit while your
are charging up the battery. To order this
battery or to get more information about this,
visit www.1800customersupport.com.
•
•
•
•
•
Cautions:
• Use this unit only with the included 12V car power adapter. Use with other car adapters
could damage the unit, or even your vehicle.
• The included 12V car power adapter is for use with this unit only. Do not use it with
any other equipment.
In the interest of traffic safety, drivers should not operate the unit or view videos while driving.
When the inside of the 12V car socket is dirty with ashes or dust, the plug section may become
hot due to poor contact. Be sure to clean the 12V car socket before use.
After use, disconnect the 12V car power adapter from both the unit and cigarette lighter socket.
If the unit is not properly attached to a vehicle, it may become airborne in the event of an
accident and cause damage, injury, or death.
Check your local traffic laws for rules governing the use of video devices in vehicles.
CONNECTIONS
A. Connecting a TV
If your TV has Audio/Video inputs, you can connect
the unit to your TV using a standard A/ V cable (not
included).
Watching a DVD on your TV
1. Turn on the unit.
2. Turn on the TV and follow the instructions included
with it to play the DVD.
10) AUDIO button
Selects one of the audio sound tracks on
a DVD (if more than one is available) or
select the audio output mode on a CD.
11) ANGLE button
Switches between multiple camera angles
when the DVD you are playing has been
programmed with multiple camera angles.
12) DISPLAY button
Shows status information on the screen.
STOP button
13)
Stops playing a disc.
PLAY button
Starts or resumes playback of a disc.
PAUSE button
Pause playback and frame advance.
14)
NEXT button
Moves forward through titles, chapters or
tracks on a disc.
15) MENU button
Enters and exits the main DVD menu.
Notes:
• Make sure to use the correct Audio/Video cable. Connecting the plugs incorrectly may cause
a weak signal.
• If your TV does not have Audio/Video inputs, you will need to purchase an RF modulator (sold
separately) and follow the instructions included with it to connect the unit to your TV.
B. Using Headphones (not included)
Turn down the volume before connecting the
headphones/earphones. Slowly raise the volume with
the headphones on until you reach your desired
volume. When headphones are connected, the
speaker is automatically disabled.
Caution:
Avoid listening to sound at excessive levels which
could be harmful to your ears.
PLACEMENT
A. Mounting in the Vehicle
B. Using the Stand
Use the supplied mounting strap to install the unit
on the back of the vehicle's headrests. Tightly
wrap the mounting strap around the headrest.
You can stand the unit up on a desk or table
using the stand on the back.
MAINTENANCE
Cleaning a Disc
A defective or soiled disc inserted into the unit
can cause sound to drop out during playback.
Handle the disc by holding its inner and outer
edges.
• Do NOT touch the surface of the unlabeled
side of the disc.
• Do NOT stick paper or tape on the surface.
• Do NOT expose the disc to direct sunlight
or excessive heat.
• Clean the disc before playback. Wipe the
disc from the
center outward
with a cleaning
cloth.
• NEVER
use
solvents such as
benzine or alcohol to clean the disc.
• Do NOT use irregular shaped discs
(example: heart shaped, octagonal, etc.).
They may cause malfunctions.
Cleaning the Unit
• Be sure to turn the unit off and disconnect
the car power adapter before maintaining
the unit.
• Wipe the unit with a dry soft cloth. If the
surfaces are extremely dirty, wipe clean with
a cloth that has been dipped in a weak soapand-water solution and wrung out
thoroughly. Then wipe with a dry cloth.
• Never use alcohol, benzine, thinner,
cleaning fluid or other chemicals. Do NOT
use compressed air to remove dust.
Important Note
• Before transporting the unit, remove any disc
from the disc compartment.
UNIT OPERATION
Turning on the Unit
1. Slide the
(CHARGE) / STANDBY / ON switch on the unit to the
ON position.
2. The DVD logo (start-up picture) will appear on the screen.
(CHARGE) / STANDBY / ON switch on the
3. After use, slide the
unit to STANDBY (power off) position.
SAFETY WARNING!
• This unit should never be used by the vehicle's driver or left unsecured in the
vehicle while driving.
• If this unit is being used in your vehicle, be sure that it is secured or held safely, and does
not obstruct any safety device, including air bags or seat belts.
• All passengers should wear seat belts when using this unit in a moving vehicle.
• If in doubt, please contact your vehicle manufacturer for further advice.
SOUND SYSTEM
Dolby Digital
Dolby Digital is a technology developed by Dolby Laboratories. Soundtracks encoded in Dolby
Digital can reproduce from one to 5.1 discrete channels of excellent quality audio.
The unit automatically recognizes the Dolby Digital bitstream and provides a downmix suitable
for two-channel listening. An additional Dolby Digital decoder is required for reproduction of the
discrete multi-channel soundtracks available on many DVDs.
Manufactured under license from Dolby Laboratories.
'Dolby' and
the double-D symbol are trademarks of Dolby Laboratories.
PLAYING A DISC
This owner’s manual explains the basic instructions for operating this unit. Some
DVDs are produced in a manner that allows specific or limited operation during
playback. Therefore, this unit may not respond to all operating commands. THIS IS
NOT A DEFECT. Please refer to the instructions accompanying the specific DVD in
question for more information about the options available on that DVD.
” may appear on the screen during operation. A “
” means that the desired
“
operation is not permitted by the unit or disc.
Playing a Disc
1. Slide the
(CHARGE) / STANDBY / ON
switch to the ON position.
See CUSTOMIZING THE FUNCTION
SETTINGS before proceeding to step 2.
OPEN
2. Press the
button and hold the
front panel to open
the disc door.
3. Hold the disc by its
sides and gently push
it onto the spindle with
label side facing towards you until you hear
a “click”.
4. Gently push the disc door closed. It takes a
short while for your unit to load the disc. After
loading, for most DVDs, the unit will
automatically take you main menu or start
playing. If the unit does not automatically start
PLAY button.
playing the DVD, press the
Pausing Playback (Still Mode)
Press the PAUSE button. To resume normal
PLAY button.
playback, press the
Each time you press the PAUSE button, the
picture advances one frame.
Stopping Playback
Press the STOP button at the location where
you want to interrupt playback. To resume
playback at the position where the disc was
PLAY button.
stopped, press the
If you press the STOP button twice, the unit’s
memory will be cleared and pressing the
PLAY button will reset the disc to the beginning.
Fast Forward / Fast Reverse
1. Press the SEARCH
or
SEARCH
button when a disc is playing. Each time you
press the SEARCH
or
SEARCH
button, the playback speed changes in the
following sequence:
PLAY button when you reach
2. Press the
the desired point to resume normal playback.
Notes:
• The DVD player mutes sound and subtitles
during reverse and forward scan of DVDs.
• The fast playback speed may differ
depending on the disc.
2. Press the SUBTITLE button repeatedly to
select the desired subtitle language.You can
turn subtitles off by pressing the SUBTITLE
button repeatedly until the “
Off ” is
displayed.
Notes:
• Some DVDs are set to display subtitles
automatically, and you cannot turn them off
even if you set the subtitle function to off.
• During some scenes, the subtitles may not
appear immediately after you select your
desired scene.
• The number of subtitle languages recorded
differs depending on the disc. If only one
language is recorded, the language does
not change.
• This function can only be used for discs on
which subtitles have been recorded in
multiple languages.
• Some DVDs allow you to change subtitles
only via the disc menu. If this is the case,
press the MENU button and choose the
appropriate subtitle on the disc menu.
Angle Selection
Some DVDs contain scenes which have
been shot from a number of different angles.
For these discs, the same scene can be
viewed from each of these different angles.
1. While you are playing a DVD with different
angles recorded, press the ANGLE button
to view the number of current angles
available.
2. Press the ANGLE button repeatedly to
change the scene to the next recorded
angle.
• After approximately two seconds, playback
will continue from the new angle you
selected.
• If no button is pressed within 10 seconds,
playback continues without changing the
current angle.
Notes:
• This function can only be used for discs on
which scenes shot from multiple angles
have been recorded.
• If only one angle is recorded, “
1/1 ” is
Audio Selection
On some DVDs, the sound is recorded in two or
more formats. Follow the directions below to
select the preferred
language and sound
system.
1. While a disc is playing, press the AUDIO
button to show the current audio format
number.
2. Press the AUDIO button repeatedly to select
the desired audio format.
Notes:
• If only one audio format is recorded on the
DVD, the number does not change.
• Some DVDs allow you to change audio
selections only via the disc menu. If this is
the case, press the MENU button and choose
the appropriate language on the disc menu.
• You can select different audio channels
(Stereo, Left or Right) on an Audio CD by
pressing the AUDIO button repeatedly.
Subtitle Selection
1. While a DVD is playing, press the SUBTITLE
button to display the current
language setting, as shown in
the example.
If a DVD contains title numbers, you can locate
a specific title by directly selecting its title
number.
1. Press the GOTO button.
2. Press the corresponding number button(s)
for the title you want.
3. Press the ENTER button to confirm.
Playback starts from the selected section.
Notes:
• If the title numbers you entered is not
permited by the DVD, after you press the
ENTER button, it will restore to - - -. You
should re-enter correct numbers.
• Some discs may not respond to this process.
• This method of locating a title is available
only on a DVD that contains title numbers.
displayed.
Display Function
While the disc is playing, press the DISPLAY
button repeatedly to display information on
operation status.
Elapsed Time:
Elapsed time from the beginning of the title
which is currently playing.
Remain Time:
Remaining time of the title which is currently
playing.
Adjust the LCD Screen
You can adjust brightness, contrast, color or
view mode of the LCD screen.
1. Press the TV MODE button.
2. Press the / button to select Brightness,
Contrast, Color or View Mode.
3. Then press the / button to change the
setting. (For View Mode, press the ENTER
button to change the setting.)
4. Press the TV MODE button to exit the menu.
permited by the DVD, after you press the
ENTER button, it will restore to - - -. You
should re-enter correct numbers.
• Some discs may not respond to this
process.
• This method of locating a chapter is
available only on a DVD that contains
chapter numbers.
Locating a Specific Time
You can move to a specific location by entering
its corresponding time (hours, minutes,
seconds).
1. Press the GOTO button.
or
button to display Time and
2. Press
press the corresponding number buttons for
the setting point you want.
3. Press the ENTER button to confirm.
Playback starts from the selected section.
VIEWING JPG FILES
This unit can play JPG files recorded on a CD-R or CD-ROM disc (CD-RW is not recommendable).
Viewing JPG Files
1. Open the disc door.
2. Hold a JPG file disc by its edge and gently push it onto the
spindle with the label side facing up until you hear a “click”.
3. Close the disc door. A list of folders/files will appear on the
screen.
4. Press the or button to select your desired file, the selected
PLAY
picture will appear at the lower right corner. Press the
button to start playback. Press the button to display a folder
list.
Notes:
• You can press the PAUSE button to interrupt playback. Press the
PLAY button to resume
playback.
• You can press the STOP button to quit playback.
PREV or
NEXT button to change the picture.
• You can press the
• You can press the ANGLE button to rotate direction of the picture by 90o.
• Some discs may not permit this operation.
Locating a Specific Chapter
If you know the chapter number for the chapter
that you want to play, you can locate it by directly
selecting that number.
1. Press the GOTO button.
2. Press or button to display Chapter and
press the corresponding number button(s)
for the chapter you want.
3. Press the ENTER button to confirm.
Playback starts from the selected section.
Notes:
• If the chapter numbers you entered is not
PLAY MODES FOR CD OR JPEG DISC
Notes:
• If the time numbers you entered is not
permited by the DVD, after you press the
ENTER button, it will restore to - - : - - : - .
You should re-enter correct numbers.
• Some discs may not respond to this
process.
• Some scenes may not be located as
precisely as you specified.
• This method for accessing specific locations
is available only within the current title of
the DVD.
REPEAT PLAYBACK
You can play a specific title or chapter repeatedly. (Title repeat, chapter repeat, A-B repeat)
Repeating a Chapter
To Resume Normal Playback
1. While the DVD is playing, press the
REPEAT DISC button until the
“ Repeat Chapter ” indicator displays on the
screen. The current chapter is played
repeatedly.
3. Press the REPEAT DISC button until the “
Repeat off ” indicator displays on the
screen.
Repeating a Title
2. While the DVD is playing, press the
REPEAT DISC button until the
“ Repeat Title ” indicator displays on the
screen. The current title is played repeatedly.
To Resume Normal Playback
3. While the DVD is playing, press the
REPEAT DISC button until the
“ Repeat Off ” indicator displays on the
screen.
You can play a single track or the whole disc
repeatedly.
Repeating a Single Track
Sequence of angle shots
(Example)
Skip (Forward / Reverse)
• Press the
PREV button to go back to
current or previous chapters/tracks.
• Press the
NEXT button to advance
chapters/tracks.
• For audio CDs, use the number buttons on
the remote control to jump immediately to the
desired track number.
LOCATING A DESIRED SECTION
Locating a Specific Title
1. While the CD disc is playing, press the
REPEAT DISC button until the “
Repeat single ” indicator displays on the
screen. The current track is played
repeatedly.
Repeating a Whole Disc
2. While the CD disc is playing, press the
REPEAT DISC button until the “ Repeat all
” indicator displays on the screen. The whole
disc is played repeatedly.
Repeating a Specific Section
You can play a specific section repeatedly.
1. While the disc is playing, press the REPEAT
A-B button at the beginning of the section
(“ Rep A- ” is displayed) you want to play
repeatedly.
2. Press the REPEAT A-B button again at the
end of the section (“ Rep A-B ” is
displayed).
3. The Unit will immediately begin replaying
your selection.
To Resume Normal Playback
4. While the disc is playing, press the REPEAT
A-B button until the “ RepA-B Off ”
indicator displays on the screen.
Note:
• Some discs may not permit A-B repeat
operation.
• You cannot set the A-B repeat function for a
segment that includes multiple camera angles.
• You can specify a segment only within the
current title or track.
• There may be a slight difference between point
A and the location where playback actually
resumes depending on the disc.
DVD PROGRAMMABLE MEMORY
Playing TItles/Chapters in a Favourite Order
You can combine your favourite titles/chapters and play them
in the order you determine.
1. When a DVD is stopped, press the MEMORY button, the
following display appears.
2. Select the items in the order you want by pressing the
number buttons.
Each time you press the Cursor buttons ( , , , ),
the space is highlighted. Highlight where you want to enter,
then press the corresponding number buttons.
3. Press the Cursor buttons ( , , , ) to move the highlighted bar to Play Memory, then
press the ENTER button. The DVD player starts memory playback.
4. To resume normal playback from memory playback
a) Press the MEMORY button in stop mode.
b) Press the Cursor buttons ( , , , ) to move the highlighted bar to “Clear All”, then
press the ENTER button. All the input programs will be cleared.
c) Press the
PLAY button to resume normal playback.
Notes:
• If the title or chapter numbers you entered is not permited by the DVD, after you press the
ENTER button, it will restore to - - -. You should re-enter correct numbers.
• Some discs may not permit memory playback operation.
• If you select repeat during memory playback, the DVD player repeats the current memory
playback.
• If you press the MEMORY button while the display appears on the TV screen, the display disappears.
• The programmed selections will be cleared when you open the disc tray or turn off the DVD player.
Play Modes for CD or JPG Disc
When play CD / JPG discs, you can modify the Play Modes through the Toolkit which appears on
the right of below picture on the screen. Press the / button to navigate between the windows
/
button to select files/tracks or play mode items.
and the
Then press the ENTER button.
1. In Stop mode, press the Cursor buttons ( , , , ) to select
"Edit mode" then press the ENTER button.
2. Use the Cursor buttons ( , , , ) to select tracks/files shown
on the left hand side of the window. Press the ENTER button
to confirm the selected tracks/files. " " will appear in front of
the selected tracks/files.
3. Select "Add to program", then press the ENTER button. " "
will disappear from the screen. It means that the tracks/files you have selected are added into
the "Program view".
4. Select "Program view" to view programmed files. To add more files by "Browser view" follow
above steps.
PLAY button to start the program playback.
5. Press the
The Toolkit has the following play mode items:
• Repeat ( Off / Single / All ):
Off: Resumes normal playback.
Single: Repeats the current track/file.
All: Repeats all files on the current folder or all tracks on the disc.
• Mode ( Normal / Shuffle / Music intro ):
Normal: Resumes normal playback.
Shuffle: Playbacks track/file in random order.
Music intro (for Audio CD only): Only playbacks the first 10 seconds of all the tracks on the
current folder/disc.
• Edit mode: Program operation works only when "Edit mode" is selected.
• Program view: To view tracks/files in the "Program view" list. It is disabled when the "Program
view" list is empty.
• Add to program: Add files/tracks to the "Program view" list. It is disabled if the "Edit mode" is
not selected.
• Browser view: To view files/tracks in the original view list.
• Clear program: Delete the files/tracks in the "Program view" list.
STOP
Select a file/track or more you want to delete in complete stop mode (press the
button twice). " " will appear beside the deleted file/track. Select "Clear program" and then
press the ENTER button. It is disabled if the "Edit mode" is not selected.
STOP button is pressed twice, the disc door is
Note: The program will be deleted if the
opened, or selected files are deleted by selecting "Clear program".
TROUBLESHOOTING GUIDE
SYMPTOM
CAUSE (AND REMEDY)
No power.
•
•
•
•
•
Very little or no sound
is coming from a DVD.
•
•
•
Ensure the car power adapter is connected.
Make sure that the unit is turned on.
Make sure that you select ON mode.
PLAY button.
Make sure the unit is not paused. Press the
Make sure the unit is not in fast-forward or fast-reverse mode. Press
the
PLAY button.
Make sure the AUDIO/VIDEO input/output connections are correct.
The DTS DVD cannot be decoded to have speaker output.
The unit has overheated. Shut it off for 30 minutes to allow it to cool
down.
The region number of the disc doesn't match the region number of
this unit.
No picture.
•
The picture is not clear.
• The DVD is dirty. Gently clean the disc.
• The disc is scratched.
• Please adjust the LCD's brightness, contrast and color using the TV
MODE button on the remote control.
• The plugs and jacks are dirty. Wipe them with a cloth slightly moistened
with alcohol.
• Clean the disc.
• There is no disc inside the unit ("No Disc" appears on the screen).
• Insert the disc correctly with the graphics facing up.
• Clean the disc.
• A non-NTSC disc has been inserted, or the disc region number does
not match the region number of the unit.
• Condensation may have formed inside the unit due to a sudden
change in temperature. Wait about an hour for it to clear and try again.
Loud hum or noise is
heard.
The disc does not play.
Specifications and external appearance are subject to change without notice.
CUSTOMIZING THE FUNCTION SETTINGS
Language
OSD Language
1. Press the SETUP button in stop mode.
2. Press the button to select OSD Language.
/
button to shift and
3. Press the ENTER button, then the
change the Language.
4. Press the ENTER button.
5. Press the SETUP or RETURN button to exit the menu.
Subtitle
1. Press the SETUP button in stop mode.
2. Press the button, then the / button to select Subtitle.
3. Press the ENTER button, then the
/
button to shift and
change the Language.
4. Press the ENTER button.
5. Press the SETUP or RETURN button to exit the menu.
Notes:
• Some DVDs may be set to display subtitles in a language other than the one you selected. A
prior subtitle language may be programmed on the disc.
• Some DVDs allow you to change subtitle selections only via the disc menu. If this is the case,
press the MENU button and choose the appropriate subtitle language from the selection on
the disc menu.
Audio
1. Press the SETUP button in stop mode.
2. Press the button, then the / button to select Audio.
/
button until your
3. Press the ENTER button, then the
preferred Audio is displayed.
4. Press the ENTER button.
5. Press the SETUP or RETURN button to exit the menu.
Note: Some DVDs may not play in the language you selected. A prior language may be
programmed on the disc.
DVD Menu
1. Press the SETUP button in stop mode.
2. Press the button, then the / button to select DVD Menu.
/
button until your
3. Press the ENTER button, then the
preferred DVD Menu language is displayed.
4. Press the ENTER button.
5. Press the SETUP or RETURN button to exit the menu.
Note: Some DVDs may not include your pre-selected language. In this case, the DVD player
automatically displays disc menus consistent with the disc's initial language setting.
Video
Aspect Ratio
1.
2.
3.
4.
Press the SETUP button in stop mode.
Press the / button to select Video.
Press the button, then the / button to select Aspect Ratio.
/
button to shift and
Press the ENTER button, then the
change the aspect ratio.
5. Press the ENTER button.
6. Press the SETUP or RETURN button to exit the menu.
Notes:
• The displayable picture size is preset on the DVD. Therefore, the playback picture of some
DVDs may not conform to the picture size you select.
• When you play DVDs recorded in the 4:3 picture size only, the playback picture always appears
in the 4:3 picture size regardless of the Aspect Ratio setting.
• Select 16:9 to conform the LCD screen on the unit. Always be sure that your Aspect Ratio
conforms to the actual TV in use if you connect the unit to a TV.
View Mode
1.
2.
3.
4.
Press the SETUP button in stop mode.
Press the / button to select Video.
Press the button, then the / button to select View Mode.
/
button to shift and
Press the ENTER button, then the
change the View Mode.
5. Press the ENTER button.
6. Press the SETUP or RETURN button to exit the menu.
Fill
Original
Auto Fit
Fill the screen with decoded image.
Display image as it’s original size.
Automatically fit the decoded image on screen without distortion. Black bars will be
present on top/bottom or left/right of screen.
Pan Scan Select when a standard 4:3 TV is connected. Displays pictures cropped to fill your
TV screen. Sides of the picture are cut off.
Note: Depending on the DVDs, you may not be able to view the mode as selected.
Misc
Use Default Settings
1. Press the SETUP button in stop mode.
2. Press the / button to select Misc.
3. Press the button, then press the / button to select “Use
Default Settings” dialogue box.
4. Press the ENTER button then press the / button to select
“Yes”. Press the ENTER button. The original setting will be
restored. The unit will exit setting menu automatically and reload the disc in the disc tray.
Note: It will take 3-5 seconds to reset the DVD player to the factory default.
Screen Saver
1. Press the SETUP button in stop mode.
2. Press the / button to select Misc.
3. Press the button, then press the / button to select Screen
Saver.
4. Press the ENTER button, then press the / button to change
the On/Off mode.
5. Press the ENTER button.
6. Press the SETUP or RETURN button to exit the menu.
811-637091W010
Printed in China
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
