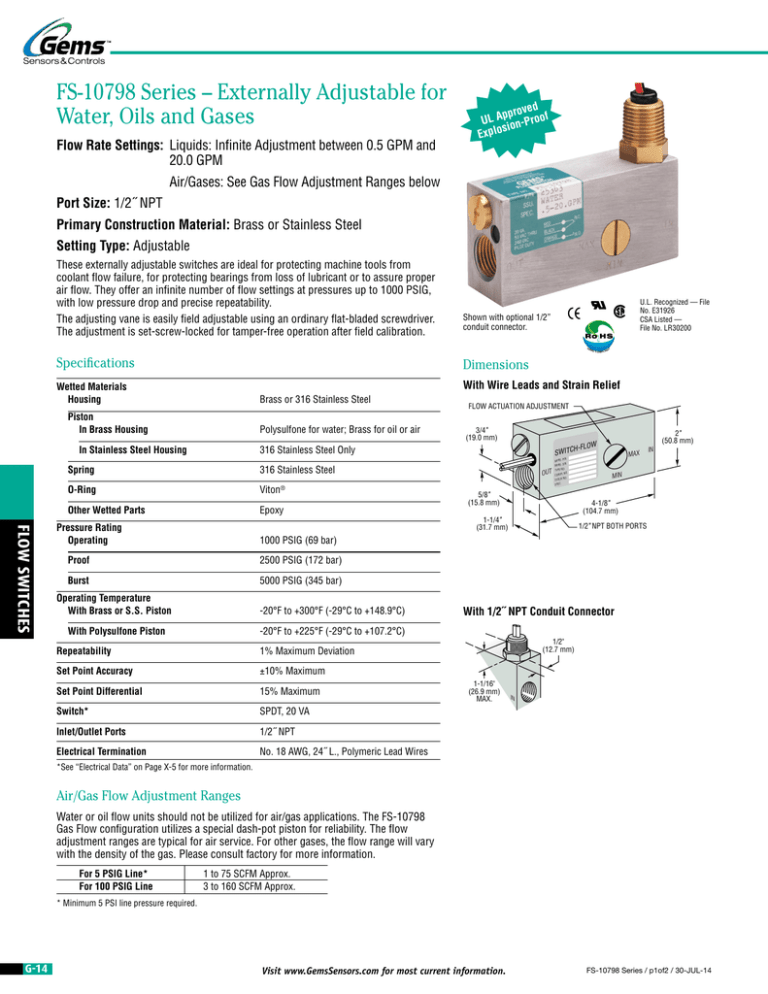

FS-10798 Series – Externally Adjustable for Water, Oils and Gases Port Size:

FS-10798 Series – Externally Adjustable for Water, Oils and Gases Port Size:
FS-10798 Series – Externally Adjustable for
Water, Oils and Gases
Flow Rate Settings: Liquids: Infinite Adjustment between 0.5 GPM and
20.0 GPM
ed
pprov
UL A on-Proof
si
Explo
Air/Gases: See Gas Flow Adjustment Ranges below
Port Size: 1/2˝ NPT
Primary Construction Material: Brass or Stainless Steel
Setting Type: Adjustable
These externally adjustable switches are ideal for protecting machine tools from
coolant flow failure, for protecting bearings from loss of lubricant or to assure proper
air flow. They offer an infinite number of flow settings at pressures up to 1000 PSIG,
with low pressure drop and precise repeatability.
The adjusting vane is easily field adjustable using an ordinary flat-bladed screwdriver.
The adjustment is set-screw-locked for tamper-free operation after field calibration.
Shown with optional 1/2”
conduit connector.
Ro H S
G
Specifications
U.L. Recognized — File
No. E31926
CSA Listed —
File No. LR30200
EM
®
S CO PLIAN
M
Dimensions
T
Ro H S
G
EM
®
S CO PLIAN
M
T
With Wire Leads and Strain Relief
Wetted Materials
Housing
Brass or 316 Stainless Steel
Piston
In Brass Housing
Polysulfone for water; Brass for oil or air
In Stainless Steel Housing
FLOW ACTUATION ADJUSTMENT
3/4"
(19.0 mm)
316 Stainless Steel Only
Spring
316 Stainless Steel
O-Ring
Viton
Other Wetted Parts
Epoxy
®
FLOW SWITCHES
Pressure Rating
Operating
2"
(50.8 mm)
LOW
ITCH-F
SW
OUT
P/N
MFRS.
S/N
MFRS.
.
TYPE NO
NO.
R.
NT
CO
NO.
STOCK
SPEC.
5/8"
(15.8 mm)
MAX
IN
MIN
4-1/8"
(104.7 mm)
1-1/4"
(31.7 mm)
1/2" NPT BOTH PORTS
1000 PSIG (69 bar)
Proof
2500 PSIG (172 bar)
Burst
5000 PSIG (345 bar)
Operating Temperature
With Brass or S.S. Piston
-20°F to +300°F (-29°C to +148.9°C)
With Polysulfone Piston
-20°F to +225°F (-29°C to +107.2°C)
Repeatability
1% Maximum Deviation
Set Point Accuracy
±10% Maximum
Set Point Differential
15% Maximum
Switch*
SPDT, 20 VA
Inlet/Outlet Ports
1/2˝ NPT
Electrical Termination
No. 18 AWG, 24˝ L., Polymeric Lead Wires
With 1/2˝ NPT Conduit Connector
1/2"
(12.7 mm)
1-1/16"
(26.9 mm)
MAX.
IN
*See “Electrical Data” on Page X-5 for more information.
Air/Gas Flow Adjustment Ranges
Water or oil flow units should not be utilized for air/gas applications. The FS-10798
Gas Flow configuration utilizes a special dash-pot piston for reliability. The flow
adjustment ranges are typical for air service. For other gases, the flow range will vary
with the density of the gas. Please consult factory for more information.
For 5 PSIG Line*
For 100 PSIG Line
1 to 75 SCFM Approx.
3 to 160 SCFM Approx.
* Minimum 5 PSI line pressure required.
G-14
Visit www.GemsSensors.com for most current information.
FS-10798 Series / p1of2 / 30-JUL-14
PISTON TYPE
How It Works
HERMETICALLY SEALED
SPDT SWITCH
0.5 GPM
PERMANENT MAGNET
PISTON
2.5
PRESSURE DROP (PSID)
SPRING
Pressure Drop - Typical
HOUSING
VALVE ADJUSTMENT
LOCKING SET SCREW
2.0
1.5
Part No. 25357
1.0
0.5
0
FLOW ADJUSTMENT
VANE
0
0.5
1.0
2.0
FLOW RATE - GPM
MAGNETIC SWITCH
10 GPM and 20 GPM
PRESSURE DROP (PSID)
16
ADJUSTMENT
An externally rotatable vane is positioned in the main flow path within the unit. The
magnet carrier piston is located in a bypass flow chamber. Pressure differential,
caused by flow around the adjusting vane, displaces the spring-biased piston which
actuates a hermetically sealed SPDT reed switch within the unit.
12
Part No. 25358
8
4
0
0
5
10
15
20
25
How To Order – Standard Models
Specify Part Number based on desired media, piston material and electrical termination.
Housing
Liquids
Gases
Part Numbers
With 1/2˝
With Lead
Conduit
Wires
Connector
Materials
Media
Piston
Brass (for Oils)
Brass
61205
49073
FS-10798 switches are U.L. Approved for Class I,
Division 2, Groups A, B, C, D hazardous locations.
U.L. Approved — File No. E183854
Standard Wiring Color Code
25357
25363
316 Stainless Steel
25358
25364
Wire Color
Brass
25359
25365
Orange
N.O.
316 Stainless Steel
25360
25366
Black
Common
Red
N.C.
Polysulfone (for Water)
30
FLOW RATE - GPM
Tests conducted with units in horizontal position with water at +70°F (21°C).
Data will vary slightly for vertically mounted units.
FLOW SWITCHES
Flow diagram with switch
shown actuated.
PISTON
Notes:
1. Temperature changes will slightly affect the standard water or gas flow settings listed.
Oil flow settings will vary with temperature and viscosity.
2. Use of 50 micron filtration is recommended.
Terminal
­– Stock Items.
FS-10798 Series / p2of2 / 30-JUL-14
Visit www.GemsSensors.com for most current information.
G-15
