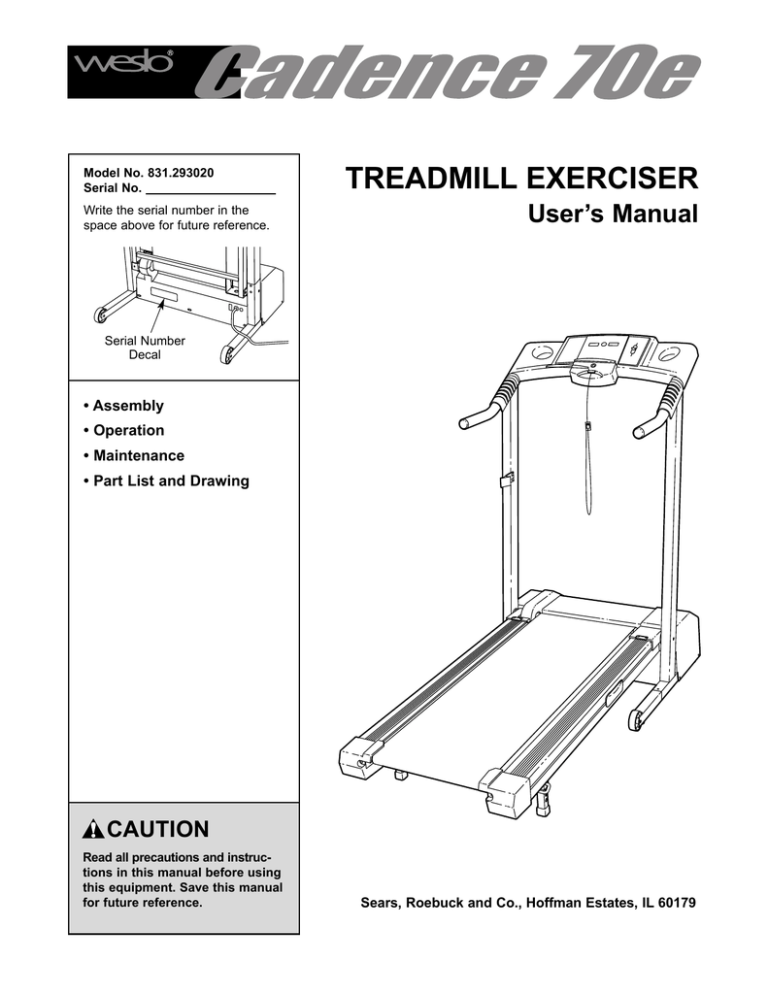

Model No. 831.293020

Serial No.

Write the serial number in the space above for future reference.

TREADMILL EXERCISER

User’s Manual

Serial Number

Decal

• Assembly

• Operation

• Maintenance

• Part List and Drawing

CAUTION

Read all precautions and instructions in this manual before using this equipment. Save this manual for future reference.

Sears, Roebuck and Co., Hoffman Estates, IL 60179

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

FULL 90 DAY WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

Note: An EXPLODED DRAWING and a PART LIST are attached in the center of this manual.

IMPORTANT PRECAUTIONS

WARNING:

To reduce the risk of burns, fire, electric shock, or injury to persons, read the following important precautions and information before operating the treadmill.

1. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions.

2. Use the treadmill only as described.

3. Place the treadmill on a level surface, with at least eight feet of clearance behind it and two feet on each side. Do not place the treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.

4. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage or covered patio, or near water.

5. Do not operate the treadmill where aerosol products are used or where oxygen is being administered.

6. Keep children under the age of 12 and pets away from the treadmill at all times.

7. The treadmill should not be used by persons weighing more than 250 pounds.

8. Never allow more than one person on the treadmill at a time.

9. Wear suitable exercise clothing when using the treadmill. Do not wear loose clothing that could become caught in the treadmill.

Athletic support clothes are recommended for both men and women. Always wear athletic shoes. Never use the treadmill with bare feet, wearing only stockings, or in sandals.

10. When connecting the power cord (see page 8), plug the power cord into a surge suppressor

(not included) and plug the surge suppressor into a grounded circuit capable of carrying 15 or more amps. No other appliance should be on the same circuit. Do not use an extension cord.

11. Use only a single-outlet surge suppressor that meets all of the specifications described on page 8. To purchase a surge suppressor, see your local Sears or call 1-800-366-7278 and order part number 146148.

12. Failure to use a properly functioning surge suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change speed or stop unexpectedly, which may result in a fall and serious injury.

13. Keep the power cord and the surge suppressor away from heated surfaces.

14. Never move the walking belt while the power is turned off. Do not operate the treadmill if the power cord or plug is damaged, or if the treadmill is not working properly. (See page 4 if the treadmill is not working properly.)

15. Never start the treadmill while you are standing on the walking belt. Always hold the handrails while using the treadmill.

2

16. The treadmill is capable of high speeds.

Adjust the speed in small increments to avoid sudden jumps in speed.

17. Never leave the treadmill unattended while it is running. Always remove the key and unplug the power cord when the treadmill is not in use.

18. Do not attempt to raise, lower, or move the treadmill until it is properly assembled. (See

ASSEMBLY on page 5, and HOW TO MOVE

THE TREADMILL on page 11.) You must be able to safely lift 45 pounds (20 kg) in order to raise, lower, or move the treadmill.

19. Do not change the incline of the treadmill by placing objects under the treadmill.

20. When folding or moving the treadmill, make sure that the storage latch is fully closed.

21. Inspect and properly tighten all parts of the treadmill regularly.

22. Never drop or insert any object into any opening.

23.

DANGER:

Always unplug the power cord immediately after use, before cleaning the treadmill, and before performing the maintenance and adjustment procedures described in this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the procedures in this manual should be performed by an authorized service representative only.

24. This treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, or institutional setting.

WARNING:

Before beginning this or any exercise program, consult your physician.

This is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. Sears assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

SAVE THESE INSTRUCTIONS

The decals shown have been placed on your treadmill. If a decal is missing, or if it is not legible, please call toll-free 1-800-999-3756 to order a free replacement decal

(see the front cover of this manual). Apply the decal in the location shown. Note:

The decals are not shown at actual size.

•Hazardous Voltage

•Risk of Electric Shock

•Unplug Treadmill before Assembly

/Disassembly.

3

BEFORE YOU BEGIN

Thank you for selecting the WESLO ® CADENCE 70e treadmill. The CADENCE 70e treadmill combines advanced technology with innovative design to let you enjoy an excellent form of cardiovascular exercise in the convenience and privacy of your home. And when you’re not exercising, the unique CADENCE 70e treadmill can be folded up, requiring less than half the floor space of other treadmills.

For your benefit, read this manual carefully before

using the treadmill. If you have questions after reading this manual, call 1-800-4-MY-HOME ® (1-800-469-

4663).To help us assist you, please note the product model number and serial number before calling. The model number of the treadmill is 831.293020. The serial number can be found on a decal attached to the treadmill (see the front cover of this manual for the location).

Before reading further, please review the drawing below and familiarize yourself with the labeled parts.

Console

Handrail

Storage Latch

Upright

Water Bottle Holder

(Bottle not included)

Key/Clip

FRONT

Walking Belt

Foot Rails

BACK

Rear Roller

Adjustment Bolts

Incline Leg

Circuit Breaker

Power Cord

RIGHT SIDE

4

ASSEMBLY

Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed.

Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.

Assembly requires the included allen wrenches and your own phillips screwdriver , wire cutters , and needlenose pliers .

To identify small parts, use the PART IDENTIFICATION CHART attached in the center of this manual.

Note: If a part is not in the parts bag, first check to see if it has been pre-assembled. If a part is missing,

call toll-free 1-800-999-3756.

1. Make sure that the power cord is unplugged.

1

•Hazardous Voltage

•Risk of Electric Shock

•Unplug Treadmill before Assembly

/Disassembly.

With the help of a second person, carefully raise the

Uprights (38) until the treadmill is in the position shown.

Cut the tie (not shown) off the right Upright (38).

38

2. Insert one of the Extension Legs (15) into the treadmill as shown. Make sure that the Base Pad (33) is on the indicated side. Note: It may be helpful to tip the Uprights

(38) in the direction shown by the arrow as you insert the Extension Leg.

Attach the Extension Leg (15) with an Extension Leg

Screw (14). Make sure to push on the head of the

Extension Leg Screw while tightening it.

Attach the other Extension Leg (15) in the same way.

2

38

33

15

14

5

3. If there are plastic ties in the brackets on the Handrails

(4), remove the plastic ties. Hold one of the Handrails near the right Upright (38) as shown. Insert the Wire

Harness (53) up through the bracket on the Handrail and out of the round hole in the side of the Handrail. If necessary, use needlenose pliers to pull the Wire Harness out of the hole. Be careful not to damage the Wire

Harness.

Insert the brackets on the Handrails (4) into the upper ends of the Uprights (38).

Finger tighten four 1” Bolts (16) with Handrail Washers

(40) into the Uprights (38) and the Handrails (4).

3

16

4

40

38

40

16

Connectors

53

4

Bracket

40

16

16

38

4. Set the Console Base (87) on the Handrails (4). Thread four 3/4” Screws (5) into the Handrails and the Console

Base. After you have started all four Screws, tighten the

Screws until they are snug; do not overtighten the

Screws.

Firmly tighten, but do not overtighten, the 1” Bolts

(not shown) used in step 3.

Insert the Wire Harness (53) through the two indicated plastic ties on the Console Base (87) and up through the hole in the Console Base.

4

4

53

5

Plastic Ties

87

5

4

5. Insert the Battery Cover (12) into the Console Base (87), with the hinges in the position shown. The Battery Cover should pivot down, away from the Console Base.

5

Hinges

87

12

6

6. Hold the Console (11) near the Console Base (87).

Touch the right Handrail (4) to discharge any static.

Locate the two wires in the Wire Harness (53) that have

L-shaped connectors on the ends. Press the connectors onto the two tabs on the switch shown in inset drawing

6a. Connect the other two wires in the Wire Harness to the back of the Console (87) in the locations shown by the arrows in drawing 6. If the connectors do not fit

together easily, rotate them and then connect them.

6

87

53

11

6a

Tabs

4

7. Set the Console (11) in the Console Base (87). Make sure

that no wires are pinched. Insert as much of the Wire

Harness as possible (53) down the hole in the right

Handrail (4). Securely tighten the plastic tie nearest the

right Handrail. Pull any excess Wire Harness between the plastic ties tight and tighten the other plastic tie. Cut off the ends of the plastic ties. Cover the Wire Harness with the Wire Cover (10), and route the Wire Harness out of the hole in the side of the Wire Cover. Attach the Wire Cover to the back of the Console Base with two 3/4” Screws (5).

Do not overtighten the Screws.

Make sure that no wires are pinched before you attach the Console (11) to the Console Base (87).

Tighten the remaining four 3/4” Screws (5) into the

Console Base and the Console. Do not overtighten the

Screws.

7

10

Ties

53

5

4

87

5

8. Attach the Storage Latch (66) to the left Upright (38) with two 3/4” Screws (5).

8

5

11

66

38

5

9. Make sure that all parts used in assembly are properly tightened before you use the treadmill. Keep the included allen wrench in a secure place. The allen wrench is used to adjust the walking belt (see page

13). To protect the floor or carpet, place a mat under the treadmill.

7

OPERATION AND ADJUSTMENT

THE PERFORMANT LUBE TM WALKING BELT

Your treadmill features a walking belt coated with

PERFORMANT LUBE TM , a high-performance lubricant.

IMPORTANT: Never apply silicone spray or other substances to the walking belt or the walking platform. Such substances will deteriorate the walking belt and cause excessive wear.

HOW TO PLUG IN THE POWER CORD

DANGER:

Improper connection of the equipment-grounding conductor can result in an increased risk of electric shock.

Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product—if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

having an equipment-grounding conductor and a grounding plug. Plug the power cord into a surge

suppressor, and plug the surge suppressor into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. Important: The treadmill is not compatible with GFCI-equipped outlets.

This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illustrated in drawing 1 below. A temporary adapter that looks like the adapter illustrated in drawing 2 may be used to connect the surge suppressor to a 2-pole receptacle as shown in drawing 2 if a properly grounded outlet is not available.

1

Grounded Outlet Box

Surge Suppressor

Grounding Pin

Your treadmill, like any other type of sophisticated electronic equipment, can be seriously damaged by sudden voltage changes in your home’s power.

Voltage surges, spikes, and noise interference can result from weather conditions or from other appliances being turned on or off. To decrease the pos-

sibility of your treadmill being damaged, always use a surge suppressor with your treadmill (see drawing 1 at the right). To purchase a surge suppressor, see your local Sears or call 1-800-366-

7278 and order part number 146148.

Use only a single-outlet surge suppressor that is

UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a UL suppressed voltage rating of 400 volts or less and a minimum surge dissipation of 450 joules. The surge suppressor must be electrically rated for 120 volts AC and 15 amps. There must be a monitoring light on the surge suppressor to indicate whether it is functioning properly. Failure to use a properly functioning surge suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change speed or stop unexpectedly, which may result in a fall and serious injury.

This product must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord

2

Grounding Pin

Grounded Outlet

Grounding Plug

Grounded Outlet Box

Lug

Metal Screw

Adapter

Surge Suppressor

The temporary adapter should be used only until a properly grounded outlet (drawing 1) can be installed by a qualified electrician.

The green-colored rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover.

Whenever the adapter is used it must be held in place by a metal screw. Some 2-pole receptacle outlet

box covers are not grounded. Contact a qualified electrician to determine if the outlet box cover is grounded before using an adapter.

8

DIAGRAM OF THE CONSOLE

Displays

Speed Control

Note: If there is a thin sheet of clear plastic on the face of the console, remove it before operating the console.

CAUTION:

Before operating the console, read the following precautions.

• Do not stand on the walking belt when turning on the power.

• Always wear the clip (see the drawing below) while using the treadmill. When the key is removed from the console, the walking belt will stop.

• Adjust the speed in small increments.

• To reduce the possibility of electric shock, keep the console dry. Avoid spilling liquids on the console. Put only sealable water bottles in the water bottle holders.

BATTERY INSTALLATION

The console requires two

"AA" batteries

(not included).

Alkaline batteries are recommended.

To install bat-

12

12

Batteries teries, open the battery cover (12) beneath the

Tab console as shown. Press two batteries into the console. Make sure that the

negative (–) ends of the batteries are touching the

springs. Close the battery cover, push up on the tab, and then push the tab forward as shown in the inset drawing. Make sure that the tab locks into place.

STEP-BY-STEP CONSOLE OPERATION

Before operating the console, make sure that the power cord is properly plugged in (see page 8).

Step onto the foot rails of the treadmill. Find the clip attached to the key, and slide the clip onto the waistband of your

Key clothes. Next, insert the key

Clip fully into the console. Test the clip by carefully taking a few steps

backward until the key is pulled from the console.

If the key is not pulled from the console, adjust the position of the clip as needed.

9

Follow the steps below to operate the console.

1

Insert the key fully into the console.

Inserting the key will not turn on the displays. The displays will turn on when the ON/RESET button is pressed or when the walking belt is started. Note:

If you just installed batteries, the displays will already be on.

2

Reset the speed control and start the walking belt.

Slide the speed control down to the RESET position. Note: Each

time the walking belt is stopped, the speed control must be moved to the RESET position before the walking belt can be restarted.

Next, slowly slide the speed control up until the walking belt begins to move at slow speed.

Carefully step onto the walking belt and begin walking. Change the speed of the walking belt as desired by sliding the speed control.

To stop the walking belt, step onto the foot rails and slide the speed control to the RESET position.

Note: During the first few minutes that the treadmill is used, inspect the alignment of the walking belt and align it if necessary (see page 13).

of the walking belt, in miles per hour. Every few seconds, the display will change from one number to the next, as shown the the arrows in the display.

To reset the displays, press the ON/RESET button.

4

When you are finished exercising, stop the walking belt and remove the key.

Step onto the foot rails, slide the speed control to the RESET position, and remove the key from the console. The displays will turn off a few minutes after the key is removed. Note: Any time that the

walking belt is stopped and the ON/RESET button is not pressed for a few minutes, the displays will automatically turn off.

HOW TO CHANGE THE INCLINE OF THE TREADMILL

To vary the intensity of your exercise, the incline of the treadmill can be changed. There are four incline levels.

Before changing the incline, remove the key and

unplug the power cord. Next, fold the treadmill to the storage position (see HOW TO FOLD THE TREAD-

MILL FOR STORAGE on page 11).

To change the incline, first remove the incline pin from one of the incline legs as shown below. Adjust the incline leg to the desired height and fully reinsert the incline pin. Make sure that the incline pin is in the

“locked” position shown in the inset drawing. Adjust the other incline leg in the same way. Make sure that

both incline pins are inserted from the direction shown.

Incline

Pin

3

Monitor your progress with the displays.

TIME/DISTANCE dis-

play—This display shows the elapsed time and the distance that

Arrow you have walked or run, in miles. Every few seconds, the display will change from one number to the other, as shown by the arrows in the display.

CALS/FAT CALS/

SPEED display—This display shows the approximate numbers

Arrow of calories and fat calories you have burned.

(See FAT BURNING on page 14.) In addition, the display shows the speed

Incline

Pin

Incline

Pin

CAUTION: Before using the treadmill, make sure that both incline legs are at the same height. Do not use the treadmill with the incline pins removed.

After you have adjusted the incline legs, lower the treadmill (see HOW TO LOWER THE TREADMILL

FOR USE on page 11).

10

HOW TO FOLD AND MOVE THE TREADMILL

HOW TO FOLD THE TREADMILL FOR STORAGE

Before folding the treadmill, unplug the power cord.

CAUTION: You must be able to safely lift 45 pounds (20 kg) in order to raise, lower or move the treadmill.

1. Hold the treadmill with your hands in the locations shown at the right. To decrease the possibility of injury, bend

your legs and keep your back straight. As you raise the treadmill, make sure to lift with your legs rather

than your back. Raise the treadmill about halfway to the vertical position.

1

2. Move your right hand to the position shown and hold the treadmill firmly. Raise the treadmill until the storage latch closes over the catch. Make sure that the storage latch

is fully engaged over the catch.

To protect the floor or carpet from damage, place a mat under the treadmill. Keep the treadmill out of direct sunlight. Do not leave the treadmill in the storage position in temperatures above 85° Fahrenheit.

2

Closed

Storage

Latch

Catch

HOW TO MOVE THE TREADMILL

Before moving the treadmill, convert the treadmill to the storage position as described above. Make sure that the

storage latch is fully engaged over the catch.

1. Hold the upper ends of the handrails. Place one foot on one of the front wheels as shown.

2. Tilt the treadmill back until it rolls freely on the front wheels. Carefully move the treadmill to the desired location. To reduce the risk of injury, use extreme caution

while moving the treadmill. Do not attempt to move the treadmill over an uneven surface.

3. Place one foot on a front wheel, and carefully lower the treadmill until it is resting in the storage position.

Base

Front

Wheels

HOW TO LOWER THE TREADMILL FOR USE

1. Refer to drawing 2 above. Hold the upper end of the treadmill with your right hand as shown. Press the storage latch and hold it. Pivot the treadmill until the frame and foot rail are past the storage latch.

2. Refer to drawing 1. Hold the treadmill firmly with both hands, and lower the treadmill to the floor. Do not

drop the treadmill frame to the floor. CAUTION: To decrease the possibility of injury, bend your legs and keep your back straight.

11

MAINTENANCE AND TROUBLESHOOTING

Most treadmill problems can be solved by following the simple steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, call toll-free 1-800-4-MY-HOME ®

(1-800-469-4663).

PROBLEM: The power does not turn on

SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor is plugged into a properly grounded outlet (see page 8). Use only a single-outlet surge suppressor that meets all of the specifications described on page 8. Important: The treadmill is not compatible with GFCI-equipped outlets. b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.

c. Check the circuit breaker located on the treadmill frame near the power cord. If the switch protrudes as shown, the circuit breaker has tripped.

To reset the circuit breaker, wait for five minutes and then press the switch back in. c

Tripped

Reset

PROBLEM: The power turns off during use

SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see 1. c. above). If the circuit breaker has tripped, wait for five minutes and then press the switch back in.

b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for five minutes, and then plug it back in.

c. Remove the key from the console. Reinsert the key fully into the console. d. If the treadmill still will not run, please call toll-free 1-800-4-MY-HOME ® (1-800-469-4663).

PROBLEM: The displays of the console do not function properly

SOLUTION: a. Check the batteries in the console (see page 9). Most problems are the result of drained batteries.

b. Remove the key from the console and UNPLUG THE

POWER CORD. Remove the screws from the hood.

Carefully remove the hood. Locate the Reed Switch

(13) and the Magnet (63) on the left side of the Pulley

(75). Turn the Pulley until the Magnet is aligned with the Reed Switch. Make sure that the gap between

the Magnet and the Reed Switch is about 1/8”. If necessary, loosen the Reed Switch Screw (89) and move the Reed Switch slightly. Retighten the Screw.

Re-attach the hood, and run the treadmill for a few minutes to check for a correct speed reading. b

Top

89

13

View

1/8”

63

75

12

PROBLEM: The walking belt slows when walked on

SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 8.

b. If the walking belt is overtightened, treadmill performance may decrease and the walking belt may become damaged. Remove the key and UNPLUG

THE POWER CORD. Using the allen wrench, turn both rear roller adjustment bolts counterclockwise,

1/4 of a turn. When the walking belt is properly tightened, you should be able to lift each side of the walking belt 2 to 3 inches off the walking platform.

Be careful to keep the walking belt centered. Plug in the power cord, insert the key and run the treadmill for a few minutes. Repeat until the walking belt is properly tightened.

b

2”–3”

Rear Roller

Adjustment Bolts c. If the walking belt still slows when walked on, please call toll-free 1-800-4-MY-HOME ®

469-4663).

(1-800-

PROBLEM: The walking belt is off-center or slips when walked on

SOLUTION: a. If the walking belt is off-center, first remove the key and UNPLUG THE POWER CORD. If the walking

belt has shifted to the left, use the allen wrench to turn the left rear roller bolt clockwise 1/2 of a turn; if

the walking belt has shifted to the right, turn the bolt counterclockwise 1/2 of a turn. Be careful not to overtighten the walking belt. Plug in the power cord, insert the key, and run the treadmill for a few minutes.

Repeat until the walking belt is centered. b. If the walking belt slips when walked on, first remove the key and UNPLUG THE POWER CORD. Using the allen wrench, turn both rear roller bolts clockwise,

1/4 of a turn. When the walking belt is correctly tightened, you should be able to lift each side of the walking belt 2 to 3 inches off the walking platform. Be careful to keep the walking belt centered. Plug in the power cord, insert the key and carefully walk on the treadmill for a few minutes. Repeat until the walking belt is properly tightened.

a b

13

CONDITIONING GUIDELINES

Aerobic Exercise

WARNING:

Before beginning this or any exercise program, consult your physician. This is especially important for individuals over the age of 35 or individuals with pre-existing health problems.

The following guidelines will help you to plan your exercise program. For more detailed exercise information, obtain a reputable book or consult your physician.

If your goal is to strengthen your cardiovascular system, your exercise must be “aerobic.” Aerobic exercise is activity that requires large amounts of oxygen for prolonged periods of time. This increases the demand on the heart to pump blood to the muscles, and on the lungs to oxygenate the blood. For aerobic exercise, adjust the speed and incline of the treadmill until your heart rate is near the highest number in your training zone. It may also be helpful to set the speed control on the console to AEROBIC to help you maintain the proper intensity level. (See page 9.)

EXERCISE INTENSITY

High Performance Athletic Conditioning

Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the desired results is to exercise with the proper intensity. The proper intensity level can be found by using your heart rate as a guide. The chart below shows recommended heart rates for fat burning and aerobic exercise.

If your goal is high performance athletic conditioning, set the speed control on the console to PERFOR-

MANCE to help you maintain the proper intensity level.

(See page 9.) Note: During the first few weeks of your exercise program, keep your heart rate near the low end of your training zone.

To find the proper heart rate for you, first find your age at the bottom of the chart (ages are rounded off to the nearest ten years). Next, find the three numbers at the top of your age. The three numbers are your “training zone.” The lower two numbers are recommended heart rates for fat burning; the highest number is the recommended heart rate for aerobic exercise.

Fat Burning

To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses easily accessible carbohydrate calories for energy. Only after the first few minutes does your body begin to use stored fat calories for energy. If your goal is to burn fat, adjust the speed and incline of the treadmill until your heart rate is near one of the lower two numbers in your training zone. It may also be helpful to set the speed control on the console to FAT BURN to help you maintain the proper intensity level. (See page 9.)

HOW TO MEASURE YOUR HEART RATE

To measure your heart rate, stop exercising and place two fingers on your wrist as shown. Take a six-second heartbeat count, and multiply the result by ten to find your heart rate. (A six-second count is used because your heart rate drops quickly when you stop exercising.) If your heart rate is too high or too low, adjust the speed or incline of the treadmill accordingly.

WORKOUT GUIDELINES

A well-rounded workout includes the following three important parts:

A Warm-up

Start each workout with 5 to 10 minutes of stretching and light exercise (see SUGGESTED STRETCHES on page 15). A proper warm-up increases your body temperature, heart rate, and circulation in preparation for exercise.

14

Training Zone Exercise

After warming up, increase the intensity of your exercise until your pulse is in your training zone for 20 to

60 minutes. (During the first few weeks of your exercise program, do not keep your pulse in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise—never hold your breath.

A Cool-down

Finish each workout with 5 to 10 minutes of stretching to cool down. This will increase the flexibility of your muscles and will help to prevent post-exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three workouts each week, with at least one day of rest between workouts. After a few months, you may complete up to five workouts each week if desired.

The key to success is to make exercise a regular and enjoyable part of your everyday life.

SUGGESTED STRETCHES

The correct form for several basic stretches is shown at the right.

Move slowly as you stretch—never bounce.

1. Toe Touch Stretch

Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Hamstrings, back of knees, and back.

2. Hamstring Stretch

Sit with one leg extended. Bring the sole of the opposite foot toward you and rest it against the inner thigh of your extended leg.

Reach toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Hamstrings, lower back, and groin.

3. Calf/Achilles Stretch

With one leg in front of the other, reach forward and place your hands against a wall. Keep your back leg straight and your back foot flat on the floor. Bend your front leg, lean forward and move your hips toward the wall. Hold for 15 counts, then relax. Repeat 3 times for each leg. To cause further stretching of the achilles tendons, bend your back leg as well. Stretches: Calves, achilles tendons, and ankles.

4. Quadriceps Stretch

With one hand against a wall for balance, reach back and grasp one foot with your other hand. Bring your heel as close to your buttocks as possible. Hold for 15 counts, then relax. Repeat 3 times for both legs. Stretches: Quadriceps and hip muscles.

5. Inner Thigh Stretch

Sit with the soles of your feet together and your knees outward.

Pull your feet toward your groin area as far as possible. Hold for

15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip muscles.

15

3

5

1

2

4

PART IDENTIFICATION CHART

Remove this chart and use it to identify small parts during assembly. Save this chart and the EXPLODED DRAWING/PART LIST for future reference.

3/4” Screw (5)–12

1” Bolt (16)–4

Handrail Washer

(40)–4

Extension Leg Screw (14)–2

PART LIST—Model No. 831.293020

R0203A

Key No. Qty.

29

30

31

32

25

26

27

28

21

22

23

24

17

18

19

20

13

14

15

16

9

10

11

12

7

8

5

6

3

4

1

2

41

42

43

44*

45

46

47

48

49*

37

38

39

40

33

34

35

36

4

2

1

1

1

1

5

17

1

1

1

1

1

1

4

1

2

4

1

2

1

1

2

1

24

1

1

2

2

2

4

6

1

1

1

1

1

6

2

2

2

4

8

2

1

1

2

4

1

Description

Front Endcap Screw

Star Washer

Plastic Tie

Handrail

3/4” Screw

Key/Clip

Hole Plug

Incline Leg

Handrail Endcap

Wire Cover

Console

Battery Cover

Reed Switch

Extension Leg Screw

Extension Leg

1” Bolt

Cage Nut

Motor Belt

Motor Tension Bolt

Motor Tension Washer

Tension Star Washer

Motor Pivot Nut

Motor/Pulley/Flywheel/Fan

Pulley/Flywheel/Fan

Motor

Motor Pivot Bolt

8” Cable Tie

Screw

Hood

Hood Shield

1” Tek Screw

Isolator Fastener

Base Pad

Motor Belly Pan

Controller

Frame Pivot Bolt

Frame Pivot Washer

Upright/Base

Belt Guide Screw

Roller Washer/Handrail Washer

Wheel Bolt

Wheel

Frame Nut/Wheel Nut

Extension Leg Assembly

Circuit Breaker

Grommet

Power Cord

Motor Tension Nut

Console Assembly

Key No. Qty.

Description

78

79

80

81

74

75

76

77

70

71

72

73

66

67

68

69

62

63

64

65

58

59

60

61

54

55

56

57

50

51

52

53

90

91

#

#

#

#

86

87

88

89

82

83

84

85

* Includes all parts shown in the box

Note: “#” indicates a non-illustrated part.

1

1

2

1

1

1

10

1

2

1

1

1

3

4

1

1

2

2

1

1

2

1

2

1

1

1

1

1

1

1

1

4

1

1

1

1

1

1

1

1

1

1

1

1

1

1

Right Foot Rail

Platform Screw

Front Roller Adj. Bolt

Wire Harness

Speed Pot

Speed Knob

5/32” Allen Wrench

Choke

Belt Guide

Console Warning Decal

Isolator

Latch Catch

Frame Spacer (Left)

Magnet

Incline Pin

Endcap Washer

Latch

Walking Belt

Wire Tie

Wire Tie Clamp

Frame Spacer (Right)

Walking Platform

Endcap

Left Foot Rail

Sensor Clip

Front Roller/Pulley

Electronic Screw

Ground Wire

Rear Roller Adj. Bolt

Left Rear Endcap

Upright Grommet

Allen Wrench

Latch Decal

Rear Roller

Frame

Console Lens

Right Front Endcap

Console Base

Motor Shield

Reed Switch Screw

Right Rear Endcap

Left Front Endcap

4” Red Wire, Male/Female

4” White Wire, Male/Female

4” Blue Wire, Male/Female

User’s Manual

Specifications are subject to change without notice. See the back cover of the user’s manual for information about ordering replacement parts.

EXPLODED DRAWING—Model No. 831.293020

R0203A

FULL 90 DAY WARRANTY

For 90 days from the date of purchase, if failure occurs due to defect in material or workmanship in this

Sears Treadmill Exerciser, contact the nearest Sears Service Center throughout the United States and

Sears will repair or replace the Treadmill Exerciser, free of charge.

This warranty does not apply when the Treadmill Exerciser is used commercially or for rental purposes.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179

Part No. 191273 R0203A Printed in USA © 2003 Sears, Roebuck and Co.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
