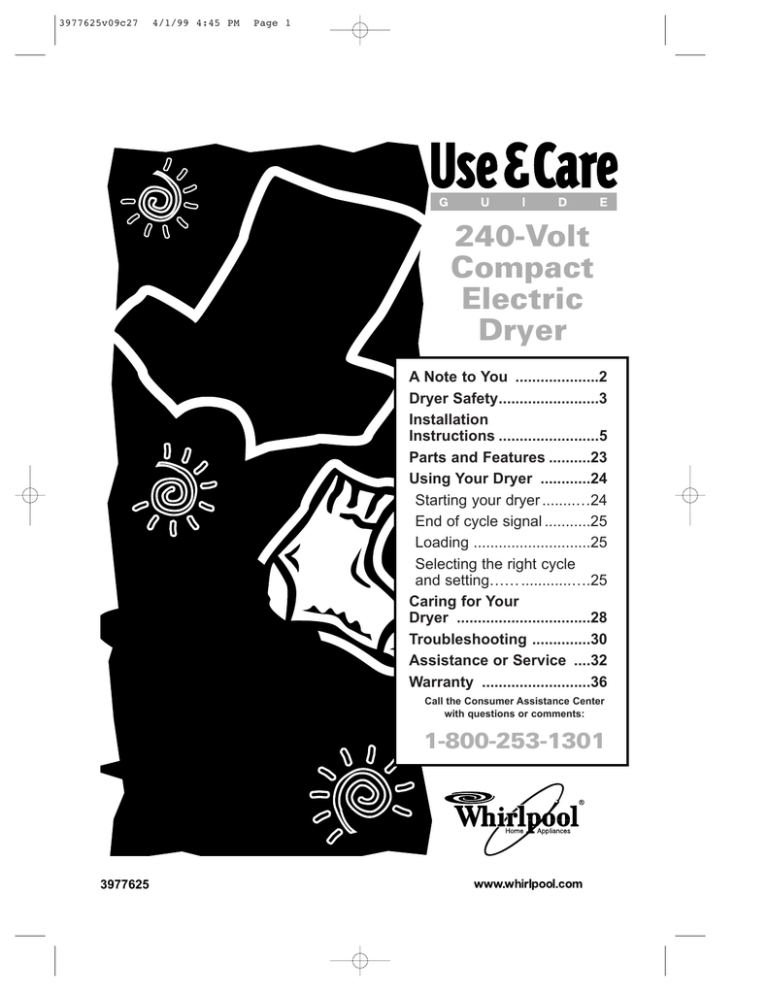

240-Volt
Compact
Electric
Dryer
A Note to You ....................2
Dryer Safety........................3
Installation
Instructions ........................5
Parts and Features ..........23
Using Your Dryer ............24
Starting your dryer ........…24
End of cycle signal ...........25
Loading ............................25
Selecting the right cycle
and setting…… ............….25
Caring for Your
Dryer ................................28
Troubleshooting ..............30
Assistance or Service ....32
Warranty ..........................36
Call the Consumer Assistance Center
with questions or comments:
1-800-253-1301
3977625
3977625v09c27
4/1/99 4:45 PM
Page 2
A Note to You
Thank you for buying a WHIRLPOOL® appliance.
The Whirlpool Brand is committed to designing quality products that consistently perform
for you to make your life easier. To ensure that you enjoy years of trouble-free operation,
we developed this Use and Care Guide. It is full of valuable information about how to
operate and maintain your appliance properly and safely. Please read it carefully.
Also, complete and mail the Ownership Registration Card provided with your appliance.
The card helps us notify you about any new information on your appliance.
Please record your model’s information.
Whenever you call to request service for
your appliance, you need to know your
complete model number and serial
number. You can find this information on
the model and serial number label (see
the diagram on the “Parts and Features”
page for the location of the label).
Please also record the purchase date of
your appliance and your dealer's name,
address, and telephone number.
Model Number________________________
Serial Number ________________________
Purchase Date________________________
Dealer Name ________________________
Dealer Address ______________________
Dealer Phone ________________________
Keep this book and the sales slip together in a safe place fo
future reference.
Our Consumer Assistance Center
number is toll free.
1-800-253-1301
To find detailed product information, the location of the nearest Whirlpool dealer or designated
servicer, to purchase an accessory item, or register your appliance on-line, please visit our
Web site at www.whirlpool.com
2
3977625v09c27
4/1/99 4:45 PM
Page 3
Dryer Safety
Your safety and the safety of others is very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to hazards that can kill or hurt you and others.
All safety messages will be preceded by the safety alert symbol and the
word “DANGER” or “WARNING.” These words mean:
wDANGER
You will be killed or seriously injured
if you don’t follow instructions.
wWARNING
You can be killed or seriously injured
if you don’t follow instructions.
All safety messages will identify the hazard, tell you how to reduce the chance of
injury, and tell you what can happen if the instructions are not followed.
3
3977625v09c27
4/1/99 4:45 PM
Page 4
DRYER SAFETY
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock, or injury to
persons when using the dryer, follow basic precautions, including
the following:
• Do not repair or replace any
• Read all instructions before
part of the dryer or attempt any
using the dryer.
servicing unless specifically
• Do not place items exposed to
recommended in this Owner’s
cooking oils in your dryer. Items
Manual or in published user-repair
contaminated with cooking oils
instructions that you understand
may contribute to a chemical
and have the skills to carry out.
reaction that could cause a load
•
Do not use fabric softeners or
to catch fire.
products to eliminate static unless
• Do not dry articles that have
recommended by the manufacturer
been previously cleaned in,
of the fabric softener or product.
washed in, soaked in, or spotted
• Do not use heat to dry articles
with gasoline, dry-cleaning
containing foam rubber or similarly
solvents, other flammable, or
textured rubber-like materials.
explosive substances as they
• Clean lint screen before or after
give off vapors that could ignite
each load.
or explode.
• Keep area around the exhaust
• Do not allow children to play on
opening and adjacent surrounding
or in the dryer. Close supervision
areas free from the accumulation
of children is necessary when
of lint, dust, and dirt.
the dryer is used near children.
• Before the dryer is removed from • The interior of the dryer and
exhaust vent should be cleaned
service or discarded, remove the
periodically by qualified service
door to the drying compartment.
personnel.
• Do not reach into the dryer if the
• See Installation Instructions for
drum is moving.
grounding requirements.
• Do not install or store the dryer
where it will be exposed to the
weather.
• Do not tamper with controls.
SAVE THESE INSTRUCTIONS
IMPORTANT: Observe all governing codes and ordinances.
4
3977625v09c27
4/1/99 4:45 PM
Page 5
Installation Instructions
Read the “Dryer Safety” section of your dryer’s Use and Care guide, and completely read
these installation instructions before beginning installation.
Before starting installation
203⁄4"
➤
➤
➤
wWARNING
31"
➤
237⁄8"
➤
• Check location where dryer will be
in-stalled. Proper installation is your
responsibility. The dryer must not be
installed or stored in an area where it will
be exposed to water and/or weather.
Make sure you have everything necessary
for correct installation.
• Grounded electrical supply is required.
See “Electrical requirements.”
• Four-inch metal exhaust vent is
required. See “Exhaust requirements.”
• Check code requirements: Some codes
do not permit or limit installation of clothes
dryers in garages, closets, mobile homes,
or sleeping quarters. Contact your local
building inspector.
• Protection from the weather: Proper
operation of dryer cycles requires
temperatures above 45°F, or the dryer
may not shut off when automatic cycles
are used.
➤
Explosion Hazard
Keep flammable materials and vapors,
such as gasoline, away from dryer.
Place dryer at least 18 inches (46 cm)
above the floor for a garage
installation.
Failure to do so can result in death,
explosion, or fire.
• Support: Floor must be sturdy enough to
support a total weight of 115 pounds
(includes dryer and load weight).
• Location: Must be large enough to fully
open dryer door. See “Recessed area and
closet installation” for minimum spacing
requirements.
• Level floor: 1-in maximum slope under
entire dryer.
NOTE: Observe all governing codes and
ordinances.
5
3977625v09c27
4/1/99 4:45 PM
Page 6
INSTALLATION INSTRUCTIONS
How to install your dryer
Now that you’ve unpacked your dryer, check
to be sure you have removed the parts bag
from the drum. Remove the tape that holds
the drum to the cabinet. Move the drum by
hand to make certain all tape has been
removed. Next, wipe the interior of the drum
thoroughly with a damp cloth before using
the dryer.
Installation
To install your dryer, you will need the tools
shown. All the parts you need are packed in
the appliance. When you take them out,
place them on a cloth so you won’t lose
them.
Parts supplied with the dryer:
1 Cycle and temperature control (timer)
knob
1 Push to Start button
4 Leveling legs
Adjustable
wrench
#2 Phillips
head
screwdriver
6
Level
Wire
stripper
Flashlight
(optional)
Duct
tape
⁄4-inch
nut driver
1
Flat-head
screwdriver
3977625v09c27
4/1/99 4:45 PM
Page 7
INSTALLATION INSTRUCTIONS
Installing the leveling legs
Leveling your dryer correctly will reduce
operating noise and provide improved drying
performance.
WARNING
Excessive Weight Hazard
Use two or more people to move and
install dryer.
Failure to do so can result in back or
other injury.
To install leveling legs:
1. Take two of the cardboard corners from
the carton. Place them on the floor in back
of the dryer.
2. Firmly grasp the body of the dryer. Gently
lay dryer on the cardboard corners.
3. Start to screw the legs into the holes by
hand. Use a wrench to finish turning the
legs. They should stick out about 1 inch.
4. Now stand the dryer up and move it close
to its final location. Leave enough room to
connect the exhaust vent.
5. Check levelness of dryer by placing a level
on top of the dryer, first side-to-side; then
front-to-back.
6. If dryer is not level, prop the dryer up
using two stacked cardboard corner posts.
Use a wrench to adjust the legs up or
down.
NOTE: It may be necessary to level the
dryer again after it is moved into its final
position.
7
3977625v09c27
4/1/99 4:45 PM
Page 8
INSTALLATION INSTRUCTIONS
Electrical Requirements
A three-wire or four-wire, single phase
120/240-volt, 60-Hz., AC-only, electrical
supply is required on a separate 30-ampere
circuit, fused on both sides of the line. A
time-delay fuse or circuit breaker is
recommended.
This dryer is manufactured with the 3-wire,
frame-grounding conductor connected to the
NEUTRAL (center) of the wiring harness of
the terminal block. Do not have a fuse in the
neutral or grounding circuit. A fuse in the
neutral or grounding circuit could result in an
electrical shock.
Use a 4-conductor cord when the dryer is
installed in a mobile home or an area where
local codes do not permit grounding through
the neutral.
Electrical Connection Options
If Your Home Has:
And You Will Be
Connecting To:
Go To
Page:
3-wire electrical
receptacle
(NEMA Type 10-30R)
A U.L.-listed, 120/240-volt
minimum, 30-amp., dryer
power supply cord.*
9
3-wire direct
A fused disconnect or
circuit breaker box.*
11
4-wire electrical
receptacle
(NEMA Type 14-30R)
A U.L.-listed, 120/240-volt
minimum, 30-amp., dryer
power supply cord.
14
4-wire direct
A fused disconnect or
circuit breaker box.
16
3 1/2"
5"
5"
*If local codes do not permit the connection of a frame-grounding conductor to the neutral wire, see the
instructions for “Alternate Connection”.
8
3977625v09c27
4/1/99 4:45 PM
Page 9
INSTALLATION INSTRUCTIONS
Three-Wire Electrical Connection to Receptacle
wWARNING
Fire Hazard
Use a new UL approved 30 ampere
power supply cord.
Use a UL approved strain relief.
Disconnect power before making
electrical connections.
Connect neutral wire (white or center
wire) to center terminal (silver).
Ground wire (green or bare wire) must
be connected to green ground
connector.
Connect remaining 2 supply wires to
remaining 2 terminals (gold).
Securely tighten all electrical
connections.
Failure to do so can result in death,
fire, or electrical shock.
Local codes may permit the use of a U.L.listed, 120/240-volt minimum, 30-ampere,
dryer power supply cord kit (pigtail). Power
supply cord should be type SRD or SRDT
and be at least four feet long. The wires that
connect to the dryer must end with ring
terminals or spade terminals with upturned
ends.
• The power supply cord must have three,
No.-10 copper wires to match a three-wire
receptacle of NEMA Type 10-30R.
• Do not use an extension cord with
this dryer.
• Do not connect plug end of power supply
cord into a live receptacle before
connecting power supply cord to dryer
terminal block.
GROUNDING INSTRUCTIONS
This appliance must be grounded.
In the event of malfunction or breakdown,
grounding will reduce the risk of electric
shock by providing a path of least
resistance for electric current. The power
supply cord must be plugged into an
appropriate outlet that is properly installed
and grounded in accordance with all local
codes and ordinances.
WARNING: Improper connection of the
equipment-grounding conductor can result
in a risk of electric shock.
Check with a qualified electrician or
serviceman if you are in doubt as to
whether the appliance is properly
grounded. Do not modify the plug on the
power supply cord. If it will not fit the
outlet, have a proper outlet installed.
SAVE THESE INSTRUCTIONS
Spade terminals
with upturned ends
This blade connected
to this conductor
NEUTRAL
⁄4", U.L.-listed,
strain relief
3
Ring
terminals
NEUTRAL
(white or center)
Three-wire
receptacle (NEMA
Type 10-30R)
9
3977625v09c27
4/1/99 4:45 PM
Page 10
INSTALLATION INSTRUCTIONS
1. Disconnect power.
Terminal block cover
Hold-down screw
2. Remove hold-down screw and terminal
block cover.
3. Attach a 3⁄4-inch, U.L.-listed, strain relief to
the hole below terminal block opening.
Strain relief should have a tight fit with
dryer cabinet and be in a horizontal
position. Put the power supply cord
through the strain relief.
External ground
connector
Center silver-colored
terminal block screw
Neutral
wire
(white)
4. Loosen or remove terminal block screws.
Connect the neutral wire (white or center)
of power supply cord under the center
screw of the terminal block.
5. Connect the other two wires to outer
terminal block screws. Tighten all terminal
block screws firmly.
6. Tighten the strain relief screws.
7. Insert tab of terminal block cover into slot
of the dryer rear panel. Secure cover with
hold-down screw.
NOTE: If local codes do not permit the
connection of a frame-grounding conductor
to the neutral wire, see the instructions for
“Alternate Connection” later in this section.
10
Neutral grounding wire
(green/yellow)
⁄4 ", U.L.-listed,
strain relief
3
3-Wire Connection with
Frame-Grounding Conductor
3977625v09c27
4/1/99 4:45 PM
Page 11
INSTALLATION INSTRUCTIONS
Three-Wire Electrical Connection (Direct Wire)
wWARNING
GROUNDING INSTRUCTIONS
This appliance must be connected to a
grounded metal, permanent wiring system;
or an equipment-grounding conductor
must be run with the circuit conductors and
connected to the equipment-grounding
terminal or lead on the appliance.
Fire Hazard
Use 10 gauge solid copper wire.
Use a UL approved strain relief.
Disconnect power before making
electrical connections.
Connect neutral wire (white or center
wire) to center terminal (silver).
Ground wire (green or bare wire) must
be connected to green ground
connector.
Connect remaining 2 supply wires
to remaining 2 terminals (gold).
Securely tighten all electrical
connections.
Failure to follow these instructions can
result in death, fire, or electrical shock.
The dryer can be connected directly to fused
disconnect or circuit breaker box with threewire, flexible armored or non-metallic
sheathed copper cable (with grounding wire).
All current-carrying wires must be insulated.
A conduit connector must be installed at
junction box. Allow four feet of slack in the
line so dryer can be moved if servicing is
ever necessary.
SAVE THESE INSTRUCTIONS
3 1/2"
1"
3 1/2"
1. Disconnect power.
• Strip 31⁄2 inches of outer covering from
end of cable.
• Cut 1 inch of insulation from the end of
each insulated wire. Shape the end of
each wire into a “U” shaped hook.
continued on next page
11
3977625v09c27
4/1/99 4:46 PM
Page 12
INSTALLATION INSTRUCTIONS
2. Remove hold-down screw and terminal
block cover.
3. Attach a 3⁄4-inch, U.L.-listed, strain relief to
the hole below terminal block opening.
Strain relief should have a tight fit with
dryer cabinet and be in a horizontal
position. Put the direct wire cable through
the strain relief.
Terminal block cover
External ground
connector
Hold-down screw
Center silver-colored
terminal block screw
Neutral
wire
(white)
Neutral grounding
wire (green/yellow)
⁄4 ", U.L.-listed,
strain relief
3
3-Wire Connection with Direct Wire
and Frame-Grounding Conductor
4. Loosen or remove terminal block screws.
Connect the neutral wire (white or center)
of direct wire cable under the center screw
of the terminal block.
• Place the hook-shaped end of the wire
over the terminal block screw. The open
side of the hook should face to the right.
Squeeze hook end of wire together to
form a loop.
12
3977625v09c27
4/1/99 4:46 PM
Page 13
INSTALLATION INSTRUCTIONS
5. Connect the other two wires to outer
terminal block screws using the same
method(s) described in step 4. Tighten all
terminal block screws firmly.
6. Tighten the strain relief screws.
7. Insert tab of terminal block cover into slot
of the dryer rear panel. Secure cover with
hold-down screw.
NOTE: If local codes do not permit the
connection of a frame-grounding conductor
to the neutral wire, see the instructions for
“Alternate Connection.”
Alternate Connection:
If local codes do not permit the connection of
a frame-grounding conductor to the neutral
wire:
1. Disconnect power.
2. Make sure the power supply cord or direct
wire cable is in place (see steps 1-3 on
page 10 for power cord connections or
steps 1-3 on pages 11 and 12 for direct
wire connection).
3. Remove the neutral grounding wire
(green/yellow wire) from external grounding connector screw. Loosen or remove
terminal block screws. Connect neutral
grounding wire and the neutral wire (white
or center) of power supply cord or direct
wire cable under the center screw of the
terminal block.
External
ground
connector
Neutral
grounding wire
(green/yellow)
4. Connect the other two wires to outer terminal block screws. Tighten all terminal block
screws firmly.
5. Tighten the strain relief screws.
6. Insert tab of terminal block cover into slot
of the dryer rear panel. Secure cover with
hold-down screw.
7. Connect separate copper grounding wire
from external ground connector to an
adequate ground. If codes permit and a
separate grounding wire is used, it is
recommended that a qualified electrician
determine that the grounding path is
adequate.
Grounding path
determined by a
qualified electrician
Alternate 3-Wire Connection with
External-Grounding Conductor
13
3977625v09c27
4/1/99 4:46 PM
Page 14
INSTALLATION INSTRUCTIONS
Make Four-Wire Electrical Connection to Receptacle
wWARNING
Fire Hazard
Use a new UL approved 30 ampere
power supply cord.
Use a UL approved strain relief.
Disconnect power before making
electrical connections.
Connect neutral wire (white or center
wire) to center terminal (silver).
Ground wire (green or bare wire) must
be connected to green ground
connector.
Connect remaining 2 supply wires to
remaining 2 terminals (gold).
Securely tighten all electrical
connections.
Failure to do so can result in death, fire,
or electrical shock.
Local codes may permit the use of a
U.L.-listed, 120/240-volt minimum, 30
ampere, dryer power supply cord kit (pigtail).
Power supply cord should be type SRD or
SRDT and be at least four feet long. The
wires that connect to the dryer must end
with ring terminals or spade terminals with
turned ends.
Four-Wire Power Supply Cord
(Mobile home or other four-wire installations)
For mobile homes or other four-wire
installations, the power supply cord must
have four, No.-10 copper wires and match a
four-wire receptacle of NEMA Type 14-30R.
The fourth wire (grounding conductor) must
be identified with a green cover or bare
copper wire and the neutral conductor by a
white cover.
14
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the
event of malfunction or breakdown,
grounding will reduce the risk of electric
shock by providing a path of least
resistance for electric current. The power
supply cord must be plugged into an
appropriate outlet that is properly
installed and grounded in accordance
with all local codes and ordinances.
WARNING: Improper connection of
the equipment-grounding conductor can
result in a risk of electric shock. Check
with a qualified electrician or serviceman
if your are in doubt as to whether the
appliance is properly grounded.
Do not modify the plug on the power
supply cord. If it will not fit the outlet,
have a proper outlet installed by a
qualified electrician.
SAVE THESE INSTRUCTIONS
NEUTRAL
⁄4 ", U.L.-listed,
strain relief
3
Grounding
prong
Grounding
wire (green)
NEUTRAL
(white)
Ring
terminals
Four-wire receptacle
(NEMA Type 14-30R)
• Do not use an extension cord with this
dryer.
• Do not connect plug end of power supply
cord into a live receptacle before
connecting power supply cord to dryer
terminal block.
3977625v09c27
4/1/99 4:46 PM
Page 15
INSTALLATION INSTRUCTIONS
1. Disconnect power.
2. Remove hold-down screw and terminal
block cover.
3. Attach a 3⁄4-inch, U.L.-listed, strain relief to
the hole below terminal block opening.
Strain relief should have a tight fit with
dryer cabinet and be in a horizontal
position. Put the power supply cord
through the strain relief.
4. Remove the center terminal block screw.
Remove the neutral grounding wire
(green/yellow wire) from external
grounding screw.
Terminal block cover
External ground
connector
Hold-down screw
Center silver-colored
terminal block screw
Green/yellow wire
of harness
5. Connect neutral grounding wire and the
neutral wire (white) of power supply cord
under the center screw of terminal block.
6. Connect the other two insulated wires to
outer terminal block screws.
7. Connect the green, grounding wire from
the power supply cord to the external
grounding conductor screw. Tighten all
terminal block screws firmly.
8. Tighten the strain relief screws.
9. Insert tab of terminal block cover into slot
of the dryer rear panel. Secure cover with
hold-down screw.
External
ground
connector
Center silver-colored
terminal block screw
Green wire
of power supply
cord or bare
copper wire
Neutral wire
(white)
Neutral grounding wire
(green/yellow)
3
⁄4”, U.L.-listed,
strain relief
4-Wire Connection with
Frame-Grounding Conductor
15
3977625v09c27
4/1/99 4:46 PM
Page 16
INSTALLATION INSTRUCTIONS
Four-Wire Electrical Connection (Direct Wire)
wWARNING
Fire Hazard
Use 10 gauge solid copper wire.
Use a UL approved strain relief.
Disconnect power before making
electrical connections.
Connect neutral wire (white or center
wire) to center terminal (silver).
Ground wire (green or bare wire) must
be connected to green ground
connector.
Connect remaining 2 supply wires
to remaining 2 terminals (gold).
Securely tighten all electrical
connections.
Failure to follow these instructions can
result in death, fire, or electrical shock.
The dryer can be connected directly to fused
disconnect or circuit breaker box with
four-wire, flexible armored or non-metallic
sheathed copper cable (with grounding wire).
All current-carrying wires must be insulated.
The grounding wire may be bare.
A conduit connector must be installed at
junction box. Allow four feet of slack in the
line so dryer can be moved if servicing is
ever necessary.
1. Disconnect power.
• Strip 5 inches of outer covering from
end of cable. Leave bare grounding wire
at 5 inches.
• Cut 1 inch from 3 remaining
insulated wires. Strip insulation back 1
inch. Shape the end of each wire into a
“U” shaped hook.
2. Remove hold-down screw and terminal
block cover.
16
GROUNDING INSTRUCTIONS
This appliance must be connected to a
grounded metal, permanent wiring
system; or an equipment-grounding
conductor must be run with the circuit
conductors and connected to the
equipment-grounding terminal or lead
on the appliance.
SAVE THESE INSTRUCTIONS
5"
5"
1"
5""
Terminal block cover
Hold-down screw
3977625v09c27
4/1/99 4:46 PM
Page 17
INSTALLATION INSTRUCTIONS
3. Attach a 3⁄4-inch, U.L.-listed, strain relief to
the hole below terminal block opening.
Strain relief should have a tight fit with
dryer cabinet and be in a horizontal
position. Put the direct wire cable through
the strain relief.
4. Remove the center terminal block screw.
Remove the neutral grounding wire
(green/yellow wire) from external
grounding screw.
Center silver-colored
terminal block screw
External ground
connector
Green/yellow wire
of harness
5. Connect neutral grounding wire and the
neutral wire (white or center) of direct
wire cable under the center screw of
terminal block.
External ground
connector
6. Place the hook-shaped end of the wire
over the terminal block screw. The open
side of the hook should face to the right.
Squeeze hook end of wire together to
form a loop.
Bare copper wire
7. Connect the other two wires to outer
terminal block screws. Use the same
method described in Step 6.
8. Connect the direct wire cable (bare)
grounding wire to the external-grounding
conductor screw. Tighten all terminal
block screws firmly.
Center silver-colored
terminal block screw
Neutral wire (white)
Neutral
grounding wire
(green/yellow)
3
⁄4”, U.L.-listed,
strain relief
4-Wire Connection with Direct Wire and
Frame-Grounding Conductor
9. Tighten the strain relief screws.
10. Insert tab of terminal block cover into slot
of the dryer rear panel. Secure cover with
hold-down screw.
(Steps 6-7)
17
3977625v09c27
4/1/99 4:46 PM
Page 18
INSTALLATION INSTRUCTIONS
Exhaust requirements
Your dryer must be properly vented to
achieve maximum drying efficiency.
WARNING: To reduce the risk of fire,
this dryer MUST BE EXHAUSTED
OUTDOORS.
• Do not exhaust dryer into a chimney, a
wall, a ceiling, or a concealed space of a
building.
• The diameter of the heavy metal vent must
be 4-in.
• Do not use an exhaust hood with a
magnetic latch.
wWARNING
Fire Hazard
Use a heavy metal vent.
Do not use a plastic vent.
Do not use a metal foil vent.
Failure to follow these instructions
can result in death or fire.
If using an existing exhaust system, remove
accumulated lint.
1. Disconnect vent from the dryer and clean
one section at a time until you reach the
exhaust hood.
2. Use the hose attachment on your vacuum,
or a pole with a feather duster or rag
attached, to clean out lint.
3. Be sure the flapper on the outside end of
vent moves freely. Make sure exhaust
hood is not plugged with lint.
Clean exhaust vent periodically, depending
on use, but at least every 2 years, or when
installing your dryer in a new location.
18
3977625v09c27
4/1/99 4:46 PM
Page 19
INSTALLATION INSTRUCTIONS
Use duct tape to seal all joints. Do not use
screws to secure vent. Lint may catch on
screws.
Use 4-inch heavy metal vent. Do not kink or
crush flexible metal vent. It must be fully
extended to allow adequate exhaust air to
flow. Check vent after installation.
Better
Good
Exhaust airflow
Use the straightest path possible when
routing the exhaust vent. Use the fewest
number of elbows and turns. Allow as much
room as possible when using elbows or
making turns. Bend vent gradually to avoid
kinking. Remove excess flexible vent to
avoid sagging and kinking that may result in
reduced airflow.
Maximum length of the exhaust system
depends upon the type of vent used,
number of elbows, and the type of exhaust
hood. The maximum length for both heavy
and flexible vent is shown on the next page.
Exhaust outlet at rear of dryer is located as
illustrated. Detailed instructions on spacing
for side and rear clearances can be found in
the “Recessed area and closet installation”
section.
12"
3 1/4"
4" DIAM
Rear
exhaust
outlet
19
3977625v09c27
4/1/99 4:46 PM
Page 20
INSTALLATION INSTRUCTIONS
Determining vent length
NOTE: Check periodically to ensure that
the outside exhaust hood is not blocked.
The maximum length of the exhaust system
depends upon:
• The type of vent (heavy or flexible metal).
• The number of elbows (90° turns) used.
To determine maximum vent length:
1. See the Exhaust Hood Type chart that
matches your hood type for the maximum
vent lengths you can use.
Do not use vent runs longer than
specified in Exhaust Hood Type chart.
Exhaust systems longer than specified will:
• Shorten the life of the dryer.
• Reduce performance, resulting in
longer drying times and increased
energy usage.
2. Determine the number of elbows you will
need.
3. In the column listing the type of metal vent
you are using (heavy or flexible), find the
maximum length of metal vent on the
same line as the number of elbows.
EXHAUST HOOD TYPE
No. of
90°
turns
21⁄2"
4"
4"
Heavy Metal Vent 4-inch diameter
Maximum length
0
1
2
36 ft
26 ft
16 ft
36 ft
26 ft
16 ft
26 ft
16 ft
6 ft
Flexible Metal Vent 4-inch diameter
Maximum length
0
1
2
28 ft
18 ft
8 ft
28 ft
18 ft
8 ft
22 ft
12 ft
2 ft
Exhaust hood
Flexible metal vent or
heavy metal vent
Elbow
20
3977625v09c27
4/1/99 4:46 PM
Page 21
INSTALLATION INSTRUCTIONS
Recessed area and closet installation
NOTE: Check codes requirements. Some
codes limit or do not permit installation of
clothes dryers in garages, closets, mobile
homes, or sleeping quarters. Contact your
local building inspector.
• This dryer may be installed in a recessed
area or closet. If closet door is installed,
the minimum unobstructed air openings in
top and bottom are required. Louvered
doors with equivalent air openings are
acceptable.
• Your dryer needs a certain amount of
space around it for proper ventilation and
for easier installation and servicing. The
following minimum installation spacings are
required when the unit is to be operated
with or without the Stack Stand Kit. To
purchase a Stack Stand Kit, see the
“Assistance or Service” section. For ease of
installation and service, additional spacing
should be considered.
WARNING: To reduce the risk of fire,
this appliance MUST BE EXHAUSTED
OUTDOORS.
NOTE: No fuel-burning appliances may be
installed in the same closet as a dryer.
Minimum installation spacing
CLOSET
DOOR
3"
12"
3"
14"
MAX.
48 sq in
DRYER
††
18"
12"
1"
3"
24 sq in
WASHER
1"
††
DRYER
DRYER
3"
1"
FRONT
STACK STAND
†
††
†††
SIDE
STACK STAND
SIDE
FRONT
May be 0" clearance.
Opening is minimum for closet door. Louvered door with air opening is acceptable.
Additional space may be needed for exhaust elbow.
21
3977625v09c27
4/1/99 4:46 PM
Page 22
INSTALLATION INSTRUCTIONS
Mobile home installation
NOTE: Check codes requirements. Some
codes limit or do not permit installation of
clothes dryers in garages, closets, mobile
homes, or sleeping quarters. Contact your
local building inspector.
• The exhaust vent must be securely
fastened to a non-combustible portion of
the mobile home structure and must not
terminate beneath the mobile home.
• The dryer exhaust vent must not be
connected or secured with screw or other
devices which extend into the interior of
the vent.
• A kit is available to fasten the dryer
securely when the mobile home is in
transit. To purchase a kit, see the
"Assistance or Service" section. Your
dryer does not need to be secured when
the mobile home is not in transit.
22
Outside wall
Floor
Enclosure
3977625v09c27
4/1/99 4:46 PM
Page 23
Parts and Features
Cycle and
temperature
control knob
(p. 26)
Start button
(p. 24)
Model and
serial
number label
(p. 2)
END •
PUSH
LE
3 CYC
AL
LE SIGN
OF CYC
DUTY
HEAVY
Lint screen
(p. 28)
RT
TO STA
Dryer drum
23
3977625v09c27
4/1/99 4:46 PM
Page 24
Using Your Dryer
WARNING
Explosion Hazard
Keep flammable materials and vapors,
such as gasoline, away from dryer.
Do not dry anything that has ever had
anything flammable on it (even after
washing).
Failure to follow these instructions can
result in death, explosion, or fire.
wWARNING
Fire Hazard
No washer can completely
remove oil.
Do not dry anything that has ever
had any type of oil on it (including
cooking oils).
Items containing foam, rubber,
or plastic must be dried on a
clothesline or by using an Air Cycle.
Failure to follow these instructions
can result in death or fire.
Starting your dryer
Before using your dryer, wipe the dryer
drum with a damp cloth to remove dust from
storing and shipping.
1. Load clothes into the dryer and close
the door.
2. Turn the Cycle and Temperature Control
knob either way to the desired
cycle. Use the Energy Preferred Automatic Setting (*) to
dry most loads (see page 26).
3. Push the Start button.
PUSH TO START
NOTE: Your dryer stops automatically when
a cycle ends.
24
Stopping and restarting your
dryer
You can stop your dryer anytime during a
program.
To stop your dryer:
Open the dryer door or turn the Cycle and
Temperature Control knob to OFF.
NOTE: The Cycle and Temperature Control
knob should point to an Off area when the
dryer is not in use.
To restart your dryer:
Close the door, select a new cycle and
temperature (if desired), and push the Start
button.
3977625v09c27
4/1/99 4:46 PM
Page 25
USING YOUR DRYER
End of cycle signal
The dryer sounds a signal to let you know
when the cycle is finished. The signal is not
adjustable and cannot be turned off.
The signal is helpful when you are drying
permanent press, synthetics, and other
items that should be taken out as soon as
the dryer stops.
Loading
Loading suggestions
This table shows the maximum load you
can place in your compact dryer. Expect
longer drying times.
COMPACT DRYERS
Heavy Work Clothes
3 work shirts
2 pair pants
Knits
2 slacks
2 shirts
– or –
3 dresses
Towels
9 bath towels
– or –
6 bath towels
3 hand towels
6 wash cloths
Delicates
1 camisole
2 slips
2 panties
2 bras
1 nightie
1 half slip
Mixed Load
1 pair slacks
2 pillowcases
2 shirts
1 T-shirt
Permanent Press
6 shirts
– or –
2 double sheets
2 pillowcases
– or –
2 single sheets
2 pillowcases
Selecting the right cycle and setting
The following pages describe the drying
cycles on your dryer. The descriptions
include suggested temperature settings
and drying times for various loads.
Cycle and temperature tips
• Make sure you have selected the correct
cycle and temperature for your load.
• Use the Air cycle, or line dry rubber,
plastic, delicate, and heat-sensitive
fabrics.
• The last few minutes of all cycles are
without heat to make the load cooler to
handle.
Drying tips
• Always follow care label directions when
they are available.
• Always use fabric softener sheets labeled
as dryer safe and follow package
instructions carefully.
• Remove the load from the dryer as soon
as tumbling stops to reduce wrinkling.
This is especially important for permanent
press, knits, and synthetic fabrics.
25
3977625v09c27
4/1/99 4:46 PM
Page 26
USING YOUR DRYER
Automatic Permanent Press/
Regular Cycle
10 20 30
AIR
R
F
F
O
30 40 50 6
20 TIMED DRYING 0
O
F
F
LE
SS
PER
M.
MO
/ REG.
ESS
PR
RE
O
F
F
AI
0
30
20R
10
O
F
F
03
10 2 TIM0 40
F
AIR
10 20 30
70 80
60
NG
YI
O
F
5
0
ED
DR
The Air cycle has no heat. Use this
unheated cycle to fluff or air dry bedding,
plastic tablecloths, foam pillows, sneakers,
etc. See page 27 for more information about
the Air cycle.
1
R
Air cycle
O
F
F
. PRESS/ REG
.
RM
PE
SS
LE
MO R E
F
F
O
R
26
60 70 80
50YING
80
70
TIM 40
ED
D
S
LES
10 20 30
M. PRESS/ R
EG
PER
.
F
R
Timed Drying cycle
Use a Timed Drying cycle to complete
drying if some items are damp after
Automatic drying. Timed drying is also
useful for:
• Delicate items and small loads that need
a short drying time.
• Bulky items and large loads that require
a long drying time.
For a damp dry, turn the Cycle and
Temperature Control knob to 30 min. or less.
F
F
MO R E
O
F
O
Dry most loads using the Energy
Preferred Automatic Setting (*). Your
Automatic cycle shuts off when the selected
dryness is reached. The Cycle and
Temperature Control knob will not move until
the load is almost dry. After the cool-down,
the knob automatically turns to an Off area
and tumbling stops.
• If the load is drier than you like, select a
setting closer to LESS the next time you
dry a similar load.
• If the load is not as dry as you like, complete drying using a Timed cycle. Select a
setting closer to MORE the next time you
dry a similar load.
3977625v09c27
4/1/99 4:46 PM
Page 27
USING YOUR DRYER
Selecting the right cycle and setting
TYPE OF LOAD
Cottons and linens
Extra heavy–Bedspreads, mattress pads, quilts
Heavyweight–Towels, jeans, corduroys, work
clothes
Mediumweight–Sheets, cotton underwear,
diapers
Lightweight–Batistes, organdies, lingerie
CYCLE
Timed Drying
Perm. Press/Reg.
TIME (minutes)
45-55
Perm. Press/Reg.
Perm. Press/Reg.
Permanent press, synthetics and blends
Heavyweight–Work clothes, jackets, raincoats
Mediumweight–Shirts, play clothes, sheets,
slacks
Lightweight–Lingerie, blouses, dresses
Knits
Heavyweight–Cottons, rayons, blends, T-shirts,
slacks, shirts
Mediumweight–Synthetics (polyester, acrylic,
etc.), dress slacks, skirts, sweaters
Lightweight–Synthetics (polyester, acrylic, etc.)
and blends, lingerie, blouses, dresses
Perm. Press/Reg.
Perm. Press/Reg.
Perm. Press/Reg.
Perm. Press/Reg.
Perm. Press/Reg.
Perm. Press/Reg.
Delicate fabrics
Sheer curtains (2 or 3 panels), gauze, lace, etc.
Air
20-30 †
Rubber, plastic, heat-sensitive
fabrics
Foam rubber–Pillows, bras, stuffed toys
Plastic–Shower curtains, tablecloths
Rubber-backed rugs
Olefin, Polypropylene, Sheer nylon
Air
Air
Air
Air
20-30†
20-30†
40-50†
15-20†
Air
30-40†
Cotton and canvas shoes
Place several bath towels in the dryer to act as
a buffer. Remove shoes from dryer while still
damp. Stretch shoes and allow to air dry.
Reset Air cycle as needed to complete drying.
†
27
3977625v09c27
4/1/99 4:46 PM
Page 28
Caring for Your Dryer
Cleaning the lint screen
Every load cleaning
As needed cleaning
The lint screen is located inside the dryer
drum, on the back wall. Clean it before
starting each load. A screen blocked by
lint can increase drying time.
Laundry detergents and fabric softeners can
cause a residue buildup on the lint screen.
Clean the lint screen with a nylon brush
every six months or more frequently if it becomes clogged due to a residue buildup.
To clean:
1. Open the door and pull the lint screen
straight out.
2. Squeeze body of lint screen lightly while
pulling the cover off.
3. Roll lint off the screen with your fingers.
Do not rinse or wash screen to remove
lint. Wet lint is hard to remove.
4. Replace cover on lint screen body. Push
the lint screen firmly back into place and
close the door.
IMPORTANT:
• Do not run the dryer with the lint screen
loose, damaged, blocked, or missing.
Doing so can cause overheating and damage to both the dryer and fabrics.
• Some towels made of synthetic fibers and
natural fibers (polyester and cotton blends)
may shed more lint than other towels,
causing your dryer’s lint screen to fill up
faster. Be sure to remove lint from the lint
screen before and after drying new towels.
28
Use the following method:
1. Wet both sides of lint screen with hot
water.
2. Wet a nylon brush with hot water and
liquid detergent; scrub lint
screen with the brush to
remove residue buildup.
3. Rinse screen with hot water.
4. Thoroughly dry lint screen with a clean
towel. Replace in dryer.
3977625v09c27
4/1/99 4:46 PM
Page 29
CARING FOR YOUR DRYER
Cleaning the dryer interior
Garments which contain unstable dyes,
such as denim blue jeans or brightly
colored cotton items, may discolor the
dryer interior. These stains are not harmful
to your dryer and will not stain future loads
of clothes. It is helpful to dry unstable dye
items inside out to prevent dye transfer.
To clean dryer drum:
1. Make a paste with powdered laundry
detergent and very warm water.
2. Apply paste to a soft cloth.
OR
Apply a liquid, non-flammable household
cleaner to the stained area
and rub with a soft cloth until
all excess dye is removed.
WARNING
Explosion Hazard
Use nonflammable cleaner.
Failure to do so can result in death,
explosion, or fire.
3. Wipe drum thoroughly with a damp cloth.
4. Tumble a load of clean cloths or towels to
dry drum.
Removing accumulated lint from inside
the dryer cabinet
Lint should be removed every 2 years, or
more often, depending on dryer usage.
Cleaning should be done by a qualified
person.
29
3977625v09c27
4/1/99 4:46 PM
Page 30
Troubleshooting
Common drying problems
PROBLEM
CAUSE
SOLUTION
Not drying
satisfactorily
• Lint screen is clogged with lint.
• Clean lint screen.
• Restricted air movement.
• Run dryer for 5-10 minutes. Hold
Exhaust vent or outside exhaust
hand under outside exhaust hood to
hood is clogged with lint.
check air movement. If you do not
feel air moving, clean exhaust system
of lint or replace exhaust vent with
heavy metal or flexible metal vent
(see “Installation Instructions”).
• Exhaust vent is crushed or
kinked.
• Replace with heavy metal or flexible
metal vent (see your “Installation
Instructions”).
• Cycle and Temperature Control
knob is set on Air cycle.
• Select the right cycle and for the
types of garments being dried (see
“Using Your Dryer”).
• Fabric softener sheets blocking • Use only one softener sheet per
exhaust grill.
load and only use it once.
• Dryer located in room with
temperature below 45ºF.
• Move dryer to a location with
temperatures above 45ºF.
• Large amount of moisture in
the load.
• Expect longer dry times with items
that hold more moisture (cottons).
• Cold rinse water used.
• Expect longer dry times.
• Load too large and bulky to dry • Separate load to tumble freely.
quickly.
Dryer will
not run
30
• Power cord not firmly plugged
into a live circuit with proper
voltage.
• Plug power cord into a live circuit.
• Fuse blown or circuit breaker
tripped.
• Replace fuse or reset breaker.
• Using a regular fuse.
• Replace with a time-delay fuse.
• Dryer door not firmly closed.
• Close dryer door tightly.
• Start button not firmly pressed.
• Press Start button again.
• Cycle and Temperature Control
knob set to Off.
• Set knob to a cycle or time.
3977625v09c27
4/1/99 4:46 PM
Page 31
TROUBLESHOOTING
Common drying problems (cont)
PROBLEM
CAUSE
SOLUTION
Lint in load
• Lint screen is clogged.
• Clean lint screen. Check for air
movement.
• Improper sorting.
• Sort lint givers from lint takers and sort
by color.
• Load is too big or heavy.
• Dry smaller loads so lint can be carried
to the lint screen.
• Load is overdried.
• Use correct dryer settings for fabric.
Overdrying can cause lint-attracting
static (see “Using Your Dryer”).
• Paper or tissue in pockets.
• Clean out pockets before drying.
• Pilling being mistaken for
lint.
• Pilling (surface fuzz) is caused by
normal wear and laundering.
• Improper use of fabric
softener in washer.
• Use fabric softener sheets in dryer.
Add at beginning of cycle when load
is cold.
• Drying soiled items.
• Items need to be clean before being
dried.
• Overdrying.
• Match dryer settings to fabric type
(see “Using Your Dryer”).
• Poor garment quality.
• Check quality of garment before
purchasing.
• Manufacturer’s care label
instructions not followed.
• Follow fabric care label instructions
carefully.
• Overloading.
• Dry smaller loads that can tumble
freely.
• Overdrying.
• Match dryer settings to fabric type
(see “Using Your Dryer”).
Loads are
wrinkled
• Load left in dryer at the end
of cycle.
• Remove load as soon as tumbling
stops.
Odors
• Household chemicals, paint,
or varnish being drawn into
dryer.
• Do not use dryer while these chemical
fumes are in the air.
• First use of dryer element.
• Odor will be gone after the first cycle.
• Thumping of rollers when
dryer has not been used for
a while.
• Thump will go away after 5 minutes of
drying.
Stains on
load
Items
shrinking
Unusual
sounds
31
3977625v09c27
4/1/99 4:46 PM
Page 32
Assistance or Service
If you need assistance or service
Call our Consumer Assistance Center at
1-800-253-1301. Our
consultants are available to
assist you.
When calling:
Please know the purchase
date, and the complete model and serial
number of your appliance (see “A Note to
You” section). This information will help us
better respond to your request.
Our consultants provide assistance with:
• Features and specifications on our full
line of appliances
• Installation information
• Use and maintenance procedures
• Accessory and repair parts sales
• Specialized customer assistance
•
(Spanish speaking, hearing impaired,
limited vision, etc.)
Referrals to local dealers, service companies, and repair parts distributors.
Whirlpool designated service
technicians are trained to fulfill the
product warranty, and provide afterwarranty service, anywhere in the
United States.
To locate the designated service
company in your area, you can also look
in your telephone directory Yellow Pages.
If you need replacement parts
If you need to order replacement parts, we
recommend that you only use FSP®
factory specified parts. These parts will fit
right and work right, because they are
made to the same exacting specifications
used to build every new WHIRLPOOL®
appliance.
To locate FSP replacement parts in your
area, call our Consumer Assistance
Center or your nearest designated
service center.
For further assistance
If you need further assistance, you can
write to us with any questions or
concerns at:
Whirlpool Corporation
Consumer Assistance Center
c/o Correspondence Dept.
2000 North M-63
Benton Harbor, MI 49022-2692
32
Please include a daytime phone number
in your correspondence.
3977625v09c27
4/1/99 4:46 PM
Page 36
WHIRLPOOL
Dryer Warranty
®
LENGTH OF WARRANTY
COVERED BY WARRANTY
FULL ONE-YEAR
WARRANTY
FROM DATE OF PURCHASE
FSP® replacement parts and repair labor to correct
defects in materials or workmanship. Service must be
provided by a Whirlpool designated service company.
NOT COVERED BY WARRANTY
A. Service calls to:
1. Correct the installation of your dryer, including venting. Heavy 4-inch metal exhaust
vent must be used. Refer to the “Installation Instructions” in this Use and Care Guide.
2. Instruct you how to use your dryer, to replace house fuses or reset circuit breakers,
or to replace owner accessible light bulbs.
B. Repairs when your dryer is used in other than normal, single-family household use.
C. Damage to your dryer caused by accident, alteration, misuse, abuse, fire, flood, acts of
God, improper installation (including, but not limited to, venting with plastic or flexible
foil), or installation not in accordance with local electrical and plumbing codes.
D. Replacement parts or repair labor costs for units operated outside the United States.
E. Pick up and delivery. This product is designed to be repaired in the home.
F. Repairs to parts or systems resulting from unauthorized modifications made to
the appliance.
2/99
WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES. Some states do not allow the exclusion or limitation of
incidental or consequential damages, so this exclusion or limitation may not apply to you. This
warranty gives you specific legal rights, and you may also have other rights which vary from
state to state.
Outside the United States, a different warranty may apply. For details, please
contact your authorized Whirlpool dealer.
If you need assistance or service, first see the “Troubleshooting” section of this book. After
checking “Troubleshooting,” additional help can be found by checking the “Assistance or
Service” section. In the U.S.A., call our Consumer Assistance Center at 1-800-253-1301.
3977625
© 1999 Whirlpool Corporation
Registered Trademark of Whirlpool, U.S.A.
®
4/99
Printed in U.S.A.

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
