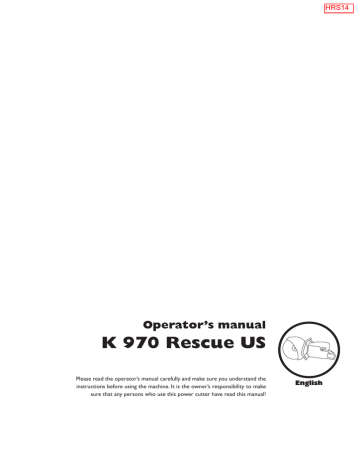

Operator’s manual

K 970 Rescue US

Please read the operator’s manual carefully and make sure you understand the instructions before using the machine. It is the owner’s responsibility to make sure that any persons who use this power cutter have read this manual!

E n s h

HRS14

Symbols on the machine

WARNING! The machine can be a dangerous tool if used incorrectly or carelessly, which can cause serious or fatal injury to the operator or others.

Please read the operator’s manual carefully and make sure you understand the instructions before using the machine.

KEY TO SYMBOLS

You will find the following labels on your power cutter:

Wear personal protective equipment. See instructions under the heading ”Personal protective equipment”.

WARNING! Dust forms when cutting, this can cause injuries if inhaled. Use an approved breathing mask. Avoid inhaling petrol fumes and exhaust fumes. Always provide for good ventilation.

WARNING! Kickbacks can be sudden, rapid and violent and can cause life threatening injuries. Read and understand the instructions in the manual before using the machine.

WARNING! Sparks from the cutting blade can cause fire in combustible materials such as: petrol (gas), wood, dry grass etc.

Choke

The Emissions Compliance Period referred to on the

Emission Compliance label indicates the number of operating hours for which the engine has been shown to meet Federal and Californian emissions requirements.

Air purge

Decompression valve

Refuelling, petrol/oil mix

The engine exhaust from this product contains chemical known to the State of California to cause cancer, birth defects or other reproductive harm.

Other symbols/decals on the machine refer to special certification requirements for certain markets.

Explanation of warning levels

The warnings are graded in three levels.

WARNING!

!

WARNING! Used if there is a risk of serious injury or death for the operator or damage to the surroundings if the instructions in the manual are not followed.

CAUTION!

!

NOTICE!

CAUTION! Used if there is a risk of injury to the operator or damage to the surroundings if the instructions in the manual are not followed.

NOTICE! Used if there is a risk of damage to materials or the machine if the instructions in the manual are not followed.

2 –

English

CONTENTS

Contents

KEY TO SYMBOLS

Symbols on the machine .............................................

2

Explanation of warning levels ......................................

2

CONTENTS

Contents ......................................................................

3

PRESENTATION

Dear customer! ............................................................

4

Features .......................................................................

4

PRESENTATION

What is what on the power cutter - K 970 Rescue? .....

5

MACHINE´S SAFETY EQUIPMENT

General ........................................................................

6

CUTTING BLADES

General ........................................................................

8

Abrasive blades ...........................................................

8

Diamond blades ...........................................................

9

Toothed blades, carbide tipped blades and emergency situations ......................................................................

9

Transport and storage ..................................................

10

ASSEMBLING AND ADJUSTMENTS

General ........................................................................

11

Checking the drive shaft and flange washers ..............

11

Checking the bushing ..................................................

11

Checking the direction of the blade rotation .................

11

Fitting the cutting blade ................................................

11

Blade guard .................................................................

11

Reversible cutting head ................................................

12

FUEL HANDLING

General ........................................................................

13

Fuel ..............................................................................

13

Fueling .........................................................................

13

Transport and storage ..................................................

14

OPERATING

Protective equipment ...................................................

15

General safety precautions ..........................................

15

Transport and storage ..................................................

19

STARTING AND STOPPING

Before starting .............................................................

20

Starting ........................................................................

20

Stopping .......................................................................

21

MAINTENANCE

General ........................................................................

22

Maintenance schedule .................................................

22

Cleaning .......................................................................

23

Functional inspection ...................................................

23

TECHNICAL DATA

Technical data ..............................................................

27

Cutting equipment ........................................................

27

FEDERAL EMISSION CONTROL WARRANTY

STATEMENT

YOUR WARRANTY RIGHTS AND OBLIGATIONS .....

28

English

– 3

Dear customer!

Thank you for choosing a Husqvarna product!

It is our wish that you will be satisfied with your product and that it will be your companion for a long time. A purchase of one of our products gives you access to professional help with repairs and services. If the retailer who sells your machine is not one of our authorised dealers, ask him for the address of your nearest service workshop.

This operator’s manual is a valuable document. Make sure it is always at hand at the work place. By following its content

(using, service, maintenance etc) the life span and the second-hand value of the machine can be extended. If you ever lend or sell this machine, make sure that the borrower or buyer gets the operator

′s manual, so they will also know how to properly maintain and use it.

More than 300 years of innovation

Husqvarna AB is a Swedish company based on a tradition that dates back to 1689, when the Swedish King Charles XI ordered the construction of a factory for production of muskets. At that time, the foundation was already laid for the engineering skills behind the development of some of the world's leading products in areas such as hunting weapons, bicycles, motorcycles, domestic appliances, sewing machines and outdoor products.

Husqvarna is the global leader in outdoor power products for forestry, park maintenance and lawn and garden care, as well as cutting equipment and diamond tools for the construction and stone industries.

User responsibility

It is the owner’s/employer’s responsibility that the operator has sufficient knowledge about how to use the machine safely. Supervisors and operators must have read and understood the Operator’s Manual. They must be aware of:

• The machine’s safety instructions.

• The machine’s range of applications and limitations.

• How the machine is to be used and maintained.

National legislation could regulate the use of this machine.

Find out what legislation is applicable in the place where you work before you start using the machine.

The manufacturer’s reservation

All information and all data in the Operator’s Manual were applicable at the time the Operator’s Manual was sent to print.

Husqvarna AB has a policy of continuous product development and therefore reserves the right to modify the design and appearance of products without prior notice.

For customer assistance, contact us at our website: www.usa.husqvarna.com

Features

Values such as high performance, reliability, innovative technology, advanced technical solutions and environmental considerations distinguish Husqvarna's products.

Some of the unique features of your product are described below.

4 –

English

PRESENTATION

Active Air Filtration™

Centrifugal air cleaning for longer service life and longer service intervals.

SmartCarb™

Built-in automatic filter compensation maintains high power and reduces fuel consumption.

Dura Starter™

Dust sealed starter unit, where the return spring and the pulley bearing are sealed which makes the starter virtually maintenance free and even more reliable.

X-Torq®

The X-Torq® engine provides a more accessible torque for a wider range of speeds which results in maximum cutting capacity. X-Torq® reduces the fuel consumption with up to

20% and the emissions with up to 60%.

EasyStart

The engine and starter are designed to ensure quick and easy starting of the machine. Reduces the pull resistance in the starter cord with up to 40%. (Reduces the compression during starting.)

Air purge

When you push the air purge diaphragm, fuel is pumped through to the carburettor. Fewer pulls are required for starting, meaning the machine becomes easier to start.

Efficient vibration damping system

Efficient vibration dampers spare arms and hands.

Reversible cutting head

The machine is fitted with a reversible cutting head allowing cutting close to a wall or at ground level, restricted only by the thickness of the blade guard.

Specially designed starter handle

Specially designed starter handle, with room for heavy gloves.

Adjustable carry strap

Adjustable carry strap for full freedom of movement.

Chromium-plated blade guard

Chromium-plated blade guard, visible in smoke and water spray, enhances control of the cutter.

PRESENTATION

What is what on the power cutter - K 970 Rescue?

1 Front handle

2 Warning decal

3 Air filter cover

4 Cylinder cover

5 Choke

6 Throttle lockout

7 Throttle trigger

8 Air purge

9 Starter handle

10 Decompression valve

11 Starter

12 Muffler

13 Adjustment handle for guard

14 Blade guard

15 Type plate

16 Harness

17 Fuel cap

18 Belt guard

19 Cutting arm

20 Belt tensioner

21 Cutting head

22 Cutting blade

23 Combination spanner

24 Bushing + decal

25 Operator’s manual

English

– 5

General

MACHINE´S SAFETY EQUIPMENT

• Start the power cutter and apply full throttle. Release the throttle control and check that the cutting blade stops and remains stationary. If the cutting blade rotates when the throttle is in the idle position you should check the carburettor’s idle adjustment. See instructions in the section "Maintenance".

!

WARNING! Never use a machine that has faulty safety equipment! If your machine fails any of these checks contact your service agent to get it repaired.

The engine should be switched off, and the stop switch in STOP position.

This section describes the machine

′s safety equipment, its purpose, and how checks and maintenance should be carried out to ensure that it operates correctly.

Throttle lockout

The throttle trigger lock is designed to prevent accidental operation of the throttle. When the lock (A) is pressed in this releases the throttle (B).

Stop switch

Use the stop switch to switch off the engine.

The trigger lock remains pressed in as long as the throttle is pressed. When the grip on the handle is released the throttle trigger and the throttle trigger lock both return to their original positions. This is controlled by two independent return spring systems. This means that the throttle trigger is automatically locked in the idle position.

Checking the throttle lockout

• Make sure the throttle control is locked at the idle setting when the throttle lockout is released.

Checking the stop switch

• Start the engine and make sure the engine stops when you move the stop switch to the stop setting.

• Press the throttle lockout and make sure it returns to its original position when you release it.

Blade guard

!

WARNING! Always check that the guard is correctly fitted before starting the machine.

This guard is fitted above the cutting blade and is designed to prevent parts of the blade or cutting fragments from being thrown towards the user.

• Check that the throttle trigger and throttle lockout move freely and that the return springs work properly.

Checking the blade guard

• Check that the guard over the cutting blade is not cracked or damaged in any other way. Replace when damaged.

• Check that the cutting blade is fitted correctly and does not show signs of damage. A damaged cutting blade can cause personal injury.

6 –

English

MACHINE´S SAFETY EQUIPMENT

Vibration damping system

Inspecting the muffler

Check regularly that the muffler is complete and secured correctly.

!

WARNING! Overexposure to vibration can lead to circulatory damage or nerve damage in people who have impaired circulation.

Contact your doctor if you experience symptoms of overexposure to vibration.

Such symptoms include numbness, loss of feeling, tingling, pricking, pain, loss of strength, changes in skin colour or condition. These symptoms normally appear in the fingers, hands or wrists. These symptoms may be increased in cold temperatures.

• Your machine is equipped with a vibration damping system that is designed to reduce vibration and make operation easier.

• The machine

′s vibration damping system reduces the transfer of vibration between the engine unit/cutting equipment and the machine

′s handle unit. The engine body, including the cutting equipment, is insulated from the handles by vibration damping units.

Checking the vibration damping system

!

WARNING! The engine should be switched off, and the stop switch in STOP position.

• Check the vibration damping units regularly for cracks or deformation. Replace them if damaged.

• Check that the vibration damping element is securely attached between the engine unit and handle unit.

Muffler

!

WARNING! Never use a machine without a muffler, or with a faulty muffler. A damaged muffler may substantially increase the noise level and the fire hazard. Keep fire fighting equipment handy.

The muffler gets very hot during and after use. This also applies during idling. Be aware of the fire hazard, especially when working near flammable substances and/or vapours.

The muffler is designed to keep noise levels to a minimum and to direct exhaust fumes away from the user.

English

– 7

General

!

CUTTING BLADES

Hand-held, high-speed machines

WARNING! A cutting blade may burst and cause injury to the operator.

• Cutting blades are available in two basic designs; abrasive baldes and diamond blades.

!

WARNING! Never use a cutting blade at a lower speed rating than that of the power cutter. Only use cutting blades intended for high speed handheld power cutters.

• Our cutting blades are manufactured for high-speed, portable power cutters.

• Check that the blade is approved for the same or higher speed according to the aproval plate of the engine. Never use a cutting blade with a lower speed rating than that of the power cutter.

• High-quality blades are often most economical. Lower quality blades often have inferior cutting capacity and a shorter service life, which results in a higher cost in relation to the quantity of material that is cut.

• Make sure that the right bushing is used for the cutting blade to be fitted on the machine. See the instructions under the heading Assembling the cutting blade.

Suitable cutting blades

Cutting blades

Abrasive blades

Diamond blades

Toothed blades

K 970 Rescue

Yes*

Yes

Yes**

*Without water

**See instructions under the heading "Toothed blades, carbide tipped blades and emergency situations".

Cutting blades for different materials

!

WARNING! Never use a cutting blade for any other purpose than that it was intended for.

Cutting plastics with a diamond blade can cause kickback when the material melts due to the heat produced when cutting and sticks to the blade. Never cut plastic materials with a diamond blade!

Cutting in metal generates sparks that may cause fire. Do not use the machine near to ignitable substances or gases.

Follow the instructions supplied with the cutting blade concerning the suitability of the blade for various applications, or consult your dealer in case of doubts.

Concre te

Abrasive blades X

Diamond blades X

Metal

X

X*

Plasti c

X

Cast iron

X

X*

* CAUTION! Only specialty blades.

Blade vibration

• The blade can become out-of-round and vibrate if an excessive feed pressure is used.

• A lower feed pressure can stop the vibration. Otherwise replace the blade.

Abrasive blades

!

WARNING! Do not use abrasive blades with water. The strength is impaired when abrasive blades are exposed to water or moisture, which results in an increased risk of the blade breaking.

• The cutting material on abrasive blades consists of grit bonded using an organic binder. ”Reinforced blades” are made up of a fabric or fibre base that prevents total breakage at maximum working speed if the blade should be cracked or damaged.

• A cutting blade’s performance is determined by the type and size of abrasive corn, and the type and hardness of the bonding agent.

• Ensure the blade it not cracked or damaged in any other way.

8 –

English

• Test the abrasive blade by hanging it on your finger and tapping it lightly with a screwdriver or the like. If the blade does not produce a resonant, ringing sound it is damaged.

Abrasive blades for different materials

Blade type

Concrete blade

Metal blade

Material

Concrete, asphalt, stone masonry, cast iron, aluminium, copper, brass, cables, rubber, plastic, etc.

Steel, steel alloys and other hard metals.

Diamond blades

General

!

CUTTING BLADES

WARNING! Cutting plastics with a diamond blade can cause kickback when the material melts due to the heat produced when cutting and sticks to the blade.

Diamond blades get very hot when used. An overheated blade is a result of improper use, and may cause deformation of the blade, resulting in damage and injuries.

Cutting in metal generates sparks that may cause fire. Do not use the machine near to ignitable substances or gases.

• Diamond blades consist of a steel core provided with segments that contain industrial diamonds.

• Diamond blades ensure lower costs per cutting operation, fewer blade changes and a constant cutting depth.

• When using diamond blades make sure that it rotates in the direction indicated by the arrow on the blade.

Diamond blades for different materials

• Diamond blades are ideal for masonry, reinforced concrete and other composite materials.

• Diamond blades are available in several hardness classes.

• Special blades should be used when cutting metal. Ask your dealer for help in choosing the right product.

Sharpening diamond blades

• Always use a sharp diamond blade.

• Diamond blades can become dull when the wrong feeding pressure is used or when cutting certain materials such as heavily reinforced concrete. Working with a blunt diamond blade causes overheating, which can result in the diamond segments coming loose.

• Sharpen the blade by cutting in a soft material such as sandstone or brick.

Diamond blades for dry cutting

• Diamond blades for dry cutting can be used both with and without water cooling.

• When dry cutting, lift the blade out from the cut every 30–

60 seconds and let it rotate in the air for 10 seconds to let it cool. If this is not done, the blade may be overheated.

Diamond blades for wet cutting

• Diamond blades for wet cutting must be water cooled. If this is not done, the blade may be overheated.

• Water cooling cools the blade and increases its service life while also reducing the formation of dust.

Toothed blades, carbide tipped blades and emergency situations

Government regulation requires a different type of guarding for carbide tipped blades not available on power cutters – a so called 360 degree guard. Power Cutters (this saw) use

Abrasive or Diamond blades and have a different guarding system which does not provide protection against the dangers presented by wood cutting blades.

Use of this power cutter with a carbide tipped blade is a violation of OSHA regulations.

Due to the hazardous nature and exigent circumstances involved with fire fighting and rescue operations conducted by the various highly trained public safety forces, safety professionals (fire departments), Husqvarna is aware that they may use this power cutter with carbide tipped blades in certain emergency situations due to the ability of carbide tipped blades to cut many different types of obstructions and materials in combination without having to take time to switch blades or machines. When using this power cutter be aware at all times that carbide tipped blades are more kickback prone than abrasive or diamond blades if not used properly.

Carbide tipped blades can also throw pieces of material away from the blade.

For these reasons, a power cutter equipped with a carbide tipped blade should never be used except by highly trained public safety professionals who are aware of the risks associated with its use and then only in those exigent circumstances when other tools are deemed inefficient and ineffective to for fire or rescue operations. A power cutter equipped with carbide tipped blade should never be used to cut wood in non-rescue operations.

English

– 9

CUTTING BLADES

Transport and storage

• Do not store or transport the power cutter with the cutting blade fitted. All blades should be removed from the cutter after use and stored carefully.

• Store cutting blades in dry, frost free conditions. Special care should be taken with abrasive blades. Abrasive blades must be stored on a flat, level surface. If an abrasive blades is stored in humid conditions, this can cause imbalance and result in injury.

• Inspect new blades for transport or storage damage.

10 –

English

General

!

ASSEMBLING AND ADJUSTMENTS

WARNING! The engine should be switched off, and the stop switch in STOP position.

Husqvarna’s blades are approved for hand-held power cutters.

Checking the drive shaft and flange washers

When the blade is replaced with a new one, check the flange washers and the drive shaft.

• Check that the threads on the drive shaft are undamaged.

• Check that the contact surfaces on the blade and the flange washers are undamaged, of the correct dimension, clean, and that they run properly on the drive axle.

Checking the direction of the blade rotation

• When using diamond blades make sure that it rotates in the direction indicated by the arrow on the blade. The direction of rotation for the machine is shown by arrows on the cutting arm.

Fitting the cutting blade

• The blade is placed on the bushing (A) between the inner flange washer (B) and the flange washer (C). The flange washer is turned so that it fits on the axle.

Do not use warped, notched, indented or dirty flange washers. Do not use different dimensions of flange washers.

Checking the bushing

Bushings are used to fit the machine to the centre hole in the cutting blade. The machine is supplied with two different sized bushings, 20 mm (25/32’’) and 25, 4 mm (1’’). A plate on the blade guard indicates which bushing has been factory-fitted.

• Lock the shaft. Insert a tool in the hole in the cutting head and rotate the blade until it is locked.

When replacing the bushing, the labeling of the machine must be updated with the supplied decal.

• Check that the bushing on the machine's spindle shaft corresponds with the centre hole of the cutting blade. The blades are marked with the diameter of the centre hole.

• Tightening torque for the bolt holding the blade is: 15-25

Nm (130-215 in.lb).

Blade guard

The guard for the cutting equipment should be adjusted so that the rear section is flush with the work piece. Spatter and sparks from the material being cut are then collected up by the guard and led away from the user.

The blade guard is friction locked.

• Press the ends of the guard against the work piece or adjust the guard with the adjustment handle. The guard must always be fitted on the machine.

English

– 11

ASSEMBLING AND ADJUSTMENTS

Reversible cutting head

The machine is fitted with a reversible cutting head allowing cutting close to a wall or at ground level, restricted only by the thickness of the blade guard.

There is an increased risk for kickback when cutting with the cutting head reversed. The cutting blade is further away for the centre of the machine which means the handle and the cutting blade are no longer in alignment. It is more difficult to restrain the machine if the blade gets jammed or stuck in its kickback danger zone. See under the "Kickback" heading in the "Operating" section for additional information.

Some of the machine's good ergonomic features may also be jeopardised. Cutting with the cutting head reversed should only occur with cuts that are not possible in a standard manner.

• First release the two bolts and then the adjuster screw to release the belt tension.

• Now unscrew the bolts and dismantle the belt guard.

• Disconnect the water hose from the blade guard.

• Remove the belt from the belt pulley.

• The cutting head is now loose and can be removed from the machine.

• Remove the cutting head and attach it to the other side of the cutting arm.

• Fit the belt guard to the reversed cutting head.

• Tighten the drive belt. See instructions in the section

"Maintenance".

• A longer water hose has to be fitted to the machine if wet cutting is carried out.

12 –

English

General

!

Fuel

WARNING! Running an engine in a confined or badly ventilated area can result in death due to asphyxiation or carbon monoxide poisoning. Use fans to ensure proper air circulation when working in trenches or ditches deeper than one meter (3 foot).

Fuel and fuel fumes are highly inflammable and can cause serious injury when inhaled or allowed to come in contact with the skin.

For this reason observe caution when handling fuel and make sure there is adequate ventilation.

The exhaust fumes from the engine are hot and may contain sparks which can start a fire. Never start the machine indoors or near combustible material!

Do not smoke and do not place any hot objects in the vicinity of fuel.

NOTICE! The machine is equipped with a two-stroke engine and must always been run using a mixture of gasoline and two-stroke engine oil. It is important to accurately measure the amount of oil to be mixed to ensure that the correct mixture is obtained. When mixing small amounts of fuel, even small inaccuracies can drastically affect the ratio of the mixture.

Gasoline

• Use good quality unleaded gasoline.

• The lowest recommended octane grade is 87

((RON+MON)/2). If you run the engine on a lower octane grade than 87 so-called knocking can occur. This gives rise to a high engine temperature and increased bearing load, which can result in serious engine damage.

• When working at continuous high revs a higher octane rating is recommended.

Environment fuel

The use of environmentl fuel (alkylate fuel), or environment fuel for four-stroke engines blended with two-stroke oil as set out below is recommended.

Ethanol blended fuel, E10 may be used (max 10% ethanol blend). Using ethanol blends higher than E10 will create lean running condition which can cause engine damage.

Two-stroke oil

• For best results and performance use HUSQVARNA twostroke engine oil, which is specially formulated for our aircooled two stroke-engines.

• Never use two-stroke oil intended for water-cooled engines, sometimes referred to as outboard oil (rated

TCW).

• Never use oil intended for four-stroke engines.

FUEL HANDLING

Mixing

• Always mix the gasoline and oil in a clean container intended for fuel.

• Always start by filling half the amount of the gasoline to be used. Then add the entire amount of oil. Mix (shake) the fuel mixture. Add the remaining amount of gasoline.

• Mix (shake) the fuel mixture thoroughly before filling the machine’s fuel tank.

• Do not mix more than one month’s supply of fuel at a time.

Mixing ratio

1:50 (2%) for all engines.

Gasoline, litre

5

10

15

20

US gallon

1

2 1/2

5

Two-stroke oil, litre

2% (1:50)

0,10

0,20

0,6/0,30

0,40

US fl. oz.

2 1/2

6 1/2

12 7/8

Fueling

!

WARNING! Always stop the engine and let it cool for a few minutes before refuelling. The engine should be switched off, and the stop switch in STOP position.

When refuelling, open the fuel cap slowly so that any excess pressure is released gently.

Clean the area around the fuel cap.

Tighten the fuel cap carefully after refuelling.

Negligence may lead to the start of a fire.

Move the machine at least 10 ft (3 m) from the refuelling point before starting it.

Never start the machine:

• If you have spilled fuel or chain oil on the machine. Wipe off the spillage and allow remaining fuel to evaporate.

• If you have spilled fuel on yourself or your clothes, change your clothes. Wash any part of your body that has come in contact with fuel. Use soap and water.

• If the machine is leaking fuel. Check regularly for leaks from the fuel cap and fuel lines.

English

– 13

FUEL HANDLING

Transport and storage

• Store and transport the machine and fuel so that there is no risk of any leakage or fumes coming into contact with sparks or naked flames, for example, from electrical machinery, electric motors, electrical relays/switches or boilers.

• When storing and transporting fuel always use approved containers intended for this purpose.

Long-term storage

• When storing the machine for long periods the fuel tank must be emptied. Contact your local gas station to find out where to dispose of excess fuel.

14 –

English

OPERATING

Protective equipment

General

• Do not use the machine unless you are able to call for help in the event of an accident.

Personal protective equipment

You must use approved personal protective equipment whenever you use the machine. Personal protective equipment cannot eliminate the risk of injury but it will reduce the degree of injury if an accident does happen. Ask your dealer for help in choosing the right equipment.

• Please read the operator’s manual carefully and make sure you understand the instructions before using the machine.

• Keep in mind that it is you, the operator that is responsible for not exposing people or their property to accidents or hazards.

• The machine must be kept clean. Signs and stickers must be fully legible.

Always use common sense

It is not possible to cover every conceivable situation you can face. Always exercise care and use your common sense. If you get into a situation where you feel unsafe, stop and seek expert advice. Contact your dealer, service agent or an experienced user. Do not attempt any task that you feel unsure of!

!

WARNING! The use of products such as cutters, grinders, drills, that sand or form material can generate dust and vapours which may contain hazardous chemicals.

Check the nature of the material you intend to process and use an appropriate breathing mask.

Long-term exposure to noise can result in permanent hearing impairment. So always use approved hearing protection. Listen out for warning signals or shouts when you are wearing hearing protection. Always remove your hearing protection as soon as the engine stops.

Always wear:

• Approved protective helmet

• Hearing protection

• Approved eye protection. If you use a face shield then you must also wear approved protective goggles. Approved protective goggles must comply with standard ANSI Z87.1 in the USA or EN 166 in EU countries. Visors must comply with standard EN 1731.

• Breathing mask

• Heavy-duty, firm grip gloves.

• Tight-fitting, heavy-duty and comfortable clothing that permits full freedom of movement.

• Boots with steel toe-caps and non-slip sole

Other protective equipment

!

CAUTION! Sparks may appear and start a fire when you work with the machine. Always keep fire fighting equipment handy.

• Fire Extinguisher

• Always have a first aid kit nearby.

General safety precautions

This section describes basic safety directions for using the machine. This information is never a substitute for professional skills and experience.

!

!

WARNING! The machine can be a dangerous tool if used incorrectly or carelessly, which can cause serious or fatal injury to the operator or others.

Never allow children or other persons not trained in the use of the machine to use or service it.

Never allow anyone else to use the machine without first ensuring that they have understood the contents of the operator’s manual.

Never use the machine if you are fatigued, while under the influence of alcohol or drugs, medication or anything that could affect your vision, alertness, coordination or judgement.

WARNING! Unauthorized modifications and/ or accessories may lead to serious injury or death to the user or others. Under no circumstances may the design of the machine be modified without the permission of the manufacturer.

Do not modify this product or use it if it appears to have been modified by others.

Never use a machine that is faulty. Carry out the checks, maintenance and service instructions described in this manual. Some maintenance and service measures must be carried out by trained and qualified specialists. See instructions under the heading Maintenance.

Always use genuine accessories.

Your warranty may not cover damage or liability caused by the use of non-authorized accessories or replacement parts.

English

– 15

!

WARNING! This machine produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this machine.

Work area safety

!

OPERATING

Basic working techniques

WARNING! The safety distance for the power cutter is 15 metres (50 foot). You are responsible to ensure that animals and onlookers are not within the working area.

Do not start cutting until the working area is clear and you are standing firmly.

• Observe your surroundings to ensure that nothing can affect your control of the machine.

• Ensure that no one/nothing can come into contact with the cutting equipment or be hit by parts if the blade breaks.

• Do not use the machine in bad weather, such as dense fog, heavy rain, strong wind, intense cold, etc. Working in bad weather is tiring and can lead to dangerous conditions, e.g. slippery surfaces.

• Never start to work with the power cutter before the working area is clear and you have a firm foothold. Look out for any obstacles with unexpected movement. Ensure when cutting that no material can become loose and fall, causing operating injury.Take great care when working on sloping ground.

• Ensure that the working area is sufficiently illuminated to create a safe working environment.

• Make sure that no pipes or electrical cables are routed in the working area or in the material to be cut.

!

WARNING! Do not pull the power cutter to one side, this can cause the blade to jam or break resulting in injury to people.

Under all circumstances avoid grinding using the side of the blade; it will almost certainly be damaged, break and can cause immense damage. Only use the cutting section.

Cutting plastics with a diamond blade can cause kickback when the material melts due to the heat produced when cutting and sticks to the blade. Never cut plastic materials with a diamond blade!

Cutting in metal generates sparks that may cause fire. Do not use the machine near to ignitable substances or gases.

• The machine is designed and intended for cutting with abrasive blades or diamond blades intended for high speed handheld machines. The machine shall not be used with any other type of blade, or for any other type of cutting.

• Check that the cutting blade is fitted correctly and does not show signs of damage. See the instructions in the sections "Cutting blades" and "Assembly and settings".

• Check that the correct cutting blade is used for the application in question. See instructions in the section

"Cutting blades".

• Never cut asbestos materials!

• Maintain a safe distance from the cutting blade when the engine is running.

• Never move the machine when the cutting equipment is rotating. The machine is equipped with a friction retarder to shorten the stop time.

• The guard for the cutting equipment should be adjusted so that the rear section is flush with the work piece. Spatter and sparks from the material being cut are then collected up by the guard and led away from the user. The guards for the cutting equipment must always be fitted when the machine is running.

• Never use the kickback zone of the blade for cutting. See instructions under the heading "Kickback".

• Keep a good balance and a firm foothold.

16 –

English

OPERATING

• Never cut above shoulder height. Never cut from a ladder.

Use a platform or scaffold when working at high altitude.

Cutting with toothed/carbide tipped blades during rescue operaions

• Always hold the machine in a firm grip with both hands.

Hold it so that the thumbs and fingers grip round the handles.

• Stand at a comfortable distance from the work piece.

• Check that the blade is not in contact with anything when the machine is started

• Apply the cutting blade gently with high rotating speed (full throttle) Maintain full speed until cutting is complete.

• Let the machine work without forcing or pressing the blade.

• Feed down the machine in line with the blade. Pressure from the side can damage the blade and is very dangerous.

!

WARNING! A power cutter should never be used with carbide tipped blade for nonemergency work, such as in the construction trades.

Be aware at all times that carbide tipped blades are more kickback prone than abrasive or diamond blades if not used properly.

If the public safety force (fire department) that purchased this power cutter has decided to equip this unit with a carbide tipped blade for rescue operations, the following safety considerations must be adhered to.

Training and protective equipment

• Only operators trained in the use of cutting with a power cutter equipped with carbide tipped blade shall be allowed to operate the power cutter.

• Full protective fire fighting gear shall be worn by the operator at all times.

• A full face shield (not just protective eye glasses) shall be worn by the operator to protect the face from flying debris or a sudden kick-back of the power cutter.

Risk area

No persons that do not have the protective equipment described above shall be allowed inside the risk area for thrown material.

• Move the blade slowly forwards and backwards to achieve a small contact area between the blade and the material to be cut. This reduces the temperature of the blade and ensures effective cutting.

20 m (66 ft)

Blade speed

Apply the cutting blade gently with high rotating speed (full throttle) Maintain full speed until cutting is complete. Low blade speed, especially in hard and thin materials can result in jamming and the breaking-off of the carbide tips.

Thin material

Cutting thin and hard material (i.e. a sheet metal covered roof) should be conducted in a forward direction for best control.

English

– 17

OPERATING

Pinching or jamming

Make a careful evaluation of how the object will move during the final stage of the cutting to avoid pinching or jamming. The cut must open during the cut. If the object sags and the cut begins to close the blade may pinch, possibly resulting in a kick-back or damage to the blade.

Reactive force

A reactive force is always present when cutting. The force pulls the machine in the opposite direction to the blade rotation. Most of the time this force is insignificant. If the blade is pinched or stalled the reactive force will be strong and you might not be able to control the power cutter.

Cutting in line

Skewing or twisting in the line of cut will reduce cutting efficiency and damage the blade.

Kickback zone

Never use the kickback zone of the blade for cutting. If the blade is pinched or stalled in the kickback zone, the reactive force will push the power cutter up and back towards the user in a rotating motion causing serious or even fatal injury.

Before each rescue operation

Check that the blade and th blade guard is not damaged or cracked. Replace the blade or the blade guard if it is exposed to impact or is cracked.

• Check that no carbide tips have loosened from the cutting blade.

• Check that the blade is not skew or shows signs of cracking or other defects.

When cutting in hard materials carbide tipped blades will rapidly lose its sharpness. For best performance during rescue operations we recommend that a new blade be installed.

Kickback

!

WARNING! Kickbacks are sudden and can be very violent. The power cutter can be thrown up and back towards the user in a rotating motion causing serious or even fatal injury. It is vital to understand what causes kickback and how to avoid it before using the machine.

Kickback is the sudden upward motion that can occur if the blade is pinched or stalled in the kickback zone. Most kickbacks are small and pose little danger. However a kickback can also be very violent and throw the power cutter up and back towards the user in a rotating motion causing serious or even fatal injury.

Climbing kickback

If the kickback zone is used for cutting the reactive force drives the blade to climb up in the cut. Do not use the kickback zone. Use the lower quadrant of the blade to avoid climbing kickback.

Pinching kickback

Pinching is when the cut closes and pinches the blade. If the blade is pinched or stalled the reactive force will be strong and you might not be able to control the power cutter.

If the blade is pinched or stalled in the kickback zone, the reactive force will push the power cutter up and back towards the user in a rotating motion causing serious or even fatal injury.

18 –

English

OPERATING

Pipe cutting and pinching

Special care should be taken whet cutting in pipes. If the pipe is not properly supported and the cut kept open through out the cut the blade might be pinched in the kickback zone and cause a severe kickback.

How to aviod kickback

Avoiding kickback is simple.

• The work piece must always be supported so that the cut stays open when cutting through. When the cut opens there is no kickback. If the cut closes and pinches the blade ther is always a risk of kickback.

• Take care when inserting the blade in an existing cut.

• Be alert to movement of the work piece or anything else that can occur, which could cause the cut to close and pinch the blade.

Transport and storage

• Secure the equipment during transportation in order to avoid transport damage and accidents.

• For transport and storage of cutting blades, see the section "Cutting blades".

• For transport and storage of fuel, see the section "Fuel handling".

• Store the equipment in a lockable area so that it is out of reach of children and unauthorized persons.

English

– 19

Before starting

STARTING AND STOPPING

Start throttle position - warm engine: The correct choke/start throttle setting is obtained by pulling the choke control to the choke position and then pushing it in again.

This only engages the start throttle setting without any choke.

!

WARNING! Please read the operator’s manual carefully and make sure you understand the instructions before using the machine.

Wear personal protective equipment. See instructions under the heading ”Personal protective equipment”.

Make sure no unauthorised persons are in the working area, otherwise there is a risk of serious personal injury.

Check that the fuel cap is properly secured, and that there is no fuel leakage. Risk of fire.

• Perform daily maintenance. See instructions in the section

"Maintenance".

Starting

Decompression valve: Press in the valve to reduce the pressure in the cylinder, this is to assist starting the power cutter. The decompression valve should always be used when starting. The valve automatically returns to its initial position when the machine starts.

Air purge: Press the air purge diaphragm repeatedly until fuel fills the diaphragm (at least 6 times). The diaphragm need not be completely filled.

Start the engine

!

WARNING! The cutting blade rotates when the engine is started. Make sure it can rotate freely.

• Grip the front handle with your left hand. Put your right foot on the lower section of the rear handle pressing the machine against the ground. Never wrap the starter

cord around your hand

Stop switch: Make sure that the stop switch (STOP) is in the left position.

Start throttle position - cold engine: Start throttle position and choke is obtained by pulling out the choke completely.

• Grip the starter handle, slowly pull out the cord with your right hand until you feel some resistance (the starter pawls grip), now quickly and powerfully pull the cord.

NOTICE! Do not pull the starter cord all the way out and do not let go of the starter handle when the cord is fully extended. This can damage the machine.

With a cold engine: The machine stops when the engine fires becase the chokel control is pulled out.

Press the choke control and the decompression valve.

Pull the starter handle until the engine starts.

20 –

English

STARTING AND STOPPING

• When the engine starts, quickly apply full throttle to automatically disengage fast idle.

Stopping

!

CAUTION! The cutting blade continues to rotate up to a minute after the motor has stopped. (Blade coasting.) Make sure that the cutting blade can rotate freely until it is completely stopped. Carelessness can result in serious personal injury.

• Stop the engine by moving the stop switch (STOP) to the right.

English

– 21

MAINTENANCE

General

!

WARNING! The user must only carry out the maintenance and service work described in this manual. More extensive work must be carried out by an authorized service workshop.

The engine should be switched off, and the stop switch in STOP position.

Wear personal protective equipment. See instructions under the heading ”Personal protective equipment”.

The life span of the machine can be reduced and the risk of accidents can increase if machine maintenance is not carried out correctly and if service and/or repairs are not carried out professionally. If you need further information please contact your nearest servicing dealer.

• Let your Husqvarna dealer regularly check the machine and make essential adjustments and repairs.

Maintenance schedule

In the maintenance schedule you can see which parts of your machine that require maintenance, and with which intervals it should take place. The intervals are calculated based on daily use of the machine, and may differ depending on the rate of usage.

Daily maintenance

Cleaning

External cleaning

Cooling air intake

Weekly maintenance

Cleaning

Monthly maintenance

Cleaning

Spark plug

Fuel tank

Functional inspection

General inspection

Throttle lockout*

Stop switch*

Blade guard*

Cutting blade**

Functional inspection

Vibration damping system*

Muffler*

Drive belt

Carburetor

Starter

*See instructions in the section "Machine’s safety equipment".

** See instructions in the section "Cutting blades" and "Assembly and settings".

Functional inspection

Fuel system

Air filter

Drive gear, clutch

22 –

English

MAINTENANCE

Cleaning

External cleaning

• Clean the machine daily by rinsing it with clean water after the work is finished.

Cooling air intake

• Clean the cooling air intake when needed.

Drive belt

Check the tension of the drive belt

• For correct tensioning of the drive belt, the square nut should be positioned opposite the marking on the belt cover.

NOTICE! A dirty or blocked air intake results in the machine overheating which causes damage to the piston and cylinder.

Spark plug

• If the machine is low on power, difficult to start or runs poorly at idle speed: always check the spark plug first before taking other steps.

• Ensure that the spark plug cap and ignition lead are undamaged to avoid the risk of electric shock.

• If the spark plug is dirty, clean it and at the same time check that the electrode gap is 0.5 mm. Replace if necessary.

Tensioning the drive belt

• The tension of a new drive belt must be readjusted after one or two tanks of fuel have been used.

• When the machine is equipped with a friction retarder, a scraping sound can be heard from the bearing housing when the blade is turned by hand. This is quite normal.

Please contact an accredited Husqvarna workshop if you have any questions.

• The drive belt is enclosed and well protected from dust and dirt.

• When the drive belt is to be tensioned, release the bolts holding the cutting arm.

• Screw the adjuster screw so that the square headed nut comes opposite the marking on the cover. This automatically ensures that the belt has the correct tension.

NOTICE! Always use the recommended spark plug type!

Use of the wrong spark plug can damage the piston/ cylinder.

These factors cause deposits on the spark plug electrodes, which may result in operating problems and starting difficulties.

• An incorrect fuel mixture (too much or incorrect type of oil).

• A dirty air filter.

Functional inspection

General inspection

• Check that nuts and screws are tight.

• Tighten both of the screws holding the cutting head using a T-wrench.

English

– 23

MAINTENANCE

Adjusting the idle speed Replacing the drive belt

!

WARNING! Never start the engine when the belt pulley and clutch are removed for maintenance. Do not start the machine without the cutting arm or cutting head fitted. Otherwise the clutch could come loose and cause personal injuries.

• First release the two bolts and then the adjuster screw to release the belt tension.

!

CAUTION! If the idle speed cannot be adjusted so that the cutting attachment stops, contact your dealer/service workshop. Do not use the machine until it has been correctly adjusted or repaired.

• Start the engine and check the idling setting. When the carburettor is set correctly the cutting blade should be still while engine is idling.

• Adjust the idle speed using the T screw. When an adjustment is necessary, first turn the screw clockwise until the blade starts to rotate. Now turn the screw anticlockwise until the blade stops rotating.

T

• Now unscrew the bolts and dismantle the belt guard.

• Remove the belt from the belt pulley.

• The cutting head is now loose and can be removed from the machine. Remove the rear belt guard by releasing the two screws holding the guard.

Rec. idle speed: 2700 rpm

Starter

!

WARNING! When the recoil spring is wound up in the starter housing it is under tension and can, if handled carelessly, pop out and cause personal injury.

Always be careful when changing the recoil spring or the starter cord. Always wear protective goggles.

Checking the starter cord

• Loosen the screws that hold the starter against the crankcase and remove the starter.

• Replace the drive belt.

• Assemble in the reverse order as set out for dismantling.

Carburetor

The carburettor is equipped with fixed needles to ensure the machine always receives the correct mixture of fuel and air.

When the engine lacks power or accelerates poorly, do the following:

• Check the air filter and replace if necessary. When this does not help, contact an authorised service workshop.

• Pull the cord out about 30 cm and lift it into the cut-out in the periphery of the starter pulley. When the cord is intact:

Release the spring tension by letting the pulley rotate slowly backwards.

24 –

English

MAINTENANCE

Changing a broken or worn starter cord

• Remove any remnants of the old starter cord and check that the return spring works. Insert the new starter cord through the hole in the starter housing and in the cord pulley.

• Remove the recoil spring by turning the starter over and loosen the hooks, with the help of a screwdriver. The hooks hold the return spring assembly on the starter.

• Secure the starter cord around the cord pulley as illustrated. Tighten the fastening well and ensure that the free end is as short as possible. Secure the end of the starter cord in the starter handle.

• Lubricate the recoil spring with light oil. Fit the pulley and tension the recoil spring.

Fitting the starter

• To fit the starter, first pull out the starter cord and place the starter in position against the crankcase. Then slowly release the starter cord so that the pulley engages with the pawls.

Tensioning the recoil spring

• Guide the cord through the cut-out in the periphery of the pulley and wind the cord 3 times clockwise around the centre of the starter pulley.

• Now pull the starter handle and in doing so tension the spring. Repeat the procedure once more, but this time with four turns.

• Note that the starter handle is drawn to its correct home position after tensioning the spring.

• Check that the spring is not drawn to its end position by pulling out the starter line fully. Slow the starter pulley with your thumb and check that you can turn the pulley at least a further half turn.

Changing a broken recoil spring

• Undo the bolt in the centre of the pulley and remove the pulley.

• Tighten the screws.

Fuel system

General

• Check that the fuel cap and its seal are not damaged.

• Check the fuel hose. Replace when damaged.

Fuel filter

• The fuel filter sits inside the fuel tank.

• The fuel tank must be protected from contamination when filling. This reduces the risk of operating disturbances caused by blockage of the fuel filter located inside the tank.

• The filter cannot be cleaned but must be replaced with a new filter when it is clogged. The filter should be

changed at least once per year.

• Bear in mind that the return spring lies tensioned in the starter housing.

• Loosen the bolts holding the spring cassette.

English

– 25

MAINTENANCE

Air filter

The air filter only needs to be checked if the engine drops in power.

• Loosen the screws. Remove the air filter cover.

• Check the air filter and replace if necessary.

Replacing the air filter

NOTICE! The air filter must not be cleaned or blown clean with compressed air. This will damage the filter.

• Remove the screw.

• Replace the air filter.

Drive gear, clutch

• Check the clutch centre, drive gear and clutch spring for wear.

26 –

English

TECHNICAL DATA

Technical data

Motor

Cylinder displacement, cu.in/cm

3

Cylinder bore, inch/mm

Stroke, inch/mm

Idle speed, rpm

Recommended max. speed, rpm

Power, kW/ rpm

Ignition system

Manufacturer of ignition system

Type of ignition system

Spark plug

Electrode gap, inch/mm

Fuel and lubrication system

Manufacturer of carburetor

Carburetor type

Fuel tank capacity, US pint/litre

Weight

Power cutter without fuel and cutting blade, lb/kg

12” (300 mm)

14” (350 mm)

16” (400 mm)

K 970, K 970

Rescue

5,7/93,6

2,2/56

1,5/38

2700

9300 (+/- 150)

4,8/9000

SEM

CD

Champion RCJ 6Y/

NGK BPMR 7A

0,02/0,5

Walbro

RWJ5

2,1/1,0

23,4/10,6

24,3/11,0

26,0/11,8

NOTE! This spark ignition system complies with the Canadian standard ICES-002.

Cutting equipment

Cutting blade

12” (300 mm)

14” (350 mm)

16” (400 mm)

Max. peripheral speed, m/s / ft/s

80

100

100

Max. speed of output shaft, rpm

4725

4725

3705

English

– 27

FEDERAL EMISSION CONTROL WARRANTY STATEMENT

YOUR WARRANTY RIGHTS AND

OBLIGATIONS

The EPA (The US Environmental Protection Agency),

Environment Canada and Husqvarna Construction Products are pleased to explain the emissions control system warranty on your 2009 and later small nonroad engine. In U.S. and

Canada, new small nonroad engines must be designed, built and equipped to meet the federal stringent anti-smog standards. Husqvarna Construction Products must warrant the emission control system on your small nonroad engine for the period of time listed below provided there has been no abuse, neglect or improper maintenance of your unit. Your emmission control system includes Parts such as the carburetor and the ignition system. Where a warrantable condition exists, Husqvarna Construction Products will repair your small nonroad engine at no cost to you. Expenses covered under warranty include diagnosis, parts and labor.

MANUFACTURER

′′′′S WARRANTY

COVERAGE

The 2009 and later small nonroad engines are warranted for two years. If any emission related part on you engine (as listed above) is defective, the part will be repaired or replaced by Husqvarna Construction Products.

OWNER

′′′′S WARRANTY

RESPONSIBILITIES

As the small nonroad engine owner, you are responsible for the performance of the required maintenance listed in your

Operator

′s Manual. Husqvarna Construction Products recommends that you retain all receipts covering maintenance on your small nonroad engine, but Husqvarna

Construction Products cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance. As the small nonroad engine owner, you should, however, be aware that Husqvarna

Construction Products may deny you warranty coverage if your small nonroad engine or a part of it has failed due to abuse, neglect, improper maintenance, unapproved modifications or the use of parts not made or approved by the original equipment manufacturer. You are responsible for presenting your small nonroad engine to a Husqvarna

Construction Products authorized servicing dealer as soon as a problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days. If you have any questions regarding your warranty rights and responsibilities, you should contact your nearest authorized servicing dealer or call Husqvarna Construction Products, at

1-800-288-5040 or www.us.husqvarna.com .

WARRANTY COMMENCEMENT DATE

The warranty period begins on the date small nonroad engine is delivered.

LENGTH OF COVERAGE

Husqvarna Construction Products warrants to the initial owner and each subsequent purchaser that the engine is free from defects in materials and workmanship which cause the failure of a warranted part for a period of two years.

WHAT IS COVERED

REPAIR OR REPLACEMENT OF PARTS Repair or replacement of any warranted part will be performed at no charge to the owner at an approved Husqvarna Construction

Products servicing dealer. If you have any questions regarding your warranty rights and responsibilities, you should contact your nearest authorized servicing dealer or call Husqvarna Construction Products, at 1-800-288-5040 or www.us.husqvarna.com .

WARRANTY PERIOD Any warranted part which is not scheduled for replacement as required maintenance, or which is scheduled only for regular inspection to the effect of

“repair or replace as necessary” shall be warranted for 2 years. Any warranted part which is scheduled for replacement as required maintenance shall be warranted for the period of time up to the first scheduled replacement point for that part.

DIAGNOSIS The owner shall not be charged for diagnostic labor which leads to the determination that a warranted part is defective, if the diagnostic work is performed at an approved Husqvarna Construction Products servicing dealer.

CONSEQUENTIAL DAMAGES Husqvarna Construction

Products may be liable for damages to other engine components caused by the failure of a warranted part still under warranty.

WHAT IS NOT COVERED

All failures caused by abuse, neglect or improper maintenance are not covered.

ADD -ON OR MODIFIED PARTS

The use of add-on or modified parts can be grounds for disallowing a warranty claim. Husqvarna Construction

Products is not liable to cover failures of warranted parts caused by the use of add-on or modified parts.

HOW TO FILE A CLAIM

If you have any questions regarding your warranty rights and responsibilities, you should contact your nearest authorized servicing dealer or call Husqvarna Construction Products, at

1-800-288-5040 or www.us.husqvarna.com .

WHERE TO GET WARRANTY SERVICE

Warranty services or repairs shall be provided at all

Husqvarna Construction Products authorized servicing dealers.

MAINTENANCE, REPLACEMENT AND

REPAIR OF EMISSION-RELATED PARTS

Any Husqvarna Construction Products approved replacement part used in the performance of any warranty maintenance or repairs on emission-related parts, will be provided without charge to the owner if the part is under warranty.

EMISSION CONTROL WARRANTY PARTS

LIST

1 Carburetor and internal parts

2 Intake pipe, airfilter holder and carburetor bolts.

28 –

English

FEDERAL EMISSION CONTROL WARRANTY STATEMENT

3 Airfilter and fuelfilter covered up to maintenance schedule.

4 Ignition System

1 Spark Plug, covered up to maintenance schedule

2 Ignition Module

MAINTENANCE STATEMENT

The owner is responsible for the performance of all required maintenance, as defined in the operator’s manual.

English

– 29

!

WARNING! Cutting, especially when DRY cutting, generates dust that comes from the material being cut, which frequently contains silica. Silica is a basic component of sand, quartz, brick clay, granite and numerous other minerals and rocks.

Exposure to excessive amount of such dust can cause:

Respiratory disease (affecting your ability to breath), including chronic bronchitis, silicosis and pulmonary fibrosis from exposure to silica. These diseases may be fatal;

Skin irritation and rash.

Cancer according to NTP* and IARC*

*/ National Toxicology Program, International

Agency for Resaearch on Cancer

Take precautionary steps:

Avoid inhalation of and skin contact with dust, mist and fumes.

Wear and ensure that all bystanders wear appropriate respiratory protection such as dust masks designed to filter out microscopic particles. (See OSHA 29 CFR

Part 1910.1200)

Wet cut when feasible, to minimize dust.

Original instructions

1154256-95

2011-07-06

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
