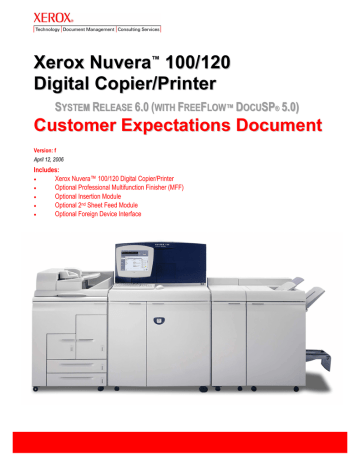

X e r r o x N u v e r r a

™

1 0

0

/

/

1 2 0

D i i g i i t t a l l

C o p i i e r r /

/

P r r i i n t t e r r

S

Y S T E

M

R

E L E A

S

E

6 .

.

0 (

(

W I

I

T

H

F

R E

E

F

L O W

™

D

O C

U

S P

®

5 .

.

0

)

)

C u s t t o m e r r E x p e c t t a t t i i o n s

D o c u m e n t t

Version: f

April 12, 2006

Includes:

•

•

Xerox Nuvera™ 100/120 Digital Copier/Printer

Optional Professional Multifunction Finisher (MFF)

•

•

•

Optional Insertion Module

Optional 2 nd Sheet Feed Module

Optional Foreign Device Interface

Xerox Nuvera™ 100/120 Digital Copier/Printer Customer Expectations Document

Copyright 2004, 2005, 2006 Xerox Corporation

Copyright protection claimed includes all forms and matters of copyrighted material and information now allowed by statutory or judicial law or hereinafter granted, including without limitation, material generated from the software programs that are displayed on the screen such as styles, templates, icons, screen displays, looks, etc.

XEROX®, The Document Company®, Nuvera™, DocuSP®, FreeFlow™, the digitized X, and all Xerox product names and product numbers mentioned in this publication are trademarks of

XEROX CORPORATION. All non-Xerox brands and product names may be trademarks or registered trademarks of the respective companies, and are hereby acknowledged.

Product appearance, build status and/or specifications are subject to change without notice.

- 2 -

Xerox Nuvera™ 100/120 Digital Copier/Printer Customer Expectations Document

Table of Contents

I

I

I

N

T

T R O D U C

T

T

I

I

I O

N

P R O D U C

T

T O V E R V

I

I

I

E

W

CRUCIAL PERFORMANCE EXPECTATIONS ...................................................................5

NEW CAPABILITIES IN XEROX NUVERA

TM

SYSTEM RELEASE 6.0..............................6

OPTIMUM PRODUCT PERFORMANCE ............................................................................7

ENVIRONMENTAL FACTORS ...........................................................................................7

PRODUCT SPACE & POWER REQUIREMENTS ..............................................................8

SYSTEM CONFIGURATION AND INSTALLATION ...........................................................8

OPERATIONS .....................................................................................................................9

SUPPLIES AND COMPONENT YIELDS ............................................................................9

SYSTEM PERFORMANCE IMPACTS ..............................................................................10

XEROX PRODUCTIVITY PLUS (XPP)..............................................................................11

PRINTERACT (FORMERLY REMOTE SERVICES) .........................................................11

COMPATIBLE MEDIA LIST..............................................................................................11

PRODUCT SPECIFICATIONS OVERVIEW BY SUB-SYSTEM........................................16

FREEFLOW MAKEREADY, WEB SERVICES AND PROCESS MANAGER...................16

FREEFLOW VARIABLE INFORMATION (VI) SUITE .......................................................17

NETWORK CONNECTIVITY.............................................................................................18

SCANNER .........................................................................................................................19

DIGITAL FRONT END (DFE) - FREEFLOW™ DOCUSP® ..............................................21

PRINT FROM DIGITAL FILE ............................................................................................22

SCAN TO DIGITAL FILE...................................................................................................22

KIT LIMITATIONS .............................................................................................................23

SHEET FEED MODULE (SFM).........................................................................................24

PRINTER MODULE...........................................................................................................27

MULTIFUNCTION FINISHER: STANDARD & PROFESSIONAL.....................................29

MULTIFUNCTION FINISHER: STANDARD & PROFESSIONAL.....................................29

POST-PROCESS USES OF XEROX NUVERA™ OUTPUT.............................................34

FUTURE FEATURES - XEROX NUVERA™ 100/120 DIGITAL COPIER/PRINTER ........34

- 3 -

Xerox Nuvera™ 100/120 Digital Copier/Printer Customer Expectations Document

I

I

I

N T R O D U C T

I

I

I O

N

The purpose of this document is to help you understand the current features and capabilities of the

Xerox Nuvera™ 100/120 Digital Copier/Printer (DC/P). Review of this material is recommended prior to your signing an order for a Xerox Nuvera™ 100/120 Digital Copier/Printer.

This document addresses high-level expectations. Additional details are provided in the training documentation.

P

R O D U

C

T

O

V E R V

I

I

I E

W

The Xerox Nuvera™ 100/120 Digital Copier/Printer sets a new benchmark in the world of on-demand printing. It is a network-able copying and printing system comprised of multiple modules. The Xerox

FreeFlow™ Document Services Platform (FreeFlow™ DocuSP®) is integrated into the Printer Module.

The Scanner scans at 120 images per minute at 600 x 600 dpi, simplex or duplex, and has a 300 sheet input tray. The standard Sheet Feed Module (SFM) has four drawers that will reliably feed a wide range of stocks. Two optional Sheet Feed Modules (SFMs) are also available for use as a second SFM: one with 2 trays (having more large format media capacity), the other with 4 (this latter is the same as the standard SFM). A 4-tray SFM may also be installed after the printer module and used as an inserter.

The Sheet Feed Module will reliably feed a wide range of stocks. The Printer module prints at 4800 x

600 dpi utilizing a state of the art dual beam laser ROS (Raster Output Scanner) with dedicated image processing hardware. The Multifunction Finisher module has two models to choose from – the Standard or the Professional.

The Nuvera Family of Products complies with the American Disability Act, Section 508 of the

Rehabilitation Act.

For the first time, FreeFlow™ DocuSP® not only controls the printer, it now also controls the scanner.

This provides the most flexible, stable copying and printing platform in the industry.

- 4 -

Xerox Nuvera™ 100/120 Digital Copier/Printer Customer Expectations Document

Crucial Performance Expectations

The Xerox Nuvera™ 100/120 Digital Copier/Printer is a “clean-sheet” design utilizing innovative technologies. It is the new base platform for Xerox monochrome products.

The following expectations should be explicitly set. Please see the appropriate section of the CED for more detail.

Availability

The Xerox Nuvera™ 100/120 Digital Copier/Printer will be available on a monthly average 92% to 96% of the time.

•

Availability is defined as the amount of time the machine is not being serviced or waiting for service by Xerox.

•

Given similar service coverage, DocuTech® availability averages up to 95%.

Media Capability

•

Reinforced stocks should be limited to less than 90 loaded in a tray at one time.

•

Tab jobs must be run with reverse collated tabs. Also, Running tabs requires proper use of the supplied Tab Guides.

•

Tabs are supported when the number of segments is 10 or less.

•

Envelopes

Envelopes should be limited to 60 loaded in a tray at one time. Nuvera feeder trays feed until almost empty but not until empty, leaving 20~40 sheets remaining. When running envelopes frequent reloading of the feeder trays will be required.

Very slight wrinkles (1/2 inch long) may occur on the trail edge of envelopes at the corners.

Due to the nature of feeding envelopes with flap open, some mis-stacking may occur in the top tray as the envelopes catch on the open flaps.

Envelopes can only be sent to the Top Tray, with a maximum limitation of 15.

•

Drilled Paper & Tab Jobs: Currently most jobs are delivered face down, with the bind edge trailing to match the requirements of the finisher. When tabs are run to the MFF, the tabs must be delivered with the tab leading and this requires an inversion at the exit of the paper path and entrance into the finisher. It is quite common to run drilled paper when running tabbed jobs, and this requires the user to reverse the loading of the drilled body stock in the tray such that the drilled edge is opposite what the paper tray loading label for drilled body stock shows.

•

Windowed stocks are not supported – performance (jams) maybe degraded.

•

DocuCards

DocuCards can only be loaded 100 at a time in a tray. Nuvera feeder trays feed until almost empty but not until empty, leaving 20~40 sheets remaining. When running DocuCards, frequent reloading of the feeder trays will be required.

DocuCards can only be run to the Top Tray of the finisher. Some mis-stacking may occur as the

DocuCards catch on the edges of the stacked sheets.

Printer Module

•

This is not a print to edge system due to potential image quality defects on the edge of the page.

• Printing on SRA3 can result in inboard and outboard edge image quality defects.

•

Stocks with pre-printed Xerographic color inks are not suitable for feeding from the Sheet Feed

Module (SFM); such stocks can be fed from the Insertion Module (IM).

- 5 -

Xerox Nuvera™ 100/120 Digital Copier/Printer Customer Expectations Document

•

It is highly recommended to avoid printing over pre-printed stocks with offset ink, whenever possible.

When printing over offset inks, image permanence may be compromised. Toner does not adhere to pre-printed stock with heavy ink coverage. There are other factors that should be taken into account to successfully print on pre-printed – please refer to the following web site for guidance: http://www.xerox.com/go/xrx/template/009.jsp?view=Feature&ed_name=Supply_Library_pre_printing&Xcntry=USA&Xlang=en

_US

•

Images printed on Mylar tabs are typically degraded by toner scatter.

•

Productivity for 8.5” x 14” paper is less than that for 8.5” x 11” paper – refer to the System

Productivity section.

.

FreeFlow™DocuSP®

•

The Token Ring option is no longer natively supported in DocuSp. Customers requiring Token Ring will need to acquire a bridge box from a vendor providing that capability to connect their Token Ring to the DocuSP® Ethernet connection.

FreeFlow Digital Workflow Collection

FreeFlow Makeready, Web Services and Process Manager, versions 3.0 and higher, provide full support for the Nuvera Digital Copier/Printer, but customers with earlier versions of these applications may need to upgrade since SPAR support will not be available.

New Capabilities in Xerox Nuvera

TM

System Release 6.0

• New Controller platform offering faster RIP performance for complex data streams, as well as improved GUI response.

•

Automatic adjustment of fuser temperature to paper weight around nominal 190 degrees centigrade, so as to minimize curl for lighter weight stock, and to maximize fuse fix for heavier weight and rough stock. Minor impacts to productivity may occur if there are large swings in paper weight.

•

CRUM (Customer Replaceable Unit Memory) function recognizes intended toner, and protects against damage from accidental use of improper toner.

•

Productivity enhancement for duplex unfinished jobs with appropriate media in N to 1 face up order.

• Xerox Productivity Plus enhancement, with two separate one-day training sessions.

•

Note: ‘Curl Improvement Mode’ is not recommended for use in the Copier/Printer system.

- 6 -

Xerox Nuvera™ 100/120 Digital Copier/Printer Customer Expectations Document

Optimum Product Performance

Print Volume Range

The Xerox Nuvera™ 100/120 Digital Copier/Printer is designed for a range of monthly print volumes.

System Average Monthly

Print Volume (AMPV)

Conditions

Xerox Nuvera™ 100/120

Digital Copier/Printer

100K – 500K 8.5 in x 11 in/A4

Maximum duty cycle:

Duty cycle is defined as:

Up to 700K prints per month

The maximum monthly copy / print volume support under standard vendor supplied service (1X5 shift coverage). This defines the upper end of expected customer volume band for the device.

The Customer should consider higher volume machines or multiple machines if average monthly volume approaches duty cycle on a constant basis.

Prints between service calls on a digital mid-production system are dependent on customer requirements for quality, volume, applications, and throughput material. Xerox Nuvera™ trained operators can optimize performance output and help to minimize service calls.

Environmental Factors

Environmental Factor

Temperature

Humidity

Heat Emission (approximate)

- SFM /PM/ MFF

Power Consumption (approximate)

- SFM/ PM/ MFF

Noise

(Approximate sound pressure level at operator position)

Altitude (above sea level)

Nominal Voltage (Processor)

Minimum

50 o F (10 o C)

(Tested to 60° F

(15.6

o C))

15% RH

(Tested to 15%)

2,465 BTU / HR

(Standby)

0.723 kw

(Standby)

42.5 dBA

(Standby)

0

200

Maximum

90 o F (32.2

o C)

(Tested to 80° F

(26.7

o C))

85% RH

(Tested to 80%)

17,537 BTU / HR

(Running)

4.275 kw

(Running)

66.3 dBA

(Running)

10,000 ft.

240

- 7 -

Xerox Nuvera™ 100/120 Digital Copier/Printer Customer Expectations Document

Product Space & Power Requirements

Item Xerox Nuvera™ 100/120 Digital

Copier/Printer

Size – Printer w/ 1 SFM &

Professional

MFF

131.3” (W) x 30” (D) x 61.6” (H)

3336mm x 736mm x 1565.6mm

Width – additional

31.7” ( 805mm)

SFM

Service Space Fixed: 162” (W) x 113” (D)

( 4114.8mm x 2870.0mm)

Moveable: 162” (W) x 92” (D)

( 4114.8mm x 2336.8mm)

Weight

Comments

Optional

- Fixed (stationary) installation: rear of the system should be at least 30” from the wall.

- Moveable installation: rear of the system should be at least 10” from the wall and must be on mobility plates OR hard surface floor

AND 4 modules or less.

With consumables loaded (except media)

Power and

Agency

Requirements

North America

Power

Requirements

Europe/Japan

1,753 lb. (795.1 kg)

Additional SFM – 423 lbs. (191.9 kg)

208 Volts / 30 Amp sole use, 60 Hz

Two phase, 3 wire + PE (L1, L2, N, GND)

200-240 Volts / 25 Amp sole use, 50 Hz

Single phase, 2 wire + PE (L, N, GND)

•

UL & cUL compliant

•

Complies with the FEMP (Federal Energy

Management Program) via the machine circuit breaker (CB); with the CB switched off, the system consumes less than 1 watt.

•

Energy Star (eStar) compliant

•

Environmental Choice (Canada)

•

Complies with Section 508 of the ADA

Rehabilitation Act

• Energy Star (eStar) compliant

•

Units are compliant with applicable EU directives and are CE marked

System Configuration and Installation

Installation Preparation Document

This section should be used in conjunction with the Xerox Nuvera™ 100/120 Digital Copier/Printer

Installation Planning Guide (IPG) and the Xerox Nuvera™ 100/120 Digital Copier/Printer Installation

Preparation Document (IPD), which contain detailed specifications for size, weight, electric, and environmental conditions. Only the most important requirements are stated here.

Customer Responsibilities

The following must be completed before the system can be delivered and will be assessed in the final site check:

Item Comments

Identify placement of the system

Ensure the printer can be delivered to the site

Supply the appropriate electrical connections Dedicated power required

Install an exhaust duct to vent hot air to the air system or the outside if required

Heat Vent Kit is available for stationary system installations only. The kit lowers the system’s output from approximately 17,500 BTU/hour to 8,500 BTU/hr.

Verify the strength and slope of the floor

- 8 -

Xerox Nuvera™ 100/120 Digital Copier/Printer Customer Expectations Document

Item

Meet room

Environmental Specifications

for temperature and relative humidity year round

Install a network drop for Internet access

Connect system to network including proxy server information

Comments

This is essential to the system’s ability to perform as expected; Xerox will not be able to resolve performance problems encountered when the area is not maintained within this operating range

System Installation

Allow 4 to 6 hours to complete the system installation.

Operations

Item

Power Up

First Copy Out

Time (FCOT)

First Print Out

Time (FPOT)

Restart Time

Xerox Nuvera™ 100/120 Digital

Copier/Printer

• Warm up from Power Saver -

3.5 minutes.

•

System ready to print queued jobs -

4 minutes, 45 seconds. (From Off)

• System UI fully available for Copy programming -

7 minutes. (From Off)

•

The system may be powered down at night or for any extended period of time as long as the space is maintained at the specified temperature and RH.

Comment

If the environment does drift outside the specified range during the systems powered down state, some period of image degradation can be expected at startup.

8.5 seconds

9.5 seconds.

Copy job sent to the top tray; platen scan, simplex job, 8.5 x

11 LEF fed from tray 1; no

Insertion Module

Printer should not cycle down as long as it receives an image to print within 5 seconds of completing the previous sheet.

•

System ready to print queued jobs -

3 minutes 40 seconds.

•

System UI fully available for Copy programming -

5 minutes, 45 seconds.

Billing Meters Available via the Administration window.

Vary by operating company / country; ask local analyst or sales representative to explain your meter operation.

Automated reading of the billing meter is available, If Remote

Services are enabled

Supplies and Component Yields

The consumable supplies listed below are engineered specifically for use in the Xerox Nuvera™ 100/120

Digital Copier/Printer and provide the highest and most consistent image quality, maximum machine productivity, and uptime.

- 9 -

Xerox Nuvera™ 100/120 Digital Copier/Printer Customer Expectations Document

All yield estimates are based on the indicated 6% area coverage at standardized conditions using 8 ½” x 11”

/ A4 Xerox 20 lb. (75 gsm) stock. Please note that actual yields vary greatly depending on area coverage, paper stock, and image quality control settings. The current estimates are shown below.

Consumables

Supply Yield Estimates

Toner

100 Sheet Staple

Cartridge

110,000 prints/ 10 lb. drum @ 6% AC

Comes installed in machine. Filled with 1 -

5,000 staple refill, this cartridge typically lasts the life of machine.

100 Sheet Staple Refills 5,000 staples per refill, 3 refills per carton

50 Sheet Staple

Cartridge

Required for initial 50-sheet stapler capacity order. Filled with 1 - 5,000 staple refill, this cartridge typically lasts the life of machine.

50 Sheet Staple Refills 5,000 staples per refill, 3 refills per carton.

Staples Refills for MFF

Booklet Maker

(1 for rear and 1 for front stapler required)

2,000 staples per box; 16,000 per carton

(8 Boxes per carton)

Customer Replaceable Units

CRU Yield Estimates

Toner Waste Bottle

750,000 prints

Waste Developer Bottle 350,000 prints

Disposal Process

All Toner Waste Bottles include a prepaid return shipping label, plastic bag, and tie in the box. This is the preferred method of disposal.

Empty dry ink containers and waste containers are safe and approved for local recycling with common commercially used plastics.

More information can be found at www.Xerox.com

, under Online Supplies Ordering; Cartridge Recycling

Program.

System Performance Impacts

The printer should not cycle down as long as it receives a page to print within five seconds of completing the previous page. Depending on job characteristics, the following may or may not impact system performance.

Item

Print Quality

Adjustments

Xerox Nuvera™ 100/120 Digital

Copier/Printer

Brief pauses for registration or xerographic process adjustments to maintain high image quality

Comment

- 10 -

Xerox Nuvera™ 100/120 Digital Copier/Printer Customer Expectations Document

Item

Mixed Plex

Printing

Xerox Nuvera™ 100/120 Digital

Copier/Printer

Switching between one-sided and twosided printing does cause some loss of productivity. The extent of the loss is directly related to the frequency of the switch.

Comment

Adding a blank side to the job can minimize impact. (Note that this is not necessary when producing collated sets run in 1 to N order; in that case the system automatically optimizes performance.

Xerox Productivity Plus (XPP)

The Productivity Plus option enables the capability for the advanced customer to carry out certain maintenance activities. Before this capability can be enabled at a customer location, the designated customer personnel who will be performing the maintenance will need to be trained and certified by Xerox.

The training is necessary, and available as an option.

prInteract (formerly Remote Services)

The Xerox Nuvera™ Digital Copier/Printer is enabled with Remote Services features, including Automated

Remote Monitoring and On Demand Machine Data Transfer. These services provide the ability for the

Xerox Nuvera™ Digital Copier/Printer to securely transport the device’s service and engineering data to a

Xerox support server within Xerox’s fire walled environment. Data is transported through the network using industry standard 128-bit encryption and Secure Socket Layer (SSL) transport protocols.

Enablement of Remote Data Transfer requires two steps:

•

Populating of the customer’s machine serial number into the Xerox server. This occurs at order placement if the customer selects the CONNECT option.

• Installing the customer’s proxy server or Firewall information address on the machine. (Reference the System Administration Guide for details.)

To sign up for Meter Assistant, customers or Sales Specialists should visit xerox.com: Customer Resources:

Submit Meter Reads for more information.

Compatible Media List

The media listed on the following pages have been tested and approved for use in the Xerox Nuvera™

Digital Copier/Printer.

The Xerox Nuvera Digital Copier/Printer images on a wide range of uncoated papers. Results may vary depending on the paper used. We are pleased to consult with you to help you maximize your objectives.

The Xerox Supplies Group will be available to test particular media in a customer’s application

For more information regarding specific substrates use in the Xerox Nuvera™ Digital Copier/Printer, please call Xerox Supplies at (800)822-2200.

For More Information and Pricing, contact your Xerox Supplies Representative, authorized Xerox merchant, or visit us on the web at www.xerox.com.

- 11 -

Xerox Nuvera™ 100/120 Digital Copier/Printer Customer Expectations Document

3R11380

3R11381

3R11382

3R11383

3R11386

3R11392

3R11386

3R11394

3R11387

3R11388

3R11389

3R11390

3R11391

3R11384

3R11395

3R11396

3R11397

Digital Color Xpressions+ (96 Bright)

Reorder No.

Product Description

24# (90 gsm) 8½ x 11

24# (90 gsm) 8½ x 11 3-Hole

24# (90 gsm) 8½ x 14

24# (90 gsm) 17 x 11 SG

28# (105 gsm) 8½ x 11

28# (105 gsm) 8½ x 11 3-Hole

28# (105 gsm) 17 x 11 SG

28# (105 gsm) 18 x 12 SG

32# (120 gsm) 8½ x 11

32# (120 gsm) 17 x 11 SG

32# (120 gsm) 18 x 12 SG

60# Cover (163 gsm) 8½ x 11

60# Cover (163 gsm) 17 x 11 SG

60# Cover (163 gsm) 18 x 12 SG

80# Cover (216 gsm) 8½ x 11

80# Cover (216 gsm) 17 x 11 SG

80# Cover (216 gsm) 18 x 12 SG

Super Nova Blue

Galactic Green

Sunset Pink

Sunflare Yellow

Fireball Red

Gamma Green

Cosmic Orange

Rainbow

Multipurpose Solar Flares

24# (90 gsm)

3R6389

3R6390

3R6388

3R6391

3R6392

3R6396

3R6397

3R6393

90# (163 gsm) Index

3R6399

3R6400

3R6398

3R6401

3R6402

3R6406

3R6407

3R6403

Digital Color Xpressions 98 (98 Bright)

Reorder No.

Product Description

3R5529

3R5530

3R5531

3R5533

3R5534

3R5535

3R5537

3R5538

3R5539

28# (105 gsm) 8½ x 11

28# (105 gsm) 17 x 11 SG

28# (105 gsm) 18 x 12 SG

65# Cover (176 gsm) 8½ x 11

65# Cover (176 gsm) 17 x 11 SG

65# Cover (176 gsm) 18 x 12 SG

80# Cover (216 gsm) 8½ x 11

80# Cover (216 gsm) 17 x 11 SG

80# Cover (216 gsm) 18 x 12 SG

Digital Color Parchments

Reorder No.

Product Description

3R11244

3R11245

24# (90 gsm) 8½ x 11 White

24# (90 gsm) 8½ x 11 Gold

- 12 -

Xerox Nuvera™ 100/120 Digital Copier/Printer Customer Expectations Document

Business Multipurpose 4200 Paper

Reorder No.

Product Description

3R2047

3R2641

3R2051

3R3761

20# (75 gsm) 8½ x 11

20# (75 gsm) 8½ x 11 3-Hole

20# (75 gsm) 8½ x 14

20# (75 gsm) 11 x 17

Multipurpose Recycled Paper (30% PCW)

Reorder No.

Product Description

3R6296

3R6297

3R6298

3R6299

20# (75 gsm) 8½ x 11

20# (75 gsm) 8½ x 11 3-Hole

20# (75 gsm) 8½ x 14

20# (75 gsm) 11 x 17

3R721

3R2193

3R727

3R729

3R2531

3R3317

3R3871

3R2353

3R3873

3R3041

3R3004

3R5102

3R6383

Premium Multipurpose 4024 Paper

Reorder No.

Product Description

20# (75 gsm) 8½ x 11

20# (75 gsm) 8½ x 11 3-Hole

20# (75 gsm) 8½ x 14

20# (75 gsm) 11 x 17

24# (90 gsm) 8½ x 11

24# (90 gsm) 8½ x 11 3-Hole

24# (90 gsm) 11 x 17

28# (105 gsm) 8½ x 11

28# (105 gsm) 11 x 17

65# Cover (176 gsm) 8½ x 11

90# Index (163 gsm) 8½ x 11

90# Index (163 gsm) 11 x 17

110# Index (203 gsm) 8½ x 11

Digital Color Graphics

Reorder No.

Product Description

3R11164

3R11165

3R11168

3R11169

3R11172

3R11173

3R11176

3R11177

3R11180

3R11181

3R11184

3R11185

28# (105 gsm) 8½ x 11 Cream White

28# (105 gsm) 8½ x 11 Warm White

28# (105 gsm) 17 x 11 SG Cream White

28# (105 gsm) 17 x 11 SG Warm White

28# (105 gsm) 18 x 12 SG Cream White

28# (105 gsm) 18 x 12 SG Warm White

80# Cover (216 gsm) 8½ x 11 Cream White

80# Cover (216 gsm) 8½ x 11 Warm White

80# Cover (216 gsm) 17 x 11 SG Cream White

80# Cover (216 gsm) 17 x 11 SG Warm White

80# Cover (216 gsm) 18 x 12 SG Cream White

80# Cover (216 gsm) 18 x 12 SG Warm White

Digital Laser Opaque Paper

Reorder No.

Product Description

3R5670

3R5672

3R5664

3R5666

3R5675

3R5667

3R5669

3R6279

3R5725

3R5673

3R5674

3R5678

3R5679

18# (67.5 gsm) 8½ x 11 White

18# (67.5 gsm) 17 x 11 SG White

20# (75 gsm) 8½ x 11 White

20# (75 gsm) 17 x 11 SG White

20# (75 gsm) 8½ x 11 Natural

24# (90 gsm) 8½ x 11 White

24# (90 gsm) 17 x 11 SG White

24# (90 gsm) 8½ x 11 Natural

28# (105 gsm) 8½ x 11 White

65# Cover (176 gsm) 8½ x 11 White

65# Cover (176 gsm) 17 x 11 SG White

65# Cover (176 gsm) 8½ x 11 Natural

65# Cover (176 gsm) 17 x 11 SG Natural

- 13 -

Xerox Nuvera™ 100/120 Digital Copier/Printer Customer Expectations Document

Multipurpose Pastel Colors

Blue

Green

Pink

Yellow

Buff

Goldenrod

Ivory

Gray

Salmon

Tan

Lilac

Cherry

Rainbow

8.5 x 11

3R11050

3R11051

3R11052

3R11053

3R11054

3R11055

3R11056

3R11057

3R11058

3R11061

3R11059

3R11060

3R11100

20# (75 gsm)

11” 3-HD

3R11062

3R11063

3R11064

3R11065

3R11066

3R11067

3R11068

3R11069

N/A

N/A

3R11070

N/A

N/A

8.5 x 14

3R11074

3R11075

3R11076

3R11077

3R11078

3R11079

3R11080

3R11081

3R11084

3R11085

3R11082

3R11083

N/A

Blue

3R5294

90# Index (163 gsm) 8.5 x 11

Yellow Green

Gray

3R5295 3R55296 3R5297

11 x 17

3R11086

3R11087

3R11088

3R11089

3R11094

3R11093

3R11090

3R11091

N/A

N/A

3R11092

N/A

N/A

Ivory

3R5298

Blue

3R5301

65# Cover (176 gsm) 8.5 x 11

Yellow Green

Gray

3R5302 3R5303 3R5304

Ivory

3R5305

Punched Papers

Reorder No.

Product Description

3R4904

3R4905

3R5134

3R5818

3R12163

3R12164

3R12165

3R4299

19-Hole for Binders ≥½” (BMP 4200)

19-Hole for Binders <½” (BMP 4200)

11-Hole (BMP 4200)

44-Hole (BMP 4200)

2-Hole short edge (BMP 4200)

5-Hole short edge (BMP 4200)

5-Hole long edge (BMP 4200)

3-Hole Ring Tuff (PMP 4024)

Reorder No.

Product Description

3R4415

3R5520

3R12366

3R5717

90# white 5-Bank (163 gsm)

Reverse Collated Paper

90# clear plastic 5-Bank (163 gsm)

Reverse Collated Plastic

60# Xpressions+ white 5-Bank (163 gsm) Reverse Collated Paper

110# white 5-Bank (203 gsm)

Reverse Collated Paper

Tabs

Carbonless Papers

Reorder No.

Product Description

3R12374

3R12375

3R12377

3R12378

3R12380

3R12382

3R12383

3R12385

3R12386

3R12387

3R12388

11”, 2 part str../rev., w/c

11”, 2 part, str../rev., w/p

14”, 2 part, str.,/rev., w/c

17”, 2 part, str../rev., w/c

11”, 3 part, str., w/c/p

14”, 3 part, str., w/c/p

17”, 3 part, str., w/c/p

11”, 4 part, str., w/c/p/g

14”, 4 part, str., w/c/p/g

9” x 11”, vert. Perf., 3 part, str., w/c/p

8.5” x 11”, vert. Perf., 3 part, str., w/c/p

NeverTear Paper

Reorder No.

Product Description

3R3109

3R3118

8½ x 11 3-Hole

8½ x 11

Perforated Papers

Reorder No.

Product Description

3R4160

3R4175

3R4900

3R4901

3R5125

½” from left 9 x 11 (20# PMP 4024)

½” from left 8½ x 11 (20# PMP 4024)

3½” from bottom 8½ x 11 (24# PMP 4024)

3 2

⁄

3

” from bottom 8½ x 11 (24# PMP 4024)

3½” from bottom 8½ x 11 (20# PMP 4024)

3R5126

3R12166

3R5430

3R5431

3 2

⁄

3

” from bottom 8½ x 11 (24# PMP 4024)

5½” from bottom 8½ x 11 (20# PMP 4024)

Green Check Stock 8½ x 11 (24# PMP 4024)

Blue Check Stock 8½ x 11 (24# PMP 4024)

- 14 -

Xerox Nuvera™ 100/120 Digital Copier/Printer Customer Expectations Document

Laser/Inkjet Labels

Reorder No.

Product Description

3R12050

3R12051

3R12052

3R12053

3R12055

3R12056

3R12057

33-up (label 2.83 x 1.00) 8.5 x 11

30-up (label 2.59 x 1.00) 8.5 x 11

24-up (label 2.65 x 1.25) 8.5 x 11

20-up (label 4.00 x 1.00) 8.5 x 11

10-up (label 4.00 x 2.00) 8.5 x 11

8-up (label 4.25 x 2.74) 8.5 x 11

1-up (label 8.5 x 11) 8.5 x 11

Transparencies

Reorder No.

Product Description

3R3108

3R6218

3R3117

3R2780

3R3028

Removable Stripe

3-Hole Removable Stripe

Clear

Painted Stripe

Paperback

Document Folders

Reorder No.

Product Description

3R4885

3R5105

90# Docupac

65# Laser Docupac

High Speed Labels

Reorder No.

Product Description

3R4476

3R3146

3R4475

3R5719

3R4474

1-up (label 8.5 x 11) 8.5 x 11

6-up (label 4.25 x 3.66) 8.5 x 11

8-up (label 4.25 x 2.74) 8.5 x 11

14-up (label 4.25 x 1.59) 8.5 x 11

24-up (label 2.83 x 1.31) 8.5 x 11

33-up (label 2.83 x 1.00) 8.5 x 11

3R3139

DuraPaper

Reorder No.

Product Description

3R12063

3R12064

3R12065

11 x 17

8½ x 11

8½ x 11 3-Hole

- 15 -

Xerox Nuvera™ 100/120 Digital Copier/Printer Customer Expectations Document

Product Specifications Overview by Sub-System

The following sections give more detailed descriptions of the capabilities and limitations of each of the major system components.

FreeFlow Makeready, Web

Services and Process

Manager

Version 4.0 of FreeFlow Makeready, Web

Services and Process Manager is available and provides full support for

Xerox Nuvera™ 100/120 Digital Copier/Printer image quality and job ticketing, as well as IQI (Image Quality

Interoperability).

Customers with earlier versions (prior to 3.0) of FreeFlow applications may need to upgrade since SPAR support will not be available.

Earlier versions of DigiPath (3.X or below) have not and will not be changed to support the Xerox Nuvera™

100/120 Copier / Printer as a “targeted device”. DigiPath customers with earlier software releases will be provided a “best case” print path utilizing an existing supported printer to optimize image quality.

•

When scanning with the “Document Scan and Makeready” application, best Image Quality results will be achieved using “Generic Write White” when submitting from DigiPath.

•

When scanning with the “Scan and Print” application, best Image Quality results will be achieved using

“DT75/90” when submitting from DigiPath.

•

When Image Quality is not a primary concern, select the DT6180 printer when submitting a job, for the most comprehensive set of Job Ticket Attributes.

Jobs sent from these DigiPath units will have to be held and re-programmed to ensure correct job attributes.

- 16 -

Xerox Nuvera™ 100/120 Digital Copier/Printer Customer Expectations Document

FreeFlow Variable Information (VI) Suite

The FreeFlow VI Software Suite provides a variable data software suite with focus on VIPP (Variable data

Intelligent Postscript Printware) - a Xerox technology building on the power of postscript with the goal of a powerful Variable Data solution that can make document creation as simple as just sending the data. Print shop operators and supervisors can also easily print variable data applications in electronic format, as pdf files, with the VI PDF Originator.

Print Speed/System Performance

In general, the Xerox Nuvera™ 100/120 is capable of efficiently handling variable data jobs. The exact size of the run length will vary based on the amount of variable coverage and element demographics (size and percentage of variable text vs. images/graphics).

Overall system performance (click-to-clunk) is dependent upon many factors, including the variable data application and workflow, network environment, image quality settings, and RIP and print rates.

Variable Information Software Limitations

Note: The following limitations are specific to variable information, which may not be inclusive of the entire system independent of whether a job includes variable data.

FreeFlow VI Interpreter

Adobe Portable Document Format (PDF)

•

•

PDF cannot be used as a direct input resource for VI Interpreter. Direct printing of PDF files within a VIPP workflow is not supported. PDF files can be converted to PostScript (using an Adobe compliant driver) and the VIPP Resource Converter or other third party PDF to PostScript converter. PostScript is an input resource supported by the VI Interpreter.

The VI PDF Originator component of the VIPP workflow can output intelligent, interactive PDF files directly from a VIPP data file. For more information on the capabilities of the VI PDF Originator contact your Xerox representative

.

Support for the FreeFlow VI Suite may also be obtained by contacting the Variable Information and

Solutions Services Group (VISSG). Customers may call (888) 550-6336.

FreeFlow Print Manager / IPP

The XDS software has been discontinued. A replacement is the FreeFlow Print Manager, which is a separate, standalone product available for purchase.

- 17 -

Xerox Nuvera™ 100/120 Digital Copier/Printer Customer Expectations Document

Network Connectivity

The Xerox Nuvera™ 100/120 Digital Copier/Printer supports industry standard network protocols and Page

Description Languages (PDL).

Item Xerox Nuvera™ 100/120 Digital

Copier/Printer

Connections

•

Ethernet Interface (10/100/1000 BaseT)

Comments

Network

Protocols

−

Licensed option

− Optional connection

−

Token Ring is not natively supported and requires a bridge box

−

Protocols available with Ethernet license

Scan to

Network Save

PDLs

•

TCP/IP

•

LPR

•

IPP

•

HTTP

•

Novell (SPX,IPX)

•

AppleTalk

• SNMP

•

SMB

• FTP

•

Secure FTP

•

NFS

−

Set up Instructions for Scan To File with NFS (Network File System) can be found in the Xerox Nuvera100/120

Digital Copier/Printer Hints & Tips

(701P25530)

− PCL is bundled with the Network licenses in order to support ASCII printing

Document

Submission

• Adobe PostScript Level 3

• Adobe PDF

•

HP/PCL 5e & PCL6

•

TIFF

•

Multi-Page TIFF

• ASCII

• Microsoft Windows 95,98,ME, NT4.0, 2000, XP

Printer Drivers

•

Apple Macintosh OS8, OS9, OSX Printer

Drivers

•

Sun Microsystems Solaris 2.6, 7.x, 8.x , 9.0 , 10

• Linux 2.x

•

Xerox FreeFlow TM Print Manager for direct PDL submission from clients (see previous section)

•

Xerox Web User Interface

− Windows 95, 98, and ME are supported via PPD only.

−

WHQL (Windows Hardware Quality

Lab) certified for the PostScript and

PCL 6 drivers.

− Drivers are available for download from the Xerox.com web site.

−

Mac OS X Classic Mode supports the drivers and FreeFlow™ Print Manager

−

Mac OS X version 10.2.6 and above will support FreeFlow™ Print Manager

−

Mac OS X version 10.3 and up will support drivers natively in a future software release

−

PPD files and FreeFlow™ Print

Manager for Solaris and Linux use.

- 18 -

Xerox Nuvera™ 100/120 Digital Copier/Printer Customer Expectations Document

Scanner

Integrated scanner and document handler that utilizes a Xerox patented Dual scan head array.

Item

Simultaneous Dual

Document Feeder

(SDDF)

Scan Speed

Xerox Nuvera™ 100/120 Digital

Copier/Printer

•

300 sheet capacity (20 lb. bond)

•

5.5” x 8.5” to 11” x 17” sheets

(139.7 x 215.9 to 279.4 mm x 431.8mm)

• 13 lb. bond to 113 lb. index (49 to 220 gsm)

• 120 images per minute one sided 8.5” x 11”/A4

120 sheets per minute

•

120 images per minute two sided 8.5” x 11”/A4

60 sheets per minute

•

600 x 600 dpi

•

8-bit Gray (256 shades)

Comments

Scan Resolution

•

Copy jobs are saved at

1200 x 600 dpi, 1-bit depth

• Copy jobs are not intended for output to other printers

Maximum Paper Size & Maximum Image Size

The maximum paper size that can be placed on the platen is 12.6” x 18.5” / 320mm x 470mm. The maximum image size, however, is 12.0” x 18.0” / 305mm x 457mm

Color

This is not a color scanner.

Scan-to-Email

There is no “scan-to-email” feature.

Input Document substrates

Document substrates that are not recommended for use in the SDDF include envelopes, metallic cover stock, transparencies, label stock, silver photographic paper, tab stock, Never Tear (or other manufacturers’ equivalent), and those substrates whose intrinsic characteristics limit or prevent the separation of documents with friction-retard feeding mechanisms without causing mis-feeds, multi-feeds, jams or document damage.

Carbonless paper

Carbonless paper passed through the document feeder may be subject to marking in areas where the document feeder’s paper handling elements come in contact with the carbonless stock due to the “marking characteristics” of this stock. In extreme cases, this unintended marking could obliterate information from the page being reproduced.

Hole punched paper

The SDDF may not reliably feed GBC and similar type documents without damage to the original and without registration/skew errors. The workaround for GBC, spiral-bound and similarly punched papers is to rotate the documents to feed the unbound edge first, and then rotate the image.

File Size Limitation

Files saved as Multi-page TIFF are limited to 2GB in size. This limit may be reached after a few hundred images if the scanned originals contain many images and are scanned at 1200 x 1200 resolution.

- 19 -

Xerox Nuvera™ 100/120 Digital Copier/Printer Customer Expectations Document

Scan to Digital

The system is capable of scanning to the hard drive, a NFS mounted drive, any network drive or desktop, or the CD-RW drive. The following resolutions are supported.

Exported

Resolution

1200 x 1200 x 1

1200 x 600 x 1

600 x 600 x 1

400 x 400 x 1

300 x 300 x1

Halftone Screen Frequency

(Photo Mode) Purpose

125 lpi @ 53°, 106 lpi @ 45°, 85 lpi @ 45°

Xerox Nuvera™ 100/120 CP remote printing

125 lpi @ 53°, 106 lpi @ 45°, 85 lpi @ 45°

Saving Copy jobs

125 lpi @ 53°, 106 lpi @ 45°, 85 lpi @ 45°

DocuTech 61XX printing

125 lpi @ 53°, 106 lpi @ 45°, 85 lpi @ 45°

Good for some Fax applications

125 lpi @ 53°, 106 lpi @ 45°, 85 lpi @ 45°

Minimal file size

- 20 -

Xerox Nuvera™ 100/120 Digital Copier/Printer Customer Expectations Document

Digital Front End (DFE) - FreeFlow

™

DocuSP

®

FreeFlow

™

DocuSP

®

Workflow

The workflow utilizes the Xerox Document Services Platform

(FreeFlow™ DocuSP®) technology, a proven system that has been continuously improved over the past 12 years and is installed in thousands of Xerox devices worldwide. This will allow training simplicity for current FreeFlow™ DocuSP® operators.

The FreeFlow™ DocuSP® controls all aspects of the system – scanning, “ripping”, and printing.

Control electronics are located in an integrated tower on the unit, not in a separate server. They are easily accessible if service is required and have been architected to be replaced and upgraded if newer technology would improve system performance.

Security

TLS/SSL

When submitting a job from a WebUI, or the IPP client, invoking this feature will prevent unauthorized interception of the job by encrypting the data sent over the network.

BAA Authentication

When enabled, this feature requires users to provide a valid username and password before being able to access the WebUI interface.

IP Filtering

This feature controls the built-in-firewall, allowing the system administrator to restrict network access to the system based on the originating IP address. The restriction applies to the following print submission protocols:

LPR, IPP, HTTP, HTTPS, SMB Printing, Raw TCP Printing, FTP.

Microsoft ADS Authentication

When enabled, a user will be able to authenticate by means of locally managed user accounts as well as possess the ability to log on locally using an account defined in a Microsoft ADS domain.

Disk Overwrite

This feature is intended for the high security environments that not only want files deleted after use, they want them erased, permanently. This implementation uses algorithms recommended by the Department of Defense

(DOD) to ensure complete erasure of all information.

The Disk Overwrite feature is based on the current FreeFlow™ DocuSP® data overwrite feature. In addition to data overwrite on FreeFlow™ DocuSP® disk partitioning, the function is also applied to all the other disks in the product including the image disk for copy, and print transient images.

Item

Raster Image

Processor

(RIP)

Xerox Nuvera™ 100/120 Digital

Copier/Printer

• Xerox Document Services Platform

(FreeFlow™ DocuSP®) 5.1 (T6.0)

•

Solaris 10 OS

•

2.0 GHz, 1 GB RAM, 160GB SATA Hard Drive,

DVD/CD-RW Drive, One 10/100/1000 Megabit

Ethernet port (RJ45) for customer use, 4 USB v2.0 Ports (2 are used for Keyboard + Mouse),

15” LCD display, USB Keyboard, USB Mouse

- or -

650 MhZ, 1 GB of RAM, 80 GB IDE Hard Drive

CD-RW/DVD drive,

Comments

− Approximately 10 GB of hard drive space available for customer jobs; however, this space is shared with the print job spool space and should not be filled to capacity.

−

Second optional hard drive available –

146 GB

- 21 -

Xerox Nuvera™ 100/120 Digital Copier/Printer Customer Expectations Document

RIP

Resolution

15” LCD display, USB Keyboard, USB Mouse

•

600 x 600 dpi

•

1200 x 600 dpi

•

1200 x 1200 dpi

−

The processor can RIP (process images for printing) at 600 x 600 dpi, 1200 x 600 dpi, or 1200 x 1200 dpi.

− Images “ripped” at 600 dpi will provide faster performance when processing and will save files that are smaller in size.

−

The default setting for this unit is 600 dpi.

−

Optimized for the Xerox Nuvera™

100/120 Digital Copier/Printer

Halftone

Screen

Image Quality

Controls -

Scanning

Image Quality

Controls -

Printing

•

125 lpi @ 53°

- 600 x 600: 96 Gray levels

- 1200 x 600: 189 Gray Levels

- 1200 x 1200: 256 Gray Levels

•

Document Type

•

Lighter/Darker

•

Contrast

•

Sharpness

•

Background Suppression

•

Pictorial Rendering

•

RIP Resolution

• Lighter/Darker

•

DocuTech Emulation

•

Toner Saver

−

Mixed Text & Graphics; Text; Mixed Text

& Halftones; Photo

−

Eleven positions

−

Seven positions

−

Seven positions

−

On or Off

−

Halftone selection

−

600 x 600, 1200 x 600, 1200 x 1200 dpi

− Seven positions

−

Approximates the Image Quality of the

DT61XX family

−

For less demanding image quality applications; decreases toner consumption by approximately 50%

CD-RW/DVD Drive

•

CD-RW/DVD w/quartz white bezel: 32x Record CD-R, 10x Rewrite CD-RW

•

CD-RW/DVD w/black bezel: 52x Record CD-R, 24x Rewrite CD-RW

•

DVD drive will read (not write): DVD-ROM, DVD-R, DVD-RW, DVD-RAM

Copy Jobs

•

Copy jobs can be saved; they consist of two files - a multi-page TIFF and an XPIF ticket

Print From Digital File

Configuration Re-print Job Formats (from DVD/CD) Comments

Copier

•

Single TIFF

• Multi-page TIFF

−

Single TIFF is a TIFF file known to contain only TIFF format in one file

Digital

Copier/Printer

• All Items listed above

•

PCL

•

PostScript

•

PDF

• Saved Single Page TIFF

•

ASCII

− Saved Single Page TIFF file is the

Save operation performed in

FreeFlow™ DocuSP® when selected to save as single TIFF. This file contains PostScript, and will require the PostScript license to print the file.

Scan to Digital File

Configuration Save Job Formats

Copier

•

Multi-Page TIFF

Comments

−

Scan to File does not currently emit

XPIF tickets; as mentioned above, these are available when saving copy

- 22 -

Xerox Nuvera™ 100/120 Digital Copier/Printer Customer Expectations Document jobs.

Digital

Copier/Printer

•

All Items listed above

•

PDF

•

Single Page TIFF

Saving jobs

Jobs submitted electronically, either over the network or via media, can be saved.

•

Both the “ripped” (Raster Image Processed) image and the job ticket will be saved.

• Jobs can be saved to the system disk, the CD-RW or to any NFS-mounted drive.

•

The Customer must have the Ethercon license enabled in order for the jobs to be saved as PDF.

Kit Limitations

•

The Foreign Device Interface (FDI) kit and the Removable Hard drive kit cannot be installed on the same system.

- 23 -

Xerox Nuvera™ 100/120 Digital Copier/Printer Customer Expectations Document

Sheet Feed Module (SFM)

Item Xerox Nuvera™ 100/120 Digital Copier/Printer

Capacity

20 lb bond

(75 gsm)

Capacity

80gsm,

0.105 mm

Minimum

Size

Maximum

Size

Media

Types

Input

Weight

Feeding

System

Sheet Feed Module (SFM)

4 Tray

•

Paper Input Capacity: 5800 sheets

--Tray 1: 1,600 sheets

--Tray 2: 3,100 sheets

--Trays 3 & 4: 550 sheets each

•

Paper Input Capacity: 5565 sheets

--Tray 1: 1505 sheets

--Tray 2: 3020 sheets

--Trays 3 & 4: 520 sheets each

•

Trays 1 & 2

--Feed Direction: 5.5 inches (140 mm)

--Across Feed Direction: 8.0 inches (203 mm)

•

Trays 3 & 4

--Feed Direction: 7.17 inches (182 mm)

--Across Feed Direction: 8.0 inches (203 mm)

•

Trays 1 & 2

--Feed Direction: 9.0 inches (229 mm)

--Across Feed Direction: 12.6 inches ( 320 mm)

•

Trays 3 & 4

-- Feed Direction: 18.5 inches (470 mm)

--Across Feed Direction: 12.6 inches (320 mm)

Large Format

Sheet Feed Module (LFSFM)

2 Tray

•

Paper Input Capacity: 3200 sheets

--Trays 1 & 2: 1,600 sheets

•

Paper Input Capacity: 3010 sheets

--Trays 1 & 2: 1505 sheets

•

--Feed Direction: 7.17 inches (182 mm)

--Across Feed Direction: 8.0 inches (203 mm)

•

Trays 1 & 2

Trays 1 & 2

-- Feed Direction: 18.5 inches (470 mm)

--Across Feed Direction: 12.6 inches (320 mm)

• Bond, Bristol, cover, index, offset, recycled, vellum, tabs and Mylar tabs, transparencies, carbonless, labels, Never-Tear

•

Booklet envelopes: 6” x 9”, 7” x 10”, 162mm x 229mm (C5), 178mm x 254mm

•

Catalog envelopes: 6” x 9”, 7” x 10”, 162mm x 229mm (C5), 178mm x 254mm

•

Uncoated: 16 lb bond to 120 lb index (56 gsm to 220 gsm)

•

Does not support coated stocks – image quality and performance (jams) maybe degraded

Air shuttle Air shuttle

COMMENTS.

•

Auto tray switching & Load while run capability are supported. Do not open trays when the “Drawer in Use” light is lit.

•

Statement tabs can only be output to the Top Tray in the finisher; they cannot be output to the Main

Stacker.

•

Booklet Envelopes should be fed with flaps closed and on long edge; flap side down.

•

Catalog Envelopes should be fed with flaps open, towards operator, with glue side down..

• Trays do not feed to empty. When a feeder empty message is displayed, there could be as much as 80 sheets of stock remaining in the feeder tray (based on 20 lb. bond / 75 gsm). This is to maintain the best possible reliability in the feeder mechanisms.

• The use of Xerox media as listed earlier in this document is recommended. Because there is a difference in technology between offset and digital printing, there is a difference in media properties required for optimum performance with each technology. Xerox papers and specialty media are digitally optimized (paper specs - smoothness, formation, electrical properties, etc., for optimal image quality, toner adhesion and performance, and also precision sheeted - less contamination, better registration for use in Xerox digital equipment.

• A second Sheet Feed Module (4-tray or 2-tray) can be installed in tandem with (and after) the standard

4-tray Sheet Feed Module.

4-Tray SFM

- 24 -

Xerox Nuvera™ 100/120 Digital Copier/Printer Customer Expectations Document

SPECIAL STOCKS

Transparencies

The tray capacity for removable stripe transparencies and Mylar reinforced sheets is 90. There is no constraint for feeding painted striped transparencies or stripeless transparencies.

Carbonless

Xerox Carbonless Papers as listed earlier in this document are the only recommended carbonless media. Only simplex printing is supported on this stock type. Running carbonless paper may require additional cleaning time by the CSE during service of the machine. This time will vary based on the percentage of carbonless stock run.

In the 100% carbonless usage case, service time could be up to 60 additional minutes per service call at

150,000 prints

DocuCards®

DocuCards® can only be loaded 100 at a time in a tray. Nuvera feeder trays feed until almost empty but not until empty, leaving 20~40 sheets remaining. When running DocuCards®, frequent reloading of the feeder trays will be required.

DocuCards® can only be run to the Top Tray of the finisher. Some mis-stacking may occur as the DocuCards® catch on the edges of the stacked sheets. ®.

Reinforced stocks

Reinforced stocks should be limited to less than 90 loaded in a tray at one time.

Tab Jobs

Jobs must be run with reverse collated tabs.

Running tabs requires proper use of the supplied Tab Guides.

Tab stock sizes supported are: Letter, 9"x11", 9.5”x11”, A5, A4.

Tabs are supported when the number of segments is 10 or less.

Images printed on Mylar tabs are typically degraded by toner scatter.

Envelopes

Envelopes should be limited to 60 loaded in a tray at one time. Nuvera feeder trays feed until almost empty but not until empty, leaving 20~40 sheets remaining. When running envelopes frequent reloading of the feeder trays will be required.

Very slight wrinkles (1/2 inch long) may occur on the trail edge of envelopes at the corners.

2-tray LFSFM

Due to the nature of feeding envelopes with flap open, some mis-stacking may occur in the top tray as the envelopes catch on the open flaps.

Envelopes should be sent to the Top Tray only, with a maximum limitation of 15.

Drilled Paper & Tab Jobs

Currently most jobs are delivered face down, with the bind edge trailing to match the requirements of the finisher. When tabs are run to the MFF, the tabs must be delivered with the tab leading and this requires an inversion at the exit of the paper path and entrance into the finisher. It is quite common to run drilled paper when running tabs jobs, and this requires the user to reverse the loading of the drilled body stock in the tray such that the drilled edge is opposite what the paper tray loading label for drilled body stock shows.

- 25 -

Xerox Nuvera™ 100/120 Digital Copier/Printer Customer Expectations Document

Insertion Module (IM)

One inserter may be installed on the output side of the printer. The specifications for the Insertion Module are the same as the 4-tray SFM (the 2-tray Large Format SFM is not available as an inserter), except as follows:

Item

Input Sizes

Xerox Nuvera™ 100/120 Digital

Copier/Printer

•

Tray 1 & 2:

7” x 10” to 9” x 12.6”

(178mm x 254mm to 228.6mm x 320mm)

Trays 3 & 4:

7.17” x 10.0” to 12.6” x 18.5”

(182.1mm x 254mm to 320mm x 469.9mm)

Comments

−

A5 and Statement cannot be fed from any of the trays in the Insertion

Module.

Tabs cannot be fed from the Insertion

Module to the MFF Finisher (tabs orientation incompatibility between the IM and the MFF).

- 26 -

Xerox Nuvera™ 100/120 Digital Copier/Printer Customer Expectations Document

Printer Module

Xerographic monochrome (black and white) print engine. The printer utilizes a Discharged Area

Development (DAD) system, often referred to as “write black”.

Item Xerox Nuvera™ 100/120 Digital Copier/Printer Comments

Image Format

•

Maximum image area

12.6” x 18.5”

(320mm x 470mm)

•

All sheets will have a default 3 mm (0.12 in.) border without printing, regardless of sheet size.

•

Default border can be set to 0 mm, or

Lead Edge Erase only by the SA; however some image quality degradation may occur up to 6mm from the edge.

Also, some paper handling degradation may occur, leading to an increase in the number of jams.

Printer

Resolution

4800 x 600 dpi

No matter what resolution images are “ripped” at, the printer uses hardware imaging process to print them at 4800 x 600 dpi.

Fuser

Temperature

374° F (190° C) - when printing

Users may select enhanced permanence for heavyweight paper by means of the User

Interface.

Registration

Pitches on

Photoreceptor

Belt

Paper dimensions along process direction

Translating Electronic Registration

5 5.5” ≤ Paper Size ≤ 9.0”

(139.7mm ≤ Paper Size ≤ 228.6mm)

4 9.0” < Paper Size ≤ 11.7”

(228.6mm < Paper Size ≤ 297.2mm)

3 11.7” < Paper Size ≤ 17.0”

(297.2mm < Paper Size ≤ 431.8mm)

2 17.0” < Paper Size ≤ 18.5”

(431.8mm < Paper Size ≤ 469.9mm)

Image Quality Expectations

Image Quality Parameter

Image Uniformity

Xerox Nuvera™ 100/120 Digital

Copier/Printer

The Xerox Nuvera™ 100/120 Digital

Copier/Printer is designed to render tints with a high degree of uniformity, and produce vignettes, sweeps and gradients that are smooth and even.

Sophisticated design prevents unwanted process speed variations that plague lesser digital printing systems with banding problems.

Half-toning algorithms and customized halftone dot designs take full advantage of the printer’s high addressability imaging system to render incredibly sharp, detailed images.

Benchmark registration system holds image to sheet alignment at +/- .65mm per side AND front-to-back on Letter/A4 size papers;

+/- .75mm per side AND front-to-back on

Tabloid/A3 size papers.

5 pitch mode produces 120 ppm (100)

4 pitch mode produces 96 ppm (80)

3 pitch mode produces 72 ppm (60)

2 pitch mode produces 48 ppm (40)

Comment

The most discriminating judges of print quality may occasionally perceive a degree of mottle in large uniform flat tints.

Extremely high humidity, low document area coverage or papers with poor formation can exacerbate mottle.

- 27 -

Xerox Nuvera™ 100/120 Digital Copier/Printer Customer Expectations Document

Text Quality

Line Quality

Mylar Tabs

Area Coverage

Other artifacts

Black text quality is excellent for sizes as low as 4 point.

The Xerox Nuvera™ 100/120 Digital

Copier/Printer can print solid lines all the way down to 70 microns.

Toner scatter typically degrades images printed on Mylar Tabs.

The Xerox Nuvera™ 100/120 Digital

Copier/Printer uses nested automated controls of dry ink, development, tone reproduction, and the internal environment to assure consistent printing. These closed loop process controls continuously test against the targets and adjust as required.

As with any printing process, artifacts may occur on the Xerox Nuvera™ 100/120

Digital Copier/Printer. These include streaks, mottle, banding, spots and edge deletions. For most jobs and clients, the expected level of artifacts is within the normal operational and component quality ranges of the system and will not affect the acceptability of the job.

The control system is designed to run within a specific range of quality.

Although some variation may be noticeable in specific cases, the closed loop controls will typically deliver very acceptable quality, consistently, predictably, and without operator intervention.

Using Xerox stocks and maintaining your environment will help to minimize the occurrence of these artifacts.

-

Print to Edge

This is not a print to edge system due to potential image quality defects on the edge of the page.

The system default is set for a 3 mm border erase. It can be set to 0 mm, but it is subject to image quality limitations, which may be acceptable for some applications.

Some non-standard and custom paper sizes may have a larger border region where image quality cannot be optimized.

-

SRA3 Printing

Printing on SRA3 can result in inboard and outboard edge image quality defects. The defects can range from slight mottle to high contrast deletions depending on the type and condition of the substrate being printed on. The reason for this is that the Transfer Assist Blade does not completely extend to the edges of SRA3 substrates. The blade does not make contact with the last 14mm at both the inboard and outboard edges of SRA3 substrates.

-

Area Coverage

The system is capable of continuous printing of pages up to 33% area coverage. When documents that exceed 33% area coverage per page are continuously printed, the customer may notice that the system does not print at the rated speed.

-

Xerographic Color Prints

Xerographic color originals cannot be run through the fuser.

- 28 -

Xerox Nuvera™ 100/120 Digital Copier/Printer Customer Expectations Document

Multifunction Finisher: Standard & Professional

Two accessories are available. One is required for machine operation.

Standard Finisher

Top Tray / Offset Stacker / Stapler

• Envelopes and Statement size paper (5.5” x 8.5”) will be delivered only to the top tray.

•

Staple locations for non-standard size papers (e.g., standard sizes are A4, Letter size, etc.) will be slightly asymmetrical. The staple will be located in the position appropriate for the next nearest paper standard paper size.

• Certain stocks (stocks with high clay content and / or composed of other high density materials) may reduce the number of sheets that can be stapled and / or result in miss-staples.

Sub-system Feature Comments

Top Tray 250 sheet capacity (20 lb. bond)

5.5” x 8.5” to 12.6” x 18.5”

Main Stacker 2000 sheet capacity

5.83” x 8.0” to 12.6” x 18.5”

•

Output is normally delivered 1-n, face down to the main tray; jobs can be programmed for face up delivery if desired but stapling position & orientation will not be optimal

• The system will cycle down when the stacker is full; overflow will not go to the top tray

•

Sizes can be mixed in the stacker, however mixed size stacks should be closely monitored to ensure stack stability

•

The maximum stack size capability is degraded for thin stapled sets.

Stapler

•

Staples up to 100 sheets 20 lb. bond of paper sized 8.5” x 14” or less with 100 sheet staple cartridge loaded

•

The number of sheets that can be stapled will decrease in relationship to the weight of the paper.

•

Staples up to 50 sheets 20 lb. bond paper sized

8.5” x 14” or less with 50 sheet staple cartridge loaded

• Does not staple tabs or transparencies

•

The staple placement on the page is shown on the controller

• One or Two Staples

Other 100-sheet stapler cartridge typical minimum capabilities:

- 70 sheets for 28lb (105 gsm) of paper sized 8.5" x 14 or less

- 30 sheets for 80lb cover (216gsm), all paper sizes

- 20 sheets for 28lb (105gsm) Color Expressions and equivalent papers, all paper sizes

Other 50-sheet stapler cartridge typical minimum capabilities:

- 35 sheets for 28lb (105 gsm), all paper sizes (including CX and equivalent papers)

- 15 sheets for 80lb cover (216gsm), all paper sizes

- 20 sheets for 28lb (105gsm) Color Expressions and equivalent papers

Staple Cartridge Limitation: The machine software does not distinguish between the 50 sheet staple cartridge and the 100 sheet staple cartridge. This means that if the 50 sheet staple cartridge is loaded in the machine, and a job with more than 50 sheets is sent to be stapled, a mis-staple or stapler jam will probably occur. If the

50 sheet staple cartridge is used, it is the responsibility of the operator to ensure that jobs exceeding 50 sheets are not submitted for stapling.

- 29 -

Xerox Nuvera™ 100/120 Digital Copier/Printer Customer Expectations Document

Professional Finisher

Includes capabilities above plus a booklet maker, and

Z-fold / C-fold

•

Top Tray / Offset Stacker / stapler: Same capabilities & limitations as above

This product is not DFA compatible.

Item Xerox Nuvera™ 100/120 Digital

Copier/Printer w/ Professional Finisher

Top Tray

• Same as Standard Finisher

Main Stacker

•

Same as Standard Finisher

Stapler

•

Same as Standard Finisher

Booklet maker • C – fold

1 sheet Letter and A4 sizes

•

Z – fold

1 sheet Letter and A4 sizes

•

Bi – fold

5 sheet capacity (20 lb. stock), Letter (8.5” x

11”), A4, Foolscap (8.5” x 13”), Legal (8.5” x

14”), Ledger (11” x 17”) and A3 sizes.

•

Booklets – Dual Staple

15 sheet capacity (20 lb. stock), Letter (8.5” x

11”), A4, Foolscap (8.5” x 13”), Legal (8.5” x

14”), Ledger (11” x 17”) and A3 sizes.

Comments

• C - fold and Z- fold weight range is 16 to

32 lb. (60 to 120 gsm)

•

Bi-fold & Booklet sheet capability is reduced with heavier stocks

•

No face trim

• No Engineering folder

•

No hole punch

Note: When using the booklet maker, some pre-printed cover sheets may exhibit tear-off from the stapled booklet, depending on the pre-printed ink area coverage and ink type. It is advisable to verify your application prior to production.

Stack Quality

The maximum stack scatter is 25.0 mm or less for:

- Unstapled sets

- Stapled sets greater than 20 sheets

The maximum stack scatter is 60.0 mm or less for:

- Stapled sets less than or equal to 20 sheets

- Stack size maybe limited for stapled sets less than or equal to 20 sheets

Within Set Registration

See Tables 1 & 2 for specification, below. Figure 1 details the correct measurement technique

- 30 -

Xerox Nuvera™ 100/120 Digital Copier/Printer Customer Expectations Document

Figure 1

TOP VIEW (Main Tray & Top Tray)

Total Set

Envelope

Paper

Dimensions

Total Set

Envelope

Paper motion

Y Scatter

X Scatter

Paper quality

Table 1 (See Figure 1)

Unstapled Sets: Within Set Specifications

Size / Weight

Relative

Humidity (%)

Main

Tray

Xerox recommended 8.5” x 11” (A4), 20 lb (80 gsm)

Fair to good All sizes & weights, 1-20 sheets per set

Fair to good All sizes & weights, >20 sheets per set

Top Tray

Xerox recommended 8.5” x 11” (A4), 20 lb. (80 gsm)

Fair to good All sizes & weights

21 - 65

10 - 90

10 - 90

21 - 65

10 - 90

95% of Sets

X (mm)

6

Y (mm)

13

10

20

19

20

20

40

Job integrity maintained

Table 2 (See Figure 1)

Stapled Sets: “Within Set” Specifications

95% of Sets

Main tray paper quality

Relative

Humidity (%)

X (mm) Y (mm)

Single Staple

1.5

3.0

1.5

3.0

Xerox recommended [20 lb (80gsm)]

Fair to good

21 - 65

10 - 90

2-sheet LEF Single Staple

Xerox recommended [20 lb (80gsm)] 21 - 65

Fair to good

Xerox recommended [20 lb (80gsm)]

Fair to good

10 - 90

Dual Staple

21 - 65

10 - 90

1.8

3.0

2.0

3.0

1.8

3.0

2.0

3.0

- 31 -

Xerox Nuvera™ 100/120 Digital Copier/Printer Customer Expectations Document

System Productivity:

Xerox Nuvera™ 100/120 Digital Copier/Printer

Output to Top Tray

30 page job, simplex to simplex; duplex to duplex

Paper Size

Nuvera 100

Single-sided sheets printed per minute

Nuvera 100

Double-sided sheets printed per minute

Nuvera 120

Single-sided sheets printed per minute

8.5” x 11”

8.5” x 14” **

11” x 17”

100

60

60

50

30

30

** 8.5” x 14” paper feeds “Short-edge” as defined in the system.

Output to Main Stacker - Unstapled

120

72

72

30 page job, simplex to simplex; duplex to duplex

Paper Size

Nuvera 100

Single-sided sheets printed per minute

Nuvera 100

Double-sided sheets printed per minute

Nuvera 120

Single-sided sheets printed per minute

8.5” x 11”

8.5” x 14” **

100

49

11” x 17” 49 26

** 8.5” x 14” paper feeds “Short-edge” as defined in the system.

Output to Main Stacker – Single staple

65

30 page job, simplex to simplex; duplex to duplex

50

26

120

65

Paper Size

Nuvera 100

Single-sided sheets printed per minute

Nuvera 100

Double-sided sheets printed per minute

Nuvera 120

Single-sided sheets printed per minute

8.5” x 11”

8.5” x 14” **

11” x 17”

97

51

51

48

27

27

** 8.5” x 14” paper feeds “Short-edge” as defined in the system.

Output to Main Stacker – Double Staple

116

67

67

30 page job, simplex to simplex; duplex to duplex

Paper Size

8.5” x 11” LEF

8.5” x 14” **

11” x 17”

Nuvera 100

Single-sided sheets printed per minute

Nuvera 100

Double-sided sheets printed per minute

Nuvera 120

Single-sided sheets printed per minute

91

48

48

47

26

26

** 8.5” x 14” paper feeds “Short-edge” as defined in the system.

109

63

63

Nuvera 120

Double-sided sheets printed per minute

60

36

36

Nuvera 120

Double-sided sheets printed per minute

60

34

34

Nuvera 120

Double-sided sheets printed per minute

58

35

35

Nuvera 120

Double-sided sheets printed per minute

56

35

35

- 32 -

Xerox Nuvera™ 100/120 Digital Copier/Printer Customer Expectations Document

Output to Fold Tray – C Fold, Z Fold, Bi-Fold

One page job, simplex to simplex; duplex to duplex

Paper Size

Nuvera 100

Single-sided sheets printed per minute

8.5” x 11”

8.5” x 14” **

11” x 17”

13 C or Z ( for Bi-fold, 23 ppm)

8 (Bi-fold only, 17 ppm)

8 (Bi-fold only, 17 ppm)

**Paper fed “Short-edge” as defined in the system.

Nuvera 100

Double-sided sheets printed per minute

13 C or Z ( for Bi-fold, 47 ppm)

8 (Bi-fold only, 33 ppm)

8 (Bi-fold only, 33 ppm)

One page job, simplex to simplex; duplex to duplex

Paper Size

Nuvera 120

Single-sided sheets printed per minute

Nuvera 120

Double-sided sheets printed per minute

8.5” x 11”

8.5” x 14” **

16 C or Z (14 for Bi-fold, 28 ppm)

10 (Bi-fold only, 20 ppm)

16 C or Z (14 for Bi-fold, 56 ppm)

10 (Bi-fold only, 40 ppm)

11” x 17” 10 (Bi-fold only, 20 ppm) 10 (Bi-fold only, 40 ppm)

**Paper fed “Short-edge” as defined in the system.

Productivity for different paper sizes: Output to Fold Tray - Booklets

(Including 2 sheet Bi-fold)

Paper Size

Nuvera 100

2 Sheet Books per minute

(pages per minute)

8.5” x 11”

8.5” x 14” **

10 (80)

7.5 (60)

11” x 17” 7.5 (80)

**Paper fed “Short-edge” as defined in the system.

(Including 2 sheet Bi-fold)

Nuvera 100

8 Sheet Books per minute

(pages per minute)

3.3 (107)

2.7 (88)

2.7 (88)

Paper Size

Nuvera 120

2 Sheet Books per minute

(pages per minute)

8.5” x 11”

8.5” x 14” **

12 (96)

9 (72)

11” x 17” 9 (72)

**Paper fed “Short-edge” as defined in the system.

Nuvera 120

8 Sheet Books per minute

(pages per minute)

4.0 (128)

3.3 (105)

3.3 (105)

Nuvera 100

15 Sheet books per minute

(pages per minute)

2.2 (133)

1.6 (88)

1.6 (88)

Nuvera 120

15 Sheet books per minute

(pages per minute)

2.7 (160)

1.8 (105)

1.8 (105)

- 33 -

Xerox Nuvera™ 100/120 Digital Copier/Printer Customer Expectations Document

Post-process Uses of Xerox Nuvera™ Output

The following post-process characteristics and usages for Xerox Nuvera™ output have been evaluated:

Item

Permanence

Overprint in xerographic printer

Xerox Nuvera™ 100/120 Digital

Copier/Printer

Xerographic prints are as permanent as the paper on which they are printed, under normal environmental conditions on standard substrates.

Prints can not be successfully fed through a xerographic printer for overprinting.

Comment

Xerographic prints are accepted as permanent records by the U.S. Patent

Office.

Any product with a wax-based fusing system would produce the same result.

Future Features - Xerox Nuvera™ 100/120 Digital Copier/Printer

A Customer /Prospect Request (C/PR) is a product feature enhancement request submitted by a Xerox

Representative on behalf of a current or perspective Xerox customer. Currently, C/PRs can be submitted for production class products only.

The C/PR web site at xww.cpr.world.xerox.com

can be accessed by the Xerox Representative in order to provide a detailed description of the feature request.

- 34 -
