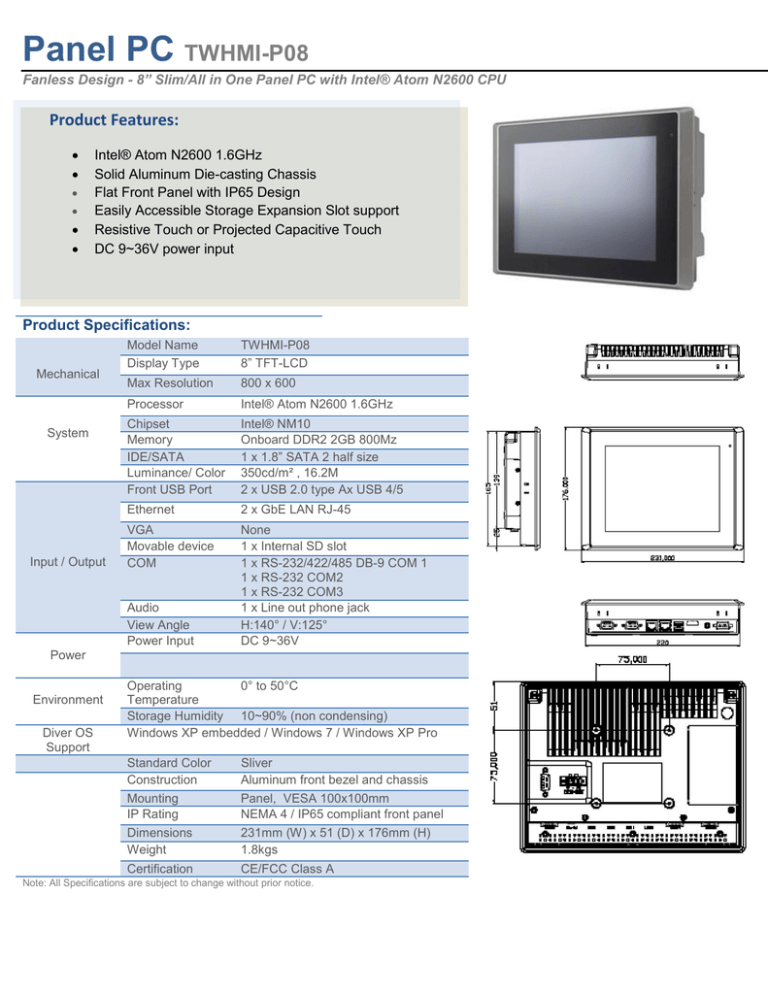

Panel PC TWHMI-P08
Fanless Design - 8” Slim/All in One Panel PC with Intel® Atom N2600 CPU
Product Features:







Intel® Atom N2600 1.6GHz
Solid Aluminum Die-casting Chassis
Flat Front Panel with IP65 Design
Easily Accessible Storage Expansion Slot support
Resistive Touch or Projected Capacitive Touch
DC 9~36V power input
Product Specifications:
Mechanical
System
Input / Output
Model Name
Display Type
TWHMI-P08
8” TFT-LCD
Max Resolution
800 x 600
Processor
Intel® Atom N2600 1.6GHz
Chipset
Memory
IDE/SATA
Luminance/ Color
Front USB Port
Intel® NM10
Onboard DDR2 2GB 800Mz
1 x 1.8” SATA 2 half size
350cd/m² , 16.2M
2 x USB 2.0 type Ax USB 4/5
Ethernet
2 x GbE LAN RJ-45
VGA
Movable device
COM
None
1 x Internal SD slot
1 x RS-232/422/485 DB-9 COM 1
1 x RS-232 COM2
1 x RS-232 COM3
1 x Line out phone jack
H:140° / V:125°
DC 9~36V
Audio
View Angle
Power Input
Power
Environment
Diver OS
Support
Operating
0° to 50°C
Temperature
Storage Humidity 10~90% (non condensing)
Windows XP embedded / Windows 7 / Windows XP Pro
Standard Color
Construction
Mounting
IP Rating
Dimensions
Weight
Sliver
Aluminum front bezel and chassis
Panel, VESA 100x100mm
NEMA 4 / IP65 compliant front panel
231mm (W) x 51 (D) x 176mm (H)
1.8kgs
Certification
CE/FCC Class A
Note: All Specifications are subject to change without prior notice.
