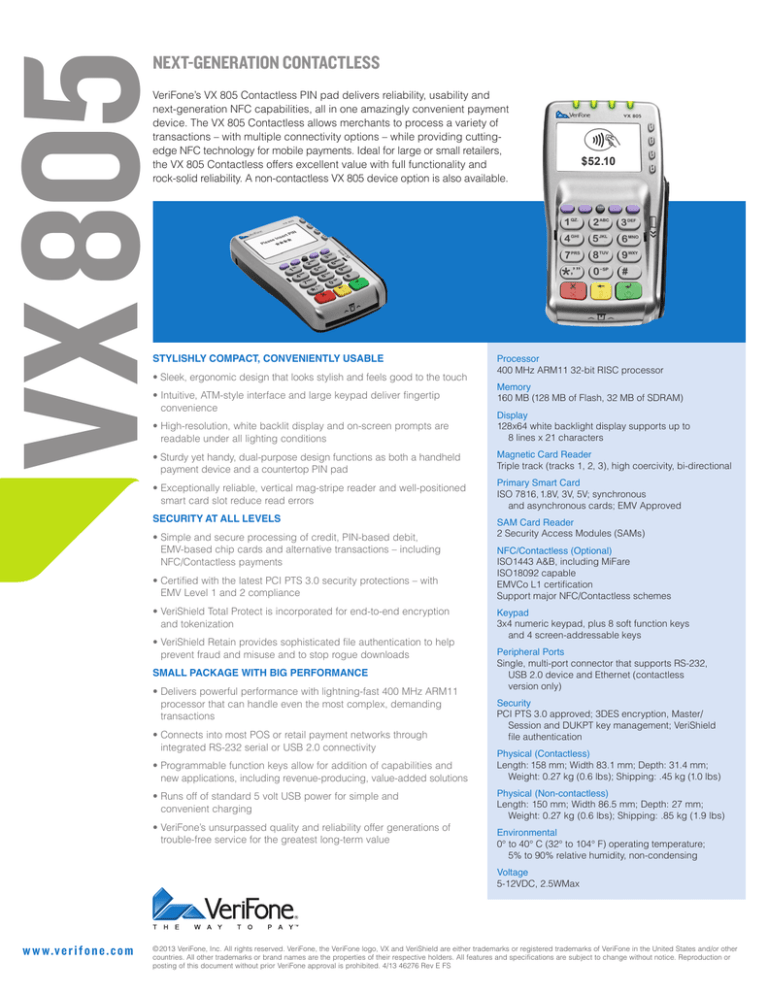

NEXT-GENERATION CONTACTLESS

NEXT-GENERATION CONTACTLESS
VX 805
NEXT-GENERATION CONTACTLESS
VeriFone’s VX 805 Contactless PIN pad delivers reliability, usability and
next-generation NFC capabilities, all in one amazingly convenient payment
device. The VX 805 Contactless allows merchants to process a variety of
transactions – with multiple connectivity options – while providing cuttingedge NFC technology for mobile payments. Ideal for large or small retailers,
the VX 805 Contactless offers excellent value with full functionality and
rock-solid reliability. A non-contactless VX 805 device option is also available.
STYLISHLY COMPACT, CONVENIENTLY USABLE
• Sleek, ergonomic design that looks stylish and feels good to the touch
• Intuitive, ATM-style interface and large keypad deliver fingertip
convenience
Processor
400 MHz ARM11 32-bit RISC processor
Memory
160 MB (128 MB of Flash, 32 MB of SDRAM)
• High-resolution, white backlit display and on-screen prompts are
readable under all lighting conditions
Display
128x64 white backlight display supports up to
8 lines x 21 characters
• Sturdy yet handy, dual-purpose design functions as both a handheld
payment device and a countertop PIN pad
Magnetic Card Reader
Triple track (tracks 1, 2, 3), high coercivity, bi-directional
• Exceptionally reliable, vertical mag-stripe reader and well-positioned
smart card slot reduce read errors
SECURITY AT ALL LEVELS
• Simple and secure processing of credit, PIN-based debit,
EMV-based chip cards and alternative transactions – including
NFC/Contactless payments
• Certified with the latest PCI PTS 3.0 security protections – with
EMV Level 1 and 2 compliance
• VeriShield Total Protect is incorporated for end-to-end encryption
and tokenization
• VeriShield Retain provides sophisticated file authentication to help
prevent fraud and misuse and to stop rogue downloads
SMALL PACKAGE WITH BIG PERFORMANCE
• Delivers powerful performance with lightning-fast 400 MHz ARM11
processor that can handle even the most complex, demanding
transactions
• Connects into most POS or retail payment networks through
integrated RS-232 serial or USB 2.0 connectivity
• Programmable function keys allow for addition of capabilities and
new applications, including revenue-producing, value-added solutions
• Runs off of standard 5 volt USB power for simple and
convenient charging
• VeriFone’s unsurpassed quality and reliability offer generations of
trouble-free service for the greatest long-term value
Primary Smart Card
ISO 7816, 1.8V, 3V, 5V; synchronous
and asynchronous cards; EMV Approved
SAM Card Reader
2 Security Access Modules (SAMs)
NFC/Contactless (Optional)
ISO1443 A&B, including MiFare
ISO18092 capable
EMVCo L1 certification
Support major NFC/Contactless schemes
Keypad
3x4 numeric keypad, plus 8 soft function keys
and 4 screen-addressable keys
Peripheral Ports
Single, multi-port connector that supports RS-232,
USB 2.0 device and Ethernet (contactless
version only)
Security
PCI PTS 3.0 approved; 3DES encryption, Master/
Session and DUKPT key management; VeriShield
file authentication
Physical (Contactless)
Length: 158 mm; Width 83.1 mm; Depth: 31.4 mm;
Weight: 0.27 kg (0.6 lbs); Shipping: .45 kg (1.0 lbs)
Physical (Non-contactless)
Length: 150 mm; Width 86.5 mm; Depth: 27 mm;
Weight: 0.27 kg (0.6 lbs); Shipping: .85 kg (1.9 lbs)
Environmental
0° to 40° C (32° to 104° F) operating temperature;
5% to 90% relative humidity, non-condensing
Voltage
5-12VDC, 2.5WMax
w w w.v e r i f o n e . c o m
© 2013 VeriFone, Inc. All rights reserved. VeriFone, the VeriFone logo, VX and VeriShield are either trademarks or registered trademarks of VeriFone in the United States and/or other
countries. All other trademarks or brand names are the properties of their respective holders. All features and specifications are subject to change without notice. Reproduction or
posting of this document without prior VeriFone approval is prohibited. 4/13 46276 Rev E FS
