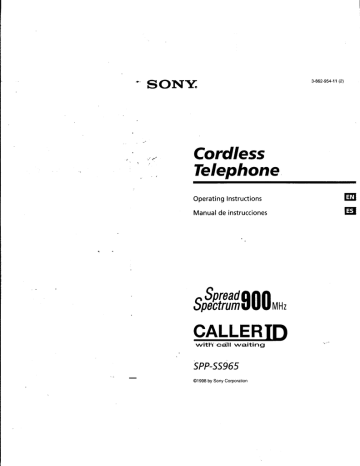

 - SONY.
Cordless
Telephone
Operating Instructions
Manual de instrucciones
ea,
CALLERTD
with call waiting
SPP-SS965
©1998 by Sony Corporation
3-862-954-11 (2)
Owner's Record
The model and the serial numbers are
located at the bottom of the unit. Record
the serial number in the space provided
below. Refer to these numbers
whenever you call upon your Sony
dealer regarding this product.
Model No. SPP-S5965
Serial No.
:” IMPORTANT
_ SAFETY
INSTRUCTIONS
When using your telephone equipment,
basic safety precautions should always
be followed to reduce the risk of fire,
electric shock and injury to persons,
including the following:
1. Read and understand all instructions.
2. Follow all warnings and instructions
marked on the product.
3. Unplug this product from the wall
outlet before cleaning. Do not use
liquid cleaners or aerosol cleaners.
Use a damp cloth for cleaning.
4. Do not use this product near water,
for example, near a bath tub, wash
bowl, kitchen sink, or laundry tub, in
a wet basement, or near a swimming
pool.
5. Do not place this product on an
unstable cart, stand, or table. The
product may fall, causing serious
damage to the product.
6. Slots and openings in the cabinet and
the back or bottom are provided for
ventilation. To protect it from
overheating, these openings must not
be blocked or covered. The openings
should never be blocked by placing
the product on the bed, sofa, rug, or
other similar surface. This product
should never be placed near or over a
radiator or heat register. This product
should not be placed in a built-in
installation unless proper ventilation
is provided.
7. This product should be operated only
from the type of power source
indicated on the marking label. If you
are not sure of the type of power
supply to your home, consult your
dealer or local power company.
8. Do not allow anything to rest on the
power cord. Do not locate this
product where the cord will be abused
by persons walking on it.
9. Do not overload wall outlets and
extension cords as this can result in
the risk of fire or electric shock.
10. Never push objects of any kind into
this product through cabinet slots as
they may touch dangerous voltage
points or short out parts that could
result in a risk of fire or electric shock.
Never spill liquid of any kind on the
product. - |
11. To reduce the risk of electric shock,
do not disassemble this product, but
take it to a qualified service personnel
when some service or repair work is
required. Opening or removing
covers may expose you to dangerous
voltages or other risks. Incorrect
reassembly can cause electric shock
when the appliance is subsequently
used.
12. Unplug this product from the wall
outlet and refer servicing to qualified
service personnel under the following
conditions:
A. When the power cord or plug is
damaged or frayed.
B. If liquid has been spilled into the
product.
C. If the product has been exposed to
rain or water.
D. If the product does not operate
, hormally by following the operating
“, instructions. Adjust only those
controls that are covered by the
operating instructions because
- improper adjustment of other controls
may result in damage and will often
require extensive work by a qualified
technician to restore the product to
normal operation.
E. If the product has been dropped or
the cabinet has been damaged.
Е. If the product exhibits a distinct
change in performance.
13. Avoid using a telephone (other than
a cordless type) during an electrical
storm. There may be a remote risk of
electric shock from lightning.
14. Do not use the telephone to report a
gas leak in the vicinity of the leak.
SAVE THESE
INSTRUCTIONS
CAUTION:
To reduce the risk of fire or injury to persons by
battery, read and follow these instructions.
1. Use only the following type and size battery
pack: Sony BP-T24.
2. Do not dispose of the battery pack in a fire.
The cell may explode. Check with local codes
for possible special disposal instructions.
3. Do not opensor mutilate the battery pack.
Released electrolyte is corrosive and may
cause damage to the eyes or skin. It may be
toxic if swallowed.
>
. Exercise care in handling battery pack in
order not to short the battery with conducting
materials such as rings, bracelets, and keys.
The battery or conductor may overheat and
cause burns.
. Charge the battery pack provided with or
identified for use with this product only in
accordance with the instructions and
limitations specified in the instruction manual
provided for this product.
. Observe proper polarity orientation between
the battery pack and battery charger.
INFORMATION FOR
GENERAL TELEPHONES
—
>
we
. This equipment complies with Part 68 of the
FCC rules. On'the bottom of this equipment
is a label that contains, among other
information, the FCC registration number and
ringer equivalence number (REN) for this
equipment. If requested, this information
must be provided to the telephone company.
. The applicable registration jack (connector)
USOC-RITIC is used for this equipment.
. This equipment is designed to be connected to
the telephone network or premises wiring
using a compatible modular jack which is Part
68 compliant.
The FCC compliant telephone cord and
modular plug is provided with this
equipment.
. The REN is used to determine the quantity of
devices which may be connected to the
telephone line. Excessive RENs on the
telephone line may result in the devices not
ringing in response to an incoming call. In
most, but not all areas, the sum of the RENs
should not exceed five (5.0).To be certain of
the number of devices that may be connected
to a line, as determined by the total RENs,
contact the local telephone company.
. If your equipment (SPP-SS965) causes harm to
the telephone network, the telephone
company will notity vou in advance that
temporary discontinuance of service may be
required. But if advance notice isn’t practical,
the telephone company will notify the
customer as soon as possible. Also, you will
be advised of your right to tile a complaint
with the FCC if you believe it is necessary.
wr
EN
ZEN
6. The telephone company may make changes in
its facilities, equipment, operations or
procedures that could affect the operation of
the equipment. If this happens the telephone
company will provide advance notice in order
for you to make necessary modifications to
maintain uninterrupted service.
7. If trouble is experienced with this equipment
(SPP-55965), for repair or warranty
information, please contact Sony Direct
Response Center: Tel 1-800-222-7669. If the
equipment is causing harm to the telephone
network, the telephone company may request
that you disconnect the equipment until the
problem is resolved.
8. All repairs will be performed in an authorized
Sony service station.
9. This equipment cannot be used to party lines
or coin lines.
10.This equipment is hearing aid compatible.
If your telephone is equipped
with automatic dialers
When programming emergency numbers and
(or) making test calls to emergency numbers:
1. Remain on the line and briefly explain to
the dispatcher the reason for the call.
2. Perform such activities in the off-peak
hours, such as early morning or late
evenings.
Caution
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate this
equipment.
Note
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio frequency
energy and, if not installed and used in
accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to
radio or television reception, which can be
determined by turning the equipment off and
on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
~ Reorient or relocate the receiving antenna.
~ Increase the separation between the
equipment and receiver.
- Connect the equipment into an outlet on a
circuit different from that to which the
receiver 1s connected.
— Consult the dealer or an experienced radio/
TV technician for help.
Table of contents
Getting Started
6 Read this first
7 Step 1: Checking the package
contents
8 Step 2: Setting up the base phone
11 Step 3: Preparing the battery
ST pack
"13 Step 4: Entering your area code
Basics
14 Making calls
16 Redialing
17 Receiving calls
Telephone Features
19 One-touch dialing
19 Storing phone numbers
20 Making calls with one-touch
dialing
21 Speed dialing
21 Storing phone numbers
22 Making calls with speed
dialing
23 Phone Directory
23 Storing phone numbers and
names
24 Changing a stored name
and/or phone number
25 Erasing a memory location
26 Making calls from the Phone
Directory
27 Switching the phones during a
call
27 To switch from the base
phone to the handset
27 To switch from the handset
to the base phone
28 Talking between the phones
(Intercom)
28
28
23
29
30
30
31
32
32
33
33
‚34
36
36
37
38
39
40
41
42
45
46
To talk from the handset to
the base phone
To talk from the base phone
to the handset
Voice paging
To page with voice
Transferring a call
To transfer from the base
phone to the handset
To transfer from the handset
to the base phone
Caller ID Features
Understanding the Caller ID
service
When you receive a call
Looking at the Caller ID list
Viewing the Caller ID list
Erasing data from the
Caller ID list
Using the Caller ID list
Calling back a number from
the Caller ID list
Storing a number of the
Caller ID list into the Phone
Directory
To change the number of
digits of the phone number
Using “Caller ID with call
waiting” service
Additional Information
Mounting the base phone on a
“ wall
Notes on power sources/ ....
Maintenance
Troubleshooting
Specifications
Index
Table of contents | 5°"
Getting Started
Before you use your phone, you must first set it up. Here's a quick way
to set up your phone: Steps 1,2, 3 and 4.
Step 1 (page 7)
First, unpack the phone and the supplied
accessories.
. tr ho -
” ч` т
i ;
Step 2 (pages 8 to 10)
Next, you need to do three things to set
up the base phone, including finding the
best location for the base phone.
u
step 3 (pages 11 to 12)
Then, insert the battery pack into the
handset and charge it for more than 12
hours.
ия
Step 4 (page 13)
Finally, enter your area code to use the
Caller ID service.
That's it!
—
| Handset
“ | Getting Started
rr EA AE SE RT TE LL AE R= =
Checking the package contents
Make sure you have received the following items in the package.
If anything is missing, contact your local Sony dealer.
Telephone line cords (2) Wall bracket/stand for base
phone
-
Directories
Rechargeable battery
pack (BP-T24)
Getting Started
poyezs buen и
7
Setting up the base phone
Do the following steps:
* Choose the best location
* Connect the base phone
* Choose the dialing mode
Choose the best location
Where you place the base phone affects the reception quality of the
“+” handset. . .
« Away from noise sources such as a window
by a street with heavy traffic
+ Away from television —
sets and other
Away from heat sources, such as radiators,
electronic equipment
airducts, and sunlight
EN Away from a microwave
oven
Away from excessive
moisture, extremely low
temperatures, dust,
mechanical vibration, or
Away from a personal
computer
Near a central location
and on a level surface
Away from another
cordless telephone
CAUTION: * Should you experience intermittent loss of audio during a conversation, try
moving closer to the base or move base unit away from other noise sources.
* The cordless telephone operates at a frequency that may cause interference to
nearby TVs and VCRs; the base phone should not be placed near or on the top
of a TV or VCR; and, if interference is experienced, moving the cordless
telephone farther away from the TV or VCR will often reduce or eliminate the
interference.
“ | Getting Started
Connect the base phone
If you want to hang the base phone on the wall, see page 40.
1 To an AC outlet
t
=] To the
telephone
outlet
AC power adaptor
(supplied)
Telephone line cord
(supplied)
0
To DCIN 9V
y
o
To LINE
poyezs Guen г
1 Attach the wall bracket to the
bottom of the base phone as
illustrated to use it as a stand.
2 Connect the telephone line cord
to the LINE jack and to a
telephone outlet.
3 Connect the AC power adaptor
to the DC IN 9V jack and to an
AC outlet.
4 Raise the antenna. Make sure it
points towards the ceiling.
continued
Getting Started | 95"
Step 2: Setting up the base phone (continued)
Notes
* Use only the supplied AC-T46 AC power adaptor.
Do not use any other AC power adaptor.
^ * Connect the AC power adaptor to a continuous power
- supply.
* Place the base phone close to the AC outlet so that
you can unplug the AC power adaptor easily.
Polarity of the plug
Tips Modular
coo If your telephone outlet isn't modular, contact your
. - telephone service company for assistance. О
~* To remove the wall bracket, press in the upper tab.
,
Choose the dialing mode
For the telephone to work properly, select an appropriate dialing mode
(tone or pulse).
DIAL MODE switch
Depending on your dialing system, set the DIAL MODE switch as
follows:
CT - If your dialing system is Set the switch to * J
Tone T
Pulse P
If you aren't sure of your dialing system
Make a trial call with the DIAL MODE switch set to T.
If the call connects, leave the switch as is; otherwise, set to P.
=
Getting Started
| Step3
Preparing the battery pack
Charge the battery pack for more than 12 hours before you start using
your phone.
1 Slide open the battery
compartment lid of the handset.
2 Connect the battery connector
with correct polarity (black and
red cords).
payels buen N
3 Hook the cords and insert the
battery pack. Then close the lid.
4 Place the handset on the base
phone.
You can place it with either side
facing up.
The CHARGE lamp lights up
when the handset is properly
seated on the charge terminals
of the base phone. Charge the
battery pack for more than 12
hours so that the battery is fully
charged. The CHARGE lamp
remains lit even after charging
is completed.
continued
Getting Started | 11"
TAT ETE TEE TL wD iii
Step 3: Preparing the battery pack (continued)
Battery duration
A fully charged battery pack lasts for about:
* 6 hours when you use the handset continuously
* 10 days (RING ON mode) or a month (RING OFF mode) when the
handset is in standby mode.
Notes
* The battery pack will gradually discharge over a long period of time, even
when not in use.
® To obtain the best handset performance, place the handset on the base phone
for charging after several calls.
* If you leave the battery pack in the handset without charging it, the battery
pack will be completely discharged.
It may require several times of charging to recover to its full capacity.
While charging, the battery pack warms up. This is not a malfunction.
When to purchase a new battery pack
If the battery lasts only a few minutes even after 12 hours of charging,
the usable life of the battery has expired and needs replacement.
Contact your local Sony authorized dealer or service center, and ask
for a Sony BP-T24 rechargeable battery pack.
Note
Battery life may vary depending on usage condition and ambient temperature.
Getting Started
Tee WER dr TENE
ROT TUR ETA
| я НД ПЕРВОЕ М РОЩЕ О и TTR LATTE EN TE TRE TTT OT RRR TREAT TA RR me Re ATR JT re
CTE ARENA ALO EE ECT E RATON RA UT ETA AN E A er TIRE TS a,
TEN TR TOM FS ROL TR PARECE E E AA es
Entering your area code
- When you use this phone for the first time, or move to an area that has
a different area code, you must enter your area code.
This is necessary because the phone must be able to distinguish
between local or long distance calls to properly dial calls from the
Caller ID list.
1 Press (VOUPGM).
2 Turn Jog Dial up to make “AREA”
flash.
ПЕСКОМ
payezs Бипзе5 N
3 Press Jog Dial.
“ENTER AREA CODE” appears on
the display.
Enter your three digits area code using
. the dialing keys.
Press (VOL/PGM).
You'll hear a long confirmation beep.
Notes
* If an area code is already entered, it appears on the display in step 3. To enter
a different area code, see “To change the area code” below.
* Do not allow more than 20 seconds to elapse between each step of the
procedure.
Tips
* You may press Jog Dial instead of in step 5.
* To check the current area code, perform steps 1 to 3 above. The area code
appears on the display for 20 seconds.
To change the area code
1 Perform steps 1 to 3 above.
The current area code appears on the display.
2 Turn Jog Dial down to erase the current area code.
3 Enter a new area code using the dialing keys.
4 Press (VOUPGM).
You'll hear a long confirmation beep.
Getting Started | 13°"
Basics
Making calls
YOUPGM )4
REDIAL/PAUSE
( ¥TONE
Additional tasks
1 Pick up the handset from the
base phone.
Press
(TALK/ CALL WAITING/ FLASH)
and wait until “TALK” appears
on the display and the display
also shows the operation
duration in hours, minutes and
seconds.
You'll then hear a dial tone.
“HANDSET IN USE” appears
on the display of the base phone
and the LINE lamp on the base
phone lights up.
If you hear five short error
beeps and “OUT OF RANGE"
appears on the display, move
closer to the base phone.
Dial the phone number.
During a conversation, you can
adjust the handset volume.
Follow the procedure described
in the following table.
When you're done talking, press
(OFF), or place the handset on
the base phone.
The display and the LINE lamp
on the base phone go off.
To
Do this
Adjust the handset volume
During phone conversations, press (VOUPGM).
Each press of switches the speaker
volume by one of four levels.
Put a cal! on hold
‘Press (HOLD). “HOLD” appears on the display.
Press (HOLD) again to resume the conversation.
Switch to tone dialing
temporarily
Press (XTONE) after you're connected.
The line will remain in tone dialing until
disconnected.
Basics
Notes
* When you increase the sound volume, in some cases the back ground noise
may be increased as well. You should adjust the volume accordingly.
If the handset beeps every second during conversation and “OUT OF
RANGE" appears on the display, move closer to the base phone; otherwise,
the call will be disconnected after one minute.
e While conversing with an outside caller via the base phone, vou can't make a
call with the handset and “BASEPHONE IN USE” appears on the display. If
you press (TALK/ CALL WAITING/ FLASH), you will hear a busy tone.
When the operation duration exceeds 9:59'59, the display counts from 0:00°00
again.
“ae
="
If the battery becomes weak during a call
THe handset will beep every three seconds five times and and
“BATTERY LOW” appears on the display. Finish your call and charge
the battery pack.
For optimum performance, charge the battery for a full 12 hours.
Note that during the first 10 - 15 minutes of charging, the phone will be
inactive, i.e., unable to make or receive a call.
syiseq N
After this initial 10 - 15 minutes, you may be able to use the phone, but
the battery duration will be very short; thus it is recommended that
you fully charge the battery before the next usage.
Making calls through the speakerphone
Press (SPEAKERPHONE) on the base
phone.
“SPEAKERPHONE” appears on the
display and the display also shows the
operation duration in hours, minutes and
seconds.
The LINE lamp lights up.
Dial the phone number.
(SPEAKERPHONE )
LINE lamp
To adjust the speaker volume, slide the
SPEAKER VOLUME control.
When you're done talking, press
(SPEAKERPHONE) again.
SPEAKER VOLUME control
Notes
While conversing with an outside caller via the handset, the display on the
base phone shows “HANDSET IN USE” and you can't make a call through
the speakerphone. If you press (SPEAKERPHONE), you will hear a busy tone.
When the operation duration exceeds 9:59'59, the display counts from 0:00/00
again.
continued
Basics | 156"
A eee - -
Am TEN Tap ERA AT NE NN
Te NE
REE NO
ST Tae ME EP
Making calls (continued)
To obtain the best speakerphone performance
* You may not be able to hear the other party's voice in a noisy place.
Therefore, use the speakerphone in a quiet room.
* Do not bring your hand or other object too close to the microphone
or you will hear a shrill noise (“feedback”).
* When the speaker volume is loud, or the base phone has been placed
close to a wall, you may find that the volume drops suddenly. This
is due to a circuit in the telephone designed to protect against
feedback. In such cases, lower the speaker volume slightly.
#
У
A =
x
Redialing
‚ 1 Press (TALK7GALL WAITING/ FLASH) and wait until “TALK”
appears on the display.
The LINE lamp on the base phone lights up.
If you're at the base phone, press (SPEAKERPHONE).
“SPEAKERPHONE” appears on the display and the LINE
lamp lights up.
2 Press (REDIAL/PAUSE) to redial the last number dialed.
Note
If the number exceeds 32 digits or if it is erased, five short error beeps will alert
you that the number can’t be redialed.
Tip
The number to be redialed is the last number dialed either on the handset or on
the base phone. hy
To check the phone number before redialing
When not making a call with either the handset or base phone, press
(REDIAL/PAUSE).
The last number dialed is displayed for five seconds.
To dial the number, press (TALK/ CALL WAITING FLASH) while the
number is displayed. If you're at the base phone, press
(SPEAKERPHONE ).
y
Note
The number will not be displayed if the last number dialed exceeds 32 digits or
if it is erased.
To erase the last phone number dialed
When not conversing with an outside caller with either the handset or
base phone, press (REDIAL/PAUSE) twice within five seconds.
The number will be erased from the memory, and you'll hear a long
confirmation beep.
| Basics
|
Ee SN
|
CTE EN EA CA A E Ea REE A ERAN
1 When you hear the phone ring:
* Press
CTALK/ CALL WAITING/ FLASH).
or
* Pick up the handset from the base
phone when the handset is placed
on the base phone.
“TALK” appears on the display and
the display also shows the operation
duration in hours, minutes and
seconds.
“HANDSET IN USE” appears on the
display of the base phone and the
LINE lamp on the base phone lights
up.
During a conversation, you can adjust
the handset volume. Follow the
procedure described in the following
table.
2 When you're done talking, press
or place the handset on the base
phone.
‘The display and the LINE lamp on the
Additional tasks base phone go off.
To Do this
(VOL/PGM)-
521598 B
+
Adjust the handset volume During phone conversations, press (VOL/PGM).
Each press of switches the speaker volume by one of
four levels.
Put a call on hold Press (HOLD). “HOLD” appears on the display.
Press (HOLD) again to resume the conversation.
Switch to another call Press (TALK CALL WAITING/ FLASH).
(“call waiting” service") Press (TALK CALL WAITING/ FLASH) again to return to the first
caller.
* You need to subscribe to this service from your telephone company.
Note
If another call comes in by “call waiting” service while conversing with an
outside caller, you will hear two short beeps. -
Tip
To inform you of an incoming call, the-display shows “** RINGING **” when ringing."
If you have subscribed to the Caller ID service;
* the caller's number and/or name appears on the display when you receive a
call (see page 32) or when another call comes in by “call waiting” service.
* the ringer sound changes to a higher tone if the call matches the number
stored on ONE-TOUCH DIAL buttons, speed dialing keys or in the Phone inued
Directory (memory match function; see page 32). continue
Basics | 178
»*— ZN
Receiving calls (continued)
To turn the ringer off
Set the RING switch on the bottom to OFF.
You can save battery power.
The handset won't ring. You can still make calls, and
also receive calls if another telephone connected to
the same line rings to inform you on incoming calls,
but you cannot receive an intercom call. RING switch
Note
+ .+ You cannot receive Caller ID data when the handset is off
"the base phone in RING OFF mode. See page 32 for details.
Receiving calls through the speakerphone
' CALL WAITING/ FLASH
When you hear the phone ring, press = )
(SPEAKERPHONE) on the base phone.
“SPEAKERPHONE” appears on the
display and the display also shows the
operation duration in hours, minutes and
seconds.
The LINE lamp lights up.
When you're done talking; press
(SPEAKERPHONE) again.
To obtain the best speakerphone
performance, see page 16.
SPEAKERPHONE
LINE lamp
SPEAKER VOLUME control
RINGER switch
Additional tasks
To Do this E
Put a call on hold ‘Press (HOLD). “HOLD” appears gn the display.
Press again to resume the conversation.
Switch to another call Press (CALL WAITING/ FLASH). a
(“call waiting” service*) Press (CALL WAITING/ FLASH) again to return to the first caller.
Adjust the speakerphone Slide the SPEAKER VOLUME control.
volume.
Turn on/off the ringer of Set the RINGER switch on the base phone to ON to turn the ringer
the base phone on, or OFF to turn it off.
* You need to subscribe to this service from your telephone company.
Note -
Even when you set the RINGER switch on the base phone to OFF, the handset will ring when the
RING switch on the handset is set to ON. т
Tips
* To inform you of an incoming call, the display shows “kX* RINGING **” and the LINE lamp
lights on and off according to the ring signal even when you set the RINGER switch on the
base phone to OFF.
* If there is an incoming call while on the intercom, the base phone will ring even when the
RINGER switch on the base phone is set to OFF.
Basics
Telephone Features
One-touch dialing
You can dial with one touch of a key by storing a phone number on a
one-touch dial button.
Storing phone numbers
4
A RECTOR mE |
‚ - 1 Press (VOLPGM).
(REDIAL/PAUSE )
2 Press one of the three
ONE-TOUCH DIAL buttons
(CA) to CO).
You'll hear a confirmation beep.
A=
| ENTER NUMBER |
If a number is stored, it appears
on the display. To store a new
number, turn Jog Dial to erase it.
3 Enter the phone number you
want to store.
sainjea4 auoydajaj N
You can enter up to 16 digits,
including a tone and a pause,
each of which is counted as one
digit.
4 Press (VOUPGM).
You'll hear a long confirmation
beep, and the number is stored.
The display goes off.
continued
Telephone Features | 19°"
oe Te EEE EE
р)
One-touch dialing (continued)
Note
Do not allow more than 20 seconds to elapse between each step of the
procedure.
Tips
* If you have entered a wrong number in step 3 and have not pressed
(step 4) yet, just turn Jog Dial down to erase it. Then, enter the -
correct number.
* You may press Jog Dial instead of in step 4.
. Tr
Po “
+
,
a To store a number to be dialed via Private Branch Exchange
(PBX)
' Before entering a phone number in step 3 on page 19, do as follows:
CREER TER SOS ME OR SORTE RE OR RE RERO TEE NE MEET e DO EST TERR A UTN
}
|
1 Enter the outside line access digit (e.g., 9).
2 Press (REDIALPAUSE).
To change a stored number
1 Press (VOUPGM).
2 Press one of the ONE-TOUCH DIAL buttons (CA) to (©).
The current number appears on the display.
3 Turn Jog Dial down to erase the current number.
4 Enter a new number.
5 Press (VOL/PGM). y
Note о
You can replace the stored number with a new number, but you can’t just erase it.
- Making calls with one-touch dialing *
1 Press (TALK CALL WAITING/ FLASH) and wait until “TALK”
appears on the display.
Í
|
:
|
| | | 2 Press one of the ONE-TOUCH DIAL buttons ((A) to (©).
The phone number stored on the one-touch dialing button
will appear on the display and will be dialed.
To check the phone number before one-touch dialing
When not conversing with an outside caller with the handset, press
one of the ONE-TOUCH DIAL buttons ((A) to (С).
The number stored for that button appears on the display for five
seconds. To dial the number, press (TALK/ CALL WAITING/ FLASH) while
the number is displayed.
| Telephone Features
E
Speed dialing
You can dial with a touch of a few keys by storing a phone number on
a dialing key.
Storing phone numbers
1 Press
“PROGRAM” appears on the
display.
2 Press ( SPEED DIAL).
“ENTER 0 TO 9” appears on the
display.
3 Press one of the dialing keys
(CO) to (9)) to store a phone
number on.
0=
ENTER NUMBER
(SPEAKERPHONE) - , ; ;
You'll hear a confirmation beep.
4 Enter the phone number you
want to store.
You can enter up to 16 digits,
including a tone and a pause,
each of which is counted as one
digit.
5 Press
You'll hear a long confirmation
beep, and the number is stored.
Note -
Do not allow more than 20 seconds to elapse between each step of the
procedure. В
Tips
* [f you enter a wrong number in step 4, press (PGM), then start from the
beginning. ; -
* Use the supplied directory to write down what you stored on the speed
dialing numbers.
Telephone Features
continued
sainjea{ aLOUdajas N
24
Speed dialing (continued)
To store a number to be dialed via Private Branch Exchange
(PBX)
Before entering a phone number in step 4 on page 21, do as follows:
1 Enter the outside line access digit (e.g., 9).
2 Press (REDIAL/PAUSE ).
“ .
+ To change a stored number
Store a new number, as described previously.
- /
Making calls with speed dialing
1 Press (SPEAKERPHONE).
2 Press (SPEED DIAL).
3 Enter the desired speed dialing number (© to ©).
The phone number stored as the speed dialing number will
be dialed.
To check the phone number before speed dialing
When not making a call with the base phone, press (SPEED DIAL) (SPEED DIAL) and
then one of the dialing keys ((0) to (9). , >
The number stored on the key appears on the display for five seconds.
To dial the number, press (SPEAKERPHONE ) while the number i is
displayed.
Telephone Features
CE TE
ii ii ii mm mn Т
CT
Phone Directory
You can dial a number by scrolling through the Phone Directory, in
which up to 50 phone numbers can be stored.
Storing phone numbers and names
Example: to store “SONY” “123-4567”.
1 Press (VOY/PGM).
(Be sure not to press
(TALK/ CALL WAITING/ FLASH).)
[RECTORY AREA
Pie
{
AAU
H “DIRECTORY” is not flashing, turn
Jog Dial down to make it flash.
2 Press Jog Dial.
“ENTER NAME” appears. En
› =
®
3 Enter the name using the dialing keys. @
You can enter up to 15 characters. =
NT . . O
Character table Press a dialing key until the desired 3
_ character appears. (See the character n
Key — Character table for details.) o
| +
(D 1 Enter successive characters in the same £
2) А —› В —+ С — 2 way. ®
O) О —+ Е —+Е—+ 3 To enter two characters assigned to the
@ GCoaHol—4 same key, or to enter a “space”, turn
Jog Dial up to move the cursor to the
(5) ] —› К —› || — 5 right.
(8) M—N+076 Example: to enter “SONY”, press (7)
P+Q+R—S—7 four times (5S), press (6) three times
© T—>U—>V—8 (O), turn Jog Dial up to move the
© W->X-Y-Z.9 7 cursor, press (6) twice (N), and press
- (9) three times (Y).
© 0. | ,
+ | | SOME
© 8 continued
Telephone Features | 23°"
TnL A TT A TT
CUE E PEA CREA EEE RE A TRE DLT TR TEN Ee, TT = TT Tie Ts Ten RE
TM RER REE MP RS RET
Phone Directory (continued)
4 Press (VOLPGM).
“ENTER NUMBER” appears.
5 Enter the phone number. SONY |
You can enter up to 16 digits, including a tone 123456%<
and a pause, each of which is counted as one digit. a
6 Press (VOLPGM)
You'll hear a long confirmation beep, and the name and the
number are stored. The display goes off.
Notes
* If you intend to save a 51st phone number, you will hear five short error
beeps and “MEMORY FULL” will be displayed. You cannot store the phone
number. To store another phone number, erase one of the stored phone
numbers (see page 25).
* Do not allow more than 20 seconds to elapse between each step of the
procedure.
Tips
* If you have entered a wrong name or number in step 3 or 5, turn Jog Dial
down to erase it. Then enter the correct name or number.
* You may press Jog Dial instead of (VOUPGM) in steps 4 and 6.
* To store a number to be dialed via PBX, follow the steps on page 20 when
entering a phone number.
-
Changing a stored name and/or hon
number 7
1 Display the name and phone number you want ONY
to change by doing steps 1 and 2 on page 26. 1234567
2 Press Jog Dial. DIAL PSN ERASE
| 1234567
pe
Telephone Features
-
UT,
3 Turn Jog Dial up to make “PGM” flash and
press Jog Dial.
The cursor flashes at the last character of the
name.
4 Turn Jog Dial down to erase the characters and
enter the new name.
If you want to change only the number, skip this
step.
- Press Jog dial. SMITH +
The cursor flashes at the last digit of the phone 12345877
number.
~
6 Turn Jog Dial down to erase the number and enter the new
number. |
If you don’t want to change the number, skip this step.
7 Press Jog Dial.
You'll hear a long confirmation beep and the name and/or
the number is changed.
Erasing a memory location”
1 Display the name and phone number you want SONY
to erase by doing steps 1 and 2 on page 26. 1934567 |
2 Press Jog Dial. | ; Hé A PON ERASE
1250567 |
3 Turn Jog Dial up to make “ERASE” flash and ( ERASE=NQ YES
press Jog Dial. 4567 |
\
4 Turn Jog Dial up to make “YES” flash, then press Jog Dial.
You hear a long confirmation beep and the memory location
is erased. o
continued
Telephone Features
sainjeaq auoyda|a] N
25
Phone Directory (continued)
Making calls from the Phone Directory
1 Press Jog Dial twice.
“DIRECTORY” appears on the
display. `
2 Display the name and phone number
you want to call.
To search in alphabetical order: Turn
Jog Dial up or down.
To search by entering the initial
character: Press the dialing key of the
desired character, then turn Jog Dial.
SONY
| 1234567 |
3 Press Jog Dial.
TALPEM ERASE
"ВЕ |
| 4 Press Jog Dial again. `
The phone number will be dialed.
Tip
You may press (TALK/ CALL WAITING/ FLASH) to make a call instead of doing
steps 3 and 4.
About the search order
The names appear in the following order when you turn Jog Dial up or
down.
* Alphabetical order: ABC...XYZ «— symbols* ++ x — H — 0-9
. Î
* Symbols appear only when you have stored the number having the symbol
fromthe Caller ID list. т
* Initial character: To search for “SONY” for example, press (7) and
then turn Jog Dial to search through the names starting with P, Q, R,
Sor7.
Telephone Features
=>
Switching the phones during a call
You can easily switch between the handset and speakerphone on the
base phone without disconnecting the call.
To switch from the base phone to the handset
LINE lamp 1
2
(SPEAKERPHONE )
To switch from the handset to the base phone
1
(TALK/ CALL WAITING/ FLASH )
Tips .
Press on the base
phone.
The call is on hold and “HOLD”
appears on the display and the
LINE lamp on the base phone
flashes.
Press
(TALK/ CALL WAITING/ FLASH) Or
on the handset.
You can continue talking to the
caller through the handset.
Press on the handset.
The call is on hold and “HOLD”
appears on the display and the
LINE lamp on the base phon
flashes. |
sainjeaq auoydajay N
Press (SPEAKERPHONE) or
on the base phone.
You can continue talking to the
caller through the
speakerphone.
* While talking through the speakerphone on the base phone, if you pick up
the handset, the cáll will be switched to the handset.
* When the call is put on hold on the base phone, if you pick up the handset,
the call will be switched to the handset.
Telephone Features | 27%"
Te a mY, Toe LER TRANS
Talking between the phones (Intercom)
You can converse using the base phone and the handset. You can start
the intercom from either phone.
To talk from the handset to the base phone
Press (INTERCOM),
The base phone and handset ring and
“*% PAGING XX" appears on the display.
When a person at the base phone presses
(SPEAKERPHONE) or (INTERCOM), you
can talk with each other.
“INTERCOM” appears on the display.
When you are done talking
Press on the handset.
If no one answers the phone
Press again.
INTERCOM
OFF
(TALK/ CALL WAITING/ FLASH)
To talk from the base phone to the handset
Press (INTERCOM).
The base phone and handset ring and
“XX PAGING XX” appears on the display.
When a person at the handset presses
CTALK/ CALL WAITING/ FLASH) or
(INTERCOM), you can talk with each other.
“INTERCOM” appears on the display.
When you are done talking
Press (SPEAKERPHONE) on the base
phone.
(SPEAKERPHONE) If no one answers the phone
Press (INTERCOM) again.
INTERCOM
Notes
* You can't receive an intercom call on the handset when its RING switch is set
to OFF,
* If there's an incoming call while on the intercom, only the base phone rings.
To answer the call, press on the base phone or handset. The
intercom is canceled and you can talk to the outside caller.
* While conversing with an outside caller via the base phone or handset, you
cannot make an intercom call. If you press CINTÉRCOM), you will hear a busy
tone. *
Tip
You can receive an intercom call on the base phone even when the RINGER
switch on the base phone is set to OFF. The base phone will ring at a low level.
Telephone Features
Voice paging
The handset user can page someone near the base phone without any
operation on the base phone. Neither phones will ring.
- Note that you can't page if the base phone is in use.
To page with voice
1 Press (VOUPGM).
2 Press (INTERCOM).
“INTERCOM” appears on the
display of both the base phone
and handset, and you can begin
talking.
Notes |
* If there’s an incoming call during voice paging, only the base phone rings.
To answer the call, press on the base phone or handset. The
paging is canceled and you can talk to the outside caller.
* While conversing with an outside caller via the base phone or handset, you
cannot make an intercom call. If you press (INTERCOM), you will hear a busy
tone.
sainjeaq auoydajat N
Telephone Features | 29°
Transferring a call
You can transfer a call between the handset and base phone without
disconnecting the call. |
To transfer from the base phone to the handset
1 Press to page the
handset. `
The call is put on hold on the
base phone and the handset
rings. “XX PAGING xx"
appears on the display of both
the base phone and handset.
2 Press
(TALK/ CALL WAITING/ FLASH) or
on the handset.
“INTERCOM” appears on the
display of both the handset and
base phone.
You can talk between the base
phone and the handset.
3 To talk to the caller with the .
handset:
* Press on the
handset.
Tor »
* Press (SPEAKERPHONE on
TALK/ CALL WAITING/ FLASH) —
TALK the base phone.
“TALK” appears on the display
of the handset.
If no one answers the phone
Press (INTERCOM) a gain.
Note
You can't receive an intercom call on the handset when its RING switch is set to
OFF.
ea
Tips
* If you have accidentally pressed in step 2, just press
and you will get the same result as by pressing only.
* The LINE lamp on the base phone flashes during intercom.
Ча "elephone Features
pa TE eT E Aa EE PON re
or TEE TR TR TR TRE RRL SET, TR TR ET TR A - -
METRO A TE MAA AE SR E - ae 6
LEE TER = RE ET TET ELO A A ANO E EA Rew e
TON NO RON A TR ESSE ROUE RES Re те -
MER ATA E E e RS
To transfer from the handset to the base phone
Tip
SPEAKERPHONE
1 Press to page the
base phone.
The call is put on hold on the
handset and the base phone
rings. “*X PAGING ЖЖ”
appears on the display of both
the handset and base phone.
Press (SPEAKERPHONE) or
on the base phone.
“INTERCOM” appears on the
display of both the base phone
and handset.
You can talk between the
handset and the base phone.
To talk to the caller with the
base phone:
e Press on the
base phone.
or
* Press on the handset.
“SPEAKERPHONE” appears on
the display of the base phone.
sa1n3e34 auoydajal Е
If no one answers the phone
Press (INTERCOM) again.
You can receive an intercom call on the base phone even when the RINGER
switch on the base phone is set to OFF. The base phone will ring at a low level.
Telephone Features | 31
a N Pr
mE a AN an A
о
Caller ID Features
Understanding the Caller ID service
Caller ID allows the caller's phone number to be shown on the display
before the call is answered. In order to use this feature, you must first
. subscribe to the Caller ID service. The name of this service may vary
depending on your telephone company.
To use this feature, be sure to enter your area code (see page 13).
When you receive a call
+ > The phone number appears on the display with the date and time* as
+ shown in the following example.
[f your Caller ID service includes the caller name service, the caller’s
name also appears on the display (up to 15 letters).
Handset
Caller's name - SM ITH JOHN
Callers phone number ————-1-201- 123-4567
The date and time received——— —— TOY. 45
* The display on the base phone
doesn't show the date and time.
When you answer the call, the Caller ID display changes to the
“TALK” or “SPEAKERPHONE” display.
Notes
If the RING switch on the handset is set to OFF:
when the handset is off the base phone, the Caller ID is not displayed, and it is
- - not kept in the Caller ID list (see page 33). If you set it back to ON while the
phone is ringing, the Caller ID appears.
- when the handset is on the base phone, the Caller ID is displayed, and it js s kept
in the Caller ID list. .
The caller's phone number and/or name will not appear in the following cases:
- “OUT OF AREA”: when the call is made through a telephone company which
does not offer Caller ID service (including international calls).
“PRIVATE”: when the call is “blocked.” For privacy reasons, many states allow
callers the option to prevent his or her telephone data from being displayed on
the other party’s Caller ID display.
If the call is from an office which uses multiple lines, the displayed phone number
may not match the number you use to call the extension.
About the memory match function
[f you receive a call from a phone number which is stored on one of the
ONE-TOUCH DIAL buttons (see page 19), speed dialing keys (see page 21)
or in the Phone Directory (see page 23), the ringer sound will change to a
higher tone from the second ring.
Note
The memory match function does not t work with "OUT OF AREA” or “PRIVATE”
calls; and it may not work with calls made from an office which uses multiple lines
because the number does not always match the one you stored in this phone.
C aller ID Features
Looking at the Caller ID list
The phone stores the data of the last 20 calls received including “OUT
OF AREA” and “PRIVATE” calls. It keeps track of all calls received;
even if they were not answered.
However, if the RING switch on the handset is set to OFF when the
handset is off the base phone, the phone can’t receive the Caller ID
data.
Viewing the Caller ID list
You can look through the Caller ID list to check the phone number
and/or name of the calls received on the handset's display. Note that
the display on the base phone shows the current caller's phone number
and/or name only, and you can't view the caller ID list on the base
phone.
1 Press Jog Dial.
The display shows the number
of “NEW” (calls which you have
not viewed) and “OLD” (calls
Which you have viewed) calls.
NEW 08 OLD 12
2 Turn Jog Dial.
The data of the newest call
appears for 20 seconds. =
SMITH JOHN =
1-201-123-4367 q
"58 0 em 4:53 =
©
3 mn
Turn Jog dial down to display ©
older data or up to display ec
newer data. ©
wv
continued
Caller 1D Features | 33"
PE |
an
Looking at the Caller ID list (continued)
Note NEW CALL lamp
If a 21st call is received, the oldest data is automatically erased.
Tip
If there is a “NEW” data, the NEW CALL lamp of the base
phone flashes.
_ About the “x” mark
/ “X" appears if there are more than two calls
SMITH JOHN X | from the same phone number. The older data
1-20 | ; 123-4307, will be replaced by the new data, so the calls
58 cu tm + are counted as only one call.
Erasing data from the Caller ID list
Old data will be erased automatically when a 21st call comes in, but
you can also manually erase unnecessary data one by one or erase the
entire list.
To erase the phone number one by one
1 Display the phone number you want to erase MITH- JOHN |
from the Caller ID list (see page 33). |1-201-123-4567
оо О ‘ i ОЧем ый
2 Press Jog Dial. | f DIA PM ERASE
>. [17201-123-4567
owl e 93 |
3 Turn Jog Dial up to make “ERASE” flash and ERASESN UE
press Jog Dial. 1-201-123 "4567,
DY
ETE i. 1PM
4 Turn Jog Dial up to make “YES” flash, then
5 P
press Jog Dial.
You'll hear a long confirmation beep and the
data is erased.
Caller ID Features
q
.
[
]
|
|
1
To erase the entire list at once
1 Display any Caller ID data. SMITH JOHN
1-201-123-4567
olor «1, 3
2 Press Jog Dial.
1-2
‘
Me ERASE |
201-123-4567
3 Turn Jog Dial up to make “ERASE” flash and ERAN YES ALL |
press Jog Dial. -201-123-4567
low! Um HS 3
4 Turn Jog Dial up to make “ALL” flash, then ALL ERASE: SES
press Jog Dial. 1-201-1 23-1 67
| ao 1 Um 4:53
J
5 Turn Jog Dial up to make “YES” flash, then
og Dial © 00 OLD 00
press Jog Dial.
You'll hear a long confirmation beep and the
entire list is erased.
Note
“ALL” appears only when all the data has become “OLD” data. If there is any
“NEW” data, you can't erase the entire list.
Caller ID Features
sainjeaq ai 1aj|e) В
IY
Using the Caller ID list
By using the Caller ID list, you can call back a phone number from the
Caller ID list easily, or store numbers from the Caller ID list into the
Phone Directory.
Calling back a number from the Caller ID list
1 Display the phone number you
want to call from the Caller ID
list (see page 33).
SMITH JOHN
1-201-123-4567
“ОВ LU pa 4:93
2 Confirm the number and press
Jog dial.
Ale Pen ERASE
1-201-123-4567
"MOB 1.0 pm 4:33
3 Press Jog dial again.
The phone automatically dials
the displayed number.
Notes ,
+ If the number displayed in step 1 is not the one you should call back, you can
change the number of digits of the phone number as described on page 38.
* If the phone is connected to a Private Branch Exchange (PBX), you may not
be able to call back from the Caller ID list because an outside line access digit
is necessary.
Tip
You may press (TALK/ CALL WAITING/ FLASH) to make a call instead of doing
steps 2 and 3.
Caller ID Features
AT REEL Ld Te Te Tew EE TE TR ee
mean ATR ET TE Re TTR
A E ETRE EM TAs SA TT IRR AT E TRE TNR STAR RRS TES RTE
EEE щв боба
Storing a number of the Caller ID list into
the Phone Directory
U N
1 Display the name and phone number you want | SMITH JOHN
—
to store from the Caller ID list (see page 33). 1-201-123-4567
2 8 0 You 4:53
Confirm the number and press Jog Dial. IN .
I PR PEN ERASE
2 1-201-123-4557
"08 1.04 4:53 |
3 Turn Jog Dial up to make “PGM” flash and SMITH J Ne
press Jog Dial. 1201123456 |
The cursor flashes at the end of the name. _
Enter or change the name, if necessary (see
page 24).
À Press Jog Dial. RER
The cursor flashes at the end of the phone 120112345 АУ
number.
Enter or change the phone number, if necessary
(see page 24).
5 Press Jog Dial again.
You'll hear a long confirmation beep and the name and
number are stored.
Notes
* Do not allow more than 20 seconds to elapse between each step of the
procedure.
* If the number displayed in step 1 is not the one you should call back, you can
change the number of digits of the phone number as described on page 38.
* If the phone is connected to a Private Branch Exchange (PBX), you may need
to add an outside line access digit.
. continued
Caller ID Features
salnjeaq qi 421d N
37
Using the Caller ID list (continued)
| a To change the number of digits of the phone
number
If the number of digits of the phone number in the Caller ID list is
different from the actual phone number, you need to adjust the
number of digits of the phone number to call back or store into the
Phone Directory.
1 While the phone number from the Caller ID list is displayed,
, press (#) repeatedly until the phone number with the
"7 correct number of digits appears on the display.
Each time you press (#), the number of digits changes as
. follows.
When the area code does not match
[a JOHN SMITH JOAN _ |
1-201-123-4567 | > Biz
"DB 104 4:53 | "WEE 10 4:53
. N \
SMITH JOHN SMITH JOHN
123-0587... | € | 1128007
"ОВ (Чем 4:53
When the area code matches
Вы JOHN SMITH JOHN | ©
123-4567 | > Tee
wong Oy 4°57 "EMO YN py 4:53,
. | SMITH JOHN SMITH JOHN: | >
1-123-4567 | € Ae
MWOB 1.0m 4:53 "ОВ 1.0 dm 493
+ -
2 Continue the operation to call or store the phone number
with the correct number of digits (pages 36 and 37).
Notes
* You need to adjust the number of digits each time you call back from the
Caller ID list as the changes to the Caller ID data is not stored in memory.
* You may not be able to change themumber of digits depending on the Caller
ID data.
Caller ID Features
|
Using “Caller ID with call waiting”
service
This telephone is compatible with the “Caller ID with call waiting”
service. Make sure that your telephone company offers this service.
Like the basic Caller ID service, you need to subscribe to “Caller ID
with call waiting” in order to use this service.
Even though you may have already subscribed to “Caller ID” and
- “call waiting” as two separate services, you need to request a
— subscription to “Caller ID with call waiting” as a single service.
This is a new service that combines the two services.
Even though you now have a “Caller ID with call waiting”
compatible phone, unless you subscribe to the combined “Caller ID
with call waiting” service, you will not be able to see the name
and number of the second caller.
When a new call comes in while you are talking, you hear two short
beeps. The caller's name and/or phone number of the new call appears
on the display for about 20 seconds.
To switch to another caller
1 To switch to the new caller,
press
( TALK/ CALL WAITING/ FLASH).
2 To switch back to the first caller,
press
(TALK/ CALL WAITING/ FLASH)
again.
saniea4 gl 1aje) и
Caller ID Features | 395"
Additional Information
Mounting the base phone on a wall
1 Reverse the hang-up tab.
2 Plug the telephone line cord to
the LINE jack and the AC power
adaptor to the DC IN 9V jack,
and hook the cords. Use the
shorter cord for mounting.
3 Attach the wall bracket to the
center of the base phone.
Align the A marks of the wall
bracket with those of the base
phone.
line cord
4 Plug the telephone line cord to
the telephone outlet, and hook
the base phone to the wall plate.
5 Plug the AC power adaptor to
an AC outlet. Then raise the
antenna so that it points
towards the ceiling.
+
7
Wall
bracket
Wall
plate
AC outiet
-
adaptor
To remove the wall bracket, press the lower tabs.
Additional Information
ETERS ATR TVS TER TTR TT ew RTT TTT Ss Tee TU TSA de FR, TEER cL. Ba Tr TR A
« If you do not use the handset for a
Notes on power sources
On battery pack For the customers in the USA
* Store the battery pack at a RECYCLING NICKEL-CADMIUM
temperature between 41°F (5°C) and BATTERIES
95°F (35°C) for best performance.
NICKEL-CADMIUM
long period of time, remove the E BATTERY.
BATTERY MUST BE
battery pack after charging for more RECYCLED OR DISPOSED
, _than 12 hours. OF PROPERLY.
-
Ni-Cd
On power failure Nickel-Cadmium batteries are recyclable.
You can help preserve our environment by
returning your unwanted batteries to your
nearest Sony Service Center for collection,
recycling or proper disposal.
Note: In some areas the disposal of nickel-
cadmium batteries in household or
business trash may be prohibited.
During a power interruption, you
cannot make or receive calls.
For the Sony Service Center nearest you call
1-800-222-SONY (United States only)
Caution: Do not handle damaged or leaking
nickel-cadmium batteries.
CTA AA O
Maintenance
* Clean the cabinets with a soft cloth
slightly moistened with water or a
mild detergent solution. Do not use
any type of abrasive pad, scouring
powder or solvent such as alcohol or
benzine as they may damage the
finish of the cabinet.
e If the charge terminals of the base
phone and handset are soiled, wipe
them with a soft cloth.
If you have any questions or problems
concerning your phone, plédse consult
your nearest Sony dealer.
Additional Information
N uoNnewnoyu ¡euonippy
41°"
Troubleshooting
If you've experienced any of the following difficulties while using your
phone, use this troubleshooting guide to help you remedy the problem.
. Should any problem persist, consult your nearest Sony dealer.
Symptom
Remedy
Making calls
You hear five short error
beeps when you press
(TALK/ CALL WAITING/ FLASH ).
Make sure you have set up the base phone correctly
(page 8).
* Move the handset closer to the base phone.
Replace the handset on the base phone, then pick it up
and try again. If the handset is on the base phone, pick
up the handset and replace it again.
You hear no dial tone.
Make sure the telephone line cord is securely
connected to the telephone outlet.
Make sure the battery is fully charged (page 11).
The phone does not connect at
all, even though the number
you dial is correct.
Make sure the dialing mode is set correctly (page 10).
The phone does not redial
correctly.
Make sure the last dialed number is really the one you
want to dial.
You hear five short error beeps
when you try to redial.
The number you last dialed exceeds 32 digits
(including the tone and pause digits if used).
The number you last dialed is erased.
You cannot perform the redial
operations (redialing, checking
and erasing the phone
number), and “OUT OF
RANGE” appears on the
display.
Move the handset closer to the base phone and
perform the redial operations again.
You cannot hear anything from
the speakerphone.
Slide the SPEAKER VOLUME control on the base
phone to increase the speakerphone volume.
Receiving calls
The handset does not ring.
Set the RING switch an the hándset to ON.
The battery may be weak. Charge the battery for more
than 12 hours (page 11).
Make sure you have set up the base phone correctly
(page 8).
* Move the handset closer to the base phone.
Replace the handset on the base phone, then pick it up
and try again. If the handset is on the base phone, pick
up the handset and replace it again.
The base phone does not ring.
Ea
Set the RINGER switch on the base phone to ON.
Make sure the telephone line cord is securely...
connected to the telephone outlet.
Additional information
4
Symptom
Remedy
During conversation
You hear interference during
conversation.
* Move the handset closer to the base phone.
Place the base phone away from noise sources
(page 8).
You hear a beep every second
during conversation and “OUT
OF RANGE" appear on the
display.
This is the out-of-range alarm. Move the handset
closer to the base phone within one minute.
You hear a beep every three
seconds and € and “BATTERY
LOW” appears on the display.
The battery is weak. Charge the battery for more than
12 hours (page 11).
One-touch dialing/Spéed
dialing/Phone Directory
You hear five short error beeps
and cannot store a number on a
one-touch dial, speed dialing
key or in the Phone Directory.
Make sure you follow the procedure for storing the
number correctly (pages 19, 21 and 23).
Make sure the number (including the tone and pause
digits) does not exceed 16 digits.
You hear five short error beeps
when you try to make a one-
touch or speed dial call.
.
You have entered a one-touch dialing button or speed
dialing key for which no phone number has been
stored.
One-touch dialing, speed
dialing or Phone Directory
dialing is incorrect.
Store the correct number (pages 19, 21 and 23).
The handset does not ring
when you use the intercom
from the base phone, and the
* Set the RING switch on the handset to ON.
The battery may be week. Charge the battery for more
than 12 hours (page 11).
5 base phone does not ring when * Move the handset closer to the base phone.
y you use the intercom from the —* Place the base phone away from noise sources
= handset. (page 8).
= When pressing (INTERCOM), * Esther the base phone or handset is being used to
you hear a busy tone and converse with an outside caller.
cannot make an intercom call.
The caller's name and/or * Make sure you have subscribed to Caller ID service.
phone number does not appear * Caller ID service may not work when the phone is
on the display. connected to a Private Branch Exchange (PBX).
* Make sure that the handset is on the base phone or set
a the RING switch on the handset to ON. (page 32).
= * The call is made through company which does not
2 offer Caller ID service. "OUT OF AREA” will appear
К on the display.
The call was “blocked.” “PRIVATE” will appear on
the display.
You have answered the call while "%% RINGING xx"
was displayed. Be sure to answer after the Caller ID
data is displayed.
continued
Additional Information
My чоцешлоуи ечотрру
43
CT
Troubleshooting (continued)
Symptom Remedy
The caller's name and/or * Make sure you have subscribed to
phone number does not “Caller ID with call waiting” service (see page 39).
* appear on the display during * Make sure nobody is talking with another phone on
call waiting. the same telephone line.
You cannot dial the number * Make sure you entered your area code correctly
from the Caller ID list. (page 13).
* You may need to change the number of digits of the
2 phone number (page 38).
* This function may not work when the phone is
- CR connected to a Private Branch Exchange (PBX).
x м
. | | | The memory match function * If the call is from an office which uses multiple lines,
VA - does not work. the phone number may not match the number you
, put in the memory.
* If you have stored the phone number with an outside
line access digit on a one-touch dial, speed dialing key
or in the Phone Directory because the phone is
connected to a Private Branch Exchange (PBX), the
phone number will not match the Caller ID data.
> The CHARGE lamp does not * Wipe the charge terminals of the base phone and the
= light up when you place the handset with a soft cloth for better contact of
3 handset to charge. the charge terminals.
5 * Make sure the handset is placed on the base phone
5 properly.
3 The battery duration is short. * The battery pack was charged less than 12 hours (due
y to power failure, etc.).
2 * The usage life of the battery has expired and needs
^ > replacement.
| E
Votes SL
7 * If any of these remedies do not work, there may be something wrong with
the handset.
Replace the handset on the base phone, then pick it up and try again. If the
handset is on the base phone, pick up the handset and replace it again. .,
* Should any problems persist, press RESET on the left side of the'base phone
with a ball-point pen, etc. This has no effect on the memory in the base phone
and handset.
-dditional Information
3
Pi
UNNE TT
Ta EE
RN Me TR Ter LT RRR TATA TE, FER Te Te e
Tm TE TEETER TEE AT.
ООВ
Specifications
General
Spread method
Direct-Sequence Spread-Spectrum
Access method
FDMA-TDD
Frequency band
902 - 928 MHz
Operating channel
+ +” 20 channels
. Dial signal
Tone, 10 PPS (pulse) selectable
Supplied accessories
See page 7.
Handset
Power source
Rechargeable battery pack BP-T24
Battery life
Standby: Approx. 10 days (RING ON
mode)
Approx. A month (RING OFF
mode)
Talk: Approx. 6 hours
Dimensions
Approx. 58 x 177 x 46 mm (w/h/d),
antenna excluded
(approx. 2 % x 7 x 1 '%6 inches)
Antenna: Approx. 72 mm
(approx. 2 % inches)
Mass
Approx. 250 g
(approx. 8.8 oz), battery included
Base phone
Power source
DC 9V from AC power adaptor
AC-T46
Battery charging time
Approx. 12 hours
Dimensions
Approx. 170 x 60 x 214 mm (w/h/d), -
antenna excluded
(approx. 6 Ÿ4 x 2 % x 8 A inches)
Antenna: Approx. 165 mm
(approx. 6 72 inches)
Mass
Approx. 580 g
(approx. 1 1b 4 0z), wall bracket excluded
Design and specifications are subject to
change without notice.
By ueneunojur [euonippy
Additional Information | 45°"
’
+ -
- Battery pack
Index
A
Adjusting volume
handset volume 14, 17
speakerphone volume
15,18
Area code 13
B
charging 11
+ duration 12
C
Call waiting service 17
Caller ID 32
Caller ID list 33
calling back 36
memory match function
32
storing in Phone
Directory 37
Caller ID with call waiting
39
Connection 9
D
Dialing mode
choosing 10
switching to the tone
temporarily 14
Directory
Phone Directory 23
Additional Information
E, F, G
Erasing
Caller ID data 34
last phone number
dialed 16
Phone Directory 25
H
Hold 14, 17
LJ, K
Intercom 28
L
Location, base phone 8
M,N
Making calls 14
Memory match function
32
Mounting the base phone
on a wall 40
O
One-touch dialing 19
OUT OF AREA 32
P, Q
Package contents 7
Phone Directory 23
PRIVATE 32
Pulse dialing 10
Receiving calls 17
Redialing 16
RESET 44
Ringer
RING switch 18
RINGER switch 18
S
Setting up
base phone 8
handset 11
Speakerphone 15, 18
Speed dialing 21
Storing Caller ID data in
Phone Directory 37
Switching phones during a
call 27
т, Ч
Talking between the
phones 28
Tone dialing
dialing mode 10
switching to 14
Transferring a call 30
Troubleshooting 42
V.W, X,Y, Z
Voice paging 29
Volume
handset 14,17
speakerphone 15, 18
a TT EE Ee em НЕк®
ve WTR ATT TR RAR TERT TT ARETE TTR TET AE RET TEE TRE TA TET aT WR STR BT TE
В
Registro del propietario
Los números de modelo y de serie se
encuentran en la parte inferior del
teléfono. Anote el número de serie en el
espacio que se proporciona a
continuación. Refiérase a estos números
cada vez que se comunique con su
distribuidor Sony con respecto al
producto.
Modelo N° SPP-55965
erie N°
“ IMPORTANTES
INSTRUCCIONES
DE SEGURIDAD
A fin de reducir el riesgo de incendio,
descarga eléctrica y lesiones a las
personas cuando usted use su equipo
telefónico, siempre debe observar
precauciones básicas de seguridad, entre
cllas:
I. Lea y entienda todas las instrucciones.
2.Siga todas las advertencias e
instrucciones indicadas en el
producto.
3. Desconecte este producto de la línea
telefónica antes de limpiarlo. No use
limpiadores líquidos ni en aerosol.
Use un paño húmedo para limpiarlo.
4. No use este producto cerca del agua,
por ejemplo, cerca de una bañera,
lavabo, fregadero de cocina o
lavadora, en un sótano mojado o cerca
de una piscina.
>. No ponga este producto sobre un
carrito, estante o mesa inestables. El
aparato se puede caer y ocasionar
daños graves al teléfono.
6. Las ranuras y aberturas situadas en la
parte posterior o inferior son parte del
sistema de ventilación. Para evitar el
calentamiento del aparato, no
obstruya o cubra las ranuras de
ventilación y evite dejarlo sobre la
cama, sofá, sillón o superficie similar.
Este producto nunca debe colocarse
cerca de un radiador o calefacción, o
encima de éste. Este producto no debe
colocarse en una instalación
empotrada salvo que se provea
ventilación apropiada.
7. Este producto sólo debe operarse
desde el tipo de fuente de
alimentación indicada en la etiqueta
de especificaciones. Si no está seguro
del tipo de fuente de alimentación en
su hogar, consulte con su distribuidor
o compañía de electricidad local.
8. No deje que nada descanse sobre el
cable eléctrico. No sitúe este producto
en un lugar donde el cable esté
expuesto a abuso debido al tránsito de
la gente.
9. No sobrecargue los tomacorrientes de
pared y cables de extensión, ya que
esto puede ocasionar el riesgo de
incendio o shock eléctrico.
10. Nunca introduzca a presión objetos
de ningún tipo eh-este producto a
través de Jas ranuras del gabinete, ya
que puedén hacer contacto con un
punto de voltaje peligroso u ocasionar
un cortocircuito entre piezas que
podría corrducir a incendios o shock
eléctrico. Nunca derrame líquidos de
ningún tipo sobre el producto.
11. Para reducir el riesgo de shock
eléctrico, no desarme este producto;
en caso de necesitarse servicio o
reparación, llévelo a personal de
servicio calificado. El abrir o quitar las
tapas puede exponerle a voltaje.
peligroso u otros riesgos. El ~
reensamblaje incorrecto puede
ocasionar shock eléctrico cuando el
aparato se use posteriormente.
12. Desconecte este producto de la linea
telefónica y refiera el servicio a
personal de servicio calificado bajo las
siguientes condiciones:
A. Cuando el cable eléctrico o el
enchufe se encuentra dañado o
deshilachado.
B. Si se ha derramado líquido dentro
del producto.
C. Si el producto ha estado expuesto
a lluvia o agua.
D. Si el producto no opera
“ fiormalmente al seguir las
instrucciones de operación. Sólo debe
ajustar los controles incluidos en las
instrucciones de operación, ya que el
ajuste incorrecto de otros controles
puede producir daños y a menudo
exigirá trabajo extenso por un técnico
calificado para restaurar el producto a
las operaciones normales.
E. Si el producto se ha dejado caer o
el gabinete está dañado.
F. Si el producto exhibe un cambio
perceptible de operación.
13. Evite usar un teléfono (que no sea
del tipo inalámbricos) durante una
tormenta eléctrica. Existe la remota
posibilidad de shock eléctrico debido
a rayos.
14. Para notificar una fuga de gas, no
utilice el teléfono en la vecindad de
dicha fuga.
GUARDE ESTAS
INSTRUCCIONES
PRECAUCIÓN:
Para reducir el riesgo de incendio o lesión a
personas debido a la pila, lea y siga estas —
instrucciones:
1. Sólo debe utilizar un paquete de pilas del
siguiente tipo y tamaño: SONY BP-T24. -.
2. No deseche el paquete de pilas en una
hoguera ya que la pila puede explotar.
Compruebe los reglamentos locales sobre
posibles instrucciones especiales de desecho.
+
>
n
>
No abra ni mutile el paquete de pilas. El
electrólito liberado es corrosivo y puede
ocasionar daños a los ojos o la piel. Puede ser
tóxico si se ingiere.
. Tenga cuidado al manejar la pila a fin de
evitar cortocircuitos de la pila con materiales
conductores tales como anillos, pulseras y
llaves. La pila o el conductor puede
sobrecalentarse y ocasionar quemaduras.
. Sólo debe cargar el paquete de pilas
suministrado o identificado para uso con este
producto de acuerdo con las instrucciones y
limitaciones especificadas en el manual de
instrucciones correspondiente al producto.
Observe la orientación de polaridad correcta
entre el paquete de pilas y el cargador de
pilas.
INFORMACIÓN GENERAL
SOBRE LOS TELÉFONOS
1.
-
Este equipo cumple con la Parte 68 de las
reglas de la FCC. En la base de este equipo
hay una etiqueta que contiene, entre otra
información, el número de registro de la FCC
y el número de equivalencia de timbre de
llamada (REN) para este equipo. Cuando se
solicite, esta información deberá ofrecerse a la
compañía telefónica.
. La toma (conector) de registro aplicable
USOC-RI11C se utiliza para este equipo.
. Este equipo ha sido diseñado para conectarse
a la red telefónica o la de un usuario
utilizando una toma modular compatible que
esté de acuerdo con la Parte 68 de la FCC.
Con este equipo se suministran un cable y una
clavija modular que cumplen con las normas
de la FCC.
4. El REN se utiliza para determinar la cantidad
de dispositivos que podrán conectarse a la =
línea telefónica. El exceso de REN conectados
a la línea telefónica puede resultar en que los
dispositivos no contesten a llamadas
entrantes. En la mayoría de las zonas, no en
todas, la suma de REN no deberá ser superior
a cinco (5). Para enterarse del número total de
REN que puede conectarse a una línea,
póngase en contacto con la compañía
telefónica.
‚ Si su’equipo (SPP-SS965) produce daños en la
red telefônica, la compania telefonica le
notificará con antelación que es posible que se
requiera la interrupción temporal del servicio.
Pero si la notificación con antelación no es
práctica, la compañía telefónica lo notificará al
chente lo antes posible. Además, se le
notificará el derecho a realizar una
reclamación a la FCC si usted lo considera
necesario.
Зе
6. La compañía telefónica puede realizar
cambios en sus instalaciones, equipos,
operaciones, o procedimientos que pueden
afectar la operación del equipo. Cuando
suceda esto, la compañía telefónica le avisará
con antelación para que usted réalice las
modificaciones necesarias para mantener
ininterrumpido el servicio.
7. Si experimenta algún problema con este
equipo (SPP-55965), con respecto a la
reparación o a la información sobre la
garantía, póngase en contacto con Sony Direct
Response Center: Tel 1-800-222-7669 (Inglés
solamente). Si el equipo causa problemas en
la línea, la compañía telefónica puede
solicitarle que desconecte el equipo hasta que
se resuelva el problema.
8. Todas las reparaciones deberá realizarlas un
— centro de reparaciones Sony.
9. Este equipo no deberá utilizarse en líneas
compartidas ni en líneas de pago previo.
10. Este equipo es compatible con dispositivos
para ayuda a la audición.
Si su teléfono dispone de
marcadores automáticos
Cuando programe números de emergencia y (o)
realice llamadas de prueba a los mismos:
1. Permanezca poco tiempo en la línea y
explique a la otra parte la razón de la llamada.
Na
. Realice tales actividades en horas no punta,
como por la mañana temprano o a últimas
horas de la tarde.
Precaución
Se le advierte que cualquier cambio o
modificación no aprobado expresamente en el
presente manual podría anular su autorización
para operar este equipo.
Nota
Este equipo se ha sometido a pruebas y se ha
determinado que cumple los límites para un
aparato digital Clase B de conformidad con la
Parte 15 de las Reglas FCC. Dichos límites están
diseñados para brindar protección razonable
contra interferencia dañina en una instalación
residencial. Este equipo genera, utiliza y puede
radiar energía de radiofrecuencia y, si no se
instala y se usa de acuerdo con las instrucciones,
puede ocasionar interferencia dañina en las
radiocomunicaciones. Sin embargo, no hay
garantía de que no ocurra mterferencia en una
instalación específica. En caso de que este equipo
ocasione interferencia dañina en la recepción de
radio o televisión, que se puede determinar
apagando y encendiendo el equipo, se le insta al
usuario a que trate de corregir la interferencia
mediante una o más de las siguientes medidas:
— Reorientar o reubicar la antena de recepción.
- Aumentar la separación entre el equipo y el
receptor.
— Conectar el equipo en un enchufe de un
circuito distinto al circuito al cual está
conectado el receptor.
- Consultar con el distribuidor o con un técnico
experimentado de radio/televisión para
ayuda.
ET
Índice
Preparativos
6 Lea esto en primer lugar
7 Paso 1: Comprobacion del
contenido del paquete
| 8 Paso 2: Instalación-del teléfono
base
11 Paso3: Preparación de la batería
13 Paso 4: introducción del prefijo
201 ча
” Po
— “Operaciones básicas
14 Realización de llamadas
16 Repetición de la marcación
17 Recepción de llamadas
Funciones del teléfono
19 Marcación con una sola pulsación
19 Almacenamiento de
números telefónicos
20 Realización de llamadas
mediante la marcación con
una sola pulsación
21 Marcación abreviada
21 Almacenamiento de
números de teléfono
22 Realización de Hamadas con
marcación abreviada
23 Directorio telefónico
23 Almacenamiento de
números de teléfono y
nombres
24 Cambio de un nombre y/o
número almacenado
25 Borrado de posiciones de
memoria
26 Realización de llamadas
desde el directorio telefónico
27 Cambio de teléfonos duranteuna —.
llamada
27 Para cambiar del teléfono
base al microteléfono —
27 Para cambiar del
microteléfono al teléfono
base 3
28 Conversación entre el
microteléfono y el teléfono base
(Intercomunicación)
28
28
29
29
30
30
31
38
39
40
41
42
45
46
Para conversar del
microteléfono al teléfono
base
Para conversar del teléfono
base al microteléfono
Buscapersonas vocal
Para buscar personas
vocalmente
Transferencia de una llamada
Para transferir del teléfono
base al microteléfono
Para transferir del
microteléfona al teléfono
base
Funciones de ID de llamada
El servicio ID de llamada
Al recibir una llamada
La lista de ID de llamada
Visualización de la lista de
ID de llamada
Borrado de datos de la lista
de ID de llamada
Uso de la lista de ID de llamada
Marcación de un número de
la lista de ID de llamada
Almacenamiento de un
número de la lista de ID de
llamada en el directorio
telefónico
Para cambiar el número de
dígitos del número de
teléfono
Uso del servicio “ID de llamada
con llamada en espera”
información adicional
Montaje del teléfono base en una
pared
Notas sobre fuentes de
alimentación/ Mantenimiento
Solución de problemas ES
Especificaciones
Indice alfabético
паке | 58
Preparativos
Lea esto en primer lugar
Antes de utilizar su teléfono, tendrá que instalarlo. A continuación se
indica la forma rápida de hacerlo: Pasos 1, 2, 3 y 4.
Paso 1 (pagina 7)
En primer lugar, desembale el teléfono y los
accesorios suministrados.
Paso 2 (paginas 8 a 10)
A continuación, tendrá que hacer tres
cosas para instalar el teléfono base,
incluyendo la búsqueda del mejor lugar
para el mismo.
Paso 3 (páginas 11a 12)
Finalmente, tendrä que insertar la
bateria en el microteléfono y cargarla
durante més de 12 horas.
28 |
‚296 Paso 4 (pagina 13)
о
. ecg Finalmente, es necesario introducir el
бл prefijo para poder utilizar el servicio de
> ID de llamada.
| Microteléfono - : Esto es todo!
* | Preparativos
Comprobacion del contenido del
paquete
Compruebe si con el paquete ha recibido los itemes siguientes. Si falta
-alguno, péngase en contacto con su proveedor Sony.
Adaptador de alimentación
de CA (AC-T46)
Cables de línea telefónica (2) Soporte para instalación
mural/pedestal del
teléfono base
-
Directorios -
Bateria (BP-T24)
Preparativos
soAnesedaad ©
75
+
Instalacion del teléfono base
Realice los pasos siguientes:
* Elección del mejor lugar
* Conexión del teléfono base
* Elección del modo de marcación
Elección del mejor lugar
El lugar en el que coloque el teléfono base afectará la calidad de la
. recepción del microteléfono.
(—_ Alejado de fuentes de ruido, tales como una
ventana que dé a una calle con mucho
: гай
Alejado de aparatos — trafico
de television y demas Alejado de fuentes térmicas, tales como
equipos electrónicos DN conductos de aire, y la luz solar
i | Alejado de un horno de
microondas
Alejado de humedad
excesiva, temperaturas
extremadamente bajas,
polvo, vibraciones, y
il
|
Alejado de un PC
Cerca de un lugar
central y sobre una
superficie nivelada Alejado de otros
teléfonos inalambricos
PRECAUCIÓN: + Si experimenta la pérdida intermitente de sonido durante una
conversación, acérquese a la unidad base, o aleje ésta de fuentes de ruido.
* El teléfono inalámbrico funciona con una frecuencia que puede causar
interferencias en televisores y videograbadoras cercanos; el teléfono base
, no deberá colocarse cerca de un televisor o una videograbadora, ni sobre
ellos; y si experimenta interferencias, el alejar el teléfono inalámbrico del
televisor o la videograbadora a menudo reducirá o eliminará tales
interferencias.
8** | Preparativos
Conexion del teléfono base
Si desea colgar el teléfono base de una pared, consulte la pagina 40.
3°
A un tomacorriente de CA — 2 =
‘an A DC IN 9V >= (T5
co Ц Adaptador de CA |
Enganche el cable.
sonmnesedaid Г
(suministrado)
Cable de línea A LINE
A la toma o
No telefónica
telefónica .
(suministrado)
1 Fije el soporte para instalacion
mural en la parte inferior de la
base del teléfono como se
muestra en la ilustración para
utilizarlo como pedestal.
2 Conecte el cable de línea
telefónica a la toma LINE, y a
una toma telefónica.
3 Conecte el cable de alimentación
de CA ala toma DC IN 9V, y a
un tomacorriente de CA.
4 Extienda completamente la
antena. Cerciórese de que
quede apuntando hacia el techo.
continúa
Preparativos 95
eT TERE Le Te TART =
Paso 2: Instalación del teléfono base (continuación)
Notas
* Utilice solamente el adaptador de alimentación de CA Polaridad de la clavija
AC-T46 suministrado. No utilice ningún otro
. adaptador de alimentación de CA.
Conecte El adaptador de alimentación de
alimentación de CA a un tomacorriente que
suministre continuamente alimentación.
Coloque el teléfono cerca de un tomacorriente de CA
a fin de poder desenchutfar fácilmente el adaptador de
alimentación de CA.
x
1
` Sugerencias Modular
* Si la toma telefónica no es modular, póngase en
, contacto con la compañía telefónica para solicitar О
ayuda.
* Para extraer el soporte para instalación mural,
presione las lenguetas superiores.
Elección del modo de marcación
' Para que el teléfono funcione correctamente, seleccione el modo de
marcación apropiado (por tonos o por pulsos).
Selector DIAL MODE
Dependiendo de su sistema de marcación, ajuste el selector DIAL
MODE de la forma siguiente:
Si su sistema de marcación es Ponga el selector en
Por tonos T
Por pulsos P -
Si no esta seguro de su sistema de marcacién
Realice una llamada de prueba con el selector DIAL MODE en T.
Si la llamada se-conecta, deje así el selector. En caso contrario, póngalo
en P.
“ | Preparativos
ro ООО ООО ООО ООО ООО ЛОЛ ОЛ
Preparacion de la bateria
Antes de utilizar el teléfono, cargue la bateria durante mas de 12 horas.
1 Deslice y abra la tapa del
compartimiento de la bateria del
microteléfono.
Conecte el conector con la
polaridad correcta (conductores
negro y rojo).
Enganche los cables e inserte la
bateria. Después cierre la tapa.
Coloque el microteléfono en el
teléfono base.
Usted podrá colocarlo con
cualquier lado encarado hacia
arriba.
La lámpara CHARGE se
encenderá cuando el
microteléfono esté
adecuadamente asentado en los
terminales de carga del teléfono
base. Cargue la batería durante
más de 12 horas para que quede
completamente cargada. La —
lámpara CHARGE permanecerá
encendida aunque haya
finalizado la carga.
continua
Preparativos
sonnesedasd В
115
Paso 3: Preparación de la batería (continuación)
Duración de la batería
Una batería completamente cargada durará aproximadamente:
* 6 horas cuando utilice continuamente el microteléfono.
* 10 días (modo RING ON) o un mes (modo RING OFF) con el
microteléfono en el modo de espera.
Notas
* La batería se descargará gradualmente con el tiempo, incluso aunque no se
utilice. |
* Para obtener el máximo rendimiento, coloque el microteléfono en el teléfono
base para cargar su batería después de varias llamadas.
* Si deja la batería en el microteléfono sin cargarla, se descargará
completamente.
Para que vuelva a recuperar su plena capacidad, pueden requerirse varias
cargas. |
Durante la carga, la batería se calentará. Esto no significa mal
funcionamiento.
Cuando adquiera una nueva batería
Si la batería dura solamente algunos minutos incluso después de 12
horas de carga, la duración útil de la misma habrá expirado y necesita
reemplazarse.
Póngase en contacto con su proveedor o un centro de reparaciones
autorizado por Sony, y solicite una batería BP-T24 Sony.
Nota
La duración de la batería puede variar en función de la condición de empleo y
la temperatura ambiente. | 1°
> | Preparativos
Paso 4
Introduccion del prefijo
Al utilizar este teléfono por primera vez o trasladarse a una zona que
tiene otro prefijo, deberá introducir el prefijo.
Esta operación es necesaria porque el teléfono debe distinguir entre las Is
- llamadas locales y de larga distancia para poder marcar correctamente
desde la lista de ID de llamada. ©
pres | 1 . 3
- Gire Presione | Presione (VOL/PGM). o
=
9
M, D; N | 2 Gire el mando de desplazamiento para =
D е? ---. } и и <
> > que parpadee “AREA”. o
AY AA um
; DIRECTORYS AREA =
3 Presione el mando de desplazamiento.
En el visualizador aparecerá “ENTER
AREA CODE”.
4 Introduzca tres dígitos del prefijo con
las teclas de marcación.
5 Presione (VOLPGM).
Escuchará un pitido largo de
confirmación.
Notas
* Si ya ha introducido un prefijo, éste aparece en el visor en el paso 3. Para
introducir otro prefijo, consulte “Para cambiar el prefijo” a continuación.
* No permita que transcurran más de 20 segundos entre los pasos de este
procedimiento.
Sugerencias
* Puede pulsar el mando de desplazamiento en lugar de en el paso 5.
* Para comprobar el prefijo actual, realice los anteriores pasos 1 a 3. El prefijo
aparecerá en el visor durante 20 segundos.
Para cambiar el prefijo _
1 Siga los pasos 1 a3 descritos anteriormente.
El prefijo actual aparece en et+visualizador.
2 Gire el mando de desplazamiento hacia abajo para borrar el
prefijo actual.
3 Introduzca otro prefijo con las teclas de marcación.
4 Presione VOUPEM).
Escuchará un pitido largo de confirmación.
Preparativos | 135
CT eme Teh a BELTON TRON
rele Te Tar mde TOA Tee, BTL TET TE RR a ECN T TE EE EEE
TE TL Tans, TERT RET STN RATER eT TLE TRL TER, TERRE ARE AER TT SEER TROT eT ee
Er
Operaciones bäsicas
Realización de llamadas
(VOL/PGM) E
(XTONE »
Tareas adicionales
Para
Ajustar el volumen del
microteléfono
Poner una llamada en
retención
Cambiar temporalmente a
marcación por tonos
* | Operaciones básicas
REDIAL/PAUSE
Haga lo siguiente
1 Tome el microteléfono del
teléfono base.
Presione
(TALK/ CALL WAITING/ FLASH) y
espere hasta que en el
visualizador aparezca “TALK”,
y éste muestre también la
duración de operación en horas
minutos, y segundos.
Usted oirá el tono de invitación
a marcar.
En el visualizador del teléfono
base aparecerá “HANDSET IN
USE” y la lámpara LINE del
teléfono base encenderá.
Si oye cinco pitidos cortos de
error, y en el visualizador
aparece “OUT OF RANGE”,
acérquese a dicho teléfono.
7
Marque el número de teléfono.
Durante la conversación podrá
ajustar el volumen del
microteléfono.
Realice el procedimiento
descrito en la tabla siguiente.
Cuando termine de conversar,
presione o coloque el
microteléfono en el teléfono
base.
El visualizador y la lámpara
LINE del teléfono base se
apagarán.
Durante la conversación, presione (VOUPGM).
Cada vez que presione (VOUPGM), el volumen del altavoz
cambiará a uno de cuatro niveles.
Presione (HOLD). En el visualizador aparecerá “HOLD”.
Para reanudar la conversación, vuelva a presionar (HOLD).
Presione (XTONE) después de haberse conectado.
La línea permanecerá en el modo de marcación por tonos hasta que
la desconecte.
CORTE CAR E Ta AER MA AECE TR AN E AO AE A TAM O A RR EAT eR =e
CAE RTE RRR RR ET A A TO ESCAPE ERA A SR A EA TAT TR Re TAR A BRE O NEO EA EAT ROMEO ETA EE TA
EE MET RA PT NES RNE ERE TT NN TR A AECE AE E UE TT
Notas
* Cuando aumente el volumen del sonido, en algunos casos es posible que
aumente también el ruido de fondo. Usted tendrá que ajustar el volumen
adecuadamente.
* Si el microteléfono emite un pitido cada segundo durante la conversación y en
el visualizador aparece “OUT OF RANGE”, acérquese al teléfono base, ya que
de lo contrario, la llamada se desconectará después de un minuto.
Mientras esté conversando con alguien del exterior a través del teléfono base,
no podrá realizar una llamada con el microteléfono, y en el visualizador
aparecerá “BASEPHONE IN USE”. Si presiona (TALK/ CALL WAITING/ FLASH),
oirá un tono de ocupado.
-a«-Cuando la duración de operación sobrepase 9:59'59, el visualizador reiniciará el
cómputo desde 0:00'00.
Si da batería del microteléfono se debilita durante una
llamada
El microteléfono emitirá un pitido cada tres segundos cinco veces, y en
el visualizador aparecerán 3 y “BATTERY LOW”. Finalice la llamada
y cargue la batería.
Para obtener el óptimo rendimiento, cargue la batería durante 12
horas.
Tenga en cuenta que durante los primeros 10-15 minutos, el teléfono
estará inactivo, es decir, usted no podrá realizar ni recibir llamadas.
Después de estos 10-15 minutos iniciales, usted podrá utilizar el
teléfono, pero la duración de la batería será muy corta, motivo por el
que se recomienda que cargue completamente la batería antes de
volver a utilizar el microteléfono.
‘sediseq sauopesddo Ш
Realización de llamadas a través del interfono
Presione (SPEAKERPHONE) del teléfono base. (SPEAKERPHONE)
En el visualizador aparecera Lampara LINE
“SPEAKERPHONE” y éste muestre también la
duración de operación en horas, minutos, y
segundos.
La lámpara LINE se encenderá.
Marque el número de teléfono.
Para ajustar el volumen del altavoz, deslice el
control SPEAKER VOLUME.
Cuando termine de conversar, vuelva a.
presionar (SPEAKERPHONE). Control SPEAKER VOLUME
Notas DE
* Cuando esté conversando con alguien del exterior a través del microteléfono,
el visualizador del teléfono base mostrará “HANDSET IN USE”, y usted no
podrá realizar llamadas a través del interfono. Si presiona (SPEAKERPHONE),
oirá el tono de ocupado.
Cuando la duración de operación sobrepase 9:59'59, el visualizador reiniciará el
cómputo desde 0:00/00. continúa
Operaciones básicas | 158
E
Realización de llamadas (continuación)
Para obtener el máximo rendimiento del modo de interfono
* Es posible que en un lugar ruidoso no oiga la voz de su interlocutor.
Por lo tanto, utilice la función de interfono en una sala silenciosa,
* No acerque demasiado la mano ni ningún otro objeto al micrófono,
ya que otría un aullido (“retroalimentación acústica”).
* Cuando el volumen del altavoz sea alto, o si el teléfono está colocado
cerca de una pared, puede notar que el volumen desciende
repentinamente. Esto se debe a un circuito del teléfono diseñado
para protección contra la retroalimentación acústica. En tal caso,
= > reduzca ligeramente el volumen del altavoz.
Repetición de la marcación
1 Presione (TALK/ CALL WAITING/ FLASH) y espere hasta que en
el visualizador aparezca “TALK”.
La lámpara LINE del teléfono base se encenderá.
Si está en el teléfono base, presione (SPEAKERPHONE).
En el visualizador aparecerá “SPEAKERPHONE” y la
lámpara LINE se encenderá.
2 Para repetir la marcación del último número marcado,
presione (REDIAL/PAUSE).
Nota
Si el número marcado tiene más de 32 dígitos, o si se borro, oirá cinco pitidos
cortos de error para indicarle que no puede repetirse la marcación de tal
. “ número.
Sugerencia
El número que volverá a marcarse será el último marcado con el microteléfono
o con el teléfono base.
Para comprobar el último número de teléfono г marcado
Mientras no esté realizando una llamada a través del teléfono base ni
del microteléfono, presione CREDIAL/PAUSE). ‘
El último número marcado aparece durante cinco segundos.
Para marcar el número, presione (TALK/ CALL WAITING/ FLASH) con el
número visible en el visualizador. Si se encuentra en el teléfono base,
presione (SPEAKERPHONE).
Nota
El número no se visualizará si el último marcado sobrepasa 32 dígitos o si se ha
borrado.
Para borrar el último número de teléfono marcado
Cuando no esté con el exterior con el microteléfono ni con el teléfono
base, presione dos veces antes de cinco segundos.
El número se borrará de la memoria, y usted oirá un pitido largo de
confirmación.
Operaciones básicas
hy Det
USENET EEN EE EEE EME AN mh mn rn ee Ree
VOL/PGM Y er al D4 A
Tareas adicionales
1 Cuando suene el teléfono:
* Presione
(TALK/ CALL WAITING/ FLASH).
or
* Tome el microteléfono del teléfono
base cuando se encuentre colocado
enel mismo.
En el visualizador aparecerá “TALK” y
éste muestre también la duración de
operación en horas, minutos, y segundos.
En el visualizador del teléfono base
aparecera “HANDSET IN USE” y la
lampara LINE del teléfono base
encenderá.
Durante la conversación, usted podrá
ajustar el volumen del microteléfono.
Realice el procedimiento descrito en la
tabla siguiente.
Cuando termine de conversar, presione
(GFF) o coloque el microteléfono en el
teléfono base.
El visualizador y la lámpara LINE del
teléfono base se apagarán.
sediseq sauones2do Е
Рага Нада lo siguiente
Ajustar el volumen del Durante la conversación, presione (VOL/PGM).
microteléfono —. Cada vez que presione (VOLVPGM), el volumen del altavoz
cambiará a uno de cuatro niveles.
Poner una llamada en retención Presione (HOLD). En el visualizador aparecerá “HOLD”,
Para reanudar la conversación, vuelva a presionar (HOLD).
Cambiar a otra llamada Presione CTALK/ CALL WAITING/ FLASH).
(servicio de “llamada en espera”*) Para volver a la primera llamada, presione de nuevo
(TALK/ CALL WAITING/ FLASH).
* Usted tendrá que subscribirse a este servicio poniéndose en contacto con su compañía
telefónica.
Nota
Si entra otra llamada con el servicio de “llamada en espera” mientras esté conversando con
alguien del exterior, oirá dos pitidos cortos.
Sugerencia
Cuando entre una llamada, el visualizador mostrará “XX RINGING XX" para notificarselo.
Si está subscrito al servicio de ID de ttamada; -
* el número y/o el nombre del demandante aparecerá en el visualizador cuando reciba una
llamada (consulte la página 32) o cuando entre otra llamada con el servicio de “llamada en
4
espera”.
el sonido del generador de llamada cambiará a un tono más alto si la llamada coincide con el
número almacenado en las teclas ONE-TOUCH DIAL, las teclas de marcación
abreviada, o en el directorio telefónico (función de comparación en memoria;
consulte la página 32).
continúa
Operaciones básicas | 17
E
Recepción de llamadas (continuación)
Para desactivar el generador de llamada
Ponga el selector RING de la parte inferior en OFF.
Usted podrá ahorrar energía de la batería.
El microteléfono no sonará. Usted podrá realizar
llamadas, y también recibirlas si suena otro teléfono
conectado a la misma línea para indicarle llamadas
entrantes, pero usted no podrá recibir llamadas de ar
intercomunicación. Selector RING
—, Nota
7 * Noes posible recibir datos de ID de llamada si el auricular no se encuentra en
— -lateléfono base en el modo RING OFF. Consulte la página 32 para más
información.
“Recepción de llamadas a través del interfono (CALL WAITING7 FLASH)
Cuando suene el teléfono, presione
, SPEAKERPHONE
(SPEAKERPHONE) del teléfono base. (SPEAKERPHONE)
| CHOLD
En el visualizador aparecerá
“SPEAKERPHONE” y éste muestre
también la duración de operación en
horas, minutos, y segundos.
La lámpara LINE se encenderá.
Cuando termine de conversar, vuelva a
presionar (SPEAKERPHONE).
Para obtener el máximo rendimiento del
interfono, consulte la página 16.
> Lampara LINE
Control SPEAKER VOLUME
Selector RINGER
Tareas adicionales
Para Haga lo siguiente \
Poner una llamada en retención Presione (HOLD). En el visualizador aparecerá “HOLD”.
Para reanudar la conversación, vuelva a presionar (HOLD).
Cambiar a otra llamada Presione (CALL WAITING/ FLASH).
(servicio de “llamada en espera”*) — Para volver a la primera llamada, presione de nuevo
(CALL WAITING/ FLASH). ’
Ajustar el volumen del interfono Deslice el control SPEAKER VOLUME.
Activar/desactivar el generador de Para activar el generador de llamada, ponga el selector
llamada del teléfono base RINGER del teléfono base en ON, y para desactivarlo,
póngalo en OFF.
* Usted tendrá que subscribirse a este servicio poniéndose en contacto con su compañía
telefónica. _
Nota
Aunque ponga el selector RINGER del teléfono base esté en OFF, el microteléfono son
cuando selector RING del mismo esté en ON.
Sugerencias
* Para notificarle de una llamada entrante, el visualizador mostrará “kk RINGING XX" y la
lámpara LINE sé encenderá y apagará de acuerdo con la señal de llamada, incluso aunque el
selector RINGER del teléfono base esté en OFF.
* Si entra una llamada durante la intercomunicación, el teléfono base sonará incluso aunque el
selector RINGER del mismo esté en OFF.
ará
Operaciones básicas
TT RAT TTL ES ST ey TT
+ Funciones del teléfono
DE
Marcación con una sola pulsación
Puede marcar con una sola tecla si asocia un número de teléfono a un
botón de marcación con una sola pulsación.
Almacenamiento de números telefónicos
Mando de ‘
desplazamiento
/\ (REDIALUPAUSE °
1 Presione (VOL/PGM).
Hi
2 Presione uno de los tres botones
ONE-TOUCH DIAL ((®) a
©).
Escuchara un pitido de
confirmacion.
A=
E NUMBER |
Si hay un número almacenado,
aparece en el visualizador. Para
guardar otro número, gire el
mando de desplazamiento para
borrar el anterior.
Introduzca el número de
teléfono que desee almacenar.
Puede introducir hasta 16
dígitos, incluidos un tono y una
pausa, cada uno de los cuales
cuenta como un dígito.
Presione (VOL/PGM).
Escuchará un pitido largo de
confirmación y se almacenará el
número. El visualizador se
apagara. continúa
0U043[33 [ap sauonuny Г
Funciones del telefono
1 ges
+ .
ak os dm "—"— — mmm Mí” o;—;— lÑ———.) , í————;—];];r,]———[——;——;D]];]]“——]—]]T;TTo;;T;;——;—;]D í[];];];.[;;];]..;——;].—
Marcación con una sola pulsación (continuación)
Nota
No permita que transcurran más de 20 segundos entre los pasos de este
procedimiento.
Sugerencias
* Si ha introducido un número erróneo en el paso 3 y aún no ha pulsado
(paso 4), gire el mando de desplazamiento hacia abajo para
borrarlo. A continuación, introduzca el número correcto. |
* Puede pulsar el mando de desplazamiento en lugar de en el paso 4.
, Para almacenar un número para su marcación mediante una
“central privada con extensiones (PBX)
Antes de introducir un nûmero de teléfono en el paso 3 de la pâgina
, 19, haga lo siguiente:
1 Introduzca el dígito de acceso a la línea exterior ©. ej., 9).
2 Presione (REDIAL/PAUSE).
Para cambiar un numero almacenado
1 Presione (VOLPGM).
2 Presione uno de los botones ONE-TOUCH DIAL
(CA) a CO).
El número actual aparece en el visualizador.
Gire el mando de desplazamiento hacia abajo para borrar el
número actual.
4 Introduzca otro número.
5 Presione VOLPGM).
Nota 4
Es posible sustituir el número almacenado por otro nuevo, aunque no es posible
borrarlo.
Pe
Realización de llamadas mediante la
marcación con una sola pulsación
1 Presione CTALK/ CALL WAITING/ FLASH) y espere hasta que
aparezca “TALK” en el visualizador.
2 Presione uno de los botones ONE-TOUCH DIAL
(CA) a (O).
El número asociado al botón de marcación con una sola
pulsación aparece en el visualizador y se marca.
Para comprobar el número.antes de la marcación con una ще
sola pulsación
Cuando, él auricular no esté en uso, presione uno de los botones ONE-
TOUCH DIAL (CA) a (O).
El número asociado al botón aparece en el visualizador durante cinco
segundos. Para marcarlo, presione (TALK/ CALL WAITING/ FLASH)
mientras el número se encuentra visible.
Funciones del teléfono
Marcacion abreviada
Usted podra marcar presionando una pocas teclas después de haber
almacenado números de teléfono en las teclas de marcación.
Almacenamiento de números de teléfono
1 Presione
En el visualizador aparecerá
Ne, “PROGRAM”.
2 Presione (SPEED DIAL).
En
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
