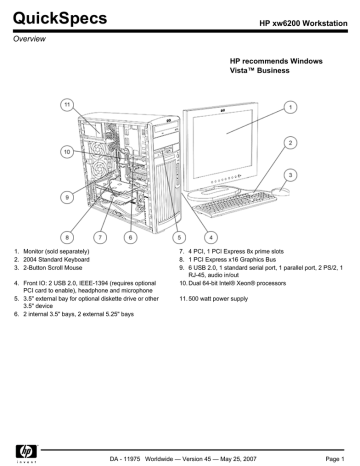

Overview

HP xw6200 Workstation

HP recommends Windows

Vista™ Business

1. Monitor (sold separately)

2. 2004 Standard Keyboard

3. 2-Button Scroll Mouse

4. Front IO: 2 USB 2.0, IEEE-1394 (requires optional

PCI card to enable), headphone and microphone

5. 3.5" external bay for optional diskette drive or other

3.5" device

6. 2 internal 3.5" bays, 2 external 5.25" bays

7. 4 PCI, 1 PCI Express 8x prime slots

8. 1 PCI Express x16 Graphics Bus

9. 6 USB 2.0, 1 standard serial port, 1 parallel port, 2 PS/2, 1

RJ-45, audio in/out

10. Dual 64-bit Intel® Xeon® processors

11. 500 watt power supply

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 1

QuickSpecs

HP xw6200 Workstation

Overview

At A Glance

64-bit Intel® Xeon® processors

Choice of operating systems: Genuine Windows XP Professional,

Genuine Windows XP Professional x64 Edition,

Red Hat Linux Workstation 4

HP Linux Installer Kit (see http://www.hp.com/workstations/software/linux/ for details)

Up to 8 GB of DDR-2 memory

PCI-Express I/O and graphics

Integrated Broadcom NetXtreme Gigabit ethernet

800 MHz processor front side bus support

Intel Hyper-Threading technology support

SATA and Ultra 320 SCSI drives

Digital AC97 integrated audio with internal speaker

Pre-loaded Manageability tools

Energy Star compliance with energy-saving features

Protected by HP Services, including a 3-3-3 standard warranty. Terms and conditions vary by country. Certain restrictions and exclusions apply.

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 2

QuickSpecs

Standard Features - Custom Components

HP xw6200 Workstation

Processor and Speed

One of the following

64-bit Intel Xeon Processor with 800 MHz Front Side Bus

2.80 GHz (2 MB L2 cache)

3.00 GHz (2 MB L2 cache)

3.20 GHz (2 MB L2 cache)

3.40 GHz (2 MB L2 cache)

3.60 GHz (2 MB L2 cache)

3.80 GHz (2 MB L2 cache)

2nd 64-bit Intel Xeon Processor with 800 MHz Front Side Bus (optional – speed must match processor 1)

2.80 GHz (2 MB L2 cache)

3.00 GHz (2 MB L2 cache)

3.20 GHz (2 MB L2 cache)

3.40 GHz (2 MB L2 cache)

3.60 GHz (2 MB L2 cache)

3.80 GHz (2 MB L2 cache)

Operating System

One of the following

Genuine Windows XP Professional

Genuine Windows XP Professional x64 Edition

( http://www.hp.com/workstations/pws/windowsxp64/ )

Red Hat Linux Workstation 4

HP Installer Kit for Linux (includes drivers for both 32-bit & 64-bit OS versions)

NOTE: Although HP Personal Workstations can be ordered with the HP Installer Kit for Linux and an IEEE 1394 card, HP cannot provide customer support for this configuration. Please refer to the

Linux Hardware Support Matrix ( http://www.hp.com/support/linux_hardware_matrix ) for details, and to the Linux User Manual ( http://www.hp.com/support/linux_user_manual ) for tips on userenablement of the IEEE 1394 Card.

1st Hard Disk Drive

One of the following

Serial ATA 3.0-Gb/s Hard Drives

(Currently supported only at 1.5-Gb/s. To get 3.0-Gb/s performance, a SATA 3.0-Gb/s controller must be added)

80 GB 7200 rpm Serial ATA drive (8 MB cache)

160 GB 7200 rpm Serial ATA NCQ drive (8 MB cache)

250 GB 7200 rpm Serial ATA drive (8 MB cache)

500 GB 7200 rpm Serial ATA NCQ drive (8 MB cache)

Serial ATA 1.5-Gb/s Hard Drives

74 GB 10K rpm Serial ATA drive (8 MB cache)

Ultra320 SCSI Hard Drives (SCSI Controller required)

73 GB 10K Ultra320 SCSI drive

146 GB 10K Ultra320 SCSI drive

300 GB 10K Ultra320 SCSI drive

36 GB 15K Ultra320 SCSI drive

Windows XP Red Hat Linux

32-Bit, 64-Bit

32-Bit, 64-Bit

32-Bit, 64-Bit

32-Bit, 64-Bit

32-Bit, 64-Bit

32-Bit, 64-Bit

32-Bit, 64-Bit

32-Bit, 64-Bit

WS3, WS4

WS3, WS4

WS3, WS4

WS3, WS4

WS3, WS4

32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

7.2, 7.3, WS3,

WS4

7.2, 7.3, WS3,

WS4

7.2, 7.3, WS3,

WS4

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 3

QuickSpecs

Standard Features - Custom Components

73 GB 15K Ultra320 SCSI drive

HP xw6200 Workstation

32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

2nd Hard Disk Drive

One of the following

Serial ATA 3.0-Gb/s Hard Drives **

2nd hard drive, 80 GB 7200 rpm Serial ATA drive (8 MB cache) 32-Bit, 64-Bit

2nd hard drive, 160 GB 7200 rpm Serial ATA NCQ drive (8 MB cache)

32-Bit, 64-Bit

32-Bit, 64-Bit 2nd hard drive, 250 GB 7200 rpm Serial ATA drive (8 MB cache)

2nd hard drive, 500 GB 7200 rpm Serial ATA NCQ drive (8 MB cache)

32-Bit, 64-Bit

WS3, WS4

WS3, WS4

WS3, WS4

WS3, WS4

Serial ATA 1.5-Gb/s Hard Drives **

2nd hard drive, 74 GB 10K rpm Serial ATA drive (8 MB cache) 32-Bit, 64-Bit

Ultra320 SCSI Hard Drives ***

2nd hard drive, 73 GB 10K Ultra320 SCSI drive

WS3, WS4

32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

2nd hard drive, 146 GB 10K Ultra320 SCSI drive

2nd hard drive, 300 GB 10K Ultra320 SCSI drive

2nd hard drive, 36 GB 15K Ultra320 SCSI drive

2nd hard drive, 73 GB 15K Ultra320 SCSI drive

32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

NOTE:

**May mix hard drive types. First hard drive must be a Serial ATA drive.

*** May mix hard drive types. SCSI Controller required. Mixed drive types not supported with

Linux.

3rd Hard Disk Drive

One of the following

Serial ATA 3.0-Gb/s Hard Drives **

3rd hard drive, 80 GB 7200 rpm Serial ATA drive (8 MB cache) 32-Bit, 64-Bit

32-Bit, 64-Bit 3rd hard drive, 160 GB 7200 rpm Serial ATA NCQ drive (8 MB cache)

3rd hard drive, 250 GB 7200 rpm Serial ATA drive (8 MB cache)

32-Bit, 64-Bit

32-Bit, 64-Bit 3rd hard drive, 500 GB 7200 rpm Serial ATA NCQ drive (8 MB cache)

Ultra320 SCSI Hard Drives ***

3rd hard drive, 73 GB 10K Ultra320 SCSI drive

3rd hard drive, 146 GB 10K Ultra320 SCSI drive

WS3, WS4

WS3, WS4

WS3, WS4

WS3, WS4

32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

3rd hard drive, 300 GB 10K Ultra320 SCSI drive

3rd hard drive, 36 GB 15K Ultra320 SCSI drive

32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 4

QuickSpecs

HP xw6200 Workstation

Standard Features - Custom Components

3rd hard drive, 73 GB 15K Ultra320 SCSI drive 32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

NOTE:

**May mix hard drive types. First hard drive must be a Serial ATA drive.

*** May mix hard drive types. SCSI Controller required. Mixed drive types not supported with

Linux.

Factory Integrated

RAID*

RAID 0 Configuration – Striped Array

RAID 1 Configuration – Mirrored Array

*NOTE: Requires 2 identical hard drives (speeds, capacity, interface). No Linux support. 64-Bit not supported with Serial

ATA Drives.

32-Bit

32-Bit

Not supported

Not supported

Drive controllers

Integrated serial ATA controller

Optional Ultra 320 SCSI controller (required if HDs are SCSI) basic

32-Bit, 64-Bit

32-Bit, 64-Bit

7.2, 7.3,

WS3, WS4

7.2, 7.3,

WS3, WS4

Optional U320 SCSI Controller - LSI 20320AR RAID 0,1

(required with SCSI HDDs)and external connector

32-Bit, 64-Bit 7.2, 7.3,

WS3, WS4

*NOTE: Can be sold and used with 1 or 2 SATA drives as a stand alone controller (no SCSI

HDD).

Memory -

One of the following

256 MB DDR-2 PC2-3200 (400 MHz) ECC Registered (1 x 256

MB)

512 MB DDR-2 PC2-3200 (400 MHz) ECC Registered (2 x 256

MB)

Windows XP Red Hat Linux

32-Bit, 64-Bit 7.2, 7.3

32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

1 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (2 x 512

MB)

32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

2 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (2 x 1 GB) 32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

2 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (4 x 512

MB)

3 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (2 x 1 GB

+ 2 x 512 MB)

32-Bit, 64-Bit

32-Bit, 64-Bit

7.2, 7.3, WS3,

WS4

7.2, 7.3, WS3,

WS4

4 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (2 x 2 GB) 32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

4 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (4 x 1 GB) 32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

64-Bit 6 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (2 x 2 GB

+ 2 x 1 GB)

8 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (4 x 2 GB) 64-Bit

7.2, 7.3, WS3,

WS4

7.2, 7.3, WS3,

WS4

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 5

QuickSpecs

Standard Features - Custom Components

Removable Storage

1.44 MB Diskette Drive

2nd Removable

Storage*

48X CD-ROM Drive

48X CD-RW Drive

16X DVD-ROM Drive

48X Combo CD-RW/DVD-ROM Drive

16X DVD+/-RW, Dual-Layer LightScribe

HP No Optical Drive Option

HP xw6200 Workstation

Windows XP Red Hat Linux

32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

32-Bit

32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

48X CD-RW Drive

16X DVD-ROM Drive**

32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

48X Combo CD-RW/DVD-ROM Drive 32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

32-Bit WS3, WS4 16X DVD+/-RW, Dual-Layer LightScribe***

NOTES: *Can not order with No Optical Option. **Can not have two of the same in one workstation.

*** LightScribe software works with Windows only.

Keyboard*** -

One of the following

PS/2 Standard Keyboard

Windows XP Red Hat Linux

32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

USB Standard Keyboard 32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

***NOTE: Not supported in configurations which include both USB mouse and Linux nor PS/2 mouse and Linux.

Mouse -

One of the following

PS/2 2-Button Scroll Mouse

USB 2-Button Optical Scroll Mouse

USB 3-Button Optical Mouse

32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 6

QuickSpecs

HP xw6200 Workstation

Standard Features - Custom Components

Audio

Integrated Digital AC97 audio with internal speaker

Sound Blaster® X-Fi™ XtremeMusic PCI

HP Optical Drive Internal Audio Cable*

32-Bit, 64-Bit

32-Bit, 64-Bit

*NOTE: Not available with No Optical Option nor with the Sound Blaster X-Fi card.

WS3 & WS4

Not supported

WS3 & WS4

NIC

Graphics

Miscellaneous

Software

Broadcom 5751 Netxtreme™ Gigabit PCIe NIC

Solenoid lock and hood sensor

HP FireWire IEEE 1394a 3-Port PCI Card

Trusted Platform Module

HP 64-bit Transition Tool Kit

HP Workstations Mouse Pad

32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

NVIDIA Quadro NVS 285 with TurboCache Technology PCI

Express (128 MB, VGA & DVI)

(Two of these graphics cards can be integrated in the factory or in addition to an NVIDIA Quadro NVS 440).

ATI FireGL V3100 PCI Express (128 MB)

NVIDIA Quadro FX 540 PCI Express (128 MB)

Windows XP Red Hat Linux

32-Bit, 64-Bit WS3, WS4

NVIDIA Quadro FX 1400 PCI Express (128 MB)

ATI FireGL V5100 PCI Express (128 MB)

NVIDIA Quadro NVS 440 PCI Express (256 MB)

(Two of these graphics cards can be integrated in the factory or in addition to an NVIDIA Quadro NVS 285).

NVIDIA Quadro FX 3450 PCI Express (256 MB)

32-Bit, 64-Bit

32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

32-Bit, 64-Bit

32-Bit, 64-Bit

32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

32-Bit, 64-Bit Not Supported

32-Bit

32-Bit, 64-Bit

N/A N/A

Symantec Norton AntiVirus (optional)*

CA eTrust 64-bit Anti-Virus Software

HP Performance Tuning Framework*

Altiris Recovery*

HP Client Manager Software v6.0*

* Not available with Linux Operating System

32-Bit

64-Bit

32-Bit, 64-Bit

32-Bit

32-Bit

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 7

QuickSpecs

Standard Features - Specs

HP xw6200 Workstation

Operating System

(choice)

Microsoft Windows XP Professional

Form factor

Color

Windows XP Professional x64 Edition ( http://www.hp.com/workstations/pws/windowsxp64/ )

OR Red Hat Enterprise Linux Workstation 4

OR HP Installer Kit for Linux (includes drivers for both 32-bit & 64-bit OS versions on HP xw8200, xw6200 and xw4200)

Minitower

Carbonite/Alloy metallic

System Board Form

Factor

Processor

CPU Bus Speed

Supported

Standard L2 Cache

Non-standard ATX

Single or dual 64-bit Intel Xeon processors (Nocona) with Hyper-Threading Technology

800 MHz FSB

2 MB L2 cache

Chipset Intel E7525

Memory Expansion Slots 4 DIMM's

Memory Type Supported DDR-2 (ECC registered)

Memory Speed

Supported

DDR-2 Synch DRAM PC2-3200 (400 MHz) Registered ECC

Maximum Memory

Network controller

Audio

PCI slots

AGP slot

Bays

Internal Bays

External Bays

8 GB (4 DIMMs slots, 2 GB DIMMs required to meet maximum configurations)

Integrated Broadcom 5751 10/100/1000 for HP

Integrated AC'97 digital audio with S/PDif 6-channel pass-through, stereo microphone, and

Yamaha XG Lite Softsynth support

4 PCI slots (full-height)

1 PCI Express (x8 mechanically, x4 electrically)

1 PCI Express x16 graphics none

Total Bays = 5

Two 3.5 inch bays with acoustic dampening rail assemblies

Two 5.25 inch full length 2003 mm maximum device depth (top bay is limited to 198 mm depth when optional smart cover solenoid lock is installed). Bottom bay can be converted to an internal 3.5 inch 3rd Hard Drive bay using optional bracket

One 3.5 inch bay for optional floppy drive

Parallel Port

Serial Port

Front I/O

Rear I/O

USB Keyboard

USB Mouse

PS/2 Keyboard

PS/2 Mouse

Chassis Dimensions

(H x W x D)

1

1

2 USB 2.0, Headphone, Microphone, optional IEEE 1394

NOTE: Although HP Personal Workstations can be ordered with the HP Installer Kit for Linux and an IEEE 1394 card, HP cannot provide customer support for this configuration. Please refer to the

Linux Hardware Support Matrix ( http://www.hp.com/support/linux_hardware_matrix ) for details, and to the Linux User Manual ( http://www.hp.com/support/linux_user_manual ) for tips on userenablement of the IEEE 1394 Card.

6 USB 2.0, 1 standard serial port, 1 parallel port, PS/2 keyboard and mouse, 1 RJ-45 to integrated

Gigabit LAN, Audio In, Audio Out, Mic In

1

1

Optional

Optional

17.3 x 6.5 X 17.3 in (44.1 x 16.5 x 44.0 cm)

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 8

QuickSpecs

HP xw6200 Workstation

Standard Features - Specs

System weight

Shipping weight

Temperature

Humidity

Maximum Altitude

(nonpressurized)

Power Supply

Interfaces Supported

Standard config – 35 lb

Varies by region

Operating

Non-operating

Operating

Non-operating

40° to 95° F (5° to 35° C)

-40° to 140° F (-40° to 60° C)

8% to 85%

8% to 90%

Operating

Non-operating

10,000 ft (3,000 m)

30,000 ft (9,100 m)

500W wide-ranging, active Power Factor Correction

1 SATA interface (2 serial-ATA connectors), 1 EIDE interface (2 EIDE connectors) for optical drives, optional multi-bay interface

Ultra160 or Ultra320, or SATA RAID, or Ultra320 RAID Hard Drive Controller

(PCI) Supported

Preinstalled Software

HP Client Manager Software v6.0*

Altiris Local Recovery*

Alert Standard Format specification*

Norton AntiVirus 2004 (optional preinstall)*

CD/DVD software dependent on optical drive choices

* Not available on Linux

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 9

QuickSpecs

Standard Features - Preconfigured Global Models

xw6200X/XE2.8/B80/

H1.0/285/dF/s

EN557AW#XXX

(See Country Code Key at end of section.)

Processor

OS

Cache Memory

Memory

Optical Drive

Hard Drive

HDD Controller

Floppy Drive

Graphics

Mouse

Keyboard

Other Integrated

HP xw6200 Workstation

64-bit Intel Xeon processor 2.80 GHz 2 MB/800

Genuine Windows XP Professional

2 MB L2

1 GB (2x512MB) DDR2-400 ECC Registered

16X DVD-ROM

80 GB SATA 3.0-Gb/s 7200 rpm (1st)

Serial ATA controller

1.44 MB 3.5" Floppy Drive

NVIDIA Quadro NVS 285 with TurboCache Technology PCI

Express included in base configuration.

HP scroll mouse (PS/2)

Standard PS/2 Keyboard

Broadcom 10/100/1000 GBIT LOM, and AC97 audio

xw6200X/XE3.2+/B80/

H1.0/285/dF/s

EN558AW#XXX

(See Country Code Key at end of section.)

Processor

2nd Processor

OS

Cache Memory

Memory

Optical Drive

Hard Drive

HDD Controller

Floppy Drive

Graphics

Mouse

Keyboard

Other Integrated

64-bit Intel Xeon processor 3.20 GHz 2 MB/800

64-bit Intel Xeon processor 3.20 GHz 2 MB/800

Genuine Windows XP Professional

2 MB L2

1 GB (2x512MB) DDR2-400 ECC Registered

16X DVD-ROM

80 GB SATA 3.0-Gb/s 7200 rpm (1st)

Serial ATA controller

1.44 MB 3.5" Floppy Drive

NVIDIA Quadro NVS 285 with TurboCache Technology PCI

Express included in base configuration.

HP scroll mouse (PS/2)

Standard PS/2 Keyboard

Broadcom 10/100/1000 GBIT LOM, and AC97 audio

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 10

QuickSpecs

HP xw6200 Workstation

Standard Features - Preconfigured Global Models

xw6200X/XE3.2+/S73b/

H1.0/285/dF/p

EN559AW#XXX

(See Country Code Key at end of section.)

Processor

2nd Processor

OS

Cache Memory

Memory

Optical Drive

Hard Drive

HDD Controller

Floppy Drive

Graphics

Mouse

Keyboard

Other Integrated

64-bit Intel Xeon processor 3.20 GHz 2 MB/800

64-bit Intel Xeon processor 3.20 GHz 2 MB/800

Genuine Windows XP Professional

2 MB L2

1 GB (2x512MB) DDR2-400 ECC Registered

16X DVD-ROM

73 GB SCSI 10k rpm (1st)

U320 SCSI Controller (No RAID)

1.44 MB 3.5" Floppy Drive

NVIDIA Quadro NVS 285 with TurboCache Technology PCI

Express included in base configuration.

HP optical scroll mouse (USB)

Standard USB Keyboard

Broadcom 10/100/1000 GBIT LOM, and AC97 audio

xw6200X/XE3.2+/D80/

H2.0/285/d/s

EQ644AW#XXX

(See Country Code Key at end of section.)

Processor

2nd Processor

OS

Cache Memory

Memory

Optical Drive

Hard Drive

HDD Controller

Floppy Drive

Graphics

Mouse

Keyboard

Other Integrated

64-bit Intel Xeon processor 3.20 GHz 2 MB/800

64-bit Intel Xeon processor 3.20 GHz 2 MB/800

Genuine Windows XP Professional

2 MB L2

2 GB (2x1GB) DDR2-400 ECC Registered

16X DVD-ROM

80 GB SATA 3.0-Gb/s 7200 rpm (1st)

Serial ATA controller

None

NVIDIA Quadro NVS 285 with TurboCache Technology PCI

Express included in base configuration.

HP scroll mouse (PS/2)

Standard PS/2 Keyboard

Broadcom 10/100/1000 GBIT LOM, and AC97 audio

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 11

QuickSpecs

HP xw6200 Workstation

Standard Features - Preconfigured Global Models

xw6200X/XE3.2+/D80/

H2.0/285+/d/p

EQ646AW#XXX

(See Country Code Key at end of section.)

Processor

2nd Processor

OS

Cache Memory

Memory

Optical Drive

Hard Drive

HDD Controller

Floppy Drive

Graphics

Mouse

Keyboard

Other Integrated

64-bit Intel Xeon processor 3.20 GHz 2 MB/800

64-bit Intel Xeon processor 3.20 GHz 2 MB/800

Genuine Windows XP Professional

2 MB L2

2 GB (2x1GB) DDR2-400 ECC Registered

16X DVD-ROM

80 GB SATA 3.0-Gb/s 7200 rpm (1st)

Serial ATA controller

None

Dual NVIDIA Quadro NVS 285 with TurboCache Technology PCI

Express Graphics cards included.

HP optical scroll mouse (USB)

Standard USB Keyboard

Broadcom 10/100/1000 GBIT LOM, and AC97 audio

xw6200X/XE3.4+/C74/

H2.0/285/dF/s

EN560AW#XXX

(See Country Code Key at end of section.)

Processor

2nd Processor

OS

Cache Memory

Memory

Optical Drive

Hard Drive

HDD Controller

Floppy Drive

Graphics

Mouse

Keyboard

Other Integrated

64-bit Intel Xeon processor 3.40 GHz 2 MB/800

64-bit Intel Xeon processor 3.40 GHz 2 MB/800

Genuine Windows XP Professional

2 MB L2

2 GB (2x1GB) DDR2-400 ECC Registered

16X DVD-ROM

74 GB SATA 1.5-GB/S 10k rpm (1st)

Serial ATA controller

1.44 MB 3.5" Floppy Drive

NVIDIA Quadro NVS 285 with TurboCache Technology PCI

Express included in base configuration.

HP scroll mouse (PS/2)

Standard PS/2 Keyboard

Broadcom 10/100/1000 GBIT LOM, and AC97 audio

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 12

QuickSpecs

HP xw6200 Workstation

Standard Features - Preconfigured Global Models

xw6200X/XE3.2+/D80/

H2.0/285+/d/p

EQ647AW#XXX

(See Country Code Key at end of section.)

Processor

2nd Processor

OS

Cache Memory

Memory

Optical Drive

Hard Drive

HDD Controller

Floppy Drive

Graphics

Mouse

Keyboard

Other Integrated

64-bit Intel Xeon processor 3.40 GHz 2 MB/800

64-bit Intel Xeon processor 3.40 GHz 2 MB/800

Genuine Windows XP Professional

2 MB L2

2 GB (2x1GB) DDR2-400 ECC Registered

16X DVD-ROM

160 GB SATA 3.0-Gb/s 7200 rpm NCQ (1st)

Serial ATA controller

1.44 MB 3.5" Floppy Drive

Dual NVIDIA Quadro NVS 285 with TurboCache Technology PCI

Express Graphics cards included.

HP scroll mouse (PS/2)

Standard PS/2 Keyboard

Broadcom 10/100/1000 GBIT LOM, and AC97 audio

xw6200X/XE3.6+/C74/

H2.0/285/d/p

EQ648AW#XXX

(See Country Code Key at end of section.)

Processor

2nd Processor

OS

Cache Memory

Memory

Optical Drive

Hard Drive

HDD Controller

Floppy Drive

Graphics

Mouse

Keyboard

Other Integrated

64-bit Intel Xeon processor 3.60 GHz 2 MB/800

64-bit Intel Xeon processor 3.60 GHz 2 MB/800

Genuine Windows XP Professional

2 MB L2

2 GB (2x1GB) DDR2-400 ECC Registered

16X DVD-ROM

74 GB SATA 1.5-GB/S 10k rpm (1st)

Serial ATA controller

None

NVIDIA Quadro NVS 285 with TurboCache Technology PCI

Express included in base configuration.

HP optical scroll mouse (USB)

Standard USB Keyboard

Broadcom 10/100/1000 GBIT LOM, AC97 audio, and Serial ATA controller

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 13

QuickSpecs

HP xw6200 Workstation

Standard Features - Preconfigured Global Models

xw6200X/XE3.8+/C74/

H2.0/285+/dF/s

EQ649AW#XXX

(See Country Code Key at end of section.)

Processor

2nd Processor

OS

Cache Memory

Memory

Optical Drive

Hard Drive

HDD Controller

Floppy Drive

Graphics

Mouse

Keyboard

Other Integrated

64-bit Intel Xeon processor 3.80 GHz 2 MB/800

64-bit Intel Xeon processor 3.80 GHz 2 MB/800

Genuine Windows XP Professional

2 MB L2

2 GB (2x1GB) DDR2-400 ECC Registered

16X DVD-ROM

74 GB SATA 1.5-GB/S 10k rpm (1st)

Serial ATA controller

1.44 MB 3.5" Floppy Drive

Dual NVIDIA Quadro NVS 285 with TurboCache Technology PCI

Express Graphics cards included.

HP scroll mouse (PS/2)

Standard PS/2 Keyboard

Broadcom 10/100/1000 GBIT LOM, AC97 audio, and Serial ATA controller

Country Code Key

N. America

Fr. Canadian

L. America

Japan (English)

Japan (Japanese)

UK

Germany

France

Italy

Spain

Europe

#ABA

#ABC

#ABM

#ACF

#ABJ

#ABU

#ABD

#ABF

#ABZ

#ABE

#AK6

Switzerland

(German/French)

#AR8

Switzerland (Italian/English) #ACN

Dutch

Denmark

Asia/Pacific (English)

Korea

#ABH

#ACE

#AB4

#AB1

China

Taiwan

India

Australia

Thailand

#AB2

#AB0

#ACJ

#ABG

#AKL

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 14

QuickSpecs

After-Market Options

Processors

HP xw6200 Workstation

2nd 64-bit Intel Xeon® processor with Hyper-Threading

64-bit Intel Xeon processor at 2.80 GHz with 800 MHz FSB & 1 MB of L2 cache

64-bit Intel Xeon processor at 2.80 GHz with 800 MHz FSB & 2 MB of L2 cache

64-bit Intel Xeon processor at 3.00 GHz with 800 MHz FSB & 1 MB of L2 cache

64-bit Intel Xeon processor at 3.00 GHz with 800 MHz FSB & 2 MB of L2 cache

64-bit Intel Xeon processor at 3.20 GHz with 800 MHz FSB & 1 MB of L2 cache

64-bit Intel Xeon processor at 3.20 GHz with 800 MHz FSB & 2 MB of L2 cache

64-bit Intel Xeon processor at 3.40 GHz with 800 MHz FSB & 1 MB of L2 cache

64-bit Intel Xeon processor at 3.40 GHz with 800 MHz FSB & 2 MB of L2 cache

64-bit Intel Xeon processor at 3.60 GHz with 800 MHz FSB & 1 MB of L2 cache

64-bit Intel Xeon processor at 3.60 GHz with 800 MHz FSB & 2 MB of L2 cache

64-bit Intel Xeon processor at 3.80 GHz with 800 MHz FSB & 2 MB of L2 cache

Part Number

DY665A

EC421AA

DY666A

PQ903A

DY667A

PQ904A

DY668A

PQ905A

DY669A

PQ906A

PH202A

Graphics Multi display solutions

NVIDIA Quadro NVS 280 (64 MB,

VGA & DVI)

NVIDIA Quadro NVS 400 (64 MB, quad head, VGA & DVI)

NVIDIA Quadro NVS 285 with

TurboCache Technology PCI

Express (128 MB)

NVIDIA DVI Dual-head Connector

Cablefor NVS cards

NVIDIA Quadro FX 330 (64 MB)

PCI

X

X

PCI-

Express

Windows XP Red Hat

Linux

32-Bit, 64-Bit 7.2, 7.3,

WS3, WS4

32-Bit, 64-Bit

X

X

X

X

32-Bit, 64-Bit

32-Bit, 64-Bit

7.2, 7.3,

WS3, WS4

ATI FireGL V3100 (128 MB)

NVIDIA Quadro FX 540 (128 MB)

NVIDIA Quadro FX 1400 (128

MB)

ATI FireGL V5100 (128 MB)

NVIDIA Quadro NVS 440 PCI

Express (256 MB)

NVIDIA Quadro FX 3450 PCI

Express (256 MB)

X

X

X

X

X

X

32-Bit, 64-Bit 7.2, 7.3,

WS3, WS4

32-Bit, 64-Bit

32-Bit, 64-Bit 7.2, 7.3,

WS3, WS4

32-Bit, 64-Bit 7.2, 7.3,

WS3, WS4

32-Bit, 64-Bit

32-Bit, 64-Bit

32-Bit, 64-Bit 7.2, 7.3,

WS3, WS4

Part Number

AA932A

AA605A

EE061AA

DL139A

PB332A

PE949A

PH791A

PM979A

PB330A

PT453A

PY640AA

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 15

QuickSpecs

HP xw6200 Workstation

After-Market Options

Hard Drives Serial ATA Hard Drives

(Currently supported only at 1.5Gb/s. To get

3Gb/s performance, a SATA 3.0Gb/s controller must be added)

74 GB SATA 1.5GB/S Hard Drive (10,000 rpm)

32-Bit, 64-Bit

80 GB SATA 3.0Gb/s Hard Drive (7200 rpm) 32-Bit, 64-Bit

160 GB SATA 3.0Gb/s NCQ Hard Drive

(7200 rpm)

250 GB SATA 1.5Gb/s NCQ Hard Drive

(7200 rpm)

Windows XP

32-Bit, 64-Bit

32-Bit, 64-Bit

Red Hat Linux

WS3, WS4

WS3, WS4

WS3, WS4

WS3, WS4

32-Bit, 64-Bit WS3, WS4 500 GB SATA 3.0Gb/s NCQ Hard Drive

(7200 rpm)

SCSI Hard Drives

73 GB Ultra320 SCSI Hard Drive (10,000 rpm)

146 GB Ultra320 SCSI Hard Drive (10,000 rpm)

300 GB Ultra320 SCSI Hard Drive (10,000 rpm)

36 GB Ultra320 SCSI Hard Drive (15,000 rpm)

73 GB Ultra320 SCSI Hard Drive (15,000 rpm)

146 GB Ultra320 SCSI Hard Drive (15,000 rpm)

32-Bit, 64-Bit

32-Bit, 64-Bit

32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

32-Bit, 64-Bit

32-Bit, 64-Bit

7.2, 7.3, WS3,

WS4

7.2, 7.3, WS3,

WS4

7.2, 7.3, WS3,

WS4

7.2, 7.3, WS3,

WS4

Hard Drive Accessories

Bracket HDD 3.5to5.25 xw6200

Cable, 3 port SCSI xw4200/6200

Removable Drive Enclosures

StorCase DX115 SATA Removable Enclosure

StorCase DX115 SATA/SAS Carrier Tray

N/A

N/A

All

All

N/A

N/A

All

All

Part Number

DX760A

PY276AA

PV944A

EA788AA

PV943A

AA613A

AA614A

DY672A

AA616A

AA617A

DY671A

DY659A

DY661A

EA332AA

RA697AA

Controllers SCSI Controllers

Adaptec Serial ATA 3Gb/s RAID

1420SA card

U320 SCSI Controller - LSI

20320AR RAID 0,1& external connector

Ultra320 SCSI RAID Adaptec

2120S (Windows only, includes external connector)

PCI PCI-X Windows XP Red Hat

Linux

X 32-Bit, 64-Bit WS3

X 32-Bit, 64-Bit 7.2, 7.3,

WS3, WS4

X 32-Bit, 64-Bit

Part Number

ED090AA

DZ554A

AA850A

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 16

QuickSpecs

HP xw6200 Workstation

After-Market Options

Input Devices

Keyboards

HP PS/2 Standard Keyboard

(Carbonite/Silver)

HP USB Standard Keyboard

(Carbonite/Silver)

HP USB Smart Card Keyboard

Windows XP Red Hat Linux

32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

32-Bit, 64-Bit Not Supported

32-Bit, 64-Bit Smartcard Adapter for Modular Keyboard

Pointing Devices

HP PS/2 2-Button Scroll Mouse (Carbonite)

HP USB 2-Button Optical Scroll Mouse

(Carbonite/Silver)

32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

HP USB Optical 3-Button Mouse

HP USB Optical 3-button 2.9M OEM Mouse

32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

7.2, 7.3, WS3,

WS4

USB Spaceball 5000

USB SpaceMouse

32-Bit, 64-Bit

32-Bit, 64-Bit

Not Supported

Not Supported

HP SpacePilot 3D USB Intelligent Controller 32-Bit, 64-Bit Not Supported

Part Number

DT527A

DT528A

ED707AA

DT531A

DD440B

DC172B

DY651A

ET424AA

DV675A

DZ203A

EF390AA

Networking

Memory (DIMMs)

NICs

Intel Pro/1000 PT Gigabit PCIe

NIC

Intel Pro/1000 GT Gigabit PCI

NIC

Broadcom 5782 Netxtreme

Gigabit PCI NIC

Broadcom 5751 Netxtreme

Gigabit PCIe NIC

PCI

X

PCI-

Express

X

X

X

Windows

XP

32-Bit

Red Hat

Linux

WS3

32-Bit WS3, WS4

32-Bit, 64-

Bit

32-Bit, 64-

Bit

7.2, 7.3,

WS3, WS4

WS3, WS4

Part Number

EH352AA

AG393AA

DC194A

EA833AA

400 MHz DDR-2 PC2-3200 ECC Registered

DIMMs

256 MB DDR-2 PC2-3200 (400 MHz) ECC

Registered

512 MB DDR-2 PC2-3200 (400 MHz) ECC

Registered

1 GB DDR-2 PC2-3200 (400 MHz) ECC

Registered

2 GB DDR-2 PC2-3200 (400 MHz) ECC

Registered

Windows XP Red Hat Linux

32-Bit, 64-Bit

32-Bit, 64-Bit

7.2, 7.3, WS3,

WS4

32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

7.2, 7.3, WS3,

WS4

Part Number

DY656A

DY658A

DY655A

DY657A

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 17

QuickSpecs

After-Market Options

Monitors (Supported by all Operating Systems offered by HP)

TFTs

HP TFT LP2465 (24-inch)

HP TFT L2335 (23-inch)

HP TFT LP2065 (20.1-inch) TCO03 Two Tone (Carbonate/Silver)

HP TFT L2035 (20.1-inch)

HP TFT L1955 2T Top (19.1-inch)

HP TFT L1755 (17-inch)

HP xw6200 Workstation

EF224A5#

P9615W#

EF227A5#

P9614W#

PH466AT#

PL777AA#

Multimedia

Multimedia

Optical Drives

PCI PCI-Express

Adaptec Fireconnect 2100 Firewire 400

(1394a) PCI Card (Windows only)

X PA997A

NOTE: Although HP Personal Workstations can be ordered with the HP Installer Kit for Linux and an IEEE 1394 card, HP cannot provide customer support for this configuration. Please refer to the

Linux Hardware Support Matrix ( http://www.hp.com/support/linux_hardware_matrix ) for details, and to the Linux User Manual ( http://www.hp.com/support/linux_user_manual ) for tips on userenablement of the IEEE 1394 Card.

SoundBlaster X-Fi XtremeMusic Audio Card

HP Satellite Speakers

Windows XP Red Hat Linux

32-Bit Not Supported

EA326AA

Part Number

EA326AA

ZD929AA

DVD-ROM Drive

16X DVD-ROM w/ +R read

CD-ROM Drive

48X Max CD-ROM Drive

CD-RW Drive

48X CD-RW Drive

Combo Drive

48X Combo DVD-ROM/CD-RW Drive

DVD+/-RW Drive

16X DVD+/-RW, Dual-Layer LightScribe

(LightScribe labeling functionality not supported on Linux)

Windows XP Red Hat Linux

32-Bit, 64-Bit 7.2, 7.3, WS3,

WS4

32-Bit, 64-Bit

32-Bit, 64-Bit

32-Bit, 64-Bit

32-Bit, 64-Bit

7.2, 7.3, WS3,

WS4

7.2, 7.3, WS3,

WS4

7.2, 7.3, WS3,

WS4

7.2, 7.3, WS3,

WS4

Part Number

AA620B

DC143B

DE205B

DE206B

DZ555B

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 18

QuickSpecs

HP xw6200 Workstation

After-Market Options

Removable Storage

HP 256-MB Drive Key II Flash Drive

HP 1-GB Drive Key II Flash Drive

512 MB USB 2.0 Drive Key II

1.44 MB Internal Floppy Drive

HP StorageWorks DAT 24 USB external tape drive

HP StorageWorks DAT 24 USB internal tape drive

Windows XP Red Hat Linux

32-Bit, 64-Bit

32-Bit, 64-Bit

32-Bit, 64-Bit

32-Bit, 64-Bit

32-Bit, 64-Bit

32-Bit, 64-Bit

WS3, WS4

WS3, WS4

WS3, WS4

WS3

WS3, WS4

WS3, WS4

Part Number

PH657A

AG382AA

ED516AA

DY670A

DW070A

DW069A

HP StorageWorks DAT 40 USB external tape drive

HP StorageWorks DAT 40 USB internal tape drive

HP StorageWorks DAT 72 USB external tape drive

HP StorageWorks DAT 72 USB internal tape drive

32-Bit, 64-Bit

32-Bit, 64-Bit

32-Bit, 64-Bit

32-Bit, 64-Bit

WS3, WS4

WS3, WS4

WS3, WS4

WS3, WS4

DW023A

DW022A

DW027A

DW026A

HP StorageWorks DAT 72 SCSI external tape drive

HP StorageWorks DAT 72 SCSI internal tape drive

32-Bit, 64-Bit

32-Bit, 64-Bit

WS3, WS4, 7.2,

7.3

WS3, WS4, 7.2,

7.3

Q1523B

Q1522B

The following Removable Drive Enclosure products are available from and supported by 3rd party:

StorCase Rhino Jr. SATA 1.5Gb/s Removable Disk Enclosure

(For NA, use: HP P/N A466720, for WW, use: vendor P/N S21J111)

Security

Brackets/Stands

Other Devices

Chassis clamp lock, universal, no cable

Chassis clamp lock, universal, with cable

HP xw6200 sliding rack kit

Exclusively designed for the xw6200

Standard-width, ball bearing sliding rails

Includes hardware to work with IT racks only (not broadcast)

Front Card Guide and Fan Kit

Operating Systems

Red Hat Enterprise Linux Workstation 3 Update 7 (32-bit version)

Red Hat Enterprise Linux Workstation 4 Update 1 (32/64-bit version)

Red Hat Enterprise Linux Workstation 4 Update 3 (32/64-bit version)

Part Number

DE817A

DE818A

Part Number

DY663A

Part Number

DY648A

Part Number

RA354AA

EA700AA

RA356AA

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 19

QuickSpecs

After-Market Options

Software

HP Remote Graphics V3LTU for HP WS

HP Remote Graphics V4 LTU for HP WS

HP Remote Graphics V3 Receiver LTU

HP Remote Graphics V4 Receiver LTU

HP Remote Graphics V3 software media

HP Remote Graphics V4 software media

(available 8/1/06)

HP Remote SW for HP 1 year Update

Subscription

HP Remote SW Receiver 1 year Update

Subscription

HP xw6200 Workstation

Windows XP Red Hat Linux

32-Bit

32-Bit, 64-Bit

7.2, 7.3, WS3,

WS4

WS3, WS4

32-Bit

32-Bit, 64-Bit

32-Bit

32-Bit, 64-Bit

7.2, 7.3, WS3,

WS4

WS3, WS4

7.2, 7.3, WS3,

WS4

WS3, WS4

32-Bit

32-Bit

7.2, 7.3, WS3,

WS4

7.2, 7.3, WS3,

WS4

Part Number

PY682AA

RG088AA

PY684AA

RG090AA

PY685AA

RG091AA

PN681A

PN680A

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 20

QuickSpecs

Memory

HP xw6200 Workstation

E7525 chipset

DDR-2 SDRAM ECC REGISTERED MEMORY

If only using one DIMM, install it in socket 1. For more than one DIMM, install memory in pairs (a pair would be considered to be the DIMMs in sockets 1 & 2, 3 & 4) and do not mix speeds. It is always best to load the memory in pairs rather than a single DIMM (two 512 MB DIMMs will have better performance than a single 1 GB DIMM). Each pair of DIMMs must be the same size and same DRAM technology. The Intel E7525 chipset supports ECC Registered 400 MHz (PC2-3200) DDR-2 memory only.

MAXIMUM MEMORY

Supports up to 8 GB of DDR SDRAM

POSSIBLE MEMORY CONFIGURATIONS

Not all memory configurations possible are represented below.

Slot DIMM Size

256 MB

512 MB

512 MB

1 GB

1 GB

2 GB

2 GB

4 GB

8 GB

1

256 MB

512 MB

256 MB

1 GB

256 MB

1 GB

512 MB

1 GB

2 GB

2

256 MB

256 MB

1 GB

512 MB

1 GB

2 GB

3

256 MB

512 MB

1 GB

2 GB

4

256 MB

512 MB

1 GB

2 GB

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 21

QuickSpecs

Storage

Tower configuration

HP xw6200 Workstation

Convertible Minitower

Quantity Supported Position Supported Controller

Optional Diskette Drive

5.25" Storage Drive Bays

(position 1 drive bay is limited to 198 mm depth when optional smart cover solenoid lock is installed; position 2 drive bay can be converted to an internal 3.5" 3rd hard drive bay with optional bracket)

3.5" Storage Drive Bays with acoustic dampening rail assemblies

1

2

2 (3)

3

1, 2

4, 5 (and 2, for 3rd drive using optical bay)

Diskette

IDE

SATA or optional SCSI

Factory Integrated RAID*

* NOTE: Factory Integrated RAID 0 Configuration (Striped Array) and RAID 1 Configuration (Mirrored Array) requires 2 hard drives with identical speeds, capacity and interface.

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 22

QuickSpecs

Additional Technical Specifications

System Board

Architecture

Chipset

Super I/O Controller

System Board Form

Factor

Processor Socket

DIMM Connectors

(DDR2, 1.8V)

AGP Connector (1.5V)

Integrated Graphics

PCI Connectors (5.0V)

PCI Express Connectors

PCI card guide

Flash ROM

AC97 integrated audio

CD ROM IN (Audio)

AUX IN (Audio)

Clear CMOS Button

CPU Fan Header

Chassis Fan Header

Chassis Speaker Header

CMOS Battery Holder –

Lithium

Hood Lock Header

Hood Sensor Header

Multibay Header

Hard drive acoustic dampening rails

Integrated SATA RAID

Integrated Broadcom

NetXtreme Gigabit

Ethernet for HP

Wake-On-Lan®

ASF 1.0 (Alert Standard

Format)

Power Supply Header

HP xw6200 Workstation

Xeon 64-bit/PCI-E

Intel E7525/ICH5R Chipset

SMSC LPC47B397

ATX (slightly larger than standard ATX)

Dual 604 Pin ZIF

4

None

None

4 full length 33 MHz 32-bit

1 x16

1 x8 (with x4 electricals)

Optional, tool-free support for all full-length cards with PCI extender

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Standard in 2 internal 3.5" bays, tool-free

RAID 0 and RAID 1

Supports one RAID array on 2 ports

Creation of 2 drive HDD array

RAID 0 Configuration - Striped Array

RAID 1 Configuration - Mirrored Array

Yes

Yes

Yes

Yes

Yes

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 23

QuickSpecs

Additional Technical Specifications

Power Switch, Power

LED

& Hard Drive LED

Header

Password Clear Header

Riser Connector

HDD activity LED Header

PCI extender that connects to System

Board

Yes

Yes

None

Yes, 2 & 4 pin

None

HP xw6200 Workstation

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 24

QuickSpecs

Technical Specifications

HP xw6200 Workstation

Cooling

Cooling Solutions

Supported

Power Supply Fan

(Variable Speed)

Processor Fan-Heatsink

(Variable Speed)

Chassis Fan (front)

Chassis Fan (rear)

Internal Speaker

Power Supply

Full Ranging Input

Active Power Factor

Correction (APFC) (Input

Current is nearly 1/2 a non-APFC PS)

Passive Power Factor

Correction (PFC)

Operating Voltage Range

Rated Voltage Range

Rated Line Frequency

Operating Line

Frequency Range

Rated Input Current

Maximum Rated Power

Heat Dissipation

PS Size (wide x high x deep)

Energy Star Compliant

FEMP Standby Power

Compliant (<2W in S5 -

Power Off)

Surge Tolerant Full

Ranging Power Supply

Typical configuration power consumption

Yes

92 x 25 mm

70 x 15 mm

One 92 x 25 mm (optional)

Two 92 x 25 mm (standard)

Standard

Yes

Yes

No

90 - 264 VAC/118 VAC

100 – 240 VAC

50-60 Hz/400Hz

47 – 66 Hz/393 – 407Hz

9A/9A

500 W

Typical 1228.9 btu/hr

Maximum 1706 btu/hr

150 mm x 98 mm x 168 mm

Yes

No

Withstands power surges up to 2000V

2 processors (2x3.6GHz Xeon), 1 GB memory (2x 512 MB)

Two hard drives (2xSATA 40 GB), DVD-ROM drive

PCI-Express Graphics Card (FX 1300)

Floppy, Monitor

@ 120Vac/60Hz Input Power consumption

Typical operating mode

(system busy)

Windows XP Idle

360 W

201 W

= 1228.9 btu/hr

= 685.9 btu/hr

Hibernate mode (S4)

Power Off (S5)

6.4 W

6.4 W

= 21.84 btu/hr

= 21.84 btu/hr

ROM Features Description

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 25

QuickSpecs

HP xw6200 Workstation

Technical Specifications

Instantly Available PC Allows for very low power consumption with quick resume time

ROM Based F10 Setup and diagnostics

Review and customize BIOS settings

Remote System

Installation via F12 (PXE)

(Remote Boot from

Server)

Allows a new or existing system to boot over the network and download software, including the operating system

System/Emergency ROM

Flash Recovery with

Video

Recovers corrupted system BIOS

ROM revision levels

System board revision level

Identifies system ROM revision levels and reports in ROM-based F10 setup

Version is stored in an industry standard memory location (SMBIOS) so that management

SW applications can use and report this information

Allows management SW to read the revision level of the system board

Revision level is digitally encoded into the hardware and cannot be modified

System automatically detects addition of new hardware Auto Setup when New

Hardware Installed

Serial, Parallel, USB,

Audio, Network,

Enable/Disable Port

Control

Removable Media Write/

Boot Control

Power-On Password

Setup Password

Replicated Setup

Enable or disables serial, parallel, USB, audio, and network ports

Prevents ability to boot from removable media on supported devices (and can disable writes to media)

Prevents an unauthorized person from booting up the computer

Prevents an unauthorized person from changing the system configuration

Saves BIOS settings to diskette or USB disk-on-key in human readable file. Repset.exe utility can then replicate these settings on machines being deployed without entering ROM-based F10 setup

Alerts management console if memory is removed or changed Memory Change Alert

(Requires HP Client

Manager Software)

Thermal Alert (Requires

HP Client Manager

Software)

Monitors the temperature state within the chassis. Three modes:

Master Boot Record

Security

NORMAL – normal temperature ranges

ALERTED – excessive temperatures are detected. Raises a flag so action can be taken to avoid shutdown or provide for a smoother system shutdown

SHUTDOWN – excessive temperatures are encountered. Automatically shuts down the computer without warning before hardware component damage occurs

Detects changes to MBR and optional restoration, useful in protecting from viruses

Remote ROM Flash

Remote

Wakeup/shutdown

Provides secure, fail-safe ROM image management from a central network console

System administrators can power on, restart, and power off a client computer from a remote location.

Enables cost-effective power consumption when the administrator needs to distribute software, perform security management, or update the ROM

ACPI (Advanced

Configuration and Power

Management Interface)

Allows the system to wake from a low power mode

Controls system power consumption, making it possible to place individual cards and peripherals in a low-power or powered-off state without affecting other elements of the system

Supports ACPI 2.0 for full compatibility with 64-bit operating systems

Keyboard-less Operation The system can be operated without a keyboard

SMBIOS System Management BIOS 2.3.5, previously known as DMI BIOS, for system management information

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 26

QuickSpecs

HP xw6200 Workstation

Technical Specifications

Localized ROM Setup Common BIOS image supports configuration (Setup) in 11 languages, with local keyboard mappings

Asset tag Allows user or MIS to set unique tag string in ROM

Ownership tag

Memory Scrubbing

Memory Remapping

Allows user or MIS to set unique tag string in ROM

Allows memory controller to transparently correct transient ECC errors in the background

Allows system memory lost to PCI devices to be reclaimed above 4 GB, for use with operating systems that support more than 4 GB (Windows XP 64-bit edition, Linux)

Allows individual slot configuration (option ROM., latency) Per-slot control

Adaptive cooling

Pre-boot diagnostics

Fan control parameters are set according to detected hardware configuration for optimal acoustics

Early (pre-video) critical errors are reported via beeps and blinks on the power LED

Other deployment & management features

HP Client Management

Solutions

HP Client Management Solutions help simplify management of Workstations and significantly reduce total ownership costs. These solutions share a common design and are highly integrated due to the extensive work between HP and its partner Altiris.

HP Client Manager Software is included free with all HP business PCs and Workstations. It enables central tracking, monitoring, and management of the hardware aspects of HP client systems:

Get valuable hardware information such as CPU, memory, video, and security settings

Monitor system health to fix problems before they occur

Install drivers and BIOS updates without visiting each PC

Remotely configure BIOS and security settings

Automate processes to quickly resolve hardware problems

Additional Altiris solutions (fee-based) are available to address Workstation management challenges through the entire IT lifecycle including:

Inventory assessment

Software license compliance

Personality migration

Software image deployment

Software distribution

Asset management

Client backup and recovery

Problem resolution

Visit http://www.hp.com/go/easydeploy for more information, to download HP Client Manager

Software, and to evaluate the Altiris solutions.

System Software

Manager (free)

Altiris Local Recovery Provides data and system file protection for HP business PCs to enable fast recovery of information that is accidentally deleted or if the system becomes corrupted. Designed for disconnected or seldom-connected users, Local Recovery protects your HP computer's data and system state by taking scheduled snapshots, which are then stored in a protected area on the local hard disk. System backup and disaster recovery is now simple and fast for all users, regardless of connectivity

Replicated Setup

A free utility that detects and updates BIOS, device drivers, and management agent versions on your networked PCs and workstations

Software Restore CD

Saves BIOS settings to diskette or USB disk-on-key in human readable file. Repset.exe utility can then replicate these settings on machines being deployed without entering ROM-based F10 setup

Restores computer to its original factory shipping image

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 27

QuickSpecs

HP xw6200 Workstation

Technical Specifications

Asset Tag Repository for storing company-specific property asset numbers for easy tracking

Initially set equal to the system serial number

Stored in a protected section of non-volatile memory that can be accessed and modified with the F10 Setup program

Detects whether or not memory DIMMs are present and their type DIMM Serial Presence

Detect

Hard drive serial number, model, and manufacturer

Hard drive manufacturer, model, and serial number is stored in the hard drive firmware and reported in ROM-based F10 setup

System serial number, model, & manufacturer

ROM revision levels

System serial number, model, & manufacturer stored in a non-volatile memory and can be retrieved with management SW or viewed in ROM-based F10 setup

Identifies system ROM revision levels and reports in ROM-based F10 setup

Version is stored in an industry standard memory location (SMBIOS) so that management SW applications can use and report this information

Alerts management console if memory is removed or changed Memory Change Alert

(Requires HP Client

Manager Software)

Ownership Tag

Hard drive interface

Integrity Monitoring

(CRC Checking)

A user-defined string stored in non-volatile memory that is displayed in the BIOS splash screen

A feature of SATA and SCSI, Cyclic Redundancy Checking provides data transfer verification and proactive notification of hard drive data transmission problems with recommendations for enhancing system performance. It detects all the following errors' types:

Drive Self Tests (DPS) single bit errors double bit errors an odd number of errors error bursts up to 32-bits long

Drive Protection System (Adaptec and LSI SCSI controllers do not offer DPS)

A diagnostic hard drive self test. It scans critical physical components and every sector of the hard drive for physical faults and then reports any faults to the user.

Running independently of the operating system, it can be accessed through the computer's setup procedure. It produces an evaluation on whether the hard drive is the source of the problem and needs to be replaced.

The system expands on the Self-Monitoring, Analysis, and Reporting Technology (SMART), a continuously running systems diagnostic that alerts the user to certain types of failures

DPS Access through F10 Setup during Boot (F10 diagnostic access not available with SCSI drives)

SMART Technology

(Self-Monitoring, Analysis and Reporting

Technology)

Allows hard drives to monitor their own health and to raise flags if imminent failures were predicted

Predicts failures before they occur. Tracks fault prediction and failure indication parameters such as re-allocated sector count, spin retry count, calibration retry count

By avoiding actual hard drive failures, SMART hard drives act as "insurance" against unplanned user downtime and potential data loss from hard drive failure

SMART I – Drive Failure Prediction

SMART II – Off-Line Data Collection

SMART III – Off-Line Read Scanning with Defect Reallocation

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 28

QuickSpecs

HP xw6200 Workstation

Technical Specifications

Security Features

Access panel key lock

(standard)

Smart Cover solenoid lock (optional)

Padlock (optional)

Prevents removal of the access panel and all internal components including optical and floppy drives

Prevents removal of the access panel and all internal components including optical and floppy drives. Eliminates the need for a physical key by enabling password-protected locking & unlocking by a local or remote user.

Prevents entire system theft and discourages access panel removal. 7mm diameter padlock loop at rear of system.

Prevents entire system theft only. 3mm x 7mm slot at rear of system.

Kensington Cable Lock

(optional)

Universal chassis clamp lock (optional)

The version without a cable discourages access panel removal and prevents theft of IO devices.

The version with a cable additionally prevents entire system theft and allows multiple systems to be secured with a single cable.

Notifies a local or remote user when the chassis access panel has been opened.

Intrusion Sensor

(optional)

Serviceability Features of System

Access panel

Optical drives

Floppy drive

Hard drives

Expansion cards

Tool-less, one-handed

Tool-less

Tool-less

Tool-less

Tool-less

Chassis fan removal Tool-less

Green user touch points Yes, on tool-free internal chassis mechanisms

Yes Color-coordinated cables and connectors

Memory Tool-less, can be upgraded without removing any internal components

CPUs

Power supply diagnostic

LED

Power Button

Power LED

Tool-less, can be upgraded without removing any internal components

Yes, dual function: AC OK & power OK

Yes, ACPI multi-function

Yes, dual color LED indicates normal operation and faults.

Hard drive activity LED Yes

Internal speaker Yes, used for pre-boot diagnostic beep codes

Dual Color Power and

HD LED on Front of

Computer (Indicates

Normal Operations and

Fault Conditions) green – normal red – fault

System/Emergency ROM

Flash Recovery with Video

Recovers corrupted system BIOS.

Configuration Record SW Yes

Over-Temp Warning on

Screen (Requires IM

Agents)

Yes

OS CD (Restore OS CD) Restores computer to its original factory shipping image

Restore CD Restores the computer to its original factory shipping image

Flash ROM Yes

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 29

QuickSpecs

HP xw6200 Workstation

Technical Specifications

3.3V Aux Power LED on

System PCA

Dual Function 5V Aux

Power LED (ON)/PS_ON

LED (OFF) on System

PCA

Yes

Yes

Diagnostic Power Switch

LED on board

Yes

Clear Password Jumper Yes

Clear CMOS Button Yes

CMOS Battery Holder for easy Replacement

Yes

Yes Processor ZIF Socket for easy Upgrade

DIMM Connectors for easy Upgrade

NIC LEDs (integrated)

(Green & Amber)

ASF 1.0 support (Alert

Standard Format)

Yes

Used to determine NIC status

Industry-standard specification for network alerting in operating system-absent environments

Dual function front power switch

Also acts as a reset switch when held for 4 seconds

Service and Support

On-site Warranty and Service (Note 1) : This three-year, limited warranty and service offering delivers three years of on-site, next business-day (Note 2) service for parts and labor and includes free telephone support (Note 3) 24 x 7. Global coverage (Note 2) ensures that any product purchased in one country and transferred to another, non-restricted country will remain fully covered under the original warranty and service offering.

NOTE 1: Terms and conditions may vary by country. Certain restrictions and exclusions apply.

NOTE 2: On-site service may be provided pursuant to a service contract between HP and an authorized HP third-party provider, and is not available in certain countries. Global service response times are based on commercially reasonable best effort and may vary by country.

NOTE 3: Technical telephone support applies only to HP-configured, HP and HP-qualified, thirdparty hardware and software. Toll-free calling and 24 x 7 support may not be available in some countries.

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 30

QuickSpecs

Technical Specifications - Audio

HP xw6200 Workstation

AC97 Integrated ADI

1981B Audio

Sound Blaster X-Fi

XtremeMusic Audio

Card

(Windows XP Only)

Type

Integrated

AC ‘97 Stereo Codec

Yes

FM Synthesis Support

Yes – Yamaha XG Lite

Yes

OPL3 FM Synthesis

Support

Sound Blaster

Compatibility

Yes

Audio Jacks

Microphone-In (20-K ohm Input Impedance); rear stereo and front analog microphone ports

Line-In (12-K ohm Input Impedance)

Line-Out * (less than 800 ohms Output Impedance, expects at least a

10-K ohm load)

Headphone-Out (2.5 Ohms Output Impedance, expects at least a 32 ohm load)

NOTE: *Internal Speaker Amplifier is for Internal Speaker only. External Speakers need to be powered externally.

Sampling

7 kHz – 48 kHz

Wavetable Syntheses

(software)

Yes – GM and FM Midi Support, Direct Music and Down Loadable

Soundset (4 Meg DLS Level 1 and 2 Support)

3D Positional Sound

No

Digital Audio

Analog Audio

Yes

Yes

Number of Channels on Line-Out

(mono/stereo)

Stereo (Left & Right channels)

Internal Audio Speaker

Power Rating

3W

Internal Speaker

Yes

Hardware Equalizer for

Internal Speaker

Fixed 7 Band ParametricEQ

External Speaker Jack

(Line-Out)

Yes

Audio Quality

Signal to Noise Ratio

(SNR)

Total Harmonic Distortion + Noise at 1kHz (20kHz Low-pass filter) =

0.004%

Signal-to-Noise Ratio (20kHz Low-pass filter, A-Weighted)

Sound Conversion

Recording/Sampling

Rate

Stereo Output: 109dB

Front and Rear Channels: 109dB

Center, Subwoofer and Side Channels: 109dB

24-bit Analog-to-Digital conversion of analog inputs at 96kHz sample rate

24-bit Digital-to-Analog conversion of digital sources at 96kHz to analog

7.1 speaker output

24-bit Digital-to-Analog conversion of stereo digital sources at 192kHz to stereo output

44.1, 48 and 96kHz

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 31

QuickSpecs

HP xw6200 Workstation

Technical Specifications - Audio

ASIO 2.0 support

Enhanced SoundFont support

DACs

Voice Support

Max. Channels in 3D

Positional Audio

EAX® ADVANCED

HD™ 5.0 support

Connectors

Dimensions

Additional product features

16-bit/44.1kHz, 16-bit/48kHz, 24-bit/44.1kHz 24-bit/48kHz and 24bit/96kHz with direct monitoring up to 24-bit resolution

24-bit/96kHz

24-bit/192kHz

128 voices

7.1

Yes including EAX® MacroFX™, EAX® PurePath™ and Environment

FlexiFX™

FlexiJack (Performing a 3-in-1 function, Digital In / Line In / Microphone) via 3.50 mm minijack

Line level out (Front / Rear / Center / Subwoofer / Rear Center) via 3.50

mm minijacks

AUX_IN line-level analog input via 4-pin Molex connector on card

One AD_Link (26 pin) connector for linking to the X-Fi I/O Console

(upgrade option)

7.25 x 5 x 0.9 in (18.42 x 12.7 x 2.29 cm)

Movies

THX Certification

Dolby Digital EX 6.1 Playback

DTS-ES 6.1 Playback

Music

Audio Creation

X-Fi 24-bit Crystalizer

CMSS-3D

SuperRip

Pristine audio playback quality with a near transparent SRC engine

Up to eight 24 bit hardware effects

ASIO recording with latency as low as one millisecond

24-bit SoundFont® sampling

3D MIDI

Gaming

Software Bundle

EAX ADVANCED HD 5.0

Doom 3 Sound Blaster EAX patch

Entertainment Mode

Audio Creation Mode

Game Mode

Mode Switcher

Audio Console

Creative MediaSource

Creative MediaSource DVD-Audio Player

DTS Neo:6 Settings

Karaoke Player

Entertainment Center

Smart Recorder

SoundFont Bank Manager

Speaker Connection Wizard

THX Setup Console

Vienna SoundFont Studio

Volume Panel

WaveStudio

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 32

QuickSpecs

Technical Specifications - Audio

HP xw6200 Workstation

Minimum System

Requirements

System RAM

Hard Disk

Operating System

Console Launcher

Creative Media Toolbox

Creative Diagnostics

256 MB

600MB free space

Available PCI 2.1 slot for the audio card

CD-ROM/CD-RW or CD/DVD-ROM required for software installation

Microsoft Windows XP Service Pack 2 (SP2)

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 33

QuickSpecs

Technical Specifications - Communications

HP xw6200 Workstation

Broadcom BCM5751

NetXtreme Gigabit

Ethernet Controller

(PCIe)

Connector

Controller

Memory

RJ-45

Broadcom 5751 PCI-E 1.0a LAN Controller

Integrated 96Kb frame buffer memory

Data rates supported

10/100/1000 Mbps

Compliance

IEEE 802.3, 802.3AB and 802.3u compliant, 802.3x flow control

Bus architecture

Data path width

PCI-E 1.0a

X1

Data path speed

Data transfer mode

2.5Gbit per sec per direction transfer rate

Bus-master DMA

Hardware certifications FCC class B, NRTL Mark Canada and United States, C-Tick for

Australia, BSMI for Taiwan, VCCI for Japan, MIC for Korea, GOST for

Russia

Power requirement

3.1 watts @ +3.3V AUX supply

Boot ROM support

Yes

Network transfer rate

10BASE-T (half-duplex) 10 Mbps

10BASE-T (full-duplex) 20 Mbps

100BASE-TX (half-duplex) 100 Mbps

Environmental

100BASE-TX (full-duplex) 200 Mbps

1000BASE-T, 1000 Mbps

Operating temperature

32° to 131° F (0° to 55° C)

Operating humidity

85% at 131° F (55° C)

Dimensions

Operating system driver support

Management capabilities

Alerting

Kit contents

4.4 x 2.2 x 0.08 in (11.2 x 5.5 x 0.2 cm)

Microsoft Windows 2000 and XP, Red Hat Linux 7.2, 7.3 and Red Hat

Enterprise Linux 3

WOL, PXE , Remote cable management

ASF 2.0

Broadcom 5751, CD, Broadcom 5751 Netxtreme Gigabit PCIe NIC, drivers, quick install guide, product warranty statement

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 34

QuickSpecs

HP xw6200 Workstation

Technical Specifications - Communications

Intel Pro/1000 MT

Gigabit PCI NIC

Connector

Controller

Memory

RJ-45

Intel 82540EM Gigabit Controller

Integrated 96Kb frame buffer memory

Data rates supported

10/100/1000 Mbps

Compliance

IEEE 802.1A, 802.1P, 802.1P, 802.1Q, 802.2, 802.3, 802.3AB and

802.3u compliant, 802.3x flow control

Bus architecture

Data path width

PCI 2.2

32-bit, 33/66 MHz bus interface

Data transfer mode

Bus-master DMA

Hardware certifications FCC, B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS

Mark for European Union

Power requirement

Boot ROM support

1.48 watts @ +3.3V AUX supply with 5V tolerance

Yes

Network transfer rate

10BASE-T (half-duplex) 10 Mbps

10BASE-T (full-duplex) 20 Mbps

Environmental

100BASE-TX (half-duplex) 100 Mbps

100BASE-TX (full-duplex) 200 Mbps

1000BASE-T, 1000 Mbps

Operating temperature 32° to 131° F (0° to 55° C)

Dimensions

Operating system driver support

Management capabilities

Kit contents

Operating humidity

85% at 131° F (55° C)

6.4 x 4.8 x 0.8 in (16.3 x 12.1 x 1.9 cm)

Microsoft Windows XP Professional, Microsoft Windows XP

Professional x64 Edition, Red Hat Enterprise Linux

ACPI, WOL and DMI 2.0, PXE 2.0, WfM 2.0, Intel PROset II utility

Intel Pro/1000 MT Gigabit PCI NIC, CD containing Intel PROset II NIC drivers, quick install guide, product warranty statement

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 35

QuickSpecs

Technical Specifications - Controllers

HP xw6200 Workstation

U320 SCSI Controller -

LSI 20320AR RAID 0,1 including external connector

(required with SCSI

HDDs)

Bus architecture

Number of supported devices

Interface protocol

PCI-X (backward compatible with PCI)

Up to 15 SCSI devices

64 bit, 133MHz PCI-X

Host bus transfer rate

Up to 1MB/s

SCSI data transfer rate Up to 320 MB/s per channel

SCSI Bus

Internal connector

External connector

Total connectors

Wide Ultra320, Low Voltage Differential, and Ultra Wide Single-Ended

68-pin HD

68 pin

2

Plug and Play Support No

Dimensions (H x L) 6.6 x 2.5 in (16.9 x 6.4 cm)

Approvals

Operating system support

Kit contents

CE, VCCI, Canada, C-Tick, FCC class B, UL 94VO

Microsoft Windows XP Professional

Windows XP Professional x64 Edition

Controller card, driver CD, LED cables, user documentation and warranty card.

Adaptec SCSI RAID

2120S Card

Dimensions (H x D)

RAID level

Data Transfer Rate

Cache Memory

2.5 x 6.6 in (6.4 x 16.8 cm) Low profile card

0, 1, 10, 5, 50, JBOD

Up to 320 MB/s

64 MB (onboard)

Device Support

Bus Type

Up to 15 SCSI devices

64-bit/66 MHz PCI

(Also support 32-bit/33 MHz PCI)

One 68-pin high-density

Internal Connectors

External Connectors

One 68-pin VHDCI

System Requirements

Intel PC or equivalent with available PCI slot

Operating Temperature 32° to 131° F (0° to 55° C)

Power Requirements

4 amps @ +5V

Operating System

Support

Other

Windows 2000 Professional, Windows XP Professional,

Windows XP Professional x64 Edition

Optimized disk utilization

Kit Contents

Online RAID Level Migration

Online capacity expansion

Immediate RAID availability (background initialization)

S.M.A.R.T. support

Controller card, driver CD, LED cables, user documentation and warranty card.

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 36

QuickSpecs

Technical Specifications - Hard Drives

Serial ATA 3.0-Gb/s

Hard Drives

500 GB

250 GB

HP xw6200 Workstation

Capacity

Height

Width

500,107,862,016 bytes

1.0 in (2.54 cm)

Media diameter: 3.5 in (8.89 cm)

Interface

Synchronous Transfer

Rate (Maximum)

Buffer

Physical size: 4 in (10.2 cm)

Serial ATA (3.0 Gb/s), Native Command Queuing enabled

Up to 3 Gb/s

16 MB

Seek Time (typical reads, includes controller

Single Track

Average

overhead, including settling)

Full-Stroke

Rotational Speed

7,200 rpm

1.3 ms

20.0 ms

30 ms

Logical Blocks

976,773,168

Operating Temperature 41° to 131° F (5° to 55° C)

Capacity

250,059,350,016 bytes

Height

Width

Interface

Synchronous Transfer

Rate (Maximum)

Buffer

1 in (2.54 cm)

Media diameter: 3.5 in (8.89 cm)

Physical size: 4 in (10.2 cm)

Serial ATA (3.0 Gb/s)

Up to 3 Gb/s

8 Mbytes

Seek Time (typical reads, includes controller

Single Track

Average

overhead, including settling)

Full-Stroke

Rotational Speed

7,200 rpm

1.0 ms

8.5 ms

18 ms

Logical Blocks

488,397,168

Operating Temperature 41° to 131° F (5° to 55° C)

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 37

QuickSpecs

HP xw6200 Workstation

Technical Specifications - Hard Drives

160 GB

80 GB

Capacity

Height

Width

163,928,604,672 bytes

1.0 in (2.54 cm)

Media diameter: 3.5 in (8.89 cm)

Interface

Synchronous Transfer

Rate (Maximum)

Buffer

Physical size: 4 in (10.2 cm)

Serial ATA (3.0 Gb/s)

Up to 3 Gb/s

8 Mbytes

Seek Time (typical reads, includes controller

Single Track

Average

overhead, including settling)

Full-Stroke

Rotational Speed

7,200 rpm

0.9 ms

9.3 ms

18 ms

Logical Blocks

320,173,056

Operating Temperature 41° to 131° F (5° to 55° C)

Capacity

80,026,361,856 bytes

Height

Width

Interface

1.0 in (2.54 cm)

Media diameter: 3.5 in (8.89 cm)

Physical size: 4 in (10.2 cm)

Serial ATA (3.0 Gb/s)

Up to 3 Gb/s

Synchronous Transfer

Rate (Maximum)

Buffer

8 MB

Seek Time (typical reads, includes controller

Single Track

Average

overhead, including settling)

Full-Stroke

Rotational Speed

7,200 rpm

2 ms

9.3 ms

21 ms

Logical Blocks

156,301,488

Operating Temperature 41° to 131° F (5° to 55° C)

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 38

QuickSpecs

HP xw6200 Workstation

Technical Specifications - Hard Drives

74 GB Serial ATA 1.5-Gb/s

Hard Drives (10,000 rpm)

Capacity

Height

Width

74,355,769,344 bytes

1.0 in (2.54 mm)

Media diameter: 3.3 in (84mm)

Physical size: 4 in (10.2 cm)

Serial ATA

150 MB/s

Interface

Synchronous Transfer

Rate (Maximum)

Buffer

8 MB

Seek Time (typical reads, includes controller

Single Track

Average

overhead, including settling)

Full-Stroke

0.3 ms

4.5 ms

10.2 ms

Rotational Speed

Logical Blocks

10,000 rpm

145,226,112

Operating Temperature 41° to 140° F (5 to 60° C)

Ultra320 SCSI Hard

Drives (10,000 rpm)

73 GB Capacity

Height

Width

Interface

73,407,865,856 bytes

1.0 in (2.54 cm)

3.5 in (8.9 cm)

68 pin LVD SCSI

320 MB/s

Synchronous Transfer

Rate (Maximum)

Buffer

8 Mbytes

Seek Time (typical reads, includes controller

Single Track

Average

overhead, including settling)

Full-Stroke

Rotational Speed

10,000 rpm

0.3 msec

<4.5 msec

<11.0 msec

Logical Blocks

143,374,738

Operating Temperature 40° to 130° F (5° to 55° C)

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 39

QuickSpecs

HP xw6200 Workstation

Technical Specifications - Hard Drives

146 GB Capacity

Height

Width

146,815,737,856 bytes

1.0 in (2.54 cm)

3.5 in (8.9 cm)

Interface

Synchronous Transfer

Rate (Maximum)

68 pin LVD SCSI

320 MB/s

Buffer

8 Mbytes

Seek Time (typical reads, includes controller

Single Track

Average

overhead, including settling)

Full-Stroke

0.3 msec

<4.5 msec

<11.0 msec

Rotational Speed

Logical Blocks

10,000 rpm

286,749,488

Operating Temperature 40° to 130° F (5° to 55° C)

300 GB Capacity

Height

Width

Interface

300,000,000,000 bytes

1.0 in (2.54 cm)

3.5 in (8.9 cm)

68 pin LVD SCSI

320 MB/s

Synchronous Transfer

Rate (Maximum)

Buffer

8 Mbytes

Seek Time (typical reads, includes controller

Single Track

Average

overhead, including settling)

Full-Stroke

Rotational Speed

10,000 rpm

0.3 msec

<4.5 msec

<11.0 msec

Logical Blocks

585,937,500

Operating Temperature 40° to 130° F (5° to 55° C)

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 40

QuickSpecs

HP xw6200 Workstation

Technical Specifications - Hard Drives

Ultra320 SCSI Hard

Drives (15,000 rpm)

36 GB

73 GB

146 GB

Capacity

Height

Width

36,420,075,520 bytes

1.0 in (2.54 cm)

3.5 in (8.9 cm)

Interface

Synchronous Transfer

Rate (Maximum)

68 pin LVD SCSI

320 MB/s

Buffer

8 Mbytes

Seek Time (typical reads, includes controller

Single Track

Average

overhead, including settling)

Full-Stroke

Rotational Speed

Logical Blocks

15,000 rpm

71,132,960

Operating Temperature 40° to 130°F (5° to 55°C)

0.3 msec

<4.5 msec

<11.0 msec

Capacity

Height

Width

Interface

73,407,865,856 bytes

1.0 in (2.54 cm)

3.5 in (8.9 cm)

68 pin LVD SCSI

320 MB/s

Synchronous Transfer

Rate (Maximum)

Buffer

8 Mbytes

Seek Time (typical reads, includes controller

Single Track

Average

overhead, including settling)

Full-Stroke

Rotational Speed

15,000 rpm

Logical Blocks

143,374,738

Operating Temperature 40° to 130°F (5° to 55° C)

Capacity

146,815,737,856 bytes

Height

Width

Interface

Synchronous Transfer

Rate (Maximum)

1.0 in (2.5 cm)

3.5 in (8.9 cm)

68 pin LVD SCSI

320 MB/s

0.3 msec

<4.5 msec

<11.0 msec

Buffer

8 Mbytes

Seek Time (typical reads, includes controller

Single Track

Average

overhead, including settling)

Full-Stroke

Rotational Speed

Logical Blocks

15,000 rpm

143,374,738

Operating Temperature 40° to 130°F (5° to 55°C)

0.3 msec

<4.5 msec

<11.0 msec

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 41

QuickSpecs

Technical Specifications - Removable Storage

USB Disk on Key

HP xw6200 Workstation

Dimensions (HxWxD) 0.9 x 0.7 x 3.9 in (2.3 x 1.8 x 9.8 cm)

Weight

USB Specification

0.05 lb (0.02 kg)

2.0

Transfer Rate

Storage Media

Power Supply

Capacity

Read-1023 KB/Sec; Write-850 KB/Sec

Solid state flash memory, no moving parts

USB Bus-powered, no external power required

256 MB

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 42

QuickSpecs

Technical Specifications - Input/Output Devices

HP xw6200 Workstation

PS/2 OR USB Standard

Keyboard

Physical characteristics

Electrical

Mechanical

Keys

104, 105, 106, 107, 109 layout (depending upon country)

Dimensions (L x W x H) 18.0 x 6.4 x 0.98 in (45.8 x 16.3 x 2.5 cm)

Weight

2 lb (0.9 kg) minimum

Operating voltage

+ 5VDC ± 5%

Power consumption

50-mA maximum (with three LEDs ON)

ESD

EMI - RFI

CE level 4, 15-kV air discharge

Conforms to FCC rules for a Class B computing device

MicrosoftPC 99 - 2001

Functionally compliant

Languages

38 available

Keycaps

Switch actuation

Switch life

Low-profile design

55-g nominal peak force with tactile feedback

Switch type

20 million keystrokes (using Hasco modified tester)

Contamination-resistant switch membrane

Key-leveling mechanisms

Cable length

For all double-wide and greater-length keys

6 ft (1.8 m)

Microsoft PC 99 - 2001 Mechanically compliant

Acoustics

43-dBA maximum sound pressure level

Environmental

Operating temperature 50° to 122° F (10° to 50° C)

Non-operating temperature

-22° to 140° F (-30° to 60° C)

Operating humidity

10% to 90% (non-condensing at ambient)

Non-operating humidity 20% to 80% (non-condensing at ambient)

Operating shock

40 g, six surfaces

Non-operating shock

80 g, six surfaces

Operating vibration

Non-operating vibration

2-g peak acceleration

4-g peak acceleration

Drop (out of box)

Drop (in box)

26 in (66 cm) on carpet, six-drop sequence

42 in (107 cm) on concrete, 16-drop sequence

Operating system support

Approvals

Microsoft Windows XP Professional, Microsoft Windows XP

Professional x64 Edition, Red Hat Enterprise Linux Workstation 3 and 4

UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC

Ergonomic compliance ANSI HFS 100, ISO 9241-4, and TUVGS

Kit contents

Keyboard, keyboard software media, installation guide, warranty card, safety and comfort

HP USB Smart Card

Keyboard

(ED707AA)

Physical characteristics

Keys

Form factor

104, 105, 106, 107, 109 layout (depending upon country

USB basic Smart Card keyboard

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 43

QuickSpecs

HP xw6200 Workstation

Technical Specifications - Input/Output Devices

Electrical

Mechanical

Environmental

Colors

Carbonite/Silver

Dimensions (L x W x H) 18.2 x 6.3 x 1.3 in (46.3 x 16.1 x 3.3 cm)

Weight

2 lb (0.9 kg) minimum

Operating voltage

+ 5VDC ± 5%

Power consumption

100-mA maximum (with four LEDs ON)

System interface

ESD

USB Type A plug connector

CE level 4, 15-kV air discharge

EMI - RFI

Conforms to FCC rules for a Class B computing device

MicrosoftPC 99 - 2001

Functionally compliant

Languages

Keycaps

Switch actuation

Switch life

30+ available

Low-profile design

55-g nominal peak force with tactile feedback

20 million keystrokes (using Hasco modified tester)

Switch type

Key-leveling mechanisms

Contamination-resistant switch membrane

For all double-wide and greater-length keys

Cable length

6 ft (1.8 m)

Microsoft PC 99 - 2001 Mechanically compliant

Acoustics

43-dBA maximum sound pressure level

Operating temperature 50° to 122° F (10° to 50° C)

-22° to 140° F (-30° to 60° C)

Non-operating temperature

Operating humidity

10% to 90% (non-condensing at ambient)

Non-operating humidity 20% to 80% (non-condensing at ambient)

Operating shock

40 g, six surfaces

Non-operating shock

80 g, six surfaces

Operating vibration

2-g peak acceleration

4-g peak acceleration

Non-operating vibration

Drop (out of box)

Drop (in box)

26 in (66 cm) on carpet, six-drop sequence

42 in (107 cm) on concrete, 16-drop sequence

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 44

QuickSpecs

HP xw6200 Workstation

Technical Specifications - Input/Output Devices

SMARTCARD function Support

Interface

Chipset

Standard APIs supported

Power

All ISO 7816 smart cards

Reads from and writes to all ISO7816-1, 2, 3,

4 memory and microprocessor smart cards

(T=0, T=1)

SCM STCII

PC/SC, EMV2000, SET

USB Port

Short circuit detection (protects smart card and reader)

Power supply compliant with ISO7816 and

EMV (5V, 60 mA)

Supports 3-V and 5-V cards

Power consumption

250-mA maximum draw (50 mA for the keyboard with three LEDs ON and 200-mA maximum startup current using a high-current,

60-mA smart card)

Communication

Reader performance interface

Electro-magnetic standards

From card

From computer

Landing mechanism Contact device

Card insertions rating

Interface modes

Friction contact

Up to 100,000 insertion cycles

USB communications through USB port

SCM protocol

Automatic card insertion/removal detection

USB connection

Europe

Programmable from

9,600 baud to 115,200 baud

Up to 38,400 baud

89/336/CEE guideline

USA

USAFCC part 15

Operating system support

Approvals

Microsoft® Windows® 2000, Windows XP Home, Windows XP

Professional, xpe, ce.net, Linux, XP-64

CE-Mark, UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick,

MIC, JITC, EMV2000, USB-IF

Ergonomic compliance ANSI HFS 100, ISO 9241-4, TUVGS

Kit contents

Keyboard, I/O Security and Documentation CD, , warranty card

Smart card compatibility

HP

American Express

HP ProtectTools Smart Card

Amex Blue

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 45

QuickSpecs

HP xw6200 Workstation

Technical Specifications - Input/Output Devices

Axalto (Schlumberger) Cryptoflex 8K

Cryptoflex 16K

Cryptoflex 32K

Cryptoflex 32K e-gate

Cyberflex Access 64K

Cyberflex Access 32K

Cyberflex 32K e-gate

Cyberflex 64K

Cyberflex Palmera

Payflex-S

Payflex 1K

Payflex 2K

Payflex 4K

Payflex 8K

Prismera

US DoD CAC

Cardlogix

Datakey

CLXSU004KK4

CLXSU008KK5

Model 300

Model 330

De La Rue

Gemplus

VisaCash

Gem Expresso

GKK32K

Gemclub Memo

GemClub Micro

GemXplore

GemSafe

Infineon

SafLink (Litronic)

Sharp

Oberthur

SLE66C322P

Forte

Java Card

CosmopollIC v4

CosmopollIC v4.1

Cosmo ID-One

GalatIIC v2.1

US DoD CAC

Memory Cards

Atmel

AT24C01ASC

AT24C02SC

AT24C04SC

AT24C08SC

AT24C16SC

AT24C32SC

AT24C64SC

AT24C128SC

AT24C256SC

AT24C512SC

AT88SC153

AT88SC1608

Axalto (Schlumberger) PrimeFlex Store 8K

PrimeFlex Store 2K

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 46

QuickSpecs

Technical Specifications - Input/Output Devices

nfineon

HP PS/2 Scroll Mouse Dimensions

Weight

Environmental

Electrical

HP xw6200 Workstation

ISSI

ST

Telefonkarte

XICOR

SLE4406

SLE4406E

SLE4406E SE

SLE4418

SLE4428

SLE4432

SLE4436E

SLE4442

SLE5536

IS23SC4418

IS23SC4428

14C02

SLE4406

SLE4436

SLE5536

X24026

3.8 x 6.3 x 11.6 cm (1.5 x 2.5 x 4.6 in)

4.44 oz (126 g)

Operating temperature 50° to 122° F (10° to 50° C)

-22° to 140° F (-30° to 60° C)

Non-operating temperature

Operating humidity

10% to 90% (non-condensing at ambient)

Non-operating humidity 20% to 80% (non-condensing at ambient)

Operating shock

40 g, 6 surfaces

Non-operating shock

80 g, 6 surfaces

Operating vibration

2 g peak acceleration

4 g peak acceleration

Non-operating vibration

Drop (out-of-box) 26 in (66 cm) on carpet, 6-drop sequence

Drop (out-of-box) 1 m on asphalt tile over concrete, 6-drop sequence

5 VDC ± 10%

Operating voltage

Power consumption

15 mA

System consumption

PS/2 mini-din connector

ESD

EMI-RFI

Microsoft

PC99 - 2001

CE level 4, 15 kV air discharge

Conforms to FCC rules for a Class B computing device

Functionally compliant

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 47

QuickSpecs

HP xw6200 Workstation

Technical Specifications - Input/Output Devices

Mechanical

Scroll wheel

Resolution

Tracking speed

Acceleration

Switch actuation

Switch life

Switch type

Tracking mechanism life

Regulatory approvals Compliant

Compatibility

400 ± 20% DPI

10 in/s maximum

100 in/s

Cable length

6 ft (1.8 m)

Microsoft PC99 - 2001

Mechanically compliant

Width

Diameter

8 mm

0.99 in (25.2 mm)

Maximum rotation speed

Switch type

Switch life

Mechanical life

Operating system support

65 g nominal peak force

1,000,000 operations (using Hasco modified tester)

Low force micro-switches

155 mi (250 km) at average speed of 10 in/s

30 mm/s

Light force micro-switch

1 million operations

Minimum 200,000 revolutions

UL, CSA, FCC, CE Mark, TUV, TUV GS,

VCCI, BSMI, C-Tick, MIC

Microsoft Windows XP Professional, Microsoft

Windows XP Professional x64 Edition, Red

Hat Enterprise Linux Workstation 3 and 4

HP 2-button Optical

Scroll Mouse (USB)

Dimensions (H x L x W) 1.5 x 4.5 x 2.5 in (3.8 x 11.6 x 6.3 cm)

Weight

Cable length

0.27 lb (0.12 kg)

72.8 in (185 cm)

System requirements

Microsoft Windows XP Professional, Microsoft Windows XP

Professional x64 Edition, Red Hat Enterprise Linux Workstation 3 and 4

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 48

QuickSpecs

HP xw6200 Workstation

Technical Specifications - Input/Output Devices

Spaceball 5000 USB

(Windows XP only)

Physical characteristics

Environmental

Dimensions (H x W x D) 3.0 x 6.0 x 8.4 in (7.6 x 15.2 x 21.3 cm)

Ball Diameter

Weight

2.2 in (5.6 cm)

2.1 lb (9.94 kg)

Features

Six degrees of freedom motion control through the X, Y, Z axis (pitch, roll, yaw)

Certified for leading CAD and DCC applications

Operating temperature 50° to 104° F (10° to 40° C)

Mechanical

Non-operating temperature

Operating humidity

43° to 140° F (6° to 60° C)

8% to 80% (non-condensing at ambient)

Non-operating humidity 5% to 80% (non-condensing at ambient)

Buttons

12 programmable (unshifted)

Ball Force Range

Ball Torque Range

Resolution

Serial Specifications Connector

0.5 - 8.2N/1.8 - 29.5 oz

0.085 – 0.33 oz-in. (6.91 Nmm)

10 bits

USB 1.1 or greater

Cable Length

Data Rate

Flow Control

USB model

12.8 ft. (3.9 m)

USB model – 16 msec

Xon/Xoff (on PS/2 model only)

Microsoft Windows XP Professional

Software Drivers

Available

System Requirements Disk Space

10 MB free disk space

Regulatory Approvals

UL, cUL, EN 950, EN 60950, CSA, FCC, CE Mark, TUV, CISPR 22, EN

50082, IEC 1000 4-2, IEC 1000-4-3, AS/NZS, VCCI, BSMI, C-Tick

HP SpaceMouse Plus

USB

(Windows XP only)

Physical characteristics

Environmental

Mechanical

USB Specifications

Dimensions (H x W x D) 7.4 x 4.72 x 1.73 in (18.8 x 12.0 x 4.4 cm)

Cap Diameter

Weight

2 x 6.5 x 6.6 mm

1.5 lb (0.68 kg)

Features

Six degrees of freedom motion control through the X, Y, Z axis (pitch, roll, yaw)

Certified for leading CAD and DCC applications

Operating temperature 41° to 140° F (5° to 60° C)

Non-operating temperature

Operating humidity

-13° to 158° F (-25° to 70° C)

10 to 98 % RH (non-condensing)

Non-operating humidity 10 to 98 % RH (non-condensing)

Buttons

11 programmable (unshifted)

Cap Force Range

Cap Torque Range

Resolution

Connector

Cable Length

Data Rate

0.2 N – 4.5 N

4 Nmm to 100 Nmm

8 bit

USB 1.1 or greater

6.56 ft (2 m)

16 msec

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 49

QuickSpecs

HP xw6200 Workstation

Technical Specifications - Input/Output Devices

Software Drivers

Available

Microsoft Windows XP Professional

System Requirements Disk Space

10 MB free disk space

Regulatory Approvals

UL, cUL, EN 950, EN 60950, CSA, FCC, CE Mark, TUV, CISPR 22, EN

50082, IEC 1000 4-2, IEC 1000-4-3, AS/NZS, VCCI, BSMI, C-Tick

HP SpacePilot 3D USB

Intelligent Controller

(model EF390AA)

Physical

Characteristics

Mechanical

Dimensions (L x W x H) 9.3 x 5.6 x 2.0 in (236 x 143 x 53 mm)

Weight

Palmrest

1.875 lb (0.85 kg)

Sculpted

Buttons

LCD Viewing Area

Active Area

21+ programmable speed keys

15 reprogrammable

(W x H) 4.1 x 1.2 in (102 x 30 mm)

(W x H) 3.9 x 1.0 in (98 x 26 mm)

Display Format

Motion Controller

240 x 64

Six degrees of freedom motion control through the X, Y, Z axis (pitch, roll, yaw)

Device Sensitivity

Adjustable to preference

System Requirements

Intel Pentium 4 or AMD Athlon processor based system

20 megabytes free disk space for driver and plug-in installation (CD-

ROM device required)

USB 1.1 or 2.0

Operating System

Supported

Microsoft Windows 2000 and XP

Regulatory Approvals

FCC, CE

1394a FireWire 400 PCI card

Device Interface

Protocol

Data Rate

Devices Supported

Bus Interface

Physical

Environmental

Minimum System

Requirements

IEEE-1394a

400 Mbps

IEEE-1394 compliant devices

PCI

Low profile PCI card with a full height bracket

Operating temperature 41° to 95° F (5° to 35° C)

Non-operating temperature

158° F (70° C) and above

Relative humidity

Ports

10% to 90%

2 rear and 2 front (depends on model of PC)

Windows XP Professional, Windows XP Professional x64 Edition, Linux support with the HP Installer Kit for Linux

Pentium II 266 or faster

32-MB RAM

1-GB Hard Drive

CD-ROM drive

Built in sound system

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 50

QuickSpecs

Technical Specifications - Optical Devices

48X CD-ROM Drive

HP xw6200 Workstation

Form Factor

5.25-in, half-height, tray load

Mounting Orientation

Horizontal or vertical

Interface

ATAPI/EIDE

Dimensions (HxWxD) 1.63 x 5.83 x 7.27 in (4.13 x 14.6 x 18.5 cm)

Weight

1.76 lb (0.8 kg)

Data Transfer Rates -

Read

Media and Formats -

Read

Digital audio extraction (minimum) – 1,200 KB/s (8X)

CD read – up to 7,200 KB/s (48X)

CD Media

stamped, CD-R, CD-RW (LS, HS, US)

CD Capacities

CD Formats

180 MB (mode 2, 8 cm); 540 MB (mode 1, 12 cm); 650 MB (mode 2, 12 cm); 700 MB (Mode

2, 12 cm, 80-minute)

CD-DA, CD-ROM (Mode 1 and 2), CD-XA

(Mode 2, Form 1 and 2), Photo CD (Single and Multi-session), Mixed Mode (Audio and

Data combined), CD-I (Mode 2, Form 1 and 2, and CD-I Ready), CD-Extra, CD-Bridge, Video

CD

Access Times

(typical reads, including settling)

CD-ROM Mode 1

Full Stroke CD

< 125 ms

< 210 ms

Start-up Time (typical) < 7 s (single session), < 30 s (multi-session)

Stop Time (typical) < 4 s

Write Buffer Size

128 KB (minimum)

Data Transfer Modes

PIO Mode 4 (16.6 MB/s); Multi-word DMA mode 2 (16.6 MB/s); UltraDMA Mode 0 (16.7

MB/s); UltraDMA Mode 2 (33.3 MB/s)

Power

Audio Output

Source

Four-pin, DC power receptacle

DC Power Requirement 5 VDC ± 5% - 100 mV ripple p-p

DC Current

12 VDC ± 5% - 200 mV ripple p-p

5 VDC - <1000 mA typical,

< 1600 mA maximum

12 VDC - < 600 mA typical,

<1400 mA maximum

< 2.5 Watt

Total Drive Power

(standby mode)

Line-Out

0.7 VRMS

Signal-to-Noise Ratio

74 dB

Channel Separation

65 dB

Master, slave, and cable select modes

Configuration Jumper

Block

Operating Conditions

(all conditions noncondensing)

Temperature

Humidity

41° to 122° F (5° to 50° C)

10% to 80%

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 51

QuickSpecs

HP xw6200 Workstation

Technical Specifications - Optical Devices

Certifications,

Approvals

Operating Systems

Supported

Supplied Software

MMC-3 support, multi-read compliant, Microsoft WHQL certification,

ACA AS/NZS 3548 class B, BSMI CNS 13438, CE Mark, C.I.S.P.R. Pub

22, TUV or VDE EN60950, EN 55022, EN55024, EMKO EN60950, EN

60825-1, UL 60950, CSA C22.2 60950-2000, CFR 21 part 1040 class 1,

CFR 47 C.I.S.P.R. Pub 22 Class B, DHHS/FDA, ANSI C63.4-1992

(FCC Class B)

Microsoft Windows XP Professional, Microsoft Windows XP

Professional x64 Edition, Red Hat Enterprise Linux Workstation 3

None

16X/48X DVD-ROM

Drive with +R Read

Support

Height

5.25-in, half-height, tray load

Interface Type

ATAPI/EIDE

Dimensions (W x H x D) 5.88 x 1.71 x 7.87 [max] in (149.5 x 43.25 x 200.0 [max] mm) (external, excluding bezel)

Disc Formats

Disc Capacity

DVD-ROM (single and dual layer); DVD-video; DVD-R version 1.0 and

2.0; DVD-RW version 1.0 and 1.1; DVD-R multi-border; DVD+RW;

DVD+R ; CD-ROM Mode 1 and 2; CD-DA; CD-ROM XA Mode 2, Form

1 and 2; CD-extra; CD-text; CD-I Mode 2, Form 1 and 2; CD-I ready; video CD, CD-bridge; PhotoCD (single and multi-session); CD-R; CD-

RW

DVD-ROM

4.7 GB (DVD-5), 8.54 GB (DVD-9), 9.4 GB

(DVD-10), 3.95 GB (DVD-R version 1.0), 4.7

GB (DVD-R version 2.0), 4.7 GB (DVD-RW version 1.0 and 1.1), 4.7 GB (DVD+RW),

4.7G (DVD+R)

Access Times

(typical reads, including settling)

Maximum Data

Transfer Rates

CD-ROM

540 MB (Mode 1, 12 cm), 640 MB (Mode 2,

12 cm), 700 MB (80 minimum CD-R and CD-

RW), 180 MB (8 cm)

DVD-ROM Single Layer 120 ms

CD-ROM Mode 1

Full Stroke DVD

Full Stroke CD

Startup Time

90 ms

240 ms (seek)

160 ms (seek)

< 10 seconds (typical)

Stop Time

< 4 seconds

Data Transfer Modes

PIO Mode 4 (16.6 MB/s); Multi-word DMA mode 2 (16.6 MB/s); UltraDMA Mode 3 (44.4

MB/s)

CD-ROM Read

DVD-ROM Read

Digital Audio

Extraction

6000 KB/s (40X) Max

21,600 KB/s (16X) Max

6000 KB/s (40X) Max

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 52

QuickSpecs

HP xw6200 Workstation

Technical Specifications - Optical Devices

Power

Audio Output

Configuration Jumper

Block

Data Interface

Connector

Operating

Environmental

(all conditions noncondensing)

Certifications,

Approvals

Operating Systems

Supported

Kit Contents

Source

Four-pin, DC power receptacle

DC Power Requirement 5 VDC ± 5% – 100 mV ripple p-p

12 VDC ± 5% – 200 mV ripple p-p

DC Current

5 VDC – <800 mA typical,

< 1000 mA maximum

12 VDC – < 870 mA typical,

<1800 mA maximum

Line-Out

0.7 VRMS

Signal-to-Noise Ratio

85 dB

Channel Separation

65 dB

Master, slave, and cable select modes

40-pin, shrouded and keyed, flat ribbon

Temperature (operating) 41° to 122° F (5° to 50° C)

Relative Humidity

(operating)

10% to 85%

Maximum Wet Bulb

Temperature (operating)

86° F (30° C)

MMC II support, multi-read certification, Microsoft WHQL certification,

ACA AS/NZS 3548 class B, CNS 13438, C.I.S.P.R. Pub 22, TUV or

VDE EN60950, EN 55022, EN55024, EMKO EN60950, EN 60825-1, UL

60950, CSA C22.2 60950-2000, CFR 21 part 1040 class 1, CFR 47

C.I.S.P.R. Pub 22 Class B, DHHS/FDA, ANSI C63.4-1992

Windows 2000, XP Professional, and XP Professional x64 Edition

Red Hat Linux 7.2, 7.3 WS3 and WS4 Versions

16X/40X DVD-ROM Drive, InterVideo WinDVD MPEG Movie Playback software, audio cable, and installation guide.

HP 48X CD-RW Form Factor

5.25-inch, half-height, tray-load

Mounting Orientation

Horizontal or vertical

Interface

ATAPI/EIDE

Dimensions (HxWxD) 1.63 x 5.75 x 7.27 [max] in (4.13 x 14.6 x 18.5 [max] cm) (external, excluding bezel)

Weight (max) 2.0 lb (0.9 kg)

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 53

QuickSpecs

HP xw6200 Workstation

Technical Specifications - Optical Devices

Read Only Disc

Parameters

Writeable Disc

Parameters

Access Times

(typical reads, including settling)

Data Transfer Rates -

Read

Media and Formats -

Read

Data Transfer Rates -

Write

Media and Formats -

Write

Write Methods

Digital audio extraction (minimum) - 1,800

KB/s (12X)

CD read - up to 7,200 KB/s (48X)

CD Media: stamped; CD-R; CD-RW (LS, HS,

US)

CD Capacities: 180 MB (mode 2, 8 cm); 540

MB (mode 1, 12 cm); 650 MB (mode 2, 12 cm); 700 MB (Mode 2, 12 cm, 80-minute)

CD Formats: CD-DA, CD-ROM (Mode 1 and

2), CD-XA (Mode 2, Form 1 and 2), Photo CD

(Single and Multi-session), Mixed Mode

(Audio and Data combined), CD-I (Mode 2,

Form 1 and 2, and CD-I Ready), CD-Extra,

CD-Bridge, Video CD

CD-R write - 2100 KB/s (14X) to 7200 KB/s

(48X)

CD-RW write - 600 KB/s (4X)

CD-RW write (high speed) - 1500 KB/s (10X) to 1800 KB/s (12X)

CD-RW write (ultra high speed) - 2400 KB/s

(16X) to 4800 KB/s (32X)

CD Media: CD-R; CD-RW (LS, HS, US)

CD Capacities: 180 MB (mode 2, 8 cm); 540

MB (mode 1, 12 cm); 650 MB (mode 2, 12 cm); 700 MB (Mode 2, 12 cm, 80-minute)

CD Formats: CD-DA, CD-ROM (Mode 1 and

2), CD-XA (Mode 2, Form 1 and 2), Photo CD

(Single and Multi-session), Mixed Mode

(Audio and Data combined), CD-I (Mode 2,

Form 1 and 2, and CD-I Ready), CD-Extra,

CD-Bridge, Video CD

Disc-at-once, session-at-once, track-at-once, incremental fixed and variable packet, multisession

CD-ROM Mode 1

Full Stroke CD

< 125 ms

< 210 ms

Start-up Time (typical) < 7 s (single session), < 30 s (multi-session)

Stop Time (typical) < 4 s

Write Buffer Size

2 MB

Data Transfer Modes

PIO Mode 4 (16.6 MB/s); Multi-word DMA mode 2 (16.6 MB/s); UltraDMA Mode 2 (33.3

MB/s)

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 54

QuickSpecs

HP xw6200 Workstation

Technical Specifications - Optical Devices

Power

Audio Output

Source

Four-pin, DC power receptacle

DC Power Requirement 5 VDC ± 5%-100 mV ripple p-p

12 VDC ± 5%-200 mV ripple p-p

DC Current

5 VDC (< 1000 mA typical, < 1600 mA maximum)

12 VDC (< 600 mA typical, < 1400 mA maximum)

Total Drive Power

(standby mode)

Line-Out

< 2.5 Watt

0.7 VRMS

Signal-to-Noise Ratio

74 dB

Channel Separation

65 dB

Configuration Jumper

Block

Master, slave, and cable select modes

Operating Conditions Temperature

41° to 122° F (5° to 50° C)

Certifications,

Approvals

Operating Systems

Supported

Supplied Software (for

Windows XP)

Humidity

10% to 90%10% to 90%

MMC-3 support, multi-read compliant, Microsoft WHQL certification,

ACA AS/NZS 3548 class B, BSMI CNS 13438, CE Mark, C.I.S.P.R. Pub

22, TUV or VDE EN60950, EN 55022, EN55024, EMKO EN60950, EN

60825-1, UL 60950, CSA C22.2 60950-2000, CFR 21 part 1040 class 1,

CFR 47 C.I.S.P.R. Pub 22 Class B, DHHS/FDA, ANSI C63.4-1992

(FCC Class B)

Microsoft Windows XP Professional, Microsoft Windows XP

Professional x64 Edition, Red Hat Enterprise Linux Workstation 3

Roxio Digital Media Plus: Create or copy CDs and DVDs, including music and data CDs, and data DVDs

Dantz Retrospect Express: Back up systems to CD, DVD, or tape media.

HP 48X CD-RW/DVD-

ROM Combo Drive

Form Factor

5.25-inch, half-height, tray-load

Mounting Orientation

Horizontal or vertical

Interface

ATAPI/EIDE

Dimensions (HxWxD) 5.77 x 1.71 x 7.87 [max] in (14.66 x 4.34 x 20.0 [max] cm) (external, excluding bezel)

Weight (max) 2.6 lb (1.2 kg)

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 55

QuickSpecs

HP xw6200 Workstation

Technical Specifications - Optical Devices

Read Only Disc

Parameters

Writeable Disc

Parameters

Data Transfer Rates -

Read

Media and Formats -

Read

Data Transfer Rates -

Write

Media and Formats -

Write

Write Methods

CD read - 7200 KB/s (48X) Max

Digital audio extraction (minimum) - 1,800

KB/s (12X)

DVD ROM read - 21,632 KB/s (16X ) Max

CD Media: stamped; CD-R; CD-RW (LS, HS,

US)

CD Capacities: 180 MB (mode 2, 8 cm); 540

MB (mode 1, 12 cm); 650 MB (mode 2, 12 cm); 700 MB (Mode 2, 12 cm, 80-minute)

CD Formats: CD-DA, CD-ROM (Mode 1 and

2), CD-XA (Mode 2, Form 1 and 2), Photo CD

(Single and Multi-session), Mixed Mode

(Audio and Data combined), CD-I (Mode 2,

Form 1 and 2, and CD-I Ready), CD-Extra,

CD-Bridge, Video CD

DVD Media: stamped (single and double layer); DVD+R; DVD+RW; DVD+R DL; DVD-

R; DVD-RW

DVD Capacities: 4.7 GB (DVD-5), 8.54 GB

(DVD-9), 9.4 GB (DVD-10), 3.95 GB (DVD-R version 1.0), 4.7 GB (DVD-R version 2.0), 4.7

GB (DVD-RW version 1.0 and 1.1), 4.7 GB

(DVD+RW), 4.7G (DVD+R)

DVD Formats: DVD-ROM (single and dual layer); DVD-video; DVD-R version 1.0 and

2.0; DVD-RW version 1.0 and 1.1; DVD-R multi-border ; DVD+R version 1.2 (including multi-session); DVD+R DL version 1.0;

DVD+RW version 1.2

CD-R write - 2100 KB/s (14X) to 7200 KB/s

(48X)

CD-RW write - 600 KB/s (4X)

CD-RW write (high speed) - 1500 KB/s (10X) to 1800 KB/s (12X)

CD-RW write (ultra high speed) - 2400 KB/s

(16X) to 4800 KB/s (32X)

CD Media: CD-R; CD-RW (LS, HS, US)

CD Capacities: 180 MB (mode 2, 8 cm); 540

MB (mode 1, 12 cm); 650 MB (mode 2, 12 cm); 700 MB (Mode 2, 12 cm, 80-minute)

CD Formats: CD-DA, CD-ROM (Mode 1 and

2), CD-XA (Mode 2, Form 1 and 2), Photo CD

(Single and Multi-session), Mixed Mode

(Audio and Data combined), CD-I (Mode 2,

Form 1 and 2, and CD-I Ready), CD-Extra,

CD-Bridge, Video CD

Disc-at-once, session-at-once, track-at-once, incremental fixed and variable packet, multisession

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 56

QuickSpecs

HP xw6200 Workstation

Technical Specifications - Optical Devices

Access Times

(typical reads, including settling)

Power

Audio Output

Random DVD

Random CD

Full Stroke DVD

< 140 ms

< 125 ms, (typical)

< 250 ms

Full Stroke CD

< 210 ms

Startup Time (single) < 7 seconds (typical)

< 30 seconds (typical) Startup Time (multisession)

Stop Time (typical) < 4 s

Cache Buffer

2 MB (minimum)

Data Transfer Modes

ATA PIO mode 4 (16.7 MB/s); ATA Multi-word

DMA mode 2 (16.7 MB/s); ATA UltraDMA

Mode 3 (44 Mbytes/s)

Source

Four-pin, DC power receptacle

DC Power Requirement 5 VDC ± 5%-100 mV ripple p-p

DC Current

12 VDC ± 5%-200 mV ripple p-p

5 VDC (< 1000 mA typical, < 1600 mA maximum)

12 VDC (< 600 mA typical, < 1400 mA maximum)

< 2.5 Watt

Total Drive Power

(standby mode)

Line-Out

0.7 VRMS

Signal-to-Noise Ratio

74 dB

Channel Separation

65 dB

Master, slave, and cable select modes

Configuration Jumper

Block

Data Interface

Connector

Operating Conditions

(all conditions noncondensing)

Certifications,

Approvals

Operating Systems

Supported

Supplied Software (for

Windows XP)

40-pin, shrouded and keyed, flat ribbon

Temperature

Relative humidity

Maximum wet bulb temperature

41° to 122° F (5° to 50° C)

10% to 90%

86° F (30° C)

MMC-3 support, multi-read compliant, Microsoft WHQL certification,

ACA AS/NZS 3548 class B, BSMI CNS 13438, CE Mark, C.I.S.P.R. Pub

22, TUV or VDE EN60950, EN 55022, EN55024, EMKO EN60950, EN

60825-1, UL 60950, CSA C22.2 60950-2000, CFR 21 part 1040 class 1,

CFR 47 C.I.S.P.R. Pub 22 Class B, DHHS/FDA, ANSI C63.4-1992

(FCC Class B)

Microsoft Windows XP Professional, Microsoft Windows XP

Professional x64 Edition, Red Hat WS3 and WS4 Versions

Roxio Cineplayer Movie Playback

Roxio Digital Media Plus: Create or copy CDs and DVDs, including music and data CDs, and data DVDs

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 57

QuickSpecs

HP xw6200 Workstation

Technical Specifications - Optical Devices

16X DVD+/-RW, Dual-

Layer (Win and RHWS3)

Height

Orientation

Interface Type

5.25-inch, half-height, tray-load

Either horizontal or vertical

ATAPI/EIDE

Disc Recording

Capacity

4.7 GB (single-layer), 8.5 GB (double-layer)

Dimensions (W x H x D) 5.9 x 1.7 x 7.9 in (15.0 x 4.4 x 20.0 cm)

Weight (maximum)

Recording Method

2.6 lb (1.2 kg)

Disc-at-once, Track-at-once, and Session-at-once; Variable Packet and

Fixed Packet

Write Support

Read Support

DVD+R (1.3), DVD+R DL (1.0), DVD+RW (1.2), DVD-R (2.0), DVD-RW

(1.1), CD-R (OBII Vol2.0 Rev 1.2), CD-RW (LS, HS, US)

DVD-ROM (single- and dual-layer), DVD-Video, DVD+R (include multisession), DVD+RW, DVD-R (incl. multiborder), DVD-RW, DVD-

MRW;

CD-ROM Mode 1, CD-ROM XA (Mode 2, forms 1 and 2), CD-TEXT,

Photo CD single- and multi-session), CD-DA (Audio CD), CD-Extra, CD-

R, CD-RW (supports AM2), VCD, CD-I, UDF (1.02 and 1.50), CD-MRW

Write Speed (maximum) DVD+R

DVD+RW

DVD-R

DVD-RW

16X CAV (21,600 KB/s), 8x ZCLV (10,800

KB/s), 2.4-8x CLV (3250-10,800 KB/s)

2.4-4X CLV (3250-5400 KB/s)

2-4X CLV (2700-5400 KB/s), 8X ZCLV

(10,800 KB/s)

2-4X CLV (2700-5400 KB/s)

CD-R

CD-RW (US)

Read Speed (maximum) DVD-ROM

DVD+R, DVD+RW,

DVD-R, DVD-RW

CD-ROM, CD-R,

CD-RW, CD-Audio

16-40X CAV (2400-6000 KB/s)

4-24X CLV (600-3600 KB/s)

5-16X CAV (6750 - 21,600 KB/s)

4-8X CAV (5400 - 10,800 KB/s)

16-40X CAV (2400 to 6000 KB/s)

Access Time (typical reads, including settling)

Random DVD

Random CD

Full Stroke DVD

Full Stroke CD

< 130 ms (typical)

< 120 ms, (typical)

< 240 ms (seek)

< 200 ms (seek)

Startup Time (single) < 7 seconds (typical)

Startup Time (multisession)

< 30 seconds (typical)

Stop Timex

Cache Buffer

< 4 seconds

2 MB (minimum)

Data Transfer Modes

ATA PIO mode 4 (16.7 MB/s); ATA Multi-word

DMA mode 2 (16.7 MB/s); ATA UltraDMA

Mode 3 (44.4 MB/s) (default on most HP xw workstations)

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 58

QuickSpecs

HP xw6200 Workstation

Technical Specifications - Optical Devices

Power

Audio Output

Source

Four-pin, DC power receptacle

DC Power Requirement 5 VDC ± 5%-100 mV ripple p-p

12 VDC ± 10%-200 mV ripple p-p

DC Current

5 VDC (< 2000 mA typical, < 2500 mA maximum)

12 VDC (< 700 mA typical, < 2000 mA maximum)

Total Drive Power

(standby mode)

Line-Out

< 2.5 Watt

0.7 VRMS

Signal-to-Noise Ratio

74 dB

Channel Separation

65 dB

Operating

Environmental

(all conditions noncondensing)

Temperature

Relative humidity

Maximum wet bulb temperature

41° to 122° F (5° to 50° C)

10% to 90%

86° F (30° C)

System Configuration

Intel Pentium IV Processor or later with 128 MB of memory (required);

256 MB recommended 2-D or 3-D graphics cards on primary disk drive for operating system and application software; second disk drive for audio and video data

Operating Systems

Support

Windows 2000, XP Professional, and XP Professional x64 Edition

Red Hat Linux 7.2, 7.3 WS3 and WS4 Versions (Red Hat Linux 7.2, 7.3,

8, 9.0 may require additional third party software to make full use of this device)

Regulatory Approvals

MPC-3 and MMC-4 compliant, multi-read certified, ATA Spec X3T9.2,

ATAPI Spec T13.1153D, ANSI C63.4-1992, UL 60950, ACA AS/NZS

3548, CB Bulletin No. 96A, CSA C22.2 No. 60950, CFR 47 C.I.S.P.R.

Pub 22 Class B, DHHS/FDA, EMKO-TSE 07/94, TUV EN60950,

EN60825-1, MIC Class B, BSMI-CNS 13438, CE EN60950,

EN55022:1998 and EN55024, Microsoft Logo for Windows XP, relevant parts of IEC 61000-4.

Option Kit contents

16X DVD±R/±RW Drive, InterVideo WinDVD, InterVideo WinDVD

Creator, Roxio Easy Media Creator.

NOTE: This DVD writer kit does not include any software for burning

DVDs on Linux. DVD burning is supported with the 'growisofs' command. CD burning is supported with the 'cdrecord' command. Red

Hat Enterprise Linux WS 3 distribution includes both 'cdrecord' and

'growisofs'. Red Hat Linux 7.2, 7.3, 8, 9.0 distributions only include

'cdrecord'. Therefore DVD burning is only supported on WS 3.

16X DVD+/-RW, Dual-

Layer, with LightScribe

Direct Disc Labeling

Form Factor

Orientation

5.25-inch, half-height, tray-load

Horizontal or vertical

Interface

ATAPI/EIDE

Dimensions (HxWxD) 5.9 x 1.7 x 7.9 in (15.0 x 4.4 x 20.0 cm)

Weight (maximum) 2.6 lb (1.2 kg)

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 59

QuickSpecs

HP xw6200 Workstation

Technical Specifications - Optical Devices

Read Only Disc

Parameters

Data Transfer Rates -

Read

Media and Formats -

Read

DVD-ROM, DVD-video read - 5-16X (6750 -

21,600 KB/s CAV)

DVD-video playback, DVD+R, DVD+RW,

DVD-R, DVD-RW - 4-8X (5400 - 10,800 KB/s

CAV)

CD-audio playback - 8x (1200 KB/s CLV)

Digital audio extraction (minimum) - 12X

(1,800 KB/s CAV)

CD-ROM, CD-R, CD-RW, CD-Audio read -

16-40X (2400 to 6000 KB/s CAV)

CD Media: stamped; CD-R; CD-RW (supports

AM2) (LS, HS, US)

CD Capacities: 180 MB (mode 2, 8 cm); 540

MB (mode 1, 12 cm); 650 MB (mode 2, 12 cm); 700 MB (Mode 2, 12 cm, 80-minute)

CD Formats: CD-DA, CD-ROM (Mode 1 and

2), CD-XA (Mode 2, Form 1 and 2), Photo CD

(Single and Multi-session), Mixed Mode

(Audio and Data combined), CD-I (Mode 2,

Form 1 and 2, and CD-I Ready), CD-Extra,

CD-Bridge, Video CD, UDF (1.02 and 1.50)

DVD Media: stamped (single and double layer); DVD+R; DVD+RW; DVD+R DL; DVD-

R; DVD-RW

DVD Capacities: 4.7 GB (DVD-5), 8.54 GB

(DVD-9), 9.4 GB (DVD-10), 14.1 GB (DVD-

14), 17.0 GB (DVD-18), 3.95 GB (DVD-R version 1.0), 4.7 GB (DVD-R version 2.0), 4.7

GB (DVD-RW version 1.0 and 1.1), 4.7 GB

(DVD+RW), 4.7G (DVD+R), 1.46 GB

(DVD+R, 8cm), 1.46 GB (DVD+RW, 8cm)

DVD Formats: DVD-ROM (single and dual layer); DVD-video; DVD-R version 1.0 and 2.0

(including multi-border); DVD-RW version 1.0

and 1.1; DVD+R version 1.3 (including multisession); DVD+R DL version 1.0; DVD+RW version 1.2

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 60

QuickSpecs

HP xw6200 Workstation

Technical Specifications - Optical Devices

Writeable Disc

Parameters

Data Transfer Rates -

Write

Media and Formats -

Write

Write Methods

CD-R write - 16-40X (2400-6000 KB/s CAV)

CD-RW write - 4X (600 KB/s CLV)

CD-RW write (high speed) - 10X (1500 KB/s

CLV)

CD-RW write (ultra high speed) - 16-24X

(2400-3600 KB/s ZCLV)

DVD+R - 6-16X (8100-21,600 KB/s CAV), 8x

(10,800 KB/s ZCLV), 2.4-4x (3250-5400 KB/s

CLV)

DVD+R DL - 2.4 (3250 KB/s CLV)

DVD+RW - 2.4-4X (3250-5400 KB/s CLV)

DVD-R - 2-4X (2700-5400 KB/s CLV), 8X

(10,800 KB/s ZCLV)

DVD-RW - 2-4X (2700-5400 KB/s CLV)

CD Media: CD-R (OBII Vol2.0 Rev 1.2), CD-

RW (LS, HS, US)

CD Capacities: 180 MB (mode 1, 8 cm); 540

MB (mode 1, 12 cm); 650 MB (mode 2, 12 cm); 700 MB (Mode 2, 12 cm, 80-minute)

CD Formats: CD-DA, CD-ROM (Mode 1 and

2), CD-XA (Mode 2, Form 1 and 2), Photo CD

(Single and Multi-session), Mixed Mode

(Audio and Data combined), CD-I (Mode 2,

Form 1 and 2, and CD-I Ready), CD-Extra,

CD-Bridge, Video CD, UDF (1.02 and 1.50)

DVD Media: DVD+R, DVD+R DL, DVD+RW,

DVD-R, DVD-RW

DVD Capacities: 4.7 GB (DVD-5), 8.54 GB

(DVD-9), 4.7 GB (DVD-R version 2.0), 4.7 GB

(DVD-RW version 1.1), 4.7 GB (DVD+RW version 1.3), 4.7G (DVD+R version 1.2) ),

1.46 GB (DVD+R, 8cm), 1.46 GB (DVD+RW,

8cm)

DVD Formats: DVD-R version 1.0 and 2.0

(including multi-border); DVD-RW version 1.0

and 1.1; DVD+R version 1.3 (including multisession); DVD+R DL version 1.0; DVD+RW version 1.2

Disc-at-once, session-at-once, track-at-once, incremental fixed and variable packet, multisession

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 61

QuickSpecs

HP xw6200 Workstation

Technical Specifications - Optical Devices

LightScribe Direct Disc

Labeling Parameters

Access Times

(typical reads, including settling)

Media Supported

Resolution

CD-R: LightScribe Version 1.0

DVD+R: LightScribe Version 1.0

Dots per inch: 600

Tracks per inch: 500-1600 (mode dependent)

Draft quality: < 20 min

Labeling Times

Random DVD

Random CD

Full Stroke DVD

Full Stroke CD

Normal quality: < 28 min

Best quality: < 36 min

< 130 ms (typical)

< 120 ms (typical)

< 240 ms

< 200 ms

Startup Time (single) < 7 seconds (typical)

Startup Time (multisession)

< 30 seconds (typical)

Power

Stop Time (typical)

Cache Buffer

< 4 s

2 MB

Data Transfer Modes

ATA PIO mode 4 (16.7 MB/s); ATA Multi-word

DMA mode 2 (16.7 MB/s); ATA UltraDMA

Mode 3 (44.4 MB/s) (default on most HP xw series workstations)

Source

Four-pin, DC power receptacle

Audio Output

Operating Conditions

(all conditions noncondensing)

Certifications,

Approvals

Operating Systems

Supported

DC Power Requirement 5 VDC ± 5%-100 mV ripple p-p

12 VDC ± 5%-200 mV ripple p-p

DC Current

5 VDC (< 1000 mA typical, < 1600 mA maximum)

12 VDC (< 600 mA typical, < 1400 mA maximum)

Total Drive Power

(standby mode)

Line-Out

< 2.5 Watt

0.7 VRMS

Signal-to-Noise Ratio

74 dB

Channel Separation

65 dB

Temperature

Relative humidity

41° to 122° F (5° to 50° C)

10% to 90%

Maximum wet bulb temperature

86° F (30° C)

MMC-4 compliant, multi-read compliant, Microsoft WHQL certification,

ACA AS/NZS 3548 class B, BSMI CNS 13438, CE Mark, C.I.S.P.R. Pub

22, TUV or VDE EN60950, EN 55022, EN55024, EMKO EN60950, EN

60825-1, UL 60950, CSA C22.2 60950-2000, CFR 21 part 1040 class 1,

CFR 47 C.I.S.P.R. Pub 22 Class B, DHHS/FDA, ANSI C63.4-1992

(FCC Class B), relevant parts of IEC 61000-4.

Microsoft Windows XP Professional,

Microsoft Windows XP Professional x64 Edition

Red Hat Linux 7.3 WS3 and WS4 Versions (LightScribe labeling functionality not supported on Linux)

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 62

QuickSpecs

HP xw6200 Workstation

Technical Specifications - Optical Devices

Supplied Software (for

Windows XP)

Roxio Cineplayer Movie Playback

Roxio Digital Media Plus: Create or copy CDs and DVDs, including music and data CDs, and data DVDs

Roxio MyDVD for DVD authoring

NOTE: LightScribe Direct Disc Labeling is supported only on 32-bit

Windows XP in the launch timeframe for the xw4300. Support for

Windows XP Professional x64 Edition is anticipated to be available some time after the launch, and will require software updates. There is no support for LightScribe labeling under Linux. The drive will operate as a DVD writer under these other operating systems, but will not be available in software applications as a LightScribe "printer".

NOTE: This DVD writer kit does not include any software for burning DVDs on Linux. DVD burning is supported with the 'growisofs' command. CD burning is supported with the 'cdrecord' command.

Red Hat Enterprise Linux WS 3 distribution includes both 'cdrecord' and 'growisofs'. Red Hat

Linux 8, 9.0 distributions only include 'cdrecord'. Therefore DVD burning is only supported on WS

3.

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 63

QuickSpecs

Technical Specifications - Graphics

HP xw6200 Workstation

NVIDIA Quadro NVS

285 with TurboCache

Technology PCIe

Graphics

Form Factor

Graphics Controller

Bus Type

Memory

NVIDIA Quadro NVS 285 with TurboCache Technology 128MB PCIe

Dual Head

Low profile, both ATX and low profile brackets included

Integrated Quadro 285 2D graphics processor unit (GPU)

PCI-Express

128 MB DDR (64 MB local frame buffer plus 64 MB of shared system memory via TurboCache technology)

NOTE: The graphics card uses part of the total system memory (RAM) for graphics performance. System memory dedicated to graphics performance is not available for other use by other programs.

DMS-59 to dual-DVI Y-cable or dual-VGA Y-cable

Connectors

Dimensions

Overlay planes

Low-profile, 2.586 x 6.6 in (6.57 x 16.76 cm)

One 16-bit Video overlay plane

Multi-monitor support

Dual analog or digital monitors

Maximum pixel clock

350 MHz

RAMDAC

High-definition Video

Processor (HDVP)

Available graphics drivers

Dual 350 MHz (integrated)

Full screen, full frame video playback of HDTV and DVD content

DVD-ready motion compensation for MPEG-2

Independent hardware color controls for video overlay

Hardware color-space conversion (YUV 4:2:2 and 4:2:0)

IDCT motion compensation

5-tap horizontal by 3-tap vertical filtering

8:1 up/down scaling

Microsoft Windows 2000 and Microsoft Windows XP (Provides full native Dual View mode, Span or Big Desktop mode, and Clone mode)

HP qualified drivers may be preloaded or available from the HP support

Web site: http://www.hp.com/country/us/en/support.html?pageDisplay=drivers

ATI FireGL V3100

Graphics Card (PCI

Express)

Form factor

Graphics controller

Bus type

Memory

ATX

RV370

PCI-Express x16

128 MB 200MHz DDR unified frame buffer, Z-buffer and Texture storage

Connectors

1 DVI-I analog/digital and 1 VGA analog monitor output

Multi-monitor support

Dual integrated display controllers supporting up to 2048x1536 @ 85Hz on both displays

RAMDAC

Dual 400 MHz integrated

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 64

QuickSpecs

HP xw6200 Workstation

Technical Specifications - Graphics

Architecture features

128-bit memory interface

128-bit IEEE floating-point precision

24-bits per RGBA color precision

4-bit sub-pixel precision

2 parallel geometry engines

4 parallel pixel pipelines

2x/4x/6x FSAA

Hardware accelerated antialiased points and lines

Hardware OpenGL overlay planes

Hardware accelerated two-sided lighting

Hardware accelerated clipping planes

Hardware accelerated occlusion culling

Hardware accelerated clip planes

Shading architecture

Smartshader™ technology

Programmable pixel and vertex shaders

16 textures per pass

Pixel shaders up to 160 instructinos with 32-bit floating point precision for each RGBA component

Multiple render target support

Shadow volume rendering acceleration

High precision 10-bit per channel frame buffer support

Supported graphics

APIs

OpenGL 1.5

DirectX 9.0

Available graphics drivers

Windows XP Professional, Windows XP Professional x64 Edition, Linux

Xfree86HP qualified drivers may be preloaded or available from the HP support Web site: http://welcome.hp.com/country/us/eng/software_drivers.html

.

Maximum resolution

DVI-I output – drives digital display at resolutions up to 1600x1200

Internal 400MHz RAMDACs – drives dual analog displays up to

2048x1536 @ 85Hz each

NVIDIA Quadro FX 540

PCI-Express Graphics

Card

Form Factor

Graphics Controller

Bus Type

RAMDAC

ATX, 4.376" x 7.0"

Single slot

NVIDIA NV43GL

PCI-Express x16, <75W power consumption

Dual 400 MHz integrated

Memory

128 MB 275 MHz DDR SDRAM unified frame buffer, Z-buffer and

Texture storage

8.8 GB/sec graphics memory bandwidth

DVI-I + VGA + 10-pin HDTV Out (HD cable purchased separately)

Connectors

Multi-monitor support

Integrated analog display controller supporting a single analog display at

2048x1536 @ 75Hz, one digital display at 1600x1200 @ 60Hz.

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 65

QuickSpecs

HP xw6200 Workstation

Technical Specifications - Graphics

Additional product features

128 KB BIOS 3.3V Flash ROM reprogrammable by SW

Hardware accelerated Overlay Planes

Hardware accelerated two-sided lighting

Hardware accelerated antialiased points and lines

3D Volumetric Texture support

Hardware accelerated Occlusion Culling

Compliant with Microsoft/Intel PC2001 Workstation requirements

Video Timings compliant with VESA DMT 1.0 and VESA GTF 1.0

specifications

DDC2B+ Monitor support on all OS platforms

ACPI Version 1.0b Power Management support (all modes)

Shading architecture

Fully programmable GPU (OpenGL1.5/DirectX 9.0c class)

Long fragment programs (up to 65,536 instructions)

Long vertex programs (up to 65,536 instructions)

Looping and subroutines (up to 256 loops per vertex program)

Dynamic flow control

Conditional execution

Optimized compilers for Cg, OpenGL shading language, and Microsoft

HLSL

Supported graphics

APIs

OpenGL 1.5 ICD with immediate mode support for all OGL primitive types

DirectX 9.0c

Available graphics drivers

HP-tested: Microsoft Windows XP, Windows 2000, and Linux

HP qualified drivers may be preloaded or available from the HP support

Web site: http://welcome.hp.com/country/us/eng/software_drivers.html

.

Maximum Resolution

DVI-I output - drives digital display at resolutions up to 1600x1200 @

60Hz

Internal 400MHz RAMDACs – drives dual analog display up to

2048x1536 @ 75Hz each

NVIDIA Quadro FX

1400 PCI-Express

Graphics Controller

Form Factor

Graphics Controller

Bus Type

RAMDAC

ATX, 4.376" x 8.5"

Single slot

NVIDIA NV41GL

PCI-Express x16, <75W power consumption

Dual 400 MHz integrated

Memory

128 MB 300 MHz DDR SDRAM unified frame buffer, Z-buffer and

Texture storage

19.2 GB/s graphics memory bandwidth

2 DVI-I analog/digital monitor outputs, 1 3-pin Mini DIN stereo output

Connectors

Multi-monitor support

Dual integrated analog display controllers supporting up to two analog displays at 2048x1536 @ 85Hz on both displays.

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 66

QuickSpecs

HP xw6200 Workstation

Technical Specifications - Graphics

Additional product features

128 KB BIOS 3.3V Flash ROM reprogrammable by SW

Hardware accelerated Overlay Planes

Hardware accelerated two-sided lighting

Hardware accelerated antialiased points and lines

Quad-buffered Stereo

3D Volumetric Texture support

Hardware accelerated Occlusion Culling

Scalable Link Interface (SLI) technology

Compliant with Microsoft/Intel PC2001 Workstation requirements

Video Timings compliant with VESA DMT 1.0 and VESA GTF 1.0

specifications

DDC2B+ Monitor support on all OS platforms

ACPI Version 1.0b Power Management support (all modes)

Shading architecture

Fully programmable GPU (OpenGL1.5/DirectX 9.0c class)

Long fragment programs (up to 65,536 instructions)

Long vertex programs (up to 65,536 instructions)

Looping and subroutines (up to 256 loops per vertex program)

Dynamic flow control

Conditional execution

Optimized compilers for Cg, OpenGL shading language, and Microsoft

HLSL

Supported graphics

APIs

OpenGL 1.5 ICD with immediate mode support for all OGL primitive types

DirectX 9.0c

Available graphics drivers

HP-tested: Microsoft Windows XP, Windows 2000 and Linux

HP qualified drivers may be preloaded or available from the HP support

Web site: http://welcome.hp.com/country/us/eng/software_drivers.html

.

Maximum Resolution

Dual DVI-I output – drives dual digital displays at resolutions up to

1900x1200 @ 60Hz

Internal 400MHz RAMDACs – drives dual analog displays up to

2048x1536 @ 85Hz each

NVIDIA Quadro NVS

440 256 MB Graphics

Controller

Form Factor

Graphics Controller

VGA controller

Bus Type

ATX

2 nv43 2D graphics processor units (GPUs)

Integrated into the Quadro GPU

PCI-E x16

RAMDAC

Memory

Dual 350 MHz

256 MB DDR frame buffer and Texture storage (128MB per GPU)

Connector

Two DMS-59

Controller clock speed 250 MHz

Color planes

Overlay planes

32-bit color buffer

1 16-bit Video overlay plane

Maximum pixel clock

350 MHz

Multi-Monitor Support

Up to 4 analog or digital monitors

Single DVI Support

Dual DVI Support

Yes

Yes

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 67

QuickSpecs

HP xw6200 Workstation

Technical Specifications - Graphics

High-definition Video

Processor (HDVP)

Available graphics drivers

Full-screen, full-frame video playback of HDTV and DVD content

DVD-ready motion compensation for MPEG-2

Independent hardware color controls for video overlay

Hardware color-space conversion (YUV 4:2:2 and 4:2:0)

IDCT motion compensation

5-tap horizontal by 3-tap vertical filtering

8:1 up/down scaling

Microsoft Windows Vista Business 32 and 64, Microsoft Windows XP

(Provides full native Dual View mode, Span or Big Desktop mode, and

Clone mode )

HP qualified drivers may be preloaded or available from the HP support

Web site: http://welcome.hp.com/country/us/eng/software_drivers.html

.

NVIDIA Quadro FX

3400 Graphics Card

Form Factor

Graphics Controller

Bus Type

Memory

ATX

NVIDIA NV45GL

PCI-Express x16

256 MB 450 MHz GDDR3 SDRAM unified frame buffer, Z-buffer and

Texture storage

Connectors

2 DVI-I (one dual-link/one single-link) analog/digital monitor outputs,

1 3-pin Mini DIN stereo output

Multi-monitor support

Dual integrated analog display controllers supporting up to two analog displays at 2048x1536 @ 85Hz on both displays or dual digital displays at 1600x1200 (single-link) and 3840x2400 (dual-link).

RAMDAC

NVIEW advanced multi-display desktop and application management seamlessly integrated into Microsoft Windows

Dual 400 MHz integrated

Architecture features

256-bit memory interface

128-bit IEEE floating-point precision graphics pipeline

128-bit color precision

12-bit sub-pixel precision

8x FSAA at 1920x1200, 4x at 2048x1536, rotated grid FSAA sampling algorithm

Hardware accelerated antialiased points and lines

Hardware OpenGL overlay planes

Hardware accelerated two-sided lighting

Hardware accelerated clipping planes

3rd generation occlusion culling

3D volumetric texture support

Quad-buffered stereo

Dual Link DVI enabling driving digital displays up to 3840x2400 (24Hz)

Shading architecture

Fully programmable GPU

Long fragment programs (up to 65,536 instructions)

Long vertex programs (up to 65,536 instructions)

Looping and subroutines (up to 256 loops per vertex program)

Dynamic flow control

Conditional execution

Supported graphics

APIs

OpenGL 1.5

DirectX 9.0

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 68

QuickSpecs

HP xw6200 Workstation

Technical Specifications - Graphics

Available graphics drivers

HP-tested: Microsoft Windows® XP, Windows 2000, and Linux

HP qualified drivers may be preloaded or available from the HP support

Web site: http://welcome.hp.com/country/us/eng/software_drivers.html

.

Maximum Resolution

Dual DVI-I output – drives dual digital displays at resolutions up to

1600x1200 @ 60Hz (single-link) and 3840x2400 @ 24Hz (dual-link).

Internal 400MHz RAMDACs – drives dual analog displays up to

2048x1536 @ 75Hz each

NVIDIA Quadro FX

3450 Graphics

Controller

Form Factor

Graphics Controller

Bus Type

ATX

NVIDIA Quadro FX 3450 Workstation GPU

PCI-Express x16

Memory

Connectors

256 MB 450 MHz GDDR3 SDRAM unified graphics memory

2 DVI-I (one dual-link/one single-link) analog/digital monitor outputs, 1 3pin Mini DIN stereo output, DVI-I to VGA adapters included

Multi-Monitor Support

Dual integrated display controllers supporting up to two analog displays at 2048 x 1536 @ 75 Hz on both displays or dual digital displays at 1920 x 1200 (single-link) and 3840 x 2400 (dual-link).

NVIEW advanced multi-display desktop and application management seamlessly integrated into Microsoft Windows

Architecture Features

256-bit memory interface

128-bit IEEE floating-point color precision

12-bit sub-pixel precision

65,536 fragment instruction

65,536 vertex instruction

3D volumetric textures

Single-system powerwall

12 pixels per clock rendering engine

Hardware accelerated antialiased points and lines

Hardware OpenGL overlay planes

Hardware accelerated two-sided lighting

Hardware accelerated clipping planes

3rd generation occlusion culling

16 textures per pixel in fragment programs

Window ID clipping functionality

Hardware accelerated line stippling

OpenGL Quad-buffered stereo

Shading Architecture

Fully programmable GPU (OpenGL 2.0/DirectX

9.0c class)

Long fragment programs (up to 65,536 instructions)

Long vertex programs (up to 65,536 instructions)

Looping and subroutines (up to 256 loops per vertex program)

Dynamic flow control

Conditional execution

High Level Shader

Languages

Optimized compiler for Cg and Microsoft® HLSL

OpenGL 2.0 and DirectX 9.0c support

Open source compiler

High-Resolution

Antialiasing

12-bit subpixel sampling precision enhances AA quality

Rotated-grid full-scene antialiasing (RG FSAA)

8x FSAA dramatically reduces visual aliasing artifacts or "jaggies" at resolution up to 1920x1200

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 69

QuickSpecs

Technical Specifications - Graphics

Display Resolution

Support

HP xw6200 Workstation nView Architecture

Supported Graphics

APIs

Available Graphics

Drivers

Dual Link DVI- I output-drives digital displays at resolutions up to 3840 x

2400 @ 24 Hz

Single Link DVI-I output drives digital displays at resolutions up to 1920 x 1200 @ 75 Hz

Internal 400 MHz DACs - Two analog displays up to 2048 x 1536 @ 75

Hz each

Advanced multi-display desktop & application management seamlessly integrated into Microsoft Windows.

OpenGL 2.0 ICD with immediate mode support for all OGL primitive types

DirectX 9.0c

Microsoft Windows XP, Linux - Full Open GL implementation, complete with NVIDIA and ARB extensions.

HP qualified drivers may be preloaded or available from the HP support web site: http://welcome.hp.com/country/us/eng/software_drivers.html

.

ATI FireGL V5100

PCI-Express Graphics

Controller

Form Factor

Graphics Controller

Bus Type

Memory

ATX

RV423

PCI-Express x16

128 MB 350MHz DDR unified frame buffer, Z-buffer and Texture storage

Connectors

2 DVI-I analog/digital monitor outputs, 1 3-pin Mini DIN stereo output

Multi-monitor support

Dual integrated display controllers supporting up to two analog displays at 2048x1536 @ 85Hz on both displays.

RAMDAC

Dual 400 MHz integrated

Architecture features

256-bit memory interface

128-bit IEEE floating-point precision

24-bits per RGBA color precision

8-bit sub-pixel precision

6 parallel geometry engines

12 parallel pixel pipelines

2x/4x/6x FSAA

Hardware accelerated antialiased points and lines

Hardware OpenGL overlay planes

Hardware accelerated two-sided lighting

Hardware accelerated clipping planes

Hardware accelerated occlusion culling

Hardware accelerated clip planes

Quad-buffered stereo

Shading architecture

Smartshader™ technology

Programmable pixel and vertex shaders

16 textures per pass

Pixel shaders up to 160 instructions with 32-bit floating point precision for each RGBA component

Multiple render target support

Shadow volume rendering acceleration

High precision 10-bit per channel frame buffer support

Supported graphics

APIs

OpenGL 1.5

DirectX 9.0

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 70

QuickSpecs

HP xw6200 Workstation

Technical Specifications - Graphics

Available graphics drivers

HP-tested: Microsoft Windows XP, Windows 2000, and Linux

HP qualified drivers may be preloaded or available from the HP support

Web site: http://welcome.hp.com/country/us/eng/software_drivers.html

.

Maximum Resolution

DVI-I output – drives digital displays at resolutions up to 1600x1200

Internal 400MHz RAMDAC – drives dual analog displays up to

2048x1536 @ 85Hz each

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 71

QuickSpecs

Technical Specifications - Monitors

HP L1755 Flat Panel

Monitor

Panel

HP xw6200 Workstation

Video/Other Inputs

Signal Interface/

Performance

Type

Active matrix, thin film transistor (TFT)

Viewable Image Area

(diagonal)

17 in (43.2 cm) maximum viewable

Screen Opening (WxH) 13.4 x 10.7 in (33.9 x 27.2 cm)

Viewing Angle (typical) 176 degrees horizontal/176 degrees vertical

(10:1 minimum contrast ratio)

Brightness (typical) Up to 250 nits (cd/m

2

)

Contrast Ratio (typical) Up to 1000:1 (typical)

Response Rate (typical) 25 ms (typical rise + fall)

Pixel Pitch

Plug and Play

Self Powered USB 2.0

Hub

Input Signal

0.264 mm

Yes (supports VESA DDC2B; PC2001 compliant)

One upstream, four downstream ports (cable included)

Two connectors: one 15-pin mini D-sub analog VGA; and one DVI-I (VGA analog or digital)

Input Impedance

Sync Input

75 ohms ± 2%

Separate sync (HSYNC/VSYNC); composite sync, Sync on Green (activated through onscreen display)

Video Cable

VGA to VGA, DVI-D to DVI-D, and DVI-I to

VGA

78 in (2.0 m)

Video Cable Length

Horizontal Frequency

30 to 82 kHz

Vertical Frequency

56 to 75 Hz

Native Resolution

1280 x 1024 @ 60 Hz analog

1280 x 1024 @ 60 Hz digital

1280 x 1024 @ 75 Hz analog

Maximum Resolution

(Analog)

Maximum Resolution

(Digital)

Preset VESA Graphic

Modes (non-interlaced)

1280 x 1024 @ 75 Hz digital

640 x 480 @ 60 Hz, 72 Hz, 75 Hz

720 x 400 @ 70 Hz

800 x 600 @ 60 Hz, 72 Hz, 75 Hz

Preset MAC Mode

Preset VGA Mode

Preset SUN Mode

Fail Safe Mode

Maximum Pixel Clock

Speed

1024 x 768 @ 60 Hz, 70 Hz, 75 Hz

1280 x 1024 @ 60 Hz, 75 Hz

832 x 624 @ 75 Hz

1152 x 870 @75 Hz

640 x 480 @ 60 Hz, 72 Hz

1152 x 900 @ 76 Hz

Yes (limits out of range signal messages)

140 MHz

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 72

QuickSpecs

Technical Specifications - Monitors

HP xw6200 Workstation

On Screen Display

(OSD) Controls

Power

User Programmable

Modes

Anti-Glare

Anti-Static

Yes, 15

Yes

Yes

AssetControl

Yes (accessible on HP Compaq Business

Desktops featuring Intelligent Manageability)

Yes (6500k, 9300k, SRGB, Custom User)

Default Color

Temperature

Buttons or Switches

Power on/off; 3-button OSD; second level

OSD buttons include dual-input switch, dedicated auto adjust switch

Languages

User Controls

English, Spanish, French, German, Italian,

Japanese, Simplified Chinese

Size and positioning, contrast, brightness, clock, clock phase, selectable color temperature, serial number, mode displayed, sleep timer, input selection, factory reset, individual color contrast, full-screen resolution

Power Supply

Input Power

Nominal Current

Frequency

Average

Auto-ranging, 90 to 265 VAC; internal power supply

100 ~ 240 VAC

1.5 A maximum

50 ~ 60 Hz

33 watts when displaying standard office software

< 40 watts

Typical Power

Consumption

Maximum

Power Saving

< 60 watts

< 2 W

Off Mode

0 watts (when master power switch is in the off position)

Power Cable Length

70 in (1.8 m); non-captive

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 73

QuickSpecs

Technical Specifications - Monitors

Mechanical

Environmental

Options

HP xw6200 Workstation

Dimensions

(H x W x D)

Weight

Bezel Width

Unpacked with stand 16.1 (minimum) to

21.2 (maximum) x

14.4 x 8.3 in (40.9

(minimum) to 42.2

(maximum) x 36.5 x

21.1 cm)

Base Area

(Footprint D x W)

Panel only (without stand) (H x W x D)

8.3 x 12.2 in

(21.1 x 30.9 cm)

11.8 x 14.4 x 2.9 in

(30.1 x 40.9 x 7.3 cm)

Unpacked with stand 14.7 lb (6.7 kg)

Unpacked without stand

8.1 lb (3.7 kg)

Packaged

20.2 lb (9.2 kg)

13 mm left and right, 14 mm top, and 15 mm bottom

Tilt Range

Swivel Range

Height Adjustable

Pivot Rotation

Base

Altitude – Nonoperating

HP Desktop Access

Center – Part number:

DK985A

HP Flat Panel Speaker

Bar – Part number:

PF804AA

-5° to +35°

± 50° horizontal swivel

Yes (5.1 in/13 cm adjustment range)

Yes, 90 °

Humidity – Nonoperating

Altitude – Operating

Ships detached and is removable after installation

41° to 95° F (5° to 35° C)

Temperature –

Operating

Temperature – Nonoperating

-4° to 140° F (-20° to 60° C)

Humidity – Operating

20% to 80%

5% to 95%

0 to 13,000 ft (0 to 4,000 m)

0 to 40,000 ft (0 to 12,192 m)

Features integrated microphone/headset jacks, dual function headset for phone/PC support, a MultiBay slot for adding an optical drive (sold separately), and four USB ports for easy integration of third-party digital solutions.

Sold separately. For more information, refer to the HP Desktop Access Center QuickSpec document.

Powered directly by the monitor, seamlessly attaches to the monitor's bezel to bring full multimedia support to select HP flat panel monitors. Features dual speakers with full sound range and external jack for headphones. Sold separately. For more information, refer to the HP Flat Panel

Speaker Bar QuickSpec document.

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 74

QuickSpecs

Technical Specifications - Monitors

Other

Certification and

Compliance

HP xw6200 Workstation

HP Compaq 7000

Series Ultra-slim

Desktop Integrated

Work Center Stand –

Part number: DL641B

Allows mounting of a 15-, 17- or 19-inch HP flat panel monitor and an HP Compaq dc7100

Ultra-slim Desktop PC on a single stand for the convenience of an "all-in-one" form factor.

Sold separately. For more information, refer to this product's QuickSpec document

Accessories Included

VGA to VGA cable, DVI-D to DVI-D cable,

DVI-I to VGA cable, USB cable, user CD-

ROM with Pivot Pro software

Software

Pivot Pro software from Portrait Displays, Inc.

interacts with your PC's native graphics driver to enable seamless portrait screen redraws with a simple mouse-click or keyboard command. Pivot Pro supports 90-degree portrait and landscape views. Language support is available in English, Japanese,

French, German, Spanish, Italian, and

Traditional and Simplified Chinese.

Software

HP Display LiteSaver feature lets you schedule Sleep mode at preset times to help protect the display against image retention, drastically lower power consumption and energy costs, and extend the lifespan of the monitor.

User Guide Languages English, Latin America Spanish, Brazilian

Portuguese, Danish, Dutch, Finnish, French,

German, Italian, Norwegian, Swedish, Greek,

Polish, Russian, Slovenian, Turkish,

Simplified Chinese, Traditional Chinese,

Korean, and Japanese

Warranty Languages

English, Canadian French, Latin America

Spanish, Brazilian Portuguese, Danish,

Dutch, Finnish, French, German, Italian,

Norwegian, Spanish, Swedish, Bahasa

Indonesian, Simplified Chinese, Traditional

Chinese, and Korean

Color

Carbonite, two-tone carbonite and silver

(EMEA only)

VESA Mounting

VESA External

Mounting

Yes (swing arm/wall mount not included); base must be removed for mounting options)

Yes (standard 4 hole pattern, 100 mm)

Kensington Lock-ready Yes

Australian ACA Approval, Canadian Requirements/CSA, CE Marking,

China CCC Approval, CISPR Requirements, Eastern European

Approvals, Energy Star Compliant, FCC Approval, German Ergonomic

(TUV and GS Mark), ISO 13406-2 Compliant (Pixel Defect Guidelines),

Mexican NOM Approval, MPR-II Compliant, PC2001 Compliant, PC99

Certified, S. Korean MIC Approval, Taiwan BSMI Approval, TCO 99 or

03 depending on region (emissions, ergonomics, environment), TUV-

Ergo, UL Listed, VCCI Approvals, Microsoft Windows Certification

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 75

QuickSpecs

HP xw6200 Workstation

Technical Specifications - Monitors

Compatibility

VESA Video Signal Standard (VSIS) Compliant video cards have been tested and proven compatible for use with the HP L1755 Flat Panel

Monitor. Recommended for use with HP products.

Service and Warranty

Limited three-year parts and repair labor, service provider labor, and onsite service. Next business day advanced exchange direct replacement service available during warranty period. Certain restrictions and exclusions apply. For details, contact HP Customer Support.

HP L1955 Flat Panel

Monitor

Panel

Video/Other Inputs

Type

Viewable Image Area

(diagonal)

Active matrix, thin film transistor (TFT)

19 in (48.25 cm) maximum viewable

Screen Opening (WxH) 14.9 x 12.0 in (38.0 x 30.5 cm)

Viewing Angle (typical) 176 degrees horizontal/176 degrees vertical

(10:1 minimum contrast ratio)

Brightness (typical) Up to 250 nits (cd/m

2

)

Contrast Ratio (typical) Up to 1000:1 (typical)

Response Rate (typical) <16 ms (typical rise + fall)

Pixel Pitch

0.294 mm

Plug and Play

Self Powered USB 2.0

Hub

Input Signal

Yes (supports VESA DDC2B; PC2001 compliant)

One upstream, four downstream ports (cable included)

Input Impedance

Sync Input

Two connectors: one 15-pin mini D-sub analog VGA; and one DVI-I (VGA analog or digital)

75 ohms ± 2%

Video Cable

Separate sync (HSYNC/VSYNC); composite sync, Sync on Green (activated through onscreen display)

VGA to VGA, DVI-D to DVI-D, and DVI-I to

VGA

Video Cable Length

78 in (2.0 m)

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 76

QuickSpecs

Technical Specifications - Monitors

Signal Interface/

Performance

HP xw6200 Workstation

On Screen Display

(OSD) Controls

Horizontal Frequency

30 to 82 kHz

Vertical Frequency

Native Resolution

56 to 75 Hz

1280 x 1024 @ 75 Hz analog

1280 x 1024 @ 60 Hz digital

1280 x 1024 @ 75 Hz analog

Maximum Resolution

(Analog)

Maximum Resolution

(Digital)

Preset VESA Graphic

Modes (non-interlaced)

1280 x 1024 @ 75 Hz digital

640 x 480 @ 60 Hz, 72 Hz, 75 Hz

720 x 400 @ 70 Hz

800 x 600 @ 60 Hz, 72 Hz, 75 Hz

1024 x 768 @ 60 Hz, 70 Hz, 75 Hz

Preset MAC Mode

1280 x 1024 @ 60 Hz, 75 Hz

832 x 624 @ 75 Hz

1152 x 870 @75 Hz

640 x 480 @ 60 Hz, 72 Hz

Preset VGA Mode

Preset SUN Mode

Fail Safe Mode

1152 x 900 @ 76 Hz

Yes (limits out of range signal messages)

140 MHz

Maximum Pixel Clock

Speed

User Programmable

Modes

Anti-Glare

Anti-Static

Yes, 15

Yes

Yes

AssetControl

Yes (accessible on HP Compaq Business

Desktops featuring Intelligent Manageability)

Yes (6500k, 9300k, SRGB, Custom User)

Default Color

Temperature

Buttons or Switches

Power on/off; 3-button OSD; second level

OSD buttons include dual-input switch, dedicated auto adjust switch

Languages

User Controls

English, Spanish, French, German, Italian,

Japanese, Simplified Chinese

Size and Positioning

Contrast

Brightness

Clock, Clock Phase

Selectable Color Temperature

Serial Number

Mode Displayed

Sleep Timer

Input Selection

Factory Reset

Individual Color Contrast

Full-screen Resolution

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 77

QuickSpecs

Technical Specifications - Monitors

Power

Mechanical

Environmental

HP xw6200 Workstation

Power Supply

Input Power

Nominal Current

Frequency

Average

Auto-ranging, 90 to 265 VAC; internal power supply

100 ~ 240 VAC

1.5 A maximum

50 ~ 60 Hz

33 watts when displaying standard office software

< 40 watts

Typical Power

Consumption

Maximum

Power Saving

Off Mode

Bezel Width

< 60 watts

< 2 watts

0 watts (when master power switch is in the off position)

Power Cable Length

70 in (1.8 m); non-captive

Dimensions

(H x W x D)

Unpacked with stand 16.8 (minimum) to

22.3 (maximum) x

15.9 x 8.3 in (42.7

(minimum) to 56.6

(maximum) x 40.4 x

21.1 cm)

Weight

Base Area

(Footprint D x W)

Panel only (without stand) (H x W x D)

8.3 x 12.2 in

(21.1 x 30.9 cm)

13.2 x 15.9 x 3.1 in

(33.5 x 40.4 x 7.9 cm)

Unpacked with stand 16.5 lb (7.5 kg)

Unpacked without stand

10.5 lb (4.75 kg)

Packaged

23.5 lb (10.7 kg)

13 mm left and right, 14 mm top, and 15 mm bottom

Tilt Range

Swivel Range

Height Adjustable

Pivot Rotation

Base

-5° to +35°

± 50° horizontal swivel

Yes (5.1 in/13 cm adjustment range)

Yes, 90 °

Humidity – Nonoperating

Altitude – Operating

Altitude – Nonoperating

Ships detached and is removable after installation

41° to 95° F (5° to 35° C)

Temperature –

Operating

Temperature – Nonoperating

-4° to 140° F (-20° to 60° C)

Humidity – Operating

20% to 80%

5% to 95%

0 to 13,000 ft (0 to 4,000 m)

0 to 40,000 ft (0 to 12,192 m)

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 78

QuickSpecs

Technical Specifications - Monitors

Options

HP xw6200 Workstation

Other

Certification and

Compliance

Desktop Access Center Features integrated microphone/headset jacks, dual function headset for phone/PC support, a MultiBay slot for adding an optical drive (sold separately), and four USB ports for easy integration of third-party digital solutions.

Sold separately; part number DK985A. For more information, refer to the HP Desktop

Access Center QuickSpecs.

HP Flat Panel Speaker

Bar

Powered directly by the monitor, seamlessly attaches to the monitor's bezel to bring full multimedia support to select HP flat panel monitors. Features dual speakers with full sound range and external jack for headphones. Sold separately, part number

PF804AA. For more information, refer to the

HP Flat Panel Speaker Bar QuickSpecs.

Accessories Included

VGA to VGA cable, DVI-D to DVI-D cable,

DVI-I to VGA cable, USB cable, user CD-

ROM with Pivot Pro software

Software

Software

Pivot Pro software from Portrait Displays, Inc.

interacts with your PC's native graphics driver to enable seamless portrait screen redraws with a simple mouse-click or keyboard command. Pivot Pro supports 90-degree portrait and landscape views. Language support is available in English, Japanese,

French, German, Spanish, Italian, and

Traditional and Simplified Chinese.

HP Display LiteSaver feature lets you schedule Sleep mode at preset times to help protect the display against image retention, drastically lower power consumption and energy costs, and extend the lifespan of the monitor.

User Guide Languages English

Warranty Languages

English

Color

VESA Mounting

Carbonite, two-tone carbonite and silver

(EMEA only)

Yes (swing arm/wall mount not included); base must be removed for mounting options)

VESA External

Mounting

Yes (standard 4 hole pattern, 100 mm)

Kensington Lock-ready Yes

Australian ACA Approval, Canadian Requirements/CSA, CE Marking,

China CCIB/CCEE Approval, CISPR Requirements, Eastern European

Approvals, Energy Star Compliant, FCC Approval, German Ergonomic

(TUV and GS Mark), ISO 13406-2 Compliant (Pixel Defect Guidelines),

Mexican NOM Approval, MPR-II Compliant, PC2001 Compliant, PC99

Certified, S. Korean MIC Approval, Taiwan BSMI Approval, TCO 99 or

03 depending on region (emissions, ergonomics, environment), TUV-

Ergo, UL Listed, VCCI Approvals, Microsoft® Windows® Certification

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 79

QuickSpecs

HP xw6200 Workstation

Technical Specifications - Monitors

Compatibility

VESA Video Signal Standard (VSIS) Compliant video cards have been tested and proven compatible for use with the HP L1955 Flat Panel

Monitor. Recommended for use with HP products.

Service and Warranty

Limited three-year parts and repair labor, service provider labor, and onsite service. Next Business Day advanced exchange direct replacement service available during warranty period. Certain restrictions and exclusions apply. For details, contact HP Customer Support.

HP Flat Panel Monitor

L2035

Panel

On Screen Display

(OSD) Controls

Type

Viewable Image Area

(diagonal)

20-inch Active Matrix TFT (thin film transistor)

20.1 in (51 cm)

Screen Opening

(W x H)

16.2 x 12.17 in (41.1 x 30.9 cm)

Viewing Angle (typical)* Up to 170° H/170° V (10:1 minimum contrast ratio)

Brightness (typical* Up to 250 nits (cd/m

2

)

Contrast Ratio (typical)* Up to 400:1

Response Rate

(typical)*

Pixel Pitch

16 ms (typical, rise + fall)

0.255 mm

*All specifications are provided by the component manufacturers.

Performance specifications represent the highest specification of all

HP's component manufacturers' typical level specifications for performance. Actual performance may vary either higher or lower.

Buttons or Switches

PiP (Picture in Picture), Input select, auto adjust, OSD up, OSD down, OSD menu select, power

Languages

User Controls

English, French, German, Spanish, Italian

Brightness, contrast, positioning, color temperature, individual color control, serial number display, full screen resolutions, clock, clock phase, video picture-in-picture (size and position), input selection (includes separate direct access key for dedicated swap between inputs 1 and 2), factory reset

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 80

QuickSpecs

Technical Specifications - Monitors

Signal Interface/

Performance

Video Input

Power

HP xw6200 Workstation

Horizontal Frequency

30 to 94 kHz (VGA input); 30 to 92 KHz (DVI input) (for modes with pixel clock less than

157 MHz)

Vertical Frequency

Graphics Controller

48 to 85 Hz (VGA input); 30 to 92 KHz (DVI input) (for modes with pixel clock less than

157 MHz)

Pixelworks PW171

Native Resolution

Preset VESA Graphic

Modes (non-interlaced)

1600 x 1200 @ 60 Hz (recommended)

1600 x 1200 @ 60 Hz, 75 Hz (VGA input)

1280 x 1024 @ 60 Hz, 75 Hz, 85 Hz

1280 x 960 @ 60 Hz

Text Mode

Mac Mode

Sun Mode

Maximum Pixel Clock

Speed

User Programmable

Modes

Anti-Glare

Anti-Static

Default Color

Temperature

Plug and Play

Input Signal

1152 x 900 @ 66 Hz

1024 x 768 @ 60 Hz, 75 Hz, 85 Hz

800 x 600 @ 60 Hz, 85 Hz

640 x 480 @ 60 Hz, 75 Hz, 85 Hz

720 x 400 @ 70 Hz

1152 x 870 @ 75 Hz and 832 x 624 @ 75 Hz

1152 x 900 @ 66 Hz

202 MHz (VGA input); 162 MHz (DVI input)

Yes, 10

Yes

Yes

6500 K

Input Impedance

Sync Input

Yes

Four connectors, including one 15-pin mini Dsub VGA, one DVI-I (VGA analog and digital input), one composite video, and one s-video

75 ohms ± 10%

Separate sync (HSYNC/VSYNC); composite sync, Sync on Green

Video Cable

Video Cable Length

Input Power

VGA to VGA; VGA to DVI-I; DVI-D to DVI-I

5.9 ft (1.8 m)

Auto-Ranging, 90 to 132 VAC and 195 to 265

VAC; internal power supply, 50 Hz/60 Hz

47.5 to 63 Hz

Frequency

Maximum

Power Saving

< 75 W

< 5 W

Power Cable Length

5.9 ft (1.8 m)

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 81

QuickSpecs

Technical Specifications - Monitors

Mechanical

Environmental

Options

HP xw6200 Workstation

Dimensions (H x W x D) Unpacked with stand 17.36 to 20.9 x 17.8 x

8.27 in

(44.1 to 53.1 x 45.2 x

21.0 cm)

Unpacked without

stand (head only)

Packaged

14.29 x 17.8 x 3.19 in

(36.3 x 45.2 x 8.1 cm)

11.5 x 21.9 x 23.9 in

(29.2 x 55.6 x 60.6

cm)

Weight Unpacked

With stand: 20.28 lb

(9.2 kg);

Without stand: 12.35

lb (5.6 kg)

26.9 lb (12.2 kg)

Tilt Range

Swivel Range

Height Adjustable

Pivot Rotation

Base

Temperature –

Operating

Altitude – Nonoperating

Packaged

-5° to + 25° vertical

-35° to + 35°

Yes, range 3.54 in (9.0 cm)

Yes

Temperature – Nonoperating

6° to 140° F (-10° to 60° C)

Humidity – Operating

20% to 80% non-condensing

Humidity – Nonoperating

Altitude – Operating

Attached

46° to 95° F (10° to 35° C)

5% to 85%

+12,000 ft (+3,657.6 m)

+40,000 ft (+12,192 m)

HP Desktop Access

Center

Sold separately, the HP Desktop Access

Center features integrated microphone/headset jacks, dual function headset for phone/PC support, a MultiBay slot for adding an optical drive (sold separately), and four USB ports for easy integration of third-party digital solutions; part number

DK985A. For more information, refer to the

HP Desktop Access Center QuickSpecs.

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 82

QuickSpecs

HP xw6200 Workstation

Technical Specifications - Monitors

Other Accessories Included

VGA to VGA cable – connects the graphic card's VGA analog connector to the monitor's input #1 (VGA analog) connector

VGA to DVI-I cable – connects the graphic card's VGA connector to the monitor's input

#2 (DVI-I analog) connector

DVI-D to DVI-I cable – connects the graphic card's DVI-D digital connector to the monitor's input #2 (DVI-I digital) connector

User Guide Languages English, B. Portuguese, French, LA Spanish,

Korean, S. Chinese, T. Chinese, Bahasa,

Japanese, Danish, Finnish, German,

Norwegian, Spanish, Swedish, Greek, Polish,

Russian, Slovenian, Turkish

Warranty Languages

English, Canadian French, LA Spanish,

Brazilian Portuguese, Danish, German,

Castilian Spanish, French, Italian, Dutch,

Norwegian, Finnish, Swedish, Bahasa

Indonesian, Korean, T. Chinese, S. Chinese

Color

VESA External

Mounting

Carbonite/Silver

Yes (Standard 4 hole pattern, 100 mm)

Certification and

Compliance

Kensington Lock-

Ready

Yes

Australian ACA Approval, Canadian Requirements/CSA, CE Marking,

China CCIB/CCEE Approval, CISPR Requirements, Eastern European

Approvals, *Energy Star Compliant, FCC Approval, German Ergonomic

(TUV and GS Mark), ISO 9241-3,7,8 VDT Guidelines, ISO 13406-2

Pixel Defect Guidelines, Mexican NOM Approval, MIC Requirements

(New Zealand), MPR-II Compliant, Nordic Approvals (Nemko, Fimko,

Demko, Semko), PC2001 Compliant, PC99 Certified, S. Korean MIC

Approval, Taiwan BSMI Approval, TCO 03 (emissions, ergonomics, environment), TUV-Ergo, UL Listed, VCCI Approvals, Windows

Certification (Microsoft® Windows® 98, Microsoft Windows 2000, and

Microsoft Windows XP)

* Energy Star Compliant available summer 2004.

Compatibility

Compatible with platforms using the VESA standard video modes and

HP Compaq Business Desktops d500, d300, and d200 Series, Compaq

Evo Desktops, and HP Workstations

Service and Warranty

Limited three years parts, labor, and on-site service, including backlight.

Availability varies by region. Certain restrictions and exclusions apply.

Consult HP Customer Service for details.

HP Flat Panel Monitor

LP2065

Panel Type

Viewable Image Area

(diagonal)

Screen Opening

(W x H)

20-inch Active Matrix TFT (thin film transistor)

20.1 in (51 cm)

16.2 x 12.17 in (41.1 x 30.9 cm)

Viewing Angle (typical)* Up to 178° horizontal/178° vertical (10:1 minimum contrast ratio)

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 83

QuickSpecs

Technical Specifications - Monitors

HP xw6200 Workstation

On Screen Display

(OSD) Controls

Signal Interface/

Performance

Brightness (typical* Up to 300 nits (cd/m2)

Contrast Ratio (typical)* Up to 800:1

Response Rate

(typical)*

8 ms (gray to gray), 16 ms (rise + fall)

Pixel Pitch

Backlight Lamp Life

(to half brightness)

0.255 mm

45K hours

Buttons or Switches

Input select, auto adjust/OSD up, OSD down,

OSD menu select, power

Languages

English, French, German, Spanish, Italian,

Dutch, and Japanese

User Controls

Brightness, contrast, positioning, color temperature, individual color control, serial number display, full screen resolutions, clock, clock phase, input selection, image control

(including scaling), and factory reset

Horizontal Frequency

30 to 94 kHz (VGA input); 30 to 92 KHz (DVI input for modes with pixel clock less than 157

MHz)

Vertical Frequency

48 to 85 Hz (VGA input); 30 to 92 KHz (DVI input for modes with pixel clock less than 157

MHz)

1600 x 1200 @ 60 Hz (recommended)

Native Resolution

Preset VESA Graphic

Modes (non-interlaced)

1600 x 1200 @ 60 Hz, 75 Hz (VGA input)

1280 x 1024 @ 60 Hz, 75 Hz, 85 Hz

1280 x 960 @ 60 Hz

1152 x 900 @ 66 Hz

Text Mode

Mac Mode

Sun Mode

Maximum Pixel Clock

Speed

User Programmable

Modes

Anti-Glare

Anti-Static

Default Color

Temperature

1024 x 768 @ 60 Hz, 75 Hz, 85 Hz

800 x 600 @ 60 Hz, 85 Hz

640 x 480 @ 60 Hz, 75 Hz, 85 Hz

720 x 400 @ 70 Hz

1152 x 870 @ 75 Hz and 832 x 624 @ 75 Hz

1152 x 900 @ 66 Hz

202 MHz (VGA input); 162 MHz (DVI input)

Yes, 10

Yes

Yes

6500 K

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 84

QuickSpecs

Technical Specifications - Monitors

Video Input

Power

Mechanical

HP xw6200 Workstation

Plug and Play

Input Signal

Yes

Four connectors, including one 15-pin mini Dsub VGA, one DVI-I (VGA analog and digital input), one composite video, and one s-video

One upstream, four downstream ports (cable included)

Self Powered USB 2.0

Hub

Input Signal

Input Impedance

Sync Input

Video Cable

Video Cable Length

Input Power

Frequency

Typical Power

Consumption

Maximum

Power Saving

Weight

Tilt Range

Swivel Range

Height Adjustable

Pivot Rotation

Base

Two DVI-I connectors (dual VGA analog or dual digital input possible)

75 ohms ± 10%

Separate sync (HSYNC/VSYNC); composite sync, Sync on Green

Two VGA to DVI-I; two DVI-D to DVI-I

5.9 ft (1.8 m)

Auto-Ranging, 90 to 132 VAC and 195 to 265

VAC; internal power supply, 50 Hz/60 Hz

47.5 to 63 Hz

55 watts (without USB ports); 70 watts (USB ports fully loaded)

< 75 W

< 2 watts

Power Cable Length

5.9 ft (1.8 m)

Dimensions (H x W x D) Unpacked with stand 16.7 to 21.8 x 17.4 x

8.67 in

(42.5 to 55.5 x 44.3 x

22.0 cm)

Unpacked w/o stand

(head only)

Packaged

13.58 x 17.4 x 3.42 in

(34.5 x 44.3 x 8.7 cm)

11.77 x 22.2 x 16.77

in

(29.9 x 56.4 x 42.6

cm)

Unpacked

Packaged

-5° to + 25° vertical tilt

-45° to + 45°

With stand: 20.28 lb

(9.2 kg);

Without stand: 12.35

lb (5.6 kg)

26.3 lb (11.95 kg)

Yes, range 5.1 in (13.0 cm)

Yes

Detachable, ships attached

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 85

QuickSpecs

Technical Specifications - Monitors

Environmental

Options

Other

HP xw6200 Workstation

Temperature –

Operating

46° to 95° F (10° to 35° C)

Temperature – Nonoperating

6° to 140° F (-10° to 60° C)

Humidity – Operating

20% to 80% non-condensing

5% to 85%

Humidity – Nonoperating

Altitude – Operating

Altitude – Nonoperating

+12,000 ft (+3,657.6 m)

+40,000 ft (+12,192 m)

HP Silver Flat Panel

Speaker Bar - Part number: EE418AA

Powered directly by the monitor or the PC, the

Speaker Bar seamlessly attaches to the monitor's lower bezel to bring full audio support to select HP flat panel monitors.

Features include dual speakers with full sound range and external jack for headphones. Sold separately. For more information, refer to the HP Silver Flat Panel

Speaker Bar QuickSpec.

Accessories Included

VGA to DVI-I cable connects the graphic card's VGA connector to the monitor's input

#1 or 2 (DVI-I analog) connector.

DVI-D to DVI-I cable connects the graphic card's DVI-D digital connector to the monitor's input #1 or #2 (DVI-I digital) connector.

User Guide Languages English, B. Portuguese, French, LA Spanish,

Korean, S. Chinese, T. Chinese, Bahasa,

Japanese, Danish, Finnish, German,

Norwegian, Spanish, Swedish, Greek, Polish,

Russian, Slovenian, Turkish

Software

HP Display Assistant Utility makes it possible to adjust displays settings through the PC using two-way communication via DDCI.

HP Display Lite Saver allows ability to power up and down display at predetermined hours of the day to safe power and backlight life.

Pivot Pro software from Portrait Displays, Inc.

interacts with your PC's native graphics driver to enable seamless portrait screen redraws with a simple mouse-click or keyboard command. Pivot Pro supports 90-degree portrait and landscape views. Language support is available in English, Japanese,

French, German, Spanish, Italian, and

Traditional and Simplified Chinese.

User Guide Languages English

Warranty Languages

English

Color

Carbonite/Silver

VESA External

Mounting

Yes (Standard 4 hole pattern, 100 mm)

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 86

QuickSpecs

HP xw6200 Workstation

Technical Specifications - Monitors

Certification and

Compliance

Compatibility

Kensington Lock-

Ready

Yes

Canadian Requirements/CSA, CE Marking, CISPR Requirements, ,

Energy Star Compliant, FCC Approval, ISO 13406-2 Pixel Defect

Guidelines, Mexican NOM Approval,, MPR-II Compliant, PC2001

Compliant, PC99 Certified, TCO 03 (emissions, ergonomics, environment), TUV-Ergo, UL Listed, VCCI Approvals, Microsoft

Windows Certification (Microsoft Windows 98, Microsoft Windows 2000, and Microsoft Windows XP)

Compatible with platforms using the VESA standard video modes.

Recommended for use with HP products.

Service and Warranty

Three years parts, labor, and on-site service. 24-hour 365-day 1-800 technical support. Replacement options include 2nd business day onsite service or next business day direct replacement. With direct replacement, HP will ship a replacement display product directly to you.

Using the shipping labels provided, return your failed display to HP.

Certain restrictions and exclusions apply. For details, contact HP

Customer Support.

HP Flat Panel Monitor

L2335

Panel

On Screen Display

(OSD) Controls

Type

Viewable Image Area

(diagonal)

23-inch Active Matrix TFT (thin film transistor)

23 in (58.4 cm)

Screen Opening

(W x H)

19.53 x 12.24 in (49.6 x 31.1 cm)

Viewing Angle (typical)* Up to 170° H/170° V (10:1 minimum contrast ratio)

Brightness (typical)* Up to 250 nits (cd/m

2

)

Contrast Ratio (typical)* Up to 500:1

Response Rate

(typical)*

Pixel Pitch

16 ms (typical, rise + fall)

0.258 mm

* All specifications are provided by the component manufacturers.

Performance specifications represent the highest specification of all

HP's component manufacturers' typical level specifications for performance. Actual performance may vary either higher or lower.

Buttons or Switches

PiP (Picture in Picture), Input Select, Auto

Adjust, OSD Up, OSD Down, OSD Menu

Select, Power

Languages

User Controls

English, French, German, Spanish, Italian

Brightness, contrast, positioning, color temperature, individual color control, serial number display, full screen resolutions, clock, clock phase, video picture-in-picture (size and position), input selection (includes separate direct access key for dedicated swap between inputs 1 and 2), factory reset

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 87

QuickSpecs

Technical Specifications - Monitors

Signal Interface/

Performance

Video Input

Power

HP xw6200 Workstation

Horizontal Frequency

30 to 94 kHz (VGA input); 30 to 92 KHz (DVI input) (for modes with pixel clock less than

157 MHz)

Vertical Frequency

Graphics Controller

48 to 85 Hz (VGA and DVI input)

Pixelworks PW172

Native Resolution

Preset VESA Graphic

Modes (non-interlaced)

1920 x 1200 @ 60 Hz (recommended)

1920 x 1200 @ 60Hz

1600 x 1200 @ 60 Hz, 75 Hz

1280 x 1024 @ 60 Hz, 75Hz, 85 Hz

Text Mode

Mac Mode

Sun Mode

Maximum Pixel Clock

Speed

User Programmable

Modes

Anti-Glare

Anti-Static

Default Color

Temperature

1280 x 960 @ 60 Hz

1152 x 900 @ 66 Hz

1024 x 768 @ 60 Hz, 75 Hz, 85 Hz

800 x 600 @ 60 Hz, 75Hz

640 x 480 @ 60 Hz, 75 Hz

720 x 400 @ 70 Hz

1152 x 870 @ 75 Hz and 832 x 624 @ 75 Hz

1152 x 900 @ 66 Hz

202 MHz (VGA input); 162 MHz (DVI input)

Yes, 10

Yes

Yes

6500 K

Plug and Play

Input Signal

Input Impedance

Sync Input

Yes

Five connectors, including one 15-pin mini Dsub VGA, one DVI-I (VGA analog and digital input), one composite video, one s-video, component video

75 ohms ± 10%

Separate sync (HSYNC/VSYNC); composite sync, Sync on Green

Video Cable

Video Cable Length

Input Power

VGA to VGA; VGA to DVI-I; DVI-D to DVI-I

5.9 ft (1.8 m)

Auto-Ranging, 90 to 132 VAC and 195 to 265

VAC; internal power supply, 50 Hz/60 Hz

47.5 to 63 Hz

Frequency

Maximum

Power Saving

< 100 W

< 5 W

Power Cable Length

5.9 ft (1.8 m)

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 88

QuickSpecs

Technical Specifications - Monitors

Mechanical

Environmental

Options

HP xw6200 Workstation

Dimensions (H x W x D) Unpacked

Unpacked withou

stand (head only)

Packaged

17.36 (min) to 20.9

(max) x 21.46 x 8.27

in (44.1 (min) to 53.1

(max) x 54.5 x 21.0

cm)

14.57 x 21.46 x 3.35

in (37.0 x 54.5 x 8.5

cm)

11.5 x 25.75 x 23.86

in (29. 2 x 65.4 x 60.6

cm)

Weight

Tilt Range

Swivel Range

Height Adjustable

Pivot Rotation

Base

Temperature –

Operating

Attached

22.27 lb (10.1 kg)

30.87 lb (14.0 kg)

46° to 95° F (10° to 35° C)

Temperature –

Non-operating

6° to 140° F (-10° to 60° C)

Humidity – Operating

20% to 80% non-condensing

Humidity –

Non-operating

Altitude – Operating

Altitude –

Non-operating

HP Desktop Access

Center

Unpacked

Packaged

-5° to + 25° vertical

-35° to + 35°

Yes, range 3.54 in (9.0 cm)

Yes

5% to 85%

+12,000 ft (+3,657.6 m)

+40,000 ft (+12,192 m)

Sold separately, the HP Desktop Access

Center Features integrated microphone/headset jacks, dual function headset for phone/PC support, a MultiBay slot for adding an optical drive (sold separately), and four USB ports for easy integration of third-party digital solutions; part number

DK985A. For more information, refer to the

HP Desktop Access Center QuickSpecs.

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 89

QuickSpecs

HP xw6200 Workstation

Technical Specifications - Monitors

Other Accessories Included

VGA to VGA cable – connects the graphic card's VGA analog connector to the monitor's input #1 (VGA analog) connector

VGA to DVI-I cable – connects the graphic card's VGA connector to the monitor's input

#2 (DVI-I analog) connector

DVI-D to DVI-I cable – connects the graphic card's DVI-D digital connector to the monitor's input #2 (DVI-I digital) connector

User Guide Languages English, B. Portuguese, French, LA Spanish,

Korean, S. Chinese, T. Chinese, Bahasa,

Japanese, Danish, Finnish, German,

Norwegian, Spanish, Swedish, Greek, Polish,

Russian, Slovenian, Turkish

Warranty Languages

English, Canadian French, LA Spanish,

Brazilian Portuguese, Danish, German,

Castilian Spanish, French, Italian, Dutch,

Norwegian, Finnish, Swedish, Bahasa

Indonesian, Korean, T. Chinese, S. Chinese

Color

VESA External

Mounting

Carbonite/silver

Yes (Standard 4 hole pattern, 100 mm)

Certification and

Compliance

Kensington Lock-

Ready

Yes

Australian ACA Approval, Canadian Requirements/CSA, CE Marking,

China CCIB/CCEE Approval, CISPR Requirements, Eastern European

Approvals, *Energy Star Compliant, FCC Approval, German Ergonomic

(TUV and GS Mark), ISO 9241-3,7,8 VDT Guidelines, ISO 13406-2

Pixel Defect Guidelines, Mexican NOM Approval, MIC Requirements

(New Zealand), MPR-II Compliant, Nordic Approvals (Nemko, Fimko,

Demko, Semko), PC2001 Compliant, PC99 Certified, S. Korean MIC

Approval, Taiwan BSMI Approval, TCO 03 (emissions, ergonomics, environment), TUV-Ergo, UL Listed, VCCI Approvals, Windows

Certification (Microsoft® Windows® 98, Microsoft Windows 2000, and

Microsoft Windows XP).

* Energy Star Compliant available summer 2004.

Compatibility

Compatible with platforms using the VESA standard video modes and

HP Compaq Business Desktops d500, d300, and d200 Series, Compaq

Evo Desktops, and HP Business Desktops d300 series.

Service and Warranty

Limited three years parts, labor, and on-site service, including backlight.

Availability varies by region. Certain restrictions and exclusions apply.

Consult HP Customer Service for details.

HP Flat Panel Monitor

LP2465

Panel Type

Viewable Image Area

(diagonal)

Screen Opening

(W x H)

24-inch Active Matrix TFT (thin film transistor)

24 in (60.96 cm)

20.47 x 12.83 in (52.0 x 32.6 cm)

Viewing Angle (typical)* 178° H/ 178° V (10:1 minimum contrast ratio)

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 90

QuickSpecs

Technical Specifications - Monitors

HP xw6200 Workstation

On Screen Display

(OSD) Controls

Signal Interface/

Performance

Brightness (typical)* 500 nits (cd/m

2

)

Contrast Ratio (typical)* 1000:1

Response Rate

(typical)*

8 ms (typical gray to gray)

Pixel Pitch

Backlight Lamp Life

(to half brightness)

0.270 mm

50K hours

*Response time 13 ms rise and fall, 6 ms gray to gray.

Buttons or Switches

Input Select, Auto Adjust, OSD Up, OSD

Down, OSD Menu Select, Power

Languages

User Controls

English, French, German, Spanish, Italian,

Japanese, Dutch

Brightness, contrast, positioning, color temperature, individual color control, serial number display, full screen resolutions, clock, clock phase, input selection (includes separate direct access key for dedicated swap between inputs 1 and 2), factory reset

Horizontal Frequency

30 to 94 kHz (VGA input); 30 to 92 KHz (DVI input) (for modes with pixel clock less than

157 MHz)

Vertical Frequency

48 to 85 Hz (VGA and DVI input)

Native Resolution

Preset VESA Graphic

Modes (non-interlaced)

1920 x 1200 @ 60 Hz (recommended)

(native aspect ratio of 16:10)

1920 x 1200 @ 60 Hz

1600 x 1200 @ 60 Hz, 75 Hz

1280 x 1024 @ 60 Hz, 75 Hz, 85 Hz

1280 x 960 @ 60 Hz

1152 x 900 @ 66 Hz

1024 x 768 @ 60 Hz, 75 Hz, 85 Hz

800 x 600 @ 60 Hz, 75 Hz

640 x 480 @ 60 Hz, 75 Hz

Text Mode

Mac Mode

Sun Mode

Maximum Pixel Clock

Speed

User Programmable

Modes

Anti-Glare

Anti-Static

Default Color

Temperature

720 x 400 @ 70 Hz

1152 x 870 @ 75 Hz and 832 x 624 @ 75 Hz

1152 x 900 @ 66 Hz

202 MHz (VGA input); 162 MHz (DVI input)

Yes, 20

Yes

Yes

6500 K

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 91

QuickSpecs

Technical Specifications - Monitors

Video/Other Inputs

Power

Mechanical

Environmental

Plug and Play

Self Powered USB 2.0

Hub

Input Signal

Input Impedance

Sync Input

Yes

One upstream, four downstream ports

(located on side of monitor, cable included)

Two DVI-I (VGA analog and digital) inputs

Video Cable

Video Cable Length

Input Power

75 ohms ± 10%

Separate sync (HSYNC/VSYNC); composite sync, Sync on Green

VGA to DVI-I; DVI-D to DVI-D

5.9 ft (1.8 m)

Frequency

Auto-Ranging, 90 to 132 VAC and 195 to 265

VAC; internal power supply, 50 Hz/60 Hz

47.5 to 63 Hz

Typical Power

Consumption

Maximum

75 watts

< 110 watts

Power Saving

< 2 watts

Power Cable Length

6.2 ft (1.9 m)

Dimensions (H x W x D) Unpacked w/ stand 14.6 (min) to 19.7

(max) x 22 x 9.1 in

(37.1 (min) to 50.1

(max) x 55.4 x 23.2

cm)

Unpacked w/o stand

(head only)

14.4 x 22 x 3.7 in

(36.6 x 55.84 x 9.2

cm)

Packaged

Weight

11.7 x 22.1 x 25.6 in

(29.8 x 56.0 x 65.1

cm)

23.6 lbs (10.7 kg )

Unpacked

Packaged

-5° to + 25° vertical

23.6 lbs (10.7 kg )

Tilt Range

Swivel Range

Height Adjustable

Pivot Rotation

Base

Temperature –

Operating

Temperature –

Non-operating

-45° to + 45°

Yes, range 5.1 in (130 mm)

Yes

Detachable, ships detached

46° to 95° F (10° to 35° C)

6° to 140° F (-10° to 60° C)

Humidity – Operating

20% to 80% non-condensing

Humidity –

Non-operating

5% to 85%

Altitude – Operating

Altitude –

Non-operating

+12,000 ft (+3,657.6 m)

+40,000 ft (+12,192 m)

Accessories Included

VGA to DVI-I cable connects the graphic

Other

HP xw6200 Workstation

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 92

QuickSpecs

Technical Specifications - Monitors

Options

HP xw6200 Workstation

Software

card's VGA connector to the monitor's input

#2 (DVI-I analog) connector

DVI-D to DVI-D cable connects the graphic card's DVI-D digital connector to the monitor's input #2 (DVI-I digital) connector

Pivot Pro software from Portrait Displays, Inc.

interacts with your PC's native graphics driver to enable seamless portrait screen redraws with a simple mouse-click or keyboard command. Pivot Pro supports 90-degree portrait and landscape views. Language support is available in English, Japanese,

French, German, Spanish, Italian, and

Traditional and Simplified Chinese.

HP Display Assistant is a software utility that allows monitor adjustment, color calibration, and security/asset management using the

Display Data Channel Command Interface

(DDC/CI) protocol of the connected desktop

PC.

HP Display LiteSaver feature allows you to schedule Sleep mode at preset times to help protect the monitor against image retention, drastically lower power consumption and energy costs, and extend the lifespan of the monitor.

User Guide Languages English, B. Portuguese, French, LA Spanish,

Korean, S. Chinese, T. Chinese, Bahasa,

Japanese, Danish, Finnish, German,

Norwegian, Spanish, Swedish, Greek, Polish,

Russian, Slovenian, Turkish

Warranty Languages

English, Canadian French, LA Spanish,

Brazilian Portuguese, Danish, German,

Castilian Spanish, French, Italian, Dutch,

Norwegian, Finnish, Swedish, Bahasa

Indonesian, Korean, T. Chinese, S. Chinese

Color

Carbonite/silver

Yes (Standard 4 hole pattern, 100 mm)

VESA External

Mounting

Kensington Lock-

Ready

HP Silver Flat Panel

Speaker Bar - Part number: EE418AA

Yes

Powered directly by the monitor or PC, the

Speaker Bar seamlessly attaches to the monitor's lower bezel to bring full audio support to select HP flat panel monitors.

Features include dual speakers with full sound range and an external jack for headphones. Sold separately. For more information, refer to the HP Flat Panel

Speaker Bar QuickSpec.

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 93

QuickSpecs

HP xw6200 Workstation

Technical Specifications - Monitors

Certification and

Compliance

Australian ACA Approval, Canadian Requirements/CSA, CE Marking,

China CCIB/CCEE Approval, CISPR Requirements, Eastern European

Approvals, Energy Star Compliant, FCC Approval, German Ergonomic

(TUV and GS Mark), ISO 9241-3,7,8 VDT Guidelines, ISO 13406-2

Pixel Defect Guidelines, Mexican NOM Approval, MIC Requirements

(New Zealand), MPR-II Compliant, Nordic Approvals (Nemko, Fimko,

Demko, Semko), PC2001 Compliant, PC99 Certified, S. Korean MIC

Approval, Taiwan BSMI Approval, TCO 03 (emissions, ergonomics, environment), TUV-Ergo, UL Listed, VCCI Approvals, Microsoft

Windows Certification (Microsoft Windows 98, Microsoft Windows 2000, and Microsoft Windows XP)

Compatibility

Compatible with platforms using the VESA standard video modes.

Recommended for use with HP products.

Service and Warranty

Three years parts, labor, and on-site service. 24-hour, 90-day, toll-free technical support. Replacement options may include second business day on-site service, or next business day direct replacement, at HP's sole discretion. With direct replacement, HP will ship a replacement display product directly to you. Using the prepaid shipping labels provided, return your failed display to HP in the same packaging as the replacement. Certain restrictions and exclusions apply. For details see your product warranty or contact HP Customer Support.

© Copyright 2007 Hewlett-Packard Development Company, L.P.

All rights reserved. HP and the HP logo are trademarks of the Hewlett Packard Company in the U.S. and/or other countries.

Microsoft, Windows, Windows Vista, and Windows XP are registered trademarks or trademarks of Microsoft Corporation in the U.S. and/or other countries. NVIDIA and Quadro are trademarks of NVIDIA Corporation. All other product names mentioned herein may be trademarks of their respective companies.

HP shall not be liable for technical or editorial errors or omissions contained herein. The information is provided as is without warranty of any kind and is subject to change without notice. The warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty

DA - 11975 Worldwide — Version 45 — May 25, 2007 Page 94

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
