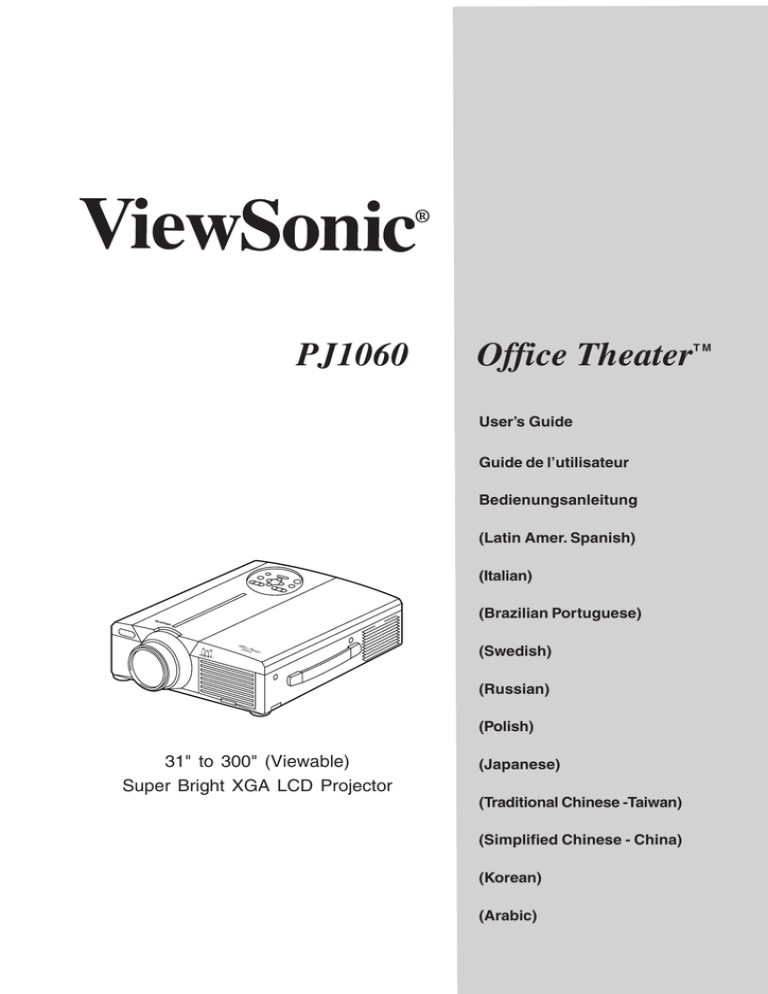

PJ1060 Office Theater

T M

31" to 300" (Viewable)

Super Bright XGA LCD Projector

User’s Guide

Guide de l’utilisateur

Bedienungsanleitung

(Latin Amer. Spanish)

(Italian)

(Brazilian Portuguese)

(Swedish)

(Russian)

(Polish)

(Japanese)

(Traditional Chinese -Taiwan)

(Simplified Chinese - China)

(Korean)

(Arabic)

Copyright © ViewSonic Corporation, 2000. All rights reserved.

Macintosh and Power Macintosh are registered trademarks of Apple Computer, Inc.

Microsoft, Windows, Windows NT, and the Windows Logo are registered trademarks of Microsoft Corporation in the United

States and other countries.

ViewSonic and the three birds logos, and OnView are registered trademarks of ViewSonic Corporation. Office Theater is a trademark of ViewSonic Corporation.

VESA and EDID are registered trademarks of the Video Electronics Standards Association (VESA). DPMS and DDC are trademarks of VESA.

Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic Corporation reserves the right to change product specifications without notice. Information in this document may change without notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic Corporation.

FOR YOUR RECORDS

The serial number of this product is on the bottom of the projector. Write the serial number in the space below and keep this guide as a permanent record of your purchase to aid in identification in the event of theft or loss.

Model Name:

Model Number:

Serial Number:

Purchase Date:

ViewSonic PJ1060-2

VPROJ21773-2

______________________

______________________

Electronic Warranty Registration

Register your projector at www.viewsonic.com. It’s fast, easy, and will simplify future support needs.

FOR CUSTOMERS IN THE UNITED KINGDOM

THIS PRODUCT IS SUPPLIED WITH TWO PIN MAINS FOR USE IN MAINLAND EUROPE.

FOR THE U.K. PLEASE REFER TO THE CLASS I EQUIPMENT NOTES BELOW.

The mains lead on this equipment is supplied with a moulded plug incorporating a fuse, the value of which is indicated on the pin face of the plug.

Should the fuse need to be replaced, an

ASTA or BSI approved BS 1362 fuse of the same rating must be used.

If the fuse cover is detachable, never use the plug without the cover. If a replacement fuse cover is required, ensure it is of the same colour as that visible on the pin face of the plug. Fuse covers are available from your dealer.

DO NOT cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer.

If there is no alternative to cutting off the mains plug, ensure that you first remove the fuse then immediately dispose of the portion remaining, to avoid a possible shock hazard by inadvertent connection to the mains supply.

WARNING: THIS EQUIPMENT

MUST BE EARTHED

The wires in the mains lead are coloured in accordance with the code shown in the diagram below:

Green & Yellow to Earth

Brown to Live

Fuse

As these colours may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured Green and

Yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol or coloured Green, or Green and

Yellow.

The wire coloured Blue must be connected to the terminal marked with the letter N or coloured either BLUE or

BLACK. The wire coloured BROWN must be connected to the terminal marked with the letter L or coloured either BROWN or RED.

Should it be necessary to change the mains plugs, this must be carried out by a competent person, preferably a qualified electrician.

Cord Clamp

Blue to Neutral

ViewSonic PJ1060

1

E

N

G

L

S

H

E

N

G

L

S

H

2

WARNING:

This equipment has been tested and found to comply with the limits of a Class A digital device, pursuant to

Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the user guide, may interfere with radio communications.

Operation of this equipment in a residential area is likely to cause interference in which case the user will be required to correct the interference at his own expense.

Instructions for FCC compliance:

This equipment complies with the requirements of FCC

(Federal Communication Commission) Class A equipment provided that the following conditions are met:

1 Video signal cables:

Double shielded coaxial cables (so called FCC shielded cable) must be used. The outer shield must be connected to the ground. If normal coaxial cables are used, they must be enclosed in metal pipes or similar material to reduce the interference they may cause.

2 Power cord:

A shielded power cord must be used. The outer shield must be grounded.

3 Video Inputs:

The amplitude of the input signal must not exceed the level specified in this user's guide.

Important Safety Precautions

Warning

Following these instructions could prevent possible injury or death.

If any of events listed below occur, switch projector OFF, pull power plug out of power source, and contact ViewSonic

®

Customer

Support (see back cover):

If there is an abnormal smell or smoke

If suddenly there is no picture, no sound, or an abnormal sound

If water or any other liquid enters the projector

To prevent possible electric shock or fire, handle power cord and power plug with care:

Do not touch the power cord with wet hands.

TO DISCONNECT THE UNIT

FROM THE POWER SOURCE,

GRASP THE POWER PLUG, AND

PULL. DO NOT PULL THE

POWER CORD ITSELF.

Do not damage the power cord by pulling, bending, heating, or placing heavy objects on it.

To prevent possible electric shock or fire, keep liquids away from projector:

Do not use the projector near water

(such as a shower, sink, etc.).

Do not put an open container with liquid on or near the projector (such as a vase, open beverage container, etc.).

Do not insert a foreign object into any part of the projector:

To prevent electric shock or fire, do not insert a metal or flammable object through the ventilation holes, etc.

If foreign matter enters the projector, switch it OFF and pull the power plug out of the power source.

Prevent small children from inserting objects into the projector.

Only use recommended power supply:

Do not use any power source that has a voltage other than what this user's guide specifies. See page 12.

CAUTION:

To prevent possible eye damage:

DO NOT look directly at the laser

light from the aperture at the front of the Remote Control

Unit. (See page 7.)

DO NOT point the laser light at

any person's eyes.

Also, do not look directly into projector lens when lamp is lit:

Prevent all people especially small children, from looking into the projector lens when the lamp is lit.

Do not subject projector to physical shock or place projector on unstable surface:

Do not place the projector in a location where it is likely to be struck or bumped into.

Avoid placing the projector on a shelf, cabinet, etc. that cannot adequately support its weight, or that is on an inclined floor.

When the projector is placed on a table with casters, set the caster stoppers to prevent movement.

Caution

Following these instructions could prevent personal injury or damage to the projector.

To prevent damage from heat build-up:

Clean the air filter after every 100 hours of operation. (See page 16.)

Do not place the projector in direct sunlight or near a source of heat like a furnace, electric heater, etc.

Do not block ventilation holes (by placing the projector on its side, or on a carpet, bedspread etc.)

Place the projector at least 10cm from any wall (allowing space for the ventilation holes).

Do not place projector in moist or dusty place:

Do not place the projector in an area containing steam (from a humidifier, etc.) dust, or soot (from a stove, etc).

If projector will not be used for long time, pull out power plug and close lens cover.

Have inside of projector cleaned at least every two (2) years :

Contact ViewSonic Customer Service for information about where to have the inside cleaned. Never attempt to open the cabinet to clean the inside of the projector yourself.

To clean the lens and cabinet, follow the instructions on page 16.

Do not place heavy objects on the projector.

ViewSonic PJ1060

ViewSonic PJ1060

CONTENTS

For Your Records . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Electronic Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

FCC Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Getting Started

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Inserting Batteries into Remote Control Unit

Connecting Input/Output Devices . . . . . . . . . . . . . . . . . . . . . . . 5

Side Connector Panel

Example of System Setup

Operation

Projecting a Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Turning Off the Projector

Positioning the Projector

Setting the Projection Angle

Controls and Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Adjusting the Projected Image . . . . . . . . . . . . . . . . . . . . . . . . . 8

Memory Function

Returning to Factory Default Settings

Freeze Function

Magnify Function

Set Up Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Auto Adjustment Function

Input Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Image Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Option Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Technical Information

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Timing Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Connecting to the RS232 Port . . . . . . . . . . . . . . . . . . . . . . . . . 13

Mouse Emulation

Troubleshooting

On-Screen Warning Messages . . . . . . . . . . . . . . . . . . . . . . . . 14

Problem Solving Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Control Panel Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Customer Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Maintenance

Cleaning Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Cleaning the Air Filter

Cleaning the Lens

Cleaning the Cabinet

Replacing the Lamp Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3

E

N

G

L

S

H

I

S

H

E

N

G

L

Getting Started

Congratulations on purchasing a ViewSonic PJ1060 Office Theater

TM

LCD projector!

Save the original box and all packing material for future shipping needs.

Package Contents

ViewSonic PJ1060 Office Theater

• Remote Control Unit/Mouse & Laser Pointer

• 2 AA batteries

• 3 AC power cords (U.S., Europe, and China)

• RGB computer video cable (15-pin mini D-sub connector)

• Video/Audio cable (RCA connectors)

• S-Video cable (RCA connectors)

• Audio (stereo) mini-DIN cable

• PS/2 mouse cable

• Serial (RS232) mouse/computer-control cable

• ADB (Macintosh ®

) mouse cable

• Macintosh adaptor

• User’s guide

• Carrying Case

Installation

1 Connect signal input cables

With both the PJ1060 and the computer powered OFF, connect the appropriate video and audio cables to the computer, VCR, or other input sources.

Macintosh users: Connect the supplied Macintosh adapter to the video cable, then to the PJ1060.

2 Connect power cord

Connect the power cord to a properly grounded AC outlet, then to the PJ1060.

3 Power-ON projector and all input devices (computer, VCR, etc.)

(1) Power-ON the PJ1060 projector.

(2) Power-ON all input devices.

3 (continued)

When a PC is one of the input devices (not for Macintosh):

Set the graphics card(s) to

1024 x [email protected] Hz (resolution and refresh rate).

4 Install batteries into

Remote Control Unit

See intructions below.

Inserting Batteries into the Remote Control Unit

1 Remove the compartment cover by sliding it in the direction of the arrow shown below.

2 Insert the batteries (Alkaline type) with the polarities (+,-) facing the direction shown below.

CAUTION:

• Only use AA (LRG) type of batteries.

• To prevent leakage that may damage the unit, do not combine old and new batteries.

• When inserting batteries, be careful to insert them according to the correct polarities (+,-).

• If not using the Remote Control Unit for an extended period of time, remove the batteries.

• Do not place the Remote Control Unit on any wet surface or close to the cooling fan of the projector.

3 Replace the compartment cover.

To be best prepared for any future customer service needs:

• Write the serial number (see the bottom of the projector) in

"For your

Records" on page 1 of this guide.

• Register the warranty of your projector on the Internet at:

http://www.viewsonic.com

4

Getting Started

ViewSonic PJ1060

Connecting Input/Output Devices

Side Connector Panel

"RGB1" & "RGB2"

RGB input ports (2)

D-sub 15 pin type

(to video output of computers)

NOTE: RGB1 supports

Plug & Play; RGB2 does not support Plug & Play.

CONTROL port

(RS232C type) for mouse emulation

(PS2 PC mouse, serial PC mouse, or

Macintosh ® mouse); or for controlling the projector from a computer. See page

13 for more information.

CONTROL

AUDIO IN

1 2

1 RGB IN

AUDIO

OUT

2

RGB OUT

S-VIDEO IN

VIDEO IN

AUDIO IN

L

MONO

R

USB

S-VIDEO input port

Mini DIN 4 pin type

(used with S-VIDEO output equipment)

VIDEO input port

RCA type (used with

Composite VIDEO output equipment)

AUDIO input ports

RCA type, Left/Right

(used with either S-

VIDEO or Composite

VIDEO outputs)

AUDIO input ports (2)

stereo mini type (left port = stereo audio with RGB1; right port = stereo audio with RGB2)

AUDIO output port

stereo mini type

(to audio amplifying equipment)

USB input port

(Upstream) The mouse cursor can be controlled by connecting the PJ1060 projector to a computer.

RGB output port

D-sub 15 pin

(to video input of CRT

Display)

Example of System Setup

PJ1060 Projector

NOTE: Two computers can be connected (using RGB1 and

RGB2). Only one VCR should be connected (using either the

Composite video or S-video output port.)

Laptop Computer

ViewSonic

1 2

CONTROL

AUDIO IN

1 2

1 RGB IN

AUDIO

OUT

2

RGB OUT

S-VIDEO IN

VIDEO IN

AUDIO IN

L

MONO

R

USB

Desktop Computer

VCR with S-VHS out

VCR

ViewSonic

1 2

CRT Display

Audio ampifying equipment

ViewSonic PJ1060

Getting Started

5

I

S

H

E

N

G

L

L

I

S

H

E

N

G

6

Operation

Projecting a Picture

1

Power ON the projector. Set the MAIN POWER switch to ON (located on the side Connector Panel). The ON indicator lights orange.

2

Press the STANDBY/ON button on the Projector Control Panel or on the Remote Control Unit. (See page 7)

The ON indicator blinks green during warm-up and stays green when projector is ready for use.

NOTE: The power can not be turned on if the STANDBY/ON button is pressed within 60 seconds after the power is turned off.

3

Remove the lens cap.

4

Position the projector the desired distance from the projection screen, then set the projection angle by positioning the foot adjusters. (See Positioning the Projector and Setting the Projection

Angle below)

5

Power ON all connected input devices. (See page 5.)

6

Select the signal source: press the INPUT button on the projector or one of the the INPUT buttons (VIDEO/RGB) on the Remote Control

Unit. (See pages7.)

NOTE: To switch between RGB1 and RGB2, use the INPUT menu (see page 10).

7

Using buttons on the Remote Control Unit or the control panel on top of the projector, adjust the picture size with the ZOOM button, then adjust the focus using the FOCUS button.

Turning Off the Projector

1 Press STANDBY/ON button (on Control

Panel or Remote Control Unit) for one (1) second. The ON indicator blinks orange and the projector lamp turns off.

CAUTION: Always press the

STANDBY/ON button before turning

OFF the MAIN POWER. This allows the fan to cool down the projector.

2 Wait until the fan stops (about one minute after pressing STANDBY/ON button).

3 Power OFF the projector. Set the MAIN

POWER switch to OFF.

4 Place the lens cap over the lens.

Positioning the Projector

The projector must be horizontal to get a distortion-free picture. Place the projector on a table-top or other flat surface. Use the chart below to determine the placement of the projection screen.

Side View

Distance "a" (inches)

Top View

Screen

Size

(inches)

Distance "b"

(inches)

---------------

40

Minimum Maximum

55 73 1 b

Screen

60 85 114 2

80 114 151 2

100

120

150

200

144

176

220

291

191

231

282

386

3

3

4

6

Setting the Projection Angle

CAUTION

To prevent a build-up of heat

that can damage the projector:

• Be especially careful not to block ventilation holes when installing the projector.

• Only use this projector in the horizontal position (see Side View shown above).

1 While firmly grasping the front of the projector with both hands, use your index finger to push --and hold-- the Adjuster Buttons (located on the sides of the projector).

2 While pressing the Adjuster Buttons, tilt the front of the projector up in order to adjust the viewing angle. Then (while still grasping the projector) release the Adjuster Buttons, securely locking the Front

Foot Adjusters.

3 To make fine adjustments, turn the base of the Front Adjusters.

Front View

a

a = distance from projector

to screen

b = distance from center of

lens to bottom of screen

(a, b: +/- 10%)

Front Adjusters

CAUTION

• To prevent possible injury or damage to the projector, make sure you are holding onto the projector securely before you unlock the foot adjusters.

• Securely lock the Front Adjusters.

• Do not use unnecessary force when you move the foot adjusters.

Side View

You can make vertical adjustments

(0 to 9 degrees) using the Front

Foot Adjusters.

Operation

ViewSonic PJ1060

Controls and Indicators

Projector Control Panel

MUTE button silences audio output temporarily

LAMP indicator

becomes lit when lamp cannot light

ON indicator

blinks in Standby mode; remains lit in Operation mode

TEMP indicator

becomes lit when temperature inside projector is too high

STANDBY/ON button

powers ON/OFF button.

OFF activates Standby

Mode

ZOOM button

ajusts the size of the projected picture.

FOCUS button

ajusts the sharpness of the projected picture.

INPUT button

selects input source:

RGB1 RGB2 VIDEO

RESET button

resets selected menu option to factory setting

MENU buttons used to display on-screen menus and and to adjust the selected opition.

FREEZE displays a still picture, stopping audio and moving video image

MAGINIFY buttons

magnify part of projected picture

OFF button turns OFF the

MAGNIFY function (+/-)

BLANK button displays blank screen (white, blue, or black). See page 10.

FOCUS button

ajusts the sharpness of the projected picture.

Remote Control Unit

VIDEO

LASER

RGB

STANDBY/ON POSITION

MENU

FREEZE

RESET

MAGNIFY

OFF

VOLUME

P in P MUTE

BLANK AUTO TIMER

FOCUS ZOOM

VIDEO button and RGB button

These two buttons are used to select either Video or RGB

(computer) as the input source.

NOTE: Same function as INPUT button on Projector Control Panel

LASER button toggles laser-pointer

On/Off. See CAUTION below.

POSITION button After pressing this button, move the DISK PAD (up/down, left/right) to move screen image (only for RGB signal)

DISK PAD

• When a menu screen is displayed, use DISK PAD to select or adjust a menu item.

• When menu is not displayed, and mouse cables are connected, the

DISK PAD functions as a mouse.

Press center of DISKPAD for leftclick mouse function.

• After pressing POSITION button,

DISK PAD moves entire screen image.

RESET / "RIGHT " MOUSE button

(two functions)

RESET button: when a menu is displayed, returns selected menu option to factory setting.

"RIGHT" MOUSE button: when no menu is displayed

VOLUME buttons adjust loudness of audio output

MUTE button silences audio output temporarily

TIMER button activates on-screen countdown timer

ZOOM buttons are used to adust the size of the screen image

AUTO button automatically adjusts

Vertical Position, Horizontal

Position, Horizontal Phase , and

Horizontal Size).

L

I

S

H

E

N

G

Speakers

Remote control sensor (rear)

Lens

Lens cap

ViewSonic PJ1060

Cooling fan

(intake)

Handle

Cooling fan

(exhaust)

Back View of Remote Control Unit

Battery

Compartment

Laser

Aperture

CAUTION

To prevent possible eye damage:

DO NOT look directly at the laser light emitted from the Laser Aperture of the

Remote Control Unit (see above).

DO NOT point the laser light at any person's eyes.

Operation

7

L

I

S

H

E

N

G

8

Adjusting the Projected Image

1

Display the list of menus. Press any one of the four MENU buttons on the Projector Control Panel or the MENU ON/OFF button on the Remote Control Unit. The names of the four menus (SETUP, INPUT, IMAGE, OPTION) will display. (See pages 8-10)

2

Select the menu.To select one of the four menus, press the left or right MENU buttons on the Projector Control Panel or the DISK PAD on the Remote Control Unit. The name of the selected menu is highlighted in green.

3

Select the menu option.To select a menu option you want to adjust, use the MENU buttons on the Projector Control

Panel or use the DISK PAD on the Remote Control Unit. The selected adjustment option is highlighted in green.

Returning to Factory Default Settings

To return all the controls in a given menu to factory settings:

1

Select the menu (follow step 2 above).

2

Press the RESET button (on the projector control panel or

Remote Control Unit), and select DEFAULT.

If you change your mind, select CANCEL.

NOTE: To return a single control (Volume, Brightness, etc.) to the factory setting, select only that menu option, and press

RESET. If you change your mind, select CANCEL.

Memory Function

Whenever you power OFF the projector, all picture adjustments made for each input device (VIDEO, RGB1, and

RGB2) will be saved separately.

Freeze Function

This function displays a still picture, freezing a moving video image (similar to the "pause" function of a VCR). You can not use this feature together with the MAGNIFY function.

1

Press the FREEZE button on the Remote Control Unit.

2

To release the Freeze function, press the FREEZE button again.

Magnify Function

This function allows you to magnify a portion of the projected picture. You can not can use this feature together with the FREEZE function. (see above)

1

To activate the Magnify function: Press the MAGNIFY button on the Remote Control Unit. The center of the projected picture will double in size.

2

To change magnification: Press the [+] button to increase magnification (maximum, 4 times). Press the [-] button to decrease magnification (minimum, about 1.1 times)

3

To shift the magnified display area: Press the POSITION ON button, then press the DISK PAD up, down, left, or right.

The magniified display area shifts accordingly.

4

To return to a normal display: Press the OFF button (below the FREEZE button).

NOTE: The Magnify function is released when a INPUT

SELECT button (on projector or Remote Control Unit) or when the timing mode (resolution or refresh rate) of a personal computer is changed while an image is displayed.

Operation

NOTE: FREEZE and MAGNIFY can not be used simultaneously.

ViewSonic PJ1060

SET UP Menu

The SET UP Menu allows you to adjust the picture for each input source separately: RGB1, RGB2, and VIDEO

(Composite Video or S-Video).

NOTE: Before using the SET UP Menu, use the INPUT Menu to select one of the input sources, then repeat these steps for each of the other input sources (see next page). Two computers can be connected (using RGB1 and

RGB2), and one video source should be connected (using either the Composite video or S-video input port.)

See page 5 for information about the input ports.

SET UP Menu Options

VOLUME

Adjustments

Decrease -- Increase

BRIGHT (BRIGHTNESS)

CONTRAST

Darker -- Brighter

Lower -- Higher

For VIDEO signal input only

SHARPNESS

COLOR (SATURATION)

TINT

Softer -- Sharper

Lower -- Higher

Red -- Green

For RGB signal input only

V POSIT

(VERTICAL POSITION)

Moves picture up or down

(or use AUTO -- automatic control)

H POSIT

(HORIZONTAL POSITION)

H PHASE

(HORIZONTAL PHASE)

Moves picture left or right

(or use AUTO)

Eliminates Horizontal Noise*

(or use AUTO)

H SIZE

(HORIZONTAL SIZE)

COLOR BAL R

(COLOR BALANCE RED)

COLOR BAL B

(COLOR BALANCE BLUE)

Widens/narrows horizontal size of picture (or use AUTO)

Red:

Blue:

Lighter <----> Darker

Lighter <----> Darker

* "horizontal noise"appears as horizontal lines on the screen image when

Horizontal Phase is not adjusted ; when adjusted properly, text charcters appear sharp.

VIDEO signal input

RGB signal input

NOTE:

• TINT cannot be adjusted with PAL/SECAM video signal input.

• TINT, COLOR, and SHARPNESS cannot be adjusted with

RGB signal nput.

• V. POSIT, H. POSIT, H. PHASE, and H. SIZE cannot be adjusted with VIDEO signal input.

AUTO Adjustment function

The AUTO Adjustment function automatically adjusts 4 controls: V. POSIT

(Vertical Position), H. POSIT (Horizontal Position), H. PHASE (Horizontal

Phase), and H. SIZE (Horizontal Size).

NOTE -- Auto Adjust:

• May require several seconds to execute

• May not operate correctly with some projected images

• May cause parts of the projected image to be slightly dark in some cases

• Can not execute when the FREEZE or MAGNIFY function is in use, or when the initial on-screen message is "NO INPUT IS DETECTED" or

"SYNC IS OUT OF RANGE."

ViewSonic PJ1060 Operation

9

L

I

S

H

E

N

G

L

I

S

H

E

N

G

INPUT Menu

The INPUT Menu allows you to select from three possible input sources (RGB1, RGB2, and VIDEO). For

VIDEO, the AUTO option will work for most circumstances (N-PAL is not suppported).

INPUT

Options

RGB

(1&2)

VIDEO

Adjustment Description

Displays the following RGB inputs: fH: horizontal sync frequency fV: vertical syn frequency

Selects signal from VIDEO port (either

Composite video or S-Video)

NOTE: When the screen is unstable

(no color or rolling image), select the mode that matches the input signal.

NOTE: RGB1 is compatible with Plug and Play (DDC1 TM and DDC2B TM );

RGB2 is not.

RGB options

VIDEO options

IMAGE Menu

The IMAGE Menu allows you to select the KEYSTONE, MIRROR, BLANK, START UP and P in P options.

10

IMAGE Menu

Options

Adjustment Description

KEYSTONE

Reduces keystone distortion at top -or bottom -- of picture (trapazoid shape) caused by raising the front of projector using the adjusters (see page 6).

Inverts picture horizontally and/or vertically

MIRROR

BLANK

START UP

P in P

NORMAL

H : INVERT

Returns to factory settings

Inverts picture

V : INVERT horizontally

Inverts picture vertically

H&V : INVERT Inverts picture horizontally and vertically

Selects background color (white, blue, or black) for the Blank Screen feature. The blank screen will display when VIDEO is the selected input source and no video input signal is detected.

Allows you to select/de-select the

ViewSonic welcome screen at start-up.

Selects the the position of the sub

(small) Picture-in-Picture screen image.

Operation

NOTE: The source of the "large picture" of the P in P

(picture in picture) image is the RGB (computer) signal and the source of the "small picture" is the VIDEO signal.

With P in P activated, the audio source defaults to the audio from the VIDEO source. To switch to the RGB

(computer) audio source, push one of the Volume buttons.

No picture is displayed when either no signal is detected or when the signal is out of the signal range.

ViewSonic PJ1060

OPT. (OPTION) Menu

The OPT. Menu allows you to adjust the Communication Function* (COM. SPEED and COM. BITS), enabling you to control the projector from a computer. The OPT. Menu also allows you to set the TIMER , select the

LANGUAGE for all on-screen displays, activate AUTO OFF and START UP.

OPT.

(OPTION)

Menu

Options

Adjustment

Description

COM. SPEED

(COMMUNIC-

ATION)

Selects data speed of transmission: 1200, 2400, 4800,

9600, 19200. (Used for computer control of projector)

COM. BITS

Selects data transmission format:

7N1...7 data bits, No Parity,

1 Stop bit

8N1...8 data bits, No Parity,

1 Stop bit

(Used for computer control of projector.)

TIMER

A countdown timer (up to 99 minutes) you can activate whenever needed. The time remaining displays at bottom of the projected picture.

LANGUAGE

AUTO OFF

SYNC ON G

Selects language of On-View menus: English, Francais

(French), Deutsch (German),

Espanol (Spanish), Italiano

(Italian), Norsk (Norwegian),

Nederlands (Dutch), Japanese.

Automatically shuts off the projector --and puts it in Standby

Mode-- after a specified period of time that no input source is detected (up to 99 minutes).

To disable AUTO OFF, set minutes to 0.

Toggles the Sync on Green feature on/off.

IMPORTANT: If AUTO OFF is activated and shuts off the projector lamp, wait at least one (1) minute. Then press--and briefly hold--the STANDBY/ON button. The lamp will turn back on.

*

NOTE: Computer control of the projector (communication function) is an advanced feature that requires specialized software not included with the PJ1060. To develop this software you will need various control codes and other supplementary information availaible from ViewSonic Customer Support. (See page 15.)

L

I

S

H

E

N

G

ViewSonic PJ1060 Operation

11

L

I

S

H

E

N

G

Technical Information

Specifications

LCD

Lens

Display

Audio

Input Signal

Compatibility

Maximum

Recommended

Resolutions

Input Ports

Type

Pixels

1.3" Polysilicon (x3) Stripe Pixel 1024 x 768 (XGA) TFT Active Matrix

2,359,296 (1024 dots x 768 lines x 3 colors)

Type

Image Size

Power Focus, Power Zoom (1-1.3X) F1.7 ~ 2.3 (f = 49 - 64 mm)

30" - 300" (76.2mm x 7620mm)

Projection Distance 1.1m - 11m

Brightness 1800 ANSI Lumens (typical )*, 1440 ANSI Lumens (minimum)

Contrast Ratio

Aspect Ratio

Lamp

Lamp Life

100:1 (typical -- ANSI method), 200:1 (typical -- non-ANSI method)

4:3

190W Ultra High Pressure compact

1500 hours (shutdown)

2W (1W + 1W) 10%THD Power

RGB Analog

Video

Frequency

PC

Macintosh ® **

Video

75 ohms, 0.7 Vp-p X2 H/V Separated, Composite (TTL)

NTSC 3.58 / PAL-N, PAL-M / SECAM S-Video

Luminance signal 0.7 Vp-p, 75 ohms termination

Chrominance signal 0.29Vp-p (NTSC), 0.30Vp-p (PAL), 75 ohms termination f h

: 15.75/15.63, 25-80 kHz f v

: 56-120Hz

PC compatible (up to 1280 x 1024 compressed)

Power Macintosh ® (up to 1280 x 1024 compressed)

NTSC 3.58 / PAL-N, PAL-M / SECAM S-Video

1280 x 1024 @ 75Hz (Compressed)

1024 x 768 @ 60Hz

Output Ports

Power

User Controls

Video

Operating

Conditions

Optimum

Installation

Environment

Storage

Conditions

Dimensions

RGB

Video

S-Video

Audio

RGB

Audio

Voltage

Consumption

Physical/projector

Input Bandwidth

Temperature

Humidity

Temperature

Humidity

Temperature

Humidity

Physical

Packing

Weight (typical)

Net

Gross

Regulations

Power Savings

"On" Green

"Stand By" Amber

15 pin mini D-sub (x2)

RCA (x1)

Mini DIN 4-pin (x1)

RCA jack (L/R) for Video, Stereo Mini (x2) for RGB

15 pin mini D-sub (x1)

Stereo Mini (x1) for Audio-out

AC 100-120/220-240 50 / 60 Hz (Automatic), 3 Wire Grounded

370 Watts

Standby On/Off, Menu (Left, Right, Up, Down), Input, Reset, Mute

150 MHz

32°F to 95°F (0°C to 35°C)

10% to 85% (no condensation)

59°F to 82°F (15°C to +28°C)

40% to 75% (no condensation)

-4°F to +140°F (-20°C to +60°C)

10% to 85% (no condensation)

292mm (W) x 124mm (H) x 395mm (D)

11.4" (W) x 4.9" (H) x 15.5" (D)

385mm (W) x 370mm (H) x 532mm (D)

15.1" (W)x 14.5" (H) 20.9"(D)

5.9 kg (13.0 lb)

11.8 kg (26.0 lb)

UL, FCC-A, CSA, CE, CB Report, T

üV/GS, EMC report

370W

11W

* Brightness may vary with lamp age and environmental conditions

** Macintosh computers require a Macintosh adaptor (supplied with the PJ1060 projector).

All products and trademarks are brand names of their respective companies. Specifications are subject to change without notice.

12

Technical Information

ViewSonic PJ1060

Timing Chart

The following table lists the maximum refresh rates that the ViewSonic PJ1060 will operate at a number of standard resolutions (timing presets). While the projector is capable of this level of performance, not all video cards are capable of operating at these signal timings. See your graphics card's user guide to ensure compatibility.

Computer/Signal Timings

Input

Resolution

H x V

Industry 640 x [email protected]

Industry 720 x [email protected]

VESA

®

VGA 720 x [email protected]

VESA VGA 640 x [email protected]

VESA VGA 640 x [email protected]

Mac

®

13" 640 x [email protected]

VESA VGA-3 640 x [email protected]

VESA VGA-3 640 x [email protected]

Industry 640 x [email protected]

Industry 640 x [email protected]

VESA SVGA 800 x [email protected]

VESA SVGA 800 x [email protected] 60Hz

VESA SVGA 800 x [email protected] 72Hz

VESA SVGA 800 x [email protected]

VESA SVGA 800 x [email protected]

Industry 800 x [email protected]

Industry 800 x [email protected]

Mac 16" 832 x [email protected]

VESA XGA 1024 x [email protected]

VESA XGA 1024 x [email protected]

VESA XGA 1024 x [email protected]

VESA XGA 1024 x [email protected]

800 x 600

640 x 480

640 x 480

832 x 624

1024 x 768

1024 x 768

1024 x 768

1024 x 768

VESA 1152 x [email protected] 75Hz

VESA SXGA 1280 x [email protected] 60Hz

1152 x 768

1280 x1024

VESA SXGA 1280 x [email protected] 60Hz 1280 x1024

VESA SXGA 1280 x [email protected] 75Hz 1280 x 1024

640 x 400

720 x 400

720 x 400

640 x 480

640 x 480

640 x 480

640 x 480

640 x 480

640 x 480

640 x 480

800 x 600

800 x 600

800 x 600

800 x 600

60.0

70.1

75.0

85.0

75.0

60.0

60.0

75.0

56.3

60.2

72.2

75.0

85.1

100.0

120.0

74.57

Vertical

Frequency

(Refresh Rate)

(Hz)

56.4

70.1

56.4

85.1

59.9

66.7

72.8

75.0

100.4

120.0

Horizontal

Frequency

(kHz)

53.7

63.6

77.2

49.7

48.4

56.5

60.0

68.7

67.5

60.0

64.0

80.0

37.9

37.5

50.9

61.8

35.2

37.9

48.1

46.9

31.5

24.8

24.8

43.3

31.5

35.0

Polarity of

Synchronizing

Signal H/V

CAUTION: Some input sources may not display properly if they are not compatible with the projector. Some input sources may not display in full size, as shown in Output

Resolutions.

+/-

-/+

-/+

-/-

-/-

-/-

-/-

+/+

+/+

-/-

-/-

+/+

-/-

-/-

-/-

-/-

-/-

(compression)

+/+

(compression)

+/+

(compression)

+/+

(compression)

Connecting to the RS232 Port

The RS232C Port has two possible uses:

1

Mouse Emulation This allows you to use a mouse with one computer at a time, by toggling between one computer connected to RGB1 and another computer connected to RGB2.

NOTE: Depending on which type of mouse you will be using (PS/2, ADB, or Serial) you must use the appropriate connector. (See diagrams below)

2

Computer Control Port This is only used for special applications in which a computer controls the projector

(instead of the projector's control buttons or Remote Control Unit).

NOTE: To use this feature you must first develop customized software using various control codes. To find out how to access this supplementary information, contact ViewSonic Customer Support. (See page 15.)

Mouse Emulation

1 With both the projector and the computer powered OFF, connect the projector and the mouse terminal of the computer using the appropriate cable. (See diagrams to the right).

2 Disconnect the existing mouse.

3 Power ON the projector, then power ON the computer.

NOTE: If mouse emulation will not start, reset the computer and/or check the mouse driver.

(a) PS/2 mouse

connector

Mini Din 6pin

4

6

2 1

5

3

(c) Serial mouse

connector

D-sub 9pin

1

6

2

7

3 4

8 9

5

(b) ADB (Macintosh)

mouse connector

Mini Din 4pin

2

4 3

1

NOTE:

Depending on which type of mouse you will be using (PS/2, ADB, or Serial) you must use the appropriate connector.

ViewSonic PJ1060 Technical Information

13

L

I

S

H

E

N

G

I

S

H

E

N

G

L

Troubleshooting

On-Screen Warning Messages

OnView Message

"CHANGE THE LAMP"

"CALL A MAINTENANCE

PERSON"

"CHANGE THE LAMP"

"CALL A MAINTENANCE

PERSON"

"THE POWER WILL TURN

OFF AFTER 20 HR."

CHANGE THE LAMP

(Blinking message)

NO INPUT IS DETECTED

SYNC IS OUT OF RANGE

Recommended Action

The lamp unit should be replaced soon. After 200 hours of use power will turn off automatically if you do not replace the lamp unit and reset the lamp time. See page 16.

Replacing the lamp unit is recommended. Call ViewSonic

®

Customer Service to order a new lamp unit (RLU-190-03A). Power will turn off automatically after 20 hours of use if you do not replace the lamp unit and reset the lamp time. See page 16.

Replace the lamp unit now. The power will turn off after 10 minutes.

No signal input is detected. Check all cable connections to all input devices.

Check to make sure the input signal (Horizontal and Vertical frequency) is within the range supported by the projector. See page 13.

Problem Solving Chart

(Check before contacting Customer Support)

Symptom

Power cannot be turned on

No picture or sound

Picture without sound

Sound without picture

Colors are pale and color matching is poor

Picture is dark

Picture is blurred

LAMP Indicator is lit red*

TEMP Indicator is lit red*

Possible Cause

Main Power switch is not ON

Power cord is disconnected

60 seconds have not elapsed since the power was turned off

Inside the projector is too hot

Input source is not set correctly

Connections to projector are not correct

Recommended Action

Turn Main Power Switch ON

Insert power cord into an AC socket

After power is turned off, wait at least 60 seconds before turning power on again

Check to see make sure that the ventilation holes are not blocked

Clean the air filter

Verify that operating enviornment of projector is under 35° C

Select correct input source using

INPUT button on projector or by accessing the on-screen INPUT menu with the Remote Control Unit

Verify cable(s) are connected correctly

Connections to projector are not correct

Volume is set to minimum

Projector is in Mute mode

Connections to projector are not correct

Brightness is set to minimum

Lens cap is attached

Verify cable(s) are connected correctly

From the Projector Control Panel, select BRIGHT with the MENU button and then press the [>] button

Remove the lens cap

Verify cable(s) are connected correctly

On either projector or Remote

Control Unit, press MENU button, select BRIGHT, and increase.

Page No.

6, 7

7, 10

5

5

7

5, 7

6, 7

5, 9

Color density and color matching are not correctly adjusted

Brightness and Contast are not adjusted correctly

The lamp is nearing the end of its service life

Focus or H PHASE is out of adjustment

Adjust the video

Adjust BRIGHT(Brightness) and

CONTRAST

Replace the lamp unit

Adjust focus or H PHASE

9

9

7

Lamp is not functioning properly

Internal overheating

Turn Power Switch OFF, wait 20 minutes; then turn power ON again

Check to see make sure that the ventilation holes are not blocked

Clean the air filter

Verify that operating enviornment of projector is under 35° C or less

6

6, 7

ViewSonic PJ1060

14

Troubleshooting

Control Panel Indicators

ON Indicator LAMP Indicator TEMP Indicator

Lights orange turns off turns off

Blinks green

Lights green

Blinks orange turns off turns off turns off turns off turns off turns off lights red lights red lights red blinks red lights red blinks red turns off blinks red turns off turns off turns off blinks red

Meaning

Standby mode

While warming up

During normal operation

While cooling down

Lamp cannot light

Lamp is not properly installed, or lamp door is open

Cooling fan is not working properly

Cumulative time of lamp use has exceeded 1,500 hours

Recommended Action

---------------------

---------------------

---------------------

---------------------

Power OFF projector and let it cool down for 20 minutes.

If LAMP Indicator is still lit, the lamp may be defective.

Replace the Lamp Unit.

After the lamp has cooled down (45 min.), insert the

Lamp Unit securely and reattach the lamp cover.

Contact ViewSonic Customer

Support

Replace the Lamp Unit and reset the Lamp Time (see page 16).

Customer Support

For the most expedient answer to your question, do the following:

1 Check the Problem Solving Chart (on the previous page).

2 For assistance contact your reseller.

3 For further assistance see the contact infomation listed below.

NOTE: If contact information is not listed below for your country or region, your reseller will refer you to a service center.

Country/Region

United States

Canada

United Kingdom

Europe, Middle East,

Baltic countries, and

North Africa

Australia

New Zealand

Singapore/Southeast

Asia

Other Asia/Pacific countries and Indian

Peninsula

South Africa

Telephone

(800) 688-6688

(800) 688-6688

0800 833 648

0044 (0)1293 643900

(contact reseller)

64- 3 - 366-1135

65-273-4018

886-2-2248-4072

27-11-314-0002

Fax

(909) 468-1202

(909)468-1202

0044 (0)1293 643910

0044 (0)1293 643910

Email

[email protected]

[email protected]

--------------------------

--------------------------

------------------------

64-3-366-7006

65-273-1566

886-2-2240-8238

[email protected]

[email protected]

[email protected]

27-11-314-0002 [email protected]

L

I

S

H

E

N

G

ViewSonic PJ1060

Troubleshooting

15

I

S

H

E

N

G

L

Maintenance

Cleaning Instructions

To ensure that the projector functions properly, follow the recommended cleaning instructions below.

Cleaning the Air Filter

IMPORTANT: Clean the air filter about every 100 hours.

1 Turn OFF the Main Power switch of the projector and disconnect the power cord from the wall outlet.

2 Remove the Front Filter Cover. (see diagram to the right)

3 Remove the air filter from the Front Filter Cover (as shown in the illustration to the right) and use a vacuum cleaner to clean the filter.

4 Re-install the air filter, then the Front Filter Cover.

Front Filter

Cover

NOTE:

If sufficient dust, etc. collects in the air filter, a protection circuit in the projector will automatically turn off the power. To prevent this from occurring, make sure you clean the air filter every 100 hours.

Cleaning the Lens

• To clean the lens, use a camera lens cleaning tissue or a camel hair brush.

• Be careful not to scratch the lens with a sharp or hard object.

CAUTION: Never use any ammonia or alcohol based cleaner on the lens.

Cleaning the Cabinet

• Use a soft, dry, lint-free cloth to wipe dust, etc. from the cabinet.

• If this is insufficient, use a soft, lint-free cloth moistened with a mild detergent diluted with water. Then wipe the surface with a soft, dry, lint-free cloth.

CAUTION: Never use any ammonia or alcohol-based

cleaner to clean the cabinet.

Replacing the Lamp Unit

To order a new lamp unit (

Part No. RLU-190-03A)

contact ViewSonic

®

Customer Support.

1 Make sure the Main Power switch is OFF, then disconnect the power cord from the wall outlet. If the projector has recently been turned on, wait at least

45 minutes for the lamp to cool down.

2 Carefully place the projector onto a flat surface covered with soft material (like a towel). Then loosen the Lamp Cover screw and remove the Lamp Cover

(as shown to the right).

3 Loosen the two (2) lamp-unit screws, grasp the

Lamp Unit Handle, and gently pull the lamp unit out of the projector.

4 Carefully insert the new lamp unit into the projector and tighten the lamp-unit screws.

5 Re-install the Lamp Cover and tighten the Lamp

Cover screw securely. Power-on the projector.

6 Reset the lamp time (within 10 minutes)

Press RESET (on projector) or TIMER (on Remote

Control Unit) and hold for three (3) seconds

Press RESET (on projector) or MENU ON (on

Remote Control Unit)

Select "0" on the screen using MENU [<] (on projector) or DISKPAD (on Remote Conrol Unit.)

Lamp

Cover

Lamp Unit

Handlle

Screws

Replace the lamp unit if:

• the picture is dark

• "CHANGE THE LAMP" is displayed

• the lamp indicator on the projector remains lit red.

(See page 14.)

CAUTION:

HANDLE THE LAMP UNIT

CAREFULLY. Dropping the unit could cause the lamp to explode.

Reflector

Lamp Unit

Front

Glass

16

Maintenance

ViewSonic PJ1060

LIMITED WARRANTY

VIEWSONIC PJ1060 PROJECTOR

What the warranty covers:

ViewSonic

®

warrants its products to be free from defects in material and workmanship during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components.

How long the warranty is effective:

ViewSonic projectors are warranted for three (3) years for all parts excluding the lamp, three (3) years for all labor, and ninety

(90) days for the lamp from the date of the first consumer purchase.

Who the warranty protects:

This warranty is valid only for the first consumer purchaser.

What the warranty does not cover:

1. Any product on which the serial number has been defaced, modified or removed.

2. Damage, deterioration or malfunction resulting from: a. Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to follow instructions supplied with the product.

b. Repair or attempted repair by anyone not authorized by ViewSonic. c. Any damage of the product due to shipment.

d. Removal or installation of the product.

e. Causes external to the product, such as electrical power fluctuations or failure.

f. Use of supplies or parts not meeting ViewSonic’s specifications.

g. Normal wear and tear.

h. Any other cause which does not relate to a product defect.

3. Removal, installation, and set-up service charges.

How to get service:

1. For information about receiving service under warranty, contact ViewSonic Customer Support. You will need to provide your product's serial number.

2. To obtain service under warranty, you will be required to provide (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.

3. Take or ship the product freight prepaid in the original container to an authorized ViewSonic service center or ViewSonic.

4. For additional information or the name of the nearest ViewSonic service center, contact ViewSonic.

Limitation of implied warranties:

THERE ARE NO WARRANTIES, EXPRESSED OR IMPLIED, WHICH EXTEND BEYOND THE DESCRIPTION CONTAINED

HEREIN INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Exclusion of damages:

VIEWSONIC'S LIABILITY IS LIMITED TO THE COST OF REPAIR OR REPLACEMENT OF THE PRODUCT. VIEWSONIC

SHALL NOT BE LIABLE FOR:

1. DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECTS IN THE PRODUCT, DAMAGES BASED UPON

INCONVENIENCE, LOSS OF USE OF THE PRODUCT, LOSS OF TIME, LOSS OF PROFITS, LOSS OF BUSINESS

OPPORTUNITY, LOSS OF GOODWILL, INTERFERENCE WITH BUSINESS RELATIONSHIPS, OR OTHER COMMERCIAL

LOSS, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

2. ANY OTHER DAMAGES, WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE.

3. ANY CLAIM AGAINST THE CUSTOMER BY ANY OTHER PARTY.

Effect of state law:

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Some states do not allow limitations on implied warranties and/or do not allow the exclusion of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

Sales outside the U.S.A. and Canada:

For warranty information and service on ViewSonic products sold outside of the U.S.A. and Canada, contact ViewSonic or your local ViewSonic dealer.

Rev. 9/20/99

L

I

S

H

E

N

G

ViewSonic PJ1060 Warranty

17

I

S

H

E

N

G

L

NOTES

18

ViewSonic PJ1060

7/2000

ViewSonic

®

Corporation

381 Brea Canyon Road

Walnut, CA 91789

Tel (909) 869-7976

Tel (800) 688-6688

Fax (909) 468-1202

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
