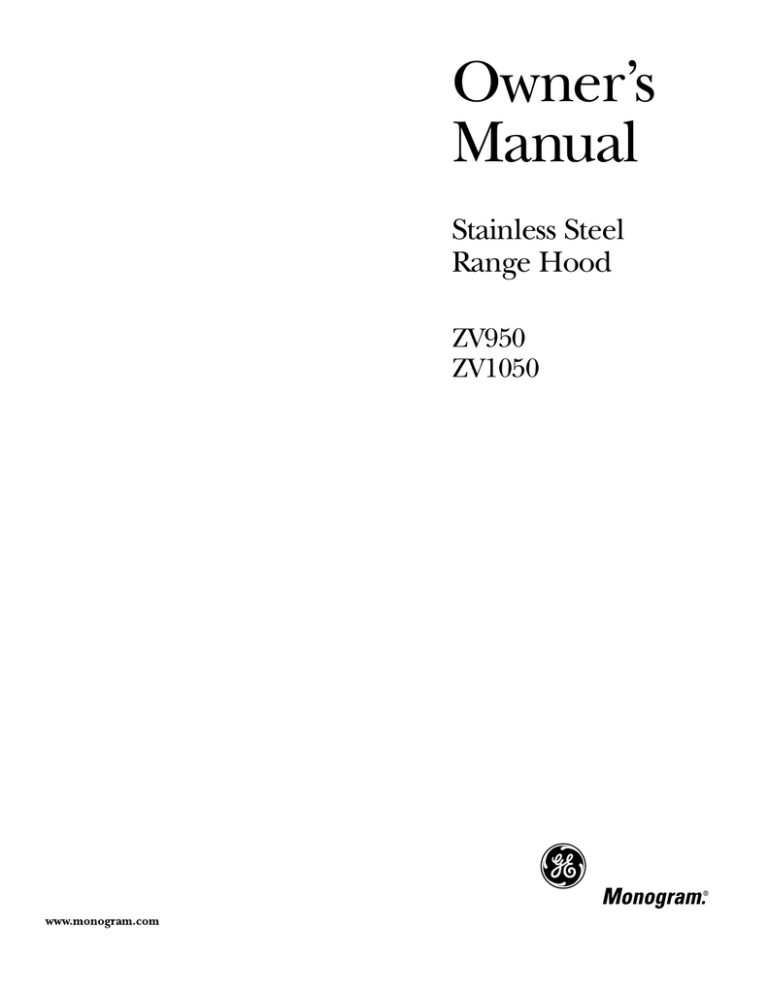

Owner’s
Manual
Stainless Steel
Range Hood
ZV950
ZV1050
Consumer Information
Stainless Steel Hood
Introduction
Your new Monogram stainless steel hood makes an eloquent statement of style, convenience
and kitchen planning flexibility. Whether you chose it for its purity of design, assiduous attention
to detail—or for both of these reasons—you’ll find that your Monogram stainless steel hood’s
superior blend of form and function will delight you for years to come.
Your Monogram stainless steel hood was designed to provide the flexibility to blend in with
your kitchen cabinetry. Its sleek design can be beautifully integrated into the kitchen.
The information on the following pages will help you operate and maintain your stainless steel
hood properly.
Contents
Before
using your
stainless
steel hood
Consumer Information
Important Phone Numbers . . . . . . . . . . . . . . . 9
Model and Serial Numbers . . . . . . . . . . . . . . . 2
Problem Solver . . . . . . . . . . . . . . . . . . . . . . . . . 8
Product Registration . . . . . . . . . . . . . . . . . 11, 12
Safety Instructions . . . . . . . . . . . . . . . . . . . . . 4, 5
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Controls and Features . . . . . . . . . . . . . . . . . . . . 6
Read this manual carefully. It is intended
to help you operate and maintain your new
stainless steel hood properly.
If you don’t understand something or need
more help, there is a list of toll-free consumer
service numbers included in the back section
of this manual.
Keep it handy for answers to your questions.
Care and Cleaning
Light Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Metal Grease Filter . . . . . . . . . . . . . . . . . . . . . . 7
OR
Visit our Website at: www.monogram.com
Write
down the
model &
serial
numbers
You’ll find them on a label on the hood.
These numbers are also on the Consumer
Product Ownership Registration Card packed
separately with your hood.
Before sending in this card, please write these
numbers here:
Model Number
Serial Number
Use these numbers in any correspondence or
service calls concerning your hood.
If you
received a
damaged
hood
2
Immediately contact the dealer (or builder)
that sold you the hood.
Consumer Information
Stainless Steel Hood
Save time
& money
Before you request service, check the Problem
Solver in the back of this manual.
It lists causes of minor operating problems that
you can correct yourself.
If you
need
service
To obtain service, see the Consumer Services
page in the back of this manual.
NEXT, if you are still not pleased, write all the
details—including your phone number—to:
We’re proud of our service and want you to be
pleased. If for some reason you are not happy
with the service you receive, here are some steps
to follow for further help.
Manager, Customer Relations
GE Appliances
Appliance Park
Louisville, KY 40225
FIRST, contact the people who serviced your
appliance. Explain why you are not pleased.
In most cases, this will solve the problem.
3
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING
SAFETY PRECAUTIONS
WARNING
—TO REDUCE THE
RISK OF FIRE, ELECTRIC SHOCK OR
INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
A. Use this unit only in the manner intended
by the manufacturer. If you have questions,
contact the manufacturer.
B. Before servicing or cleaning unit, switch
power off at service panel and lock the
service disconnecting means to prevent
power from being switched on accidentally.
When the service disconnecting means
cannot be locked, securely fasten a
prominent warning device, such as a tag,
to the service panel.
C. Do not use this unit with any solid-state
speed control device.
D. This unit must be grounded.
CAUTION—FOR GENERAL
VENTILATING USE ONLY. DO NOT USE
TO EXHAUST HAZARDOUS OR EXPLOSIVE
MATERIALS AND VAPORS.
WARNING
—TO REDUCE THE
RISK OF INJURY TO PERSONS IN THE
EVENT OF A RANGE TOP GREASE FIRE,
OBSERVE THE FOLLOWING*:
A. SMOTHER FLAMES with a close-fitting lid,
cookie sheet or metal tray, then turn off
the burner. BE CAREFUL TO PREVENT
BURNS. If the flames do not go out
immediately, EVACUATE AND CALL
THE FIRE DEPARTMENT.
B. NEVER PICK UP A FLAMING PAN—
You may be burned.
C. DO NOT USE WATER, including wet
dishcloths or towels—a violent steam
explosion will result.
D. Use an extinguisher ONLY if:
1. You know you have a Class ABC
extinguisher, and you already know
how to operate it.
2. The fire is small and contained in the
area where it started.
3. The fire department is being called.
4. You can fight the fire with your back
to an exit.
*Based on “Kitchen Firesafety Tips” published
by NFPA.
WARNING
—TO REDUCE THE
RISK OF A RANGE TOP GREASE FIRE:
A. Never leave surface units unattended at high
settings. Boilovers cause smoking and greasy
spillovers that may ignite. Heat oils slowly on
low or medium settings.
B. Always turn hood ON when cooking at high
heat or when flambéing food (i.e. Crepes
Suzette, Cherries Jubilee, Peppercorn Beef
Flambé).
C. Clean ventilating fans frequently. Grease
should not be allowed to accumulate on
fan or filter.
D. Use proper pan size. Always use cookware
appropriate for the size of the surface
element.
WARNING
—TO REDUCE THE
RISK OF FIRE, ELECTRIC SHOCK OR
INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
A. Installation work and electrical wiring must
be done by qualified person(s) in accordance
with all applicable codes and standards,
including fire-related construction.
B. Sufficient air is needed for proper
combustion and exhausting of gases
through the flue (chimney) of fuel burning
equipment to prevent back drafting. Follow
the heating equipment manufacturer’s
guideline and safety standards such as those
published by the National Fire Protection
Association (NFPA), and the American
Society for Heating, Refrigeration and
Air Conditioning Engineers (ASHRAE),
and the local code authorities.
C. When cutting or drilling into wall or ceiling,
do not damage electrical wiring and other
hidden utilities.
D. Ducted fans must always be vented to the
outdoors.
WARNING
—TO REDUCE
THE RISK OF FIRE, USE ONLY METAL
DUCTWORK.
• Do not attempt to repair or replace any
part of your hood unless it is specifically
recommended in this manual. All other
servicing should be referred to a qualified
technician.
READ AND SAVE THESE INSTRUCTIONS.
4
INSTRUCTIONS DE SÉCURITÉ IMPORTANTES
LISEZ TOUTES LES INSTRUCTIONS AVANT D’UTILISER VOTRE APPAREIL
PRÉCAUTIONS EN MATIÈRE DE SÉCURITÉ
AVERTISSEMENT—
AVERTISSEMENT—
ATTENTION— UNIQUEMENT
AVERTISSEMENT—
POUR RÉDUIRE LE RISQUE D’INCENDIE, DE
SECOUSSE ÉLECTRIQUE OU DE BLESSURE
CORPORELLE, OBSERVEZ LES PRÉCAUTIONS
SUIVANTES :
A. N’utilisez cet appareil que de la manière prévue
par le fabricant. Si vous avez des questions,
appelez le fabricant.
B. Avant de réparer ou de nettoyer votre appareil,
débranchez le courant au niveau du panneau
de service et verrouillez les mécanismes de
débranchement de service pour éviter tout
branchement accidentel au courant. Si vous
ne pouvez pas verrouiller les mécanismes
de débranchement de service, attachez
soigneusement un avertissement bien visible,
comme une étiquette, au panneau de service.
C. N’utilisez jamais cet appareil avec un mécanisme
de réglage de la vitesse à semi-conducteurs.
D. Cet appareil doit être bien mis à la terre.
À USAGE DE VENTILATION GÉNÉRALE.
N’UTILISEZ JAMAIS POUR L’ÉCHAPPEMENT
DE MATIÈRES ET DE VAPEURS EXPLOSIVES.
AVERTISSEMENT—
POUR RÉDUIRE LE RISQUE DE BLESSURE
CORPORELLE SI DE LA GRAISSE PREND FEU
SUR LA SURFACE DE CUISSON DU FOUR,
SUIVEZ LES INSTRUCTIONS SUIVANTES* :
A. ÉTOUFFEZ LES FLAMMES avec un couvercle qui
convient, une tôle à biscuits ou un plateau en
métal, puis éteignez le brûleur. FAITES BIEN
ATTENTION DE NE PAS VOUS BRÛLER. Si
les flammes ne s’éteignent pas immédiatement,
SORTEZ ET APPELEZ LES POMPIERS.
B. NE DÉPLACEZ JAMAIS UNE CASSEROLLE
QUI FLAMBE—Vous pouvez vous brûler.
C. N’UTILISEZ JAMAIS D’EAU, en particulier de
serviette ou de chiffon mouillé—il se produira
une explosion violente de vapeur brûlante.
D. N’UTILISEZ UN EXTINCTEUR que si :
1. Vous avez un extincteur de classe ABC et vous
savez comment l’utiliser;
2. Le feu est réduit et confiné à l’endroit où il
a commencé;
3. Vous avez déjà appelé les pompiers;
4. Vous combattez les flammes en tournant le
dos à une sortie.
* Basé sur l’ouvrage intitulé «Kitchen Fire Safety
Tips» publié par la NFPA.
RÉDUISEZ LE RISQUE D’UN FEU DE GRAISSE
SUR LA SURFACE DE CUISSON DU FOUR :
A. Ne laissez jamais sans surveillance les unités de
cuisson de surface à une température élevée. Le
bouillonnement occasionne des débordements
fumants et graisseux qui peuvent prendre feu.
Chauffez à feu doux les substances huileuses,
avec un réglage bas ou moyen.
B. Mettez toujours la hotte en marche quand vous
cuisinez à haute température ou quand vous faites
flamber des aliments (p. ex. crèpes Suzette,
cerises Jubilee, Bœuf flambé Peppercorn).
C. Nettoyez les mécanismes de ventilation
fréquemment. Il ne faut pas permettre une
accumulation de graisse sur le ventilateur ou
sur le filtre.
D. Utilisez une casserole de bonne taille. Utilisez
toujours un ustensile de cuisine qui convienne
au diamètre de l’élément de cuisson.
POUR RÉDUIRE LE RISQUE D’INCENDIE, DE
SECOUSSE ÉLECTRIQUE OU DE BLESSURE
CORPORELLE, OBSERVEZ LES PRÉCAUTIONS
SUIVANTES :
A. Vous devez faire exécuter tous les travaux
d’installation et de câblage électrique par une
personne qualifiée, conformément à tous les
codes et les normes en vigueur, en particulier
ceux de construction relatifs aux incendies.
B. Vous devez assez d’air pour avoir une bonne
combustion et permettre l’évacuation des gaz
par le conduit de cheminée du matériel de
combustion du carburant, afin d’éviter tout
retour d’air. Suivez les directives du fabricant de
matériel de combustion et les normes de sécurité
comme celles publiées par la National Fire
Protection Association (NFPA) et l’American
Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), ainsi
que les modalités des codes locaux.
C. Si vous faites un trou ou une ouverture dans un
mur ou un plafond, n’endommagez pas les fils
électriques et les autres installations cachées de
service public.
D. Vous devez toujours alimenter les ventilateurs
dans les conduits en air en provenance de
l’extérieur.
AVERTISSEMENT—
POUR RÉDUIRE LE RISQUE D’INCENDIE,
N’UTILISEZ QUE DES CONDUITS EN MÉTAL.
• N’essayez jamais de remplacer ou de réparer un
élément de votre hotte si le présent manuel ne
le recommande pas expressément. Tout autre
entretien doit être effectué par un technicien
qualifié.
LISEZ ET CONSERVEZ CES INSTRUCTIONS.
5
Controls and Features
Stainless Steel Hood
Controls
NOTE: Avoid using food products that produce
flames under the range hood.
1 ON/OFF. It remembers the last fan speed
used. (Four speed fan.)
2 Lowers the speed.
3 Increases the speed.
4 Highest speed “instant on” BOOST.
NOTE: BOOST fan speed can only be
selected with this pad. BOOST is not
obtainable by using the increase fan speed
pad.
5 Delayed fan shut-off. Choose 5, 10 or
20 minutes by pushing this button.
6 Light ON/OFF. It remembers the last light
level used. (Six light levels.)
7 Dims the light.
8 Brightens the light.
9 Clean Filter Light
Lights after 30 hours of “on” time to remind
you to clean the metal grease filters. The red
light glows until the filters are removed,
cleaned if necessary and replaced. If the light
is blinking after the filters have been replaced,
adjust them to make sure they are correctly
seated in the filter channels. Then the timer
resets automatically.
10 Fan indicator.
11 Indicates the time the fan is set to run,
before automatically shutting off. (5, 10 or
20 minutes.)
Implement
holders
Implement holder rods are on each side of
the hood.
Use these rods to hang and display cooking
utensils such as whisks, spoons, forks or any
non-flammable decorative items. Frequently
used small pots and pans can also hang from
these rods.
WARNING:
DO NOT hang flammable items from these
implement rods.
DO NOT hang items weighing more than
10 pounds on either side, or 20 pounds
total weight.
6
Care and Cleaning
Stainless Steel Hood
For your
safety
Pour votre
securité
Metal
grease
filter
Clean
filter
light
Before servicing or cleaning unit, switch power
off at service panel and lock the service
disconnecting means to prevent power from
being switched on accidentally. When the
service disconnecting means cannot be locked,
securely fasten a prominent warning device,
such as a tag, to the service panel.
Clean the grease filter after 30 hours of “on” time.
A red signal light will alert you when 30 hours
has passed.
Remove the grease filters and wash them
either by hand or in the dishwasher using
non-abrasive soap.
To clean, swish the filters in hot soapy water
or wash them in the dishwasher. Do not use
abrasive cleansers.
Do not use a steel wool pad; it will scratch
the surface.
Light bulbs
To change the light bulbs:
NOTE: To remove filters,
push them back and
down using the knob.
Front
Replace the filters and make sure that they are
correctly seated in the filter channels. Adjust as
necessary until the red signal light stops blinking.
Hood
surfaces
Avant de réparer ou de nettoyer votre appareil,
débranchez le courant au niveau du panneau
de service et verrouillez les mécanismes de
débranchement de service pour éviter tout
branchement accidentel au courant. Si vous
ne pouvez pas verrouiller les mécanismes
de débranchement de service, attachez
soigneusement un avertissement bien visible,
comme une étiquette, au panneau de service.
To clean the stainless steel surface, use warm
sudsy water, a stainless steel cleaner such as Kleen
King®, or an all-purpose liquid or spray cleaner.
Always scrub in the direction of the grain. Rinse
thoroughly with a sponge or cloth and clean
water. Dry with a soft, clean cloth.
For proper operation, make
sure the filters are securely
seated into the channels.
After cleaning, use a stainless steel polish, such as
Stainless Steel Magic®, Revere Copper and
Stainless Steel Cleaner® or Wenol All Purpose
Metal Polish®. Follow the product instructions
for cleaning the stainless steel surface.
1. Remove the trim ring by turning it
counterclockwise.
2. Grasp the bulb on the edges and
pull it straight out.
3. Replace with the same size bulb.
These 12 volt, 20 watt halogen bulbs
are available at specialty lighting stores.
Ask for GE bulb or equivalent:
Q20MR16/C/CG40–BAB.
On some models, the lights
are located on the sides,
on the underside of the hood.
On some models, the lights are
located on the front and back,
on the underside of the hood.
7
The Problem Solver
Stainless Steel Hood
Questions?
Use this
problem
solver!
PROBLEM
POSSIBLE CAUSE
FAN DOES NOT
OPERATE WHEN
THE SWITCH IS ON
• A fuse may be blown or a circuit breaker tripped. Replace fuse or
reset circuit breaker.
FAN FAILS TO
CIRCULATE AIR
• Fan blade striking the hood shell.
FAN OPERATES BUT
MOVES AIR SLOWER
THAN NORMAL
• Check to be sure the filter is clean. If replacing the filter does not
correct the problem, call for service.
FAN KEEPS GOING
OFF AND ON
• The motor is probably overheating and turning itself off. This can
be harmful to the motor. Check to be sure the filter is clean. If off
and on cycling continues, call for service.
• Excessively soiled filter should be checked and corrected before
using the hood again.
CLEAN FILTER LIGHT • The filters have been in place for 30 hours of “on” time. Remove the
IS ON OR BLINKING
filters, clean if necessary and replace them. Make sure they are
correctly seated in the filter channels. Adjust as necessary until the
red signal light stops blinking. See the Metal grease filter/
Clean filter light section.
8
Consumer Services
Stainless Steel Hood
With the purchase of your new Monogram appliance, receive the
assurance that if you ever need information or assistance from GE,
we’ll be there. All you have to do is call—toll- free!
GE Answer
Center®
800.626.2000
Whatever your question about any Monogram major appliance, GE Answer Center®
information service is available to help. Your call—and your question—will be answered
promptly and courteously. And you can call any time. GE Answer Center® service is open
24 hours a day, 7 days a week.
OR
Visit our Website at: www.monogram.com
In-Home Repair
Service
800.444.1845
For Customers
With Special
Needs…
800.626.2000
Service Contracts
800.626.2224
A GE consumer service professional will provide expert repair service, scheduled at a time
that’s convenient for you. Many GE Consumer Service company-operated locations offer
you service today or tomorrow, or at your convenience (7:00 a.m. to 7:00 p.m. weekdays,
9:00 a.m. to 2:00 p.m. Saturdays). Our factory-trained technicians know your appliance
inside and out—so most repairs can be handled in just one visit.
GE offers, free of charge, a brochure to assist in planning a barrierfree kitchen for persons with limited mobility.
Consumers with impaired hearing or speech who have access to a
TDD or a conventional teletypewriter may call 800.TDD.GEAC
(800.833.4322) to request information or service.
You can have the secure feeling that GE Consumer Service will still be there after your
warranty expires. Purchase a GE contract while your warranty is still in effect and you’ll
receive a substantial discount. With a multiple-year contract, you’re assured of future
service at today’s prices.
Parts and
Accessories
Individuals qualified to service their own appliances can have parts or accessories sent directly
to their home. The GE parts system provides access to over 47,000 parts…and all GE Genuine
Renewal Parts are fully warranted. VISA, MasterCard and Discover cards are accepted.
800.626.2002
User maintenance instructions contained in this manual cover procedures intended to be
performed by any user. Other servicing generally should be referred to qualified service
personnel. Caution must be exercised, since improper servicing may cause unsafe operation.
9
Warranty
Stainless Steel Hood
YOUR MONOGRAM HOOD WARRANTY
Staple sales slip or cancelled check here. Proof of original purchase
date is needed to obtain service under warranty.
WHAT IS
COVERED
FULL ONE-YEAR WARRANTY
For one year from date of original purchase, we will provide, free of charge, parts and
service labor in your home to repair or replace any part of the hood that fails because
of a manufacturing defect.
This warranty is extended to the original purchaser and any succeeding owner for products
purchased for ordinary home use in the 48 mainland states, Hawaii and Washington, D.C.
In Alaska the warranty is the same except that it is LIMITED because you must pay to ship
the product to the service shop or for the service technician’s travel costs to your home.
All warranty service will be provided by our Factory Service Centers or by our authorized
Customer Care® servicers during normal working hours.
Should your appliance need service, during warranty period or beyond, call 800.444.1845.
WHAT IS NOT
COVERED
• Service trips to your home to teach you
how to use the product.
• Replacement of house fuses or resetting
of circuit breakers.
• Incidental or consequential damage caused
by possible defects with this appliance.
• Improper installation.
If you have an installation problem, contact
your dealer or installer. You are responsible
for providing adequate electrical, gas,
exhausting and other connecting facilities
as described in the Installation Instructions
provided with the product.
• Replacement of the replaceable filters.
• Damage to the product caused by accident,
fire, floods or acts of God.
• Failure of the product if it is used for
other than its intended purpose or used
commercially.
Some states do not allow the exclusion or limitation of incidental or consequential damages,
so the above limitation or exclusion may not apply to you. This warranty gives you specific
legal rights, and you may also have other rights which vary from state to state.
To know what your legal rights are in your state, consult your local or state consumer affairs
office or your state’s Attorney General.
Warrantor: General Electric Company. Louisville, KY 40225
10
Important Mail Today
Consumer Product
Ownership Registration
GE Appliances
Place
1st Class
Letter
Stamp
Here
General Electric Company
Warranty Registration Department
P.O. Box 32150
Louisville, KY 40232-2150
11
Consumer Product Ownership Registration
Dear Customer:
Thank you for purchasing our product and thank you for placing your confidence in us. We are proud to
have you as a customer!
Follow these three steps to protect your new appliance investment:
1 2 3
✄
Complete and mail
your Consumer
Product Ownership
Registration today.
Have the peace of mind
of knowing we can
contact you in the
unlikely event of a
safety modification.
After completing this
registration, write your
model and serial numbers
in this manual. You will
need this information
should you require
service. Our service
number is 800.444.1845.
Read your Owner’s
Manual carefully.
It will help you
operate your new
appliance properly.
Important: To ensure that your product is registered, mail the separate product registration card.
If the separate product registration card is missing, fold and mail the form below. No envelope is needed.
FOLD HERE
Consumer Product Ownership Registration
Product
Hood
nt
orta
ImpMail
ay!
Tod
Mr. Ms. Model
Mrs. Miss First
Name
✄
Serial
Last
Name
Street
Address
Apt. #
E-mail Address*
City
State
Date Placed
In Use
Month
Day
Monogram®
General Electric Company
Louisville, KY 40225
www.monogram.com
Year
Phone
Number
* Please provide your e-mail address to receive, via e-mail, discounts, special offers and other
important communications from GE Appliances (GEA).
Check here if you do not want to receive communications from GEA’s carefully selected partners.
✄
TAPE CLOSED
164D4290P114
49-80157-2
01-05 JR
Printed in Italy
Zip
Code
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Languages
