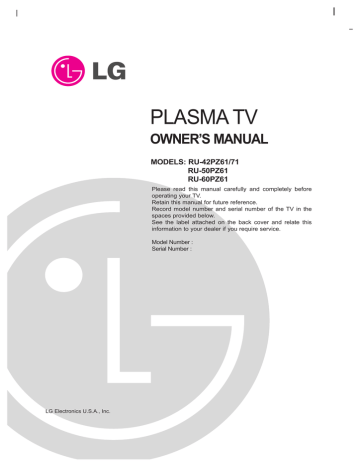

PLASMA TV

OWNER’S MANUAL

MODELS: RU-42PZ61/71

RU-50PZ61

RU-60PZ61

Please read this manual carefully and completely before operating your TV.

Retain this manual for future reference.

Record model number and serial number of the TV in the spaces provided below.

See the label attached on the back cover and relate this information to your dealer if you require service.

Model Number :

Serial Number :

Warning

W

arning

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING:

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER

SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

POWER CORD POLARIZATION:

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

NOTE TO CABLE/TV INSTALLER:

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electric Code

(U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.

REGULATORY INFORMATION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

CAUTION:

Do not attempt to modify this product in any way without written authorization from LG Electronics. Unauthorized modification could void the user’s authority to operate this product.

COMPLIANCE:

The responsible party for this product’s compliance is:

LG Electronics U.S.A., Inc

1000 Sylvan Avenue, Englewood Cliffs, NJ 07632

1-201-816-2000 http://www.lgusa.com

2 Plasma TV

Safety Instructions

Important safeguards for you and your new product

Your product has been manufactured and tested with your safety in mind. However, improper use can result in electrical shock or fire hazards. To avoid defeating the safeguards that have been built into your new product, please read and observe the following safety points when installing and using your new product, and save them for future reference.

Observing the simple precautions discussed in this manual can help you get many years of enjoyment and safe operation that are built into your new product.

This product complies with all applicable U.S. Federal safety requirements, and those of the Canadian Standards Association.

1. Read Instructions

All the safety and operating instructions should be read before the product is operated.

9. Attachments

Do not use attachments not recommended by the product manufacturer as they may cause hazards.

2. Follow Instructions

All operating and use instructions should be followed.

3. Retain Instructions

The safety and operating instructions should be retained for future reference.

4. Heed Warnings

All warnings on the product and in the operating instructions should be adhered to.

10. Ventilation

Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface.

This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

5. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6. Water and Moisture

Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool.

11. Power Sources

This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

7. Accessories, Carts, and Stands

Do not place this product on a slippery or tilted surface, or on an unstable cart, stand, tripod, bracket, or table. The product may slide or fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.

12. Power-Cord Polarization

This product is equipped with a three-wire grounding type plug, a plug having a third (grounding) pin. This plug will only fit into the grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.

13. Power-Cord Protection

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

8. Transporting Product

A product and cart combination should be moved with care.

Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

PORTABLE CART WARNING

Owner’s Manual 3

Safety Instructions

14. Outdoor Antenna Grounding

If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical

Code (U.S.A.), ANSI/ NFPA 70 provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

Example of Grounding According to National

Electrical Code Instructions

Ground Clamp

Antenna Lead in Wire

19. Servicing

Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

20. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a. If the power-supply cord or plug is damaged.

b. If liquid has been spilled, or objects have fallen into the product.

c. If the product has been exposed to rain or water.

d. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

e. If the product has been dropped or the cabinet has been damaged.

f. If the product exhibits a distinct change in performance.

Electric Service

Equipment

Antenna Discharge Unit

(NEC Section 810-20)

Grounding Conductor

(NEC Section 810-21)

Ground Clamps

Power Service Grounding

Electrode System (NEC

Art 250, Part H)

NEC - National Electrical Code

15. Lightning

For added protection for this product (receiver) during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

21. Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

22. Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

16. Power Lines

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

23. Wall or Ceiling Mounting

The product should be mounted to a wall or ceiling only as recommended by the manufacturer. The product may slide or fall, causing serious injury to a child or adult, and serious damage to the product.

17. Overloading

Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

24. Heat

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products

(including amplifiers) that produce heat.

18. Object and Liquid Entry

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock.

Never spill liquid of any kind on the product.

4 Plasma TV

Introduction

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3~4

Introduction

Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Connection Options . . . . . . . . . . . . . . . . . . . . . .8

Remote Control Key Functions . . . . . . . . . . . . . .9

Installation

Installation Instruction . . . . . . . . . . . . . . . . . . . . . .10

Joinning the TV assembly to the wall to protect the set tumbling .11

Speakers mounted on the monitor . . . . . . . . . . .11

Mounting speakers on TV . . . . . . . . . . . . . . . .11

Connecting Speakers to the Monitor using the speaker wires provided . . . . . . . . . . . . . . .11

Install the RING SPACER with the bolts on the set as shown. (Only RU-60PZ61 series) . . . . . . . . . . . 12

External Equipment Connections . . . . . . . . . . . . .12

Antenna Connection . . . . . . . . . . . . . . . . . . . . .12

VCR Setup / Cable TV Setup . . . . . . . . . . . . . .13

External A/V Source Setup . . . . . . . . . . . . . . . .14

DVD Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

DTV Setup / Monitor Out Setup . . . . . . . . . . . . .15

PC Setup . . . . . . . . . . . . . . . . . . . . . . . . . . .16-17

Operation

Turning the TV On . . . . . . . . . . . . . . . . . . . . . . . .18

Menu Language Selection . . . . . . . . . . . . . . . . . .18

Channel Menu Options

Auto Program: Channel Search . . . . . . . . . . . . .19

Manual Program: Adding/Deleting Channels . . .19

Fine Tuning Adjustment . . . . . . . . . . . . . . . . . .19

Signal Reception Booster . . . . . . . . . . . . . . . . .20

Favorite Channels Setup . . . . . . . . . . . . . . . . . .20

Picture Menu Options

APC (Auto Picture Control) . . . . . . . . . . . . . . . .21

XD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Color Temperature Control . . . . . . . . . . . . . . . .21

Fleshtone . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

sRGB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Manual Picture Control (APC set to Off option) . . . . .22

Sound Menu Options

DASP (Digital Auto Sound Processing) . . . . . . .23

BBE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

AVL (Auto Volume Leveler) . . . . . . . . . . . . . . . .23

Manual Sound Control (DASP off option and balance) . .24

Stereo/SAP Broadcasts Setup . . . . . . . . . . . . .24

Timer Menu Options

Auto Clock Setup . . . . . . . . . . . . . . . . . . . . . . .25

Manual Clock Setup . . . . . . . . . . . . . . . . . . . . .25

On/Off Timer Setup . . . . . . . . . . . . . . . . . . . . .25

Sleep Timer / Auto Off . . . . . . . . . . . . . . . . . . . .26

Special Menu Options

Key Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

ISM (Image Sticking Minimization) Method . . . .27

Low Power . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

XD Demo . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Closed Captions . . . . . . . . . . . . . . . . . . . . . . . .29

Captions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Caption/Text . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Screen Menu Options

Auto Adjustment . . . . . . . . . . . . . . . . . . . . . . .30

Setting Picture Format . . . . . . . . . . . . . . . . . . .30

Screen Position . . . . . . . . . . . . . . . . . . . . . . . .30

Manual Configure . . . . . . . . . . . . . . . . . . . . . . .31

Setting VGA Mode . . . . . . . . . . . . . . . . . . . . . .31

Setting XGA Mode . . . . . . . . . . . . . . . . . . . . . .31

Screen Adjustments . . . . . . . . . . . . . . . . . . . . .32

Cinema Mode Setup . . . . . . . . . . . . . . . . . . . . .32

Luminance Noise Reduction . . . . . . . . . . . . . . .32

Initializing (Reset to original factory value) . . . . .33

Split Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Lock Menu Options

Parental Lock Setup . . . . . . . . . . . . . . . . . . . . .34

PIP (Picture-In-Picture)/Double Window Feature

Watching PIP/Double Window . . . . . . . . . . . . ..35

Swapping the PIP/Double Window . . . . . . . . . .35

TV Program selection for PIP . . . . . . . . . . . . . .35

Selecting an Input Signal Source for PIP/Double Window .35

Moving the PIP . . . . . . . . . . . . . . . . . . . . . . . . .35

PIP Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

PIP Transparency . . . . . . . . . . . . . . . . . . . . . . .35

External Control Device Setup . . . . . . . . . . . . . . . .36~41

IR Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42~43

Programming the Remote . . . . . . . . . . . . . . . . . . . . . .44

Programming Codes . . . . . . . . . . . . . . . . . . . . . . .45~46

Troubleshooting Checklist . . . . . . . . . . . . . . . . . . . . . .47

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . .49

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51~52

Setup and Operation Checklist

(See pages 12~16 for available connection and operational setup options.)

1. Unpack TV and all accessories.

5. Turn video source equipment on.

2. Connect all external video and audio equipment.

see pages 14 ~ 16.

3 Install batteries in remote control.

See page 9.

4. Turn TV on.

See page 18.

6. Select viewing source for TV.

See page 21~22.

7. Fine-tune source image and sound to your personal preference or as required by source.

See pages 21 ~ 24.

8. Additional features set up

See Contents above.

Owner’s Manual 5

Introduction

What is a Plasma Display Panel (PDP)?

A plasma display panel is the latest display technology. It is currently the best way to achieve flat panel displays with excellent image quality and large screen sizes, that are easily viewable. The PDP can be thought of as a descendant of the neon lamp and it can be also be viewed as a series of fluorescent lamps.

How does it work?

PDP is an array of cells, known as pixels, which are comprised of 3 sub pixels, corresponding to the colors red, green, and blue.

Gas in a plasma state is used to react with phosphors in each sub-pixel to produce colored light (red, green, or blue). These phosphors are the same types used in Cathode Ray Tube (CRT) devices such as televisions and common computer monitors.

You get the rich, dynamic colors that you expect. Each sub-pixel is individually controlled by advanced electronics to produce over

16 million different colors. All of this means that you get perfect images that are easily viewable in a display that is less than 5 inches thick.

160° - Wide angle range of vision

Your flat panel plasma screen offers an exceptionally broad viewing angle -- over 160 degrees. This means that the display is clear and visible to viewers anywhere in the room who can see the screen.

Wide Screen

The screen of the Plasma Display is so wide that your viewing experience is as if you are in a theater.

Multimedia

Connect your plasma display to a PC and you can use it for conferencing, games, and Internet browsing. The Picture-in-Picture feature allows you to view your PC and video images simultaneously.

Versatile

The light weight and thin size makes it easy to install your plasma display in a variety of locations where conventional TVs will not fit.

The PDP Manufacturing Process: a few minute colored dots may be present on the PDP screen

The PDP (Plasma Display Panel), which is the display device of this product is composed of 0.9 to 2.2 million cells. A few cell defects will normally occur in the PDP manufacturing process. Several tiny, minute colored dots visible on the screen should be acceptable. This also occurs in other PDP manufacturers' products. The tiny dots appearing does not mean that this PDP is defective. Thus a few cell defects are not sufficient cause for the PDP to be exchanged or returned. Our production technology minimizes these cell defects during the manufacture and operation of this product.

In the same way that a fan is used in a PC computer to keep the CPU (Central Processing Unit) cool, the PDP is equipped with cooling fans to cool the Monitor and improve its reliability. Therefore, a certain level of noise could occur while the fans are operating and cooling the PDP.

The fan noise doesn't have any negative effect on the PDP's efficiency or reliability. The noise from these fans is normal during the operation of this product. We hope you understand that a certain level of noise from the cooling fans is acceptable and is not sufficient cause for the PDP to be exchanged or returned.

6 Plasma TV

Introduction

- This is a simplified representation of front panel.

Here shown may be somewhat different from your TV.

ON/OFF S-VIDEO

FRONT A/V INPUT

VIDEO L/MONO AUDIO R

TV/VIDEO

MENU VOL CH

RU-50PZ61

RU-60PZ61

1 2

3

S-VIDEO

FRONT A/V INPUT

VIDEO L/MONO AUDIO R

4

ON/OFF

5 6 7

8 9 10

11

TV/VIDEO

MENU VOL CH

RU-42PZ61

2 3 4

S-VIDEO

FRONT A/V INPUT

VIDEO L/MONO AUDIO R

1

ON/OFF

5

6 7

8 9 10

11

TV/VIDEO

MENU VOL CH

RU-42PZ71

2

3

4

1

5

6 7

8 9

10

11

1. ON/OFF Button

2. S-VIDEO Input

A connection available to provide better picture quality than the video input.

3.

VIDEO Input

Connects the video signal from a video device.

4. AUDIO Input

Use to connect to hear stereo sound from an external device.

5. INDEX

Switches LED Display on or off.

6. Remote Control Sensor

7. Power Standby Indicator

Illuminates red in standby mode, Illuminates green when the

TV is turned on.

8. TV/VIDEO or ENTER Button

9. MENU Button

10. VOLUME (

F

,

G

) Buttons

11. CHANNEL (

E

,

D

) Buttons

Owner’s Manual 7

Introduction

Remote Control Port

Connect your wired

RS-232C INPUT

remote control here.

(CONTROL/SER-

VICE) PORT

Connect to the RS-

232C port on a PC.

DVD/DTV Input (Component 1-2)

Connect a component video/audio device to these jacks.

Monitor Output

Connect a second TV or

Monitor.

S-Video Input

Connect S-Video out from an S-

VIDEO device to the S-VIDEO input.

R L

EXTERNAL SPEAKER

REMOTE

CONTROL

RS-232C INPUT

(CONTROL/SERVICE)

DVI INPUT

AUDIO INPUT RGB INPUT

COMPONENT

COMPONENT

INPUT 1

VIDEO

(R) (L)

AUDIO

(R) (L/MONO)

AUDIO

VIDEO

MONITOR

OUTPUT

A/V

INPUT 1

S-VIDEO

Antenna

AC INPUT

DVI Input/Audio Input/ RGB

Input

Connect the monitor output connector from a PC to the appropriate input port.

External Speaker (8 ohm Output)

Connect to optional external speaker(s).

* For further information, refer to ‘Speaker & Speaker

Stand’ manual.

Audio/Video Input 1

Connect audio/video output from an external device to these jacks.

Antenna Input

Connect cable or antenna signals to the TV, either directly or through your cable box.

Power Cord Socket

This TV operates on AC power. The voltage is indicated on the Specifications page.

Never attempt to operate the TV on DC power.

8 Plasma TV

Introduction

- When using the remote control, aim it at the remote control sensor on the TV.

LIGHT

Illuminates the remote control buttons.

TV/VIDEO

Selects: TV, Video1-2, Component 1-2,

RGB, and DVI input sources.

HD

LIGHT

MODE

TV/VIDEO

MULTIMEDIA

POW

ER

ARC

MULTIMEDIA

Selects: Component 1-2, RGB, and

DVI input sources.

NUMBER buttons

FCR

Use to scroll the Surf channel list.

MUTE

Switches the sound on or off.

FCR

REVIEW

MUTE

VOL CH

APC

MENU

PIP/DW CAPTION

EXIT

VOLUME UP/DOWN

Increases/decreases the sound level.

MENU

Brings up the main menu to the screen.

PIP/DW

Switches between PIP, and

Double Window modes.

THUMBSTICK (Up/Down/Left/Right/ENTER)

Allows you to navigate the on-screen menus and adjust the system settings to your preference.

PIPCH-/PIPCH+

Changes to next lower/higher PIP channel.

ENTER

PIP CH-

PIP CH+ SWAP

PIP INPUT

PLAY PAUSE STOP RECORD

REW FF SKIP

WIN.SIZE WIN.POSITION SLEEP

MEMORY/ERASE

DASP

MTS

A.PROG

SPLIT ZOOM

WIN. SIZE

Adjusts the sub picture size.

MEMORY/ERASE

Memorizes or erases selected channel.

A.PROG (AUTO PROGRAM)

Searches for available channels.

SPLIT ZOOM

Enlarges the picture.

MODE

Selects the remote operating mode: TV,

VCR, DVD, CABLE, HDSTB or AUDIO.

Select other operating modes, for the remote to operate external devices.

POWER

Turns your TV or any other programmed equipment on or off, depending on mode.

ARC

Changes the aspect ratio.

REVIEW

Tunes to the last channel viewed.

APC

Adjusts the factory preset picture according to the room.

CHANNEL UP/DOWN

Selects available channels found with Auto program.

CAPTION

Selects CAPTION mode.

EXIT

Clears all on-screen displays and returns to TV viewing from any menu.

PIP INPUT

Selects the input source for the sub picture.

SWAP

Exchanges the sub/main images.

VCR/DVD BUTTONS

Control some video cassette recorders or

DVD player ("RECORD" button is not available for DVD player).

SLEEP

Sets the sleep timer.

MTS

Selects the MTS sound:

Mono

,

Stereo

, or

SAP

.

DASP

Selects the sound appropriate for the program's character.

WIN.POSITION

Moves the sub picture.

Installing Batteries

• Open the battery compartment cover on the back side and install the batteries matching correct polarity (+ with +, - with -).

• Install two 1.5V AA batteries. Don’t mix old or used batteries with new ones.

Replace cover.

Owner’s Manual 9

Installation

Ensure that the following accessories are included with your plasma display. If an accessory is missing, please contact the dealer where you purchased the product.

1.5V

1.5V

HD

LIG HT

TV/V

IDEO OD

E

MU

LTIM

IA

A

R

C

W

FCR

PIP

RE

W

PL

AY

FF

PA US

PIP

C

H+

E

ST

OP

SW

AP

RE CO

RD

PIP

INP

UT

ME MO

RY

/ER AS

A.P

RO

G

SP LIT

ZO

OM

W

IN .SIZ

WIN

.PO

SIT

ION

DA SP

SL

EE

M TS

SK

IP

M UT

E

M EN

U

VO

PIP

/D W

CA

PT

IO N

CH

EX

IT

ENTER

AP

C

RE

VIE

W

Owner’s Manual

Batteries

Remote Control

Power Cord

2-TV bracket bolts

(Only RU-42PZ61/71, 50PZ61 series)

4- Bolts

(Attach Supporter

Hanger to monitor-4)

(Only RU-42PZ61/71, 50PZ61 series)

6-RING SPACER

(Only RU-60PZ61 series)

6-Wall mounting bracket bolts

(Only RU-60PZ61 series)

75

Round Cable

2-TV brackets

2-Wall brackets

(Only RU-42PZ61/71,50PZ61 series)

2-Speaker Wires

(Only RU-42PZ61/71,50PZ61 series)

Cover Cable

(Only RU-42PZ61/71,50PZ61 series)

2-Speaker Wire Holders

(for arranging the speaker wires.)

(Only RU-42PZ61/71, 50PZ61 series)

2-Speaker+2-supporter hanger

(Only RU-42PZ61/71,50PZ61 series)

GROUNDING

Ensure that you connect the grounding / earth wire to prevent possible electric shock. If grounding methods are not possible, have a qualified electrician install a separate circuit breaker. Do not try to ground the unit by connecting it to telephone wires, lightening rods, or gas pipes.

Short-circuit

Breaker

Power

Supply

10 Plasma TV

Installation

Joinning the TV assembly to the wall to protect the set tumbling

- Secure the TV assembly by joinning it to a wall by using the TV/Wall brackets.

- RU-60PZ61 series TV’s stand is saled, separately .

- Here shown may be somewhat different from your TV.

• After the set must be mounted on the desk top, install the

TV brackets on the TV as shown.

Install the TV brackets on the TV as shown.

Insert the 2 bolts and tighten securely, in the upper holes on the bracket.

Install the wall brackets on the wall with 4 bolts*, (not supplied with the product), as shown.

Match the height of the TV brackets and the wall brackets.

Check to be sure the brackets are tightened securely.

• Secure the TV assembly to the wall with strong strings or wound wire cables, (not supplied with the product), as shown.

RU-60PZ61 series TV’s speaker is saled, separately .

-

Here shown may be somewhat different from your TV.

Mounting speakers on TV

a

Assemble the monitor to speaker with using the supporter hanger and bolt. As shown above A, Assemble the a, b to the TV with using the bolt.

If the bolts are tightened too much, the product could be damaged.

Caution: Always lift the TV itself (not the speakers) when

handling or moving the monitor after speakers have been installed.

A supporter hanger b

Connecting Speakers to the Monitor using the speaker wires provided.

1

Place the speakers in the position you want. Install the speaker wires on the TV and speaker. Be sure to connect the positive “+” wire to the “+” input and the negative “-” wire to the “–” input. Connect left monitor input to left speaker and right monitor input to right speaker. Any extra speaker wire length remaining can be bunched into the wire holders provided, see 1 above to install wire holders. (Caution: Once installed, the speaker wire holders lock into position and can’t be removed.)

Caution: Be sure TV power is turned off before making

any connections.

Owner’s Manual 11

Installation

Install the RING SPACER with the bolts on the set as shown. (Only RU-60PZ61 series)

1. Put the RING SPACER in the holes of the bolts before connecting to the wall mounting bracket.

2. When you connect the wall mounting bracket to the set, connect to it by using the bolts, (supplied with the product), as shown.

- Antenna or Cable Service without a Cable Box Connections

- For optimum picture quality, adjust antenna direction if needed.

Multi-family Dwellings/Apartments

(Connect to wall antenna socket) wall antenna socket

RF coaxial wire (75 ohm)

Bronze Wire

(R) (L/MONO)

AUDIO

VIDEO

MONITOR

OUTPUT

A/V

INPUT 1

S-VIDEO

Antenna

VHF antenna

UHF antenna

Turn clockwise to tighten.

outdoor antenna

Single-family Dwellings /Houses

(Connect to wall jack for outdoor antenna)

Bronze Wire

Be careful not to bend the bronze wire when connecting the antenna.

O

Antenna

Signal

Amplifier

• To improve picture quality in a poor signal area, purchase and install a signal amplifier.

• If the antenna needs to be split for two TV’s, install a “2-Way

Signal Splitter” in the connections.

• If the antenna is not installed properly, contact your dealer for assistance.

12 Plasma TV

Installation

NOTE: All cables shown are not included with the TV

- To avoid picture noise (interference), leave an adequate distance between the VCR and TV

- Use the ISM Method (on the Option menu) feature to avoid having a fixed image remain on the screen for a long period of time.

Typically a frozen still picture from a VCR. If the 4:3 picture format is used; the fixed images on the sides of the screen may remain visible on the screen.

Connection Option 1

Set VCR output switch to 3 or 4 and then tune

TV to the same channel number.

Connection Option 2

1. Connect the audio and video cables from the

VCR's output jacks to the TV input jacks, as shown in the figure.

When connecting the TV to VCR, match the jack colors (Video = yellow, Audio Left = white, and Audio Right = red).

If you connect an S-VIDEO output from VCR to the S-VIDEO input, the picture quality is improved; compared to connecting a regular

VCR to the Video input.

2. Insert a video tape into the VCR and press

PLAY on the VCR. (Refer to the VCR owner’s manual.)

3. Select the input source by the TV/VIDEO button on the remote control. (If connected to A/V

INPUT 1, select Video 1 input source)

ANT IN

COMPONENT

INPUT 2

COMPONENT

INPUT 1

VIDEO

ANT OUT

S-VIDEO

OUT

OUTPUT

SWITCH

3 4

IN

(R) AUDIO (L) VIDEO

R L

AUDIO

2

VCR

R L/MONO

AUDIO VIDEO

MONITOR

OUTPUT

A/V

INPUT 1

S-VIDEO

Antenna

1

AC INPUT

Do not connect to both Video and S-

Video at the same time. In the event that you connect both Video and the

S-Video cables, only the S-Video will work.)

Cable

TV Setup

- After subscribing to a cable TV service from a local provider you can watch cable TV programming. The TV cannot display TV programming unless a TV tuner device or cable TV converter box is connected to the TV.

- For further information regarding cable TV service, contact your local cable TV service provider(s).

Connection Option 1

1. Select 3 or 4 with channel switch on cable box.

2. Tune the TV channel to the same selected output channel on cable box.

3. Select channels at the cable box or with the cable box remote control.

Connection Option 2

1. Connect the audio and video cables from the Cable Box's output jacks to the TV input jacks, as shown in the figure.

When connecting the TV to a Cable Box, match the jack colors

(Video = yellow, Audio Left = white, and Audio Right = red).

2. Select the input source by using the TV/VIDEO button on the remote control. (If connected to A/V INPUT 1, select Video 1 input source)

3. Select your desired channel with the remote control for cable box.

COMPONENT

INPUT 2

COMPONENT

INPUT 1

VIDEO

R L

AUDIO

R L/MONO

AUDIO VIDEO

MONITOR

OUTPUT

A/V

INPUT 1

S-VIDEO

Antenna

2

TV

VCR

(R) AUDIO (L) VIDEO

OUTPUT

SWITCH

3 4

Cable Box

1

RF Cable

AC INPUT

Owner’s Manual 13

Installation

External

A/V Source Setup

How to connect

Connect the audio and video cables from the external equipment's output jacks to the TV input jacks, as shown in the figure.

When connecting the TV to external equipment, match the jack colors (Video = yellow, Audio Left = white, and Audio

Right = red).

How to use

1. Select the input source by using the TV/VIDEO button on the remote control. (If connected to A/V INPUT 1, select

Video 1 input source).

2. Operate the corresponding external equipment. Refer to external equipment operating guide.

COMPONENT

INPUT 2

COMPONENT

INPUT 1

VIDEO

R L

AUDIO

R L/MONO

AUDIO VIDEO

MONITOR

OUTPUT

A/V

INPUT 1

S-VIDEO

Antenna

AC INPUT

R

AUDIO

L

VIDEO

Camcorder

Video Game Set

How to connect

1. Connect the DVD video outputs (Y, P

B

, P

R

) to the COMPONENT

(Y, P

B

, P

R

) INPUT jacks on the TV and connect the DVD audio outputs to the AUDIO INPUT jacks on the TV, as shown in the figure.

2. If your DVD only has an S-Video output jack, connect this to the

S-VIDEO input on the TV and connect the DVD audio outputs to the AUDIO INPUT jacks on the TV, as shown in the figure.

NOTE: If your DVD player does not have component video output, use S-Video.

How to use

1. Turn on the DVD player, insert a DVD.

2. Use the TV/VIDEO or MULTIMEDIA button on the remote control to select Component 1 or Component 2. (If connected to S-

VIDEO, select the Video 1 or Video 2 external input source.)

3. Refer to the DVD player's manual for operating instructions.

Component Input ports

To get better picture quality, connect a DVD player to the component input ports as shown below.

Component ports on the TV

Y P

B

P

R

Video output ports on DVD player

Y

Y

Y

Y

Pb

B-Y

Cb

P

B

Pr

R-Y

Cr

P

R

COMPONENT

INPUT 2

COMPONENT

INPUT 1

VIDEO

R L

AUDIO

R L/MONO

AUDIO VIDEO

MONITOR

OUTPUT

A/V

INPUT 1

S-VIDEO

Antenna

AC INPUT

B R

(R) AUDIO (L)

or

DVD

S-VIDEO

(R) AUDIO (L)

14 Plasma TV

Installation

- To watch digitally broadcast programs, purchase and connect a digital set-top box.

R L

EXTERNAL SPEAKER

REMOTE

CONTROL

RS-232C INPUT

(CONTROL/SERVICE)

DVI INPUT AUDIO INPUT RGB INPUT

COMPONENT

INPUT 2

R

COMPONENT

INPUT 1

VIDEO

(R) (L)

AUDIO

(R) (L/MONO)

AUDIO

VIDEO

MONITOR

OUTPUT

A/V

INPUT 1

S-VIDEO

Antenna

or or

DVI-DTV OUTPUT

(R) AUDIO (L) (R) AUDIO (L) RGB-DTV OUTPUT

Digital Set-top Box

How to connect

Use the TV’s COMPONENT (Y, P

B

, P

R

) INPUT jacks, RGB or DVI port for video connections, depending on your set-top box connections available.

Then, make the corresponding audio connections.

How to use

1. Turn on the digital set-top box. (Refer to the owner’s manual for the digital set-top box.)

2. Use TV/VIDEO or MULTIMEDIA on the remote control to select

Component 1, Component 2, RGB, or DVI source.

B R

(R) AUDIO (L)

Signal

480i

480p

720p

1080i

Component 1/2

Yes

Yes

Yes

Yes

RGB,DVI

No

Yes

Yes

Yes

COMPONENT

INPUT 2

COMPONENT

INPUT 1

VIDEO

R L

AUDIO

R L/MONO

AUDIO VIDEO

MONITOR

OUTPUT

A/V

INPUT 1

S-VIDEO

Antenna

AC INPUT

The TV has a special signal output capability which allows you to hook up a second TV or monitor.

Connect the second TV or monitor to the TV’s MONITOR OUTPUT.

See the Operating Manual of the second TV or monitor for further details regarding that device’s input settings.

NOTE

• Component, RGB, DVI input sources cannot be used for Monitor out.

S-VIDEO

IN

(R) AUDIO (L) VIDEO

Owner’s Manual 15

Operation

How to connect

1. To get the best picture quality, adjust the PC graphics card to (RU-42PZ61->1024x768, RU-

42PZ71->852x480, RU-50/60PZ61->1366x768),

60Hz.

2. Use the TV’s RGB INPUT or DVI (Digital Visual

Interface) INPUT port for video connections, depending on your PC connector.

• If the graphic card on the PC does not output analog and digital RGB simultaneously, connect only one of either RGB INPUT or DVI INPUT to display the PC on the TV.

• If the graphic card on the PC does output analog and digital RGB simultaneously, set the TV to either RGB or DVI; (the other mode is set to Plug and Play automatically by the TV.)

3. Then, make the corresponding audio connection. If using a sound card, adjust the PC sound as required.

R L

EXTERNAL SPEAKER

REMOTE

CONTROL

RS-232C INPUT

(CONTROL/SERVICE)

DVI INPUT AUDIO INPUT RGB INPUT

COMPONENT

COMPONENT

INPUT 1

VIDEO

(R) (L)

AUDIO

(R)

(L/MONO)

AUDIO

VIDEO

MONI

OUT

A/

INPU

How to use

1. Turn on the PC and the TV.

2. Turn on the display by pressing the POWER button on the TV's remote control.

3. Use TV/VIDEO or MULTIMEDIA on the remote control to select RGB, or DVI source.

4. Check the image on your TV. There may be noise associated with the resolution, vertical pattern, contrast or brightness in PC mode. If noise is present, change the PC mode to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the menu until the picture is clear. If the refresh rate of the PC graphic card can not be changed, change the PC graphic card or consult the manufacturer of the PC graphic card.

NOTES: • Use a DVI cable.

• Avoid keeping a fixed image on the TV's screen for a long period of time. The fixed image may become permanently imprinted on the screen. Use the Orbiter screen saver when possible.

• The synchronization input form for Horizontal and Vertical frequencies is separate.

16 Plasma TV

Operation

Displayable Monitor Specifications

RGB / DVI Mode

Resolution

640x350

720x400

640x480

848x480

852x480

800x600

832x624

1024x768

1360x768

(XGA)

1366x768

(XGA)

1152x864

(RGB)

1152x870(RGB)

1280x768

(XGA)

1280x960(RGB)

1280x1024(RGB)

48.363

56.476

60.023

68.677

47.700

59.625

47.700

59.625

54.348

63.995

67.500

77.487

68.681

47,693

60.0911

68.504

60.023

63.981

Horizontal

Frequency(KHz)

31.468

Vertical

Frequency(Hz)

70.09

37.861

31.469

37.927

31.469

85.08

70.08

85.03

59.94

35.000

37.861

37.500

43.269

31.500

37.799

39.375

31.500

37.799

39.375

35.156

37.879

48.077

46.875

53.674

49.725

66.66

72.80

75.00

85.00

60.00

70.00

75.00

60.00

70.00

75.00

56.25

60.31

72.18

75.00

85.06

74.55

60.05

70.01

75.00

85.00

75.06

59.922

74.926

84.887

60.02

60.02

60.00

70.06

75.02

85.00

60.00

75.02

60.00

75.02

RU-42PZ61/71

RGB / DVI Mode

Resolution

640x350

720x400

640x480

848x480

852x480

800x600

832x624

Horizontal

Frequency(KHz)

31.468

37.861

31.469

37.927

31.469

35.000

37.861

37.500

43.269

31.500

37.799

39.375

31.500

37.799

39.375

35.156

37.879

48.077

46.875

53.674

49.725

Vertical

Frequency(Hz)

70.09

85.08

70.08

85.03

59.94

66.66

72.80

75.00

85.00

60.00

70.00

75.00

60.00

70.00

75.00

56.25(RGB)

60.31

72.18

75.00

85.06

74.55

1024x768

1360x768

1366x768

1152x864

(RGB)

1152x870(RGB)

1280x768

1280x960(RGB)

1280x1024(RGB)

59.625

69.500

54.348

63.995

67.500

77.487

68.681

47,693

48.363

56.476

60.023

68.677

47.700

59.625

68.500

47.700

60.0911

68.504

60.023

63.981

75.02

85.00

60.05

70.01

75.00

85.00

75.06

59.922

60.00

70.06

75.02

85.00

60.00

75.02

85.00

60.00

74.926

84.887

60.02

60.02

RU-50/60PZ61

Owner’s Manual 17

Operation

T urning the TV On

* In this manual, the OSD (On Screen Display) may be different from your TV’s because it is just an example to help you with the TV operation.

Turning on the TV just after installation

1. Connect power cord correctly.

2. Press the ON/OFF button on the TV. At this moment, the TV is switched to standby mode. Press the TV/VIDEO, CH ( D

/

E ) button on the TV or press the POWER, TV/VIDEO, MULTIMEDIA,

Number (0 ~ 9) button on the remote control and then the TV will turn on.

Turning on the TV (power cord is still connected)

1. If the TV was turned off with the ON/OFF button on the TV

• Press the ON/OFF button on the TV to turn the TV on.

2. If the TV was turned off with the remote control and then the ON/OFF button on the TV

• Press the ON/OFF button on the TV and then press the TV/VIDEO, CH ( D

/

E ) button on the TV or press the POWER, TV/VIDEO, MULTIMEDIA, Number (0 ~ 9) button on the remote control to turn the TV on.

NOTE

• If you intend to be away on vacation, disconnect the power plug from the wall power outlet.

- The menus can be shown on the screen in the selected language. First select your language.

1. Press the MENU button and then use

D

/

E button to select the

SPECIAL

menu.

2. Press the G button and then use

D

/

E button to select

Language

.

3. Press the G button and then use

D

/

E button to select your desired language.

From this point on, the on-screen menus will be shown in the language of your choice.

4. Press the ENTER button to save.

18 Plasma TV

Operation

Auto Program should be used to memorize all the active channels in your area before you are able to use the TV.

There are two ways of storing channels in the TV's memory. You can use either.

One is called AUTO PROGRAM and the other is called MANUAL PROGRAM.

In AUTO PROGRAM mode, the TV will memorize the channels in ascending numerical order. If there are additional channels you want to add or delete, you can manually add or delete those channels with Manual Program.

- Redo Auto Program if the Plasma Display is ever moved to another location.

- Auto Program will search for channels only through the ANT IN jack.

- If channels numbers for broadcast over-the air TV and cable TV are duplicated where different channels have the same number, press the same number buttons again to toggle between:

Broadcast TV Channels Cable TV Channels

(For example, press 17 to go to the channel, press 17 again to go to the duplicated channel.)

1. Press the A.PROG button and then press the

G button.

AUTO PROGRAM starts the channel search.

If you want to stop auto programming, press the ENTER button. Only the channels found up to at that time are memorized.

• You can also select the

Auto program

option and do a channel search in the

CHANNEL

menu.

CHANNEL


Auto program

Manual program

Favorite channel

G

SOUND

TIMER

SPECIAL

SCREEN

PIP/DW

LOCK

Menu

Prev.

To start

Manual Program:

Adding/Deleting Channels

- You can add or delete channels from the channel scan manually.

1. Use the D

/

E or NUMBER buttons to select the channel number you want to add or delete.

2. Press the MEMORY/ERASE button.

3. Use the MEMORY/ERASE button to select

Memory

or

Erase

.

4. Press the ENTER button.

• You can also do

Manual program

with the

CHANNEL

menu.

Fine T uning

Adjustment

- Use this function to correct the picture's instability and condition if it is poor.

1. Press the MENU button and then use D

/

E button to select the

CHANNEL

menu.

2. Press the G button and then use

D

/

E button to select

Manual program

.

3. Press the G button and then use

D

/

E button to select

Fine

.

4. Use the

F

/

G button to adjust the picture to your preference.

5. Press the ENTER button to save.

Notes

• To remove fine tuning from a channel, reprogram the finely-tuned channel with

Auto program or Manual Program.

• If a finely-tuned channel is memorized, the color of the channel number changes to yellow.

CHANNEL


Auto program

Manual program

Favorite channel

G

SOUND

TIMER

SPECIAL

SCREEN

PIP/DW

LOCK

Menu Prev.

TV

Memory

Fine

Booster

2

On

0

Off

Owner’s Manual 19

Operation

- If TV signal reception is poor because you are in a fringe area, set Booster to On.

If the picture condition is good, set Booster to Off.

- Adjustments for one channel don’t affect the adjustment for other channels.

Set booster to on or off for each channel separately.

1. Press the MENU button and then use

D

/

E button to select the

CHANNEL

menu.

2. Press the G button and then use

D

/

E button to select

Manual program

.

3. Press the

G button and then use D

/

E button to select

Booster

.

4. Use

F

/

G button to select

On

or

Off

.

5. Press the ENTER button to save.

CHANNEL


Auto program

Manual program

Favorite channel

G

SOUND

TIMER

SPECIAL

SCREEN

PIP/DW

LOCK

Menu Prev.

TV

Memory

Fine

Booster

2

On

0

Off

- Favorite Channels is a convenient feature that lets you quickly scan up to 8 channels of your choice without having to wait for the TV to scan through all the in-between channels.

1. Press the MENU button and then use D

/

E button to select the

CHANNEL

menu.

2. Press the

G button and then use D

/

E button to select

Favorite channel

.

3. Press the G button and then use D

/

E button to select the first favorite channel position.

4. Use the

F

/

G button to set the desired channel number for first favorite channel.

5. Repeat steps 3 to 4 to memorize other favorite channels.

6. Press the ENTER button to save.

• To tune to a favorite channel, press the FCR (Favorite Channel Review) button repeatedly. The eight favorite channels appear on the screen in numerical order.

CHANNEL


Auto program

Manual program

Favorite channel

G

SOUND

TIMER

SPECIAL

SCREEN

PIP/DW

LOCK

Menu Prev.

- - - - - - - -

- - - - - - - -

- - - - - - - -

- - - - - - - -

- - - - - - - -

- - - - - - - -

- - - - - - - -

- - - - - - - -

20 Plasma TV

Operation

- APC adjusts the TV to the best picture appearance.

- If adjusting picture options (contrast, brightness, color, sharpness, or tint) manually, APC automatically changes to

Off

.

1. Press the APC button repeatedly to select the picture appearance setup option as shown below.

Daylight

Optimum Night time Off

• You can also adjust

APC

in the


menu.

Daylight

,

Optimum

, and

Night time

settings are preset for good picture quality at the factory and cannot be changed.

- XD is LG Electronic’s unique picture improving technology to display a real HD source through an advanced digital signal processing algorithm.

- When selecting APC options (Clear, Optimum and Soft), XD is automatically change to On.

1. Press the MENU button and then use D

/

E button to select the


menu.

2. Press the G button and then use

D

/

E button to select

XD

.

3. Press the

G button and then use D

/

E button to set

On

or

Off

.

4. Press the ENTER button to save.

CHANNEL


SOUND

TIMER

SPECIAL

SCREEN

APC

G

ACC

Fleshtone

Contrast 100

Brightness

Color

Sharpness

Tint

55

55

60

0

PIP/DW

LOCK

Menu Prev.

On

Off

Color T emperature Control

Auto Color Temperature Control

- To initialize values (reset to default settings), select the

Normal

option.

1. Press the MENU button and then use D

/

E button to select the


menu.

2. Press the G button and then use D

/

E button to select

ACC

.

3. Press the

G button and then use D

/

E button to select either:

Cool

(Preset),

Normal

(Default), or

Warm

(Preset).

4. Press the ENTER button to save.

Manual Color Temperature Control (

ACC

set to

Off

option)

- You can adjust red, green, or blue to any color temperature you prefer.

1. Press the MENU button and then use D

/

E button to select the


menu.

2. Press the G button and then use D

/

E button to select

ACC

.

3. Press the

G button and then use D

/

E button to select

Off

.

4. Press the

G button and then use D

/

E button to select

Red

,

Green

or

Blue

.

5. Use the F

/

G button to make appropriate adjustments.

• The adjustment range of

Red

,

Green

, and

Blue

is -30 ~ +30.

6. Press the ENTER button to save.

CHANNEL

APC


SOUND

TIMER

SPECIAL

SCREEN

ACC

Fleshtone

Contrast 100

G

Brightness

Color

Sharpness

Tint

55

55

60

0

PIP/DW

LOCK

Menu Prev.

Cool

Normal

Warm

Off

Red 0

Green 0

Blue 0

Owner’s Manual 21

Operation

Fleshtone (TV , V ideo1-2, Component 1-2, RGB-DTV

, and DVI-DTV Mode only)

- Use Fleshtone to select the desired skin color option.

1. Press the MENU button and then use

D

/

E button to select the


menu.

2. Press the

G button and then use D

/

E button to select

Fleshtone

.

3. Press the G button and then use F

/

G button to make appropriate adjustments.

• The adjustment range is 0 ~ 3.

4. Press the ENTER button to save.

CHANNEL APC


SOUND

TIMER

SPECIAL

SCREEN

ACC

Fleshtone

Contrast 100

Brightness 55

G

Color

Sharpness

Tint

55

60

0

PIP/DW

LOCK

Menu

Prev.

0

- If the TV is connected to external equipment using sRGB, set sRGB to On to adjust for the color difference.

1. Press the MENU button and then use D

/

E button to select the


menu.

2. Press the

G button and then use D

/

E button to select

sRGB

.

3. Press the G button and then use

D

/

E button to select

On

or

Off

.

4. Press the ENTER button to save.

CHANNEL

APC


SOUND

TIMER

SPECIAL

ACC sRGB

G

Contrast 100

Brightness

Color

55

55

SCREEN

PIP/DW

LOCK

Menu Prev.

On

Off

Manual Picture Control (

APC

set to

Off

option)

- You can adjust picture contrast, brightness, color, sharpness, and tint options to the levels you prefer.

1. Press the MENU button and then use D

/

E button to select the


menu.

2. Press the

G button and then use D

/

E button to select the desired picture option

(

Contrast

,

Brightness

,

Color

,

Sharpness

,

Tint

)

.

3. Press the G button and then use F

/

G button to make appropriate adjustments.

4. Press the ENTER button to save.

CHANNEL

APC


SOUND

ACC

Fleshtone

TIMER

SPECIAL

SCREEN

Brightness

Color

Sharpness

Tint

PIP/DW

LOCK

Menu Prev.

60

50

50

0

22 Plasma TV

Operation

DASP (Digital Auto Sound Processing)

- This function lets you enjoy the best sound without any special adjustment because the TV has the appropriate sound options based on the program content.

- If you adjust sound options (Treble and Bass) manually, DASP automatically changes to

Off

.

1. Press the DASP button repeatedly to select the appropriate sound setup as shown below.

SRS TSXT Flat Music Movie Sports Off

• You can also adjust

DASP

in the

SOUND

menu.

SRS TSXT

,

Flat

,

Music

,

Movie

, and

Sports

are preset for good sound quality at the factory and cannot be changed.

is a trademark of SRS Labs, Inc.

• TruSurround XT technology is incorporated under license from SRS Labs, Inc.

- BBE High Definition Sound restores clarity and presence for better speech intelligibility and music realism.

1. Press the MENU button and then use D

/

E button to select the

SOUND

menu.

2. Press the G button and then use D

/

E button to select

BBE

.

3. Press the G button and then use

D

/

E button to select

On

or

Off

.

4. Press the ENTER button to save.

Manufactured under license from BBE Sound, Inc.

• Treble, Bass or BBE aren’t suitable for

SRS TSXT

mode.

CHANNEL


SOUND

TIMER

DASP

BBE

AVL

Balance

Treble

0

50

Bass 50

G

SPECIAL

SCREEN

PIP/DW

LOCK

Menu Prev.

On

Off

A VL (Auto V olume Leveler)

- AVL maintains an equal sound level; even if you change channels.

1. Press the MENU button and then use D

/

E button to select the

SOUND

menu.

2. Press the G button and then use D

/

E button to select

AVL

.

3. Press the G button and then use

D

/

E button to select

On

or

Off

.

4. Press the ENTER button to save.

CHANNEL


SOUND

TIMER

DASP

BBE

AVL

Balance 0

Treble 50

Bass 50

G

SPECIAL

SCREEN

PIP/DW

LOCK

Menu Prev.

On

Off

Owner’s Manual 23

Operation

Manual Sound Control (

DASP off

option and balance)

- You can adjust sound options Balance, Treble, and Bass to the levels you prefer.

1.

Press the MENU button and then use D

/

E button to select the

SOUND

menu.

2. Press the G button and then use

D

/

E button to select the desired sound option

(

Balance

,

Treble

,

Bass

)

.

3. Press the G button and then use F

/

G button to make appropriate adjustments.

4. Press the ENTER button to save.

CHANNEL


SOUND

TIMER

DASP

BBE

AVL

Balance

Treble

0

50

Bass 50

G

SPECIAL

SCREEN

PIP/DW

LOCK

Menu Prev.

L R

Stereo/SAP

Broadcasts Setup

- The TV can receive MTS stereo programs and any SAP (Secondary Audio Program) that accompanies the stereo program; if the broadcaster transmits one additional sound signal in addition to the original one.

- Mono: The primary language is heard from left and right speakers. Signal mode is mono.

- Stereo: The primary language is heard from left and right speakers. Signal mode is stereo.

- SAP: The secondary language is heard from left and right speakers in mono sound.

1. Press the MTS button repeatedly.

Mono Stereo SAP

• Select mono sound mode if the signal is not clear or in poor signal reception areas.

Stereo

,

SAP

modes are available only if included on the broadcast signal.

24 Plasma TV

Operation

T imer Menu Options

- Set the time automatically through the PBS broadcast signal.

- ThePBS channel signal includes information for the current time.

- Set the clock manually, if the current time is set incorrectly programed by the auto clock function.

1. Press the MENU button and then use

D

/

E button to select the

TIMER

menu.

2. Press the G button and then use

D

/

E button to select

Clock

.

3. Press the

G button and then use D

/

E button to select

Auto

.

4. Press the G button and then use D

/

E button to select the time zone for your viewing area. Your choices are:

Auto

,

E

.

S

.

T

. (Eastern Standard Time),

C

.

S

.

T

.

(Central Standard Time),

M

.

S

.

T

. (Mountain Standard Time),

P

.

S

.

T

. (Pacific

Standard Time),

Alaska

, and

Hawaii

.

5. Press the G button and then use

D

/

E button to set

PBS Channel

.

6. Press the

G button and then use D

/

E button to set Daylight Saving Time

Auto

,

On

or

Off

, depending on whether or not your viewing area observes

Daylight Saving Time.

7. Press the ENTER button to save.

CHANNEL


SOUND

Clock

Off timer

On timer

Auto off

TIMER

SPECIAL

SCREEN

PIP/DW

LOCK

Menu Prev.

G

Auto

Manual

Time zone

Auto

PBS Channel

TV 2

Daylight Saving

Auto

- If current time setting is wrong, reset the clock manually.

1. Press the MENU button and then use

D

/

E button to select the

TIMER

menu.

2. Press the

G button and then use D

/

E button to select

Clock

.

3. Press the

G button and then use D

/

E button to selectt

Manual

.

4. Press the G button and then use

D

/

E button to set the hour.

5. Press the

G button and then use D

/

E button to set the minutes.

6. Press the ENTER button to save.

CHANNEL


SOUND

Clock

Off timer

On timer

Auto off

TIMER

SPECIAL

SCREEN

PIP/DW

LOCK

Menu

Prev.

G

Auto

Manual

- - : - - AM

On/Of f T imer Setup

- Timer function operates only if current time has been set.

- Off-Timer function overrides On-Timer function if they are set both set to the same time.

- The TV must be in standby mode for the On-Timer to work.

- If you do not press any button within 2 hours after the TV turns on with the On Timer function, the TV will automatically revert to standby mode.

1. Press the MENU button and then use

D

/

E button to select the

TIMER

menu.

2. Press the G button and then use

D

/

E button to select

Off timer

or

On timer

.

3. Press the

G button and then use D

/

E button to select

On

.

• To cancel

On

/

Off timer

function, select

Off

.

4. Press the G button and then use

D

/

E button to set the hour.

5. Press the

G button and then use D

/

E button to set the minutes.

6. For only

On timer function

Press the G button and then use D

/

E button to set the sound level at turn-on.

Press the G button and then use

D

/

E button to select the channel at turn-on.

7. Press the ENTER button to save.

CHANNEL


SOUND

Clock

Off timer

On timer

Auto off

TIMER

SPECIAL

SCREEN

PIP/DW

LOCK

Menu Prev.

G

On

Off

6 : 30 AM

Volume 17

Ch. TV 2

Owner’s Manual 25

Operation

T imer Menu Options continued

Sleep T imer

- The Sleep Timer turns the TV off at the preset time. Note that this setting is cleared when the TV is turned off.

zz

1. Press the SLEEP button repeatedly to select the number of preset minutes. First the ---

Min

option appears on the screen, followed by the following sleep timer turn off times:

10, 20, 30, 60, 90, 120, 180, and 240 minutes.

2. When the number of minutes you want is displayed on the screen, press the ENTER button. The timer begins to count down from the number of minutes selected.

3. To check the remaining minutes before the TV turns off, press the SLEEP button once.

4. To cancel the Sleep Timer, press the SLEEP button repeatedly until zz

---

Min

appears.

Auto Of f f

- If set to on and there is no input signal, the TV turns off automatically after 10 minutes.

1. Press the MENU button and then use

D

/

E button to select the

TIMER

menu.

2. Press the

G button and then use D

/

E button to select

Auto off

.

3. Press the G button and then use

D

/

E button to select

On

or

Off

.

4. Press the ENTER button to save.

CHANNEL


SOUND

Clock

Off timer

On timer

Auto off

TIMER

SPECIAL

SCREEN

PIP/DW

LOCK

Menu Prev.

G

On

Off

26 Plasma TV

Operation

- The TV can be set up so that it can only be used with the remote control.

- This feature can be used to prevent unauthorized viewing by locking out the front panel controls.

- This TV is programmed to remember which option it was last set to even if you turn the TV off.

1. Press the MENU button and then use

D

/

E button to select the

SPECIAL

menu.

2. Press the

G button and then use D

/

E button to select

Key lock

.

3. Press the

G button and then use D

/

E button to select

On

or

Off

.

4. Press the ENTER button to save.

• With the Key lock On, the display ‘

Key lock

’ appears on the screen if any button on the front panel is pressed.

CHANNEL


SOUND

TIMER

SPECIAL

Language

Key lock

ISM Method

Low power

Set ID

Caption / Text

Captions

Demo

SCREEN

PIP/DW

LOCK

Menu Prev.

G

On

Off

- A frozen still picture from a PC/video game displayed on the screen for prolonged periods will result in a ghost image remaining even when you change the image. Avoid allowing a fixed image to remain on the TV's screen for a long period of time.

1. Press the MENU button and then use

D

/

E button to select the

SPECIAL

menu.

2. Press the

G button and then use D

/

E button to select

ISM Method

.

3. Press the G button and then use D

/

E button to select either

Normal

,

White wash

,

Orbiter

or

Inversion

.

Normal

If image sticking is never a problem, ISM is not necessary - set to Normal.

White wash

White Wash removes permanent images from the screen. Note: An excessive permanent image may be impossible to clear entirely with White Wash. To return to normal viewing, press any button.

Orbiter

Orbiter may help prevent ghost images. However, it is best not to allow any fixed image to remain on the screen. To avoid a permanent image on the screen, the image will move every 2 minutes: Right

Right

Downside

Downside

Left

Left

Upside

Upside.

Inversion

Inversion will automatically invert the TV panel color every 30 minutes.

4. Press the ENTER button to save.

CHANNEL


SOUND

TIMER

SPECIAL

Language

Key lock

ISM Method

Low power

Set ID

Caption / Text

Captions

Demo

SCREEN

PIP/DW

LOCK

Menu Prev.

G

Normal

White wash

Orbiter

Inversion

Owner’s Manual 27

- Low power reduces the plasma display power consumption.

1. Press the MENU button and then use

D

/

E button to select the

SPECIAL

menu.

2. Press the

G button and then use D

/

E button to select

Low power

.

3. Press the G button and then use D

/

E button to select

On

or

Off

.

• When you select

On

, the screen darkens.

4. Press the ENTER button to save.

CHANNEL


SOUND

TIMER

SPECIAL

Language

Key lock

ISM Method

Low power

Set ID

Caption / Text

Captions

Demo

SCREEN

PIP/DW

LOCK

Menu Prev.

G

On

Off

- Use it to see the difference between XD Demo on and XD Demo off.

1. Press the MENU button and then use D

/

E button to select the

SPECIAL

menu.

2. Press the

G button and then use D

/

E button to select

Demo

.

3. Press the G button to begin

XD Demo

.

4. Press the EXIT button to stop

XD Demo

.

CHANNEL


SOUND

TIME

SPECIAL

Language

Key lock

ISM Method

Low power

Set ID

Caption / Text

Captions

Demo

SCREEN

PIP/DW

MENU Prev.

G

To start

28 Plasma TV

Operation

Closed captioning is a process which converts the audio portion of a television program into written words which then appear as subtitles on the television screen. Closed captions allow viewers to read the dialogue and narration of television programs.

Using Closed Captions

Captions are the subtitles of the dialogue and narration of television programs. For prerecorded programs, program dialogue can be arranged into captions in advance. Its possible to caption a live program by using a process called real-time captioning, which creates captions instantly. Real-time captioning is normally done by professional reporters using a machine shorthand system and computer for translation into English.

Captioning is an effective system for the hearing-impaired, and it can also aid in teaching language skills.

FOLLOW ME

• The picture at left shows a typical caption.

Caption Tips

• Not all TV broadcasts include closed caption signals.

• Sometimes TV stations broadcast four different caption signals on the same channel. By selecting

CC 1 to CC 2

, you can choose which signal you view.

CC 1

is usually the signal with the captions, while

Another mode

might show demonstration or programming information.

• Your TV might not receive caption signals normally in the following situations.

1. Poor reception conditions are encountered:

IGNITION:

Picture may flutter, drift, suffer from black spots, or horizontal streaking. Usually caused by interference from automobile ignition systems, neon lamps, electrical drills, and other electrical appliances.

GHOSTS:

Ghosts are caused when the TV signal splits and follows two paths. One is the direct path and the other is reflected off tall buildings, hills or other objects.

Changing the direction or position of the antenna may improve reception.

SNOW:

If your receiver is located at the weak, fringe area of a TV signal, your picture may be marred by small dots. It may be necessary to install a special antenna to improve the picture.

2. An old, bad, or illegally recorded tape is being played.

3. Strong, random signals from a car or airplane interfere with the TV signal.

4. The signal from the antenna is weak.

5. The program wasn’t captioned when it was produced, transmitted, or taped.

1. Use the CAPTION button repeatedly to select Caption

Off

,

EZ Mute

, or

On

.

EZ Mute

shows the selected captions option (if available on program) when the TV sound is muted

2. Press the ENTER button to save.

Caption/T ext

1. Press the MENU button and then use D

/

E button to select the

SPECIAL

menu.

2. Press the G button and then use

D

/

E button to select

Caption / Text

.

3. Press the

G button and then use D

/

E button to select caption:

CC1

,

CC2

,

CC3

,

CC4

,

Text1

,

Text2

,

Text3

, or

Text4

.

CAPTION

The term for the words that scroll across the bottom of the TV screen; usually the audio portion of the program provided for the hearing impaired.

TEXT

The term for the words that appear in a large black frame and almost cover the entire screen; usually messages provided by the broadcaster.

4. Press the ENTER button to save.

CHANNEL


SOUND

TIMER

SPECIAL

Language

Key lock

ISM Method

Low power

Set ID

Caption / Text

Captions

Demo

SCREEN

G

PIP/DW

LOCK

Menu Prev.

CC1

CC2

CC3

CC4

Text1

Text2

Text3

Text4

Owner’s Manual 29

Operation

Auto

Adjustment

- RGB (PC) mode only; This function doesn’t work for RGB-DTV mode.

- Automatically adjusts picture position and minimizes image shaking.

- After adjustment, if the image is still not correct, your TV is functioning properly but needs further adjustment.

- The

Auto config.

and

Manual config.

are not active in DVI mode.

1. Press the MENU button and then use

D

/

E button to select the

SCREEN

menu.

2. Press the G button and then use

D

/

E button to select

Auto config.

.

3. Press the G button to run Auto configure.

• When

Auto config.

has finished,

OK

will be shown on screen.

• If the position of the image is still not correct, try Auto adjustment again.

4. In RGB (PC) mode, if the image needs to be adjusted more after using

Auto config.

, you can make further adjustments with the

Manual config.

option.

CHANNEL


SOUND

Auto config.

ARC

Position

Manual config

Reset

TIMER

SPECIAL

SCREEN

PIP/DW

LOCK

Menu Prev.

G

To set

- Caution: If a 4:3 fixed image is on the screen for a long time, it may remain visible.

- Set every aspect ratio for TV, Video, Component 480i sources.

- Use 4:3, or 16:9 for other RGB-PC and DVI-PC sources.

- Horizon is not available for Component (480p,720p,1080i), DTV (480p,720p,1080i) sources.

1. Press the ARC button repeatedly to select the desired picture format. You can also adjust

ARC

in the

SCREEN

menu.

4:3

Choose

4:3

when you want to view a picture with an original 4:3 aspect ratio, with black bars appearing at both the left and right sides.

16:9

Choose

16:9

when you want to adjust the picture horizontally, in a linear proportion to fill the entire screen.

Horizon

Choose

Horizon

when you want to adjust the picture in a non-linear proportion, that is, more enlarged at both sides, to create a spectacular view.

Zoom

- Choose

Zoom

when you want to view the picture without any alteration. However, the top and bottom portions of the picture will be cropped.

- This function works in the following modes:

RGB-PC, RGB-DTV (480p,720p,1080i), DVI-DTV (480p,720p,1080i), COM-

PONENT (480p,720p,1080i).

1. Press the MENU button and then use D

/

E button to select the

SCREEN

menu.

2. Press the

G button and then use D

/

E button to select

Position

.

3. Press the

G button and then use D

/

E

/

F

/

G button to adjust the position.

4. Press the ENTER button to save.

CHANNEL


SOUND

Auto config.

ARC

Position

Manual config

Reset

TIMER

SPECIAL

SCREEN

PIP/DW

LOCK

Menu Prev.

G

30 Plasma TV

F

D

G

E

- If the image still isn’t clear after auto adjustment and especially if characters are still jittery, adjust the picture Phase manually.

- To correct the screen size, adjust

Clock

.

1. Press the MENU button and then use

D

/

E button to select the

SCREEN

menu.

2. Press the G button and then use

D

/

E button to select

Manual config.

.

3. Press the G button and then use

D

/

E button to to select

Phase

or

Clock

.

4. Use the

F

/

G button to make appropriate adjustments.

• The

Phase

adjustment range is 0 ~ 30.

• The

Clock

adjustment range is -127 ~ +128.

5. Press the ENTER button to save.

CHANNEL


SOUND

Auto config.

ARC

Position

Manual config

Reset

TIMER

SPECIAL

SCREEN

PIP/DW

LOCK

Menu Prev.

G

Phase 0

Clock 0

Selecting VGA mode (RGB-PC mode only)

- To see a normal picture, match the resolution of RGB mode and selection of

VGA mode.

- RU-42PZ71 model only.

1. Press the MENU button and then use D

/

E button to select the

SCREEN

menu.

2. Press the

G button and then use D

/

E button to select

VGA Mode

.

3. Press the

G button and then use D

/

E button to select the desired VGA resolution.

4. Press the ENTER button to save.

CHANNEL


SOUND

TIMER

Auto config.

ARC

Position

Manual config

Reset

VGA Mode

SPECIAL

SCREEN

PIP/DW

LOCK

Menu Prev.

G

640x480

848x480

852x480

Selecting XGA mode (RGB-PC mode only)

- To see a normal picture, match the resolution of RGB mode and selection of

XGA mode.

1. Press the MENU button and then use D

/

E button to select the

SCREEN

menu.

2. Press the

G button and then use D

/

E button to select

XGA Mode

.

3. Press the

G button and then use D

/

E button to select the desired XGA resolution.

4. Press the ENTER button to save.

CHANNEL


SOUND

TIMER

Auto config.

ARC

Position

Manual config

Reset

XGA Mode

SPECIAL

SCREEN

PIP/DW

LOCK

Menu Prev.

G

1024x768

1280x768

1360x768

1366x768

Operation

Owner’s Manual 31

Operation

Screen Adjustments (TV , V ideo1-2 and Component 480i mode only)

- Use this function to correct jittering or picture instability while viewing a video tape.

1. Press the MENU button and then use D

/

E button to select the

SCREEN

menu.

2. Press the G button and then use D

/

E button to select

Screen adj.

.

3. Press the G button and then use D

/

E button to select

TV

or

VCR

.

• Select the

VCR

option if watching a VCR.

• Select the

TV

option for other equipment. (Except VCR)

4. Press the ENTER button to save.

CHANNEL


SOUND

Screen adj.

ARC

Cinema

YNR

Reset

TIMER

SPECIAL

SCREEN

PIP/DW

LOCK

Menu Prev.

G

TV

VCR

Cinema Mode Setup (TV , V ideo1-2 and Component 480i mode only)

- Sets up the TV for the best picture appearance for viewing movies.

1. Press the MENU button and then use D

/

E button to select the

SCREEN

menu.

2. Press the G button and then use

D

/

E button to select

Cinema.

.

3. Press the

G button and then use D

/

E button to select

On

or

Off

.

4. Press the ENTER button to save.

CHANNEL


SOUND

Screen adj.

ARC

Cinema

YNR

Reset

TIMER

SPECIAL

SCREEN

PIP/DW

LOCK

Menu

Prev.

G

On

Off

Luminance Noise Reduction (TV , V ideo 1-2 and Component 480i modes only)

- Use YNR to reduce the picture noise that may appear on the screen.

1. Press the MENU button and then use

D

/

E button to select the

SCREEN

menu.

2. Press the G button and then use

D

/

E button to select

YNR

.

3. Press the G button and then use

D

/

E button to select

On

or

Off

.

4. Press the ENTER button to save.

CHANNEL


SOUND

Screen adj.

ARC

Cinema

YNR

Reset

TIMER

SPECIAL

SCREEN

PIP/DW

LOCK

Menu Prev.

G

On

Off

32 Plasma TV

- Use the Reset option to initialize the adjusted settings.

1. Press the MENU button and then use

D

/

E button to select the

SCREEN

menu.

2. Press the G button and then use

D

/

E button to select

Reset

.

3. Press the G button.

• You can initialize Position, Split zoom, PIP Transparency, PIP position, PIP size and sub picture size for double window.

CHANNEL


SOUND

Screen adj.

ARC

Cinema

YNR

Reset

TIMER

SPECIAL

SCREEN

PIP/DW

LOCK

Menu Prev.

G

To set

- Enlarges the picture in correct proportions.

- Split Zoom can be used for all input sources.

- In 2-Split Zoom mode, you can only move the image up or down.

- If an image is enlarged, a section can be viewed without using Split Zoom.

1. Press the SPLIT ZOOM button repeatedly to select either 2, 4, or 9 Split Zoom.

2-Split zoom

1

4

4-Split zoom

1

4

2

5

9-Split zoom

1

4

7

2

5

8

3

6

9

2. Press the number button corresponding to the section you wish to enlarge. You can move within the enlarged picture using the

D

/

E

/

F

/

G button. To return to normal viewing, press the SPLIT ZOOM button again.

Example of choosing 5.

Section 5 is enlarged to fill the screen.

9-Split zoom

1

4

7

2

5

8

3

6

9

Operation

Owner’s Manual 33

Operation

Parental Control can be used to block specific channels, ratings and other viewing sources.

The Parental Control Function (V-Chip) is used to block program viewing based on the ratings sent by the broadcasting station. The default setting is to allow all programs to be viewed. Viewing can be blocked by the type of program and by the categories chosen to be blocked. It is also possible to block all program viewing for a time period. To use this function, the following must be done :

1. Set ratings and categories to be blocked.

2. Specify a password

3. Enable the lock

V-Chip rating and categories

Rating guidelines are provided by broadcasting stations. Most television programs and television movies can be blocked by

TV Rating and/or Individual Categories. Movies that have been shown at the theaters or direct-to-video movies use the Movie

Rating System (MPAA) only.

Ratings for Movies previously shown in theaters:

Movie Ratings :

• Blocking Off (Permits all programs)

• G (General audience)

• PG (Parental guidance suggested)

• PG-13 (Parents strongly cautioned)

• R (Restricted)

• NC-17 (No one 17 and under admitted)

• X (Adult only)

If you set PG-13 : G and PG movies will be available , PG-13,

R, NC-17 and X will be blocked.

Ratings for Television programs including made-for-TV movies :

General TV Ratings:

• Blocking Off

• TV-G (general audience) (individual categories do not apply)

• TV-PG (parental guidance suggested)

• TV-14 (14 years and older)

• TV-MA (mature audience)

Children TV Ratings:

• Blocking Off

• TV-Y (youth) (individual content categories do not apply)

• TV-Y7 (youth, 7 years and up)

Content Categories:

• Dialog - sexual dialogue (applies to TV-PG, TV-14)

• Language - adult language (applies to TV-PG, TV-14, TV-MA)

• Sex scenes - sexual situations (applies to TV-PG, TV-14, TV-

MA)

• Violence (applies to TV-PG, TV-14, TV-MA)

• F Violence - fantasy violence (applies only to TV-Y7)

Aux. Block

• Video 1, 2 (On, Off)

• Component 1, 2 (On, Off)

• RGB, DVI (On, Off)

- Lets you set up blocking schemes to block specific channels, ratings, and external viewing sources.

- A password is required to gain access to this menu if the Lock System is turned on

1. Press the MENU button and then use D

/

E button to select the

LOCK

menu.

Then, press the

G button

• If

Lock

is already set, enter the password as requested.

• The TV is set up with the initial password “0-0-0-0”.

2. Use the

D

/

E button to choose from the following Lock Menu options. Once the option is selected, change the settings to your preference.

CHANNEL


SOUND

TIMER

Lock on/off

Set password

MPAA

Age block

Content block

Aux.block

G

On

Off

Lock on/off: Activates or disables the blocking scheme you set up previously.

Set Password: Change the password by inputting a new password twice.

MPAA (Movie Rating): Blocks movies according to the movie ratings limits specified, so children cannot view certain movies. You can set the ratings limit by blocking out all the movies with the ratings above a specified level.

Keep in mind that the movie ratings limit only applies to movies shown on

TV, not TV programs, such as soap operas.

SPECIAL

SCREEN

PIP/DW

LOCK

Menu Prev.

TV Rating-Children: Prevents children from watching certain children's TV programs, according to the ratings limit set. The children rating does not apply to other TV programs. Unless you block certain TV programs intended for mature audiences in the TV Rating - sub menu, your children can view those programs.

TV Rating-General: Based on the ratings, blocks certain TV programs that you and your family do not want to view.

Aux. Block: Enables you to select a source to block from the external source devices you have hooked up.

3. Press the ENTER button to save.

Note

• If you ever forget your password, key in ‘7’, ‘7’, ‘7’, ‘7’ on the remote control.

34 Plasma TV

Operation

PIP (Picture-In-Picture)/Double W indow Feature

- PIP lets you view 2 different inputs pictures (sources) on your TV screen at the same time. One source will be large, and the other source will show a smaller inset image.

- Double Window mode splits the screen into 2, allowing 2 picture sources to be shown on the TV screen at the same time. Each source is given half the screen.

W atching PIP/Double W indow

Press the PIP/DW button to access the sub picture. Each press of PIP changes the PIP options as shown below.

Moving the PIP (PIP Mode only)

Press the POSITION button.

Press the D

/

E

/

F

/

G button repeatedly until desired position is achieved. The sub picture moves up/down/left/right.

• You can also move the PIP position with

Win.position

in the

PIP/DW

menu.

DW 1

PIP

Off

DW 2

Swapping the PIP

/

/ Double W indow

Use the SWAP button to switch the main and sub pictures.

Win.position

PIP

Size

Press the WIN.SIZE button and then use

F

/

G button to change the sub picture size.

• Using the Win.size function in Double Window mode, main and sub picture sizes are changed simultaneously.

Using the Win.size function in PIP mode, sub picture size is changed.

• You can also change the sub picture size with

Win.size

in the

PIP/DW

menu.

Win.size

F G

Main Picture Sub Picture

PIP T ransparency (PIP Mode only)

Main Picture

Press the PIPCH+

Sub Picture

/

PIPCH- button to select a channel for the sub picture in PIP mode.

- To make the PIP clear or opaque

1. Press the MENU button and then use D

/

E button to select the

PIP/DW

menu.

2. Press the

G button and then use D

/

E button to select

PIP

Transparency

.

3. Press the G button and then use

D

/

G button to adjust

PIP transparency.

4. Use the

F

/

G button to make appropriate adjustments.

• The adjustment range of

PIP Transparency

is 0 ~ 10.

5. Press the ENTER button to save.

Selecting an Input Signal Source for PIP /Double W indow

Use the PIP INPUT button to select the input source for the sub picture. Each press of PIP INPUT button changes the

PIP source.

Main Picture Source

TV, Video 1-2, Component 480i

Component 480p/720p/1080i, RGB and DVI

Available Sub Picture Sources

TV, Video 1-2, Component 480i/480p/720p/1080i, RGB and DVI

TV, Video 1-2, Component 480i

Owner’s Manual 35

External Control Device Setup

- Connect the RS-232C input jack to an external control device (such as a computer or an A/V control system) and control the Monitor’s functions externally.

- Connect the serial port of the control device to the RS-232C jack on the Monitor back panel.

- RS-232C connection cables are not supplied with the Monitor.

R L

EXTERNAL SPEAKER

REMOTE

CONTROL

RS-232C INPUT

(CONTROL/SERVICE)

DVI INPUT

AUDIO INPUT RGB INPUT

COMPONENT

COMPONENT

INPUT 1

VIDEO

(R) (L)

AUDIO

(R) (L/MONO)

AUDIO

VIDEO

MONITOR

OUTPUT

A/V

INPUT 1

S-VIDEO

Antenna

AC INPUT

PC

T ype of Connector; D-Sub 9-Pin Male

7

8

5

6

9

2

3

4

RXD (Receive data)

TXD (Transmit data)

DTR (DTE side ready)

GND

DSR (DCE side ready)

RTS (Ready to send)

CTS (Clear to send)

No Connection

RXD

TXD

GND

DTR

DSR

RTS

CTS

2

4

6

3

5

7

8

7-Wire Configurations

(Standard RS-232C cable)

PC PDP

3

6

4

2

5

8

7

TXD

RXD

GND

DSR

DTR

CTS

RTS

D-Sub 9 D-Sub 9

36 Plasma TV

1

5

9

6

RXD

TXD

GND

DTR

DSR

RTS

CTS

2

4

6

3

5

7

8

PC

3-Wire Configurations

(Not standard)

PDP

3

4

6

2

5

7

8

TXD

RXD

GND

DTR

DSR

RTS

CTS

D-Sub 9 D-Sub 9

External Control Device Setup

- Use this function to specify a monitor ID number.

- Refer to ‘Real Data Mapping 1’. See page 37.

1. Press the MENU button and then use D

/

E button to select the

SPECIAL

menu.

2. Press the

G button and then use D

/

E button to select

Set ID

.

3. Press the G button and then use F

/

G button to adjust

Set ID

to choose the desired monitor ID number. The adjustment range of

Set ID

is 1 ~ 99.

4. Press the ENTER button to save.

CHANNEL


SOUND

TIMER

SPECIAL

Language

Key lock

ISM Method

Low power

Set ID

Caption / Text

Captions

Demo

SCREEN

PIP/DW

LOCK

Menu

Prev.

G

1

• Baud rate :9600 bps (UART)

• Data length : 8 bits

• Parity : None

• Stop bit : 1 bit

• Communication code : ASCII code

* Use a crossed (reverse) cable.

T ransmission / Receiving Protocol

Transmission

COMMAND 1 COMMAND 2 DATA

(Hexadecimal)

01. Power

02. Input Select

03. Aspect Ratio

04. Screen Mute

05. Volume Mute

06. Volume Control

07. Contrast

08. Brightness

09. Color

10. Tint

11. Sharpness

12. OSD Select k

13. Remote Control Lock Mode k

14. PIP/DW

15. Split Zoom k k k k k k k k k k k k k

16. PIP Position

17. Treble

18. Bass

19. Balance

20. Color Temperature

21. Red Adjustment

22. Green Adjustment

23. Blue Adjustment

24. PIP Input Source

25. Abnormal State

26. ISM Method

27. Low Power

28. Orbiter Time Setting

29. Orbiter Pixel Setting

30. Picture Size

31. Auto Config j j j j j j k k k k k k k k k k t r t r l j i f a b c d e g h k m n p q s u v w

$ y z p q s u

0 ~ 1

0 ~ 6

0 ~ 3

0 ~ 1

0 ~ 1

0 ~ 64

0 ~ 64

0 ~ 64

0 ~ 64

0 ~ 64

0 ~ 64

0 ~ 1

0 ~ 1

0 ~ 3

0 ~99

0 ~ 3

0 ~ 64

0 ~ 64

0 ~ 64

0 ~ 3

0 ~ 3C

0 ~ 3C

0 ~ 3C

0 ~ 6

0 ~ a

0 ~ 3

0 ~ 1

1 ~ FE

1~9

0 ~14

1

[Command1][Command2][ ][Set ID][ ][Data][Cr]

* [Command 1]: First command to control PDP set. (j, k or m)

* [Command 2]: Second command to control PDP set.

* [Set ID]: You can adjust the set ID to choose desired monitor

ID number in Special menu. Adjustment range is 1

~ 99. When selecting Set ID ‘0’, every connected

PDP set is controlled. Set ID is indicated as decimal (1~99) on menu and as Hexa decimal

(0x0~0x63) on transmission/receiving protocol.

* [DATA]: To transmit command data.

Transmit ‘FF’ data to read status of command.

* [Cr]: Carriage Return

ASCII code ‘0x0D’

* [ ]: ASCII code ‘space (0x20)’

OK Acknowledgement

[Command2][ ][Set ID][ ][OK][Data][x]

* The Monitor transmits ACK (acknowledgement) based on this format when receiving normal data. At this time, if the data is data read mode, it indicates present status data. If the data is data write mode, it returns the data of the PC computer.

Error Acknowledgement

[Command2][ ][Set ID][ ][NG][Data][x]

* The Monitor transmits ACK (acknowledgement) based on this format when receiving abnormal data from non-viable functions or communication errors.

Data 1: Illegal Code

COM-

MAND 1

COM-

MAND 2

DATA 0 DATA 1 DATA 2 DATA 3

(Hexadecimal) (Hexadecimal) (Hexadecimal) (Hexadecimal)

2: Not supported function

3: Wait more time

32. Tune Command m a

33. Channel Add/Del m b

34. Key m c

01 ~ 7D

0 ~ 1

Key code

0 0 mainsub/TuneBand

Owner’s Manual 37

External Control Device Setup

01. Power (Command2:a)

G

To control Power On/Off of the TV.

Transmission

[k][a][ ][Set ID][ ][Data][Cr]

Data 0 : Power Off

Acknowledgement

[a][ ][Set ID][ ][OK][Data][x]

1 : Power On

* In a like manner, if other functions transmit ‘FF’ data based on this format, Acknowledgement data feedback presents status about each function.

02. Input Select (Command2:b) (Main Picture Input)

G

To select input source for the TV.

You can also select an input source using the TV/VIDEO button on the TV's remote control.

Transmission

[k][b][ ][Set ID][ ][Data][Cr]

Data 0 : TV

1 : Video 1

2 : Video 2

3 : Component 1

Acknowledgement

[b][ ][Set ID][ ][OK][Data][x]

4 : Component 2

5 : RGB

6 : DVI

05. Volume Mute (Command2:e)

G

To control volume mute on/off.

You can also adjust mute using the MUTE button on remote control.

Transmission

[k][e][ ][Set ID][ ][Data][Cr]

Data 0 : Volume mute on (Volume off)

1 : Volume mute off (Volume on)

Acknowledgement

[e][ ][Set ID][ ][OK][Data][x]

06. Volume Control (Command2:f)

G

To adjust volume.

You can also adjust volume with the volume buttons on remote control.

Transmission

[k][f][ ][Set ID][ ][Data][Cr]

Data Min : 0 ~ Max : 64

Refer to ‘Real data mapping 1’ as shown below.

Acknowledgement

[f][ ][Set ID][ ][OK][Data][x]

07. Contrast (Command2:g)

G

To adjust screen contrast.

You can also adjust contrast in the Picture menu.

Transmission

[k][g][ ][Set ID][ ][Data][Cr]

Data Min : 0 ~ Max : 64

Refer to ‘Real data mapping 1’ as shown below.

Acknowledgement

[g][ ][Set ID][ ][OK][Data][x]

03. Aspect Ratio (Command2:c) (Main picture format)

G

To adjust the screen format.

You can also adjust the screen format using the ARC

(Aspect Ratio Control) button on remote control or in the

Screen menu.

Transmission

[k][c][ ][Set ID][ ][Data][Cr]

Data 0 : Normal screen (4:3)

1 : Wide screen (16:9)

2 : Horizon

3 : Zoom

Acknowledgement

[c][ ][Set ID][ ][OK][Data][x]

04. Screen Mute (Command2:d)

G

To select screen mute on/off.

Transmission

[k][d][ ][Set ID][ ][Data][Cr]

Data 0 : Screen mute off (Picture on)

1 : Screen mute on (Picture off)

Acknowledgement

[d][ ][Set ID][ ][OK][Data][x]

08. Brightness (Command2:h)

G

To adjust screen brightness.

You can also adjust brightness in the Picture menu.

Transmission

[k][h][ ][Set ID][ ][Data][Cr]

Data Min : 0 ~ Max : 64

Refer to ‘Real data mapping 1’ as shown below.

Acknowledgement

[h][ ][Set ID][ ][OK][Data][x]

* Real data mapping 1

0 : Step 0

A : Step 10 (SET ID 10)

F : Step 15 (SET ID 15)

10 : Step 16 (SET ID 16)

63 : Step 99 (SET ID 99)

64 : Step 100

38 Plasma TV

External Control Device Setup

09. Color (Command2:i)

G

To adjust the screen color.

You can also adjust color in the Picture menu.

Transmission

[k][i][ ][Set ID][ ][Data][Cr]

Data Min : 0 ~ Max : 64

Refer to ‘Real data mapping 1’. See page 38.

Acknowledgement

[i][ ][Set ID][ ][OK][Data][x]

10. Tint (Command2:j)

G

To adjust the screen tint.

You can also adjust tint in the Picture menu.

Transmission

[k][ j ][ ][Set ID][ ][Data][Cr]

Data Red : 0 ~ Green : 64

Refer to ‘Real data mapping 1’. See page 38.

Acknowledgement

[ j ][ ][Set ID][ ][OK][Data][x]

11. Sharpness (Command2:k)

G

To adjust the screen sharpness.

You can also adjust sharpness in the Picture menu.

Transmission

[k][k][ ][Set ID][ ][Data][Cr]

Data Min: 0 ~ Max: 64

Refer to ‘Real data mapping 1’. See page 38.

Acknowledgement

[k][ ][Set ID][ ][OK][Data][x]

12. OSD Select (Command2:l)

G

To select OSD (On Screen Display) on/off.

Transmission

[k][l][ ][Set ID][ ][Data][Cr]

Data 0: OSD off 1: OSD on

Acknowledgement

[l][ ][Set ID][ ][OK][Data][x]

13. Remote Control Lock Mode (Command2:m)

G

To lock the remote control and the front panel controls on the monitor.

Transmission

[k][m][ ][Set ID][ ][Data][Cr]

Data 0: Lock off

Acknowledgement

1: Lock on

[m][ ][Set ID][ ][OK][Data][x]

If you’re not using the remote control and front panel controls on the monitor, use this mode. When main power is on/off, remote control lock is released.

14. PIP / DW (Command2:n)

G

To control the PIP (Picture In picture)/DW (Double Window).

You can also control the PIP/DW using the PIP/DW button on the remote control or in the PIP/DW menu.

Transmission

[k][n][ ][Set ID][ ][Data][Cr]

Data 0: PIP/DW off

1: PIP

Acknowledgement

[n][ ][Set ID][ ][OK][Data][x]

2: DW1

3: DW2

15. Split Zoom (Command2:p)

G

To operate split zoom function and select the split zoom section number.

Transmission

[k][p][ ][Set ID][ ][Data][Cr]

Data Min: 0 ~ Max:99

Refer to ‘Real data mapping 2’.

Acknowledgement

[p][ ][Set ID][ ][OK][Data][x]

* Real data mapping 2

0 : Reset split zoom

21: Selection 1 of 2 split zoom

24: Selection 4 of 2 split zoom

41: Selection 1 of 4 split zoom

42: Selection 2 of 4 split zoom

44: Selection 4 of 4 split zoom

45: Selection 5 of 4 split zoom

91: Selection 1 of 9 split zoom

99: Selection 9 of 9 split zoom

16. PIP Position (Command2:q)

G

To select sub picture position for PIP.

You can also adjust the sub picture position using

WIN.POSITION on the remote control or in the PIP/DW menu.

Transmission

[k][q][ ][Set ID][ ][Data][Cr]

Data 0: Right down on screen

1: Left down on screen

2: Left up on screen

3: Right up on screen

Acknowledgement

[q][ ][Set ID][ ][OK][Data][x]

17. Treble (Command2:r)

G

To adjust treble.

You can also adjust treble in the Sound menu.

Transmission

[k][r][ ][Set ID][ ][Data][Cr]

Data Min: 0 ~ Max: 64

Refer to ‘Real data mapping 1’. See page 38.

Acknowledgement

[r][ ][Set ID][ ][OK][Data][x]

Owner’s Manual 39

External Control Device Setup

18. Bass (Command2:s)

G

To adjust bass.

You can also adjust bass in the Sound menu.

Transmission

[k][s][ ][Set ID][ ][Data][Cr]

Data Min: 0 ~ Max: 64

Refer to ‘Real data mapping 1’. See page 38.

Acknowledgement

[s][ ][Set ID][ ][OK][Data][x]

19. Balance (Command2:t)

G

To adjust balance.

You can also adjust balance in the Sound menu.

Transmission

[k][t][ ][Set ID][ ][Data][Cr]

Data Min: 0 ~ Max: 64

Refer to ‘Real data mapping 1’. See page 38.

Acknowledgement

[t][ ][Set ID][ ][OK][Data][x]

20. Color Temperature (Command2:u)

G

To adjust color temperature.

You can also adjust ACC in the Picture menu.

Transmission

[k][u][ ][Set ID][ ][Data][Cr]

Data 0: Cool 1: Normal 2: Warm 3: Off

Acknowledgement

[u][ ][Set ID][ ][OK][Data][x]

21. Red Adjustment (Command2:v)

G

To adjust red in color temperature.

Transmission

[k][v][ ][Set ID][ ][Data][Cr]

Data Min: 0 ~ Max: 3C

Refer to ‘Real data mapping 3’ as shown right.

Acknowledgement

[v][ ][Set ID][ ][OK][Data][x]

22. Green Adjustment (Command2:w)

G

To adjust green in color temperature.

Transmission

[k][w][ ][Set ID][ ][Data][Cr]

Data Min: 0 ~ Max: 3C

Refer to ‘Real data mapping 3’ as shown right.

Acknowledgement

[w][ ][Set ID][ ][OK][Data][x]

23. Blue Adjustment (Command2:$)

G

To adjust blue in color temperature.

Transmission

[k][$][ ][Set ID][ ][Data][Cr]

Data Min: 0 ~ Max: 3C

Refer to ‘Real data mapping 3’ as shown below.

Acknowledgement

[$][ ][Set ID][ ][OK][Data][x]

* Real data mapping 3

0 : -30

1 : -29

2 : -28

1E : 0

3A : +28

3B : +29

3C : +30

24. PIP Input Select (Command2:y)

G

To select input source for sub picture in PIP mode.

Transmission

[k][y][ ][Set ID][ ][Data][Cr]

Data 0 : TV

1 : Video 1

2 : Video 2

3 : Component 1

4 : Component 2

5 : RGB

6 : DVI

Acknowledgement

[y][ ][Set ID][ ][OK][Data][x]

25. Abnormal State (Command2:z)

G

To recognize an abnormal state.

Transmission

[k][z][ ][Set ID][ ][FF][Cr]

Data FF:Read

Acknowledgement

[z][ ][Set ID][ ][OK][Data][x]

Data 0: Normal (Power on and signal exist)

1: No signal (Power on).

2: Turn the monitor off with remote control.

3: Turn the monitor off with Sleep Time function.

4: Turn the monitor off with RS-232C function.

5: 5V down.

6: AC down.

7: Turn the monitor off with Fan Alarm function.

8: Turn the monitor off with Off Time function.

9: Turn the monitor off with Auto Off function.

a: Turn the monitor off with On Time function.

(If you do not press any button within 2 hours after the TV turns on with the On Timer function, the TV will automatically revert to standby mode.)

40 Plasma TV

26. ISM Method (Command2:p)

G

To avoid having a fixed image remain on screen.

Transmission

[ j ][p][ ][Set ID][ ][Data][Cr]

Data 0: Normal

1: White wash

Acknowledgement

[p][ ][Set ID][ ][OK][Data][x]

2: Orbiter

3: Inversion

27. Low Power (Command2:q)

G

To control the low power function on/off.

Transmission

[ j ][q][ ][Set ID][ ][Data][Cr]

Data 0: Low power off

1: Low power on

Acknowledgement

[q][ ][Set ID][ ][OK][Data][x]

28. Orbiter Time Setting (Command2:r)

G

To adjust orbiter operation time term.

Transmission

[ j ][r][ ][Set ID][ ][Data][Cr]

Data Min: 1 ~ Max: FE

Acknowledgement

[r][ ][Set ID][ ][OK][Data][x]

29. Orbiter Pixel Setting (Command2:s)

G

To adjust pixel number in orbiter function.

Transmission

[ j ][s][ ][Set ID][ ][Data][Cr]

Data Min: 1 ~ Max: 9

Acknowledgement

[s][ ][Set ID][ ][OK][Data][x]

30. Picture Size Setting for Double Window mode (Command2:t)

G

To adjust main window size in Double Window mode.

Transmission

[ j ][t][ ][Set ID][ ][Data][Cr]

Data Min: 0 ~ Max: 1E (or 20)

Refer to ‘Real data mapping1’. See page 38.

Acknowledgement

[t][ ][Set ID][ ][OK][Data][x]

External Control Device Setup

31. Auto Configure (Command2:u)

G

To adjust picture position and minimize image shaking automatically. It works only in RGB (PC) mode.

Transmission

[ j ][u][ ][Set ID][ ][Data][Cr]

Data 1: To set

Acknowledgement

[u][ ][Set ID][ ][OK][Data][x]

32. Tune command (Command: m a)

G

Tune channel to following physical number

Transmission

[m][a][ ][Set ID][ ][Data0][ ][Data1][ ][Data2][ ][Data3][Cr]

Data 0: Air: 02 ~ 45, Cable: 01, 0E ~ 7D

1: 0

2: 0

3: High

Main Channel: 0, Sub Channel: 1

Low

Air: 0, CATV: 1

Acknowledgement

[a][ ][Set ID][ ][OK][Data0][ ][Data1][ ][Data2][ ][Data3][x]

33. Channel Add/Del (Command: m b)

G

To add and delete the channels

Transmission

[m][b][ ][Set ID][ ][Data][Cr]

Data 0: Channel Memory

1: Channel Erase

Acknowledgement

[b][ ][Set ID][ ][OK][Data][x]

34. Key (Command: m c)

G

To send IR remote key code

Transmission

[m][c][ ][Set ID][ ][Data][ ][Cr]

Data Key code: Refer to page 43.

Acknowledgement

[c][ ][Set ID][ ][OK][Data][x]

Owner’s Manual 41

IR Codes

G

Connect your wired remote control to the Remote Control port on the Monitor.

G

Output waveform

Single pulse, modulated with 37.917KHz signal at 455KHz

T

C

Carrier frequency

T1

F

CAR

= 1/T

C

= f

OSC

/12

Duty ratio = T1/T

C

= 1/3

G

Configuration of frame

1st frame

Lead code

Low custom code

High custom code

Data code Data code

C0 C1 C2 C3 C4 C5 C6 C7 C0 C1 C2 C3 C4 C5 C6 C7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7

Repeat frame

Repeat code

T f

G

Lead code

G

Repeat code

9 ms 4.5 ms

0.55 ms

9 ms

2.25 ms

G

Bit description

Bit “0”

Bit “1”

0.56 ms

1.12 ms

G

Frame interval : Tf

The waveform is transmitted as long as a key is depressed.

Tf Tf

0.56 ms

2.24 ms

Tf=108ms @455KHz

42 Plasma TV

Code (Hexa) Function

TV

VIDEO1

VIDEO2

COMPONENT1

COMPONENT2

DVI

RGB

SLEEP

MENU

ENTER

APC

DASP

PIP/DW

PIP INPUT

SWAP

WIN.SIZE

POSITION

PIP CH+

PIP CH-

SPLIT ZOOM

CH (

D

)

CH (

E

)

VOL (

G

)

VOL (

F

)

POWER

POWER ON

POWER OFF

MUTE

Number Key 0

Number Key 1

Number Key 2

Number Key 3

Number Key 4

Number Key 5

Number Key 6

Number Key 7

Number Key 8

Number Key 9

TV/VIDEO

MULTIMEDIA

ARC

ARC (4:3)

ARC (16:9)

ARC (Zoom)

FCR

REVIEW

AUTO PROGRAM

MEMORY/ERASE

MTS

CAPTION

AUTO CONFIG

63

64

62

71

72

44

4D

52

60

61

D4

C6

D5

0E

43

98

D6

5A

D0

BF

1E

1A

54

55

0A

39

99

7B

79

76

77

AF

16

17

18

19

0B

11

12

13

14

15

08

C4

C5

09

10

00

01

02

03

Note

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button (Power On/Off)

Discrete IR Code (Only Power On)

Discrete IR Code (Only Power Off)

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

Discrete IR Code (Input TV Selection)

Discrete IR Code (Input VIDEO1 Selection)

Discrete IR Code (Input VIDEO2 Selection)

Discrete IR Code (Input COMPONENT1 Selection)

Discrete IR Code (Input COMPONENT2 Selection)

Discrete IR Code (Input DVI Selection)

Discrete IR Code (Input RGB Selection)

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

Discrete IR Code (Only 4:3 mode)

Discrete IR Code (Only 16:9 mode)

Discrete IR Code (Only Zoom mode)

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

R/C Button

Discrete IR Code

IR Codes

Owner’s Manual 43

Programming the Remote

G

The remote control is a multi-brand or universal remote control. It can be programmed to operate most remote-controllable devices of other manufacturers.

Note that the remote control may not control all models of other brands.

1. Test your remote control.

To find out whether your remote control can operate the component without programming, turn on the component such as a VCR and press the corresponding MODE button (VCR) on the remote control, while pointing at the component. Test the POWER and

CH +/- buttons to see if the component responds properly. If not, the remote requires programming to operate the device.

2. Turn on the component to be programmed, then press the corresponding MODE button on the remote control.

3. Press the PIP CH- and MUTE buttons simultaneously, the remote control is ready to be programmed for the code.

4. There are two ways to find the right code for the component.

A. If you press the CH +/- buttons repeatedly, the codes will change one at-a-time. Press the POWER button after each code change. If the right code is found, the device will turn off.

B. Enter a code number using the number buttons on the remote. Programming code numbers for the corresponding component can be found on the following pages. Again, if the code is correct, the device will turn off.

5. Press the MENU button to store the code.

6. Test the remote control functions to see if the component responds properly. If not, repeat from step 2.

44 Plasma TV

Programming Codes

Brand Codes

AIWA

AKAI

AMPRO

ANAM

034

016 043 046 124

125 146

072

031 033 103

AUDIO DYNAMICS 012 023 039 043

BROKSONIC

CANON

035 037 129

028 031 033

CAPEHART

CRAIG

108

003 040 135

CURTIS MATHES 031 033 041

DAEWOO 005 007 010 064

065 108 110 111

DAYTRON

DBX

EMERSON

112 116 117 119

108

012 023 039 043

DYNATECH 034 053

ELECTROHOME 059

006 017 025 027

029 031 034 035

FISHER

FUNAI

GE

036 037 046 101

129 131 138 153

003 008 009 010

034

031 033 063 072

HITACHI

107 109 144 147

GO VIDEO 132 136

HARMAN KARDON 012 045

004 018 026 034

043 063 137 150

INSTANTREPLAY 031 033

JCL

JCPENNY

031 033

012 013 015 033

JENSEN

JVC

040 066 101

043

012 031 033 043

048 050 055 060

130 150 152

Brand Codes

KENWOOD 014 034 039 043

047 048

LG (GOLDSTAR) 001 012 013 020

LLOYD

LXI

101 106 114 123

034

MAGIN

MAGNAVOX

003 009 013 014

017 034 101 106

040

031 033 034 041

067 068

MARANTZ

MARTA

MATSUI

MEI

MEMOREX

012 031 033 067

069

101

027 030

031 033

MGA

MINOLTA

MITSUBISHI

003 010 014 031

033 034 053 072

101 102 134 139

045 046 059

013 020

MTC

MULTITECH

NEC

013 020 045 046

049 051 059 061

151

034 040

024 034

NORDMENDE

OPTONICA

PANASONIC

012 023 039 043

048

043

053 054

066 070 074 083

PENTAX

PHILCO

PHILIPS

PILOT

PIONEER

133 140 145

013 020 031 033

063

031 034 067

031 033 034 054

067 071 101

101

013 021 048

Brand

PORTLAND

PULSAR

QUARTZ

QUASAR

RCA

REALISTIC

RICO

RUNCO

SALORA

SAMSUNG

SANSUI

SANYO

SCOTT

SEARS

010

SHARP

SHINTOM

SONY

SOUNDESIGN

STS

SYLVANIA

SYMPHONIC

TANDY

Codes

108

072

011 014

033 066 075 145

013 020 033 034

040 041 062 063

107 109 140 144

145 147

003 008 010 014

031 033 034 040

053 054 101

058

148

014

032 040 102 104

105 107 109 112

113 115 120 122

125

022 043 048 135

003 007 010 014

102 134

017 037 112 129

131

003 00 009

013 014 017 020

031 042 073 081

101

031 054 149

024

003 009 031 052

056 057 058 076

077 078 149

034

013

031 033 034 059

067

034

010 034

Brand

TATUNG

TEAC

TECHNICS

TEKNIKA

THOMAS

TMK

TOSHIBA

TOTEVISION

UNITECH

VECTOR RESEARCH

VICTOR

VIDEO CONCEPTS

VIDEOSONIC

WARDS

YAMAHA

ZENITH

Codes

039 043

034 039 043

031 033 070

019 031 033 034

101

034

006

008 013 042 047

059 082 112 131

040 101

040

012

048

012 034 046

040

003 013 017 024

031 033 034 040

053 054 131

012 034 039 043

034 048 056

058 072 080 101

CA

TV

Brand

ABC

AJIN

ANTRONIK

ARCHER

CABLE STAR

CENTURION

CENTURY

CITIZEN

COLOUR VOICE

COMBANO

COMTRONICS

DIAMOND

EAGLE

EASTERN

ELECTRICORD

GE

GEMINI

GI

Codes

003 004 039 042

046 052 053

112

014

005 007 014 024

026

092

007

007

065 090

080 081

019 030

023

020 030 040

057 062 066

032

072

008 022 025 054

052 074

Brand Codes

GOLDEN CHANNEL 030

HAMLIN 049 050 055

HITACHI

HOSPITALITY

JERROLD

052 055

070 077

002 003 004 008

009 010 052 069

074

LG (GOLDSTAR) 001 106 101 005

M-NET 037

MACOM

MAGNAVOX

MEMOREX

MOVIE TIME

NSC

033

010 012 064 079

100

028 032

015 028 038 071

OAK

PANASONIC

PARAGON

PHILIPS

073

016 031 037 053

044 047

100

006 012 013 020

Brand Codes

PIONEER

065 085 090

034 051 052 063

076

POST NEWS WEEK 016

PRUCER

PTS

059

011 048 071 072

073 074

100

047

PULSAR

RCA

REGAL

REGENCY

REMBRANT

RK

SAMSUNG

049 050

057

025

091

102 107 030 068

SCIENTIFIC ATLANTA

SHERITECH

SIGNAL

SIGNATURE

003 011 041 042

043 045 046

022

030

052 ZENITH

Brand

SL MARX

SPRUCER

STARCOM

STARGATE

SYLVANIA

TADIRAN

TAEKWANG

TAIHAN

TANDY

TEXSCAN

TOCOM

TOSHIBA

UNIKA

UNITED CABLE

UNIVERSAL

VIEWSTAR

Codes

030

047 078

002 004 008 009

008 030

067

030

110

105

017

029 067

039 040 056

100

007 014 024

004 053

005 007 014 024

026 027 032 035

012 015 018 086

087 088 089

100 114 060 093

Owner’s Manual 45

Programming Codes

Brand Codes

ALPHASTAR DSR

AMPLICA

BIRDVIEW

BSR

123

050

051 126 129

053

CAPETRONICS 053

CHANNEL MASTER 013 014 015 018

036 055

CHAPARRAL

CITOH

008 009 012 077

054

CURTIS MATHES 050 145

DRAKE 005 006 007 010

011 052 112 116

DX ANTENNA

ECHOSTAR

141

024 046 056 076

038 040 057 058

093 094 095 096

097 098 099 100

122

ELECTRO HOME 089

Brand Codes

EUROPLUS

FUJITSU

GENERAL INSTRUMENT

003 004 016 029

031 059 101

HITACHI

114

017 021 022 027

133 134

HOUSTON TRACKER

139 140

033 037 039 051

057 104

068 HUGHES

HYTEK

JANIEL

JERROLD

053

060 147

061

KATHREIN

LEGEND

LG

LUTRON

LUXOR

MACOM

108

057

001

132

062 144

010 059 063 064

065

Brand Codes

MEMOREX

NEXTWAVE

NORSAT

057

028 124 125

PACE SKY SATELLITE

PANASONIC

069 070

143

060 142

PANSAT 121

PERSONAL CABLE 117

PHILIPS

PICO

071

105

PRESIDENT

PRIMESTAR

PROSAT

RCA

REALISTIC

019 102

030 110 111

072

066 106

043 074

SAMSUNG 123

SATELLITE SERVICE CO

028 035 047 057

085

SCIENTIFIC ATLANTA

SONY

032 138

103

Brand

STARCAST

SUPER GUIDE

TEECOM

TOSHIBA

UNIDEN

UNIDEN

VIEWSTAR

WINEGARD

ZENITH

Codes

041

020 124 125

023 026 075 087

088 090 107 130

137

002 127

016 025 042 043

044 045 048 049

078 079 080 086

101

135 136

115

128 146

081 082 083 084

091 120

Brand Codes

AIWA

AKAI

ANAM

BURMECTER

CARVER

CLARION

DAEWOO

DENON

FANTASIA

FINEARTS

FISHER

LG(GOLDSTAR)

014 028 070 096

125 129 139 229

230

163

003 014 017 023

059 106 189 216

217 235 236

252

086

199

027 053 060 084

102 148 198 221

015 075 130 143

071

022

089 099

001 021 024 029

087 107 108 110

190 191 192 210

INKEL

211 212 239

HAITAI 034 035 188 222

HARMAN/KARDON 068

037 058 062 069

078 079 095 121

122 149 150 151

152 153 154 155

157 158 159 160

189 207 222 224

225 226 227 243

247

Brand

JVC

KEC

KENWOOD

KOHEL

NAD

LOTTE

LXI

MAGNAVOX

MARANTZ

MCINTOSH

MCS

MEMOREX

NAD

ONKYO

OPTIMUS

PANASONIC

PENNEY

Codes

004 013 141

185 186 187

038 050 067 089

170 171 197 206

215 222

030

045 046

014 016 036 098

100 172 173 174

175 176 177 178

179 180 181 183

201 202 208 213

214 219 223 232

238 240

103

111

002 018 020 025

034 041 081 090

097 112

049

104

107

046

013 040 041 047

048 056 057 132

133 140

158

007 033 064 113

142 220 241 251

104

Brand

PHILIPS

PIONEER

QUASAR

RCA

RCX

REALISTIC

SAMSUNG

SANSUI

SANYO

SCOTT

SHARP

SHERWOOD

SONY

TAEKWANG

TEAC

TECHNICS

Codes

026 112 143 253

039 042 043 063

065 091 093 094

115 123 127 250

113

080

092

103 106

124 145 146 182

193 194 195 203

204 244 245 246

011 135 138 144

019 083 234

106 186

031 032 051 052

072 082 117 119

156 184 199 200

206 209

005 006 158

044 045 109 114

118 126 248 249

012 020 073 074

076 077 105 161

162 163 164 165

166 167 168 169

205 231 233 242

254

010 085 106 136

185 187 237

101 113 128 134

Brand

TOSHIBA

THE

VICTOR

WARDS

YAMAHA

Codes

147 218

137

061

088 131

089

054 055 066 092

199

Brand Codes

APEX DIGITAL

DENON

GE

022

020 014

005 006

HARMAN KARDON 027

JVC 012

LG 001 010 016 025

Brand

MAGNAVOX

MARANTZ

MITSUBISHI

NAD

ONKYO

PANASONIC

Codes

013

024

002

023

008 017

003 009

Brand

PHILIPS

PIONEER

PROCEED

PROSCAN

RCA

SAMSUNG

Codes

013

004 026

021

005 006

005 006

011 015

Brand

SONY

THOMPSON

TOSHIBA

YAMAHA

ZENITH

Codes

007

005 006

019 008

009 018

010 016 025

46 Plasma TV

Troubleshooting Checklist

T roubleshooting Checklist

No picture &

No sound

• Check whether the TV is turned on.

• Is the power cord inserted into wall power outlet?

• Test the wall power outlet, plug another product’s power cord into the outlet where the TV’s power cord was plugged in.

Picture OK &

No sound

The remote control doesn’t work

• Press the VOLUME (

G

) button.

• Sound muted? Press MUTE button.

• Check to see if there is any object between the TV and the remote control causing obstruction.

• Are batteries installed with correct polarity (+ to +, - to -)?

(Refer to p.9)

• Correct remote operating mode set: TV, VCR etc.?

• Install new batteries. (Refer to p.9)

Picture appears slowly after switching on

• This is normal, the image is muted during the TV startup process. Please contact your service center, if the picture has not appeared after five minutes.

No or poor color or poor picture

• Select

Color

in the


menu and press the VOLUME ( G ) button.

(Refer to p.21)

• Keep a sufficient distance between the TV and the VCR.

• Activate any function to restore the brightness of the picture.

(If still picture is on the screen for more than 5 minutes, the screen gets dark.)

Horizontal/vertical bars or picture shaking

• Check for local interference such as an electrical appliance or power tool.

No output from one of the speakers

• Adjust

Balance

in the

Sound

menu. (Refer to p.24)

Unusual sound from inside the TV

• A change in ambient humidity or temperature may result in an unusual noise when the plasma display is turned on or off and does not indicate a fault with the TV.

Owner’s Manual 47

Maintenance

- Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have your new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning.

1. Here’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then use it to wipe the screen.

2. Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.

To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.

Please be sure not to use a wet cloth.

Extended

Absence

If you expect to leave your TV dormant for a long time (such as a vacation), it’s a good idea to unplug the power cord to protect against possible damage from lightning or power surges.

48 Plasma TV

Specification

MODEL

RU-42PZ61

Width (inches / mm)

Height (inches / mm)

Depth (inches / mm)

Weight (pounds / kg)

Resolution

Power requirement

Television System

Program Coverage

External Antenna Impedance

Color

Operating Temperature Range

Operating Humidity Range

Maximum Elevation

49.6 / 1260

28.5 / 724.8

11.3 / 287

96.7 / 43.84

1024 x 768 (Dot)

RU-42PZ71

RU-50PZ61

49.6 / 1260

57.7 / 1465

28.6 / 726.2

33.3 /845.6

11.3 / 287

13.2 / 335

96.7 / 43.84

117.5 / 53.3

852 x 480 (Dot)

1366 x 768 (Dot)

AC100-240V, 60Hz

NTSC

VHF 2 ~ 13, UHF 14 ~ 69, CATV 1 ~ 125

75

16,770,000 (256 steps of each R, G and B)

32 ~ 104°F (0 ~ 40°C)

Less than 80%

6561 feet (2000m)

RU-60PZ61

56.5 / 1436

36 / 913.2

3.9 / 98.6

172.3 / 78.15

1366 x 768 (Dot)

MODEL

Width (inches / mm)

Height (inches / mm)

Depth (inches / mm)

Weight (pounds / kg)

RU-42PZ61 RU-42PZ71

4.3 / 110

3.7/95

26.4 / 669.3

3.6/90.5

4.5 / 2.03

RU-50PZ61

4.7 / 120

30.7 / 779.4

3.9 / 98.2

5.7 / 2.57

• The specifications shown above may be changed without notice for quality improvement.

Owner’s Manual 49

50 Plasma TV

LG ELECTRONICS, INC.

PLASMA TV — U.S. LIMITED WARRANTY

Your LG Plasma TV will be repaired or replaced in accordance with the terms of this warranty, at LGE’s option, if it proves to be defective in material or workmanship under normal use, during the warranty period (“Warranty Period”) listed below, effective from the date (“Date of Purchase”) of original consumer purchase of the product. This warranty is good only to the original purchaser of the product and effective only when used in the United States, including Alaska, Hawaii, and U.S. Territories.

WARRANTY PERIOD:

LABOR and PARTS: 2 YEARS from the Date of Purchase.

Your unit will be repaired or replaced with a new, substitute model or factory reconditioned unit, at LGE’s option. If repaired, parts used in the repair may be new or remanufactured.

Replacement Units and Repair Parts are warranted for the remaining portion of the original unit’s warranty period.

EFFECTIVE DATE OF WARRANTY: Your warranty period begins on the date of sale to the original consumer/end user.

KEEP THE DEALER’S DATED BILL OF SALE OR PROOF OF

DELIVERY as evidence of the purchase date. You will be required to submit a legible copy of your bill of sale or proof of delivery when requesting warranty service.

HOW SERVICE IS HANDLED:

In-Home Service: Please retain dealer’s dated bill of sale or delivery ticket as evidence of the Date of Purchase for proof of warranty, and submit a copy of the bill of sale to the service person at the time warranty service is provided.

Please call 1-201-816-2000 to locate your nearest LGE Authorized Service Center.

Visit our website at:

http://www.lgservice.com

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT

LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE

EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS

WARRANTY PERIOD ABOVE. NEITHER THE MANUFACTURER NOR ITS U.S. DISTRIBUTOR SHALL BE

LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY

NATURE, INCLUDING WITHOUT LIMITATION, LOST PROFITS, LOST OR CORRUPTED PROGRAMMING OR

DATA, OR ANY OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above exclusion or limitation may not apply to you. This warranty gives you specific legal rights and you may also have other rights that vary from state to state.

CONCERNING PIXEL FUNCTIONALITY: Your Plasma TV contains about one million individual pixels. Plasma TV typically contain a small number of pixels that do not function normally. Your display has been inspected and is in compliance with manufacturer’s specifications, indicating that any pixel defects do not effect the operation or use of your display.

IMPORTANT: Please fill out and mail in your Product Registration Card or go to www.lgservice.com to register your product online. This information will allow us to reach you promptly should we discover a safety or reliability problem that could affect you.

THIS LIMITED WARRANTY DOES NOT APPLY TO:

● damage caused in shipping or transit service required as a result of improper installation, including incorrect or insufficient AC supply (please consult the owner’s manual for power supply requirements) installation or repair of antenna systems, cable converters, cable company supplied equipment, or other components in a video system set-up or adjustment on consumer controls, or damage caused by improper adjustments damage caused by other system components any panel that has been modified or incorporated into any other product replacement of batteries on the remote control.

damage (including cosmetic damage), failure, loss or personal injury due to misuse, abuse, negli-

● gence, improper maintenance or storage, or to acts of nature or other causes beyond our control.

(Causes beyond our control include but are not limited to lightning strike, power surges, power outages and water damage.) image burn-in repair or replacement of warranted parts by other than LGE authorized service centers. units purchased or serviced outside of the coverage area. product where the original factory serial numbers have been removed, defaced or changed in any way. product sold and labeled as “as is, where is” or similar disclaimer.

The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.

CUSTOMER INTERACTIVE CENTER NUMBERS:

To obtain customer assistance, product information or Dealer or Service locations

Call 1-201-816-2000

24 hours a day, 365 days per year

FOR SERVICE:

Before you call for warranty service, check your operating guide – you may avoid a service call.

For warranty service information, please contact the LGE Customer Interactive Center telephone number.

When calling for service, please have your product model number, serial number and the date of pur-

chase or the date of original installation available.

If a replacement unit is required, under some circumstances you may be asked to provide a reserve deposit to the LGE Service Center against a credit card number as surety for advanced shipment. Your credit card will not be charged if you return the defective unit within 10 working days.

If a replacement unit is received, please use the carton and packaging from that unit in returning the defective unit to the LG ® Brand Service Center.

Parts and service in accordance with the LGE warranty are LGE’s responsibility and will be provided without charge. Other service requirements will be at the owner’s expense. If you have problems in obtaining satisfactory warranty service, write or call the LGE Customer Interactive Center. Service may be provided by independently owned and operated service organizations.

To assure proper credit and avoid unnecessary charges, you must obtain an LGE Return Authorization before returning any product to the LGE Service Center. Contact the Customer Interactive Center for details.

TO CONTACT THE LGE CUSTOMER SERVICE CENTER BY MAIL:

LGE Customer Interactive Center

P.O. Box 240007

201 James Record Road

Huntsville, Alabama 35824 http://www.lgservice.com

P/N : 3828VA0470Q

Was this manual useful for you? yes no
Thank you for your participation!
