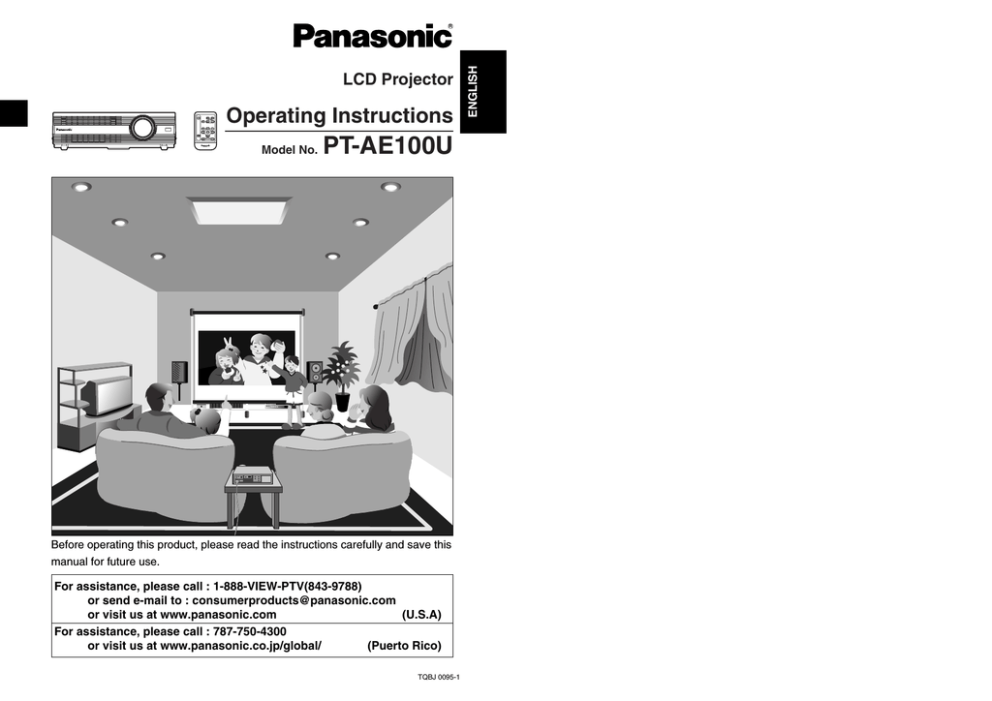

Panasonic PT-AE100 Multimedia Projector

R

LCD Projector

MUTE

INPUT ASPECT

VOLUME

NORMAL

MENU

ENTER

F

DIGITAL ZOOM

PROJECTOR

Operating Instructions

Model No.

PT-AE100U

Before operating this product, please read the instructions carefully and save this manual for future use.

For assistance, please call : 1-888-VIEW-PTV(843-9788) or send e-mail to : [email protected]

or visit us at www.panasonic.com

(U.S.A)

For assistance, please call : 787-750-4300 or visit us at www.panasonic.co.jp/global/ (Puerto Rico)

TQBJ 0095-1

Dear Panasonic Customer:

This instruction booklet provides all the necessary operating information that you might require. We hope it will help you to get the most performance out of your new product, and that you will be pleased with your Panasonic LCD projector.

The serial number of your product may be found on its back. You should note it in the space provided below and retain this booklet in case service is required.

Model number: PT-AE100U

Serial number:

IMPORTANT SAFETY NOTICE

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO

NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

Power Supply: This LCD Projector is designed to operate on 100 V – 240 V, 50 Hz/60

Hz AC, house current only.

CAUTION: The AC power cord which is supplied with the projector as an accessory can only be used for power supplies up to 125 V, 7 A. If you need to use higher voltages or currents than this, you will need to obtain a separate 250 V power cord. If you use the accessory cord in such situations, fire may result.

2

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

CAUTION: This equipment is equipped with a three-pin grounding-type power plug. Do not remove the grounding pin on the power plug. This plug will only fit a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact an electrician. Do not defeat the purpose of the grounding plug.

Do not remove

WARNING:

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV technician for help.

CAUTION: Any unauthorized changes or modifications to this equipment will void the users authority to operate.

Model Number:

Trade Name:

Declaration of Conformity

PT-AE100U

Panasonic

Responsible party: Matsushita Electric Corporation of America.

Address: One Panasonic Way Secaucus New Jersey 07094

Telephone number: 1-888-843-9788

This device complies with Part 15 of the FCC Rules, Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

3

Contents

Preparation

IMPORTANT SAFETY NOTICE..........2

Precautions with regard to safety ....5

Accessories........................................9

Precautions on handling .................10

Location and function of each part........................................12

Using the remote control unit.........17

Inserting the battery........................17

Operating range..............................17

Connections .....................................18

Notes on connections .....................18

Example of connecting to video equipment ...................................18

Example of connecting to computer .....................................19

Example of connecting to equipments compatible with YP

B

P

R

(C

B

C

R

) signals .........................................20

Setting-up .........................................21

Projection methods.........................21

Projector position............................21

Basic Operation

4

Starting to use..................................22

Turning on the power......................22

Turning off the power......................23

On-screen menus.............................24

Menu screens .................................24

Menu operation guide.....................26

Unavailable on-screen menu items..................................26

Returning to the previous screen....26

Returning a setting to the factory default .........................................27

Using the freeze function ................27

Using the DIGITAL ZOOM function .........................................28

Correcting keystone distortion.......29

Setting the ASPECT.........................30

Using the index window function...32

Using the shutter function ..............33

Changing the display language........................................33

Muting the sound .............................33

Adjusting the picture .......................34

PICTURE MODE ............................34

COLOR...........................................34

TINT................................................34

BRIGHT ..........................................34

CONTRAST....................................35

SHARPNESS .................................35

TV SYSTEM ...................................35

Color Hue Setting ..........................35

WHITE BALANCE R/G/B ...............35

SIGNAL MODE...............................35

Adjusting the position .....................36

HORIZONTAL POSITION ..............36

VERTICAL POSITION....................36

DOT CLOCK...................................36

CLOCK PHASE ..............................36

ASPECT .........................................36

AUTO SETUP.................................37

Advanced Operation

Option settings.................................37

OSD................................................37

PC PRIORITY.................................37

BACK COLOR ................................37

4:3 H-POS ......................................37

FRONT/REAR ................................38

DESK/CEILING ..............................38

LAMP POWER ...............................38

LAMP TIME ....................................38

FUNCTION .....................................38

Others

Indicators..........................................39

Cleaning and replacing the air filter ....................................41

Replacing the lamp unit ..................42

Before asking for service ................45

Specifications...................................47

Appendix...........................................49

List of compatible signals ...............49

Connector pin wiring.......................50

Projection dimensions calculation methods ......................................50

Dimensions.......................................51

Precautions with regard to safety

WARNING

If a problem occurs (such as no image or no sound) or if you notice smoke or a strange smell coming from the projector, turn off the power and disconnect the power cord from the wall outlet.

B Do not continue to use the projector in such cases, otherwise fire or electric shocks could result.

B Check that no more smoke is coming out, and then contact an Authorized

Service Center for repairs.

B Do not attempt to repair the projector yourself, as this can be dangerous.

Do not install this projector in a place which is not strong enough to take the full weight of the projector.

B If the installation location is not strong enough, it may fall down or tip over, and severe injury or damage could result.

Installation work (such as ceiling suspension) should only be carried out by a qualified technician.

B If installation is not carried out correctly, there is the danger that injury or electric shocks may occur.

If foreign objects or water get inside the projector, or if the projector is dropped or the cabinet is broken, turn off the power and disconnect the power cord from the wall outlet.

B Continued use of the projector in this condition may result in fire or electric shocks.

B Contact an Authorized Service Center for repairs.

Do not cover the air inlet or the air outlet.

B Doing so may cause the projector to overheat, which can cause fire or damage to the projector.

Do not overload the wall outlet.

B If the power supply is overloaded (for example, by using too many adapters), overheating may occur and fire may result.

Do not remove the cover or modify it in any way.

B High voltages which can cause fire or electric shocks are present inside the projector.

B For any inspection, adjustment and repair work, please contact an

Authorized Service Center.

Clean the power cord plug regularly to prevent it from becoming covered in dust.

B If dust builds up on the power cord plug, the resulting humidity can damage the insulation, which could result in fire. Pull the power cord out from the wall outlet and wipe it with a dry cloth.

B If not using the projector for an extended period of time, pull the power cord plug out from the wall outlet.

5

6

Do not do anything that might damage the power cord or the power cord plug.

B Do not damage the power cord, make any modifications to it, place it near any hot objects, bend it excessively, twist it, pull it, place heavy objects on top of it or wrap it into a bundle.

B If the power cord is used while damaged, electric shocks, short-circuits or fire may result.

B Ask an Authorized Service Center to carry out any repairs to the power cord that might be necessary.

Do not handle the power cord plug with wet hands.

B Failure to observe this may result in electric shocks.

Insert the power cord plug securely into the wall outlet.

B If the plug is not inserted correctly, electric shocks or overheating could result.

B Do not use plugs which are damaged or wall outlets which are coming loose from the wall.

Do not place the projector on top of surfaces which are unstable.

B If the projector is placed on top of a surface which is sloped or unstable, it may fall down or tip over, and injury or damage could result.

Do not place the projector into water or let it become wet.

B Failure to observe this may result in fire or electric shocks.

Do not place liquid containers on top of the projector.

B If water spills onto the projector or gets inside it, fire or electric shocks could result.

B If any water gets inside the projector, contact an Authorized Service

Center.

Do not insert any foreign objects into the projector.

B Do not insert any metal objects or flammable objects into the projector or drop them onto the projector, as doing so can result in fire or electric shocks.

After removing the battery from the remote control unit, keep the battery out of the reach of small children and infants.

B The battery can cause death by suffocation if swallowed.

B If the battery is swallowed, seek medical advice straight away.

Do not allow the + and - terminals of the battery to come into contact with metallic objects such as necklaces or hairpins.

B Failure to observe this may cause the battery to leak, overheat, explode or catch fire.

B Store the battery in a plastic bag and keep it away from metallic objects.

Please follow local codes and standards before disposing of batteries.

B Contact recycling center for proper disposal of lithium batteries.

During a thunderstorm, do not touch the projector or the cable.

B Electric shocks can result.

Do not use the projector in a bath or shower.

B Fire or electric shocks can result.

Do not look into the lens while the projector is being used.

B Strong light is emitted from the projector’s lens. If you look directly into this light, it can hurt and damage your eyes.

Do not bring your hands or other objects close to the air outlet port.

B Heated air comes out of the air outlet port. Do not bring your hands or face, or objects which cannot withstand heat close to this port, otherwise burns or damage could result.

When replacing the lamp, allow it to cool for at least one hour before handling it.

B The lamp cover gets very hot, and contact with it can cause burns.

Before replacing the lamp, be sure to unplug the power cord from the power outlet.

B Electric shocks or explosions can result if this is not done.

Caution

Do not set up the projector in humid or dusty places or in places where the projector may come into contact with smoke or steam.

B Using the projector under such conditions may result in fire or electric shocks.

When disconnecting the power cord, hold the plug, not the cord.

B If the power cord itself is pulled, the cord will become damaged, and fire, short-circuits or serious electric shocks may result.

Always disconnect all cables before moving the projector.

B Moving the projector with cables still attached can damage the cables, which could cause fire or electric shocks to occur.

Do not place any heavy objects on top of the projector.

B Failure to observe this may cause the projector to become unbalanced and fall, which could result in damage or injury.

Do not short-circuit, heat or disassemble the battery or place it into water or fire.

B Failure to observe this may cause the battery to overheat, leak, explode or catch fire, and burns or other injury may result.

When inserting the battery, make sure the polarities (+ and -) are correct.

B If the battery is inserted incorrectly, it may explode or leak, and fire, injury or contamination of the battery compartment and surrounding area may result.

7

8

Use only the specified battery.

B If an incorrect battery is used, it may explode or leak, and fire, injury or contamination of the battery compartment and surrounding area may result.

Do not put your weight on this projector.

B You could fall or the projector could break, and injury may result.

B Be especially careful not to let young children climb onto the projector.

Disconnect the power cord plug from the wall outlet as a safety precaution before carrying out any cleaning.

B Electric shocks can result if this is not done.

Regular cleaning of internal parts and maintenance may be required depending upon specific installation and location and/or usage.

B If the projector is subjected to smoke, dust or humidity, please contact an

Authorized Service Center yearly to clean the projector.

We are in effort to hold your environment clean. Please bring the non repairable unit your Dealer or a Recycling Company.

NOTICE:

B This product has a High Intensity Discharge (HID) lamp that contains a small amount of mercury. It also contains lead in some components.

Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or recycling information please contact your local authorities, or the Electronics Industries

Alliance: <http://www.eiae.org.>

Accessories

Check that all of the accessories shown below have been included with your projector.

Remote control unit

(N2QADC000003 x1)

Video/Audio cable [3.0

m (9´10˝),

K2KA2FA00001 x1]

Lithium battery for remote control unit

(CR2025 x1)

MUTE

INPUT ASPECT

VOLUME

NORMAL

MENU

ENTER

F

DIGITAL ZOOM

PROJECTOR

Power cord

(K2CG3FR00001 x1)

Carrying bag

(TPEP004-1 x1)

9

Precautions on handling

Cautions regarding transportation

Be sure to attach the lens cover before transporting the projector.

The projection lens is extremely susceptible to vibration and shocks. When carrying the projector, use the accessory carrying bag.

When placing the projector inside the carrying bag, position it so that the lens is facing upward.

Cautions regarding setting-up

Observe the following at all times when setting up the projector.

Avoid setting up in places which are subject to vibration or shocks.

If the projector is set up in locations with strong vibration, such as near a motor, or if it is installed inside a vehicle or on board a ship, the projector may be subjected to vibration or shocks which can damage the internal parts and cause malfunctions or accidents. Accordingly, set up the projector in a place which is free from such vibrations and shocks.

Do not set up the projector near high-voltage power lines or near motors.

The projector may be subject to electromagnetic interference if it is set up near high-voltage power lines or motors.

If installing the projector to the ceiling, ask a qualified technician to carry out all installation work.

If the projector is to be suspended from the ceiling, you will need to purchase the separate installation kit (Model No.: ET-PKE100). Furthermore, all installation work should only be carried out by a qualified technician.

If using of this projector at high elevations (above 1400 m), consult your dealer or Authorized Service Center.

Special measures will be necessary to use this projector at high elevations, so consult your dealer or Authorized Service Center about preparations.

Failure to observe this may cause malfunctions.

Notes on use

In order to get the best picture quality

If outside light or light from indoor lamps is shining onto the screen, the images projected will not have good contrast. Draw curtains or blinds over any windows and turn off any fluorescent lights near the screen to prevent reflection.

Do not touch the surfaces of the lens with your bare hands.

If the surface of the lens becomes dirty from fingerprints or anything else, this will be magnified and projected onto the screen. Moreover, when not using the projector, retract the lens and then cover it with the accessory lens cover.

10

About the screen

If the screen you are using is dirty, damaged or discolored, attractive projections cannot be obtained. Do not apply any volatile substances to the screen, and do not let it become dirty or damaged.

Before carrying out cleaning and maintenance, be sure to disconnect the power cord plug from the wall outlet.

Wipe the cabinet with a soft, dry cloth.

If the cabinet is particularly dirty, soak the cloth in water with a small amount of neutral detergent in it, squeeze the cloth very well, and then wipe the cabinet. After cleaning, wipe the cabinet dry with a dry cloth.

If using a chemically-treated cloth, read the instructions supplied with the cloth before use.

Do not wipe the lens with a cloth that is dusty or which produces lint.

If any dust or lint gets onto the lens, such dust or lint will be magnified and projected onto the screen. Use a blower to clean any dust and lint from the lens surface, or use a soft cloth to wipe off any dust or lint.

11

Location and function of each part

Projector <Top, right and front>

& %

$ #

.

'

(

)

'

-

,

+

*

# Speaker

$ Zoom ring

(page 23)

% Focus ring

(page 23)

& Projection lens

' Air inlet ports

Do not cover this port.

( Front adjustable legs(L/R)

(page 23)

) Lens cover

* Leg adjuster buttons(L/R)

(page 23)

This button is used to unlock the front adjustable legs. Press to adjust the angle of tilt of the projector.

+ Air filter

(page 41)

, Remote control signal receptor

(page 17)

- Security lock

This can be used to connect a commercially-available theftprevention cable (manufactured by Kensington). This security lock is compatible with the Microsaver

Security System from

Kensington. Contact details for this company are given below.

Kensington Technology Group

ACCO Brands Inc.

2855 Campus Drive

San Mateo, CA 94403 USA

Tel (650)572-2700

Fax (650)572-9675 http://www.kensington.com/ http://www.gravis.com/

. Projector control panel

(page 14)

12

Projector <Back and bottom>

#

$

%

&

'

# Air outlet port

Do not cover this port.

WARNING

Do not bring your hands or other objects close to the air outlet port.

B Heated air comes out of the air outlet port. Do not bring your hands or face, or objects which cannot withstand heat close to this port, otherwise burns or damage could result.

$ Connector panel

(page 16)

% Power input socket (AC IN)

(page 22)

The accessory power cord is connected here.

Do not use any power cord other than the accessory power cord.

& MAIN POWER switch

(pages 22 and 23)

' Lamp unit holder

(page 43)

NOTE:

B During projection of an image, the cooling fan will operate, emitting a small noise as it operates.

Turning the lamp on or off will cause this noise to increase a little.

B By using the OPTION menu to set “LAMP POWER” to LOW, the operating sound of the fan can be reduced. (Refer to page 38.)

13

<Projector control panel and remote control unit>

$ #

'

%

&

'

(

STANDBY(R)

ON(G) LAMP

POWER

TEMP

INPUT KEYSTONE VOLUME

)

&

*

+

,

-

MUTE

INPUT ASPECT

VOLUME

NORMAL

MENU

ENTER

F

DIGITAL ZOOM

PROJECTOR

1

)

0

/

.

B The wireless remote control and the projector itself have the same control buttons available.

# TEMP indicator

(page 39)

This indicator illuminates if an abnormally high temperature is detected inside the projector. If the temperature rises above a certain level, the power supply will be turned off automatically and the indicator will illuminate or flash.

$ LAMP indicator

(page 40)

This indicator illuminates when it is time to replace the lamp unit. It flashes if a circuit abnormality is detected.

% Power indicator

(pages 22 and 23)

This indicator illuminates red when the main power is switched on (Standby Mode), and it illuminates green when projection of an image begins.

& POWER button

(pages 22 and 23)

' INPUT select button

(page 22)

( KEYSTONE buttons

(page 29)

These buttons are used to correct keystone distortion of the projected image when the projector position is tilted upward or downward.

) VOLUME +/- buttons

These buttons are used to adjust the volume of the sound output from the projector’s built-in speaker.

* MUTE button

(page 33)

This button momentarily stops output of the projector’s built-in speaker.

14

+ MENU button

(page 24)

This button is used to display menu screens. When a menu screen is being displayed, it can be used to return to a previous screen or to clear the screen.

, NORM button

(page 27)

This button is used to reset the projector adjustment values to the factory default settings.

- DIGITAL ZOOM +/- buttons

(page 28)

These buttons are used to enlarge certain portions of the projected image.

. ENTER button

(page 26)

This button is used to accept and to activate items selected in the on-screen menus.

buttons

(page 26)

These buttons are used to select and adjust items in the on-screen menu screens.

0 F(function) button

(page 38)

This button momentarily freezes a moving image (FREEZE menu item), and it can be used to split the screen into one frozen image and one moving image (INDEX menu item). Use the FUNCTION item in the OPTION menu to select which of these two operations you want to use with this button.

1 ASPECT button

(page 30)

This button is used for aspect adjustment (vertical and horizontal proportions).

15

<Connector panel>

# $ % & ' ( )

L

|

AUDIO

|

R

VIDEO S2 VIDEO

VIDEO IN

AUDIO

PC IN

# AUDIO L-R input jacks (for

VIDEO/S-VIDEO)

(page 18)

Only one system is provided, so connect the appropriate connector when using VIDEO or

S-VIDEO.

$ VIDEO input jack

(page 18)

This jack is used to input video signals from a video equipment such as a video deck.

% S2 VIDEO input connector

(pages 18 and 30)

This connector is used to input signals from an S-VIDEOcompatible equipment such as a video deck. The connector is compatible with S2 and S1 signals, and projector aspect is automatically adjusted according to the type of signal received.

& AUDIO input jack (for PC)

(page 19)

' RGB input connector

(page 19)

This connector is used to input

RGB signals from a PC.

( AUDIO L-R input jacks (for

YP

B

P

R

)

(page 20)

L

|

AUDIO

|

R

Y

P

B

/C

B

P

R

/C

R

COMPONENT IN

) YP

B

P

R

(C

B

C

R

) input jacks

(page 20)

These jacks are used to input

YP

B

P

R signals from compatible equipment such as DVD players.

16

Using the remote control unit

Inserting the battery

Insert the lithium battery which is supplied with the remote control unit, making sure that the polarities are correct.

# While pushing the battery

holder tab to the right, pull out the battery holder.

Push the tab

Pull out

$ Insert the battery into the

battery holder so that the “+” side is facing upwards.

Match the “+” surface of the battery with the

“+” marked side of the battery holder.

% Insert the battery holder.

Operating range

If the remote control unit is held so that it is facing directly in front of the front remote control signal receptor, the operating range is within approximately 7 m (23´) from the surfaces of the receptors.

Furthermore, the remote control unit can be operated from an angle of

±30 ° to the left or right and ±15 ° above or below the receptors.

NOTE:

B If there are any obstacles in between the remote control unit and the receptors, the remote control unit may not operate correctly.

B If strong light is allowed to shine onto the remote control signal receptor, correct remote control operation may not be possible.

Place the projector as far away from light sources as possible.

B If facing the remote control unit toward the screen to operate the projector, the operating range of the remote control unit will be limited by the amount of light reflection loss caused by the characteristics of the screen used.

NOTE:

B Do not drop the remote control unit.

B Keep the remote control unit away from liquids.

B Remove the battery if not using the remote control unit for long periods.

B Use only CR2025 batteries as replacement batteries.

17

Connections

Notes on connections

B Read the instruction manual for each system component carefully before connecting it.

B Turn off the power supply for all components before making any connections.

B If the cables necessary for connecting a component to the system are not included with the component or available as an option, you may need to fashion a cable to suit the component concerned.

Example of connecting to video equipment

DVD player

To audio output

To S-Video output

Audio system

To audio input or

L

|

AUDIO

|

R

VIDEO S2 VIDEO

VIDEO IN

AUDIO

PC IN

To audio output

To video output

Video deck

NOTE:

B Only one audio system circuit is available for the AUDIO L-R input jacks for S-VIDEO/VIDEO signals, so if you wish to change the audio input source, you will need to remove and insert the appropriate plugs.

B If the signal cables are disconnected or if the power supply for the computer or video deck is turned off while the digital zoom or index window functions are being used, these functions will be cancelled.

18

L

|

AUDIO

|

R

COMPONEN

Example of connecting to computer

Computer

To audio output

To RGB output

L

|

AUDIO

|

R

VIDEO S2 VIDEO

VIDEO IN

AUDIO

PC IN

L

|

AUDIO

|

R

Y

P

B

/C

B

COMPONENT IN

P

R

/C

R

NOTE:

B It is better to shut down the computer before turning off the MAIN POWER switch of the projector.

B Refer to the list of compatible signals on page 49 for the types of RGB signals which can be input to the projector by connecting a computer.

19

Example of connecting to equipment compatible with YP

B

P

R

(C

B

C

R

) signals

DVD player

To audio output

To YP

B

P

R output

L

|

AUDIO

|

R

VIDEO S2 VIDEO

VIDEO IN

AUDIO

PC IN

L

|

AUDIO

|

R

Y

P

B

/C

B

P

R

/C

R

COMPONENT IN

NOTE:

B Refer to page 49 for a list of compatible YP

B

P

R signals which can be input to the projector.

20

Setting-up

Projection methods

The projector can be set up so that any one of the following four projection methods can be used. Select whichever projection method matches the setting-up method. (The projection method can be set from the OPTION menu. Refer to page 38 for details.)

DESK

DESK/CEILING

CEILING

FRONT

(Factory default setting)

FRONT/REAR

REAR

NOTE:

B You will need to purchase the separate ceiling bracket (ET-PKE100) when using the ceiling installation method.

Projector position

The projection range of this projector is 1.2 m – 7.4 m.

The lower edge of the projected image falls about 0.1 m from the center of the lens.

For details about projected image distances, refer to page 51.

Screen Size (16:9)

5.08 m(200")

Minimum Distance

3.81 m(150")

Maximum Distance

2.03 m(80")

1.52 m(60")

1.01 m(40")

2.54 m(100")

0.0

1.0

2.0

3.0

4.0

Projection Distance Unit: m

5.0

6.0

7.0

21

Starting to use

Turning on the power

Please ensure that all preparations have been completed before turning on the power. (Refer to pages 18 – 21.)

# Remove the lens cover.

$ Connect the accessory power cord.

% Press the MAIN POWER switch to

the “|” side to turn on the power.

The power indicator on the projector will illuminate red.

& Press the POWER button.

The power indicator on the projector will flash green. After a short period, the button will illuminate green, and a picture will be projected.

'

Turn on the power of all connected devices.

Start the Play function a device such as a DVD player.

( Press the INPUT select button to

select the input signal.

The input signal selected will change as shown at below-right each time an input select button is pressed.

AC

IN

~

R

VIDEO S2 VIDEO

VIDEO IN

OFF ON

MAIN

POWER

PC IN

CO

AC

IN

~

R

VIDEO S2 VIDEO

VIDEO IN

OFF ON

MAIN

POWER

PC IN

STANDBY(R)

ON(G) LAMP TEMP

POWER

INPUT KEYSTONE VOLUM

MUTE

INPUT ASPECT

VOLUME

MENU

ENTER

F

DIGITAL ZOOM

STANDBY(R)

ON(G) LAMP

POWER

INPUT

TEMP

KEYSTONE VOLUM

YPBPR

S-VIDEO

VIDEO

PC

MUTE

INPUT ASPECT

VOLUME

MENU

ENTER

F

DIGITAL ZOOM

22

) While pressing the adjuster buttons,

adjust the forward/back angle of tilt of the projector.

If there is keystone distortion in the projected images, carry out keystone correction as described on page 29.

* Turn the focus/zoom ring to adjust

the projected image focus and size.

Zoom

Focus

Turning off the power

#

Hold down the POWER button for at least 0.5 seconds or press the

POWER button twice to turn off the power.

The lamp unit will switch off and the picture will stop being projected. (The power indicator on the projector will illuminate orange.)

$ Wait until the power indicator on the projector illuminates red (until

the cooling fan stops).

Do not in any way cut power to the projector while the cooling fan is still operating. Be careful not to switch off the MAIN POWER switch of the projector, unplug the power cord from the electrical outlet or turn off in-line switches such as tabletop power switches.

% Press the MAIN POWER switch to the “O” side to turn off the power.

NOTE:

B After the power is turned off, the lamp unit will take some time to cool down. If you turn the power back on again before the lamp unit has cooled down, the lamp unit may not turn on straight away, but it will turn on automatically after a short period. (During this time, the power indicator on the projector will flash orange.)

B When the projector is in standby mode (the power indicator on the projector is illuminated red), the projector will still draw a maximum 0.7 W of power, even when the cooling fan has stopped.

B If the MAIN POWER switch is accidentally turned off while the projector is being used, the lamp unit may not turn on straight away after the power is turned back on. In such cases, the lamp unit will turn back on automatically after a short period. (During this time, the power indicator on the projector will flash green.)

B A tinkling sound may be heard while the power indicator is turned off, but this is not a sign of a malfunction.

23

On-screen menus

Menu screens

The various settings and adjustments for this projector can be carried out by selecting the operations from on-screen menus.

The general arrangement of these menus is shown below.

Keystone correction

(page 29)

MAIN MENU

M E N U

K E Y S T O N E

P I C T U R E

P O S I T I O N

S H U T T E R

L A N G U A G E

O P T I O N

S E L C T E N T E R

SHUTTER function

(page 33)

OPTION menu (page 37)

O P T I O N

O S D O N

P C P R I O R I T Y N O R M A L

B A C K C O L O R B L A C K

4 : 3 H - P O S C E N T E R

F R O N T / R E A R F R O N T

D E S K / C E I L I N G D E S K

L A M P P O W E R H I G H

L A M P R U N T I M E 5 H

F U N C T I O N I N D E X

S E L C T A D J E S C

NOTE:

B The remote control unit must be used to manipulate on-screen menus.

B Keystone distortion of the onscreen display will not be corrected.

LANGUAGE menu (page 33)

L A N G U A G E E N G L I S H

E N G L I S H

D E U T S C H

F R A N Ç A I S

E S P A Ñ O L

I T A L I A N O

S E L C T E N T E R E S C

PICTURE menu (page 34)

When an S-VIDEO/VIDEO signal is being input

P I C T U R E

P I C T U R E M O D E N O R M A L

C O L O R 0

T I N T 0

B R I G H T 0

C O N T R A S T 0

S H A R P N E S S 0

C O L O R T E M P . N O R M A L

T V - S Y S T E M A U T O 1

S E L C T A D J E S C

When a PC signal is being input

P I C T U R E

P I C T U R E M O D E N O R M A L

B R I G H T 0

C O N T R A S T 0

S H A R P N E S S 0

C O L O R T E M P . N O R M A L

W - B A L R 0

W - B A L G 0

W - B A L B 0

S I G N A L M O D E S V G A

S E L C T A D J E S C

When a YP

B

P

R signal is being input

P I C T U R E

P I C T U R E M O D E N O R M A L

C O L O R 0

T I N T 0

B R I G H T 0

C O N T R A S T 0

S H A R P N E S S 0

C O L O R T E M P . N O R M A L

S I G N A L M O D E 5 2 5 I

S E L C T A D J E S C

POSITION menu (page 36)

When an S-VIDEO/VIDEO/

YP

B

P

R signal is being input

P O S I T I O N

H - P O S I 0

V - P O S I 0

A S P E C T 1 6 : 9

S E L C T E N T E R E S C

When a PC signal is being input

P O S I T I O N

H - P O S I 0

V - P O S I 0

D O T C L K 0

C L K P H A S E 0

A S P E C T 4 : 3

A U T O S E T U P

S E L C T E N T E R E S C

24 25

Menu operation guide

# Press the MENU button.

The MAIN MENU screen will be displayed.

M E N U

K E Y S T O N E

P I C T U R E

P O S I T I O N

S H U T T E R

L A N G U A G E

O P T I O N

S E L C T E N T E R

buttons to select an item.

Selected items will be displayed in blue.

M E N U

K E Y S T O N E

P I C T U R E

P O S I T I O N

S H U T T E R

L A N G U A G E

O P T I O N

S E L C T E N T E R

% Press the ENTER button to

accept the selection.

The selected menu screen or adjustment screen will then be displayed.

(Example: PICTURE menu)

P I C T U R E

P I C T U R E M O D E N O R M A L

C O L O R 0

T I N T 0

B R I G H T 0

C O N T R A S T 0

S H A R P N E S S 0

C O L O R T E M P . N O R M A L

T V - S Y S T E M A U T O 1

S E L C T A D J E S C

select an item, and then press or adjust the setting.

An individual adjustment screen such as the one shown below will be displayed for bar-scale items.

B R I G H T 0

The bar scale will turn green when any adjustment changes the setting from the factory set value.

Unavailable on-screen menu items

This projector has unadjustable items and unusable functions depending on the signal being input.

When an item cannot be adjusted or a function cannot be used, the corresponding on-screen menu display does not appear, and the item or function will not work even if the ENTER button is pressed.

Returning to the previous screen

If you press the MENU button while a menu screen is being displayed, the display will return to the previous screen.

If you press the MENU button while the MAIN MENU screen is being displayed, the MAIN MENU screen will be cleared.

26

Returning a setting to the factory default

If you press the NORM button on the remote control unit, you can return settings to the factory default settings. However, the operation of this function varies depending on which screen is being displayed.

B When a menu screen is being displayed

P I C T U R E

P I C T U R E M O D E N O R M A L

C O L O R 0

T I N T 0

B R I G H T 0

C O N T R A S T 0

S H A R P N E S S 0

C O L O R T E M P . N O R M A L

T V - S Y S T E M A U T O 1

S E L C T A D J E S C

B When an individual adjustment screen is being displayed

B R I G H T 0

Only the item displayed will be returned to the factory default setting, and the bar scale will appear white.

NOTE:

B Triangle symbols above and below a menu bar indicate the factory default setting. Items which do not have these triangle symbols cannot be returned to the factory default setting.

Indicates the standard factory default setting

All items displayed will be returned to their factory default settings, and the bar scale will appear white.

Indicates the current adjustment value

B The positions of triangle symbols vary depending on the type of signal being input.

Using the freeze function

The picture will alternate between a still picture and a moving picture each time the F(function) button on the remote control unit is pressed.

Select FREEZE from the FUNCTION item in the OPTION menu to use this function. (Refer to page 38.)

Still picture Moving picture

27

Using the DIGITAL ZOOM function

This function lets you enlarge a single section of the picture.

Furthermore, the spot display mode which is used to select the section which is to be enlarged can also be used when making presentations.

# Press a DIGITAL ZOOM +/-

button.

The projector will change to spot display mode.

& Press the MENU button to

return to the normal screen.

The projector will not return to spot display mode at this time. To return to spot display mode, clear the enlarged picture display from the screen and then press a

DIGITAL ZOOM +/- button again.

NOTE:

B This function can only be used when using the remote control unit.

B If the type of signal being input changes while the digital zoom function is being used, the digital zoom function will be cancelled.

buttons to move the spot to the section which you would like to enlarge, and then press the

ENTER button.

The area around the spot will then be enlarged to twice the normal size.

% Use the DIGITAL ZOOM +/-

buttons to change the enlargement ratio.

The enlargement ratio can be changed within the range of x1 to x2, in steps of 0.1.

NOTE:

B When PC signals are being input, the enlargement ratio can be changed within the range of x1 to x3.

28

Correcting keystone distortion

When either the projector or the screen is tilted, the keystone distotion will affect the image. You can correct the image proportions by the following procedure.

# Use the KEYSTONE buttons to obtain image balance.

You can also correct keystone distortion by selecting the KEYSTONE item in the MAIN MENU and pressing ENTER.

Picture condition Operation

Press the

Press the

$ Press the MENU button to return to the previous screen.

NOTE:

B Keystone distortion can be corrected to ±30° of the angle of tilt for the projector. However, the greater the correction amount, the more the picture quality will deteriorate, and the harder it will become to achieve a good level of focus. To obtain the best picture quality, set up the projector and screen in such a way that the amount of keystone correction required is as minimal as possible.

B The picture size will also change when correction of keystone distortion is carried out.

29

Setting the ASPECT

This projector allows you to change the aspect ratio to match the type of input signal. Pressing the ASPECT button will change the aspect ratio according to the successive settings shown below.

(You can also change the aspect ratio by selecting the POSITION item in the

MAIN MENU and pressing ENTER.)

S-VIDEO

S1/S2\4:3\16:9\JUST\ZOOM

VIDEO/YP

B

P

R

4:3\16:9\JUST\ZOOM

PC

4:3\16:9\V SCROLL

Illustrations for aspect ratio settings are shown on the next page. Refer to this illustration for assistance in selecting a suitable aspect ratio.

About S2 and S1 video signals:

B S2 and S1 video signals are for 16:9 images and include a notification signal when being played by devices such as a DVD player.

B When the projector is set to the “S1/S2” setting shown above, it will detect those notification signals and automatically switch to the correct aspect ratio for projection.

NOTE:

B This projector is equipped with an aspect ratio selection function.

However, if a mode which does not match the aspect ratio of the input signal is selected, it may affect the quality of viewing of the original picture.

Keep this in mind when selecting the aspect ratio.

B If using this projector in places such as cafes or hotels with the aim of displaying programs for viewing for a commercial purpose or for public presentation, note that if the aspect ratio (16:9) selection function is used to change the aspect ratio of the screen picture, you may be infringing the rights of the original copyright owner for that program under copyright protection laws.

B If a normal (4:3) picture which was not originally intended for wide-screen viewing is projected onto a wide screen, distortion may occur around the edges of the picture so that part of the picture is no longer visible. Such programs should be viewed in 4:3 mode to give proper consideration to the aims and intentions of the original program’s creator.

B The following signals have resolutions that are 16:9 image sizes. The aspect ratios for these signals cannot be changed while being played because they are already established. (Refer to page 49.)

HDTV60(1080i/60), HDTV50(1080i/50), 750p(720p),

WIDE 400/480/600/720/768

B Image sizes such as Cinema-Vision that project wider than the 16:9 ratio will have narrow black fields at the top and bottom.

30

ASPECT

4:3

Input signal

4:3 Input signal 4:3

Projected Image

16:9

Squeezed signal (image contracted horizontally)

Horizontal expansion of projected image

JUST

4:3 Input signal Horizontal expansion of projected image

(Center of image is less distorted)

ZOOM

Letterbox signal Expansion preserves original ratio

V SCROLL

4:3 Input signal Enlarges image approximately

1.2 times (Vertical position can be adjusted by the G and F buttons)

31

Using the index window function

This function lets you store a picture which is being projected into memory, so that you can display a still picture and a moving picture on the screen.

Select INDEX from the FUNCTION item in the OPTION menu to use this function. (Refer to page 38.)

# Press the F (function) button.

NOTE:

B The aspect ratio of the screen changes and the image is vertically elongated in comparison to a normal image.

Still picture

Moving picture

$

Use the

F

and

G

buttons to select a screen size.

When the screen size is changed, the picture’s aspect ratio will also change.

Still picture

Moving picture

Still picture

Moving picture

Still picture

Moving picture

NOTE:

B Make sure that you fully understand the notes on S2 and S1 signals which are given on page 30 before using the index window function.

(left) and moving picture screen (right).

Still picture

Moving picture

Moving picture

Still picture

& Press the ENTER button to capture the presente moving picture to

still window.

NOTE:

B When steps $ and % are carried out, the presente moving picture will be captured to still window, too.

32

Using the shutter function

The shutter function can be used to momentarily turn off the picture and sound from the projector when the projector is not being used for short periods of time, such as during breaks in meetings or when carrying out preparation. The projector uses less power in shutter mode than it does in normal projection mode.

# Select SHUTTER from the MAIN MENU screen and then press the

ENTER button.

$ Press any button on either the projector or remote control unit to

return to normal operating mode.

Changing the display language

#

Select LANGUAGE from the MAIN MENU screen and then press the

ENTER button.

$

Use the

FG

buttons to select a language and then press the ENTER button.

L A N G U A G E E N G L I S H

E N G L I S H

D E U T S C H

F R A N Ç A I S

E S P A Ñ O L

I T A L I A N O

Indicates the language which is currently set

S E L C T E N T E R E S C

Muting the sound

The sound can be muted for temporary interruptions such as telephone calls.

Press the MUTE button once to turn off sound, and press MUTE again to regain sound.

NOTE:

B Turning off the power will cancel adjustments such as volume level set with the VOLUME +/- buttons.

33

Adjusting the picture

Use the F and G buttons to select an item, and then use the I and H buttons to change the setting for that item.

For items with bar scales, press the

ENTER button or the I or H buttons to display the adjustment screen, and then use the I or H buttons to make the adjustment.

When an S-VIDEO/VIDEO signal is being input

P I C T U R E

P I C T U R E M O D E N O R M A L

C O L O R 0

T I N T 0

B R I G H T 0

C O N T R A S T 0

S H A R P N E S S 0

C O L O R T E M P . N O R M A L

T V - S Y S T E M A U T O 1

S E L C T A D J E S C

When a YP

B

P

R signal is being input

P I C T U R E

P I C T U R E M O D E N O R M A L

C O L O R 0

T I N T 0

B R I G H T 0

C O N T R A S T 0

S H A R P N E S S 0

C O L O R T E M P . N O R M A L

S I G N A L M O D E 5 2 5 I

S E L C T A D J E S C

When a PC signal is being input

P I C T U R E

P I C T U R E M O D E N O R M A L

B R I G H T 0

C O N T R A S T 0

S H A R P N E S S 0

C O L O R T E M P . N O R M A L

W - B A L R 0

W - B A L G 0

W - B A L B 0

S I G N A L M O D E S V G A

S E L C T A D J E S C

34

PICTURE MODE

When an S-VIDEO/VIDEO/YP

B

P

R signal is being input

P I C T U R E M O D E N O R M A L

[

D Y N A M I C

[

C I N E M A

When a PC signal is being input

P I C T U R E M O D E N O R M A L

[

D Y N A M I C

[

N A T U R A L

Select the picture mode that best matches the image source and room conditions.

The mode best used in dark rooms is NATURAL or CINEMA. For rooms having regular lighting conditions in use, select NORMAL. For exceptionally bright rooms, use

DYNAMIC.

COLOR

(S-VIDEO/VIDEO/YP

B

P

R only)

Press the H button to make the color more vivid in tone, and press the I button to make the color more pastel in tone.

TINT

(NTSC/NTSC 4.43/YP

B

P

R only)

This adjusts the flesh tones in the picture. Press the H button to make flesh tones more greenish, and press the I button to make the flesh tones more reddish.

BRIGHT

This adjusts the darker areas (black areas) in the picture. Press the H button if dark areas are too solid (for example, if hair is difficult to see), and press the I button if black areas are too light (grey rather than black).

CONTRAST

This adjusts the contrast of the picture. Press the H button to make the picture brighter, and press the

I button to make the picture darker. (Adjust the BRIGHT setting first if required before adjusting the

CONTRAST setting.)

SHARPNESS

Press the H button to make the picture details sharper, and press the I button to make the picture details softer.

TV SYSTEM

(S-VIDEO/VIDEO only)

T V - S Y S T E M A U T O 1

[

A U T O 2

[

N T S C

[

N T S C 4 . 4 3

[

P A L

[

P A L - M

[

P A L - N

[

S E C A M

AUTO1 The projector automatically distinguishes between NTSC/NTSC

4.43/PAL/SECAM signals.

AUTO2 The projector automatically distinguishes between NTSC/PAL-

M/PAL-N signals.

This should normally be set to

“AUTO1” or “AUTO2”. If the signal is of such poor quality that the correct format cannot be automatically distinguished, change the setting manually to the required TV system.

Color Hue Setting (color temperature)

C O L O R T E M P . N O R M A L

[

C O O L

[

W A R M

Use COLOR TEMP. to adjust color according to the type of screen being used.

NORMAL is for white screens.

COOL is for grey screens.

WARM is for yellow screens.

WHITE BALANCE R/G/B

(PC only)

This is used to adjust the white areas of the picture if they appear colorised.

Press the I button to make the selected color lighter.

Press the H button to make the selected color stronger.

SIGNAL MODE

(PC/YP

B

P

R only)

This displays the type of signal which is currently being projected.

Refer to the table on page 49 for details on each type of signal.

35

Adjusting the position

When the input signal is from a

PC, first select AUTO SETUP and then press the ENTER button to initiate automatic positioning.

If the optimum setting is not obtained when AUTO SETUP is carried out, adjust by the following procedure.

DOT CLOCK

(PC only)

Periodic striped pattern interference

(noise) may occur when a striped pattern such as the one below is projected. If this happens, use the

I and H buttons to adjust so that any such noise is minimised.

Use the F and G buttons to select an item, and then use the I and H buttons to change the setting for that item.

For items with bar scales, press the

ENTER button or the I or H buttons to display the adjustment screen, and then use the I or H buttons to make the adjustment.

When an S-VIDEO/VIDEO/

YP

B

P

R signal is being input

P O S I T I O N

H - P O S I 0

V - P O S I 0

A S P E C T 1 6 : 9

S E L C T E N T E R E S C

When an PC signal is being input

P O S I T I O N

H - P O S I 0

V - P O S I 0

D O T C L K 0

C L K P H A S E 0

A S P E C T 4 : 3

A U T O S E T U P

S E L C T E N T E R E S C

CLOCK PHASE

(PC only)

Adjust the DOT CLOCK setting first before carrying out this adjustment.

Use the I and H buttons to adjust so that the noise level is least noticeable.

NOTE:

B If signals with a dot clock frequency of 100 MHz or higher are being input, interference may not be completely eliminated when the DOT CLOCK and

CLOCK PHASE adjustments are carried out.

ASPECT

Refer page 30.

HORIZONTAL POSITION

Press the I button to move the picture to the left, and press the H button to move the picture to the right.

VERTICAL POSITION

Press the I button to move the picture down, and press the H button to move the picture up.

36

AUTO SETUP

(PC only)

HORIZONTAL POSITION,

VERTICAL POSITION, DOT

CLOCK and CLOCK PHASE are matched to the input signal and are automatically adjusted.

NOTE:

B When the ASPECT is set to V-

SCROLL (page 30), AUTO

SETUP cannot be performed.

Option settings

Use the F and G buttons to select an item, then press the I or H buttons to change the setting.

O P T I O N

O S D O N

P C P R I O R I T Y N O R M A L

B A C K C O L O R B L A C K

4 : 3 H - P O S C E N T E R

F R O N T / R E A R F R O N T

D E S K / C E I L I N G D E S K

L A M P P O W E R H I G H

L A M P R U N T I M E 5 H

F U N C T I O N I N D E X

S E L C T A D J E S C

OSD

O S D O N

[

O F F

ON

OFF

The signal name is displayed in the top-right corner of the screen when the input signal is changed.

Use this setting when you do not want the signal name to be displayed.

PC PRIORITY

(PC only)

P C P R I O R I T Y N O R M A L

[

W I D E

NORMAL displays the PC screen data in a 4:3 aspect ratio.

WIDE displays the PC screen data in a 16:9 aspect ratio.

BACK COLOR

B A C K C O L O R B L A C K

[

G R A Y

[

B L U E

This sets the color which is projected onto the screen when no signal is being input to the projector.

This sets the background color for the left/right margins when the 4:3 aspect ratio is selected. (Refer to page 31.)

4:3 H-POS

(4:3 aspect mode only)

4 : 3 H - P O S C E N T E R

[

R I G H T

[

L E F T

This sets the horizontal positioning of the projected image when the 4:3 aspect ratio is selected. (Refer to page 31.)

37

FRONT/REAR

F R O N T / R E A R F R O N T

[

R E A R

This setting should be changed in accordance with the projector setting-up method.

Set to “FRONT” when using a normal reflective screen with the projector positioned in front of the screen, and set to “REAR” when using a translucent screen with the projector positioned behind the screen.

DESK/CEILING

D E S K / C E I L I N G D E S K

[

C E I L I N G

This setting should be changed in accordance with the projector setting-up method.

Set to “DESK” when setting up the projector on a desk or similar, and set to “CEILING” when suspending the projector from the ceiling using the ceiling bracket which is sold separately.

LAMP POWER

L A M P P O W E R H I G H

[

L O W

This setting changes the lamp brightness. When set to “LOW”, the luminance of the lamp is reduced, but the projector uses less power, and the operating noise is also reduced.

The LOW position is recommended for narrow rooms where a high picture luminance is not essential or for watching movies.

LAMP TIME

This setting displays the usage time for the lamp unit which is currently being used.

NOTE:

B The lamp’s operating life varies depending on the usage conditions (such as the LAMP

POWER setting and the number of times the power is turned on and off).

FUNCTION

F U N C T I O N I N D E X

[

F R E E Z E

This sets the operation that will be carried out when the FUNCTION button is pressed.

INDEX will activate the Index

Window, splitting the screen into a still image and a moving image.

(Refer to page 32.)

FREEZE will temporarily freeze the image. (Refer to page 27.)

38

Indicators

There are two indicators on the control panel of the projector which give information about the operating condition of the projector. These indicators illuminate or flash to warn you about problems that have occurred inside the projector, so if you notice that one of the indicators is on, turn off the power and check the table below for the cause of the problem.

Indicator display

Problem

Illuminated (red)

(Lamp unit on)

The surrounding temperature or the temperature inside the projector has become unusually high.

TEMP indicator

Flashing (red)

(Lamp unit on)

The temperature inside the projector has become dangerously high, or the temperature has suddenly changed.

Flashing (red)

(Lamp unit off)

The surrounding temperature or the temperature inside the projector has become dangerously high, causing the lamp unit to be automatically shut off.

Possible cause

B The ventilation holes may be covered.

B The ambient temperature in the place of use may be too high.

B The air filter may be blocked.

Remedy

B Uncover the ventilation holes.

B Set up the projector in a place where the temperature is between 0 °C (32 °F) and 40 °C (104 °F) and the humidity is between 20% and 80% (with no condensation).

B Turn off the MAIN POWER switch by following the procedure on page 23, and then clean the air filter (refer to page 41).

39

LAMP indicator

Indicator display

Illuminated (red)

Problem

It is nearly time to replace the lamp unit.

Possible cause

B Does “REPLACE

LAMP” appear on the screen after the projector is turned on?

Flashing (red)

An abnormality has been detected in the lamp circuit.

B The power may have been turned on straight away after it was turned off.

B There may be an abnormality in the lamp circuit.

Remedy

B This occurs when the operation time for the lamp unit is nearing 1800 hours. (when

LAMP POWER has been set to

“HIGH”) Ask your dealer or an

Authorised

Service Center to replace the lamp unit.

B Wait for a while until the lamp unit cools down before turning the power back on again.

B Turn off the MAIN

POWER switch by following the procedure given on page 23, and then contact an

Authorised

Service Center.

NOTE:

B Be sure to turn off the MAIN POWER switch by following the procedure given in “Turning off the power” on page 23 before carrying out any of the procedures in the “Remedy” column.

B If the main power turns off after the TEMP indicator starts flashing, it means that an abnormality has occurred. Please contact an Authorised

Service Center so that the necessary repairs can be made.

40

Cleaning and replacing the air filter

If the air filter becomes clogged with dust, the internal temperature of the projector will rise, the TEMP indicator will flash and the projector power will turn off. The air filter should be cleaned every 100 hours of use, depending on the location where the projector is being used.

& Clean the air filter.

Use a vacuum cleaner to clean off any accumulated dust.

Cleaning procedure

# Turn off the MAIN POWER

switch and disconnect the power cord plug from the wall outlet.

Turn off the MAIN POWER switch according to the procedure given in “Turning off the power” on page 23 before disconnecting the plug from the wall outlet.

$ Gently turn the projector

upside down.

NOTE:

B Place the projector on top of a soft cloth so that it will not become scratched.

% Remove the air filter.

Put your fingernails under the air filter and pull the air filter out of the projector.

NOTE:

B Be careful not to let the air filter get sucked into the vacuum cleaner.

' Install the air filter.

NOTE:

B Be sure to install the air filter cover before using the projector.

If the projector is used without the air filter cover installed, dust and other foreign particles will be drawn into the projector, and malfunctions will result.

B If the dust cannot be removed by cleaning, it is time to replace the air filter. Please consult your dealer. Furthermore, if the lamp unit is being replaced, replace the air filter at this time also.

Air filter

41

Replacing the lamp unit

NOTE:

B If you need the lamp replacement, please purchase the lamp unit from our customer service.

Lamp unit product no.: ET-LAE100

CAUTION:

B Do not use any lamp unit other than the one with the product number indicated above.

Warning

When replacing the lamp, allow it to cool for at least one hour before handling it.

B The lamp cover gets very hot, and contact with it can cause burns.

Notes on replacing the lamp unit

B The light generating lamp is made of glass, so dropping it or allowing it to hit hard objects may cause it to burst. Be careful when handling the lamp.

B After having removed the old lamp, carelessly discarding it can cause the lamp to burst. Dispose of the lamp with the same care that would be taken with a fluorescent light.

B A Phillips screwdriver is necessary for removing the lamp unit. Make sure that your hands are not slippery when using the screwdriver.

Lamp unit replacement period

The lamp is a consumable product.

Even when the full life of the bulb has not been exhausted, the brightness of the light will gradually

42

decline. Therefore periodic replacement of the lamp is necessary.

The intended lamp replacement interval is 2000 hours, but it is possible that the lamp may need to be replaced earlier due to variables such as a particular lamp's characteristics, usage conditions and the installation environment.

Early preparation for lamp replacement is encouraged.

A lamp that has exceeded 2000 hours of use has a much greater chance of exploding. In order to prevent the lamp from exploding, the lamp will be automatically shut off when 2000 hours of use have been reached.

NOTE:

B The usage hours explained above are for use when the HIGH setting has been selected for

LAMP POWER in the OPTION menu. If the LOW setting is selected, the brightness of the lamp will be less and life of the lamp can be extended.

B While 2000 hours is the intended replacement interval, it is not a period of time covered by warranty.

On-screen display Lamp indicator warning light

More than 1800 hours

More than 2000 hours

Displayed for 30 seconds. Pressing any button will clear the display.

This display cannot be cleared at all, no matter which button is pressed.

The projector will enter

Standby Mode and the red indicator lamp will illuminate.

Lamp unit replacement procedure

NOTE:

B If the lamp usage time has passed 2000 hours (when LAMP POWER has been set to “HIGH”), the projector will switch to standby mode after approximately 10 minutes of operation. The steps * to - on the next page should thus be completed within 10 minutes.

# Turn off the MAIN POWER

switch according to the procedure given in “Turning off the power” on page 23, and then disconnect the power cord plug from the wall outlet and check that the area around the lamp unit has cooled down.

$ Use a Phillips screwdriver to

turn the lamp unit cover fixing screws at the bottom of the projector, and then remove the lamp unit cover from the projector.

% Use a Phillips screwdriver to loosen

the two lamp unit fixing screws until the screws turn freely. Then hold the handle of the lamp unit and gently pull it out from the projector.

Lamp unit fixing screws

Handle

Lamp unit cover fixing screws

Lamp unit cover

& Insert the new lamp unit while

making sure that the direction of insertion is correct, and then use a Phillips screwdriver to securely tighten the lamp unit fixing screws.

43

' Install the lamp unit cover, and

then use a Phillips screwdriver to securely tighten the lamp unit cover fixing screws.

NOTE:

B Be sure to install the lamp unit and the lamp unit cover securely.

If they are not securely installed, it may cause the protection circuit to operate so that the power cannot be turned on.

( Insert the power cord plug into

the wall outlet and then press the MAIN POWER switch.

NOTE:

B If the POWER button on the projector does not illuminate red when the MAIN POWER switch is turned on, turn the MAIN POWER switch off again and check that the lamp unit and the lamp unit cover are securely installed. Then turn the MAIN POWER switch back on.

) Press the POWER button so

that a picture is projected onto the screen.

* Press the MENU button to

display the MAIN MENU

screen, and then press the F

and G buttons to move the

cursor to select “OPTION”.

M E N U

K E Y S T O N E

P I C T U R E

P O S I T I O N

S H U T T E R

L A N G U A G E

O P T I O N

S E L C T E N T E R

+ Press the ENTER button to

display the OPTION screen,

and then use the F and G

buttons to select LAMP

RUNTIME.

O P T I O N

O S D O N

P C P R I O R I T Y N O R M A L

B A C K C O L O R B L A C K

4 : 3 H - P O S C E N T E R

F R O N T / R E A R F R O N T

D E S K / C E I L I N G D E S K

L A M P P O W E R H I G H

L A M P R U N T I M E 1 8 2 0 H

F U N C T I O N I N D E X

S E L C T E S C

, Press and hold the ENTER

button for approximately 3 seconds.

O P T I O N

O S D O N

P C P R I O R I T Y N O R M A L

B A C K C O L O R B L A C K

4 : 3 H - P O S C E N T E R

F R O N T / R E A R F R O N T

D E S K / C E I L I N G D E S K

L A M P P O W E R H I G H

T I M E R E S E T [ P O W E R O F F ]

F U N C T I O N I N D E X

S E L C T E S C

The “LAMP RUNTIME” will change to “TIME RESET

[POWER OFF]”.

NOTE:

B If the MENU button is pressed, the lamp time resetting screen will be cancelled.

-

Hold down the POWER button for at least 0.5 seconds or press the POWER button twice to turn off the power.

This will reset the cumulative usage time for the lamp unit to zero.

44

Before asking for service

Before asking for service, check the following points.

Problem

Power does not turn on.

No picture appears.

The picture is fuzzy.

COLOR is too light or

TINT is poor

No sound can be heard.

Possible cause

B The power cord may not be connected.

B The MAIN POWER switch is turned off.

B The main power supply is not being supplied to the wall outlet.

B TEMP indicator is illuminated or flashing. (Refer to page 39.)

B LAMP indicator is illuminated or flashing. (Refer to page 40.)

B The lamp unit cover has not been securely installed.

B The video signal input source may not be connected properly.

B The input selection setting may not be correct.

(Refer to page 22.)

B The BRIGHT adjustment setting may be at the minimum possible setting. (Refer to page 34.)

B The shutter function may be in use. (Refer to page

33.)

B The lens cover may still be attached to the lens.

B The lens focus may not have been set correctly.

(Refer to page 23.)

B The projector may not be at the correct distance from the screen. (Refer to page 21.)

B The lens may be dirty.

B The projector may be tilted too much. (Refer to page 23.)

B COLOR or TINT adjustment may be incorrect.

(Refer to page 34.)

B The input source which is connected to the projector may not be adjusted correctly.

B The audio signal source may not be connected properly.

B The volume adjustment may be at the lowest possible setting. (Refer to page 14.)

B Make sure that the MUTE function is not activated.

45

Problem

Remote control unit does not operate.

The picture does not display correctly.

Picture from computer does not appear

Possible cause

B The battery may be weak.

B The battery may not be inserted correctly. (Refer to page 17.)

B The remote control signal receptor on the projector may be obstructed. (Refer to page 17.)

B The remote control unit may be out of the operation range. (Refer to page 17.)

B The correct input signal may not be selected.

(Refer to page 22.)

B The signal format (TV system) may not be set correctly. (Refer to page 35.)

B There may be a problem with the video tape or other signal source.

B A signal which is not compatible with the projector may be being input. (Refer to page 49.)

B The cable may be too long.

B The external video output for the laptop computer may not be set correctly.

(You may be able to change the external output settings by pressing the [Fn]+[F3] or [Fn]+[F10] keys simultaneously. The actual method varies depending on the type of computer, so refer to the documentation provided with your computer for further details.)

46

Specifications

Power supply:

Power consumption:

100 V–240 V ~, 50 Hz/60 Hz

180 W (During standby (when fan is stopped): Approx. 0.7 W)

2.2 A–0.8 A Amps:

LCD panel:

Panel size (diagonal):

Aspect ratio:

Display method:

Drive method:

Pixels:

Lens:

0.7 type (17.78 mm)

16:9

3 transparent LCD panels (RGB)

Active matrix method

415 272 (858 x 484) x 3 panels

Manual zoom (1 - 1.2) / focus lens

F 2.0 - 2.3, f 22.0 mm - 26.2 mm

UHM lamp (120 W) Lamp:

Luminosity:

Scanning frequency:

700 lm/ANSI

(for RGB signals):

Horizontal scanning frequency: 30 kHz–70 kHz

Vertical scanning frequency: 50 Hz–87 Hz

Dot clock frequency:

YP

B

P

R signals:

Color system:

100 MHz or less

525i (480i), 625i, 525p (480p), 750p

(720p), 1125i (1080i)

6 (NTSC/NTSC 4.43/PAL/PAL-M/PAL-

Projection size:

Throw distance:

Optical axis shift:

Screen aspect ratio:

Installation:

Speaker:

Max. useable volume output:

Connectors

VIDEO IN:

S2 VIDEO:

N/SECAM)

1016 mm - 5080 mm (40˝ - 200˝)

1.2 m - 7.4 m (3´11˝ - 24´3˝)

17:1 (fixed)

16:9

Front/Rear/Ceiling/Desk (Menu selection method)

4 cm x 3 cm oval x 1

2 W (mono)

VIDEO:

Single-line, Mini DIN 4-pin

Y 1.0 V [p-p], C 0.286 V [p-p], 75

Ω

Single-line, RCA pin jack

1.0 V [p-p], 75

Ω

0.5 V [rms] RCA pin jack x 2 (L-R) AUDIO:

PC IN:

RGB:

R.G.B.:

G.SYNC:

HD/SYNC:

VD:

AUDIO:

Single-line D-SUB HD 15-pin (female)

0.7 V [p-p], 75

1.0 V [p-p], 75

Ω

Ω

TTL high impedance, automatic plus/minus polarity compatible

TTL high impedance, automatic plus/minus polarity compatible

Single-line 0.5 V [rms] M3 jack (Stereo

MINI)

47

COMPONENT IN:

Y:

P

B

,P

R

(C

B

,C

R

):

AUDIO:

Cabinet:

Dimensions:

Width:

Height:

Length:

Weight:

Operating environment:

Temperature:

Humidity:

Certifications:

<Remote control unit>

Power supply:

Operating range:

Weight:

Dimensions:

Width:

Height:

Length:

<Options>

Ceiling bracket

Projection Screen

1.0 V [p-p], 75

Ω

0.7 V [p-p], 75

Ω

0.5 V [rms] RCA pin jack x 2 (L-R)

Moulded plastic (ABS/PC)

280 mm (11˝)

85 mm (3 11/32˝)

242 mm (9 17/32˝) (including lens)

2.7 kg (6.0 lbs.)

0 °C–40 °C (32 °F–104 °F)

20%–80% (no condensation)

UL1950, C-UL

FCC

3 V DC (Lithium CR2025 battery x1)

Approx. 7 m (23´) (when operated directly in front of signal receptor)

32 g (1.13 ozs.) (including battery)

50 mm (1 31/32˝)

12.5 mm (1/2˝)

86 mm (3 3/8˝)

ET-PKE100

ET-SR90CT(width: 1 800 mm(70"))

ET-SR70CT(width: 1 400 mm(55"))

48

Appendix

List of compatible signals

Mode

NTSC/M-NTSC/PAL-M

PAL/PAL-N/SECAM

525i

625i

525p

HDTV60(1080i/60)

HDTV50(1080i/50)

750P(720p)

VGA400

VGA480

WIDE400

WIDE480

SVGA

MAC16

WIDE600

WIDE720

XGA

WIDE768

MXGA

MAC21

Display resolution

(dots)*

1

Scanning frequency

H

(kHz)

V

(Hz)

Dot clock frequency

(MHz)

720 x 480i

720 x 576i

720 x 480i

720 x 576i

640 x 400

640 x 400

640 x 480

640 x 480

640 x 480

640 x 480

640 x 480

720 x 400

856 x 480

800 x 600

800 x 600

800 x 600

800 x 600

800 x 600

832 x 624

1 072 x 600

1 280 x 720

1 024 x 768

1 024 x 768

1 024 x 768

1 024 x 768

1 024 x 768i

1 280 x 768

1 152 x 864

15.734

15.625

15.734

15.625

59.940

50.000

59.940

50.000

720 x 483 31.469

59.940

1 920 x 1 080i 33.750

60.000

1 920 x 1 080i

1 280 x 720

1 152 x 864

1 152 x 870

28.125

45.000

31.469

35.000

37.861

72.809

37.500

75.000

43.269

37.927

37.879

48.077

46.875

75.000

53.674

85.061

49.725

37.287

56.476

60.023

68.678

84.997

35.520

86.952

45.327

63.995

50.000

60.000

31.469

70.086

37.861

85.081

59.940

66.667

85.008

85.038

30.057

60.114

35.156

56.250

60.317

72.188

74.550

59.947

45.106

60.141

48.363

60.004

70.069

75.029

56.518

71.184

13.500

13.500

27.000

74.250

74.250

74.250

25.175

31.500

25.175

30.240

31.500

31.500

36.000

35.500

31.500

36.000

40.000

50.000

49.500

56.250

57.283

51.382

76.500

65.000

75.000

78.750

94.500

44.897

76.150

94.200

67.500

74.917

108.000

68.681

75.062

100.000

Picture quality*

2

A

A

A

A

A

A

A

A

B

B

A

A

A

A

AA

A

A

A

A

A

AA

AA

AA

AA

AA

A

A

A

A

A

A

A

A

A

Format

PC

PC

PC

PC

PC

PC

PC

PC

PC

PC

PC

PC

PC

PC

PC

PC

PC

PC

Video/S-Video

Video/S-Video

YP

B

P

R

YP

B

P

R

YP

B

P

R

YP

B

P

R

/PC

YP

B

P

R

/PC

YP

B

P

R

PC

PC

PC

PC

PC

PC

PC

PC

*1 The “i” appearing after the resolution indicates an interlaced signal.

*2 The following symbols are used to indicate picture quality.

AA Maximum picture quality can be obtained.

A Signals are converted by the image processing circuit before picture is projected

B Some loss of data occurs to make projection easier.

49

Connector pin wiring

B The pin layout and signal names for the S2 VIDEO input connector are shown below.

Pin No.

Signal

# $

# Earth (Luminance signal)

$

%

& %

&

Earth (Color signal)

Luminance signal

Color signal

External view

B The pin layout and signal names for the RGB input connector are shown below.

(

-

#

1

'

External view

,

Pin No.

#

$

%

.

/

0

1

R

G/G·SYNC

B

SDA

HD/SYNC

VD

SCL

Signal

Pin + is spare.

Pins &–*, , and - are for earth.

Pins . and 1 functions are only valid when supported by the computer

Projection dimensions calculation methods

The following methods will allow you to calculate dimensions such as screen diagonal length and projection distances. Units in all calculations are meter.

16:9

SD

SW LW/LT

Screen Width: SW=SDx0.872

Screen Height: SH=SDx0.490

Minimum Projection Distance: LW=1.42xSW-0.02

Maximum Projection Distance: LT=1.70xSW-0.08

Image Lower Edge from Lens Center: H1=SW/32

50

Dimensions

R

65.4 (2 9/16)

280 (11)

VOLUME KEYSTONE INPUT

POWER

ON(G)

ST ANDBY(R)

<Units: mm (˝)>

Trademark acknowledgements

B VGA and XGA are trademarks of International Business Machines

Corporation.

B Macintosh is a registered trademark of Apple Computer, Inc.

B S-VGA is a registered trademark of the Video Electronics Standards

Association.

B Windows is a registered trademark of Microsoft Corporation.

All other trademarks are the property of the various trademark owners.

51

These Operating Instructions are printed on recycled paper.

Panasonic Consumer

Electronics Company,

Division of Matsushita

Electric Corporation of America

One Panasonic Way

Secaucus

New Jersey 07094

Panasonic Sales

Company, Division of

Matsushita Electric of

Puerto Rico Inc.

(“PSC”)

Ave. 65 de Infanteria,

Km 9.5 San Gabriel

Idustrial Park, Carolina,

Puerto Rico 00985

Panasonic Canada

Inc.

5770 Ambler Drive,

Mississauga, Ontario

L4W 2T3 (905) 624-

5010

Printed in Japan

S1001-2032C
