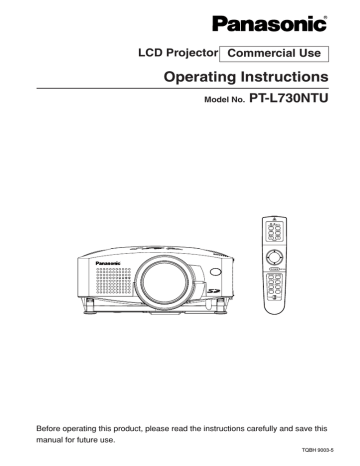

LCD Projector Commercial Use

Operating Instructions

Model No.

PT-L730NTU

R

R

Before operating this product, please read the instructions carefully and save this manual for future use.

TQBH 9003-

5

Dear Panasonic Customer:

This instruction booklet provides all the necessary operating information that you might require. We hope it will help you to get the most performance out of your new product, and that you will be pleased with your Panasonic LCD projector.

The serial number of your product may be found on its back. You should note it in the space provided below and retain this booklet in case service is required.

Model number: PT-L730NTU

Serial number:

IMPORTANT SAFETY NOTICE

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO

NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

Power Supply: This LCD Projector is designed to operate on 100 V – 240 V, 50 Hz/60

Hz AC, house current only.

CAUTION: The AC power cord which is supplied with the projector as an accessory can only be used for power supplies up to 125 V, 10 A. If you need to use higher voltages or currents than this, you will need to obtain a separate 250 V power cord. If you use the accessory cord in such situations, fire may result.

2

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

CAUTION: This equipment is equipped with a three-pin grounding-type power plug. Do not remove the grounding pin on the power plug. This plug will only fit a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact an electrician. Do not defeat the purpose of the grounding plug.

Do not remove

WARNING:

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV technician for help.

CAUTION: Any unauthorized changes or modifications to this equipment will void the users authority to operate.

Model Number:

Trade Name:

Declaration of Conformity

PT-L730NTU

Responsible party: Matsushita Electric Corporation of America.

Address: One Panasonic Way Secaucus New Jersey 07094

Telephone number: 1-800-528-8601 or 1-800-222-0741

Email: [email protected]

This device complies with Part 15 of the FCC Rules, Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

3

Contents (Basic Operations)

Preparation

IMPORTANT SAFETY NOTICE..........

2

Precautions with regard to safety ....

6

Accessories......................................

10

Precautions on handling .................

11

Location and function of each part ...

13

Using the remote control unit.........

19

Laser beam pointer.........................

19

Wireless mouse ..............................

20

Inserting the batteries .....................

21

Operating range..............................

21

Connections .....................................

22

Notes on connections .....................

22

Example of connecting to video

equipment ...................................

23

Example of connecting to computer....

24

Setting-up .........................................

25

Projection methods.........................

25

Projector position............................

25

Projection distances .......................

26

Basic Operation

OSD POSITION..............................

40

ASPECT .........................................

40

RESIZING.......................................

41

AUTO SETUP.................................

41

FRAME LOCK ................................

41

Audio adjustment.............................

42

VOLUME ........................................

42

MUTE .............................................

42

Changing the display language......

42

Advanced Operation

Option settings.................................

43

SHUTTER.......................................

43

OSD................................................

43

AUTO KEYSTONE .........................

43

RGB/YPbPr ....................................

43

AUTO RGB IN ................................

44

RGB2 SELECT...............................

44

BACK COLOR ................................

44

FRONT/REAR ................................

44

DESK/CEILING ..............................

44

LAMP POWER ...............................

44

LAMP RUNTIME ............................

44

FAN CONTROL..............................

44

WEB CONTROL.............................

45

WEB STANDBY .............................

45

WEB PASSWORD .........................

45

CONTROL KEY..............................

45

FUNC 1...........................................

45

NETWORK SETUP ...........................

46

SD CARD SETUP..............................

46

Using the SERIAL connector ..........

47

Starting to use..................................

27

Turning on the power......................

27

Turning off the power......................

28

On-screen menus.............................

29

Menu screens .................................

29

Menu operation guide.....................

31

Returning to the previous screen....

32

Returning a setting to the factory

default .........................................

33

Using the freeze function ................

33

Using the D.ZOOM

(digital zoom)

function..

34

Adjusting the picture .......................

35

PICTURE MODE ............................

35

Color Hue Setting ...........................

36

COLOR...........................................

36

TINT................................................

36

BRIGHT ..........................................

36

CONTRAST....................................

36

SHARPNESS .................................

36

Noise Reduction(NR)......................

36

TV SYSTEM ...................................

36

WHITE BALANCE R/G/B ...............

37

Projecting sRGB-compatible pictures ...

37

4

Adjusting the position .....................

38

POSITION ......................................

39

DOT CLOCK...................................

39

CLOCK PHASE ..............................

39

KEYSTONE ....................................

39

Others

Indicators..........................................

49

Cleaning and replacing the air filter...

51

Replacing the lamp unit ..................

52

About the RGB INPUT indicator .....

55

About the automatic setup function......

55

Before calling for service ................

56

Specifications...................................

58

List of compatible signals...............

60

Dimensions.......................................

61

Trademark acknowledgements ......

62

NOTES IMPORTANTES

CONCERNANT LA SÉCURITÉ...

63

Précautions de sécurité ..............

64

Précautions de manipulation.............

68

Remplacement du bloc de lampe...

70

Contents (Wireless Functions, SD Card Functions)

Safety precautions ................

75

Web browser control ...........

106

Other instructions .................

76

Typical applications of SD card

/ wireless functions ...............

80

Examples of use of SD card........... 80

Example of use of wireless

functions.......................................... 81

Fitting and removal of SD card

and wireless card ..................

82

SD card ............................................ 82

Wireless card................................... 83

What you can do with Web

browser control ......................... 106

Settings of Web browser control.... 106

Settings of projector..................... 106

Settings of personal computer..... 106

Operation of Web browser

control ........................................ 107

Starting Web browser control ...... 107

Top screen................................... 107

Projector control .......................... 108

SD control.................................... 109

Changing password..................... 109

Wireless Manager 2.0..........

110

How to use SD card...............

84

Replaying from recorded SD card

using the projector only.............. 84

Setting ........................................... 84

Replay ........................................... 85

Recording directly on SD card ...... 86

Compiling on Windows .................. 86

Compilation on Macintosh machine.... 89

Network setting .....................

91

Typical setting for network ............ 91

To use wireless communication

for the first time .......................... 91

If wireless communication has already been established between

PCs (in ad hoc mode) ............... 92

If wireless communication has already been established

using an access point................. 93

Setting up the projector ................. 94

Installing a wireless card driver .... 97

Fitting and removal of wireless card

into/from personal computer ...... 97

Installing a driver ........................... 98

Settings of wireless card.............. 101

Settings of personal computer .... 102

TCP/IP setting ............................. 102

If two or more network devices

are existent............................... 104

What you can do with Wireless

Manager 2.0................................ 110

Installation of Wireless Manager 2.0 ... 110

Before installation ........................ 110

Procedure of installation .............. 110

Operation of Wireless Manager 2.0.... 111

Starting/ending Wireless

Manager 2.0 ............................. 111

Registration of projector .............. 111

To capture and transfer the

image of PC screen.................. 113

Transfer of image stored in the

personal computer ................... 114

Major examples of usage ............. 117

Basic usage ................................. 117

Automatic display in predefined

sequence.................................. 117

Quick-changing presentation using

SD card .................................... 117

Conference using multiple personal

computers ................................ 117

Image Creator 1.0 ................

118

What you can do with Image

Creator 1.0.................................. 118

Installation of Image Creator 1.0 ... 119

Before installation ........................ 119

Procedure of installation .............. 119

Operation of Image Creator 1.0... 119

DCF standard .............................. 124

Message List ................................. 125

Before Placing an repair order .... 125

Explanation of terms .................... 127

Trademark Information................. 130

Consignes de sécurité.................. 132

5

6

Precautions with regard to safety

WARNING

If a problem occurs (such as no image or no sound) or if you notice smoke or a strange smell coming from the projector, turn off the power and disconnect the power cord from the wall outlet.

• Do not continue to use the projector in such cases, otherwise fire or electric shocks could result.

• Check that no more smoke is coming out, and then contact an Authorised

Service Center for repairs.

• Do not attempt to repair the projector yourself, as this can be dangerous.

Do not install this projector in a place which is not strong enough to take the full weight of the projector.

• If the installation location is not strong enough, it may fall down or tip over, and severe injury or damage could result.

Installation work (such as ceiling suspension) should only be carried out by a qualified technician.

• If installation is not carried out correctly, there is the danger that injury or electric shocks may occur.

If foreign objects or water get inside the projector, or if the projector is dropped or the cabinet is broken, turn off the power and disconnect the power cord from the wall outlet.

• Continued use of the projector in this condition may result in fire or electric shocks.

• Contact an Authorised Service Center for repairs.

Do not overload the wall outlet.

• If the power supply is overloaded (for example, by using too many adapters), overheating may occur and fire may result.

Do not remove the cover or modify it in any way.

• High voltages which can cause fire or electric shocks are present inside the projector.

• For any inspection, adjustment and repair work, please contact an

Authorised Service Center.

Clean the power cord plug regularly to prevent it from becoming covered in dust.

• If dust builds up on the power cord plug, the resulting humidity can damage the insulation, which could result in fire. Pull the power cord out from the wall outlet and wipe it with a dry cloth.

• If not using the projector for an extended period of time, pull the power cord plug out from the wall outlet.

Do not do anything that might damage the power cord or the power cord plug.

• Do not damage the power cord, make any modifications to it, place it near any hot objects, bend it excessively, twist it, pull it, place heavy objects on top of it or wrap it into a bundle.

• If the power cord is used while damaged, electric shocks, short-circuits or fire may result.

• Ask an Authorised Service Center to carry out any repairs to the power cord that might be necessary.

Do not handle the power cord plug with wet hands.

• Failure to observe this may result in electric shocks.

Insert the power cord plug securely into the wall outlet.

• If the plug is not inserted correctly, electric shocks or overheating could result.

• Do not use plugs which are damaged or wall outlets which are coming loose from the wall.

Do not place the projector on top of surfaces which are unstable.

• If the projector is placed on top of a surface which is sloped or unstable, it may fall down or tip over, and injury or damage could result.

Do not place the projector into water or let it become wet.

• Failure to observe this may result in fire or electric shocks.

Do not place liquid containers on top of the projector.

• If water spills onto the projector or gets inside it, fire or electric shocks could result.

• If any water gets inside the projector, contact an Authorised Service

Center.

Do not insert any foreign objects into the projector.

• Do not insert any metal objects or flammable objects into the projector or drop them onto the projector, as doing so can result in fire or electric shocks.

Keep the remote control unit out of the reach of children, and do not look into the laser beam or point it towards other people.

• If the laser beam which is emitted by the remote control unit transmitter is pointed directly into the eyes, it may cause visual ability to be impaired.

Do not allow the + and - terminals of the batteries to come into contact with metallic objects such as necklaces or hairpins.

• Failure to observe this may cause the batteries to leak, overheat, explode or catch fire.

• Store the batteries in a plastic bag and keep them away from metallic objects.

During a thunderstorm, do not touch the projector or the cable.

• Electric shocks can result.

Do not use the projector in a bath or shower.

• Fire or electric shocks can result.

7

Do not look into the lens while the projector is being used.

• Strong light is emitted from the projector’s lens. If you look directly into this light, it can hurt and damage your eyes.

Do not bring your hands or other objects close to the air outlet port.

• Heated air comes out of the air outlet port. Do not bring your hands or face, or objects which cannot withstand heat close to this port, otherwise burns or damage could result.

When replacing the lamp, allow it to cool for at least one hour before handling it.

• The lamp cover gets very hot, and contact with it can cause burns.

Before replacing the lamp, be sure to unplug the power cord from the power outlet.

• Electric shocks or explosions can result if this is not done.

Keep the SD memory card out of the reach of infants.

• If the memory card is swallowed, death by suffocation may result. If you believe that the memory card may have been swallowed, seek medical advice immediately.

Caution

Do not cover the air inlet or the air outlet.

• Doing so may cause the projector to overheat, which can cause fire or damage to the projector.

Do not set up the projector in humid or dusty places or in places where the projector may come into contact with smoke or steam.

• Using the projector under such conditions may result in fire or electric shocks.

When disconnecting the power cord, hold the plug, not the cord.

• If the power cord itself is pulled, the cord will become damaged, and fire, short-circuits or serious electric shocks may result.

Always disconnect all cables before moving the projector.

• Moving the projector with cables still attached can damage the cables, which could cause fire or electric shocks to occur.

Do not place any heavy objects on top of the projector.

• Failure to observe this may cause the projector to become unbalanced and fall, which could result in damage or injury.

Do not short-circuit, heat or disassemble the batteries or place them into water or fire.

• Failure to observe this may cause the batteries to overheat, leak, explode or catch fire, and burns or other injury may result.

8

When inserting the batteries, make sure the polarities (+ and -) are correct.

• If the batteries are inserted incorrectly, they may explode or leak, and fire, injury or contamination of the battery compartment and surrounding area may result.

Use only the specified batteries.

• If incorrect batteries are used, they may explode or leak, and fire, injury or contamination of the battery compartment and surrounding area may result.

Do not mix old and new batteries.

• If the batteries are inserted incorrectly, they may explode or leak, and fire, injury or contamination of the battery compartment and surrounding area may result.

Do not put your weight on this projector.

• You could fall or the projector could break, and injury may result.

• Be especially careful not to let young children climb onto the projector.

Disconnect the power cord plug from the wall outlet as a safety precaution before carrying out any cleaning.

• Electric shocks can result if this is not done.

Do not install the accessory wireless card to any device other than the card slot of the projector.

• If this is not observed, damage to the device may result.

Ask an Authorised Service Center to clean inside the projector at least once a year.

• If dust is left to build up inside the projector without being cleaned out, it can result in fire or problems with operation.

• It is a good idea to clean the inside of the projector before the season for humid weather arrives. Ask your nearest Authorised Service Center to clean the projector when required. Please discuss with the Authorised

Service Center regarding cleaning costs.

We are constantly making efforts to preserve and maintain a clean environment. Please take non repairable units back to your dealer or a recycling company.

NOTICE:

• This product has a High Intensity Discharge (HID) lamp that contains a small amount of mercury. It also contains lead in some components.

Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or recycling information please contact your local authorities, or the Electronics Industries

Alliance: <http://www.eiae.org.>

9

Accessories

Check that all of the accessories shown below have been included with your projector.

Remote control unit

(N2QAEA000008 x1)

AAA batteries for remote control unit (x2)

RGB signal cable [3.0 m

(9´10˝), K1HB15FA0001 x1]

Video/Audio cable [3.0

m (9´10˝),

K2KA2FA00001 x 1]

Power cord

(K2CG3FZ00008 x 1)

Carrying bag (TPEP007 x1)

USB cable (3.0 m,

K1HB04FD0002 x 1)

CD-ROM (TQBH9003 x1) SD memory card (8 MB,

RP-SD008BEZ0 x1)

Wireless Card (N5HBD0000002 x1) Protective case for SD memory card

(RP-SDCC0 x1)

10

Precautions on handling

Cautions regarding transportation

Be sure to attach the lens cover before transporting the projector.

The projection lens is extremely susceptible to vibration and shocks. When carrying the projector, use the accessory carrying bag.

Cautions regarding setting-up

Observe the following at all times when setting up the projector.

Avoid setting up in places which are subject to vibration or shocks.

If the projector is set up in locations with strong vibration, such as near a motor, or if it is installed inside a vehicle or on board a ship, the projector may be subjected to vibration or shocks which can damage the internal parts and cause malfunctions or accidents. Accordingly, set up the projector in a place which is free from such vibrations and shocks.

Do not set up the projector near high-voltage power lines or near motors.

The projector may be subject to electromagnetic interference if it is set up near high-voltage power lines or motors.

If installing the projector to the ceiling, ask a qualified technician to carry out all installation work.

If the projector is to be suspended from the ceiling, you will need to purchase the separate installation kit (Model No.: ET-PK730). Furthermore, all installation work should only be carried out by a qualified technician.

If using this projector at high elevations (above 1400 m), set the FAN

CONTROL to HIGH. (Refer to page 44 .)

Failure to observe this may result in malfunctions.

Notes on use

In order to get the best picture quality

If outside light or light from indoor lamps is shining onto the screen, the images projected will not have good contrast. Draw curtains or blinds over any windows and turn off any fluorescent lights near the screen to prevent reflection.

Do not touch the surfaces of the lens with your bare hands.

If the surface of the lens becomes dirty from fingerprints or anything else, this will be magnified and projected onto the screen. Moreover, when not using the projector, retract the lens and then cover it with the accessory lens cover.

11

About the screen

If the screen you are using is dirty, damaged or discolored, attractive projections cannot be obtained. Do not apply any volatile substances to the screen, and do not let it become dirty or damaged.

About the lamp

The lamp may need to be replaced earlier due to variables such as a particular lamp’s characteristics, usage conditions and the installation environment, especially when it is subjected to a continuous use for more than 10 hours.

About the wireless card and SD memory card

Static electricity from the human body can damage the wireless card or SD memory card. To prevent this, you should touch a nearby metallic object such as an aluminium sash or a door knob to dissipate the static charge from your body.

About the wireless card slot and SD memory card slot

Make sure that there are no foreign objects inside the slot when inserting the wireless card or SD memory card. Failure to observe it may damage the card and the slot.

Before carrying out cleaning and maintenance, be sure to disconnect the power cord plug from the wall outlet.

Wipe the cabinet with a soft, dry cloth.

If the cabinet is particularly dirty, soak the cloth in water with a small amount of neutral detergent in it, squeeze the cloth very well, and then wipe the cabinet. After cleaning, wipe the cabinet dry with a dry cloth.

If using a chemically-treated cloth, read the instructions supplied with the cloth before use.

Do not wipe the lens with a cloth that is dusty or which produces lint.

If any dust or lint gets onto the lens, such dust or lint will be magnified and projected onto the screen. Use a blower to clean any dust and lint from the lens surface, or use a soft cloth to wipe off any dust or lint.

12

Location and function of each part

Projector <Top, right and front>

w q

!4

e r t y u

!1

e

!0

!3

!2

i o t r q Projector control panel

(page 15 )

w Focus ring

(page 28 )

e Air inlet ports

Do not cover these ports.

r Leg adjuster buttons(L/R)

(page 27 )

These buttons are used to unlock the front adjustable legs. Press to adjust the angle of tilt of the projector.

t Front adjustable legs(L/R)

(page 27 )

y Projection lens u Lens cover i Zoom knob

(page 28 )

o Remote control signal receptor

(page 21 )

!0 Air filter

(page 51 )

!1 Connector panel

(page 17 )

!2 Power input socket (AC IN)

(page 27 )

The accessory power cord is connected here.

Do not use any power cord other than the accessory power cord.

!3 MAIN POWER switch

(pages 27 and

28 )

!4 Speaker

13

Projector <Back and bottom>

q t w r e q Remote control signal receptor

(page 21 )

w Security lock

This can be used to connect a commercially-available theftprevention cable (manufactured by Kensington). This security lock is compatible with the Microsaver

Security System from

Kensington. Contact details for this company are given below.

Kensington Technology Group

ACCO Brands Inc.

2855 Campus Drive

San Mateo, CA 94403 USA

Tel (650)572-2700

Fax (650)572-9675 http://www.kensington.com/ http://www.gravis.com/

NOTE:

• Information given above may be changed in future.

e Lamp unit holder

(page 52 )

r Carrying handle t Air outlet port

Do not cover this port.

14

When you change the direction of the air flow out of the outlet port, make sure that the MAIN

POWER is “OFF” and the projector is cooled down.

WARNING

Do not bring your hands or other objects close to the air outlet port.

• Heated air comes out of the air outlet port. Do not bring your hands or face, or objects which cannot withstand heat close to this port, otherwise burns or damage could result.

NOTE:

• During projection of an image, the cooling fan will operate, emitting a small noise as it operates. Turning the lamp on or off will cause this noise to increase a little.

• By using the OPTION menu to set

“LAMP POWER” to “LOW”, the operating sound of the fan can be

reduced. (Refer to page 44 .)

Remote control unit

y r

!5

POWER

AUTO

SETUP

RGB LASER

VIDEO MENU

PAGE

!6

u

!7

o

!2

q w

!3

!4

Projector control panel

e r t y u

RGB INPUT

POWER

LAMP TEMP

AUTO SETUP INPUT SHUTTER i

STANDBY(R)

ON(G)

MENU ENTER

!0

!1

!8

!9

@0

@1

R-CLICK ENTER

FREEZE SHUTTER

FUNC1 STD

Computer Pro jector i

@4

@3 o !0

!1

q Power indicator

(pages 27 ,

28 and

45 )

This indicator illuminates red when the MAIN POWER switch is turned on (standby mode), and illuminates green when the power is turned on and a picture starts to be projected.

When the WEB STANDBY is set to "ON", the cooling fan operates and the power indicator on the projector flashes slowly in red.

w RGB INPUT indicator

(page 55 )

This indicator shows whether a signal is being input to the RGB input connectors (RGB 1 IN/RGB

2 IN). When an input signal is detected, the indicator illuminates.

e LAMP indicator

(page 50 )

This indicator illuminates when it is time to replace the lamp unit. It flashes if a circuit abnormality is detected.

r Input select (INPUT, RGB,

VIDEO) buttons

(page 27 )

t TEMP indicator

(page 49 )

This indicator illuminates if an abnormally high temperature is detected inside the projector or around it. If the temperature rises above a certain level, the power supply will be turned off automatically and the indicator will illuminate or flash.

y POWER button

(pages 27 and

28 )

u AUTO SETUP button

(pages 27 and

55 )

If this button is pressed while a picture is being projected, the projection settings will be adjusted automatically in accordance with the signal being input. In addition, the angle of tilt of the projector will be automatically detected and adjusted in order to correct any keystone distortion. (“AUTO

SETUP” will appear on the screen during adjustment.) Set

15

“AUTO KEYSTONE” in the

OPTION menu to “OFF” to prevent any deterioration of the picture as a result of keystone correction.

i SHUTTER button

(page 43 )

This button is used to momentarily turn off the picture and sound. o MENU button

(pages 29 and

31 )

This button is used to display the menu screens. When a menu screen is being displayed, this button can be used to return to a previous screen or to clear the screen.

!0 Arrow ( and ) buttons

(page 31 )

These buttons are used to select and adjust items in the menu screens.

*When in computer operating mode, these buttons on the remote control unit function

differently. (page 20 )

!1 ENTER button

(page 31 )

This button is used to accept and to activate items selected in the on-screen menus.

*When in computer operating mode, this button on the remote control unit operates differently.

(page 20 )

!2 Laser emitter

(page 19 )

!3 Infrared emitter

(page 21 )

!4 Click button

(page 20 )

This button can be used when the operating mode select switch is moved to the left (Computer).

!5 PAGE button

(page 20 )

This button can be used when the operating mode select switch is moved to the left (Computer).

16

!6 Operation indicator

(page 19 )

This indicator illuminates while a laser beam is being emitted

(while the LASER button is being pressed). It flashes when any other buttons are being pressed.

!7 LASER button

(page 19 )

A beam of laser light is emitted while this button is being pressed. This laser beam can be used as a pointer to point to something on the screen.

!8 FREEZE button

(page 33 )

This button is used to momentarily freeze projection so that a still picture is displayed.

!9 D.ZOOM +/- buttons

(page 34 )

These buttons are used to enlarge the projected image.

@0 VOLUME +/- buttons

These buttons are used to adjust the volume of the sound output from the projector’s built-in

speaker. Refer to page 42 for

details on how to adjust the volume using the buttons on the projector control panel.

@1 FUNCTION (FUNC1) button

(pages 39 and

45 )

This button can be used for 1) switching on and off the sound volume and 2) entering into the keystone distortion correction mode.

Use the FUNC1 item in the OPTION menu to select which you wish to use.

@2 STD (standard) button

(page 33 )

This button is used to reset the projector adjustment values to the factory default settings.

@3 Operating mode (Computer,

Projector) select switch

(page 20 )

Move this switch to the left side to use the remote control unit to operate a computer, and move it to the right side to operate the projector.

<Connector panel>

q w e r t y u

USB q USB port

(page 20 )

The remote control unit can be used as a personal computer mouse by connecting the projector to a personal computer with the supplied USB cable.

(4-pin square connector) w SERIAL connector

(pages 23 ,

24 and

47 )

This connector is used to connect a personal computer to the projector in order to externally control the projector. (RS-232C compatible) e RGB1 IN connector

(pages 23 and

24 )

This connector is used to input

RGB signals and YP

B

P

R signals.

r RGB2 IN/RGB1 OUT connector

(pages 23 ,

24 and

44 )

This connector is used to input or output RGB signals and YP

B

P

R signals. Use the RGB2 SELECT item in the OPTION menu to select whether you want input or output with this connector.

t AUDIO OUT jack

(pages 23 and

24 )

This jack is used to output the audio signals which are input to the projector. If audio equipment i o is connected to this jack, no sound will be output from the built-in speaker.

y S-VIDEO IN connector

(pages 23 and

41 )

This connector is used to input signals from a S-VIDEOcompatible equipment such as a video deck. The connector is S1 signal compatible, and it automatically switches between

16:9 and 4:3 aspect ratios in accordance with the type of signal being input.

u VIDEO IN jack

(page 23 )

This jack is used to input video signals from a video equipment such as a video deck.

i AUDIO IN L-R (for VIDEO/S-

VIDEO) jacks

(page 23 )

Only one system is provided, so connect the appropriate connector when using VIDEO or

S-VIDEO.

o RGB AUDIO IN jack

(pages 23 and

24 )

Only one system is provided, so connect the appropriate connector when using RGB1 or

RGB2.

17

<Card slot>

w

<Wireless card>

y u q e t r

<SD memory card>

Front Back i o q Slot cover

Covers the card slots.

w Wireless card slot

Insert the wireless card into here.

e Eject switch

Use to remove the wireless card from the card slot.

r Access lamp

Flashes while the projector is being accessed for reading or writing the data in the SD memory card.

t SD memory card slot

Insert the SD memory card into here.

y Connector

This connector is for connecting the wireless card to the projector’s card slot. Be careful not to touch the connector.

u Wireless card power indicator

Illuminates when the wireless card is operating.

i Metal terminals

These terminals are for connecting the SD memory card to the projector’s card slot. Do not touch the metal terminals with hands or metal objects, attach stickers to them, or allow them to become contaminated in any way.

o Write-protect switch

If the write-protect switch on the

SD memory card is moved to the

LOCK position, it will not be possible to use any file editing functions such as deleting or moving image files.

18

Using the remote control unit

Laser beam pointer

The laser beam emitted from the remote control can be used as a pointer by pointing forward to the screen.

While the LASER button is being pressed, the laser beam is being emitted and the operating indicator illuminates.

Do not look into the laser emitter of the remote control unit or point the laser beam towards other people, otherwise damage to eyes may occur.

PUSH

N2QAEA000008

Caution

Use of controls or adjustments or performance of procedures

other than those specified herein may result in hazardous radiation exposure.

This remote control unit cannot be repaired.

19

Wireless mouse

You can use the remote control as a personal computer mouse. Set the Mode

(Computer/Projector) switch on the remote control unit to “Computer” and connect the projector’s USB port to a personal computer counterpart with the accessory USB cable.

Projector

USB

Accessory USB cable

Computer equipped with a USB port

• For Windows (Versions 98SE, Me, 2000 and XP), you can use the standard mouse driver which comes bundled with the operating system.

POWER

AUTO

SETUP

RGB LASER

VIDEO MENU

PAGE

R-CLICK ENTER

FREEZE SHUTTER

Page buttons Click button button

R-CLICK button

FUNC1 STD

Computer Pro jector

Mode switch

(Computer/Projector)

Mode switch (Computer/Projector)

Move the mode switch to the

“Computer” position.

Page buttons

^: Functions as the Page Up button on a personal computer keyboard.

v: Functions as the Page Down button on a personal computer keyboard.

Arrow (

) buttons

These buttons can move the cursor on a personal computer’s screen as the personal computer mouse.

R-CLICK button

This button functions as the right button on a personal computer mouse.

Click button

This button functions as the left button on a personal computer mouse.

NOTE:

• The optional wireless receiver

(ET-RMRC1) is needed for a personal computer not equipped with a USB port.

20

Inserting the batteries

q Open the cover. w Insert the batteries so that the

polarities are correct, and then close the cover.

+

+

AAA batteries

(two)

NOTE:

• Do not drop the remote control unit.

• Keep the remote control unit away from liquids.

• Remove the batteries if not using the remote control unit for long periods.

• Do not use rechargeable batteries.

Operating range

If the remote control unit is held so that it is facing directly in front of the remote control signal receptors on the front or rear of the projector, the operating range is within approximately 7 m (23´) from the surfaces of the receptors.

Furthermore, the remote control unit can be operated from an angle of

±30° to the left or right and ±15° above or below the receptors.

NOTE:

• If there are any obstacles in between the remote control unit and the receivers, the remote control unit may not operate correctly.

• If strong light is allowed to shine onto the remote control signal receiver, correct remote control operation may not be possible. Place the projector as far away from light sources as possible.

• If facing the remote control unit toward the screen to operate the projector, the operating range of the remote control unit will be limited by the amount of light reflection loss caused by the characteristics of the screen used.

21

Connections

Notes on connections

• Read the instruction manual for each system component carefully before connecting it.

• Turn off the power supply for all components before making any connections.

• If the cables necessary for connecting a component to the system are not included with the component or available as an option, you may need to fashion a cable to suit the component concerned.

• If there is a lot of jitter in the video signal which is input from the video source, the picture on the screen may flicker. In such cases, it will be necessary to connect a TBC (time base corrector).

• The projector has a built-in speaker. However, you will need to connect a separate audio system to the AUDIO OUT jack if your needs specify high sound volumes. No sound will come out of the projector’s built-in speaker while the AUDIO OUT jack is being used.

• It may not be possible to connect some types of computer. Refer to the list

of compatible signals on page 60 .

• The pin layout and signal names for the S-VIDEO IN connector are shown below.

q w

Pin No.

q w e r

Signal

Earth (Luminance signal)

Earth (Color signal)

Luminance signal

Color signal r

External view e

• The pin layout and signal names for the RGB/YP

B

P

R

(RGB1 IN/RGB2 IN) connector are shown below.

y

!1

q

!5

t

External view

!0

Pin No.

q w e

!2

!3

!4

!5

Signal

R/P

R

G/G·SYNC/Y

B/P

B

SDA

HD/SYNC

VD

SCL

Pin o is spare.

Pins r–i, !0 and !1 are for earth.

Pins !2 and !5 functions are only valid when supported by the computer

22

Example of connecting to video equipments

Computer for control use

D-sub 15 (male) - BNC5 (female) adapter cable (sold separately)

Red (connect to P

R signal connector)

Blue (connect to P

B signal connector)

Green (connect to Y signal connector)

Digital broadcast tuner or DVD player

D-sub 9-pin

(male)

USB

NOTE:

• Only one audio system circuit is available for the AUDIO IN L-R jacks for S-

VIDEO/VIDEO signals, so if you wish to change the audio input source, you will need to remove and insert the appropriate plugs.

• Only one audio system circuit is available for the RGB AUDIO IN jacks, so if you wish to change the audio input source, you will need to remove and insert the appropriate plugs.

• If an audio system is connected to the AUDIO OUT jack, the sound volume balance can be controlled by the remote control unit which is supplied with the projector.

• If the video signal source is connected using a cable with a BNC connector plug, use a BNC/RCA adapter (sold separately) to convert the cable end to an RCA plug-type jack.

• Refer to page 59 for a list of compatible YP

B

P

R signals which can be input to the projector.

• If the signal cables are disconnected or if the power supply for the computer or video deck is turned off while the digital zoom function is being used, this function will be cancelled.

23

Example of connecting to computer

Computer

Monitor

ON DIP

Computer for control use

USB

D-sub 9-pin

(male)

Audio system

NOTE:

• It is better to shut down the computer before turning off the MAIN POWER switch of the projector.

• Refer to the list of compatible signals on page 60 for the types of RGB

signals which can be input to the projector by connecting a computer.

• Do not input the signal to the RGB2 IN/RGB1 OUT connector when the

RGB2 SELECT item in the OPTION menu is set to OUTPUT. (Refer to

page 44 .)

Refer to the accessory CD-ROM for details on the wireless network that is used for controlling the projector with a personal computer by means of the wireless card.

24

Setting-up

Projection methods

In way of installing projector, any one of the following four projection methods are used. Select whichever projection method matches the setting-up method. (The projection method can be set from the OPTION menu. Refer to

page 44 for details.)

DESK

DESK/CEILING

CEILING

FRONT

(Factory default setting)

FRONT/REAR

REAR

NOTE:

• You will need to purchase the separate ceiling bracket (ET-PK730) when using the ceiling installation method.

Projector position

Top edge of screen

Screen

L

Bottom edge of screen

<Units: mm (inch)>

L: Projection distance

SH: Image height

SW: Image width

H1: Distance from center of lens to bottom edge of projected image

Screen

L

25

Projection distances

Diagonal length

Screen size (4:3)

Height

(SH)

Width

(SW)

Projection distance (L)

Height position

Wide Telephoto

(H1)

(LW) (LT)

1.01 m(40˝) 0.61 m(2´) 0.81 m(2´8˝)

1.27 m(50˝) 0.76 m(2´6˝) 1.02 m(3´4˝)

1.52 m(60˝) 0.91 m(3´) 1.22 m(4´)

1.77 m(70˝) 1.07 m(3´6˝) 1.42 m(4´8˝)

2.03 m(80˝) 1.22 m(4´) 1.63 m(5´4˝)

2.28 m(90˝) 1.37 m(4´6˝) 1.83 m(6´)

2.54 m(100˝) 1.52 m(5´) 2.03 m(6´8˝)

3.81 m(150˝) 2.29 m(7´6˝) 3.05 m(10´)

1.2 m(3´11˝) 1.5 m(4´11˝) 0.06 m(2-13/32˝)

1.6 m(5´2˝)

1.9 m(6´2˝)

2.2 m(7´2˝)

2.5 m(8´2˝)

2.8 m(9´2˝)

1.9 m(6´2˝)

2.3 m(7´6˝)

0.08 m(3˝)

0.09 m(3-19/32˝)

2.7 m(8´10˝) 0.11 m(4- 6/32˝)

3.1 m(10´2˝) 0.12 m(4-26/32˝)

3.5 m(11´5˝) 0.14 m(5-13/32˝)

3.1 m(10´2˝) 3.9 m(12´9˝) 0.15 m(6˝)

4.7 m(15´5˝) 5.8 m(19´) 0.23 m(9˝)

5.08 m(200˝) 3.05 m(10´) 4.06 m(13´4˝) 6.2 m(20´4˝) 7.8 m(25´7˝) 0.31 m(12˝)

6.35 m(250˝) 3.81 m(12´6˝) 5.08 m(16´8˝) 7.8 m(25´7˝) 9.8 m(32´1˝) 0.38 m(15˝)

7.62 m(300˝) 4.57 m(15´) 6.10 m(20´) 9.4 m(30´10˝) 11.8 m(38´8˝) 0.46 m(18˝)

Setting-up dimensions which are not given in the above table can be calculated using the formulas below.

If the screen size (diagonal) is SD (m), then the following formula is used to calculate the projection distance for the wide lens position (LW) and the projection distance for the telephoto lens position (LT).

LW=0.031xSD/0.0254-0.068

LT=0.0393xSD/0.0254-0.066

For 16:9 aspect ratios, the following formula can be used to calculate the projection distance.

LW=0.034xSD/0.0254-0.068

LT=0.043xSD/0.0254-0.066

NOTE:

• The dimensions in the table above and the values obtained from the above formulas may contain slight errors.

• If you use the projection distance for the 16:9 screen, the 4:3 projection image overflows the screen at the top and bottom.

• If you set up the projector vertically, it may cause to damage the projector.

It is recommended that you set up the projector in a place that is tilted at less than ±30°. Setting up the projector in places that are tilted at more than ±30° may cause malfunctions.

26

Starting to use

Turning on the power

Please ensure that all preparations have been completed before turning on

the power. (Refer to pages 22

– 26 .)

q Remove the lens cover. w Connect the accessory power cord. e Press the MAIN POWER switch to

the “|” side to turn on the power.

The power indicator on the projector will illuminate red.

r Press the POWER button.

The power indicator on the projector will flash green. After a short period, the indicator will illuminate green, and a picture will be projected.

t Press the input select (INPUT, RGB,

VIDEO) button to select the input signal.

The input signal selected will change as shown at below each time an input select button is pressed.

INPUT

RGB2

RGB1

S-VIDEO

SD CARD

NETWORK

VIDEO

S-VIDEO

VIDEO VIDEO

RGB e w

RGB INPUT

POWER

LAMP TEMP

AUTO SETUP INPUT SHUTTER

STANDBY(R)

ON(G)

MENU ENTER

RGB INPUT

POWER

LAMP TEMP

AUTO SETUP INPUT SHUTTER

STANDBY(R)

ON(G)

MENU ENTER

SD CARD

NETWORK

RGB2

RGB1

POWER

AUTO

SETUP

RGB LASER

VIDEO MENU

PAGE

POWER

AUTO

SETUP

RGB LASER

VIDEO MENU

PAGE y While pressing the adjuster buttons,

adjust the forward/back angle of tilt of the projector.

u Press the AUTO SETUP button to

initiate automatic positioning.

The automatic positioning is only for vertical keystone distortion. To correct the horizontal keystone distortion or when keystone distortion has not been corrected to the optimum level, carry out

the keystone correction as described on page 39 .

RGB INPUT

POWER

LAMP TEMP

AUTO SETUP INPUT SHUTTER

STANDBY(R)

ON(G)

MENU ENTER

AUTO

POWER SETUP

RGB LASER

VIDEO MENU

PAGE

27

iTurn the focus ring and the zoom

knob to adjust the projected image focus and size.

Focus

Zoom

Turning off the power

q Press the POWER button. “Power

OFF” is displayed on the screen.

Power OFF

OK CANCEL w Select “OK” using the and

buttons and press the ENTER button.

The lamp unit will switch off and the picture will stop being projected. (The power indicator on the projector will illuminate orange.) e Wait until the power indicator on the projector illuminates red (until

the cooling fan stops).

Do not in any way cut power to the projector while the cooling fan is still operating. Be careful not to switch off the MAIN POWER switch of the projector, unplug the power cord from the electrical outlet or turn off in-line switches such as tabletop power switches.

r Press the MAIN POWER switch to the “O” side to turn off the power.

NOTE:

• After the power is turned off, the lamp unit will take some time to cool down. If you turn the power back on again before the lamp unit has cooled down, the lamp unit may not turn on straight away, but it will turn on automatically after a short period. (During this time, the power indicator on the projector will flash orange.)

• When the projector is in standby mode (the power indicator on the projector is illuminated red), the projector will still draw a maximum 1.7 W of power, even when the cooling fan has stopped.

• When the WEB STANDBY is set to “ON”, the cooling fan operates and the power indicator on the projector flashes slowly in red and the projector

draw a maximum 43 W of power. (page 44 )

• If the MAIN POWER switch is accidentally turned off while the projector is being used, the lamp unit may not turn on straight away after the power is turned back on. In such cases, the lamp unit will turn back on automatically after a short period. (During this time, the power indicator on the projector will flash green.)

• A tinkling sound may be heard while the power indicator is turned off, but this is not a sign of a malfunction.

• You can also turn off the power by pressing the POWER button twice.

28

On-screen menus

Menu screens

The various settings and adjustments for this projector can be carried out by selecting the operations from on-screen menus.

The general arrangement of these menus is shown below.

PICTURE menu (page 35 )

When an RGB signal is being input

When a YP

B

P

R signal is being input


PICTURE MODE

COLOR TEMP.

BRIGHT

CONTRAST

SHARPNESS

WHITE BALANCE R

WHITE BALANCE G

WHITE BALANCE B

STANDARD

32

32

32

32

32

0

STANDARD

STANDARD


PICTURE MODE

COLOR TEMP.

COLOR

TINT

BRIGHT

CONTRAST

SHARPNESS

NR

STANDARD

32

4

1

32

32

32

STANDARD

STANDARD

SELECT:[

↑][↓]

ADJUST:[

←][→]

ENTER:[ENTER]

ESC:[MENU]

When an S-VIDEO/VIDEO signal is being input


PICTURE MODE

COLOR TEMP.

COLOR

TINT

BRIGHT

CONTRAST

SHARPNESS

NR

TV-SYSTEM

STANDARD

SELECT:[

↑][↓]

ADJUST:[

←][→]

32

32

32

32

4

1

STANDARD

STANDARD

AUTO1

ENTER:[ENTER]

ESC :[MENU]

SELECT:[

↑][↓]

ADJUST:[

←][→]

ENTER:[ENTER]

ESC :[MENU]

When the NETWORK/SD CARD is selected


PICTURE MODE

COLOR TEMP.

BRIGHT

CONTRAST

STANDARD

32

32

STANDARD

STANDARD

SELECT:[

↑][↓]

ADJUST:[

←][→]

ENTER:[ENTER]

ESC :[MENU]

NOTE:

• Keystone distortion of the on-screen display will not be corrected.

29

POSITION menu (page 38 )

When an RGB signal is being input When a YP

B

P

R signal is being input

POSITION

POSITION

DOT CLOCK

CLOCK PHASE

KEYSTONE

OSD POSITION

RESIZING

AUTO SETUP

FRAME LOCK

STANDARD

32

32

H: 63 V: 63

H: 0 V: 0

TOP LEFT

OFF ON

OFF ON

POSITION

POSITION

KEYSTONE

OSD POSITION

ASPECT

RESIZING

AUTO SETUP

STANDARD

H: 63 V: 63

H: 0 V: 0

TOP LEFT

AUTO

OFF ON

SELECT:[

↑][↓] ENTER:[ENTER]

ESC :[MENU]

When an S-VIDEO/VIDEO signal is being input

POSITION

POSITION

KEYSTONE

OSD POSITION

ASPECT

RESIZING

AUTO SETUP

STANDARD

H: 63 V: 63

H: 0 V: 0

TOP LEFT

AUTO

OFF ON

SELECT:[

↑][↓] ENTER:[ENTER]

ESC :[MENU]

When the NETWORK/SD CARD is selected

POSITION

KEYSTONE

OSD POSITION

AUTO SETUP

STANDARD

H: 0 V: 0

TOP LEFT

SELECT:[

↑][↓] ENTER:[ENTER]

ESC :[MENU]

SELECT:[

↑][↓] ENTER:[ENTER]

ESC :[MENU]

AUDIO menu (page 42 ) LANGUAGE menu (page 42 )

AUDIO

VOLUME 20

MUTE OFF ON

LANGUAGE

ENGLISH

DEUTSCH

FRANÇAIS

ESPAÑOL

ITALIANO

SELECT:[

↑][↓]

ENTER:[ENTER]

ESC:[MENU]

30

SELECT:[

↑][↓]

ADJUST:[

←][→]

ENTER:[ENTER]

ESC :[MENU]

OPTION menu (page 43 )

OPTION

SHUTTER

OSD

AUTO KEYSTONE

RGB/YPbPr

AUTO RGB IN

RGB2 SELECT

BACK COLOR

FRONT/REAR

DESK/CEILING

LAMP POWER

LAMP RUN TIME

NEXT PAGE

OFF

OFF

RGB

OFF

INPUT

BLUE

FRONT

DESK

LOW

SELECT:[

↑][↓] ENTER:[ENTER]

ON

ON

YPbPr

ON

OUTPUT

BLACK

REAR

CEILING

HIGH

10 H

The RGB/YPbPr item is displayed when an RGB/YP

B

P

R signal is being input.

OPTION

PREVIOUS PAGE

FAN CONTROL

WEB CONTROL

WEB STANDBY

WEB PASSWORD

CONTROL KEY

FUNC1

SELECT:[

↑][↓]

ADJUST:[

←][→]

STANDARD

OFF

OFF

OFF

MUTE

HIGH

ON

ON

ON

KEYSTONE

ENTER:[ENTER]

ESC :[MENU]

NETWORK menu (page 46 ) SD CARD menu (page 46 )

NETWORK

STATUS

WEP

LAN1

DISABLE

SD CARD

AUTOPLAY

REPEAT

INTERVAL

OFF ON

1

5 sec

SELECT:[

↑][↓]

ENTER:[ENTER]

ESC :[MENU]

Menu operation guide

q Press the MENU button.

The menu screen will be displayed.


PICTURE MODE

COLOR TEMP.

BRIGHT

CONTRAST

SHARPNESS

WHITE BALANCE R

WHITE BALANCE G

WHITE BALANCE B

STANDARD

SELECT:[

←][→]

32

32

32

32

32

0

STANDARD

STANDARD

ENTER:[ENTER]

ESC :[MENU]

SELECT:[

↑][↓]

ADJUST:[

←][→]

ENTER:[ENTER]

ESC :[MENU] w Press the

or arrow buttons to select a menu.

The selected menu screen will then be displayed.

(Example: POSITION menu)

POSITION

POSITION

DOT CLOCK

CLOCK PHASE

KEYSTONE

OSD POSITION

RESIZING

AUTO SETUP

FRAME LOCK

STANDARD

32

32

H: 63 V: 63

H: 0 V: 0

TOP LEFT

OFF ON

OFF ON

SELECT:[

←][→]

ENTER:[ENTER]

ESC :[MENU]

31

e Press the ENTER button to

accept the selection.

You can select an item here. The selected item is shown in yellow.

r Select an item pressing the

or buttons.

POSITION

POSITION

DOT CLOCK

CLOCK PHASE

KEYSTONE

OSD POSITION

RESIZING

AUTO SETUP

FRAME LOCK

STANDARD

32

32

H: 63 V: 63

H: 0 V: 0

OFF

TOP LEFT

ON

OFF ON

SELECT:[

↑][↓]

ENTER:[ENTER]

ESC :[MENU]

A

B

A For the value adjusting items

C

Press the ENTER button to display an individual adjustment screen.

POSITION

H:

V:

63

63

DOT CLOCK

32

Press the or buttons to adjust the setting.

You can also adjust the bar-scale items pressing the or buttons in the menu screen.

Some items can be adjusted by

B For the selective items

RESIZING

OFF ON

Select the setting by pressing the or buttons.

C For the fixed items

Press the ENTER button, and the function will work.

Returning to the previous screen

Press the MENU button to return to the previous screen.

32

Returning a setting to the factory default

If you press the STD (standard) button on the remote control unit, you can return settings to the factory default settings. However, the operation of this function varies depending on which screen is being displayed.

• When a menu screen is being displayed

POSITION

POSITION

DOT CLOCK

CLOCK PHASE

KEYSTONE

OSD POSITION

RESIZING

AUTO SETUP

FRAME LOCK

STANDARD

32

32

H: 63 V: 63

H: 0 V: 0

TOP LEFT

OFF ON

OFF ON

NOTE:

• You can also select STANDARD from the menu screen and then press the ENTER button.

• When an individual adjustment screen is being displayed

DOT CLOCK

32

Only the item displayed will be returned to the factory default setting.

SELECT:[

↑][↓]

ENTER:[ENTER]

ESC :[MENU]

All items displayed will be returned to their factory default settings.

Using the freeze function

The picture will alternate between a still picture and a moving picture each time the FREEZE button on the remote control unit is pressed.

Still picture Moving picture

33

Using the D.ZOOM (digital zoom) function

This function lets you enlarge the picture.

q Press a D.ZOOM +/- button r Press the MENU button to

return to the normal screen.

NOTE:

• This function can only be used when using the remote control unit.

• If the type of signal being input changes while the digital zoom function is being used, the digital zoom function will be cancelled.

d

The picture will then be enlarged to 1.5 times the normal size.

w Use the

, , and buttons to move the enlarged area which you want to project.

e Use the D.ZOOM +/- buttons to

change the enlargement ratio.

The enlargement ratio can be changed within the range of x1 to x4, by 30 steps.

34

Adjusting the picture

Select the item pressing the or buttons on the remote control unit or the projector.

Press the or buttons to set the selective items. For the value adjusting items, press the ENTER button to display an individual screen, and press the or buttons to adjust the setting.

When an S-VIDEO/VIDEO signal is being input


PICTURE MODE

COLOR TEMP.

COLOR

TINT

BRIGHT

CONTRAST

SHARPNESS

NR

TV-SYSTEM

STANDARD

32

32

32

32

4

1

STANDARD

STANDARD

AUTO1

When an RGB signal is being input

SELECT:[

↑][↓]

ADJUST:[

←][→]

ENTER:[ENTER]

ESC :[MENU]


PICTURE MODE

COLOR TEMP.

BRIGHT

CONTRAST

SHARPNESS

WHITE BALANCE R

WHITE BALANCE G

WHITE BALANCE B

STANDARD

32

32

0

32

32

32

STANDARD

STANDARD

When the NETWORK/SD CARD is selected


PICTURE MODE

COLOR TEMP.

BRIGHT

CONTRAST

STANDARD

32

32

STANDARD

STANDARD

SELECT:[

↑][↓]

ADJUST:[

←][→]

ENTER:[ENTER]

ESC:[MENU]

When a YP

B

P

R signal is being input

SELECT:[

↑][↓]

ADJUST:[

←][→]

ENTER:[ENTER]

ESC :[MENU]


PICTURE MODE

COLOR TEMP.

COLOR

TINT

BRIGHT

CONTRAST

SHARPNESS

NR

STANDARD

32

32

32

32

4

1

STANDARD

STANDARD

SELECT:[

↑][↓]

ADJUST:[

←][→]

ENTER:[ENTER]

ESC :[MENU]

PICTURE MODE

STANDARD

DYNAMIC

NATURAL

Select the picture mode that best matches the image source and room conditions.

The mode best used in dark rooms is NATURAL. For rooms having regular lighting conditions in use, select STANDARD. For exceptionally bright rooms, use

DYNAMIC.

35

Color Hue Setting (color temperature)

LOW

This is used to adjust the white areas of the picture if they appear bluish or reddish.

COLOR

(S-VIDEO/VIDEO/YP

B

P

R only)

Press the button to make the color more vivid in tone, and press the button to make the color more pastel in tone.

TINT

(NTSC/NTSC 4.43/YP

B

P

R only)

This adjusts the flesh tones in the picture. Press the button to make flesh tones more greenish, and press the button to make the flesh tones more reddish.

BRIGHT

This adjusts the darker areas (black areas) in the picture. Press the button if dark areas are too solid (for example, if hair is difficult to see), and press the button if black areas are too light (grey rather than black).

CONTRAST

This adjusts the contrast of the picture. Press the button to make the picture brighter, and press the button to make the picture darker. (Adjust the BRIGHT setting first if required before adjusting the

CONTRAST setting.)

SHARPNESS

Press the button to make the picture details sharper, and press the button to make the picture details softer.

36

Noise Reduction (NR)

(When S-VIDEO/VIDEO/YP

B

P

R signals are being input)

If the signal is of such poor quality that picture interference appears, you can suppress this interference by adjusting the NR (Noise Reduction), except for 750p (720p), HDTV60

(1080i/60) and HDTV50 (1080i/50) signals. To strengthen the effect, press the button. To turn it off , set to “0” by pressing the button.

TV SYSTEM

(S-VIDEO/VIDEO only)

AUTO1

AUTO2

NTSC

NTSC4.43

PAL

PAL-M

PAL-N

SECAM

AUTO1 The projector automatically distinguishes between NTSC/NTSC

4.43/PAL/PAL60/SECAM signals.

AUTO2 The projector automatically distinguishes between NTSC/PAL-

M/PAL-N signals.

NOTE:

• This should normally be set to

“AUTO1” or “AUTO2”. If the signal is of such poor quality that the correct format cannot be automatically distinguished, change the setting manually to the required TV system.

WHITE BALANCE R/G/B

(RGB only)

This is used to adjust the white areas of the picture if they appear colorised. Press the button to make the selected color lighter.

Press the button to make the selected color stronger.

Projecting sRGBcompatible pictures

sRGB is an international color reproduction standard (IEC61966-2-

1) established by the International

Electrotechnical Commission (IEC).

If you would like the colors in sRGBcompatible pictures to be reproduced more faithfully, make the following settings.

select “PICTURE MODE”, and then use the or button to select “NATURAL”.

select “COLOR TEMP.”, and then use the or button to select “STANDARD”.

button on the remote control unit.

in the OPTION menu by pressing the or buttons and set to “HIGH” by pressing the or buttons.

NOTE:

• sRGB is only enabled when RGB signals are being input .

37

Adjusting the position

When the input signal is RGB, first press the AUTO SETUP button to initiate automatic positioning.

If the optimum setting is not obtained when AUTO SETUP is carried out, adjust by the following procedure.

When an S-VIDEO/VIDEO signal is being input

POSITION

POSITION

KEYSTONE

OSD POSITION

ASPECT

RESIZING

AUTO SETUP

STANDARD

H: 63 V: 63

H: 0 V: 0

OFF

TOP LEFT

AUTO

ON

Select the item pressing the

or

buttons on the remote control unit or the projector.

Press the or buttons, to adjust the alternative items. For the numerically adjustable items, press the ENTER button to display an individual screen, and press the or buttons to adjust the setting.

Some items can be adjusted pressing the

or

buttons.

When an RGB signal is being input

SELECT:[

↑][↓]

POSITION

POSITION

KEYSTONE

OSD POSITION

ASPECT

RESIZING

AUTO SETUP

STANDARD

ENTER:[ENTER]

ESC :[MENU]

When a YP

B

P

R signal is being input.

H: 63 V: 63

H: 0 V: 0

TOP LEFT

AUTO

OFF ON

POSITION

POSITION

DOT CLOCK

CLOCK PHASE

KEYSTONE

OSD POSITION

RESIZING

AUTO SETUP

FRAME LOCK

STANDARD

32

32

H: 63 V: 63

H: 0 V: 0

TOP LEFT

OFF ON

OFF ON

SELECT:[

↑][↓]

ENTER:[ENTER]

ESC :[MENU]

When the NETWORK/SD CARD is selected

SELECT:[

↑][↓]

ENTER:[ENTER]

ESC :[MENU]

POSITION

KEYSTONE

OSD POSITION

AUTO SETUP

STANDARD

H: 0 V: 0

TOP LEFT

SELECT:[

↑][↓]

ENTER:[ENTER]

ESC :[MENU]

38

POSITION

POSITION

H:

V:

63

63

Moves the picture position.

Press the or buttons to move the picture horizontally.

Press the or buttons to move the picture vertically.

DOT CLOCK

(RGB only)

Periodic striped pattern interference

(noise) may occur when a striped pattern such as the one below is projected. If this happens, use the and buttons to adjust so that any such noise is minimised.

However the horizontal distortion or adjustment of the tilted screen needs to be corrected manually by following any of the procedures below.

KEYSTONE

H:

V:

0

0

Picture condition

Operation

Press the button.

Press the button.

CLOCK PHASE

(RGB only)

Adjust the DOT CLOCK setting first before carrying out this adjustment.

Use the and buttons to adjust so that the noise level is least noticeable.

NOTE:

• If signals with a dot clock frequency of

140 MHz or higher are being input, interference may not be completely eliminated when the DOT CLOCK and

CLOCK PHASE adjustments are carried out.

KEYSTONE

Before carrying out keystone correction, 1) adjust the forward/back angle of tilt of the projector by pressing the adjuster buttons and 2) press the

AUTO SETUP buttons to correct

vertical keystone distortion. (page 27 )

The vertical keystone distortion will be automatically corrected by the projectors automatic setup function.

Press the button.

Press the button.

NOTE:

• If you press the AUTO SETUP button after correcting the keystone distortion manually, the automatic keystone correction function will operate and the corrected picture will return to its previous incorrect condition. In addition, if you change the input signal and press the AUTO SETUP button, the keystone correction may be cancelled depending on the type of signal and the angle of tilt of the projector. To prevent them from happening, you can set “AUTO

KEYSTONE” in the OPTION menu to “OFF”

• The greater the correction of keystone distortion amount, the more the picture

39

quality will deteriorate, and the harder it will become to achieve a good level of focus. To obtain the best picture quality, set up the projector and screen in such a way that the amount of keystone correction required is as minimal as possible.

• The picture size will also change when correction of keystone distortion is carried out.

• The range of keystone correction varies depending on the type of signal being input. If you make an adjustment that is outside the allowable range, the setting will not be changed. In addition, if the input signal changes after keystone correction has been carried out, the correction setting may be cancelled.

This indicates that the current correction setting exceeds the allowable range for the new input signal.

• If you correct both vertical and horizontal keystone distortion at the same time, the allowable range of keystone correction becomes smaller. If you make an adjustment that is outside the allowable range, the setting will not be changed.

OSD POSITION

Press the or buttons to move the OSD position.

ASPECT

This setting is only valid for an S-

VIDEO/VIDEO signal and a YP

B

P

R signal in 525i (480i), 525p (480p) and 625i format.

AUTO

4:3

16:9

S4:3

40

AUTO

(S-VIDEO only)

When an S1 video signal is input to the S-VIDEO terminal, the aspect ratio is changed automatically to project a 16:9 picture.

4:3

The input signal is projected without change.

16:9

The picture is compressed to a ratio of 16:9 and projected.

d

When a squeezed signal is being input. (The projected image is contracted vertically)

S4:3

The size of the input signal is compressed to 75% and projected.

(This is useful for projecting a picture with a 4:3 aspect ratio onto a

16:9 screen.) d

When a 4:3 signal is being input

NOTE:

S1 video signals

S1 video signals are a type of video signal with an aspect ratio of 16:9 which include a detector signal. This detector signal is output by some sources such as wide-vision video decks. If the AUTO setting above is selected, this projector will recognize the detector signal and automatically switch the aspect ratio to 16:9 in order to project the picture.

• This projector is equipped with an aspect ratio selection function.

However, if a mode which does not match the aspect ratio of the input signal is selected, it may affect the quality of viewing of the original picture. Keep this in mind when selecting the aspect ratio.

• If using this projector in places such as cafes or hotels with the aim of displaying programs for viewing for a commercial purpose or for public presentation, note that if the aspect ratio (16:9) selection function is used to change the aspect ratio of the screen picture, you may be infringing the rights of the original copyright owner for that program under copyright protection laws.

• If a normal (4:3) picture which was not originally intended for widescreen viewing is projected onto a wide screen, distortion may occur around the edges of the picture so that part of the picture is no longer visible. Such programs should be viewed in 4:3 mode to give proper consideration to the aims and intentions of the original program’s creator.

RESIZING

This should normally be set to “ON”.

(This setting is only for signals which have lower resolutions than

the LCD panels. Refer to page 60

for details.)

ON

The pixel resolution of the input signal is converted to the same resolution as the LCD panels before being projected. For signals with lower resolutions, gaps in the pixels are automatically interpolated into the picture before it is projected.

This may sometimes cause problems with the quality of the picture.

OFF

The picture signal is projected at its original resolution, with no pixel conversion. The projected picture will be smaller than normal, so adjust the zoom setting or move the projector forwards or backwards to adjust the picture size if necessary.

If set to “OFF”, some features, such as D.ZOOM (digital zoom) or keystone distortion correction will not function.

AUTO SETUP

This item functions in the same way as the AUTO SETUP button on the

remote control unit. (page 15 )

FRAME LOCK

If the picture’s condition is bad while a RGB moving picture signal is projected, set the FRAME LOCK to

“ON”. Refer to page 60 on

compatible RGB signals.

41

Audio adjustment

Select the items by pressing the or buttons on the remote control unit or the projector.

AUDIO

VOLUME

MUTE

20

OFF ON

VOLUME

Press the or buttons to adjust the volume of the sound output by the projector’s built-in speaker.

MUTE

Set the MUTE to “ON” pressing the or buttons to turn off the volume of the sound output.

To release muting, set to “OFF” pressing the or buttons.

SELECT:[

↑][↓]

ADJUST:[

←][→]

ENTER:[ENTER]

ESC :[MENU]

Changing the display language

Use the and buttons on the projector or remote control unit to select a language, then press the MENU button to accept the setting.

LANGUAGE

ENGLISH

DEUTSCH

FRANÇAIS

ESPAÑOL

ITALIANO

SELECT:[

↑][↓]

ENTER:[ENTER]

ESC:[MENU]

42

Option settings

Select the item pressing the or buttons on the remote control unit or the projector.

Press the or buttons to adjust the selective items. To make the

SHUTTER or WEB PASSWORD functions work, press the ENTER button.

OPTION

SHUTTER

OSD

AUTO KEYSTONE

RGB/YPbPr

AUTO RGB IN

RGB2 SELECT

BACK COLOR

FRONT/REAR

DESK/CEILING

LAMP POWER

LAMP RUN TIME

NEXT PAGE

SELECT:[

↑][↓]

OPTION

PREVIOUS PAGE

FAN CONTROL

WEB CONTROL

WEB STANDBY

WEB PASSWORD

CONTROL KEY

FUNC1

STANDARD

OFF

OFF

OFF

MUTE

HIGH

ON

ON

ON

KEYSTONE

SELECT:[

↑][↓]

ADJUST:[

←][→]

OFF

OFF

RGB

OFF

INPUT

BLUE

FRONT

DESK

LOW

ON

ON

YPbPr

ON

OUTPUT

BLACK

REAR

CEILING

HIGH

10 H

ENTER:[ENTER]

ESC :[MENU]

ENTER:[ENTER]

ESC :[MENU]

SHUTTER

The shutter function can be used to momentarily turn off the picture and sound from the projector when the projector is not being used for short periods of time, such as during breaks in meetings or when carrying out preparation. The projector uses less power in shutter mode than it does in normal projection mode.

OSD

ON

The current input name is displayed in the top-right corner of the screen when the input signal is changed.

OFF

Use this setting when you do not want the current input name to be displayed.

AUTO KEYSTONE

This should normally be set to ON.

ON

During automatic setup, the angle of tilt of the projector is detected and vertical keystone distortion is corrected automatically.

OFF

Use this setting when you do not want automatic keystone correction to be carried out during automatic setup, such as when the screen itself is at an angle.

RGB/YPbPr

This setting is valid when 750p,

HDTV60, HDTV50, 525p, 625i and

525i signals are being input. Select the setting in accordance with the input signal.

The RGB/YPbPr item is displayed when an RGB1 IN or RGB2 IN connectors has a signal being input.

43

AUTO RGB IN

This should normally be set to OFF.

ON

If the input source has been changed to RGB, automatic setup automatically detects whether the

RGB1 or the RGB2 connector is being used to input the signal, and the signals from the connector that it detects are then projected.

(If a picture is being projected, the signal source is not automatically changed.)

OFF

Use this setting when you do not want the signal source to be changed automatically during automatic setup.

RGB2 SELECT

This setting is used to select the function of the RGB2 IN/RGB1 OUT connector.

BACK COLOR

This sets the color which is projected onto the screen when no signal is being input to the projector.

FRONT/REAR

This setting should be changed in accordance with the projector setting-up method.

Set to “FRONT” when using a normal reflective screen with the projector positioned in front of the screen, and set to “REAR” when using a translucent screen with the projector positioned behind the screen.

DESK/CEILING

This setting should be changed in accordance with the projector setting-up method.

Set to “DESK” when setting up the

44

projector on a desk or similar, and set to “CEILING” when suspending the projector from the ceiling using the ceiling bracket which is sold separately.

LAMP POWER

This setting changes the lamp brightness. When set to “LOW”, the luminance of the lamp is reduced, but the projector uses less power, and the operating noise is also reduced.

This can help to extend the lamp’s operating life. If using the projector in small rooms where high luminance is not required, it is recommended that you set the LAMP POWER to “LOW”.

LAMP RUN TIME

This setting displays the usage time for the lamp unit which is currently being used. If the lamp unit is replaced in the way described on

page 53 , the cumulative usage time

for the lamp unit will be reset to zero.

NOTE:

• The lamp’s operating life varies depending on the usage conditions

(such as the LAMP POWER setting and the number of times the power is turned on and off).

FAN CONTROL

If using of this projector at high elevations (above 1400 m), set the

FAN CONTROL to “HIGH”.

WEB CONTROL

To control the projector with a personal computer by means of the wireless network, set the WEB

CONTROL to “ON”. To prevent it, set to “OFF”.

WEB STANDBY

To turn on and off the power with a personal computer by means of the wireless network, set the WEB

STANDBY to “ON”.

When the WEB STANDBY is set to

“ON”, the cooling fan operates and the power indicator on the projector flashes slowly in red.

WEB PASSWORD

AUDIO

VOLUME 20

You can set the password for controlling the projector with a personal computer by means of the wireless network. Use the or buttons to change the characters, and use the or buttons to change the character position.

When finished, press the ENTER button. The projector comes from the factory without any password.

If password setting is complete, the password will not be displayed on the WEB PASSWORD screen.

When you forget it, set it again from the beginning.

CONTROL KEY

To make the buttons on the projector not function, set the

CONTROL KEY to “OFF”.

To use the buttons on the projector, set to ON. (page

15 )

FUNC 1

This assigns a function to the FUNC1 button of the remote control unit .

MUTE

• Functions in the same way as the

MUTE function. (page 42 )

KEYSTONE

• Functions in the same way as when “KEYSTONE” is selected from the POSITION menu screen.

(page 39 )

45

46

NETWORK SETUP

You need make adjustment on some items when controlling the projector with a personal computer by means of the wireless network. Refer to the accessory CD-ROM for details.

NETWORK

STATUS

WEP

LAN1

DISABLE

STATUS

This setting is used to adjust the

LAN to control the projector by means of the wireless network.

WEP

This setting is for encrypting data transmitted by means of the wireless network.

SELECT:[

↑][↓]

ENTER:[ENTER]

ESC :[MENU]

SD CARD SETUP

The following settings are used when projecting the pictures recorded in the

SD memory card. Refer to the accessory CD-ROM for details.

SD CARD

AUTOPLAY

REPEAT

INTERVAL

OFF ON

1

5 sec

AUTO PLAY

Plays the pictures recorded in the

SD memory card automatically.

REPEAT

This setting is for adjusting the times of the auto play.

SELECT:[

↑][↓]

ADJUST:[

←][→]

ENTER:[ENTER]

ESC :[MENU]

INTERVAL

This setting is adjusting the interval of the auto play.

Using the SERIAL connector

The serial connector which is on the side connector panel of the projector conforms to the RS-232C interface specification, so that the projector can be controlled by a personal computer which is connected to this connector.

Connection

SERIAL(female)

D-Sub9p (male)

Communication cable

Computer

NOTE:

• Use a proper communication cable which is suitable for the personal computer to connect the serial connector and the personal computer.

Pin layout and signal names for SERIAL connector

Communications settings

Signal level

Sync. method

Baud rate

RS-232C

Asynchronous

9 600 bps

Parity None

Character length 8 bits

Stop bit

X parameter

1 bit

None

S parameter None

Basic format

The data sent from the computer to the projector is transmitted in the format shown below.

STX Command : Parameter ETX

Start byte

(02h)

3 bytes

1 byte End byte

1 byte–5 bytes

(03h)

6 9

1 5

D-SUB 9-pin connector seen from outside

Pin

No.

Signal name

Contents

q NC w

TXD Transmitted data e RXD Received data r NC t

GND y

DSR u CTS Connected internally i RTS o

NC

NOTE:

• The projector can not receive the command for 10 seconds after the lamp is switched on. Wait 10 seconds before sending the command.

• If sending multiple commands, check that a response has been received from the projector for one command before sending the next command.

• When a command which does not require parameters is sent, the colon (:) is not required.

• If an incorrect command is sent from the personal computer, the

“ER401” command will be sent from the projector to the personal computer.

47

Control commands

The commands which the personal computer can use to control the projector are shown in the following table.

Command

Control

Contents

Remarks

PON

POF

AVL

Power ON

Power OFF

Volume

In standby mode, all commands other than the PON command are ignored.

• The PON command is ignored during lamp ON control.

• If a PON command is received while the cooling fan is operating after the lamp has switched off, the lamp is not turned back on again straight away, in order to protect the lamp.

Parameter

000–063(Adjustment value 0–63)

IIS

Input signal selection

Parameter

VID=VIDEO SVD=S-VIDEO

RG1=RGB1(YP

B

P

R

1) RG2=RGB2(YP

B

P

R

2)

NWP=NETWORK SDC=SD CARD

Q$S

Lamp ON condition query

Parameter

0 = Standby

1 = Lamp ON control active

2 = Lamp ON

3 = Lamp OFF control active

Cable specifications

(When connected to a personal computer)

At the projector

4

5

6

1

2

3

7

8

9

NC

NC

NC

NC

At the computer

(DTE specifications)

NC

NC

NC

NC

4

5

6

1

2

3

7

8

9

48

Indicators

There are two indicators on the control panel of the projector which give information about the operating condition of the projector. These indicators illuminate or flash to warn you about problems that have occurred inside the projector, so if you notice that one of the indicators is on, turn off the power and check the table below for the cause of the problem.

Indicator display

Problem

Illuminated (red)

(Lamp unit on)

The surrounding temperature or the temperature inside the projector has become unusually high.

TEMP indicator

Flashing (red)

(Lamp unit on)

The temperature inside the projector has become dangerously high, or the temperature has suddenly changed.

Flashing (red)

(Lamp unit off)

The surrounding temperature or the temperature inside the projector has become dangerously high, causing the lamp unit to be automatically shut off.

Possible cause

• The ventilation holes may be covered.

• The ambient temperature in the place of use may be too high.

• The air filter may be blocked.

Remedy

• Uncover the ventilation holes.

• Set up the projector in a place where the temperature is between 0 °C (32 °F) and 40 °C (104 °F) and the humidity is between 20% and 80% (with no condensation). [If you set the

FAN CONTROL to “HIGH” (page 43 ), set up the projector in a

place where the temperature is between 0 °C (32 °F) and 35 °C

(95 °F) and the humidity is between 20% and 80% (with no condensation).]

• Turn off the MAIN POWER switch by following the procedure on

page 28 , and then clean the air filter (refer to page

51 ).

49

LAMP indicator

Indicator

Illuminated (red)

display

Flashing (red)

Problem

It is nearly time to replace the lamp unit.

An abnormality has been detected in the lamp circuit.

Possible cause

• Does “REPLACE

LAMP” appear on the screen after the projector is turned on?

• The power may have been turned on straight away after it was turned off.

• There may be an abnormality in the lamp circuit.

Remedy

• This occurs when the operation time for the lamp unit is nearing 1 800 hours. (when

LAMP POWER has been set to

“HIGH”) Ask your dealer or an

Authorized Service

Center to replace the lamp unit.

• Wait for a while until the lamp unit cools down before turning the power back on again.

• Turn off the MAIN

POWER switch by following the procedure given on

page 28 , and then

contact an

Authorized Service

Center.

NOTE:

• Be sure to turn off the MAIN POWER switch by following the procedure

given in “Turning off the power” on page 28 before carrying out any of the

procedures in the “Remedy” column.

• If the main power turns off after the TEMP indicator starts flashing, it means that an abnormality has occurred. Please contact an Authorized

Service Center so that the necessary repairs can be made.

50

Cleaning and replacing the air filter

If the air filter becomes clogged with dust, the internal temperature of the projector will rise, the TEMP indicator will flash and the projector power will turn off. The air filter should be cleaned every 100 hours of use, depending on the location where the projector is being used.

Cleaning procedure

q Turn off the MAIN POWER

switch and disconnect the power cord plug from the wall outlet.

Turn off the MAIN POWER switch according to the procedure given in “Turning off the power” on

page 28 before disconnecting the

plug from the wall outlet.

w Gently turn the projector

upside down.

r Clean the air filter.

Use a vacuum cleaner to clean off any accumulated dust.

NOTE:

• Place the projector on top of a soft cloth so that it will not become scratched.

e Remove the air filter.

Put your fingernails under the air filter and pull the air filter out of the projector.

NOTE:

• Be careful not to let the air filter get sucked into the vacuum cleaner.

t Install the air filter.

NOTE:

• Be sure to install the air filter cover before using the projector. If the projector is used without the air filter cover installed, dust and other foreign particles will be drawn into the projector, and malfunctions will result.

• If the dust cannot be removed by cleaning, it is time to replace the air filter. Please consult your dealer. Furthermore, if the lamp unit is being replaced, replace the air filter at this time also.

Air filter

51

Replacing the lamp unit

Warning

When replacing the lamp, allow it to cool for at least one hour before handling it.

• The lamp cover gets very hot, and contact with it can cause burns.

Notes on replacing the lamp unit

• The light generating lamp is made of glass, so dropping it or allowing it to hit hard objects may cause it to burst. Be careful when handling the lamp.

• After having removed the old lamp, carelessly discarding it can cause the lamp to burst. Dispose of the lamp with the same care that would be taken with a fluorescent light.

• A Phillips screwdriver is necessary for removing the lamp unit. Make sure that your hands are not slippery when using the screwdriver.

NOTE:

• The projector is not supplied with a replacement lamp unit. Please ask your dealer for details. Lamp unit product no.: ET-LA730

CAUTION:

• Do not use any lamp unit other than the one with the product number indicated above.

Lamp unit replacement period

The lamp is a consumable product.

Even when the full life of the bulb has not been exhausted, the brightness of the light will gradually decline. Therefore periodic replacement of the lamp is necessary.

The intended lamp replacement interval is 2 000 hours, but it is possible that the lamp may need to be replaced earlier due to variables such as a particular lamp's characteristics, usage conditions and the installation environment.

Early preparation for lamp replacement is encouraged.

A lamp that has exceeded 2 000 hours of use has a much greater chance of exploding. In order to prevent the lamp from exploding, the lamp will be automatically shut off when 2 000 hours of use have been reached.

NOTE:

• The usage hours explained above are for use when the HIGH setting has been selected for LAMP

POWER in the OPTION menu. If the LOW setting is selected, the brightness of the lamp will be less and life of the lamp can be extended.

• While 2 000 hours is the intended replacement interval, it is not a period of time covered by warranty.

52

On-screen display Lamp indicator warning light

More than 1 800 hours

More than 2 000 hours

Displayed for 30 seconds. Pressing any button will clear the display.

This display cannot be cleared at all, no matter which button is pressed.

The projector will enter

Standby Mode and the red indicator lamp will illuminate.

Lamp unit replacement procedure

NOTE:

• If the lamp usage time has passed 2 000 hours (when LAMP POWER has been set to “HIGH”), the projector will switch to standby mode after approximately 10 minutes of operation. The steps u to !2 on the next page should thus be completed within 10 minutes.

q Turn off the MAIN POWER

switch according to the procedure given in “Turning off

the power” on page 28 , and

then disconnect the power cord plug from the wall outlet and check that the area around the lamp unit has cooled down.

w Use a Phillips screwdriver to

turn the lamp unit cover fixing screws at the bottom of the projector, and then remove the lamp unit cover from the projector.

Lamp unit cover

e Use a Phillips screwdriver to loosen

the two lamp unit fixing screws until the screws turn freely. Then hold the handle of the lamp unit and gently pull it out from the projector.

Lamp unit fixing screws

Handle

Lamp unit cover fixing screws

r Insert the new lamp unit while

making sure that the direction of insertion is correct, and then use a Phillips screwdriver to securely tighten the lamp unit fixing screws.

53

t Install the lamp unit cover, and

then use a Phillips screwdriver to securely tighten the lamp unit cover fixing screws.

NOTE:

• Be sure to install the lamp unit and the lamp unit cover securely.

If they are not securely installed, it may cause the protection circuit to operate so that the power cannot be turned on.

y Insert the power cord plug into

the wall outlet and then press the MAIN POWER switch.

NOTE:

• If the POWER indicator on the projector does not illuminate red when the MAIN POWER switch is turned on, turn the MAIN POWER switch off again and check that the lamp unit and the lamp unit cover are securely installed. Then turn the MAIN POWER switch back on.

u Press the POWER button so

that a picture is projected onto the screen.

i Press the MENU button to

display the MENU screen, and select “OPTION” by pressing the or buttons.

OPTION

SHUTTER

INPUT DISP

AUTO KEYSTONE

RGB/YPbPr

AUTO RGB IN

RGB2 SELECT

BACK COLOR

FRONT/REAR

DESK/CEILING

OFF

OFF

RGB

OFF

INPUT

BLUE

FRONT

DESK

ON

ON

YPbPr

ON

OUTPUT

BLACK

REAR

CEILING

LAMP POWER LOW HIGH

LAMP RUN TIME

NEXT PAGE

1820 H

SELECT:[

↑][↓] ENTER:[ENTER]

ESC :[MENU] o Press the ENTER button and

select the “LAMP RUN TIME” by pressing the or buttons.

OPTION

SHUTTER

OSD

AUTO KEYSTONE

RGB/YPbPr

AUTO RGB IN

RGB2 SELECT

BACK COLOR

FRONT/REAR

DESK/CEILING

LAMP POWER

LAMP RUN TIME

NEXT PAGE

SELECT:[

↑][↓]

OFF

OFF

RGB

OFF

INPUT

BLUE

FRONT

DESK

LOW

ON

ON

YPbPr

ON

OUTPUT

BLACK

REAR

CEILING

HIGH

1820 H

ENTER:[ENTER]

ESC :[MENU]

!0 Press and hold the ENTER

button for approximately 3 seconds.

Lamp Time Reset

Power OFF

OK CANCEL

The “Lamp Time Reset” will be displayed.

!1 Select “OK” by pressing the

or buttons and press the

ENTER button.

NOTE:

• If “CANCEL” is selected in step

!0

, the operation for resetting the lamp time will be cancelled.

!2 Turn off the power.

This will reset the cumulative usage time for the lamp unit to zero.

Refer to steps e and r on page

28 for details on how to turn off

the power.

54

About the RGB INPUT indicator

The RGB INPUT indicator can be used to check whether an RGB/YP

B

P

R signal is being input. Refer to the table below for details.

Power supply status

RGB INPUT indicator status

Standby On (projecting)

Illuminated

A signal is being input to either the RGB1 IN or

RGB2 IN connector.

A signal is being input to the connector selected using the input select buttons.

Switched off

No signal is being input to either the RGB1 IN or

RGB2 IN connector.

No signal is being input to the connector selected using the input select buttons.

About the automatic setup function

If you press the AUTO SETUP button, the items given in the table below will be set automatically. The setting details change according to the signal which is being input. Refer to the table below for details.

Horizontal/ vertical position

Dot clock/ clock phase

Auto RGB input select

Automatic vertical keystone correction

VIDEO/S-VIDEO/

NETWORK/SD CARD

YP

B

P

R

Yes

Yes

Dot Clock frequency is 140 MHz or higher

Signal other than above

Yes No

Yes

Yes

NOTE:

• If the edges of the projected picture are indistinct, or if a dark picture is being projected, the automatic setup processing may stop automatically before it is complete. If this happens, project a different picture and then press the AUTO

SETUP button once more, or make the above adjustments manually.

• If you would like to make further adjustments to the picture, use the menu

commands which are listed on page 29 and subsequent pages.

55

Before calling for service

Before calling for service, check the following points.

No sound can be heard.

Problem Possible cause

Power does not turn on.

No picture appears.

The picture is fuzzy.

COLOR is too light or

TINT is poor.

• The power cord may not be connected.

• The MAIN POWER switch is turned off.

• The main power supply is not being supplied to the wall outlet.

• TEMP indicator is illuminated or flashing. (Refer to

page 49 .)

• LAMP indicator is illuminated or flashing. (Refer to

page 50 .)

• The lamp unit cover has not been securely installed.

• The video signal input source may not be connected properly.

• The input selection setting may not be correct.

(Refer to page 27 .)

• The BRIGHT adjustment setting may be at the

minimum possible setting. (Refer to page 36 .)

• The shutter function may be in use. (Refer to page

43 .)

• The lens cover may still be attached to the lens.

• The lens focus may not have been set correctly.

(Refer to page 28 .)

• The projector may not be at the correct distance

from the screen. (Refer to page 26 .)

• The lens may be dirty.

• The projector may be tilted too much. (Refer to

page 25 .)

• COLOR or TINT adjustment may be incorrect.

(Refer to page 36 .)

• The input source which is connected to the projector may not be adjusted correctly.

• The audio signal source may not be connected properly.

• The volume adjustment may be at the lowest

possible setting. (Refer to pages 16 and

42 .)

• A cable may be connected to the AUDIO OUT jack.

• The MUTE function may be active (page 42 ).

56

Problem Possible cause

The remote control unit does not operate.

The buttons on the projector do not function.

The picture does not display correctly.

Picture from computer does not appear.

• The batteries may be weak.

• The batteries may not be inserted correctly. (Refer

to page 21 .)

• The remote control signal receptor on the projector

may be obstructed. (Refer to page 21 .)

• The remote control unit may be out of the operation

range. (Refer to page 21 .)

• The CONTROL KEY may be set to “OFF”. (Refer to

page 45 )

In order to set the CONTROL KEY to “ON” without using the remote control unit, keep holding down the ENTER button on the projector and press the

MENU button for more than 2 seconds. It will then be turned ON.

• The signal format (TV system) may not be set

correctly. (Refer to page 36 .)

• There may be a problem with the video tape or other signal source.

• A signal which is not compatible with the projector

may be being input. (Refer to page 60 .)

• If you select SXGA60 or SXGA60+ type RGB signals, the pictures may not be projected correctly.

If this happens, press the AUTO SETUP button.

• The cable may be too long.

• The external video output for the laptop computer may not be set correctly.

(You may be able to change the external output settings by pressing the [Fn]+[F3] or [Fn]+[F10] keys simultaneously. The actual method varies depending on the type of computer, so refer to the documentation provided with your computer for further details.)

• If an RGB input indicator (refer to pages 15 and

55 )

is turned off, the video signals may not be output from the computer.

• RGB2 SELECT in the OPTION menu is set to

OUTPUT when the signals are input to RGB2 IN /

RGB1 OUT connector. (Refer to page 43 )

57

Specifications

Power supply: 100 V–240 V ~, 50 Hz/60 Hz

Power consumption: 300 W (During standby (when fan is stopped): Approx. 1.7 W)

[When the WEB STANDBY is set to “ON”:

Approx. 43 W (page 45 )]

3.5 A–1.5 A Amps:

LCD panel:

Panel size (diagonal):

Aspect ratio:

Display method:

Drive method:

Pixels:

Lens:

0.9 type (22.86 mm)

4:3 (16:9 compatible)

3 transparent LCD panels (RGB)

Active matrix method

786 432 (1 024 x 768) x 3 panels

Manual zoom (1 - 1.3) / focus lens

F 1.7 - 2.2, f 28.7 mm - 36 mm

UHM lamp (220 W) Lamp:

Luminosity: 2 200 lm/ANSI

Scanning frequency(for RGB signals):

Horizontal scanning frequency: 31 kHz–91 kHz

Vertical scanning frequency: 50 Hz–85 Hz

Dot clock frequency:

YP

B

P

R signals:

Less than 140 MHz

525i (480i), 625i, 525p (480p), 750p

Color system:

(720p), HDTV60 (1080i/60), HDTV50

(1080i/50)

7 (NTSC/NTSC 4.43/PAL/PAL-M/PAL-

N/PAL60/SECAM)

Projection size:

Throw distance::

Optical axis shift:

Screen aspect ratio:

Installation:

Speaker:

Max. useable volume output:

Connectors

RGB IN/OUT:

1 016 mm - 7 620 mm (40˝ - 300˝)

1.2 m - 11.8 m (3´11˝ - 38´8˝)

9:1 (fixed)

4:3

Front/Rear/Ceiling/Desk (Menu selection method)

4 cm x 3 cm oval x 1

2 W (mono)

Dual-line D-SUB HD 15-pin (female)

(One-line is available for input and output)

During YP

B

P

R input/output:

Y:

P

B

,P

R

:

During RGB input/output:

R.G.B.:

G.SYNC:

HD/SYNC:

VD:

AUDIO IN (for RGB):

1.0 V [p-p], 75

0.7 V [p-p], 75

0.7 V [p-p], 75

1.0 V [p-p], 75

TTL high impedance, automatic plus/minus polarity compatible

TTL high impedance, automatic plus/minus polarity compatible

Single-line 0.5 V [rms] M3 jack (Stereo

58

MINI)

VIDEO IN: Single-line, RCA pin jack

1.0 V [p-p], 75

S-VIDEO IN: Single-line, Mini DIN 4-pin

Y 1.0 V [p-p], C 0.286 V [p-p], 75

AUDIO IN (for S-VIDEO/VIDEO): 0.5 V [rms] RCA pin jack x 2 (L-R)

AUDIO OUT: Single-line 0.5 V [rms] M3 jack (Stereo

MINI) (Monitor output/stereo compatible)

0 V [rms] - 1.0 V [rms] (variable)

Serial connector: D-sub 9p (female) RS-232C compatible

Cabinet: Moulded plastic (ABS/PC)

Dimensions:

Width: 245 mm (9-5/8˝)

Height: 118 mm (4-5/8˝)

Length: 341 mm (13-13/32˝) (without lens cover)

Weight: 4.0 k g (8.8 lbs.)

Operating environment:

Temperature: 0 °C–40 °C (32 °F–104 °F)

Humidity:

Certifications:

[When the FAN CONTROL is set to

“HIGH” (page 43 ); 0 °C–35 °C (32 °F–95

°F)]

20%–80% (no condensation)

UL60950

FCC Class B

<Remote control unit>

Power supply:

Operating range:

3 V DC (AAA battery x2)

Approx. 7 m (23´) (when operated directly in front of signal receptor)

108 g (3.8 ozs.) (including batteries) Weight:

Dimensions:

Width:

Length:

Height:

<Options>

Ceiling bracket

Wireless mouse receiver

Wide conversion lens

Wireless card

33 mm (1-9/32˝)

168 mm (6-19/32˝)

40 mm (1-9/16˝)

ET-PK730

ET-RMRC1

ET-LEC701

ET-CDWL1U

59

List of compatible signals

Mode

Display resolution

(dots)* 1

Scanning frequency

H

(kHz)

V

(Hz)

15.734

59.940

Dot clock frequency

(MHz)

NTSC/NTSC4.43/

PAL-M/PAL60

PAL/PAL-N/SECAM

525i

625i

525p

HDTV60

HDTV50

750P

VESA70

VESA85

VGA60

VGA65

VGA72

VGA75

*4

VGA85

SVGA55

SVGA60

SVGA70

SVGA75

SVGA85

MAC16

XGA60

XGA70

XGA75

XGA85

XGA85i

MXGA70

MXGA75

MXGA85

MAC21

*4

*4

*4

*4

MSXGA60

SXGA60

SXGA75

SXGA85

SXGA60+

UXGA60

*4

*4

720 x 480i

720 x 576i

720 x 480i

720 x 576i

640 x 400

640 x 400

640 x 480

640 x 480

640 x 480

640 x 480

640 x 480

800 x 600

800 x 600

800 x 600

800 x 600

800 x 600

832 x 624

1 024 x 768

1 024 x 768

1 024 x 768

1 024 x 768

1 024 x 768i

1 152 x 864

1 152 x 864

15.625

50.000

15.734

59.940

15.625

50.000

720 x 483 31.469

59.940

1 920 x 1 080i 33.750

60.000

1 920 x 1 080i

1 280 x 720

28.125

45.000

31.469

35.000

37.861

72.809

37.500

75.000

43.269

35.156

46.875

53.674

49.725

74.550

48.363

60.004

56.476

60.023

50.000

60.000

31.469

70.086

37.861

85.081

59.940

66.667

85.008

56.250

37.879

60.317

48.077

72.188

75.000

85.061

70.069

75.029

68.678

84.997

35.520

86.952

13.500

13.500

27.000

74.250

74.250

74.250

25.175

31.500

25.175

30.240

31.500

31.500

36.000

36.000

40.000

50.000

49.500

56.250

57.283

65.000

75.000

78.750

94.500

44.897

63.995

71.184

94.200

67.500

74.917

108.000

1 152 x 864

1 152 x 870

76.705

85.038

121.500

68.681

75.062

100.000

1 280 x 960 60.000

60.000

108.000

1 280 x 1 024 63.981

60.020

108.000

1 280 x 1 024 79.977

75.025

135.001

1 280 x 1 024 91.146

85.024

157.500

1 400 x 1 050 63.981

60.020

108.000

1 600 x 1 200 75.000

60.000

162.000

Picture quality* 2

Resizing* 3

A

Format

OK Video/S-Video

OK

OK

OK

OK

OK

OK Video/S-Video

OK

OK

OK

YP

YP

YP

B

B

B

P

P

P

R

R

R

YP

B

P

R

/RGB

OK

OK

OK

OK

OK

OK

OK

OK

YP

B

P

R

/RGB

YP

B

P

R

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

A

A

A

A

AA

AA

A

A

A

B

A

B

A

AA

AA

AA

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

*1 The “i” appearing after the resolution indicates an interlaced signal.

*2 The following symbols are used to indicate picture quality.

AA Maximum picture quality can be obtained.

A Signals are converted by the image processing circuit before picture is projected

B Some loss of data occurs to make projection easier.

C Picture cannot be projected.

*3 Signals with “OK” in the Resizing column can be set using the RESIZING

command in the PICTURE menu. (Refer to page 41 .)

*4 Signals that are compatible with the FRAME LOCK function. (page 41

)

60

Dimensions

<Units: mm (inch)>

9.6(3/8)

245(9-5/8)

USB

291.2(11-15/32)

61

Trademark acknowledgements

• The SD logo is a trademark.

• Windows is a trademark or registered trademark of Microsoft Corporation in the United States of America and other countries.

• VGA and XGA are trademarks of International Business Machines

Corporation.

• Macintosh is a registered trademark of Apple Computer, Inc.

• S-VGA is a registered trademark of the Video Electronics Standards

Association.

• Windows is a registered trademark of Microsoft Corporation.

All other trademarks are the property of the various trademark owners.

62

NOTES IMPORTANTES

CONCERNANT LA SÉCURITÉ

AVERTISSEMENT:

POUR REDUIRE LES RISQUES DE FEU OU DE CHOC

ÉLECTRIQUE, NE PAS EXPOSER CE PRODUIT À L’EAU

OU À L’HUMIDITÉ

Alimentation: Ce projecteur LCD est conçu pour fonctionner sur secteur de 100 V - 240 V, 50 Hz/60 Hz seulement.

ATTENTION: Le cordon d’alimentation secteur fourni avec le projecteur peut être utilisé uniquement pour une alimentation électrique de 125 V, 10 A maximum. Si on veut l’utiliser avec une tension ou un courant plus forts, on doit se procurer un autre cordon d’alimentation de 250 V. Si on utilise le cordon fourni sous ces conditions, risque de provoquer un incendie.

Le symbole de la flèche en forme d’éclair, dans un triangle, avertit l’usager de la présence de “tensions dangereuses” à l’intérieur du produit qui peuvent être de force suffisante pour constituer un risque de choc électrique aux personnes.

Le point d’exclamation dans un triangle avertit l’usager de la présence d’instructions importantes concernant l’utilisation et l’entretien (réparation) dans la littérature accompagnant le produit.

ATTENTION: Cet appareil est équipé d’une fiche de courant à trois broches avec mise à la terre. Ne pas retirer la broche de mise à la masse de la fiche.

Ne pas retirer

Cette fiche ne pourra être utilisée que dans une prise avec mise à la terre. Ceci est une précaution sécuritaire. S’il est impossible d’insérer la fiche dans la prise, s’adresser à un

électricien. Ne pas annuler la protection de la fiche à mise à la terre.

63

Précautions de sécurité

AVERTISSEMENT

En cas de problème (pas d’image ou de son), ou si le projecteur dégage de la fumée ou une odeur étrange, éteindre l’appareil et débrancher immédiatement la fiche d’alimentation de la prise de courant.

• Ne pas continuer d’utiliser le projecteur dans ces cas, autrement cela peut entraîner un incendie ou des chocs électriques.

• Après s’être assuré que de la fumée ne se dégage plus, s’adresser à un centre technique agréé et demander que les réparations nécessaires soient faites.

• Le fait de réparer le projecteur soi-même est très dangereux, et ne doit jamais être fait.

Ne pas installer ce projecteur dans un endroit qui n’est pas assez résistant pour supporter le poids du projecteur.

• Si l’emplacement d’installation n’est pas assez résistant, le projecteur risque de tomber et causer de graves blessures et (ou) des dommages.

Demander à un technicien qualifié d’installer le projecteur par exemple s’il est installé au plafond.

• Si l’installation n’est pas faite correctement, cela peut entraîner des blessures ou des chocs électriques.

Si de l’eau ou des objets étrangers entrent dans le projecteur, si le projecteur tombe, ou si le boîtier est endommagé, éteindre l’appareil et débrancher immédiatement la fiche d’alimentation de la prise de courant.

• Si l’on continue d’utiliser le projecteur dans cette condition, cela peut entraîner un incendie ou des chocs électriques.

• S’adresser à un centre technique agréé pour que les réparations nécessaires puissent être faites.

Ne pas surcharger la prise de courant.

• Si l’alimentation est surchargée (par exemple, par l’utilisation de trop d’adaptateurs), cela risque de faire surchauffer le projecteur et peut entraîner un incendie.

Ne pas retirer le capot ou le modifier.

• Des hautes tensions qui peuvent causer de graves blessures sont présentes à l’intérieur du projecteur.

• Pour toute inspection, réglage ou réparation, s’adresser à un centre technique agréé.

64

Nettoyer la fiche du cordon d’alimentation régulièrement afin d’éviter toute accumulation de poussière.

• Si de la poussière s’accumule sur la fiche du cordon d’alimentation, l’humidité peut endommager l’isolant et entraîner un incendie. Débrancher le cordon d’alimentation de la prise de courant et l’essuyer avec un chiffon sec.

• Si le projecteur n’est pas utilisé pendant une période prolongée, débrancher le cordon d’alimentation de la prise de courant.

Faire attention à ne pas endommager le cordon d’alimentation.

• Ne pas endommager le cordon d’alimentation, ne pas le modifier, ne pas placer sous des objets lourds, ne pas le chauffer, ne pas le placer près d’objets chauffants, ne pas le tordre, ne pas le plier ou le tirer excessivement et ne pas le rouler en boule.

• Si le cordon d’alimentation est endommagé, cela peut entraîner un incendie et des chocs électriques.

• Si le cordon d’alimentation est endommagé, le faire réparer par un centre technique agréé.

Ne pas manipuler le cordon d’alimentation avec les mains mouillées.

• Cela peut entraîner des chocs électriques.

Brancher la fiche du cordon d’alimentation fermement dans la prise de courant.

• Si la fiche n’est pas complètement insérée, cela peut entraîner des chocs

électriques ou la faire surchauffer.

• Si la fiche est endommagée ou la plaque de la prise est desserrée, elles ne devraient pas être utilisées.

Ne pas placer le projecteur sur des surfaces instables.

• Si le projecteur est placé sur une surface qui est inclinée ou instable, il risque de tomber ou de se renverser et cela peut causer des blessures ou des dommages.

Ne pas placer le projecteur dans l’eau ou ne pas le laisser se mouiller.

• Sinon cela peut causer un incendie ou des chocs électriques.

Ne pas placer des récipients de liquide sur le projecteur.

• Si de l’eau se renverse sur le projecteur, s’adresser à un centre technique agréé.

• Si de l’eau entre à l’intérieur du projecteur, entrer en contact avec un centre technique agréé.

Ne pas mettre d’objets étrangers dans le projecteur.

• Ne pas insérer d’objets métalliques ou inflammables dans les orifices de ventilation ou les faire tomber sur le projecteur, car cela peut causer un incendie ou des chocs électriques.

65

Garder la télécommande hors de portée des enfants, et ne pas regarder directement dans le rayon laser; ne pas pointer le rayon vers d’autres personnes.

• Si l’on pointe directement vers les yeux le rayon laser émis par la télécommande, ceci risque d’endommager les yeux.

Veiller à ce que les bornes + et - des piles n’entrent pas en contact avec des objets métalliques tels que des colliers ou des épingles à cheveux.

• Sinon, les piles risqueront de fuir, de surchauffer, d’exploser ou de prendre feu.

• Ranger les piles dans un sac en plastique, et ne pas les ranger à proximité d’objets métalliques.

Pendant un orage, ne pas toucher le projecteur ou le câble.

• Il y a risque d’électrocution.

Ne pas utiliser l’appareil dans un bain ou une douche.

• Il y a risque d’incendie ou d’électrocution.

Ne pas regarder directement dans la lentille pendant que le projecteur fonctionne.

• Une lumière intense est émise par la lentille du projecteur. Si l’on regarde directement dans cette lumière, elle risque de causer des blessures et de graves lésions aux yeux.

Ne pas placer ses mains ou autres objets près de la sortie d’air.

• De l’air chaud sort par l’ouverture de sortie d’air. Ne pas placer les mains ou la figure, ou d’autres objets qui ne peuvent résister à la chaleur près de cette sortie d’air, sinon cela peut causer des blessures ou des dommages.

Lors du remplacement de la lampe, la laisser refroidir pendant au moins une heure avant de la manipuler.

• Le couvercle de la lampe devient très chaud, et on risque de se brûler si on le touche.

Avant de remplacer la lampe, veiller à débrancher le cordon d’alimentation de la prise de courant.

• Il y a risque d’électrocution ou d’explosion.

Garder la carte mémoire SD hors de portée des enfants.

• Si la carte mémoire est avalée, ceci risque de causer un décès par suffocation. Si l’on suspecte que la carte mémoire a été avalée, consulter immédiatement un médecin.

Attention

Ne pas obstruer les orifices d’entrée et de sortie d’air.

• Cela risque de faire surchauffer le projecteur, et causer un incendie ou endommager le projecteur.

Ne pas installer le projecteur dans des endroits humides ou poussiéreux ou dans des endroits où le projecteur peut entrer en contact avec de la fumée ou la vapeur.

• L’utilisation du projecteur dans de telles conditions peut causer un incendie ou des chocs électriques.

66

Pour débrancher le cordon d’alimentation, tenir la fiche et non pas le cordon.

• Si le cordon d’alimentation est tiré, le cordon sera endommagé et cela peut causer un incendie, des courts-circuits ou des chocs électriques sérieux.

Débrancher toujours tous les câbles avant de déplacer le projecteur.

• Le fait de déplacer le projecteur avec des câbles branchés peut endommager les câbles, ce qui pourraient causer un incendie ou des chocs électriques.

Ne pas placer d’objets lourds sur le projecteur.

• Cela peut déséquilibrer le projecteur et le faire tomber, ce qui peut entraîner des dommages ou des blessures.

Ne pas court-circuiter, chauffer ou démonter les piles, et ne pas les mettre dans l’eau ou dans le feu.

• Sinon, les piles risqueront de surchauffer, de fuir, d’exploser ou de prendre feu, et donc de causer des brûlures ou d’autres blessures.

Lorsqu’on insère les piles, veiller à ce que les polarités (+ et -) soient bien respectées.

• Si l’on insère les piles incorrectement, elles risqueront d’exploser ou de fuir, ce qui peut causer un incendie, des blessures ou une contamination du logement des piles et de la zone environnante.

Utiliser uniquement les piles spécifiées.

• Si l’on utilise des piles incorrectes, elles risqueront d’exploser ou de fuir, ce qui peut causer un incendie, des blessures ou une contamination du logement des piles et de la zone environnante.

Ne pas mélanger des piles usées et des piles neuves.

• Si l’on insère les piles incorrectement, elles risqueront d’exploser ou de fuir, ce qui peut causer un incendie, des blessures ou une contamination du logement des piles et de la zone environnante.

Ne pas peser de tout son poids sur ce projecteur.

• On risque de tomber ou de casser l’appareil, ce qui peut causer des blessures.

• Veiller tout particulièrement à ce que des enfants ne montent pas sur l’appareil.

Débrancher la fiche du cordon d’alimentation de la prise de courant comme mesure de sécurité avant d’effectuer tout nettoyage.

• Sinon cela peut causer des chocs électriques.

Ne pas installer la carte sans fil fournie dans un dispositif autre que la fente de carte du projecteur.

• Sinon, le dispositif risquera d’être endommagé.

Demander à un centre technique agréé de nettoyer l’intérieur du projecteur au moins une fois par an.

• S’il n’est pas nettoyé et que la poussière s’accumule à l’intérieur du projecteur, cela peut causer un incendie ou des problèmes de fonctionnement.

• Il est recommandé de nettoyer l’intérieur du projecteur avant que la saison

67

humide n’arrive. Demander au centre technique agréé plus proche de nettoyer le projecteur lorsque cela est requis. Se renseigner auprès du centre technique agréé pour le coût du nettoyage.

Nous faisons tous les efforts possibles afin de préserver l’environnement. Prière d’apporter l’appareil, s’il n’est pas réparable, à votre revendeur ou à un centre de recyclage.

Précautions de manipulation

Avertissements concernant la manipulation

S’assurer d’attacher le capuchon d’objectif avant de transporter le projecteur.

La lentille de projection est extrêmement sensible à la vibration et aux chocs. Utiliser la sacoche de transport pour transporter le projecteur.

Avertissements concernant l’installation

Toujours observer les points suivants lors de l’installation du projecteur.

Éviter de l’installer dans les endroits sujets à des vibrations ou à des chocs.

Si le projecteur est installé dans les endroits sujets à de fortes vibrations, comme près d’un moteur, ou s’il est installé à l’intérieur d’un véhicule ou à bord d’un bateau, le projecteur peut être soumis à une vibration ou à des chocs qui peuvent endommager les pièces internes et causer des mauvais fonctionnements ou des accidents. Dès lors, installer le projecteur dans un endroit qui n’est pas soumis à des vibrations ou des chocs.

Ne pas installer le projecteur près de lignes d’alimentation électrique à haute tension ou de moteurs.

Le projecteur peut être sujet à une interférence électromagnétique s’il est installé près de lignes d’alimentation électrique à haute tension ou de moteurs.

Si le projecteur est installé au plafond, demander à un technicien qualifié de faire tous les travaux d’installation.

Si le projecteur doit être suspendu au plafond, il faut acheter le kit d’installation séparé (numéro de modèle: ET-PK730). De plus, tous les travaux d’installation ne devraient être faits que par un technicien qualifié.

Si l’on utilise ce projecteur à un endroit élevé (au-dessus de 1400 m), régler le

VENTILATEUR à HAUTE. (Se référer à la page 44 .)

Sinon, des anomalies pourront se produire.

Notes sur l’utilisation

Afin d’obtenir la meilleure qualité d’image

Si la lumière extérieure ou la lumière des lampes intérieures brille sur l’écran, les images projetées n’auront pas un bon contraste. Tirer les rideaux ou les stores de toutes les fenêtres et éteindre toutes les lumières fluorescentes près de l’écran pour empêcher la réflexion.

68

Ne pas toucher aux surfaces de la lentille avec les mains nues.

Si la surface de la lentille est salie par des empreintes digitales ou autre, ceci sera agrandi et projeté sur l’écran. D’ailleurs, lorsque le projecteur n’est pas utilisé, rétracter la lentille, puis la couvrir à l’aide du capuchon d’objectif fourni.

À propos de l’écran

Si l’écran utilisé est sale, endommagé ou décoloré, des projections de bonne qualité ne peuvent pas être obtenues. N’appliquer aucune substance volatile à l’écran et ne pas le laisser se salir ou s’endommager.

A propos de la lampe

Il est possible qu’il faille remplacer la lampe plus tôt en raison de facteurs variables tels que des caractéristiques de la lampe, des conditions d’utilisation et un environnement d’installation particuliers, en particulier si elle est utilisée de façon continue pendant plus de 10 heures.

A propos de la carte sans fil et de la carte mémoire SD

L’électricité statique produite par le corps humain peut endommager la carte sans fil ou la carte mémoire SD. Pour empêcher ceci, toucher un objet métallique se trouvant à proximité, tel qu’un châssis de fenêtre en aluminium ou un bouton de porte afin de dissiper la charge statique du corps.

A propos de la fente de carte sans fil et de la fente de carte mémoire SD

S’assurer qu’il n’y ait aucun objet étranger dans la fente lorsqu’on insère la carte sans fil ou la carte mémoire SD. Sinon, on risque d’endommager la carte et la fente.

Avant de faire le nettoyage et l’entretien, s’assurer de débrancher la fiche du cordon d’alimentation de la prise de courant.

Essuyer le boîtier avec un tissu doux et sec.

Si le boîtier est très sale, imbiber le chiffon dans de l’eau avec un peu de détergent neutre, bien essorer le chiffon, puis essuyer le boîtier. Après le nettoyage, sécher le boîtier à l’aide d’un chiffon sec.

Si un chiffon traité chimiquement est utilisé, lire les directives fournies avec le chiffon avant de l’utiliser.

Ne pas essuyer la lentille avec un chiffon poussiéreux ou pelucheux.

Si de la poussière ou de la peluche se dépose sur la lentille, elle sera agrandie et projetée sur l’écran. Utiliser une poire à air pour nettoyer toute poussière et peluche de sur la surface de la lentille, ou utiliser un chiffon doux pour retirer toute poussière ou peluche.

69

Remplacement du bloc de lampe

AVERTISSEMENT

Lors du remplacement de la lampe, la laisser refroidir pendant au moins une heure avant de la manipuler.

• Le couvercle de la lampe devient très chaud, et on risque de se brûler si on le touche.

Notes sur le remplacement du bloc de lampe

• Faire très attention en manipulant le bloc de lampe retiré, car il contient du gaz sous haute pression et peut facilement s’endommager s’il est cogné contre des objets durs ou s’il tombe.

• La lampe produisant la lumière est en verre; elle risque donc d’éclater si on la laisse tomber ou si elle heurte des objets durs. Faire bien attention en manipulant la lampe.

• La lampe usagée qu’on a retirée risque d’éclater si on la jette sans prendre de précautions. Jeter la lampe de la même manière qu’une lampe fluorescente.

REMARQUE:

• Le projecteur n’est pas fourni avec un bloc de lampe de rechange.

Demander les détails au revendeur.Numéro de produit du bloc de lampe: ET-LA730

ATTENTION:

• Ne pas utiliser un bloc de lampe avec un numéro de pièce autre que celui indiqué ci-dessus.

Période de remplacement du bloc de lampe

La lampe est un produit qui doit être remplacé. Même si la durée de vie complète de l’ampoule n’est pas encore épuisée, la luminosité de la lampe diminuera progressivement. Il faut donc remplacer périodiquement la lampe.

L’intervalle de remplacement de la lampe prévu est de 2 000 heures; il est toutefois possible qu’il faille remplacer la lampe avant ce délai en raison d’éléments variables tels que les caractéristiques particulières de la lampe, les conditions d’utilisation et l’environnement d’installation. Il est recommandé de toujours avoir un bloc de lampe de rechange prêt à l’emploi. Une lampe qui a dépassé la limite de 2 000 heures d’utilisation risque beaucoup plus d’exploser.

Afin d’éviter que la lampe explose, celle-ci est éteinte automatiquement lorsque la limite de 2 000 heures d’utilisation est atteinte.

REMARQUE:

• Les heures d’utilisation expliquées ci-dessus concernent l’utilisation lorsque le réglage HAUTE a été sélectionné pour PUIS LAMPE dans le menu OPTION. Si le réglage

FROIDE est sélectionné, la luminosité de la lampe sera moindre et la durée de vie de la lampe sera allongée.

• Bien que le délai de 2 000 heures soit l’intervalle de remplacement prévu, l’obtention de cette durée n’est pas couverte par la garantie.

70

Affichage à l’écran Témoin d’alarme de l’indicateur de la lampe

Plus de 1800 heures

Plus de 2000 heures

Affiché pendant 30 secondes. L’affichage disparaît si l’on appuie sur n’importe quelle touche.

L’affichage ne peut pas

être effacé, quelle que soit la touche sur laquelle on appuie.

Le projecteur passe en mode d’attente et l’indicateur rouge s’allume.

Méthode de remplacement du bloc de lampe

REMARQUE:

• Si le temps d’utilisation de la lampe a dépassé 2 000 heures (lorsque PUIS

LAMPE a été mis sur “HAUTE”), le projecteur passe en mode d’attente après environ dix minutes de fonctionnement. Dès lors, faire les étapes u

à !2 à la page suivante dans les 10 minutes.

q Mettre hors circuit

l’interrupteur d’alimentation principale (MAIN POWER) suivant la méthode donnée dans “Mise hors circuit de

l’alimentation” à la page 28 ,

puis débrancher la fiche du cordon d’alimentation de la prise de courant et vérifier que les pièces autour du bloc de lampe se sont refroidies.

e Utiliser un tournevis Phillips

pour desserrer les deux vis de fixation du bloc de lampe jusqu’à ce que les vis tournent librement.

Tenir la poignée du bloc de lampe et tirer doucement pour le sortir du projecteur.

Vis de fixation du bloc de lampe

w Utiliser un tournevis Phillips

pour desserrer les vis de fixation du couvercle du bloc de lampe sur le fond du projecteur , puis enlever le couvercle du bloc de lampe.

Couvercle de l’unité de lampe

Poignée

r Insérer le nouveau bloc de

lampe tout en s’assurant que la direction de l’insertion est correcte, puis utiliser un tournevis Phillips pour resserrer fermement les vis de fixation du bloc de lampe.

Vis de fixation du couvercle du bloc de lampe

71

t Installer le couvercle du bloc

de lampe, puis utiliser un tournevis Phillips pour resserrer fermement les vis de fixation du couvercle du bloc de lampe.

REMARQUE:

• S’assurer de bien installer le bloc de lampe et le couvercle du bloc de lampe.

S’ils ne sont pas bien installés, cela peut déclencher le circuit de protection et le projecteur ne pourra pas être allumé.

y Insérer la fiche du cordon

d’alimentation dans la prise de courant, puis appuyer sur l’interrupteur d’alimentation principale (MAIN POWER).

REMARQUE:

• Si l’indicateur d’alimentation

(POWER) du projecteur ne s’allume pas en rouge lorsque l’interrupteur d’alimentation principale (MAIN

POWER) est mis sur la position de marche, mettre à nouveau l’interrupteur d’alimentation principale

(MAIN POWER) sur la position d’arrêt et vérifier que le bloc de lampe et le couvercle du bloc de lampe soient bien installés.

u Appuyer sur la touche

d’alimentation (POWER) pour projeter une image sur l’écran.

i Appuyer sur la touche de menu

(MENU) pour faire apparaître l’écran de menu, et sélectionner

“OPTION” en appuyant sur les touches ou .

OPTION

OBTURATEUR

INFO …CRAN

COR TRAP AUT

RGB/YPbPr

RGB AUTO

SELECTION RGB2

COULEUR FOND

INSTALLATION

SOL/PLAFOND

PUIS LAMPE

DUR…E LAMPE

PAGE SUIVANTE

S…L:[

↑][↓]

AJT:[{][}]

NON

NON

RGB

NON

ENTR…E

BLEU

FA«ADE

SOL

FROIDE

OUI

OUI

YPbPr

OUI

SORTIE

NOIR

ARRI»RE

PLAFOND

HAUTE

1820 H

VALID:[ENTER]

ESC:[MENU] o Appuyer sur la touche d’entrée

(ENTER) et sélectionner le

“DURÉE LAMPE” (temps de fonctionnement de la lampe) en appuyant sur les touches ou

.

OPTION

OBTURATEUR

INFO …CRAN

COR TRAP AUT

RGB/YPbPr

RGB AUTO

SELECTION RGB2

COULEUR FOND

INSTALLATION

SOL/PLAFOND

PUIS LAMPE

DUR…E LAMPE

PAGE SUIVANTE @

S…L:[^][@]

AJT:[{][}]

NON

NON

RGB

NON

ENTR…E

BLEU

FA«ADE

SOL

FROIDE

OUI

OUI

YPbPr

OUI

SORTIE

NOIR

ARRI»RE

PLAFOND

HAUTE

1820 H

VALID:[ENTER]

ESC:[MENU]

!0 Maintenir la touche d’entrée

(ENTER) enfoncée pendant environ 3 secondes.

Lamp Time Reset

Power OFF

OK CANCEL

Le “TIME RESET Coupe

I’alimentation” (réinitialisation du temps [mise hors tension]) s’affiche.

!1 Sélectionner “OUI” en

appuyant sur les touches ou et appuyer sur la touche d'entrée (ENTER).

REMARQUE:

Si “NON” est sélectionné à l’étape

!2, l’opération pour remettre le temps de la lampe à zéro sera annulée.

!2 Couper l’alimentation

électrique.

Le temps d’utilisation total du bloc de lampe est alors remis à zéro.

Pour plus de détails concernant la manière de couper le courant, se reporter aux étapes e et r

de la page 28 .

72

Opereting Instructions

(Wireless Functions, SD Card Functions)

Model No.

PT-L730NTU

73

Dear Panasonic Customer:

These instructions provide all the necessary operating information that you may require. We hope it will help you get the best performance from your new product, and that you will be pleased with your Panasonic LCD projector.

Things You Should Know

Caution

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Declaration of Conformity

Model Number: PT-L730NTU

Trade Name:

Responsible party:

Address:

Telephone number:

Matsushita Electric Corporation of America.

One Panasonic Way Secaucus New Jersey 07094

1-800-528-8601

This device complies with Part 15 of the FCC Rules, Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

74

Safety Precautions

WARNING

Keep the SD memory card out of the reach of infants.

• If the memory card is swallowed, death by suffocation may result. If you believe that the memory card may have been swallowed, seek medical advice immediately.

Caution

Do not insert any foreign objects into the card slot.

• Inserting foreign objects may damage the projector. If the wireless card is inserted while some foreign object is inside the slot, it may damage the wireless card.

Notes with regard to the wireless card and the projector.

Caution

Before touching the wireless card, make sure that you earth your body to dissipate any static electric charge that might damage the card.

• Static electricity from the human body can damage the wireless card. To prevent this, you should touch a nearby metallic object such as an aluminium sash or a door knob to dissipate the static charge from your body.

Do not install the accessory wireless card to any device other than the card slot of the projector.

• If this is not observed, damage to the device may result.

75

76

Other instructions

Precautions on use of SD card

This SD card is a semiconductor memory with the size of 24mm x 32mm x 2.1mm, as small as a postage stamp, and is expected to be a next-generation recording medium that replaces minidisks (MDs), compact disks (CDs) and cassette tapes. The card allows repetition of data reading, writing and deleting.

Instructions on handling

Abstain from the following:

• To disassemble or modify the card

• To give the card a strong impact, twisting, bending, dropping, treading, or water wetting

• To rub the card with a sheet of cloth or plastics or to bring the card near to anything that is likely to generate static electricity or electromagnetic field.

• To touch the metallic terminal of card with hand or metallic object, to affix stickers, or to stain the card.

• To peel off the label that is affixed to the card.

• To affix other labels or stickers.

• To insert the card into a device that does not accept an SD card (e.g., device for multimedia cards).

• To apply excessive force when operating the lid of the card port.

• To use cracked or deformed card.

• To use the card in a moist place such as bathroom or in a dusty place such as warehouse.

Instruction on storage

Be sure to put the card in the case when it is taken out from the main body.

• Do not put the card in a vehicle or in a place exposed to direct sunlight where it may become hot.

• Do not put the card in a place where corrosive gases may arise.

For protection of important data

• Do not turn off the power or do not remove the SD card during memory reading or writing (when the SD card access lamp is blinking). Doing the above may destroy the stored data.

• Do not forget to make backup of the data stored in the SD card. Note that user s important data is subject to potential destruction although it is very rare to occur.

To create a backup copy of the data stored on the SD card

Double click and open the icon of SD card drive in My Computer of your personal computer (on the desktop if your computer is Macintosh) and drag and drop the "DCIM" folder onto desktop

(while pressing the "Option" button, for Macintosh machine). This operation can create copies of all data within the "DCIM" folder into your personal computer.

Write protection switch

• Putting the write-protection switch of SD card to the "LOCK" position will disable image-editing operation such as deleting or moving on the projector (attempt of operation will bring error message).

• If the SD card is inserted into the personal computer by means of the PC card adaptor while the write-protection switch of SD card is set to the "LOCK" position, a blue-screen warning indication will appear when access is made. If this occurs, press any button on the keyboard of your PC to return the indication to the original one. Before using an SD card in your personal computer, ensure that the writeprotection switch is not set to the "LOCK" position.

Front surface Back surface

8

MB

Write-protection switch

Please be advised of the following information in advance:

• The manufacturer shall not be responsible for any damage, whether direct or indirect, caused by the use of or by the fault of the product.

• The manufacturer shall not be responsible for any damage or destruction of data caused by the product.

77

Radio frequencies used by the wireless card

The accessory wireless card and the optional wireless card (ET-CDWL1 series) operate on electronic frequencies within the 2.4 GHz band. You do not need a radio licence in order to use a wireless card, but you should make sure that you understand the following points before using such cards.

Do not use the cards near other sources of radio emissions.

The following devices may use the same frequencies that are used by the wireless card. If the wireless card is used near such devices, radio interference may prevent successful communication, or it may result in

• slower communication speeds being achieved.

Industrial, scientific, medical equipment, etc

Electric stoves, etc

Built-in radio devices used for identifying moving equipment in industrial production lines

Certain low-power radio devices

Keep the wireless card as far away as possible from devices such as mobile telephones, TVs and radios when using such devices

Devices such as mobile telephones, TVs and radios use different frequencies from the wireless card, so that there will be no effect on either wireless card communication or on reception or transmission for such devices. However, radio emissions from the wireless card may cause video or audio interference.

Radio emissions from the wireless card will not travel through steel framework, metal sheets or concrete.

The radio emissions from the wireless card will pass through materials such as wood and glass (except for glass which is reinforced with metal fibres), so that communication is possible because the signals can pass through walls and floors which are made from these materials. However, the radio emission cannot pass through materials such as steel frames, metal sheets and concrete, so that communication is not possible because the signals cannot pass through walls and floors which are made from such materials.

78

Available channels

The channels (frequency bandwidth) that are available for the wireless card to use will vary depending on the country or area where the wireless card is being used.

Refer to the following table as a guide.

Country / Area

Japan

USA

Canada

Taiwan

Malaysia

UK, Germany, France,

Italy, Belgium, Austria,

Sweden, Norway,

Denmark, Switzerland,

Holland, Finland,

Portugal, Greece,

Thailand, Korea,

Australia, New Zealand

Certification

Last digit of card number *

ARIB

STD33 &

T66

1

Operating channels

Frequency band

(median frequency)

1~14

2,412 MHz~

2,484 MHz

FCC part 15 2 1~11

2,412 MHz~

2,462 MHz

IC

DGT

SIRIM

ETSI

300.328

3 1~13

2,412 MHz~

2,472 MHz

Spain

ETSI

300.328

IDA

4 10,11

Singapore 5 10~13

* To check the region of intended use for the wireless card which you have purchased, check the last digit of the product number which appears on the label on the reverse side of the card in the position shown in the illustration at right.

Note:

The wireless card cannot be used in countries other than the country of purchase. If you try to use it in other countries, you may be infringing the radio transmission laws and regulations of that country.

2,457 MHz~

2,462 MHz

2,457 MHz~

2,472 MHz

N5HBD0000002

79

80

Typical applications of SD card / wireless functions

Examples of use of SD card

Projecting images from SD card using the projector only

Insertion Projection


8

MB

SD card containing image data

Projector Screen

An SD viewer helps user easily search images.

Writing data directly on SD card using personal computer

Personal computer

Refer to "Replaying from recorded SD card using the projector

only" on page 84 .

For the procedure of direct writing from personal computer, refer to "Recording directly onto SD card"

on page 86 .

Install Image Creator 1.0

PC card adaptor

CARD

SD card

The supplied Image Creator 1.0 can convert images in the format of PowerPoint, JPEG, BMP, TIFF, and PNG into

DCF-conforming JPEG or PNG images and record them onto the SD card so that the projector can replay (this function is applicable only to Windows machines).

For details of Image

Creator 1.0, refer to

"Image Creator 1.0" on

page 118 .

Example of use of wireless functions

Controlling the projector using Web browser control

Wireless card

For details of network setting, refer to

"Network Setting" on

page 91 .

Operation with Web browser control

Insertion

Setting up the projector

For details of Web browser control, refer to

"Web browser control"

on page 106 .

LAN-connectable

Personal computer

Projector Screen

The Web browser accesses the projector and allows the user to make settings for the projector.

Projecting images from SD card using

Web browser control

Wireless card

For details of network setting, refer to

"Network setting" on

page 91 .

SD card containing image data

Insertion

Operation with Web browser control

8

MB

Insertion

Projection

For details of Web browser control, refer to "Web browser

control" on page 106 .


LAN-connectable

Personal computer

Projector Screen

The Web browser allows the user to access the projector and to project the image data stored on the SD card inserted in the projector.

Transferring image data from personal computer to the projector and recording them onto the SD card inserted in the projector

Wireless card

SD card

Install Wireless

Manager 2.0

8

MB

Recording Insertion

For details of network setting, refer to

"Network setting" on

page 91 .

For details of Wireless

Manager 2.0, refer to

"Wireless Manager 2.0"

on page 110 .

Insertion

Transfer image data

Projection


LAN-connectable

Personal computer

Projector Screen

The supplied Wireless Manager 2.0 allows the user to transfer image data from the personal computer to the SD card inserted in the projector and to record the data on the card. Thus the user can project images changing very quickly to desired ones.

81

82

Fitting and removal of SD card and wireless card

SD card

Fitting

Pay attention to the difference between up and down sides of the SD card.

Removal lamp is not blinking (i.e., SD card is not under reading or writing operation) at the right back of the slot.

Access lamp

With the card label facing up, insert the card from the side that has a cut corner until it reaches the depth and is locked.

Note:

• Be sure to confirm that the access lamp is not blinking when to remove the card. Removing the SD card while the access lamp is blinking may destroy the data stored on the card.

card to release the lock and remove the card

Note:

• Forcible insertion of the SD card in a wrong direction may cause a fault.

Wireless card

Fitting projector

Turn off the power referring to How to turn off the power supply given on

page 28 .

Removal the projector

Turn off the power referring to How to turn off the power supply given on

page 28 .

Press the ejector button and it will pop out.

With the side of power monitor facing up, insert the card until it reaches the depth and is locked.

Ejector button

button, and take out the card

Note:

• Pay attention to the difference between up and down sides of the wireless card. Forcible insertion of the wireless card in a wrong direction may cause a fault.

83

How to use SD card

Replaying from recorded SD card using the projector only

Setting menu


PICTURE MODE

COLOR TEMP.

BRIGHT

CONTRAST

SHARPNESS

WHITE BALANCE R

WHITE BALANCE G

WHITE BALANCE B

STANDARD

32

32

32

0

32

32

STANDARD

STANDARD

"SD card" screen

SELECT:[

↑][↓]

ADJUST:[

←][→]

SD CARD

AUTOPLAY

REPEAT

INTERVAL

ENTER:[ENTER]

ESC:[MENU]

OFF ON

1

5 sec

SELECT:[

↑][↓]

ADJUST:[

←][→]

ENTER:[ENTER]

ESC :[MENU]

"SD card" setting screen.

desired item, and make setting with the and buttons.

Auto play

ON: The next image will automatically appear when images are replayed.

OFF: Images will not be changed automatically.

Auto loop

1~10: Automatic replay will be repeated by the predefined times if "ON" has been selected for auto play.

Continuous: Automatic replay will be repeated endlessly if "ON" has been selected for auto play.

Image changing interval

This parameter defines the interval of changing to the next image when "ON" has been selected for auto play. The interval value can be selected from 5 to 60 seconds with the step being 5 seconds.

Note:

• Some images require a due time until they are displayed. For such images, the actual image changing time may be longer than the set interval value.

84

Replay switching (INPUT, RGB) button of the projector or remote controller.

SD CARD w

and buttons and press the

ENTER button.

A file selection screen will appear.

Notes:

• If three or more folders are found, press the button and the next three (or less) folders will be shown in turn.

• If no thumbnail has been incorporated in the image file in advance, it will take a longer time before image appears.

• A folder that contains no image file cannot be selected.

• To return to the folder selection screen, press the MENU button.

buttons and press the ENTER button.

The selected image will be displayed in full screen mode.

If "OFF" has been selected for auto play, the and buttons can select the previous or next image for display.

Notes:

• If ten or more files are found, press the button when the bottom row files are highlighted, or press the button when the right bottom file is highlighted. This will show another nine (or less) files in turn.

• To return to the file selection screen, press the MENU button.

• If "ON" has been selected for auto play, the image will be displayed in full screen mode and automatic replay will start.

85

Recording directly on SD card

Use the SD card by means of a PC card adaptor in a personal computer having a slot that is compatible to TYPE 2 or TYPE 3 PC (PCMCIA) card.

For a Windows machine, the supplied software, Image Creator 1.0, will be available for compiling and storing.

For details of Image Creator 1.0, refer to "Image Creator 1.0" on page 118 .

Compiling on Windows

If your PC is a Windows machine, the supplied software, Image Creator 1.0 can be used. With this Image Creator 1.0, the user can convert the presentation file prepared with Microsoft PowerPoint into image data that can be replayed on the projector, change the screen size and sort the images.

Fitting SD card adaptor as shown in the diagram on the right.

Positively push in the card until it is locked. Also pay attention to the difference between up and down sides and fore and back sides when inserting the card.

PC card adaptor

CA

RD

SD card

8 MB

Note:

• If the SD card is inserted in the personal computer by means of PC card adaptor with the write protection switch of SD card set to the LOCK position, a blue-screen warning appears when accessed. If this occurs, press any button on the keyboard of the personal computer to return the indication to the previous one. Before using the SD card in your PC, confirm that the write protection switch is not set to the

LOCK position.

personal computer.

card, an "Add New Hardware Wizard" dialog box appears. Click the "Next" button.

86

If this is the second or forward time of SD card insertion, no setting operation is required.

existing in specific location and select the driver for installation" and click the

"Next" button.

controller" and click the "Next" button.

From now on, go on installation operation following the instructions on the screen. Finally, click the

"Complete" button to finish the preparatory operation for SD card use.

and confirm that the icon of the new drive has been created.

Although the drive icon has the same picture pattern as that of thee hard disk, you can identify it with the disk capacity (indication of "14.1 MB" for a

16 MB SD card; the drive character of D:, E:, F: etc. is used depending on the model of the personal computer). If the capacity is not displayed as in the diagram on the right, select the drive icon and press the "ALT" + "ENTER" buttons and check the indication on the displayed "Properties" window.

Icon of SD card drive

Notes:

• The procedure window is for Windows 98SE. The contents of displayed window vary with the Windows version. If the "New hardware" window requests selection of the driver, select "Windows standard driver" and click the "OK" button. For further information, refer to on-line Help of Windows.

• Deletion, copy and renaming of a file, creation and deletion of a folder (directory) and similar operations can be performed in a similar manner to normal hard disk.

Refer to the instruction manual and Help descriptions of your operating system

(OS).

• The projector supports DCF-conforming directories and files as well as folders and files specified by Wireless Manager 2.0. The projector cannot recognize directories and files that are not conforming to DCF (except when Wireless Manager 2.0 is used). Use Image Creator 1.0 to convert the format.

For details of Image Creator 1.0, refer to "Image Creator 1.0" on page 118 .

For details of DCF standard, refer to "DCF standard" on page 124 .

87

Removing SD card

Take out the SD card in the following procedure: w

) shown on the task bar at the right bottom on the screen.

Note:

• If no PC card icon is appearing on the task bar at the right bottom of the screen, go to Start menu

→ Setting → Control panel, open "PC card", click the "Show control on the task bar" check box, and then click the "OK" button.

IDE/ESDI hard disk controller" or

"Disable BN-SD Series PCMCIA Disk

Controller" and click it.

the right, click "OK" and take out the

PC card adaptor.

adaptor and pull out the SD card.

Note:

• Strictly follow the procedure for card removal.

Removing the card in a wrong procedure may destroy the card or stored data.

Ejector button

CA

RD

8 MB

88

Compilation on Macintosh machine

The supplied software, Image Creator 1.0, is not available in Macintosh machines.

However, it is possible to write and compile images stored in the personal computer.

Fitting SD card

PC card adaptor

adaptor as shown in the diagram on the right.

Positively push in the card until it is locked. Also pay attention to the difference between up and down sides and fore and back sides when inserting the card.

CA

RD

8 MB

SD card

Note:

• If the SD card is inserted in the personal computer by means of PC card adaptor with the write protection switch of SD card set to the LOCK position, an error message may be shown after a long time taken for card recognition (for several minutes depending on the conditions). If this occurs, follow the procedure given on

page 90 to take out the SD card from the personal computer, and then release the

write protection switch.

personal computer.

An icon of drive will be added automatically on the desktop.

an MO disk.

Note:

• Extension of functions is required including PC

Exchange and File Exchange. If those functions are not installed, a message appears, saying, "The computer cannot read this disk. Will you format the disk?" and a formatting screen appears. NEVER format the disk though.

If the card undergoes Macintosh formatting, the projector will not be able to recognize the SD card. Be sure to click the "Remove" button and take out the SD card. Then install PC Exchange, File Exchange and other function extension. (For details of procedures, refer to the instruction manuals for the OS and related Help.)

• Deletion, copy and renaming of a file, creation and deletion of a folder (directory) and similar operations can be performed in a similar manner to normal hard disk.

Refer to the instruction manual and Help descriptions of your operating system

(OS).

• The projector supports DCF-conforming directories and files as well as folders and files specified by Wireless Manager 2.0. The projector cannot recognize directories and files that are not conforming to DCF (except when Wireless Manager 2.0 is used).

For details of DCF standard, refer to "DCF standard" on page 124 .

89

Saving images in Macintosh onto the SD card.

JPEG images that were created with graphic software or captured by digital camera into Macintosh can be saved onto the SD card and replayed with the projector.

Note:

• Fully read "DCF standard" on page 124 and perform file operation.

" + "N" buttons to create a new folder (directory) and rename it DCIM.

A DCIM directory already exists in an SD card in which any file has been saved as a result of image capture by using the projector or use of a DCF-conforming digital camera; thus there is no need for folder creation anew.

" + "N" buttons to create a new folder (directory), and rename it with a directory name that conforms to the DCF standard (e.g.,

100abcde).

Also an existing DCF-conforming directory may be used as in Step q.

created directory

The file will be copied in the directory (the original file in the personal computer will not be deleted).

that conforms to the DCF standard.

When file saving is complete, take out the SD card from the personal computer and insert that SD card into the projector following the procedure below. Now

JPEG images are ready for replay.

Removing SD card

Take out the SD card in the following procedure:

the Recycle Bin icon and then take out the PC card adaptor.

card adaptor and pull out the SD card.

Note:

• Strictly follow the procedure for card removal.

Removing the card in a wrong procedure may destroy the card or stored data.

CA

RD

8 MB

Ejector button

90

Network setting

Typical setting for network

The method of image transmission using a wireless card can be divided broadly into three different types by the current working environment.

To use wireless communication for the first time

Insert the optional wireless card (ET-CDWL1) into your PC and make setting for the direct wireless communication with the projector.

For details of setting the projector, refer to "Setting the projector" on page 94 .

For details of setting the PC, refer to "Settings of personal computer" on page 102 .

Personal computer Projector

Typical setting

Parameters

IP address

Setting of the projector Setting of the PC

LAN 1 - 5:

192.168.10.10-14

(factory default)

If you use more than one projector, assign a different address to each of them.

Assign an address such as

192.168.10.15 or 192.168.10.20.

The same IP address as the projector cannot be used.

Subnet mask

Mode

Channel

255.255.255.0

(factory default)

AD HOC

11 (factory default)

Use the same setting as the

PC.

255.255.255.0

Ad Hoc

11

Use the same setting as the projector.

Note:

• It is also necessary to install the wireless card driver and to make settings for the wireless card.

For details of installing the wireless card driver, refer to "Installing wireless card

driver" on page 97 .

For details of setting the wireless card, refer to "Settings of wireless card" on page

101 .

91

If wireless communication has already been established between PCs (in ad hoc mode)

In this case, it is required to make settings so that direct wireless communication will be available between the personal computers and the projector in ad hoc mode using the wireless cards that are currently used in the PCs.

For details of setting the projector, refer to "Setting the projector" on page 94 .

Personal computer

Typical setting

Parameters

IP address

Projector Personal computer

Setting of the projector

Assign an IP address that is different from that of PC.

Example: If the IP address of the PC is 192.168.10.11, assign an address such as 192.168.10.12 to the projector.

Subnet mask

Mode

Channel

Use the same settings as the PC.

AD HOC

Use the same setting as the PC.

Notes:

• The settings of the PC are available without modification. However, give the same

WEP settings to the projector as the PC because the projector will also support

WEP if the WEP function is enabled on the PC.

If the WEP function is disabled, data encryption is also disabled. Therefore, it is recommended to take measures for data protection such as setting a password in folder sharing. For details, please consult your network administrator.

• Compatibility with other cards than the optional wireless card (ET-CDWL1) is not guaranteed.

92

If wireless communication has already been established using an access point

In this case, it is required to make settings so that wireless communication will be available between the personal computers and the projector in infrastructure mode through the access point.

Communication may not be established depending on the access point used.

For details of setting the projector, refer to "Setting the projector" on page 94 .

Personal computer Personal computer Personal computer

LAN

Personal computer Access point Projector

Typical setting

Parameters

IP address

Subnet mask

Mode

Channel

SSID

Setting of the projector

For details of setting, please consult your network administrator.

INFRASTRUCTURE

Use the same channel setting as the access point. Please consult your network administrator.

Use the same SSID setting as the access point. Please consult your network administrator.

Notes:

• If the projector is used in the area where the radio waves cannot reach the access point, follow the instructions described in "If wireless communication has already

been established between PCs (in ad hoc mode)" on page 92 .

• For the SSID of the projector, up to 32 alphanumeric characters and symbols are available. For this reason, if the SSID of the access point cannot be used in the projector, consult the network administrator and have the SSID changed to the one that can be used in the projector.

• The projector does not support DHCP. If your LAN uses DHCP server, a fixed IP address must be assigned to the projector. For details, please consult your network administrator.

93

Setting up the projector

For details of installing and removing the wireless card, refer to "Wireless card" on

page 83 .

"Network setting" screen.

NETWORK

STATUS

WEP

LAN1

DISABLE

SELECT:[

↑ ][ ↓ ]

ADJUST:[

←][→]

ENTER:[ENTER]

ESC :[MENU]

screen.

Status

Five different LAN settings (LAN 1-5) can be stored on the projector.

Selecting from LAN 1-5 with and buttons, press the ENTER button and its status will be displayed.

To change the status, choose "RUN" from "Setting Wizard" and press the ENTER button to move to the LAN setup wizard.

To enable the status, choose "OK" from "Setting Wizard" and press the ENTER button.

WEP Wired Equivalent Privacy

The projector can encrypt the image data.

However, when the encryption function is enabled, it takes more time to transmit images.

Selecting from KEY 1-4 with and buttons, press the ENTER button and the

WEP data will be displayed.

To change the setting of WEP, choose "RUN" from "Setting Wizard" and press the

ENTER button to move to the WEP setup wizard.

To enable the WEP data, choose "OK" from Setting Wizard and press the ENTER button.

LAN Setup Wizard

IP address

Assign an IP address to the projector.

Make setting according to the typical setting. However, the same IP address as that of the PC with which the projector communicates cannot be used.

Use and buttons to change the value, and buttons to switch the fields. Press the ENTER button when the setting is completed.

Subnet mask

Set the subnet mask of the projector.

Make setting according to the typical setting.

Use and buttons to change the value, and use and buttons to switch the fields.

Press the ENTER button when the setting is completed.

94

Gateway

A gateway is a relay point that provides a connection of two networks. It does not operate in the ad hoc mode. It is necessary to assign the gateway address if the projector is connected to the network of different segment or to the Internet in the infrastructure mode.

For details of assigning the address, please consult your network administrator.

Host name

Set the name of the projector on the network.

The name must be up to 16 alphanumeric characters and symbols.

Use and buttons to change the value, and use and buttons to switch the characters to be changed.

Press the ENTER button when the setting is completed.

Mode

Choose either "AD HOC" mode or "INFRASTRUCTURE" mode.

Set the projector to the "AD HOC" mode when it is used as described in "To use wireless communication for the first time" and "If wireless communication has already been established between PCs (in AD HOC mode)". Set the projector to the INFRASTRUCTURE mode when it is used as described in "If wireless communication has already been established using an access point".

Press the ENTER button when the setting is completed.

SSID (only in the INFRASTRUCTURE mode)

Change the projector's "SSID" to the one that is set for the access point with which the projector communicates in the INFRASTRUCTURE mode.

• For the SSID of the projector, up to 32 alphanumeric characters and symbols are available. For this reason, if the SSID of the access point cannot be used in the projector, consult the network administrator and have the SSID changed to the one that can be used in the projector.

Use and buttons to change the value, and use the and buttons to switch the characters to be changed.

Press the ENTER button when the setting is completed.

Channel

Select the channel for use. It is necessary to select the same channel as used by the wireless card of the PC with which the projector communicates.

In the INFRASTRUCTURE mode, the projector usually operates regardless of the channel setting. However, communication may not be established depending on the access point used unless the projector has the same channel setting as the access point.

Use and buttons to select the desired channel and press the ENTER button.

Note:

• Available channels vary by the country (refer to page 79 ).

95

WEP setup wizard

KEY SIZE (encryption key size)

Set the size of the key required for the encrypted communication.

Conform to the setting of the personal computer and the access point. In some cases, 64 bits may be indicated as 40 bits and 128 bits as 104 bits.

Use and buttons to toggle the values and press the ENTER button when the setting is completed.

KEY ID (encryption key ID)

Specify the ID of the encryption key to be used.

Conform to the setting of the personal computer and the access point.

Use and buttons to select values and press the ENTER button when the setting is completed.

KEY (encryption)

Enter a 10-digit key for 64-bit and a 20-digit key for 128-bit using characters 0 to 9 and A to F.

Conform to the setting of the personal computer and the access point.

Use and buttons to select the value, use the and buttons to switch the digit and press the ENTER button when the setting is completed.

96

Installing a wireless card driver

Install a wireless card driver onto the personal computer in order to use the wireless card.

The following section describes the operation when using an optional wireless card (ET-CDWL1).

Fitting and removal of wireless card into/from personal computer

Insertion of wireless card

With the side of power monitor facing up, insert the card into the

PC card slot until it reaches the depth.

Pay attention to the difference between the up and down sides of the wireless card.

Personal computer

Notes:

• Refer carefully to the instruction manual supplied with the PC.

Wireless card

• Forcible insertion of the wireless card in a wrong direction may cause a fault.

Removal of wireless card

w

) shown on the task bar at the bottom right corner of the screen.

Note:

• If no PC card icon is appearing on the task bar at the bottom right of the screen, go to Start menu - Setting - Control panel, open PC card, click the Show control on the task bar check box, and then press the OK button.

Wireless Card.

wireless card.

97

Installing a driver

When the wireless card is inserted, the driver installation screen will appear. A driver is stored in the CD-ROM supplied with the projector. Use the following procedure for installation.

When installing a driver, the setting utility is installed automatically. Installation screen does not appear.

For Windows98SE

Note:

• The Windows98SE installation CD-ROM may be required when installing the driver.

New Hardware Wizard" appears. Press

"Next" button.

your device", and press "Next" button.

"NEXT".

the "Next" button.

Installation of the driver will be started.

98

Rebooting the PC completes the installation of the driver.

For WindowsMe

select "Automatic search for a better driver" and press the "Next" button.

For Windows2000

"New Hardware Found Wizard" appears.

Press the "Next" button.

my device", and press the "Next" button.

ROM drive of the PC, click the check box for "CD-ROM drive", and press the

"Next" button.

Card\English" in the CD-ROM.

99

"Next" button.

Installation of the driver will be started.

Installation of the driver will be completed.

For WindowsXP

Hardware Found Wizard" appears. Press the

"Next" button.

"Include this lacation in the search", click the "Browse" button and then select

"WirelessCard\English" in the CD-ROM drive for driver search location.

100

Settings of wireless card from "Menu", open "Advanced

Settings".

preserve the settings.

The initial value is set to Default .

Only alphanumeric characters and symbols are acceptable.

"Infrastructure" (Access Point):

Set Network name (SSID) to the same setting as the projector.

If the Communication mode is set to

"AdHoc" (Pseudo AdHoc):

Set the channel to the same number as the projector.

the projector:

Select the "WEP mode", and set it to the same settings as the projector and the access point.

64 (40) bit encryption

To enter an encryption key:

Characters: 5 characters

Hexadecimal numbers: 10 digits

Select a default key number from 1 to 4.

128 (104) bit encryption

To enter an encryption key:

Characters: 13 characters

Hexadecimal numbers: 26 digits

Select a default key number from 1 to 4.

Click the OK button to close the window.

101

Settings of personal computer

TCP/IP setting

For WindowsMe

icon and open "Properties".

Card", and click the "Properties" button.

segment as the one assigned to the projector.

mask assigned to the projector.

delete the gateway.

To communicate in "Infrastructure" mode, set a proper gateway.

After the entry, click the "OK" button to return to the previous screen.

setting procedure.

Rebooting the PC will establish the settings.

For Windows98SE

• To install the driver in a Windows98SE machine, refer to the procedures for

WindowsMe.

102

For WindowsXP

and open "Properties".

and open "Panasonic Wireless Card".

and click the "Properties" button.

segment as the one assigned to the projector.

mask assigned to the projector.

After the entry, click the "OK" button to return to the previous screen.

You do not have to restart the computer.

For Windows2000

• To install the driver for Windows2000, refer to the procedure for WindowsXP.

103

If two or more network devices are existent

For WindowsMe

and click "Properties" to open the

"System Properties" window.

the icon of the device you want to disable, and click the "Properties" button.

profile" checkbox and click the "OK" button.

disabled adaptors is marked with "X", click the "OK" button to close the window.

For Windows98SE

• To install the driver in a Windows98SE machine, refer to the procedures for

WindowsMe.

104

For WindowsXP

icon and select "Properties", and open the "Network connection" window.

want to disable and select "Disable".

you just disabled is gray, close the window.

For Windows2000

• To install the driver for Windows2000, refer to the procedure for WindowsXP.

105

Web browser control

What you can do with Web browser control

With the web browser, the user can access the projector for set-up using the projector control and handle the SD card data loaded in the projector using the SD control.

Settings of Web browser control

Settings of projector

w

and buttons to display the

"Option" screen.

Option set-up screen.

Settings can be altered with , , buttons.

and

Press the ENTER button when necessary changes are completed.

OPTION

SHUTTER

OSD

AUTO KEYSTONE

RGB/YPbPr

AUTO RGB IN

RGB2 SELECT

BACK COLOR

FRONT/REAR

DESK/CEILING

LAMP POWER

LAMP RUN TIME

NEXT PAGE ↓

SELECT:[

↑ ][ ↓ ]

OFF

OFF

RGB

OFF

INPUT

BLUE

FRONT

DESK

LOW

ENTER:[ENTER]

ESC :[MENU]

Web control

ON: Enables the web browser control.

OFF: Disables the web browser control.

Web power

ON: Allows the user to turn on the power of the projector using the web browser control.

OFF: Does not allow the user to turn on the power of the projector using the web browser control.

OPTION

BACK PAGE

FAN CONTROL

WEB CONTROL

WEB STANDBY

WEB PASSWORD

CONTROL KEY

FUNC1

STANDARD

OFF

OFF

OFF

MUTE

HIGH

ON

ON

ON

KEYSTONE

Web password

The user can set a password using up to 16 alphanumeric characters and symbols.

Use buttons to change letters, use

No password has been set as a factory default.

SELECT:[

↑ ][ ↓ ]

ADJUST:[

←][→] buttons to move the digit.

ENTER:[ENTER]

ESC :[MENU]

ON

ON

YPbPr

ON

OUTPUT

BLACK

REAR

CEILING

HIGH

10 H

Settings of personal computer and open "Properties".

setting", clear all the check boxes of options and click the "OK" button.

Click the "OK" button to close the set-up window.

Note:

• If the proxy server is already used, in "Advanced

Settings" set IP address of the connecting projector as an exception not to use the proxy server.

106

the "Default level". Or otherwise, from

"Custom level" enable "Active script".

Note:

• For Netscape, go to “Edit”

→ “Setting” → “Details” and enable JavaScript.

Operation of Web browser control

Starting Web browser control

Start the browser (Microsoft Internet Explorer is used as an example here), and enter the IP address assigned to the projector.

Web browser control will be started.

Note:

• Web browser control can also be started from Wireless Manager 2.0.

While Wireless Manager 2.0 is running, right-click the icon shown on the task bar, select and left-click Remote Control .

Disable the use of the proxy server (to use the proxy server, refer to "Settings of

Web browser control" on page 106 ).

Specify the IP address that has been assigned to the projector in the network setting.

Select Japanese or English.

Enter the password if any has been defined.

Note:

In case you forget the password, assign a new password to the projector (For security reason, the projector does not show the password that you have been using).

Top screen

Note:

• The top screen may not be displayed depending on the browser. In that case, close the window first and start again the Web browser control, or press the "CLT" + "H" buttons at the same time.

107

Projector control

Click "Projector control" in the menu.

The user can make various settings of the projector.

Basic control screen

Notes:

• When the power is turned ON, the window is closed for the moment. Then, confirming that the light is turned on, start operation again from the top screen.

• Connection with the projector cannot be established just after turning on the power. In this case, wait for a while and try connection again.

• If Web control is not turned ON in the option setting of the projector, neither basic control nor option control will operate.

• Web power is not turned ON in the option setting of the projector, it will not be powered on. However, the projector control screen will display still the same content as shown when the projector operates normally.

Option control screen

Note:

• If the projector does not work as controlled, ensure that the Web control is set to ON in the Option menu.

Monitor information screen

Note:

• Monitor information is updated at regular intervals. If you go to "Display" and press the "Refresh" button, you can check the current and accurate information.

108

SD control

RGB) button of the projector or the remote control.

It is also possible to switch to it on the basic control screen of the projector control.

SD file list screen

Select a folder in the SD card.

Select thumbnail display or file name list display.

Control auto-play.

Clicking a file name will zoom in on it within the Web browser.

Clicking Projection will display the file by on projector.

SD thumbnail screen

Clicking an image will zoom in on it within the Web browser.

Clicking "Projection" will display it on the projector.

Changing password

Click "Change password" in the menu.

The user can change the password.

Note:

• Up to16 characters can be used for a password.

Use alphanumeric characters and symbols to create a password.

Both upper and lower case letters can be used.

109

Wireless Manager 2.0

What you can do with Wireless

Manager 2.0

Wireless Manager 2.0 provides the following functions:

• To register multiple projectors that are on the network.

• To capture images on the computer screen and transmit them to the projector.

• To view the list of existing image files in the folder, from which the user can select the desired images and transmit them to the projector. In addition, the software also allows the user to enjoy automatic playback.

• To transmit image data onto the SD card inserted in the projector and stack images in advance. This function allows quick image switching.

Note:

• Wireless Manager 2.0 supports BMP, JPEG, and PNG image formats.

• Wireless Manager 2.0 cannot be used with the earlier model of PT-L712NTU.

Installation of Wireless Manager 2.0

Install the Wireless Manager 2.0 onto your PC.

The software is contained in the supplied CD-ROM.

Before installation

The software does not run on the computer that does not operate with

Windows98SE/Me/2000/XP.

Procedure of installation

Go on installation operation following the instructions shown on the screen.

110

Operation of Wireless Manager 2.0

Starting/ending Wireless Manager 2.0

Double-click the Wireless Manager icon.

Wireless Manager 2.0 startup screen is displayed and Wireless Manager icon stays resident on the task bar.

Right-click the icon displayed on the task bar, and the "Menu" appears. Choose and left-click a desired item, and it will be displayed on the screen.

To quit Wireless Manager 2.0, right-click the task bar and select "Exit" from the menu.

When a confirmation message is displayed, click

"Yes".

Note:

• Wireless Manager 2.0 can also be launched from Image Creator 1.0.

From the Image Creator window, click Launch

Wireless Manager button (A).

If the images have been stored using Image

Creator 1.0 in advance, an image list window appears after the start of Wireless Manager

2.0, followed by the thumbnail display of images stored using Image Creator 1.0.

A

Registration of projector

In addition to the current projector, the user can register multiple projectors to which images will be transmitted.

B

bar and choose "Option".

"Option" screen is displayed.

choose "Select the destination receiver".

C

111

If another projector exists on the same network as the one for the PC onto which Wireless Manager 2.0 has been installed

A "Searching Projectors" screen is displayed. To cancel the search, click the

"Cancel" button.

When the search is completed, a list of projectors connected to the network will be displayed.

transmitted and click the "Register" button.

Note:

• If no projector is found on the network, a "No projector is found" message is displayed. Check the network setting of the PC in use and the projector setting.

If no projector does not exist on the same network as that for the PC onto which Wireless Manager 2.0 has been installed, or when a projector is to be registered manually click the "Register" button.

The projector will be registered in the list of projectors to which the image data is to be transmitted.

If the specified projector is not found on the network, a "The projector was not detected" message will be displayed.

If you want to cancel the registration, click the

"Cancel" button.

image data is to be transmitted.

Image data can be transmitted onto the SD card inserted in the projector.

Ten folders are provided on the SD card to receive the transmitted image data.

Click the pull-down key of the "Folders in SD" and choose a folder to which images are to be transmitted from folders displayed.

image data is to be transmitted.

Image data cannot be transmitted unless a projector is selected.

This will establish the setting.

To abort the setting, click the "Cancel" button.

112

To capture and transfer the image of PC screen

The user can capture the screen currently displayed on the PC monitor and transmit it to the projector or saved it in the PC.

Before transmitting an image

It is necessary to switch the input of the projector before sending an image to the projector by Wireless Manager.

Switch to "NETWORK" using the input selector

(INPUT, RGB) button of the projector or the remote control.

NETWORK

Functions on the "Capture" window

When you right-click the icon on the task bar and choose "Capture", the "Capture" window is displayed.

1. "Full screen" button

A full screen of the PC is captured.

The screen is kept blank during the image capture process and it will be displayed again when the capture is completed. The captured image is displayed on PictureBox.

The process during the capture is displayed in scheduled process window (8).

For details of the setting of the process during the capture, refer to "Capture" in the option screen.

1

2

8

5

3

2. "Area" button

The user can specify an area on the PC screen and capture the image within the area.

The "Capture" window is kept blank during the area definition process. Use the mouse to clip the area to be captured. When the clipping is completed, the image is captured and displayed in the PictureBox of the "Capture" window.

6 7

4

3. "Scope" button

A specified window on the PC monitor can be captured as an image.

The image will be captured when the Scope button is dragged with the mouse and dropped on the desired window to be captured.

4. "Transmission" button

The image displayed in the PictureBox of the "Capture" window is transmitted to the projector.

For details, refer to "Registration of projector".

5. "Full size" button

This button toggles the "Capture" window between the full size and the minimum size.

6. "Option" button

The user can define the conditions for capturing an image.

On the Option screen, the user can specify the type of capture format, after-capture processing and the delay time for capturing.

113

Note:

• Images can be captured in three different formats (PNG, JPEG, BMP).

• As for JPEG, data compression ratio can be optionally specified.

• For the process after the capture, the user can choose either capturing and transmitting the screen or saving the image.

• If capturing and transmitting the screen is selected, the image is transmitted to the projector immediately after the capture. In this case, the indication in Window 8 will be "The image will be transmitted when it is captured".

Uncheck this option if you want to transmit the captured image after verifying it.

If saving the image is selected, the captured image will be saved in the specified folder.

In this case, "Capture only" is displayed in part 8.

• The image is saved in the format specified in the capture format.

• The delay time for capture can be set when the image you want to capture is not displayed immediately.

• The range of delay time setting is 1 to 30 seconds.

This value depends on the hardware of your PC as well as the operating applications. Try to capture several images into your PC to determine the best value to choose.

7. "Close" button

This button quits the "Capture" window.

Transfer of image stored in the personal computer

The images stored in the PC can be transmitted to the projector.

The functions on "Image List" screen

When the user right-click the icon on the task bar and choose "Image List", the

"Image List" appears.

1

17

16

13

4

9

8

14

7 5 10 6 11 2 3 12 15

1. Choosing an image folder

Specify the folder to manage those images to be transmitted to the projector.

If the specified folder contains some images, they are displayed in the thumbnail display section (17).

2. "Add" button

An image will be added to the folder selected in the image folder (1).

Choose the image you want to add and click "Open".

The images will be added in the frame next to the last one of thumbnail display section (17).

114

3. "Delete" button

Image files selected in the thumbnail display section (17) will be deleted.

A message will be displayed to confirm the deletion. Choose "Yes" to delete, or

"No" to cancel.

Note:

• The deleted image files reside in the Recycle Bin. Any of them can be retrieved from the bin if you accidentally delete them.

4. [Transmission] button

Image files selected in the thumbnail display section (17) will be transmitted to the projector.

If you want to cancel the transmission, click the "Cancel" button.

5. Automatic display

Images shown in thumbnails (17) will be replayed automatically.

The image currently selected, shown in the preview screen (16), will be first displayed in automatic display mode.

To cancel transmission, click the "Cancel" button.

If you want to stop the automatic display, click the "Stop" button (7).

When the automatic display comes to an end, the top image will be selected.

For details of the advanced setting in automatic display, refer to the Paragraph 14 "Options".

In presentation mode, the personal computer uses the projector exclusively so that images cannot be transferred from other PCs.

6. Transfer to SD

All images shown in thumbnails (17) will be transferred to the SD card inserted in the projector.

To cancel the transfer, click the "Cancel" button.

This function is not available during automatic display.

7. Stop

This suspends the automatic display currently performed.

Then the top image of in thumbnails (17) will be selected.

8. Presentation mode

During a presentation, choose this option to disable operation of sorting, adding and deleting of images.

This mode will be cancelled when the order of images is changed.

In presentation mode, the personal computer uses the projector exclusively so that images cannot be transferred from other PCs.

9. Previous image

This function selects the previous image in the thumbnails (17).

Selection of this function is ignored the top image is currently selected.

10.Next image

This function selects the next image in the thumbnails (17).

Selection of this function is ignored the last image is currently selected.

11.Re-display

The images in the folder that is selected in image folder setting (1) will be displayed again in the thumbnail display area (17).

Thumbnails will be displayed in the same order as the previous one. The registered new images such as the ones written into the folder with Explorer etc.

will be added to the last of thumbnails in turn.

This function is not available when the system is in automatic display mode.

Use this function when thumbnails are displayed in a wrong manner.

115

12.Display switching

Switch the way to show images in the thumbnail display area (17).

You can toggle between a mode of 4-row 4-line thumbnail display on the page and a mode of full-size display of the image.

If the full-size mode is selected, the same image will be displayed as the one currently projected.

13.Start (stopwatch function)

When you click the "Start" button with the mouse, the timer starts counting, the elapsed time is displayed and "Stop" is shown on the button.

When you click the "Stop" button, the timer stops and "Reset" is displayed on the button.

When you click the "Reset" button, the elapsed time is cleared to zero and "Start" is displayed on the button.

14.Options

The user can make the setting of the shortcut keys and the operation mode of the automatic display.

• Setting of the shortcut keys

"Transmit full-screen": transmits the entire image on the PC screen.

"Image list": displays an image list window.

"Capture": displays a capture window.

• Setting of the automatic display mode

"Number of loops": specifies the times of automatic display cycle to be repeated. Choose from 1 to 10 or continuous.

"Interval": specifies the interval time for transmitting images during automatic display. Choose from 10 to 600 seconds.

Click the "OK" button to save the above settings. Click the "Cancel" button to cancel.

15.Close

The image list window will be closed.

16.Preview screen

If thumbnail display has been selected, the same image as the one transmitted to the projector will be displayed.

If zoom or full-size image has been selected, the image to be transmitted next

(the selected one) will be displayed.

17.Thumbnail display

This function displays 4-row 4-line thumbnails on the page. Any thumbnail shown in this area can be moved to a different location by drag-and-drop operation.

Clicking the Display switching button (12) will toggle between the mode of 4-row

4-line thumbnail display on the page and the mode of full-size display of the image.

Any image file can be added from Explorer by drag-and-drop operation.

Up to 1000 thumbnails can be displayed. If more than 1000 thumbnails are found, an error message will appear. Even when this error occurs, at least the 1000 thumbnails will be displayed.

116

Major examples of usage

Basic usage want to transmit to the projector.

Automatic display in predefined sequence want to replay.

Choose images and change the display order by drag-and-drop mouse operation.

the projector in the sequence defined above.

The number of repetitions of automatic display and the interval time of the display should be specified in advance.

Quick-changing presentation using SD card you want to replay.

the projector.

project the image data that has been transferred to the projector keeping in step with the presentation.

Conference using multiple personal computers conference from the multiple personal computers.

browser control) and the "Capture" window depending on the situation, transmit the selected images to the projector.

Image list

The images to be displayed are transferred to the projector from the folder that contains the prepared images.

Remote control

The image data saved previously on the SD card is projected from the remote control window.

"Capture" window

Whole or part of the PC screen is captured and transferred to the projector.

The operation mode after the capture should be specified in the option in advance.

117

Image Creator 1.0

What you can do with Image Creator 1.0

The following lists the functions that Image Creator 1.0 provides.

To convert a PowerPoint file (with a .ppt extension) into a DCF-compliant

JPEG or PNG image file.

The PC that converts the file must have PowerPoint97/2000/2002 installed in it.

To convert JPEG, BMP, TIFF and PNG images to DCF-compliant JPEG or

PNG images.

To change the image size or compression ratio.

XGA SXGA SVGA XGA XGA

To sort the images.

A B C B

To write to the SD card, the hard disc and the MO etc.

8

MB

C

XGA

A

118

Installation of Image Creator 1.0

Install the Image Creator 1.0 onto your PC.

The software is contained in the supplied CD-ROM.

Before installation

The software does not run on the computer that does not operate with Windows98SE/Me/2000/XP.

Procedure of installation

Go on installation operation following the instructions shown on the screen.

Operation of Image Creator 1.0

Starting/ending Image Creator 1.0

To start Image Creator 1.0, go to the "Start" menu at the bottom left of the screen, and choose "Program". This operation will start

"IMAGE CREATOR Ver.1.0".

To quit Image Creator, press the "Exit" button on the control screen.

Functions on the main screen

When you launch Image Creator, the main screen will appear as shown in the diagram on the right.

The functions on the main screen are as follows:

1. "File" menu

"Capture slides", "Capture an image",

"Convert and save" and "Exit" are available in this menu.

4

1 2 3

2. "Settings" menu

This menu allows you to use change of

"JPEG conversion format" (saving in DCF format, making thumbnails) and adjust of

5

6

7

"JPEG quality" (low-quality or highquality).

8

3. "Version information"

You can check the version of "Image Creator 1.0 software".

10

11

9

4. "Capture slides" button

Presentation files created with Microsoft PowerPoint are captured into Image

Creator 1.0.

5. "Capture images" button

Image files created with other applications (either in JPEG, BMP, TIFF, PNG format) are captured into "Image Creator 1.0".

6. "SD card/Other folder" selection

Here select the destination of captured image files.

119

7. "Convert and save" button

Files will be converted into the specified format (automatic, JPEG or PNG conversion) and size, and saved into the destination selected in (6).

8. "Launch Wireless Manager" button

Wireless Manager 2.0 will be started.

(Once it is started, it will be minimized on the task bar. To operate the function, right-clicking the icon with the mouse.)

If the images have been stored using Image Creator 1.0 in advance, an image list window appears after the start of Wireless Manager 2.0, followed by the thumbnail display of images stored using Image Creator 1.0.

9. Thumbnail display

The images captured into Image Creator 1.0 are displayed in reduced size. They can be sorted or deleted by right clicking with the mouse.

10."Exit" button

Quits Image Creator 1.0.

11."Close" button

Quits Image Creator 1.0.

Converting and saving captured images

When you press the "Convert and save" button on the Image Creator main screen, a setting window will appear as shown in the diagram on the right.

1. "Slide" button

This button switches the display of image files captured into Image Creator.

1 8

2. "Compression format" setting

Specify the compression format in which the files are saved (AUTO, JPEG and PNG are available).

If AUTO is selected, the file is automatically converted into either JPEG or PNG format.

Note:

• If the file would be more compact in PNG format, this format will be selected for saving.

2

3

4

5

6 7

3. "Convert and screen size" setting

Specify the screen size of the file to be saved.

4. "Current image" button

Currently selected image file will be saved in the specified compression format and screen size onto the SD card or into other folders. The name of the saved file will be generated automatically.

5. "All image" button

All image files captured into Image Creator are saved in the specified compression format and screen size onto the SD card or into other folders. The name of the saved file will be generated automatically.

6. Slide display

The currently selected image file will be displayed.

7. "Stop/Exit" button

This button stops converting and saving process and closes the screen. If you press this button when converting or saving is in progress, the remaining process will be stopped and the screen will be closed.

8. "Close" button

This button stops converting and saving process and closes the screen. If you press this button when converting or saving is in progress, the remaining process will be stopped and the screen will be closed.

120

Capturing presentation files created with Microsoft

PowerPoint97/2000/2002 files you want to capture.

An "Open" screen will appear as shown in the diagram. Using "File locations" menu and folder icons, move to the location where you can find the desired presentation files for conversion.

Select the desired files and press "Open" button.

Thumbnails will be displayed when the files are captured.

Note:

• Only presentation files saved in PPT format (with a .ppt extension) can be captured. A file saved in other format (e.g. a file with a .pps extension) should be opened with PowerPoint and saved in PPT format.

to save the captured image files onto the SD card or other folders.

To capture all slides in a presentation file, press the "Capture all" button. To capture individual slides you like one by one, press

"Previous slide" or "Next slide" button to display the slide you want to capture and press the "Capture" button. When the capture is completed, press the "Stop/Exit" button.

Note:

¡ Press the "Stop/Exit" button if you want to stop the process of "Capture all".

¡ The aspect ratio of captured slides will be converted to 4 to 3. It is not recommended to capture the slides whose ratio is not 4 to 3 because they will not be reproduced correctly.

¡ Some slides created with PowerPoint97 may cause an error during their converting process. If this occurs, you can solve the problem by converting the slides with the PC that has PowerPoint2000 installed.

Capturing JPEG, BMP, TIFF or PNG files created with other applications

Press the "Capture images" button and select the images or folders you want to capture.

A file search screen will appear as shown in the diagram. Select the image files you want to convert and press the "Open" button.

If you press "Capture all" button, all image files in the folder currently opened will be captured.

Images not to be captured

The following images cannot be read even if they are in JPEG, BMP, or TIFF format:

• Images with more than 10,000 dots vertically or horizontally.

• BMP images compressed in RLE format

• TIFF images compressed in LZW format

• JPEG or TIFF images in CMYK (Cyan, Magenta, Yellow and Black).

121

Capturing files by drag-and-drop operation

"Image Creator 1.0" supports drag-and-drop operation. When you choose a file or a folder to be converted and drag and drop it on the shortcut icon or the window of the application, Image Creator 1.0 starts automatically and the file(s) are captured.

Drag and drop onto the shortcut icon.

Drag and drop into the window.

Sorting images

Drag the desired image to move and drop it in the desired location.

A green bold line is shown vertically between images.

Release the mouse button on the desired location, and the image will move there.

Note:

• You can also move images on the "Sort images" setup screen. To display the screen, right-click to display the sub-menu and choose "Sort... ".

Deleting images

If you click on images while depressing the

CTRL button, multiple images will be selected. If you click on different images while depressing the SHIFT button, all images between the two images will be selected.

menu and select "Delete from the list".

If you choose "Delete all images from the list", all captured images will be deleted.

The images will be deleted from the thumbnail display.

Note:

• The original images will not be deleted even captured images are deleted.

Setting how to convert images when saving

You can specify how to convert images when saving images onto the SD card or into other folders on the "Setup screen" displayed by choosing "Setup" from the "Setup" menu or on the "JPEG quality" adjustment slide bar on the main screen.

122

JPEG conversion format

If you select this check box with " ", the file and directory names will be converted into DCF format upon saving. If the " " mark is not given, files will be saved in the name shown under each image on the thumbnail screen.

For details of DCF standard, refer to "DCF standard" on page 124 .

Note:

• When a file is saved onto the SD card, it is forcefully converted into DCF format.

"Create a thumbnail" check box

If you select this check box with " ", a reduced image

(i.e., a thumbnail) will be created in JPEG format and embedded into the image file upon saving.

Note:

• When a file is saved onto the SD card, a thumbnail is forcefully created.

"JPEG quality" adjustment slide bar

You can adjust the quality (compression ratio) of a

JPEG image to be saved using "Save to the SD card" or

"Save to the other folder" button.

If you choose higher quality, a file becomes larger; if you choose lower quality, a file becomes smaller. (The size of the lowest quality file is about one fifth of that of the highest quality.)

Note:

• The JPEG format is suitable for natural pictures such as photographs. For presentations created with PowerPoint and illustrations made with graphic software, there may be significant loss of picture quality even if you choose a higher quality.

Saving to other folder (directory)

With the "Save to other folder" button, you can save captured images onto the hard disk of your PC or onto MO disk or others.

Choose "Save to other folder" on the main screen of the Image

Creator and select a destination folder.

A "Specify the destination" screen will appear as shown in the diagram. Using "File location" menu and folder icons, move to the folder where you can find the desired file to save, and open the folder and press the "Save" button.

Note:

¡ You can create a new folder using the "Create New Folder" button ( ).

123

DCF standard

DCF standard has the following requirements:

Directory (folder) name

Directories must be created under a DCIM directory.

• Data located in directories other than "DCIM" directory is not recognized.

A directory name must be made of "a three-digit number (directory number) + 5 alphabets" (e.g. 100abcde).

• Numbers between 100 and 999 can be used for a three-digit number and 37 different characters can be used for 5 alphabets including 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, a, b, c, d, e, f, g, h, i, j, k, l, m, n, o, p, q, r, s, t, u, v, w, x, y, z, _(under bar). (The name is not case sensitive. Double-byte characters cannot be used.)

Multiple directories with the same three-digit number (directory number) cannot be created.

Layering of directories is not supported.

File name

A file name must be made of "4 alphabets + a four-digit number (file number) + .jpg

(extension)" (e.g. abcd0001.jpg)

• 37 different characters, including 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, a, b, c, d, e, f, g, h, i, j, k, l, m, n, o, p, q, r, s, t, u, v, w, x, y, z, _(under bar) can be used for 4 alphabets and numbers between 0001 and 9999 can be used for a four-digit number. (The name is not case sensitive. Double-byte characters cannot be used.)

Multiple files with the same four-digit number (file number) cannot be created in the same directory.

File format

Only Exif2.1-compliant JPEG image is supported.

124

Message List

ERR 03 Incompatible wireless card

Before placing an repair order

Please make sure of the following:

Symptom Please check:

The computer does not recognize the SD card.

• Is the PC card adapter inserted into the PC card slot of the PC until it reaches the end?

• Is the SD card inserted into the SD card slot of the PC card adapter until it reaches the end?

• Is the driver installed?

• Are there sufficient IRQ (interrupting signal) numbers? (Refer to the online help of Windows.)

Writing cannot be performed.

• Is the write-protect switch of the SD card set to "LOCK"?

The image from the

PC is not displayed.

• Is the external video output of the notebook computer properly selected? (In some cases, the setting of the output is changed if Fn and F3 buttons are pressed simultaneously. Since this depends on the model, refer to the instruction manual supplied with your PC.)

The PC does not recognize the wireless card.

• Is the wireless card inserted into the PC card slot of the PC until it reaches the end?

• Is the driver installed?

• Are there sufficient IRQ (interrupting signal) numbers? (Refer to the online help of Windows.)

Transfer rate has become lower.

• If WEP is enabled, transfer operation takes a longer time because the image data needs to be converted.

• If another wireless device uses the same channel, the transfer rate may become lower. Select other channel for setting.

"Projector search" of the Wireless Manager

2.0 does not detect the projector.

• Immediately after the projector is turned on, it is on the way to establish the network communication. Perform the search again after a while.

• Check whether the distance is too far between the PC and the projector, or if any obstacle between is making the radio waves unstable.

• Make sure that the IP address and the subnet mask are correctly assigned.

• Is TCP/IP installed in your personal computer?

• Does the WEP setting correspond with that of the projector?

Communication with the projector cannot be established if the WEP function was enabled when a third-party wireless card was used or the access point was used. Disable the WEP function.

• In the Ad Hoc mode, use the same channel setting for the projector and the PC.

• In the Infrastructure mode, use the same setting for the projector and the PC as the access point "SSID". Alphanumeric characters (case sensitive) can be used for an SSID. Make sure that the user is not using the function for controlling PCs that can communicate with the access point.

• Is any network device other than the wireless card enabled? Check with the device manager of Windows.

• Is any proxy-client software operating? Disable it when communicating with the projector.

125

Symptom

Although an image is displayed on the

"Image list" screen of the Wireless Manager

2.0, an error message appears saying that this image cannot be displayed.

Colors are not displayed properly with Wireless

Manager 2.0 and it is hard to read characters.

Please check:

• There are several different formats in JPEG and PNG images and some of them cannot be displayed.

• Right-click the space on the desktop and choose "Properties". On the

"Display Properties", open the "Settings" tab and set "Colors" to

"High Color [16 bit]" or higher.

126

Explanation of terms

LAN

Abbreviation for Local Area Network. A network which is small in scale, such as an intra-company network. Both wired LANs and wireless LANs can be found. This projector uses a wireless LAN.

TCP/IP

Abbreviation for Transmission Control Protocol/Internet Protocol. The standard protocol for the Internet.

A protocol is a set of specifications and agreements which allow two computers to communicate with each other.

IP Address

An Internet Protocol (IP) is a protocol used for the transmission of data, and the IP address is the address of the destination where the data is being sent to. Identical IP addresses cannot be used for two different devices within the one LAN.

Subnet Mask

Limits the range of IP addresses that can be assigned to a computer when using a

TCP/IP connection, in order to allow a network to be divided into several subsections. The parameters which divide the sub-network in this way are called the subnet mask.

Gateway

A junction point where different types of networks are connected to each other.

It is used to refer to the hardware and software which is used when connecting a particular network to another network which has been set up under different network specifications. It makes adjustments for differences in the protocols used by the two networks and makes it possible to connect to other networks.

DHCP

Abbreviation for Dynamic Host Configuration Protocol. A function which automatically assigns IP addresses to each computer that is connected to a network. If a device which functions as a DHCP server is located within a LAN, this device automatically assigns IP addresses to computers which are connected to the LAN. Not available with this product.

Ad Hoc Mode

A mode for direct communication between the projector and a computer with an optional wireless card.

Infrastructure Mode

A mode for communication via an access point which is connected to a wired LAN.

A computer without an optional wireless card can still be used to send images to the projector via an access point.

Access Point

A point of connection between a wired LAN and a wireless LAN.

127

Channel

If several access points which use the same frequency band are located near each other, radio transmission interference between these access point can occur when they are being used, and this can in turn result in drops in transmission speeds. In order to reduce this problem when using wireless LANs, the frequency band can be divided into 11 channels for communication purposes. (The number of channels varies depending on the country.) However, because interference between adjacent channels can occur, the channels available for use are normally spaced 2 or 3 channels apart from each other.

SSID

Abbreviation for Service Set ID. Wireless LANs that utilise access points require the setting of SSID identification codes in order to distinguish between devices which are a part of the LAN and devices which are not.

Wireless LAN cards of some manufacturers use the name of “ESSID” or “Network name” instead of SSID.

WEP

Abbreviation for Wired Equivalent Privacy. A method of encrypting transmitted data.

An encryption key is generated and is given only to the person who will be using the transmitted data, in order to prevent third parties from decoding the transmitted data.

Not available with this product.

JPEG

Abbreviation for Joint Photographic Experts Group. JPEG is the name of an international organisation which was jointly established by the ISO and the ITU-TS

(formerly the CCIT), but the term is normally used to refer to the specifications for the still picture compression algorithm which was formulated by the JPEG. This algorithm allows still images such as photographs, single frames of moving images and scanned images to be compressed to up to 1/100th of their original sizes. However, images which are compressed in this way cannot be fully restored to their original quality (some deterioration in quality occurs), so that compression rates of 1/5 to 1/30 are normally used. Because of differences in color separation, two format sub-types are used: RGB (red, green and blue) and CMYK (cyan, magenta, yellow, black).

The projector and the Image Creator 1.0 software do not support the CMYK sub-type of JPEG file.

BMP

Abbreviation for BitMaP. This is the standard image format for the bitmapped files

(image files consisting of a collection of dots) which are handled by Windows.

Color levels of monochrome, 16 colors, 256 colors and 16.7 million colors are supported.

PNG

Abbreviation for Portable Network Graphics.

A high compression rate file format that provides restorable compression for line raster images.

Because it uses restorable compression, it does not result in any loss of image resolution unlike JPEG.

128

RLE

Abbreviation for Run Length Encoding. It can be used to achieve high rates of compression for image files which contain large areas of a single color. RLE can be used with monochrome, 16-color and 256-color BMP image files. (Image Creator 1.0

does not support files compressed using RLE.)

TIFF

Abbreviation for Tagged-Image File Format. This type of file is used to exchange documents between computers. Color levels of monochrome, 256 colors and 16.7

million colors are supported. TIFF files in 16.7 million color format can include transparent color.

LZW

Abbreviation for Lempel-Ziv-Welch. LZW is a compression method used for TIFF files, and is named thus because it was developed by three people named Lempel,

Ziv and Welch. It compresses the files by converting patterns within the images into short codes. There is no deterioration in image quality resulting from compression, but high rates of compression which are comparable to JPEG files cannot be expected to be obtained. (Image Creator 1.0 does not support files compressed using

LZW.)

DCF

Abbreviation for Design rule for Camera File system. DCF is a standard which was established by the Japan Electronic Industry Development Association (JEIDA) with the aim of realising a common image file format, directory name format and file name format for the images used with digital still cameras. It is based on recommendations such as Exif Version 2.1.

Exif 2.1

Abbreviation for Exchangeable Image File Format. This is an image file format which was established by the Japan Electronic Industry Development Association (JEIDA).

It defines the common information format and range of application for images used with digital still cameras, centring around TIFF and JPEG-format images. Version 2.1

is the latest version of the Exif standard.

PowerPoint

Application software for creating presentations which is included as part of Microsoft

Office. 95, 97, 2000 and 2002 versions are available, but the Image Creator 1.0

software which is bundled with the projector is only compatible with the 97, 2000 and

2002 versions.

129

Trademark Information

• The SD logo is a trademark.

• Windows and Powerpoint are trademarks or registered trademarks of

Microsoft Corporation in the United States of America and other countries.

• Macintosh and Mac are registered trademarks of Apple Computer Inc.

• All other model names, company names or product names are trademarks or registered trademarks of their respective owners. TM and (R) symbols identifying trademarks and registered trademarks are not otherwise used throughout this manual.

ATTENTION

• Unauthorized use or reproduction of this software or this manual in full or in part is strictly forbidden.

• Panasonic assumes no responsibility for any results or effects arising from the use of this software and this manual.

• The specification for this software and the contents of this manual are subject to change without prior notice.

130

Ce que vous devez savoir

Attention

Cet éuipement a été soumis à des tests qui ont démontré que celui-ci respectait les limites spécifiées pour les appareils numériques de la classe B aux termes de la partie 15 des règles de la FCC (Federal Communications

Committee U.S.A.). Ces limites ont pour objet de fournir une protection raisonnable contre les interférences nuisibles dans le cas d'une installation en milieu résidentiel. Cet équipement produit, utilise et peut rayonner de l'énergie de haute fréquence, et s'il n'est pas installé et utilisé conformément aux instructions fournies avec celui-ci, peut provoquer des interférences nuisibles aux communications radio. En outre, même en cas d'utilisation conforme, il n'est pas garanti qu'aucune interférence ne saurait survenir avec certaines installations. Si cet équipement s'avère nuire à la bonne réception d'émissions de radiophonie ou de télévision, ce que l'on pourra déterminer en mettant l'équipement successivement hors tension puis sous tension, il est conseillé de tenter de remédier au problème par l'une des méthodes suivantes :

• Réorientez ou déplacez l'antenne du récepteur ;

• Éloignez l'équipement du récepteur ;

• Branchez l'équipement dans une prise de courant située sur un circuit autre que celui qui alimente la prise de courant du récepteur ;

• Demandez conseil à votre distributeur ou à un technicien de radio/télévision expérimenté.

Déclaration de conformité

Modèle n°: PT-L730NTU

Désignation commerciale:

Fabricant responsable:

Adresse:

Matsushita Electric Corporation of America.

One Panasonic Way, Secaucus, New Jersey

07094, U.S.A.

Téléphone: 1-800-528-8601

Cet appareil est conforme à la partie 15 des règles de la FCC (Federal

Communications Committee U.S.A.) ce qui signifie : (1) que l'appareil ne produit pas d'interférences nuisibles, et (2) que l'appareil est capable de supporter sans danger les interférences reçues, y compris celles susceptibles de perturber son fonctionnement.

131

Consignes de sécurité

AVERTISSEMENT

Garder la carte de méoire SD hors de portée des enfants en bas age et des jeunes enfants.

• Si la carte de méoire est avalée, cela peut causer la mort par suffocation.

Si l'n pense que la carte de méoire a pu être avalée, consulter un médecin immédiatement.

Attention

Veillez à n'insérer aucun corps étranger dans le logement pourcarte du projecteur.

• Vous risqueriez d'endommager le projecteur. En outre, vous pourriez aussi endommager la carte de radiocommunication en l'insérant dans son logement alors qu'un corps étranger s'y trouve déjà.

À propos de la carte de radiocommunication et du projecteur

Attention

Avant de toucher la carte de radiocommunication, assurez-vous de mettre votre corps en contact avec une masse reliée à la terre afin d'en dissiper les charges d'électricité statique qui risqueraient d'endommager la carte.

• Les décharges d'électricité statique transmises par le corps humain risquent d'endommager la carte de radiocommunication. Pour décharger votre corps à la terre, vous devez toucher une masse métallique telle qu'un châssis de fenêtre en aluminium ou une poignée de porte métallique.

Ne tentez pas d'installer la carte de radiocommunication ailleurs que dans le logement prévu à cet effet dans le projecteur.

• Vous risqueriez d'endommager la carte ou l'autre appareil.

132

Fréquences radio utilisées par la carte de radiocommunication

La carte de radiocommunication fournie (en tant qu'accessoire) et la carte de radiocommunication optionnelle (référence ET-CDWL1) émettent et reçoivent des fréquences dans la bande des 2,4 GHz. Aucune autorisation spéciale n'est nécessaire pour pouvoir émettre avec cette carte de radiocommunication, cependant vous devez comprendre les points suivants avant d'utiliser une carte de radiocommunication.

N'utilisez pas ces cartes près d'un autre appareil

émettant des ondes radio.

Les types d'appareils suivants sont susceptibles d'utiliser les mêmes fréquences que la carte de radiocommunication. Si vous utilisez votre carte près de l'un de ces appareils, vous risquez de perturber, de brouiller ou de ralentir les communications de ces appareils.

• Équipements industriels, scientifiques, médicaux, etc.

• Fours électriques, etc.

• Dispositifs radio intégrés destinés à l'identification d'équipements mobiles sur des chaînes de production industrielles.

• Certains appareils radio à faible consommation électrique.

Maintenez la carte de radiocommunication à bonne distance d'appareils tels que télévhones portables, télépiseurs et radio en cours d'utilisation.

Les appareils tels que télévhones mobiles, télépiseurs et postes de radio utilisent des fréquences différentes de celles de la carte de radiocommunication, si bien qu'ils ne risquent pas de brouiller les communications de carte de radiocommunication. En revanche, les ondes

émises par la carte de radiocommunication peuvent perturber la réception vidéo ou audio de ces appareils.

Les ondes radio émises par la carte de radiocommunication ne sont pas capables de traverser les structures d'acier, les plaques de tôle ni le béton armé.

Les ondes radio de la carte de radiocommunication traversent facilement les matériaux comme le bois ou le verre (excepté les vitres incorporant un grillage métallique d'armature), si bien que la communication peut facilement se faire au travers de murs et de planchers faits de ces matériaux. Mais les ondes radio de la carte de radiocommunication ne traverseront pas les armatures d'acier, les plaques de tôle et le béton armé, si bien que la communication ne pourra pas se faire au travers de murs ou de planchers faits de ces matériaux.

133

Canaux disponibles

Les canaux (fréquences) utilisés par la carte de radiocommunication dévendent de la région du monde ou du pays dans lequel la carte est destinée à être utilisée. Le tableau ci-dessous donne le détail de ces bandes de fréquences.

Pays / Région

Japon

Agrément

Dernier chiffre du n° de la carte*

ARIB

STD33 &

T66

1

Canaux utilisés

1~14

Bande de fréquence

2,412 MHz~

2,484 MHz

États-Unis FCC part 15 2 1~11

2,412 MHz~

2,462 MHz

Canada

Taiwan

IC

DGT

Malaisie

Royaume-Uni,

Allemagne, France,

Italie, Belgique,

Autriche, Suède,

Norvège, Danemark,

Suisse, Hollande,

Finlande, Portugal,

Grèce, Thaïlande,

Corée, Australie et

Nouvelle-Zélande

SIRIM

ETSI

300.328

3 1~13

2,412 MHz~

2,472 MHz

Espagne

Singapour

ETSI

300.328

IDA

4

5

10,11

10~13

2,457 MHz~

2,462 MHz

2,457 MHz~

2,472 MHz

* Pour vérifier la région d'utilisation prépue de la carte de radiocommunication que vous avez achetée, examinez le dernier chiffre du numéro de produit qui figure sur l'étiquette apposée au dos de la carte, à l'endroit illustré ci-contre.

Remarque:

Votre carte de radiocommunication ne doit pas être utilisée dans d'autres pays que celui dans lequel elle a été achetée.

En tentant de l'utiliser dans un autre pays, vous risqueriez de vous placer en infraction par rapport à la législation ou réglementation concernant les émissions radio.

N5HBD0000002

134

ATTENTION

• Toute utilisation ou reproduction, même partielle, de ce logiciel ou de ce manuel est strictement interdite.

• Panasonic ne saurait être tenue pour responsable d'aucun dommage ou préjudice lié à l'utilisation de ce logiciel ou de ce manuel.

• Les caractéristiques techniques du logiciel et le contenu de ce manuel sont sujets à modifications sans préavis.

Professional/Industrial Video

Panasonic Broadcast & Television Systems Company

Division of Matsushita Electric Corporation of America

3330 Cahuenga Blvd West Los Angeles, CA 90068 (323) 436-3500

Technical Support:

(800) 222 -0741

E-Mail: [email protected]

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3 (905) 624-5010

M0502-

2082

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
