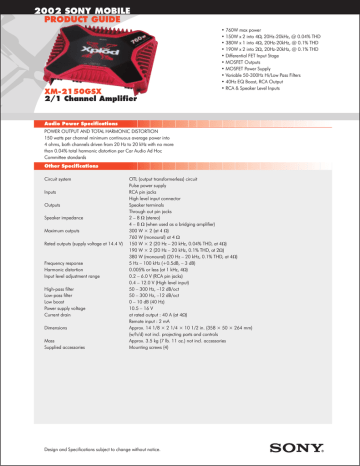

2002 SONY MOBILE
PRODUCT GUIDE
XM-2150GSX
2/1 Channel Amplifier
• 760W max power
• 150W x 2 into 4W, 20Hz-20kHz, @ 0.04% THD
• 380W x 1 into 4W, 20Hz-20kHz, @ 0.1% THD
• 190W x 2 into 2W, 20Hz-20kHz, @ 0.1% THD
• Differential FET Input Stage
• MOSFET Outputs
• MOSFET Power Supply
• Variable 50-300Hz Hi/Low Pass Filters
• 40Hz EQ Boost, RCA Output
• RCA & Speaker Level Inputs
Audio Power Specifications
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
150 watts per channel minimum continuous average power into
4 ohms, both channels driven from 20 Hz to 20 kHz with no more
than 0.04% total harmonic distortion per Car Audio Ad Hoc
Committee standards
Other Specifications
Circuit system
Inputs
Outputs
Speaker impedance
Maximum outputs
Rated outputs (supply voltage at 14.4 V)
Frequency response
Harmonic distortion
Input level adjustment range
High-pass filter
Low-pass filter
Low boost
Power supply voltage
Current drain
Dimensions
Mass
Supplied accessories
OTL (output transformerless) circuit
Pulse power supply
RCA pin jacks
High level input connector
Speaker terminals
Through out pin jacks
2 – 8 W (stereo)
4 – 8 W (when used as a bridging amplifier)
300 W × 2 (at 4 W)
760 W (monaural) at 4 W
150 W × 2 (20 Hz – 20 kHz, 0.04% THD, at 4W)
190 W × 2 (20 Hz – 20 kHz, 0.1% THD, at 2W)
380 W (monaural) (20 Hz – 20 kHz, 0.1% THD, at 4W)
5 Hz – 100 kHz (+0.5dB, – 3 dB)
0.005% or less (at 1 kHz, 4W)
0.2 – 6.0 V (RCA pin jacks)
0.4 – 12.0 V (High level input)
50 – 300 Hz, –12 dB/oct
50 – 300 Hz, –12 dB/oct
0 – 10 dB (40 Hz)
10.5 – 16 V
at rated output : 40 A (at 4W)
Remote input : 2 mA
Approx. 14 1/8 × 2 1/4 × 10 1/2 in. (358 × 50 × 264 mm)
(w/h/d) not incl. projecting parts and controls
Approx. 3.5 kg (7 lb. 11 oz.) not incl. accessories
Mounting screws (4)
Design and Specifications subject to change without notice.
2002 SONY MOBILE
PRODUCT GUIDE
XM-2150GSX
2/1 Channel Amplifier
Filter HPF/Off/LPF Select
Connections
40A Fuse
Left Speaker OUT
Low Boost Control
Hi Level Input
Input Level Control
Battery
Test Tone
Filter Frequency Select
Ground
Remote Input
Through Audio Output
Right Speaker OUT
Audio Input
Dimensions
Unit: mm (in.)
14 1/8 (358)
12 1/4 (310)
9 1/4 (234)
10 1/2 (264)
2 (50)
ø 1/4 (6)
Design and Specifications subject to change without notice.
