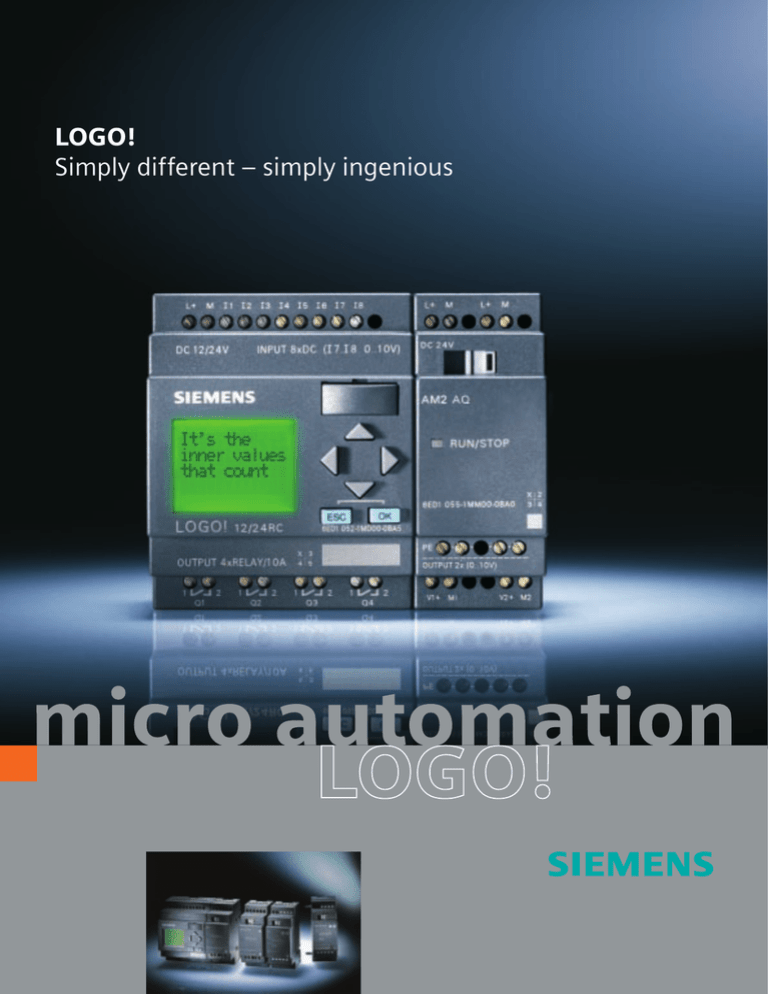

Simply different – simply ingenious

L

OGO

!

Switching and controlling – the profitable way

Profitable companies have vision – they maintain their competitive edge by using new technologies that are always a step ahead of their time. There is constant pressure to save time and money at every stage of the process, from planning and commissioning through to operation. And the applications must offer the critical added extra in terms

LOGO! – in Handwerk und Industrie im Einsatz:

of options, convenience and technical refinement at all times. Switching and controlling play a central part in this process – they must be both simple and intelligent; simple in operation and intelligent in implementing the many options that are expected of an application with vision.

Transport facilities

• Conveyor systems

• Hoisting platforms

• Elevators

• Silo works

• Automatic dry feeders

House and building services management

• Lighting control (outside and inside lighting)

• Door/gate control

• Shutter, sun blind and awning control

• Watering and sprinkler system control

Special solutions

• Solar-electric systems

• Use on ships

• Use under extreme environmental conditions

• Display panels and traffic control signs

2

LOGO! – millions of applications LOGO! – simply more

Heating/ventilation/ air conditioning

• Energy management

• Heating

• Cooling systems

• Ventilation systems

• Air conditioning systems

Machine controls

• Motor, pump and valve controls

• Air compressors

• Exhaust and filtering systems

• Water-treatment plants

• Sawing machines and planing machines

• Etching and purification plants

Operational monitoring systems

• Access control

• Vehicle control monitoring

• Alarm systems

• Limit-value monitoring

• Traffic light control systems

• Baggage control

LOGO! is already successfully used in millions of applications, offering a user-friendly interface and maximum ease of operation, combined with its typical quality features. For years LOGO! has been successfully performing simple automation tasks in trade and industry. The high storage capacity and efficient use of memory create a host of benefits and excellent functionality. Operation could not be easier, thanks to the LOGO! Soft Comfort software. Program generation, project simulation and documentation are all performed by means of drag & drop techniques for an unparalleled level of convenience. The practical use of LOGO! leaves nothing to be desired – a backlit display, optimum use of display lines and options for directly modifying message texts guarantee professional operation and satisfied users.

LOGO! is modular and flexible. With the expansion modules you can expand any LOGO! to 24 digital inputs, 16 digital outputs and 8 analog inputs at any time. Apart from the digital modules and analog modules, there are also communications modules for AS-Interface and instabus EIB. Brand-new: the new analog output module, e. g. for simple closed-loop control tasks. NEW: the new special functions PI controller, ramp function and analog

multiplexer open up new possibilities.

3

4

The LOGO! hardware

LOGO! offers the widest range of applications and successful implementation of extensive applications with the option of selecting 36 integrated functions and linking them with up to 130 blocks. Operator control and monitoring is made extremely userfriendly by means of a backlit display with four lines of 12 characters, the display of setpoint and actual values in one line and the option of changing actual values and parameters directly at the device level.

Flexibility guaranteed by the permanent and versatile expansion options of LOGO!

LOGO! – simply more

LOGO! reduces costs by up to 50%

• Replaces many conventional switching devices

• Requires less space in the control cabinet

• Fewer accessories

• Less warehouse space

• Saves on service because it is wear-free

LOGO! reduces time requirements by up to 70%

• Snaps right onto the DIN rail

• Requires almost no wiring

• Can be programmed at the push of a button

• Pre-tested sample programs can be used at no charge or generated on the PC, tested, and transferred quickly and without error

• User-friendly configuring

• Automatic summer/winter time change

• Documentation

The LOGO! software

LOGO! Soft Comfort means sensationally simple and fast operation. Create ladder and function block diagrams simply by selecting, dragging and dropping the relevant functions and your connections. Make use of fully offline simulation of the entire switching program on the PC as well as online testing during operation. Professional documentation is included with all necessary configuration information such as comments and switching program settings.

LOGO! Soft Comfort – simply professional

LOGO! reduces space requirements by up to 70%

• Four width modules suffice to replace a wide variety of relays, time switches and contactor relays

• 8 basic and 28 special functions replace many conventional switching devices

• Saves space on accessories and mounting fixtures

Universal application

• Vibration-resistant

• High level of electromagnetic compatibility

(EMC)

• Industrial standard

• For all climatic conditions

• Radio interference suppression class B

• All necessary certifications for use anywhere in the world

5

The LOGO! functions

With the eight basic functions you can create simple switching programs quickly either at the device or on the PC.

With the 28 special functions you can also create complex switching programs quickly and easily. An extensive selection of sample applications can be found at www.siemens.com/logo

The eight basic functions

AND

Series connection

NO contact

NOR (or not)

Series connection

NC contact

OR

Parallel connection

NO contact

NOT

Inverter

XOR (Exclusive OR)

Dual changeover contact

AND with edge evaluation

(pos. edge)

NAND (and not)

Parallel connection

NC contact

NAND with edge evaluation

(neg. edge)

The 28 special functions

ON delay OFF delay ON/OFF delay Retentive

ON delay

Impulse relay/ pulse output

Impulse relay/ edge triggered

Clock-pulse generator

LOGO! and its modules

LOGO! Basic LOGO! Pure

• Different voltages, i. e. 12 V DC, 24 V AC/DC,

115/240 V AC/DC

– Can be used for a wide range of applications

• Automatic changeover from daylight saving time to winter time

– Reduces maintenance overhead

• Password protection

– Protects your know-how

• 36 integrated, pre-tested functions

– No additional devices, such as elapsed time counter, are required

• Linking of 130 functions is possible

– extensive applications can be implemented without restrictions

• Eight digital inputs (incl. two AIs at

12/24 V DC) and four digital outputs on board

• Display of message texts, setpoint and actual values as well as direct modification of the values on the display (except for

Pure versions)

– Makes separate display unnecessary

• Integrated data latch

– Protects current values against loss in the event of a power failure

• Flexibly expandable up to 24 DIs, 16 DOs and 8 AOs

– Protects original investment

– Suitable for a wide variety of applications

• Software LOGO!Soft Comfort V4 for userfriendly generation of control programs on

PC; suitable for a variety of operating systems, such as WIN 95/98, NT 4.0, ME,

2000 or XP, MAC OS X 10.2 with J2SE 1.4.1

and Linux with J2SE 1.4.1.

Digital expansion modules

There are four versions for expanding the digital inputs and outputs:

DM8 230R/DM16 230R

– Supply voltage 115/240 V AC/DC

– Four/eight 120/230 V AC/DC digital inputs

– Four/eight digital output relays, 5 A per relay

DM8 24/DM16 24

– Supply voltage 24 V DC

– Four/eight 24 V DC digital inputs

– Four/eight digital output transistors, 0.3 A

DM8 12/24R

– Supply voltage 12/24 V DC

– Four 12/24 V digital inputs

– Four digital output relays, 5 A per relay

DM8 24R

– Supply voltage 24 V AC/DC

– Four 24 V AC/DC digital inputs, PNP or NPN

– Four digital output relays, 5 A per relay

DM16 24R

– Supply voltage 24 V DC

– Eight 24 V DC digital inputs

– Eight digital output relays, 5 A per relay

Pulse generator Stairlight switch Convenience switch

One-week time switch

12-month time switch

Up and down counter

Operating hours counter

Threshold value switch

The software

Simple – quick – professional

The LOGO! Soft Comfort software does it all – generating and testing control programs, simulating all functions and of course documentation is sensationally easy with LOGO! Soft Comfort using drag & drop on your PC. This is how it is done:

Analog expansion modules

There are two versions for expanding the analog inputs:

AM2

– Supply voltage 12/24 V DC

– Two channels

– 0 to 10 V or 0 to 20 mA typ.

AM2 PT100

– Supply voltage 12/24 V DC

– Two channels

– Type PT100

– Measuring range –50 °C to +200 °C

AM2 AQ

– Supply voltage 24 V DC

– 2 analog outputs

– Output range 0 to 10 V

Communications modules

Customized modules are also available for communication:

• CM AS-Interface slave

– Supply voltage 12/24 V DC

– 4 DIs/4 DOs as interface to

AS-Interface master

• CM EIB/KNX (instabus EIB)

– Supply voltage 24 V AC/DC

– max. 16 DIs, 12 DOs, 8 AIs as interface to instabus EIB

– Synchronization of date and time via instabus EIB

– All digital and analog inputs/outputs are available on the instabus EIB as communication objects

– Dimmer and shutter actuators connected to the instabus EIB can be activated in conformance with the system

Analog comparator Analog threshold value switch

Analog amplifier Analog monitoring

Creating control programs

• Select function and position on the drawing surface

• Link selected functions by means of connecting lines

• Set function parameters using clear dialog window

Commissioning with LOGO!

• Simulation of the entire switching process using all functions on the PC

Analog differential threshold switch

Latching relay Current inrush relay

Message text

LOGO! Soft Comfort

1 Creating 2 Simulating

1

2

3 Online testing

4

3

4 Documenting

SIEMENS

LOGO!

• Analog signals can be simulated with real values (e. g. temperature –20 ºC to +80 ºC)

• Time-controlled/cyclic simulation

• Simulation of clock time

• Faithful representation of the LOGO!

display in the simulation

• Status display of all functions, parameters and current values

• Online test with display of statuses and current values of LOGO! in RUN mode

The documentation

• Each function can be provided with additional comments

• Additional assignment of names possible for inputs and outputs

• Any positioning and formatting of free text

• Clear representation of control program across several pages

• Professional printout with all necessary configuration information

• Separate printout of parameters and interface names possible

• Integration into standard Windows applications by storing as .pdf or .jpg

file

Software switch Shift register NEW:

PI controller

NEW:

Ramp function

NEW: Analog multiplexer

LOGO! modular – the technical details

Technical specifications LOGO! 12/24RC

Basic units LOGO! 12/24RCo

Inputs, of these usable as analog inputs

Input/supply voltage

Permissible range

8

2 (0 to 10 V)

12/24 V DC

On “0” signal

On “1” signal

Input current

Outputs

Continuous current

10.8 V DC to 28.8 V DC

Max. 5 V DC

Min. 8 V DC

1.5 mA (I1 to I6)

0.1 mA (I7 to I8)

4 relays

Short-circuit protection

Operating frequency

LOGO! 24

LOGO! 24o

8

2 (0 to 10 V)

24 V DC

20.4 V DC to 28.8 V DC

Max. 5 V DC

Min. 8 V DC

1.5 mA (I1 to I6)

0.1 mA (I7 to I8)

4 transistors

LOGO! 24RC

LOGO! 24RCo

8

24 V AC/DC

20.4 to 28.8 V DC

20.4 to 26.4 V AC

Max. 5 V DC

Min. 12 V DC

2.5 mA

4 relays

10 A for resistive load;

3 A for

0.3 A 10 A for resistive load;

3 A for inductive inductive load load

Electronic

(approx. 1 A)

External fuse required

2 Hz for resistive load;

0.5 Hz for inductive load

10 Hz

External fuse required

2 Hz for resistive load;

0.5 Hz for inductive load

Power loss 0.3 to 1.7 W (12 V)

0.4 to 1.8 W (24 V)

0.7 to 1.3 W 0.9 to 2.7 W

Cycle time

Integrated time switches/reserve power

Connecting cables

< 0.1 ms / function

Yes/typ. 80 h

2 x 1.5 mm

2

, 1 x 2.5 mm

2

< 0.1 ms / function

––

Ambient temperature

Storage temperature

0 ºC to +55 ºC

–40 ºC to +70 ºC

Radio interference suppression To EN 55011 (limit-value class B)

Degree of protection IP20

Certification

Installation

Dimensions

< 0.1 ms / function

Yes/typ. 80 h

To VDE 0631, IEC 1131, UL, FM, CSA, ship-building certifications

On 35-mm DIN rail, 4 WM wide, or wall mounting

72 (4 WM) x 90 x 55 mm (W x H x D)

Technical specifications LOGO! DM8 12/24R

Digital modules

Inputs

Input/supply voltage

Permissible range

On “0“ signal

On “1“ signal

Input current

Outputs

Continuous current I th

(per terminal)

Short-circuit protection required

Operating frequency

Power loss

4

12/24 V DC

10.8 to 28.8 V DC

Max. 5 V DC

Min. 8 V DC

1.5 mA

4 relays

5 A for resistive load

3 A for inductive load

External fuse

2 Hz for resistive load

0.5 Hz for inductive load

0.3 to 1.7 W at 12 V DC

0.4 to 1.8 W at 24 V DC

LOGO! DM8 24

4/8

24 V DC

DM16 24

20.4 to 28.8 V DC

Max. 5 V DC

Min. 8 V DC

1.5 mA

4/8 transistors

0.3 A

Electronic (approx. 1 A) required

10 Hz

0.8 to 1.1 W

0.8 to 1.7 W

*

**

LOGO! DM8 24R

LOGO! DM16 24R

4/8

24 V AC/DC

*

24 V DC

**

20.4 to 28.8 V DC

20.4 to 26.4 V AC

*

Max. 5 V AC/DC

Min. 12 V AC/DC

1.5 mA

4/8 relays

5 A for resistive load

3 A for inductive load

External fuse required

2 Hz for resistive load

0.5 Hz for inductive load

0.4 to 1.8 W at 24 V DC

*

0.9 to 2.7 W at 24 V AC

*

0.7 ... 2.5 W at 24 V DC

**

Dimensions (W x H x D) 36 (2 WM) x 90 x 55 mm 36 (2 WM) x 90 x 55 mm 36 (2 WM) x 90 x 55 mm

72 (4 WM) x 90 x 55 mm 72 (4 WM) x 90 x 55 mm

R: Relay outputs, C: Clock, o = No display, *: for the DM8 module, **: for the DM16 module

LOGO! 230RC

LOGO! 230RCo

8

115/240 V AC/DC

85 ... 253 V AC

100 ... 253 V DC

Max. 40 V AC/30 V DC

Min. 79 V AC/79 V DC

0.08 mA

4 relays

10 A for resistive load;

3 A for inductive load

External fuse required

2 Hz for resistive load;

0.5 Hz for inductive load

1.1 to 4.6 W (115 V AC)

2.4 to 6.0 W (240 V AC)

0.5 to 2.9 W (115 V DC)

1.2 to 3.6 W (240 V DC)

< 0.1 ms / function

Yes/typ. 80 h

LOGO! DM8 230R

LOGO! DM16 230R

4/8

115/240 V AC/DC

85 to 253 V AC

100 to 253 V DC

Max. 40 V AC

Min. 79 V AC

0.08 mA

4/8 relays

5 A for resistive load

3 A for inductive load

External fuse

2 Hz for resistive load

0.5 Hz for inductive load

1.1 to 3.5 W (115 V AC) ... 4.5

2.4 to 4.8 W (240 V AC) ... 5.5

**

**

0.5 to 1.8 W (115 V DC) ... 2.9

**

1.2 to 2.4 W (240 V DC) ... 4.8

**

36 (2 WM) x 90 x 55 mm

72 (4 WM) x 90 x 55 mm

Technical specifications LOGO! AM2

Analog modules

Supply voltage 12/24 V DC

Permissible range

Analog inputs

Measuring range

10.8 to 28.8 V DC

2

LOGO! AM2 PT100

12/24 V DC

10.8 to 28.8 V DC

2 x PT100 2- or 3-wire

–50 ºC to +200 ºC

Input range

Resolution

0 to 10 V or

0 to 20 mA

10 bits scaled to

0 to 1000

Cable length

(shielded and twisted) 10 m

Measuring current

0.25 ºC

10 m

1.1 mA

Sensor supply

Power loss for 12 V DC for 24 V DC

None

0.3 to 0.6 W

0.6 to 1.2 W

0.3 to 0.6 W

0.6 to 1.2 W

Dimensions (W x H x D) 36 (2 WM) x 90 x 55 mm 36 (2 WM) x 90 x 55 mm

LOGO! accessories

Technical specifications

Analog modules

Supply voltage

Permissible range

Analog outputs

Output range

Resolution

Cable length

(shielded and twisted)

Power loss at 24 V DC

Dimensions (L x H x P)

LOGO! AM2 AQ

24 V DC

20.4 to 28.8 V DC

2

0 to 10 V

10 bits normalized to 0 –1000

10 m

0.6 to 1.2 W

36 (2 WM) x 90 x 55 mm

Technical specifications EIB/KNX

Communications modules

Supply voltage

Permissible range

Digital inputs*

Analog inputs*

Analog outputs*

Digital outputs*

Dimensions

(W x H x D)

24 V AC/DC

20.4 to 28.8 V DC

20.4 to 26.4 V AC

6 (also configurable

as monoflop)

8

2

12

2 WM

36 x 90 x 55 mm

* Mapped onto LOGO! inputs/outputs

CM AS-Interface

(Slave)

24 V DC

19.2 to 28.8 V DC

4

4

2 WM

36 x 90 x 55 mm

LOGO! PC cable

• The direct connection to and from LOGO!

• For easy transmission of LOGO! switching programs to and from the PC

LOGO! program module

• For duplication

• And for protecting your expertise

LOGO! manual

• Detailed operating information

• Description of all integrated functions

• Numerous practical sample applications

LOGO! Power: the power supply

For effortless conversion of the 100/240 V AC line voltage into the relevant operating voltage

• For all LOGO! 12 V DC units

• And 24 V DC units

• Two versions in each case for different output currents

LOGO! Contact

Hum-free switching module

• For switching resistive loads up to 20 A

• For direct switching of motors up to 4 kW

• For high-performance loads in noise-sensitive environments

LOGO! Prom

For duplicating program modules

• Copying modules

• Describing modules by means of LOGO!

Soft Comfort

Front panel racks

For installation in control cabinet doors

• Front IP65 (IP30 without disk)

• 4 WM or 8 WM (optionally with keys)

LOGO! – simply new

Ordering data

LOGO! versions

LOGO! 24

LOGO! 24o

LOGO! 12/24RC

LOGO! 12/24RCo

LOGO! 24RC (AC/DC)

LOGO! 24RCo (AC/DC)

LOGO! 230RC

LOGO! 230RCo

Order number

6ED1 052-1CC00-0BA5

6ED1 052-2CC00-0BA5

6ED1 052-1MD00-0BA5

6ED1 052-2MD00-0BA5

6ED1 052-1HB00-0BA5

6ED1 052-2HB00-0BA5

6ED1 052-1FB00-0BA5

6ED1 052-2FB00-0BA5

Expansion modules

LOGO! DM8 24

LOGO! DM8 12/24R

LOGO! DM8 24R (AC/DC)

LOGO! DM8 230R

LOGO! DM 16 24

LOGO! DM 16 24R

LOGO! DM 16 230R

LOGO! AM2

LOGO! AM2 PT100

LOGO! AM2 AQ

Communications modules

LOGO! AS-i

LOGO! EIB/KNX

Order number

6ED1 055-1CB00-0BA0

6ED1 055-1MB00-0BA1

6ED1 055-1HB00-0BA0

6ED1 055-1FB00-0BA1

6ED1 055-1CB10-0BA0

6ED1 055-1NB10-0BA0

6ED1 055-1FB10-0BA0

6ED1 055-1MA00-0BA0

6ED1 055-1MD00-0BA0

6ED1 055-1MM00-0BA0

Order number

3RK1 400-0CE10-0AA2

6BK1 700-0BA00-0AA1

Optional accessories

LOGO! Manual German

LOGO! Manual English

LOGO! Memory card

LOGO! Soft Comfort 5.0

LOGO! Soft Comfort upgrade

LOGO! PC cable

Order number

6ED1 050-1AA00-0AE6

6ED1 050-1AA00-0BE6

6ED1 056-5CA00-0BA0

6ED1 058-0BA01-0YA0

6ED1 058-0CA01-0YE0

6ED1 057-1AA00-0BA0

R: Relay outputs, C: Clock/time switch, o: No display

The products listed here may be subject to the current European/German and/or US export regulations.

Siemens AG

Automation and Drives

Industrial Automation Systems

P.O. Box 48 48

D-90327 Nuremberg www.siemens.com/logo www.siemens.com/logo

LOGO! on the Internet

On the Internet you can find information on products and

• Free demo software

• Software upgrades

• Preprogrammed applications

• News

• The customer magazine GO!

• and much more

You can make purchases online (such as LOGO! software, hardware or action packages), and you can go to Service and Support (on request) for personal support.

Further sample applications and configuration aids can be found at www.siemens.com/microset and of course at www.siemens.com/logo

The information provided in this brochure contains merely general descriptions or characteristics of performance which in actual case of use do not always apply as described or which may change as a result of further development of the products.

An obligation to provide the respective characteristics shall only exist if expressly agreed in the terms of contract.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
