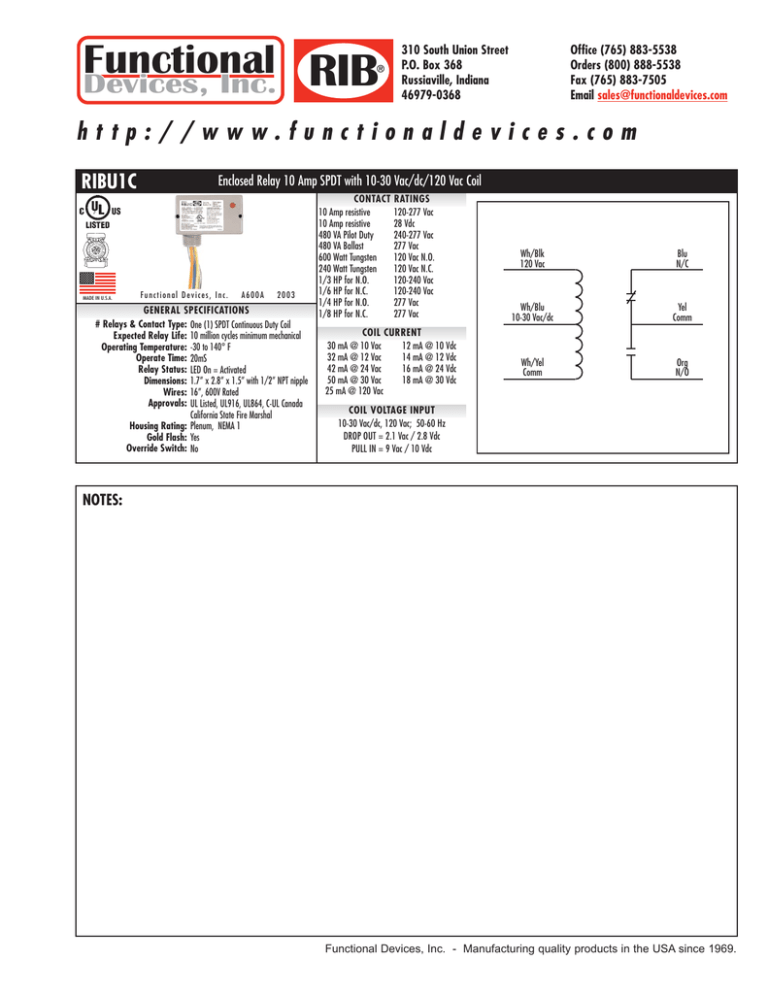

RIBU1C
Enclosed Relay 10 Amp SPDT with 10-30 Vac/dc/120 Vac Coil
***********
******
****************
******
***********
MADE IN U.S.A.
Functional Devices, Inc.
A600A
2003
GENERAL SPECIFICATIONS
# Relays & Contact Type: One (1) SPDT Continuous Duty Coil
Expected Relay Life: 10 million cycles minimum mechanical
Operating Temperature: -30 to 140° F
Operate Time: 20mS
Relay Status: LED On = Activated
Dimensions: 1.7” x 2.8” x 1.5” with 1/2” NPT nipple
Wires: 16”, 600V Rated
Approvals: UL Listed, UL916, UL864, C-UL Canada
California State Fire Marshal
Housing Rating: Plenum, NEMA 1
Gold Flash: Yes
Override Switch: No
CONTACT
10 Amp resistive
10 Amp resistive
480 VA Pilot Duty
480 VA Ballast
600 Watt Tungsten
240 Watt Tungsten
1/3 HP for N.O.
1/6 HP for N.C.
1/4 HP for N.O.
1/8 HP for N.C.
RATINGS
120-277 Vac
28 Vdc
240-277 Vac
277 Vac
120 Vac N.O.
120 Vac N.C.
120-240 Vac
120-240 Vac
277 Vac
277 Vac
COIL CURRENT
30 mA @ 10 Vac
12 mA @ 10 Vdc
32 mA @ 12 Vac
14 mA @ 12 Vdc
42 mA @ 24 Vac
16 mA @ 24 Vdc
50 mA @ 30 Vac
18 mA @ 30 Vdc
25 mA @ 120 Vac
Wh/Blk
120 Vac
Blu
N/C
Wh/Blu
10-30 Vac/dc
Yel
Comm
Wh/Yel
Comm
Org
N/O
COIL VOLTAGE INPUT
10-30 Vac/dc, 120 Vac; 50-60 Hz
DROP OUT = 2.1 Vac / 2.8 Vdc
PULL IN = 9 Vac / 10 Vdc
NOTES:
Functional Devices, Inc. - Manufacturing quality products in the USA since 1969.
