Functional Devices, Inc. 765.883.5538 310 South Union Street 800.888.5538

Functional Devices, Inc. 765.883.5538 310 South Union Street 800.888.5538
Functional Devices, Inc.
310 South Union Street
Russiaville, IN 46979
www.FunctionalDevices.com

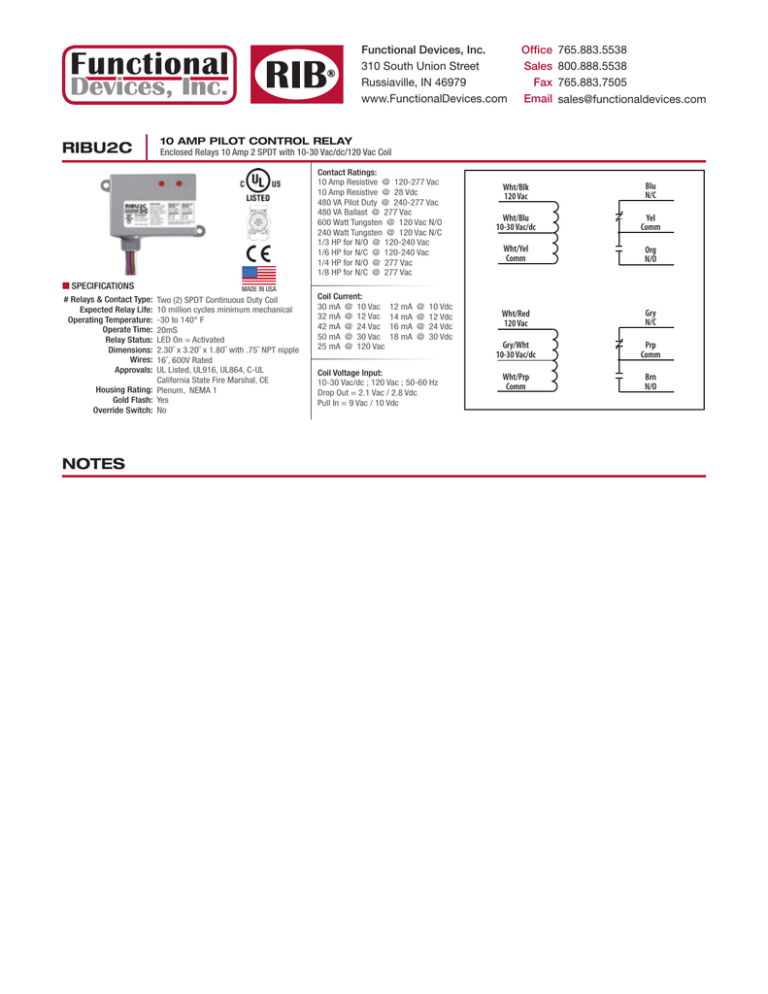

RIBU2C
SPECIFICATIONS
Enclosed Relays 10 Amp 2 SPDT with 10-30 Vac/dc/120 Vac Coil
MADE IN USA
Two (2) SPDT Continuous Duty Coil
10 million cycles minimum mechanical
-30 to 140° F
20mS
LED On = Activated
2.30˝ x 3.20˝ x 1.80˝ with .75˝ NPT nipple
16˝, 600V Rated
UL Listed, UL916, UL864, C-UL
California State Fire Marshal, CE
Housing Rating: Plenum, NEMA 1
Gold Flash: Yes
Override Switch: No
NOTES
765.883.5538
800.888.5538
765.883.7505
[email protected]
10 Amp Pilot Control Relay
c c c c c c
c c c c c
c c c c c c
c c c c c
c c c c c c
c c c c c
c c c c c c
c c c c c
c c c c c c
# Relays & Contact Type:
Expected Relay Life:
Operating Temperature:
Operate Time:
Relay Status:
Dimensions:
Wires:
Approvals:
Office
Sales
Fax
Email
Contact Ratings:
10 Amp Resistive @ 120-277 Vac
10 Amp Resistive @ 28 Vdc
480 VA Pilot Duty @ 240-277 Vac
480 VA Ballast @ 277 Vac
600 Watt Tungsten @ 120 Vac N/O
240 Watt Tungsten @ 120 Vac N/C
1/3 HP for N/O @ 120-240 Vac
1/6 HP for N/C @ 120-240 Vac
1/4 HP for N/O @ 277 Vac
1/8 HP for N/C @ 277 Vac
Coil Current:
30 mA @ 10 Vac
32 mA @ 12 Vac
42 mA @ 24 Vac
50 mA @ 30 Vac
25 mA @ 120 Vac
12 mA
14 mA
16 mA
18 mA
@
@
@
@
10 Vdc
12 Vdc
24 Vdc
30 Vdc
Coil Voltage Input:
10-30 Vac/dc ; 120 Vac ; 50-60 Hz
Drop Out = 2.1 Vac / 2.8 Vdc
Pull In = 9 Vac / 10 Vdc
Wht/Blk
120 Vac
Blu
N/C
Wht/Blu
10-30 Vac/dc
Yel
Comm
Wht/Yel
Comm
Org
N/O
Wht/Red
120 Vac
Gry
N/C
Gry/Wht
10-30 Vac/dc
Prp
Comm
Wht/Prp
Comm
Brn
N/O
