Functional Devices, Inc.
310 South Union Street
Russiaville, IN 46979
www.FunctionalDevices.com

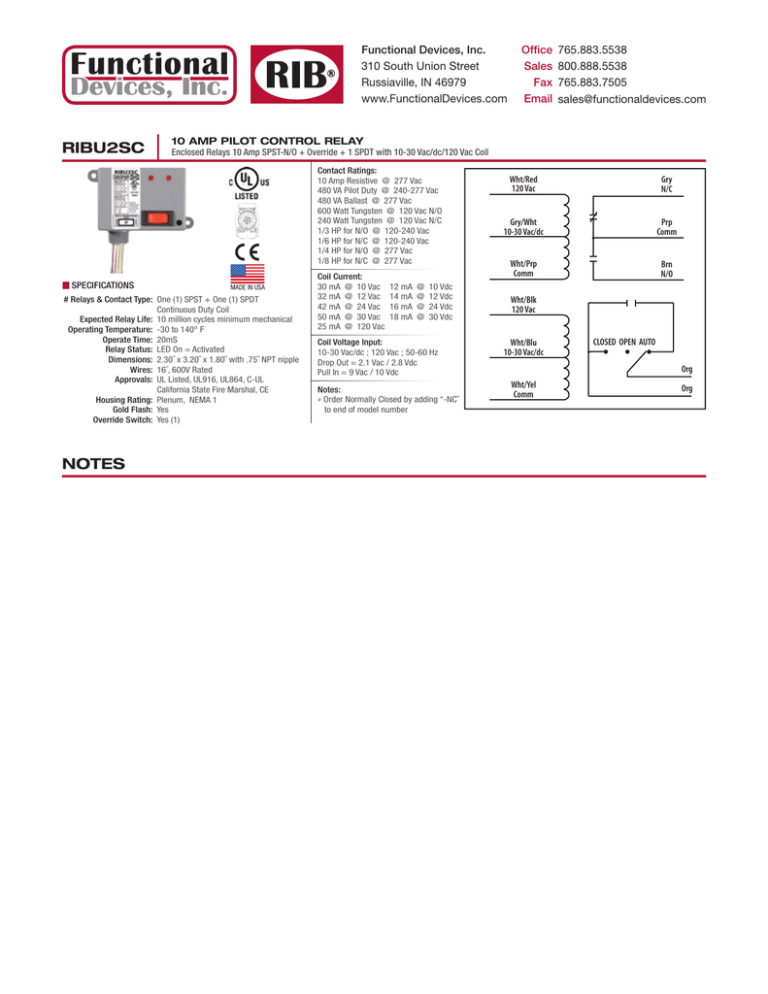

RIBU2SC
Enclosed Relays 10 Amp SPST-N/O + Override + 1 SPDT with 10-30 Vac/dc/120 Vac Coil
MADE IN USA
# Relays & Contact Type: One (1) SPST + One (1) SPDT
Continuous Duty Coil
Expected Relay Life: 10 million cycles minimum mechanical
Operating Temperature: -30 to 140° F
Operate Time: 20mS
Relay Status: LED On = Activated
Dimensions: 2.30˝ x 3.20˝ x 1.80˝ with .75˝ NPT nipple
Wires: 16˝, 600V Rated
Approvals: UL Listed, UL916, UL864, C-UL
California State Fire Marshal, CE
Housing Rating: Plenum, NEMA 1
Gold Flash: Yes
Override Switch: Yes (1)
NOTES
765.883.5538
800.888.5538
765.883.7505
[email protected]
10 Amp Pilot Control Relay
c c c c c c
c c c c c
c c c c c c
c c c c c
c c c c c c
c c c c c
c c c c c c
c c c c c
c c c c c c
SPECIFICATIONS
Office
Sales
Fax
Email
Contact Ratings:
10 Amp Resistive @ 277 Vac
480 VA Pilot Duty @ 240-277 Vac
480 VA Ballast @ 277 Vac
600 Watt Tungsten @ 120 Vac N/O
240 Watt Tungsten @ 120 Vac N/C
1/3 HP for N/O @ 120-240 Vac
1/6 HP for N/C @ 120-240 Vac
1/4 HP for N/O @ 277 Vac
1/8 HP for N/C @ 277 Vac
Coil Current:
30 mA @ 10 Vac
32 mA @ 12 Vac
42 mA @ 24 Vac
50 mA @ 30 Vac
25 mA @ 120 Vac
12 mA
14 mA
16 mA
18 mA
@
@
@
@
10 Vdc
12 Vdc
24 Vdc
30 Vdc
Coil Voltage Input:
10-30 Vac/dc ; 120 Vac ; 50-60 Hz
Drop Out = 2.1 Vac / 2.8 Vdc
Pull In = 9 Vac / 10 Vdc
Notes:
» Order Normally Closed by adding “-NC˝
to end of model number
Wht/Red
120 Vac
Gry
N/C
Gry/Wht
10-30 Vac/dc
Prp
Comm
Wht/Prp
Comm
Brn
N/O
Wht/Blk
120 Vac
Wht/Blu
10-30 Vac/dc
CLOSED OPEN AUTO
Org
Wht/Yel
Comm
Org
