Single Pole (One location) or 3-Way (Multi-location) Electronic Switch

Single Pole (One location) or 3-Way (Multi-location) Electronic Switch
Single Pole (One location) or 3-Way (Multi-location)
Electronic Switch
Cat. No. VPS15-1L, Lighted
Incandescent-1800W – Magnetic Low Voltage-1800VA (1440W)
Electronic Low Voltage-1800W – Fluorescent-1800VA – Supplemental-1/2 HP
120VAC, 60Hz
DI-000-VPS15-02A

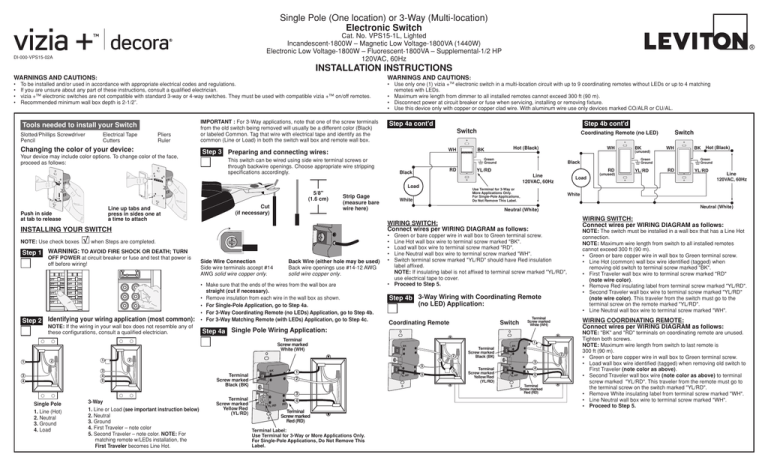

Installation Instructions
WARNINGS AND CAUTIONS:
•
•
•
•
To be installed and/or used in accordance with appropriate electrical codes and regulations.
If you are unsure about any part of these instructions, consult a qualified electrician.
vizia +™ electronic switches are not compatible with standard 3-way or 4-way switches. They must be used with compatible vizia +™ on/off remotes.
Recommended minimum wall box depth is 2-1/2”.
Tools needed to install your Switch
Slotted/Phillips Screwdriver
Pencil
Electrical Tape
Cutters
Pliers
Ruler
Changing the color of your device:
Your device may include color options. To change color of the face,
proceed as follows:
IMPORTANT : For 3-Way applications, note that one of the screw terminals
from the old switch being removed will usually be a different color (Black)
or labeled Common. Tag that wire with electrical tape and identify as the
common (Line or Load) in both the switch wall box and remote wall box.
WARNINGS AND CAUTIONS:
• Use only one (1) vizia +TM electronic switch in a multi-location circuit with up to 9 coordinating remotes without LEDs or up to 4 matching
remotes with LEDs.
• Maximum wire length from dimmer to all installed remotes cannot exceed 300 ft (90 m).
• Disconnect power at circuit breaker or fuse when servicing, installing or removing fixture.
• Use this device only with copper or copper clad wire. With aluminum wire use only devices marked CO/ALR or CU/AL.
Step 4a cont'd
Step 4b cont'd
Switch
WH
Step 3 Preparing and connecting wires:
This switch can be wired using side wire terminal screws or
through backwire openings. Choose appropriate wire stripping
specifications accordingly.
RD
Load
5/8"
(1.6 cm)
Line up tabs and
press in sides one at
a time to attach
Push in side
at tab to release
Cut
(if necessary)
Strip Gage
(measure bare
wire here)
NOTE: Use check boxes when Steps are completed.
Step 1 WARNING: TO AVOID FIRE SHOCK OR DEATH; TURN
/&&
/.
/&&
/.
/&&
/.
/&&
/.
/&&
/.
/&&
/.
/&&
/.
/&&
/.
/&&
/.
/&&
/.
/&&
/.
/&&
/.
Step 2 Identifying your wiring application (most common):
NOTE: If the wiring in your wall box does not resemble any of
these configurations, consult a qualified electrician.
Side Wire Connection
Side wire terminals accept #14
AWG solid wire copper only.
Back Wire (either hole may be used)
Back wire openings use #14-12 AWG
solid wire copper only.
• Make sure that the ends of the wires from the wall box are
straight (cut if necessary).
• Remove insulation from each wire in the wall box as shown.
• For Single-Pole Application, go to Step 4a.
• For 3-Way Coordinating Remote (no LEDs) Application, go to Step 4b.
• For 3-Way Matching Remote (with LEDs) Application, go to Step 4c.
2
1
White
3-Way
1. Line or Load (see important instruction below)
2. Neutral
3. Ground
4. First Traveler – note color
5. Second Traveler – note color. NOTE: For
matching remote w/LEDs installation, the
First Traveler becomes Line Hot.
Load
terminal
Screw marked
White (WH)
Switch
2
terminal
Screw marked
Black (BK)
terminal
Screw marked
Yellow/red
(Yl/rD)
BK
1
2
3
Yl/rD
rD
4
terminal
Screw marked
red (rD)
terminal label:
use terminal for 3-Way or More applications on ly.
For Single-Pole applications , Do not remove this
label.
Yl/rD
rD
5
BK
2
3
4
terminal
Screw marked
Yellow/red
(Yl/rD)
4
Yl/rD
YL/RD
Hot (Black)
Green
Ground
RD
YL/RD
Line
120VAC, 60Hz
rD
5
terminal
Screw marked
red (rD)
NOTE: The switch must be installed in a wall box that has a Line Hot
connection.
NOTE: Maximum wire length from switch to all installed remotes
cannot exceed 300 ft (90 m).
• Green or bare copper wire in wall box to Green terminal screw.
• Line Hot (common) wall box wire identified (tagged) when
removing old switch to terminal screw marked "BK".
• First Traveler wall box wire to terminal screw marked "RD"
(note wire color).
• Remove Red insulating label from terminal screw marked "YL/RD".
• Second Traveler wall box wire to terminal screw marked "YL/RD" (note wire color). This traveler from the switch must go to the
terminal screw on the remote marked "YL/RD".
• Line Neutral wall box wire to terminal screw marked "WH".
WIRING coordinating remote:
Connect wires per WIRING DIAGRAM as follows:
1
1
(unused)
BK
WIRING SWITCH:
Connect wires per WIRING DIAGRAM as follows:
Step 4b 3-Way Wiring with Coordinating Remote
(no LED) Application:
terminal
Screw marked
Black (BK)
WH
Neutral (White)
Green or bare copper wire in wall box to Green terminal screw.
Line Hot wall box wire to terminal screw marked "BK".
Load wall box wire to terminal screw marked "RD".
Line Neutral wall box wire to terminal screw marked "WH".
Switch terminal screw marked "YL/RD" should have Red insulation
label affixed.
NOTE: If insulating label is not affixed to terminal screw marked "YL/RD",
use electrical tape to cover.
• Proceed to Step 5.
BK
(unused)
White
•
•
•
•
•
coordinating remote
BK
Green
Ground
RD
Line
120VAC, 60Hz
Neutral (White)
3
Single Pole
1. Line (Hot)
2. Neutral
3. Ground
4. Load
YL/RD
Use Terminal for 3-Way or
More Applications On ly.
For Single-Pole Applications ,
Do Not Remove This Label.
2
3
4
5
3
4
WH
Black
Step 4a Single Pole Wiring Application:
terminal
Screw marked
White (WH)
1
Hot (Black)
WIRING SWITCH:
Connect wires per WIRING DIAGRAM as follows:
INSTALLING YOUR SWITCH
OFF POWER at circuit breaker or fuse and test that power is
off before wiring!
BK
Green
Ground
Black
Switch
Coordinating Remote (no LED)
NOTE: "BK" and "RD" terminals on coordinating remote are unused.
Tighten both screws.
NOTE: Maximum wire length from switch to last remote is
300 ft (90 m).
• Green or bare copper wire in wall box to Green terminal screw.
• Load wall box wire identified (tagged) when removing old switch to
First Traveler (note color as above).
• Second Traveler wall box wire (note color as above) to terminal
screw marked "YL/RD". This traveler from the remote must go to
the terminal screw on the switch marked "YL/RD".
• Remove White insulating label from terminal screw marked "WH".
• Line Neutral wall box wire to terminal screw marked "WH".
• Proceed to Step 5.
Step 4c 3-Way Wiring with Matching Remote
(w/LED) Application:
Matching remote
Switch
additional
neutral Wire
Step 5 Testing your Switch prior to mounting in
wall box:
terminal
Screw marked
White (WH)
• Position all wires to provide room in
outlet wall box for device.
• Ensure that the word “TOP” is
facing up on device strap.
4
2
BK
terminal
Screw marked
Black (BK)
1
4
terminal
Screw marked
Yellow/red
(Yl/rD)
rD
5
• Partially screw in mounting screws
in wall box mounting holes.
WH
1
rD
Yl/rD
5
terminal
Screw marked
red (rD)
TROUBLESHOOTING
For additional information, contact Leviton’s
Techline at 1-800-824-3005 or visit Leviton’s
website at www.leviton.com
Switch
Matching Remote (with LED )
Hot (Black)
2
3
3
Yl/rD
BK
OPERATION
NOTE: The locator light will illuminate when the load is in the OFF position • Lights Flickering
to facilitate access in the dark.
- Lamp has a bad connection.
- Wires not secured firmly under terminal screws of switch
Push Pad (Default settings)
and/or remote.
Turn ON from OFF position:
• Light does not turn ON and Locator LED does not turn ON
Tap – Lights turn ON.
- Circuit breaker or fuse has tripped.
Turn OFF from ON position:
- Lamp is burned out.
Tap – Lights turn OFF.
- Lamp Neutral connection is not wired.
If there is a power outage, when the power is restored, the lights will return
• Remote does not operate lights
to the last setting before the power interruption.
- Ensure that total wire length does not exceed 300 ft (90 m).
NOTE: Dress wires with a bend as shown in diagram in order to relieve
stress when mounting device.
WH
BK
RD
YL/RD
Covered by one or more US & Foreign
Patents and patents pending
Copyright © 2008 Leviton Manufacturing Co., Inc.
All Rights Including Trade Dress Rights Reserved
BK
Green
Ground
Line
120VAC, 60Hz
YL/RD
Green
Ground
Black
• Restore power at circuit breaker or fuse.
• Press pad until locator light is OFF. Lights
should turn ON.
Load
If lights do not turn ON, refer to the
TROUBLESHOOTING section.
White
FCC COMPLIANCE STATEMENT
Neutral (White)
NOTE: The switch must be installed in a wall box that has a Load connection. The matching remote must be installed in a wall box with a Line Hot connection and a Neutral connection. A Neutral wire to
the matching remote needs to be added as shown.
If you are unsure about any part of these instructions, consult a
qualified electrician.
NOTE: Maximum wire length from dimmer to all installed remotes cannot
exceed 300 ft (90 m).
Wiring Matching Remote
(wall box with Line Hot connection):
Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green terminal screw.
• Line Hot (common) wall box wire identified (tagged) when removing old switch and First Traveler to remote terminal screw marked "BK".
• Second Traveler wall box wire from switch to remote terminal screw marked "YL/RD" (note wire color). This traveler from the
remote must go to the terminal screw on the switch marked "YL/RD".
• Line Neutral wall box wire to remote terminal screw marked "WH".
Wiring SWITCH (wall box with Load connection):
Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green terminal screw.
• Load wall box wire identified (tagged) when removing old switch to terminal screw marked "RD".
• First Traveler Line Hot to terminal screw marked "BK".
• Remove Red insulating label from terminal screw marked "YL/RD".
• Second Traveler wall box wire (note color as above) to terminal screw
marked "YL/RD". This traveler from the switch must go to the terminal
screw on the remote marked "YL/RD".
• Line Neutral wall box wire to remote terminal screw marked "WH".
• Proceed to Step 5.
Push
Pad
Locator
Light
Cleaning: Clean with a damp cloth. DO NOT use chemical cleaners.
ADVANCED PROGRAMMING FEATURES
Step 6
Switch Mounting:
TURN OFF POWER AT CIRCUIT BREAKER OR FUSE.
Definition of Mode
LED Option: Sets the Locator LED timeout to 5 seconds after use.
NOTE: The switch will exit program mode after 3 minutes of inactivity.
To enter programming mode press and hold the Push Pad for 10 seconds
until the Locator LED begins to blink. Upon releasing the Push Pad the LED
Option will automatically be changed.
This equipment has been tested and found to comply with the limits for
a Class B Digital Device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined
by turning the equipment OFF and ON, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving Antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/tv technician for help.
Installation may now be completed by
tightening mounting screws into wall box.
Attach wallplate.
Step 7 Restore Power:
Restore power at circuit breaker or fuse.
Installation is complete.
2008 © Leviton Mfg. Co., Inc.
DI-000-VPS15-02A
LIMITED 5 YEAR WARRANTY AND EXCLUSIONS
Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship under normal and proper use for five years from the purchase date. Leviton’s only obligation is to correct such defects by repair or replacement,
at its option, if within such five year period the product is returned prepaid, with proof of purchase date, and a description of the problem to Leviton Manufacturing Co., Inc., Att: Quality Assurance Department, 59-25 Little Neck Parkway, Little Neck, New York 11362-2591. This warranty excludes and there is disclaimed liability
for labor for removal of this product or reinstallation. This warranty is void if this product is installed improperly or in an improper environment, overloaded, misused, opened, abused, or altered in any manner, or is not used under normal operating conditions or not in accordance with any labels or instructions. There are no other or
implied warranties of any kind, including merchantability and fitness for a particular purpose, but if any implied warranty is required by the applicable jurisdiction, the duration of any such implied warranty, including merchantability and fitness for a particular purpose, is limited to five years. Leviton is not liable for incidental,
indirect, special, or consequential damages, including without limitation, damage to, or loss of use of, any equipment, lost sales or profits or delay or failure to perform this warranty obligation. The remedies provided herein are the exclusive remedies under this warranty, whether based on contract, tort or otherwise.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
