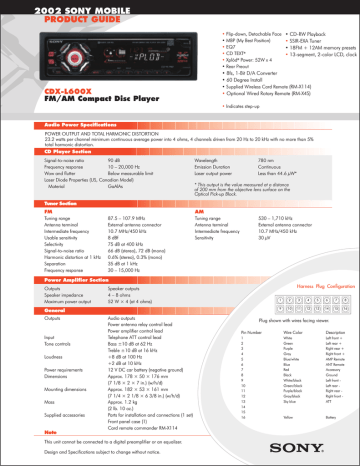

Sony CDX-L600X CD Player
2002 SONY MOBILE
PRODUCT GUIDE
• Flip-down, Detachable Face
• MBP (My Best Position)
• EQ7
• CD TEXT®
- ® Power: 52W x 4
• Xplod
• Rear Preout
• CD-RW Playback
• SSIR-EXA Tuner
• 18FM + 12AM memory presets
• 13-segment, 2-color LCD, clock
• 8fs, 1-Bit D/A Converter
• 60 Degree Install
CDX-L600X
FM/AM Compact Disc Player
• Supplied Wireless Card Remote (RM-X114)
• Optional Wired Rotary Remote (RM-X4S)
• Indicates step-up
Audio Power Specifications
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
23.2 watts per channel minimum continuous average power into 4 ohms, 4 channels driven from 20 Hz to 20 kHz with no more than 5%
total harmonic distortion.
CD Player Section
Signal-to-noise ratio
90 dB
Frequency response
10 – 20,000 Hz
Wow and flutter
Below measurable limit
Laser Diode Properties (US, Canadian Model)
Material
GaAlAs
Wavelength
Emission Duration
Laser output power
780 nm
Continuous
Less than 44.6 µW*
* This output is the value measured at a distance
of 200 mm from the objective lens surface on the
Optical Pick-up Block.
Tuner Section
FM
Tuning range
Antenna terminal
Intermediate frequency
Usable sensitivity
Selectivity
Signal-to-noise ratio
Harmonic distortion at 1 kHz
Separation
Frequency response
87.5 – 107.9 MHz
External antenna connector
10.7 MHz/450 kHz
8 dBf
75 dB at 400 kHz
66 dB (stereo), 72 dB (mono)
0.6% (stereo), 0.3% (mono)
35 dB at 1 kHz
30 – 15,000 Hz
AM
Tuning range
Antenna terminal
Intermediate frequency
Sensitivity
530 – 1,710 kHz
External antenna connector
10.7 MHz/450 kHz
30 µV
Power Amplifier Section
Outputs
Speaker impedance
Maximum power output
Harness Plug Configuration
Speaker outputs
4 – 8 ohms
52 W × 4 (at 4 ohms)
General
Outputs
Input
Tone controls
Loudness
Power requirements
Dimensions
Mounting dimensions
Mass
Supplied accessories
Note
Audio outputs
Power antenna relay control lead
Power amplifier control lead
Telephone ATT control lead
Bass ±10 dB at 62 Hz
Treble ±10 dB at 16 kHz
+8 dB at 100 Hz
+2 dB at 10 kHz
12 V DC car battery (negative ground)
Approx. 178 × 50 × 176 mm
(7 1/8 × 2 × 7 in.) (w/h/d)
Approx. 182 × 53 × 161 mm
(7 1/4 × 2 1/8 × 6 3/8 in.) (w/h/d)
Approx. 1.2 kg
(2 lb. 10 oz.)
Parts for installation and connections (1 set)
Front panel case (1)
Card remote commander RM-X114
This unit cannot be connected to a digital preamplifier or an equalizer.
Design and Specifications subject to change without notice.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Plug shown with wires facing viewer.
Pin Number
Wire Color
Description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
White
Green
Purple
Gray
Blue/white
Blue
Red
Black
White/black
Green/black
Purple/black
Gray/black
Sky blue
Left front +
Left rear +
Right rear +
Right front +
AMP Remote
ANT Remote
Accessory
Ground
Left front Left rear Right rear Right front ATT
Yellow
Battery
2002 SONY MOBILE
PRODUCT GUIDE
CDX-L600X
FM/AM Compact Disc Player
50 mm (2”)
178 mm (7”)
From car antenna
Remote IN
Audio OUT
Fuse (10A)
180 mm (7 1/8”)
88 mm (3 7/16”)
53 mm ( 2 1/16”)
47 mm (1 7/16”)
33 mm (1 5/16”)
50 mm (2”)
27 mm (1 1/16”)
160 mm (6 3/8”)
Design and Specifications subject to change without notice.
