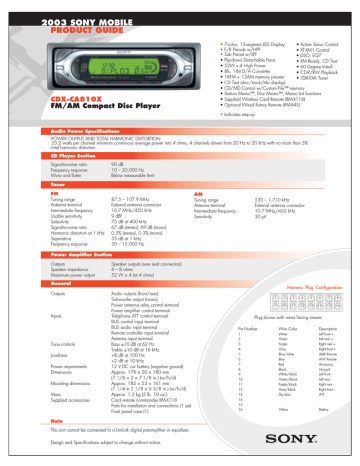

Sony CDX-CA810X CD Player
2003 SONY MOBILE
PRODUCT GUIDE
CDX-CA810X
FM/AM Compact Disc Player
•
•
•
•
•
•
•
•
•
•
•
•
7-color, 13-segment LED Display
• Active Servo Control
F/R Preouts w/HPF
• XT-XM1 Control
Sub Preout w/LPF
• DSO, EQ7
Flip-down Detachable Face
• XM Ready, CD Text
52W x 4 High Power
• 60 Degree Install
8fs, 1-Bit D/A Converter
• CD-R/RW Playback
18FM + 12AM memory presets
• SSIR-EXA Tuner
CD Text (disc/track/title display)
CD/MD Control w/Custom File™ memory
Station Memo™, Disc Memo™, Memo List functions
Supplied Wireless Card Remote (RM-X118)
Optional Wired Rotary Remote (RM-X4S)
• Indicates step-up
Audio Power Specifications
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
23.2 watts per channel minimum continuous average power into 4 ohms, 4 channels driven from 20 Hz to 20 kHz with no more than 5%
total harmonic distortion.
CD Player Section
Signal-to-noise ratio
Frequency response
Wow and flutter
90 dB
10 – 20,000 Hz
Below measurable limit
Tuner
FM
Tuning range
Antenna terminal
Intermediate frequency
Usable sensitivity
Selectivity
Signal-to-noise ratio
Harmonic distortion at 1 kHz
Separation
Frequency response
87.5 – 107.9 MHz
External antenna connector
10.7 MHz/450 kHz
9 dBf
75 dB at 400 kHz
67 dB (stereo), 69 dB (mono)
0.5% (stereo), 0.3% (mono)
35 dB at 1 kHz
30 – 15,000 Hz
AM
Tuning range
Antenna terminal
Intermediate frequency
Sensitivity
530 – 1,710 kHz
External antenna connector
10.7 MHz/450 kHz
30 µV
Power Amplifier Section
Outputs
Speaker impedance
Maximum power output
Speaker outputs (sure seal connectors)
4 – 8 ohms
52 W × 4 (at 4 ohms)
General
Outputs
Inputs
Tone controls
Loudness
Power requirements
Dimensions
Mounting dimensions
Mass
Supplied accessories
Harness Plug Configuration
Audio outputs (front/rear)
Subwoofer output (mono)
Power antenna relay control terminal
Power amplifier control terminal
Telephone ATT control terminal
BUS control input terminal
BUS audio input terminal
Remote controller input terminal
Antenna input terminal
Bass ±10 dB at 62 Hz
Treble ±10 dB at 16 kHz
+8 dB at 100 Hz
+2 dB at 10 kHz
12 V DC car battery (negative ground)
Approx. 178 × 50 × 180 mm
(7 1/8 × 2 × 7 1/8 in.) (w/h/d)
Approx. 182 × 53 × 161 mm
(7 1/4 × 2 1/8 × 6 3/8 in.) (w/h/d)
Approx. 1.2 kg (2 lb. 10 oz.)
Card remote commander RM-X118
Parts for installation and connections (1 set)
Front panel case (1)
Note
This unit cannot be connected to a UniLink digital preamplifier or equalizer.
Design and Specifications subject to change without notice.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Plug shown with wires facing viewer.
Pin Number
Wire Color
Description
1
2
3
4
5
White
Green
Purple
Gray
Blue/white
Left front +
Left rear +
Right rear +
Right front +
AMP Remote
6
7
8
9
10
11
12
13
14
15
16
Blue
Red
Black
White/black
Green/black
Purple/black
Gray/black
Sky blue
ANT Remote
Accessory
Ground
Left front Left rear Right rear Right front ATT
Yellow
Battery
2003 SONY MOBILE
PRODUCT GUIDE
CDX-CA810X
FM/AM Compact Disc Player
Audio OUT Front
178 mm (7”)
50 mm (2”)
Remote IN
From car antenna
BUS Control IN
Audio OUT Rear
Fuse (10A)
BUS Audio IN
178 mm (7”)
88 mm (3 7/16”)
53 mm (2 1/16”)
47 mm (1 7/8”)
33 mm (1 5/16”)
50 mm (2”)
27 mm (11/16”)
160 mm (6 1/4”)
Design and Specifications subject to change without notice.
