= же оны кожа su — о а —— nn a. ——
Lomo

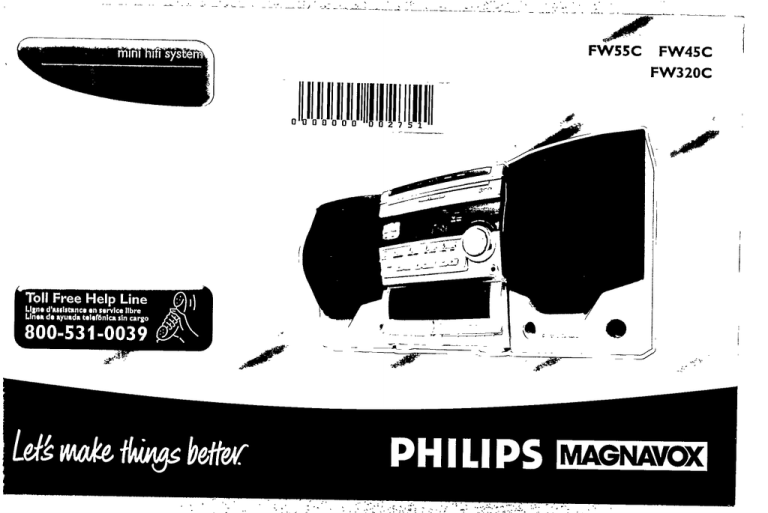

FW55C FW45C
mw.
LAON 2
Toll Free Help Line
Ligne d'assistance en service libre
Linen de ayunda telefônica sin cargo
800-531-0039
М
Е
в
Return your Warranty Registration card today to
ensure you receive all the benefits you're entitled to.
* Once your Philips Magnavox purchase is registered, youre eligible
to receive all the privileges of owning a Philips Magnavox product.
, Warranty | Owner |
* So complete and return the Warranty Registration Card enclosed
with your purchase at once.And take advantage of these impor-
tant benefits.
Model |
Verification Confirmation Registration
Registering your product within 10 days Your completed Warranty Registration Returning your Warranty Registration Card
confirms your right to maximum protection Card serves as verification of ownership in right away guarantees you'll receive all
under the terms and conditions of your the event of product theft or loss. the information and special offers which you
Philips Magnavox warranty.
qualify for as the owner of your model.
A a For Customer Use
Kn OW th ese Enter below the Serial No. which is located on the
RISK OF ELECTRIC SHOCK rear of the cabinet. Retain this information for
DO NOT OPEN future reference.
S G ey sym bo | S CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS Model No.
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This “bolt of lightning” indicates uninsulated material with-
in your unit may cause an electrical shock. For the safety
of everyone in your household, please do not remove
product covering.
The “exclamation point” calls attention to features for
which you should read the enclosed literature closely to
prevent operating and maintenance problems.
Serial No.
WARNING: TO PREVENT FIRE OR SHOCK HAZ-
ARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR
MOISTURE.
CAUTION: To prevent electric shock, match wide
blade of plug to wide slot, and fully insert.
MACSGI7
PHILIPS MTI
Congratulations on your purchase,
and welcome to the “family!”
Dear Philips Magnavox product owner:
Thank you for your confidence in Philips Magnavox. You've
selected one of the best-built, best-backed products available
today. And we'll do everything in our power to keep you
happy with your purchase for many years to come.
As a member of the Philips Magnavox “family,” you're enti-
tled to protection by one of the most comprehensive war-
ranties and outstanding service networks in the industry.
What's more, your purchase guarantees you'll receive all
the information and special offers for which you qualify,
plus easy access to accessories from our convenient home
shopping network.
And most importantly you can count
on our uncompromising commitment to your total satisfac-
tion.
All of this is our way of saying welcome-and thanks for
investing in a Philips Magnavox product.
Sincerely,
=
Robert Minkhorst
President and Chief Executive Officer
PS. Remember, to get the most from your Philips
Magnavox product, you must return your
Warranty Registration Card within 10 days. So
please mail it to us right now!
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol warns the user that uninsulated voltage
within the unit may have sufficient magnitude to cause
electric shock. Therefore, itis dangerous to make
any kind of contact with any inside part of this unit.
unit has been included. Therefore, it should be read
carefully in order to avoid any problems.
WARNING
To reduce the risk of fire or electric shock, do not
expose this appliance to rain or moisture,
CAUTION
Use of controls or adjustments or performance of
procedures other than herein may resultin
hazardous radiation exposure.
The set complies with the FCC-Rules, Part 15 and with 21
CFR 1040.10.
Canada
This digital apparatus does not exceed the Class B limits
for radio noise emissions from digital apparatus as set out
in the Radio Interference Regulations of the Canadian
Department of Communications.
This symbol alerts the user that important literature
AN concerning the operation and maintenance of this
RISQUE DE CHOCS ELECTRIQUES
NE PAS OUVRIR
RIESGO DE CHOQUE ELÉCTRICO
NO ABRIR
Attention: Afin de prévenir le risque de chocs électriques,
ne pas retirer les vis.
Toute réparation devrait être confiée à un personnel qualifié.
Ce symbole indique la présence d'une tension
suffisamment élevée pour engendrer un risque de
chocs électriques.
Ce symbole indique que le manuel d'installation
fourni avec l'appareil contient d'importantes
recommandations quant au fonctionnement et
à l'entretien de ce dernier.
AVIS
Afin de réduire tout risque d'incendie ou de choc
électrique, il ne faut pas exposer cet appareil à la
pluie ou à l'humidité.
ATTENTION
L'utilisation des commandes ou réglages ou le non-
respect des procédures ci-incluses peuvent se
traduire par une exposition dangereuse à
Firradiation.
L'appareil répond aux normes FCC, Part 15 et 21 CFR 1040.10.
Canada
Cet appareil numérique n'emet pas de bruits radioélectriques
dépassant les limites applicables aux appareils numériques
de Class B prescrites dans le Règlement sur le Brouillage
Radioélectrique édicté par le Ministère des Communications
du Canada.
Atenciôn: Para reducir el riesgo de choque elécrico,
no quite la tapa (o el panel posterior).
En su interior no hay piezas que el usuario pueda reparar.
Para servicio dirijase a personal calificado.
Este símbolo trene por finalidad advertir al usuario do
la presencia de tensión peligrosa no arstada dentro de
la caja del aparato, que puede ser lo suficiontementa
fuerte para constiturr un peligro de choque eléctrico
mantenimiento (servicio) mpartantes en el manual
que acompaña al aparato
AVISO
Para reducir el riesgo de fuego o choque eléctrico,
no exponga el aparato a la lluvia o humedad.
ATENCIÓN
El uso de mando o ajustes o la ejecucción de
métodos que no sean los aquí descritos puede
ocasionar peligro de exposición a radiación.
El aparato cumple las normas FCC, Parte 15y 21 CFR 1040 10
Este símbolo sirve para advertir al usuano de la
AN presencia de instrucciones de manejo y
Pe TT
| | | À | |
Cua, ¡ama e,
fe e | <
N
INDEX
h
15
Francais .........
Español .........
/
`..
a
N—
/
N—
Engl
--
©
=)
= &à
VO
a
2 à
ml
of
N
J
na]
CA
VET A E A AA AE = a
- F > - -
- ~ *
’
=] +
E New
=
=
SAFETY INSTRUCTIONS — Read before operating equipment
\ This product was designed and manufactured to meet strict quality and safety standards.
There are, however, some installation and operation precautions which you should be
particularly aware of.
1, Read Instructions - All the safety and operating instructions should be read before
the appliance is operated.
2. Retain Instructions - The safety and operating instructions should be retained for
future reference.
3. Heed Warnings - All warnings on the appliance and in the operating instructions
should be adhered to.
Follow Instructions - All operating and use instructions should be followed.
Water and Moisture - The appliance should not be used near water - for example,
near a bathtub, washbowi, kitchen sink, laundry tub or swimming pool, or in a wet
basement.
6, Carts and Stands - The appliance should be used only with a cart or stand that is
recommended by the manufacturer.
6A. An appliance and cart combination should be moved with care. Quick
® stops, excessive force, and uneven surfaces may cause the
appliance and cart combination to overturn.
7. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling
only as recommended by the manufacturer.
8. Ventilation - The appliance should be situated so that its location or position does
not interfere with its proper ventilation. For example, the appliance should not be
situated on a bed, sofa, rug, or similar surface that may block the ventilation
openings; or, placed in a built-in installation, such as a bookcase or cabinet that may
impede the flow of air through the ventilation openings.
9, Heat - The appliance should be situated away from heat sources such as radiators,
heat registers, stoves, or other appliances {including amplifiers) that produce heat.
10. Power Sources - The appliance should be connected to a power supply only of the
type described in the operating instructions or as marked on the appliance.
11. Grounding or Polarization - Precautions should be taken so that the grounding or
polarization means of an appliance is not defeated.
CAUTION: to prevent electric shock, match the
wide blade of this plug to the wide slot and fully insert. ¢
Do not use this (polarized) plug with an extension cord, =
receptacle or other outlet unless the blades can be fully -
inserted to prevent blade exposure.
sa
’ “Polarized Plug
13.
14.
15.
16.
17.
18.
12.
Power Cord Protection - Power supply cords should be routed so that they are not
likely to be walked en or pinched by items placed upon or against them, paying
particular attention to cords and plugs, convenience receptacles, and the point
where they exit from the appliance.
Cleaning - The appliance should be cleaned only as recommended by the
manufacturer,
Power Lines - An outdoor antenna should be located away from power lines.
Outdoor Antenna Grounding - If an outside antenna 15 connected to the receiver,
be sure the antenna system is grounded so as to provide some protection against
voltage surges and built up static charges.
Section 810 of the National Electrical Code, ANSI/NFPA No. 70-1984, provides
information with respect to proper grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna discharge unit, size of grounding
connectors, location of antenna-discharge unit, connection to grounding electrodes,
and requirements for the grounding electrode. See figure on page 7.
Nonuse Periods - The power cord of the appliance should be unplugged from the
autlet when left unused for a long period of time.
Object and Liquid Entry - Care should be taken so that objects do not fall and
liquids are not spilled into the enclosure through openings.
Damage Requiring Service - The appliance should be serviced by qualified
service personnel when:
A. The power supply cord or the plug has been damaged; or
B. Objects have fallen, or liquid has spilled into the appliance; or
C. The appliance has been exposed to rain; or
D. The appliance does not appear to operate normally or exhibits a marked change
in performance; or
E. The appliance has been dropped, or the enclosure damaged.
Servicing - The user should not attempt to service the appliance beyond that
described in the operating instructions. All other servicing should be referred to
qualified service personnel.
“=
- - , Ay 1
o Zr - —
——— =. A теней Na еще an ee HO er se het
SAFETY INSTRUCTIONS |
Note to the Cable TV system installer
This reminder is provided to call the Cable TV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, 5
specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
32/11
Example of Antenna Grounding as
per NEC - National Electrical Code
Ground CT
[email protected]— Antenna Lead-in Wire
ZN
— E
<—— Antenna Discharge Unit
(NEC Section 810-20)
+
< _1_ Grounding Conductors
/ Da (NEC Section 810-21)
| Ground Clamps
— «q Power Service Grounding Electrode System
J (NEC Art. 250, Part H)
—
Electric Service Equipment
EL 4562-1
AUDIO SYSTEM
One Year Free Labor
One Year Free Service on Parts
This product must be carried in for repair.
WHO IS COVERED?
You must have proof of purchase to receive warranty
service. A sales receipt or other document showing that
you purchased the product is considered proof of purchase.
WHAT 1S COVERED?
Warranty coverage begins the day you buy your product.
For one year thereafter, all parts will be repaired or replaced,
and labor is free.After one year from the day of purchase,
you pay for the replacement or repair of all parts, and for
all labor charges.
All parts, including repaired and replaced parts, are covered
only for the original warranty period. When the warranty
on the product expires, the warranty on all replaced and
repaired parts also expires.
WHAT IS EXCLUDED?
Your warranty does not cover:
* labor charges for installation or setup of the product,
adjustment of customer controls on the product, and
installation or repair of antenna systems outside of the
product.
product repair and/or part replacement because of misuse,
accident, unauthorized repair or other cause not within
the control of Philips Consumer Electronics Company.
reception problems caused by signal conditions or cable
or antenna systems outside the unit
a product that requires modification or adaptation to
enable it to operate in any country other than the
country for which it was designed, manufactured,
approved and/or authorized, or repair of products
damaged by these modifications.
incidental or consequential damages resulting from the
product. (Some states do not allow the exclusion of
incidental or consequential damages, so the above
exclusion may not apply to you.This includes, but is not
limited to, prerecorded material, whether copyrighted or
not copyrighted.)
LIMITED WARRANTY
* a product that is used for commercial or institutional
purposes.
WHERE IS SERVICE AVAILABLE?
Warranty service is available in all countries where the
product is officially distributed by Philips Consumer
Electronies Company. In countries where Philips Consumer
Electronics Company does not distribute the product, the
local Philips service organization will attempt to provide
service (although there may be a delay if the appropriate
spare parts and technical manual(s) are not readily
available).
MAKE SURE YOU KEEP...
Please keep your sales receipt or other document showing
proof of purchase. Attach it to this owner's manual and
keep both nearby.Also keep the original box and packing
material in case you need to return your product.
BEFORE REQUESTING SERVICE...
Please check your owner's manual before requesting
service. Adjustments of the controls discussed there may
save you a service call.
TO GET WARRANTY SERVICE IN
U.S.A., PUERTO RICO OR U.S. VIRGIN
ISLANDS...
Take the product to a Philips factory service center (see
enclosed list) or authorized service center for repair When
the product has been repaired, you must pick up the unit at
the center. Centers may keep defective parts.
(In US.A,, Puerto Rico and US.Virgin Islands, all implied
warranties, including implied warranties of merchantability
and fitness for a particular purpose, are limited in duration
to the duration of this express warranty. But, because some
states do not allow limitations on how long an implied
warranty may last, this limitation may not apply to you.)
TO GET WARRANTY SERVICE IN
CANADA...
Please contact Philips at:
1-800-661-6162 (French Speaking)
1-800-363-7278 (English Speaking)
(In Canada, this warranty is given in lieu of all other
warranties. No other warranties are expressed or implied,
including any implied warranties of merchantability or
fitness for a particular purpose. Philips is not liable under
any circumstances for any direct, indirect, special, incidental
or consequential damages, howsoever Incurred, even if
notified of the possibility of such damages.)
REMEMBER...
Please record the model and serial numbers found on the
product below. Also, please fill cut and mail your warranty
registration card promptly. lt will be easier for us to notify
you if necessary.
MODEL#
SERIAL #
This warranty gives you speofic legal nights You may howe other
rights which vary from statelproyince to state/brounce
Philips Service Solutions Group, P.O. Box 555,
Jefferson City, Tennessee 37760, (423) 475-8869
EL476SECOS 7 MAC 41107 1-97
.— mm.
CONTENTS
General Information 9
Safety Information 9
Preparation 10-11
Controls 12-13
Operating The System 14-15
CD 16 - 18
Tuner 18 - 19
Таре 20-21
Aux 21
Recording 22 - 23
Clock 24
Timer 24-25
Maintenance 26
Specifications 26
Troubleshooting 27
= - = о = - ——— = Ja
_ GENERAL INFORMATION
обо
= . ч Pot vw Tam -
- fx Pr, «fF - „о -
- ?> "+ Pa a A at ; a
: = Ta я
- " <” “e = e
+
- r 1 x
”
—_— = A т
SAFETY INFORMATION
General Information
* The typeplate (which contains the serial number)
is located at the rear of the system.
* Recording is permissible if copyright or other
rights of third parties are not infringed.
This device complies with the Federal
Communications Commission (FCC) rules, part 15
and with 21 CFR 1040.10. Operation is subject to
the following two conditions:
— This device may not cause harmful
interference, and
— This device must accept any interference
received, including interference that may
cause undesired operation,
Environmental Information
All unnecessary packaging has been omitted. We have
tried to make the packaging easy to separate into three
materials: cardboard {box), polystyrene foam (buffer) and
polyethylene (bags, protective foam sheet).
Your system consists of materials which can be recycled
and reused if disassembled by a specialized company.
Please observe the local regulations regarding the disposal
of packaging materials, exhausted batteries and old
equipment.
Accessories (Supplied)
— Remote control
— Batteries (two x AA size) for remote control
— AM loop antenna
— FM wire antenna
= АС power cord
— One pair of Surround Speakers (FW55C only)
Safety Information
Before operating the system, check that the operating
voltage indicated on the typeplate (or the voltage
indication beside the voltage selector) of your system is
identical with the voltage of your local power supply. If
not, please consult your dealer. The type plate is located
at the rear of your system.
When the system is switched on, do not move it around.
Place the system on a solid base (e.g. a cabinet).
Place the system in a location with adequate ventilation
to prevent internal heat build-up in your system.
Do not expose the system to excessive moisture, rain,
sand or heat sources.
Under no circumstances should you repair the system
yourself, as this will invalidate the warranty!
If the system is brought directly from a cold to a warm
location, or is placed in a very damp room, moisture may
condense on the lens of the CD unit inside the system.
Should this occur, the CD player will not operate
normally. Leave the power on for about one hour with no
disc in the system until normal playback is possible.
Electrostatic discharge may cause unexpected problems.
See whether these problems disappear if you unplug the
AC power cord and plug it in again after a few seconds.
To disconnect the system from the power supply
completely, remove the AC power plug from the
wall socket.
English
i
J
PREPARATION
РЫ AERLAL
SX
| :| AM AESCAL
Ex
|
se I Dj+
4
À
N
эт. =
hon
—]—_——é —Ñil ia paegE
- - Md A wh um a
- + * mz "ar У 7.
” A AT , TE adn e At wa + +, De ara Ls
tot > - DA + Gy, te? E AXIS e
— - a x - - - - лы од т X i Tee aA + a + =
= =f + + r Fat "E ” + =.
a * = de * - - x и a п, д. „окос a
e HN - е - + = EX
HL Tr wt E. ara y ме, gars
- -
Alo жен a A Aa
(A) AM Loop Antenna Connection
Connect the supplied loop antenna to the AM AERIAL
terminal. Place the AM loop antenna far away from the
system and adjust its position for the best reception,
(8) FM Wire Antenna Connection
Connect the supplied FM wire antenna to the FM 300 Q
terminal. Adjust the position of the FM antenna for the
best reception.
Outdoor Antenna
For better FM stereo reception connect an outdoor FM
antenna to the FM AERIAL 300 €2 terminal using a 300 Q
dipole wire.
(© Speaker Connections
* Connect the right speaker to Front terminal R, with the
red wire to + and the black wire to —
* Connect the left speaker to Front terminal L, with the
e Clip the stripped portion
of the speaker wire as
shown,
red wire to + and the
Е
Za
black wire to —.
un'ocek lock
(D) Surround Speakers Connection
{far FW55C only)
4-Speakers Connection
* Front speakers : Connect the black wires to the black
FRONT terminals and the red wires to the red FRONT
terminals.
= AAA + -
PREPARATION
a
* Rear (surround) speakers : Connect the black or non-
marked wires to the black REAR terminals and the white
or marked wires to the grey REAR terminals.
Positioning the Speakers
To get the best surround sound effect, place the speakers
as follow.
EIN] HIFI
SYSTEM
FRONT FRONT
LEFT RIGHT
SURROUND SURROUND
LEFT RIGHT
J
Front Left and Right Speakers
For best listening effect, it is recommended to have the
Left and Right speakers to form an angle of approximately
45 degrees to the listener. Should the magnetic field from
the speakers affect the picture of the television, you should
increase the separation distance.
Rear (surround) Speakers
The surround speaker should be placed at normal listening
ear level. It can also be mounted on the wall at the back of
the room. Most important , sometimes you need to
experiment creatively when placing the surround speakers
in order to obtain the most ideal sound projection.
(E) Connecting other equipment to your
system
You can connect the audio left and right OUT terminals of a
TV, VCR, Laser Disc or DVD player to the AUX IN terminals
at the rear of the system.
(F) AC Power Supply
After all other connections have been made, connect the
AC power cord to the system and to the wall outlet.
Inserting batteries into the Remote
Control
* Insert the batteries (Type ROG or AA) into the remote
control as shown in the battery compartment.
* To avoid damage from possible battery leakage, remove
dead batteries or batteries that will not be used for a
long time. For replacement, use type ROS or AA
batteries.
English
11
CONTROLS
A ee ee
f
I
1
1
1
I
I
1
1
1
1
|
1
1
J
i
1
I
}
1
1
x
JE E
WASTER ` Clue
. a >
ESO
EE EE Ede A
APE
Ti
TAFE En 1
0
TUNER
BAND
«1-2-3
aaa E
25
Ба
|5]
[3]
(15)
[3]
El
[a
PAUSE
>
+
>
1 RECORD
12
a. An e Tr Ca 2 - A r=
TT [—— E A an e AAA aa a
LP
-
+". RN:
+ -
x E 7.
- + » - = E - La
LEE, + к Toe, € vo. a
AT ee ee a PA A AAA лено
"о =
“
T —0
e > ry nt
| В - 1
|
| CONTROLS
] _ TAE a a i
DIGITAL SOUND CONTROL (DSC) {ig TAPE DECK 1 OPERATION
Controls on the system and remote = to select the desired sound effect : OPTIMAL, JAZZ, RECORD ............... to start recording. 3
control ROCK or TECHNO. Play » to start playback. | в |
[1] STANDBY-ON [6] DIGITAL SOUND CONTROL DISPLAY PANEL «4... to rewind the tape.
— to switch the system on or to standby mode. — to view the selected DSC display. LEN to fast forward the tape.
= to stare radio stations automatically by pressing and DYNAMIC BASS BOOST (DBB) STOP*OPEN........ to stop playback/recording or to
holding for 2 seconds. | — to switch on bass boost to enhance bass response or open the tape door.
[2] SOURCE : to select the following. to switch off bass boost. PAUSE to interrupt playback or recording.
CD / (CD 10203) DISPLAY Go TAPE DECK 1
= to select CD made. When CD in stop made; to select — to view the current setting of the system. (21 BRIGHTNESS (available in model FW620 only)
the disc tray 1, 2 or 3, (3) CD CAROUSEL TRAY — to adjust the intensity of the display illumination.
TUNER / (BAND) fi) CD DIRECT PLAY (DISC 1 / DISC 2 / DISC 3) REPEAT
= to select Tuner mode. When in tuner mode; to select — to select a CD tray for playback. — torepeat a CD track.
the waveband: FM or AM, 1] OPEN-CLOSE 23 SHUFFLE
TAPE / (TAPE 1+ 2) — to open or close the CD carousel tray. — to play all the available discs and their tracks in
~ to select Tape mode. 12} DISC CHANGE random order.
AUX/ (VIDEO) — to change CD(s). 24 MUTE
= to select sound from an external source (e.g. TV, Laser fia CLOCKeTIMER — to switch off the sound temporarily.
Disc, DVD or VCR player). — toviewclock, set clock or timer. В ©
[3] MODE SELECTION [144 PROGRAM — to switch the system to standby mode.
SEARCH << >> (TUNING << >>)
for CD............ to search backward/forward.
for TUNER ..... to tune to a lower or higher radio
frequency.
STOPeCLEAR M (DEMO)
for CD... to stop CD playback or clear a program.
for TUNER … to stop programming.
DEMO va to stop demonstration.
PLAY > / PAUSENI
for CD... to start or interrupt playback.
PREV |< / NEXT DI (PRESET Y A)
for CD... to skip to the beginning of the current
or previous/next track.
for TUNER ..... to select a preset station in memory.
4] DUBBING
= to dub a tape in normal or fast speed.
to program CD tracks in CD mode or preset radio
stations in tuner mode.
15! VOLUME
— to adjust the volume level.
i
— to connect headphones.
TAPE DECK 2
[185 TAPE DECK 2 OPERATION
PLAY » .............. to start playback.
«ч.5... to rewind the tape.
PE” einen to fast forward the tape.
STOP*OPEN........ to stop playback or to open the
tape door.
PAUSE ................. to interrupt playback.
Notes for remote control:
— First select the source you wish to control by
pressing one of the source select keys on the
remote control (e.g. CD, TUNER, TAPE 1/2 or AUX).
— Then select the desired function (PLAY, NEXT,
etc.) 13
ts TA
—
14
re mr A ————— ——
OPERATING THE SYSTEM
„= тт STEREO 088
Ta & æavs
== пост =
TIMER ALLE (ASTER VOLU2
e)
(Or }
A
Us. («>»)
La
+
ed Fr FAY
> Je)
Y 7 a
Pa. ri
Important:
Before you begin operating the system, complete the
preparation procedures.
Demonstration mode
The system has a demonstration mode that shows the
various features offered by the system. Whenever the
system is switched on from the wall socket, the
demonstration mode will start automatically.
Notes:
— During demonstration mode, if you press any source (or
standby-on) button, the system will switch to the
respective {or standby) mode.
— When the system is switched to standby mode, 5
seconds later, the demonstration mode will resume.
To cancel demonstration mode
e Press and hold STOPeCLEAR M (DEMO) (on the
system only) for 3 seconds to stop the demonstration.
— The demonstration mode will be switched off.
— The system will switch to standby mode.
Easy Set
EASY SET allows you to store ail available radio stations in
a particular band (FM or AM) automatically.
e Press and hold STANDBYeON (on the system only} for
2 seconds; when the system 1s in standby or
demonstration mode.
— "EASY SET" will be displayed and followed by
"TUNER",
— EASY SET will start with the last active band
— All available radio stations with sufficient signal
strength will be stared or until 40 presets are filled.
Notes :
— When EASY SET is used, all previously stored stations
will be erased.
— The last preset station will appear on the display vwhen
EASY SET is completed.
Switching the system ON
e Press STANDBYeON (on the system only), CD,
TUNER, TAPE or AUX.
You can also switch on the system by pressing any one of
the CD DIRECT PLAY buttons.
Switching the system to standby mode
e Press STANDBYeON again.
— The system will switch to standby made.
-—— am — my
Selecting the Source
* Press the respective source selection button: CD
TUNER, TAPE or AUX.
~ The display indicates the selected source.
Note:
— For an external source, make sure that you have
connected the audio left and right OUT terminals of the
external equipment (TV, VCR, Laser Disc or DVD player}
to the AUX IN terminals.
Sound Control
Volume Adjustment
Adjust VOLUME to increase or decrease the sound level.
For Personal Listening
Connect the headphones plug to the 4% socket at the front
of the system. The speakers will be muted.
Digital Sound Control (DSC)
The DSC feature enables you to enjoy special sound effects
that have preset equalizer settings, providing the best
music reproduction,
* Press DIGITAL SOUND CONTROL (DSC) to select
OPTIMAL, JAZZ, ROCK or TECHNO.
— The Digital Sound Control display panel will light up
respectively.
— "OPTIMAL, JRZZ, ROCK or TECHNO" will be
displayed.
=
Pa eh же к
Automatic DSC-DBB selection
The best setting for the DBB is automatically generated for
the respective DSC selection. You can manually select the
DEB setting that best suits your listening environment.
DSC Selection DBB On/Off
Optimal — On
Jazz —— Off
Rock ——— Off
Techno —— On
Dynamic Bass Boost (DBB)
The DBB mode enhances the bass response.
* Press DBB to switch on bass response.
— The DBB button lights up.
— “223 GN” will be displayed.
DBB DEB
+ +
+ I
E
DBB DBB
OFF ON
To switch off DBB
e Press DBB again.
— The DBB button light is switched off.
— "155 OFF" will be displayed.
Note:
— Some CDs or tapes might be recorded in high
modulation. It may cause a distortion at high volume. If
this occurs, switch off DBB or reduce the volume.
- ——
EC A AA A o E
a
- +
Ob DL AN rr a:
OPERATING THE SYSTEM
Mute (only on remote control)
This feature allows you to temporarily switch off the sound |
of the system without switching off the system when you
require a moment of silence.
English
* Press MUTE on the remote control to switch off the
sound.
— "MUTE" will be displayed.
* Press MUTE again on the remote control or increase the
VOLUME level to switch on the sound.
15
yb
16
4
A
1 118
E
CO 2:53
Warning!
1) This system is designed for conventional CDs. Do not use any accessories like disc stabilizer rings or CD
treatment sheets, etc., which may damage the CD mechanism.
2) Do not load more than one disc into each tray.
3) When the CD changer is loaded with CD(s), do not turn over or shake the system. This may jam the changer.
You can load up to three discs in the CD changer for continuous playback without interruption.
Loading the CD Changer
1 Press CD to select CD mode
2 Press OPEN-CLOSE.
— The CD compartment sfides out.
3 Load a CD with the printed side up in the right tray
You can load another disc in the left tray
To load the third disc, press the DISC CHANGE button
— The CD changer carousel will rotate until the empty
tray is at the right hand side and is ready for loading
— Playback will always start with the disc in the outer
right disc tray.
4 Press OPEN-CLOSE to close the CD compartment.
— The total number of tracks and playing tame of the
last selected disc appear on the display.
CD Direct Play
You can play a CD directly by pressing the DISC 1, DISC 2
or DISC 3 button. The CD player will stop at the end of
playback of the selected disc
— When the button is lighted, it indicates that there 1s a
disc loaded in the disc tray.
Playing a CD
1 Press PLAY > to start playback.
— The disc tray, track number and elapsed playing time
of the current track appear on the display.
e To interrupt playback, press PAUSE 11
— The playing time flashes
e To resume playback, press PLAY D again.
2 To stop playback, press STOPsCLEAR MM.
Note:
— All the available discs will play once, then stop. When
the CD has stopped playing, the system will switch to
the standby mode after 15 minutes if no button is
pressed.
Disc Change
You can change the outer 2 discs while the third inner dise
15 at the stop or playing mode.
1 Press DISC CHANGE,
+ The CD compartment slides out.
2 Replaced the discs in the left and right disc trays.
If you press DISC CHANGE again during playback, the
CD will stop playing.
— The CD carousel tray will rotate until the inner tray is
at the right hand side and is ready for changing.
3 Press OPENeCLOSE to close the CD compartment.
Selecting a desired track
Selecting a desired track at the stop mode
1 Press PREV |< or NEXT DI until the desired track
appears on the display.
2 Press PLAY » to start playback.
— The selected track number and elapsed playing time
appear on the display.
Selecting a desired track during playback
1 Press PREV |< or NEXT PI until the desired track
appears on the display.
— The selected track number and elapsed playing time
appear on the display.
* If you press PREV |< once it will skip to the beginning
of the current track and play the track again.
,
"E. -
= о
Searching for a particular passage
during playback
* Press and hold << or >» until the desired passage is
located.
— The volume will be reduced.
* Play returns to normal when << or >» is released.
Programming Tracks
Programming tracks of a loaded CD is possible in the stop
mode. The display will indicate the total tracks stored in
the program. Up to 40 tracks can be stored in the memory
in any order. When 40 tracks are stored and you attempt to
store another track, the display will show "PROGRAM
FULL”.
1 Load the desired discs in the disc trays.
2 Press PROGRAM to start programming.
— The PROGRAM flag starts flashing.
3 Press the CD (CD 1e2e3) button to select the disc.
4 Press PREV 1 or NEXT D to select the desired track.
5 Press PROGRAM to store the track.
* Repeat steps 3to 5to store other discs and tracks.
6 Press STOPsCLEAR M once to end programming
mode.
— The total number of tracks programmed and total
playing time appear on the display.
Notes:
— If the total playing time is more than “55:59 "or if
one of the programmed tracks has a number greater
than 30, then “- --- - “ appears in the display instead
of the total playing time.
— During programming, if no button is pressed within 20
seconds, the system will exit program mode
automatically.
Playing the program
1 Press PLAY » to start program playback.
— “PLAY PROGRAM" appears on the display.
— The track number and elapsed playing time of the
current track will appear on the display.
e If you press REPEAT during program playback, the
current track will be played repeatedly.
— The REPEAT and PROGRAM flags will be displayed.
2 Press STOPeCLEAR № to stop program playback.
Note:
— If you press any of the CD DIRECT PLAY buttons, the
system will play the selected disc or track and the
stored program will be ignored temporarily. The
PROGRAM flag will also temporarily disappear from the
display and then reappear when the playback for the
selected disc ends.
Reviewing the program
Reviewing of the program is only possible in the stop
mode.
* Press PREV I« or NEXT Di repeatediy to review the
programmed tracks.
e Press STOPeCLEAR IM to exit review mode.
Erasing the program (in the stop mode)
* Press STOP*CLEAR HE on the system.
— "PROGRAM CLERRE D" will be displayed.
Note:
— The program will be erased when the system is
disconnected from the power supply. If the CD carousel
is opened, the tracks belonging to the outer two trays
will be erased and the display will show CLEARED”.
17
18
CD
Shuffle (only on remote control)
It will play all the available discs and their tracks in random
order. Shuffle may also be used when tracks are
programmed.
To shuffle all the discs and tracks
1 Press SHUFFLE.
— “SHUFFLE” will be displayed.
— The SHUFFLE flag, the disc and the track selected at
random appear on the display.
The discs and the tracks will now be played in random
order until you press STOPeCLEAR Ш.
If you press REPEAT during shuffling, the current track
will be played repeatedly.
— The REPEAT and SHUFFLE flags will be displayed.
2 Press SHUFFLE again to resume normal playback.
— The SHUFFLE flag disappears from the display.
Repeat (only on remote control)
It will play the current track repeatedly.
1 Press REPEAT during CD playback.
— “REPERAT TRACK” will be displayed.
— The REPEAT flag appears on the display.
e The track will now be played repeatedly until you press
STOP-CLEAR M.
2 Press REPEAT again to resume normal playback.
— The REPEAT flag disappears from the display.
| EY L=/ (FHT "*® ces
_. — = „==
| DSC ( mos == T LIN
| ГОДЕ ЕК
| Tress |
ТАРО.
Easy Set
EASY SET allows you to store all available radio stations in
a particular band (FM or AM) automatically.
e Press and hold STANDBYeON (on the system only) for
2 seconds; when the system is in standby or
demonstration mode.
— "EASY SET" will be displayed and followed by
"TUNER",
— EASY SET will start with the last active band.
— All available radio stations with sufficient signal
strength will be stared or until 40 presets are filled.
Notes:
— When EASY SET is used, all previously stored radio
stations vill be erased.
— The last preset radio station will appear on the display
when EASY SET is completed.
Tuning to radio stations
1 Press TUNER to select TUNER mode.
— "TUNER" will be displayed.
A few seconds later, the current frequency is
displayed.
2 Press TUNER (BAND) again to select the desired
waveband : FM or AM.
3 Press TUNING << or >> for more than one second,
then release.
— The display will show SEARCH" until a radio station
with sufficient signal strength is found.
Repeat this procedure until the desired station is
reached.
To tune to a weak station, briefly press TUNING << or
»» until the display shows the desired frequency and/or
when the best reception has been obtained.
Storing Preset Stations
You can store up to 40 radio stations in the memory. When
a preset radio station is selected, the preset number
appears next to the frequency on the display.
Automatic programming
1 Press TUNER.
2 Press TUNER (BAND) again to select the desired
waveband : FM or AM.
3 Press PROGRAM for more than one second.
~ PROGRAM flag starts flashing and AUTO" will be
displayed.
— Every available station for the selected waveband
Will be stored automatically. The frequency and
preset number will be displayed briefly.
— The system will stop searching when all the
available radio stations are stored or when the
memory for 40 preset radio stations is used.
— The system will remain tuned to the last stored
preset radio station.
Repeat the above procedure to store other preset radio
stations for the other waveband. Remember to select
the next available preset number before proceeding. If
not, some of the preset radio stations may be erased.
Notes:
~ You can cancel the automatic programming by pressing
PROGRAM or STOPe CLEAR MI on the system only.
— If you want to reserve a section of preset numbers, for
example preset numbers 1 to 9, select preset 10 before
starting automatic programming: now only the preset
numbers 10 to 40 will be programmed.
Manual programming
1 Press TUNER.
2 Press TUNER (BAND) to select the desired waveband
FM or AM.
3 Press PROGRAM for less than one second.
— PROGRAM flag, the frequency and preset number
start flashing.
— The next available preset number will be displayed
for selection.
4 Press TUNING << or >» to tune to the desired
frequency.
If you wish to store the radio station to another preset
number, press PRESET Y or A to select the desired
preset number.
5 Press PROGRAM again.
— PROGRAM flag will stop flashing, and the radio
station will be stored.
TUNER
* Repeat the above procedure to store other preset radio |
English
stations.
Notes:
— When 40 radio stations are stored and you attempt to
store another radio station, the display will show
* PROGRAM FULL” If you want to change an
existing preset number; repeat steps 4 and 5.
— You can cancel manual programming by pressing
STOPeCLEAR MI on the system only.
— During programming, if no button is pressed within 20
seconds, the system will exit program mode
automatically.
Tuning to Preset Radio Stations
e Press PRESET ¥ or A to select the desired preset
number.
— The preset number, frequency and waveband appear
on the display
19
20
(es) =) qe =
DEl > MA
FA
E) E) E) E]
CZ:
ТАРЕ 1. 2
VITO
L
Y >
- x
4 4 » >
ee ee T_T
f i À | r
| >» ) | ‘U HM
нее” - — > >
SIA SÉCHACLEAT PAY PA:
wa
1
3
еее ZN
rey PY / / TON \
O)
zz,
TAPE 1 TAPE 2
Loading a tape
e Press STOPeOPEN.
e The tape deck door opens.
e Load the tape with the open side
downward and the full spool to
the left.
e Close the tape deck door.
| RECORD PLAY » + »» — STOPOREN PAUSE
PLAY №
AA
Tape Playback
1 Press TAPE to select TAPE made.
— “THPE” will be displayed.
2 Load the tape into the selected tape deck.
3 Press PLAY » to start playback.
e To interrupt playback, press PAUSE.
e To resume playback, press PAUSE again.
4 Press STOPeOPEN to end playback.
Rewind/Fast Forward
At the stop mode
1 You can rewind or fast forward a tape by pressing << ог
»» respectively.
— The tape will stop automatically at the end of
rewinding or fast forwarding.
2 Press STOPeOPEN to stop rewinding or fast
forwarding.
= ee Te
TAPE
Continuous Playback From Tape Deck 2
to Tape Deck 1
1 Prass TAPE to select TAPE mode.
2 Load the tapes in tape deck 1 and 2.
3 Press PLAY » on tape deck 2.
4 Press PAUSE on tape deck 1.
5 Prass PLAY » on tape deck 1.
— Playback will begin with tape deck 2 and will
continue with tape deck 1 when playback on tape
deck 2 ends.
6 Press STOPeOPEN if you want to stop playback before
the end of the tape in tape deck 1 or tape deck 2.
Notes:
= During rewinding or fast forwarding of a tape, it is also
possible to select another source mode (e.g. CD, TUNER
or AUX mode).
— Check and tighten slack tape before use with a pencil.
Slack tape may get jammed or may burst in the
mechanism,
~ 0-120 tape is extremely thin and is easily deformed or
damaged. It is not recommended for use in this system.
— Store the tapes at room temperature and do not put
them too close to a magnetic field (for example, a
transformer, TV or loudspeaker boxes).
' К” LU +
AN NA] AAA Pel TY
* “©
—- To» = “à «à —- и _Æ PEE,
A ны еб ния kn нА an A os
ет au ENT = ee AR
» * " -
- r + aw
= En + - "
et AAA AA ap Pl a
AUX
0
2)
|8
7
English
Meta
YA EI
СС
ZI
Г” —
+
=
ho уж
—
MINI HIF} SYSTEM
Selecting External Equipment
If you have connected the audio out terminals of the
external equipment (TV, VCR, Laser Disc or DVD player) to
the AUX IN terminals, you can hear the enhanced sound
from the system.
* Press AUX to select the external mode.
— "AUX" will be displayed.
Note:
— All the sound control features (e.g. DSC, DBB, etc.) are
available for selection.
21
RECORDING
= Notes:
= — For recording, use only tape of IEC type | (normal tape)
LV, — The tape is secured at both ends with leader tage At
PE me es <a the beginning and end of tape, nothing will be recorded
de Г A ri Sh EL rivas for six to seven seconds.
Emo CI sole — The recording level is set automatically, regardless of
the position of Volume or DEB.
— To prevent accidental recording, break out the tab on the
7 left shoulder of the tape side you want to protect
< po — — P —/ \
NT | | т ) AUX | ! \ »
| © || Ge ) (o ) (ej (0 >) | One Touch Recording
E ms — = = / e For One Touch Recording, as soon as you press RECORD,
ME eos rea ; the current source will be recorded on tape deck 1
== pusena pee pe VEN FA ин, и
ras f 7 .
© SM En > J ("| > y >) — 1 Loada blank tape in tape deck 1 |
es Soka pv РЕ me кк и ( ZN 2 Press RECORD on tape deck 1 to start recording.
O — The REC flag starts flashíng.
ZZ ) 3 Press PAUSE to interrupt recording.
— | 4 Press STOPeOPEN on tape deck 1 to stop recording
TAPE 1 TAPE 2
a a
he e
| RECORD . > < >> — STOPOPEN PAUSE PLAY » <a >> STOP-OPEN_ PAUSE |
| JE 11 JE || И H il il y
22
Dubbing tapes (from tape deck 2 to tape deck 1)
1 Load the prerecorded tape into tape deck 2 and a blank
tape into tape deck 1.
- Make sure that both tapes have their full spool to the
left.
2 Press DUBBING to switch between normal and high
speed dubbing.
— “NORMAL” (normal speed) or "FAST" (high speed)
will be displayed.
— HSD flag appears on the display for high speed
dubbing.
Press PAUSE on tape deck 1.
4 Press RECORD on tape deck 1.
5 Press PLAY on tape deck 2,
= Recording will start automatically.
- The REC flag starts flashing.
6 Press STOP * OPEN on tape deck 1 and tape deck 2 to
stop dubbing.
со
Notes:
~ At the end of side A, flip the tapes to side B and repeat
the procedure.
~ Dubbing of tapes is only possible from tape deck 2 to
tape deck 1.
—~ To ensure good dubbing, use tapes of the same length.
= During high speed dubbing in Tape mode, the sound is
reduced to a low volume.
CD Synchro Start Recording
During CD synchro start recording,
e Itis not advisable to fast forward/rewind your tape in
tape deck 2.
e tis not possible to listen to another source.
1 Load a blank tape into tape deck 1 and a disc into the
disc tray.
2 Press CD.
You can program the tracks in the order you want them
to be recorded (see Programming Tracks). If not, the
tracks are recorded according to the selected disc.
3 Press RECORD on tape deck 1 to start recording.
4 Press STOP e OPEN on tape deck 1 to stop recording
and STOPeCLEAR MM to stop CD playback.
Recording from other sources (only on tape
deck 1)
1 Load a blank tape into tape deck 1.
2 Press CD, TUNER, TAPE or AUX.
* Start playback of the selected source.
3 Press RECORD on tape deck 1 to start recording.
— The REC flag is flashing.
4 Press PAUSE to interrupt recording.
5 Press STOP e OPEN on tape deck 1 to stop recording.
Note:
— During recording, it is not possible to listen to another
sound source.
=
| -
: се
=
Lis
oo A
23
CLOCK TIMER
Notes:
— During clock setting, if no button is pressed within 90
(N = = == es a seconds, the system will exit clock setting mode
| — ua | AS м _ № ao 1, automatically.
— — | e L | В Cari Cer a — When a power interruption occurs, the clock setting is
DE A erased.
DOTA DILO NECE
Timer Setting
e The system can switch on to CD or TUNER mods
automatically at a preset time. Ît can serve as an alarm
to wake you up. After half an hour from the preset time,
the system will return to the standby mode if no button
| is pressed.
>) Cu e Before setting the timer, make sure the clack 15 set
En I correctly.
e The timer has to be reset or start agai for each
A subsequent preset time.
e The volume of the timer will be at the last setting
View Clock Clock Setting before the set is switched to standby mode.
You can view the clock {if it is set) at standby or any source The clock is set in 12-hour mode, e.g. “ 42'722 AM” or 1 Press and hold CLOCKeTIMER for more than 2 seconds
mode. It will be displayed for about 7 seconds. " 2:00 PM”. Before setting the clock, you must be in to select timer mode.
e Press CLOCKeTIMER briefly. the View Clock mode. — “ON | 12708 AMY or the last set timer starts
— “13:25 PM” (the current time) will be displayed. 1 Press CLOCKeTIMER to select clock mode. flashing. The TIMER flag flashes —
— “= == =" will be displayed if the clock is not set. — "12:55 AM” or the current time starts flashing. — The last selected source 15 lighted vzhile other
available sources are flashing.
Press CD or TUNER ta select the desired source
Press << or >> to set the hour for the timer to start
Press 14 or Pi to set the minute for the ter to start
Press CLOCKeTIMER to store the start tme
— The TIMER is now set.
— The TIMER flag remains on the display.
2 Set the hour with << or >>».
3 Set the minute with HC or Pl.
4 Press CLOCKeTIMER again to store the setting.
— The clock starts running.
* To exit without storing the setting, press M.
сл 4» с о
e To exit without storing the setting, press M.
eT ray
® At the preset time, the TIMER will be activated.
— The selected source will be played.
— The TIMER flag disappears from the display.
Notes:
— During timer setting, if no button is pressed within 90
seconds, the system will exit timer setting mode
automatically.
— If the source selected is TUNER, the last tuned
frequency will be switched on.
— If the source selected is CD, playback will begin with
the first track of the last selected disc. If the CD trays
are empty, the TUNER will be selected instead.
To cancel the TIMER
1 Press CLOCKeTIMER for more than 2 seconds.
2 Press IR to cancel the timer.
> "CANCEL * will be displayed.
— The TIMER flag disappears from the display.
To start the TIMER again {for the same time)
1 Press CLOCKeTIMER for more than 2 seconds.
2 Press CLOCKeTIMER again to store the start time and
the selected source.
-
. + + - -
aa = + + ‘+
A me Arme A mers me ss E ETS Er E
| O TIMER
English
+ |
25
26
ня
кож бы
MAINTENANCE SPECIFICATIONS
E) Maintenance Specifications SPEAKERS ffor FNVASC/FIVS206 on
: . . System double port bass reflex
E Cleaning the Cabinet AMPLIFIER Impedance 30
— — ~~ e Useasoftcloth slightly moistened with a mild Output power Woofer 1 x 4 full range
detergent solution. Do not use a solution containing FW45C/FW320C (3 Q, 1 kHz, 10% THD) . 2x5W RMS? Dimensions Wwxhxd).... _… 210 x 310 x 188 (mm}
alcohol, spirits, ammonia or abrasives. FWs5C (6 ©, 1 kHz, 10% THD).......2x 10,2 x2 W RMS Weight … 23kgeach
Cleaning Di Signal-to-noise ratio = 67 dBA (IEC)
eaning UIScs Frequency response 50 — 15,000 Hz ,
e When a disc becomes dirty, clean it Input sensitivity SPEAKERS (for FWSSC only) double port bass reflex
with a cleaning cloth. Wipe the disc Aux In 700 | = edance P B o
from the center out. Output Woofer 1x 47 full rang 2
¢ Do not use solvents such as benzine, Speakers [for FW45C/FW320€ only) .............—.. 239 Dimensions wxhxd) 210 x 210 < 233 {mm}
thinner, commercially available Speakers (for FW55C only) 282 WO aaa nene enn . 23kgeach
cleaners, or antistatic spray intended Surround Speakers (for FW55C only) ...... —..e..cm.e.... 262
for analog records. a headphones 32Q-100092 SURROUND SPEAKERS {for FWV55C only)
Cleaning the CD lens CD PLAYER hiv closed satellite
* After prolonged usage, dirt or dust may accumulate at Number of programmable tracks 40 Surround Speaker Driver ………………… sr 1x3" full range
the CD lens. To ensure good playback quality, clean the Frequency range 20-20,000Hz Dimensions (w xh xd) 178 x 90 x 178 mm
CD lens with Philips-Magnavox CD Lens Cleaner or any Signal-to-noise ratio >80dBA Wei QUE creer нон 0.85 La each
commercially available. Follow the instructions supplied Channel separation >B0dB(1kHy ~~ © mm an a
with the Lens Cleaner. Total harmonic distortion <0.003% GENERAL INFORMATION
Cleaning the Heads and the Tape Paths TUNER Material/finish Polystyrene
e To ensure good recording and playback quality, clean the FM wave range 97.5 108 MHz AC Power : 120 Y / 60 Hz
heads, the capstanís), and pressure rollerís) after every AM wavera ng е 530 — 1700 kHz rover Consumption
. ctive
50 hours of tape op eration. — . , Number of presets 40 FW45C/FW320C 18W
e Use a cotton swab slightly moistened with cleaning Antenna FEED ее BW
uu or ae the heads bv olavina a cleanine t FM 300 © dipole wire Standby Ш
You can also clean the heads by playing a cleaning tape AM Loop antenna
through once. ao! FW320C ; = e и
Demagnetizing the heads Front, response Dimensions (w Xx hxdj ..............—.. 265 x 310; x 330 (mm)
* Use a demagnetizing tape available at your dealer. Normal tape (type |) ce 80—12500Hz(8dp) | eight (without speakers) 5249
Signal-to-noise ratio
Normal tape (type 1) > 48 dBA . pe ue
Wow and flutter <04% Jis Subject to modification
1
TA A AA
Warning! Under no circumstances should you try to
repair the system yourself, as this will invalidate the
warranty,
* if a fault occurs, check the points listed below before
taking the system for repair.
* Should any problems persist after you have made these
checks, consult your nearest dealer or service center.
= + +
A Y aL
o ma we CF
TROUBLESHOOTING
Tape Deck Operation
“RECORDING ACTIVE" is displayed.
® À recording is in progress.
— Stop the recording or wait until it is finished.
“TAPE DUBBING DNLY" is displayed.
* Tape dubbing is only possible in tape mode.
— Switch source to tape mode.
CD Player Operation
"NU DIST” is displayed,
* The disc is inserted upside down.
> Place CD with printed side up.
* Moisture condensation at the lens.
> Wait until lens has adjusted to normal room
temperature.
e There is no disc in the CD tray.
— Inserta CD,
* Tha CD is dirty, badly scratched or warped.
= Clean or replace the CD.
* The CD lens is dirty or dusty
= See section under Maintenance,
Recording or playback cannot be made or there is a
decrease in audio level.
e Dirty tape heads, capstans or pressure rollers.
— See section on tape deck maintenance.
* Magnetic build-up in the record/playback head.
— Use demagnetizing tape.
General
System does not react when any button is pressed.
* Electrostatic discharge.
— Press STANDBY-ON to switch the system off. Remove
the AC power plug from the wall outlet, then reconnect
and switch on the system again.
Radio Reception
Poor radio reception
* The signal strength is too weak.
— Adjust the antenna.
* Tha TV or VCR is teo close to the stereo system.
— Separate the stereo system from the TV or VCR,
— Connect an external antenna for better reception.
No or poor sound.
* Volume is not turned up.
— Adjust VOLUME.
e The system is muted.
— Press MUTE to switch on the sound.
e The headphones are connected.
— Disconnect the headphones.
* Speakers are not connected or are connected wrongly.
— Check that the speakers are connected correctly.
— Make sure that the stripped speaker wire is clamped.
“+ - ,
r "+ » * ‘ Tr -
A o 2% - "a -* ¢ око
ч x x +
Reversed left and right sound.
* Speakers are connected wrongly.
— Check the speaker connections and location.
Lack of bass sound or apparently imprecise physical
location of musical instruments.
* Speakers are connected wrongly.
— Check the speaker connection for proper phasing, red/
black wires to red/black terminals.
Remote control has no effect on the system.
* The distance to the system is too large.
— Reduce the distance.
* Batteries are inserted incorrectly.
— Insert the batteries with their polarities (+/- signs) as
indicated..
* Batteries are exhausted.
— Replace the batteries.
e Wrong source is selected.
— Select the source (CD, TUNER, etc.) before pressing the
function button, (PLAY, PREV/NEXT, etc.)
Timer not working.
e Timer is not switched on.
— Press CLOCKeTIMER to switch on the timer.
e Dubbing/recording is in progress.
— Stop dubbing/recording.
System displays features automatically; buttons
flash continuously.
e Demonstration mode is switched on.
— Press and hold IM for 3 seconds to switch off the
demonstration.
fo
Enghsh
27
Sra CTT т E à
+ , « +
a TER = Ra TL - E.
“mM
- +
- ms
-
A a = =
+
- "o. -
- - - = Te TS
‘ PEN ` -* '
e a a
= —
a" - >
e a Tos,
af a T
« -
. -
+ - a
3139 116 18381
1B8086 TO01
-——— ——_—=— —=—
FW 45C
FW 55C
FW 320C
Printed In Hong Kong
TL-9840/37-3
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
