Toll Free Help Line
Ligne d'assistance en service libre
Linea de ayuda telefónica sin cargo
800-531-0039

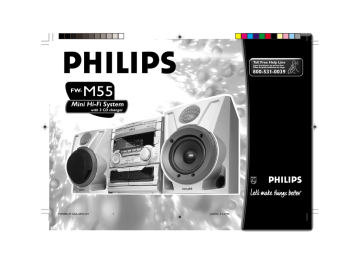

FW-
M55
Mini Hi-Fi System
with 3 CD changer
FWM55-37-USA-AEN-V01
1
12/8/00, 3:14 PM
3139 115 20011 (ENG)
R e t u r n yo u r Wa r r a n t y R e g i s t r a t i o n c a r d t o d ay t o
e n s u re yo u re c e i ve a l l t h e b e n e f i t s yo u ’re e n t i t l e d t o.
2
• Once your Philips purchase is registered, you’re eligible to receive
all the privileges of owning a Philips product.
• So complete and return the Warranty Registration Card enclosed
with your purchase at once. And take advantage of these
important benefits.
Warranty
Verification
Owner
Confirmation
Model
Registration
Registering your product within 10 days
confirms your right to maximum protection
under the terms and conditions of your
Philips warranty.
Your completed Warranty Registration
Card serves as verification of ownership in
the event of product theft or loss.
Returning your Warranty Registration Card
right away guarantees you’ll receive all
the information and special offers which you
qualify for as the owner of your model.
CAUTION
Know these
safety symbols
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
For Customer Use
Enter below the Serial No. which is located on the
rear of the cabinet. Retain this information for
future reference.
Model No. _______________________________
Serial No. ________________________________
t
s
This “bolt of lightning” indicates uninsulated material
within your unit may cause an electrical shock. For the
safety of everyone in your household, please do not
remove product covering.
WARNING: TO PREVENT FIRE OR SHOCK
The “exclamation point” calls attention to features for
which you should read the enclosed literature closely to
prevent operating and maintenance problems.
CAUTION: To prevent electric shock, match wide
HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN
OR MOISTURE.
blade of plug to wide slot, and fully insert.
MAC5097
FWM55-37-USA-AEN-V01
2
12/8/00, 3:14 PM
3139 115 20011 (ENG)
3
S• REG
AY
D
HIN 10
As a member of the Philips “family,” you’re entitled to
protection by one of the most comprehensive warranties
and outstanding service networks in the industry.
What’s more, your purchase guarantees you’ll receive all
the information and special offers for which you qualify,
plus easy access to accessories from our convenient home
shopping network.
!
y
r
r
Hu
IT
Dear Philips product owner:
Thank you for your confidence in Philips.You’ve selected one
of the best-built, best-backed products available today.And
we’ll do everything in our power to keep you happy with
your purchase for many years to come.
RATION
EEDED W
Congratulations on your purchase,
and welcome to the “family!”
ST
N
I
Visit our World Wide Web Site at http://www.philipsusa.com
And most importantly you can count
on our uncompromising commitment to your total
satisfaction.
All of this is our way of saying welcome–and thanks for
investing in a Philips product.
Sincerely,
Robert Minkhorst
President and Chief Executive Officer
P.S. Remember, to get the most from your Philips
product, you must return your Warranty
Registration Card within 10 days. So please mail
it to us right now!
FWM55-37-USA-AEN-V01
3
12/8/00, 3:14 PM
3139 115 20011 (ENG)
4 IMPORTANT SAFETY INSTRUCTIONS –
This product was designed and manufactured to meet strict
quality and safety standards. There are, however, some
installation and operation precautions which you should be
particularly aware of.
1.
2.
3.
4.
5.
6.
7.
8.
Read these instructions – All the safety and
operating instructions should be read before the
appliance is operated.
Keep these instructions – The safety and operating
instructions should be retained for future reference.
Heed all warnings – All warnings on the appliance
and in the operating instructions should be adhered
to.
Follow all instructions – All operating and use
instructions should be followed.
Do not use this apparatus near water – for
example, near a bathtub, washbowl, kitchen sink,
laundry tub, in a wet basement or near a swimming
pool, etc.
Clean only with a damp cloth. The appliance
should be cleaned only as recommended by the
manufacturer.
Install in accordance with the manufacturers
instructions. Do not block any of the ventilation
openings. For example, the appliance should not be
situated on a bed, sofa, rug, or similar surface or
placed in a built-in installation, such as a bookcase or
cabinet that may impede the flow of air through the
ventilation openings.
Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9.
10.
11.
12.
13.
14.
Read before operating equipment
Do not defeat the
safety purpose of the
polarized or groundingtype plug. A polarized
plug has two blades with one wider than the other. A
grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong
are provided for your safety. When the provided plug
does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.
Only use attachments/accessories specified by
the manufacturer.
Use only with a cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tipover.
Unplug this apparatus during lightning storms or
when unused for long periods of time.
Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol warns the user that uninsulated voltage
within the unit may have sufficient magnitude to cause
electric shock. Therefore, it is dangerous to make
any kind of contact with any inside part of this unit.
This symbol alerts the user that important literature
concerning the operation and maintenance of this
unit has been included. Therefore, it should be read
carefully in order to avoid any problems.
WARNING
To reduce the risk of fire or electric shock, do
not expose this appliance to rain or moisture.
CAUTION
Use of controls or adjustments or
performance of procedures other than herein
may result in hazardous radiation exposure.
The set complies with the FCC-Rules, Part 15 and with 21
CFR 1040.10.
Canada
This digital apparatus does not exceed the Class B limits for
radio noise emissions from digital apparatus as set out in
the Radio Interference Regulations of the Canadian
Department of Communications.
EL 4562-E004: 99/3
FWM55-37-USA-AEN-V01
4
12/8/00, 3:14 PM
3139 115 20011 (ENG)
LIMITED WARRANTY
5
AUDIO SYSTEM
One Year Free Labor
One Year Free Service on Parts
This product must be carried in for repair.
WHO IS COVERED?
You must have proof of purchase to receive warranty
service. A sales receipt or other document showing that
you purchased the product is considered proof of purchase.
WHAT IS COVERED?
Warranty coverage begins the day you buy your product.
For one year thereafter, all parts will be repaired or replaced,
and labor is free. After one year from the day of purchase,
you pay for the replacement or repair of all parts, and for
all labor charges.
All parts, including repaired and replaced parts, are covered
only for the original warranty period.When the warranty
on the product expires, the warranty on all replaced and
repaired parts also expires.
WHAT IS EXCLUDED?
Your warranty does not cover:
• labor charges for installation or setup of the product,
adjustment of customer controls on the product, and
installation or repair of antenna systems outside of the
product.
• product repair and/or part replacement because of misuse,
accident, unauthorized repair or other cause not within
the control of Philips Consumer Electronics Company.
• reception problems caused by signal conditions or cable
or antenna systems outside the unit.
• a product that requires modification or adaptation to
enable it to operate in any country other than the
country for which it was designed, manufactured,
approved and/or authorized, or repair of products
damaged by these modifications.
• incidental or consequential damages resulting from the
product. (Some states do not allow the exclusion of
incidental or consequential damages, so the above
exclusion may not apply to you.This includes, but is not
limited to, prerecorded material, whether copyrighted or
not copyrighted.)
FWM55-37-USA-AEN-V01
5
• a product that is used for commercial or institutional
purposes.
TO GET WARRANTY SERVICE IN
CANADA...
Please contact Philips at:
WHERE IS SERVICE AVAILABLE?
Warranty service is available in all countries where the
product is officially distributed by Philips Consumer
Electronics Company. In countries where Philips Consumer
Electronics Company does not distribute the product, the
local Philips service organization will attempt to provide
service (although there may be a delay if the appropriate
spare parts and technical manual(s) are not readily
available).
MAKE SURE YOU KEEP...
Please keep your sales receipt or other document showing
proof of purchase. Attach it to this owner’s manual and
keep both nearby. Also keep the original box and packing
material in case you need to return your product.
BEFORE REQUESTING SERVICE...
Please check your owner’s manual before requesting
service. Adjustments of the controls discussed there may
save you a service call.
1-800-661-6162 (French Speaking)
1-800-363-7278 (English Speaking)
(In Canada, this warranty is given in lieu of all other
warranties. No other warranties are expressed or implied,
including any implied warranties of merchantability or
fitness for a particular purpose. Philips is not liable under
any circumstances for any direct, indirect, special, incidental
or consequential damages, howsoever incurred, even if
notified of the possibility of such damages.)
REMEMBER...
Please record the model and serial numbers found on the
product below. Also, please fill out and mail your warranty
registration card promptly. It will be easier for us to notify
you if necessary.
MODEL #
____________________________________
SERIAL #
____________________________________
TO GET WARRANTY SERVICE IN
U.S.A., PUERTO RICO OR U.S. VIRGIN
ISLANDS...
Take the product to a Philips factory service center (see
enclosed list) or authorized service center for repair.When
the product has been repaired, you must pick up the unit at
the center. Centers may keep defective parts.
(In U.S.A., Puerto Rico and U.S.Virgin Islands, all implied
warranties, including implied warranties of merchantability
and fitness for a particular purpose, are limited in duration
to the duration of this express warranty. But, because some
states do not allow limitations on how long an implied
warranty may last, this limitation may not apply to you.)
This warranty gives you specific legal rights.You may have other
rights which vary from state/province to state/province.
Philips Service Solutions Group, P.O. Box 2976,
Longview,Texas 75606, USA, (903) 242-4800
EL4965E006 / MAC 4110 / 12-98
12/8/00, 3:14 PM
3139 115 20011 (ENG)
6
FWM55-37-USA-AEN-V01
6
12/8/00, 3:14 PM
3139 115 20011 (ENG)
GENERAL INFORMATION
7
General Information
• The typeplate (which contains
the serial number) is located at
the rear of the system.
• Recording is permissible if
copyright or other rights of third
parties are not infringed.
• This device complies with the
Federal Communications
Commission (FCC) rules, part 15
and with 21 CFR 1040.10.
Operation is subject to the
following two conditions:
– This device may not cause
harmful interference, and
– This device must accept any
interference received, including
interference that may cause
undesired operation.
Environmental
Information
All unnecessary packaging has been
omitted. We have tried to make the
packaging easy to separate into three
materials: cardboard (box), polystyrene
foam (buffer) and polyethylene (bags,
protective foam sheet).
Your system consists of materials which
can be recycled and reused if
disassembled by a specialized company.
Please observe the local regulations
regarding the disposal of packaging
materials, exhausted batteries and old
equipment.
Accessories (Supplied)
– Remote control
– Batteries (two AA size) for remote
control
– AM loop antenna
– FM wire antenna
– AC power cord
SAFETY INFORMATION
Safety Information
• Before operating the system, check
that the operating voltage indicated
on the typeplate (or the voltage
indication beside the voltage
selector) of your system is identical
with the voltage of your local power
supply. If not, please consult your
dealer. The typeplate is located at the
rear of your system.
• When the system is switched on, do
not move it around.
• Place the system on a solid base (e.g.
a cabinet).
• Place the system in a location with
adequate ventilation to prevent
internal heat build-up in your system.
Allow at least 10cm (4 inches)
clearance from the rear and the top
of the unit and 5cm (2 inches) from
the each side.
• Do not expose the system to
excessive moisture, rain, sand or heat
sources.
• Under no circumstances should you
repair the system yourself, as this will
invalidate the warranty!
• If the system is brought directly from
a cold to a warm location, or is
placed in a very damp room,
moisture may condense on the lens
of the CD unit inside the system.
Should this occur, the CD player will
not operate normally. Leave the
power on for about one hour with
no disc in the system until normal
playback is possible.
• Electrostatic discharge may cause
unexpected problems. See whether
these problems disappear if you
unplug the AC power cord and plug
it in again after a few seconds.
• To disconnect the system from
the power supply completely,
remove the AC power plug
from the wall socket.
CLASS 1
LASER PRODUCT
FWM55-37-USA-AEN-V01
7
12/8/00, 3:14 PM
3139 115 20011 (ENG)
PREPARATION
8
Rear Connections
STANDBY ON
SU
BW O
OFER LEVEL CONT
RO
L
MIN
E
MAX
CUT OFF FREQUENCY
HIGH POWER SUBWOOFER
60Hz
150Hz
AUDIO OUT
F
D
AUDIO IN
A
L
R
SUBWOOFER
OUT AUX/CDR IN
L
R
LINE OUT
B
FM ANTENNA 300Ω
AM ANTENNA
FRONT
+
G
AC
MAINS
~
L
R
L
–
–
R
+
C
FWM55-37-USA-AEN-V01
8
12/8/00, 3:14 PM
3139 115 20011 (ENG)
PREPARATION
9
A AM Loop Antenna
Connection
Connect the supplied loop antenna to
the AM ANTENNA terminal. Place the
AM loop antenna far away from the
system and adjust its position for the
best reception.
B FM Wire Antenna
Connection
Connect the supplied FM wire antenna
to the FM ANTENNA 300 Ω terminal.
Adjust the position of the FM antenna
for the best reception.
Outdoor Antenna
For better FM stereo reception,
connect an outdoor FM antenna to the
FM ANTENNA 300 Ω terminal using a
300 Ω dipole wire.
C Speakers Connection
• Connect the right speaker to Front
terminal R, with the colored wire to
+ and the black wire to -.
• Connect the left speaker to Front
terminal L, with the colored wire to
+ and the black wire to -.
• Clip the stripped portion of the
speaker wire as shown.
FWM55-37-USA-AEN-V01
9
12 mm
unlock
lock
CAUTION:
– For optimal sound performance, it is
recommended to use the supplied
speakers.
– Do not connect more than one speaker
to any one pair of +/- speaker
terminal.
– Do not connect speakers with
impedance lower than the speakers
supplied. Please refer to
SPECIFICATION section of this manual.
D Line Out Connection
(wireless ready)
You can connect the audio left and right
LINE OUT terminals to a optional CD
Recorder ANALOG IN terminals. This
allows you to record in an analogue
format.
You can also install additional optional
front active speakers away from the
system (e.g. in another room) to reduce
the inconvenience of running long
speaker wires across rooms. You can
place as many remote speakers as you
like provided they operate at the same
radio frequency. Connect the wireless
radio frequency transmitter to the LINE
OUT terminals. Place the active
speakers at your preferred location. Be
sure to follow the instructions supplied
with the active speakers.
G AC Power Supply
Note:
– Availability of wireless transmitter and
its peripherals are subjected to the
approval of local authorities. Please
check with respective local safety or
approving authority.
Inserting batteries into the
Remote Control
After all other connections have been
made, connect the AC power cord to
the system and to the wall outlet.
• Insert the batteries (Type R06 or
AA) into the remote control as
shown in the battery compartment.
E Connecting other
equipment to your
system
You can connect the audio left and right
OUT terminals of a TV, VCR, Laser Disc
player, DVD player or CD Recorder to
the AUX/CDR IN terminals at the rear
of the system.
F Subwoofer Out
Connection
Connect the optional active subwoofer
to the SUBWOOFER OUT terminal.
The subwoofer reproduces just the low
bass sound effect (e.g. explosions, the
rumble of spaceships, etc.). Be sure to
follow the instructions supplied with the
subwoofer.
12/8/00, 3:14 PM
• To avoid damage from possible
battery leakage, remove dead
batteries or batteries that will not be
used for a long time. For
replacement, use type R06 or AA
batteries.
3139 115 20011 (ENG)
CONTROLS
10
@
!
DISC 3
DISC 2
DISC 1
0
#
OPEN•CLOSE
DISC CHANGE
3CD
MP3-CD
PLAYBACK
CHANGER
≤
$
9
MINI HIFI SYSTEM
STEREO
BACK
FRONT HSD
PROGRAM SHUFFLE
REPEAT TIMER REC
NEWS T.A. AM MW FM LW
60Hz
250Hz
500Hz
2KHz
1KHz
4KHz
8
7
6
MP3•CD
CD1 • 2 • 3
1
2
3
%
4
5
6
FM • AM
TAPE 1 • 2
CDR/VIDEO
CD
TUNER
TAPE
AUX
NEWS/TA
PROG
▲
SEARCH • TUNING
STOP•CLEAR
PLAY PAUSE
^
PRESET ▲
A. REV
PREV SIDE NEXT
DU
(HS B
D)
5
-
REC
4
ALBUM
+
MP3-CD
SOUND NAVIGATION
INCREDIBLE
SURROUND
3
DIGITAL
SOUND CONTROL
-
TITLE
+
VOLUME
2
*
*
∞
(
)
™
¡
10
7
&
^
^
&
DYNAMIC BASS
BOOST
2
£
FWM55-37-USA-AEN-V01
¤
TUNER TAPE 1/2
$
RDS
CLOCK/
TIMER
2
AUX
⁄
8KHz
STANDBY
ON
1
MUTE
CD 1/2/3
12/8/00, 3:14 PM
§
7
8
9
PROG
0
SLEEP
VOLUME
º
&
ÉÅ
ë
í
à
Ç
á
^
(
IS
DBB
DSC
ALBUM
TITLE
ª
REPEAT
DISPLAY
DISPLAY
•
≥
3139 115 20011 (ENG)
CONTROLS
11
Controls on the system
and remote control
1 STANDBY ON
– to switch the system on or to
standby mode.
– to use for EASY SET.
2 INCREDIBLE SURROUND
– to switch on or off the surround
sound effect.
3 n
– to connect headphones.
4 REC (RECORD)
– to start recording on tape deck 2.
5 DUB (HIGH SPEED
DUBBING [HSD])
– to dub a tape in normal or fast
speed.
6 JOG
– to select the desired equalizer
display.
– to select the desired DSC setting.
You must select the DSC feature
first.
– to select the desired level of
Incredible Surround Sound. You
must select the Incredible Surround
Sound feature first.
7 PROG (PROGRAM)
for CD/MP3-CD…to program disc
tracks.
for TUNER ... to program preset
radio stations.
FWM55-37-USA-AEN-V01
11
8
–
9
–
0
!
–
@
–
#
–
$
–
–
–
for CLOCK .. to select 12 or 24
hour in clock setting
mode (on the system
only).
CLOCK/TIMER
to view the clock, set the clock or
set the timer.
DISPLAY SCREEN
to view the current setting of the
system.
DISC CAROUSEL TRAY
DISC 1 / DISC 2 / DISC 3
(DISC DIRECT PLAY)
to select a disc tray for playback.
DISC CHANGE
to change disc(s).
OPEN•CLOSE
to open or close the disc carousel
tray.
SOURCE – to select the
following:
CD / (CD 1•2•3) / (MP3•CD)
to select CD/MP3-CD mode.
When CD/MP3-CD playback is
stopped, press to select the disc
tray 1, 2 or 3.
TUNER / (FM•AM)
to select Tuner mode. When in
tuner mode, press to select the
waveband : FM or AM.
TAPE / (TAPE 1• 2)
to select Tape mode. When tape
playback is stopped, press to select
either tape deck 1 or 2.
AUX / (CDR/VIDEO)
to select sound from an external
source (e.g. TV, VCR, Laser Disc
player, DVD player or CD
Recorder). When in Aux mode,
press to select either AUX or CDR.
% A. REV (AUTO REVERSE)
– available in tape deck 2 only.
– to select the desired play modes
( å / ∂ / ∫ ).
^ MODE SELECTION
SEARCH•TUNING à á
for CD/MP3-CD…to search
backward/forward .
for TUNER .... to tune to a lower or
higher radio frequency.
for TAPE ......... to rewind or fast
forward a tape.
for CLOCK .. to set the hour (on
the system only).
STOP•CLEAR Ç
for CD/MP3-CD…to stop disc
playback or to clear a
program.
for TUNER ... to stop programming.
for TAPE ......... to stop playback or
recording.
for DEMO .... (on the system only)
to start or stop
demonstration mode.
PLAY É / PAUSE Å
for CD/MP3-CD…to start or
interrupt playback.
for TAPE ......... to start playback.
–
12/8/00, 3:14 PM
&
–
*
–
(
–
)
–
¡
™
£
–
≤
–
PREV í / SIDE / NEXT ë
(PRESET 43 )
for CD ............ to skip to the
beginning of the
previous, or next
track.
for TUNER ... to select a preset
radio station in
memory.
for TAPE ......... to select tape side
(back or front) in
tape deck 2 only.
for CLOCK .. to set the minute (on
the system only).
VOLUME
to increase or decrease the
volume.
DYNAMIC BASS BOOST
(DBB)
to select a bass boost level or to
switch off bass boost.
DIGITAL SOUND
CONTROL (DSC)
to select the desired sound effect :
OPTIMAL, CLASSIC, TECHNO,
JAZZ, ROCK or VOCAL.
OPEN
to open tape deck 2.
TAPE DECK 2
TAPE DECK 1
OPEN
to open tape deck 1.
MUTE
to switch off the sound temporarily.
3139 115 20011 (ENG)
CONTROLS
OPERATING THE SYSTEM
∞ ALBUM -/+
+
– to select previous/next Album for
MP3-CD only.
§ DISPLAY (ALBUM)
– to view MP3-CD Album.
≥ REPEAT
– to repeat a disc track or the
current disc.
• DISPLAY (TITLE)
– to view MP3-CD Title.
+
ª TITLE -/+
– to select previous/next Title for
MP3-CD only.
º SLEEP
– to switch the system to standby
mode at a selected time.
⁄ DIGIT 0 – 9
(numbers consisting more than two
figures must be keyed in within 2
seconds.)
for CD/MP3-CD…to key in a disc
track for playback or
programming.
............................ to select another
track during playback.
¤ B
– to switch the system to standby
mode.
Notes for remote control:
– First select the source you wish
to control by pressing one of the
source select keys on the remote
control (e.g. CD,TUNER, etc.).
– Then select the desired function
(É, í, ë, etc.).
MINI HIFI SYSTEM
PROGRAM SHUFFLE
STEREO
BACK
FRONT HSD
REC
REPEAT
NEWS T.A. AM MW FM LW
60Hz
250Hz
500Hz
CLOCK/
TIMER
12
4KHz
8KHz
MP3•CD
CD1 • 2 • 3
FM • AM
TAPE 1 • 2
CD
TUNER
TAPE
CDR/VIDEO
AUX
PROG
SEARCH • TUNING
STOP•CLEAR
PLAY PAUSE
PRESET ▲
A. REV
PREV SIDE NEXT
DU
(HS B
D)
REC
-
ALBUM
+
MP3-CD
SOUND NAVIGATION
INCREDIBLE
SURROUND
-
TITLE
+
VOLUME
DYNAMIC BASS
BOOST
DIGITAL
SOUND CONTROL
Important:
Before you operate the system,
complete the preparation
procedures.
Demonstration mode
The system has a demonstration mode
that shows the various features offered
by the system. When the system is
switched on for the first time, the
demonstration mode will start
automatically.
Notes:
– During the demonstration, if you press
any source (or standby-on) button, the
system will switch to the respective
mode (or standby).
– When the system is switched to
standby mode, the demonstration will
resume five seconds later.
FWM55-37-USA-AEN-V01
2KHz
1KHz
STANDBY
ON
▲
12
12/8/00, 3:14 PM
To stop the demonstration mode
• Press and hold Ç(on the system
only) for five seconds when the
system is in demonstration mode.
™ The demonstration will stop.
™ "DEMO OFF" is displayed.
™ The system will switch to standby
mode.
Notes:
– When the system is switched on from
the main power outlet, the disc
carousel tray may open and close
again to initialize the set.
– Even though the AC power cord is
removed from and reconnected to the
wall socket, the demonstration will
remain off until it is switched on again.
3139 115 20011 (ENG)
OPERATING THE SYSTEM
13
To start the demonstration mode
• Press and hold Ç(on the system
only) for five seconds when the
system is in standby mode.
™ The demonstration will begin.
Switching the system ON
• Press CD, TUNER, TAPE or AUX.
You can also switch on the system by
pressing any one of the DISC DIRECT
PLAY buttons.
Easy Set
EASY SET allows you to store all
available radio stations automatically.
Switching the system to
standby mode
• Press and hold STANDBY ON (on
the system only) for five seconds
when the system is in standby or
demonstration mode.
™ “EASY SET” will be displayed,
and followed by “TUNER” and
then “AUTO”.
™ EASY SET will start searching for
all radio stations on FM band and
then followed by radio stations on
AM band.
™ All available radio stations with
sufficient signal strength will be
stored. Up to 40 presets may be
stored.
• Press STANDBY ON or B on
the remote control.
™ The system will switch to standby
mode.
Notes:
– EASY SET will start with the FM band,
if there are still presets available, the
system will continue to store the AM
band.
– When EASY SET is used, all previously
stored radio stations will be replaced.
– The last preset radio station will
appear on the display when EASY SET
is completed.
FWM55-37-USA-AEN-V01
13
Selecting the Equalizer
Display
You can select the desired equalizer
display for the system. You must not
press the DSC or INCREDIBLE
SURROUND button on the system
before using the JOG control.
• Adjust the JOG control to select the
desired Equalizer Display, NORMAL,
TOP DOWN, or NITE MODE.
™ The selected display will be
shown.
Note:
– In NITE MODE, all lights will be
switched off and the display brightness
will be dimmed.
Sound Control
VOLUME ADJUSTMENT
Adjust VOLUME to increase or
decrease the sound level.
For Personal Listening
Connect the headphones plug to the
n socket at the front of the system.
The speakers will be muted.
NORMAL Display
Selecting the Source
• Press the respective source selection
button: CD, TUNER, TAPE or
AUX.
™ The display indicates the selected
source.
Note:
– For an external source, make sure you
have connected the audio left and right
OUT terminals of the external
equipment (TV, VCR, Laser Disc player,
DVD player or CD Recorder) to the
AUX/CDR IN terminals.
PROGRAM
REPEAT TIMER REC
NEWS T.A. AM MW FM LW
STEREO
BACK
FRONT HSD
60Hz
250Hz
500Hz
1KHz
2KHz
4KHz
8KHz
4KHz
8KHz
TOP DOWN Display
PROGRAM
REPEAT TIMER REC
NEWS T.A. AM MW FM LW
STEREO
BACK
FRONT HSD
60Hz
250Hz
500Hz
1KHz
2KHz
NITE MODE Display
PROGRAM
REPEAT TIMER REC
NEWS T.A. AM MW FM LW
STEREO
BACK
FRONT HSD
60Hz
250Hz
500Hz
1KHz
2KHz
4KHz
8KHz
12/8/00, 3:14 PM
INCREDIBLE SURROUND
Normal stereo sound is determined by
the distance between the front
speakers. When Incredible Surround is
switched on, it magnifies the virtual
distance between the front speakers for
an incredibly wide, enveloping, stereo
effect. There are 12 different Incredible
Surround levels available for selection.
• Press INCREDIBLE
SURROUND to switch on.
™ The INCREDIBLE SURROUND
display lights up.
™ “IS XX” will be displayed.
Note:
– "XX" is the last selected Incredible
Surround level.
3139 115 20011 (ENG)
OPERATING THE SYSTEM
14
You can change the Incredible Surround
level with the JOG.
• Adjust the JOG control to select the
desired Incredible Surround level
immediately after selecting the
Incredible Surround feature.
™ The Incredible Surround level will
increase or decrease between
levels 1 and 12.
To switch off Incredible Surround
• Press INCREDIBLE
SURROUND again.
™ The INCREDIBLE SURROUND
display is switched off.
™ “IS OFF” will be displayed.
DIGITAL SOUND CONTROL
(DSC)
The DSC feature enables you to adjust
the system to suit your type of music.
• Press DIGITAL SOUND
CONTROL (DSC) to select
OPTIMAL, CLASSIC, TECHNO,
JAZZ, ROCK or VOCAL.
™ The selected digital sound is
encircled.
™ “OPTIMAL X, CLASSIC,
TECHNO X, JAZZ X,
ROCK X or VOCAL X” will be
displayed. "X" is the pre-selected
level.
FWM55-37-USA-AEN-V01
14
With the JOG control, you can change
the level of any DSC setting except
CLASSIC.
• First select the DSC feature, then
adjust JOG control until the desired
digital sound setting level is reached.
™ The digital sound setting level will
increase or decrease between
level 1 and 5.
Note:
– For neutral setting, select CLASSIC and
switch off DBB.
DYNAMIC BASS BOOST (DBB)
There are three DBB settings to
enhance the bass response.
Automatic DSC-DBB selection
The best DBB setting is generated
automatically for each DSC selection. You
can manually select the DBB setting that
best suits your listening environment.
MUTE (on the remote control only)
This feature allows you to temporarily
switch off the sound without switching
off the system when you require a
moment of silence.
• Press MUTE on the remote control
to switch off the sound.
™ “MUTE” will be displayed.
• Press MUTE again on the remote
control or increase the VOLUME
level to switch on the sound.
• Press DBB briefly to select a bass
boost level.
™ The respective DBB level will be
encircled and lit.
™ “BEAT, PUNCH or BLAST”
will be displayed.
To switch off DBB
• Press DBB briefly until “DBB OFF”
is displayed.
Note:
– Some discs or tapes might be recorded
in high modulation, which causes a
distortion at high volume. If this occurs,
switch off DBB or reduce the volume.
12/8/00, 3:14 PM
3139 115 20011 (ENG)
CD / MP3-CD
15
DISC CHANGE
Discs for playback
OPEN•CLOSE
DISC 1
DISC 2
DISC 3
This system can playback all audio CD,
finalized audio CD-Recorder and MP3CD format discs.
3CD
MP3-CD
PLAYBACK
CHANGER
MINI HIFI SYSTEM
PROGRAM SHUFFLE
REPEAT TIMER REC
NEWS T.A. AM MW FM LW
STEREO
BACK
FRONT HSD
60Hz
250Hz
500Hz
2KHz
1KHz
4KHz
Note:
– For mixed mode discs, only one mode
will be selected for playback depending
on the recording format.
8KHz
STANDBY
ON
CLOCK/
TIMER
MP3•CD
CD1 • 2 • 3
FM • AM
TAPE 1 • 2
CD
TUNER
TAPE
CDR/VIDEO
AUX
PROG
▲
SEARCH • TUNING
STOP•CLEAR
PLAY PAUSE
PRESET ▲
A. REV
Loading the Disc Changer
PREV SIDE NEXT
DU
(HS B
D)
REC
-
ALBUM
+
MP3-CD
SOUND NAVIGATION
INCREDIBLE
SURROUND
-
TITLE
+
VOLUME
DYNAMIC BASS
BOOST
DIGITAL
SOUND CONTROL
Warning!
1) This system is designed for conventional discs. Do not use any
accessories such as disc stabilizer rings or disc treatment sheets, etc.,
which may damage the disc mechanism.
2) Do not load more than one disc into each tray.
3) When the disc changer is loaded with discs, do not turn over or shake the
system.This may jam the changer.
You may load three discs in the disc changer for continuous playback
without interruption.
FWM55-37-USA-AEN-V01
15
1 Press CD to select CD/MP3-CD
mode.
2 Press OPEN•CLOSE.
™ The disc carousel tray slides out.
3 Load a disc with the printed side up
in the right tray.
• You can load another disc in the left
tray.
• To load the third disc, press the
DISC CHANGE button.
™ The disc carousel tray will rotate
until the empty tray is ready for
loading.
™ Playback will always start with the
disc in the inner disc tray.
4 Press OPEN•CLOSE to close the
disc carousel tray.
™ The total number of tracks and
the playing time of the last
selected disc appear on the
display.
12/8/00, 3:14 PM
For MP3-CD only:
™ The first Album and the first Title
information appear on the display.
Notes:
– To ensure good system performance,
wait until the disc changer completely
reads the disc before proceeding.
– For MP3-CD, the disc reading time may
exceed 10 seconds due to the large
number of songs compiled into one
disc.
Disc Direct Play
You can play a disc directly by pressing
the DISC 1, DISC 2 or DISC 3
button.
Playing a normal disc
1 Press PLAYÉÅ to start playback.
™ The disc tray, track number and
elapsed playing time of the current
track appear on the display.
• To interrupt playback, press
PAUSEÉÅ.
™ The playing time flashes.
• To resume playback, press
PLAYÉÅ again.
2 To stop playback, press Ç.
Note:
– During Disc Reading mode, if you press
any button, "PLEASE WAIT" will be
displayed.
3139 115 20011 (ENG)
CD / MP3-CD
16
Disc Change
You can change the outer two discs
while the third inner disc is stopped or
is playing.
1 Press DISC CHANGE.
™ The disc carousel tray slides out.
2 Replace the discs in the left and right
disc trays.
• If you press DISC CHANGE again
during playback, the disc will stop
playing.
™ The disc carousel tray will rotate
until the inner tray is rotated out
and is ready for changing.
3 Press OPEN•CLOSE to close the
disc carousel tray.
Selecting a desired track
Selecting a desired track when
playback is stopped
• Press digit 0 – 9 on the remote
control to select the desired track.
™ Playback will start immediately for
the selected track.
™ The selected track number and
elapsed playing time appear on
the display.
FWM55-37-USA-AEN-V01
16
Selecting a desired track during
playback
• Press í or ë (or digit 0-9 on the
remote control) until the desired track
appears on the display.
™ The selected track number and
elapsed playing time appear on
the display.
• If you press í once it will skip to
the beginning of the previous track
and play the track.
For MP3-CD only
+ until the
1 Press ALBUM -/+
desired Album appears on the
display.
+ until the desired
2 Press TITLE -/+
Title appears on the display.
™ The selected track number and
elapsed playing time appear on
the display.
3 Press PLAYÉÅ to start playback.
Searching for a particular
passage during playback
• Press à or á until the desired
passage is located.
™ The volume will be reduced.
• Press PLAYÉÅ to resume normal
playback.
Programming Tracks
Programming tracks of a loaded disc is
possible when playback is stopped. The
display will indicate the total tracks
stored in the program. Up to 99 tracks
can be stored in the memory in any
order. When 99 tracks are stored and
you attempt to store another track, the
display will show “FULL”.
1 Load the desired discs in the disc
trays.
2 Press the CD (CD 1•2•3) button to
select the disc tray.
™ Programming can only be done on
the selected disc.
3 Press PROG to start programming.
™ The PROGRAM starts flashing.
™ It will cancel any previously
programmed tracks and selected
repeat mode.
4 Press í or ë (or digit 0-9 on the
remote control) to select the desired
track.
+
• For MP3-CD, press ALBUM -/+
+ to select the
and TITLE -/+
desired Album and Title for
programming.
5 Press PROG to store the track.
• Repeat steps 4 to 5 to store other
tracks.
6 Press Ç once to end programming.
™ The total number of tracks
programmed and total playing
time appear on the display.
12/8/00, 3:14 PM
Notes:
– For MP3-CD, total playing time will not
be shown.
– If the total playing time is more than
“99:59” then “--:--” appears on
the display instead of the total playing
time.
– If the system is reading the disc,
programming is not possible,
“READING DISC” will be
displayed.
– During programming, if no button is
pressed within 20 seconds, the system
will exit program mode automatically.
Reviewing the program
Reviewing of the program is possible
only when playback is stopped.
1 Press í or ë repeatedly to review
the programmed tracks.
2 Press Ç once to exit review mode.
3139 115 20011 (ENG)
CD / MP3-CD
17
Playing the program
Erasing the program (when
MP3 Disc
1 Press PLAYÉÅ to start program
playback.
™ “PLAY PROGRAM” will be
displayed.
™ The track number and elapsed
playing time of the current track
will appear on the display.
• If you press REPEAT during
program playback, all programmed
tracks will be played repeatedly.
™ "REPEAT TRACK", "REPEAT
PROGRAM" or "REPEAT OFF"
will be displayed.
™ The REPEAT and PROGRAM appear
on the display.
2 Press Ç to stop program playback.
playback is stopped)
• Press Ç.
™ “PROGRAM CLEARED” will be
displayed.
Album
Note:
– If you press any other DISC DIRECT
PLAY buttons, the system will play the
selected disc or track and the stored
program will be cleared.
FWM55-37-USA-AEN-V01
17
Note:
– The program will be erased when the
system is disconnected from the power
supply. The system is switched to
standby mode when you change source
or when you change the program disc.
This feature allows you to view and
select the next or previous MP3-CD
Album.
Repeat (only on remote control)
• Press ALBUM -/+ to scroll
through the previous or next Album
name until the desired Album
appears on the display.
™ The selected Album will appear
on the display and follow by
"AXX TXXX".
You can play the current track or the
current disc repeatedly during playback.
Title
1 Press REPEAT on the remote
control to select the various repeat
modes.
™ “REPEAT TRACK”, “REPEAT
DISC”or “REPEAT OFF” will
be displayed.
™ The REPEAT appears on the
display.
• The current track or disc will now be
played repeatedly until you pressÇ.
2 Press REPEAT until the "REPEAT
OFF" mode is displayed to resume
normal playback.
™ The REPEAT disappears from the
display.
– The ALBUM and TITLE will only be
displayed once when selected. To view
the selected ALBUM or TITLE again,
press the respective DISPLAY button on
the remote control.
This feature allows you to view and
select the next or previous MP3-CD
Title.
• Press TITLE -/+ to scroll
through the previous or next Title
name until the desired Title appears
on the display..
™ The selected Title will appear on
the display and followed by
"AXX TXXX".
Notes:
– "A" represents ALBUM and "T"
represents TITLE, "XX" or "XXX" is the
current selected Album or Title number.
12/8/00, 3:14 PM
3139 115 20011 (ENG)
TUNER
18
Storing Preset Stations
MINI HIFI SYSTEM
PROGRAM SHUFFLE
REPEAT TIMER REC
NEWS T.A. AM MW FM LW
You can store up to 40 radio stations in
the memory. When a preset radio
station is selected, the preset number
appears next to the frequency on the
display.
STEREO
BACK
FRONT HSD
60Hz
250Hz
500Hz
2KHz
1KHz
4KHz
8KHz
STANDBY
ON
CLOCK/
TIMER
MP3•CD
CD1 • 2 • 3
FM • AM
TAPE 1 • 2
CD
TUNER
TAPE
CDR/VIDEO
AUX
PROG
▲
SEARCH • TUNING
STOP•CLEAR
PLAY PAUSE
PRESET ▲
A. REV
PREV SIDE NEXT
DU
(HS B
D)
REC
-
ALBUM
+
MP3-CD
SOUND NAVIGATION
INCREDIBLE
SURROUND
-
TITLE
+
VOLUME
DYNAMIC BASS
BOOST
DIGITAL
SOUND CONTROL
Note:
– For 'EASY SET' feature, please refer to
page 13.
Tuning to radio stations
1 Press TUNER (FM•AM) to select
TUNER mode.
™ “TUNER” will be displayed.
A few seconds later, the current
radio frequency will be displayed.
2 Press TUNER (FM•AM) again to
select the desired waveband : FM or
AM.
3 Press à or á for more than one
second, then release.
™ The display will show “SEARCH”
until a radio station with sufficient
signal strength is found.
FWM55-37-USA-AEN-V01
18
– If you want to reserve a section of
preset numbers, for example preset
numbers 1 to 9, select preset 10
before starting automatic programming,
only the preset numbers 10 to 40 will
be programmed.
• Repeat this procedure until the
desired radio station is reached.
• To tune to a weak radio station,
briefly press à or á repeatedly
until the display shows the desired
frequency and/or when the best
reception has been obtained.
Automatic programming
1 Press TUNER (FM•AM).
2 Press PROG for more than one
second.
™ The PROGRAM starts flashing and
“AUTO” will be displayed.
™ The system will search for every
available radio station in the FM
waveband first, then search the
AM waveband.
™ All available radio stations will be
stored automatically. The
frequency and preset number will
be displayed briefly.
™ The system will stop searching
when all the available radio
stations are stored or when the
memory for 40 preset radio
stations is used.
™ The system will remain tuned to
the last stored preset radio
station.
Notes:
– You can cancel the automatic
programming by pressing PROG orÇ
(on the system only).
12/8/00, 3:14 PM
Manual programming
1 Press TUNER (FM•AM).
2 Press TUNER (FM•AM) again to
select the desired waveband : FM or
AM.
3 Press PROG for less than one
second.
™ The PROGRAM starts flashing.
™ The next available preset number
will be displayed for selection.
4 Press à or á to tune to the
desired frequency.
• If you wish to store the radio station
to another preset number, press 4
or 3 to select the desired preset
number.
5 Press PROG again.
™ The PROGRAM disappears and the
radio station will be stored.
• Repeat steps 3 – 5 to store other
preset radio stations.
Notes:
– When 40 radio stations are stored and
you attempt to store another radio
station, the display will show "FULL”.
If you want to change an existing
preset number, repeat steps 3 – 5.
3139 115 20011 (ENG)
TUNER
AUX/CDR
– You can cancel manual programming
by pressing Ç (on the system only).
– During programming, if no button is
pressed within 20 seconds, the system
will exit program mode automatically.
MINI HIFI SYSTEM
PROGRAM SHUFFLE
REPEAT TIMER REC
NEWS T.A. AM MW FM LW
250Hz
500Hz
4KHz
8KHz
MP3•CD
CD1 • 2 • 3
FM • AM
TAPE 1 • 2
CD
TUNER
TAPE
CDR/VIDEO
AUX
PROG
SEARCH • TUNING
• Press 4 or 3 to select the desired
preset number.
™ The preset number, radio
frequency, and waveband appear
on the display.
STOP•CLEAR
-
REC
ALBUM
+
MP3-CD
SOUND NAVIGATION
INCREDIBLE
SURROUND
PRESET ▲
A. REV
PREV SIDE NEXT
-
TITLE
+
VOLUME
DYNAMIC BASS
BOOST
DIGITAL
SOUND CONTROL
If you have connected the audio out
terminals of the external equipment
(TV, VCR, Laser Disc player, DVD player,
or CD Recorder) to the AUX/CDR IN
terminals, you can hear the enhanced
sound from the system.
1 Press AUX to select CDR mode.
™ "CDR" will be displayed.
2 Press AUX again to select the
external (normal AUX) mode.
™ "AUX" will be displayed.
19
PLAY PAUSE
DU
(HS B
D)
Selecting External
Equipment
FWM55-37-USA-AEN-V01
2KHz
1KHz
STANDBY
ON
CLOCK/
TIMER
Tuning to Preset Radio
Stations
STEREO
BACK
FRONT HSD
60Hz
▲
19
12/8/00, 3:14 PM
Notes:
– There are two Auxiliary modes:
i. the normal AUX mode.
ii. the CDR mode, where the LINE
OUT of this mini system is muted.
You will not be able to record or
listen to the sound from the LINE
OUT.
– You are advised not to listen to and
record from the same source
simultaneously.
– All the sound control features (e.g. DSC,
DBB, etc.) are available for selection.
3139 115 20011 (ENG)
TAPE
20
MINI HIFI SYSTEM
PROGRAM SHUFFLE
REPEAT TIMER REC
NEWS T.A. AM MW FM LW
STEREO
BACK
FRONT HSD
60Hz
250Hz
500Hz
2KHz
1KHz
4KHz
8KHz
STANDBY
ON
CLOCK/
TIMER
MP3•CD
CD1 • 2 • 3
FM • AM
TAPE 1 • 2
CDR/VIDEO
CD
TUNER
TAPE
AUX
PROG
▲
SEARCH • TUNING
STOP•CLEAR
PLAY PAUSE
PRESET ▲
Loading a tape
Auto Reverse Playback (only
1 Press OPEN.
2 The tape deck door opens.
3 Load the tape with the open side
downward and the full spool to the
left.
on tape deck 2)
• Press A. REV to select the different
playback modes.
A. REV
PREV SIDE NEXT
DU
(HS B
D)
REC
-
ALBUM
+
MP3-CD
SOUND NAVIGATION
INCREDIBLE
SURROUND
-
TITLE
+
VOLUME
DYNAMIC BASS
BOOST
DIGITAL
SOUND CONTROL
4 Close the tape deck door.
å ....... to record or playback on one
side of the tape. The tape
stops at the end of one side.
∂ ...... to record or playback on both
sides of the tape. The tape
stops after each side has
played once.
∫ .... to playback continuously on
both sides of the tape up to a
maximum of 10 times per side
unless you press Ç.
Tape Side (only on tape deck 2)
• Press í or ë to select the tape
side for playback or recording.
™ The BACK or FRONT appear on
the display, depending on the tape
side selected.
™ “T2 <<<“ or “T2 >>>” will be
displayed.
™ When recording, the BACK or
FRONT display will be flashing.
FWM55-37-USA-AEN-V01
20
12/8/00, 3:14 PM
3139 115 20011 (ENG)
TAPE
21
Tape Playback
Rewind/Fast Forward
1 Press TAPE ( TAPE 1•2 ) to select
TAPE mode.
™ “TAPE 1” or “TAPE 2” will be
displayed, and followed by "T1 or
T2" with "<<< or >>>".
• Press TAPE ( TAPE 1•2 ) again to
select either tape deck 1 or tape
deck 2.
2 Load the tape into the desired tape
deck.
3 Press PLAYÉÅ to start playback.
• If tape 1 is selected for playback;
™ “T1 ” with ">" scrolling right will
be displayed.
• If tape 2 is selected for playback;
™ “T2 ” with "< or >" scrolling left
or right will be displayed
depending on the tape side
selected.
3a(for playback on tape deck 2 only)
• Press í or ë to select tape side
(see Tape Side).
• Press A. REV to select the different
type of playback mode (see Auto
Reverse Playback).
4 Press Ç to end playback.
™ “T1 or T2” with “<<< or >>>”
will be displayed.
When playback is stopped
1 You can rewind or fast forward the
tape by pressing à or á
respectively.
™ If rewinding, "T1 < or T2 <"
with “<” scrolling left will be
displayed.
™ If fast forwarding, "T1 > or
T2 >" with “>” scrolling right will
be displayed
™ The tape will stop automatically at
the end of the rewinding or fast
forwarding.
2 Press Ç to stop rewinding or fast
forwarding.
FWM55-37-USA-AEN-V01
21
– Before playing a tape, check and
tighten slack tape with a pencil. Slack
tape may get jammed or may burst in
the mechanism.
– C-120 tape is extremely thin and is
easily deformed or damaged. It is not
recommended for use in this system.
– Store the tapes at room temperature
and do not put them too close to a
magnetic field (for example, a
transformer, TV, or speaker).
.
During playback
• Press and hold à or á until the
desired passage is located.
™ “T1 or T2” with “<< or >>”"
scrolling left or right will be
displayed depending on which
button is pressed.
™ During searching, the sound is
reduced to a low volume.
™ When you release à or á, the
tape continues playing.
Notes:
– During rewinding or fast forwarding of
a tape, it is also possible to select
another source (e.g. CD, TUNER, or
AUX).
12/8/00, 3:14 PM
3139 115 20011 (ENG)
RECORDING
22
MINI HIFI SYSTEM
PROGRAM SHUFFLE
REPEAT TIMER REC
NEWS T.A. AM MW FM LW
STEREO
BACK
FRONT HSD
60Hz
250Hz
500Hz
2KHz
1KHz
4KHz
8KHz
STANDBY
ON
CLOCK/
TIMER
MP3•CD
CD1 • 2 • 3
FM • AM
TAPE 1 • 2
CD
TUNER
TAPE
CDR/VIDEO
AUX
PROG
▲
SEARCH • TUNING
STOP•CLEAR
PLAY PAUSE
PRESET ▲
A. REV
PREV SIDE NEXT
DU
(HS B
D)
REC
-
ALBUM
+
MP3-CD
SOUND NAVIGATION
INCREDIBLE
SURROUND
-
TITLE
+
VOLUME
DYNAMIC BASS
BOOST
DIGITAL
SOUND CONTROL
OPEN
OPEN
TAPE 1
FWM55-37-USA-AEN-V01
TAPE 2
22
Notes:
– It is not possible to change tape side
during recording.
– For recording, use only tape of IEC type
I (normal tape) or IEC type II (Cr02).
– The tape is secured at both ends with
leader tape. At the beginning and end
of tape, nothing will be recorded for six
to seven seconds.
– The recording level is set automatically,
regardless of the position of Volume,
DBB, INCREDIBLE SURROUND or
DSC.
– To prevent accidental recording, break
out the tab on the left shoulder of the
tape side you want to protect.
– If “CHECK TAPE” is displayed, the
protection tab has been broken. Put a
piece of clear adhesive tape over the
opening. Do not cover the Cr02 tape
detection hole when covering the tab
opening.
12/8/00, 3:14 PM
Recording from other
sources (only on tape deck 2)
1 Press TAPE ( TAPE 1•2 ) to select
tape deck 2.
2 Load a blank tape into tape deck 2
with the open side downward.
3 Press í or ë to select the
recording tape side (see Tape Side
under TAPE section).
4 Press CD, TUNER or AUX.
• Start playback of the selected source.
5 Press REC to start recording.
™ The REC starts flashing.
6 Press Ç to stop recording.
Notes:
– Only å or ∂ mode is available
during recording .
– During recording, it is not possible to
listen to another source.
3139 115 20011 (ENG)
RECORDING
23
Dubbing tapes (from tape deck 1
to tape deck 2)
1 Press TAPE ( TAPE 1•2 ) to select
tape deck 2.
2 Load the prerecorded tape into tape
deck 1 with full spool to the left and
a blank tape into tape deck 2 with
full spool aside.
3 Press í or ë to select the
recording tape side (see Tape Side
under TAPE section).
4 Press DUB (HSD) once for
normal speed dubbing or twice
(within 2 seconds) for high speed
dubbing.
™ “NORMAL” (normal speed) or
“FAST” (high speed) will be
displayed, followed by “DUB“ with
“< or >” scrolling left or right
depending on the tape side
selected.
™ The HSD appears on the display
during high speed dubbing.
• Dubbing will start immediately.
™ The REC starts flashing.
5 Press Ç to stop dubbing.
– To ensure good dubbing, use tapes of
the same length.
– During high speed dubbing in Tape
mode, the sound is reduced to a low
volume.
– You can listen to another source while
dubbing.
CD/MP3-CD Synchro
Start Recording
1 Load a blank tape into tape deck 2
and a disc into a disc tray.
2 Press CD to select CD/MP3-CD
mode.
• You can program the tracks in the
order you want them to be recorded
(see Programming Tracks). If not,
select the disc by pressing CD (CD
1•2•3) and the tracks are recorded
according to the order on the
selected disc.
3 Press REC to start recording.
™ The REC starts flashing.
• Disc will start playback automatically.
4 Press Ç to stop recording.
One Touch Recording
• For One Touch Recording, as soon as
you press REC, the current source
(CD, TUNER or AUX) will be
recorded on tape deck 2.
1 Load a blank tape in tape deck 2.
2 Press REC to start recording.
™ The REC starts flashing.
3 Press Ç to stop recording.
Note:
– When you press RECORD while in
TAPE mode, "SELECT SOURCE"
will be displayed. One Touch Recording
is not possible in TAPE mode.
Notes:
– Only å mode is available during
dubbing.
– At the end of side A, flip the tapes to
side B and repeat the procedure.
– Dubbing of tapes is only possible from
tape deck 1 to tape deck 2.
FWM55-37-USA-AEN-V01
23
12/8/00, 3:14 PM
3139 115 20011 (ENG)
CLOCK
24
MINI HIFI SYSTEM
PROGRAM SHUFFLE
REPEAT TIMER REC
NEWS T.A. AM MW FM LW
TIMER
5 Press CLOCK/TIMER again to
store the setting.
™ The clock starts.
STEREO
BACK
FRONT HSD
60Hz
250Hz
500Hz
2KHz
1KHz
4KHz
8KHz
STANDBY
ON
CLOCK/
TIMER
• To exit without storing the setting,
press Ç on the system.
MP3•CD
CD1 • 2 • 3
FM • AM
CD
TUNER
CDR/VIDEO
TAPE 1 • 2
TAPE
AUX
PROG
▲
SEARCH • TUNING
STOP•CLEAR
PLAY PAUSE
PRESET ▲
A. REV
PREV SIDE NEXT
DU
(HS B
D)
REC
-
ALBUM
+
MP3-CD
SOUND NAVIGATION
INCREDIBLE
SURROUND
-
TITLE
+
VOLUME
DYNAMIC BASS
BOOST
DIGITAL
SOUND CONTROL
View Clock
Clock Setting
You can view the clock (if it is set) if the
system is in Standby mode or when any
sound source is selected (CD, TUNER,
etc.). The clock will be displayed for
about seven seconds.
The clock can be set in either 12- or
24-hour mode, e.g. “AM 12:00“ or
“00:00“. Before setting the clock, you
must be in the View Clock mode.
• Press CLOCK/TIMER briefly.
™ “PM 10:38 or 22:38” (the
current time) will be displayed
depending on whether you have
selected 12- or 24-hour mode.
™ “--::--” will be displayed if the
clock is not set.
FWM55-37-USA-AEN-V01
24
Notes:
– During clock setting, if no button is
pressed within 90 seconds, the system
will exit clock setting mode
automatically.
– When a power interruption occurs, the
clock setting is erased.
Timer Setting
• The system can switch on to CD,
TUNER, or TAPE 2 mode
automatically at a preset time. It can
serve as an alarm to wake you up.
• Before setting the timer, make sure
the clock is set correctly.
• The timer will always be switched on
once it is set.
• The volume of the timer will
increase from the minimum
level until the volume level
before the set is switched to
standby mode.
1 Press and hold CLOCK/TIMER for
more than two seconds to select
timer mode.
™ “ AM 12:00” or “00:00" or
the last timer setting starts flashing
depending on whether you have
selected 12- or 24-hour mode.
™ The TIMER starts flashing.
™ The selected source is lit while
other available sources are
flashing.
2 Press CD, TUNER or TAPE to
select the desired source.
• Before selecting CD or TAPE, make
sure a disc or tape is loaded in the
disc tray or tape deck 2.
3 Press à or á on the system to set
the hour for the timer to start.
1 Press CLOCK/TIMER to select
clock mode.
2 Press PROG (on the system only) to
select 12- or 24- hour mode.
™ If 12-hour mode is selected,
“AM 12:00“ starts flashing.
™ If 24-hour mode is selected,
“00:00” starts flashing.
3 Set the hour with à or á on the
system.
4 Set the minute with í or ë on
the system.
12/8/00, 3:14 PM
3139 115 20011 (ENG)
TIMER
25
4 Press í or ë on the system to set
the minute for the timer to start.
5 Press CLOCK/TIMER to store the
start time.
™ The timer is now set.
™ The TIMER remains on the display.
• At the preset time, the timer will be
activated.
™ The selected source will be
played.
Notes:
– During timer setting, if no button is
pressed within 90 seconds, the system
will exit timer setting mode
automatically.
– If the source selected is TUNER, the
last tuned frequency will be switched
on.
– If the source selected is CD, playback
will begin with the first track of the
selected disc or program. If the disc
trays are empty, TUNER will be
selected instead.
– If the source selected is TAPE, and if
the preset time is reached during high
speed dubbing, the TUNER will be
selected instead.
– The timer will not activate if a recording
is in progress.
FWM55-37-USA-AEN-V01
25
SLEEP TIMER
To switch off the TIMER
1 Press and hold CLOCK/TIMER for
more than two seconds.
2 Press Ç on the system to cancel the
timer.
™ The timer is now switched off.
™ The display will show "OFF" and
the TIMER disappears.
Sleep Timer (only on remote
control)
This feature allows you to select a
length of time after which the system
will switch to the standby mode
automatically.
1 Press SLEEP on the remote control
repeatedly to select a period of time.
™ The selections are as follows (time
in minutes):
60 ™ 45 ™ 30 ™ 15 ™ OFF ™
60 …
™ “SLEEP XX” or “OFF” will be
displayed. "XX" is the time in
minutes.
2 When you reach the desired length
of time, stop pressing the SLEEP
button.
™ After this amount of time passes,
the system will switch to the
standby mode.
To start the TIMER again (for the
same preset time and source)
1 Press and hold CLOCK/TIMER for
more than two seconds.
2 Press CLOCK/TIMER again to
store the start time.
™ The timer is now on.
™ The TIMER appears on the display.
To switch off the Sleep Timer
• Press SLEEP repeatedly until "OFF"
is displayed, or press the
STANDBY ON button.
12/8/00, 3:14 PM
3139 115 20011 (ENG)
SPECIFICATIONS
26
Specifications
AMPLIFIER
Output power .............................................. 2 x 45 W FTC(1)
Signal-to-noise ratio ..................................... ≥ 75 dBA (IEC)
Frequency response .................... 40 – 20000 Hz, ± 3 dB
Input sensitivity
AUX/CDR In ........................................................................... 1 V
Output
Speakers ............................................................................... ≥ 6 Ω
Headphones ................................................. 32 Ω – 1000 Ω
Subwoofer Out ......................... 1.5 V ±2dB, > 22000 Ω
Line Out ................................. 500 mV ±2dB, > 22000 Ω
(1) (6 Ω, 60 Hz – 12.5 kHz, 10% THD)
DISC PLAYER
Number of programmable tracks .................................... 99
Frequency response ..................................... 40 – 20000 Hz
Signal-to-noise ratio .................................................. ≥ 76 dBA
Channel separation ..................................... ≥ 79 dB (1 kHz)
Total harmonic distortion ....................... < 0.02% (1 kHz)
MPEG 1 Layer 3 (MP3-CD) ..................... MPEG AUDIO
MP3-CD bit rate ........................................... 128 – 320 kbps
TUNER
FM wave range .............................................. 87.5 – 108 MHz
AM wave range ............................................. 530 – 1700 kHz
Number of presets ................................................................... 40
Antenna
FM .......................................................... 300 Ω dipole wire
AM ................................................................... Loop antenna
TAPE DECK
Frequency response
CrO2 tape (type II) ................... 60 – 15000 Hz (5 dB)
Normal tape (type I) ................. 60 – 15000 Hz (5 dB)
Signal-to-noise ratio
CrO2 tape (type II) .............................................. ≥ 50 dBA
Normal tape (type I) ............................................ ≥ 47 dBA
Wow and flutter .................................................... ≤ 0.4% DIN
SPEAKERS
System ............................... 2-way; double port bass reflex
Impedance .................................................................................. 6 Ω
Woofer .............................................................................. 1 x 5.25"
Tweeter ................................................................................. 1 x 2.5"
Dimensions (w x h x d) .. 10.24 x 12.20 x 12.40 (inch)
................................................................. 240 x 310 x 315 (mm)
Weight ............................................................. 8.58 pounds each
........................................................................................... 3.9 kg each
GENERAL INFORMATION
Material/finish .............................................. Polystyrene/Metal
AC Power .............................................................. 120 V / 60 Hz
Power Consumption
Active .................................................................................... 75 W
Standby ........................................................................... < 15 W
Dimensions (w x h x d) ... 10.43 x 12.20 x 15.35 (inch)
................................................................. 265 x 310 x 390 (mm)
Weight (without speakers) ........................... 16.98 pounds
.................................................................................................... 7.72 kg
Subject to modification
FWM55-37-USA-AEN-V01
26
12/8/00, 3:14 PM
3139 115 20011 (ENG)
MAINTENANCE
27
Maintenance
Cleaning the Cabinet
• Use a soft cloth slightly moistened
with a mild detergent solution. Do
not use a solution containing alcohol,
spirits, ammonia or abrasives.
Cleaning Discs
• When a disc
becomes dirty, clean
it with a cleaning
cloth. Wipe the disc
from the center out.
• Do not use solvents
such as benzine,
thinner, commercially available
cleaners, or antistatic spray intended
for analog records.
Cleaning the disc lens
• After prolonged use, dirt or dust may
accumulate at the disc lens. To ensure
good playback quality, clean the disc
lens with Philips CD Lens Cleaner or
any commercially available cleaner.
Follow the instructions supplied with
the cleaner.
FWM55-37-USA-AEN-V01
27
Cleaning the Heads and the Tape
Paths
• To ensure good recording and
playback quality, clean the heads, the
capstan(s), and pressure roller(s)
after every 50 hours of tape
operation.
• Use a cotton swab slightly moistened
with cleaning fluid or alcohol.
• You can also clean the heads by
playing a cleaning tape once.
Demagnetizing the heads
• Use a demagnetizing tape available at
your dealer.
TROUBLESHOOTING
Warning! Under no
circumstances should you try to
repair the set yourself as this will
invalidate the guarantee. Do not
open the set as there is a risk of
electric shock.
• If a fault occurs, check the points
listed below before taking the system
for repair.
• Should any problems persist after
you have made these checks, consult
your nearest dealer or service center.
Disc Player Operation
“UNREADABLE DISC” is
displayed.
• The disc is inserted upside down.
™ Place disc with printed side up.
• Moisture condensation at the lens.
™ Wait until the lens has adjusted to
normal room temperature.
• The disc is dirty, badly scratched or
warped.
™ Clean or replace the disc.
• The disc lens is dirty or dusty
™ See section under Maintenance (page
27).
12/8/00, 3:14 PM
• The CD-R disc is not properly
recorded for use with a standard
CD player.
™ The CD-RW disc is inserted.
™ Read the instruction booklet of your
CD-Recorder on how to finalize a
recording.
™ An incorrect MP3-CD format disc is
inserted.
“NO DISC” is displayed.
• There is no disc in the disc tray.
™ Insert a disc.
Radio Reception
Poor radio reception.
• The signal is too weak.
™ Adjust the antenna.
™ Connect an external antenna for
better reception.
• The TV or VCR is too close to the
stereo system.
™ Separate the stereo system from the
TV or VCR.
3139 115 20011 (ENG)
TROUBLESHOOTING
28
Tape Deck Operation
General
Recording or playback cannot be
made or there is a decrease in
audio level.
• Dirty tape heads, capstans or
pressure rollers.
™ See section on tape deck maintenance
(page 27).
• Magnetic build-up in the record/
playback head.
™ Use a demagnetizing tape.
System does not react when any
button is pressed.
• Electrostatic discharge.
™ Press STANDBY ON to switch off the
system. Remove the AC power plug
from the wall outlet, then reconnect
the power plug and switch on the
system again.
Tape deck door cannot open.
• Power failure or AC power plug
disconnected from the wall outlet
during tape playback.
™ Reconnect the AC power plug and
switch on the system again.
No or poor sound.
• Volume is not turned up.
™ Adjust VOLUME.
• The headphones are connected.
™ Disconnect the headphones.
• Speakers are not connected or are
connected wrongly.
™ Check that the speakers are
connected correctly.
™ Make sure the stripped speaker wire is
clamped into the speaker's terminal..
• The MP3-CD bit rate below 128
kbps.
™ Make sure the MP3-CD was recorded
with minimum 128 kbps bit rate.
Reversed left and right sound.
• Speakers are connected wrongly.
™ Check the speaker connections and
location.
FWM55-37-USA-AEN-V01
28
Lack of bass sound or apparently
imprecise physical location of
musical instruments.
• Speakers are connected wrongly.
™ Check the speaker connection for
proper phasing, colored/black wires to
colored/black terminals.
Remote control has no effect on
the system.
• Wrong source is selected.
™ Select the source (CD, TUNER, etc.)
before pressing the function button
(É, í, ë, etc.).
• The distance to the system is too
large.
™ Reduce the distance.
• Batteries are inserted incorrectly.
™ Insert the batteries with their polarities
(+/– signs) as indicated.
• Batteries are exhausted.
™ Replace the batteries.
Timer is not working.
• Clock is not set.
™ Set the clock.
• Timer is not switched on.
™ Press CLOCK/TIMER to switch on the
timer.
• Recording is in progress.
™ Stop recording.
12/8/00, 3:14 PM
Clock setting is erased.
• There was a power failure.
™ Reset the clock.
System displays features
automatically; buttons flash
continuously.
• Demonstration mode is switched
on.
™ Press and hold Ç (on the system) for
five seconds to switch off the
demonstration.
There is a howling sound at the
external source.
• You hear feedback when you are
listening from AUX mode.
™ Press AUX to select CDR mode.
All lighted buttons are not lit.
• Equalizer Display is switched on in
NITE mode.
™ Adjust JOG to select other Equalizer
Display.
3139 115 20011 (ENG)
TABLE OF CONTENTS
President's Message.......................... 2 - 3
Tape ............................................... 20 - 21
Important Safety Instructions ...............4
Recording ...................................... 22 - 23
Limited Warranty ....................................5
Clock .....................................................24
Model Illustration ...................................6
Timer ............................................. 24 - 25
General Information...............................7
Sleep Timer ......................................... 25
Safety Information .................................7
Specifications ........................................26
Preparation ....................................... 8 - 9
Maintenance .........................................27
Controls ......................................... 10 - 12
Troubleshooting ............................ 27 - 28
Operating The System .................. 12 - 14
CD / MP3-CD................................ 15 - 17
Tuner ............................................. 18 - 19
AUX/CDR ..............................................19
FWM55-37-USA-AEN-V01
29
12/8/00, 3:14 PM
3139 115 20011 (ENG)
PAGE GUIDE
☞ 2
6
10
14
FWM55-37-USA-AEN-V01
3
7
11
15
30
4
8
12
16
5
9
13
17
18
21
24
27
19 20
22 23
25 26
28
12/8/00, 3:14 PM
BLANK
PAGE
FRONT
COVER
TABLE
OF
CONTENTS
PAGE
GUIDE
BACK
PAGE
3139 115 20011 (ENG)
En
gl
ish
FW 890P
FW-M55
Philips Consumer Electronics Company
A Division of Philips Electronics North America Corporation, Knoxville, Tennessee 37914-1810, USA
3139 115 20011 (ENG)
IB8215T001
FWM55-37-USA-AEN-V01
Printed In China
31
JP-0016/37-3
12/8/00, 3:14 PM
3139 115 20011 (ENG)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
