Philips MCM8/37, MCM7/37 User manual

Philips MCM8/37, MCM7/37 User manual

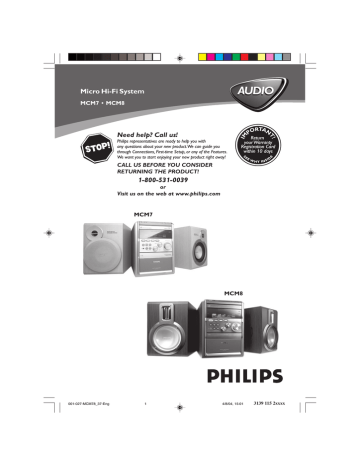

AUDIO
Micro Hi-Fi System
MCM7 • MCM8
IM
E
Return
your Warranty
Registration Card
within 10 days
S
Philips representatives are ready to help you with
any questions about your new product.We can guide you
through Connections, First-time Setup, or any of the Features.
We want you to start enjoying your new product right away!
RTAN
PO
T!
Need help? Call us!
EE
WH
CALL US BEFORE YOU CONSIDER
RETURNING THE PRODUCT!
Y INS
ID
1-800-531-0039
or
Visit us on the web at www.philips.com
MCM7
MCM8
1
001-027-MCM78_37-Eng
1
4/8/04, 15:01
3139 115 2xxxx
Return your Warranty Registration card today to
ensure you receive all the benefits you’re entitled to.
• Once your Philips purchase is registered,
you’re eligible to receive all the privileges
of owning a Philips product.
• So complete and return the Warranty
Registration Card enclosed with your
purchase at once, and take advantage
of these important benefits.
Warranty
Verification
Owner
Confirmation
Model
Registration
Registering your product
within 10 days confirms
your right to maximum
protection under the
terms and conditions of
your Philips warranty.
Your completed Warranty
Registration Card serves
as verification of ownership in the event of product theft or loss.
Returning your Warranty
Registration Card right
away guarantees you’ll
receive all the information
and special offers which
you qualify for as the
owner of your model.
Know these
safety symbols
For Customer Use
Enter below the Serial No. which is located on the rear of the cabinet. Retain this
information for future reference.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This “bolt of lightning” indicates uninsulated material
within your unit may cause
an electrical shock. For the safety of
everyone in your household, please do
not remove product covering.
t
The “exclamation point” calls
attention to features for
which you should read the
enclosed literature closely to prevent
operating and maintenance problems.
s
Model No. _______________________
Serial No. ________________________
WARNING: TO PREVENT
FIRE OR SHOCK HAZARD, DO
NOT EXPOSE THIS EQUIPMENT TO
RAIN OR MOISTURE.
CAUTION: To prevent electric
shock, match wide blade of plug to
wide slot, and fully insert.
MAC5097
2
001-027-MCM78_37-Eng
2
4/8/04, 15:01
3139 115 2xxxx
ATION
y!
r
r
Hu
EE
DED W
IT
AY
TR
N
S REG
IS
Visit our World Wide Web Site at http://www.philips.com
HIN 10 D
Congratulations on your purchase,
and welcome to the “family!”
Dear Philips product owner:
Thank you for your confidence in Philips.You’ve selected one of the best-built,
best-backed products available today.And we’ll do everything in our power to
keep you happy with your purchase for many years to come.
As a member of the Philips “family,” you’re entitled to protection by one
of the most comprehensive warranties and outstanding service networks
in the industry.
What’s more, your purchase guarantees you’ll receive all the information
and special offers for which you qualify, plus easy access to accessories
from our convenient home shopping network.
And most importantly you can count on our uncompromising commitment
to your total satisfaction.
All of this is our way of saying welcome – and thanks for investing in a
Philips product.
Sincerely,
Lawrence J. Blanford
President and Chief Executive Officer
P.S. Remember, to get the most from your Philips product, you
must return your Warranty Registration Card within 10 days.
So please mail it to us right now!
3
001-027-MCM78_37-Eng
3
4/8/04, 15:01
3139 115 2xxxx
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
12.
4. Follow all instructions.
5. Do not use this apparatus near
water.
Use only with the cart, stand,
tripod, bracket, or table specified
by the manufacturer or sold with
the apparatus.When a cart is
used, use caution when moving
the cart/apparatus combination
to avoid injury from tip-over.
13. Unplug this apparatus during lightning
storms or when unused for long periods of
time.
6. Clean only with dry cloth.
7. Do not block any ventilation
openings. Install in accordance with
the manufacturer´s instructions.
14. Refer all servicing to qualified service
personnel. Servicing is required when the
apparatus has been damaged in any way,
such as power-supply cord or plug is
damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does
not operate normally, or has been dropped.
8. Do not install near any heat sources
such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that
produce heat.
9. Do not defeat the
safety purpose of the
polarized or
AC Polarized
Plug
grounding-type plug.
A polarized plug has two blades with one
wider than the other. A grounding type plug
has two blades and a third grounding prong.
The wide blade or the third prong are
provided for your safety. If the provided plug
does not fit into your outlet, consult an
electrician for replacement of the obsolete
outlet.
10. Protect the power cord from being
walked on or pinched, particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
15.Battery usage CAUTION – To
prevent battery leakage which may result in
bodily injury, property damage, or damage
to the unit:
●
Install all batteries correctly, + and - as
marked on the unit.
●
Do not mix batteries (old and new or
carbon and alkaline, etc.).
●
Remove batteries when the unit is not used
for a long time.
16.Apparatus shall not be exposed to
dripping or splashing.
17.Do not place any sources of danger
11.Only use attachments/accessories
specified by the manufacturer.
on the apparatus (e.g. liquid filled
objects, lighted candles).
18.This product may contain lead and mercury.
Class II equipment symbol
This symbol indicates that the unit has
a double insulation system
Disposal of these materials may be regulated
due to environmental considerations.
For disposal or recycling information,
please contact your local authorities
or the Electronic Industries Alliance :
www.eiae.org.
EL 6475-E005: 04/01
4
001-027-MCM78_37-Eng
4
4/8/04, 15:01
3139 115 2xxxx
CAUTION
Canada
English:
This digital apparatus does not exceed
the Class B limits for radio noise
emissions from digital apparatus as set
out in the Radio Interference
Regulations of the Canadian
Department of Communications.
Français:
Cet appareil numérique n'emet pas
de bruits radioélectriques dépassant
les limites applicables aux appareils
numériques de Class B prescrites dans
le Règlement sur le Brouillage
Radioélectrique édicté par le Ministère
des Communications du Canada.
Use of controls or adjustments or
performance of procedures other
than herein may result in hazardous
radiation exposure or other unsafe
operation.
ATTENTION
L'utilisation des commandes ou
réglages ou le non-respect des
procédures ci-incluses peuvent se
traduire par une exposition
dangereuse à l'irradiation.
ATENCIÓN
This warning label is located on the rearside
and inside this laser product.
: INVISIBLE
LASER RADIATION
WHEN OPEN. DO NOT STARE INTO BEAM.
CAUTION
El uso de mando o ajustes o la
ejecucción de métodos que no sean
los aquí descritos puede ocasionar
peligro de exposición a radiación.
INVISIBLE LASER RADIATION WHEN OPEN.
DANGER:AVOID DIRECT EXPOSURE TO BEAM.
JA SUOJALUKITUS OHITETTAESSA OLET
VARO! AVATTAESSA
ALTTIINANAKYMATTOMAALLE LASERSATEILYLLE. ALA
KATSO SATEESEEN.
VARNING!
OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD.
OCH SPARREN AR URKOPPLAD.BETRAKTA EJ STRÅLEN.
or
DANGER - Invisible laser radiation when open.
AVOID DIRECT EXPOSURE TO BEAM.
Energy Star
R
As an ENERGY STAR
Partner, Philips has
determined that this
product meets the ENERGY STARR
guidelines for energy efficiency.
This system complies with the FCC rules, Part
15 and with 21 CFR 1040.10. Operation is
subject to the following two conditions:
– This device may not cause harmful
interference, and
– This device must accept any interference
received, including interference that may
cause undesired operation.
5
001-027-MCM78_37-Eng
5
4/8/04, 15:01
3139 115 2xxxx
6
001-027-MCM78_37-Eng
6
4/8/04, 15:01
3139 115 2xxxx
English
Index
Français
English ------------------------------------------------ 6
Español
Français -------------------------------------------- 31
Español --------------------------------------------- 55
7
001-027-MCM78_37-Eng
7
4/8/04, 15:01
3139 115 2xxxx
Contents
English
General Information
Tuner Operations
Supplied accessories ............................................ 9
Environmental information ................................ 9
Care and safety information .............................. 9
Tuning to radio stations .................................... 19
Presetting radio stations ................................... 19
Using the Plug and Play .................................. 19
Automatic presetting ..................................... 20
Manual presetting ............................................ 20
Selecting a preset radio station ....................... 20
Deleting a preset radio station .................... 20
Functional Overview
Main unit and remote control .................. 10–11
Control buttons available on the
remote only ...................................................... 11
Tape Operations/Recording
Connections
Step 1: Connecting FM/AM antennas ............ 12
Step 2: Connecting the speakers .................... 13
Step 3: Connecting the AC power cord ........ 13
Step 4: Inserting batteries into the remote
control .................................................................. 13
Using the remote control to operate
the system ........................................................ 13
Basic Operations
Switching on/off ................................................. 14
Switching to an active mode ......................... 14
Switching to Eco Power standby mode ..... 14
Switching to standby mode (view clock) ... 14
Demonstration mode ........................................ 14
Setting the clock ................................................. 14
Dimming system’s display screen .................... 15
Volume control ................................................... 15
Sound control ..................................................... 15
Incredible Surround ........................................ 15
Bass/Treble ........................................................ 15
Natural (Flat) sound ....................................... 15
Playing a tape ....................................................... 21
General information on recording ................. 21
Preparation for recording ................................ 22
One touch recording ......................................... 22
CD Synchronized start recording .................. 22
Timer Operations
Timer setting ....................................................... 23
Activating / Deactivating the timer ............... 23
Checking the timer setting ........................... 23
Temporarily deactivating the wake up
timer .................................................................. 24
Setting the Sleep Timer ..................................... 24
Other Connection
Listening to an external source ...................... 24
Specifications ........................................... 25
Troubleshooting .................................... 26
Limited Warranty ................................ 27
Disc Operations
Playable discs ....................................................... 16
Loading disc ......................................................... 16
Basic playback controls ..................................... 16
Playing an MP3 disc ............................................ 17
Repeat and Shuffle .............................................. 17
Repeat play ....................................................... 17
Random play ..................................................... 17
Programming the disc tracks ........................... 18
Checking the program ................................... 18
Clearing the program ..................................... 18
8
001-027-MCM78_37-Eng
8
4/8/04, 15:01
3139 115 23001
General Information
Supplied accessories
CD
TUNER
REPEAT
CLOCK
TAPE
PROGRAM
TAPE A/R
AUX
DIM
SLEEP
BASS
INC. SURR
Avoid high temperatures, moisture,
water and dust
– Do not expose the system, batteries or discs
to humidity, rain, sand or excessive heat (caused
by heating equipment or direct sunlight.) Always
keep the disc tray closed to avoid dust on the
lens.
SHUFFLE
DISPLAY
Avoid condensation problem
TIMER TIMER ON/OFF NATURAL
REC
Care and safety information
English
Refer to the type plate on the rear or
bottom of the system for identification
and supply ratings.
SNOOZE
TREBLE
– The lens may cloud over when the system is
suddenly moved from cold to warm
surroundings, making it impossible to play a disc.
Leave the system in the warm environment until
the moisture evaporates.
MUTE
Do not block the vents
– In a cabinet, allows about 10cm (4 inches) of
free space all around the system for adequate
ventilation.
–
–
–
–
Remote control and two AA batteries.
AM loop antenna
FM wire antenna
AC power cord
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can be
recycled and reused if disassembled by a
specialized company. Please observe the local
regulations regarding the disposal of packaging
materials, exhausted batteries and old
equipment.
Care of disc
– To clean a CD, wipe it in a straight line from
the center towards the edge using a soft, lint-free
cloth. A cleaning agent may damage the disc!
– Write only on the printed side of a CDR(W)
and only with a soft felt-tipped pen.
– Handle the disc by its edge, do not touch the
surface.
Care of the cabinet
– Use a soft cloth slightly moistened with a mild
detergent solution. Do not use a solution
containing alcohol, spirits, ammonia or abrasives.
Finding a suitable location
– Place the system on a flat, hard, and stable
surface.
Built-in safety circuit
– Under extreme conditions, this system may
switch to standby mode automatically. If this
happens, let the system cool down before
reusing it.
Cleaning the Heads and the Tape Paths
– To ensure good recording and playback
quality, clean the heads, the capstan(s), and
pressure roller(s) after every 50 hours of tape
operation.
– Use a cotton swab slightly moistened with
cleaning fluid or alcohol.
– You also can clean the heads by playing a
cleaning tape once.
9
001-027-MCM78_37-Eng
9
4/8/04, 15:01
3139 115 23001
Functional Overview
English
1
2
3
STANDBY-ON
ECO POWER
CLOCK
*
&
^
OPEN/
CLOSE
MP3-CD / CD-R / CD-RW COMPATIBLE
4
5
DIM
M I C R O
(
)
%
S Y S T E M
IR
6
7
8
9
0
!
@
TUNER
CD
CD
TUNER
REPEAT
TAPE
PROGRAM
TAPE A/R
AUX
SHUFFLE
DISPLAY
¤
⁄
º
¡
AUX
TAPE
‹
6
MASTER VOLUME
PLAY/PAUSE DEMO STOP
REC
7
TREBLE•
%
TUNING
ALBUM / TITLE
•BASS
$
OPEN/
CLOSE
™
^
£
!
&
$
8
CLOCK
TIMER TIMER ON/OFF NATURAL
REC
DIM
BASS
INC. SURR
SLEEP
SNOOZE
TREBLE
MUTE
≤
#
ª
•
≥
§
∞
AUTO REVERSE
LOGIC DECK
Main unit and remote control
7 DEMO STOP Ç
–
–
–
–
Exits an operation.
CD: stops playback or clears a program.
TUNER: *erases a preset radio station.
TAPE: stops playback or recording.
2 ECO POWER indicator
–
(only on the main unit)
*Turns on/ off the demonstration mode.
–
8 ÉÅ
1 STANDBY ON B
–
–
Switches to Eco Power standby mode or turns
on the system.
*Switches to standby mode.
Lights up when the system is in Eco Power
standby mode.
3 Disc tray
–
–
–
4 Display screen
5 iR
–
Point the remote control towards this sensor.
–
6 CD / TUNER / TAPE /AUX
–
–
–
–
–
Selects the relevant active mode.
CD: switches to CD mode.
TUNER: toggles between FM and AM band.
TAPE: switches to Tape mode.
AUX: toggles between AUX and CDR mode.
CD: starts/pauses playback.
TAPE: starts playback or selects other side of the
tape during playback.
CLOCK: toggles between hour and minutes
setting.
(only on the main unit)
TUNER: *enters Plug & Play mode and/or starts
preset radio station installation.
9n
–
Plug in the headphones jack. The speakers
output will be cancelled.
* = Press and hold the button for more than two seconds.
10
001-027-MCM78_37-Eng
10
4/8/04, 15:01
3139 115 23001
Functional Overview
0 TUNING S
™à
–
–
–
–
–
–
! REC
–
á
MP3: selects an album from MP3 disc.
CD: searches backward/ forward.
TUNER: tunes the radio frequency up/ down.
TAPE: rewind or fast forward.
CLOCK: sets the hours or minutes.
£ TIMER
–
*starts recording on a tape.
Displays the timer setting or enter timer setting
mode.
@ OPEN /CLOSE
≤ INC. SURR.
–
–
Opens / closes the tape deck door.
# Tape deck
Selects a desired BASS (low tone) or TREBLE
(high tone) level.
% MASTER VOLUME (VOL +-)
–
Adjusts the volume level.
–
Switches to clock display mode or enter clock
setting mode.
Mutes or restores the volume.
§ SLEEP
–
Sets the sleep timer function.
≥ SNOOZE
–
^ CLOCK
–
Turns on/ off the incredible surround sound
effect.
∞ MUTE
$ BASS/TREBLE (+-)
–
Temporarily deactivate the wake up timer.
• TIMER ON/OFF
–
Turns on/ off timer function.
& DIM
ª NATURAL
–
–
Selects different levels of brightness for display
panel.
* OPEN /CLOSE 0
–
Displays the album and title name for MP3 disc.
⁄ PROGRAM
( REPEAT
Repeats a track /disc/ all programmed tracks.
) TAPE A/R
–
Selects flat sound effect.
º DISPLAY
–
Opens/ closes the disc tray.
Control buttons available on the
remote only
–
English
–
–
–
–
T (4ALBUM/TITLE3)
CD: *searches backward/ forward or selects a
track.
MP3: *selects an album or selects a title (track.)
TUNER: tunes the radio frequency up/down.
TAPE: rewind or fast forward.
CLOCK: sets the hours or minutes.
Selects the desired tape playback modes : one
side, both sides or auto replay.
–
–
–
CD: starts or confirms tracks programming.
TUNER: starts *automatic/manual preset
programming.
CLOCK: selects 12- or 24-hour clock display.
¤ SHUFFLE
–
Turns on/ off random play mode.
‹B
–
–
Switches to Eco Power standby mode.
*Switches to standby mode.
¡í
–
–
–
–
ë
MP3: selects an MP3 title (track.)
CD: selects a track.
TUNER: selects a preset radio station.
TAPE: selects other side of the tape.
* = Press and hold the button for more than two seconds.
11
001-027-MCM78_37-Eng
11
4/8/04, 15:01
3139 115 23001
Connections
English
WARNING!
Step 1:
– Use only the supplied speakers.
The combination of the main unit and
speakers provide the best sound.
Using other speakers can damage the
unit and sound quality will be negatively
affected.
– Never make or change connections
with the power switched on.
– Connect the AC power cord to the
power outlet only after you have finished
hooking up everything.
Connecting FM/ AM
antennas
– Place the AM loop antenna on a shelf or
attach it to a stand or wall.
– Extend the FM antenna and fix its ends to the
wall.
– Adjust the position of the antennas for
optimal reception.
– Position the antennas as far as possible from a
TV, VCR or other radiation source to prevent
unwanted noise.
– For better FM stereo reception, connect
external FM antenna.
12
001-027-MCM78_37-Eng
12
4/8/04, 15:01
3139 115 23001
Step 2:
Connecting the
speakers
Connect the speaker wires to the SPEAKERS
terminals, right speaker to "R" and left speaker to
"L," colored (marked) wire to "+" and black
(unmarked) wire to "-." Fully insert the
stripped portion of the speaker wire into the
terminal as shown.
Helpful Hints:
– Ensure that the speaker cables are correctly
connected. Improper connections may damage the
system due to short-circuit.
– Do not connect more than one speaker to any
one pair of +/- speaker terminals.
Step 3:
Connecting the AC
power cord
"AUTO INSTALL – PRESS PLAY" may appear
on the display panel when the AC power cord is
plugged into the power outlet for the first time.
Press ÉÅ on the main unit to store all available
radio stations or press Ç to exit (refer to
“Tuner Operations”.)
Step 4:
Inserting batteries into
the remote control
3
1
2
1 Open the battery compartment cover.
2 Insert two batteries type R06 or AA, following
the indications (+-) inside the compartment.
3 Close the cover.
Using the remote control to operate
the system
1 Aim the remote control directly at the
remote sensor (iR) on the main unit.
2 Select the source you wish to control by
pressing one of the source select keys on the
remote control (for example CD, TUNER.)
3 Then select the desired function (for example
ÉÅ, í, ë.)
CAUTION!
– Remove batteries if they are exhausted
or will not be used for a long time.
– Do not use old and new or different
types of batteries in combination.
– Batteries contain chemical substances,
so they should be disposed of properly.
13
001-027-MCM78_37-Eng
13
4/8/04, 15:01
3139 115 23001
English
Connections
Basic Operations
English
Switching on/off
Setting the clock
Switching to an active mode
The clock can be set in either 12-hour or
24-hour mode ("11:59 PM" or "23:59" for
example.)
● Press CD, TUNER, TAPE or AUX.
Switching to Eco Power standby mode
● Press B.
PROGRAM
➜ ECO POWER button lights up.
➜ The display screen will go blank.
2 (00:00 î 12:00AM)
4
Switching to standby mode (view
clock)
(00:00 / 12:00AM)
(00:00 / 12:00AM)
3, 4
CLOCK
● Press and hold B.
1, 5
➜ The clock appears.
➜ While in standby mode, pressing CLOCK
button will switch the system to Eco Power
standby mode.
Helpful Hint:
– Before switching the system to Eco Power
standby or standby mode, make sure you have
deactivated the the demonstration mode.
1 Press and hold CLOCK until the clock time
starts flashing.
2 Press PROGRAM repeatedly to change
between 12-hour and 24-hour clock mode.
3 Press à or á repeatedly to set the hour.
4 Press ÉÅ to change to minutes setting, then
press à or á repeatedly to set the
minutes.
Demonstration mode
If the demonstration mode is active, whenever
you switch the system to Eco Power standby or
standby mode, it will begin showing the various
features offered by the system.
To activate the demonstration
● In Eco Power standby/standby mode,
press and hold Ç on the main unit until
"DEMO ON" appears.
To deactivate the demonstration
● Press and hold Ç on the main unit until
"DEMO OFF" appears.
5 Press CLOCK again to store the setting.
➜ The clock will start working.
To view the clock time in any active
mode
● Press CLOCK once.
➜ The clock is displayed for a few seconds.
Helpful Hints:
– The clock setting will be erased when the system
is disconnected from the power supply.
– The system will exit clock setting mode if no
button is pressed within 90 seconds.
14
001-027-MCM78_37-Eng
14
4/8/04, 15:01
3139 115 23001
Basic Operations
You can select the desired brightness for the
display panel.
● In any active mode, press DIM repeatedly to
select DIM 1, DIM 2, DIM 3 or DIM OFF
display.
➜ DIM shows on the display screen, except
DIM OFF mode.
Sound control
English
Dimming system’s display screen
Incredible Surround
The Incredible Surround magnifies the virtual
distance between the front speakers for an
incredibly wide, enveloping, stereo effect.
● Press INC. SURR. repeatedly.
➜ If activated, INCREDIBLE SURROUND shows on
the display.
➜ If deactivated, “IS OFF” appears.
Volume control
Bass/Treble
● Adjust MASTER VOLUME (or press
VOL +/- on remote) to increase or
decrease the sound level.
➜ "VOL MUTE" is the minimum volume level
and “0 dB” is the maximum volume level.
To switch off the volume temporarily
● Press MUTE on the remote.
➜ Playback will continue without sound and
"MUTE" appears.
➜ To restore the volume, press MUTE again or
increase the volume level.
The BASS (low tone) and TREBLE (high tone)
feature enables you to define the soundprocessor settings.
● Adjust BASS or TREBLE (or press BASS
+-/TREBLE +- on the remote)
repeatedly to select the desired Bass or Treble
level.
➜ "BASS XX" or "TREBLE XX" appears.
"XX" denotes the level as follows :
-3 ™ -2 …™ 0 ™ 1… ™ +2 ™ +3 …
Natural (flat sound)
This feature allows you to temporarily switch off
the sound setting (e.g. Incredible Surround - OFF,
Bass/Treble setting - 0dB.)
● Press NATURAL on the remote.
➜ Pressing the same button will restore the
previous sound setting.
➜ Pressing INC. SURR or BASS/TREBLE button
will turn off the natural sound mode.
15
001-027-MCM78_37-Eng
15
4/8/04, 15:01
3139 115 23001
Disc Operations
English
IMPORTANT!
Basic playback controls
– This system is designed for regular
discs. Therefore, do not use any
accessories such as disc stabilizer rings or
disc treatment sheets, etc., as offered on
the market, because they may jam the
changer mechanism.
– Do not load more than one disc onto
the tray.
Unless stated, all operations described are based
on Remote Control use.
Playable discs
This system is able to play:
– All pre-recorded audio CDs
– All finalized audio CDR and audio CDRW
discs
– MP3-CDs (CD-ROMs with MP3 tracks)
To start playback
● Press ÉÅ.
To select a desired track
● Press í or ë repeatedly until the desired
track is displayed.
➜ During random play (shuffle mode,) pressing
í will not affect the current playback.
To search for a particular passage
during playback
● Press and hold à or á and release it when
the desired passage is located.
➜ During searching, the volume will reduce.
For MP3 disc, the volume will mute.
To interrupt playback
● Press ÉÅ.
➜ To resume normal playback, repeat the
above.
Loading disc
2
To stop playback
● Press Ç.
STANDBY-ON
ECO POWER
CLOCK
RDS/
NEWS
OPEN/
CLOSE
OPEN/
CLOSE
➜ If the system remains in stop mode for 30
minutes, it will switch to Eco Power standby
mode.
MP3-CD / CD-R / CD-RW COMPATIBLE
M I C R O
1, 3
S Y S T E M
MP3-CD / CD-R / CD-RW COMPATIBLE
IR
CD
TUNER
TAPE
AUX /CDR
MASTER VOLUME
PLAY/PAUSE DEMO STOP
REC
BASS •
1 Press OPEN/ CLOSE 0 button to open the
disc tray.
2 Load a disc with the label side is facing up. For
double-sided discs, load the side you want to
play face up.
3 Press OPEN/ CLOSE 0 button again to
close the disc tray.
➜ “READING“ is displayed. The total number of
tracks and the playing time will appear on the
display.
Helpful Hint:
– To ensure good system performance, wait until
the disc tray completely read the disc before
proceeding.
16
001-027-MCM78_37-Eng
16
4/8/04, 15:01
3139 115 23001
Disc Operations
Repeat and Shuffle
English
Playing an MP3 disc
You can select and change the various play
modes before or during playback.
1
CD
TITLE
A02 T008
DISPLAY
STANDBY-ON
ECO POWER
RDS/
NEWS
CLOCK
3
OPEN/
CLOSE
MP3-CD / CD-R / CD-RW COMPATIBLE
M I C R O
S Y S T E M
4
MP3-CD / CD-R / CD-RW COMPATIBLE
IR
CD
TUNER
TAPE
Repeat play
1 Press REPEAT on the remote repeatedly to
select :
AUX /CDR
MASTER VOLUME
PLAY/PAUSE DEMO STOP
REC
BASS •
2
TUNING
ALBUM / TITLE
PROG
PROG
REPEAT
• TREBLE
TRACK
ALBUM / TITLE
REPEAT
DISC
REPEAT
REPEAT
TRACK
ALBUM
OPEN/
CLOSE
VIRTUAL ENVIRONMENT CONTROL
DIGITAL SOUND CONTROL
A02 T001
A
B
C
D
➜ The disc reading time may exceed 10
seconds due to the large number of songs
compiled into one disc.
➜ "AXX TYYY" is displayed. XX is the current
album number and YYY is the current title
number.
A – to repeat playback of the current track.
B – to repeat playback of the current disc.
C – to repeat playback of the current
programmed track (only if the program
mode is active)
D – to repeat playback of all the programmed
tracks (only if the program mode is
active)
2 Press à á (or press and hold S T
2 To resume normal playback, press REPEAT
1 Load an MP3 disc.
on the system) to select a desired album.
3 Press í ë (or press S T on the
system) to select a desired title.
4 Press ÉÅ to start playback.
● During playback, press DISPLAY to show
the album and title name.
Supported MP3 disc formats:
– ISO9660, Joliet, UDF 1.5
– Maximum title number : 999 (depending on
filename length)
– Maximum album number : 99
– Supported sampling frequencies: 32 kHz,
44.1 kHz, 48 kHz
– Supported Bit-rates : 32~256 (kbps), variable
bitrates
– ID3 tags : V1.1, V2.2, V2.3, V2.4
until " OFF"appears.
Random play
● Press SHUFFLE on the remote to turn
on/ off the shuffling mode.
➜ If activated, SHUFFLE shows on the display and
the repeat mode (if any) will be cancelled.
➜ If programme mode is active, only the
programmed tracks will be played in random
order.
Helpful Hint:
– Pressing the OPEN / CLOSE button will cancel all
repeat and shuffling modes.
17
001-027-MCM78_37-Eng
17
4/8/04, 15:01
3139 115 23001
Disc Operations
English
Programming the disc tracks
Programming tracks is possible when playback is
stopped. Up to 99 tracks can be stored in the
memory in any order.
Checking the program
1 Stop playback and press í or ë repeatedly.
2 Press ÉÅ to start playback from the
current programmed track.
Clearing the program
CD
2
PROGRAM
3, 5
1
STANDBY-ON
ECO POWER
4
CLOCK
RDS/
NEWS
OPEN/
CLOSE
M I C R O
S Y S T E M
Press the OPEN/CLOSE 0 button of the
disc tray.
7
➜ PROG disappears from the display and
"PROGRAM CLEARED" appears.
IR
1 Load the desired disc on the disc tray (refer
to “Loading disc”.)
2 Press CD to select a disc.
3 Press PROGRAM to start programming.
➜
PROG
OR
6
MP3-CD / CD-R / CD-RW COMPATIBLE
MP3-CD / CD-R / CD-RW COMPATIBLE
● Stop playback, then press Ç to clear the
program.
Helpful Hint:
– If the system is disconnected from the power
supply or you switch to other source mode, the
program will be erased.
starts flashing.
4 Press í or ë repeatedly to select the
desired track.
● For MP3 disc, press à / á and í / ë to
select the desired album and title for
programming.
5 Press PROGRAM to store.
● Repeat steps 4~5 to select other tracks.
➜ If you attempt to program more than 99
tracks, "PROGRAM FULL" appears.
6 To start program play, press ÉÅ.
7 To stop playback or to end the programming,
press Ç once.
➜ PROG stays and the program mode remains
active.
Helpful Hints:
– If the total playing time reached 100 minutes or
if one of the programmed tracks has a number
greater than 30, then "--:--" will appear instead
of the total playing time.
– The system will exit programming mode if no
button is pressed within 20 seconds.
18
001-027-MCM78_37-Eng
18
4/8/04, 15:01
3139 115 23001
IMPORTANT!
Using the Plug and Play
Make sure the FM and AM antennas are
connected.
Plug and Play allows you to store all available
radio stations automatically.
English
Tuner Operations
Tuning to radio stations
1 Press TUNER to enter tuner mode.
To select another waveband (FM or AM,)
press TUNER again.
M I C R O
S Y S T E M
IR
2 Press and hold à or á until the frequency
indication starts to change, then release.
➜ The system automatically tunes to the next
strong signal radio reception.
➜
lights up for FM stereo reception.
For tuning to a weak signal station
● Press à or á briefly and repeatedly until an
optimal reception is found.
1 Connect the system to the power supply,
"AUTO INSTALL – PRESS PLAY" appears.
OR
Presetting radio stations
You can store up to 40 preset radio stations in
the memory, starting from FM and followed by
AM bands.
Helpful Hints:
– The system will exit presetting mode if no button
is pressed within 20 seconds.
– If no stereo frequency is detected during Plug
and Play, "CHECK ANTENNA" appears.
In Eco Power standby/ standby mode,
press and hold ÉÅ on the main unit until
"AUTO INSTALL – PRESS PLAY" appears.
2 Press ÉÅ on the main unit to start
installation.
➜ "INSTALL TUNER AUTO" appears.
➜ All previously stored radio stations will be
replaced.
➜ Once completed, the last tuned radio station
will play.
19
001-027-MCM78_37-Eng
19
4/8/04, 15:01
3139 115 23001
Tuner Operations
Selecting a preset radio station
English
Automatic presetting
You can start the automatic presetting from a
selected preset number.
1 In tuner mode, press í or ë to select a
● In tuner mode, press í or ë.
➜ The preset number, radio frequency, and
waveband will appear.
preset number.
2 Press and hold PROGRAM until "AUTO"
appears.
➜ If a radio station is stored in one of the
presets, the same radio station will not store
under another preset number.
➜ If no preset number is selected, automatic
preset will begin from preset (1) and all your
former presets will be overridden.
Deleting a preset radio station
● Press and hold Çuntil “PRESET DELETED”
appears.
➜ The current preset radio station will be
deleted.
➜ All other preset radio stations with higher
numbers are decreased by one.
Manual presetting
You can choose to store only the favorite radio
stations.
1 Tune to your desired radio station (refer to
“Tuning to radio stations”.)
2 Press PROGRAM.
➜ The preset number starts flashing. If you want
to store the radio station in another preset
number, press í or ë.
3 Press PROGRAM again to store.
● Repeat steps 1~3 to store other radio
stations.
20
001-027-MCM78_37-Eng
20
4/8/04, 15:01
3139 115 23001
Tape Operations/Recording
Playing a tape
1 Press TAPE to select tape mode.
2 Press OPEN/ CLOSE 0 to open the tape
To rewind or fast forward
English
IMPORTANT!
– Before playing a tape, check and
tighten slack tape with a pencil. Slack
tape may get jammed or may burst in
the mechanism.
– C-120 tape is extremely thin and is
easily deformed or damaged. It is not
recommended for use in this system.
– Store the tapes at room temperature
and do not put them too close to a
magnetic field (for example, a
transformer,TV or speaker.)
1 Stop playback, then press à / á on the
remote.
2 Press Ç when you reached the desired
passage.
➜ The tape will stop automatically at the end of
rewinding or fast forwarding.
To stop playback
● Press Ç.
Helpful Hint:
– During rewinding or fast forwarding of a tape, it
is also possible to select another source (CD or
TUNER, for example.)
deck door.
3 Insert a recorded tape and close the tape
deck door.
➜ Load the tape with the open side downward
and full spool to the left.
4 Press ÉÅ to start playback.
To change the playback side
● Press í or ë on the remote.
➜ During playback, you can press ÉÅ on the
system to change the playback side.
➜ A (BACK) or B (FRONT) appears on the
display, depending on the tape side selected.
General information on
recording
● For recording, use only tape of IEC type I
(normal tape.)
● The recording level is set automatically,
regardless of the position of the Volume,
Incredible Surround, BASS/TREBLE and so
forth.
● The tape is secured at both ends with leader
tape. At the beginning and
end of the tape, nothing will
be recorded for six to seven
seconds.
● To prevent accidental
recording, break out the tab
on the left shoulder of the
tape side you want to protect.
● If “CHECK TAPE” is displayed, the protection
tab has been broken. Put a piece of clear
adhesive tape over the opening.
To change the playback mode
● Press TAPE A/R on the remote repeatedly
to select the different playback modes.
å : playback on one side of the tape only.
∂ : both sides are played once.
∫ : both sides are played repeatedly, up
to 10 times each side unless you
press Ç.
21
001-027-MCM78_37-Eng
21
4/8/04, 15:01
3139 115 23001
Tape Operations/Recording
English
IMPORTANT!
Recording is permissible if copyright or
other rights of third parties are not
infringed upon.
1 Press CD, TUNER or AUX to select the
Preparation for recording
2 Start playback of the selected source.
3 Press and hold REC until REC icon starts
1 Press TAPE.
2 Load a recordable tape into the tape deck.
3 Press í or ë on the remote to select the
recording tape side.
➜ A appears on the display for the reverse
side.
➜ B appears on the display for the forward
side.
One touch recording
recording source.
flashing on the display panel to start
recording.
To stop recording
● Press Ç on the system.
Helpful Hint:
– One Touch Recording is not possible in TAPE
mode, "SELECT SOURCE" will appear.
4 Press TAPE A/R on the remote repeatedly
to select a recording mode.
➜ å for recording on one side only.
➜ ∂ for recording on both sides.
5 Prepare the source to be recorded.
CD – load the disc.
TUNER – tune to the desired radio station.
AUX – connect external equipment.
When recording is in progress
➜
REC
starts flashing.
● It is not possible to change tape side.
● It is not possible to listen to another source.
● It is not possible to activate the timer
function.
CD Synchronized start recording
1
Press CD.
● If you want to start recording from a desired
track, press í or ë.
➜ You can program the tracks in the order you
want them to be recorded (refer to “CD
Operation - Programming the disc tracks”.)
2 Press and hold REC to start recording.
➜ The disc will start playback automatically.
To select another track during
recording
1 Press ÉÅto interrupt recording.
2 Press í or ë to select the desired track.
3 Press ÉÅto resume recording.
To stop recording
● Press Ç.
➜ Recording and disc playback will stop
simultaneously.
22
001-027-MCM78_37-Eng
22
4/8/04, 15:01
3139 115 23001
Timer setting
The system can switch on to CD, TUNER or
TAPE mode automatically at a preset time,
serving as an alarm to wake you up.
IMPORTANT!
– Before setting the timer, ensure that
the clock is set correctly.
– if recording is in progress, the timer
function will not be activated.
– The volume of the timer will increase
gradually to the last tuned volume level.
If the last tuned volume level is too low,
the set will then increase to a
predetermined minimum audible level.
2 (CD / TUNER / TAPE)
CD
TUNER
● At the preset time, the selected sound
source will be played for 30 minutes
before it switches to Eco Power standby
mode (if no button is being pressed within the
time frame.)
➜ CD – playing the first track of the disc. If the
disc tray is empty, it will switch to Tuner mode.
➜ TUNER – playing the last tuned radio station.
➜ TAPE – playing the tape.
Activating/ Deactivating the timer
● Press TIMER ON/OFF on the remote to
turn off the timer or turn on to the last
setting again.
➜ If activated, the timer information will display
for a few seconds, then the system resumes to
the last active source or stays in standby mode.
➜ If deactivated, “OFF” appears.
TAPE
4
(00:00 / 12:00AM)
(00:00 / 12:00AM)
Checking the timer setting
3, 4
● Press TIMER on the remote.
TIMER TIMER ON/OFF
SLEEP
Helpful Hint:
– The system will exit timer setting mode if no
button is pressed within 90 seconds.
➜ The timer information will display for a few
seconds, then the system resumes to the last
active source or stays in standby mode.
SNOOZE
1, 5
1 Press TIMER on the remote.
➜
icon starts flashing.
2 Press CD, TUNER or TAPE to select the
wake-up source.
➜ The selected source will be lighted while
other available sources are flashing.
3 Press à or á repeatedly to set the hour.
4 Press ÉÅ to change to minutes setting, then
press à or á repeatedly to set the
minutes.
5 Press TIMER to store the setting.
➜ Once the timer is set, it will always switch on
unless you deactivate it.
➜ icon remains on the display. It indicates the
timer is activated.
23
001-027-MCM78_37-Eng
23
4/8/04, 15:01
3139 115 23001
English
Timer Operations
Timer Operations
English
Temporarily deactivating the wake up
timer
You are only able to activate the Snooze
function within 30 minutes after the timer wake
up from standby
mode.
Temporarily
deactivating
thewakeuptimer
Other Connection
Listening to an external source
You can listen to the sound of the connected
external device through your system’s speakers.
1 After timer wake up, press SNOOZE on
the remote.
AUDIO OUT
➜ The system will switch to standby mode for
five minutes. After that, it resumes the timer last
selected source again.
L
1
R
L
AUX/
CDR IN
R
AC
MAINS
2 To cancel the snooze function, press
R
SNOOZE again.
L
AUX/
CDR IN
AM ANTENNA FM ANTENNA
+
R
–
–
L
+
SPEAKERS 6Ω
Setting the Sleep Timer
PLAY
CD
➜ The selections are as follows (time in
minutes:)
15 ™ 30 ™ 45 ™ 60 ™ 90 ™ 120 ™
OFF ™ 15 …
➜ SLEEP appears on the display, except if "OFF"
is selected.
➜ To view or change the setting, repeat the
above.
2 Before the system switches to Eco Power
standby mode, a countdown of 10 seconds is
displayed.
"SLEEP 10" ™ "SLEEP 9".... ™ "SLEEP 1"
™ "SLEEP"
To cancel the sleep timer
● Press SLEEP repeatedly until "OFF" appears,
or press the STANDBY ON B button.
TAPE
PROGRAM
TAPE A/R
AUX
AUX
SHUFFLE
DISPLAY
3
2
1 Press SLEEP on the remote repeatedly until
it reaches the desired preset turn-off time.
TUNER
REPEAT
The sleep timer enables the system to switch to
Eco Power standby mode automatically at a
preset time
CLOCK
REC
TIMER TIMER ON/OFF NATURAL
DIM
SLEEP
SNOOZE
1 Use the red/white audio cables to connect
the system’s AUX/CDR IN (R/L) terminals
to the AUDIO OUT terminals on the other
audio /visual device (such as a TV, VCR, Laser
Disc player, DVD player or CD recorder.)
➜ If the connecting device has only a a single
audio out terminal, connect it to the AUX/CDR
IN left terminal. Alternatively, you can use a
“single to double” cinch cable, but the output
sounds still remain monaural.
2 Press AUX repeatedly.
➜ Select “AUX” when connecting to a TV, VCR
or Laser Disc player.
➜ Select “AXU/CDR” when connecting to a CD
recorder or DVD player.
3 Press PLAY on the connected device to start
playback.
Helpful Hints:
– All the sound control features (INC SURR, for
example) are available for selection.
– Always refer to the owner’s manual of the other
equipment for complete connection and use details.
24
001-027-MCM78_37-Eng
24
4/8/04, 15:01
3139 115 23001
AMPLIFIER
Output power
- MCM7
- MCM8
Signal-to-noise ratio
Frequency response
Input sensitivity
AUX / CDR In
Output
Speakers
Headphones
(1) (6 Ω, 60 Hz – 12.5 kHz, 10% THD)
100 W total Power
2 x 50 W RMS(1)
2 x 45 W FTC(1)
150 W total Power
2 x 75 W RMS(1)
2 x 60 W FTC(1)
≥ 75 dBA (IEC)
50 – 20000 Hz, –3 dB
TAPE PLAYER
Frequency response
CrO2 tape (type II)
Normal tape (type I)
Signal-to-noise ratio
CrO2 tape (type II)
Normal tape (type I)
Wow and flutter
Tweeter (MCM7)
Tweeter (MCM8)
Dimensions (w x h x d)
- MCM7
2 way, Bass reflex
6Ω
1 x 5.25" Aluminium
con woofer
2" Ferro Fluid
Cone Dome tweeter
Ribbon tweeter
175 x 254 x 215 (mm)
6.89 x 10.0 x 8.46 (inches)
500 mV / 1V
- MCM8
175 x 254 x 196 (mm)
6.89 x 10.0 x 7.72 (inches)
≥6Ω
32 Ω – 1000 Ω
DISC PLAYER
Programmable tracks
99
Frequency response
20 – 20000 Hz, –3 dB
Signal-to-noise ratio
≥ 76 dBA
Channel separation
≥ 60 dB (1 kHz)
MPEG 1 Layer 3 (MP3-CD) MPEG AUDIO
MP3-CD bit rate
32-256 kbps
(128 kbps advised)
Sampling frequencies
32, 44.1, 48 kHz
TUNER
FM wave range
AM wave range
Number of presets
Antenna
FM
AM
SPEAKERS
System
Impedance
Woofer
Weight
- MCM7
- MCM8
3 kg / 6.6 pounds each
3.1 kg each
6.82 pounds each
GENERAL
Material / finish
AC Power
Power Consumption
Active- MCM7
- MCM8
Standby
Eco Power Standby
Dimensions (w x h x d)
Polystyrene / Metal
120 V / 60 Hz
80 W
60 W
< 15 W
< 0.6 W
175 x 252 x 350 (mm)
6.89 x 9.92 x 13.78 (inches)
87.5 – 108 MHz
530 – 1700 kHz
40
Weight (without speakers) 5.0 kg / 11 pounds
300 Ω dipole wire
Loop antenna
Specifications and external appearance are subject
to change without notice.
80 – 12500 Hz, –8 dB
80 – 12500 Hz, –8 dB
≥ 50 dBA
≥ 47 dBA
≤ 0.4% DIN
25
001-027-MCM78_37-Eng
25
4/8/04, 15:01
3139 115 23001
English
Specifications
Troubleshooting
English
WARNING
Under no circumstances should you try to repair the system yourself, as this will
invalidate the warranty. Do not open the system as there is a risk of electric shock.
If a fault occurs, first check the points listed below before taking the system for repair. If
you are unable to remedy a problem by following these hints, consult your dealer or
call 1800-531-0039 for help.
Problem
Solution
✔ If the signal is too weak, adjust the antenna or
connect an external antenna for better
reception.
✔ Increase the distance between the system and
your TV or VCR.
Radio reception is poor.
“NO DISC” is displayed or the disc
cannot be played.
The system does not react when buttons
are pressed.
Recording or playback cannot be made.
The tape deck door cannot open.
Sound cannot be heard or is of poor
quality.
The remote control does not function
properly.
✔ Insert a disc.
✔ Load in the disc with label facing up.
✔ Replace or clean the disc, see “Care and safety
information.”
✔ Use a finalized CD-R(W) or a correct format
disc.
✔ Remove and reconnect the AC power cord and
switch on the system again.
✔ Use only NORMAL (IEC I) tape.
✔ Apply a piece of adhesive tape over the missing
tab space.
✔ Remove and reconnect the AC power plug and
switch on the system again.
✔
✔
✔
✔
Adjust the volume.
Disconnect the headphones.
Check that the speakers are connected correctly.
Check that the AC power cord is connected
properly.
✔ Select the source (CD or TUNER, for example)
before pressing the function button (ÉÅ,
S, T.)
✔ Reduce the distance between the remote
control and the system.
✔ Replace the battery.
✔ Point the remote control directly toward the IR
sensor.
✔ Set the clock correctly.
✔ Press TIMER ON /OFF to switch on the timer.
✔ If recording is in progress, stop the recording.
The timer is not working.
The system displays features
automatically and buttons start flashing.
✔ Press and hold DEMO STOP on the main unit
to switch off the demonstration mode.
26
001-027-MCM78_37-Eng
26
4/8/04, 15:01
3139 115 23001
LIMITED WARRANTY
AUDIO SYSTEM
One Year Free Labor
One Year Free Service on Parts
This product must be carried in for repair.
WHO IS COVERED?
You must have proof of purchase to receive warranty service. A sales receipt or other document showing that you
purchased the product is considered proof of purchase.
WHAT IS COVERED?
Warranty coverage begins the day you buy your product.
For one year thereafter, all parts will be repaired or
replaced, and labor is free. After one year from the day of
purchase, you pay for the replacement or repair of all
parts, and for all labor charges.
All parts, including repaired and replaced parts, are covered
only for the original warranty period.When the warranty
on the product expires, the warranty on all replaced and
repaired parts also expires.
WHAT IS EXCLUDED?
Your warranty does not cover:
• labor charges for installation or setup of the product,
adjustment of customer controls on the product, and
installation or repair of antenna systems outside of the
product.
• product repair and/or part replacement because of misuse,
accident, unauthorized repair or other cause not within the
control of Philips.
• reception problems caused by signal conditions or cable
or antenna systems outside the unit.
• a product that requires modification or adaptation to
enable it to operate in any country other than the country for which it was designed, manufactured, approved
and/or authorized, or repair of products damaged by
these modifications.
• incidental or consequential damages resulting from the
product. (Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion
may not apply to you.This includes, but is not limited to,
prerecorded material, whether copyrighted or not copyrighted.)
• a product that is used for commercial or institutional
purposes.
WHERE IS SERVICE AVAILABLE?
Warranty service is available in all countries where the
product is officially distributed by Philips. In countries
where Philips does not distribute the product, the local
Philips service organization will attempt to provide service
(although there may be a delay if the appropriate spare
parts and technical manual(s) are not readily available).
MAKE SURE YOU KEEP...
Please keep your sales receipt or other document showing
proof of purchase. Attach it to this owner’s manual and
keep both nearby. Also keep the original box and packing
material in case you need to return your product.
BEFORE REQUESTING SERVICE...
Please check your owner's manual for assistance. If you
have additional questions, call us at 1-800-531-0039.
TO GET WARRANTY SERVICE IN U.S.A.,
PUERTO RICO, OR U.S. VIRGIN ISLANDS...
Take the product to a Philips factory service center (see
enclosed list) or authorized service center for repair.When
the product has been repaired, you must pick up the unit at
the center. Centers may keep defective parts.
(In U.S.A., Puerto Rico, and U.S.Virgin Islands, all implied
warranties, including implied warranties of merchantability
and fitness for a particular purpose, are limited in duration
to the duration of this express warranty. But, because some
states do not allow limitations on how long an implied
warranty may last, this limitation may not apply to you.)
TO GET WARRANTY SERVICE IN CANADA...
Please contact Philips at:
1-800-661-6162 (French Speaking)
1-800-531-0039 (English or Spanish Speaking)
(In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed or implied,
including any implied warranties of merchantability or fitness for a particular purpose. Philips is not liable under any
circumstances for any direct, indirect, special, incidental or
consequential damages, howsoever incurred, even if notified
of the possibility of such damages.)
REMEMBER...
Please record below the model and serial numbers found
on the product. Also, please fill out and mail your warranty
registration card promptly. It will be easier for us to notify
you if necessary.
MODEL #
__________________________________
SERIAL #
__________________________________
This warranty gives you specific legal rights.You may have other rights which vary from state/province to state/province.
Philips, P.O. Box 520890, Miami, FL 33152, USA, (402) 536-4171
EL4965E007 / 8-02
27
001-027-MCM78_37-Eng
27
4/8/04, 15:01
3139 115 2xxxx
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
