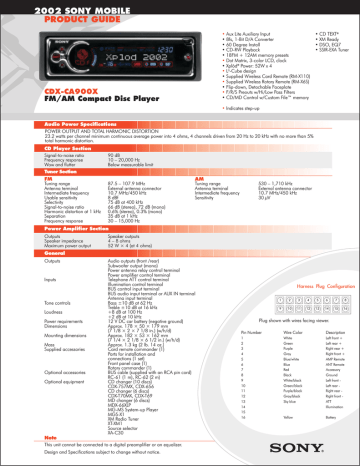

Sony CDX-CA900X CD Player
2002 SONY MOBILE
PRODUCT GUIDE
• Aux Lite Auxiliary Input
• 8fs, 1-Bit D/A Converter
• 60 Degree Install
• CD-RW Playback
• 18FM + 12AM memory presets
• Dot Matrix, 3-color LCD, clock
- ® Power: 52W x 4
• Xplod
• L3-Cube design
• Supplied Wireless Card Remote (RM-X110)
• Supplied Wireless Rotary Remote (RM-X6S)
• Flip-down, Detachable Faceplate
• F/R/S Preouts w/Hi/Low Pass Filters
• CD/MD Control w/Custom File™ memory
CDX-CA900X
FM/AM Compact Disc Player
• CD TEXT®
• XM Ready
• DSO, EQ7
• SSIR-EXA Tuner
• Indicates step-up
Audio Power Specifications
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
23.2 watts per channel minimum continuous average power into 4 ohms, 4 channels driven from 20 Hz to 20 kHz with no more than 5%
total harmonic distortion.
CD Player Section
Signal-to-noise ratio
Frequency response
Wow and flutter
90 dB
10 – 20,000 Hz
Below measurable limit
Tuner Section
FM
Tuning range
Antenna terminal
Intermediate frequency
Usable sensitivity
Selectivity
Signal-to-noise ratio
Harmonic distortion at 1 kHz
Separation
Frequency response
87.5 – 107.9 MHz
External antenna connector
10.7 MHz/450 kHz
8 dBf
75 dB at 400 kHz
66 dB (stereo), 72 dB (mono)
0.6% (stereo), 0.3% (mono)
35 dB at 1 kHz
30 – 15,000 Hz
AM
Tuning range
Antenna terminal
Intermediate frequency
Sensitivity
530 – 1,710 kHz
External antenna connector
10.7 MHz/450 kHz
30 µV
Power Amplifier Section
Outputs
Speaker impedance
Maximum power output
Speaker outputs
4 – 8 ohms
52 W × 4 (at 4 ohms)
General
Outputs
Inputs
Tone controls
Loudness
Power requirements
Dimensions
Mounting dimensions
Mass
Supplied accessories
Optional accessories
Optional equipment
Audio outputs (front /rear)
Subwoofer output (mono)
Power antenna relay control terminal
Power amplifier control terminal
Telephone ATT control terminal
Illumination control terminal
BUS control input terminal
BUS audio input terminal or AUX IN terminal
Antenna input terminal
Bass ±10 dB at 62 Hz
Treble ±10 dB at 16 kHz
+8 dB at 100 Hz
+2 dB at 10 kHz
12 V DC car battery (negative ground)
Approx. 178 × 50 × 179 mm
(7 1/8 × 2 × 7 1/8 in.) (w/h/d)
Approx. 182 × 53 × 162 mm
(7 1/4 × 2 1/8 × 6 1/2 in.) (w/h/d)
Approx. 1.3 kg (2 lb. 14 oz.)
Card remote commander (1)
Parts for installation and
connections (1 set)
Front panel case (1)
Rotary commander (1)
BUS cable (supplied with an RCA pin cord)
RC-61 (1 m), RC-62 (2 m)
CD changer (10 discs)
CDX-757MX, CDX-656
CD changer (6 discs)
CDX-T70MX, CDX-T69
MD changer (6 discs)
MDX-66XLP
MG-MS System-up Player
MGS-X1
XM Radio Tuner
XT-XM1
Source selector
XA-C30
Note
This unit cannot be connected to a digital preamplifier or an equalizer.
Design and Specifications subject to change without notice.
Harness Plug Configuration
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Plug shown with wires facing viewer.
Pin Number
Wire Color
Description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
White
Green
Purple
Gray
Blue/white
Blue
Red
Black
White/black
Green/black
Purple/black
Gray/black
Sky blue
Left front +
Left rear +
Right rear +
Right front +
AMP Remote
ANT Remote
Accessory
Ground
Left front Left rear Right rear Right front ATT
Illumination
Yellow
Battery
2002 SONY MOBILE
PRODUCT GUIDE
CDX-CA900X
FM/AM Compact Disc
Audio OUT Front
SUB OUT
(mono)
50 mm (2”)
178 mm (7”)
From car antenna
BUS Control IN
Audio OUT Rear
Fuse (10A)
BUS Audio IN/Aux IN
177 mm (7 1/8”)
88 mm (3 7/16”)
53 mm ( 2 1/16”)
47 mm (1 7/16”)
33 mm (1 5/16”)
50 mm (2”)
27 mm (1 1/16”)
162 mm (6 1/2”)
Design and Specifications subject to change without notice.
