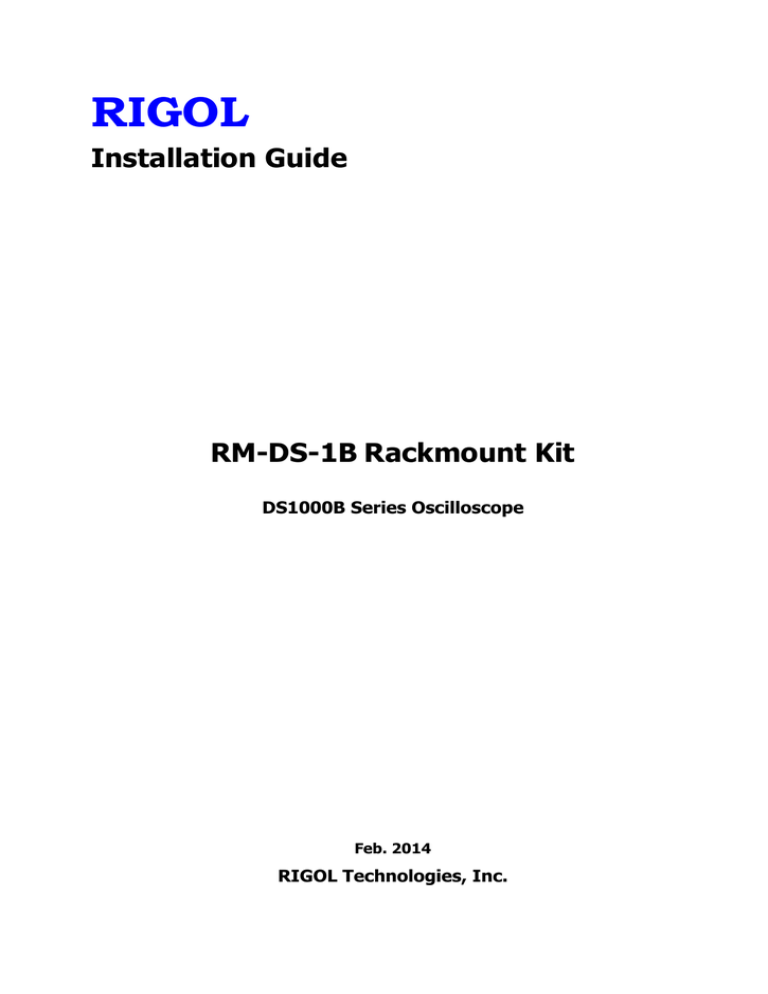

RIGOL
Installation Guide
RM-DS-1B Rackmount Kit
DS1000B Series Oscilloscope
Feb. 2014
RIGOL Technologies, Inc.
RIGOL
Guaranty and Declaration
Copyright
© 2011 RIGOL Technologies, Inc. All Rights Reserved.
Trademark Information
RIGOL is a registered trademark of RIGOL Technologies, Inc.
Publication Number
RKI01102-1110
Notices





RIGOL products are protected by patent law in and outside of P.R.C.
RIGOL reserves the right to modify or change parts of or all the specifications and pricing
policies at company’s sole decision.
Information in this publication replaces all previously corresponding material.
RIGOL shall not be liable for losses caused by either incidental or consequential in connection
with the furnishing, use or performance of this manual as well as any information contained.
Any part of this document is forbidden to be copied or photocopied or rearranged without prior
written approval of RIGOL.
Product Certification
RIGOL guarantees this product conforms to the national and industrial standards in China as well as
the ISO9001:2008 standard and the ISO14001:2004 standard. Other international standard
conformance certification is in progress.
Contact Us
If you have any problem or requirement when using our products or this manual, please contact
RIGOL.
E-mail: [email protected]
Websites: www.rigol.com
Installation Guide for RM-DS-1B Rackmount Kit
1
RIGOL
Safety Terms and Symbols
Terms in this Guide. These terms may appear in this manual:
!
WARNING
Warning statements indicate the conditions or practices that could result in injury or loss of
life.
!
CAUTION
Caution statements indicate the conditions or practices that could result in damage to this
product or other property.
Terms on the Product. These terms may appear on the product:
DANGER
indicates an injury or hazard that may immediately happen.
WARNING indicates a potential injury or hazard that may happen.
CAUTION indicates that a potential damage to the instrument or other property might occur.
Symbols on the Product. These symbols may appear on the product:
!
Hazardous
Voltage
Safety
Warning
Installation Guide for RM-DS-1B Rackmount Kit
Protective
Earth
Terminal
Chassis
Ground
Test
Ground
2
RIGOL
Kit Overview
The kit is used to mount your DS1000B series oscilloscope into a standard 19-inch rack.
Kit Parts List
Table 1 Kit Parts List
Figure
No.
Name
Qty
Part Number
1-1
1-2
1-3
1-4
1-5
Front Panel
Support Board
Left Plate
Right Plate
Rear Fixed
Bracket
M4 Screw
M6 Screw
M6 Nut
1
1
1
1
1
RM-DS-1B-01
RM-DS-1B-02
RM-DS-1B-03
RM-DS-1B-04
RM-DS-1B-05
14
4
4
RM-SCREW-01
RM-SCREW-02
RM-SCREW-03
2-1
2-2
2-3
Description
M4*6 Phil-Slot Pan Head Machine Screw Nail
M6*16 Phil-Slot Pan Head Machine Screw Nail
M6*5 Square Machine Female Screw Contain
Lock Blade
Figure 1: Kit Parts
Installation Guide for RM-DS-1B Rackmount Kit
3
RIGOL
2-1
2-2
2-3
Figure 2: Screw Models
Space Requirements for Installation
Following requirements must be fulfilled by the machine cabinet in which the instrument is mounted.
1. The machine cabinet should be a standard 19-inch.
2. At least 4U spaces (177.8mm) have to be provided by machine cabinet.
3. The depth inside the machine cabinet should not be less than 165mm.
Figure 3: Dimension of Instrument with Rack Adapter Installed
Installation Guide for RM-DS-1B Rackmount Kit
4
RIGOL
Installation Instructions
This section will introduce you how to mount the DS1000B series Oscilloscope into a standard 19-inch
machine cabinet.
Installation Tools
Table 2 Installation Tools List
NO.
1
!
Name
Description
Phillips
screwdriver
PH2 Phillips screwdriver
CAUTION
Only authorized personnel can perform the installation, improper operation may cause
damage to the instrument or incorrect installation.
Installation Procedures
1.
Install the left and right plate: aim the detent of right or left plate at the openings on support
board and insert selectively, then fix them using four M4 bolts.
Figure 4: Installation of Left and Right Plate
Installation Guide for RM-DS-1B Rackmount Kit
5
RIGOL
2.
Mount front panel: aim the opening of front panel at left and right plate-fixed and fix them using
six M4 bolts.
Figure 5: Installation of Front Panel
3.
Place the instrument: first, put the instrument onto the support board and then generally slide it
into right position down the baby hem on either side, exposing the front of instrument from the
opening of front panel.
Figure 6: Place the Instrument
Installation Guide for RM-DS-1B Rackmount Kit
6
RIGOL
4.
Fix the instrument: use a rear fixed bracket to fix the instrument on to support board with 4 M4
bolts.
Figure 7: Fix the instrument
5.
Loading into machine cabinet: mount the rack with instrument-fixed onto a standard 19-inch
machine cabinet respectively using 4 M6 bolts and square nuts.
Figure 8: Loading into machine cabinet
Installation Guide for RM-DS-1B Rackmount Kit
7
RIGOL
Notice
The rock holds a height of 4U, and the holes those in compliance with the arrow direction are the
mounting holes for rack.
Figure 9: Holes for rack
