Sony XM-2165GTX Car Audio Amplifier

Sony XM-2165GTX Car Audio Amplifier

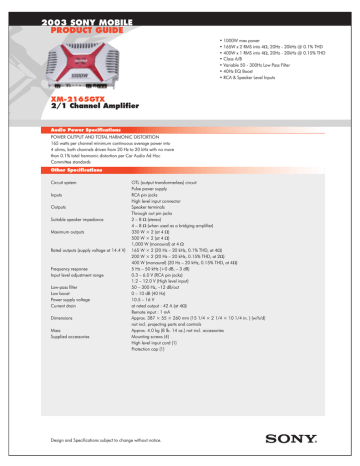

2003 SONY MOBILE
PRODUCT GUIDE
• 1000W max power
• 165W x 2 RMS into 4W, 20Hz - 20kHz @ 0.1% THD
• 400W x 1 RMS into 4W, 20Hz - 20kHz @ 0.15% THD
• Class A/B
• Variable 50 - 300Hz Low Pass Filter
• 40Hz EQ Boost
• RCA & Speaker Level Inputs
XM-2165GTX
2/1 Channel Amplifier
Audio Power Specifications
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
165 watts per channel minimum continuous average power into
4 ohms, both channels driven from 20 Hz to 20 kHz with no more
than 0.1% total harmonic distortion per Car Audio Ad Hoc
Committee standards
Other Specifications
Circuit system
Inputs
Outputs
Suitable speaker impedance
Maximum outputs
Rated outputs (supply voltage at 14.4 V)
Frequency response
Input level adjustment range
Low-pass filter
Low boost
Power supply voltage
Current drain
Dimensions
Mass
Supplied accessories
OTL (output transformerless) circuit
Pulse power supply
RCA pin jacks
High level input connector
Speaker terminals
Through out pin jacks
2 – 8 W (stereo)
4 – 8 W (when used as a bridging amplifier)
330 W × 2 (at 4 W)
500 W × 2 (at 4 W)
1,000 W (monaural) at 4 W
165 W × 2 (20 Hz – 20 kHz, 0.1% THD, at 4W)
200 W × 2 (20 Hz – 20 kHz, 0.15% THD, at 2W)
400 W (monaural) (20 Hz – 20 kHz, 0.15% THD, at 4W)
5 Hz – 50 kHz (+0 dB, – 3 dB)
0.3 – 6.0 V (RCA pin jacks)
1.2 – 12.0 V (High level input)
50 – 300 Hz, –12 dB/oct
0 – 10 dB (40 Hz)
10.5 – 16 V
at rated output : 42 A (at 4W)
Remote input : 1 mA
Approx. 387 × 55 × 260 mm (15 1/4 × 2 1/4 × 10 1/4 in. ) (w/h/d)
not incl. projecting parts and controls
Approx. 4.0 kg (8 lb. 14 oz.) not incl. accessories
Mounting screws (4)
High level input cord (1)
Protection cap (1)
Design and Specifications subject to change without notice.
2003 SONY MOBILE
PRODUCT GUIDE
XM-2165GTX
2/1 Channel Amplifier
Connections
2 - 30A fuses
Remote Output
Filter HPE/OFF/LPF Select
High Level Input Connection
Left Speaker OUT
12V Car Battery
Audio Input
Through Audio Output
Low Boost
Input Level Control
Dimensions
55
(2 1/4)
Ground
Right Speaker OUT
Unit: mm (in.)
387 (15 1/4)
260 (10 1/4)
187 (7 3/8)
328 (13)
ø 6 (1/4)
360 (14 1/4)
Design and Specifications subject to change without notice.
