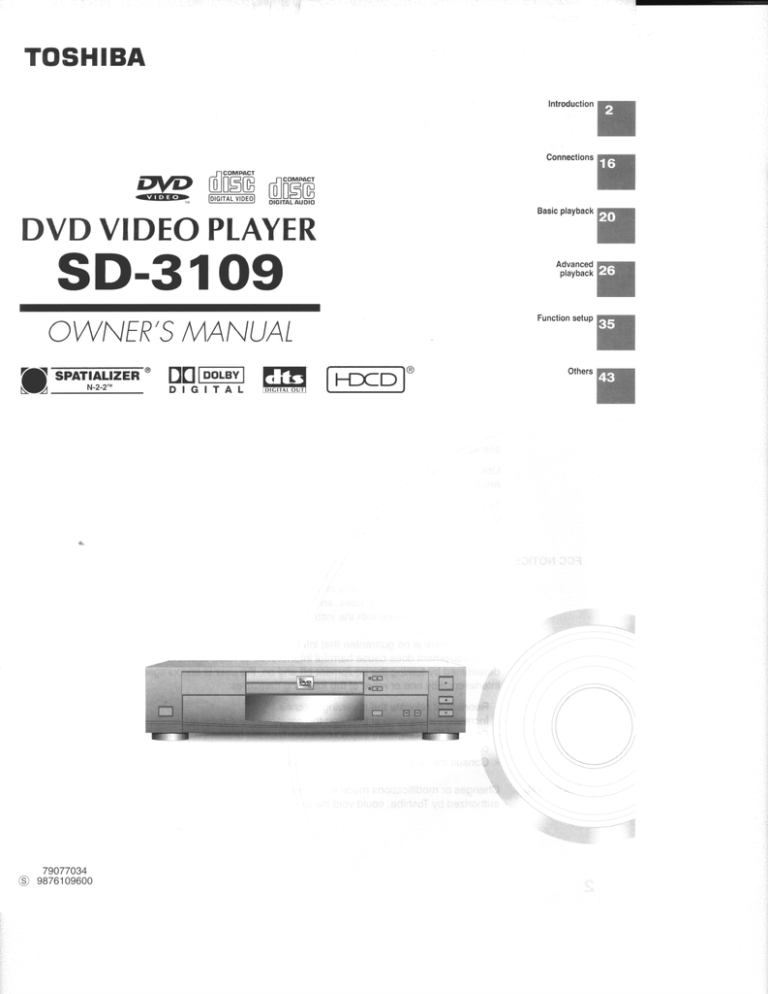

TOSHIBA
DVD VIDEO PLAYER
SD-3109
OWNERS MANUAL
aa SPATIALIZER * [][][noLev] dts DCD
№ N-2-2™ DIGITAL
Introduction
Connections
Basic playback
Advanced |
playback
Function setup
Others y
79077034
©) 9876109600
2
SAFETY PRECAUTIONS
The lightning flash with arrowhead symbol, within an equilat-
RISK OF ELECTRIC ERTL eral triangle, Is intended to alert the user to the presence of
DO NOT OPEN uninsulated “dangerous voltage” within the products enclo-
BET
WARNING
COVER (OR BACK). NO USERSERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
BT DE CHOC ELECTRIQUE NE sure that may be of sufficient magnitude to constitute a risk
PAS OUVRIR of electric shock to persons.
tended to alert the user to the presence of important operat-
ing and maintenance (servicing) instructions in the literature
: TO REDUCE THE RISK OF | не | . o
ELECTRIC SHOCK, DO NOT REMOVE Î The exclamation point within an equilateral triangle is in-
WARNING:
CAUTION:
ATTENTION:
CAUTION:
*
FCC NOTICE:
WARNING:
accompanying the appliance.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE
TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE
ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL
ONLY.
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY
INSERT.
POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA
FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.
This Digital Video Disc Player employs a Laser System.
To ensure proper use of this product, please read this owner's manual carefully and retain for
future reference. Should the unit require maintenance, contact an authorized service location -
see service procedure.
Use of controls, adjustments or the performance of procedures other than those specified may
result herein hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try to open the enclosure.
Visible laser radiation when open and interlocks defeated.
DO NOT STARE INTO BEAM.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rule. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications made to this equipment, not expressly approved by Toshiba, or parties
authorized by Toshiba, could void the user’s authority to operate the equipment.
Model No.
=
In the spaces provided below, record the Model and Serial No. located on the rear panel of your DVD video
player.
Retain this information for future reference.
Location of the required label
=
peje
==
O
©.
<
O
=
oO
=
PRODUCT IS CERTIFIED BY THE MANUFACTURER TO
COMPLY WITH DHHS RULES 21 CFR SUBCHAPTER J
APPLICABLE AT THE DATE OF MANUFACTURE.
MANUFACTURED
TOSHIBA AMERICA CONSUMER PRODUCTS, INC.
82 TOTOWA RD., WAYNE, NJ 07470, U.S.A
or
PRODUCT IS CERTIFIED BY THE MANUFACTURER TO
COMPLY WITH DHHS RULES 21 CFR SUBCHAPTER J
APPLICABLE AT THE DATE OF MANUFACTURE.
MANUFACTURED
TOSHIBA OF CANADA,LTD.
191 McNABB ST., MARKHAM, ONTARIO,
L3R 8H2, CANADA
4
CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS GIVEN IN THIS
OWNER’S MANUAL AND THOSE MARKED ON THE UNIT. RETAIN THIS BOOKLET FOR
FUTURE REFERENCE.
This set has been designed and manufactured to assure personal safety. Improper use can result in electric
shock or fire hazard. The safeguards incorporated in this unit will protect you if you observe the following
procedures for installation, use and servicing. This unit is fully transistorized and does not contain any parts that
can be repaired by the user.
DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.
1. Read owner’s manual
After unpacking this product, read the owner’s manual carefully, and follow
all the operating and other instructions.
2. Power Sources
This product should be operated only from the type of power source indicated
on the marking label. If you are not sure of the type of power supply to your
home, consult your product dealer or local power company. For products
intended to operate from battery power, or other sources, refer to the
operating instructions.
3. Grounding or Polarization
This product may be equipped with a polarized alternating current line plug
(a plug having one blade wider than the other). This plug will fit into the
power outlet only one way. This is a safety feature. If you are unable to insert
the plug fully into the outlet, try reversing the plug. If the plug should still fail
to fit, contact your electrician to replace your obsolete outlet. Do not defeat
the safety purpose of the polarized plug.
4. Ventilation
Slots and openings in the cabinet are provided for ventilation and to ensure
reliable operation of the product and to protect it from overheating, and these
openings must not be blocked or covered. The openings should never be
blocked by placing the product on a bed, sofa, rug or other similar surface.
This product should not be placed in a built-in installation such as a bookcase
or rack unless proper ventilation is provided or the manufacturer’s instructions
have been adhered to.
5. Heat
The product should be situated away from heat sources such as radiators,
heat registers, stoves, or other products (including amplifiers) that produce
heat.
6.
10.
11.
12.
Water and Moisture
Do not use this product near water - for example, near a bath tub, wash bowl,
kitchen sink, or laundry tub; in a wet basement; or near a swimming pool and
the like.
Cleaning
Unplug this product from the wall outlet before cleaning. Do not use liquid
cleaners or aerosol cleaners. Use a damp cloth for cleaning.
Power-Cord Protection
Power-supply cords should be routed so that they are not likely to be walked
on or pinched by items placed upon or against them, paying particular attention
to cords at plugs, convenience receptacles, and the point where they exit
from the product.
Overloading
Do not overload wall outlets; extension cords, or integral convenience
receptacles as this can result in a risk of fire or electric shock.
Lightning
For added protection for this product during storm, or when it is left unattended
and unused for long periods of time, unplug it from the wall outlet. This will
prevent damage to the product due to lightning and power-line surges.
Object and Liquid Entry
Never push objects of any kind into this product through openings as they
may touch dangerous voltage points or short-out parts that could result in a
fire or electric shock. Never spill liquid of any kind on the product.
Attachments
Do not use attachments not recommended by the product manufacturer as they may cause hazards.
UoI}ONPOUY| da
5
6
13. Accessories
Do not place this product on an unstable cart, stand, tripod, bracket, or table.
The product may fall, causing serious injury to a child or adult, and serious
damage to the product. Use only with a cart, stand, tripod, bracket, or table
recommended by the manufacturer, or sold with the product. Any mounting
of the product should follow the manufacturer’s instructions, and should use
a mounting accessory recommended by the manufacturer.
A product and cart combination should be moved with care. Quick stops,
excessive force, and uneven surfaces may cause the product and cart
combination to overturn.
14. Disc Tray
Keep your fingers well clear of the disc tray as it is closing. Neglecting to do
so may cause serious personal injury.
15.Burden
Do not place a heavy object on or step on the product. The object may fall,
causing serious personal injury and serious damage to the product.
16.Headphones
When you use headphones, keep the volume at a moderate level. If you use
the headphones continuously with high volume sound, it may cause hearing
damage.
17.Disc
Do not use a cracked, deformed, or repaired disc. These discs are easily
broken and may cause serious personal injury and product malfunction.
18.Damage Requiring Service
Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following
conditions:
a) When the power-supply cord or plug is damaged.
b) If liquid has been spilled, or objects have fallen into the product.
c) If the product has been exposed to rain or water.
d) If the product does not operate normally by following the operating instructions. Adjust only those
controls that are covered by the operating instructions as an improper adjustment of other controls may
result in damage and will often require extensive work by a qualified technician to restore the product to
its normal operation.
e) If the product has been dropped or damaged in any way.
f) When the product exhibits a distinct change in performance - this indicates a need for service.
19. Servicing
Do not attempt to service this product yourself as opening or removing covers
may expose you to dangerous voltage or other hazards. Refer all servicing to
qualified service personnel.
20. Replacement Parts
When replacement parts are required, be sure the service technician has used replacement parts specified
by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may
result in fire, electric shock, or other hazards.
21.Safety Check
Upon completion of any service or repairs to this product, ask the service
technician to perform safety checks to determine that the product is in proper
operating condition.
=1
=
=
©
Q
c
o
+
oO
=
7
8
| Notes on handling
M When shipping the DVD video player, the original
shipping carton and packing materials come in handy.
For maximum protection, repack the unit as it was
originally packed at the factory.
M Do not use volatile liquids, such as insect spray, near
the DVD video player. Do not leave rubber or plastic
products in contact with the DVD video player for a
long time. They will leave marks on the finish.
EH The top and rear panels of the DVD video player may
become warm after a long period of use. This is not a
malfunction.
EH When the DVD video player is not in use, be sure to
remove the disc and turn off the power.
№ If you do not use the DVD video player for a long
period, the unit may not function properly in the
future. Turn on and use the DVD video player
occasionally.
| Notes on locating |
MM Place the DVD video player on a level surface. Do not
use it on a shaky or unstable surface such as a
wobbling table or inclined stand. The loaded disc may
come off the proper position and cause damage to
the DVD video player.
EH When you place this DVD video player near a TV,
radio, or VCR, the playback picture may become poor
and the sound may be distorted. In this case, place
the DVD video player away from the TV, radio, or
VCR.
| Notes on cleaning |
Use a soft, dry cloth for cleaning.
@ For stubborn dirt, soak the cloth in a weak detergent
solution, wring well and wipe. Use a dry cloth to wipe
it dry.
Do not use any type of solvent, such as thinner and
benzine, as they may damage the surface of the DVD
video player.
O If you use a chemical saturated cloth to clean the unit,
follow that product's instructions.
To obtain a clear picture |
The DVD video player is a high technology, precision
device. If the optical pick-up lens and disc drive parts
are dirty or worn down, the picture quality becomes
poor. To obtain a clear picture, we recommend regular
inspection and maintenance (cleaning or parts
replacement) every 1,000 hours of use depending on
the operating environment. For details, contact your
nearest dealer.
| | Notes on moisture condensation
Moisture condensation damages the DVD video
player. Please read the following carefully.
Moisture condensation occurs, for example, when you
pour a cold drink into a glass on a warm day. Drops of
water form on the outside of the glass. In the same way,
moisture may condense on the optical pick-up lens
inside this unit, one of the most crucial internal parts of
the DVD video player.
ample of Moisture
condensation;
EN Moisture condensation occurs during the
following cases.
@ When you bring the DVD video player directly from a
cold place to a warm place.
@ When you use the DVD video player in a room where
you just turned on the heater, or a place where the
cold wind from the air conditioner directly hits the unit.
O In summer, when you use the DVD video player in a
hot and humid place just after you move the unit from
an air conditioned room.
@ When you use the DVD video player in a humid place.
C It’s 100
J
Le _——
2
<
N
1
s
— 111
HE Do not use the DVD video player when moisture
condensation may occur.
If you use the DVD video player in such a situation, it
may damage discs and internal parts. Remove the
disc, connect the power cord of the DVD video player
to the wall outlet, turn on the DVD video player, and
leave it for two or three hours. After two or three
hours, the DVD video player will have warmed up and
evaporated any moisture. Keep the DVD video player
connected to the wall outlet and moisture
condensation will seldom occur.
= A Wall outlet
des on Discs
| On handling discs
@ Do not touch the playback side of the disc.
Playback side
| On cleaning discs |
O Fingerprints and dust on the disc cause picture and
sound deterioration. Wipe the disc from the center
outwards with a soft cloth. Always keep the disc
clean.
@ If you cannot wipe off the dust with a soft cloth, wipe
the disc lightly with a slightly moistened soft cloth and
finish with a dry cloth.
O Do not use any type of solvent such as thinner,
benzine, commercially available cleaners or antistatic
spray for vinyl LPs. It may damage the disc.
| On storing discs
O Do not store discs in a place subject to direct sunlight
or near heat sources.
@® Do not store discs in places subject to moisture and
dust such as a bathroom or near a humidifier.
O Store discs vertically in a case. Stacking or placing
objects on discs outside of their case may cause
warping.
Structure of disc contents
Normally, DVD video discs are divided into titles, and the
titles are sub-divided into chapters. VIDEO CDs/audio
CDs are divided into tracks.
DVD video disc
< DVD video disc —
Title 1 » | < Title 2
Chapter 1 Chapter2 | Chapter 1 Chapter2 Chapter 3
| | | | |
|-> <—|
“7
7
VIDEO CD/Audio CD
VIDEO CD/Audio CD
Track 1 Track 2 Track 3 Track 4 Track 5
| | | |
SEIT NT
Each title, chapter or track is assigned a number, which
is called “title number”, “chapter number” or “track
number” respectively.
There may be discs that do not have these numbers.
Notes on copyright |
It is forbidden by law to copy, broadcast, show,
broadcast on cable, play in public, and rent copyrighted
material without permission.
DVD video discs are copy protected, and any recordings
made from these discs will be distorted.
This product incorporates copyright protection
technology that is protected by method claims of certain
U.S. patents and other intellectual property rights owned
by Macrovision Corporation and other rights owners.
Use of this copyright protection technology must be
authorized by Macrovision Corporation, and is intended
for home and other limited viewing uses only unless
otherwise authorized by Macrovision Corporation.
Reverse engineering or disassembly is prohibited.
иоцэпроди| a
9
tes on Discs (continued)
About this owner’s manual
This owner’s manual explains the basic instructions of
this DVD video player. Some DVD video discs are
produced in a manner that allows specific or limited
operation during playback. As such, the DVD video
player may not respond to all operating commands. This
is not a defect in the DVD video player. Refer to
instruction notes of discs.
“Q” may appear on the TV screen during operation.
A “9” means that the operation is not permitted by the
DVD video player or the disc.
| | Playable discs
This DVD video player can play the following discs.
| Notes on region numbers
The region number of this DVD video player is 1. If
region numbers, which stand for their playable area, are
printed on your DVD video disc and you do not find [+
(In this case, the DVD video player will display a
message on-screen.)
\OnVIDEOCDs _ |
This DVD video player supports VIDEO CDs equipped
with the PBC (Version 2.0) function. (PBC is the
abbreviation of Playback Control.) You can enjoy two
playback variations depending on types of discs.
VIDEO CD not equipped with PBC function
(Version 1.1)
Sound and movie can be played on this DVD video
player in the same way as an audio CD.
VIDEO CD equipped with PBC function
(Version 2.0)
In addition to operation of a VIDEO CD not equipped
with the PBC function, you can enjoy playback of
interactive software with search function by using the
menu displayed on the TV screen (Menu Playback).
Some of the functions described in this owner's
manual may not work with some discs.
10
Content Disc Maximum
ontents | Size playback time
Approx. 4 hours
(single sided disc)
12 cm
DVD Audio Approx. 8 hours
. + (double sided disc)
video video
discs (moving |
pictures) Approx. 80 minutes
(single sided disc)
8 cm
Approx. 160 minutes
(double sided disc)
Audio 12 cm | Approx. 74 minutes
VIDEO +
CDs video
(moving
pictures) 8cm | Approx. 20 minutes
12 cm | Approx. 74 minutes
Audio Aud
udio
CDs 8 ст
(CD | Approx. 20 minutes
single)
You cannot play discs other than those listed above.
You cannot play discs of CD-R, CD-RW, DVD-RAM,
DVD-RW, etc., even if they may be labeled marks
listed above.
* This DVD video player uses the NTSC color system,
and cannot play DVD video discs recorded in any
other color system (PAL, SECAM, etc.).
ble of Contents
Introduction
@ SAFETY PRECAUTIONS ................ee..nes===s 2
@ IMPORTANT SAFETY INSTRUCTIONS ...4
@ Precautions ass EHRE EU HN UNE 8
O Notes on Discs....................e-...neseeeeeeeenen—.. 9
Notes on region numbers ................ee=eeeveeeios 10
@ Table of Contents ==... 11
O Identification of Controls ....................... 12
Front panel .....................eiieeeeneeeeeneree ee 12
Rear panel ......................eeeccerccerecencereeeeeeo e. 12
DVD display ...........................eeeeireereeeeeeeeeeeee. 13
Remote control ………….….…..…..…..…..rcrerrcreencencene 14
Loading batteries ............................... eee... 15
Operating with the remote control .................. 15
Connections
O Connecting to aTV..............——-—-——_._.-..=e.. 16
Connecting to alV.................ee.2eeeeeeieeeeeereeeee 16
Connecting to an audio system and TV
equipped with ColorStream™ (color
difference) inputs ee 17
e Connecting to Optional Equipment ...... 18
Connecting to an amplifier equipped with a
Dolby Digital decoder .................................. 18
Connecting to an amplifier equipped with
5.1ch audio inputs ess 18
Connecting to an amplifier equipped with
Dolby Pro Logic Surround 18
Connecting to an amplifier equipped with a
DTS decoder …………............….…..….…ceccrereeseenens 19
Connecting to an amplifier equipped with an
MPEG2 audio decoder ................................. 19
Connecting to an amplifier equipped with a
digital audio input ...................................._— 19
Basic playback
@ Playing a Disc .…..................................... 20
Basic playDaCK ee. EEE 20
Playing fast in reverse or forward ................... 22
Playing frame by frame esse 22
Playing in slow-motion ee 23
Resuming playback from the same location … 23
@ Locating a Specific Title, Chapter, or
LT mamans 24
Locating a title using the title menu ................ 24
Locating a title by entering the title number …. 24
Locating a specific chapter or track directly .... 25
Locating a specific chapter or track ................ 25
Advanced playback
@® Locating a Specific Location Directly... 26
Entering the time of the desired location ........ 26
O Playing Repeatedly ....................... e... 27
Repeating a title, chapter, or track .................. 27
Repeating a specific segment ........................ 27
O Playing in a Favorite Order .................... 28
Setting titles, chapters, or tracks in a favorite
OFA eee ere. 28
@® Playing in Random Order ...................... 29
Playing titles, chapters or tracks in random
OFAEE «ei eee eee RK KREEERK KERN 29
@ Zooming a Picture 30
Zooming a Picture essen EEE 30
O Selecting 3-D (N-2-2) Sound
Enhancement ...............eeeee....nneeccneneeneeee. 30
Selecting 3-D (N-2-2) Sound Enhancement ... 30
O Selecting the Camera Angle .................. 31
Changing the camera angle ........................... 31
@ Selecting Subtitles 32
Selecting a subtitle language ......................... 32
@ Selecting a Language 33
Selecting a playback audio setting 33
O Viewing the Operational Information .... 34
Checking the operational status ..................... 34
Checking the remaining time and setting
STATUS ..…...............ncrccsece sera seen rene nee n race ner ana en D 34
Function setup
@ Customizing the Function Settings ......35
Setting procedure rer 35
Setting details ee. 37
Others
@ Table of Languages ….….…..…....…......…....….….000001 43
O Before Calling Service Personnel ......... 44
@ Specifications 0... 45
@ LIMITED WARRANTY DVD VIDEO
PLAYER -............emeneanesennnaneneneneaneaeennenee.. 46
11
3
—
==
O
o
©
o
=
©
3
ntification of Controls
See the page in D for details.
Front panel |
OPEN/CLOSE 1/2 buttons
POWER indicator STOP button [21)
Disc tray PLAY button
at TT
DVD display [13) PAUSE button (21)
POWER button DISC-1/2 indicators SKIP buttons [22)(25)
DISC SELECT button
| Rear panel |
ColorStream™ (Color difference) 5.1CH SURROUND AUDIO OUT jacks
VIDEO OUT jacks (Y/Cs/CR) 17)
jacks (YCs/CA) 2CH AUDIO OUT jacks
VIDEO OUT jack BITSTREAM/PCM COAXIAL AC inlet
AUDIO OUT jack
AC IN "vu
, a ; |
| BITSTREAM/PCM OPTICAL
S VIDEO OUT jack AUDIO OUT jack
When connecting the optical digital cable, remove A
the cap and fit the connector into the jack firmly. <> Power cord
When not using the jack, keep the cap inserted SY
A
to protect it from dust intrusion.
12
| DVD display
H Pressing of the FL DIMMER button on the remote
control changes the brightness of the display.
Play mode indicator
FL DIMMER
OC
Normal —» Dimmed —» Off
!
Total playing time/remaining time/elapsed time indicators
Disc number indicator
Title/track number indicator
Chapter number indicator
Memory playback indicator
HDCD indicator
DVD/VIDEO CD/CD indicator
[TOTAL —
status or messages, etc.)
The indicators vary depending on the kinds of discs you play.
DVD video disc
* When closing the disc tray:
Example
EL 14
DISC TLE |
L Hy
| ovo |
Total number of titles
VIDEO CD
* When closing the disc tray:
Example
DISC ТАК TOTAL
wl UC, 15 ja,
Total playing
time of the disc
Total number of
tracks
Multifunctional indicator (indicates operating
Repeat playback indicator
Angle icon indicator
Audio CD
* When closing the disc tray:
Example
DISC TAK OW |
: ha ThE an
e be lea ene MIO
Total playing
time of the disc
Total number of
tracks
* During playback:
Example
> =. 00
Da
o | e == nn jdt td u Hey
|
Playing chapter 3 Elapsed time
of title 2 of the current
title
Some discs may not display chapter
numbers or elapsed time.
* During playback:
Example
En Tete
e 1 LIU
T
Playingtrack6 Elapsed time of
the current
track
Some discs may not display track
numbers or elapsed time.
* During playback:
Example
T
Playingtrack6 Elapsed time of
the current
track
3
—
-~
©
o
<
o
=
©
3
13
entification of Controls (continued)
“The instructions in this manual describe the functions on the remote control. See the page in [> for details.
| Remote control
DISC SELECT button —/
so
== EE
| — POWER button
DISC SELECT Ce | DISPLAY button
SETUP 3D DISPLA
SETUP button (35) -
3D button
TITLE button
MENU button*
Direction button (35)
(A/Y/</b)
RETURN button (35) ENTER button (35)
ANGLE button (31) \| A | y AUDIO button (33)
SUBTITLE button (32) = se (— SKIP button [22) [25)
aa >>)
SKIP button (22) [25) — — — —/ += SLOW button [23)
REV SLOW button (23) | STOP button (21)
REV PLAY button — PAUSE/STEP button (21)
RANDOM button
PLAY button
MEMORY button Jr
"FL DIMMER button [13)
A-B RPT button
CLEAR button [25)
REPEAT button
T button
ZOOM button
Number buttons
sE
* MENU button
Use the MENU button to display the menu included on
many DVD video discs. To operate a menu, follow the
instructions in “Locating a title using the title menu.”
14
| Loading batteries |
7
Make sure to match the + and — on the batteries
to the marks inside the battery compartment.
3 Close the cover.
Operating with the remote control
и
Point the remote control at the remote
sensor and press the buttons.
| Г
Ï L_
«с
"CD
080
— О ва
|
30° | 30°
Within about 7 m (23 feet)
Distance: About 7 m (23 feet) from the front of the
remote sensor
About 30° in each direction of the front of
the remote sensor
Angle:
* Do not expose the remote sensor of the DVD video
player to a strong light source such as direct
sunlight or other illumination. If you do so, you may
not be able to operate the DVD video player via the
remote control.
Notes on batteries
Improper use of batteries may cause battery leakage and
corrosion. To operate the remote control correctly, follow the
instructions below. :
* Do not insert batteries into the remote control in the wrong
direction.
* Do not charge, heat, open, or short-circuit the batteries.
Do not throw batteries into a fire.
* Do not leave dead or exhausted batteries in the remote
control.
* Do not use different types of batteries together, or mix old
and new batteries.
* |f you do not use the remote control for a long period of
time, remove the batteries to avoid possible damage from
battery corrosion.
* If the remote control does not function correctly or if the
operating range becomes reduced, replace all batteries
with new ones.
* |f battery leakage occurs, wipe the battery liquid from the
battery compartment, then insert new batteries.
Ne
Notes on the remote control
* Direct the remote control at the remote sensor of the DVD
video player.
* Do not drop or give the remote control a shock.
* Do not leave the remote control near an extremely hot or
humid place.
* Do not spill water or put anything wet on the remote
control.
* Do not open the remote control.
=1
еж
=
O
Qo
f=
©
=
©
3
15
Connect the DVD video player to your TV.
For details of output sound, see [33).
Connecting toaTV / : |
|
© © Eo
( —
To S VIDEO OUT hit
o (white) To wall outlet
Y To 2CH AUDIO OUT MM
Audio/video cable
(supplied)
To audio inputs
To video input :
(yellow) (red) tf (white)
S video cable (not supplied) To S video input
E
If the TV has an S video input, connect the
DVD video player with an S video cable.
When using an S video cable, do not
connect the yellow video cable.
TV or monitor with
audio/video inputs
* Make the following setting.
Setting Select: Page
“Audio Out Select” | “Analog 2ch” 35)
Notes
« Refer to the owner’s manual of the connected TV as well.
* When you connect the DVD video player to your TV, be sure to turn off the power and unplug both units from the wall outlet
before making any connections.
* |f your television set has one audio input, connect the DVD video player to a Y cable adapter (not supplied) and then connect
to your TV.
* Connect the DVD video player directly to your TV. If you connect the DVD video player to a VCR, TV/VCR combination or
video selector, the playback picture may be distorted as DVD video discs are copy protected.
16
| Connecting to an audio system and TV equipped with ColorStream™ (color difference) inputs | E
O
O
=
>
D
©
=
o
>
©
) Signal flow
5.1CH SURROUND 2CH |BITSTREAM/PCM
ACIN V
CENTER
SUBWOOFER SURROUND
(FN
To Y А ТоСв А ToCR (red)
VIDEO y VIDEO y VIDEO = To wall outlet
OUT OUT y OUT ? To 2CH AUDIO OUT —Ñá
To audio inputs of the amplifier
To CR video input (red) y (white)
Gi
. . O с O
To Cs video input =
<I> Olo¿¿ 10
5 To Y video input O) =, (=)
o [= | т eo [i [
TV or monitor with color Audio system
difference video inputs
ColorStream™ (color difference) outputs/inputs * Make the following setting.
Some TVs or monitors are equipped with color difference inputs. Connecting to Setting Select: Page
these inputs allows you to enjoy higher quality picture playback.
Actual labels for color difference inputs may vary depending on the TV “Audio Out Select” | “Analog 2ch" (35)
manufacturer. (ex. Y, R-Y, B-Y or “Component video”)
In some TVs or monitors, the color levels of the playback picture may be reduced
slightly or the tint may change. In such a case, adjust the TV or monitor for
optimum performance.
Notes
Refer to the owner’s manual of the connected equipment as well.
* When you connect the DVD video player to other equipment, be sure to turn off the power and unplug all of the equipment
from the wall outlet before making any connections.
* If you place the DVD video player near a tuner or radio, the radio broadcast sound might be distorted. In this case, place the
DVD video player away from the tuner and radio.
* The output sound of the DVD video player has a wide dynamic range. Be sure to adjust the receiver's volume to a moderate
listening level. Otherwise, the speakers may be damaged by a sudden high volume sound.
* Turn off the amplifier before you connect or disconnect the DVD video player's power cord. If you leave the amplifier power
on, the speakers may be damaged.
17
nnecting to Optional Equipment
You can enjoy high quality dynamic sounds by connecting the DVD video player
to optional audio equipment.
For connection to your TV, see “Connecting to a TV” [16)[17).
: Front speaker : Center speaker |
For details of output sound, see (33). | []: Rear speaker : Signal |
0 : Sub woofer |
| Connecting to ап amplifier equipped with a Dolby Digital decoder
Dolby Digital
A
E Manufactured under license from Dolby
Dolby Digital is the surround sound technology used in theaters showing the latest movies, Laboratories. “Dolby”, “Pro Logic” and
and is now available to reproduce this realistic effect in the home. You can enjoy motion the double-D symbol are trademarks of
picture and live concert DVD video discs with this dynamic realistic sound by connecting the Dolby Laboratories. Confidential
DVD video player to a 6 channel amplifier equipped with a Dolby Digital decoder or Dolby Unpublished Works. ©1992-1997 Dolby
Digital processor. If you have a Dolby Pro Logic Surround decoder, you will obtain the full Laboratories, Inc. All rights reserved.
benefit of Pro Logic from the same DVD movies that provide full 5.1-channel Dolby Digital : ; :
soundtracks, as well as from titles with the Dolby Surround mark. Use DVD video discs encoded via
— the Dolby Digital recording
system.
Amplifier equipped with a
* Make the following setting.
Dolby Digital decoder o o]
a | e
To COAXIAL ts
type digital — |
audio input Connect either. À £
75 Q coaxial cable
To OPTICAL Setting Select: Page
type digital
audio input
“Audio Out Select” | “Bitstream” 35
Optical digital cable Recording system DO (33)
| Connecting to an amplifier equipped with 5.1ch audio inputs
J
5.1ch surround sound . .
The Dolby Digital decoder equipped with this DVD video player enables you to obtain the full * Use DVD video discs encoded via
benefit of 5.1 channel Dolby Digital sound tracks when you connect the DVD video player to the Dolby Digital recording
a Dolby Digital ready amplifier equipped with 5.1 channel audio inputs. system.
* Make the following setting.
Amplifier equipped with
5.1ch audio inputs
To 5.1ch audio
Setting Select: Page
35)
“Audio Out Select” | “Analog 6ch”
Logic format. To obtain the original 2
channel sound, select “Analog 2ch.”
qi f IT EN
eN ПРИЗ 16 5.1CH SURROUND Recording system DO 33)
AUDIO OUT
|| Audio cable 2 channel sound is output in the Dolby Pro
| Connecting to an amplifier equipped with Dolby Pro Logic Surround |
Dolby Pro Logic Surround
You can enjoy the dynamic realistic sound of Dolby Pro Logic Surround by connecting an amplifier and speaker system (right and left
front speakers, a center speaker, and one or two rear speakers).
= With an amplifier equipped with Dolby Digital
Connect the equipment the same way as described in “Connecting to an amplifier
equipped with a Dolby Digital decoder.” Refer to that amplifier’'s owner’s manual and set * Make the following setting.
the amplifier so you can enjoy Dolby Pro Logic Surround sound. Setting Select: Page
= With an amplifier not equipped with Dolby Digital Ао lu
Connect the equipment as follows. Audio Out Select” | "Analog 2ch
Amplifier equipped with um
Dolby Pro Logic Surround 3 o Be sure to set “Audio Out Select”
== == 00 to “Analog 2ch” when you enjo
To audio input >= g y . enjoy
sounds of Dolby Pro Logic
To 2CH AUDIO OUT Surround using this connection.
Audio cable > * Connect one or two rear speakers.
x The output sound from the rear speakers will be
monaural even if you connect two rear speakers.
Warning
* Do not set “Audio Out Select” to “Bitstream” from the on-screen displays [35)(39) unless you are connecting (via the
BITSTREAM/PCM AUDIO OUT jack) an AV decoder that has the Dolby Digital, Digital Theater Systems (DTS) or MPEG2
decoding function. High volume sound may damage your hearing as well as the speakers.
* When playing DTS-encoded discs (DVD video discs and audio CDs), excessive noise may be output from the analog
stereo jacks. To avoid possible damage to the audio system, you should take proper precautions when the 2CH AUDIO
OUT jacks of the DVD video player are connected to an amplification system. To enjoy DTS Digital Surround™ playback,
an external 5.1 channel DTS Digital Surround™ decoder system must be connected to the BITSTREAM/PCM AUDIO OUT
jack of the DVD video player.
N 7
Connecting to an amplifier equipped with a DTS decoder |
Digital Theater Systems (DTS) u 5 A ue 5
. . . . . T D
DTS is a high quality surround technology used in theaters and now available for home use, DTS and а picttat Thoator Systems,
Inc.
on DVD video discs or audio CDs.
If you have a DTS decoder or processor, you can obtain the full benefit of 5.1 channel DTS
encoded sound tracks on DVD video discs or audio CDs. * Use DVD video discs or audio
CDs encoded via the DTS
recording system.
O
oO
=
=
D
о
=
o
=
7
Amplifier equipped with
a DTS decoder 3 e] $e её * Make the following setting.
— — | | ¡0000
To OPTICAL To COn — F3; Setting Select: Page
type digital type digital . :
audio input audio input Connect us С. on 5 | «a: . | 35
Audio Out Select Bitstream
75 Q coaxial cable
Optical digital cable Recording system DTS 33)
| Connecting to an amplifier equipped with an MPEG2 audio decoder
MPEG2 sound
You can enjoy motion picture and live concert DVD video discs with dynamic realistic sound
by connecting an amplifier equipped with an MPEG2 audio decoder or MPEG? audio
rocessor. . . .
р — * Use DVD video discs encoded via
=| Amplifier equipped with an _ - the MPEG? recording system.
MPEG2 audio decoder 9 a sooo * Make the following setting.
To OPTICAL ff To COAXIAL OP Setting Select: | Page
type digital type digital _ | ; 3
audio input audio input Connect either. “Audio Out Select” | “Bitstream” 35)
75 Q coaxial cable
Optical digital cable Recording system | MPEG 33)
| Connecting to an amplifier equipped with a digital audio input
2 channel digital stereo
You can enjoy the dynamic sound of 2 channel digital stereo by connecting an amplifier
equipped with a digital audio input and speaker system (right and left front speakers).
Amplifier equipped with о _
a digital audio input | Е o
6% To OPTICAL To COAXIAL >] a * Make the following setting.
type digital type digital —— : 5 tti p
audio input audio input Connect either. Setting Select: 999
75 Q coaxial cable (35)
: ee “Audio Out Select” “PCM”
Optical digital cable
vs
Notes
DO NOT connect the BITSTREAM/PCM AUDIO OUT jack of the DVD video player to the AC-3 RF input of a Dolby Digital
Receiver. This input on your A/V Receiver is reserved for Laserdisc use only and is incompatible with the BITSTREAM/PCM
AUDIO OUT jack of the DVD video player.
Connect the BITSTREAM/PCM AUDIO OUT jack of the DVD video player to the “OPTICAL” or “COAXIAL” input of a Receiver
or Processor.
Refer to the owner’s manual of the connected equipment as well.
* When you connect the DVD video player to other equipment, be sure to turn off the power and unplug all of the equipment
from the wall outlet before making any connections.
* The output sound of the DVD video player has a wide dynamic range. Be sure to adjust the receiver's volume to a moderate
listening level. Otherwise, the speakers may be damaged by a sudden high volume sound.
* Turn off the amplifier before you connect or disconnect the DVD video player's power cord. If you leave the amplifier power
on, the speakers may be damaged. 1 9
ying a Disc
This section shows you the basics on how to play a disc.
CAUTION
Keep your fingers well clear of the disc tray as it is closing.
Neglecting to do so may cause serious personal injury.
<= Basic playback
Preparations
* When you want to view a disc, turn on the TV and select the video input connected to the DVD video player.
* When you want to enjoy the sound of discs from the audio system, turn on the audio system and select the input connected
to the DVD video player.
Press POWER.
POWER
o The DVD video player turns on and
the POWER indicator on the player
illuminates.
When the DVD video player is turned on for
the first time, an initial set-up display appears.
See “Initial set-up” to make the settings before
proceeding to step 2.
2 Press OPEN/CLOSE (1/2).
OPEN/CLOSE .
Press either button you want.
a=) | y
The disc tray opens.
OPEN/CLOSE
aC]
3 Place a disc on the disc tray.
With the playback
side down.
Do not place more
than one disc.
* There are two different disc sizes. Place the disc in
the correct guide on the disc tray. If the disc is out of
the guide, it may damage the disc and cause the
DVD video player to malfunction.
Do not place anything except DVD video discs,
VIDEO CDs or audio CDs on the disc tray.
4 Press OPEN/CLOSE (1/2) to close the
disc tray.
ZZ Press the button which you pressed
mz] in step 2.
oPEN/CLOSE To set another disc, press the other
a2) button.
* Some discs may be automatically played after
having been set. Even in the playback, you can
select a disc to play in step 5.
20
Press DISC SELECT repeatedly to
select the disc you want.
DISC SELECT PSC Red (lit): The disc is on standby or is
D being played.
CJ >> Green (lit): Secondary standby.
Off: Playback does not start.
6 Press PLAY.
A Playback starts.
If you insert a DVD video disc that contains a title
menu, a menu may appear. See “Locating a title
using the title nemu.”
* You may need to press the TITLE or MENU button to
display disc menu (depending on the actual DVD
video disc.)
q В
Note
Even while playing a disc, you can set another disc. Press the
OPEN/CLOSE button for a disc which is not played.
Bl Initial set-up
Make the following settings on the display.
On-screen Language:
Select the appropriate
on-screen language.
TV Shape: Select a
picture size according to
the aspect ratio of your
TV. (See for details.)
1 Press A/V to select “On-Screen Language,” and
press ENTER.
Select a language using 4 / Y, and press ENTER.
Press Y to select “TV Shape,” and press ENTER.
Select a picture size using 4 / Y, and press ENTER.
Finally press SETUP.
All your selections are entered and the display
disappears.
To change your settings, see “Customizing the Function
Settings.” (35)
TOSHIBA
Thank you for your purchase of this TOSHIBA DVD Player.
Please make a selection
for On-Screen Language and your TV shape and
press ENTER button on your remote control.
FIRST SETUP
On-Screen Language — [19
TV Shape
с > ©
A | E To obtain a higher quality picture
PAUSE/STEP
REV PLAY
Occasionally, some picture noise not usually visible during a normal broadcast
may appear on the TV screen while playing a DVD video disc because the high
resolution pictures on these discs include a lot of information. While the amount of
noise depends on the TV you use with this DVD video player, you should generally
reduce the sharpness adjustment on your TV when viewing DVD video discs.
E About vv co
The > Ye> icons on the heading bar show the playable discs for the
function described under that heading.
: You can use this function with DVD video discs.
: You can use this function with VIDEO CDs.
CED> : You can use this function with audio CDs.
H To pause playback (still mode)
Press PAUSE/STEP during playback.
To resume normal playback, press
the PLAY button.
* The sound is muted during still
mode.
PAUSE/STEP
EM To reverse playback (only when using a DVD
video disc)
Press REV PLAY during playback.
REV PLAY
|
To resume normal playback, press
the PLAY button.
* The sound is muted during reverse
playback.
* The playback speed may differ
depending on the disc.
H To stop playback
Press STOP.
STOP
©.
H To remove the disc
Press OPEN/CLOSE (1/2) for the disc you want to
remove.
OPEN/CLOSE , .
Remove the disc after the disc tray
C2]
J opens completely.
OPEN/CLOSE
al)
Be sure to press the OPEN/CLOSE (1/2) button to
close the disc tray after you remove the disc.
Notes
H About the screen saver
If you pause a picture of a DVD video disc and leave it
still for a long while, the screen saver of the DVD video
player automatically appears (when “Screen Saver” is
set to “On” [41)). To turn off the screen saver, press the
PLAY button.
H Automatic Power Off function
If the DVD video player is stopped, or the screen saver
is engaged for about 20 minutes, the DVD video player
will automatically turn itself off.
M HDCD (High Definition Compatible Digital®)
HDCD® (High Definition Compatible Digital®) is a
recording system that has improved audio CD sound in
dynamic range, sound field reproducibility and vocal
acoustics.
This DVD video player is equipped with an HDCD
decoder. The HDCD indicator illuminates when playing
an HDCD-encoded audio CD.
HDCD®, High Definition Compatible Digital® and Pacific
Microsonics™ are either registered trademarks or
trademarks of Pacific Microsonics, Inc. in the United States
and/or other countries. HDCD system manufactured under
license from Pacific Microsonics, Inc. This product is
covered by one or more of the following patents: United
States: 5,479,168, 5,638,074, 5,640,161, 5,838,274,
5,854,600, 5,872,531 and 5,808,574. Australia 669114.
Other patents pending.
* Do not move the DVD video player during playback. Doing so may damage the disc.
* Use the OPEN/CLOSE (1/2) button to open and close the disc tray. Do not push the disc tray while it is moving. Doing so may
cause the DVD video player to malfunction.
* Do not push up on the disc tray or put any objects other than discs on the disc tray. Doing so may cause the DVD video
player to malfunction.
* In many instances, a menu screen will appear after playback of a movie is completed. Prolonged display of an on-screen
menu may damage your television set, permanently etching that image onto its screen. To avoid this, be sure to press the
STOP button on your remote control once the movie is completed.
yoegAe|d aiseg FO
21
ing a Disc (continued)
where you stopped playback.
You can play discs at various speeds, and resume playback from the location
REV SLOW
SLOW
SKIP
STOP
PAUSE/STEP
PLAY
. .
Playing fast in reverse or forward
Г ) M To resume normal playback
Press and hold SKIP during playback. Press PLAY.
SKIP / SKIP << : Fast reverse playback PLAY
(1<<) / >>) »» : Fast forward playback Г» }
DD Press and hold SKIP until “X2”
appears on the TV screen. Notes
. . * The DVD video player does not play sound and subtitles
Each ime you Press (he buttor while during reverse and forward scan of DVD video discs.
playing fast, the playback speed However, the DVD video player plays sound during fast
changes. forward or fast reverse play of audio CDs.
TV screen The playback speed may differ depending on the disc.
x2 x8 х 30
ое Cw
+ <
x2 the normal x8 the normal x30 the normal
speed speed speed
AD Press and hold SKIP until “FF1” or
“FR1” appears on the TV screen.
Each time you press the button while
playing fast, the playback speed
changes.
TV screen
FR1] FR2
> Fast reverse
+ playback
FF1 — FF2)
> Fast forward
< playback
N
æ Playing frame by frame
—
PAUSE/STEP
22
Press PAUSE/STEP during still playback.
Each time you press the PAUSE/
STEP button, the picture advances
one frame.
H To resume normal playback
Press PLAY.
PLAY
[> |
Note
The sound is muted during frame by frame playback.
| Playing in slow-motion
—
Press SLOW during playback.
SLOW Each time you press the SLOW
[>> |] button, the slow-motion speed
changes.
TV screen
1/2 1/4 1/8
— —
+ —
1/8 the normal
speed
1/4 the normal
speed
1/2 the normal
speed
If you press the REV SLOW button
during playback, you can view the
picture in reverse slow-motion. (Only
when using a DVD video disc.)
Each time you press the REV SLOW
button, the slow-motion speed
changes.
REV SLOW
[=]
\ —
H To resume normal playback
Press PLAY.
PLAY
[> |
Notes
» The sound is muted during slow-motion playback.
The playback speed may differ depending on the disc.
yoegAe|d o1iseg ul
Resuming playback from the same location |
4 N
Press STOP at the location where you
want to interrupt playback.
STOP The DVD video player memorizes
(=) the location where playback is
stopped.
Press PLAY.
PLAY The DVD video player resumes
playback from the location where
you stopped playback.
[> |
N —
EM To start playback from the beginning regardless
of the location where you stopped playback
1 Press STOP twice.
STOP The DVD video player's memory is
(=) cleared.
2 Press PLAY.
PLAY
[>]
DD Playback starts from the
beginning of the current title.
се
CCD)
* If you want to return to the beginning of a DVD video
disc, open and close the disc tray once with the
OPEN/CLOSE (1/2) button for the disc you want to
play before pressing the PLAY button.
Playback starts from the
beginning of the disc.
Notes
» The DVD video player's memory is also cleared when:
—you unplug the DVD video player from the wall outlet after
you stop playback.
—you change the parental lock setting or select a disc
menu language (37).
— you open the disc tray for a disc which is played.
— you switch the discs by pressing the DISC SELECT button.
There may be a difference in the location where playback
resumes depending on the disc.
Settings you changed using the on-screen displays while the
DVD video player keeps a location in the memory may
function only after the memory is cleared.
23
L cating a Specific Title, Chapter, or Track
Normally, DVD video discs are divided into titles, and the titles are sub-divided into chapters. VIDEO CDs and audio CDs
are divided into tracks. You can quickly locate any specific
DVD video disc
=
Title 1 > Title 2
Chapter 1 Chapter 2 | Chapter 1 Chapter2 Chapter 3
| | | | L
--—
=]
title, chapter, or track.
VIDEO CD/Audio CD —— —— — >|
Track 1 Track 2 Track 3 Track 4 Track 5
| | | | |
EZ 79
O TD
ow Locating a title using the title menu
7
Press TITLE. |
The title menu appears on the TV
screen.
e.g.
Press A / Y / </P to select the title you
want.
If the titles in the title menu are
assigned a number, you can directly
locate a specific title by pressing its
designated number with the number
buttons.
Press ENTER.
ENTER
Notes
* The instructions above describe basic procedures which
may vary depending on the contents of the DVD video disc.
If different instructions appear on the TV screen, follow those
instructions.
* |f you display the title menu during playback and press the
TITLE button again without selecting any title, the DVD video
player may resume playback from the point where you first
pressed the TITLE button (depending on the actual DVD
video disc.)
* This method of locating a title is available only on a disc that
contains a title menu.
* Instruction notes of discs may refer to the button that
displays the title menu as TOP MENU button.
Playback starts from chapter 1 of the
selected title.
\
Make sure that the space next to
“Title” is highlighted.
(You can shift the highlight using the
A / Y buttons.)
| 1 Press T.
D
Title:
Chapter: 1
Press the corresponding number
buttons for the title you want.
e.g. To select title 2 @)
To select title 12 (1) > (2)
Press PLAY.
PLAY Playback starts from chapter 1 of the
[> | selected title.
24
«= Locating a title by entering the title number
Notes
Pressing the CLEAR button resets the title and chapter
numbers. To clear the “Title” and “Chapter” display, press the
T button several times.
This method of locating a title is available only on a disc that
contains title numbers.
— Number buttons
audio CD.
chapter or track.
| > |
2 Locati ific chapter or track directl |
Locating a specific chapter or track directly =.
1 Press T. Press PLAY. ©
Skip steps 1 and 2 if you are using a VIDEO CD/ PLAY Playback starts from the selected >
$
5
Le)
9.
D
Title:
Chapter: 1
Press V to highlight the space next to
“Chapter.”
Title: 1
Chapter:
Press the corresponding number
buttons for the chapter or track you
want.
You can use the +10 button to select numbers
from 10 through 99.
e.g. To select chapter or track 25
2-9)
-0-0-0
H To select a title and chapter number at the same
time
Press the A / Y buttons to highlight the space next to
“Title”, and enter the title number using the number
buttons.
Note
Pressing the CLEAR button resets the title and chapter
numbers. To clear the “Title” and “Chapter” display, press the T
button several times.
и
Press SKIP << or »»i repeatedly to display
the chapter or track number you want.
Playback starts from the selected chapter or track.
SKIP To locate succeeding chapters or tracks
SKIP Playback starts from the beginning of the
(<<) current chapter or track.
When you press twice, playback starts
from the beginning of the preceding
chapter or track.
= Locating a specific chapter or track |
Notes
* Some titles may not display chapter numbers.
* When you set “Title Stop” to “Off” (42), you can access
chapters in another title. If you go back to the preceding title
by pressing the SKIP 1<< button, the DVD video player
locates the first chapter of the title. When “Title Stop” is set
to “On,” you can access chapters only within the current title.
25
cating a Specific Location Directly
You can locate a specific location by entering its corresponding time (hours,
minutes, seconds).
—
Press T twice.
You may have to press further
@ depending on the disc. Press the
button repeatedly until the following
display appears.
Time [EEE
~
Press the number buttons to enter the
time.
9-0-0-0-0
26
Time
Press PLAY.
PLAY Playback starts from the desired
[> | location.
= Entering the time of the desired location |
Notes
* Some discs may not respond to this process.
* Some scenes may not be located precisely as you specified.
* This method for accessing specific locations is available
only within the current title of the DVD video disc or within
the current track of the VIDEO CD/audio CD.
Ic ying Repeatedly
You can play a specific title, chapter, track, or segment repeatedly.
ED
button, the repeat mode changes as
follows.
— DW Chapter Repeat Repeats the current
` chapter.
}
Title Repeat Repeats the current
а title.
Track Repeat Repeats the current
track.
Ye Di я t R ts th t
isc Repea repeats e curren
Cr isc.
BB nine t R ts all the di
epea epeats all the discs.
}
— Repeat Off Resumes normal
playback.
(—— REPEAT
—A-BRPT
| CLEAR
[o> . .
<> Repeating a title, chapter, or track
Press REPEAT. Press PLAY.
REPEAT Each time you press the REPEAT PLAY The DVD video player starts repeat
playback.
Press the PLAY button within about
5 seconds after you press the
REPEAT button.
he J
[>]
H To resume normal playback
Press CLEAR.
CLEAR
(=
yoegÁe|d pesuenpy a
Notes
* Some discs may not permit repeat operation.
» When using a DVD video disc, “All Repeat” may be canceled
when the DVD video player switches the discs.
& Repeating a specific segment
A
Press A-B RPT at the beginning of the
segment (point A) you want to play
repeatedly.
A-BRPT
С `
Press A-B RPT again at the end of the
segment (point B).
The DVD video player automatically
returns to point A and starts repeat
playback of the selected segment
(A-B).
A-B RPT
С
H To resume normal playback
Press CLEAR.
CLEAR
(=
Notes
* Some discs may not permit A-B repeat operation.
* You cannot set the A-B repeat function for a segment that
includes multiple camera angles [31).
* You can specify a segment only within the current title or
track.
* There may be a slight difference between point A and the
location where playback actually resumes depending on the
disc.
27
ying in a Favorite Order
You can combine your favorite titles, chapters, or tracks and play them in any
order. You can program up to 28 selections into the memory. (Memory playback)
Leper 25 _ 5 C pr с ver == -
E >| 1] Ee
vo Setting titles, chapters, or tracks in a favorite order
7
1
Insert a disc and press MEMORY during
stop.
MEMORY
ED
The following display appears.
D: Disc number
T: Title number or
track number
C: Chapter number
\
Select the items in the order you want
by pressing the number buttons, then
ENTER for each item.
Each time you press the </ » button, the spaces
of “D”, “T” and “C” are highlighted in turn. Highlight
where you want to enter, then press the number
buttons.
To select tracks from a VIDEO CD/audio CD in
order, press the number buttons for the track,
then press the ENTER button for each selection
you want.
To select another title, chapter or track in the same
disc, you do not need to select the disc number.
To select another chapter in the same title, you do
not need to select the title number.
3
28
Press PLAY while the MEMORY display
appears on the TV screen.
PLAY The DVD video player starts memory
[> | playback.
H To change the programmed selections
1 While the MEMORY display appears on the TV
screen, press 4 / Y to move the highlighted bar to
the item you want to change.
2 Change the selection following the instructions in
step 2.
H To cancel the programmed selections
1 While the MEMORY display appears on the TV
screen, press 4 / Y to move the highlighted bar to
the item you want to cancel.
2 Press CLEAR.
H To resume normal playback from memory
playback
Press CLEAR.
CLEAR
(=
The memory playback indicator
disappears.
H To program during playback
If you press the MEMORY button during playback, a
display appears to accept your programming.
If you further press the DISPLAY button, you can
display the MEMORY setting also. Follow steps 2 and 3.
Notes
» Some discs may not permit memory playback operation.
* |f you press the REPEAT button during memory playback,
the DVD video player repeats the current memory playback.
* |f you press the MEMORY or RETURN button while the
MEMORY display appears on the TV screen, the MEMORY
display disappears.
* The programmed selections will be cleared when you turn off
the DVD video player.
* When using a DVD video disc, the memory playback may be
canceled when the DVD video player switches the discs.
nying in Random Order
You can play titles, chapters within a title, or tracks in random order.
(Random playback)
Chapter: 1. —
7
=
— agence
7
Press RANDOM.
Each time you press the RANDOM
button, the random playback mode
changes as follows.
RANDOM
a
— Gbw Chapter Random Plays the chapters
within the current title
in random order.
}
Title Random Plays the titles within
the current disc in
random order.
Plays the tracks within
the current disc in
random order.
Track Random
Resumes normal
playback.
If you press the RANDOM button
during playback, the DVD video
player automatically starts random
playback after finishing the current
title, chapter or track.
}
Random Off
N
Press PLAY.
PLAY The DVD video player starts random
[> | playback.
Press the PLAY button within about
5 seconds after you press the
RANDOM button.
Playing titles, chapters or tracks in random order
H To resume normal playback
Press CLEAR.
CLEAR
(=)
Notes
* Some discs may not permit random playback operation.
* You cannot use the random playback function in conjunction
with the memory playback function.
29
yoegÁejd pesuenpy п
0oming a Picture
You can magnify areas within a picture.
—A/vV/</>
(00600 | CLEAR
„и
o> Zooming a picture
—
Press ZOOM during normal, slow or still
playback.
ZOOM If you further press the ZOOM button
repeatedly, the magnification level
increases.
ED
RETURN
CLEAR
(=
To reduce the magnification level,
press the RETURN button.
If you press the 4/ Y / </ » buttons,
the zoom point shifts.
When the zoom point reaches an
edge of the picture, the color of
“Zoom” changes.
Pressing the CLEAR button restores
the zoom point to the center of the
picture.
electing 3-D (N-2-2) Sound Enhancement
You can enjoy expansive virtual surround sound effects from just two speakers.
H To resume normal playback
Press ZOOM repeatedly so that “Zoom” disappears.
ZOOM
OC
Notes
Some discs may not respond to zoom feature.
* During some scenes, the buttons may not work as described
in the left column.
* Zooming does not work on subtitles or menus included on
DVD video discs.
* During zoom playback, the 4 / Y / </ buttons cannot work
on menus included on the DVD video discs. If you want to
view the menus, cancel the zoom playback.
* The magnification level varies depending on the picture size
you select.
A“
Selecting 3-D (N-2-2) sound enhancement
7
Press 3D during playback.
3D The current setting is displayed.
Each time you press the 3D button,
the setting changes as follows.
Off
3D (N-2-2): O
+
3D (N-2-2): On
On
30
|
Notes
* You may sense a difference in volume between normal and
3-D (N-2-2) enhanced sound.
* 3-D (N-2-2) sound enhancement may not function (or may
not be realized) depending on the sound output setting or
recording system (33).
* |f 3-D (N-2-2) sound enhancement is on, Dolby Pro Logic
Surround may not function on output sounds at all, or may
function differently than usual.
Spatializer® 3-Dimensional Sound Processing provided by Desper
Products. Inc.
Certain audio features of this product manufactured under a license
from Desper Products, Inc., Spatializer® and the circle-in-square
device are trademarks owned by Desper Products, Inc.
ecting the Camera Angle
If the scene was recorded from multiple angles, you can easily change
the camera angle of the scene you are watching.
(CIC TI DO =
TV = |
ее ее
= Changing the camera angle
Press ANGLE while playing a scene
recorded with multiple angles.
While playing a scene recorded with
multiple angles, the angle icon (291)
appears in the DVD display and on
the TV screen.
Press the ANGLE button while the
angle icon is displayed.
Current angle number Angle icon
| Mo
| y
Angle : o
) M To turn off the angle number display
Press CLEAR.
CLEAR
(=)
Ш To disable the angle icon display on the TV
From the on-screen displays, set “On-Screen Displays”
to “Off.”
Monitor the DVD display when you want to change the
camera angle.
yoegÁejd pesuenpy “8
Notes
* You can change the camera angle during still playback. The
Press ANGLE or A while the angle
number is displayed on the TV screen.
ANGLE Each time you press the ANGLE or
75 a.
N
SO e.g.
Angle :
+
|
Angle :
{
Angle :
!
|
V : Cycles backwards
You can change the camera angle directly by
pressing the number buttons corresponding to its
angle number instead of using the 4 / Y buttons.
A button, the camera angle changes.
camera angle changes to the new setting when you resume
normal playback.
* |f you pause a picture immediately after changing a camera
angle, the resumed playback picture may not display the new
camera angle.
31
lecting Subtitles
from those included on the DVD video disc.
,
О Bonsoir! | < ¡Buenas tardes! | ® 8 ®
You can display subtitles on the TV screen and select a subtitle language | ©
wri a
Fa 0
“о a
A/V/4/>
€ SUBTITLE
=» Selecting a subtitle language
4 N
1 Press SUBTITLE during playback.
SUBTITLE ~The current subtitle setting is
© displayed for about 3 seconds.
N ’ у
_ Subtitle: 1 ENG On
Language
Position number
The abbreviation of the language appears instead
of the language name. Refer to the list of
languages and their abbreviations.
Press SUBTITLE or À while the subtitle
setting is displayed on the TV screen.
SUBTITLE Each time you press the SUBTITLE
FN or A button, the subtitle languages
) included on the DVD video disc
change.
e.g.
Subtitle: 1 ENG On
A or ji
}
On
Subtitle: 2 FRE
{
Subtitle: 3 SPA On
!
¥ : Cycles backwards
To turn off the subtitle setting display,
press the CLEAR button.
Notes
EM To turn subtitles on or off
1 Press SUBTITLE during playback.
SUBTITLE
2 Press «/» while the subtitle setting is displayed on
the TV screen, to select “On” or “Off.”
Displayed for about 3 seconds.
|
Subtitle: 1 ENG On _J
Good evening!
LA
Subtitle: 1 ENG Off
Subtitles —
Subtitles are
not displayed.
Notes
* Some DVD video discs are set to display subtitles
automatically, and you cannot turn them off even if you set
the subtitle function to off.
* During some scenes, the subtitles may not appear
immediately after you select “On.”
* Some DVD video discs will allow you to make subtitle
selections and turn subtitles on or off only via the disc menu.
* When you turn on the DVD video player or replace a disc, the player returns to the initial default setting [37).
When you select a subtitle language which is not included on the disc, the DVD video player plays a prior language
programmed on the disc.
* During some scenes, the subtitles may not appear immediately after you change the subtitle language by pressing the 4/ Y
buttons.
32
| , ° ° °
You can select a preferred language and sound recording system from those
included on the DVD video disc.
|= - | ; =—— CLEAR
| ао Selecting a playback audio setting
!
(oo YC
Press AUDIO during playback. Press AUDIO or A while the audio
AUDIO The current audio setting is setting is displayed on the TV screen.
©) displayed for about 3 seconds. Each time you press the AUDIO or A
N D | Language button, the audio settings included
Position Recording system on the DVD video disc change.
number - Audio channel = e.g
1 1 1 ‚Ч. .
Audio : 1 ENG PCM 2CH | Audio: 1 FENG PCM 2CH |
Audio Out Select: Bitstream Audio: 2 FRE DO 6CH
Output sound format [s9) Audio: 3 SPA PCM 2CH
The abbreviation of the language appears instead Y : Cycles backwards
of the language name. Refer to the list of If you press the </ » buttons, you
languages and their abbreviations. can select output sound format.
To turn off the audio setting display, press the
CLEAR button.
/X
E About recording systems Notes
This DVD video player uses the Dolby Digital, DTS,
MPEG2 and PCM recording systems and cannot play
DVD video discs recorded in any other recording
system.
Dolby Digital 5.1 Channel may be displayed as
“ DCI ECH.”
H Selecting sound channels of VIDEO CDs
You can switch left and right channels by pressing the
AUDIO button repeatedly during playback.
* When you turn on the DVD video player or replace a disc,
player returns to the initial default setting (37).
When you select a sound track which is not included on the
disc, the DVD video player plays a prior sound track
programmed on the disc.
* Some discs allow you to change audio selections only via
the disc menu. If this is the case, press the MENU button
and choose the appropriate language from the selections on
the disc menu.
MM Output sound conversion table (sampling frequency/quantization bit)
Audio selection from the menu 3539) and output jacks on the rear panel
Discs Sound recording system “Bitstream” “Analog 6ch” “Analog 2ch” “PCM”
BITSTREAM/PCM| 2CH AUDIO [BITSTREAM/PCM | 5.1CH SURROUND |BITSTREAM/PCM| 2CH AUDIO |BITSTREAM/PCM| 2CH AUDIO
jack OUT jacks jack AUDIO OUT jacks jack OUT jacks jack OUT jacks
Dolby Digital Bitstream | 48 kHz/20 bit - 48 kHz/16 bit | Bitstream | 48 kHz/20 bit | 48 kHz/16 bit | 48 kHz/20 bit
48 kHz/16 bit | 48 kHz/16 bit | 48 kHz/16 bit — 48 kHz/16 bit | 48 kHz/16 bit | 48 kHz/16 bit | 48 kHz/16 bit | 48 kHz/16 bit
48 kHz/20 bit | 48 kHz/16 bit | 48 kHz/20 bit — 48 kHz/20 bit | 48 kHz/16 bit | 48 kHz/20 bit | 48 kHz/16 bit | 48 kHz/20 bit
DVD Linear |48 kHz/24 bit | 48 kHz/16 bit | 48 kHz/20 bit = 48 kHz/20 bit — 48 kHz/24 bit | 48 kHz/16 bit | 48 kHz/20 bit
video discs | PCM 96 kHz/16 bit | 48 kHz/16 bit | 48 kHz/16 bit - 96 kHz/16 bit — ‘96 kHz/16 bit | 48 kHz/16 bit | 48 kHz/16 bit
96 kHz/20 bit | 48 kHz/16 bit | 48 kHz/20 bit — 96 kHz/20 bit — | 96 kHz/20 bit | 48 kHz/16 bit | 48 kHz/20 bit
96 kHz/24 bit | 48 kHz/16 bit | 48 kHz/20 bit — 96 kHz/20 bit - | 96 kHz/24 bit | 48 kHz/16 bit | 48 kHz/20 bit
DTS Bitstream - Bitstream - Bitstream — — —
MPEG2 Bitstream (7.1ch) — — 48 kHz/16 bit | Bitstream (2ch) | 48 kHz/16 bit | 48 kHz/16 bit | 48 kHz/16 bit
VIDEO CDs MPEG 44.1 kHz/16 bit | 44.1 kHz/16 bit = 44.1 kHz/16 bit | 44.1 kHz/16 bit | 44.1 kHz/16 bit | 44.1 kHz/16 bit | 44.1 kHz/16 bit
Linear PCM 44.1 kHz/16 bit| 44.1 kHz/16 bit | 44.1 kHz/16 bit | 44.1 kHz/16 bit | 44.1 kHz/16 bit | 44.1 kHz/16 bit | 44.1 kHz/16 bit | 44.1 kHz/16 bit | 44.1 kHz/16 bit
Audio CDs HDCD 44.1 kHz/16 bit | 44.1 kHz/20 bit | 44.1 kHz/16 bit | 44.1 kHz/16 bit | 44.1 kHz/16 bit | 44.1 kHz/20 bit | 44.1 kHz/16 bit | 44.1 kHz/20 bit
DTS Bitstream (Noise) Bitstream (Noise) Bitstream (Noise) Bitstream (Noise)
(71: 3-D (N-2-2) sound enhancement can function.
« HDCD sound via the 2CH AUDIO OUT jacks and the 5.1CH SURROUND AUDIO OUT jacks is output in a normal audio CD format when 3-D
(N-2-2) sound enhancement is on or when “Analog 6ch” is selected.
33
>
Q
<
D
3
©
©
Q
o
D
<
o
D
©
x
screen.
wing the Operational Information
You can view information about a disc and its operational status on the TV
,
Press DISPLAY during stop.
DISPLAY Each time you press the DISPLAY button, the on-screen display changes as follows.
ov Current track number
Current title number Current chapter number Total playing time of the disc
e.g. e.g.
9 Stop —— Operational 9 | Stop 1— Operational
Tille: 2 status Track: 1 Total 1:46:30 status
Chapter: 1 —
J +
Turns off. Turns off.
N
= = = = =
= Checking the remaining time and setting status
-
Press DISPLAY during playback.
DISPLAY Each time you press the DISPLAY button, the on-screen display changes as follows.
Current chapter number Elapsed time
. Current title number| Operational | and remaining Operational status — Elapsed time
status time of the Current track number and remaining
Playback mode current title CED> Playback mode | time of the ‚
| current trac
gi Play 6 Play
| Elapsed Remain
Title :13|0:10:15 0:50:45
Chapter: 20:03:08 0:10:24
Chapter Repeat
3D (N-2-2) : On
Audio: 1 ENGDO 2CH—
and remaining
time of the
current chapter
— Current 3-D
(N-2-2) setting
— Current audio
setting
— Current subtitle
| Elapsed time
Subtitle : 12 ENG OFf
Angle: 1—— — — |
|
Bit Rate [MINI 6.0 Mbps
]
|
Data transfer rate (Mbit/s)
DVD video disc transferred per secon
J
— Turns off.
34
setting
— Current angle
setting
= Amount of picture, sound and subtitle data in the
d.
The larger the value is, the more data processed, but
this does not necessarily insure better picture quality.
Elapsed Remain
Disc
Track Repeat
3D (N-2-2):On
Track: 3 0:01:20 0:02:00:
0:05:12 0:43:00
Elapsed time
| and remaining
time of the disc
— Current 3-D
(N-2-2) setting
J
— Turns off.
= Setting procedure
el 4.6
—
Press SETUP during stop.
SETUP The following on-screen display
appears.
; ANGUA ;
On-Screen Language [ENG]
Disc Menu Language — 11]
Audio Language
Subtitle Language
Press A / Y to select the setting you
want to change, then press ENTER.
ENTER
> (©)
Press </ to select a symbol for the
setting you want to change.
(See the next page.)
Settings on languages
Settings on playback picture
conditions
Settings on sound output
er Settings on displays
DISPLAY
Во Settings on operational options
OPERATION
Change the selection by À / V or other
buttons, referring to the pages from 37,
then press ENTER.
TI
с
=
O
=
o
=
mn
Ф
=
<
©
ENTER
-
Repeat steps 3 and 4 to change other
settings.
To select another symbol, go back to step 2.
Press SETUP.
SETUP The on-screen display disappears.
N
H To return to the previous display
Press RETURN.
RETURN
O
Notes
* The on-screen display disappears when you press the
SETUP button.
* The SETUP button can function even during normal
playback, however some operations may be inaccessible,
and a message will appear. In this case, try again after
playback is stopped.
35
y e
-
& &
Ar
Us
DISPLAY
OPERATION
36
Setting Details Page
On-Screen Language oy To select a preferred language for on-screen 37
o displays.
Disc Menu Language To select a preferred language for disc menus. 37
Audio Language DD To select a preferred language for the sound 37
track.
Subtitle Language To select a preferred language for subtitles. 37
TV Shape To select a picture size according to the aspect 38
ratio of your TV.
OVD |
Black Level To select the black level of playback pictures. 38
Audio Out Select on To select an output sound format 39
CCD corresponding to your system connection.
Dynamic Range Control To turn on or off a function that makes faint 40
sounds easier to hear even if you lower the
volume during late hours playback.
Karaoke Vocal To turn on or off the vocal output during DVD 40
KARAOKE disc playback.
Extended Audio Features To turn on or off a special language for visually 40
impaired persons. |
CD Attenuation To attenuate sound distortion during playback 40
of an audio CD.
On-Screen Displays To turn on or off the operational status display 41
CD) on the TV screen.
OSD Background Color ox To select the background color for on-screen 41
o displays.
Extended Subtitle Features BD To turn on or off special subtitles for hearing 41
impaired persons.
Screen Saver To turn on or off the screen saver. 41
Pause/Still To select the resolution of still pictures. 41
(Field/Frame)
Parental Lock BD To turn on or off the parental lock function. 41
Remote Confirmation ov To turn on or off the confirmation beeper for 42
CCD each remote command received.
Title Stop BD To turn on or off a feature that automatically 42
stops playback after a title has been viewed.
PBC * To use the menu screen when playing a PBC- 42
controllable VIDEO CD.
stomizing the Function Settings (continued)
| Setting details
7
On-Screen Language [ENG]
Dise Menu Language [TS
Audio Language
Subtitle Language Ed
On-Screen Language 6> >>
English: To view on-screen displays in English.
French: To view on-screen displays in French.
Spanish: To view on-screen displays in Spanish.
Disc Menu Language CREE
English: To display disc menus in English.
French: To display disc menus in French.
Spanish To display disc menus in Spanish.
Others: To make a further choice.
After pressing the ENTER button, follow
steps 1) - 4) below.
1) Obtain the abbreviation of the preferred
language from the list (43).
2) Select the first character by pressing the 4/ Y
buttons.
3) Press the </ buttons to shift and select the
second character by pressing the A / Y buttons.
ge
Disc Menu Language PA
Audio Language Ga i
Subtitle Language Be |=
4) Press the ENTER button.
Note
Some DVD video discs may not include your pre-
selected language. In this case, the DVD video player
automatically displays disc menus consistent with the
disc’s initial language setting.
Audio Language
English: To play sound tracks in English.
French: To play sound tracks in French.
Spanish: To play sound tracks in Spanish.
Others: To make a further choice.
After pressing the ENTER button, follow
steps 1) - 4) below.
1) Obtain the abbreviation of the preferred
language from the list (43).
2) Select the first character by pressing the 4/ Y
buttons.
3) Press the </ » buttons to shift and select the
second character by pressing the À / Y
buttons.
On-Screen Language E
Disc Menu Language — EX
| PA |
Audio Language
Subtitle Language EE
4) Press the ENTER button.
Note
Some DVD video discs may be played in a different
language than you selected. A prior language may be
programmed on the disc.
Subtitle Language
English: To display subtitles in English.
French: To display subtitles in French.
Spanish: To display subtitles in Spanish.
No Subtitles: To disable subtitles.
Others: To make a further choice.
After pressing the ENTER button,
follow steps 1) - 4) below.
1) Obtain the abbreviation of the preferred
language from the list (43).
2) Select the first character by pressing the A/V
buttons.
(Continued)
dnjes uon9uny a“
37
stomizing the Function Settings (continued)
Setting details
38
(Continued)
3) Press the </ » buttons to shift and select the
second character by pressing the 4/ Y
buttons.
LANGUAGE
On-Screen Language
Disc Menu Language
Audio Language
4) Press the ENTER button.
Notes
* Some DVD video discs may be set to display subtitles
in a different language than you selected. A prior
subtitle language may be programmed on the disc.
* Some DVD video discs allow you to change subtitle
selections only via the disc menu. If this is the case,
press the MENU button and choose the appropriate
subtitle language from the selection on the disc menu.
UE
LW
TV Shape ow
4:3 LetterBox: Select when a standard 4:3 TV is
_ connected.
Displays theatrical images with
masking bars above and below the
picture.
Select when a standard 4:3 TV is
connected. |
Displays pictures cropped to fill
77 > / your TV screen. Either or both
sides of the picture are cut off.
16:9 Widescreen: Select when a 16:9 wide TV is
connected.
Notes
* The displayable picture size is preset on the DVD video
disc. Therefore, the playback picture of some DVD
video discs may not conform to the picture size you
select.
When you play DVD video discs recorded in the 4:3
picture size only, the playback picture always appears
in the 4:3 picture size regardless of the TV shape
setting.
If you select “16:9 Widescreen” and you own a 4:3 TV
set, the DVD playback picture will be horizontally
distorted during playback. Images will appear to be
horizontally compressed. Always be sure that your TV
shape conforms to the actual TV in use.
Black Level o>
Set to your preference and monitor’s ability.
Enhanced: Expanded black level. (0 IRE)
Normal: Standard black level. (7.5 IRE)
Audio Out Select
Dynamic Range Control [3
Karaoke Vocal Ed
Extended Audio Features
CD Attenuation E
Audio Out Select
Select the output sound format corresponding to your
system connection.
For details of sound recording systems, see (33).
Bitstream: Select when connected to an amplifier
equipped with a Dolby Digital, DTS,
MPEG1 or MPEG2 decoder.
The DVD video player outputs digital
audio information in the bitstream
format when you play a DVD video disc
recorded on the Dolby Digital, DTS,
MPEG1 or MPEG2 recording system.
Analog 6ch: Select when connected to a Dolby
Digital ready amplifier equipped with
5.1ch audio inputs.
This DVD video player is equipped with
a Dolby Digital decoder.
« The next screen will appear for the
detailed setting.
Analog 2ch: Select when connected to a TV, or
Dolby Pro Logic or stereo system via
the analog audio jacks.
PCM: Select when connected to a 2 channel
digital stereo amplifier.
The DVD video player outputs sounds
in the PCM 2ch format when you play a
DVD video disc recorded on the Dolby
Digital, MPEG1 or MPEG2 recording
system.
When you select “Analog 6Ch”:
Make the following settings for the built-in 5.1ch
surround decoder.
C(Center) Speaker
S(Surround) Speaker
Subwoofer
Center Channel Delay — Ei
Surround Channel Delay FE
Test Tone
1) Select an item by pressing the 4 / Y buttons,
and press the ENTER button.
2) Make the settings (see below) by pressing the
A / Y/</» buttons, and press the ENTER
button.
C.S.Speaker Size
Small: When the center speakers or surround
speakers cannot reproduce low frequency
signals below 120 Hz.
Large: When the center speakers and surround
speakers can reproduce low frequency
signals below 120 Hz.
C(Center) Speaker
Off: When center speakers are not connected.
On: When you connect center speakers.
S(Surround) Speaker
Off: When surround speakers are not connected.
On: When you connect surround speakers.
Subwoofer
Off: When a sub woofer is not connected.
On: When you connect a sub woofer.
(Continued)
dnjes uonoun- a
39
Setting details
—
(Continued)
Adjusting the delay time:
When enjoying 5.1ch surround playback, it is ideal
to choose a listening position that is the same
distance from each speaker. By adjusting the
delay time of the center/surround speakers, you
can virtually create an ideal listening environment
(as if the center/surround speakers were at their
ideal locations respectively as below.)
Ideal location of a
center speaker
All speakers should
be located within a
circle with a radius
of Df.
surround speaker
Center Channel Delay
Omsec: When Df equals Dc.
1msec: When (A) is approx. 34 cm (13 inch)
2msec: When (A) is approx. 68 cm (27 inch)
3msec: When (A) is approx. 102 cm (40 inch) .. .
*(A) = Df — De
+ Get your optimum value (0,1,2...5)
dividing (A) by 34.
Surround Channel Delay
Omsec: When Df equals Ds.
1msec: When (B) is approx. 34 cm (13 inch)
2msec: When (B) is approx. 68 cm (27 inch)
3msec: When (B) is approx. 102 cm (40 inch) . . .
*(B) = Df — Ds
Get your optimum value (0, 1,2... 15)
dividing (B) by 34.
3) Select “Test Tone” and press the ENTER
button.
The DVD video player outputs a test signal to
each speaker when it is in stop mode. When
playing a DVD video disc, it substitutes the
current sound for the test signal.
Press the </ » buttons to switch the receiving
speakers, and adjust the volume of each
speaker at the same level by pressing the 4/ Y
buttons.
If all the volume levels cannot be equalized,
adjust them on the amplifier.
Note
Depending on the disc, 6 channel sounds may not be
output via the 5.1 CH SURROUND AUDIO OUT jacks.
Dynamic Range Control >
Off: Full dynamic range is maintained.
On: Dynamic range is reduced.
Notes
This function works only during playback of Dolby
Digital recorded discs.
* The level of Dynamic Range Reduction may differ
depending on the DVD video disc.
Karaoke Vocal >
Off: The primary vocal is not output.
On: The primary vocal is output when it is recorded
on the disc.
Notes
* The vocal output feature is used during playback of
Dolby Digital (multi-channel) recorded DVD KARAOKE
discs. This feature allows you to turn off vocal audio
tracks, or restore them for background accompaniment.
* When playing KARAOKE, connect appropriate audio
equipment such as an amplifier to the DVD video
player.
Some DVD video discs contain a special language
track that describes the actions on-screen for visually
impaired persons. The DVD video player
automatically plays this special feature.
Off: This function does not work.
On: This function works.
CD Attenuation <=>
HDCD enhances the output sound level of audio CD
by approximately 6 dB. As such, distortion may occur
in some connected products that are unable to
compensate for a wide range of input signal levels.
(e.g. TV, stereo receivers)
Off: For normal use.
On: Select when an audio CD sound is distorted.
Sound volume of an audio CD is lessened.
40
le
А
DISPLA
OSD Background Color
Extended Subtitle Features [A
Screen Saver СЖ
On-Screen Displays >>>
Off: Operational modes (e.g. “Play”, “ 24”) are not
displayed.
On: Operational modes (e.g. “Play”, “ 291”) are
displayed on-screen.
Blue: Blue background.
Gray: Gray background.
Extended Subtittle Features =>
Some DVD video discs contain special subtitles, an
enhancement of closed captioning for hearing
impaired persons. The DVD video player
automatically displays these special subtitles.
Off: This function does not work.
On: This function works.
Screen Saver >
Off: The screen saver does not work.
On: The screen saver works.
Pause/Still
Auto: For normal use. Images can be paused
without shaking.
Frame: The resolution of still pictures is improved,
so that you can make a motionless picture
more clearer when you pause it.
Parental Lock
DVD video discs equipped with the parental lock
function are rated according to their content. The
contents allowed by a parental lock level and the way
a DVD video disc can be controlled may vary from
disc to disc. For example, if the disc allowed you
could edit out violent scenes unsuitable for children
and replace them with more suitable scenes, or lock
out playback of the disc altogether.
* DVD video discs may or may not respond to the
parental lock settings. This is not a defect in the DVD
video player. Make sure this function works with your
DVD video discs.
Off: The parental lock feature does not function.
After pressing the ENTER button, follow step 1)
below.
On: To activate the parental lock feature or change
the settings.
After pressing the ENTER button, follow steps
1) - 3) below.
[Pause/Stil______ EFE
Parental Lock On
Tile Stop Security Code BE BF
PBC
(Continued)
41
"Ti
с
<
O
=
o
=
mn
Ф
—
с
©
stomizing the Function Settings (continued)
Setting details
(Continued)
1) Press the number buttons to create a personal
4-digit security code, then press ENTER.
If you make a mistake before pressing the
ENTER button, press the CLEAR button and
enter your 4-digit security code again.
2) Press the </ » buttons to select the country
whose standards were used to rate the DVD
video disc.
3) Press the 4 / Y buttons to select the parental
lock level, then press the ENTER button.
“Locked \суе! 8
Level 7
E
You cannot play DVD video discs rated higher than
the level you selected unless you cancel the parental
lock function.
For example, when you select level 7, discs rated
higher than level 7 are locked out and cannot be
played.
The parental lock level is equivalent to the following
USA movie ratings.
Level 7: NC-17
Level 6: R
Level 4: PG 13
Level 3: PG
Level 1:G
The parental lock levels for “CANADA” are included
for future use. Check the appropriate parental lock
level when you buy a DVD video disc equipped with
the parental lock feature in the future.
H To change the parental lock level
Follow steps 1) - 3).
H To change your 4-digit security code
1) After selecting “On” or “Off,” press the STOP
button four times, then press the ENTER
button.
STOP STOP STOP STOP ENTER
O-9-0-0-(9)
The 4-digit security code is cleared.
2) Press the number buttons to create a new
4-digit security code.
3) Press the ENTER button.
Remote Confirmation >>>
Off: The beeper does not sound.
On: The beeper sounds with each remote operation.
Title Stop >
Off: The DVD video player continues after playback
of a title is completed.
On: The DVD video player stops after playback of a
title is completed.
PO eb era oar
Off: When playing a VIDEO CD without using the
menu.
On: To use the menu when playing a PBC-featured
VIDEO CD.
42
ble of Languages
| Table of languages and their abbreviations
Abbreviation | Language Abbreviation | Language Abbreviation | Language
-——— No alternate GN Guarani PT Portuguese
language GU Gujarati QU Quechua
CHI (ZH) Chinese HA Hausa RM Rhaeto-Romance
DUT (NL) Dutch HI Hindi RN Kirundi
ENG (EN) | English HR Croatian RO Rumanian
FRE (FR) French HU Hungarian RU Russian
GER (DE) | German HY Armenian RW Kinyarwanda
ITA (IT) Italian IA Interlingua SA Sanskrit
JPN (JA) Japanese IE Interlingue SD Sindhi
KOR (KO) Korean IK Inupiak SG Sango
MAY (MS) | Malay IN Indonesian SH Serbo-Croatian
SPA (ES) Spanish IS Icelandic Si Singhalese
AA Afar IW Hebrew SK Slovak
AB Abkhazian JI Yiddish SL Slovenian
AF Afrikaans JW Javanese SM Samoan
AM Amharic KA Georgian SN Shona
AR Arabic KK Kazakh SO Somali
AS Assamese KL Greenlandic SQ Albanian
AY Aymara KM Cambodian SR Serbian
AZ Azerbaijani KN Kannada SS Siswati
BA Bashkir KS Kashmiri ST Sesotho
BE Belorussian KU Kurdish su Sundanese
BG Bulgarian KY Kirghiz SV Swedish
BH Bihari LA Latin SW Swahili
BI Bislama LN Lingala TA Tamil
BN Bengali, Bangla LO Laotian TE Telugu
BO Tibetan LT Lithuanian TG Tajik
BR Breton LV Latvian, Lettish TH Thai
CA Catalan MG Malagasy TI Tigrinya
CO Corsican MI Maori TK Turkmen
CS Czech MK Macedonian TL Tagalog
CY Welsh ML Malayalam TN Setswana
DA Danish MN Mongolian TO Tongan
DZ Bhutani MO Moldavian TR Turkish
EL Greek MR Marathi TS Tsonga
EO Esperanto MT Maltese TT Tatar
ET Estonian MY Burmese TW Twi
EU Basque NA Nauru UK Ukrainian
FA Persian NE Nepali UR Urdu
FI Finnish NO Norwegian UZ Uzbek
FJ Fiji OC Occitan VI Viethamese
FO Faroese OM (Afan) Oromo VO Volapük
FY Frisian OR Oriya WO Wolof
GA Irish PA Panjabi XH Xhosa
GD Scottish Gaelic PL Polish YO Yoruba
GL Galician PS Pashto, Pushto ZU Zulu
43
O
ен
>
D
=
0
Before Calling Service Personnel
Check the following guide for the possible cause of a problem before contacting service.
7
Symptom Cause Correction Page
No power. * The power plug is disconnected. * Connect the power plug securely into the 16
wall outlet.
The DVD video player turned | * The automatic power off function turned * Press the PLAY button. 21
off by itself. the unit off.
No picture. * The TV is not set to receive DVD signal * Select the appropriate video input mode 20
output. on the TV so the picture from the DVD
video player appears on the TV screen.
* The video cable is not connected securely. | * Connect the video cable securely into the | 16, 17
appropriate jacks.
No sound. * The equipment connected with the audio * Select the correct input mode of the 20
cable is not set to receive DVD signal audio receiver so you can listen to the
output. sound from the DVD video player.
* The audio cable is not connected securely. | * Connect the audio cable securely into the | 16, 17
appropriate jacks. 18, 19
* The audio receiver or TV is turned off. * Turn on the equipment connected with 20
the audio cable.
* The setting of output sound format is * Select the proper audio setting. 33, 35
incorrect. 39
The playback picture has e The disc is dirty. * Eject the disc and clean it. 9
occasional distortion. * It is in fast forward or fast reverse * Sometimes a small amount of picture —
playback. distortion may appear. This is not a
malfunction.
Brightness is unstable or * The effect of copy protection. * Connect the DVD video player directly to 16
noises are present in the the TV. Avoid connecting the DVD video
playback pictures. player to a VCR or TV/VCR combination.
The DVD video player does * No disc is inserted. * Insert a disc. 20
not start playback. * An unplayable disc is inserted. * Insert a playable disc. (Check the disc 10
type and color system.)
. * The disc is placed upside down. * Place the disc with the playback side 20
down.
* The disc is not placed within the guide. * Place the disc correctly inside the guide 20
on the disc tray.
* The disc is dirty. * Clean the disc. 9
* The parental lock function is set. * Cancel the parental lock function or 35, 41
change the parental lock level.
Playback does not follow the | * It is in the mode of repeat playback, * These operations may prevent a proper —
course of the disc's program. memory playback, etc. progress of the contents.
Buttons do not work. * Power supply fluctuations or other * Turn the power on or off with the POWER —
abnormalities such as static electricity may button. Or disconnect the power plug and
interrupt correct operations. insert it into the wall outlet again.
The remote control does not | * The remote control is not pointed at the * Point the remote control at the remote 15
work properly. remote sensor of the DVD video player. sensor of the DVD video player.
* The remote control is too far from the DVD | * Operate the remote control within about 15
video player. 7m.
e The batteries in the remote control are * Replace the batteries with new ones. 15
exhausted.
44
ecifications
DVD Video Player
Power supply 120 VAC, 60 Hz
Power consumption 19W
Mass 3.5 kg
External dimensions
430 x 102 x 305 mm (W/H/D)
Signal system
Standard NTSC
Laser
Semiconductor laser, wavelength 650 nm
Frequency range
DVD linear sound : 48 kHz sampling 4 Hz to 22 kHz
96 kHz sampling 4 Hz to 44 kHz
Signal-to-noise ratio
More than 112 dB
Audio dynamic range
More than 106 dB
Harmonic distortion
Less than 0.001 %
Wow and flutter
Below measurable level (less than £0.001 % (W.PEAK))
Operating conditions
Temperature: 5 °C to 35 °C, Operation status: Horizontal
Outputs
о
—
=
D
=
wn
Video output
1.0 V (p-p), 75 Q, negative sync., pin jack x 1
S video output
(Y) 1.0 V (p-p), 75 Q, negative sync., Mini DIN 4-pin x 1
(C) 0.286 V (p-p), 75 Q
Color different video output
(Y) 1.0 V (p-p), 75 Q, negative sync., pin jack x 1
(Cs)/(Cr) 0.7 V (p-p), 75 Q, pin jack x 2
Audio output (BITSTREAM/PCM
OPTICAL)
Optical connector x 1
Audio output (BITSTREAM/PCM
COAXIAL)
0.5 V (p-p), 75 Q, pin jack x 1
Audio output (2CH AUDIO)
2.0 V (rms), 220 Q, pin jacks (L, R) x 1
Audio output (5.1CH SURROUND)
2.0 V (rms), 220 Q, pin jacks x 6
Supplied Accessories
Audio/video cable ..........coeiiiiiiiiiiiii 1
Remote control (SE-R0013) ....................eeeeeeeneee. 1
Batteries (AAA) ....................eeeeerecrceeceoeeoececereenee... 2
Power cord ................e....ee.evevcaveereee.
* Designs and specifications are subject to change without notice.
45
LIMITED WARRANTY DVD VIDEO PLAYER
Toshiba America Consumer Products, Inc. (“TACP”), Toshiba Hawaii (“THI”) and Toshiba Canada Limited (“TCL”) make the
following limited warranties. These limited warranties extend to original purchaser or any person receiving this set as a gift from
the original purchaser and to no other purchaser or transferee.
Limited Ninety (90) Day Warranty
TACP/THI warrant this product against defects in materials
or workmanship for a period of ninety (90) days after the
date of original retail purchase. During this period, TACP/
THI will repair or replace a defective product or part, at their
option, with a new or refurbished product or part without
charge to you. You must deliver the entire product to a
TACP/THI Authorized Service Station. You are responsible
for all transportation and insurance charges for the unit to
and from the Authorized Service Station. If you live in the
U.S.A. you may, at your option, return your DVD Unit to:
Toshiba America Consumer Products Inc.
Returns Center
1420C Toshiba Dr.
Lebanon, TN 37087
Upon receipt we will, at our option, exchange the DVD Unit
with a new or refurbished unit. Canadian consumers are
requested to contact TCL. In Hawaii consumers are
requested to contact THI.
Limited One (1) Year Warranty
TACP/THI further warrant the parts in this product against
defects in materials or workmanship for a period of one (1)
year after the date of original retail purchase. During this
period, TACP/THI will repair or replace a defective product
or part, at their option, with a new or refurbished product or
part without charge to you, except that if a defective part is
replaced after ninety (90) days from the date of the original
retail purchase you pay labor charges involved in the
replacement. You must also deliver the entire product to a
TACP/THI Authorized Service Station. You are responsible
for all transportation and insurance charges for the unit to
and from the Authorized Service Station. If you live in the
U.S.A. you may, at your option, return your DVD Unit to:
Toshiba America Consumer Products Inc.
Returns Center
1420C Toshiba Dr.
Lebanon, TN 37087
Upon receipt we will, at our option, exchange the DVD Unit
with a new or refurbished unit. Canadian Consumers are
requested to contact TCL. In Hawaii consumers are
requested to contact THI.
Rental Units
The warranty for rental units begin with the first rental or
thirty (30) days from the date of shipment to the rental firm,
whichever comes first.
46
Commercial Units
Products sold and used for commercial use have a limited
ninety (90) day warranty for all parts and labor.
Owner’s Manual
You should read the owner’s manual thoroughly before
operating this product. You should complete and mail the
enclosed Demographic card within ten (10) days after you,
or the person who has given you this product as a gift,
purchased this product. This is one way to enable TACP to
provide you with better customer service and improved
products. Failure to return the card will not affect your rights
under this warranty.
Your Responsibility
The above warranties are subject to the following
conditions:
(1) You must retain your bill of sale or provide other proof of
purchase.
(2) You must notify a TACP/THI/TCL /Authorized Service
Station within thirty (30) days after you discover a
defective product or part.
(3) All warranty servicing of this product must be made by a
TACP/THI/TCL Authorized Service Station.
(4) U.S.A. warranties are effective only if the product is
purchased and operated in the Continental U.S.A. or
Puerto Rico.
(5) Labor service charges for set installation. Set up,
adjustment of customer controls and installation or
repair of antenna systems are not covered by this
warranty. Reception problems caused by inadequate
antenna systems are your responsibility.
Warranties extend only to defects in materials or
workmanship as limited above and do not extend to any
product or parts which have been lost or discarded by
you or to damage to products or parts caused by
misuse, accident, damage caused by Acts of God, such
as lighting or fluctuations in electric power, improper
installation, improper maintenance or use in violation of
instructions furnished by us; or to units which have been
altered or modified without authorization of TACP/THI/
TCL or to damage to products or part thereof which
have had the serial number removed, altered, defaced
or rendered illegible.
(7) Should you elect to return your DVD Unit to TACP after
the ninety (90) days and within one (1) year, or after the
warranty period has expired: Call (800)-631-3811 to
receive information concerning an exchange price.
Payment must be enclosed with product in the form of a
certified check or money order including reason for
return.
Physically damaged DVD Units are not acceptable for
repair or exchange whether in or out of warranty and
Will be returned as received.
>
©
How to Obtain Warranty Service
(1) Refer to the troubleshooting guide in your owner’s manual. This check list may solve your problem.
(2) In the U.S.A., only call the TACP toll free number 800-631-3811, or if in Hawaii or Canada see listing below within (30)
days after you find a defective product or part.
(3) Arrange for the delivery of the product to the TACP/THI/TCL Authorized Service Station or TACP Return Center.
Products shipped to the Service Station must be insured and safely and securely packed, preferably in the original
shipping carton, and a letter explaining the defect and also a copy of the bill of sale or other proof of purchase must be
enclosed.
In the Continental United States contact: In Hawaii contact: In Canada contact:
Toshiba Hawaii Inc. Consumer Electronics Group Consumer Electronics Group
327 Kamakee Street 191 McNabb Street 22171 Fraserwood Way
: Honolulu, HA 96814 Markham, Ontario L3R 8H2 Richmond, B.C. V6W 1J5
Toll Free ” (808)-521-5377 (905)-470-5400 (604)-303-2500
800-631-3811
Consumer Electronics Group
1643 North Service Road
Droval, QC HOP 1J1
(514)-856-4100
All warranties implied by state law, including the implied warranties of merchantability and fitness for a particular purpose, are
expressly limited to the duration of the limited warranties set forth above. With the exception of any warranties implied by state
law as hereby limited, the foregoing warranty is exclusive and in lieu of all other warranties, guarantees, agreements and
similar obligations of manufacturer or seller with respect to the repair or replacement of any parts. In no event shall TACP/THI
be liable for consequential or incidental damages.
No person, agent, distributor, dealer or company is authorized to change, modify or extend the terms of these warranties in
any manner whatsoever. The time within which an action must be commenced to enforce any obligation of TACP/THI arising
under the warranty or under any statute, or law of the Unite States or any state thereof, is hereby limited to ninety (90) days
from the date you discover or should have discovered, the defect. This limitation does not apply to implied warranties arising
under state law.
This warranty gives you specific legal rights and you may also have other rights which may vary from state to state. Some
states do not allow limitation on how long an implied warranty lasts, when an action may be brought, or the exclusion or
limitation of incidental or consequential damages, so the above provisions may not apply to you.
O
ee
=
D
=
о
ATTENTION CANADIAN CONSUMERS:
Canadian consumers are requested to complete the special Canadian “Warranty Registration Form” enclosed, and forward
this completed form with a copy of bill of sale to TOSHIBA OF CANADA to “Register and Validate” their warranty. Product
must be purchased from an Authorized Canadian Dealer. Products purchased in the U.S.A. and used in Canada are not
covered by these warranties.
IMPORTANT: PACKING AND SHIPPING INSTRUCTION
When you send the product to a Service Station, you must use the original carton box and packing material, then insert the
original carton box containing the unit into another carton using more packing material.
47
TOSHIBA
Printed in Japan
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
