Panasonic TC-32LX50 32 in. HD

Panasonic TC-32LX50 32 in. HD

R-STANDBY/POWER ON POWER

PULL

POWER

VCR

SAP

DBS/CBL

DV

D

TV

VOL

CH

O K

VOL

CH

MENU

TV/VIDEO RECALL MUTE

RETURN

EXIT

GUIDE

1

4

2

5

3

6

7

R-TUNE

8

0

9

SLEEP

PROG

REW

PAUSE

ASPECT

TV/VCR

PLAY

STOP

FF

REC

VCR/DBS CH

T V

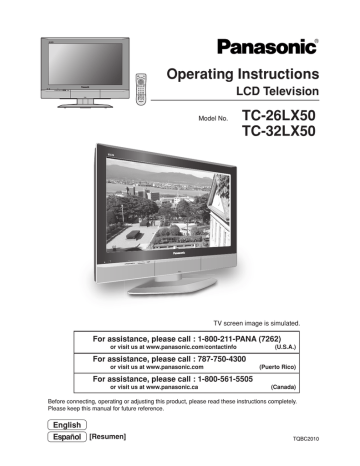

Operating Instructions

LCD Television

Model No.

TC-26LX50

TC-32LX50

R-STANDBY/PO

WER ON

POWER

TV screen image is simulated.

For assistance, please call : 1-800-211-PANA (7262)

or visit us at www.panasonic.com/contactinfo (U.S.A.)

For assistance, please call : 787-750-4300

or visit us at www.panasonic.com

For assistance, please call : 1-800-561-5505

or visit us at www.panasonic.ca

(Puerto Rico)

(Canada)

Before connecting, operating or adjusting this product, please read these instructions completely.

Please keep this manual for future reference.

English

Espan [Resumen]

TQBC2010

Important Safety Instructions

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrow head within a triangle is intended to tell the user that parts inside the product are a risk of electric shock to persons.

The exclamation point within a triangle is intended to tell the user that important operating and servicing instructions are in the papers with the appliance.

Note to CATV System Installer:

This reminder is provided to direct the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

Secure ventilation

Slots and openings in the cabinet and the back or bottom are provided for ventilation, and to ensure reliable operation of the LCD TV and to protect it from overheating. These openings must not be blocked or covered.

There should be at least 10 cm of space from these openings. The openings should never be blocked by placing the LCD TV on a bed, sofa, rug or other similar surface. This LCD TV should not be placed in a builtin installation such as a bookcase unless proper ventilation is provided.

Important Safety Instructions for LCD TV

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong.

The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments / accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15) Operate only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home consult your television dealer or local power company.

16) Follow all warnings and instructions marked on the LCD TV.

17) Never push objects of any kind into this LCD TV through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the LCD TV.

2

Important Safety Instructions

18) If an outside antenna is connected to the television equipment, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. In the U.S. Section 810-21 of the

National Electrical Code provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

19) An outside antenna system should not be located

EXAMPLE OF ANTENNA

GROUNDING AS PER (NEC)

NATIONAL ELECTRICAL

CODE

ELECTRIC

SERVICE

EQUIPMENT

GROUND

CLAMP

ANTENNA

LEAD-IN WIRE

ANTENNA

DISCHARGE UNIT

(NEC SECTION 810-20)

GROUNDING CONDUCTORS

(NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING

ELECTRODE SYSTEM

(NEC ART 250, PART H) in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

20) Unplug this LCD TV from the wall outlet, and refer servicing to qualified service personnel under the following conditions: a. When the power cord or plug is damaged or frayed.

b. If liquid has been spilled into the LCD TV.

c . If the LCD TV has been exposed to rain or water.

d. If the LCD TV does not operate normally by following the operating instructions.

Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the LCD TV to normal operation.

e. If the LCD TV has been dropped or the cabinet has been damaged.

f. When the LCD TV exhibits a distinct change in performance - this indicates a need for service.

21) When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer that have the same characteristics as the original parts. Unauthorized substitutions may result in fire, electric shock, or other hazards.

22) WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPARATUS TO RAIN OR MOISTURE.

DO NOT PLACE LIQUID CONTAINERS (FLOWER VASES, CUPS, COSMETICS, ETC.)

ABOVE THE SET. (INCLUDING ON SHELVES ABOVE, ETC.)

23) WARNING : KEEP UNNEEDED SMALL PARTS AND OTHER OBJECTS OUT OF THE REACH OF

SMALL CHILDREN. THESE OBJECTS CAN BE ACCIDENTALLY SWALLOWED. ALSO,

BE CAREFUL ABOUT PACKAGING MATERIALS AND PLASTIC SHEETS.

24) CAUTION : TO PREVENT ELECTRIC SHOCK DO NOT USE THIS PLUG WITH A RECEPTACLE OR OTHER

OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

25) CAUTION : USE WITH OTHER STAND MAY RESULT IN INSTABILITY POSSIBLY CAUSING INJURY.

26) CAUTION : DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY

WITH THE SAME OR EQUIVALENT TYPE.

NOTE :

This equipment is designed to operate in North America and other countries where the broadcasting system and AC house current are exactly the same as in North America.

This product utilizes tin-lead solder, and has a fluorescent lamp containing a small amount of mercury. Disposal of

these materials may be regulated in your community due to environmental considerations. For disposal or recycling information please contact your local authorities, or the Electronics Industries Alliance: www.eiae.org.

3

Dear Panasonic Customer

Welcome to the Panasonic family of customers.

We hope that you will have many years of enjoyment from your new LCD TV.

To obtain maximum benefit from your set, please read these instructions before making any adjustments, and retain them for future reference.

Retain your purchase receipt, and record the model number and serial number of your set in the space provided on the rear cover of these instructions.

For assistance, please call : 1-800-211-PANA (7262) or visit us at www.panasonic.com/contactinfo

For assistance, please call : 787-750-4300 or visit us at www.panasonic.com

(U.S.A.)

(Puerto Rico)

For assistance, please call : 1-800-561-5505 or visit us at www.panasonic.ca

(Canada)

4

Federal Communication Commission Information

This equipment has been tested and found to comply with the limits for a TV Broadcast Receiver, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause or receive interference, which can be determined by turning equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the TV antenna.

Increase the separation between TV and other equipment.

Connect TV into separate outlet from other equipment.

Consult the dealer or an experienced radio / TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

The ENERGY STAR label, a symbol for energy efficiency, was created by the U.S.

Environmental Protection Agency (EPA) and the U.S. Department of Energy

(DOE) to help customers identify products that can save them money and protect the environment by saving energy. ENERGY STAR compliant products generally consume less energy than similar standard products.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

Table of Contents

Important Safety Instructions .............................. 2

Maintenance .......................................................... 5

SUPPLIED ACCESSORIES ................................... 6

Remote control battery installation ...................... 6

Installation ............................................................. 7

Connections .......................................................... 8

Antenna Connection ............................................ 8

Cable Box Connection ......................................... 8

Connecting Other Equipment .............................. 9

Front Panel Connection ..................................... 11

Power ON / OFF ................................................... 12

Basic Controls ..................................................... 13

Menu Operations ................................................. 14

Tuning Channels ................................................. 16

LOCK .................................................................... 17

CLOSED CAPTION .............................................. 21

INPUT LABEL ...................................................... 21

OTHER ADJUST .................................................. 22

PICTURE ADJUST ............................................... 23

POSITION/SIZE .................................................... 24

AUDIO ADJUST ................................................... 25

ASPECT Controls ................................................ 26

Operating peripheral equipment using

the remote control ............................................ 27

Programming the remote control code .............. 27

Infrared Code Index ........................................... 28

Mode Operational Key Chart ............................. 30

Manuel de instrucciones [ Resumen ]

Instalación .................................................. 31

Instalación de las pilas del mando a distancia ..... 31

Conexión .................................................... 32

Conexión de antena .................................. 32

Conexión del receptor de TV por cable ..... 32

Conexión de otro equipo ........................... 33

Conexiones del panel frontal ..................... 35

Conexión / desconexión de la alimentación ... 36

Controles básicos ...................................... 37

Operaciones con menús ........................... 38

Sintonización de canales .......................... 40

Troubleshooting .................................................. 41

CUSTOMER SERVICES DIRECTORY (for U.S.A.) ........... 42

Specifications ...................................................... 43

Maintenance

To clean this unit, wipe with a soft, dry cloth.

If the surfaces are extremely dirty, use a soft cloth dipped in a soap and water solution or a weak detergent solution.

• Use eyeglass cleaner to remove stubborn dirt from the LCD.

• Never use alcohol, paint thinner or benzine to clean this unit.

• Before using a chemically treated cloth, carefully read the instructions that came with the cloth.

Mild detergent

CAUTION :

If water or other liquid enters the monitor through the display panel surface, a malfunction may occur.

5

6

SUPPLIED ACCESSORIES

Check the accessories before installation.

• Operating Instructions • Remote Control

Transmitter

(EUR7613Z90R)

• Batteries for the

Remote Control

Transmitter

(2

× AA size)

• Warranty Card

• Product Registration Card and

Customer Care Plan Card (For

U.S.A.)

• F-Type Antenna Connector

(for 4C-2V) (

× 1)

Remote control battery installation

Requires two AA batteries.

1. Open the battery cover.

2. Install the batteries.

Note the correct polarity (+ and -).

Two AA size

3. Replace the cover.

Precaution on battery use

Incorrect installation can cause battery leakage and corrosion that will damage the remote control transmitter.

Disposal of batteries should be in an environmentally friendly manner.

1. Always use new batteries when replacing the old set.

2. Do not attempt to charge, short-circuit, disassemble, heat or burn used batteries.

3. Battery replacement is necessary when remote control acts sporadically or fails to operate this unit.

Notes:

• Do not drop, apply shock to or step on the remote control.

• Do not spill water on the remote control.

• Do not place objects between the remote control and remote control receiver.

• Do not use remote controls for other equipment at the same time.

• If the TV does not operate even when using the remote control from a close range, it is time to replace the batteries.

Installation

Receiver Location

Locate at a comfortable distance for viewing. Avoid placing where sunlight or other bright light (including reflections) will fall on the screen.

Use of some types of fluorescent lighting can reduce remote control transmitter range.

Adequate ventilation is essential to prevent internal component failure. Keep away from areas of excessive heat or moisture.

How to use the LCD stand

Adjust the stand to your desired angle. The stand angle can be rotated 20

° to the right / left.

DBY/PO

WER ON

POWER

Cable cover Removal and Reinstallation

Removal

1. Push down hooks and pull the cover slightly towards yourself to disengage the claws (at 3 points).

2. Slowly pull out in the downward direction.

Reinstallation

1. Insert the claws (at 3 points) at the bottom.

2. Push the cover until hooks click into place.

Note:

To avoid interference appearing on the screen, do not bundle the RF cable and AC cord together.

Opening Front Control Door

PULL

R-STANDBY/POWER ON POWER

PULL

Raise the lower part of the door labeled "PULL".

Optional External Equipment

The Video / Audio connection between components can be made with shielded video and audio cables. For best performance, antenna cables should utilize 75 ohm coaxial shielded wire. Cables are available from your dealer or electronic supply store.

Before you purchase any cables, be sure you know what type of output and input connectors your various components require. Also determine the length of cable you’ll need.

For optimum quality picture

When the LCD is exposed to light from outdoors or lighting fixtures, high-contrast pictures may not be displayed clearly. Turn off florescent lamps near the LCD and place in a location not exposed to outdoor light.

How to hang the LCD Television on the wall

This LCD Television is for use only with the following optional accessory. Use with any other type of optional accessories may cause instability which could result in the possibility of injury.

Wall-hanging bracket ........................................................ TY-WK32LX20W

Always be sure to ask a qualified technician to carry out set-up.

7

8

Connections

Note:

Cables and connectors are not supplied with this set.

Antenna Connection

For proper reception of VHF/UHF channels, an external antenna is required. For best reception, an outdoor antenna is recommended. The antenna mode must be set to TV (see page 16, Mode selection).

Back of the TV

VHF Antenna UHF Antenna

Antenna Terminal

ANT

75 Ohm

Coaxial Cable

F-Type Antenna

Connector

Mixer

Cable Box Connection

For reception of cable channels (01 - 125), connect the cable supplied by your local cable company. The antenna mode must be set to CABLE (see page 16, Mode selection).

• Certain cable systems offset some channels to reduce interference or view Premium (scrambled) channels.

A cable converter box is required for proper reception. Check with your local cable company for its compatibility requirements.

• Set the TV channel to CH3 or CH4 when using this connection.

Cable Box

Back of the TV

Incoming 75 Ohm Cable from Cable Company

CABLE BOX

ANT

OUTPUT INPUT

Cable Box and VCR

Back of the TV

ANT

OUTPUT INPUT

Incoming 75 Ohm Cable from Cable Company

CABLE BOX

ANT OUTPUT ANT INPUT

VCR

Connecting Other Equipment

Rear Input Terminals

Back of the TV

Connections

COMPONENT VIDEO OUT

Y

COMPONENT VIDEO cable

DVD / STB P

B

P

R

L

Audio

OUT

R

VIDEO P

B

AUDIO

Y

P

R

L

Super-VHS VCR

AUDIO cable

S-VIDEO cable

S-VIDEO

VIDEO

L

R

1

COMPONENT

INPUT

2

VIDEO INPUT 1 INPUT 2

R

TO AUDIO

AMP

PROG OUT

CAMCORDER

S-Video

OUT

Video

OUT

VIDEO GAME

CONSOLE

R

Audio

OUT

L

VIDEO cable

AUDIO cable

Notes:

• When connecting video cables, priority is given to the S-Video cable when both the S-VIDEO input terminal and the VIDEO input terminal are connected.

• Please make inquiries of video game manufacturers concerning component cables to connect with video game console.

Rear Output Terminals

L

Audio

IN

R

AUDIO cable

Y

VIDEO

P

B

P

R

S-VIDEO

VIDEO

L

AUDIO

L

R

1

COMPONENT

2

VIDEO

INPUT

INPUT 1 INPUT 2

R

TO AUDIO

AMP

PROG OUT

Back of the TV

9

Connections

HDMI Connection

HDMI∗ 1 (High Definition Multi media Interface) is the first all-digital consumer electronics A/V interface that supports uncompressed standard. The HDMI terminal supports both video and audio information.

To the HDMI∗ 1 input terminal, you can connect an EIA/CEA-861/861B∗ 2 compliant consumer electronic device, such as a Set Top Box or DVD player with HDMI or DVI output terminal.

Input a High-bandwidth Digital Content Protection (HDCP) high-definition picture source to this HDMI terminal, so you can display high-definition pictures on this TV in digital form.

• An audio cable should be connected only when using an HDMI conversion adapter to connect with a DVI cable.

• If the external device has DVI output only, use a DVI to HDMI adapter cable∗

3 to connect to the HDMI terminal.

• Connect the audio cables to the AUDIO IN terminals for HDMI.

• Select the audio setting in HDMI In (see page 25).

Y

L

R

VIDEO

P

B

S-VIDEO

VIDEO

Example of HDMI input signal source

P

R

DVD player

HDMI OUT

R

AUDIO

OUT

L

HDMI AUDIO IN

R

AUDIO

L

Set-Top Box

AUDIO cable

HDMI IN

HDMI cable

Compatible VIDEO Signal

720p

1080i

480p

480i

No. of dots (H

× V)

1,280

× 720p

1,920

× 1,080i

720

× 480p

640

× 480p

720

× 480i

AV IN

Vertical scanning frequency (Hz)

59.94/60

59.94/60

59.94/60

59.94/60

59.94/60

Notes:

• This input terminal is not intended for use with computers.

• 720p/1080i signals will be re-formatted for viewing on your LCD display.

Compatible sampling freguency of AUDIO signal through HDMI (L.PCM) : 48 kHz / 44.1 kHz / 32 kHz

Notes:

• This HDMI connector is Type A.

• If you connect equipment without a digital output terminal, connect to the COMPONENT VIDEO, S-VIDEO or

VIDEO input terminal on the TV so you can receive an analog signal.

• The HDMI IN terminal can only be used with 720p, 1080i, 480i or 480p picture signals. Set the Digital Set -

Top Box DIGITAL OUT terminal Output setting to 720p, 1080i, 480i or 480p. For detailed information, refer to the Digital Set -Top Box instruction manual. If you cannot display the picture because your Digital Set -Top

Box does not have a DIGITAL OUT terminal Output setting, use the component Video Input (or the S-Video

Input or Video Input). In this case the picture will be displayed as an analog signal.

1. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

2. EIA/CEA-861/861B profiles compliance covers profiles for transmission of uncompressed digital video including high bandwidth digital content protection.

3. Consult your consumer electronics dealer for availability details.

[for USA]

HDMI-DVI conversion cable (TY-SCH03DH): available on Panasonic website (www.panasonic.com).

10

Connections

Front Panel Connection

Example of input signal source

CAMCORDER

VIDEO GAME CONSOLE

Headphones /

Earphones

(not supplied)

L

AUDIO

OUT

R

VIDEO

OUT

S-VIDEO

OUT

M3 plug

R-STANDBY/POWER ON POWER

HPJ S-VIDEO VIDEO

INPUT 3

L-AUDIO-R

S-VIDEO cable

VIDEO cable

AUDIO cable

Notes:

• When connecting video cables, priority is given to the S-Video cable when both the S-VIDEO input terminal and the VIDEO input terminal are connected.

• Please make inquiries of video game manufacturers concerning component cables to connect with video game console.

11

Power ON / OFF

Preparation

Connect the plug to the wall outlet.

Back of the TV

Note:

The TV consumes some power as long as the power cord is inserted into the wall outlet.

AC120V, 60Hz

Power cord

Main POWER switch

R-STANDBY/POWER ON POWER

R-STANDBY G-POWER ON

PULL

Remote control sensor

Power Indicator

C.A.T.S. sensor

LCD C.A.T.S. (Contrast Automatic Tracking

System) automatically senses the ambient light conditions and adjusts the brightness and gradation accordingly, to optimize contrast.

C.A.T.S. is in effect when PIC MODE is set to

AUTO (see page 23).

On the main unit

POWER

Press to turn the TV’s main power on / off.

• Power indicator

Main power ON: Green

Main power OFF: No light

On the remote control

POWER

Press to turn the TV on / off.

• Power indicator

Power ON : Green

Power OFF (Standby): Red

This does not work when the main power is off (No light) (see above).

Note:

The screen below is displayed for a few moments when the TV is turned on.

ZOOM

CH 6

STEREO

SAP

MONO

POWER

SAP

VCR

DBS/CBL

DVD

TV

CH

Note:

Select the menu language before operating the TV (see pages 14, 15, LANGUAGE).

12

Basic Controls

<

Front Side Controls

>

POWER

R-STANDBY G-POWER ON

CH

TV/VIDEO

– VOL +

Remote control sensor

TV/VIDEO button

Volume Up/Down

Main POWER switch

Press to turn the TV’s main power on/off.(see page 12)

Within about 23 feet

(7 meters) in front of the TV set.

Channel Up/Down

Power button

Press to turn the TV ON or OFF.

Note:

The TV’s power cord must first be plugged into the wall outlet and then the TV can be turned on using the POWER switch.

POWER

TV

VCR

DBS/CBL

R-TUNE

Direct program number selection buttons

R-TUNE button

Switches to previously viewed channel or video mode.

Not effective under the following conditions:

1. Right after the TV is turned on.

2. After switching TV / CATV

(MODE inPROGRAM

CHANNELS).

3. Right after the ACP

(Automaticchannel programming) execution.

4. When the same channel as thepresent channel is selected.

SLEEP

PROG

PROG dash button / SLEEP TIMER button

Program dash channel numbers for

DTV and DBS.

Sleep timer (MINUTES)

0 30 60 90

MENU

VOL

TV/VIDEO RECALL MUTE GUIDE

1

4

7

R-TUNE

REW

PAUSE

ASPECT

TV/VCR

CH

O K

CH

2

5

8

0

PLAY

STOP

T V

VOL

3

6

9

SLEEP

PROG

FF

VCR/DBS CH

RETURN

EXIT

REC

SAP

DVD

ASPECT

TV/VCR

ASPECT button

Change screen size (see page 26).

JUST ZOOM FULL NORMAL

Operation of other Device

REW

Device

VCR

CABLE/DBS

DVD

FF

VCR REW/FF

-

Skip Search REW/FF

REC

Device

VCR

CABLE/DBS

DVD

VCR RECORD

-

-

PLAY

PLAY

-

PLAY

ASPECT

TV/VCR

TV/VCR Switch

STB-ASPECT

Open / Close

PAUSE

Pause

-

Pause

VCR/DBS CH

VCR CH up/down

PAGE up/down

Slow +/--

SAP button

Selects Audio mode (see page 25).

STEREO SAP MONO

Mode Selection buttons

Digital Broadcasting Satellite mode for Remote Control / Cable TV Mode

Selection for Remote Control

VCR Mode

Selection for

Remote Control

Digital Video

Disc Mode

Selection for

Remote Control

DBS/CBL

VCR

TV

DV

D

TV Mode Selection for Remote Control

Changes to the next channel up

Moves cursor upward during menu mode.

Reduces volume

Moves cursor to the left during menu mode.

Increases volume

Moves cursor to the right during menu mode.

CH

O K

VOL VOL

CH

RETURN

EXIT MENU

Displays menu

Press to access

TV, DTV, DBS or DVD menus.

Press to Return to previous

MENU or EXIT from menu.

Changes to the next channel down

Moves cursor downward during menu mode.

Press to display input mode menu.

While the menu is displayed, press again to change the input mode.

The input mode changes each time this button is pressed.

Press this button to mute the sound, press again to cancel the mute.

TV/VIDEO RECALL MUTE GUIDE GUIDE button for DBS.

Press to display the current system status, for example, Aspect mode,

Channel number, Stereo mode, TV/

VIDEO and Off timer.

STOP

STOP

-

STOP

13

Menu Operations

1

Press to display MENU screen.

MENU

ADJUST SET UP


PICTURE ADJUST

POSITION / SIZE

AUDIO

AUDIO ADJUST

POWER

VCR

SAP

DBS/CBLL

DVD

TV

VOL

TV/VIDEO

Change the input mode.

• Press to display the Input selection menu.

1 TV

2 COMPONENT 1

3 COMPONENT 2

4 HDMI

5 VIDEO 1

6 VIDEO 2

7 VIDEO 3

• Press corresponding number key on the remote control to select the input of your choice.

Note:

Video input can also be selected by pressing , then the CH and push “OK” key.

buttons,

1

4

7

R-TUNE

RETURN

EXIT

RECALL MUTE GUIDE

2

5

8

0

3

6

9

SLEEP

PROG

ON SCREEN HELP ‘Instruction’ box

An On Screen Help box is displayed when a menu is displayed on the TV. This Help box indicates which keys on the remote control are used to navigate the menu shown.

LANGUAGE

LANGUAGE

ENGLISH

CHANGE

RETURN

2

MENU

ADJUST SET UP


PICTURE ADJUST

POSITION / SIZE

AUDIO

AUDIO ADJUST or

MENU

ADJUST SET UP

LANGUAGE

PROGRAM CH

LOCK

CLOSED CAPTION

INPUT LABEL

OTHER ADJUST

MENU

ADJUST SET UP


PICTURE ADJUST

POSITION / SIZE

AUDIO

AUDIO ADJUST

MENU

ADJUST SET UP

LANGUAGE

PROGRAM CH

LOCK

CLOSED CAPTION

INPUT LABEL

OTHER ADJUST

14

Menu Operations

VOL

CH

OK

VOL

CH

Press to select the MENU screen (ADJUST or SET UP).

Press to select the sub-menu feature.

Press to display the sub-menu screen.

To return to the previous screen :

To exit the MENU screen:

RETURN

EXIT

MENU

This returns TV to normal viewing.

PICTURE ADJUST PAGE 1/2

NORMAL

PIC MODE

BACK LIGHT


BRIGHTNESS

STANDARD

+ 20

+ 20

0

0

COLOR

TINT

SHARPNESS

0

0

AI PICTURE OFF ON

(See page 23)

LANGUAGE

LANGUAGE

ENGLISH

Select the menu language.

CLOSED CAPTION

MODE

OFF

C1 C2

OFF

(See page 21)

P O S I T I O N / S I Z E

NORMAL

NORMALIZE

SIZE

15

RETURN

P O S I T I O N

(See page 24)

PROGRAM CHANNELS

MODE TV CABLE

AUTO PROGRAM

MANUAL PROGRAM

(See page16)

INPUT LABEL

COMPONENT1 COMPONENT1

COMPONENT2

HDMI

VIDEO1

COMPONENT2

HDMI

GAME

VIDEO2

VIDEO3

DVD

VIDEO3

(See page 21)

AUDIO ADJUST PAGE 1/2

NORMAL

MODE

BASS

TREBLE

STANDARD

– 2

+ 6

0

BALANCE

AI SOUND

SURROUND

OFF

OFF

ON

ON

STEREO SAP MONO

HDMI IN

DIGITAL

(See page 25)

LOCK

BLOCK PROGRAMS:

U. S. MOVIES

STATUS OFF ON

CHANGE SETTING

ENTER CODE FIRST

(See pages 17-20)

OTHER ADJUST PAGE 1/2

VIDEO NR

OFF ON

MPEG NR

OFF ON

3D Y/C FILTER

OFF ON

COLOR MATRIX

SD HD

(See page 22)

15

Menu Operations

1

Press to display MENU screen.

MENU

ADJUST SET UP


PICTURE ADJUST

POSITION / SIZE

AUDIO

AUDIO ADJUST

POWER

VCR

SAP

DBS/CBLL

DVD

TV

VOL

TV/VIDEO

Change the input mode.

• Press to display the Input selection menu.

1 TV

2 COMPONENT 1

3 COMPONENT 2

4 HDMI

5 VIDEO 1

6 VIDEO 2

7 VIDEO 3

• Press corresponding number key on the remote control to select the input of your choice.

Note:

Video input can also be selected by pressing , then the CH and push “OK” key.

buttons,

1

4

7

R-TUNE

RETURN

EXIT

RECALL MUTE GUIDE

2

5

8

0

3

6

9

SLEEP

PROG

ON SCREEN HELP ‘Instruction’ box

An On Screen Help box is displayed when a menu is displayed on the TV. This Help box indicates which keys on the remote control are used to navigate the menu shown.

LANGUAGE

LANGUAGE

ENGLISH

CHANGE

RETURN

2

MENU

ADJUST SET UP


PICTURE ADJUST

POSITION / SIZE

AUDIO

AUDIO ADJUST or

MENU

ADJUST SET UP

LANGUAGE

PROGRAM CH

LOCK

CLOSED CAPTION

INPUT LABEL

OTHER ADJUST

MENU

ADJUST SET UP


PICTURE ADJUST

POSITION / SIZE

AUDIO

AUDIO ADJUST

MENU

ADJUST SET UP

LANGUAGE

PROGRAM CH

LOCK

CLOSED CAPTION

INPUT LABEL

OTHER ADJUST

14

Menu Operations

VOL

CH

OK

VOL

CH

Press to select the MENU screen (ADJUST or SET UP).

Press to select the sub-menu feature.

Press to display the sub-menu screen.

To return to the previous screen :

To exit the MENU screen:

RETURN

EXIT

MENU

This returns TV to normal viewing.

PICTURE ADJUST PAGE 1/2

NORMAL

PIC MODE

BACK LIGHT


BRIGHTNESS

STANDARD

+ 20

+ 20

0

0

COLOR

TINT

SHARPNESS

0

0

AI PICTURE OFF ON

(See page 23)

LANGUAGE

LANGUAGE

ENGLISH

Select the menu language.

CLOSED CAPTION

MODE

OFF

C1 C2

OFF

(See page 21)

P O S I T I O N / S I Z E

NORMAL

NORMALIZE

SIZE

15

RETURN

P O S I T I O N

(See page 24)

PROGRAM CHANNELS

MODE TV CABLE

AUTO PROGRAM

MANUAL PROGRAM

(See page16)

INPUT LABEL

COMPONENT1 COMPONENT1

COMPONENT2

HDMI

VIDEO1

COMPONENT2

HDMI

GAME

VIDEO2

VIDEO3

DVD

VIDEO3

(See page 21)

AUDIO ADJUST PAGE 1/2

NORMAL

MODE

BASS

TREBLE

STANDARD

– 2

+ 6

0

BALANCE

AI SOUND

SURROUND

OFF

OFF

ON

ON

STEREO SAP MONO

HDMI IN

DIGITAL

(See page 25)

LOCK

BLOCK PROGRAMS:

U. S. MOVIES

STATUS OFF ON

CHANGE SETTING

ENTER CODE FIRST

(See pages 17-20)

OTHER ADJUST PAGE 1/2

VIDEO NR

OFF ON

MPEG NR

OFF ON

3D Y/C FILTER

OFF ON

COLOR MATRIX

SD HD

(See page 22)

15

Tuning Channels

1

Press the TV/ VIDEO button to display the TV channel.

2

Press the MENU button to display the MENU screen and select SET UP.

Press to select PROGRAM CH.

VOL

CH

O K

VOL

CH

Press to display the PROGRAM

CHANNELS screen.

Mode selection

3

VOL

CH

O K

VOL

CH

Press to select MODE.

Press to select TV or CABLE.

MENU

ADJUST SET UP

LANGUAGE

PROGRAM CH

LOCK

CLOSED CAPTION

INPUT LABEL

OTHER ADJUST

PROGRAM CHANNELS

MODE TV CABLE

AUTO PROGRAM

MANUAL PROGRAM

Automatic channel programming

Automatically scans and stores all the TV channels.

Manual channel programming

Add or delete a channel manually.

4

VOL

CH

O K

VOL

CH

Press to select AUTO

PROGRAM.

Press to display the

AUTO PROGRAM screen.

AUTO PROGRAM

Activate

“AUTO PROGRAM?”

YES NO

4

VOL

CH

O K

VOL

CH

Press to select

MANUAL PROGRAM.

Press to display the

MANUAL PROGRAM screen.

PROGRAM CHANNELS

MODE TV CABLE

AUTO PROGRAM

MANUAL PROGRAM

5

Press to select YES.

Press to start AUTO

PROGRAM.

AUTO PROGRAM

In “AUTO PROGRAM”

CHANNEL

59

5

VOL

CH

O K

VOL

CH

Press to select the channel.

• You can also use the numbered buttons.

MANUAL PROGRAM

ENTER CHANNEL

121

MENU

STOP

Channels will automatically advance until all channels have been scanned. Channel numbers with video signal received will be stored in the Channel Memory.

Notes:

• When any button is pressed during AUTO

PROGRAM, the TV will return to normal viewing.

(Channels searched up to that point are added.)

• After AUTO PROGRAM finishes, the lowest channel number added will be displayed.

• When there is no receivable channel, channel 69 (for

TV) or channel 125 (for cable TV) is displayed.

6

VOL

CH

O K

VOL

CH

Press to add the channel to the Channel

Memory (the channel number turns blue).

Press to delete the channel from the

Channel Memory (the channel number turns yellow).

• Repeat steps 5 and 6 for other channels.

16

LOCK

V-Chip technology allows parents to use the TV rating codes to block programs that they feel are inappropriate for their children to watch.

1

Press the MENU button to display the MENU screen and select SET UP.

Press to select LOCK

MENU

ADJUST

Press to display the LOCK screen.

VOL

CH

O K

VOL

CH

2

SET UP

LANGUAGE

PROGRAM CH

LOCK

CLOSED CAPTION

INPUT LABEL

OTHER ADJUST

1

4

7

2

5

8

0

3

6

9

Input 4-digit code.

• To clear the numbers while entering the code, press Up or Down .

• You will need the code to enter the LOCK menu.

• After entering your password for the first time,

ENTER CODE FIRST will change to CHANGE

CODE.

LOCK

BLOCK PROGRAMS:

U. S. MOVIES

STATUS OFF ON

CHANGE SETTING

ENTER CODE FIRST

Note:

Use a code that is easy to remember and record it in a safe place.

3

VOL

CH

OK

VOL

CH

Press to select BLOCK PROGRAMS.

Press to select U.S. MOVIES, U.S. TV

PROGRAMS, CANADIAN ENGLISH or CANADIAN FRENCH.

LOCK

BLOCK PROGRAMS:

U. S. TV PROGRAMS

STATUS OFF ON

CHANGE SETTING

CHANGE CODE

4

VOL

CH

O K

VOL

CH

Press to select STATUS.

Press to select OFF or ON.

OFF : Can view all programs.

ON : Cannot view programs locked in

CHANGE SETTING.

5

VOL

CH

O K

VOL

CH

Press to select CHANGE SETTING.

Press to enter the next menu.

LOCK

BLOCK PROGRAMS:

U. S. TV PROGRAMS

STATUS OFF ON

CHANGE SETTING

CHANGE CODE

LOCK

BLOCK PROGRAMS:

U. S. TV PROGRAMS

STATUS OFF ON

CHANGE SETTING

CHANGE CODE

17

LOCK

U.S. MOVIES

This TV features the “V-Chip technology” which allows you to use Motion Picture Ratings when viewing movies or video tapes. This innovation allows parents to block various types of movies and video tapes at their discretion.

6

Press to select VIEW NR PROGRAMS?.

U. S. MOVIES

VIEW NR PROGRAMS?

NO YES

VOL

CH

O K

CH

VOL

Press to select NO or YES.

NO : Cannot view programs with NR signals.

YES : Can view programs with NR signals.

7

Press to select the rating.

G

P G

PG-13

R

NC-17

X

VOL

CH

OK

CH

VOL

Press to lock or unlock the rating.

Lock : Red

Unlock : Green

Notes:

• When a rating is locked, all ratings below this rating are locked.

• When a rating is unlocked, all ratings above this rating are unlocked.

NR

G

P G

PG-13

R

NC-17

X

CONTAINS NO RATING (NOT RATED) AND NA (NOT APPLICABLE)

PROGRAMS. Movie has not been rated or rating does not apply.

GENERAL AUDIENCES. All ages admitted.

PARENTAL GUIDANCE SUGGESTED. Some material may not be suitable for children.

PARENTS STRONGLY CAUTIONED. Some material may be inappropriate for children under 13.

RESTRICTED. Under 17 requires accompanying parent or adult guardian.

NO ONE 17 AND UNDER ADMITTED.

ADULTS ONLY.

U.S. TV PROGRAMS

This TV features the “V-Chip technology” which allows you to use U.S. TV PROGRAMS Guide ratings to block various types of TV programs.

6

VOL

CH

O K

VOL

Press to select VIEW NR PROGRAMS?

Press to select NO or YES.

NO : Cannot view programs with NR signals.

YES : Can view programs with NR signals.

U. S. TV PROGRAMS

VIEW NR PROGRAMS?

NO YES

SETTING BASIC

CH

TV–Y

TV–Y7 FV

7

Press to select SETTING.

VOL

CH

OK

CH

VOL

Press to select BASIC or DETAILED.

BASIC : You can select the ratings.

DETAILED : You can select the ratings and options.

TV–G

TV–PG

TV–1 4

TV–MA

V

V

V

S

S

S

L

L

L

D

D

Press to select the rating.

Rating Option

8

VOL

CH

OK

VOL

CH

Press to lock or unlock the rating.

Lock : Red

Unlock : Green

Notes:

• When a rating is locked, all ratings (including options) below this rating are locked.

• When a rating is unlocked, all ratings (including options) above this rating are unlocked.

• When an option (V, S, L or D) is locked, all the same options (V, S, L or D) below this rating are locked.

• When an option (V, S, L or D) is unlocked, all the ratings and the same options (V, S, L or D) above this rating are unlocked.

18

LOCK

NR

TV-Y

TV-Y7

TV-G

TV-PG

TV-14

TV-MA

FV

V

S

L

D

Not Rated. See Customer Caution below.

All children. The themes and elements in this program are specifically designed for a very young audience, including children from ages 2-6.

Directed to older children. Themes and elements in this program may include mild physical or comedic violence, or may frighten children under the age of 7.

General audience. It contains little or no violence, no strong language, and little or no sexual dialogue or situations.

Parental guidance suggested. The program may contain infrequent coarse language, limited violence, some suggestive sexual dialogue and situations.

Parents strongly cautioned. This program may contain sophisticated themes, sexual content, strong language and more intense violence.

Mature audiences only. This program may contain mature themes, profane language, graphic violence, and explicit sexual content.

FANTASY/CARTOON VIOLENCE

VIOLENCE

SEX

OFFENSIVE LANGUAGE

DIALOGUE WITH SEXUAL CONTENT

Customer Caution

The V-Chip system that is used in this set is capable of blocking “NR” programs (non rated, not applicable as and none) per FCC Rules Section15.120(e)(2). If the option of blocking “NR” programs is chosen

“unexpected and possibly confusing results may occur, and you may not receive emergency bulletins or any of the following types of programming:”

• Emergency Bulletins (Such as EAS messages, weather warnings and others)

• Locally originated programming • News • Political • Public Service Announcements • Religious • Sports

• Weather

CANADIAN ENGLISH / CANADIAN FRENCH

The V-CHIP used in this TV allows you to block various types of movies and television programs based on the two rating systems used in Canada. It also lets you block or unblock Canadian French programs according to various ratings categories.

6

7

VOL

CH

O K

CH

VOL

Press to select VIEW E

PROGRAMS?.

Press to select NO or YES.

NO : Cannot view programs with E signals.

YES : Can view programs with E signals.

E means Exempt

Press to select the rating.

CANADIAN ENGLISH

VIEW E PROGRAMS?

NO YES

C

C8+

G

P G

14+

18+

CANADIAN FRENCH

VIEW E PROGRAMS?

NO YES

G

8 ANS+

13ANS+

16ANS+

18ANS+

VOL

CH

OK

VOL

Press to lock or unlock the rating.

Lock : Red

Unlock : Green

CH

Notes:

• When a rating is locked, all ratings below this rating are locked.

• When a rating is unlocked, all ratings above this rating are unlocked.

19

LOCK

CANADIAN ENGLISH RATINGS CHART

E

C

C8+

G

P G

14+

18+

Exempt - Exempt programming includes: news, sports, documentaries and other information programming, talk shows, music videos, and variety programming.

Programming intended for children under age 8. No offensive language, nudity or sexual content.

Programming generally considered acceptable for children 8 years and over. No profanity, nudity or sexual content.

General programming, suitable for all audiences.

Parental Guidance suggested. Some material may not be suitable for children.

Programming contains themes or content which may not be suitable for viewers under the age of 14. Parents are strongly cautioned to exercise discretion in permitting viewing by pre-teens and early teens.

18+ years old. Programming restricted to adults. Contains constant violence or scenes of extreme violence.

CANADIAN FRENCH RATINGS CHART

E

G

8 ANS+

13ANS+

16ANS+

18ANS+

Exempt - Exempt programming.

General - Programming intended for audience of all ages. Contains no violence, or the violence content is minimal or is depicted appropriately.

8+ General - Not recommended for young children. Programming intended for a broad audience but contains light or occasional violence. Adult supervision recommended.

Programming may not be suitable for children under the age of 13 - Contains either a few violent scenes or one or more sufficiently violent scenes to affect them. Adult supervision strongly suggested.

Programming may not be suitable for children under the age of 16 - Contains frequent scenes of violence or intense violence.

Programming restricted to adults. Contains constant violence or scenes of extreme violence.

20

CLOSED CAPTION

This unit has a built in decoder that provides a visual depiction of the audio portion of a television program in the form of written words across the screen (white or colored letters on a black background). It allows you to read the dialogue of a television program or other information.

Notes:

• This feature is available only with the 480i input signal and with programs that include closed captions.

• The closed caption is not displayed when you set the aspect to “ZOOM” (see page 26).

1

Press the MENU button to display the MENU screen and select SET UP.

VOL

CH

O K

VOL

CH

Press to select CLOSED CAPTION.

P r e s s t o d i s p l a y t h e C L O S E D

CAPTION screen.

MENU

ADJUST SET UP

LANGUAGE

PROGRAM CH

LOCK

CLOSED CAPTION

INPUT LABEL

OTHER ADJUST

2

Press to select OFF, C1 or C2.

CLOSED CAPTION

MODE OFF

OFF (NO) : Recommended mode when Closed Caption is not being used.

C1 : For video related information that can be displayed (up to 4 lines of script strategically placed on

C2 the television screen so that it does not obstruct relevant parts of the picture).

: Another mode used for video related information.

INPUT LABEL

You can change the video input labels displayed on the screen to match the connected device (VCR, DVD player, etc.).

1

Press the MENU button to display the MENU screen and select SET UP.

Press to select INPUT LABEL.

Press to display the INPUT LABEL screen.

VOL

CH

O K

VOL

CH

Press to select the video input.

2

VOL

CH

O K

VOL

CH

Press to select the INPUT LABEL.

(COMPONENT1 / COMPONENT2 / HDMI /

VIDEO1 / VIDEO2 / VIDEO3 / VCR, LD,

GAME, DVD, DTV, [BLANK] and SKIP∗)

Select to skip unused video input when pressing TV/VIDEO button.

MENU

ADJUST SET UP

LANGUAGE

PROGRAM CH

LOCK

CLOSED CAPTION

INPUT LABEL

OTHER ADJUST

INPUT LABEL

COMPONENT1

COMPONENT1

COMPONENT2

HDMI

VIDEO1

VIDEO2

VIDEO3

COMPONENT2

HDMI

GAME

DVD

VIDEO3

21

OTHER ADJUST

1

Press the MENU button to display the MENU screen and select SET UP.

Press to select OTHER ADJUST.

VOL

CH

O K

VOL

CH

Press to display the OTHER ADJUST screen.

2

Press to select the item.

MENU

ADJUST SET UP

LANGUAGE

PROGRAM CH

LOCK

CLOSED CAPTION

INPUT LABEL

OTHER ADJUST

VOL

CH

OK

VOL

CH

Press to select the setting.

OTHER ADJUST PAGE 1/2

VIDEO NR

OFF ON

MPEG NR

OFF ON

3D Y/C FILTER

OFF ON

COLOR MATRIX

SD HD

VIDEO NR

Reduce video noise in the picture.

OFF ON

MPEG NR

Noise unique to DVD, STB, etc. will be reduced.

OFF ON

3D Y/C FILTER

Minimizes noise and cross color in the picture. Not available for

COMPONENT VIDEO INPUT.

OFF ON

COLOR MATRIX

Displays input signals (480p signals) in natural color. Automatically adjusts color parameters for HD (high definition) and SD (standard definition).

SD HD

Note:

COLOR MATRIX is effective only when 480p signal is input in COMPONENT input mode.

In any other case the indication of COLOR MATRIX becomes blue, and changing between SD and HD is not possible.

POWER SAVE

Reduces screen brightness to lower power consumption. Eye-friendly for viewing in a dark room.

STANDARD SAVING

BLACK LEVEL

Select DARK or LIGHT depending on the picture conditions, when selecting the video or component input.

The dark scene becomes easy to see.

DARK LIGHT

Note:

Fixed to DARK when selecting TV mode.

OTHER ADJUST PAGE 2/2

POWER SAVE

STANDARD

BLACK LEVEL

DARK

22

PICTURE ADJUST

1

Press the MENU button to display the MENU screen and select ADJUST.

Press to select PICTURE ADJUST.

VOL

CH

O K

VOL

CH

Press to display the PICTURE ADJUST screen.

MENU

ADJUST SET UP


PICTURE ADJUST

POSITION / SIZE

AUDIO

AUDIO ADJUST

2

VOL

CH

O K

VOL

CH

Press to select the sub-menu.

Adjust the setting while watching the picture behind the menu.

Press to activate the setting if necessary.

NORMAL / NORMALIZE

Select “NORMALIZE” and press “OK” to return each PIC MODE to the factory default setting.

Notes:

• “NORMAL” means the PIC MODE is at the factory default setting. “NORMAL” changes to “NORMALIZE” when you change the setting of BACK LIGHT,

PICTURE, BRIGHTNESS, COLOR, TINT, SHARPNESS, AI PICTURE,

COLOR TEMP or COLOR ENHANCE.

• You can normalize each PIC MODE separately.

PICTURE ADJUST PAGE 1/2

NORMAL

PIC MODE

BACK LIGHT


BRIGHTNESS

COLOR

TINT

STANDARD

+ 20

+ 20

0

0

0

SHARPNESS

AI PICTURE

0

PICTURE ADJUST PAGE 2/2

COLOR TEMP

NORMAL

COLOR ENHANCE

PIC MODE

MODE

STANDARD

CINEMA

VIVID

AUTO

Function

Displays a standard image for average lighting conditions.

Ideal for watching movies in a dark room.

Displays a clear image with high contrast in a bright room.

Automatically senses the ambient light conditions and adjusts the brightness and gradation accordingly, to optimize contrast.

PIC MODE is stored for TV, VIDEO1, VIDEO2, VIDEO3, COMPONENT1, COMPONENT2 and HDMI individually.

BACK LIGHT, PICTURE, BRIGHTNESS, COLOR, TINT, SHARPNESS, AI PICTURE, COLOR TEMP, COLOR ENHANCE

You can change the level of each Item (BACK LIGHT, PICTURE, BRIGHTNESS, COLOR, TINT,

SHARPNESS, AI PICTURE, COLOR TEMP and COLOR ENHANCE) for each MODE (STANDARD,

CINEMA, VIVID and AUTO) according to your personal preference.

Sub-menu

BACK LIGHT


BRIGHTNESS

COLOR

TINT

SHARPNESS

AI PICTURE

COLOR TEMP

(Color temperature)

Function

Luminance of the back light is adjusted.

Selects proper contrast and density for the room.

Adjusts for easier viewing of dark pictures such as night scenes.

Adjusts the level of color.

Adjusts for flesh tone color (more green or more red).

Adjusts the degree of sharpness.

Controls dark areas without affecting the black level or brightness in the overall picture.

Increases or decreases WARM (red) and COOL (blue) colors to suit personal preference.

NORMAL

COOL WARM

COLOR ENHANCE

Enables automatic vivid color adjustment.

23

POSITION/SIZE

During “ZOOM” mode finely adjust the vertical position and the size of the screen.

1

Press the MENU button to display the MENU screen and select ADJUST.

Press to select POSITION/SIZE.

CH

O K

VOL VOL

CH

MENU

ADJUST SET UP


PICTURE ADJUST

POSITION / SIZE

AUDIO

AUDIO ADJUST

Press to display POSITION/SIZE screen.

P O S I T I O N / S I Z E

NORMAL

NORMALIZE

SIZE

15

RETURN

P O S I T I O N

2

For “ZOOM” mode (see page 26)

• POSITION

VOL

CH

O K

VOL

CH

Press to move the picture up or down.

• Press OK to return to the factory default setting.

ZOOM

• SIZE

Press to shrink the picture vertically

[by 15 steps: 15 (original setting) down to 1].

• Press OK to return to the factory default setting.

ZOOM

24

AUDIO ADJUST

1

Press the MENU button to display the MENU screen and select ADJUST.

Press to select AUDIO ADJUST.

CH

O K

VOL VOL

CH

MENU

ADJUST SET UP


PICTURE ADJUST

POSITION / SIZE

AUDIO

AUDIO ADJUST

2

VOL

CH

O K

VOL

CH

Press to display the AUDIO ADJUST screen.

Press to select the sub-menu.

Select the setting while listening to the sound.

Press to activate the setting if necessary.

NORMAL / NORMALIZE

Select “NORMALIZE” and press “OK” to return each MODE to the factory default setting.

Notes:

• “NORMAL” means the MODE is at the factory default setting. “NORMAL” changes to “NORMALIZE” when you change the setting of BASS, TREBLE,

BALANCE, AI SOUND, SURROUND or AUDIO LEVELER.

• You can normalize each MODE separately.

MODE

STANDARD

DYNAMIC

SPEECH

Emits the original sound.

Gives contrast to sound.

Make voice sound clear.

AUDIO ADJUST PAGE 1/2

NORMAL

MODE

BASS

TREBLE

BALANCE

STANDARD

– 2

+ 6

0

AI SOUND

SURROUND

OFF ON

OFF ON

STEREO SAP MONO

HDMI IN

DIGITAL

AUDIO ADJUST

PAGE 2/2

NORMAL

AUDIO LEVELER

0

B A S S , T R E B L E , B A L A N C E , A I S O U N D ,

SURROUND

You can change the level of each sub-menu (BASS,

TREBLE, BALANCE, AI SOUND, SURROUND) for each MODE (STANDARD, DYNAMIC and SPEECH) according to your personal preference.

BASS

TREBLE

BALANCE

AI SOUND

SURROUND

Adjusts low frequencies.

Adjusts high frequencies.

Adjusts left and right volume.

Automatically adjusts sound quality when ON is selected.

To enjoy a concert hall effect, select ON when stereo is playing.

STEREO / SAP / MONO

• Red display

White display

: With signal

: No signal

White display (All modes) : MONO

• To change the mode using SAP button (see page 13).

HDMI IN

When using HDMI connection (see page 10), this feature will let you switch between Analog Input and Digital Input.

STEREO

SAP

MONO

AUTO

DIGITAL

ANALOG

Two channel Audio reception.

Second Audio Programming

( typically used for bilingual audio ).

Select when stereo signal is weak.

Automatically selects Analog /

Digital signal.

Digital Input only.

Analog Input only.

AUDIO LEVELER

You can adjust the volume level for each of the input modes (TV, VIDEO1, VIDEO2, VIDEO3, COMPONENT1,

COMPONENT2 and HDMI).

25

ASPECT Controls

This feature allows you to enjoy viewing the picture at its maximum size, including wide screen cinema format picture.

R-TUNE

REW

0

PLAY

PROG

FF

PAUSE STOP

ASPECT

TV/VCR

REC

VCR/DBS CH

ASPECT

TV/VCR

Each time you press the button:

JUST ZOOM FULL NORMAL

Notes:

• This feature does not work for 1080i and 720p input signals.

• The aspect setting is stored separately for TV, VIDEO1, VIDEO2,

VIDEO3, COMPONENT1, COMPONENT2 and HDMI.

T V

Mode

NORMAL

JUST

ZOOM


NORMAL

4

3

4

JUST

3

4

3

ZOOM

4

FULL

3

FULL

26

Explanation

NORMAL mode will display a 4:3 picture at its standard 4:3 size without any stretching.

JUST mode will display a 4:3 picture at its maximum size but with aspect correction applied to the sides of the screen so that elongation is only apparent at the left and right edges of the screen. The size of the picture will depend on the original signal.

ZOOM mode magnifies the central section of the picture.

FULL will display the picture at its maximum size but with slight elongation.

Operating peripheral equipment using the remote control

Programming the remote control code

You can operate other manufacturers’ components using this TV’s remote control.

Preparations:

• Connect the plug of the external component to the wall outlet.

• Make sure the component is turned off.

SAP

POWER

VCR

DBS/CBL

DVD

TV

CH

O K

VOL VOL

CH

MENU

RETURN

EXIT

TV/VIDEO RECALL MUTE GUIDE

1 2 3

4 5 6

7

R-TUNE

8

0

REW

PLAY

9

SLEEP

PROG

FF

PAUSE STOP

ASPECT

TV/VCR

REC

VCR/DBS CH

1

2

POWER

+

VCR

VOL

CH

O K

VOL

CH

Press and hold POWER and

OK together, for at least 5

seconds.

• The mode selection buttons flash, then release POWER and OK.

DBS/CBL

DVD

Select the type of the component.

• The selected button lights and all others go out.

TV

3

1

4

7

2

5

8

0

3

6

9

Enter the 3-digit infrared code

(see pages 28, 29).

• F a c t o r y d e f a u l t s e t t i n g :

Panasonic

• Press POWER to test the operation.

Notes:

• If the component does not operate with the remote control, repeat the procedure using another code. (Some brands have multiple codes).

• If an incorrect code is entered, or if the procedure takes longer than 30 seconds, the programming will fail.

T V

To find a code not listed in the index

After step 2 above,

Press to select the code.

• A potential code is loaded for the device selected in step 2.

• Press POWER button to test the operation.

• Repeat the steps until the component code is found. It may take many attempts before the correct code is found.

Press to store the code.

27

Operating peripheral equipment using the remote control

Infrared Code Index

The Universal Remote Control is capable of operating many component brands after entering a code. Some components may not operate because the codes are not available due to limited memory. The Universal

Remote Control does not control all features found in each model.

Write the code numbers from tables in this space. This will serve as a reference if you need to program your Remote Control.

VCR DBS CABLE

DVD

28

VCR

VCR

Codes for VCR

Brand

Admiral

Aiwa

335

332

Code

Akai 314, 315, 316, 329

Audio Dynamic 311, 339

Bell &Howell 305, 313

Broksonic

Canon

Citizen

320, 326

323, 325

306

Craig 305, 306, 329

Curtis Mathes 324, 345

Daewoo 301, 324, 343

DBX

Dimensia

Emerson

Fisher

Funai

GE

310, 311, 339

345

303, 319, 320, 325, 326, 343

305, 307, 308, 309, 313

320, 326, 334

324, 333, 345

Goldstar

Gradiente

Hitachi

306

334

300, 323, 345

Instant Replay 323, 324

Jensen 339

JVC 310, 311, 334, 339

Kenwood

LXI

Magnavox

Marantz

Marta

Memorex

MGA

Minolta

Mitsubishi

Multitech

NEC

Olympic

Optimus

306, 310, 311, 339

300, 305, 306, 307, 308, 309

323, 324, 331

310, 311, 339

306

309, 324

338, 340, 341, 347, 348

300, 345

338, 340, 341, 347, 348

304, 347

310, 311, 334, 339

323, 324

306, 321, 328, 335

Codes for Personal Video Recorders

Brand

Panasonic Replay 100

Philips Tivo 101

Sony Tivo 102

Code

Brand

Orion

Panasonic

J.C.Penney

Code

320, 326

321, 322, 323, 324

300, 305, 310, 311, 324,

339, 345

300, 311, 345 Pentax

Philco

Philips

Pioneer

Proscan

320, 323, 324, 326, 331, 343

323, 324, 331

323

300, 301, 302, 323, 324,

331, 333, 345, 346

321, 322, 323, 324 Quasar

Radio Shack 305, 309, 324, 333, 336, 340

RCA 300, 301, 302, 323, 324,

331, 333, 345, 346

Realistic

Samsung

Sansui

Sanyo

Scott

305, 309, 324, 336, 340

302, 304, 333

320, 326, 339, 352

305, 309, 313

301, 302, 304, 309, 320,

326, 338, 340, 347, 348

Sears

Sharp

Shintom

300, 305, 306, 307, 308

335, 336

317

Signature 2000 335

Singer 317

Sony 328, 329, 330

Sylvania

Tashiro

Tatung

Teac

Technics

Teknika

323, 324, 331

306

310, 311, 339

310, 311, 339

321, 322, 323, 324

324

Toshiba 301, 346

Vector Research

311

Wards 306, 309, 335, 336, 344

Yamaha

Zenith

305, 310, 311, 339

306, 344

DBS/CBL

Operating peripheral equipment using the remote control

Codes for Cable Box

Brand

ABC

Archer

Cableview

Citizen

Curtis

Diamond

Eagle

Eastern

GC Brand

Gemini

General

Instrument/

Jerrold

Hamlin

Hitachi

Macom

Magnavox

Memorex

Movietime

Oak

Panasonic

Philips

Pioneer

Pulsar

Code

124

125, 132

105, 132

105, 122

112, 113

124, 125, 132

129

134

105, 132

122

111, 119, 120, 121, 122,

123, 124, 125, 126, 127

112, 118, 140, 141, 142,

145

103, 124

103, 104, 105

133

130

105, 132

102, 137, 139

109, 110, 114

106, 107, 128, 129, 130

101, 116

105, 132

Brand

Puser

RCA

Realistic

Regal

Code

132

115

132

112, 118, 140, 141, 142,

145

Regency

Rembrandt

Samsung

134

105, 132, 137

105

Scientific Atlanta 111, 112, 113

Slmark 101, 105

Sprucer 105, 110

Stargate

Tel eview

Texscan

Tocom

Toshiba

Unika

Universal

Videoway

Viewstar

105, 132

101, 105

144

135

104

125, 132

122, 132

106

129, 130

Zenith 100, 117

Zenith /Drae 100

Satellite

DBS/CBL

DVD

Codes for DBS

Brand Code

Dish Network 105, 115, 116

Echo Star 105

(Echostar)

Express VU

G.E.

105, 115

106

108 G.I.

(General Instrument)

Gradiente 114

Hitachi 103, 111, 112

HNS (Hughes) 103

Codes for DVD

Brand

Denon

Ferguson

JVC

Mitsubishi

Nordmende

Panasonic

Philips

Pioneer

RCA

100

101

109

105

101

100

103

102

101

Code

Brand

Magnavox

Panasonic

Philips

Primestar

Proscan

RCA

Sony

Star Choice

Toshiba

Uniden

Code

101, 102

104

101, 102

108

106, 109, 110, 113

106, 109, 110, 113

107

103, 108

100

101, 102

Brand

Saba

Samsung

Sharp

Sony

Technics

Thomson

Toshiba

Yamaha

Zenith

101

110

108

104

100

101

103

100

107

Code

29

1

4

7 8

0

2

5

R-TUNE

3

6

9

SLEEP

PROG

REW

PLAY

FF

PAUSE

STOP

REC

ASPECT

TV/VCR

VCR/DBS CH

Operating peripheral equipment using the remote control

Mode Operational Key Chart

This chart defines which keys are operational after programming (if needed), while in the selected remote control mode : DTV, CABLE, DBS, VCR, DVD ...etc.

KEY NAME

POWER

SAP

MUTE

TV/VIDEO

O K

MENU

RECALL

RETURN

EXIT

GUIDE

TV MODE

POWER

SAP ON/OFF

MUTE

VCR MODE CABLE MODE DBS MODE DVD MODE (DVD)

POWER

-

TV MUTE

POWER

-

TV MUTE

POWER

STB AUDIO TRACK

STB MUTE

POWER

-

TV MUTE

TV INPUT SW

CHANNEL

UP/DOWN

ACTION

VOL + / -

MENU

DISPLAY

EXIT

TV INPUT SW TV INPUT SW TV INPUT SW TV INPUT SW

TV CHANNEL

UP/DOWN

CABLECHANNEL

UP/DOWN

STB NAVIGATION

UP/DOWN

NEXT/PREVIOUS

CHAPTER

TV ACTION ENTER STB ACTION -

TV VOLUME +/- CABLE VOL +/-

STB NAVIGATION

RIGHT/LEFT

TV VOLUME +/-

STB MENU -

ONSCREEN VCR

DISPLAY

-

-

STB EXIT

-

-

STB GUIDE -

Select Channel Select Channel Select Channel Select Channel -

PREVIOUS CHAN

OR VIDEO MODE

SLEEP

-

-

-

-

-

VCR REW/FF

PLAY

PAUSE

STOP

CABLE PREVIOUS STB PREVIOUS

-

-

STB PROGRAM/

DASH

-

-

-

-

SKIP SEARCH

<<REW/>>FF

PLAY

-

-

-

-

PAUSE

STOP

VCR RECORD -

ASPECT

-

TV/VCR SWITCH

VCR CHANNEL

UP/DOWN

-

-

STB ASPECT OPEN/CLOSE

PAGE UP/DOWN SLOW +/-

30

Manuel de instrucciones [Resumen]

Estimado cliente de Panasonic

Bienvenido a la familia de clientes de Panasonic.

Esperamos sinceramente que disfrute durante muchos años de su nuevo televisor LCD.

Para obtener el máximo beneficio de su aparato, lea estas instrucciones antes de hacer cualquier ajuste, y guárdelas para poder utilizarlas como referencia en el futuro.

Guarde también el recibo de su compra, y anote el número del modelo y el número de serie de su aparato en el espacio provisto en la cubierta posterior de estas instrucciones.

Instalación

Ajuste el soporte con el ángulo deseado

El ángulo del soporte se puede girar 20

° hacia la derecha/izquierda.

R-STANDBY/PO

WER ON

POWER

Modo de colgar el televisor LCD en la pared

Este televisor LCD solamente puede ser utilizado con el accesorio opcional siguiente. Si se utiliza con cualquier otro tipo de accesorio opcional podrá producir inestabilidad con la consiguiente posibilidad de ocasionar heridas.

Soporte para colgar en pared ........................................... TY-WK32LX20W

Asegúrese siempre de pedir a un técnico cualificado que le haga la instalación.

Instalación de las pilas del mando a distancia

Se necesitan dos pilas AA.

1. Abra la cubierta de las pilas. 2. Instale las pilas. Tenga en cuenta las polaridades (+ y -) al instalar las pilas.

3. Vuelva a colocar la cubierta.

Dos pilas tamaño AA

Precauciones relacionadas con la utilización de las pilas

La instalación incorrecta de las pilas puede causar fugas en las mismas que podrían estropear el transmisor de mando a distancia.

Las pilas deben desecharse por medios ecológicos.

1. Utilice siempre pilas nuevas cuando reemplace las viejas.

2. No intente cargar, cortocircuitar, desarmar, calentar o quemar las pilas usadas.

3. El cambio de las pilas resulta necesario cuando el mando a distancia funciona esporádicamente o no puede controlar esta unidad.

31

Conexión

Nota:

Con este aparato no se suministran cables ni conectores.

Conexión de antena

Para recibir correctamente los canales de VHF/UHF se requiere una antena externa. Para obtener la mejor recepción se recomienda utilizar una antena para exteriores. El modo de antena debe ajustarse a TV

(consulte la página 40, Selección del mode).

La parte posterior del televisor

ANT

Terminal de antena

Conector de antena tipo F

Antena de VHF Antena de UHF

Cable coaxial de 75 ohmios

Mezclador

Conexión del receptor de TV por cable

Para recibir los canales de televisión por cable (01 - 125) conecte el cable suministrado por su compañía de televisión por cable. El modo de antena debe ajustarse a CABLE (consulte la página 40, Selección del mode).

• Ciertos sistemas de televisión por cable neutralizan algunos canales para reducir interferencias o tienen canales especiales (codificados). Para recibir correctamente estos canales se necesita un sintonizador de conversión de televisión por cable. Póngase en contacto con su compañía de televisión por cable para conocer los requerimientos de compatibilidad.

• Ponga el canal del televisor en CH3 o CH4 utilice esta conexión.

Receptor de TV por cable

La parte posterior del televisor

ANT

C a b l e e n t r a n t e d e 7 5 o h m i o s p r o c e d e n t e compañía de televisión por cable

OUTPUT INPUT Receptor de TV por cable

Receptor de TV por cable y Videograbadora

La parte posterior del televisor

OUTPUT INPUT

Cable entrante de 75 ohmios procedente compañía de televisión por cable

Receptor de TV por cable

ANT

ANT OUTPUT ANT INPUT Videograbadora

32

Conexión

Conexión de otro equipo

Terminales de entrada traseros

La parte posterior del televisor

COMPONENT VIDEO OUT

Y

Reproductor de DVD

Caja sobre el Equipo P

B

P

R

L

Audio

OUT

R

Videograbadora

Super-VHS

Cable de vídeo componente

Cable de audio

Cable de s-vídeo

VIDEOCAMARA

S-Video

OUT

Video

OUT

CONSOLA DE

VIDEOJUEGOS

R

Audio

OUT

L

Cable de vídeo

Cable de audio

AUDIO

Y

VIDEO

P

B

P

R

L

S-VIDEO

VIDEO

L

R

1

COMPONENT

INPUT

2

VIDEO INPUT 1 INPUT 2

R

TO AUDIO

AMP

PROG OUT

Notas:

• Al conectar cables de vídeo se da prioridad al cable de S-vídeo cuando están conectados el terminal de entrada S-VIDEO y el terminal de entrada VIDEO.

• Consulte a los fabricantes de los videojuegos acerca de los cables necesarios para conectar la consola de videojuegos.

Terminales de salida traseros

El panel posterior del televisor

L

Audio

IN

R

Cable de audio

Y

VIDEO

P

B

P

R

S-VIDEO

VIDEO

L

AUDIO

L

R

1

COMPONENT

INPUT

2

VIDEO INPUT 1 INPUT 2

R

TO AUDIO

AMP

PROG OUT

33

Conexión

Conexión HDMI

HDMI∗ 1 (interfaz multimedia de alta definición) es la primera interfaz A/V para electrónica de consumidor completamente digital que soporta todos los estándares no comprimidos. El terminal HDMI soporta información de video y audio. Al terminal de entrada HDMI∗ 1 , usted puede conectar un dispositivo electrónico de consumidor que cumpla con la norma EIA/CEA-861/861B∗

2

como, por ejemplo, un decodificador o un reproductor DVD con terminales de salida HDMI o DVI.

Introduzca en este terminal una fuente de imagen de alta definición con protección digital de copia con alto ancho de banda (HDCP), para poder mostrar las imágenes de alta definición en este televisor en forma digital.

• Un cable de sonido debe ser conectado sólo cuando se usa un adaptador de conversión HDMI para conectarse con el cable DVI.

• Si el dispositivo externo tiene una salida DVI solamente, utilice un cable adaptador DVI a HDMI∗

3

para conectar al terminal HDMI.

• Conecte los cables de audio a los terminales AUDIO IN para HDMI.

• Seleccione el ajuste de audio en HDMI In (vea la página 25).

Y

L

R

VIDEO P

B

S-VIDEO

VIDEO

Ejemplo de fuente de la señal de entrada HDMI

Reproductor de DVD

HDMI OUT

R

AUDIO

OUT

L

P

R

HDMI AUDIO IN

R

AUDIO

L

Caja sobre el Equipo

Cable de audio

HDMI IN

Cable HDMI

59.94/60

59.94/60

59.94/60

59.94/60

59.94/60

AV IN

Señal VIDEO compatible

720p

1080i

480p

480i

N

°

de puntos (H

× V)

1,280

× 720p

1,920

× 1,080i

720

× 480p

640

× 480p

720

× 480i

Frecuencia de exploración vertical (Hz)

Notas:

• Este terminal de entrada no es para utilización con ordenadores.

• Las señales 720p/1080i serán reformateadas para poderlas ver en la pantalla LCD.

Frecuencia de muestreo compatible de las señales AUDIO a través de HDMI (L.PCM): 48 kHz / 44,1 kHz / 32 kHz

Notas:

• Este conector HDMI es del Tipo A.

• Si conecta un equipo sin terminal de salida digital, conecte al terminal de entrada COMPONENT VIDEO, S

VIDEO o VIDEO del televisor para disfrutar de la señal analógica.

• El terminal HDMI IN sólo puede utilizarse con señales de imagen 720p, 1080i, 480i o 480p. Ajuste la salida del terminal DIGITAL OUT de la caja digital sobre el aparato a 720p, 1080i, 480i o 480p. Para más detalles, consulte el manual de instrucciones de la caja digital sobre el aparato. Si no aparecen imágenes porque su caja digital sobre el aparato no tiene un ajuste de salida de terminal DIGITAL OUT, utilice la entrada de video componente (o la entrada S Video o la entrada Video). En este caso la imagen aparecerá como una señal analógica.

1. HDMI, el símbolo HDMI y la Interface de Multimedios de Alta Definición son marcas comerciales o marcas registradas de HDMI Licensing LLC.

2. Los perfiles EIA/CEA-861/861B cumplen con los perfiles para transmisión de video digital sin comprimir/ incluyendo la protección del contenido digital de alto ancho de banda.

3. Cable de conversión HDMI-DVI (TY-SCH03DH): disponible en el sitio Web de Panasonic (www.panasonic.com).

[para USA]

Consulte a su concesionario de productos electrónicos para conocer más detalles.

34

Conexión

Conexiones del panel frontal

Ejemplo de fuente de la señal de entrada

CÁMARA DE VÍDEO

CONSOLA DE JUEGOS

Los cascos auriculares/ auriculares

(no suministrados)

L

AUDIO

OUT

R

VIDEO

OUT

S-VIDEO

OUT

Clavija M3

R-STANDBY/POWER ON POWER

HPJ S-VIDEO VIDEO

INPUT 3

L-AUDIO-R

Cable de vídeo S

Cable de vídeo

Cable de audio

Notas:

• Al conectar cables de vídeo se da prioridad al cable de S-vídeo cuando están conectados el terminal de entrada S-VIDEO y el terminal de entrada VIDEO.

• Consulte a los fabricantes de los videojuegos acerca de los cables necesarios para conectar la consola de videojuegos.

35

Conexión / desconexión de la alimentación

Preparación

Conecte el enchufe al tomacorriente.

La parte posterior del televisor

Nota:

El televisor consumirá algo de corriente siempre que el enchufe del cable de alimentación esté introducido en la toma de corriente.

Interruptor

POWER principal

R-STANDBY/POWER ON POWER

PULL

CA 120 V, 60 Hz

Cable de alimentación

En el aparato principal

POWER

Púlselo para conectar / desconectar la alimentación principal del televisor.

• Indicador de la alimentación

Conectada : Verde

Desconectada : Apagado

En el mando a distancia

R-STANDBY G-POWER ON

POWER

Sensor de mando a distancia

Indicador de la alimentación

Sensor C.A.T.S.

El LCD C.A.T.S. (Contrast Automatic Tracking System =

Sistema de seguimiento automático del contraste) detecta automáticamente las condiciones de la luz ambiental y ajusta el brillo y la gradación en conformidad, para optimizar el contraste. C.A.T.S. estará activado cuando Modo de Imagen esté ajustado a Auto.

Púlselo para encender / apagar el televisor.

• Indicador de la alimentación

Encendido : Verde

Apagado (En espera) : Rojo

• Esto no funciona cuando la alimentación principal está desconectada (apagado) (consulte arriba).

Nota:

La pantalla de abajo se visualiza durante unos momentos cuando se enciende el televisor.

ACERCAMIENTO Canal 6

ESTEREO

SPA

MONO

POWER

SAP

VCR

DBS/CBL

DVD

TV

Nota:

Seleccione el idioma de menú antes de utilizar el televisor (consulte la página 38, 39, Idioma).

36

Controles básicos

<

Controles del lado superior

>

POWER

Botón SAP

Selecciona el modo de audio.

ESTEREO SPA MONO

R-STANDBY G-POWER ON

TV/VIDEO

– VOL +

CH

Botón TV/VIDEO

Subida/bajada del volumen

Interruptor POWER principal

Púlselo para conectar/desconectar la alimentación principal del televisor (consulte la página 36)

Sensor de mando a distancia

Dentro de unos 7 metros enfrente del televisor.

Canal superior/inferior

Botón de la alimentación

Púlselo para encender o apagar el televisor.

Nota:

El cable de la alimentación del televisor deberá enchufarse primero al tomacorriente, y el televisor encenderse luego con el interruptor

POWER (modo de espera).

Botones de selección directa de números de programas

POWER

TV

MENU

VCR

VOL

CH

O K

CH

DBS/CBL

VOL

SAP

DV

D

RETURN

EXIT

R-TUNE

Botón R-TUNE

Cambia al canal o modo de vídeo anterior.

No resulta efectivo bajo las condiciones siguientes:

1. Justo después de encender el

televisor.

2. Después de cambiar TV /

CATV(MODO en Prog.

Canales).

3. Justo después de la ejecución de ACP (programación automática decanales).

4. Cuando se selecciona el mismo canalque el canal actual.

TV/VIDEO RECALL

1

4

7

R-TUNE

REW

PAUSE

ASPECT

TV/VCR

2

5

8

0

PLAY

STOP

MUTE

3

6

9

SLEEP

PROG

VCR/DBS CH

GUIDE

FF

REC

SLEEP

PROG

Botón PROG raya / Botón

Temporizador de cancelado

Programa números de canales para DTV y DBS.

0 30 60 90

ASPECT

TV/VCR

Botón ASPECT

Cambia el tamaño de la pantalla.

T V

JUSTIFICADO ACERCAMIENTO COMPLETO NORMAL

Botones de selección de modo

Satélite de emisión digital para el control remoto

Selección del modo de televisión por cable para el control remoto

Selección del modo de videograbadora para el control remoto

Selección del modo de disco de vídeo digital para el control remoto

DBS/CBL

VCR

TV

DV

D

Selección del modo de televisor para el control remoto

Cambia al siguiente canal superior

Mueve el cursor hacia arriba durante el modo del menú.

Reduce el volumen

Mueve el cursor hacia la izquierda durante el modo del menú.

CH

O K

Aumenta el volumen

Mueve el cursor hacia la derecha durante el modo del menú.

VOL VOL

CH

RETURN

EXIT MENU

Visualiza el menú

P r e s i o n e p a r a acceder a los menús

DTV, DBS o DVD.

Presione para v o l v e r M E N U anterior o salir de

MENU.

Cambia al siguiente canal inferior

Mueve el cursor hacia abajo durante el modo del menú.

Púlselo para visualizar el menú del modo de entrada. Mientras se visualiza el menú, púlselo de nuevo para cambiar el modo de entrada.

El modo de entrada cambia cada vez que se pulsa este botón.

Pulse este botón para silenciar el sonido, y púlselo de nuevo para cancelar el silenciamiento.

TV/VIDEO RECALL MUTE GUIDE

Botón GUIDE para DBS

Púlselo para visualizar el estado actual del sistema como, por ejemplo, el modo de aspecto, el número del canal, el modo estéreo,

TV/VIDEO y el temporizador de apagado.

Funcionamiento de otro dispositivo

REW FF

Aparato

Videograbadora

CABLE/DBS

DVD

Rebobinado / avance rápido de videograbadora

-

Búsqueda con salto en rebobinado / avance rápido

REC

Aparato

Videograbadora

CABLE/DBS

DVD

Grabación de videograbadora

-

-

PLAY

Reproducción

-

Reproducción

ASPECT

TV/VCR

PAUSE

Pausa

-

Pausa

VCR/DBS CH

Conmutación de televisor / videograbadora

ASPECTO de STB

Subida / bajada de canalpara videograbadora

UP / DOWN de Página

Abertura/cierre Lentamente / + / --

STOP

Parada

-

Parada

37

Operaciones con menús

1

Púlselo para visualizar la pantalla MENU.

MENU

Ajuste Configu.

Imagen

Ajuste Imagen

POS / TAMAÑO

Sonido

Ajuste Sonido

POWER

VCR

SAP

DBS/CBLL

DVD

TV

VOL

38

RETURN

EXIT

TV/VIDEO

Cambia el modo de entrada.

• Pulse para visualizar el menú de selección de entrada.

1 TV

2 Componente 1

3 Componente 2

4 HDMI

5 Video 1

6 Video 2

7 Video 3

• Pulse la tecla de número correspondiente en el mando a distancia para seleccionar la entrada de su elección.

Nota:

La entrada de vídeo t a m b i é n s e p u e d e seleccionar pulsando primero , luego los b o t o n e s C H finalmente la tecla “OK”.

y

1

4

7

RECALL MUTE GUIDE

2

5

8

3

6

9

Cuadro de instrucciones de ayuda en pantalla

Cuando se visualiza un menú en el televisor aparece un cuadro de ayuda en la pantalla. Este cuadro de ayuda indica qué teclas del mando a distancia se utilizan para navegar por el menú mostrado.

Idioma

Idioma

ESPAÑOL

CAMBIE

VUELVE

2

MENU

Ajuste Configu.

Imagen

Ajuste Imagen

POS / TAMAÑO

Sonido

Ajuste Sonido o

MENU

Ajuste Configu.

Idioma

Prog. Canales

Bloqueo

Subtítulos

Ponga Títulos

Otro Ajuste

MENU

Ajuste Configu.

Imagen

Ajuste Imagen

POS / TAMAÑO

Sonido

Ajuste Sonido

MENU

Ajuste Configu.

Idioma

Prog. Canales

Bloqueo

Subtítulos

Ponga Títulos

Otro Ajuste

Operaciones con menús

VOL

CH

OK

VOL

CH

Púlselo para seleccionar la pantalla MENU (Ajuste o Configu.).

Púlselo para seleccionar la función de menú secundario.

Púlselo para visualizar la pantalla de menú secundario.

Para volver a la pantalla anterior :

RETURN

EXIT

Para salir de la pantalla MENU :

MENU

Con esto se retorna a la visión normal.

Ajuste Imagen PAGINA 1/2

Normal

Imagen

Luz de Atras

CONTRASTE

Normal

+ 20

+ 20

0

BRILLO

COLOR

TINTE

0

0

NITIDEZ

Imagen IA

0

No Si

POS / TAMAÑO

Normal

N o r m a l i z a r

TAMAÑO

15

VUELVE

P o s i c i o n

Ajuste Sonido PAGINA 1/2

Normal

Sonido

BAJOS

ALTOS

Normal

– 2

BALANCE

SONIDO IA

+ 6

0

No Si

SON. ENVOL

No Si

ESTEREO SPA MONO

Entr. HDMI

Digital

Idioma

Idioma ESPAÑOL

Seleccione el idioma del menú.

Prog. Canales

MODO TV CABLE

PROGRAMA AUTO

PROGRAMA MANUAL

Bloqueo

Programas:

Películas de EEUU

Activado

Modificar

INGRESAR CLAVE

No Si

Subtítulos

MODO

C1

No

C2

No

Ponga Títulos

Componente1

Componente2

HDMI

Video1

Video2

Video3

Componente1

Componente2

HDMI

Video1

Video2

Video3

Otro Ajuste PAGINA 1/2

REDUC DE RUIDO

No Si

REDUC DE RUIDO MPEG

No Si

3D Y/C Filtro

No Si

Matriz Color

SD HD

39

Operaciones con menús

1

Púlselo para visualizar la pantalla MENU.

MENU

Ajuste Configu.

Imagen

Ajuste Imagen

POS / TAMAÑO

Sonido

Ajuste Sonido

POWER

VCR

SAP

DBS/CBLL

DVD

TV

VOL

38

RETURN

EXIT

TV/VIDEO

Cambia el modo de entrada.

• Pulse para visualizar el menú de selección de entrada.

1 TV

2 Componente 1

3 Componente 2

4 HDMI

5 Video 1

6 Video 2

7 Video 3

• Pulse la tecla de número correspondiente en el mando a distancia para seleccionar la entrada de su elección.

Nota:

La entrada de vídeo t a m b i é n s e p u e d e seleccionar pulsando primero , luego los b o t o n e s C H finalmente la tecla “OK”.

y

1

4

7

RECALL MUTE GUIDE

2

5

8

3

6

9

Cuadro de instrucciones de ayuda en pantalla

Cuando se visualiza un menú en el televisor aparece un cuadro de ayuda en la pantalla. Este cuadro de ayuda indica qué teclas del mando a distancia se utilizan para navegar por el menú mostrado.

Idioma

Idioma

ESPAÑOL

CAMBIE

VUELVE

2

MENU

Ajuste Configu.

Imagen

Ajuste Imagen

POS / TAMAÑO

Sonido

Ajuste Sonido o

MENU

Ajuste Configu.

Idioma

Prog. Canales

Bloqueo

Subtítulos

Ponga Títulos

Otro Ajuste

MENU

Ajuste Configu.

Imagen

Ajuste Imagen

POS / TAMAÑO

Sonido

Ajuste Sonido

MENU

Ajuste Configu.

Idioma

Prog. Canales

Bloqueo

Subtítulos

Ponga Títulos

Otro Ajuste

Operaciones con menús

VOL

CH

OK

VOL

CH

Púlselo para seleccionar la pantalla MENU (Ajuste o Configu.).

Púlselo para seleccionar la función de menú secundario.

Púlselo para visualizar la pantalla de menú secundario.

Para volver a la pantalla anterior :

RETURN

EXIT

Para salir de la pantalla MENU :

MENU

Con esto se retorna a la visión normal.

Ajuste Imagen PAGINA 1/2

Normal

Imagen

Luz de Atras

CONTRASTE

Normal

+ 20

+ 20

0

BRILLO

COLOR

TINTE

0

0

NITIDEZ

Imagen IA

0

No Si

POS / TAMAÑO

Normal

N o r m a l i z a r

TAMAÑO

15

VUELVE

P o s i c i o n

Ajuste Sonido PAGINA 1/2

Normal

Sonido

BAJOS

ALTOS

Normal

– 2

BALANCE

SONIDO IA

+ 6

0

No Si

SON. ENVOL

No Si

ESTEREO SPA MONO

Entr. HDMI

Digital

Idioma

Idioma ESPAÑOL

Seleccione el idioma del menú.

Prog. Canales

MODO TV CABLE

PROGRAMA AUTO

PROGRAMA MANUAL

Bloqueo

Programas:

Películas de EEUU

Activado

Modificar

INGRESAR CLAVE

No Si

Subtítulos

MODO

C1

No

C2

No

Ponga Títulos

Componente1

Componente2

HDMI

Video1

Video2

Video3

Componente1

Componente2

HDMI

Video1

Video2

Video3

Otro Ajuste PAGINA 1/2

REDUC DE RUIDO

No Si

REDUC DE RUIDO MPEG

No Si

3D Y/C Filtro

No Si

Matriz Color

SD HD

39

Sintonización de canales

1

Pulse el botón TV/VIDEO para visualizar el canal de TV.

2

Pulse el botón MENU para visualizar la pantanlla MENU y seleccione

Configu.

Pulse para seleccionar Prog.

VOL

CH

O K

VOL

Canales.

Pulse para visualizar la pantalla

Prog. Canales.

CH

MENU

Ajuste Configu.

Idioma

Prog. Canales

Bloqueo

Subtítulos

Ponga Títulos

Otro Ajuste

Selección del mode

Pulse para seleccionar MODO.

3

Pulse para seleccionar TV o CABLE.

CH

O K

VOL VOL

CH

Prog. Canales

MODO TV CABLE

PROGRAMA AUTO

PROGRAMA MANUAL

Programación automática de canales

Explora y guarda automáticamente todos los canales de TV.

Programación automática de canales

Añada o borre un canal manualmente.

4

VOL

CH

O K

VOL

CH

Pulse para seleccionar

PROGRAMA AUTO.

Púlselo para visualizar la pantalla PROGRAMA

AUTO.

PROGRAMA AUTO

Activar

“PROGRAMA AUTO?”

Si No

4

VOL

CH

O K

VOL

CH

Pulse para seleccionar

PROGRAMA MANUAL.

Pulse para visualizar la pantalla PROGRAMA

MANUAL.

Prog. Canales

MODO

TV CABLE

PROGRAMA AUTO

PROGRAMA MANUAL

5

Pulse para seleccionar

Si.

Púlselo para iniciar

PROGRAMA AUTO.

PROGRAMA AUTO

En Programa Auto

Canal

58

5

VOL

CH

O K

VOL

CH

Pulse para seleccionar canal.

• También puede utilizar los botones numerados.

PROGRAMA MANUAL

Entre Canal

121

MENU

PARAR

Los canales avanzarán automáticamente hasta que todos ellos hayan sido explorados. Los números de los canales con señal de vídeo recibida se guardarán en la memoria de canales.

Notas:

• Cuando se pulse cualquier botón durante PROGRAMA

AUTO, el televisor volverá a mostrar la imagen normal.

(Los canales encontrados hasta ese punto se añaden.)

• Después de terminar PROGRAMA AUTO se visualizará el número del canal más bajo añadido.

• Cuando no hay canal que puedan recibirse, se visualizará el canal 69 (para TV) o el canal 125

(para TV por cable).

6

VOL

CH

O K

VOL

CH

Púlselo para añadir el canal a la memoria de canales

(el número del canal se pone de color azul).

Púlselo para borrar el canal de la memoria de canales (el número del canal se pone amarillo).

• Repita los pasos 5 y 6 para otros canales.

40

Troubleshooting

If there is a problem with your TV please refer to the table below to determine the symptoms, then carry out the suggested check. If this does not solve the problem, please contact your local Panasonic dealer, quoting the model number and serial number (both found on the rear of the TV).


Symptoms

Sound

Checks

Antenna location, direction or connection.

Snowy Picture Noisy Sound

Multiple Images

Interference

Normal Picture

No Picture

Normal Sound

Noisy Sound

No Sound

No Sound

Antenna location, direction or connection.

Electrical appliances.

Cars / Motorcycles.

Fluorescent lights.

Volume level.

Sound mute switched on.

STEREO/SAP/MONO

TV set to AV mode.

Not plugged into AC outlet.

Not switched on.

Picture / Sound controls set at minimum levels.

Check if in Standby mode.

Color controls set at minimum levels.

Weak signal.

No Color Normal Sound

Retune Channel(s).

Poor or Distorted Picture Weak or No Sound

Normal Picture

Weak, Wrong or No Sound

Cannot operate with the remote control.

The main unit is hot.

There may be red spots, blue spots, green spots and black spots on the screen.

Sound reception may have deteriorated.

Set STEREO/SAP/MONO setting (AUDIO ADJUST menu) to SAP or

MONO until reception improved.

The battery/ies is/are exhausted.

The batteries’ polarity is wrong.

The remote control sensor is exposed to strong light from a fluorescent lamp, etc.

The main unit radiates heat and some of the parts may become hot.

This is not a problem for performance or quality.

Set up in a location with good ventilation.

Do not cover the ventilation holes of the TV with a tablecloth, etc., and do not place on top of other equipment.

This is a characteristic of liquid crystal panels and is not a problem.

The liquid crystal panel is built with very high precision technology giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as fixed points of red, blue, green, or black.

Please note this does not affect the performance of your LCD.

41

42

CUSTOMER SERVICES DIRECTORY (for U.S.A.)

Customer Services Directory

Obtain Product Information and Operating Assistance; locate your nearest

Dealer or Servicenter; purchase Parts and Accessories; or make Customer

Service and Literature requests by visiting our Web Site at:

http://www.panasonic.com/consumersupport

or, contact us via the web at:

http://www.panasonic.com/contactinfo

You may also contact us directly at:

1-800-211-PANA (7262)

Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST.

For hearing or speech impaired TTY users, TTY : 1-877-833-8855

Accessory Purchases

Purchase Parts, Accessories and Instruction Books on line for all Panasonic

Products by visiting our Web Site at:

http://www.pasc.panasonic.com

or, send your request by E-mail to:

[email protected]

You may also contact us directly at:

1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only) (Monday - Friday 9 am to 8 pm, EST.)

Panasonic Services Company

20421 84th Avenue South,

Kent, WA 98032

(We Accept Visa, MasterCard, Discover Card, American Express, and Personal

Checks)

For hearing or speech impaired TTY users, TTY : 1-866-605-1277

Service in Puerto Rico

Panasonic Puerto Rico, Inc.

Ave. 65 de Infantería, Km. 9.5, San Gabriel Industrial Park,

Carolina, Puerto Rico 00985

Phone (787)750-4300, Fax (787)768-2910

Specifications

Power Source

Power Consumption

TC-26LX50

AC 120 V, 60 Hz

Average use : 121 W

Maximum Current : 2.2 A

Stand-by condition : 0.1 W

1366

× 768 pixels widescreen LCD panel. 1366 × 768 pixels widescreen LCD panel.

22.7

″ ×12.8 ″ × 26 ″

27.5

″ × 15.4 ″ × 31.5 ″

(576 mm

× 324 mm × 661 mm)

(698 mm

× 392 mm × 800 mm)

VHF-12 : UHF-56 : Cable-125

TC-32LX50

Average use : 147 W

Maximum Current : 2.6 A

Stand-by condition : 0.1 W

LCD

Screen Size

(W

× H × diagonal)

Channel Capability

Sound

Speakers

Audio Output

Headphones

FEATURES

Operating Conditions

ø8 cm

× 2 pcs, ø5cm × 2 pcs

20 W [10 W + 10 W] (10%THD)

M3 (3.5 mm) Jack

× 1

3D Y/C Digital Comb Filter, CLOSED CAPTION, V-Chip

Temperature : 41

°F - 95 °F (5 °C – 35 °C)

Humidity : 5 % - 90 % RH (non-condensing)

Connection Terminals

INPUT

COMPONENT

VIDEO INPUT

OUTPUT (PROGRAM OUT)

HDMI

Dimensions ( W

× H × D )

Including TV Stand

TV Set Only

Mass (Weight)

VIDEO (RCA PIN Type

× 1) × 3

S-VIDEO (MINI DIN 4pin

× 1) × 3

AUDIO L-R (RCA PIN Type

× 2) × 3

Y

× 2

P

B

/ P

R

× 2

AUDIO L-R (RCA PIN Type

× 2) × 2

AUDIO L-R (RCA PIN Type

× 2) × 1

HDMI TYPE A Connector

× 1

AUDIO L-R (RCA PIN Type

× 2) × 1

26.1

″ × 21.9 ″ × 11.8 ″

(663 mm

× 556 mm × 299.5 mm)

26.1

″ × 19.5 ″ × 5.54 ″

(663 mm

× 494.3 mm × 140.7 mm)

18 kg (39.6 lb.) NET

1.0 Vp-p (75

Ω)

Y : 1.0 Vp-p (75

Ω),

C : 0.286 Vp-p (75

Ω)

0.5 Vrms

1.0 Vp-p

(including synchronization)

±0.35 Vp-p

0.5 Vrms

0.5 Vrms, VIDEO (RCA PIN Type

× 1) × 1

0.5 Vrms

31.3

″ × 25 ″ × 11.8″

(795 mm

× 634.7 mm × 299.5 mm)

31.3

″ × 22.6 ″ × 5.54 ″

(795 mm

× 573 mm × 140.7 mm)

21 kg (46.2 lb.) NET

Note:

Design and Specifications are subject to change without notice. Weight and Dimensions shown are approximate.

43

Customer’s Record

The model number and serial number of this product can be found on its rear panel. You should note this serial number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.

Model Number Serial Number

Panasonic Consumer Electronics

Company, Division of Panasonic

Corporation of North America

One Panasonic Way Secaucus

New Jersey 07094

Panasonic Puerto Rico Inc.

Ave. 65 de Infanteria, Km 9.5

San Gabriel Industrial Park,

Carolina, Puerto Rico 00985

 2005 Matsushita Electric Industrial Co.,Ltd. All Rights Reserved.

Panasonic Canada Inc.

5770 Ambler Drive

Mississauga, Ontario

L4W 2T3

Printed in Japan

MBS0205S0

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
