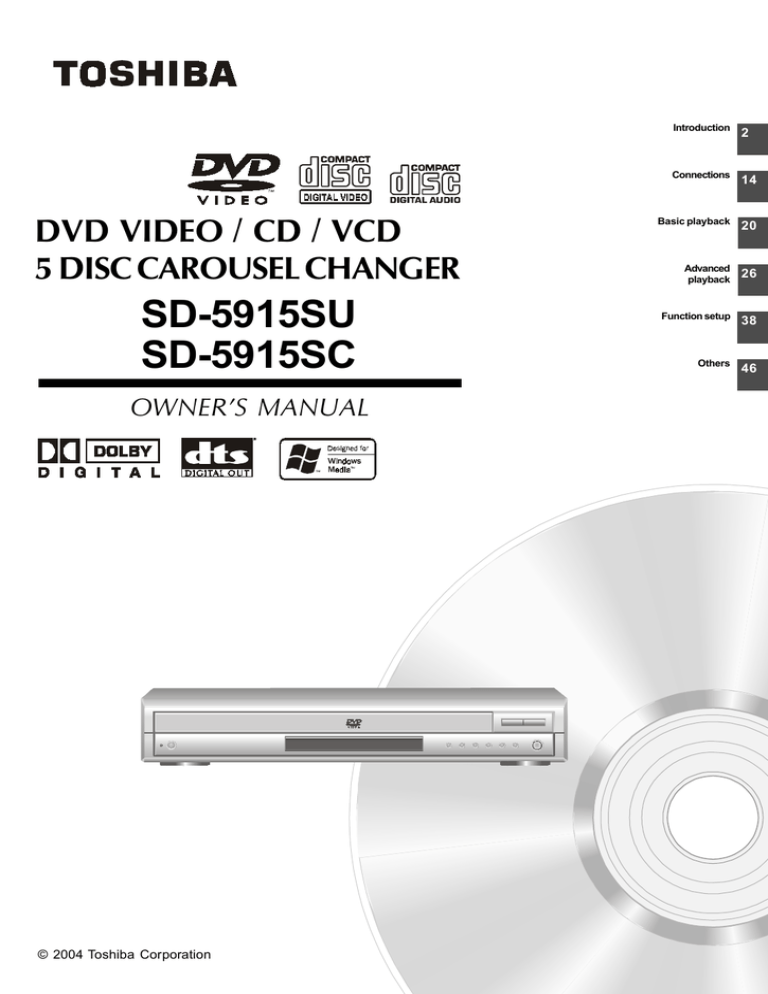

Toshiba SD-5915 Multi

DVD VIDEO / CD / VCD

5 DISC CAROUSEL CHANGER

SD-5915SU

SD-5915SC

OWNER’S MANUAL

Introduction

2

Connections

14

Basic playback

20

Advanced playback

26

Function setup

38

Others

46

© 2004 Toshiba Corporation

Introduction

SAFETY PRECAUTIONS

CAUTION

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

WARNING: TO REDUCE THE RISK OF

ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO

USERSERVICEABLE PARTS INSIDES.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

WARNING:

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

The symbol for CLASS II (Double Insulation)

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE

TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE

ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL

ONLY.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY

INSERT.

ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA

FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

CAUTION:

This Digital Video Disc Player employs a Laser System.

To ensure proper use of this product, please read this owner’s manual carefully and retain for future reference. Should the unit require maintenance, contact an authorized service location - see service procedure.

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try to open the enclosure.

Visible and invisible laser radiation when open and interlocks defeated.

DO NOT STARE INTO BEAM.

FCC NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rule. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more the following measures:

WARNING:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications made to this equipment, not expressly approved by Toshiba, or parties authorized by Toshiba, could void the user’s authority to operate the equipment.

2

The instructions shall state that an ALL-POLE MAINS SWITCH with a contact separation of at least 3 mm in each pole shall be incorporated in the electrical installation of the building.

CAUTION:

These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

In the spaces provided below, record the Model and Serial No. located on the rear panel of your DVD video player.

Model No.

Retain this information for future reference.

Serial No.

Location of the required label

1-1, SHIBAURA 1-CHOME, MINATO-KU,

TOKYO 105-8001, JAPAN

MADE IN CHINA

MANUFACTURED

SERIAL NO.

Be aware that this equipment is still powered even after the ON/STANDBY indicator turns off (standby mode) by pressing the ON/STANDBY button. To disconnect this equipment completely from the mains power, pull out the power plug from the wall outlet.

3

Introduction

IMPORTANT SAFETY INSTRUCTIONS

CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS GIVEN IN THIS OWNER’S

MANUAL AND THOSE MARKED ON THE UNIT. RETAIN THIS BOOKLET FOR FUTURE

REFERENCE.

This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in this unit will protect you if you observe the following procedures for installation, use and servicing. This unit is fully transistorized and does not contain any parts that can be repaired by the user.

DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defect the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

S3125A

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

4

ADDITIONAL SAFETY INSTRUCTIONS

15. When you use headphones, keep the volume at a moderate level. If you use the headphones continuously with high volume sound, it may cause hearing damage.

16. Do not overload wall outlets; extension cords, or integral conveniences receptacles as this can result in a risk of fire or electric shock.

17. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

18. Keep your fingers well clear of the disc tray as it is closing. Neglecting to do so may cause serious personal injury.

19. Do not place a heavy object on or step on the apparatus. The object may fall, causing serious personal injury and serious damage to the apparatus.

20. Do not use a cracked, deformed, or repaired disc. These discs are easily broken and may cause serious personal injury and apparatus malfunction.

21. If the apparatus should smoke or smell, immediately disconnect the power cord from the wall outlet. Wait until the smoke or smell stops, then ask your dealer for a check and repair. Neglecting to do so may cause fire.

22. While it is thundering, do not touch the connecting cables or the apparatus.

23. The apparatus includes lead, an ingredient of solder used on the PCB, which is a harmful substance to human and the environment. When disposing of this apparatus, follow the rules and regulations in your area.

5

Introduction

Precautions

Notes on handling

When shipping the DVD video player, the original shipping carton and packing materials come in handy. For maximum protection, repack the unit as it was originally packed at the factory. Take care not to give it a shock or shake when carrying.

Do not use volatile liquids, such as insect spray, near the

DVD video player. Do not leave rubber or plastic products in contact with the DVD video player for a long time. They will leave marks on the finish.

The top and rear panels of the DVD video player may be become warm after a long period of use. This is not a malfunction.

When the DVD video player is not in use, be sure to remove the disc and turn off the power.

If you do not use the DVD video player for a long future.

Turn on and use the DVD video player occasionally.

Notes on moisture condensation

Moisture condensation damages the DVD video player. Please read the following carefully.

Moisture condensation occurs, for example, when you pour a cold drink into a glass on a warm day. Drops of water form on the outside of the glass. In the same way, moisture may condense on the optical pick-up lens inside this unit, one of the most crucial internal parts of the DVD video player.

Exam ple of moisture condensation!

Optical pick-up lens

Notes on locating

Place the DVD video player on a level surface. Do not use it on a shaky or unstable surface such as a wobbling table or inclined stand. The loaded disc may come off the proper position and cause damage to the DVD video player.

When you place this DVD video player near a TV, radio, or

VCR, the playback picture may become poor and the sound may be distorted. In this case, place the DVD video player away from the TV, radio, or VCR.

Moisture condensation occurs during the following cases.

When you bring the DVD video player directly from a cold place to a warm place.

When you use the DVD video player in a room where you just turned on the heater, or a place where the cold wind from the air conditioner directly hits the unit.

In Summer, when you use the DVD video player in a hot and humid place just after you move the unit from an air conditioned room.

When you use the DVD video player in a humid place.

It's too warm!

Notes on cleaning

Use a soft, dry cloth for cleaning.

For stubborn dirt, soak the cloth in a weak detergent solution, wring well and wipe. Use a dry cloth to wipe it dry.

Do not use any type of solvent, such as thinner and benzine, as they may damage the surface of the DVD video player.

If you use a chemical saturated cloth to clean the unit, follow that product’s instructions.

To obtain a clear picture

The DVD video player is a high technology, precision device.

If the optical pick-up lens and disc drive parts are dirty or worn down, the picture quality becomes poor. To obtain a clear picture, we recommend regular inspection and maintenance (cleaning or parts replacement) every 1,000 hours of use depending on the operating environment. For details, contact your nearest dealer.

Do not use the DVD video player when moisture condensation may occurs.

If you use the DVD video player in such a situation, it may damage discs and internal parts. Remove the disc, connect the power cord of the DVD video player to the wall outlet, turn on the DVD video player, and leave it for two or three hours. After two or three hours, the DVD video player will have warmed up and evaporated any moisture. Keep the

DVD video player connected to the wall outlet and moisture condensation will seldom occur.

Wait!

Wall outlet

6

Notes on Discs

On handling discs

Do not touch the playback side of the disc.

Structure of disc contents

Normally, DVD video discs are divided into titles, and the titles are sub-divided into chapters. VIDEO CDs and audio

CDs are divided into tracks.

DVD video disc

DVD video disc

Title 1 Title 1

Chapter 1 Chapter 2 Chapter 1 Chapter 2 Chapter 3

Do not attach paper or tape to discs.

Playback side

VIDEO CD/audio CD

VIDEO CD/audio CD

Track 1 Track 2 Track 1 Track 2 Track 3

On cleaning discs

Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the center outwards with a soft cloth. Always keep the disc clean.

Each title, chapter or track is assigned a number, which is called “title number”, “chapter number” or “track number” respectively.

There may be discs that do not have these numbers.

Notes on copyright

It is forbidden by law to copy, broadcast, show, broadcast on cable, play in public, and rent copyrighted material without permission.

If you cannot wipe off the dust with a soft cloth, wipe the disc lightly with a slightly moistened soft clothe and finish with a dry cloth.

Do not use any type of solvent such as thinner, benzine, commercially available cleaners or antistatic spray for vinyl

LPs. It may damage the disc.

DVD video discs are copy protected, and any recordings made from these discs will be distorted.

On storing discs

Do not store discs in a place subject to direct sunlight or near heat sources.

Do not store discs in place subject to moisture and dust such as a bathroom or near a humidifier.

Store discs vertically in a case. Stacking or placing objects on discs outside of their case may cause warping.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual proper ty r ights owned by

Macrovision Corporation and other rights owners.

Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation.

Reverse engineering or disassembly is prohibited.

7

Introduction

Notes on Discs (continued)

About this owner’s manual

This owner’s manual explains the basic instructions of this

DVD video player. Some DVD video discs are produced in a manner that allows specific or limited operation during playback.

As such, the DVD video player may not respond to all operating commands. This is not a defect in the DVD video player. Refer to instruction notes of discs.

“ ” may appear on the TV screen during operation.

A “ ” means that the operation is not permitted by the DVD video player or the disc.

Playable discs

This DVD video player can play the following discs.

DVD video discs

Disc Mark Contents

Disc

Size

Maximum playback time

Approx. 4 hours

(single sided disc)

Audio

+ video

(moving pictures)

12 cm

8 cm

Approx. 8 hours

(double sided disc)

Approx. 80 minutes

(single sided disc)

Approx. 160 minutes

(double sided disc)

Notes on region numbers

The region number of this DVD video player is 1. If region numbers, which stand for their playable area, are printed on your DVD video disc and you do not find

1

or , disc playback will not be allowed by the player. (In this case, the

DVD video player will display a message on-screen.)

VIDEO

CDs

DIGITAL VIDEO

Audio

+ video

(moving pictures)

12 cm

8 cm

Approx. 74 minutes

Approx. 20 minutes

On VIDEO CDs

This DVD video player supports VIDEO CDs equipped with the

PBC (Version 2.0) function. (PBC is the abbreviation of Playback

Control.) You can enjoy two playback variations depending on types of discs.

VIDEO CD not equipped with PBC function

(Version 1.1)

Sound and movie can be played on this DVD video player in the same way as an audio CD.

VIDEO CD equipped with PBC function

(Version 2.0)

In addition to operation of a VIDEO CD not equipped with the

PBC function, you can enjoy playback of interactive software with search function by using the menu displayed on the TV screen (Menu Playback). Some of functions described in this owner’s manual may not work with some discs.

Audio

CDs

Audio

12 cm

Approx. 74 minutes

8 cm

(CD simple)

Approx. 20 minutes

The following discs are also available.

• DVD-R discs of DVD video format.

• CD-R/CD-RW discs of CD-DA format.

Some of these discs may be incompatible.

• You cannot play discs other than those listed above.

• You cannot play DVD-RAM discs or non-standardized discs, etc., even if they may be labeled as above.

• This DVD video player uses the NTSC color system, and is not suitable to play DVD video discs recorded in any other color system (PAL, SECAM, etc.).

Because of problems and errors that can occur during the creation of DVD software and/or the manufacture of DVD discs,

Toshiba America Consumer Products, L.L.C., Toshiba Hawaii,

Inc. and Toshiba of Canada, Ltd. cannot guarantee that this player will play every feature of every DVD bearing the DVD logo. As one of the creators of DVD technology, Toshiba DVD players are manufactured to the highest standards of quality and, as a result, such incompatibilities are very rare. If you happen to experience and difficulty playing a DVD on a Toshiba

DVD player, please feel free to call our Contact listed in “How to

Obtain Warranty Services”

51

.

8

Table of Contents

Introduction

SAFETY PRECAUTIONS ........................... 2

IMPORTANT SAFETY INSTRUCTIONS .... 4

Precautions ............................................... 6

Notes on Discs .......................................... 7

Notes on region numbers ................................ 8

Table of Contents ...................................... 9

Identification of Controls ....................... 10

Front panel ..................................................... 10

Rear panel ..................................................... 10

DVD display ......................................................... 11

Remote control ............................................... 12

Loading batteries ........................................... 13

Operating with the remote control ................. 13

Connections

Connecting to a TV ................................. 14

Connecting to a TV ......................................... 14

Connecting to an audio system and TV equipped with component video inputs ...... 15

Connecting to Optional Equipment ....... 16

Connecting to an amplifier equipped with a

Dolby Digital decoder .................................. 17

Connecting to an amplifier equipped with

Dolby Surround Pro Logic ........................... 17

Connecting to an amplifier equipped with a

DTS decoder ................................................ 18

Connecting to an amplifier equipped with an

MPEG2 audio decoder ................................ 18

Connecting to an amplifier equipped with a digital audio input ........................................ 19

Basic playback

Playing a Disc ......................................... 20

Basic playback ............................................... 20

Variable Speed Playback ........................ 22

Playing in fast reverse or fast forward directions ..................................................... 22

Playing frame by frame .................................. 22

Playing in slow-motion ................................... 23

Resuming playback from the same location . 23

Locating a Desired Section .................... 24

Locating a title using the top menu ................ 24

Locating a desired section by entering the corresponding number ................................ 25

Skipping to next/previous chapter or track .... 25

Advanced playback

Accessing a Specific Location Directly .. 26

Entering the time counter of the desired location ........................................................ 26

Playing in a Favorite Order .................... 27

Setting titles, chapters, or tracks in a favorite order ............................................................ 27

Playing Repeatedly ................................. 28

Repeating a title, chapter or track .................. 28

Repeating a specific segment ....................... 28

Playing in Random Order ...................... 29

Playing titles, chapters or tracks in random order ...................................................................... 29

On-screen Display Operation ................. 30

On-screen display operation ......................... 30

Selecting a Language ............................. 31

Selecting a playback audio setting ................ 31

Selecting Subtitles ................................. 32

Selecting a subtitle language ........................ 32

Selecting the Camera Angle ................... 33

Changing the camera angle .......................... 33

Zooming a Picture .................................. 34

Zooming a picture .......................................... 34

Playing MP3/WMA Files ......................... 35

Playing MP3/WMA files .................................. 35

Viewing JPEG Files ................................ 36

Viewing a single image ................................. 36

Viewing a thumbnail view .............................. 37

Function setup

Customizing the Function Settings ....... 38

Setting procedure .......................................... 38

Setting details ................................................ 40

Table of Languages ................................ 45

Others

Operating a TV with the Remote Control

............................................................. 46

Operating a TV with the remote control ......... 46

Before Calling Service Personnel .......... 48

Specifications ......................................... 49

LIMITED WARRANTY DVD VIDEO

PLAYER ................................................... 50

9

Introduction

Identification of Controls

See the page in for details.

Front panel

ON/STANDBY indicator

On: Lit in green.

Standby mode: Lit in red.

20

Disc Tray

20

DVD display 11

DISC SKIP button 20

OPEN/CLOSE button 20

PLAY button 20

PAUSE button

21

OPEN/CLOSE DISC SKIP

SKIP PAUSE STOP PLAY MENU

ENTER

ON/STANDBY button 20

Remote Sensor 13

SKIP buttons 25

STOP button 21

MENU button

24

Direction / ENTER button 20

24

10

Rear panel

VIDEO OUT jack 14

VIDEO OUT (Y/P

B

/P

R

)

15

(Component video) jacks

Power cord

S VIDEO OUT jack 14

VIDEO OUT

COAXIAL

AUDIO OUT

COAXIAL DIGITAL

AUDIO OUT jack

17 18 19

ANALOG AUDIO OUT (L/R) jacks

14

15 17

DVD display

Pressing of the FL. DIM button on the remote control changes the brightness of the display.

FL. DIM

Normal Dimmed Off

Play mode indicator

Title number indicator

Total playing time indicator

Chapter number indicator

Memory playback indicator

Track number indicator

Random playback indicator

TOTAL TITLE

CHP TRK

A - B

Multifunctional indicator (indicates operating status or messages, etc.)

Angle icon indicator

DVD / VIDEO CD /

CD indicator

Repeat playback indicator

When you start playback, the elapsed time indicators appear. Pressing the FL. SELECT button switches them to the title/chapter/track number indicators. Some discs may not permit this operation.

The indicators vary depending on the kinds of discs you play.

DVD video disc VIDEO CD Audio CD

• During playback: • During playback:

Example

DVD

TITLE CHP

Example

TRK

VCD

Playing chapter 3 of title 2 Playing track 1

Some discs may not display chapter numbers or elapsed time.

Some discs may not display track numbers or elapsed time.

• During playback:

Example

CD

Playing track 6

TRK

11

Introduction

Identification of Controls (continued)

The instruction in this manual describe the functions on the remote control. See the page in for details.

Remote Control

TV button

20

46

DVD button

20

Number buttons 25

• DISPLAY button

30 46

* MENU button 24

TOP MENU button 24

SUBTITLE button 32

ANGLE button 33

PLAY button 20

REW button 22

SLOW button 23

SKIP buttons 25

SET UP button 38

CH / VOL / Direction buttons ( / / / )

20 24 46

RETURN button 38

ENTER button

20

24

POWER button 20

46

DVD TV

POWER

1

4

7

DISPLAY

8

0

5

2

TOP MENU MENU REPEAT

6

3

9

100

OPEN/CLOSE

INPUT SELECT

CLEAR

SEARCH

ZOOM

ANGLE SUBTITLE AUDIO DISC SKIP

PLAY

REW

SLOW

STOP

FF

SLOW

SKIP FL. DIM PAUSE/STEP

SET UP CH

+

PROGRAM

A-B REPEAT

VOL

RETURN

VOL

+

RANDOM

ENTER

CH FL. SELECT PROGRESSIVE

OPEN/CLOSE button 20

INPUT SELECT button

46

CLEAR button 25

100 button

46

SEARCH button 25

REPEAT button 28

ZOOM button 34

AUDIO button 31

DISC SKIP button 20

FF button

22

STOP button 21

SLOW button 23

FL. DIM button 11

PAUSE/STEP button 21

22

PROGRAM button 27

A-B REPEAT button 28

46

RANDOM button 29

PROGRESSIVE button 15

42

FL. SELECT button 11

* MENU button

Use the MENU button to display the menu included on many DVD video discs. To operate a menu, follow the instructions in “Locating a title using the top menu”. 24

12

Loading batteries

1 Open the cover.

Operating with the remote control

Point the remote control at the remote sensor and press the buttons.

2 Insert batteries (AAA size).

30° 30°

Within about 7 m (23 feet)

Make sure to match the + and on the batteries to the marks inside the battery compartment.

3

Close the cover.

Distance: About 7 m (23 feet) from the front of the remote sensor

Angle : About 30° in each direction of the front of the remote sensor

* Do not expose the remote sensor of the DVD video player to a strong light source such as direct sunlight or other illumination. If you do so, you may not be able to operate the DVD video player via the remote control.

Notes on batteries

Improper use of batteries may cause battery leakage and corrosion. To operate the remote control correctly, follow the instructions below.

• Do not insert batteries into the remote control in the wrong direction.

• Do not charge, heat, open, or short-circuit the batteries.

Do not throw batteries into a fire.

• Do not leave dead or exhausted batteries in the remote control.

• Do not use different types of batteries together, or mix old and new batteries.

• If you do not use the remote control for a long period of time, remove the batteries to avoid possible damage from battery corrosion.

• If the remote control does not function correctly or if the operating range becomes reduced, replace all batteries with new ones.

• If battery leakage occurs, wipe the battery liquid from the battery compartment, then insert new batteries.

Notes on the remote control

• Direct the remote control at the remote sensor of the DVD video player.

• When using the remote control, press the buttons at intervals of about 1 second to ensure the correct mode of operation.

• Do not drop or give the remote control a shock.

• Do not leave the remote control near an extremely hot or humid place.

• Do not spill water or put anything wet on the remote control.

• Do not open the remote control.

13

Connections

Connecting to a TV

Connect the DVD video player to your TV.

For details of output sound, see

31

Connecting to a TV

Signal flow

COAXIAL

To wall outlet

To S

VIDEO

OUT

(yellow) (red) (white)

To VIDEO

OUT

To ANALOG AUDIO OUT

Audio/video cable (supplied)

To audio inputs

To video input

(yellow) (red) (white)

S video cable (not supplied)

If the TV has an S video input, connect the

DVD video player with an S video cable.

When using an S video cable, do not connect the yellow video cable and component video cables (Y/P

B

/P

R

).

To S video input

TV or monitor with audio/video inputs

• Make the following setting.

On-screen display Select

“Digital Out”

“Raw” or “PCM”

Page

38

43

“Video Output”

“CVBS” or

* “YUV”

38

42

Notes:

• Refer to the owner’s manual of the connected TV as well.

* Only for analog video out jack (yellow) connection with progrssive scan off.

• When you connect the DVD video player to your TV, be sure to turn off the power and unplug both units from the wall outlet before making any connections.

• If your television set has one audio input, connect the left and right audio outputs of the DVD video player to a Y cable adapter (not supplied) and then connect to your TV.

• Connect the DVD video player directly to your TV. If you connect the DVD video player to a VCR, TV/VCR combination or video selector, the playback picture may be distorted as DVD video discs are copy protected.

• Analog audio out will not have sound if DTS playback is selected.

14

Interlaced outputs/inputs (ColorStream ® )

Some TVs or monitors are equipped with component video inputs.

Connecting to these inputs allows you to enjoy higher quality picture playback.

Actual labels for component video inputs may vary depending on the

TV manufacturer. (ex. Y, R-Y, B-Y or Y, C

B

, C

R

)

In some TVs or monitors, the color levels of the playback picture may be reduced slightly or the tint may change. In such a case, adjust the

TV or monitor for optimum performance.

Progressive outputs/inputs (ColorStream ® Pro)

Some TVs or monitors are equipped with component video inputs that are capable of reproducing a progressively scanned video signal.

Connecting to these inputs allows you to view the highest quality pictures with less flicker.

‘CONSUMERS SHOULD NOTE THAT NOT ALL HIGH

DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH

THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE

DISPLAYED IN THE PICTURE. IN CASE OF 525p OR 625p

PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS

RECOMMENDED THAT THE USER SWITCH THE CONNECTION

TO THE ‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE

QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH

THIS MODEL 525p AND 625p DVD PLAYER, PLEASE CONTACT

OUR CUSTOMER SERVICE CENTER.’

Connecting to an audio system and TV equipped with component video inputs

Signal flow

COAXIAL

(red) (white)

To wall outlet

To ANALOG AUDIO OUT

To P

R

VIDEO

OUT

To P

B

VIDEO

OUT

To Y

VIDEO

OUT

To audio inputs of the amplifier

(red) (white)

To Y video input

To P

B

video input

To P

R

video input

TV or monitor with component video inputs

Audio system

• Make the following setting.

On-screen display Select Page

You can temporarily switch the output signal for better picture quality.

Press PROGRESSIVE button on the remote control during stop mode.

Press PROGRESSIVE button again to turn off progressive mode.

“Digital Out”

“Video Output”

“Raw” or “PCM”

“YUV”

38

43

38

42

If you connect a progressive TV, Press

PROGRESSIVE button on the remote control

Notes:

• Refer to the owner’s manual of the connected TV as well.

• When you connect the DVD video player to your equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before making any connections.

• If you place the DVD video player near a tuner or radio, the radio broadcast sound might be distorted. In this case, place the DVD video player away from the tuner and radio.

• The output sound of the DVD video player has a wide dynamic range. Be sure to adjust the receiver’s volume to a moderate listening level. Otherwise, high volume sound may damage your hearing as well as the speakers.

• Turn off the amplifier before you connect or disconnect the DVD video player’s power cord. If you leave the amplifier power on, the speakers may be damaged.

• Analog audio out will not have sound if DTS playback is selected.

15

Connections

Connecting to Optional Equipment

You can enjoy high quality dynamic sounds by connecting the DVD video player to optional audio equipment.

• For connection to your TV, see “Connecting to a TV”

..................

.

• This section uses the following reference marks.

: Rear speaker

: Front speaker

: Sub woofer

: Center Speaker

: Signal flow

Notes:

• DO NOT connect the COAXIAL DIGITAL AUDIO OUT jack of the DVD video player to the AC-3 RF input of a Dolby Digital Receiver. This input on your A/V

Receiver is reserved for Laserdisc use only and is incompatible with the BITSTREAM/PCM AUDIO OUT jack of the DVD video player.

• Connect the COAXIAL DIGITAL AUDIO OUT jack of the DVD video player to the “DIGITAL (COAXIAL)” input of a Receiver or Processor.

• Refer to the owner’s manual of the connected equipment as well.

• When you connect the DVD video player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before making any connections.

• The output sound of the DVD video player has a wide dynamic range. Be sure to adjust the receiver’s volume to a moderate listening level. Otherwise, the speakers may be damaged by a sudden high volume sound.

• Turn off the amplifier before you connect or disconnect the DVD video player’s power cord. If you leave the amplifier power on, the speakers may be damaged.

Warning:

• When you are connecting (via the COAXIAL

DIGITAL AUDIO OUT jack) an AV decoder that does not have Dolby Digital, Digital Theater

Systems (DTS) or MPEG2 decoding function, be sure to set “Digital Out” to “PCM” from the onscreen display 43 . Otherwise, high volume sound may damage your hearing as well as the speakers.

• When playing DTS-encoded discs (audio CDs), excessive noise may be output from the analog audio output jacks. To avoid possible damage to the audio system, you should take proper precautions when the analog audio output jacks of DVD video player are connected to an amplification system. To enjoy DTS Digital

Surround TM playback, an external 5.1 channel

DTS Digital Surround TM decoder system must be connected to the COAXIAL DIGITAL AUDIO OUT jack of the DVD video player.

16

Connecting to an amplifier equipped with a Dolby Digital decoder

Dolby Digital

Dolby Digital is the surround sound technology used in theaters showing the latest movies, and is now available to reproduce this realistic effect in the home. You can enjoy motion picture and live concert DVD video discs with this dynamic realistic sound by connecting the DVD video player to a 6 channel amplifier equipped with a Dolby Digital decoder or Dolby Digital processor. If you have a Dolby Surround Pro Logic decoder, you will obtain the full benefit or Pro Logic from the same DVD movies that provide full 5.1-channel Dolby

Digital soundtracks, as well as from titles with the Dolby Surround mark.

Amplifier equipped with a

Dolby Digital decoder

COAXIAL

To COAXIAL type digital audio input

75

coaxial cable

To COAXIAL

DIGITAL

AUDIO OUT

Manufactured under license from Dolby

Laboratories. “Dolby”, “Pro Logic” and the double-D system are trademarks of Dolby

Laboratories. Confidential unpublished works. Copyright 1992-1997 Dolby

Laboratories. All rights reserved.

• Use DVD video discs encoded via the Dolby Digital recording system.

• Make the following setting.

On-screen display

“Digital Out”

Select

“Raw” or “PCM”

Page

38

43

Connecting to an amplifier equipped with a Dolby Surround Pro Logic

Dolby Surround Pro Logic

You can enjoy the dynamic realistic sound of Dolby Surround Pro Logic by connecting an amplifier and speaker system (right and left front speakers, a center speaker, and one or two rear speakers).

• With an amplifier equipped with Dolby Digital

Connect the equipment the same way as described in “Connecting to an amplifier equipped with a Dolby Digital Decoder.” Refer to that amplifier’s owner’s manual and set the amplifier so you can enjoy Dolby

Surround Pro Logic sound.

• With an amplifier not equipped with Dolby Digital

Connect the equipment as follows.

• Make the following setting.

On-screen display Select

“Digital Out”

“Raw” or “PCM”

Page

38

43

*

Amplifier equipped with Dolby

Sourround Pro Logic

To audio input

Audio cable

To ANALOG

AUDIO OUT

COAXIAL

* Connect one or two rear speakers.

The output sound from the rear speakers will be monaural even if you connect two rear speakers.

17

Connections

Connecting to Optional Equipment (Continued)

Connecting to an amplifier equipped with a DTS decoder

Digital Theater Systems (DTS)

DTS is a high quality surround technology used in theaters and now available for home use, on DVD video discs or audio CDs.

If you have a DTS decoder or processor, you can obtain the full benefit of

5.1 channel DTS encoded sound tracks on DVD video discs or audio

CDs.

Amplifier equipped with a

DTS decoder

COAXIAL

To COAXIAL type digital audio input

75

coaxial cable

To COAXIAL

DIGITAL

AUDIO OUT

“DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems,

Inc.

• Use DVD video discs or audio CDs encoded via the DTS recording system.

• Make the following setting.

On-screen display Select Page

“Digital Out” “Raw”

38

43

Connecting to an amplifier equipped with an MPEG2 audio decoder

MPEG2 sound

You can enjoy motion picture and live concert DVD video discs with dynamic realistic sound by connecting an amplifier equipped with an

MPEG2 audio decoder or MPEG2 audio processor.

Amplifier equipped with an

MPEG2 audio decoder

COAXIAL

To COAXIAL type digital audio input

75

coaxial cable

To COAXIAL

DIGITAL

AUDIO OUT

• Use DVD video discs encoded via the MPEG2 recording system.

• Make the following setting.

On-screen display Select Page

“Digital Out”

“Raw” or “PCM”

38

43

18

Connecting to an amplifier equipped with a digital audio input

2 channel digital stereo

You can enjoy the dynamic sound of 2 channel digital stereo by connecting an amplifier equipped with a digital audio input and speaker system (right and left front speakers).

• Make the following setting.

On-screen display Select

“Digital Out” “PCM”

Amplifier equipped with a digital audio input

COAXIAL

To COAXIAL type digital audio input

75

coaxial cable

To COAXIAL

DIGITAL

AUDIO OUT

Page

38

43

19

Basic playback

Playing a Disc

This section shows you the basic on how to play a disc.

CAUTION

Keep your fingers well clear of the disc tray as it is closing.

Neglecting to do so may cause serious personal injury.

ON/STANDYBY indicator

2

PAUSE

PLAY

2, 4

3

OPEN/CLOSE DISC SKIP

SKIP PAUSE STOP PLAY MENU

ENTER

1

STOP

MENU

/ ENTER

DVD

VCD

CD

Basic playback

Preparations

• When you want to view a disc, turn on the TV and select the video input connected to the DVD video player.

• When you want to enjoy the sound of discs from the audio system, turn on the audio system and select the input connected to the DVD video player.

• Press DVD to select DVD mode.

1

Press the ON/STANDBY button.

The DVD video player turns on.

The ON/STANDBY indicator on the player illuminates.

When the DVD video player is turned on for the first time, see CUSTOMIZING THE FUNCTION

SETTINGS (page 38 to 44) before proceeding to step 2.

2

Press OPEN/CLOSE, place a disc on the disc tray.

OPEN/CLOSE

The disc tray opens.

3

Press DISC SKIP to revolve the tray clockwise.

Place an other disc on the disc tray.

With the playback side down.

Place an other disc(s) on the disc holder(s).

DISC SKIP

4

Press OPEN/CLOSE to close the disc tray.

Playback starts.

OPEN/CLOSE

Players will start to scan and play from current closed location as the first location. In case no disc is available, it will skip to the next tray.

It will stop scanning after completion of the fifth disc.

If you insert a DVD video disc that contains a top menu, a menu may appear. See “Locating a title

using the top menu”.

24

• You may need to press MENU button to display disc menu (depending on the actual DVD video disc.)

Notes

• If the disc tray contains a disc you have already played, playback will begin from the location where you last stopped playback.

• Some Video CD are recorded with PBC (Playback Control), a menu with recorded contents may appear on the TV if you have turned the PBC on. You can make your selection according to its PBC menu. Press MENU button on the remote control to turn PBC on or off anytime during Video CD playback.

When switching from PBC off to PBC on mode, playback will start from the beginning of the disc.

To start playback in the stop mode

Press PLAY.

PLAY

20

• There are two different disc sizes. Place the disc in the correct guide on the disc tray. If the disc is out of the guide, it may damage the disc and cause the DVD video player to malfunction.

• Do not place a disc which is unplayable in this

DVD video player.

To playback from a specific disc tray number

Press DISC SKIP several times until you see your desired tray number appears on the DVD display.

DISC SKIP

The disc on the selected disc tray will be played back automatically.

1

2, 4

DISC SKIP

PLAY

STOP

PASUE/STEP

ENTER

/

To obtain a higher quality picture

Occasionally, some picture noise not usually visible during a normal broadcast may appear on the TV screen while playing DVD video disc because the high resolution pictures on these discs include a lot of information. While the amount of noise depends on the TV you use with this DVD video player, you should generally reduce the sharpness adjustment on your TV when viewing DVD video discs.

About

DVD VCD

CD

The DVD VCD

CD

icons on the heading bar show the playable discs for the function described under that heading.

DVD

VCD

CD

: You can use this function with DVD video discs.

: You can use this function with VIDEO CDs.

: You can use this function with audio CDs.

To pause playback (still mode)

Press PAUSE/STEP during playback.

PAUSE/STEP

To resume normal playback, press the PLAY button.

• The sound is muted during still mode.

To stop playback

Press STOP.

STOP

To turn the power off (To enter the standby mode)

Press ON/STANDBY to turn the ON/STANDBY indicator to red.

Note

Be aware that this equipment is still powered even after the

ON/STANDBY indicator turns off (standby mode) by pressing

ON/STANDBY button. To disconnect this equipment completely from the mains power, pull out the power plug from the wall outlet.

About the screen saver

If you pause a picture of a DVD video disc and leave it still for a long while, the screen saver of the DVD video player automatically appears. To turn off the screen saver, press

PLAY button.

To remove the disc

Press OPEN/CLOSE and DISC SKIP to revolve the tray closewise.

OPEN/CLOSE Remove the disc after the disc tray opens completely.

DISC SKIP

Automatic Power Off function

If the DVD video player is stopped, or the screen saver is engaged for approximately 20 minutes, the DVD video player will automatically turn itself off.

Be sure to press OPEN/CLOSE button to close the disc tray after you remove the disc.

Notes:

• Remove all the discs from the DVD video player before moving from one location to another location.

• Do not move the DVD video player during playback. Doing so may damage the disc.

• Use OPEN/CLOSE button to open and close the disc tray. Do not push the disc tray while it is moving. Doing so may cause the DVD video player to malfunction.

• Do not push up on the disc tray or put any objects other than discs on the disc tray. Doing so may cause the DVD video player to malfunction.

• In many instances, a menu screen will appear after playback of a movie is completed. Prolonged display of an onscreen menu may damage your television set, permanently etching that image onto its screen. To avoid this, be sure to press STOP button on your remote control once the movie is completed.

21

Basic playback

Variable Speed Playback

You can play discs at various speeds, and resume playback from the location where you stopped playback.

PLAY

REW

FF

STOP

SLOW

PAUSE/STEP

DVD

VCD

CD

Playing in fast reverse or fast forward directions

Press REW or FF during playback.

To resume normal playback

Press PLAY.

REW FF

PLAY

REW: Fast reverse playback

FF: Fast forward playback

Each time you press REW or FF button, the playback speed changes.

Notes

• The DVD video player mutes sound and subtitle during reverse and forward scan of DVD video discs. However, the

DVD video player plays sound during fast forward or fast reverse play of audio CDs.

• The playback speed may differ depending on the disc.

DVD

VCD

Playing frame by frame

Press PAUSE/STEP during still playback.

PAUSE/STEP

Each time you press PAUSE/

STEP button, the picture advances one frame.

To resume normal playback

Press PLAY.

PLAY

Note

The sound is muted during frame by frame playback.

22

DVD

VCD

Playing in slow-motion

Press SLOW during playback.

SLOW SLOW

Each time you press SLOW button, the slow-motion speed changes.

1/2

1/2 1/4

To resume normal playback

Press PLAY.

PLAY

1/8

Notes

• The sound is muted during slow-motion playback.

• Three speeds are available.

• You cannot use REW SLOW playback function in VIDEO CD.

DVD

VCD

CD

Resuming playback from the same location

1

Press STOP at the location where you want to interrupt playback.

STOP

The DVD video player memorizes the location where playback is stopped.

To start playback from the beginning regardless of the location where you stopped playback

1 Press STOP twice.

STOP

The DVD video player deletes the memory of the location.

2 Press PLAY.

2

Press PLAY.

PLAY

The DVD video player resumes playback from the lcoation where you stopped playback.

PLAY

DVD

VCD

CD

Playback starts from the beginning of the current title.

Playback starts from the beginning of the disc.

• If you want to return to the beginning of a DVD video disc, open and close the disc tray once with OPEN/CLOSE button before pressing PLAY button.

Notes

• Resuming cannot function when:

- you change the parental lock setting

44

or select a disc menu language

41

.

- you open the disc tray.

- you disconnect the power plug of the DVD video player.

- you play a PBC-feature video CD while the PBC is on.

• There may be a difference in the location where playback resumes depending on the disc.

• Settings you changed using the on-screen displays while the DVD video player keeps a location in the memory may function only after the memory is cleared.

23

Basic playback

Locating a Desired Section

TOP MENU

/ / /

ENTER

Normally, DVD video discs are divided into titles, and the titles are sub-divided into chapter. VIDEO CDs and audio

CDs are divided into tracks. You can quickly locate any specific title, chapter, or track.

DVD video disc

Title 1

Title 2

Chapter 1 Chapter 2 Chapter 1 Chapter 2 Chapter 3

Track 1

VIDEO CD/audio CD

Track 2 Track 3 Track 4 Track 5

DVD

Locating a title using the top menu

1

Press TOP MENU during playback.

The top menu appears on the TV

TOP MENU screen.

e.g.

TITLE 1 TITLE 2

3

Press ENTER.

CH

+

VOL

VOL

+

ENTER

CH

Playback starts from chapter 1 of the selected title.

TITLE 3 TITLE 4

2

Press

/ / /

to select the title you want.

CH

+

VOL

ENTER

CH

VOL

+

If the titles in the top menu are assigned a number, you can directly locate a specific title by pressing its designated number with the number buttons.

Notes:

• The instructions above describe basic procedures which may vary depending on the contents of the DVD video disc. If different instructions appear on the TV screen, follow these instructions.

• If you display the top menu during playback and press

TOP MENU button again without selecting any title, the DVD video player may resume playback from the point where you first pressed TOP MENU button

(depending on the actual DVD video disc.)

• This method of locating a title is available only on a disc that contains a top menu.

• Instruction notes of discs may refer to the button that displays the top menu as TITLE button.

24

Number buttons

CLEAR

SEARCH

SKIP

/ / /

ENTER

DVD

VCD

CD

Locating a desired section by entering the corresponding number

1 Press SEARCH.

Press

/

to highlight the Title/Chapter or Track. If you are using a VIDEO CD / audio CD, skip step 2.

Then at step 3, enter the number for the track you want using the number buttons.

SEARCH e.g.

DVD

Search

Time - - : - - : - -

Title / Chapter - - - / - - -

VOL

CH

+

ENTER

CH

VOL

+ e.g.

VCD

CD

Search

Time - - : - - : - -

Track - - -

3

Press the number buttons to enter title, chapter or track number.

4

Press ENTER.

CH

+

VOL

ENTER

CH

VOL

+

Playback starts from the selected section.

2

Press

/

to select a section you want to locate.

e.g. When you want to locate a chapter.

CH

+

VOL

VOL

+

ENTER

CH

Search

Time - - : - - : - -

Title / Chapter - - - / - - -

Notes:

• Pressing CLEAR button resets the numbers. To clear the display, press SEARCH button several times.

• This method of locating a title is available only on a disc that contains title numbers.

DVD

VCD

CD

Skipping to next/previous chapter or track

Press SKIP or SKIP repeatedly to access the chapter or track number you want.

Playback starts from the selected chapter or track.

SKIP

SKIP

To locate succeeding chapters or tracks.

Playback starts from the beginning of the current chapter or track.

When you press twice in quick successions, playback starts from the beginning of the preceding chapter or track.

Notes:

• Some titles may not display chapter numbers.

• If you press and hold SKIP or SKIP button on the front panel during playback, the DVD video player performs fast reverse or fast forward playback. You can vary the speed by pressing the button repeatedly.

To locate chapters or tracks during fast reverse or fast forward playback, first press PLAY button to resume normal playback, then use SKIP or SKIP button.

25

Advanced playback

Accessing a Specific Location Directly

You can access a specific location by entering its corresponding time (hours, minutes, seconds).

2

CLEAR

1

3

DVD

VCD

CD

Entering the time counter of the desired location

1

Press SEARCH.

SEARCH

Press counter.

/ button to highlight the time e.g.

DVD

Search

Time - - : - - : - -

Title / Chapter - - - / - - -

To set and play favorite bookmark during playback

1 Press SERACH repeatedly until the display of Bookmark appears, then press ENTER to mark the desired scene.

SEARCH

Bookmark

Bookmark

Bookmark

1 1 : 28 : 20

2 - - : - - : - -

3 - - : - - : - -

CH

+

VOL

VOL

+ e.g.

VCD

CD

Search

Time - - : - - : - -

Track - - -

ENTER

CH

2

Press ENTER to play the favorite bookmark.

2

Press the number buttons to enter the time.

e.g.

1 2

8

2 0

If you want to set other bookmark. Follow step 1 and move through the menu by pressing the

or button.

Search

Time

1 : 2 8 : 2 0

Title / Chapter - - - / - - -

Press SEARCH again to remove this display

SEARCH

• The first number you entered represent hours.

• The second two numbers you entered represent minutes.

• The third two numbers you entered represent seconds.

• If you input a wrong number, press CLEAR.

To cancel the bookmark

Follow step 1, then press CLEAR to cancel the bookmark, move through the menu by pressing the or button to cancel other bookmarks.

CLEAR

3

Press ENTER.

CH

+

VOL

+

VOL

ENTER

CH

Playback starts from the desired location.

VOL

CH

+

VOL

+

ENTER

CH

Notes

• Some discs may not respond to this process.

• Some scenes may not be located precisely as you specified.

• This method for accessing specific locations is available only within the current title of the DVD video disc or within the current track of the VIDEO CD / audio CD.

• You can move through the menu by pressing the ,

, and buttons

.

Notes

• This method for accessing specific locations is available only within the current disc.

• Press DISC SKIP to change other disc, STOP or turn off the DVD video player to clear the memory.

26

/ / /

Playing in a Favorite Order

You can combine your favorite titles, chapters, or tracks and play them in the order you determine. You can program up to 12 selections into the memory. (Program playback)

2

CLEAR

1

/ / /

2

DVD

VCD

CD

Setting titles, chapters, or tracks in a favorite order

1

Insert a disc and press PROGRAM during stop.

The following display appears.

e.g.

PROGRAM

Program Input Title/Chapter

1 - - - - 4 - - - - 7 - - - - 10 - - - -

2 - - - - 5 - - - - 8 - - - - 11 - - - -

3 - - - - 6 - - - - 9 - - - - 12 - - - -

Play Program Clear All

- - - -

Title number

Chapter number

To change the programmed selections

1 While the display appears on the TV screen, press

/ / / to move the highlighted bar to the item you want to change.

2 Change the selection following the instructions in step 2.

To cancel the programmed selections

1 Press the PROGRAM button, the display appears on the TV screen, press / / / to move the highlighted bar to the item you want to cancel.

2 Press CLEAR.

PROGRAM

Program Input

To resume normal playback from program playback

Press PROGRAM button and press / / / to move the highlighted bar to the Clear All, then press ENTER.

All the input programmes will be cleared. Press PLAY button to resume normal playback.

1 - - - 4 - - - 7 - - - 10 - - -

2 - - - 5 - - - 8 - - - 11 - - -

3 - - - 6 - - - 9 - - - 12 - - -

Play Program Clear All

- - -

Track number

PLAY

Normal playback will start from first location.

2

Select the items in the order you want by pressing the number buttons, then ENTER for each item.

Each time you press / / / button, the space of or is highlighted in turn. Highlight where you want to enter, then press the corresponding number button.

To select another chapter in the same title, you do not need to select the title number.

To select tracks from a VIDEO CD / audio CD in order, press number buttons for the track.

To program during playback

If you press PROGRAM button during playback, a programming display appears.

Follow steps 2 and 3.

Notes

• Some discs may not permit program playback operation.

• If you press REPEAT button during program playback, the DVD video player repeats the current program playback.

• If you press PROGRAM button while the display appears on the TV screen, the display disappears.

• The programmed selections will be cleared when you turn off the DVD video player.

3

Press / / / to move the highlighted bar to

Play Program, then press ENTER.

CH

+

The DVD video player starts program playback.

VOL VOL

+

ENTER

CH

27

Advanced playback

Playing Repeatedly

You can play a specific title, chapter, track, or segment repectedly.

(Title repeat, chapter/track repeat, A-B repeat)

REPEAT

A-B REPEAT

DVD

VCD

CD

Repeating a title, chapter or track

1

Press REPEAT repeatedly to select desired repeat during playback.

REPEAT

Each time you press REPEAT button, the playback mode changes as follows.

Repeat Chapter

DVD

VCD

CD

DVD

Off

Repeat Chapter

DVD

VCD

CD

VCD

CD

CD

Repeat Title

Rpt One Track

Rpt One Disc

Repeat All

Resumes normal playback.

Repeats the current chapter.

Repeats the current title.

Repeats a current track

Repeats the entire disc.

Repeats all discs.

The DVD video player starts in the selected mode within about 5 seconds after you select.

To resume normal playback

Press REPEAT until the “

Off

” is displayed.

Notes

• Some discs may not permit these operations.

• Repeat is prohibited when PBC is on. 20

DVD

VCD

CD

Repeating a specific segment

1

Press A-B REPEAT at the beginning of the segment (point A) you want to play repeatedly.

A-B REPEAT

00:46:23 50:38:20

Rep A-

To resume normal playback.

Press A-B REPEAT repeatedly until the word “

Rep Off

” is displayed.

A-B REPEAT

2

Press A-B REPEAT again at the end of the segment (point B).

A-B REPEAT

The DVD video player automatically returns to point A and starts repeat playback of the selected segment ( Rep A-

B).

01:03:18 50:38:20

Rep A-B

Notes

• Some discs may not permit A-B repeat operation.

• You cannot set the A-B repeat function for a segment that includes multiple camera angles

33

.

• You can specify a segment only within the current title or track

(VIDEO CD).

• There may be a slight difference between point A and the location where playback actually resumes depending on the disc.

28

Playing in Random Order

You can play titles, chapters or tracks in random order.

(Random playback)

RANDOM

DVD

VCD

CD

Playing titles, chapters or tracks in random order

1

Press RANDOM repeatedly to select the random playback mode.

RANDOM

The DVD video player star ts random playback within about 5 seconds after you press

RANDOM button.

To resume normal playback.

Press RANDOM repeatedly until the word “Random Off” is displayed.

RANDOM

DVD

VCD

CD

Random Off

The mode changes as follows

(when using the RANDOM button):

Resumes normal playback.

Notes

• Some discs may not permit random playback operation.

• You cannot use the random playback function in conjunction with the program playback function.

• Random 3 is not applicable in DVD discs.

VCD

CD

Random 1

Random 2

Random 3

Plays single disc in random order.

Plays all discs in random order.

a) Plays 3 tracks randomly from a disc.

b) Plays 3 tracks randomly from a different disc until all discs have been played.

c ) Repeat (b) until all discs have been accessed twice.

If you press REPEAT in random on mode, the

DVD player automatically starts random playback after finishing the current title, chapter or track.

The mode changes same as “Repeating title, chapter or track”

28

.

29

Advanced playback

On-screen Display Operation

When you turn on the on-screen display, you can view information on operational status and access features and settings.

DISPLAY

SUBTITLE

AUDIO

ANGLE

/ / /

ENTER

DVD

VCD

CD

On-screen display operation

Press DISPLAY during playback.

DISPLAY

Elapsed time: Elapsed time from the beginning of the chapter which is currently playing.

Remaining time: Remaining time of the title which is currently playing.

The following display appears when press

DISPLAY again.

Press ANGLE, AUDIO or SUBTITLE to change the current settings, then press ENTER to confirm.

Audio setting

The following display appears.

e.g. While a DVD video disc is playing.

Title

Elapsed Time

Remaining Time

Chapter Time

DVD 00:09:29 01:25: 27

Title 1/10 Chapter 3/15 Angle 1/3

Audio

Subtitle 2/3 Spa

Bitrate 5.888Mbpss

Features

Title number

• The number of the title currently playing and total titles of disc.

Chapter number

• The number of the chapter currently playing and total chapters of the currently played title.

Time counter

• Elapsed time from the beginning of the currently playing chapter and the remaining time from the beginning of the currently playing title.

Angle setting

33

• The current angle is displayed. When a disc with only one angle is played back, “

Angle 1/1

” is displayed.

• Press the ANGLE button to select the desired angle.

Audio setting 31

• The type of audio currently selected is displayed.

• Press the AUDIO button to select your desired type of audio.

Subtitle setting 32

• The subtitle number and language currently selected is displayed. When a disc with only one subtitle is played back,

1/1 Eng

” is displayed.

• Press the SUBTITLE button to select your desired language.

Bit Rate (Mbit/s)

• Amount of picture, sound and subtitle data in DVD video disc transferred per second. The larger the value is, the more data processed, but this does not necessarily insure better picture quality.

Subtitle setting

Bit Rate

Angle setting

After settings, press DISPLAY again to return to the normal screen.

Note

DISPLAY is prohibited during MP3 / WMA playback.

30

Selecting a Language

You can select a preferred language and sound recording system from those included on the DVD video disc.

Good morning!

Bonjour!

ÁBuenos d’as!

AUDIO

DVD

VCD

Selecting a playback audio setting

1

Press AUDIO during playback.

AUDIO

The current audio setting is displayed.

Press AUDIO repeatedly until your desired setting.

e.g.

Selecting sound channels of VIDEO CDs

Press AUDIO repeatedly during playback to hear a different audio channel (Stereo, Left or Right).

AUDIO

2

Recorded audio format number changes sequentially. (The maximum number of possible audio formats is 8)

The abbreviation of the language appears instead of the language name. Refer to the table of languages and their abbreviations

45

.

Press AUDIO while the audio setting is displayed on the TV screen.

AUDIO

Each time you press the AUDIO button, the audio settings included on the DVD video disc change.

Notes:

• When you turn on the DVD video player or replace a disc, player return to the initial default setting

44

.

If you select a sound track which is not included on the disc, the DVD video player plays a prior sound track programmed on the disc.

• Some discs allow you to change audio selections only via the disc menu. If this is the case, press the MENU button and choose the appropriate language from the selections on the disc menu.

• When you change the audio setting during playback of a DVD audio disc, playback may return to the beginning of the current track.

Output sound conversion table

Input

Output

Dolby Digital

COAXIAL DIGITAL AUDIO OUT jack

“Digital Out”

38 43

“Raw”

Raw

“PCM”

PCM

ANALOG

AUDIO

OUT Jacks

DVD video discs

Linear PCM

DTS

PCM

Raw

PCM

Raw

PCM

VIDEO CD

MPEG1, MPEG2

MPEG1

Linear PCM 44.1 kHz/16 bit

Raw

PCM

PCM

PCM

PCM

AUDIO CD

DTS

MP3/WMA

Raw

PCM

Raw

PCM

• Quantization bit of signals of 20 bit or higher which is output from the COAXIAL DIGITAL AUDIO OUT jack is 16 bit if they are in a copyright protected disc.

• Virtual Effect is selected.

43

31

Advanced playback

Selecting Subtitles

You can display subtitles on the TV screen and select a subtitle language from those included on the DVD video disc.

SUBTITLE

Good evening!

Bonsoir!

ÁBuenas tardes!

DVD

Selecting a subtitle language

1

Press SUBTITLE during playback.

The current subtitle setting is SUBTITLE displayed.

Off

To turn subtitles on or off.

1 Press SUBTITLE during playback.

SUBTITLE

2 Press SUBTITLE repeatedly until the “

Off

“ is displayed.

2

Press SUBTITLE while the subtitle setting is displayed on the TV screen.

SUBTITLE

Each time you press SUBTITLE button, the subtitle languages included on the DVD video disc change.

1/3 Fre

Notes:

• Some DVD discs video discs are set to display subtitles automatically, and you cannot turn them off even if you set the subtitle function to off.

• During some scenes, the subtitles may not appear immediately after you select “subtitle number and language”.

• Some DVD video discs will allow you to make subtitle selections and turn subtitles on or off only via the disc menu.

Bonsoir!

To turn off the subtitle setting display, press SUBTITLE button repeatedly until “

Off

” is displayed.

Notes:

• When you turn on the DVD video player or replace a disc, the player returns to the initial default setting

40

.

When you select a subtitle language which is not included on the disc, the DVD video player plays a prior are language programmed on the disc.

• During some scenes, the subtitles may not appear immediately after you change the subtitle language.

32

Selecting the Camera Angle

If the scene was recorded from multiple angles, you can easily change the camera angle of the scene you are watching.

ANGLE

DVD

Changing the camera angle

1

Press ANGLE.

ANGLE

While you are playing a DVD with different angles recorded, press

ANGLE button to view the number of the current angle.

2/3

To resume normal TV screen

Press ANGLE repeatedly until the “

1/3

” is displayed.

ANGLE

Notes:

• This function can only be used for discs on which scenes shot from multiple angles have been recorded.

• If only one angle is recorded, “

1/1

” is displayed.

Number changes to show the number of the current angle. (The maximum number of possible angles is 9)

2

Press ANGLE while the angle number is displayed on the TV screen.

ANGLE

Press ANGLE button repeatedly to change the scene to the next angle in those recorded.

• About two seconds later, playback continues from the new angle you selected.

• If no button is pressed within 10 seconds, playback continues without changing the current angle.

33

Advanced playback

Zooming a Picture

You can magnify areas within a picture.

ZOOM

/ / /

DVD

VCD

Zooming a picture

1

Press ZOOM during normal, slow or still playback.

ZOOM

The DVD video player enters the zoom playback mode and displays the icon.

e.g.

2

To resume normal playback

Press ZOOM repeatedly until the “

Off

” is displayed.

Original picture is restored when the icon disappears.

ZOOM

Each time you press ZOOM button, the magnification level changes as follows:

1 2 3

Off

Notes:

• Some discs may not respond to zoom feature.

• During some scenes, the buttons may not work as described.

• Zooming does not work on subtitles or menus included on DVD video discs.

• The magnification level varies depending on the picture size you select. See

42

.

VOL

CH

+

ENTER

CH

VOL

+

Press ZOOM button to select the magnificant level.

Variation of the levels includes image reduction.

You can shift the highlight within the icon by the / / / buttons.

When you reach the edge of the image, the display will not shift anymore in that direction.

Off

Press ZOOM button repeatedly until the “

Off

” is displayed.

34

Playing MP3/WMA Files

You can play MP3/WMA files that have been recorded on a CD-R or CD-

ROM on the DVD video player.

Number Buttons

1

SEARCH

1

PLAY

2

SKIP

PAUSE/STEP

ENTER

/ / /

Playing MP3/WMA files

1

Preparation

• Make sure that a disc you want to play is compatible with this DVD video player.

37

Press OPEN/CLOSE to open the disc tray, place a

CD that contains MP3/WMA files on the disc tray, then press DISC SKIP to revolve the tray clockwise to place other(s) disc.

To pause playback

Press PAUSE/STEP during playback.

PAUSE/STEP

To resume normal playback, press

PLAY.

OPEN/CLOSE

Press OPEN/CLOSE to close the disc tray, after completion of reading, playback starts automatically.

DISC SKIP

Press the / / / to select a track you want to play.

The current track being played is highlighted in green.

Selecting a track (file) in the disc

1 Press SEARCH.

2 Enter the track number to select a track you want to play.

3 Press ENTER to begin playback of the selected track.

The current track being played is highlighted in green.

2

To stop playback, press STOP.

STOP

To resume normal playback, press

PLAY.

Notes

• Letters of a file/folder name overflowing the given space are not displayed.

• You can not play in Fast reverse or Fast forward during

MP3/WMA playback.

Notes

• Some discs may not permit this operation.

• WMA track copy-protected cannot be played.

• The COAXIAL DIGITAL AUDIO OUT jack outputs MP3/WMA sounds in the linear PCM format regardless of the current “Digital

Out”

31 43

selection.

• If you stop playback by pressing STOP button, and then press PLAY button, playback will start from the beginning of the track.

• The SKIP function

25

is also available.

Playable files

• Playable discs: CD-ROM, CD-R (650MB / 74 min. only)

CD-RW is not recommendable.

• Sampling Frequency: 44.1 kHz only

• Bit rate: WMA: 48 kbps - 192 kbps (CBR -

Constant Bit Rate)

MP3: 32 kbps - 320 kbps (CBR -

Constant Bit Rate)

• CD physical format:

• File system:

• File name:

Mode 1, Mode 2 XA Form 1

ISO9660 Level 1, 2 or Joliet

A file name should be in alphabet and numerals only, and must incorporate

“MP3” or “WMA” extension.

e.g. “********.MP3”, “********.WMA”

• Total number of folders: Less than 256

• Total number of files: Less than 1000

• WMA codec version: V7 or V8 (Stereo sound only)

Note

When the WMA or MP3 file is out of the above specifications, the song may be skipped or muted with counter moving.

This DVD video player requires discs/recordings to meet certain technical standards in order to achieve optimal playback quality. Pre-recorded DVDs are automatically set to these standards.

There are many different types of recordable disc formats

(including CD-R containing MP3/WMA files). Given the fact that technology in this area is still maturing, Toshiba cannot guarantee that all genre of recordable discs will produce optimal playback quality. The technical criteria set out in this owner’s manual are meant as a guide only.

Customers should also note that permission is required in order to download MP3 files and music from the internet.

Toshiba has no right to grant such permission. Permission should always be sought from the copyright owner.

Microsoft, Windows Media, and the

Windows Logo are trademarks or registered trademarks of Microsoft

Corporation in both the United

States and other countries.

35

Advanced playback

Viewing JPEG Files

You can play JPEG files that have been recorded on a CD-R or CD-RW on the DVD video player. You can select a preferred view: a page of 9 thumbnail images and a single image view of a selected folder.

Also, rotating, enlarging and shifting of each image can be possible.

Number Buttons

1

SEARCH

ZOOM

ANGLE

PLAY

STOP

SKIP

PAUSE/STEP

ENTER

/ / /

Viewing a single image

Preparations

• Prepare a disc that contains JPEG files you want to view.

• Make your TV shape conform to the 4:3 picture size. Only 4:3 pictures can be played regardless of the function settings via the on-screen displays of the DVD video player. If the TV is adjusted to other sizes, e.g. “WIDE,” images will appear to be horizontally expanded. For details, refer to the owner’s manual of your TV.

1

Press OPEN/CLOSE to open the disc tray, place a CD that contains JEPG files on the disc tray.

OPEN/CLOSE

Press OPEN/CLOSE to close the disc tray, after completion of reading, playback automatically starts.

A view appears.

(Automatic mode) e.g.

CD-R

Searching for files ..

- / 180

To quit the JPEG playback, press STOP.

STOP

• Pressing OPEN/CLOSE button to open the disc tray can also quit the playback.

To pause playback

Press PAUSE/STEP during playback.

PAUSE/STEP

To resume nor mal playback, press PLAY.

A list of folders in the disc appears.

(Selection mode) e.g.

CD-R

Flower

28

29

30

31

32

B001

B002

B003

B004

B005

30/180

33

34

35

36

37

B006

B007

B008

B009

B010

Press / / / to select your desired file, and then press ENTER or PLAY button to start playback. The next picture will automatically display after 6 seconds.

Press STOP to display a folder list.

If you want more list selection

Press to select.

SEARCH

Press SEARCH and enter the track number to quickly select your image.

Search

Track ----

To magnify an image

Press ZOOM repeatedly.

ZOOM

Each time you press ZOOM button, the magnification level changes as follows:

1 2 3

Off

Off

” means original picture is restored.

Variation of the levels includes image reduction.

You can shift the highlight within the icon by the / /

/ buttons. When you reach the edge of the image, the display will not shift anymore in that direction.

To rotate an image

Press ANGLE repeatedly.

ANGLE

The image rotates by clockwise

90-degree.

36

To change the image

To view the succeeding image, press SKIP .

SKIP

To view the previous image, press SKIP .

SKIP

Note

• Some files may not display their own entire depending on the size.

Viewing a thumbnail view

1

Press TOP MENU in full-screen review.

TOP MENU

PREV NEXT

Press the / / / to select a image, press PLAY to view one image in full-screen and automatically display one by one again in about 6 seconds.

Turn the page if necessary

Pressing / / / to PREV or NEXT and

ENTER to view other thumbnail screen.

To quit the JPEG playback, press STOP.

STOP

• If you press PLAY button after pressing STOP button, you can return to the thumbnail view.

• Pressing OPEN/CLOSE button to open the disc tray can also quit the playback.

To pause playback

Press PAUSE/STEP during playback.

PAUSE/STEP

To resume nor mal playback, press PLAY.

Notes

• Some files may not display their own entire depending on the size.

• If you press TOP MENU button in full-screen review, the

DVD video player will display a menu of 9 thumbnail images.

JPEG files compatibility

Discs whose compatibility with this DVD video player has been confirmed by TOSHIBA are as follows.

Many of these discs, when loaded, will make the DVD video player enter the automatic mode

30

to play a prescribed folder in the disc. To play other folders, display a folder list and select a folder.

CANON Quick CD

FUJICOLOR CD

Kodak Picture CD

NORITSU QSS CD

JPEG disc compatibility with this DVD video player is limited as follows:

• Playable discs: CD-ROM, CD-R (650MB / 74 min. only) CD-RW is not

• CD physical format:

• File system:

• File name: recommendable.

Mode 1, Mode 2 XA Form 1

ISO9660 Level 1, 2 or Joliet

A file name should be in alphabet and numerals only, and must incorporate “JPG” extension. e.g.“********.JPG”

• Total number of folders: Less than 256

• Total number of files: Less than 1000

Some files may not display their own entire image depending on the size.

37

Function setup

Customizing the Function Settings

You can change the default settings to customize performance to your preference.

RETURN

1,6

2

3,4

2,3,4

DVD

VCD

CD

Setting procedure

1

Press SETUP during stop.

SET UP

The following on-screen display appears.

Language Video Audio Rating

4

Change the selection by / buttons, by

referring to the corresponding pages, then press ENTER.

CH

+

CH

+

VOL

+

VOL

VOL

VOL

+

ENTER

CH

ENTER

CH

2

Press / to select a icon for the setting you

want to change, then press ENTER.

(See the next page)

CH

+

CH

+

VOL

VOL

+

VOL

+

VOL

ENTER

CH

ENTER

CH

5

Repeat steps 3 and 4 to change other settings.

To select another operation, press several times to go back to step 2.

6

Press SETUP.

SET UP The on-screen display disappears.

Language

Video

Audio

To return to the previous display

Press RETURN.

RETURN

Rating

3

Press / to select the setting you want to

change, then press ENTER.

VOL

CH

+

ENTER

CH

VOL

+

VOL

CH

+

ENTER

CH

VOL

+

Notes

• To quit the procedure, press SETUP button to turn off the on-screen display.

SETUP button is prohibited when the player is reading a JPEG disc or a folder list is displayed. SETUP button can only be accessed in tray opened position.

38

Language

Video

Audio

Rating

Setting

OSD Menu

Subtitle

Audio

DVD Menu

DVD

VCD

CD

DVD

DVD

DVD

Detail Page

To select a preferred language for on-screen displays.

To select a preferred language for subtitles.

To select a preferred language for the sound track.

To select a preferred language for disc menus.

40

40

41

41

TV Shape

TV System

Video Output

Digital Out

Virtual Effect

Password/Rating

Load Factory

DVD

DVD

VCD

CD

DVD

VCD

CD

To select a picture size according to the aspect ratio of your TV.

To select the video system of a disc.

42

42

To select whether you send CVBS or YUV signals to the connected TV or not.

42

DVD

VCD

CD

DVD

VCD

CD

To select an output sound format corresponding to your system connection.

To obtain expansive virtual surround sound effects from just two speakers.

43

43

DVD

DVD

VCD

CD

To create a personal security code.

Turn the parental lock function on or off.

To return the initial settings such as Language,

Video, Audio and etc. to the factory default.

44

44

39

Function setup

Customizing the Function Settings (continued)

Setting details

Language

Language Video Audio Rating

Subtitle

DVD

To select a preferred language for subtitles.

English: To display subtitles in English.

Deutsch: To display subtitles in German.

Français:To display subtitles in French.

Español: To display subtitles in Spanish.

Italiano: To display subtitles in Italian.

Auto:

Off:

To display subtitles in different language than you selected.

To disable subtitles.

OSD Menu

DVD VCD CD

To select a preferred language for on-screen displays.

English: To view on-screen displays in English.

Deutsch: To view on-screen displays in German.

Français:To view on-screen displays in French.

Español: To view on-screen displays in Spanish.

Italiano: To view on-screen displays in Italian.

Language Video Audio Rating

OSD Menu

Subtitle

Audio

DVD Menu

English

English

English

English

English

Deutsch

Français

Español

Italiano

Auto

Off

Language Video Audio Rating

OSD Menu

Subtitle

Audio

DVD Menu

English

English

English

English

English

Deutsch

Français

Español

Italiano

Note

Some DVD video discs may not include your pre-selected language. In this case, the DVD video player automatically displays disc menus consistent with the disc’s initial language setting.

Notes

• Some DVD video discs may be set to display subtitles in a different language than you selected. A prior subtitle language may be programmed on the disc.

• Some DVD video discs allow you to change subtitle selections only via the disc menu. If this is the case, press MENU button and choose the appropriate subtitle language from the selection on the disc menu.

40

Audio

DVD

To select a preferred language for the sound track.

English: To view on-screen displays in English.

Deutsch: To view on-screen displays in German.

Français:To view on-screen displays in French.

Español: To view on-screen displays in Spanish.

Italiano: To view on-screen displays in Italian.

Language Video Audio Rating

OSD Menu

Subtitle

Audio

DVD Menu

English

English

English

English

English

Deutsch

Français

Español

Italiano

DVD Menu

DVD

To select a preferred language for disc menus.

English: To view on-screen displays in English.

Deutsch: To view on-screen displays in German.

Français:To view on-screen displays in French.

Español: To view on-screen displays in Spanish.

Italiano: To view on-screen displays in Italian.

Language Video Audio Rating

OSD Menu

Subtitle

Audio

DVD Menu

English

English

English

English

English

Deutsch

Français

Español

Italiano

Note

Some DVD video discs may be played in a different language than you selected. A prior language may be programmed on the disc.

Note

Some DVD video discs may be include your pre-selected language. In this case, the DVD video player automatically displays disc menus consistent with the disc’s initial language setting.

41

Function setup

Customizing the Function Settings (continued)

Setting details

Video

Language Video Audio Rating

TV System

DVD VCD CD

To select the video system of a disc.

Language Video Audio Rating

TV Shape

TV System

Video Output

4:3 Letter Box

NTSC

CVBS

NTSC

Auto

TV Shape

DVD VCD

To select a picture size according to the aspect ratio of your TV.

Language Video Audio Rating

TV Shape

TV System

Video Output

4:3 Letter Box

NTSC

CVBS

4:3 Pan Scan

4:3 Letter Box

16:9

42

4:3 Pan Scan:

4:3 Letterbox:

Select when a standard 4:3 TV is connected.

Displays pictures cropped to fill your

TV screen. Either or both sides of the picture are cut off.

Select when a standard 4:3 TV is connected.

Displays theatrical images with masking bars above and below the picture.

16:9 Widescreen: Select when a 16:9 wide TV is connected.

Notes

• The displayable picture size is preset on the DVD video disc. Therefore, the playback picture of some DVD video discs may not conform to the picture size you select.

• When you play DVD video discs recorded in the 4:3 picture size only, the playback picture always appears in the 4:3 picture size regardless of the TV shape setting.

• If you select “16:9 Widescreen” and you own a 4:3 TV set, the DVD playback picture will be horizontally distorted during playback. Images will appear to be horizontally compressed. Always be sure that your TV shape conforms to the actual TV in use.

NTSC: To play a NTSC disc. Connect a NTSC TV to view a picture.

Auto: The DVD video player automatically identifies PAL or NTSC video system of a disc. Connect a multisystem TV (PAL/NTSC compatible) to view a picture.

A playback picture may be distorted when detected a signal change between PAL and NTSC on the disc.

For the case of Progressive mode, your multisystem TV must be able to support 525p and 625p.

Video Output

DVD VCD CD

To select whether you send CVBS or YUV signals to the connected TV or not.

Language Video Audio Rating

TV Shape

TV System

Video Output

4:3 Letter Box

NTSC

CVBS

CVBS

YUV

CVBS: Corresponding to your TV which has a video

(yellow) or S-video input.

14

YUV: Corresponding to your TV which has a YUV

(component video) inputs. S-Video will not have video signal if YUV have been selected instead of CVBS.

15

Progressive mode can only be on when YUV is selected.

Audio

Language Video Audio Rating

Virtual Effect

DVD VCD CD

To obtain expansive virtual surround sound effects from just two speakers.

Language Video Audio Rating

Digital Out

Virtual Effect

PCM

On

Off

On

Digital Out

DVD VCD CD

Select the output sound format corresponding to your system connection.

For details of sound recording systems. See

31

.

Language Video Audio Rating

Digital Out

Virtual Effect

PCM

On

PCM

Raw

Off:

On:

Turn off virtual surround sound effects.

To obtain expansive virtual surround sound effects from two speakers (ANALOG AUDIO

OUT jacks). Be sure to set “Digital Out” to “PCM”.

PCM: Select when connected to a 2 channel digital stereo amplifier.

The DVD video player outputs sounds in the

PCM 2 ch format when you play a DVD video disc recorded on the Dolby Digital, MPEG1 or MPEG2 recording system.

Raw: Select when connected to an amplifier equipped with a Dolby Digital, DTS, MPEG1 or MPEG2 decoder. The DVD video player outputs digital audio information in the bitstream format when you play a DVD video disc recorded on the Dolby Digital, DTS,

MPEG1 or MPEG2 recording system.

Note

When you make a connection to a TV, or Dolby

Surround Pro Logic or stereo system via the analog audio jacks, select “PCM” or “Raw”.

43

Function setup

Customizing the Function Settings (continued)

Setting details

Rating

Language Video Audio Rating

Password / Rating

DVD

DVD discs equipped with the password function are rated according to their content. The contents allowed by a parental lock level and the way a DVD disc can be controlled may vary from disc to disc.

For example, if the disc allowed, you could edit out violent scenes unsuitable for children and replace them with more suitable scenes, or you could lock out playback of the disc altogether.

• DVD video discs may or may not respond to the parental lock settings. This is not a defect in the DVD video player. Make sure this function works with your

DVD video discs.

Language Video Audio Rating

Password

Rating

Load Factory

----

8. Adult

No

Indicates Parental lock is NOT active.

The Parental lock is active.

If you forget the password, you can erase your current password by pressing number button 8 on the remote four times, then press ENTER button to confirm the setting.

PASSWORD : 8888

Notes

• If you make a mistake before pressing ENTER button, press CLEAR button and enter your 4-digit security code again.

• You cannot play DVD discs rated higher than the level you selected unless you cancel the parental lock function.

Load factory

DVD VCD CD

If you want to return the initial settings such as Language,

Video, Audio and etc. to the factory default, following the

“SETTING PROCEDURE”

38

.

Language Video Audio Rating

Password

Rating

Load Factory

----

8. Adult

No

No

Yes

Language Video Audio Rating

Password

Rating

Load Factory

----

8. Adult

No

The parental lock level is equivalent to the following ratings:

Level 1 : Kid Safe

Level 2 : G

Level 3 : PG

Level 4 : PG_13

Level 5 : PG_R

Level 6 : R

Level 7 : NC_17

Level 8 : Adult (parental lock is not active)

44

Note

When you reset the DVD video player to the factory default, the DVD video player will take 3-5 seconds to reset.

Table of Languages

Table of languages and their abbreviations

Abbreviation

---

Language

No alternate language

Chinese

Dutch

English

French

German

Italian

Japanese

Korean

Malay

Spanish

Afar

Abkhazian

Afrikaans

Amharic

Arabic

Assamese

Aymara

Azerbaijani

Bashkir

Belorussian

Bulgarian

Bihari

Bislama

Bengali, Bangla

Tibetan

Breton

Catalan

Corsican

Czech

Welsh

Danish

Bhutani

Greek

Esperanto

Estonian

Basque

Persian

Finnish

Fiji

Faroese

Frisian

Irish

Scottish Gaelic

Galician

B N

B O

B R

C A

C O

C S

C Y

D A

A S

A Y

A Z

B A

B E

B G

B H

B I

CHI (ZH)

DUT (NL)

ENG (EN)

FRE (FR)

GER (DE)

ITA (IT)

JPN (JA)

KOR (KO)

MAY (MS)

SPA (ES)

A A

A B

A F

A M

A R

D Z

E L

E O

E T

E U

F A

F I

F J

F O

F Y

G A

G D

G L

Language

Guarani

Gujarati

Hausa

Hindi

Croatian

Hungarian

Armenian

Interlingua

Interlingue

Inupiak

Indonesian

Icelandic

Hebrew

Yiddish

Javanese

Georigian

Kazakh

Greenlandic

Cambodian

Kannada

Kashmiri

Kurdish

Kirghiz

Latin

Lingala

Laotian

Lithuanian

Latvian, Lettish

Malagasy

Maori

Macedonian

Malayalam

Mongolian

Moldavian

Marathi

Maltese

Burmese

Nauru

Nepali

Norwegian

Occitan

(Afan) Oromo

Oriya

Panjabi

Polish

Pashto, Pushto

K U

K Y

L A

L N

L O

L T

L V

M G

M I

J I

J W

K A

K K

K L

K M

K N

K S

Abbreviation

G N

G U

H A

H I

H R

H U

H Y

I A

I E

I K

I N

I S

I W

N A

N E

N O

O C

O M

O R

P A

P L

P S

M K

M L

M N

M O

M R

M T

M Y

Setswana

Tongan

Turkish

Tsonga

Tatar

Twi

Ukrainian

Urdu

Uzbek

Vietnamese

Volapük

Wolof

Zhosa

Yoruba

Zulu

Somali

Albanian

Serbian

Siswati

Sesotho

Sundanese

Swedish

Swahili

Tamil

Telugu

Tajik

Thai

Tigrinya

Turkmen

Tagalog

Language

Portuguese

Quechua

Rhaeto-Romance

Kirundi

Rumanian

Russian

Kinyarwanda

Sanskrit

Sindhi

Sango

Serbo-Croatian

Singhalese

Slovak

Slovenian

Samoan

Shona

S U

S V

S W

T A

T E

T G

T H

T I

T K

S L

S M

S N

S O

S Q

S R

S S

S T

Abbreviation

P T

Q U

R M

R N

R O

R U

R W

S A

S D

S G

S H

S I

S K

U K

U R

U Z

V I

V O

W O

X H

Y O

Z U

T L

T N

T O

T R

T S

T T

T W

45

Others

Operating a TV with the Remote Control

You can operate the basic functions of selected TVs using the supplied remote control

Operating a TV with the remote control

Preparation

Follow the instruction of “To program the remote control” to set the brand code.

Point the remote control at your TV, and use buttons as follows.

POWER

INPUT SELECT

To turn the TV on or off.

To select external source such as a

VCR.

NUMBER buttons To select TV channel. When selecting channels 1 to 9, first enter 0 and then the desired number.

100

• DISPLAY

To substitute for 100 channel key.

To turn on or off TV’s screen display.

VOL + / -

CH +/ -

ENTER

To adjust the volume.

To select a channel.

To use for the TV’s ENTER key.

To program the remote control

1 Press TV to select TV mode.

2 While holding down PROGRAM enter the two digits of your TV’s brand code (listed on page 47) using

Number buttons.

e.g. To program brand code 01.

PROGRAM

0

1

Note

When using the remote control, press the buttons at intervals of about 1 second to ensure the correct mode of operation.

3 Release PROGRAM.

The DVD remote control memorizes the selected TV brand code.

POWER

INPUT SELECT

Numbers/100

• DISPLAY

CH, VOL

PROGRAM

ENTER

Notes

• The remote control is programmed at the factory to operate TOSHIBA TVs.

• A single brand may use different codes depending on the particular model. Enter the correct number referring to the brand code table.

• For some brands, several brand codes are provided. Try each of them until the remote control operates your TV.

• Some TVs may not respond to all of the functions in the table above, or may not be operated at all with this remote control.

• If you replace the remote control’s batteries, remember to reprogram the brand codes for TV.

• Press DVD back if DVD operation is required.

46

Brand code table

Brand Name Brand Code

TOSHIBA 01

BELL & HOWELL 09

CARVER

CELEBRITY

10

03

CITIZEN 12

CURTIS MATHES 09

DUMONT 14

ELECTRO BRAND 03

EMERSON 09

FISHER

GE

GIBRALTER

GOLDSTAR

HALLMARK

HITACHI

INFINITY

JBL

JCB

JVC

06

10

10

03

05

09

02

14

11

11

LXI

MAGNAVOX

MARANTZ

MEGATRON

MEMOREX

MGA

MIDLAND

MITSUBISHI

MOTOROLA

MTC

NAD

NIKKO

OPTIMUS

OPTONICA

PANASONIC

PENNEY

04

02

04

08

12

01

10

10

06

04

01

11

09

08

07

01

12

11

07

02

11

09

11

07

11

11

10

02

11

09

11

14

15

07

10 11

11 12

Brand Name

PHILCO

PHILIPS

PIONEER

PRINCECLUB

PRISM

PROSCAN

PROTON

PULSAR

QUASAR

RADIO SHACK

RCA

REALISTIC

RUNCO (NEC)

SAMSUNG

SANYO

SCOTCH

SCOTT

SEARS

SHARP

SONY

SOUNDESIGN

SUPREME

SYLVANIA

TANDY

TECHNICS

TECHWOOD

TEKNIKA

TMK

VICTOR

VIDIKRON

VIDTECH

WARDS

ZENITH

Brand Code

07

07

04

11

05

03

11

03

10

08

10

11

10

14

09

11

11

01

08

13

02

09

14

11

07

02

11

14

07

10

10

16

12

15

11

12

02

13

15

10

11

13

09

12

13

10 11

47

Others

Before Calling Service Personnel

Check the following guide for the possible cause of a problem before contacting service.

Symptoms and correction

Symptom Cause

No power.

The DVD video player turned off by itself.

No picture or abnormal color (pinkish, greenish, etc.).

• The power plug is disconnected.

• The automatic power off function turned the unit off.

• The TV is not set to receive DVD signal output.

• The video cable is not connected securely.

• Mismatch setting between TV and this player.

• Wrong connection.

Scrolling, jumping or B/W picture.

No sound.

• Incompatible TV system.

• The equipment connected with the audio cable is not set to receive DVD signal output.

• The audio cable is not connected securely.

• The audio receiver or TV is turned off.

• The setting of output sound format is incorrect.

• The disc is dirty.

The playback picture has occasional distortion.

• It is in fast forward or fast reverse playback.

Brightness is unstable or noises are present in the playback pictures.

• The effect of copy protection.

The DVD video player does not start playback.

• No disc is inserted.

• An unplayable disc is inserted.

Playback does not follow the course of the disc’s program.

Buttons do not work.

• The disc is placed upside down.

• The disc is not placed within the guide.

• The disc is dirty.

• The parental lock function is set.

• It is in the mode of repeat playback, memory playback, etc.

Correction

• Connect the power plug securely into the wall outlet.

• Press the PLAY button.

• Select the appropriate video input mode on the

TV so the picture from the DVD video player appears on the TV screen.

• Connect the video cable securely into the appropriate jacks.

• Select the correct Video Output setting.

• Check the connection.

• Select the correct TV system.

• Select the correct input mode of the audio receiver so you can listen to the sound from the DVD video player.

• Connect the audio cable securely into the appropriate jacks.

• Turn on the equipment connected with the audio cable.

• Select the proper audio setting.

• Eject the disc and clean it.

• Sometimes a small amount of picture distortion may appear. This is not a malfunction.

• Connect the DVD video player directly of the TV.

Avoid connecting the DVD video player to a VCR or TV/VCR combination.

• Insert a disc.

• Insert a playable disc. (Check the disc type and color system.)

• Place the disc with the playback side down.

• Place the disc correctly inside the guide on the disc tray.

• Clean the disc.

• Cancel the parental lock function or change the parental lock level.

• These operations may prevent a proper progress of the contents.

The remote control does not work properly.

• Power supply fluctuations or other abnormalities such as static electricity may interrupt correct operations.

• Press and hold ON/STANDBY button on the front panel for more than about 3 seconds. The DVD video player turns off. Press the button again to turn it on. If the buttons still do not work, disconnect the power plug and insert it into the wall outlet again.

• Point the remote control at the remote sensor of the DVD video player.

• The remote control is not pointed at the remote sensor of the DVD video player.

• The remote control is too far from the DVD video player.

• The batteries in the remote control are exhausted.

• Operate the remote control within about 7 m.

• Replace the batteries with new ones.

Page

14

21

20

14, 15

42

14, 15

42

20

14-19

20

31, 38

43

7

-

14

7

38, 44

-

-

13

13

13

20

8

20

20

48

Specifications

DVD video player / outputs / supplied accessories

DVD video player

Power supply

Power consumption

Mass

External dimensions

Signal system

Laser

Frequency range

Signal-to-noise ratio

Audio dynamic range

Harmonic distortion

Wow and flutter

Operating conditions

120 V AC, 60 Hz

13W

3.86 kg

428 X 76 X 437 mm (W/H/D)

Standard NTSC

Semiconductor laser, wavelength 650/780 nm

DVD linear sound : 48 kHz sampling 4 Hz to 22 kHz

96 kHz sampling 4 Hz to 44 kHz

More than 100 dB

More than 93 dB

Less than 0.005 %

Below measurable level (less than ±0.001 % (W.PEAK))

Temperature: 5 °C to 35 °C, Operation status: Horizontal

Outputs

Video output

S video output

Component video output

COAXIAL Digital Audio Out

Audio output (ANALOG)

1.0 V (p-p), 75

, negative sync., pin jack x 1

(Y) 1.0 V (p-p), 75

, negative sync., Mini DIN 4-pin x 1

(C) 0.286 V (p-p), 75

(Y) 1.0 V (p-p), 75

, negative sync., pin jack x 1

(P

B

) (P

R

) 0.7 V (p-p), 75

Ω,

pin jack x 2

0.5 V (p-p), 75

, pin jack x 1

2.0 V (rms), 680

, pin jacks (L, R) x 1

Outputs

Audio/video cable ................................................. 1

Remote control (SE-R0131) ................................ 1

Batteries (AAA) ...................................................... 2

• Designs and specifications are subject to change without notice.

49

Others

Limited United States Warrant y

DVD Players - Exchange Warrant y

Toshiba America Consumer Products, L.L.C. ("TACP") makes the following limited warranties to original consumers in the United States. THESE LIMITED WARRANTIES EXTEND TO THE ORIGINAL CONSUMER

PURCHASER OR ANY PERSON RECEIVING THIS DVD PLAYER AS A GIFT FROM THE ORIGINAL

CONSUMER PURCHASER AND TO NO OTHER PURCHASER OR TRANSFEREE

PRODUCTS PURCHASED IN THE U.S.A. AND USED IN CANADA ARE NOT COVERED BY THESE

WARRANTIES

PRODUCTS PURCHASED IN CANADA AND USED IN THE U.S.A. ARE NOT COVERED BY THESE

WARRANTIES.

Limited Ninety (90) Day Warrant y

TACP warrant this DVD PLAYER and its parts against defects in materials or workmanship for a period of ninety (90) days after the date of original retail purchase. DURING THE FIRST 90 DAYS

FROM THE PURCHASE DATE, TACP WILL

EXCHANGE A DEFECTIVE DVD PLAYER WITH

A NEW OR REFURBISHED PLAYER WITHOUT

CHARGE TO YOU. YOU MUST CONTACT

TOSHIBA'S CONSUMER SOLUTIONS CENTER

FOR INSTRUCTIONS ON HOW TO PROCESS

YOUR IN WARRANTY EXCHANGE REQUEST. THE

CONSUMER IS RESPONSIBLE FOR ALL INBOUND

TRANSPORTATION AND INSURANCE CHARGES

FOR THE DVD PLAYER TO THE EXCHANGE

CENTER. DURING THE PERIOD FROM 91 DAYS

AND BEYOND, FROM THE PURCHASE DATE, TACP

WILL EXCHANGE A DEFECTIVE DVD PLAYER

WITH A NEW OR REFURBISHED PLAYER FOR A

NOMINAL FEE. YOU MUST CONTACT TOSHIBA'S

CONSUMER SOLUTIONS CENTER FOR INSTRUC-

TIONS ON HOW TO PROCESS YOUR EXCHANGE

REQUEST. THE CONSUMER IS RESPONSIBLE

FOR ALL INBOUND TRANSPORTATION AND

INSURANCE CHARGES FOR THE DVD PLAYER

TO THE EXCHANGE CENTER.

*Rental Units

The warranty for rental units begins with the first rental or thirty (30) days from the date of shipment to the rental firm, whichever comes first.

*Commer cial Units

DVD PLAYERs sold and used for commercial purposes have a limited ninety (90) day warranty for all parts, labor.

Owner's Manual and Demographic Card

You should read this owner's manual thoroughly before operating this DVD PLAYER. You should complete and mail the enclosed Demographic card within ten days after you, or the person who has given you this product as a gift, purchased this DVD PLAYER.

This is one way to enable TACP to provide you with better customer service and improved products.

Failure to return the Demographic card will not affect your rights under this warranty.

Your Responsibility

THE ABOVE WARRANTIES ARE SUBJECT TO THE

FOLLOWING CONDITIONS:

(1) You must provide your bill of sale or other proof of purchase.

(2) All warranty servicing of this DVD PLAYER must be made by an Authorized TACP Service Station.

(3) The warranties from TACP are effective only if the

DVD PLAYER is purchased and operated in the

U.S.A. or Puerto Rico.

(4) Labor service charges for set installation, set up, adjustment of customer controls and installation or repair of antenna systems are not covered by these warranties. Reception problems caused by inadequate antenna systems are your responsibility.

(5) Warranties extend only to defects in materials or workmanship as limited above and do not extend to any DVD PLAYER or parts which have been lost or discarded by you or to damage to DVD

PLAYER or parts caused by misuse, accident,

Acts of God, such as lightning or fluctuations in electric power, improper installation, improper maintenance or use in violation of instructions furnished by TACP; or to units which have been modified or had the serial number removed, altered, defaced or rendered illegible.

50

How to Obtain Warranty Services

If, after following all of the operating instructions in this manual and checking the section "Before Calling

Service Personnel", you find that service is needed:

(1) For instructions on how to obtain warranty service for exchange program DVD Players, contact

TACP'S toll free Call Center at 1-866-583-7353.

(2) Include your bill of sale or other proof of purchase along with the DVD player, when sending it to the

Authorized TACP Service Station SPECIFIED by

TACPs Call Center. You must pay for all transportation and insurance charges for the DVD

Product to and from the Service Station.

For additional information, visit TACP's web site: www.tacp.toshiba.com

ALL WARRANTIES IMPLIED BY THE LAW OF ANY

STATE OF THE U.S.A., INCLUDING THE IMPLIED

WARRANTIES OF MERCHANTABILITY AND FIT-

NESS FOR A PA RTICULAR PURPOSE, ARE

EXPRESSLY LIMITED TO THE DURATION OF THE

LIMITED WARRANTIES SET FORTH ABOVE. WITH

THE EXCEPTION OF ANY WARRANTIES IMPLIED

BY THE LAW OF ANY STATE OF THE U.S.A. AS

HEREBY LIMITED, THE FOREGOING WARRANTY

IS EXCLUSIVE AND IN LIEU OF ALL OTHER

WARRANTIES, GUARANTEES, AGREEMENTS

AND SIMILAR OBLIGATIONS OF TACP OR THI

WITH RESPECT TO THE REPAIR OR REPLACE-

MENT OF ANY PARTS. IN NO EVENT SHALL TACP

BE LIABLE FOR CONSEQUENTIAL OR INCIDEN-

TAL DAMAGES.

No person, agent, distributor, dealer or company is authorized to change, modify or extend the terms of these warranties in any manner whatsoever. The time within which action must be commenced to enforce any obligation of TACP arising under this warranty or under any law of the United States or of any state thereof is hereby limited to 90 days from the date you discovered or should have discovered, the defect. This limitation does not apply to implied warranties arising under the law of any state of the U.S.A.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL

RIGHTS, AND YOU MAY ALSO HAVE OTHER

RIGHTS WHICH MAY VARY FROM STATE TO STATE

IN THE U.S.A. SOME STATES OF THE U.S.A. DO

NOT ALLOW LIMITATIONS ON HOW LONG AN

IMPLIED WARRANTY LASTS, WHEN AN ACTION

MAY BE BROUGHT, OR THE EXCLUSION OR

LIMITATION OF INCIDENTAL OR CONSEQUENTIAL

DAMAGES, SO THE AFOREMENTIONED

LIMITATIONS OR EXCLUSIONS MAY NOT APPLY

TO YOU UNDER SUCH CIRCUMSTANCES.

51

Others

- IMPORTANT -

CANADIAN WARRANTY INFORMATION

GARANTIE CANADIENNE

STANDARD WARRANTY

TYPE OF SET DVD Player

DVD/VCR Combination

Home Theatre in a Box

DVD Recorder

Portable DVD

12 MONTHS WARRANTY PERIOD

CANADIAN WARRANTY

Toshiba of Canada Limited (TCL) makes the following limited warranties to original consumers in Canada. Please retain your “Bill of Sale” as proof of purchase. To obtain a

“Canadian Warranty” please register online at www.toshiba.ca.

GARANTIE NORMALE

TYPE D’APPAREIL Lecteur DVD

DVD/magnétoscope combo

Cinéma maison dans une boîte

Enregistreur DVD

DVD Portatif

DURÉE DE LA GARANTIE: 12 MOIS

GARANTIE CANADIENNE

1) Toshiba du Canada Limit e (TLC) of fre au Canada les garanties limit es suivantes aux consommateurs origin-aux. Veuillez conserver votre < facture > comme preuve d’achat. Pour

obtenir une garantie canadienne, veuillez vous inscrire en ligne à www.toshiba.ca.

Canadian Warranty Information

Should service be required on this unit during the one year warranty period, TCL’s option will be to repair or exchange the defective unit. It will be necessary to follow this procedure:

Contact: Toshiba of Canada Limited at the Consumer Electronics

Group, customer support line.

Phone:

1-800-268-3404

Email:

[email protected]

All in-warranty repairs must be made by an authorized TCL service centre.

For service exchange TCL will arrange to have the unit picked up by courier and a replacement unit will be returned via same courier.

(Note: A major credit card number will be required as a charge of

$25.00 will apply if no fault is found with the unit.) During the first

3 months of ownership, a new unit will be supplied as a replacement.

During the remainder of the warranty period a service-renewed unit will be supplied.

The original “Bill of Sale” must be provided as proof of purchase (it will be returned with the replacement unit.)

This 12-month warranty will be strictly adhered to.

Out of warranty units should be repaired by a TCL authorized service centre.

Note: It is the responsibility of the owner to ensure proper packaging. Should damage in shipping occur, due to poor packaging, a charge back for the repair will result. This warranty applies to the original purchaser only and is not transferable.

This warranty does not apply to sets that have been subjected to misuse, neglect, accident, physical damage or acts of nature.

Sets with the serial number removed, altered, replaced or defaced will not be covered by this warranty.

The warranties from TCL are effective only if the product is purchased in Canada from an authorized TCL dealer and operated in Canada.

Products utilized for rental or commercial purposes are not covered by this warranty.

This warranty is in lieu of all other warranties, guaranties or agreements, whether expressed or implied, and no person, agent distributor, dealer, service centre or company is author-ized to change, modify or extend its terms in any manner whatsoever.

Information sur la garantie Canadienne

Si vous avez besoin de service sur cet appareil au cours le l’année de garantie, Toshiba du Canada Limitée aura l’op tion de réparer ou échanger l’appareil d féctueux. Vous devrez suivre la procédure suivante:

Contact:

Toshiba du Canada Limitée au Groupe Électronique

Tél:

aux consommateurs, service à la clientèle.

1-800-268-3404

Courriel:

[email protected]

Toutes les réparations au cours de la garantie doivent être faites par un centre de service autorisé Toshiba.

Pour un échange TCL s’assurera qu’un service de courrier ramassera l’unité et qu’un appareil de remplacement soit expédié par le même service de courrier

(Note: Un numéro de carte de crédit sera requis car une charge de

25,00$ sera appliquée si toutefois l’appareil n’avait aucun problème de fonctionnement.)

Une nouvelle unité sera fournie comme remplacement durant les premiers 3 mois de propriété. Par contre durant la balance de la garantie une unité remise à neuf sera fournie.

La <facture> originale doit être fournie comme preuve d’achat (elle vous sera retournée avec l’unit de remplacement.)

Cette garantie de 12 mois sera strictement adhérée.

Les unités hors de garantie devraient être réparées par un centre de service autorisé Toshiba.

Note: C’est la responsabilité du propriétaire de s’assurer que l’emballage est adéquat. Vous serez facturé pour toutes réparations causées par des dommages encourus à cause d’un emballage non adéquat.

Cette garantie est octroyée à l’acheteur initial et n’est pas transférable. Cette garantie ne s’aplique pas aux appareils qui ont

été sujets aux abus, négligences, accidents, dommages physiques ou actes naturels.

Les appareils dont le numéro de série a été enlevé, altété, remplacé ou barbouillé ne sont pas couverts par cette garantie.

Les garanties de TCL sont valides seulement sur les unités sont achetées et utilisées au Canada d’un marchand autorisé TCL.

Cette garantie ne couvre pas les produits de location ou à usage commercial. Cette garantie remplace toutes autres garanties ou ententes exprimées ou sous-entendues. Aucune personne, agent, distributeur , concessionaire ou compagnie n’est autorisé à changer, modifier ou prolonger les termes de cette garantie de quelque façon que ce soit.

Toshiba of Canada Limited 191 McNabb Street Markham, Ontario L3R 8H2

811-SD5991-010

Printed in China

52

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
