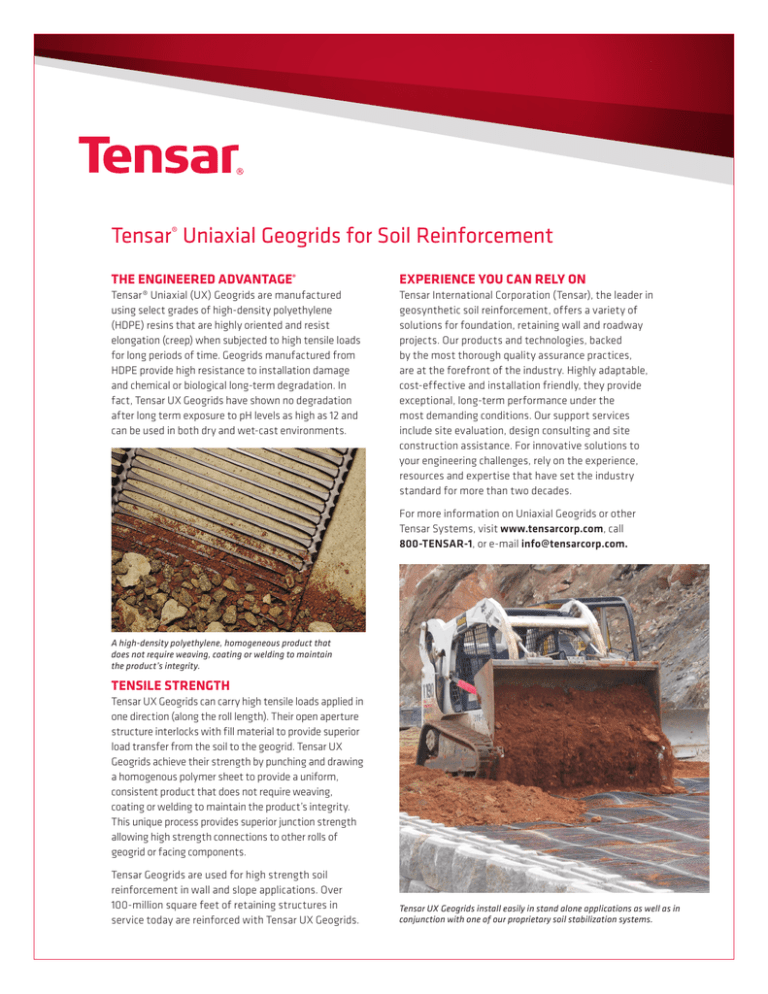

Tensar® Uniaxial Geogrids for Soil Reinforcement
THE ENGINEERED ADVANTAGE®
EXPERIENCE YOU CAN RELY ON
Tensar® Uniaxial (UX) Geogrids are manufactured
using select grades of high-density polyethylene
(HDPE) resins that are highly oriented and resist
elongation (creep) when subjected to high tensile loads
for long periods of time. Geogrids manufactured from
HDPE provide high resistance to installation damage
and chemical or biological long-term degrad­ation. In
fact, Tensar UX Geogrids have shown no degradation
after long term exposure to pH levels as high as 12 and
can be used in both dry and wet-cast environments.
Tensar International Corporation (Tensar), the leader in
geosynthetic soil reinforcement, offers a variety of
solutions for foundation, retaining wall and roadway
projects. Our products and technologies, backed
by the most thorough quality assurance practices,
are at the forefront of the industry. Highly adaptable,
cost-effective and installation friendly, they provide
exceptional, long-term performance under the
most demanding conditions. Our support services
include site evaluation, design consulting and site
construction assistance. For innovative solutions to
your engineering challenges, rely on the experience,
resources and expertise that have set the industry
standard for more than two decades.
For more information on Uniaxial Geogrids or other
Tensar Systems, visit www.tensarcorp.com, call
800-TENSAR-1, or e-mail [email protected]
A high-density polyethylene, homogeneous product that
does not require weaving, coating or welding to maintain
the product’s integrity.
TENSILE STRENGTH
Tensar UX Geogrids can carry high tensile loads applied in
one direction (along the roll length). Their open aperture
structure interlocks with fill material to provide superior
load transfer from the soil to the geogrid. Tensar UX
Geogrids achieve their strength by punching and drawing
a homogenous polymer sheet to provide a uniform,
consistent product that does not require weaving,
coating or welding to maintain the product’s integrity.
This unique process provides superior junction strength
allowing high strength connections to other rolls of
geogrid or facing components.
Tensar Geogrids are used for high strength soil
reinforcement in wall and slope applications. Over
100-million square feet of retaining structures in
service today are reinforced with Tensar UX Geogrids.
Tensar UX Geogrids install easily in stand alone applications as well as in
conjunction with one of our proprietary soil stabilization systems.
PROPERTY SPECIFICATIONS FOR TENSAR® UNIAXIAL GEOGRIDS*
Index Properties
GEOGRID PROPERTIES
UX1100
UX1400
UX1500
UX1600
UX1700
UX1800**
Tensile Strength @ 5% Strain
(kN/m (lb/ft))
27 (1,850)
31 (2,130)
52 (3,560)
58 (3,980)
75 (5,140)
95 (6,510)
Ultimate Tensile Strength
(kN/m (lb/ft))
58 (3,970)
70 (4,800)
114 (7,810)
144 (9,870)
175 (11,990)
210 (14,390)
Junction Strength
(kN/m (lb/ft))
54 (3,690)
66 (4,520)
105 (7,200)
135 (9,250)
160 (10,970)
180 (12,340)
Flexural Stiffness
(mg-cm)
500,000
730,000
5,100,000
6,000,000
9,075,000
9,500,000
GEOGRID PROPERTIES
UX1100
UX1400
UX1500
UX1600
UX1700
UX1800
21.2 (1,450)
25.6 (1,760)
41.8 (2,860)
52.7 (3,620)
64.1 (4,390)
74.1 (5,080)
Load Capacity
Maximum Allowable (Design)
Strength (kN/m (lb/ft))
Recommended Allowable Strength Reduction Factors
GEOGRID PROPERTIES
UX1100
UX1400
UX1500
UX1600
UX1700
UX1800
Minimum Reduction Factor
for Installation Damage (RFID )
1.05
1.05
1.05
1.05
1.05
1.05
Reduction Factor for Creep
for 120 yr design life (RFCR )
2.60
2.60
2.60
2.60
2.60
2.70
Minimum Reduction Factor
for Durability (RFD )
1.00
1.00
1.00
1.00
1.00
1.00
*Tensar reserves the right to change its product specifications at any time. It is the responsibility of the specifier and purchaser to ensure that product specifications
used for design and procurement purposes are current and consistent with the products used in each instance. Tensar warrants that at the time of delivery the geogrid
furnished hereunder shall meet its published specifications as of the date of manufacture of the product. NO OTHER WARRANTY, EXPRESSED OR IMPLIED, INCLUDING
MERCHANTABILITY OF FITNESS FOR A PARTICULAR PURPOSE, IF PROVIDED AND ANY AND ALL SUCH OTHER WARRANTIES ARE SPECIFICALLY EXCLUDED. The sole
remedy to the purchaser or user of our products for breech of the above-mentioned warranty is the replacement of the geogrid material. Notification of any such breech shall
be made within three (3) months of product delivery and prior to installation. The applicable product specification supersedes all prior specifications for the product. Unless
indicated otherwise, values shown are minimum average roll values determined in accordance with ASTM D4759. Brief descriptions of test procedures are given in the notes
found online at www.tensarcorp.com. Call 800-TENSAR-1 for a complete list of property specifications and notes associated with these Tensar® UX Geogrid properties.
**UX1800 is only available for non-connected systems.
SRW Typical Cross-Section
Cap unit
RSS Typical Cross-Section
Tensar
UX Geogrid
Turf
reinforcement mat
1 (Min.)
1
SRW unit
Wall
height
varies
1
12.8
Reinforced
fill
Finished
grade
Wall
embedment
varies
Retained
fill
Secondary geogrid
reinforcement
12 in. (min)
granular fill
Primary geogrid
reinforcement
Reinforced
fill
Foundation
Leveling pad
Geogrid embedment
length varies
Tensar International Corporation
2500 Northwinds Parkway
Suite 500
Alpharetta, GA 30009
800-TENSAR-1
tensarcorp.com
