Specifications
Model
Optical
Signals
Projection system
LCD panels
Lamp
Projection lens
Screen coverage
Light output
Throwing distance
40-inch
60-inch
80-inch
100-inch
120-inch
150-inch
Color system
Resolution
Acceptable signals
General
Inputs/Outputs
Speakers
Power requirements
Power consumption
Operating temperature
Operating humidity
Dimensions
Mass
Heat dissipation
VIDEO
Composite
VIDEO
Y/C IN
Y
C
INPUT A
Analog RGB/Component
R/R-Y
G
G with Sync/Y
B/B-Y
SYNC/HD
Composite sync
Horizontal sync
VD
Vertical sync
MOUSE IN
USB HUB
AUDIO IN
Safety regulations
Supplied accessories
*1
Preset Data of Input Signals
VPL-CS1
3 SVGA LCD panels, 1 lens projection system
0.7-inch p-Si TFT SVGA LCD panels,
1,440,000 (480,000 x 3) pixels
120 W UHP
1.3 times zoom lens, F 1.7 to 2.1, f 28.74 to 37.36 mm
40 to 150 inches (viewable area, measured diagonally)
600 ANSI lumens*1
1580 to 2010 mm (62 1/4 to 78 25/32 inches)
2390 to 3060 mm (94 1/8 to 120 1/2 inches)
3210 to 4100 mm (126 1/2 to 161 1/2 inches)
4030 to 5150 mm (158 11/16 to 202 7/8 inches)
4850 to 6200 mm (191 to 244 1/8 inches)
6080 to 7780 mm (239 1/2 to 306 3/8 inches)
NTSC, PAL, SECAM, NTSC4.43, PAL-M, PAL-N
(automatically/manually selected)
600 TV lines (video), 800 x 600 pixels (RGB)
RGB (fH: 15 to 91 kHz, fV: 43 to 85 Hz),
15 kHz component 50/60 Hz system, composite video, Y/C video
Max. 0.5 W x 2 (stereo)
AC 100 to 240 V, 50/60 Hz
Max. 190 W, standby 4.2 W
0 to 35 °C (32 to 95 °F)
35 to 85%
277 (W) x 70 (H) x 214 (D) mm (11 x 2 7/8 x 8 1/2 inches)
Approx. 2.9 kg (6 lb 6 oz)
648.4 BTU
Phono type, 1.0 Vp-p ±2 dB, sync negative, 75 Ω
Mini DIN 4-pin
1 Vp-p ±2 dB, sync negative, 75 Ω
Burst 0.286 Vp-p ±2 dB (NTSC), 75 Ω
or 0.3 Vp-p ±2 dB (PAL), 75 Ω
HD D-sub 15-pin (female)
0.7 Vp-p ±2 dB, positive, 75 Ω
0.7 Vp-p ±2 dB, positive, 75 Ω
1.0 Vp-p ±2 dB, sync negative, 75 Ω
0.7 Vp-p ±2 dB, positive, 75 Ω
1 to 5 Vp-p, high impedance positive/negative
1 to 5 Vp-p, high impedance positive/negative
1 to 5 Vp-p, high impedance positive/negative
6-pin (female)
UP (B type female) x 1, Down (A type female) x 1
Stereo mini jack, 500 mV rms, impedance more than 47 kΩ
UL1950, CSA No.950, FCC Class B, IC Class B,
EN 60 950 (NEMCO), CE, C-Tick, CCIB, VCCI Class B
Remote control unit RM-PJM1, Monitor cable SMF-410 (2 m):
HD D-sub 15-pin to HD D-sub 15-pin, PS/2 Mouse cable (2 m),
USB cable A type to B type, USB application software
“PROJECTOR STATION’’, Carrying bag, AAA size battery (x 2),
Air filter, Operating manual, Quick reference sheet
ANSI lumens is a measuring method of the American National Standards Institute IT7.228.
fH
(kHz)
fV
H/V
(Hz) Polarity
Video 60 Hz
Video 50 Hz
15 K RGB/Component 60 Hz
15 K RGB/Component 50 Hz
15.734
15.625
15.734
15.625
59.940 N/N
50.000 N/N
59.940 S on G
50.000 S on G
640 x 350
31.469
37.861
24.823
31.469
37.861
31.469
35.000
37.861
37.500
43.269
35.156
37.879
48.077
46.875
53.674
49.724
35.524
48.363
56.476
60.023
68.677
63.995
67.500
77.487
61.795
71.713
60.000
75.000
46.433
53.516
63.974
79.976
91.146
70.086 P/N
85.080 P/N
56.416 N/N
70.086 N/P
85.080 N/P
59.940 N/N
66.667 S on G
72.809 N/N
75.000 N/N
85.008 N/N
56.250 P/P
60.317 P/P
72.188 P/P
75.000 P/P
85.061 P/P
74.550 N/N
43.479 P/P
60.004 N/N
70.069 N/N
75.029 P/P
84.997 P/P
70.016 P/P
75.000 P/P
85.057 P/P
65.960 N/N
76.047 C Neg
60.000 P/P
75.000 P/P
43.436 P/P
50.062 S on G
60.013 P/P
75.025 P/P
85.024 P/P
Memory
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
Preset Signal
VGA mode 1
VGA VESA 85 Hz
640 x 400
PC-9801 Normal
VGA mode 2
VGA VESA 85 Hz
640 x 480
VGA mode 3
Macintosh 13"
VGA VESA 72 Hz
VGA VESA 75 Hz
VGA VESA 85 Hz
800 x 600
SVGA VESA 56 Hz
SVGA VESA 60 Hz
SVGA VESA 72 Hz
SVGA VESA 75 Hz
SVGA VESA 85 Hz
832 x 624
Macintosh 16"
1024 x 768 XGA VESA 43 Hz
XGA VESA 60 Hz
XGA VESA 70 Hz
XGA VESA 75 Hz
XGA VESA 85 Hz
1152 x 864 SXGA VESA 70 Hz
SXGA VESA 75 Hz
SXGA VESA 85 Hz
1152 x 900 Sunmicro LO
Sunmicro HI
1280 x 960 SXGA VESA 60 Hz
SXGA VESA 75 Hz
1280 x 1024 SXGA VESA 43 Hz
SGI-5
SXGA VESA 60 Hz
SXGA VESA 75 Hz
SXGA VESA 85 Hz
Your Presentations Will Take on a Whole New Look.
Optional Accessories
Projector lamp
LMP-C120
(for replacement)
Remote control unit
RM-PJ610
Monitor cables
SMF-400
SMF-410
Signal cable
SMF-402
LMP-C120
Macintosh adaptor
ADP-20 (Macintosh to VGA)
®
50-inch portable screen
VPS-50C*
* Not available in some areas. For details, please contact your nearest Sony office.
Distributed by
MK7421V1SMC99OCT
©1999 Sony Corporation. All rights reserved.
Reproduction in whole or in part without permission is prohibited.
Features and specifications are subject to change without notice.
All non-metric weights and measures are approximate.
Sony is a registered trademark of Sony Corporation.
Macintosh and Mac are registered trademarks of Apple Computer, Inc.
Microsoft and Windows are registered trademarks of Microsoft Corporation.
All other trademarks are the property of their respective owners.
Printed in Japan
Printed on recycled paper
LCD Data Projector
VPL-CS1
Ultra-compact and extremely lightweight
Multiscan converter
Thanks to newly developed 0.7-inch LCD panels and
a unique design, the VPL-CS1 is ultra-compact and
weighs approx. 2.9 kg (6.4 lbs.). What’s more, this
projector comes with a carrying case and has an
easy-to-grip handle and detachable strap that allow
you to take it anywhere.
The VPL-CS1 accepts a wide variety of input signals,
with 37 preset signal formats covering any video
format used worldwide and PC signals up to SXGA.
Just plug in your computer with the supplied cable
and you get a great picture with no need for complex
adjustments.
600 ANSI lumens brightness
Various inputs
The VPL-CS1 accepts various input signals: Composite
video, S video, Y/Cb/Cr and RGB.
Despite its compact dimensions, the VPL-CS1
incorporates advanced Sony technologies that provide
an impressive 600 ANSI lumens of
brightness. A new 120 W UHP lamp
and brighter lens, together with
Sony’s unique 0.7-inch SVGA LCD
panels and optical unit produce
industry-leading levels of image clarity.
Connector
Advanced APA
Quiet operation
Thanks to its new cooling structure, the VPL-CS1
operates with a low noise level. The use of sapphire
glass on the polarizer dramatically reduces heat
buildup, making only two internal fans necessary.
Introducing Sony’s Perfect Package of Performance.
The Take It Anywhere, Do It All Projector It’s a Sony. And that’s why the VPL-CS1 LCD Data Projector is
ultra-compact, extremely portable, and packed with advanced technologies for impressive image clarity.
Exquisite form, handy function
Keep in step with the latest from Sony and your presentations will never be the same again.
Control panel
The sleek front hood not only protects the lens from
damage but also serves as the projector’s front
stand when flipped open. The rear stand extends
simultaneously when the front hood is opened.
Digital keystone adjustment
Keystone distortion can be electronically corrected
with this function. The adjustable range of 20 degrees
can be controlled via the on-screen display menu.
The correction data is stored in the unit when
the KEYSTONE MEMORY menu is set to ON.
Computer friendly
With a hot plug-and-play USB hub and Sony
“PROJECTOR STATION” software*, the VPL-CS1
makes for professional presentations. The projector is
fully controllable from a computer, and presentation
files registered in the software can be opened by
pressing the function keys on the supplied RM-PJM1
remote control unit.
*PROJECTOR STATION software requirements:
Microsoft® Windows® 98 operating system.
The new APA (Auto Pixel Alignment) algorithm covers
not only dot phase but also size and shift adjustments.
Just press the
APA button to
automatically
adjust dot phase
and image size
or shift to their
optimal settings.
Impressive stereo sound
Actual projector size
For excellent audio performance, the compact VPL-CS1
comes fully equipped with stereo speakers.
User-friendly menus
On-screen menus guide you every step of the way in
projector control – in seven languages of your choice:
English, French, Spanish, German, Italian, Japanese or
Chinese.
RM-PJM1
Digital zoom function
The 4-times digital zoom function can be easily
controlled from the optional RM-PJ610 remote control
unit.
PROJECTOR STATION
Ultra-compact and extremely lightweight
Multiscan converter
Thanks to newly developed 0.7-inch LCD panels and
a unique design, the VPL-CS1 is ultra-compact and
weighs approx. 2.9 kg (6.4 lbs.). What’s more, this
projector comes with a carrying case and has an
easy-to-grip handle and detachable strap that allow
you to take it anywhere.
The VPL-CS1 accepts a wide variety of input signals,
with 37 preset signal formats covering any video
format used worldwide and PC signals up to SXGA.
Just plug in your computer with the supplied cable
and you get a great picture with no need for complex
adjustments.
600 ANSI lumens brightness
Various inputs
The VPL-CS1 accepts various input signals: Composite
video, S video, Y/Cb/Cr and RGB.
Despite its compact dimensions, the VPL-CS1
incorporates advanced Sony technologies that provide
an impressive 600 ANSI lumens of
brightness. A new 120 W UHP lamp
and brighter lens, together with
Sony’s unique 0.7-inch SVGA LCD
panels and optical unit produce
industry-leading levels of image clarity.
Connector
Advanced APA
Quiet operation
Thanks to its new cooling structure, the VPL-CS1
operates with a low noise level. The use of sapphire
glass on the polarizer dramatically reduces heat
buildup, making only two internal fans necessary.
Introducing Sony’s Perfect Package of Performance.
The Take It Anywhere, Do It All Projector It’s a Sony. And that’s why the VPL-CS1 LCD Data Projector is
ultra-compact, extremely portable, and packed with advanced technologies for impressive image clarity.
Exquisite form, handy function
Keep in step with the latest from Sony and your presentations will never be the same again.
Control panel
The sleek front hood not only protects the lens from
damage but also serves as the projector’s front
stand when flipped open. The rear stand extends
simultaneously when the front hood is opened.
Digital keystone adjustment
Keystone distortion can be electronically corrected
with this function. The adjustable range of 20 degrees
can be controlled via the on-screen display menu.
The correction data is stored in the unit when
the KEYSTONE MEMORY menu is set to ON.
Computer friendly
With a hot plug-and-play USB hub and Sony
“PROJECTOR STATION” software*, the VPL-CS1
makes for professional presentations. The projector is
fully controllable from a computer, and presentation
files registered in the software can be opened by
pressing the function keys on the supplied RM-PJM1
remote control unit.
*PROJECTOR STATION software requirements:
Microsoft® Windows® 98 operating system.
The new APA (Auto Pixel Alignment) algorithm covers
not only dot phase but also size and shift adjustments.
Just press the
APA button to
automatically
adjust dot phase
and image size
or shift to their
optimal settings.
Impressive stereo sound
Actual projector size
For excellent audio performance, the compact VPL-CS1
comes fully equipped with stereo speakers.
User-friendly menus
On-screen menus guide you every step of the way in
projector control – in seven languages of your choice:
English, French, Spanish, German, Italian, Japanese or
Chinese.
RM-PJM1
Digital zoom function
The 4-times digital zoom function can be easily
controlled from the optional RM-PJ610 remote control
unit.
PROJECTOR STATION

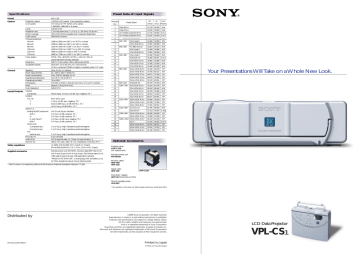

Specifications
Model
Optical
Signals
Projection system
LCD panels
Lamp
Projection lens
Screen coverage
Light output
Throwing distance
40-inch
60-inch
80-inch
100-inch
120-inch
150-inch
Color system
Resolution
Acceptable signals
General
Inputs/Outputs
Speakers
Power requirements
Power consumption
Operating temperature
Operating humidity
Dimensions
Mass
Heat dissipation
VIDEO
Composite
VIDEO
Y/C IN
Y
C
INPUT A
Analog RGB/Component
R/R-Y
G
G with Sync/Y
B/B-Y
SYNC/HD
Composite sync
Horizontal sync
VD
Vertical sync
MOUSE IN
USB HUB
AUDIO IN
Safety regulations
Supplied accessories
*1
Preset Data of Input Signals
VPL-CS1
3 SVGA LCD panels, 1 lens projection system
0.7-inch p-Si TFT SVGA LCD panels,
1,440,000 (480,000 x 3) pixels
120 W UHP
1.3 times zoom lens, F 1.7 to 2.1, f 28.74 to 37.36 mm
40 to 150 inches (viewable area, measured diagonally)
600 ANSI lumens*1
1580 to 2010 mm (62 1/4 to 78 25/32 inches)
2390 to 3060 mm (94 1/8 to 120 1/2 inches)
3210 to 4100 mm (126 1/2 to 161 1/2 inches)
4030 to 5150 mm (158 11/16 to 202 7/8 inches)
4850 to 6200 mm (191 to 244 1/8 inches)
6080 to 7780 mm (239 1/2 to 306 3/8 inches)
NTSC, PAL, SECAM, NTSC4.43, PAL-M, PAL-N
(automatically/manually selected)
600 TV lines (video), 800 x 600 pixels (RGB)
RGB (fH: 15 to 91 kHz, fV: 43 to 85 Hz),
15 kHz component 50/60 Hz system, composite video, Y/C video
Max. 0.5 W x 2 (stereo)
AC 100 to 240 V, 50/60 Hz
Max. 190 W, standby 4.2 W
0 to 35 °C (32 to 95 °F)
35 to 85%
277 (W) x 70 (H) x 214 (D) mm (11 x 2 7/8 x 8 1/2 inches)
Approx. 2.9 kg (6 lb 6 oz)
648.4 BTU
Phono type, 1.0 Vp-p ±2 dB, sync negative, 75 Ω
Mini DIN 4-pin
1 Vp-p ±2 dB, sync negative, 75 Ω
Burst 0.286 Vp-p ±2 dB (NTSC), 75 Ω
or 0.3 Vp-p ±2 dB (PAL), 75 Ω
HD D-sub 15-pin (female)
0.7 Vp-p ±2 dB, positive, 75 Ω
0.7 Vp-p ±2 dB, positive, 75 Ω
1.0 Vp-p ±2 dB, sync negative, 75 Ω
0.7 Vp-p ±2 dB, positive, 75 Ω
1 to 5 Vp-p, high impedance positive/negative
1 to 5 Vp-p, high impedance positive/negative
1 to 5 Vp-p, high impedance positive/negative
6-pin (female)
UP (B type female) x 1, Down (A type female) x 1
Stereo mini jack, 500 mV rms, impedance more than 47 kΩ
UL1950, CSA No.950, FCC Class B, IC Class B,
EN 60 950 (NEMCO), CE, C-Tick, CCIB, VCCI Class B
Remote control unit RM-PJM1, Monitor cable SMF-410 (2 m):
HD D-sub 15-pin to HD D-sub 15-pin, PS/2 Mouse cable (2 m),
USB cable A type to B type, USB application software
“PROJECTOR STATION’’, Carrying bag, AAA size battery (x 2),
Air filter, Operating manual, Quick reference sheet
ANSI lumens is a measuring method of the American National Standards Institute IT7.228.
fH
(kHz)
fV
H/V
(Hz) Polarity
Video 60 Hz
Video 50 Hz
15 K RGB/Component 60 Hz
15 K RGB/Component 50 Hz
15.734
15.625
15.734
15.625
59.940 N/N
50.000 N/N
59.940 S on G
50.000 S on G
640 x 350
31.469
37.861
24.823
31.469
37.861
31.469
35.000
37.861
37.500
43.269
35.156
37.879
48.077
46.875
53.674
49.724
35.524
48.363
56.476
60.023
68.677
63.995
67.500
77.487
61.795
71.713
60.000
75.000
46.433
53.516
63.974
79.976
91.146
70.086 P/N
85.080 P/N
56.416 N/N
70.086 N/P
85.080 N/P
59.940 N/N
66.667 S on G
72.809 N/N
75.000 N/N
85.008 N/N
56.250 P/P
60.317 P/P
72.188 P/P
75.000 P/P
85.061 P/P
74.550 N/N
43.479 P/P
60.004 N/N
70.069 N/N
75.029 P/P
84.997 P/P
70.016 P/P
75.000 P/P
85.057 P/P
65.960 N/N
76.047 C Neg
60.000 P/P
75.000 P/P
43.436 P/P
50.062 S on G
60.013 P/P
75.025 P/P
85.024 P/P
Memory
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
Preset Signal
VGA mode 1
VGA VESA 85 Hz
640 x 400
PC-9801 Normal
VGA mode 2
VGA VESA 85 Hz
640 x 480
VGA mode 3
Macintosh 13"
VGA VESA 72 Hz
VGA VESA 75 Hz
VGA VESA 85 Hz
800 x 600
SVGA VESA 56 Hz
SVGA VESA 60 Hz
SVGA VESA 72 Hz
SVGA VESA 75 Hz
SVGA VESA 85 Hz
832 x 624
Macintosh 16"
1024 x 768 XGA VESA 43 Hz
XGA VESA 60 Hz
XGA VESA 70 Hz
XGA VESA 75 Hz
XGA VESA 85 Hz
1152 x 864 SXGA VESA 70 Hz
SXGA VESA 75 Hz
SXGA VESA 85 Hz
1152 x 900 Sunmicro LO
Sunmicro HI
1280 x 960 SXGA VESA 60 Hz
SXGA VESA 75 Hz
1280 x 1024 SXGA VESA 43 Hz
SGI-5
SXGA VESA 60 Hz
SXGA VESA 75 Hz
SXGA VESA 85 Hz
Your Presentations Will Take on a Whole New Look.
Optional Accessories
Projector lamp
LMP-C120
(for replacement)
Remote control unit
RM-PJ610
Monitor cables
SMF-400
SMF-410
Signal cable
SMF-402
LMP-C120
Macintosh adaptor
ADP-20 (Macintosh to VGA)
®
50-inch portable screen
VPS-50C*
* Not available in some areas. For details, please contact your nearest Sony office.
Distributed by
MK7421V1SMC99OCT
©1999 Sony Corporation. All rights reserved.
Reproduction in whole or in part without permission is prohibited.
Features and specifications are subject to change without notice.
All non-metric weights and measures are approximate.
Sony is a registered trademark of Sony Corporation.
Macintosh and Mac are registered trademarks of Apple Computer, Inc.
Microsoft and Windows are registered trademarks of Microsoft Corporation.
All other trademarks are the property of their respective owners.
Printed in Japan
Printed on recycled paper
LCD Data Projector
VPL-CS1
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
