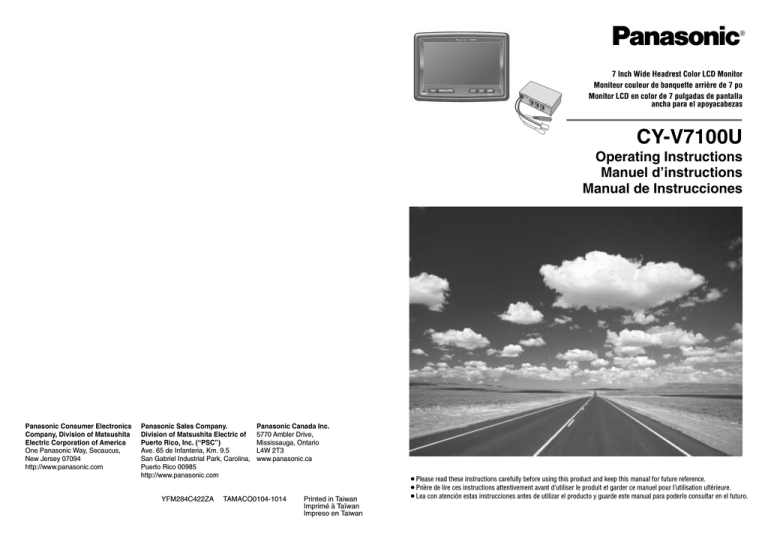

CY-V7100U
PHONES
7 Inch Wide Headrest Color LCD Monitor
Moniteur couleur de banquette arrière de 7 po
Monitor LCD en color de 7 pulgadas de pantalla
ancha para el apoyacabezas
CY-V7100U
Operating Instructions
Manuel d’instructions
Manual de Instrucciones
Panasonic Consumer Electronics
Company, Division of Matsushita
Electric Corporation of America
One Panasonic Way, Secaucus,
New Jersey 07094
http://www.panasonic.com
Panasonic Sales Company.
Division of Matsushita Electric of
Puerto Rico, Inc. (“PSC”)
Ave. 65 de Infanteria, Km. 9.5
San Gabriel Industrial Park, Carolina,
Puerto Rico 00985
http://www.panasonic.com
YFM284C422ZA
Panasonic Canada Inc.
5770 Ambler Drive,
Mississauga, Ontario
L4W 2T3
www.panasonic.ca
TAMACO0104-1014
Printed in Taiwan
Imprimé à Taïwan
Impreso en Taiwan
¡Please read these instructions carefully before using this product and keep this manual for future reference.
¡Prière de lire ces instructions attentivement avant d’utiliser le produit et garder ce manuel pour l’utilisation ultérieure.
¡Lea con atención estas instrucciones antes de utilizar el producto y guarde este manual para poderlo consultar en el futuro.
E
N
G
L
I
S
H
Safety Information
Precautions on the Monitor
WARNING
E
N
G
L
I
S
H
❐ Any attempt to install this product in a motor vehicle by anyone other than a profes-
sional installer could cause damage to the electrical safety systems (airbags, brakes,
etc.) causing unexpected deployment that could result in serious personal injury or
death.
WARNING
TO AVOID RISK OF
SERIOUS INJURY OR
POSSIBLE VIOLATION OF
LAWS,NOT FOR USE WHERE
VISIBLE TO DRIVER FOR
ANY PURPOSE OTHER THAN
NAVIGATION OR USE WITH
REAR VIEW CAMERA.
❐ If your car is equipped with air bag and/or anti-theft systems, specific procedures
may be required for connection and disconnection of the battery to install this product.
❐ Before attempting installation of this electronic component, your installer should contact your car dealer or manufacturer to determine the required procedure and strictly
follow their instructions.
FAILURE TO FOLLOW THE PROCEDURE MAY RESULT IN THE UNINTENDED DEPLOYMENT
OF AIR BAGS OR ACTIVATION OF THE ANTI-THEFT SYSTEM RESULTING IN DAMAGE TO
THE VEHICLE AND PERSONAL INJURY.
Precautions on CY-V7100U
Cautions:
¡Use caution not to cut yourself with a knife during installation.
¡Because a cutting mistake cannot be restored, installation should be done with extreme caution.
¡Be sure to secure the mounting tray and the display unit to the headrest to prevent them from being dismounted in
case of a car accident or other event.
WARNING:
THIS PRODUCT IS INTENDED ONLY FOR THE USE AND
ENTERTAINMENT OF THE REAR SEAT PASSENGERS.
THE DRIVER MUST NOT ATTEMPT TO OPERATE THE
UNIT WHILE DRIVING.
(WARNING SCREEN)
IMPORTANT:
Not for installation use where visible to the driver. Follow local laws, rules and regulations
for installing and operating this product.
Notes:
¡Do not touch the LCD (liquid crystal display). If you touch the LCD, your fingerprints will be visible because
the surface of the LCD is specially processed.
¡If you experience noise or static in the speaker (headset), change the position or direction of the mobile phone and a
CB transiever, etc. or keep them away from the unit.
¡Picture might not be displayed, or it might take more time than usual to display picture in low temperatures.
Also, movement of picture might become labored, or picture quality might deteriorate in low temperatures.
[practicable temperature: 32 °F to 104 °F (0 °C to 40 °C)]
¡Be sure to fasten the seatbelt when you sit in the rear seat in order to protect yourself from injury in striking the monitor or other parts of the car in the event of a sudden stop or accident.
¡Exercise care when you recline the seat with the monitor mounted to avoid injury to the rear seat passenger or damage to the monitor.
¡If you feel sick while watching something on the monitor, please turn off the power immediately.
¡Do not install this unit on a motorcycle.
NO WARRANTY
Panasonic does not warrant or guarantee any auto parts damaged during installation.
Notes:
¡It is required to cut the rear part of the headrest and remove the appropriate amount of cushioning material to install
this product.
¡When you remove the headrest that has the monitor mounted from the seat, please exercise care not to break the
cables.
Do not install this product without contacting the car dealer or manufacturer to determine required procedure for
electrical connections and to avoid damage to the cars electrical and safety systems.
¡This product may be installable (or may not be stable) in some cases depending on the shape, size, surface material,
cushioning material, etc. of the headrest. Consult your dealer.
¡Unsuitable headrest for installing this product:
• Smaller size than 73/8" x 51/2" x 19/16" (188 x 140 x 40 mm).
• Center-hole headrest
• Uneven installation surfaced headrest
• Headrest with a surface material whose stitch is raveled with incision such as knitted material and elastic material
like nylon stockings.
2
CY-V7100U
CY-V7100U
3
E
N
G
L
I
S
H
Safety Information
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE
THIS APPLIANCE TO RAIN, SPLASHING, DRIPPING
OR MOISTURE.
THE FOLLOWING APPLIES ONLY IN THE U.S.A.
Part 15 of the FCC Rules
FCC Warning:
Any unauthorized changes or modifications to this
equipment would void the user’s authority to operate
this device.
(continued)
NOTICE:
This product has a fluorescent lamp that contains a
small amount of mercury. It also contains lead in
some components. Disposal of these materials
may be regulated in your community due to environmental considerations. For disposal or recycling
information please contact your local authorities,
or the Electronics Industries Alliance:
<http://www.eiae.org.>authorities, or the
Electronics Industries Alliance:
<http://www.eiae.org.>
CAUTION:
PLEASE FOLLOW THE LAWS AND REGULATIONS OF
YOUR STATE, PROVINCE OR COUNTRY FOR
INSTALLATION OF THE UNIT.
Panasonic welcomes you to our ever growing family of electronic product owners. We know that this product will bring
you many hours of enjoyment. Our reputation is built on precise electronic and mechanical engineering, manufactured with
carefully selected components and assembled by people who take pride in their work. Once you discover the quality, reliability, and value we have built into this product, you too will be proud to be a member of our family.
Contents
Safety Information ............................................ 2
Accessories ...................................................... 5
Features ............................................................ 6
Remote Control ................................................ 7
Name of Controls and Functions .................. 20
General ............................................................ 21
Settings ........................................................... 22
E
N
G
L
I
S
H
Aspect Ratio ................................................... 26
Installation ....................................................... 27
Electrical Connections ................................... 36
Troubleshooting ............................................. 40
Maintenance .................................................... 42
Specifications ................................................. 43
Accessories
q
MODE
PWR
w
e
r
t
MENU
VOL
A
ASPECT
ENTER
E
CAR AV
Precautions
When Car Washing
Do not expose the product, including the speakers and discs, to water or excessive moisture. This could cause electrical
shorts, fire, or other damage.
Remote Control
Unit
(YEFX9995170)
Qty: 1
y
Lithium Battery
(CR2025)
Junction Cable
(YEAE4CDIN155)
Qty: 1
Qty: 1
u
Power Lead
(YAJ024C103ZA)
Qty: 1
i
XXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXX
XXXXXXXXXXXXXXXX
OO-OOOOO
Mounting Tray
(YFC054C067ZA)
Qty: 1
o
When Parked
Parking in direct sunlight can produce very high temperatures inside your car. Give the interior a chance to cool down
before switching the unit on.
Trim Plate
(YFC054C078ZA)
Qty: 1
Use the Proper Power Supply
This product is designed to operate with a 12 V DC, negative ground battery system (the normal system in a North
American car.)
!0
Operating
Warranty Card,
Instructions
etc.
(YFM284C422ZA)
Qty: 1 set
!1
Use Authorized Servicenters
Do not attempt to disassemble or adjust this precision product. Please refer to the Servicenter list included with this product for service assistance.
For Installation
Because this product will be installed on the headrest in a specific way, the user should bear in mind that there may be
some restrictions on installing the unit. Consult your dealer for further details.
Binding-Head Screw
(M 5 x 6 mm)
(YJT014C002ZA)
Qty: 4
Tapping Screw
(ø 5 x 16 mm)
(XTT5+16AFK)
Qty: 4
Wiping Cloth
(YEFX9991793)
Qty: 1
Tapping Screw
(ø 2.6 x 16 mm)
(XTB26+16GFZ)
Qty : 4
Notes:
¡The number in parenthesis underneath each
accessory part name is the part number for
maintenance and service.
¡Accessories and their parts numbers are subMounting Bracket
ject to modification without prior notice due
to improvements.
(YFX214C383ZA)
Qty: 2
!2
Find the model number and serial number on either the back or bottom of the unit. Please record them in the
space below and retain this booklet as a permanent record of your purchase to help with identification in case of
theft.
MODEL NUMBER
CY-V7100U
SERIAL NUMBER
DATE PURCHASED
FROM
4
CY-V7100U
CY-V7100U
5
E
N
G
L
I
S
H
Features
■
■
■
■
■
Remote Control
E
N
G
L
I
S
H
7-inch wide LCD (Liquid Crystal Display)
Delivers images of high quality and superb color reproduction.
Battery Installation
Built-in automatic dimmer
The brightness of the screen is automatically adjusted in response to surrounding brightness.
External extension terminal
“+”-face up
You can connect a DVD Player, VCR, game machine and camcorder with this unit if they have video output type terminal.
Adjustable tilt angle
The monitor angle is adjustable to fit it to your position.
Lithium battery
(Type: CR2025)
Headphones
You can enjoy your own sound space by use of optional IR wireless headphones or wired headphones.
Notes:
¡The recommended headphone impedance is 32 Ω.
¡For using the IR (Infrared Ray) wireless headphones, make sure there is no obstruction between the monitor and the
headphones when sitting right in front of the monitor.
Cautions:
¡To prevent the IR headphones from becoming inaudible normally, if you use 2 or more AV devices equipped with
the infrared communication function at the same time, you should set the infrared function to OFF for all devices
except one.
¡Before wearing the headphones, check the sound level to prevent your sense of hearing from being hurt.
Remote
Control Unit
q Pull out the battery holder
while pushing here,
w Load the battery,
Battery Notes
¡Battery life: approx. 6 months
¡Battery handling:
• Do not disassemble, short-circuit or dispose of batteries in a fire as such action may result in explosion or
fire.
• Keep out of the reach of children to prevent risk of
choking, swallowing, or other injury.
¡Replace old battery:
Follow the local regulations for disposal.
Caution: Improper use of batteries may cause overheating, an explosion or ignition, resulting in injury or a
fire. Change battery as required - battery leakage may
damage the unit.
e Put the holder back.
System Upgrade
When using the remote control, aim it perpendicularly to the front face of the unit and bring it as close as
possible to the unit. Failure to observe this may cause effects on operations of other devices.
CY-V7100U
Headrest Color LCD Monitor
CQ-DVR592U
CY-V7100U
Headphones*
(option)
DVD Player (option)
Another external device
(e.g. game machine,option)
CX-D3000U
CQ-VD7200U
DVD Player with TV
Tuner (option)
DVD Player
(option)
CY-V7100U
Headphones*
(option)
CY-V7100U (option)
Headrest Color LCD Monitor
* This unit supports the IR wireless headphones. However, the following should be observed for using them.
1. The volume may not increase sufficiently.
2. The sound may be interrupted depending on the position of the headphones.
6
CY-V7100U
CY-V7100U
7
