Sony FD Trinitron WEGA KV

Sony FD Trinitron WEGA KV
4-094-065-21
®

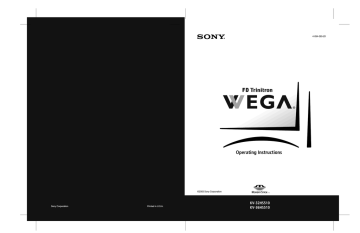

Operating Instructions
* Important: Read this manual before using this product
Sony Corporation
©2003 Sony Corporation
Printed in U.S.A.
KV-32HS510
KV-36HS510
32_36HS.book Page 1 Friday, February 7, 2003 11:15 AM
WARNING
To reduce the risk of fire or shock hazard, do not expose the TV
to rain or moisture.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION
RISQUE DE CHOC ELECTRIQUE,
NE PAS OUVRIR
PRECAUCION
RIESGO DE CHOQUE ELECTRICO
NO ABRIR
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Use of this television receiver for other than private viewing of
programs broadcast on UHF or VHF or transmitted by cable
companies for the use of the general public may require
authorization from the broadcaster/cable company and/or
program owner.
NOTIFICATION
This equipment has been tested and found to comply with the
limits for a Class B digital device pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference with radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
❑
❑
❑
❑
This symbol is intended to alert the user to the
presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons.
This symbol is intended to alert the user to the
presence of important operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
Reorient or relocate the receiving antennas.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for
help.
You are cautioned that any changes or modifications not
expressly approved in this manual could void your authority
to operate this equipment.
Installing
❑ To prevent internal heat buildup, do not block the ventilation
❑
❑
openings.
Do not install the TV in a hot or humid place, or in a place
subject to excessive dust or mechanical vibration.
The AC power cord is attached to the rear of the TV with
hooks. Do not attempt to remove the cord from these hooks.
Doing so could cause damage to the TV.
CAUTION
As an ENERGY STAR® Partner,
Sony has determined that this
product or product models meets
the ENERGY STAR ® guidelines
for energy efficiency.
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF
PLUG TO WIDE SLOT, FULLY INSERT.
CAUTION
When using TV games, computers, and similar products with your
TV, keep the brightness and contrast functions at low settings. If a
fixed (non-moving) pattern is left on the screen for long periods of
time at a high brightness or contrast setting, the image can be
permanently imprinted onto the screen. Continuously watching
the same program can cause the imprint of station logos onto the
TV screen. These types of imprints are not covered by your
warranty because they are the result of misuse.
Owner’s Record
Note on Caption Vision
Trademark Information
This television receiver provides display of television closed
captioning in accordance with §15.119 of the FCC rules.
TruSurround and the
symbol are trademarks of SRS Labs,
Inc. TruSurround technology is incorporated under license from
SRS Labs, Inc.
Note on Cleaning the TV
Clean the TV with a soft, dry cloth. Never use strong solvents such
as thinner or benzine, which might damage the finish of the
cabinet.
Note to CATV System Installer
This reminder is provided to call the CATV system installer’s
attention to Article 820-40 of the National Electrical Code (NEC)
that provides guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as
practical.
ENERGY STAR® is a U.S. registered mark.
The model and serial numbers are provided on the front of this
instruction manual and at the rear of the TV. Refer to them
whenever you call upon your Sony dealer regarding this product.
BBE and BBE Symbol are trademarks of BBE Sound, Inc. and are
licensed by BBE Sound, Inc. under U.S. Patent No. 4,638,258 and
4,482,866.
Wega, FD Trinitron, Steady Sound, Digital Reality Creation,
Caption Vision, CineMotion, Memory Stick, and Twin View are
registered trademarks of Sony Corporation. ClearEdge VM and
HD Detailer are trademarks of Sony Corporation.
1
32_36HS.book Page 2 Friday, February 7, 2003 11:15 AM
IMPORTANT SAFEGUARDS
For your protection, please read these instructions completely, and
keep this manual for future reference.
Carefully observe and comply with all warnings, cautions and
instructions placed on the set, or described in the operating
instructions or service manual.
WARNING
Memory Stick
To protect small children from injury from Memory Stick Media,
remove all Memory Stick media from the TV’s Memory Stick slot
and store it in a safe location when it is not in use.
Object and Liquid Entry
Use
Never push objects of any kind into the set
through the cabinet slots as they may touch
dangerous voltage points or short out parts that
could result in a fire or electric shock. Never spill
liquid of any kind on the set.
Power Sources
Attachments
This set should be operated only from the type
of power source indicated on the serial/model
plate. If you are not sure of the type of electrical
power supplied to your home, consult your
dealer or local power company. For those sets
designed to operate from battery power, refer
to the operating instructions.
Do not use attachments not recommended by the
manufacturer, as they may cause hazards.
Grounding or Polarization
Unplug the set from the wall outlet before
cleaning or polishing it. Do not use liquid
cleaners or aerosol cleaners. Use a cloth lightly
dampened with water for cleaning the exterior
of the set.
To guard against injury, the following basic safety precautions
should be observed in the installation, use, and servicing of the set.
This set is equipped with a polarized AC power cord plug (a plug
having one blade wider than the other), or with a three-wire
grounding type plug (a plug having a third pin for grounding).
Follow the instructions below:
For the set with a polarized AC power cord plug
This plug will fit into the power outlet only one
way. This is a safety feature. If you are unable to
insert the plug fully into the outlet, try reversing
the plug. If the plug should still fail to fit, contact your electrician to
have a suitable outlet installed. Do not defeat the safety purpose of
the polarized plug by forcing it in.
Alternate Warning
For the set with a three-wire grounding type AC plug
This plug will only fit into a grounding-type
power outlet. This is a safety feature. If you are
unable to insert the plug into the outlet, contact
your electrician to have a suitable outlet installed.
Do not defeat the safety purpose of the grounding plug.
Do not place any objects, especially heavy objects,
on top of the set. The object may fall from the set,
causing injury.
Cleaning
If a snapping or popping sound from a TV set is
continuous or frequent while the TV is operating,
unplug the TV and consult your dealer or service
technician. It is normal for some TV sets to make
occasional snapping or popping sounds,
particularly when being turned on or off.
Installation
Always use two or more people to lift or move the set. The set is
heavy and the bottom surface is flat. Serious injury can result from
trying to move the set by yourself alone, or from unsteady
handling. Install the set on a stable, level surface.
Water and Moisture
Do not use power-line operated sets near
water — for example, near a bathtub,
washbowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool, etc.
Overloading
Do not overload wall outlets, extension cords or
convenience receptacles beyond their capacity,
since this can result in fire or electric shock.
Always turn the set off when it is not to be
used. When the set is left unattended and
unused for long periods of time, unplug it
from the wall outlet as a precaution against
the possibility of an internal malfunction that
could create a fire hazard.
Do not disconnect the antenna or the power cord during a heavy
storm. Lightning may strike while you are holding the cable or
cord, causing serious injury. Turn off your TV and wait for the
weather to improve.
Accessories
Do not place the set on an unstable cart, stand,
tripod, bracket, table or shelf. The set may fall,
causing serious injury to a child or an adult, and
serious damage to the set. Use only a cart or stand
recommended by the manufacturer for the
specific model of TV. Any mounting of the
product should follow the manufacturer’s
instructions, and should use a mounting
accessory recommended by the manufacturer. An
appliance and cart combination should be moved
with care. Quick stops, excessive force, and
uneven surfaces may cause the appliance and cart
combination to overturn.
Disconnect all cables and cords from the set before attempting to
move the set.
Do not allow children or pets to climb up onto, or push against, the
set. The set may fall, causing serious injury.
2
32_36HS.book Page 3 Friday, February 7, 2003 11:15 AM
Ventilation
Lightning
The slots and openings in the cabinet and in the back or bottom are
provided for necessary ventilation. To ensure reliable operation of
the set, and to protect it from overheating, these slots and openings
must never be blocked or covered.
For added protection for this television receiver during a lightning
storm, or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet and disconnect the antenna.
This will prevent damage to the receiver due to lightning and
power line surges.
❑
Never cover the slots and openings with a
cloth or other materials.
❑
Never block the slots and openings by
placing the set on a bed, sofa, rug or other
similar surface.
Damage Requiring Service
❑
Never place the set in a confined space, such
as a bookcase, or built-in cabinet, unless
proper ventilation is provided.
❑
When the power cord or plug
is damaged or frayed.
❑
Do not place the set near or over a radiator
or heat register, or where it is exposed to
direct sunlight.
❑
If liquid has been spilled into
the set or objects have fallen into the
product.
❑
If the set has been exposed to rain or
water.
❑
If the set has been subject to excessive
shock by being dropped, or the cabinet
has been damaged.
❑
If the set does not operate normally when
following the operating instructions.
Adjust only those controls that are
specified in the operating instructions.
Improper adjustment of other controls
may result in damage and will often
require extensive work by a qualified
technician to restore the set to normal
operation.
Be sure the antenna system is grounded so as to provide some
protection against voltage surges and built-up static charges.
Section 810 of the National Electrical Code (NEC) in USA and
Section 54 of the Canadian Electrical Code in Canada provide
information with respect to proper grounding of the mast and
supporting structure, grounding of the lead-in wire to an antenna
discharge unit, size of grounding conductors, location of antenna
discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode.
❑
When the set exhibits a distinct change in performance, it
indicates a need for service.
Antenna Grounding According to the National
Electrical Code, ANSI/NFPA 70
Replacement Parts
Power Cord Protection
Do not allow anything to rest on or roll over the
power cord, and do not place the set where the
power cord is subject to wear or abuse.
Service
Unplug the set from the wall outlet and refer servicing to qualified
service personnel under the following conditions:
Antennas
Outdoor Antenna Grounding
If an outdoor antenna is installed, follow the precautions below. An
outdoor antenna system should not be located in the vicinity of
overhead power lines or other electric light or power circuits, or
where it can come in contact with such power lines or circuits.
WHEN INSTALLING AN OUTDOOR ANTENNA SYSTEM,
EXTREME CARE SHOULD BE TAKEN TO KEEP FROM
CONTACTING SUCH POWER LINES OR CIRCUITS AS
CONTACT WITH THEM IS ALMOST INVARIABLY FATAL.
Antenna lead-in wire
Antenna discharge unit
(NEC Section 810-20)
NEC: National Electrical Code
Do not attempt to service the set yourself since
opening the cabinet may expose you to dangerous
voltage or other hazards. Refer all servicing to
qualified service personnel.
When replacement parts are required, be sure the
service technician certifies in writing that he has
used replacement parts specified by the
manufacturer that have the same characteristics as
the original parts.
Unauthorized substitutions may result in fire, electric shock or
other hazards.
Ground clamp
Electric service
equipment
Servicing
Grounding conductors
(NEC Section 810-21)
Ground clamps
Power service grounding electrode
system (NEC Art 250 Part H)
Safety Check
Upon completion of any service or repairs to the
set, ask the service technician to perform routine
safety checks (as specified by the manufacturer) to
determine that the set is in safe operating
condition, and to so certify. When the set reaches
the end of its useful life, improper disposal could
result in a picture tube implosion. Ask a qualified
service technician to dispose of the set.
3
32_36HS.book Page 4 Friday, February 7, 2003 11:15 AM
32_36HS.book Page 5 Friday, February 7, 2003 11:15 AM
Contents
Introducing the FD Trinitron Wega
Overview .......................................................................................................7
Presenting the FD Trinitron Wega ............................................................... 7
Package Contents.............................................................................. 7
Features ............................................................................................ 7
Setting Up the TV
Overview .......................................................................................................9
About the AC Power Cord................................................................. 9
TV Controls and Connectors.......................................................................10
Front Panel .....................................................................................10
Rear Panel .......................................................................................12
Basic Connections: Connecting a Cable or Antenna.................................14
Cable or Antenna Only ....................................................................15
Cable and Antenna Only .................................................................16
Cable Box and Cable Only ...............................................................18
Cable Box Only................................................................................20
Connecting Optional Equipment ...............................................................21
About Using S VIDEO ......................................................................21
VCR and Cable ................................................................................22
VCR and Cable Box .........................................................................24
Two VCRs for Tape Editing ..............................................................26
Satellite Receiver..............................................................................28
Satellite Receiver and VCR ...............................................................30
DVD Player with Component Video Connectors...............................32
DVD Player with S VIDEO and Audio Connectors .............................34
Camcorder ......................................................................................35
Audio Receiver ................................................................................36
Using the CONTROL S Feature ...................................................................37
Setting Up the Channel List .......................................................................38
Using Auto Setup ............................................................................38
Using the Remote Control
Overview .....................................................................................................39
Inserting Batteries.......................................................................................39
Button Descriptions ....................................................................................40
Outside Panel ..................................................................................40
Inside Panel .....................................................................................42
Programming the Remote Control ............................................................43
5
32_36HS.book Page 6 Friday, February 7, 2003 11:15 AM
Using the Features
SETUP
SETUP
SETUP
Welcome
Overview .....................................................................................................45
Watching TV ................................................................................................45
Using the Scrolling Index ...........................................................................46
Factors Affecting Scrolling Index ......................................................46
Using Twin View .........................................................................................47
Displaying Twin Pictures ..................................................................47
Factors Affecting Twin View ............................................................47
Activating the Picture ......................................................................48
Changing the Picture Size ................................................................49
Using Favorite Channels .............................................................................50
Creating a List of Favorite Channels .................................................50
Displaying a List of Favorite Channels ..............................................50
Using the Freeze Function ..........................................................................51
Using the Memory Stick Picture Viewer....................................................52
About Memory Stick........................................................................52
Supported Image Types ...................................................................52
Unsupported Image Types ...............................................................54
Inserting and Removing a Memory Stick ..........................................55
Displaying the Memory Stick Menu..................................................56
Using the Memory Stick Index .........................................................57
Using the Memory Stick Slideshow ..................................................58
Changing the Memory Stick Setup Options .....................................58
Using the Rotate Picture Screen .......................................................59
Using Other Equipment with Your TV Remote Control ...........................60
All Equipment..................................................................................60
Operating a VCR .............................................................................60
Operating a Satellite Receiver ..........................................................60
Operating a Cable Box.....................................................................61
Operating a DVD Player ...................................................................61
Operating an MDP (Laserdisc Player) ................................................61
Using the Menus
SETUP
Overview .....................................................................................................63
Navigating Through Menus .......................................................................63
Using the Video Menu ................................................................................64
Using the Audio Menu ...............................................................................66
Using the Channel Menu ............................................................................68
Using the Parent Menu...............................................................................70
Using the Timer Menu ................................................................................73
Using the Setup Menu ................................................................................74
Other Information
Other Info
Overview .....................................................................................................77
Glossary .......................................................................................................78
Notes on Using Memory Stick Media ........................................................79
Contacting Sony ..........................................................................................80
Troubleshooting..........................................................................................80
Specifications ..............................................................................................85
Optional Accessories...................................................................................86
Index ............................................................................................................87
6
32_36HS.book Page 7 Friday, February 7, 2003 11:15 AM
Introducing the FD Trinitron Wega
Overview
This chapter describes the contents of the package in which the TV is
shipped and provides an overview of the features of your Wega TV.
Presenting the FD Trinitron Wega
The FD Trinitron Wega (pronounced VAY-GAH) is characterized by
outstanding contrast, uncompromising accuracy, and corner-tocorner detail.
You will recognize the superiority of Wega technology almost
immediately. The first thing you will probably notice is minimal glare
from the flat picture tube. This flat-screen technology improves
picture detail without distortion, unlike conventional curved screens.
The FD Trinitron delivers outstanding image detail not only at the
screen center, but also at the corners — so you can enjoy a bright,
clear picture from any location in a room.
Package Contents
Along with your new Trinitron TV, the packing box contains a
remote control and two AA (R6) batteries. These items are all you
need to set up and use the TV.
Features
Some of the features that you will enjoy with your new TV include:
❑
DRC® (Digital Reality Creation) Multifunction: Unlike
conventional line doublers, the DRC Multifunction feature
replaces the signal’s NTSC waveform with the HD equivalent,
while doubling the number of vertical and horizontal lines. This
results in four times the density for quality sources, such as DVD,
satellite, and digital camcorders. The Video Menu allows you to
select interlaced, progressive, or CineMotion™ output.
❑
Scrolling Index: Lets you select programs from a series of
preview windows that scroll along the right side of the screen.
7
Twin View™: Using the Multi-Image Driver (MIDX), Twin View
allows you to watch two programs side by side, with the ability
to zoom in one picture. You can watch pictures from two
different sources (1080i, 720p, 480p, and 480i) simultaneously.
(Only the left Twin View window can display 1080i, 720p, and
480p sources.)
❑
Favorite Channels: Allows you to preview and select from eight
of your favorite channels.
❑
ClearEdge VM™ Velocity Modulation: Sharpens picture
definition by enhancing vertical lines.
❑
Steady Sound®: Equalizes volume levels so there is consistent
output between programs and commercials.
❑
Memory Stick® Picture Viewer: Allows you to view on your TV
screen digital images that are stored on Memory Stick media.
❑
Component Video Inputs: Offers the best video quality for DVD
(480p, 480i), and digital set-top box (HD1080i, 720p) connections.
❑
CineMotion™: Reverse 3-2 pulldown processing provides
optimal picture quality for film-based sources (media originally
shot in 24 frames-per-second format).
❑
HD Detailer™: Wideband video amplifier has a high bandwidth
frequency rating, which allows it to send more video information
to the screen, resulting in finer picture quality, especially for HD
sources.
❑
16:9 Enhancement: Vertical Compression technology that
maximizes picture resolution when playing “anamorphic” or
“enhanced for widescreen” sources, including many DVDs.
❑
Parental Control: V-Chip technology allows parents to block
unsuitable programming from younger viewers.
❑
Digital Visual Interface (DVI): Can accommodate a copyprotected digital connection (HDCP*) to other devices (such as
digital set-top boxes) that have compatible interfaces. The DVIHDTV input terminal is compliant with the EIA-861 standard
and is not intended for use with personal computers.
z 16:9 is also referred to as
widescreen format.
SETUP
SETUP
SETUP
SETUP
SETUP
Welcome
❑
*High-bandwidth Digital Content Protection
8
Introducing
32_36HS.book Page 8 Friday, February 7, 2003 11:15 AM
32_36HS.book Page 9 Friday, February 7, 2003 11:15 AM
Setting Up the TV
Overview
This chapter includes illustrated instructions for setting up your TV.
Topic
Page(s)
TV Controls and Connectors
10-13
Basic Connections: Connecting a Cable or Antenna
14-20
Connecting Optional Equipment
VCR and Cable
VCR and Cable Box
Two VCRs for Tape Editing
Satellite Receiver
Satellite Receiver and VCR
DVD Player with Component Video Connectors
DVD Player with S VIDEO and Audio Connectors
Camcorder
Audio Receiver
About the AC
Power Cord
22
24
26
28
30
32
34
35
36
Using the CONTROL S Feature
37
Setting Up the Channel List
38
The AC power cord is attached to the rear of the TV with a hook. Use
caution when removing the AC plug from its holder. Gently slide the
plug upward to remove it from the hook. Once removed, the AC
power plug should automatically disengage from its stored location.
You can detach
the cord from
this hook
AC power cord
✍ Do not plug in the AC power cord until you have made all other
connections.
9
install.fm5 Page 10 Friday, February 21, 2003 2:25 PM
SETUP
TV Controls and Connectors
Front Panel
1
2
4
3
5
6
7
8
9
0
SELECT
TV/VIDEO
VOLUME
CHANNEL
qa qs qd
qf
VIDEO 2 INPUT
TIMER STAND BY
SETUP
SETUP
SETUP
SETUP
Setup
S VIDEO
10
VIDEO
L(MONO) – AUDIO – R
MENU
POWER
32_36HS.book Page 11 Friday, February 7, 2003 11:15 AM
Item
Description
Memory Stick insertion slot. For details, see “Using the Memory Stick Picture
Viewer” on page 52.
2
MEMORY STICK LED
When lit, indicates that the Memory Stick is being read. (Do not remove the
Memory Stick when the indicator is lit.)
3
S VIDEO
VIDEO 2 INPUT
Connects to the S VIDEO OUT jack on your camcorder or other video
equipment that has S VIDEO. Provides better picture quality than composite
video (4).
4
VIDEO/L(MONO)-AUDIO-R
VIDEO 2 INPUT
Connects to the composite A/V output jacks on your camcorder or other
video equipment.
5
MENU
Press to display the Menu. Press again to exit from the Menu. For details, see
“Using the Menus” on page 63.
6
VvBb
Press V v B b to move the on-screen cursor.
7
SELECT
Setup
MEMORY STICK
SETUP
1
Press to select the on-screen highlighted item.
Press repeatedly to cycle through the video equipment connected to the TV’s
video inputs.
9
-VOLUME +
Press to adjust the volume.
0
-CHANNEL+
Press to scan through channels. To scan quickly through channels, press and
hold down either CHANNEL button.
qa
TIMER LED
When lit, indicates one of the timers is set. When the timer is set, this LED
will remain lit even if the TV is turned off. For details, see page 73.
qs
STAND BY LED
Blinks when the TV is turned on, then shuts off when the picture is displayed.
If the LED blinks continuously, this may indicate the TV needs service (see
“Contacting Sony” on page 80).
qd
Infrared Receiver (IR)
Receives IR signals from the TV’s remote control.
qf
POWER
Press to turn on and off the TV.
SETUP
TV/VIDEO
SETUP
8
SETUP
SETUP
11
32_36HS.book Page 12 Friday, February 7, 2003 11:15 AM
SETUP
Rear Panel
1
6
Setup
7
2
8
3
9
SETUP
q;
SETUP
SETUP
SETUP
4
12
5
32_36HS.book Page 13 Friday, February 7, 2003 11:15 AM
1 DVI-HDTV
VIDEO
AUDIO R/L
(VIDEO 7 IN)
Can accommodate a copy-protected digital connection (HDCP*) to other devices
(such as digital set-top boxes) that have compatible interfaces. The DVI-HDTV
input terminal is compliant with the EIA-861 standard and is not intended for use
with personal computers. See the instruction manual that came with your
equipment for details about connecting and using it with the TV.
2 S VIDEO IN 1/3
Connects to the S VIDEO OUT jack of your VCR or other video equipment that has
S VIDEO. S VIDEO provides better picture quality than either composite video (3)
or VHF/UHF (9) connections.
3 VIDEO IN 1/3/4
VIDEO/L(MONO)
-AUDIO-R
Connect to the composite A/V output jacks on your VCR or other video
component. A fourth component A/V input jack (VIDEO 2) is located on the front
panel of the TV. This video connection provides better picture quality than the
VHF/UHF (9) connection.
4 MONITOR OUT
Lets you record the program you are watching to a VCR. When two VCRs are
connected, you can use the TV as a monitor for tape-to-tape editing (not available
with 480p, 720p, or 1080i when the input is set to VIDEO 5-7).
5 AUDIO OUT (VAR/FIX)
L (MONO)/R
Connects to the left and right audio input jacks of your audio or video equipment.
You can use these outputs to listen to your TV’s audio through your stereo system.
Auxiliary RF input that connects to your antenna, CATV cable, or cable box output
jack. This is convenient if you are using two VHF/UHF sources (antenna, CATV
cable, or cable box). For details, see pages 16 to 19.
8 TO CONVERTER
Connects to your cable box input jack. This VHF/UHF output jack lets you set up
your TV to switch between scrambled channels (coming through a cable box) and
unscrambled cable channels. Use this jack instead of a splitter to get better picture
quality when you need to switch between scrambled and unscrambled cable
channels. For details, see pages 18 to 19.
9 VHF/UHF
Primary RF input that connects to your VHF/UHF antenna or cable.
0 CONTROL S
IN/OUT
Allows the TV to receive (IN) and send (OUT) remote control signals to other Sony
infrared-controlled audio or video equipment that has the CONTROL S function.
SETUP
7 AUX
SETUP
6 HD/DVD IN 5/6
Connect to your DVD player’s or digital set-top box’s component video (Y, PB, PR)
(1080i/720p/480p/480i) and audio (L/R) jacks. Component video provides the best picture quality (better
than 2, 3, or 9).
Setup
Description
SETUP
Jack
* High-bandwidth Digital Content Protection
SETUP
SETUP
13
32_36HS.book Page 14 Friday, February 7, 2003 11:15 AM
Basic Connections: Connecting a Cable or Antenna
SETUP
The way in which you will connect your TV varies, depending on
how your home receives a signal (cable, cable box, antenna) and
whether or not you plan to connect a VCR.
If You Are Connecting
See Page
Cable or Antenna Only
15
❏
No cable box or VCR
Cable and Antenna Only
❏
Setup
Cable Box and Cable Only
❏
❏
18
Cable box unscrambles only some
channels (usually premium channels)
No VCR
Cable Box Only
❏
❏
16
No cable box or VCR
20
Cable box unscrambles all channels
No VCR
SETUP
SETUP
SETUP
SETUP
If you are connecting a VCR
❑ See the connections described on pages 22 and 24.
14
32_36HS.book Page 15 Friday, February 7, 2003 11:15 AM
For best results, use one of the following connections if you are connecting a
cable or an antenna and you:
❑ Do not need a cable box to unscramble channels. (If you have a
cable box, see pages 18-20.)
❑
Do not intend to connect a VCR. (If you have a VCR, see pages 22
and 24.)
SETUP
Cable or Antenna
Only
The connection you choose depends on the cable type you have in
your home, as described below.
Cable Type
Connect As Shown
VHF Only or
combined
VHF/UHF or
Cable
75-ohm
coaxial
cable
Setup
75-ohm coaxial cable (usually found in newer homes)
TV
VHF/UHF
SETUP
300-ohm twin lead cable (usually found in older homes)
Cable Type
VHF Only or
UHF Only or
combined
VHF/UHF
Connect As Shown
300-ohm twin
lead cable
TV
VHF/UHF
SETUP
Antenna connector
(not supplied)
75-ohm coaxial and 300-ohm twin lead cable (found in some homes)
Cable Type
VHF and UHF
Connect As Shown
75-ohm
coaxial cable
SETUP
TV
VHF/UHF
U/V mixer
(not supplied)
300-ohm twin
lead cable
SETUP
15
SETUP
32_36HS.book Page 16 Friday, February 7, 2003 11:15 AM
Cable and Antenna
Only
For best results, use this connection if you:
❑ Have a cable and an antenna.
(This is convenient if you are using a separate rooftop antenna to
receive additional channels that are not provided by your cable
company.)
❑
Do not have a cable box or VCR. (If you have a cable box, see
pages 18 to 20. If you have a VCR, see pages 22 and 24.)
Cable Type
Setup
Cable TV (CATV)
and Antenna
Connect As Shown
CATV cable
TV
AUX
(No connection to
TO CONVERTER)
TO
CONVERTER
SETUP
Antenna cable
VHF/UHF
About Using Twin View with This Connection
With this connection, you cannot view CATV channels in the right Twin View window.
SETUP
SETUP
SETUP
For details about Twin View, see page 46.
16
32_36HS.book Page 17 Friday, February 7, 2003 11:15 AM
Notes on Using This Connection
Do This ...
Switch the TV’s input
between the cable and
antenna
Press ANT to switch back and forth between the TV’s VHF/UHF and AUX
inputs.
Receive channels using an
antenna, instead of the cable
1
2
3
Press ANT to switch to the AUX input.
Set the Cable option to Off. For details, see “Selecting Channel Options”
on page 68.
Run the Auto Setup program, as described in “Using Auto Setup” on
page 38.
SETUP
To Do This ...
Setup
SETUP
SETUP
SETUP
SETUP
17
SETUP
32_36HS.book Page 18 Friday, February 7, 2003 11:15 AM
Cable Box and
Cable Only
✍ DIGITAL CABLE BOX USERS: Do not use this connection. The TO CONVERTER
jack is not compatible with digital cable boxes.
For best results, use this connection if:
❑ Your cable company scrambles some channels, such as premium
channels (which requires you to use a cable box), but does not
scramble all channels.
Setup
❑
You do not have a VCR. (If you have a VCR, see pages 22 and 24.)
With this connection you can:
❑ Use the TV remote control to change channels coming through
the cable box to the TV’s AUX input jack. (You must first program
the remote control for your specific cable box; see “Programming
the Remote Control” on page 43.)
SETUP
❑
Use the TV remote control to change channels coming directly
into the TV’s VHF/UHF input. (The TV’s tuner provides a better
signal than the cable box.)
About Using Twin View with This Connection
With this connection, you can use all the Twin View features for unscrambled channels
coming directly into the TV’s VHF/UHF input jack.
SETUP
However, you can use only some of the Twin View features for channels coming through
the cable box to the TV’s AUX input jack. For example, when you switch the TV’s input to
AUX — to select the cable box input — the picture displays only in the left window. If
you turn on Twin View, you can watch cable channels coming into the VHF/UHF jack in
the right window, but you cannot SWAP the pictures between the left and right
windows.
SETUP
SETUP
For details about Twin View, see page 46.
18
32_36HS.book Page 19 Friday, February 7, 2003 11:15 AM
To connect the cable box and cable
1 Connect the cable from your cable company to the TV’s
2 Use a coaxial cable to connect the TV’s TO CONVERTER jack to
the cable box’s input jack. (The TV’s internal converter lets you
switch between unscrambled signals coming straight into the TV
and scrambled signals coming in through the cable box,
eliminating the need for an external splitter.)
SETUP
VHF/UHF jack.
3 Use a coaxial cable to connect the cable box’s output jack to the
TV’s AUX jack.
Setup
4 Run the Auto Setup program, as described in “Setting Up the
Channel List” on page 38.
Cable box
IN
OUT
Coaxial cable
TV
AUX
3
2
SETUP
If you have a digital cable
box, you cannot use this
connection because the
TO CONVERTER jack is not
compatible with digital
cable boxes.
TO
CONVERTER
Coaxial cable
1
Cable (unscrambled channels) VHF/UHF
Notes on Using This Connection
Do This ...
Tune the TV to the channel the cable box is set to (usually channel 3 or 4)
and then use the cable box to switch channels.
Set up the TV remote control
to operate the cable box
Program the remote control. See “Programming the Remote Control” on
pages 43-44.
SETUP
To Do This ...
Use the cable box
Activate the remote control to Press SAT/CABLE FUNCTION.
operate the cable box
When using the cable box, you need the TV to stay on the channel the cable
box is set to (usually channel 3 or 4). You can use the TV’s Channel Fix
feature to lock in a specific channel. For details, see “Using the Channel
Menu” on page 68.
Switch the TV’s input
between the cable box and
cable
Press ANT to switch back and forth between the TV’s VHF/UHF
(unscrambled channels) and AUX (scrambled) inputs.
SETUP
Prevent the accidental
switching of TV channels
SETUP
19
32_36HS.book Page 20 Friday, February 7, 2003 11:15 AM
SETUP
Cable Box Only
For best results, use this connection if:
❑ Your cable company scrambles all channels, which requires you
to use a cable box.
❑
You do not have a VCR. (If you have a VCR, see pages 22 and 24.)
With this connection you can:
❑ Use the TV remote control to change channels coming through
Setup
the cable box to the TV’s VHF/UHF jack. (You must first
program the remote control for your specific cable box.)
About Using Twin View with This Connection
With this connection, all channels come into the TV through your cable box and only one
unscrambled signal is sent to the TV, so you cannot use the Twin View feature. If some of
your channels are scrambled, but others are not, consider using the “Cable Box and
Cable” connection on page 18 instead. For details about Twin View, see page 46.
To connect the cable box
SETUP
1 Connect the CATV cable to the cable box’s input jack.
2 Use a coaxial cable to connect the cable box’s output jack to the
TV’s VHF/UHF jack.
3 Run the Auto Setup program, as described in “Setting Up the
SETUP
Channel List” on page 38.
CATV
cable
Coaxial cable
1
2
IN
TV
VHF/UHF
OUT
Cable box
SETUP
Notes on Using This Connection
To Do This ...
Do This ...
Use the cable box
Tune the TV to the channel the cable box is set to (usually channel 3 or 4)
and then use the cable box to switch channels.
Set up the TV remote control
to operate the cable box
Program the remote control. See “Programming the Remote Control” on
pages 43-44.
Activate the remote control to Press SAT/CABLE FUNCTION.
operate the cable box
SETUP
Prevent the accidental
switching of TV channels
20
When using the cable box, you need the TV to stay on the channel the cable
box is set to (usually channel 3 or 4). You can use the TV’s Channel Fix
feature to lock in a specific channel. For details, see “Using the Channel
Menu” on page 68.
32_36HS.book Page 21 Friday, February 7, 2003 11:15 AM
Connecting Optional Equipment
If You Are Connecting
See Page
VCR and Cable
22
VCR and Cable Box
24
Two VCRs for Tape Editing
26
Satellite Receiver
28
30
DVD Player with Component Video
Connectors
32
DVD Player with S VIDEO and Audio
Connectors
34
Camcorder
35
Audio Receiver
36
Setup
Satellite Receiver and VCR
If the optional equipment you are connecting has an S VIDEO
jack (shown at left), you can use an S VIDEO cable for
improved picture quality (compared to an A/V cable).
Because S VIDEO carries only the video signal, you also need
to connect audio cables for sound, as shown below.
SETUP
About Using
S VIDEO
SETUP
Use the directions in this section to connect the following optional
equipment:
Example of an S VIDEO Connection
SETUP
TV
S VIDEO
cable
SETUP
Equipment with S VIDEO
Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
Audio cable
SETUP
21
32_36HS.book Page 22 Friday, February 7, 2003 11:15 AM
SETUP
VCR and Cable
For best results, use this connection if:
❑ Your cable company does not require you to use a cable box.
About Using Twin View with This Connection
With this connection, you can use all the features of Twin View. For details about Twin
View, see page 46.
To connect the VCR and cable
Setup
Using
S VIDEO jacks?
See page 21.
1 Connect the CATV cable to the VCR’s VHF/UHF input jack.
2 Use a coaxial cable to connect the VCR’s VHF/UHF output jack
to the TV’s VHF/UHF jack.
3 Use an A/V cable to connect the VCR’s A/V output jacks to the
TV’s A/V input jacks.
4 Run the Auto Setup program, as described in “Setting Up the
Channel List” on page 38.
TV
SETUP
Coaxial cable
VCR
SETUP
CATV cable
Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
SETUP
SETUP
A/V cable
22
32_36HS.book Page 23 Friday, February 7, 2003 11:15 AM
Notes on Using This Connection
Do This ...
Watch the VCR
Press TV/VIDEO repeatedly to select the VCR input (VIDEO 1 in the
illustration).
Watch cable channels
Press TV/VIDEO repeatedly to select the cable input (VHF/UHF in the
illustration).
Set up the TV remote control
to operate the VCR
If you have a non-Sony VCR, you must program the remote control. See
“Programming the Remote Control” on pages 43-44.
Activate the TV remote
control to operate the VCR
Set the A/V slide switch to the position you programmed for the VCR. Then
press VCR/DVD FUNCTION.
Control VCR functions with
the TV remote control
See “Operating a VCR” on page 60.
SETUP
To Do This ...
Setup
See the instructions for setting up Video Labels on pages 74-75.
Label video inputs to easily
identify equipment connected
to the TV
SETUP
SETUP
SETUP
SETUP
23
32_36HS.book Page 24 Friday, February 7, 2003 11:15 AM
SETUP
VCR and Cable Box
For best results, use this connection if:
❑ Your cable company scrambles some channels, such as premium
channels (which requires you to use a cable box), but does not
scramble all channels.
About Using Twin View with This Connection
With this connection, you can use all the features of Twin View. For details about Twin
View, see page 46.
Setup
With this connection you can:
❑ Use the TV remote control to change channels coming through
SETUP
the cable box. (You must first program the remote control for
your specific cable box; see “Programming the Remote Control”
on page 43.)
❑
Use the TV remote control to change channels coming directly
into the TV’s VHF/UHF jack. (The TV’s tuner provides a better
signal than the cable box.)
❑
Record channels coming through the cable box and channels
coming directly into the TV.
To connect a VCR and cable box, you need:
❑ A splitter, which is a small, inexpensive device that you can
purchase at your local electronics store.
✍ DIGITAL CABLE BOX USERS: If you are connecting a digital cable
SETUP
box, you will need a special bi-directional splitter that is designed
to work with your digital cable box. Contact your cable provider for
details.
❑
Three coaxial cables.
❑
One A/V cable or one S VIDEO cable with audio cables.
To connect the VCR and cable box
SETUP
1 Connect the CATV cable to the single (input) jack of the splitter.
2 Use a coaxial cable to connect one of the splitter’s two output
jacks to the TV’s VHF/UHF jack.
3 Use a coaxial cable to connect the splitter’s other output jack to
the cable box’s input jack.
4 Use a coaxial cable to connect the cable box’s output jack to the
SETUP
Using
S VIDEO jacks?
See page 21.
VCR’s RF input jack.
5 Use an A/V cable to connect the VCR’s A/V output jacks to the
TV’s A/V input jacks.
6 Run the Auto Setup program, as described in “Setting Up the
Channel List” on page 38.
24
32_36HS.book Page 25 Friday, February 7, 2003 11:15 AM
TV
SETUP
Splitter
(not supplied)
Coaxial
cable
CATV
cable
Setup
Cable box
If you are connecting a
digital cable box, you will
need a special
bi-directional splitter
designed to work with
your cable box.
Coaxial
cable
VCR
SETUP
Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
A/V cable
Notes on Using This Connection
Watch cable box (scrambled)
channels
Turn on the VCR and tune it to the channel the cable box is set to (usually
channel 3 or 4). Press TV/VIDEO repeatedly to select the VCR input (VIDEO 1
in the illustration). Use the cable box to change channels.
Watch the VCR
Press TV/VIDEO repeatedly to select the VCR input (VIDEO 1 in the
illustration).
Set up the TV remote control
to operate the cable box or
VCR
If you have a non-Sony VCR, you must program the remote control. See
“Programming the Remote Control” on pages 43-44.
Activate the remote control to For the cable box, press SAT/CABLE FUNCTION. For the VCR, set the A/V slide
operate the cable box or VCR switch to the position you programmed for the VCR. Then press VCR/DVD
FUNCTION.
SETUP
Do This ...
Press TV/VIDEO repeatedly to select the cable input (UHF/VHF in the
illustration).
SETUP
To Do This ...
Watch cable (unscrambled)
channels
Control specific cable box and See “Operating a Cable Box” on page 61 and “Operating a VCR” on page 60.
VCR functions with the TV
remote control
SETUP
See the instructions for setting up Video Labels on pages 74-75.
Label video inputs to easily
identify equipment connected
to the TV
25
SETUP
32_36HS.book Page 26 Friday, February 7, 2003 11:15 AM
Two VCRs for Tape
Editing
Using
S VIDEO jacks?
See page 21.
Connecting two VCRs lets you record from one VCR to the other. By
connecting them as shown below, you can view (monitor) what is
being recorded.
To connect two VCRs for tape editing
1 Use an A/V cable to connect the playback VCR’s A/V output
jacks to the TV’s A/V input jacks.
2 Use an A/V cable to connect the recording VCR’s A/V input
Setup
jacks to the TV’s MONITOR OUT jacks.
TV
SETUP
Playback VCR
Recording VCR
SETUP
SETUP
SETUP
A/V cable
26
A/V cable
Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
32_36HS.book Page 27 Friday, February 7, 2003 11:15 AM
Notes on Using This Connection
Do This ...
View (monitor) what is being
recorded
Press TV/VIDEO repeatedly to select the VCR input (VIDEO 1 in the
illustration above).
Set up the TV remote control
to operate the VCR(s)
If you have a non-Sony VCR, you must program the remote control. See
“Programming the Remote Control” on pages 43-44.
Activate the TV remote
control to operate the VCR(s)
Set the A/V slide switch to the position you programmed for the VCR. Then
press VCR/DVD FUNCTION.
Control VCR functions with
the TV remote control
See “Operating a VCR” on page 60.
SETUP
To Do This ...
Setup
See the instructions for setting up Video Labels on pages 74-75.
Label video inputs to easily
identify equipment connected
to the TV
SETUP
SETUP
SETUP
SETUP
27
32_36HS.book Page 28 Friday, February 7, 2003 11:15 AM
Satellite Receiver
To connect a satellite receiver
SETUP
1 Connect the satellite antenna cable to the satellite receiver’s
Using
S VIDEO jacks?
See page 21.
satellite input jack.
2 Use an A/V cable to connect the satellite receiver’s A/V output
jacks to the TV’s A/V input jacks.
3 Connect a CATV cable from your cable or antenna to the TV’s
VHF/UHF jack.
Channel List” on page 38.
TV
SETUP
Setup
4 Run the Auto Setup program, as described in “Setting Up the
CATV cable
SETUP
Satellite receiver
Satellite antenna
cable
A/V cable
SETUP
SETUP
Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
28
32_36HS.book Page 29 Friday, February 7, 2003 11:15 AM
Notes on Using This Connection
Do This ...
Watch the satellite receiver
Press TV/VIDEO repeatedly to select the satellite receiver input
(VIDEO 1 in the illustration).
Set up the TV remote control to operate the
satellite receiver
If you have a non-Sony satellite receiver, you must program
the remote control. See “Programming the Remote Control”
on pages 43-44.
Activate the TV remote control to operate
the satellite receiver
Press SAT/CABLE FUNCTION.
Label video inputs to easily identify
equipment connected to the TV
See the instructions for setting up Video Labels on pages 7475.
Setup
Control satellite receiver functions with the See “Operating a Satellite Receiver” on page 60.
TV remote control
SETUP
To Do This ...
SETUP
SETUP
SETUP
SETUP
29
SETUP
32_36HS.book Page 30 Friday, February 7, 2003 11:15 AM
Satellite Receiver
and VCR
To connect a satellite receiver and VCR
1 Connect the satellite antenna cable to the satellite receiver’s
satellite input jack.
Using
S VIDEO jacks?
See page 21.
2 Connect the CATV cable to the VCR’s VHF/UHF input jack.
3 Use a coaxial cable to connect the VCR’s VHF/UHF output jack
to the TV’s VHF/UHF jack.
4 Use an A/V cable to connect the satellite receiver’s A/V output
jacks to the VCR’s A/V input jacks.
Setup
5 Use an A/V cable to connect the VCR’s A/V output jacks to the
TV’s A/V input jacks.
6 Run the Auto Setup program, as described in “Setting Up the
Channel List” on page 38.
Satellite antenna
cable
CATV
cable
SETUP
TV
Satellite receiver
SETUP
A/V cable
VCR
SETUP
Coaxial
cable
A/V cable
SETUP
Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
30
32_36HS.book Page 31 Friday, February 7, 2003 11:15 AM
Notes on Using This Connection
Do This ...
Watch the satellite receiver
Press TV/VIDEO repeatedly to select the VCR input (VIDEO 1 in the
illustration).
SETUP
To Do This ...
The VCR may need to be turned on and set to the satellite receiver input.
Watch the VCR
Press TV/VIDEO repeatedly to select the input to which the VCR is connected
(VIDEO 1 in the illustration).
Set up the TV remote control
to operate the satellite
receiver or VCR
If you have a non-Sony VCR or satellite receiver, you must program the
remote control. See “Programming the Remote Control” on pages 43-44.
Control satellite receiver and
VCR functions with the TV
remote control
Setup
For the satellite receiver, press SAT/CABLE FUNCTION. For the VCR, set the A/V
Activate the TV remote
control to operate the satellite slide switch to the position you programmed for the VCR. Then press
VCR/DVD FUNCTION.
receiver or VCR
See “Operating a Satellite Receiver” on page 60 and “Operating a VCR” on
page 60.
SETUP
See the instructions for setting up Video Labels on pages 74-75.
Label video inputs to easily
identify equipment connected
to the TV
SETUP
SETUP
SETUP
31
SETUP
32_36HS.book Page 32 Friday, February 7, 2003 11:15 AM
DVD Player with
Component
Video Connectors
For best results, use this connection if your DVD player has
component video (Y, PB, PR) jacks.
To connect a DVD player with component video connectors
1 Use three separate component video cables to connect the
DVD player’s Y, PB and P R jacks to the Y, PB and PR jacks
(VIDEO 5) on the TV.
✍ The Y, PB and PR jacks on your DVD player are sometimes labeled Y,
Setup
CB and CR, or Y, B-Y and R-Y. If so, connect the cables to like colors.
2 Use an audio cable to connect the DVD player’s audio output
jacks to the TV’s VIDEO 5 audio input jacks.
TV
DVD player
SETUP
SETUP
Component video cables
Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
SETUP
SETUP
Audio cable
32
32_36HS.book Page 33 Friday, February 7, 2003 11:15 AM
Notes on Using This Connection
Watch the DVD player
Press TV/VIDEO repeatedly to select the DVD input (VIDEO 5 in the
illustration).
Set up the TV remote control
to operate the DVD player
If you have a non-Sony DVD player, you must program the remote control.
See “Programming the Remote Control” on pages 43-44.
Activate the TV remote
control to operate the DVD
player
Set the A/V slide switch to the position you programmed for the DVD
player. Then press VCR/DVD FUNCTION.
Control DVD functions with
the TV remote control
See “Operating a DVD Player” on page 61.
Setup
Do This ...
SETUP
To Do This ...
See the instructions for setting up Video Labels on pages 74-75.
Label video inputs to easily
identify equipment connected
to the TV
✍ You cannot record the signal from any equipment connected into the Y, PB,
PR jacks.
SETUP
SETUP
SETUP
SETUP
33
SETUP
32_36HS.book Page 34 Friday, February 7, 2003 11:15 AM
DVD Player with
S VIDEO and Audio
Connectors
Use this connection if your DVD player does not have component
video (Y, PB, PR) jacks.
To connect a DVD player with A/V connectors
1 Use an audio cable to connect the DVD player’s audio output
jacks to the TV’s audio input jacks.
2 Use an S VIDEO cable to connect the DVD player’s S VIDEO jack
Setup
to the TV’s S VIDEO jack.
TV
Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
S VIDEO
cable
SETUP
DVD player
SETUP
Audio cable
SETUP
SETUP
Notes on Using This Connection
To Do This ...
Do This ...
Watch the DVD player
Press TV/VIDEO repeatedly to select the DVD input (VIDEO 1 in the
illustration).
Set up the TV remote control
to operate the DVD player
If you have a non-Sony DVD player, you must program the remote control.
See “Programming the Remote Control” on pages 43-44.
Activate the TV remote
control to operate the DVD
player
Set the A/V slide switch to the position you programmed for the DVD
player. Then press VCR/DVD FUNCTION.
Control DVD functions with
the TV remote control
See “Operating a DVD Player” on page 61.
See the instructions for setting up Video Labels on pages 74-75.
Label video inputs to easily
identify equipment connected
to the TV
34
32_36HS.book Page 35 Friday, February 7, 2003 11:15 AM
Camcorder
Using
S VIDEO jacks?
See page 21.
To connect a camcorder
SETUP
For easy connection of a camcorder, the TV has front A/V input jacks.
If you prefer, however, you can connect the camcorder to the TV’s
rear A/V input jacks.
1 Use A/V cables to connect the camcorder’s A/V output jacks to
the TV’s A/V input jacks.
TV
Setup
VIDEO 2 INPUT
S VIDEO
VIDEO
L(MONO) – AUDIO – R
SETUP
Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
A/V cable
SETUP
To A/V output
Camcorder
Note on Using This Connection
To Do This ...
Do This ...
Watch the camcorder
Press TV/VIDEO repeatedly to select the camcorder input (VIDEO 2 in the
illustration).
SETUP
See the instructions for setting up Video Labels on pages 74-75.
Label video inputs to easily
identify equipment connected
to the TV
SETUP
If you have a mono camcorder, connect its audio output jack to the
TV’s L MONO audio jack.
35
32_36HS.book Page 36 Friday, February 7, 2003 11:15 AM
Audio Receiver
SETUP
For improved sound quality, you may want to play the TV’s audio
through your stereo system.
To connect an audio system
1 Use an audio cable to connect the TV’s audio output jacks to the
audio receiver’s line input jacks.
SETUP
Setup
TV
Audio cable
Receiver
SETUP
To line input
Cables are often
color-coded to connectors.
Connect red to red,
white to white.
2 Using the TV’s Audio Menu, set the Speaker option to Off. Then set
SETUP
the Audio Out option to Fixed or Variable, depending on how you want
to control the volume. For details, see “Using the Audio Menu”
on page 66.
3 Turn on the audio receiver, and then set the receiver’s line input
SETUP
to the jack into which you connected the TV.
36
32_36HS.book Page 37 Friday, February 7, 2003 11:15 AM
Using the CONTROL S Feature
SETUP
CONTROL S allows you to control your system and other Sony
equipment with one remote control. In addition to allowing you to
control multiple devices with one remote control, the CONTROL S
feature allows you to always point your remote control at your TV,
instead of having to point it at the other equipment, which might be
hidden or out of direct line of sight.
Use CONTROL S IN to send signals to the TV.
Use CONTROL S OUT to send signals to connected equipment.
Setup
SETUP
SETUP
SETUP
SETUP
37
32_36HS.book Page 38 Friday, February 7, 2003 11:15 AM
Setting Up the Channel List
SETUP
After you finish connecting your TV, you need to run Auto Setup to
set up your channels. The Auto Setup screen appears when you turn
on your TV for the first time after hooking it up. If you do not want to
set up the channels at this time, you can do it later by selecting the
Auto Program option in the Channel Menu (see page 68).
✍ The Auto Setup feature does not apply for installations that use a cable box
Setup
for all channel selection.
Using Auto Setup
1 Press POWER to turn on the TV.
2 Press TV FUNCTION on the remote control.
3 To continue running Auto Setup, press CH+. To exit Auto Setup,
press CH-.
SETUP
Auto Setup automatically creates a list of receivable channels. When
finished, the lowest numbered channel is displayed.
To reset the TV to factory settings
1 Press POWER to turn on the TV.
2 Hold down RESET on the remote control.
3 Press TV POWER on the TV. (The TV will turn itself off, then back
on.)
SETUP
SETUP
SETUP
4 Release RESET.
38
32_36HS.book Page 39 Friday, February 7, 2003 11:15 AM
Using the Remote Control
Overview
This chapter describes how to set up, program, and use the TV’s
remote control.
Topic
Page
Inserting Batteries
39
Button Descriptions
Outside Panel
Inside Panel
40
42
Programming the Remote Control
43
Inserting Batteries
1 Remove the battery cover from the remote control.
2 Insert two size AA (R6) batteries (supplied) by matching the e
and E terminals on the batteries to the diagram inside the battery
compartment.
3 Replace the battery cover.
1
2
✍ Remove the batteries to avoid damage from possible battery leakage
whenever you anticipate that the remote control will not be used for an
extended period. Handle the remote control with care. Avoid dropping it,
getting it wet, placing it in direct sunlight, near a heater, or where the
humidity is high.
39
32_36HS.book Page 40 Friday, February 7, 2003 11:15 AM
SETUP
Button Descriptions
Outside Panel
MUTING
SETUP
1
2
3
4
5
SAT/CABLE POWER
SAT/CABLE
FUNCTION
TV/VIDEO
qh
Button
Description
1 MUTING
Press to mute the sound. Press again or press VOL+ to
restore the sound.
2 SLEEP
Press repeatedly until the TV displays the time in
minutes (15, 30, 45, 60, or 90) that you want the TV to
remain on before shutting off automatically. To cancel
press until Sleep Off appears. While the Sleep feature is
set, press once to display the remaining time.
3 FUNCTION
Buttons
The indicator lights up momentarily when pressed to
show which equipment the remote control is
operating:
TV
PIC MODE
ANT
qj
qk
JUMP
SAT/CABLE: Press to have the remote control operate the
satellite receiver or cable box.
ENTER
Remote Control
6
7
ql
4 TV/VIDEO
Press repeatedly to cycle through the video equipment
connected to the TV’s video inputs.
5 ANT
Press to switch between the sources connected to the
TV’s VHF/UHF and AUX inputs.
6 JUMP
Press to jump back and forth between two channels.
The TV alternates between the current channel and the
last channel that was selected.
7 INDEX
Press to display the Scrolling Index. For details, see
page 46.
8 FAVORITES
Press to display the Favorite Channels list. For details,
see page 50.
9 MENU
Press to display the Menu. Press again to exit from the
Menu. For details, see “Using the Menus” on page 63.
0 VOL +/-
Press to adjust the volume.
qa
Move the joystick Vv B b to move the on-screen
cursor. To select an item, press the center of the
joystick ( ).
qs DRC MODE
Press repeatedly to cycle through the available highresolution picture modes: Interlaced, Progressive,
CineMotion. Also available in the Video Menu. For
details, see “Selecting Video Options” on pages 64-65.
qd RESET
Press to reset the settings to the factory defaults. See
pages 64, 66, and 73. Also used to clear Favorite
Channels (see page 50).
qf MTS/SAP
Press repeatedly to cycle through the Multi-channel
TV Sound (MTS) options: Stereo, Auto SAP (Second
Audio Program), and Mono. Also available in the
Audio Menu. For details, see “Using the Audio Menu”
on page 66.
MENU
CH
VOL
q;
qs
qd
qf
qg
TV: Press to have the remote control operate the TV.
TWIN VI
EW
9
qa
SETUP
INDEX
S
TE
FAVORI
8
w;
ME
M O RY S T I C K
DRC MODE
wa
FREEZE
ws
DISPLAY
RESET
MTS/SAP
GUIDE
CODE SET
wd
wf
TV
SETUP
SETUP
RM-Y190
40
32_36HS.book Page 41 Friday, February 7, 2003 11:15 AM
Description
qg CODE SET
Press to program the remote control to operate nonSony video equipment. For details, see “Programming
the Remote Control” on page 43.
qh POWER
Buttons
SAT/CABLE: Press to turn on and off the satellite receiver
or cable box.
SETUP
Button
TV: Press to turn on and off the TV.
qk 0 - 9
ENTER
Press 0 - 9 to select a channel; the channel changes after
3 seconds. Press ENTER to change channels
immediately.
ql TWIN VIEW
Press to turn on and off Twin View. For details, see
pages 47-49.
w; CH +/-
Press to scan through channels. To scan quickly
through channels, press and hold down either CH
button.
wa MEMORY STICK Press to display the Memory Stick Menu. For details,
see “Using the Memory Stick Picture Viewer” on
page 52.
Press to freeze the picture. Press again to restore the
picture. For details, see page 51.
wd DISPLAY
Press once to display the current channel number,
current time, and channel label (if set). Press again to
turn Display off.
wf GUIDE
Press to display the program guide of your satellite
program provider.
SETUP
ws FREEZE
Remote Control
Press repeatedly to cycle through the available video
picture modes: Vivid, Standard, Movie, Pro. Also available
in the Video Menu. For details, see “Selecting Video
Options” on pages 64-65.
SETUP
qj PIC MODE
SETUP
SETUP
41
32_36HS.book Page 42 Friday, February 7, 2003 11:15 AM
Inside Panel
SETUP
To access the inside panel, open the outside cover as shown.
Button
Description
wg SYSTEM OFF
Press to turn off all Sony brand audio/video equipment
at once. (May not function with older Sony equipment.)
m Rewind
N Play
z Record (press together with N)
x Stop
M Fast forward
X Pause
Press repeatedly to cycle through the Multi-channel TV
Sound (MTS) options: Stereo, Auto SAP (Second Audio
Program), and Mono. Also available in the Audio Menu.
For details, see “Using the Audio Menu” on page 66.
Press Vv B b to move the VCR or DVD player’s onscreen cursor.
Press to display the DVD Menu.
wh Transport
Buttons
UTING SLEEP
MUTING
SAT/CABLE
SLEEP SAT/CABLE POWER
POWER
SAT/CABLE FUNCTION
SYSTEM
TV
OFF
TV/VIDEO
ANT
PIC MODE
MTS/SAP
SELECT
DISC
MENU
JUMP
SETUP
MENU
ENTER
INDEX
FAVORITES
TWIN
VIEW
MENU
VOL
CH
ME
DRC MODE
wj MTS/SAP
MORY STICK
FREEZE
RESET
MTS/SAP
GUIDE
DISPLAY
CODE SET
TV
RM-Y191
Remote Control
wk Vv B b
wl DISC MENU
e; TV/VCR
MUTING
SLEEP SAT/CABLE POWER
TV/VCR
wg
VCR/DVD
SYSTEM
OFF
SETUP
wh
wj
e;
ea
es
ed
ed
ef
ef SELECT
MTS/SAP
SELECT
wk
wl
S
SETUP
SETUP
MENU
DISC MENU
TE
FAVORI
42
ea VCR/DVD
es AV1/2/3/DVD
Slide Switch
INDEX
TWIN VI
eg
EW
eg MENU
Press to change to the VHF/UHF output of the VCR.
Press to turn on and off the VCR or DVD player.
Use the A/V slide switch to control connected video
equipment. You can program one video source for each
switch position. For details, see “Programming the
Remote Control” on page 43.
Press repeatedly to step through the Audio Effect
options. Also available in the Audio Menu. For details,
see page 66.
Press to select an item in the VCR or DVD player’s
menu.
Press to display the DVD player setup menu.
32_36HS.book Page 43 Friday, February 7, 2003 11:15 AM
Programming the Remote Control
The remote control is preset to operate Sony brand video equipment.
Switch Position on
Remote Control
Programmable Code
Number
Beta, ED Beta VCRs
AV1
303
8 mm VCR
AV2
302
VHS VCR
AV3
301
DVD player
DVD
751
SETUP
If you have video equipment other than Sony brand that you want to
control with the TV’s remote control, use the following procedure to
program the remote control.
SETUP
Sony Equipment
✍ The equipment must have infrared (IR) remote capability in order to be used
with the remote control.
the three-digit code number for the manufacturer of your
equipment. (If more than one code number is listed, use the
number listed first.)
z
❑
❑
Set the A/V slide switch to 1, 2, 3 , or DVD.
Press CODE SET.
Enter the three-digit manufacturer’s code number.
Press ENTER.
✍ You must do step 5 within 10 seconds of step 4, or you must redo
steps 3 through 5.
6 To check if the code number works, aim the TV’s remote control
at the equipment and press the POWER button that corresponds
with that equipment. If it responds, you are done. If not, try using
another code listed for that manufacturer.
SETUP
❑
2
3
4
5
SETUP
❑
If more than one code
number is listed, try
entering them one by one
until you come to the
correct code for your
equipment.
If you enter a new code
number, the code number
you previously entered at
that setting is erased.
In some cases, you may not
be able to operate your
equipment with the
supplied remote control. In
such cases, use the
equipment’s own remote
control unit.
Whenever you remove the
batteries to replace them,
the code numbers may
revert to the factory setting
and must be reset.
Remote Control
1 Turn to the list of “Manufacturer’s Codes” on page 44, and find
SETUP
43
32_36HS.book Page 44 Friday, February 7, 2003 11:15 AM
SETUP
SETUP
SETUP
Remote Control
SETUP
SETUP
Manufacturer’s Codes
DVD Players
VCRs
Manufacturer
Code
Manufacturer
Sony
Admiral
(M. Ward)
Aiwa
Audio
Dynamic
Broksonic
Canon
Citizen
Craig
Criterion
Curtis Mathes
Daewoo
DBX
Dimensia
Emerson
301, 302, 303
327
Orion
Panasonic
338, 344
314, 337
Pentax
Philco
Philips
Pioneer
Quasar
RCA/
PROSCAN
Fisher
Funai
General
Electric
Go Video
Goldstar
Hitachi
319, 317
309, 308
332
302, 332
315
304, 338, 309
341, 312, 309
314, 336, 337
304
319, 320, 316,
317, 318, 341
330, 335
338
329, 304, 309
322, 339, 340
332
306, 304, 305,
338
Instant Replay 309, 308
JC Penney
309, 305, 304,
330, 314, 336,
337
JVC
314, 336, 337,
345, 346, 347
Kenwood
314, 336, 332,
337
LXI (Sears)
332, 305, 330,
335, 338
Magnavox
308, 309, 310
Marantz
314, 336, 337
Marta
332
Memorex
309, 335
Minolta
305, 304
Mitsubishi/
323, 324, 325,
MGA
326
Multitech
325, 338, 321
NEC
314, 336, 337
Olympic
309, 308
Optimus
327
44
Realistic
Sansui
Samsung
Sanyo
Scott
Sharp
Signature
2000 (M.
Ward)
SV2000
Sylvania
Symphonic
Tashiro
Tatung
Teac
Technics
Toshiba
Wards
Yamaha
Zenith
Code
Manufacturer
Code
317
308, 309, 306,
307
305, 304
308, 309
308, 309, 310
308
308, 309, 306
304, 305, 308,
309, 311, 312,
313, 310, 329
309, 330, 328,
335, 324, 338
314
322, 313, 321
330, 335
312, 313, 321,
335, 323, 324,
325, 326
327, 328
338, 327
Sony
General
Electric
Hitachi
JVC
Magnavox
Mitsubishi
Oritron
Panasonic
Philips
Pioneer
RCA/Proscan
Samsung
Toshiba
Zenith
751
755
758
756
757
761
759
753
757
752
755
758
754
760
Cable Boxes
Manufacturer
Code
Sony
Hamlin/Regal
230
222, 223, 224,
225, 226
201, 202, 203,
204, 205, 206,
207, 208, 218
227, 228, 229
219, 220, 221
214, 215
209, 210, 211
Jerrold/G.I./
Motorola
338
308, 309, 338,
310
338
332
314, 336, 337
314, 336, 338,
337
309, 308
312, 311
327, 328, 335,
331, 332
314, 330, 336,
337
331
Laserdisc Players
Manufacturer
Code
Sony
Panasonic
Pioneer
701
704, 710
702
Oak
Panasonic
Pioneer
Scientific
Atlanta
Tocom
Zenith
216, 217
212, 213
Satellite Receivers
Manufacturer
Code
Sony
Dish Network
Echostar
General
Electric
Hitachi
Hughes
Mitsubishi
Panasonic
RCA/
PROSCAN
Toshiba
801
810
810
802
805
804
809
803
802, 808
806, 807
