TILT

OPEN / CLOSE

OPEN

VOLUME MUTE

CQ-VD7700U

CQ-VD7700U

IN-DASH 7" WIDESCREEN COLOR LCD MONITOR TV / DVD / SD RECEIVER

TILT

OPEN / CLOSE

TRACK/

CHANNEL

ENTER

DISC

SD CARD

NAVI

NAVIGATION

DISP MODE

POWER

ASP

ASPECT

P·MODE

(CQ-VD7700U)

PWR

STOP

NAVIGATION

NAVI

PAUSE

MODE

PLAY

MENU

CHAPTER

OSD

TOP MENU RETURN

DVD / SD MENU

RET

RANDOM REPEAT

RAND

ST/ MONO

AUDIO

CH1

1

ANGLE

CH2

2 3 DISP

EN

SCROLL

REP

SUBTITLE

SUB

PAGE

TRACK

GRP

TITLE / CHAPTER

4

SCAN

5 6

7

ASPECT

A

P-MODE

8

0

9

SPACE MUTE

CAR AV

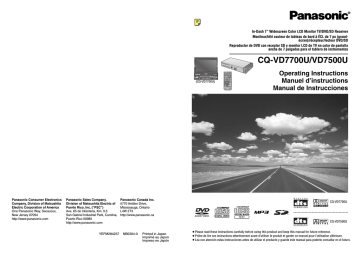

In-Dash 7” Widescreen Color LCD Monitor TV/DVD/SD Receiver

Moniteur/télé couleur de tableau de bord à ÉCL de 7 po (grand-

écran)/récepteur/lecteur DVD/SD

Reproductor de DVD con receptor SD y monitor LCD de TV en color de pantalla ancha de 7 pulgadas para el tablero de instrumentos

CQ-VD7700U/VD7500U

Operating Instructions

Manuel d’instructions

Manual de Instrucciones

®

Panasonic Consumer Electronics

Company, Division of Matsushita

Electric Corporation of America

One Panasonic Way, Secaucus,

New Jersey 07094 http://www.panasonic.com

Panasonic Sales Company.

Division of Matsushita Electric of

Puerto Rico, Inc. (“PSC”)

Ave. 65 de Infanteria, Km. 9.5

San Gabriel Industrial Park, Carolina,

Puerto Rico 00985 http://www.panasonic.com

Panasonic Canada Inc.

5770 Ambler Drive,

Mississauga, Ontario

L4W 2T3 http://www.panasonic.ca

YEFM284237 NB0304-0 Printed in Japan

Imprimé au Japon

Impreso en Japón

CQ-VD7700U

TEXT

CQ-VD7500U

¡

Please read these instructions carefully before using this product and keep this manual for future reference.

¡

Prière de lire ces instructions attentivement avant d’utiliser le produit et garder ce manuel pour l’utilisation ultérieure.

¡

Lea con atención estas instrucciones antes de utilizar el producto y guarde este manual para poderlo consultar en el futuro.

E

N

G

L

I

S

H

Safety Information

WARNING

• TO REDUCE THE RISK FOR FIRE OR ELEC-

TRIC SHOCK AND ANNOYING INTERFER-

ENCE, USE ONLY THE INCLUDED COMPO-

NENTS.

• This unit operates with a 12 V DC negative ground auto battery system only. Do not attempt to use it any other system.

• Do not expose unit to direct sunlight or excessive heat.

• Keep out the SD-Card and batteries of reach of children.

If swallowed, seek medical advice immediately.

CAUTION!

THIS PRODUCT UTILIZES A CLASS I LASER.

USE OF CONTROLS OR ADJUSTMENTS OR PERFOR-

MANCE OF PROCEDURES OTHER THAN THOSE

SPECIFIED HEREIN MAY RESULT IN HAZARDOUS

RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR YOUR-

SELF. REFER SERVICING TO QUALIFIED PERSON-

NEL.

CAUTION:

PLEASE FOLLOW THE LAWS AND REGULATIONS

OF YOUR STATE, PROVINCE OR COUNTRY FOR

INSTALLATION OF THE UNIT.

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE

THIS APPLIANCE TO RAIN, SPLASHING, DRIPPING

OR MOISTURE.

The following applies only in the U.S.A.

Part 15 of the FCC Rules

FCC Warning:

Any unauthorized changes or modifications to this equipment would void the user's authority to operate this device.

NOTICE:

This product has a fluorescent lamp that contains a small amount of mercury. It also contains lead in some components. Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or recycling information please contact your local authorities, or the

Electronics Industries Alliance:

<http://www.eiae.org.>

Consignes de sécurité

MISE EN GARDE

• AFIN DE PRÉVENIR TOUT RISQUE D’IN-

CENDIE OU D’INTERFÉRENCES, UTILISER

UNIQUEMENT LES COMPOSANTS FOURNIS.

• Cet appareil ne peut fonctionner que sur une batterie de 12 V c.c. avec négatif à la masse. Ne tentez pas de l’utiliser avec une autre source d’alimentation. Cela pourrait causer de graves dommages.

• N’exposez pas l’unité à la lumière du soleil directe ou chaleur excessive.

• Gardez les cartes SD et les piles hors de portée des enfants.

Si elle a été avalée, faites immédiatement appel à l'intervention d'un médecin.

ATTENTION!

CET APPAREIL EST UN PRODUIT LASER DE LA

CLASSE I.

L’UTILISATION DE COMMANDES OU RÉGLAGES OU

L’EXÉCUTION D’OPÉRATIONS AUTRES QUE CELLES

QUI SONT INDIQUÉES DANS CE DOCUMENT

PEUVENT RÉSULTER EN UNE EXPOSITION À UN

RAYONNEMENT DANGEREUX.

N’OUVREZ PAS LES COUVERCLES ET N’ESSAYEZ

PAS D’EFFECTUER VOUS-MÊME DES RÉPARATIONS.

ADRESSEZ-VOUS À UN PERSONNEL QUALIFIÉ POUR

TOUTE RÉPARATION.

ATTENTION:

OBSERVEZ LES LOIS ET RÈGLEMENTS DE VOTRE

PROVINCE OU PAYS POUR L’INSTALLATION DE

L’APPAREIL.

AFIN DE LIMITER LES RISQUES D’INCENDIE OU

D’ÉLECTROCUTION OU ENCORE D’ENDOMMAGE-

MENT DE L’APPAREIL, N’EXPOSEZ PAS CET

APPAREIL À LA PLUIE, AUX ÉCLABOUSSURES

D’EAU OU À L’HUMIDITÉ.

F

R

A

N

Ç

A

I

S

2

Find the model number and serial number on either the back or bottom of the unit. Please record them in the space below and retain this booklet as a permanent record of your purchase to help with identification in case of theft.

MODEL NUMBER

SERIAL NUMBER

DATE PURCHASED

FROM

CQ-VD7700U/VD7500U

CQ-VD7700U/VD7500U

Il est recommandé de noter, dans l’espace prévu ci-dessous, les numéros de modèle et de série inscrits soit à l’arrière soit sous le fond de l’appareil, et de conserver ce manuel comme mémorandum de l’achat afin de permettre l’identification de l’appareil en cas de vol.

NUMÉRO DE MODÈLE

CQ-VD7700U/VD7500U

NUMÉRO DE SÉRIE

DATE DE L’ACHAT

VENDEUR

CQ-VD7700U/VD7500U

3

Información para su seguridad

E

S

P

A

Ñ

O

L

ADVERTENCIA

• PARA EDUCIR EL RIESGO DE INCENDIOS O

SACUDIDAS ELÉCTRICAS< Y PARA EVITAR

LAS INTERFERENCIAS MOLESTAS, UTILICE

SOLAMENTE LOS COMPONENTES INCLUI-

DOS.

• Este unidad sólo funcionará con un sistema de batería de vehículo de 12 V CC con negativo a masa.

• No exponga la unidad a la luz directa del sol ni a calor excesivo.

• Mantenga las tarjetas SD y las pilas alejadas del alcance de los niños.

Existe el peligro de que se la traguen.

Si se la traga alguien, llévelo inmediatamente al médico.

PRECAUCIÓN:

ÉSTE UN PRODUCTO LÁSER DE LA CLASE I.

LA UTILIZACIÓN DE CONTROLES, EL HASER

AJUSTES O EL SEGUIR PROCEDIMIENTOS DISTIN-

TOS DE LOS ESPECIFICADOS EN ESTE MANUAL

PODRÍA CAUSAR UNA EXPOSICIÓN PELIGROSA A LA

RADIACIÓN.

NO ABRA LAS CUBIERTAS NI HAGA PERARACIONES

USTED MISMO. SOLICITE LOS TRABAJOS DE SERVI-

CIO AL PERSONAL CUALIFICADO.

PRECAUCIONES:

RESPETE LAS LEYES Y REGULACIONES DE SU

ESTADO, PROVINCIA O PAÍS PARA LA INSTALACIÓN

DEL APARATO.

PARA REDUCIR EL PELIGRO DE INCENDIOS Y DE

DESCARGAS ELÉCTRICAS ASÍ COMO DE DAÑOS

DEL PRODUCTO, NO LO EXPONGA A LA LLUVIA, A

SALPICADURAS, CONDENSACIÓN DE AGUA NI

HUMEDAD.

Lo siguiente se aplica solamente a los EE.UU.

Parte 15 de los Reglamentos FCC

Advertencia FCC:

Cualesquier cambios o modificaciones sin autorización a este equipo puede anular la autoridad del usuario para operar este dispositivo.

AVISO:

Este producto contiene plomo en algunos componentes.

La eliminación de estos materiales puede estar reglamentado en su comunidad debido a las consideraciones ambientales.

Para informarse acerca de la eliminación o reciclaje comuníquese con las autoridades locales, o la Alianza de Industrias

Electrónicas: <http://www.eiae.org.>

Use This Product Safely

WARNING:

TO AVOID RISK OF SERIOUS INJURY OR POSSIBLE VIOLATION OF LAWS, DO NOT USE WHERE

VISIBLE TO DRIVER FOR ANY PURPOSE OTHER THAN NAVIGATION OR USE WITH REAR VIEW

CAMERA.

When Driving

¡ The driver must not operate the color LCD (liquid crystal display) monitor. Operating the color LCD monitor may lead to carelessness and cause an accident. Stop your car in a safe location when operating the unit.

¡ The driver must not watch videos while driving. It may lead to carelessness and cause an accident.

¡ Keep the unit at an appropriate sound level. Driving with the sound at a level that prevents you from hearing sounds outside and around the car may cause an accident.

CAUTION:

Follow local rules and regulations for installing monitor and TV antenna.

When Car Washing

Do not expose the product, including the speakers and discs, to water or excessive moisture. This could cause electrical shorts, fire, or other damage.

When Parked

Parking in direct sunlight can produce very high temperatures inside your car. Give the interior a chance to cool down before switching the unit on.

Use the Proper Power Supply

This product is designed to operate with a 12 V DC, negative ground battery system (the normal system in a North

American car.)

Disc Mechanism

Do not insert coins or any small objects. Keep screwdrivers and other metallic objects away from the disc mechanism and disc.

Protect the Software

When you leave the car, be sure to eject the disc and SD-card from this unit and remove them from the vehicle.

Use Authorized Servicenters

Do not attempt to disassemble or adjust this precision product. Please refer to the Servicenter list included with this product for service assistance.

For Installation

The product should be installed in a horizontal position with the front end up at a convenient angle, but not more than 30˚.

The user should bear in mind that in some areas there may be restrictions on how and where this unit must be installed.

Consult your dealer for further details.

E

N

G

L

I

S

H

4

Busque el número del modelo y el número de serie ya sea en la parte trasera o en el fondo de la unidad. Sírvase anotar dichos números en el espacio siguiente, y mantenga este librete como una anotación permanente de su compra para ayudar en la identificación en el caso de robo.

NÚMERO DEL MODELO

CQ-VD7700U/VD7500U

NÚMERO DE SERIE

FECHA DE COMPRA

NOMBRE DE LA TIENDA

CQ-VD7700U/VD7500U CQ-VD7700U/VD7500U

5

6

E

N

G

L

I

S

H

Use This Product Safely

This system is designed so that you cannot see moving pictures while you are driving.

¡

Park your car in a safe and pull the side brake (parking brake) lever before watching the monitor.

¡ A rear monitor (option) displays moving pictures while driving.

(continued)

Note:

Be sure to connect the side brake (parking brake) connection lead. ( a

Installation Instructions)

Cautions:

¡

Picture might not be displayed, or it might take more time than usual to display picture in low temperature.

Also, movement of picture might become labored, or picture quality might deteriorate in low temperature.

[practicable temperature: 32 °F to 104 °F (0 °C to 40 °C)]

¡ Do not press the Touch Panel with hard pointed sticks.

¡ In some cases, noise is generated. It depends on the position or direction of a mobile phone and CB transceiver, etc.

Change the position or direction of the mobile phone and CB transceiver, etc. or keep them away from the unit.

ID Code

Prior to operating this unit, it is advisable to assign a 4-digit ID code for security. (Make sure to use four digits for ID code.)

Once the ID code has been set, the unit cannot be operated if the main power supply is disconnected then re-connected. It is electronically locked so that a thief can not use the stolen unit unless that person knows the code you have set.

The ID code operation must be performed only by the person to whom the unit belongs.

Generally, it is not necessary to enter the ID code each time when using the unit if it has never been disconnected from the main power supply (car battery). For the ID code setting procedures, see page 57.

Caution: Record your registered ID code and keep it in a secure location. If you forget it, you will be unable to use the unit. If you cannot operate the unit because you forgot the ID code, please consult your nearest Panasonic

Servicenter.

ID Code Input

Enter the ID code after turning on the power and activating the display.

Success

Note: When you fail in entering the ID code, the screen on the right is displayed and the unit beeps three times. Enter a correct ID code.

If you fail to enter the correct ID code three times consecutively, the power is turned off. Turn on the power again and enter a correct ID code.

CQ-VD7700U/VD7500U

Panasonic welcomes you to our ever growing family of electronic product owners. We know that this product will bring you many hours of enjoyment. Our reputation is built on precise electronic and mechanical engineering, manufactured with carefully selected components and assembled by people who take pride in their work.

Once you discover the quality, reliability, and value we have built into this product, you too will be proud to be a member of our family.

Features

Integration of the monitor, TV tuner, FM/AM radio, DVD Video/Audio player, Video

CD player, CD/MP3 player and SD-card player

¡

A CD-R and a CD-RW that hold CD-DA data can be reproduced.

¡

A CD-ROM, a CD-R and a CD-RW that hold MP3 data can be reproduced.

¡

MP3 ID3Tag is supported.

SD-card Player (

a

page 50)

Equipped with 1 SD-Card Slot. You can play MPEG4 Videos, AAC Audios, JPEG still images and Voice(G.726) files on the SD-Cards. MP3 audio files on the SD-Card cannot be played. (However, MP3 files that were written with SD-

Jukebox in order to use as an SD audio file are playable.)

Built-in Dolby Digital decoder, DTS decoder, Dolby Pro Logic II decoder

(only for CQ-VD7700U)

You can enjoy a powerful 5.1 channel surround system by connecting optional center speaker, power amplifier and sub-woofer.

Built-in DSP (only for CQ-VD7700U) (

a

page 72)

8 sound field (space) and Parametric equalizer.

7-inch wide LCD (Liquid Crystal Display) display

Delivers images of high quality and superb color reproduction.

Optical digital output (Only for CQ-VD7500U)

Equipped with an optical digital output. You can realize the 5.1 channel surround system by connecting an optional digital surround processor to the output.

GUI (Graphic User Interface) with touch panel

GUI displays various indicators with colorful symbols to enhance visibility, enjoyment, and operability.

Image capture function

Images can be imported from TV, VTR, DVD or Video CD for a wallpaper.

70 W

High power high-efficiency digital power amplifier (only for CQ-VD7700U)

Digital power amplifier transmits power at approx. 90 % efficiency.

ID code

4-digit ID code for increased security.

External extension terminal

¡

2 video inputs

You can connect a car navigation system, VCR and camcorder with this unit if they have a video output type terminal.

¡

One video output (on the hide-away unit side)

You can connect an optional monitor for passengers in the rear seat (private mode).

CD changer control function

An optional CD changer (CX-DP880U) can be connected.

Note: It is necessary to incorporate the Dual CD Changer Selector CA-CD55 (option) when connecting 2 CD changers.

E

N

G

L

I

S

H

This book refers to connections to the Panasonic car navigation system that will come onto the market in the future.

Descriptions regarding the car navigation system are boxed with a dotted line.

CQ-VD7700U/VD7500U

7

E

N

G

L

I

S

H

Components

Components

TILT OPEN / CLOSE

OPEN

VOLUME MUTE

CQ-VD7700U

CQ-VD7700U

IN-DASH 7" WIDESCREEN COLOR LCD MONITOR TV / DVD / SD RECEIVER

TILT

OPEN / CLOSE

TRACK/

CHANNEL

ENTER

DISC

SD CARD

NAVI

NAVIGATION

DISP MODE

POWER

ASP

ASPECT

P·MODE

1. Display Unit

1

2. Hide-away Unit

1

PWR

STOP

NAVIGATION

NAVI

PAUSE

MODE

PLAY

MENU

CHAPTER

OSD

TOP MENU RETURN

RET

DVD / SD MENU RANDOM

RAND

REPEAT

REP

ST/ MONO

AUDIO

CH1

1

ANGLE

CH2

2

EN

SCROLL

PAGE

SUBTITLE

SUB

TRACK

GRP

TITLE / CHAPTER

3

DISP

4

SCAN

5 6

7

ASPECT

A

P-MODE

8

0

9

SPACE MUTE

CAR AV

1

3. Remote Control

Unit

<YEFX9995145>

4. Lithium Battery

(CR2025)

1 1 set

5. TV Antenna

<YEAA12692A (R)>

<YEAA12693A (L)>

XXXXXXXXXXXXXXXXX

XXXXXXXXXXXXXX

XXXXXXXXXXXXXXXX

OO-OOOOO

XXXXXXXXXXXXXXXXX

XXXXXXXXXXXXXX

XXXXXXXXXXXXXXXX

OO-OOOOO

6. Wiping Cloth

1

<YEFX9991793>

7. Operating

Instructions

1

<YEFM284237>

1

8. Installation

Instructions

CQ-VD7700U:

<YEFM293264>

CQ-VD7500U:

<YEFM293265>

10. Installation Hardware (screws, cords, etc.) ( a

Installation instructions)

1 set

9. Warranty Card, etc.

Note:

¡ The number in parenthesis underneath each accessory part name is the part number for maintenance and service.

¡ Accessories and their part numbers are subject to modification without prior notice due to improvements.

Differences between 2 models

Note: This operating instruction manual is for 2 models CQ-VD7700U and CQ-VD7500U. All illustrations throughout this manual represent model CQ-VD7700U unless otherwise specified. The following table describes the differences between the 2 models.

8

Model

Maximum Power Output

Power Amplifier

Center Speaker Output

Subwoofer Output

5.1 ch. decoder (Dolby digital/DTS)

Optical digital Output

DSP Functions (Space, Parametric EQ.)

Graphic EQ. and other audio functions

CQ-VD7700U/VD7500U

Features

CQ-VD7700U

70 W x 4 ch. + 35 W x 1 ch.

Digital

Yes (35 W x 1 ch.)

1 ch.

Yes

No

Yes

No

CQ-VD7500U

50 W x 4 ch.

Analog

No

2 ch. (MONO)

No

Yes

No

Yes

Utilisez cet appareil de façon sécuritaire

AVERTISSEMENT:

AFIN D’ÉVITER LES RISQUES DE BLESSURE GRAVE OU UNE POSSIBILITÉ D’INFRACTIONS AUX

LOIS, N’UTILISEZ PAS L’APPAREIL DANS LE CHAMP DE VISION DU CONDUCTEUR POUR TOUTE

AUTRE FIN QUE LA NAVIGATION OU POUR L’UTILISATION AVEC UNE CAMÉRA DE VISION

ARRIÈRE.

Au volant:

¡

Le conducteur ne doit pas faire fonctionner l’écran couleur à cristaux liquides. Le fonctionnement de l’écran couleur à cristaux liquides pourrait détourner l’attention du conducteur et entraîner un accident. Lorsque vous faites fonctionner l’appareil, stationnez votre véhicule dans un endroit sûr.

¡ Le conducteur ne doit pas visionner de vidéos en conduisant. Cela pourrait détourner son attention et entraîner un accident.

¡ Maintenez l’appareil à un niveau de son approprié. La conduite avec un niveau de son qui empêche d’entendre les sons extérieurs et autour du véhicule pourrait entraîner un accident.

F

R

A

N

Ç

A

I

S

PRÉCAUTION:

Respectez les règlements locaux et la réglementation pour installer le moniteur vidéo et l’antenne de télévision.

Lors du nettoyage du véhicule

N’exposez pas l’appareil, incluant les haut-parleurs et le disque, à l’eau ou à une humidité trop grande. Cela risquerait de causer des courts-circuits, un incendie ou d’autres dommages.

Lorsque la voiture est stationnée

Le stationnement en plein soleil peut produire des températures très élevées à l’intérieur du véhicule. Laissez l’intérieur du véhicule refroidir avant d’allumer l’appareil.

Utilisez la bonne source d’alimentation

Cet appareil est conçu pour fonctionner sur un système d’alimentation avec batterie de 12 V c.c. à masse négative (système standard sur les véhicules de construction nord-américaine).

Mécanisme de lecture de disque

N’insérez pas de pièces de monnaie ou tout autre petit objet. Gardez les tournevis et autres objets métalliques à l’écart du mécanisme de lecture de disque et des disques.

Protégez le logiciel

Au moment de quitter le véhicule, prenez soin d'éjecter le disque et la carte SD de cet appareil et de les conserver sur soi.

Faites appel aux centres de service après-vente agréés

Ne tentez pas de démonter ou d’ajuster cet appareil de précision. Veuillez consulter la liste des centres de service aprèsvente fournie avec cet appareil pour obtenir de l’aide.

Pour l’installation

Cet appareil doit être installé en position horizontale, avec l’extrémité avant inclinée à un angle commode mais ne dépassant pas 30˚.

L’utilisateur doit garder à l’esprit que dans certaines régions il peut y avoir des restrictions spécifiant comment et où installer cet appareil. Pour plus de détails, contactez votre détaillant.

CQ-VD7700U/VD7500U

9

Contents

¢ Safety Information.................................. 2

¢ Use This Product Safely ........................ 5

¢ Features .................................................. 7

¢ Components ........................................... 8

¢ Differences between 2 models.............. 8

¢ Contents................................................ 17

¢ Preparations ......................................... 18

Remote Control, Main Unit

¢ Name of Controls and Functions........ 20

¢ Touch Panel Operation Overview ....... 24

Operation mode, regular mode

¢ Display Mode Changes ........................ 26

¢ Status Bar ............................................. 27

¢ Icons Used in This Manual .................. 27

¢ Indications on the Screen.................... 28

The state of the current output appears, OSD (On

Screen Display) on/off

¢ Discs that can be Played Back............ 29

¢ System Upgrade ................................... 30

¢ General .................................................. 34

Power, source selection (Mode), volume, mute, display open/close and monitor position adjustment

¢ TV Tuner/VTR (External Devices)........ 36

TV mode, channel setting, direct channel selection, preset channels, VTR1/VTR2 mode

¢ DVD/Video CD Player ........................... 38

Disc insert/eject, basic operation, chapter/title selection, useful functions

¢ CD/MP3 Player ...................................... 42

Disc insert/eject, direct folder and file selection, basic operations, points to remember when recording an MP3 disc

¢ Radio ..................................................... 46

Radio mode, band, tuning, One-touch Selection of a Station

¢ CD Changer Control............................. 48

CD Changer mode, system expansion, basic operations

¢ SD-Card Player ..................................... 50

Notes on SD-Card, Playable data, SD-Card inserting, SD mode selection, go to SD Menu, go to SD

Setup Menu, removing the SD-Card

¢ MENU : User Settings .......................... 54

Display unit, beep, guidance, clock, calender, touch panel, id-code, memory clear

¢ MENU : Display (Screen) Settings ...... 58

Dimmer, picture, LCD dimmer, LCD contrast

¢ MENU : Capture Function.................... 59

Capture, initialize

¢ MENU : Animation Settings ................. 60

Animation, color

¢ MENU : Audio Settings ........................ 61

Parametric-EQ, pro logic II, down mix, DR comp, SP setup, SP level, SP delay, VTR level, graphic-EQ, bal/fad, sub-woofer, HPF

¢ MENU : DVD Settings........................... 67

Language, display

¢ MENU : Input/output Setting ............... 68

Navi setup, camera setup, VTR skip, video-cont, rear monitor, BGC

¢ Aspect Ratio ......................................... 71

¢ Sound Settings ..................................... 72

Space, dynamic range compression

¢ About Rear Monitor .............................. 74

Rear monitor set up, private mode

¢ Sub-LCD Display Change .................... 76

¢ Troubleshooting ................................... 78

¢ Maintenance.......................................... 86

¢ Definition of Terms ............................... 88

¢ Language Code List ............................. 90

¢ Specifications ....................................... 91

E

N

G

L

I

S

H

1

17

CQ-VD7700U/VD7500U

E

N

G

L

I

S

H

2

Preparations (Remote Control)

Battery Installation (Inserting/Replacing the Battery)

q Remove the battery holder.

Pull the holder by position B while pushing position A

Back side in the direction indicated by the arrow.

w Install the battery on the battery holder.

Set a new battery properly with its (

+

) side facing up as shown in the figure.

e Insert the battery holder.

Push the battery holder back into its original position.

Lithium battery

(CR2025: supplied)

Position B

Battery holder

Position A

Battery Notes

¡ Battery life: approx. 6 months (at room temperature)

¡

Battery handling:

• Do not disassemble, short-circuit or dispose of batteries in a fire as such action may result in explosion or fire.

• Keep out of the reach of children to prevent risk of choking, swallowing, or other injury.

¡ Replace old battery:

Follow the local regulations for disposal.

Caution: Improper use of batteries may cause overheating, an explosion or ignition, resulting in injury or a fire.

Change battery as required - battery leakage may damage the unit.

This book refers to connections to the Panasonic car navigation system that will come onto the market in the future.

Descriptions regarding the car navigation system are boxed with a dotted line.

18

CQ-VD7700U/VD7500U

Preparations (Main Unit)

You should check and prepare your unit before initial use referring to the following steps:

Step 1

Check the connecting external devices for input.

VTR1/VTR2

Connected:

Set the VTR input level, etc. ( a page 65, 70)

Unconnected:

Set the VTR Skip. ( a page 70)

Rear View Camera

Connected:

Check if the reverse lead is connected. ( a installation

Instructions)

Execute the Camera SetUp. ( a page 69)

Unconnected:

Set the Rear View Camera to off. ( a page 69)

Car Navigation

Connected:

Check the connection terminal. ( a

Installation

Instructions)

Execute the NAVI SETUP. ( a page 68)

Unconnected:

Check if “NAVI INPUT” is set to “RGB”. ( a page 68)

Step 2

Check the connecting external devices for output.

Rear Monitor

Connected:

Execute the Rear Monitor Set Up. ( a page 74)

Unconnected:

Subwoofer and External amplifier

Connected:

Check the connection of external amplifier control lead and subwoofer output. ( a

Installation Instructions)

Execute “SP SETUP”. ( a page 63: CQ-VD7700U)

Unconnected:

Set “SUB•W” to “NO”. ( a page 64)

Other speakers

Check the connected speakers.( a Installation Instructions)

Execute “SP SETUP” and “AUDIO” setting ( a page 63, 64: CQ-VD7700U, a page 66: CQ-VD7500U)

Step 3

Check the other equipment and settings.

ID code setting ( a

page 57)

Check the Illumination lead connection. ( a

Installation Instructions)

Display (Screen) Settings ( a

page 58)

“DISPLAY UNIT” setting (TILT, OPEN/CLOSE) ( a

page 54)

Clock Setting ( a

page 55)

DVD Setting (if necessary)

Language Setting ( a page 67)

Display Aspect and DVD Software Mode ( a page 68)

CQ-VD7700U/VD7500U

19

E

N

G

L

I

S

H

3

E

N

G

L

I

S

H

4

Name of Controls and Functions

Main Unit

[u]

¡

Ejects/reloads a disc.

( a page 38, 42)

Note: You should open the front panel before ejecting the disc.

TILT OPEN / CLOSE

[TILT]

¡ Adjust the monitor position.

( a page 35, 54)

¡ Tilts the monitor forward temporarily. ( a page 35, 54)

[OPEN/CLOSE]

¡

Opens/closes the monitor.

( a page 35)

[ASP] (ASPECT)

(P•MODE)

¡ Selects the aspect ratio.

( a page 71)

¡ Activates/inactivates the private mode.

( a page 75)

[OPEN]

¡

Open the Front Panel.

Note: You should open the front panel before ejecting the disc.

[VOLUME]

¡ Adjusts the sound volume.

( a page 35)

Remote control sensor

OPEN

VOLUME

MUTE

[}] [{] (DISC)

¡ Searches for TV stations and memorizes them automatically.

( a page 36)

¡

Selects a folder or a disc.

( a page 42, 48)

¡

Selects (vertically) or adjusts an operation or item.

TILT

OPEN / CLOSE

CQ-VD7700U

CQ-VD7700U

IN-DASH 7" WIDESCREEN COLOR LCD MONITOR TV / DVD / SD RECEIVER

NAVI

NAVIGATION

DISP MODE

POWER

ASP

ASPECT

P·MODE

TRACK/

CHANNEL

SD CARD

ENTER

DISC

[]] [[]

(TRACK/CHANNEL)

¡

Selects or searches for a channel, track, file or frequency.

( a page 36, 38, 42, 46, 48)

¡ Selects (horizontally) or adjusts an operation or item.

SD-Card Slot

( a page 52)

[MODE] (POWER)

¡

¡

Switches on/off the power.

(

Changes the modes such as sound and picture.

( a a page 34) page 34)

[DISP]

¡

Changes sub-LSD display. ( a page 76)

[ENTER]

¡ Selects a band.

( a page 46)

¡ Searches for broadcast stations and memorizes them automatically. ( a page 46)

¡

Determines an operation or item.

[MUTE]

¡ Mutes the sound temporarily.

( a page 35)

Main Unit

(Front Panel Open)

[NAVI] (NAVIGATION)

¡ Activates/inactivates the car navigation.

( a page 68)

Disc slot

TILT

OPEN / CLOSE

CQ-VD7700U

TRACK/

CHANNEL

ENTER

DISC

SD CARD

Dimmer

Sensor

( a page 58)

20

Disc indicator (EJECT button illumination light) ( a page 38, 42)

Caution: A disc is in the slot when this is illuminated in blue.

CQ-VD7700U/VD7500U

Remote Control (General)

Aim the remote control at the remote control sensor of the display unit and operate it

( a previous page)

.

[NAVI] (NAVIGATION)

Activates/inactivates the car navigation. ( a page 26)

[MODE]

¡

Switches the power on/off. ( a page 34)

¡ Changes the modes such as sound and picture. ( a page 34)

[PWR]

¡ Switches the power on/off.

( a page 34)

[MENU]

¡

Shows the menu screen. ( a page 54)

¡ Shows the BGC menu. ( a page 70)

[RET] (RETURN)

¡

Cancel the direct channel selection.

( a page 36)

[SD] (TOP MENU)

¡

Show the SD-Card menu.

¡ Goes back to the top menu.

( a page 52)

[DVD/SD MENU]

¡ Displays the DVD or the SD-Card menu. (Operations vary according to the medium.) ( a page 40, 52)

[A] (ASPECT) (P • MODE)

¡ Selects the aspect ratio.

( a page 71)

¡ Activates/inactivates private mode.

( a page 75)

PWR

STOP

NAVIGATION

NAVI

PAUSE

MODE

PLAY

MENU

CHAPTER

OSD

TOP MENU RETURN

RET

DVD / SD MENU RANDOM

RAND

ST/ MONO

AUDIO ANGLE

REPEAT

REP

EN

T

E

R

SCROLL

PAGE

SUBTITLE

SUB

TRACK

GRP

TITLE / CHAPTER

CH1

1

4

CH2

2

SCAN

5

3

6

DISP

7

ASPECT

A

P-MODE

8

0 SPACE MUTE

CAR AV

9

[OSD] (CAPTURE)

¡ Displays information about each source on the screen. ( a page 28)

¡ Saves your favorite part of a playing picture as a freeze-frame picture. ( a page 59)

[}] [{]

¡

Searches for TV stations and memorizes them automatically. ( a page 36)

¡

Selects a disc. ( a page 48)

¡

Selects (vertically) or adjusts an operation or item.

[]] [[]

¡ Selects or searches for a channel, frequency, track or file. ( a page 36, 38, 42, 46, 48)

¡ Selects (horizontally) or adjusts an operation or item.

[ENTER]

¡ Selects a band. ( a page 46)

¡ Searches for broadcast stations and memorizes them automatically. ( a page 46)

¡ Determines an operation or item.

[DISP]

¡

Changes the display. ( a page 26, 76)

E

N

G

L

I

S

H

5

[}] [{] (VOL)

¡

Adjusts the sound volume. ( a page 35)

[MUTE]

¡

Mutes the sound temporarily. ( a page 35)

[0] to [9]

¡ Selects a TV channel directly. ( a page 36)

¡ Scan [5], for the CD/CD changer mode.

( a page 42, 48)

¡ Sets the ID code. ( a page 57)

[SPACE]

¡ Setting the sound field.

(Only for CQ-VD7700U) ( a page 72)

This book refers to connections to the Panasonic car navigation system that will come onto the market in the future.

Descriptions regarding the car navigation system are boxed with a dotted line.

CQ-VD7700U/VD7500U

21

22

E

N

G

L

I

S

H

6

Name of Controls and Functions

(continued)

Remote Control Functions for the DVD audio/video, Video CD

DVD

VIDEO

DVD

AUDIO

VIDEO

CD

Indicates compatible types of Media.

DVD

VIDEO

DVD

AUDIO

VIDEO

CD

[

] (STOP)

¡ Stops playback. ( a page 38)

[

❚❚] (PAUSE)

¡ Pause ( a page 38)

[B] (PLAY)

¡ Playback ( a page 38)

[s] [d]

¡ Goes to beginning. ( a page 38)

¡

Fast forward/fast reverse. ( a page 38)

DVD

VIDEO

VIDEO

CD

¡ Slow playback [d]. ( a page 38)

[MODE]

DVD

VIDEO

DVD

AUDIO

VIDEO

CD

¡ Changes the modes such as sound and picture. ( a page 34)

[}] [{] []] [[]

DVD

VIDEO

DVD

AUDIO

¡ Selects an operation or item.

VIDEO

CD

[ENTER]

¡ Determines an operation or item.

PWR

STOP

NAVIGATION

NAVI MODE

PAUSE PLAY

MENU

CHAPTER

OSD

[RET] (RETURN)

DVD

VIDEO

DVD

AUDIO

VIDEO

CD

¡ Returns to the previous display.

( a page 40)

¡ Inputs the number again. ( a page 40)

¡

Displays the video CD's menu.

( a page 40)

[DVD/SD MENU]

DVD

VIDEO

¡ Displays the DVD menu. (Operations vary according to the media.) ( a page 40)

[SUB] (SUB TITLE)

DVD

VIDEO

¡ Switching the subtitle language.

( a page 41)

[ANGLE]

DVD

VIDEO

¡ Switching the angle. ( a page 41)

[AUDIO]

DVD

AUDIO

DVD

VIDEO

¡ Switching the audio language. ( a page 41)

[AUDIO] (ST/MONO)

VIDEO

CD

¡ Switches between stereo or monaural sound. ( a page 41)

TOP MENU RETURN

RET

DVD / SD MENU RANDOM

RAND

ST/ MONO

AUDIO ANGLE

REPEAT

REP

EN

T

E

R

SCROLL

PAGE

SUBTITLE

SUB

TRACK

GRP

TITLE / CHAPTER

CH1

1

CH2

2 3

DISP

4

SCAN

5 6

7

ASPECT

A

P-MODE

8

0 SPACE

CAR AV

9

MUTE

[0] to [9]

DVD

VIDEO

DVD

AUDIO

VIDEO

CD

¡ Selects an item on the menu. ( a page 40)

[0] to [9]

DVD

VIDEO

DVD

AUDIO

¡

Selects a title or chapter. ( a page 40)

¡ Selects a group/track. ( a page 40)

[RAND] (RANDOM)

DVD

AUDIO

¡

Random play. ( a page 38)

[PAGE] (SCROLL)

DVD

AUDIO

¡ Change the page. ( a page 38)

[REP] (REPEAT)

DVD

VIDEO

DVD

AUDIO

VIDEO

CD

¡

Repeats a playback. ( a page 38)

[GRP] (TRACK)

(TITLE/CHAPTER)

DVD

VIDEO

DVD

AUDIO

¡ Selects the group/track. ( a page 40)

¡ Selects the title/chapter. ( a page 40)

Remote Control Functions for the CD/MP3/SD/CD Changer

CD MP3

SD

CD Changer

Indicates compatible types of Media.

[

] (STOP)

CD MP3

SD

¡

Stops playback. ( a page 42, 48, 52)

[

❚❚] (PAUSE)

¡

Pause ( a page 42, 48, 52)

[B] (PLAY)

¡

Playback ( a page 42, 48, 52)

CD

CD Changer

MP3

SD

[s] [d]

¡ Goes to beginning. ( a page 42, 48,

52)

¡ Fast forward/fast reverse. ( a page 42,

48, 52)

[DVD/SD MENU]

SD

¡

Displays the SD-Card menu. (Operations vary according to the medium.)

( a page 52)

[MODE]

CD MP3

CD Changer

SD

¡

Changes modes such as sound and picture. ( a page 34)

PWR

STOP

NAVIGATION

NAVI

PAUSE

MODE

PLAY

MENU

CHAPTER

OSD

[ENTER]

MP3

¡

Changes to direct folder selection mode. ( a page 42)

[}] [{] []] [[]

SD

¡

Selects an operation or item.

[]] [[]

CD MP3

CD Changer

SD

¡ Selects a track or file. ( a page 42, 48)

¡ Fast forward/fast reverse ( a page 42,

48)

MP3

CD Changer

[}] [{]

¡

Selects a folder. ( a page 42)

¡ Selects a disc. ( a page 48)

TOP MENU RETURN

RET

DVD / SD MENU RANDOM REPEAT

ST/ MONO

AUDIO

RAND

ANGLE

REP

EN

T

E

R

SCROLL

PAGE

SUBTITLE

SUB

TRACK

GRP

TITLE / CHAPTER

CH1

1

CH2

2 3

DISP

4

SCAN

5 6

7

ASPECT

A

P-MODE

8

0

9

SPACE MUTE

[RAND] (RANDOM)

CD MP3

¡

Random play. ( a page 42, 48)

CD Changer

[REP] (REPEAT)

CD MP3

SD

¡

Repeats a playback. ( a page 42, 48,

52)

E

N

G

L

I

S

H

7

CAR AV

[1] (CH 1)

CD Changer

¡ Selects first CD Changer. ( a page 48)

[2] (CH 2)

¡

Selects second CD Changer. ( a page 48)

* When connecting the dual CD changer selector (CA-CD55 option) and two CD changers.

[5] (SCAN)

CD

CD Changer

¡ Scan in the CD/CD Changer mode. ( a page 42, 48)

23

CQ-VD7700U/VD7500U CQ-VD7700U/VD7500U

E

N

G

L

I

S

H

8

Touch Panel Operation Overview

Operation Mode

While in operation mode, You can operate almost all functions of this unit by touching symbols on the panel.

How to show operation mode

When not in operation mode, Touch the center of touch panel [Area A] to show operation display (see next page).

TILT OPEN / CLOSE

Operations on the touch panel

Touch operation buttons (Symbols) to opearte.

TILT

OPEN / CLOSE

TILT

OPEN / CLOSE

CQ-VD7700U

CQ-VD7700U

Touch the center of touch panel.

Touch a symbol to operate. When there is no operation symbol to operate, touch , , or to show.

Example: Mode Selection:

TILT

OPEN / CLOSE

Example: DVD operation symbols

CQ-VD7700U

CQ-VD7700U

Return to the regular mode

To return to the regular mode, touch [OPERATION OFF].

Example: TV mode

24

The Guidance display appears for 4 seconds

( a page 26)

.

Notes:

¡ When no operation is performed for 10 seconds during the Video playback, the display returns to the regular mode.

¡ In audio mode (CD/MP3/RADIO/CD Changer), the operation mode remains till the [OPERATION OFF] button is pressed.

CQ-VD7700U/VD7500U

Regular Mode

While in regular mode, You can operate basic functions of this unit by touching areas to on the panel. Each area has following control functions.

Example: GUIDANCE ON

( a page 55)

Area B

TV/Radio mode:

Goes to previous frequency or channel.

Area A

Regular mode:

Shows operation display.

Note: To return the regular mode, press

[OSD] or touch [OPERATION OFF].

DVD/VCD/CD/MP3/CD

Changer mode:

Previous Chapter/track/

File

Fast reverse

Area D

TV/Radio mode:

Next Preset Frequency/Channels

MP3 mode:

Next Folder

CD Changer mode:

Next disc

TILT OPEN / CLOSE

D

Area E

TV/Radio mode:

Previous preset

Frequency/Channels.

Seek

MP3 mode:

Previous Folder

CD Changer mode:

Previous Disc

B

A

E

CQ-VD7700U

CQ-VD7700U

C

TILT

OPEN / CLOSE

Area C

TV/Radio mode:

Goes to next frequency or channel.

Seek

DVD/VCD/CD/MP3/C

D Changer mode:

Next Chapter/track/

File

Fast forward

E

N

G

L

I

S

H

9

Notes on the Touch Panel

Before operation

¡ Clean the surface of the touch panel. ( a page 86)

TILT OPEN / CLOSE

Operation

¡ Use only your fingers to operate the touch panel.

TILT

OPEN / CLOSE

TILT

OPEN / CLOSE

CQ-VD7700U

CQ-VD7700U

CQ-VD7700U

CQ-VD7700U

¡ Do not press the panel forcefully.

¡ Do not scratch the panel by fingernails or any hard objects.

¡ Do not use a pen or other sharp implements to operate the touch panel.

¡ Do not bump the front panel.

a Failure to observe the above may damage or break the glass on the surface of the touch panel.

TILT

OPEN / CLOSE

CQ-VD7700U/VD7500U

25

E

N

G

L

I

S

H

10

Display Mode Changes

This unit has 10 types screens. The following operations allow you to change among screens.

TV, DVD Video/Audio, VTR 1/2, SD-Card

Operating mode

Panel

Remote

[OPERATION

OFF]

[OSD]

Regular mode

Area A

CD, MP3, Radio, CD Changer

Operating mode

Guidance display

appears for 4 seconds

You can let the guidance display set to off. ( a page 55)

Calender Full Screen

[OPERATION OFF] Area A

[DISP]

Animation

[DISP]

Calender Window

Capture

Full Screen

[DISP]

[OSD]

ID 3 Tag data (only for MP3)

[DISP]

26

[OSD]

Capture Window

Navigation

Navi mode

CQ-VD7700U/VD7500U

[NAVI]

(NAVIGATION)

Play mode

[NAVI]

(NAVIGATION)

Status Bar

The status bar provides various information during the playback.

The status bar will inform you of a change in the unit whenever it occurs.

(CQ-VD7700U)

Current Source ( : Sound : Video)

Disc Indicator

Current selected changer number when two CD changers are connected. ( a page 48)

PWR

STOP

NAVIGATION

NAVI

PAUSE

MODE

PLAY

MENU

CHAPTER

OSD

TOP MENU

DVD / SD MENU RANDOM REPEAT

ST/ MONO

AUDIO

CH1

1

4

RETURN

RET

RAND

ANGLE

CH2

2

SCAN

5

REP

6

EN

T

E

R

SCROLL

PAGE

SUBTITLE

SUB

TRACK

GRP

TITLE / CHAPTER

3 DISP

7

ASPECT

A

P-MODE

8

0

9

SPACE MUTE

CAR AV

Volume level

P·MODE indicator ( a page 75)

Preset Equalizer Number ( a page 62, 66)

[OSD]

Icons Used in This Manual

This manual uses some icons to explain touch panel operation as follows:

¡

Operation unit

These icons represent the unit used to perform an operation.

Panel

: Operations on the touch panel

Remote

: Operations on the remote control or the display unit

This book refers to connections to the Panasonic car navigation system that will come onto the market in the future.

Descriptions regarding the car navigation system are boxed with a dotted line.

E

N

G

L

I

S

H

11

CQ-VD7700U/VD7500U

27

E

N

G

L

I

S

H

12

Indicators on the Screen

The State of the Current Output Appears

Note: Displaying contents and their positions partly vary with each mode. Refer to the description of each mode for details.

Example:

DVD Video Mode

(OSD on a see below)

Information of Each

Mode

Playing elapsed time, title, preset list, etc.

Additional Information

Source type, various settings, etc.

Mode

Display

Mode Display/Operating buttons

The current mode and operable touch buttons appear.

Mode Display temporarily hiding

You can hide the mode display temporarily during some visual related operations such as DVD menu operation.

T ouch this.

Hide

Appear

T ouch this to appear.

Prohibition

Input is not possible because a soundtrack, subtitle language or angle number which was not recorded on the disc has been selected or because the user has attempted to perform an operation which is not supported.

OSD (On-Screen Display) On/off

You can switch between OSD-ON and OSD-OFF regarding the mode information when watching a picture.

OSD on

(During playback)

Panel

Touch [Area A]

Touch [OPERA-

TION OFF]

OSD off

Remote

Press [OSD] .

Note:On-Screen Display can be toggled between on and off only in the TV, VTR1/2, DVD video, DVD audio, VCD and SD-

Card modes. (When the captured image is set as a wallpaper in the CD, MP3, RADIO and CD changer, pressing [OSD] switches captured images.)

28

CQ-VD7700U/VD7500U

Discs that can be Played Back

Disc Mark (logo) Disc size Video format Audio format Region No.

E

N

G

L

I

S

H

13

DVD audio/ video

LPCM, PPCM,

MPEG1, MPEG2, dts,

Dolby Digital

NTSC

1

ALL

5” (12 cm)

Video CD

LPCM, MPEG1

CD

LPCM (CD-DA),

MP3

TEXT

Notes:

¡ About CD-Rs, CD-RWs and SD-Card refer to “Notes on CD-Rs/RWs” and “Notes on SD-Card”. ( a page 50, 87)

¡ Some copy-protected music CDs are not playable.

Example:

1

1 2

4 6

ALL

Region Management Information

This product is designed and manufactured to respond to the Region Management

Information that is recorded on a DVD disc. If the Region number described on the

DVD disc does not correspond to the Region number of this product, this product cannot play the disc.

The Region number for this product is “1” and “ALL”.

Symbols used on jackets

(Examples of such symbols include)

¡

Number of subtitle languages

2

Screen size (H:V aspect ratio)

¡

4:3 standard size

4:3

¡

Number of audio tracks

2

¡

Letterbox

LB

( a page 88)

¡

Number of angles

3

The numbers indicate the number of languages, tracks, angles, etc., recorded on the disc.

¡

16:9 wide size

16:9 LB

: Play back in letterbox format on a standard screen (4:3).

16:9 PS

: Play back in “Pan & Scan” ( a page 88) format on a standard screen (4:3).

Note: The size of the image that is displayed on the screen depends on the screen mode (“Aspect Ratio” a page 71), and on the screen size for the content on the disc.

The following discs cannot be played back on this product.

¡

DVD-ROM

¡

DVD-R

¡

DVD-RAM

¡

DVD+RW

¡

DVD-RW

¡

SVCD

¡

VSD

¡

¡

CD-RW (except MP3 and CD-DA)

CDV

¡

CVD

¡

¡

CD-G

¡

Divx Video Discs

¡

CD-ROM (except MP3)

CD-R (except MP3 and CD-DA)

¡

SACD

¡ photo CD

¡

CD-EXTRA (audio-only playback possible)

¡

Discs recorded in PAL format, others

¡

DVDs with a region number other than “1” or “ALL”

¡

Playing back a photo CD disc with this unit could damage the data that is recorded on the disc.

29

CQ-VD7700U/VD7500U

E

N

G

L

I

S

H

14

System Upgrade

(CQ-VD7700U)

Recommended system: 5.1-channel Surround System

This unit has a built-in 5-channel amplifier. The procedure for setting up a 5.1-channel surround system in order to play DVD software in a way that creates a “you are there” feel in a car is described below.

Front Speakers: CJ-DVD177

Use the left and right front speakers (such as speakers that are built into the front door).

Subwoofer: CJ-SW38

Because the audio imaging is not nearly as dependent on the position where the subwoofer is installed as it is with the other speakers, the subwoofer can be installed anywhere that is convenient. (A separate power amplifier for the subwoofer is needed.)

¡ Details on wiring: a

Installation Instructions

¡ Speaker settings: a page 63-64

TILT OPEN / CLOSE

OPEN

VOLUME MUTE

CQ-VD7700U

CQ-VD7700U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD / SD RECEIVER

NAVI

NAVIGATION

DISP MODE

POWER

ASP

ASPECT

P·MODE

TILT

OPEN / CLOSE

SD CARD

ENTER

DISC

CQ-VD7700U

Power amplifier

Advanced system

Connecting the devices shown below allows you to enjoy a wonderful world consisting of a wide variety of pictures and sounds.

Camcorder

POWER

BS G-CODE

VCR

INTELLIGENT SYSTEM

Refer to

Connection with

VCR or

Camcorder

( a

Installation

Instructions).

Rear View

Camera

Panasonic

Refer to

Connection

with Rear View

Camera

( a

Installation

Instructions).

E

N

G

L

I

S

H

15

¡ Details on wiring: a Installation Instructions

TILT OPEN / CLOSE

OPEN

VOLUME MUTE

CQ-VD7700U

CQ-VD7700U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD / SD RECEIVER

NAVI

NAVIGATION

DISP MODE

POWER

ASP

ASPECT

P·MODE

TILT

OPEN / CLOSE

SD CARD

ENTER

DISC

CQ-VD7700U

30

Center Speaker: EAB-CF2

Install in the middle of the dashboard, near the monitor.

Surround Speakers: CJ-SS162

Use the left and right rear speakers (such as speakers that are built into the rear door or the rear deck)

Note: Even if you are using this unit without installing a center speaker, surround speakers, or a subwoofer, it is still necessary to adjust the speaker settings in order to adjust the sound balance. ( a page 63)

About Rear Monitor (

a

page 74)

You can have different pictures and sound on the front monitor and rear monitor at the same time.

Private Mode (

a

page 75)

You can mute the sounds from the rear speakers if necessary.

(Example: The case of using CY-V7100U with the headphones)

Main Unit Monitor

Rear Monitor

CQ-VD7700U/VD7500U

CD Changer: CX-DP880U

Refer to “CD

Changer

Control

( a page 48).

Note: Two CD Changers can be connected at once by incorporating with CA-CD55

(option).

OverHead Monitor:

CY-VMX6800U

Headrest Monitor:

CY-V7100U, etc.

CY-V7100U

Refer to “Connection

with Headrest Monitor

( a Installation

Instructions)

PHONES

Refer to “Connection with Rear Monitor

( a Installation Instructions)

31

CQ-VD7700U/VD7500U

E

N

G

L

I

S

H

16

System Upgrade

(CQ-VD7500U)

Recommended system: 4.1-channel Surround System

This unit has a built-in 4-channel amplifier. The procedure for setting up a 4.1-channel surround system in order to play DVD software in a way that creates a “you are there” feel in a car is described below.

Front Speakers: CJ-DVD177

Use the left and right front speakers (such as speakers that are built into the front door).

Subwoofer: CJ-SW38

Because the audio imaging is not nearly as dependent on the position where the subwoofer is installed as it is with the other speakers, the subwoofer can be installed anywhere that is convenient. (A separate power amplifier for the subwoofer is needed.)

¡ Details on wiring: a

Installation Instructions

¡ Speaker settings: a page 66

TILT OPEN / CLOSE

TILT OPEN / CLOSE

CQ-VD7500U

CQ-VD7500U

CQ-VD7500U

OPEN OPEN

VOLUME VOLUME MUTE MUTE NAVI

NAVIGATION

NAVI DISP DISP MODE

POWER POWER

ASP

ASPECT

OPEN / CLOSE

TILT

OPEN / CLOSE

TRACK/

CHANNEL

DISC

DISC

CQ-VD7500U

Power amplifier

Advanced system

Connecting the devices shown below allows you to enjoy a wonderful world consisting of a wide variety of pictures and sounds.

Camcorder

POWER

BS G-CODE

VCR

INTELLIGENT SYSTEM

Refer to

Connection with

VCR or

Camcorder

( a

Installation

Instructions).

Rear View

Camera

Panasonic

Refer to

Connection

with Rear View

Camera

( a

Installation

Instructions).

E

N

G

L

I

S

H

17

¡ Details on wiring: a

Installation Instructions

TILT OPEN / CLOSE

TILT OPEN / CLOSE

Note: When a DVD audio disc is playing, no digital audio data comes out on the optical output.

OPEN

OPEN

VOLUME

VOLUME

MUTE

MUTE

CQ-VD7500U

CQ-VD7500U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD / SD RECEIVER

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD / SD RECEIVER

NAVI

NAVIGATION

NAVI

NAVIGATION

DISP

DISP

MODE

POWER

MODE

POWER

ASP

ASPECT

ASP

ASPECT

P·MODE

P·MODE

TRACK/

CHANNEL

ENTER

ENTER

DISC

SD CARD

SD CARD

CQ-VD7500U

32

Surround Speakers: CJ-SS162

Use the left and right rear speakers (such as speakers that are built into the rear door or the rear deck)

Note: Even if you are using this unit without installing surround speakers or a subwoofer, it is still necessary to adjust the speaker settings in order to adjust the sound balance.

About Rear Monitor (

a

page 74)

You can have different pictures and sound at the front monitor and rear monitor at the same time.

Private Mode (

a

page 75)

You can mute the sounds from the rear speakers if necessary.

(Example: The case of using CY-V7100U with the headphones)

Main Unit Monitor

Rear Monitor

CQ-VD7700U/VD7500U

CD Changer: CX-DP880U

Refer to “CD

Changer

Control

( a page 48).

Note: Two CD Changers can be connected at once by incorporating with CA-CD55 (option).

Digital Surround Processor:

CY-AC300

DIGITA L

AC300

VOL

SO

UR

CE

MUTE

AL SU

DIGAT

RROU

ND PR

OCESS

OR

1 t mul super

brigh ti-col or dis play &

30w r nter S peake r Amp

Powe lifier f or Ce

POSIT

ION

SPC

4

DR CO

MP POSI

SPAC

E

3

2

DIMM

ER

DIM

GIC

PRO LO

SOURCE

PWR

Refer to “Connection with Digital

Surround Processor” ( a

Installation

Instructions)

Headrest Monitor: CY-V7100U, etc.

Refer to

CY-V7100U

Connection with

Headrest Monitor

( a

Installation

Instructions)

PHONES

CQ-VD7700U/VD7500U

33

E

N

G

L

I

S

H

18

General

[MODE] (POWER)

CQ-VD7700U

IN-DASH 7" WIDESCREEN COLOR LCD MONITOR TV / DVD / SD RECEIVER

OPEN

OPEN / CLOSE

TRACK/

CHANNEL

SD CARD

VOLUME NAVI

NAVIGATION

DISP

POWER

ASP

ASPECT

P·MODE

DISC

[VOLUME]

[MUTE]

Example: DVD VIDEO

Remote Control Sensor

B

A

CQ-VD7700U

CQ-VD7700U

TILT OPEN / CLOSE

TILT

OPEN / CLOSE

[TILT]

[ ] (OPEN/CLOSE)

[]] [[]

(Adjust)

Power

Turn your car's ignition key to ACC or ON position.

ON: press [MODE] (POWER) on the display unit.

Press [PWR] or [MODE] on the remote control.

OFF: press [MODE] (POWER) again for more than

2 seconds on the display unit.

Press [PWR] again or [MODE] again for more than 2 seconds on the remote control.

Source selection (Mode)

Press [MODE] to change the mode.

TV

( a page 36)

DVD/VCD (Video CD)/CD/MP3

( a page 38, 42)

[PWR] (Power)

[MODE]

SD-Card (MPEG4/MP3/AAC/JPEG)

( a page 50)

Radio(AM/FM)

( a page 46)

VTR1

( a page 37)

VTR2

( a page 37)

CH-C (CD Changer Control)*

( a page 48)

* Selectable only when a CD changer is connected.

STOP

NAVIGATION

NAVI

PAUSE PLAY

MENU

CHAPTER

OSD

TOP MENU RETURN

RET

DVD / SD MENU RANDOM REPEAT

RAND REP

ST/ MONO

AUDIO

CH1

1

4

ANGLE

CH2

2

SCAN

5

SUBTITLE

SUB

3

6

EN

T

E

R

SCROLL

PAGE

TRACK

GRP

TITLE / CHAPTER

DISP

7

ASPECT

A

P-MODE

8

0

9

SPACE

[ ] ] [ [ ]

(adjust)

[}] [{] (VOL)

[MUTE]

Mode change on the Touch Panel

Touch

A

CAR AV

34

CQ-VD7700U/VD7500U

Volume

Down or

[}] (VOLUME) : up

[{] (VOLUME) : down

(on the remote control)

Up

Tilt Angle

q

Press and hold [TILT] on the display unit for more than 2 seconds.

w

Press []] or [[] to adjust. Setup is the same as from MENU. Refer to “MENU: User Settings” for details. ( a page 54)

Setting Range:

–82 dB to 0 dB default:

–40 dB

(CQ-VD7700U)

0 to 40 (step)

18 (step)

(CQ-VD7500U)

Note: The sound level for each source is stored in memory.

Notes:

¡ Vertical angle (TILT) is saved in the memory, so when the display unit is drawn out next, it is automatically set at the angle and in the position adjusted before.

¡

After adjusting its angle, also adjust the brightness to make it easy for you to watch. ( a page 58)

¡

The car model and installation conditions may impose some restrictions on the adjustment of the monitor's angle.

Mute

MUTE ON: press [MUTE].

MUTE OFF: press [MUTE] again.

Folding Down the Display

Temporarily

Fold Down: press [TILT] on the display unit.

Raise: press [TILT] again on the display unit.

Display Open/Close

OPEN

: press [

]

(OPEN/CLOSE).

CLOSE

: press [

]

(OPEN/CLOSE) again.

(After returning the lateral angle to the neutral position.)

Notes:

¡ When the display unit is opened or closed, a loud beep sounds three times.

¡ If the unit stops halfway, press [

]

(OPEN/CLOSE) again to draw it all the way in.

¡ Opening/closing the display can be done when the power is off.

Note: Even when the unit power is off, you can fold down the display te mporarily.

Warning: Do not touch the unit while the display is moving. Inserting hands, fingers or foreign objects into the unit can cause injuries and damage to the unit.

Cautions:

¡ Avoid physical shock to the monitor.

¡ Do not place any object on the display unit, or subject it to undue force.

¡ Do not move the display forcibly.

¡

The monitor movable range may be limited by the type of car, a position where the display is mounted, etc.

E

N

G

L

I

S

H

19

35

CQ-VD7700U/VD7500U

E

N

G

L

I

S

H

20

TV Tuner/VTR (External Devices)

When not in operation mode, Touch the center of touch panel [Area A] to show operation display. ( a page 24)

TV Tuner

It is necessary to install the supplied antenna to receive TV broadcasts. Refer to the description on mounting the TV

antenna. ( a

Installation Instructions)

Current channel number

TILT OPEN / CLOSE

Mode selection

Operation off

36

Preset channel calling

Auto preset memory

Channel selection

OPEN

VOLUME

[0] to [9]

(Direct channel selection)

ASPECT

A

P-MODE

[MODE]

PWR

STOP

NAVIGATION

NAVI

PAUSE PLAY

MENU

CHAPTER

TOP MENU RETURN

RET

DVD / SD MENU RANDOM

RAND

REPEAT

REP

ST/ MONO

AUDIO

CH1

ANGLE

CH2

SUBTITLE

SUB

EN

T

E

R

SCROLL

PAGE

TRACK

GRP

TITLE / CHAPTER

DISP

SCAN

SPACE MUTE

CAR AV

MUTE

CQ-VD7700U

CQ-VD7700U

IN-DASH 7" WIDESCREEN COLOR LCD MONITOR TV / DVD / SD RECEIVER

TILT

OPEN / CLOSE

TRACK/

CHANNEL

SD CARD

NAVI

NAVIGATION

DISP

POWER

ASP

ASPECT

P·MODE

DISC

Sub-LCD

( a page 76)

[MODE]

[OSD]

[ ] ] [ [ ]

(CHANNEL)

[}] [{]

1

[ ] ] [ [ ] (CHANNEL)

[}] [{]

TV Mode

Remote

Press [MODE] to change to TV mode.

Panel

Touch .

2

Channel Setting

[[] (CHANNEL): up

[]] (CHANNEL): down

Press and hold [[] (CHANNEL) or

[]] (CHANNEL) for more than 0.5 seconds.

Seeking will start.

Direct Channel Selection

Remote

Enter a channel number by pressing [0] to [9].

Example: Channel Number 17

Press [1] and [7].

Panel

Not available.

CQ-VD7700U/VD7500U

Note: To go back to regular mode, press [OSD] (OSD OFF) or touch [OPERATION OFF].

Preset Channels

This function can search for channels automatically. Up to 18 channels can be stored.

Auto Preset Memory

Remote

Press and hold [}] or [{] for more than 2 seconds.

[}]: the search starts from ch. 2 and proceeds successively.

[{]: the search starts from ch. 69 in reverse succession.

Panel

Touch and hold for more than 2 seconds. Search starts from ch.2 successively.

¡ A stored channel can be renewed every time you store another channel.

¡ The unit may receive a channel that has poor-quality images depending on broadcasting conditions.

¡ The search returns to the start position if there is no receivable channel.

Preset Channel Calling

Remote

Press [}] or [{] to select the channel.

Panel

Touch a preset channel number on the touch panel. (Example: channel number 17. Touch .)

VTR

You can view the images and listen to the sounds from the connected external devices in the VTR1 mode and VTR2 mode respectively.

VTR1/VTR2 Mode

Remote

Press [MODE] to change to VTR1 or VTR2 mode.

Example:

VTR1

: Camcorder

VTR2

: VCR

Panel

Touch or .

Notes:

¡ You can set up the system so that the VTR mode is not selected (VTR skip). ( a page 70)

(VTR set to NAVI INPUT is not skipped even if VTR skip is set to on.)

¡ VTR1 and VTR2 terminals are not used for the Panasonic car navigation system (available in future). Refer to “Installation

Instructions” and “NAVI SETUP” for setting. ( a page 68)

CQ-VD7700U

Hide-away Unit

VTR1-IN VTR2-IN

For details ( a Installation Instructions)

CQ-VD7700U/VD7500U

37

E

N

G

L

I

S

H

21

E

N

G

L

I

S

H

22

DVD/Video CD Player

When not in operation mode, Touch the center of touch panel [Area A] to show operation display. ( a page 24)

CQ-VD

7700U

ENTER

Label side

Caution: When the disc is inserted or ejected, to prevent disc scratches never exert any downward force on the disc.

OPEN

VOLUME

[u] (Eject)

(lights when a disc is in the slot)

[OPEN]

[MODE]

MUTE

TILT

OPEN / CLOSE

CQ-VD7700U

IN-DASH 7" WIDESCREEN COLOR LCD MONITOR TV / DVD / SD RECEIVER

TRACK/

CHANNEL

ENTER

DISC

SD CARD

NAVI

NAVIGATION

DISP

POWER

ASP

ASPECT

P·MODE

[MODE] Sub-LCD

( a page 76)

PWR

STOP

NAVIGATION

NAVI

PAUSE PLAY

MENU

CHAPTER

OSD

[]] [[]

( a page 39)

[3] (STOP)

[y] (PAUSE)

[5] (PLAY)

[s] [d]

( a page 39)

[RAND]

(RANDOM)

TOP MENU RETURN

RET

DVD / SD MENU RANDOM

REPEAT

EN

T

E

R

SCROLL

ST/ MONO

AUDIO

CH1

1

4

ANGLE

CH2

2

SCAN

5

SUBTITLE

SUB

TRACK

GRP

TITLE / CHAPTER

3 DISP

6

7

ASPECT

A

P-MODE

8

0

9

SPACE MUTE

[PAGE]

(SCROLL)

[REP]

(REPEAT)

Notes:

¡ Due to limitations of certain discs, some DVD video and

Video CD discs may not operate as described in these

Operating Instructions. Refer to the disc jacket for further details.

¡ This unit does not support DVD and Video CD karaoke functions.

Disc Insert

¡

Press [OPEN] to open the front panel.

¡ Insert the disc horizontally and gently.

¡

Push the front panel up to close it.

¡ The mode that supports the disc is selected, and playback starts.

¡

The audio/video format is automatically identified.

( a page 88)

¡

When the menu screen appears, see “DVD Menu/Video

CD Menu” on page 40.

When a DVD or Video CD is in the player, press [MODE] or touch a symbol to change to DVD or Video CD player mode and playback starts.

Notes:

¡

Do not insert a disc when disc indicator button lights because a disc is already loaded.

or eject

¡ The power will be turned on automatically when a disc is loaded.

¡

You can play a disc even if the monitor is closed.

¡ The sound may be interrupted for a few moments while the audio format is being identified.

Cautions:

¡ Please refer to page 87 for disc-related matters.

¡

Do not insert foreign matter into the disc slot.

Disc Eject

¡

Press [OPEN] to open the front panel.

¡ Press [u] to stop playback and eject the disc.

(Press [u] again to reload the disc.)

Note: If you leave a disc in the slot for more than 30 seconds after its ejection, the disc will be automatically reloaded after a loud beep is emitted three times.

DVD mode display

Mode display

Title number

Chapter number

Video CD mode display

Mode display Playing time

Audio format

( a page 88)

38

Operation buttons Shows next operation buttons

CQ-VD7700U/VD7500U

Operating buttons Sound setting

DVD

VIDEO

DVD

AUDIO

VIDEO

CD

Indicates compatible disc types.

Basic Operation

Operations vary according to the disc. For details, refer to the guide provided with the disc.

Panel

Operations

Go to Beginning

Note: When there are no operation buttons you want to operate, touch .

Remote

: next track (chapter)

: beginning of the current track (chapter)

Previous track (chapter) (Touch twice.)

[d]: next track (chapter)

[s]: beginning of the current track (chapter)

Previous track (chapter) (Press twice.)

DVD

VIDEO

DVD

AUDIO

VIDEO

CD

Note: When playing a DVD video, there are cases where it is not possible to return to the start of a chapter that spans 2 titles. ( a page 88)

Fast Forward/

Fast Reverse

DVD

VIDEO

DVD

AUDIO

VIDEO

CD

Touch and hold

: fast forward

: fast reverse

Press and hold

[d]: fast forward

[s]: fast reverse

Release to resume playback.

The speed changes if the button is held down as follows (except DVD AUDIO).

Regular speed /1.5 times (DVD Video) /10 times (DVD Video) /20 times

Stop

DVD

VIDEO

DVD

AUDIO

VIDEO

CD

Touch

Touch

.

, and playback resumes where

(Stop) was touched. To cancel resume, touch again while stopping.

Press [3] (STOP).

Press [5] (PLAY) again, and play will resume from the point where [3] (STOP) was pressed. (Continued playback function)

To cancel continued playback, press [3]

(STOP) again in the stop mode.

Pause

DVD

VIDEO

DVD

AUDIO

VIDEO

CD

Touch .

To resume playback, touch or .

Press [y] (PAUSE).

To resume playback, press [5] (PLAY) or

[y] (PAUSE) again.

Slow

Playback

DVD

VIDEO

VIDEO

CD

Touch and hold

Touch

Touch during pause, and playback is at about 1/3 normal speed.

to resume normal playback.

to pause again.

Press and hold [d] in the pause mode.

Playback is at about 1/3 normal speed.

To resume normal playback, press [5]

(PLAY).

To pause, press [y] (PAUSE) again.

Note: Reverse slow playback is not possible.

Repeat

Play

DVD

VIDEO

DVD

AUDIO

VIDEO

CD

Touch .

Touch again to cancel.

Random

Press [REP] (REPEAT).

Press [REP] (REPEAT) again to cancel.

DVD

AUDIO

Touch .

Touch again to cancel.

Random playback is done in the same group.

Press [RAND] (RANDOM).

Press [RAND] (RANDOM) again to cancel.

Page

Touch to change the still image.

Press [PAGE] (SCROLL) to change the still image.

DVD

AUDIO

E

N

G

L

I

S

H

23

39

CQ-VD7700U/VD7500U

E

N

G

L

I

S

H

24

DVD/Video CD Player

(continued)

Chapter/Title Selection

Operations

DVD Menu/

Video CD Menu

Use this menu during playback to select content, audio, subtitle, etc., from a menu (the DVD/Video

CD menu) that is unique to each disc.

Panel

During playback

q Touch

Touch

. : DVD

. : VCD w Touch

,

the desired menu.

,

e Touch

.

,

to select

Touch to return the previous display.

Remote

During playback

q Press [DVD/SD MENU] .

(For the Video CD menu, press [RET]

(RETURN).) w Press []], [[], [}] or [{] to select the desired menu.

For a DVD/Video CD with playback control ( a page 88), press [0] to [9].

e Press [ENTER].

DVD

AUDIO

DVD

VIDEO

VIDEO

CD

To return the previous display, press [RET]

(RETURN).

Title Menu

If the DVD has multiple titles recorded on it, it is possible to select the preferred title from the title menu to start playback.

DVD

VIDEO

q Touch and hold seconds.

w Touch

,

the desired title.

e Touch

.

,

for more than 2

,

to select

Touch to return the previous display.

q Press and hold [DVD/SD MENU] for more than 2 seconds.

w Press []], [[], [}] or [{] to select the desired title.

For a DVD with playback control

( a page 88), press [0] to [9].

e Press [ENTER].

To return the previous display, press [RET]

(RETURN).

Starting Playback from a Specific

Chapter/Title/

Group/Track

DVD

VIDEO

DVD

AUDIO

blinks when the chapter/ group selecting blinks when the title/track selecting q Touch to select input mode.

w Touch to to input desired title/chapter/group/track number.

To input the number again, touch e Touch start.

.

DVD VIDEO:

Regular Mode Chapter Number Input q Press [GRP] (TRACK/TITLE/CHAPTER) to select the input mode. The mode changes as shown at right every time

[GRP] (TRACK/TITLE/CHAPTER) is pressed.

w Press [0] to [9] to input desired title/chapter/group/track number.

To input the number again, press [RET]

(RETURN).

e Press [GRP] (TRACK/TITLE/CHAPTER).

Playback will start automatically.

Title Number Input

DVD Audio:

Regular Mode Track Number Input Group Number Input

Playing bonus groups

Some discs contain bonus groups. If a password screen appears after selecting a group, enter the password with the numbered buttons.

Refer also to the disc’s jacket.

Notes:

¡ For VCD mode, press the numerical key to enter a number directly.

¡

If no operation is performed for 8 seconds after you have touched [GRP], the display returns to regular mode.

¡

If the title/chapter/track/group number is inputted and no operation is performed for 2 seconds, playback will start from the number of the title/chapter/track/group entered.

40

CQ-VD7700U/VD7500U

DVD

VIDEO

DVD

AUDIO

VIDEO

CD

Indicates compatible disc types.

Useful Functions

Operations

Panel

Note: When there are no play buttons you want to operate, touch .

Remote

Switching the

Subtitle Language

Touch

DVD

VIDEO

DVD

AUDIO

. (only for DVD VIDEO) Press [SUB] (SUBTITLE) during playback.

It is possible to change the subtitle language during play if multiple languages are recorded on the disc.

Note: There may be a brief delay before the subtitles appear.

Switching the

Audio Language

DVD

VIDEO

DVD

AUDIO

Touch .

Press [AUDIO] during playback.

It is possible to change the audio language during play if multiple audio languages are recorded on the disc.

Switching the

Angle

DVD

VIDEO

DVD

AUDIO

Touch . (only for DVD VIDEO) Press [ANGLE] during playback.

For DVDs which contain scenes which have been shot simultaneously from a number of different angles the same scene can be viewed from each of these different angles during play.

Switching between Stereo and Monaural

Touch .

Press [AUDIO] (ST/MONO).

It is possible to switch the audio between stereo sound and monaural sound (L or R).

VIDEO

CD

STEREO

MONO.L

: stereo sound

: the left channel audio is output on both the left and right speakers.

MONO.R

: the right channel audio is output on both the left and right speakers.

Note: Operation symbols will be change whenever they are touched.

[DVD/SD MENU]

( a page 40)

[ANGLE]

[AUDIO]

(ST/MONO)

PWR

STOP

NAVIGATION

NAVI

PAUSE

MODE

PLAY

MENU

CHAPTER

OSD

TOP MENU RETURN

DVD / SD MENU RANDOM

RAND

REPEAT

REP

ST/ MONO

EN

T

E

R

SCROLL

PAGE

SUBTITLE TRACK

CH1 CH2

TITLE / CHAPTER

DISP

SCAN

ASPECT

A

P-MODE

SPACE MUTE

[RET] (RETURN)

[]] [[] [}] [{]

[ENTER]

[SUB] (SUBTITLE)

[GRP]

(TRACK/TITLE/

CHAPTER)

( a page 40)

[0] to [9]

(Title/chapter/track

/group Number)

( a page 40)

Notes:

¡ If no operation is performed for 5 seconds, the display returns to the regular mode.

¡

This unit can perform playback only in 2channel stereo for the 192 kHz DVD audio format.

Use the “Prologic II” function for the multichannel playback with this format.

¡ It may not be possible to switch the language unless the unit is at the DVD menu

( a page 40) or is at the DVD settings.

( a page 67)

¡

The language on the DVD settings takes priority when the power is turned on or the disc is loaded. ( a page 67)

¡ The number of languages depends on the disc. Some discs have only one language or have no language.

¡ About DVD Video/Audio Wide Dynamic

Range ( a page 73)

CQ-VD7700U/VD7500U

41

E

N

G

L

I

S

H

25

E

N

G

L

I

S

H

26

CD/MP3 Player

When not in operation mode, Touch the center of touch panel [Area A] to show operation display. ( a page 24)

Disc Insert

q Press [OPEN] to open the front panel.

w Insert a disc horizontally and gently.

When a CD or MP3 disc is in the player, press [MODE] or touch a symbol to change to CD or MP3 disc player mode and playback starts.

Label side

OPEN

VOLUME

[3] (STOP)

[y] (PAUSE)

[5] (PLAY)

[s] [d]

( a page 43)

[RAND]

(RANDOM)

CQ-VD

7700U

[u] (Eject)

ENTER

Caution: When the disc is inserted or ejected, to prevent disc scratches never exert any downward force on the disc.

[ ] ] [ [ ] (Track/file)

[}] [{] (Folder)

Notes:

¡

Do not insert a disc when disc indicator or eject button lights because a disc is already loaded.

¡ The power will be turned on automatically when a disc is loaded.

¡ You can play a disc even if the monitor is closed.

¡ To prevent disc scratches, never exert the downward force on the disc when inserting or ejecting.

(lights when a disc is in the slot)

TILT

OPEN / CLOSE

Cautions:

¡

Please refer to page 87 for disc-related matters.

¡ Do not insert foreign matter into the disc slot.

¡

Do not pinch your finger or hand in the front panel.

CQ-VD7700U

[OPEN]

[MODE]

MUTE

IN-DASH 7" WIDESCREEN COLOR LCD MONITOR TV / DVD / SD RECEIVER

NAVI

NAVIGATION

ST/ MONO

AUDIO

CH1

1

4

ANGLE

CH2

2

SCAN

5

SUBTITLE

SUB

TRACK

GRP

TITLE / CHAPTER

3 DISP

6

7

ASPECT

A

P-MODE

8

0

DISP

PWR

STOP

NAVIGATION

NAVI

PAUSE PLAY

MENU

CHAPTER

OSD

TOP MENU RETURN

RET

DVD / SD MENU RANDOM

REPEAT

9

EN

T

E

R

SCROLL

SPACE MUTE

POWER

ASP

ASPECT

P·MODE

[MODE] Sub-LCD

( a page 76)

[]] [[]

(Track/file)

[}] [{]

(Folder)

[PAGE]

(SCROLL)

[REP]

(REPEAT)

TRACK/

CHANNEL

SD CARD

DISC

Disc Eject

¡ Press [OPEN] to open the front panel.

¡ Press [u] to stop playback and eject the disc.

(Press [u] again to reload the disc.)

Note: If you leave a disc in the slot for more than 30 seconds after its ejection, the disc will be automatically reloaded after a loud beep is emitted three times.

Folder and File Selection

MP3

Panel

q Touch (folder name) to select a folder.

, : scrolls up/down the file list by 1 page.

, : scrolls up/down the file list by 1 line.

w Touch (file name) to play.

Remote

CD/MP3 mode display

Mode display Track Number Playing time

Title/text scroll

Sound

Setting q Press [ENTER] during playback.

w Press []], [[] , [}] or [{] to select a folder.

[]] [[]: movement among different levels of trees

[}] [{] : movement in the same tree e Press [ENTER].

: MP3 file

: Folder

(Lighted up symbols include MP3 files.)

Note: It is not possible to display the whole tree and file list in a folder.

Operation Buttons Play Setting

For “Folder selection order/MP3 file playback order”.

( a page 45)

42

CQ-VD7700U/VD7500U

CD MP3

Indicates compatible disc types.

Basic Operations

Operations

Panel

Go to Beginning

CD

MP3

Fast Forward/

Fast Reverse

CD

MP3

Folder

Selection

Title

Scroll

Stop

MP3

CD MP3

CD MP3

(see previous page)

Remote

[d]

[s]

Next track/file

Beginning of the current track/file

Previous track/file (Touch/press twice.)

[d]

[s]

[}]

[{]

Touch/Press and hold.

Fast forward

Fast reverse

Release to resume playback.

Next folder

Previous folder

When the file list is displayed:

[}]: previous folder

[{]: next folder

[PAGE]

(SCROLL)

Touch/Press.

[3]

(STOP)

Touch/Press.

Pause

Repeat

Play

CD MP3

CD

MP3

Scan Play

The first 10 seconds of each track/file will be played.

CD

[y]

(PAUSE)

Touch/Press.

To resume playback, Touch/Press

/[y] (PAUSE) again.

/[5] (PLAY) or or

*

[REP]

(REPEAT)

Touch/Press.

Touch/Press again to cancel.

Current

File

Touch/Press.

Touch/Press again to cancel.

Current

Folder

Touch/Press and hold for more than 2 seconds.

Touch/Press and hold again to cancel.

[5] (SCAN)

Touch/Press.

Touch/Press again to cancel.

E

N

G

L

I

S

H

27

Random

Play

CD

MP3

or

*

[RAND]

(RANDOM)

Touch/Press.

Touch/Press again to cancel.

All

Files

Touch/Press.

Touch/Press again to cancel.

All Files in the

Current Folder

Touch/Press and hold for more than 2 seconds.

Touch/Press and hold again to cancel.

Note: It is possible to press []] [[] on the display unit instead of [s] [d] on the remote control.

*Touch Panel symbols will change to indicate current mode.

43

CQ-VD7700U/VD7500U

E

N

G

L

I

S

H

28

CD/MP3 Player

(continued)

This player allows you to play MP3 files recorded on CD-ROMs, CD-Rs

(Recordable), CD-RWs (Rewritable).

What is MP3?

MP3, short for MPEG-1 Audio Layer 3, MPEG-2 Audio Layer 3 LSF (Low Sampling Frequency), is a standard for compressing digital video data adopted for video CDs and similar media. It is one of the audio compression systems covered by

MPEG's (Motion Picture Experts Group) digital audio compression standards. What it does is reduce the number of bytes in a song without detracting from the sound quality by eliminating big sound waves within the sound range that are imperceptible to the human ear. This compression allows you to reduce the contents of a conventional music CD by a factor of around 10. This means that you can record the contents of 10 music CDs on a single CD-R or CD-RW. (The figures refer to data recorded on a 650 MB CD-R or CD-RW at a fixed bit rate of 128 kbps and a sampling frequency of 44.1 kHz.)

Points to Remember When Recording an MP3 Disc

Converting (encoding) audio data to an MP3 file

¡

It is recommended that you set the bit rate to “128 kbps or more” and “Fixed”.

¡

Bit rate of 8 kbps for MPEG-2 and sampling frequency of 16 kHz for MPEG-2 can not be reproduced.

¡ VBR (Variable Bit Rate) is not supported.

¡

The playback sound quality differs depending on the encoding software and the bit rate. For details refer to the user manual of your encoding software.

Recording MP3 files on a CD-R/RW

¡ Do not record files other than MP3s or unnecessary folders on a disc. If many folders or files other than MP3s are recorded on a disc, it may take some time before playback starts.

¡

Use ISO 9660 file system (Extension of the ISO 9660 file systems are included.) (

a

page 45). APPLE HFS file

system is not supported. If files do not conform to ISO 9660 file system, they may not play normally, or the file or folder names may not be displayed correctly.

¡ Make sure to add the “.mp3” extension to each MP3 file name. A file with a different file name extension or none at all will not play.

¡ Although Multi session recording is supported, the use of Disc-at-Once is recommended. Make sure to close the session when you finished recording on a disc.

¡

Discs recorded by the packet writing software are not supported.

¡ A playlist function is not supported. Record files and folders in the order in which you want them to be played.

Some writing software lets you specify the recording order by adding a prefix in the range of “01” - “99”, etc. to the file name. For details refer to the user manual of your writing software.

Notes:

¡ You may encounter trouble in playing MP3s or displaying the information of MP3 files recorded with certain writing software or CD recorders (CD-R/RW drives).

¡ If a disc contains both MP3 and CD-DA, only CD-DA data is reproduced properly. (MP3 files are played but no sound is output).

Warning: Never assign the “.mp3” file name extension to a file that is not in the MP3 format. This may produce noise from the speakers and cause speaker damage and can damage your hearing.

44

CQ-VD7700U/VD7500U

Folder selection order/MP3 file playback order (Example)

2

: []][[]

: [}][{]

Playing Folder

Folder in the next lower level of tree

Current playing file

1 3 5

Root

4

Tree 1

Tree 2

: MP3 files are included : No MP3 files

1

Root

2

3

4

Tree 1

5

Root Folder

(Root Directory) q

Folder Selection

In the order

1 ~ 6 e w

File Selection

In the order

6

~ q r r

Tree 2 Tree 3

Notes:

¡ This unit counts the number of folders irrespective of the presence or absence of MP3 file.

¡

If the selected folder does not contain any MP3 files, the nearest MP3 files in the order of playback will be played.

¡ Playback order may be different from other MP3 players even if the same disc is used.

¡

“ROOT” appears when displaying the root folder’s folder name.

Maximum number of files/folders

¡ Maximum number of trees: 8

¡

Maximum number of folders: 254 (Root folder is not included.)

¡ Maximum number of files: 512

Note: If the number of files and folders exceeds the number mentioned above, successful playback may not be performed.

Supported file systems and file names

Supported file system

ISO 9660 Level 1/Level 2

Joliet*

Romeo

Apple Extension to ISO 9660

Displayable folder names and file names

Name files and folders in accordance with the standard of each file system.

Refer to the instructions of writing software for details.

¡ This player can display file names of up to 31 ASCII characters set in scroll mode.

* Up to 15 letters can be displayed when scrolling in the Joliet system.

According to the standard, “á”, “ç”, etc. can be used. However, this unit can not display those letters.

¡ The unit recognizes only the ASCII character set. Chinese characters, accented

French characters and accented Spanish characters will be converted into asterisks.

Note: MP3 encoding software and writing software are not supplied with this model.

Copyright

It is prohibited by copyright laws to copy, distribute and deliver copyrighted materials such as music without the approval of the copyright holder except to enjoy yourself personally.

No warranty

Above description complies with our investigations as of December 2003. There is no warranty for reproducibility and displayability of MP3.

CQ-VD7700U/VD7500U

45

E

N

G

L

I

S

H

29

E

N

G

L

I

S

H

30

Radio

When not in operation mode, Touch the center of touch panel [Area A] to show operation display. ( a page 24)

TILT OPEN / CLOSE

Stereo indicator

Band

Frequency

Band Selection

Mode display

46

PWR

STOP

NAVIGATION

NAVI

PAUSE PLAY

MENU

CHAPTER

OSD

TOP MENU

ST/ MONO

AUDIO

CH1

RETURN

RET

DVD / SD MENU RANDOM

RAND

ANGLE

CH2

REPEAT

REP

EN

T

E

R

SCROLL

PAGE

SUBTITLE

SUB

TRACK

GRP

TITLE / CHAPTER

DISP

SCAN

7

ASPECT

A

P-MODE

8

0

9

SPACE MUTE

CAR AV

OPEN

VOLUME

[MODE]

MUTE

CQ-VD7700U

CQ-VD7700U

IN-DASH 7" WIDESCREEN COLOR LCD MONITOR TV / DVD / SD RECEIVER

TILT

OPEN / CLOSE

TRACK/

CHANNEL

SD CARD

NAVI

NAVIGATION

DISP

POWER

ASP

ASPECT

P·MODE

DISC

[]] [[] (Tuning)

[ENTER] (Band)

[MODE]

1

Radio Mode

Panel

[1] to [6]

(Preset memory)

[]] [[]

(Tuning)

[ENTER]

(Band)

Touch .

.

Remote

Press [MODE] to change to radio mode.

2

3

Band

Panel

Touch , , or .

Remote

Press [ENTER] to change band.

FM1

FM2

FM3

Note: The stereo indicator lights during reception of an FM stereo broadcast.

Tuning

Panel

Touch TUNE : up

TUNE : down

Remote

[[]: up

[]]: down

AM

Touch/press and hold [[] or []] for more than 0.5 seconds, then release. Seeking will start and stop at next available station.

CQ-VD7700U/VD7500U

One-touch Selection of a Station

Up to 6 stations can be saved in each FM1, FM2, FM3 and AM preset station memories.

Operations

Panel Remote

Manual Preset

Memory

Select a band and frequency (step w and e on the previous page).

Touch and hold.

to for more than 2 seconds.

Press and hold [1] to [6] on the remote control for more than 2 seconds.

The frequency blinks once, and the station is saved in the memory.

Auto Preset

Memory

Select a band. (step w on the previous page)

Touch and hold seconds.

for more than 2

Press and hold [ENTER] for more than

2 seconds.

¡ The 6 stations with good reception will be automatically saved in the memory under preset numbers 1 to 6.

¡ Once set, the preset stations are sequentially scanned for 5 seconds each.

¡ To stop the scanning, touch or press numbers [1] to [6].

Preset Station

Calling

Select a band. (step w on the previous page)

Touch to .

Press [1] to [6] on the remote control.

E

N

G

L

I

S

H

31

Note: New stations overwrite existing saved stations after following this procedure.

CQ-VD7700U/VD7500U

47

E

N

G

L

I

S

H

32

CD Changer Control

When not in operation mode, Touch the center of touch panel [Area A] to show operation display. ( a page 24)

Mode display

Disc number

Track number

Playing time

Total track number

CD changer functions are designed for an optional

Panasonic CD changer unit.

Read the operating instructions for CD changer as well.

Preparation: Connect the CD changer ( a Installation instructions), and load a magazine (disc).

TILT OPEN / CLOSE

Play setting

CQ-VD7700U

CQ-VD7700U

IN-DASH 7" WIDESCREEN COLOR LCD MONITOR TV / DVD / SD RECEIVER

TILT

OPEN / CLOSE

TRACK/

CHANNEL

OPEN

VOLUME

DISC

MUTE

SD CARD

NAVI

NAVIGATION

DISP

POWER

ASP

ASPECT

P·MODE

Changer number

Disc list

[MODE]

Operation buttons

[ ] ] [ [ ] (TRACK)

[}] [{] (DISC)

Total time

Notes:

¡ The power will be turned on automatically when a magazine is loaded.

¡ Load a magazine with CDs when “NO MAGAZINE” is displayed.

¡

CD text is not supported in CD changer mode.

¡

CD changer cannot play MP3 data recorded CD-

R/RW discs.

Caution: Please refer to page 87 for disc-related matters.

CD Changer Mode

Press [MODE] to change to CD changer mode and playback starts.

[d] (TRACK)

[s] (TRACK)

[1] (CH 1)

[2] (CH 2)

[MODE]

PWR

STOP

NAVIGATION

NAVI

PAUSE PLAY

MENU

CHAPTER

OSD

TOP MENU

ST/ MONO

AUDIO

CH1

RETURN

RET

DVD / SD MENU RANDOM REPEAT

ANGLE

CH2

EN

T

E

R

SCROLL

PAGE

SUBTITLE

SUB

TRACK

GRP

TITLE / CHAPTER

3 DISP

SCAN

4 6

7

ASPECT

A

P-MODE

8

0

9

SPACE MUTE

[ ] ] [ [ ] (TRACK)

[}] [{] (DISC)

[RAND] (RANDOM)

[REP] (REPEAT)

System Expansion

The use of Dual CD Changer Selector CA-CD55

(option) allows you to make the following connections. ( a Installation Instructions)

Dual changers connection

Two changers can be connected to the terminals of

CA-CD55 respectively.

The changers are arranged as follows.

*/ [1]: CH 1

* / [2]: CH 2

[5] (SCAN)

* Touch panel symbols will change to indicate these current mode.

CAR AV

48

CQ-VD7700U/VD7500U

Basic Operations

Operations

Track Selection

Panel

Disc Selection

Fast Forward/

Fast Reverse

Random Play

Scan Play

The first 10 seconds of each track will be played.

Repeat Play

Remote

[d] (TRACK)

[s] (TRACK)

Next track

Beginning of the current track

Previous track (Touch/Press twice.)

[}] (DISC)

[{] (DISC):

Next disc

Previous disc or or or

*

*

*

[d]

[s]

[RAND]

(RANDOM)

[5] (SCAN)

[REP]

(REPEAT)

Touch/Press and hold.

Fast forward

Fast reverse

Release to resume playback.

All Tracks

All Tracks on the

Current

Disc

All Tracks

1st Track on Each

Disc

Current

Track

Current

Disc

Touch/Press.

Touch/Press again to cancel.

Touch/Press and hold for more than 2 seconds.

Touch/Press and hold again to cancel.

Touch/Press.

Touch/Press again to cancel.

Touch/Press and hold for more than 2 seconds.

Touch/Press and hold again to cancel.

Touch/Press.

Touch/Press again to cancel.

Touch/Press and hold for more than 2 seconds.

Touch/Press and hold again to cancel.

Note: It is possible to press []] [[] on the display unit instead of [s] [d] on the remote control.

* Touch panel symbols will change to indicate these current mode.

E

N

G

L

I

S

H

33

49

CQ-VD7700U/VD7500U

E

N

G

L

I

S

H

34

SD-Card Player

Notes on SD-Card

IMPORTANT

If you have saved still image and/or moving image

data on SD Memory Cards by yourself using a PC, you may not be able to play images unless you have configured the folders correctly and named the folders and files correctly. For further detail, refer to the next page.

When playing music using an SD card, play the SD

Audio files which were written on the card using SD-

Jukebox (option).

If you have saved data on SD cards using “Panasonic

SD Multi AV Device”, for instance, which is available as an optional accessory, the data can be played by the unit straight way.

Use SD card with a memory size of 512 MB or less.

Playable data formats on the SD-Card

CQ-VD7700U/VD7500U can treat the following data formats.

Still Pictures: JPEG files taken on digital cameras conforming to DCF standards.

(set down by the Japan Electronics and

Information Technology Industries

Association.)

Motion pictures: MPEG4 files (ASF format) taken on a digital video camera or

SD Multi AV Device.

Notes:

• If the file list screen contains 7 or more files, press [}], [{], []] or [[] to scroll to the next (or previous) page.

• When MPEG4 moving pictures are played back, mosaic-like patterns may occur or frames may be dropped during scenes with fast-moving subjects.

This is normal and not a sign of trouble.

Notes:

• SD audio files written using a function other than SD-

Jukebox may not be recognized.

MP3 audio files cannot be played. (However, this does

not apply to MP3 files that were written using SD-

Jukebox for use as SD audio files.)

• This unit can neither record nor erase the data.

• Titles and names of the artists may not always appear on the display.

• If there are multiple numbers of still pictures that are tied in with SD-

Jukebox, only the first still picture is displayed.

• It may not be possible for the unit to play back some kind of still pictures even when they are tied in with SD-

Jukebox.

Voice: G.726 files recorded on a digital video camera or SD

Multi AV Device.

Music (Audio files): MP3 and AAC audio files recorded with

“Panasonic Media Manager” or “SD-Jukebox” software included with Panasonic SD Multi AV Device and SD Audio

Player.

Notes:

• Some files are not compatible with this unit and can not be played back. For example: Motion picture files recorded using a digital still camera with motion picture function, IC recorder voice files etc.

• Under certain condition, some files may not be played back even if these are compatible ones.

How to record play data on SD-Cards

Personal Computer

• If you have attached still pictures to an audio file (using

• You can copy Still pictures and Motion pictures to your

SD-Jukebox Ver.3.0 or later, option) the unit can also show the first of these pictures.

SD-Card by connecting it to a computer with a USB SD-

Card Reader/Writer (BN-SDCAP, option) or PC card adapter

(BN-SDABP, option) When recording to an SD-Card on a computer. (Please refer to the “IMPORTANT” statement above.)

50

CQ-VD7700U/VD7500U

Other equipment (example: Digital still camera, IC Voice Recorder, Digital Camcorder)

The SD-Card recorded by some certain equipment (see previous page) can be played back on this unit without special procedures. This equipment creates folders and files in the following way: root

DCIM

Naming rule for the recoding files on SD-Cards.

JPEG still pictures MPEG4 motion pictures

100CDPFP

JPEG files

SD_VIDEO

PRL001

MPEG4 files

Example:

IMGA 0001.JPG

Example:

MOL 001.ASF

Four Four numbers characters

3 digits hexadecimal numbers

(Numbers 0 to 9 and letters A to F)

Make sure that none of the files in a folder have the same last 4 (or 3) characters These files can not be played back.

SD_VOICE

SD_VC100

Voice files

SD_AUDIO

Music files

• SD_VOICE and SD_AUDIO are hidden folders created when you record voice or audio files, and play automatically on other equipment.

This unit needs these folders on an SD-Card to play the files. Do not delete them on your computer.

• “DCIM”, “SD_VIDEO”, “SD_VOICE” and “SD_AUDIO” are necessary to play files but have no effect on operation.

• You may be unable to play some files due to the origin of the copy, or the naming of folders and files.

E

N

G

L

I

S

H

35

Treatments of SD-Card

Cautions:

• Do not leave the SD-Card where they will be become hot or exposed to direct sunlight or where electricmagnetic waves or static electricity occurs readily.

• Keep the terminal area on the back of the cards free from dirt, water and foreign matter. Do not touch this area with your hands or any other objects.

• Static-Electricity or malfunctioning of the unit or the cards may cause the cards to be damaged or their data to be lost. It is recommended that valuable data be stored on the PC as well.

Note:

Do not leave cards on the following places:

• Direct sunlight

• Near car heaters

• Dirty, dusty and damp areas

• Seats and dashboards

SD logo is a trademark.

Portions of this product are protected under copyright law and are provided a license by

ARIS/SOLANA/4C. Licensed AAC Patents (U.S. patent under numbers);

08/937,950 5,394,473 5,579,430 5,481,614 5,299,238 5,581,654 5848391

5,583,962 08/678,666 5,592,584 5,299,239 05-183,988 5,291,557 5,274,740

98/03037 5,781,888 5,299,240 5,548,574 5,451,954 5,633,981 97/02875

08/039,478 5,197,087 08/506,729 5 400 433 5 297 236 97/02874 08/211,547

5,490,170 08/576,495 5,222,189 4,914,701 98/03036 5,703,999 5,264,846

5,264,846 5,717,821 5,357,594 5,235,671 5,227,788 08/557,046 5,268,685

08/392,756 5 752 225 07/640,550 5,285,498 08/894,844 5,375,189

CQ-VD7700U/VD7500U

51

E

N

G

L

I

S

H

36

SD-Card Player

(continued)

When not in operation mode, Touch the center of touch panel [Area A] to show operation display. ( a page 24)

Playable Data

You can play the following types of data recorded on an SD-Card:

Note: In the SD mode, when the following operation is performed and then the SD mode is restored, the “MODE SELECT” screen will appear without failure.

¡ Power off ¡ACC off ¡Mode Change

Still pictures Movie Music Voice

JPEG

(DCF Standard)

MPEG4

(ASF format)

AAC G.726

[3] (STOP)

[y] (PAUSE)

[5] (PLAY)

[s] [d]

For details, ( a page 50).

Notes:

¡ Play may not be possible sometimes due to the condition of the data.

¡ Operation is not guaranteed with Multi Media Card.

¡

All functions of SD Card Player cannot be operable only on the touch panel. Use buttons on the remote control and the main unit as well.

[SD]

(TOP MENU)

[DVD/SD MENU]

(SETUP MENU) e Select the playing data.

Inserting the SD-Card

Insert and slide

SD-Card slot the card until it clicks into place.

ER

TRACK/

CHANNEL

DISC

ODE

SD CARD

[ ] ] [ [ ]

[}] [{]

(ENTER)

Panel

Remote

: Not available

Go to SD Menu

PWR

STOP

NAVIGATION

NAVI

PAUSE

MODE

PLAY

TOP MENU

DVD / SD MENU RANDOM

ST/ MONO

AUDIO

CH1

1

4

RETURN

RET

RAND

ANGLE

CH2

2

SCAN

5

REPEAT

6

EN

T

R

SCROLL

PAGE

SUBTITLE

SUB

TRACK

GRP

TITLE / CHAPTER

3 DISP

7

ASPECT

8 9

MENU

CHAPTER

OSD

[ ] ] [ [ ]

[}] [{]

[ENTER]

[REP]

(REPEAT)

: [}], [{], []] or [[] a

[ENTER]

Panel

:

Beveled edge

Remote

: [SD] (TOP MENU)

Go to SD Setup Menu*

Panel

:

Label side up

Cautions:

¡ Do not place your face in front of the slot when inserting and removing cards. The slot mechanism has a spring so the card may eject with force.

¡ Do not insert the SD-Card into the CD slot.

¡ Do not insert foreign materials into the SD-Card slot.

SD Mode Selection

q Select the SD.

Remote

: [DVD/SD MENU] (SETUP MENU)

Removing the SD-Card

Press on the center of the card to unlock, then pull straight out.

Press on the center. Pull straight out.

Panel

:

Remote

: [MODE] w Select the data type.

Panel

: Not available

Remote

: [}] or [{] a

[ENTER]

Caution: Do not keep the SD-Card in the slot at half-way to prevent the front panel from hitting the card when the front panel is opening or closing.

Caution: To prevent the data damage to the SD-Card, never eject the SD-Card while playing or turn the ACC off while the unit is using the card.

Note: Do not leave an SD-Card inserted inside the unit when it is not used.

52

CQ-VD7700U/VD7500U

JPEG

MPEG4

ASF

AAC

VOICE

Indicates compatible data types.

Operation of SD-Card

Operations

Remote

Go to Beginning

JPEG

MPEG4

ASF

AAC

VOICE

[d]

[s]

Fast Forward/

Fast Reverse

MPEG4

ASF

AAC

VOICE

Play (Slideshow)

JPEG

MPEG4

ASF

AAC VOICE

[d]

[s]

[5] (PLAY)

Note: To record data on SD-Cards, ( a page 50).

Next file

Beginning of the current file

Previous file (Press twice.)

Press and hold.

Fast forward

Fast reverse

Release to resume playback.

Playback starts.

The still pictures will be played back for 5 seconds each

(Slidshow). (While the still picture playback screen is displayed.)

File Selection

JPEG

MPEG4

ASF

AAC

VOICE

[}][]]

[{][[]

Select a file to play back.

Stop

JPEG

MPEG4

ASF

AAC VOICE

[3]

(STOP)

Press this to return to the file list screen.

Pause

JPEG

MPEG4

ASF

AAC VOICE

REPEAT*

[y]

(PAUSE)

Press this to stop the playback temporarily.

SCREEN*

MPEG4

ASF

AAC

SELECT PLAYLIST*

AAC

DISPLAY ON/OFF*

[DVD/SD

MENU]

a

[}][]]

[{][[]

[DVD/SD

MENU]

a

[}][]]

[{][[]

Current

File

ALL

Files

Select [1 FILE/MUSIC] in [REPEAT] .

Select [OFF] in [REPEAT] to cancel.

Select [ALL] in [REPEAT] .

Select [OFF] in [REPEAT] to cancel.

DEFAULT

PLAYLIST

All music files recorded are played back.

(default)

PLAYLISTx

The selected playlist is played back.

(If the PLAYLIST is recorded on the SD-Card.)

ON

The SD information display is set to ON.

(default)

The SD information display is set to off.

OFF

JPEG

MPEG4

ASF

AAC VOICE

MPEG4

ASF

[DVD/SD

MENU]

a

[}][]]

[{][[]

[DVD/SD

MENU]

a

[}][]]

[{][[]

FULL

Enlarged screen (default)

NORMAL

Normal screen

* While the file list screen is displayed.

Note: It is possible to press []] [[] on the display unit instead of [s] [d] on the remote control.

CQ-VD7700U/VD7500U

53

E

N

G

L

I

S

H

37

E

N

G

L

I

S

H

38

MENU: User Settings

MENU Operation

CQ-VD7700U

DASH 7" WIDESCREEN COLOR LCD MONITOR TV / DVD / SD RECEIVER

TILT

OPEN / CLOSE

TRACK/

CHANNEL

SD CARD

NAVI

NAVIGATION

DISP

POWER

ASP

ASPECT

P·MODE

DISC

[MODE]

[MODE] [MENU]

PWR

STOP

NAVIGATION

NAVI

PAUSE PLAY CHAPTER

OSD

TOP MENU

ST/ MONO

AUDIO

CH1

1

RETURN

RET

DVD / SD MENU RANDOM

RAND

REPEAT

REP

ANGLE

CH2

2

SCROLL

PAGE

EN

T

E

SUBTITLE

SUB

TRACK

GRP

TITLE / CHAPTER

3

DISP

4

SCAN

5 6

7

ASPECT

A

P-MODE

8

0

9

SPACE MUTE

[}][{][]][[]

(Select/adjust)

[ENTER]

[}][{][]][[]

(Select/adjust)

[ENTER]

¡

Go to MENU

Panel

: Touch .

Remote

: Press [MENU].

¡

Operations

Panel

Menu selection order ( a page 245)

Remote

Touching a menu symbol: Item selection and adjust

: previous menu.

: Return to regular mode

[}], [{], []], [[] a

[ENTER]

: Item selection and adjust

[MENU]

[MODE]

: Previous menu

: Return to regular mode

CAR AV

Note: The display returns to the previous status if there is no operation for more than 60 seconds after changing to the setting menu.

Menu

DISPLAY UNIT

TILT

(Monitor position)

¡

Tilt angle adjustment

1

Setting Value

2 3 4 5

1 5

default: 5

OPEN/CLOSE

Notes:

¡

For smooth adjustment, make sure to first return the lateral angle to the neutral position and then adjust the tilt angle.

¡

The monitor position setting menu can also be displayed by pressing the [TILT] button on the display unit for more than 2 seconds.

( a page 35)

MANUAL

default: MANUAL

AUTO

AUTO: The monitor is opened automatically when turning ON

ACC.

MANUAL: The monitor is not opened automatically.

Panel

Remote

: Previous menu

: Exit

Operations

] or

[

[]] or [[]

* [1] to [5] keys are not available.

Panel

MANUAL

or

AUTO

Remote

[]] or [[] a

[ENTER]

Note: You can also enter this setting menu by pressing and holding [TILT] button.

54

CQ-VD7700U/VD7500U

Menu

BEEP

(Beep or no beep during operating)

GUIDANCE

Guidance display

CLOCK

DISPLAY

(Clock display)

Setting Value

OFF ON

default: ON

: Previous menu

: Exit

Operations

Panel

OFF ON

Remote

[]] or [[] a

[ENTER]

E

N

G

L

I

S

H

39

Guidance appearance during video mode operation.

ON

OFF

Panel

OFF

or

ON

: guidance appears

: no guidance appears default: ON

Remote

[]] or [[] a

[ENTER]

OFF

: clock display OFF

ON

: clock display ON ([12:00] is displayed before adjusting the clock.) default: OFF

Panel

OFF

Remote

or

[]] or [[] a

[ENTER]

ON

YEAR ADJUST

(Year adjustment)

MONTH ADJUST

(Month adjustment)

DAY ADJUST

(Day adjustment)

HOUR ADJUST

(Hour adjustment)

MINUTE ADJUST

(Minute adjustment)

Notes:

¡ To starts the clock return to regular mode by pressing [MODE] or touching .

¡ Perform the setup of Daylight

Saving Time manually.

default:

YEAR ADJUST: 2004

MONTH ADJUST: 1

DAY ADJUST: 1

HOUR ADJUST: AM12

MINUTE ADJUST: 0

Panel

] or

[

Remote

[}] or [{] a []] or [[] a

[ENTER]

55

CQ-VD7700U/VD7500U

E

N

G

L

I

S

H

40

MENU: User Settings

(continued)

Menu

CALENDAR

(Calendar Display)

Note: The calendar is not editable.

(e.g. Holidays cannot be marked.)

Setting Value

MONTH

default: Same as Clock

YEAR

default: Same as Clock

: Previous menu

: Exit

Operations

Panel

MONTH :

] or

[

YEAR :

{ or

}

Remote

MONTH : []] or [[]

YEAR :[{] or [}]

This function executes no setting, only viewing.

TOUCH PANEL

(Panel touch position adjustment)

Position difference between the touching position and the displaying symbol position may appear in the following situations:

1. The display position adjustment is executed.

2. The system is initialized.

3. The power is turned off soon after the touch panel is adjusted.

For the cases above, readjust the touch panel position.

This function is used only when there are some differences between the touching position and the symbol position displayed on the monitor.

This function is not used ordinarily.

q Touch the four corners of the touch panel counterclockwise.

w Touch

END

to finish this setup. Touch

AGAIN

to retry.

Touch forth Touch third

Note: This function can be performed on the touch panel.

Touch first

Touch second

ID-CODE

Menu

(ID Code Setting)

Prior to operating this unit, it is advisable to assign a 4-digit ID code for security.

(Make sure to use four digits for ID code.)

Once the ID code has been set, the unit cannot be operated if the main power supply is disconnected then re-connected. It is electronically locked so that a thief can not use the stolen unit unless that person knows the code you have set.

The ID code operation must be performed only by the person to whom the unit belongs.

Generally, it is not necessary to enter the ID code each time when using the unit if it has never been disconnected from the main power supply (car battery).

Note: The ID code setting cannot be eliminated even by the memory clear function.

Setting Value

0

to

9

4 digits numeric code default: none

Caution: Record your registered ID code and keep it in a secure location. If you forget it, you will be unable to use the unit. In case you forget the ID code, please consult your nearest Panasonic Servicenter.

Note: The inputted code is not displayed for your security.

Panel

Remote

: Previous menu

: Exit

Operations

0

to

9

[0] to [9]

How to set your ID code (for the first time)

q Enter an 4 digit ID code.

w Enter the same 4 digit ID code again.

How to change your ID code

q Enter the preset (old) 4 digit ID code.

If the wrong ID code is entered, a new

ID code cannot be registered.

w Enter a new 4 digit ID code.

e Enter the new 4 digit ID code again.

How to cancel the known ID code

Note: Should your unit ever require service, cancel your ID code before sending for repair.

q Enter the preset (old) 4 digit ID code.

If the wrong ID code is entered, it is not possible to cancel the ID code function.

w Press and hold [ENTER] until

“Complete!” is displayed. The ID code cancelling procedure is completed.

The unit now works without an ID code.

Note: Refer to ID Code Input regarding how to enter the ID code. ( a page 6)

E

N

G

L

I

S

H

41

56

CQ-VD7700U/VD7500U

MEMORY CLEAR

All current memories are returned to default settings.

Note: In the SD mode, SD MENU settings are not returned to the default setting even when YES is selected as this setting.

Caution: Be aware that this setting restores the unit to default settings, so that all the memories and settings that you have set will be eliminated.

NO

: no memory clear. The display returns to the previous one.

YES

: default settings default: NO

Panel

YES OK

: Memory clearance

CANCEL

: No Memory clearance

Remote

[[] a

[ENTER]

[[] a

[ENTER]:

Memory clearance

[]] a

[ENTER]: a

No Memory clearance

CQ-VD7700U/VD7500U

57

E

N

G

L

I

S

H

42

MENU: Display (Screen) Settings

DIMMER

Menu Setting Value

AUTO

: automatically adjusted according to ambient light intensity.

1 2 3 4

: Previous menu

: Exit

Operations

Panel

] or

[

Remote

[]] or [[]


(Display Adjustment)

CONTRAST

(Adjust the image contrast)

Darker Brighter default: AUTO

]

: Decrease the contrast between black and white

[

: Increase the contrast between black and white

Panel

] or

[

Remote

[}] or [{] a []] or [[]

BRIGHT

(Adjust the image brightness)

]

: Darken

[

: Lighten

COLOR

(Adjust the image color depth)

TINT

(Adjust the image tone or tint)

LCD DIMMER

(SUB-LCD dimmer adjustment)

LCD CONTRAST

(SUB-LCD contrast adjustment)

]

[

: Lighten the depth of color on the display

: Deepen the depth of color on the display

]

: Emphasize red in the color image

[

: Emphasize green in the color image

LOW

: Darker

HIGH

: Brighter default: HIGH

Panel

LOW

Remote

or

HIGH

[]] or [[] a

[ENTER]

1 2 3 4 5

Decrease Increase default: 4

Panel

] or

[

Remote

[]] or [[]

58

CQ-VD7700U/VD7500U

MENU: Capture Function

Menu Setting Value

Select Save area

CAPTURE

(Image Capture)


to


Up to five images can be imported from TV, VTR, DVD or Video CD (VCD).

Preparation: Show the image that you would like to capture on the display.

Note: Refer to “Display mode changes” page to display the imported image on the screen. ( a page 26)

¡

You can store maximum five images.

¡

The existing image is replaced with a new image when saving it. Check the right-hand smaller image on the screen before saving a new one. If you would like to keep the existing image, do not overwrite.

: Previous menu

: Exit

Operations

Panel

ENTER

......

or q a


w

,


a


YES

Remote

[ENTER]

a []] or [[] a

[ENTER]

a []] or [[]

Copyright

It is prohibited by copyright laws to copy, distribute and deliver copyrighted materials such as commercial

DVDs/Video CDs or other published or broadcast material without the approval of copyright holder except for personal use.

Notes:

¡ Do not turn off the unit while saving an image.

¡

To capture an image from TV, the broadcasting condition should be fairly good.

Note: A captured image may have some distortion or be otherwise different from the original image due to compression.

q w

E

N

G

L

I

S

H

43

[MODE] (End)

PWR

STOP

NAVIGATION

NAVI

PAUSE PLAY CHAPTER

TOP MENU

ST/ MONO

AUDIO

CH1

1

4

RETURN

RET

DVD / SD MENU RANDOM REPEAT

RAND

ANGLE

CH2

2

SCAN

5

REP

6

T

E

R

EN

SCROLL

PAGE

SUBTITLE

SUB

TRACK

GRP

TITLE / CHAPTER

3 DISP

7

ASPECT

A

P-MODE

8

0

9

SPACE MUTE

CAR AV

[MENU]

[OSD] (CAPTURE)

Direct Image Capture

(Only for remote control)

If you would like to capture a picture, press and hold [OSD] (CAPTURE) for more than 2 seconds.

Subsequent steps are the same as the steps w described above.

CQ-VD7700U/VD7500U

59

E

N

G

L

I

S

H

44

MENU: Capture Function

(continued)

Menu

INITIALIZE

You can restore the default image and delete your captured image.

Setting Value

Select area


to


Panel

: Previous menu

: Exit

Operations

YES


,


......

or


a

NO

: Restore the image.

(delete your image)

: Restore no image.

MENU: Animation Settings

Remote

[]] or [[] a

[ENTER]

a

[[] : Restore the image.

(delete your image)

[]] : Restore no image.

a

[ENTER]

Menu

ANIMATION

(Change the animation)

Wait for a while when “LOADING >>>” appears on the display.

Setting Value

: Previous menu

: Exit

Operations

Animation patterns

A B C

Panel

Note: This function is available only in non-video mode.

Default: A

Remote

[]] or [[] a

[ENTER]

COLOR

(Change the animation color)

Note: This function is available only in non-video mode (CD, MP3, Radio, CD

Changer).

Animation colors

A

to

H

Panel

A B H

Default: A

Remote

[}] or [{] a []] or [[] a

[ENTER]

MENU: Audio Settings (for VD7700U)

Menu

PARAMETRIC–EQ

(Adjusting the Level for Each of the

Frequency Bands: EQ=Equalizer)

MODE

(Select the method of setting)

The level of each of the 15 frequency bands can be adjusted, and up to 6 different levels can be stored in the memory.

Setting Value

: Previous menu

: Exit

Operations

ALL

: Same settings are used for all speakers

Professional

: Each speaker can be set.

Default: ALL

Panel

ALL

or

Professional

Remote

[]] or [[] a

[ENTER]

E

N

G

L

I

S

H

45

SPEAKER

(Select the speaker to adjust)

(For

Professional

)

FRONT

Default: FRONT

Panel

] or

[

Remote

[}] or [{] a []] or [[]

BAND

(Select a frequency band of the preset equalizer to adjust)

LOW

:

40/63/80/100/160 Hz

MID

:

315/500/630/800/1.25k Hz

HIGH

:

2.5k/4k/5k/6.3k/10k Hz

Default: LOW

FREQ

(Select the center frequency of the setting band)

GAIN

(Adjust the gain in each frequency)

40/63/80/100/160 Hz (LOW)

315/500/630/800/1.25k Hz (MID)

2.5k/4k/5k/6.3k/10k (HIGH)

Default: 40 Hz

–12 to +12 dB (by 2 dB step)

Default: ±0 dB

WIDTH

(Select a width of the frequency band to adjust the gain)

Note: These equalizer settings are not applied to the sub-woofer.

1 to 4

Default: 4

(continued on next page

a

)

Touch to select

60

CQ-VD7700U/VD7500U CQ-VD7700U/VD7500U

61

E

N

G

L

I

S

H

46

MENU: Audio Settings (for VD7700U)

(continued)

Menu

PARAMETRIC–EQ

(continued)

PRESET

(Recall or preset the equalizer setting)

Note: These equalizer settings are not applied to the sub-woofer.

Setting Value

ALL

:

1 to 3 (Preset number), 7(FLAT)

Professional

:

4 to 6 (Preset number), 7(FLAT)

Note: When selecting “7

(FLAT)”, the preset level is set to

0 dB.

¡

The new level adjustment will overwrite the previous level adjustment, erasing it in the process.

: Previous menu

: Exit

Operations

Panel

1

to

Remote

7 FLAT

[}] or [{] a

[]] or [[]

or

[1] , [2] , [3] ....... [7]

To store a level adjustment in the memory (preset memory)

Panel

q Make adjustments before memorizing.

w Touch and hold preset button

1

to

6

for more than 2 seconds.

PRO LOGIC II

(5.1 channel listening in Dolby surround sound)

MODE

(Select a sound type)

OFF

MATRIX

default : OFF

Notes: “PANORAMA”, “DIMEN-

SION” and ”CENTER WIDTH” are adjustable when “MODE” is set to “MUSIC”.

OFF

,

ON

PANORAMA

Get large the sound space in the

“MUSIC” mode.

Panel

OFF

Remote

[}] or [{] a []] or [[] a

[ENTER]

default : OFF

Panel

OFF

or

ON

Remote

[}] or [{] a []] or [[] a

[ENTER]

–3 to +3

Remote

q Make adjustments before memorizing.

w Press and hold preset button [1] to [6] for more than 2 seconds.

DIMENSION

(Adjust the dimension of the sound in

“MUSIC” mode) default : ±0

Panel

[

: UP

]

: Down

0 to 7

CENTER WIDTH

(Widen the sound field of the center speaker in “MUSIC” mode)

Remote

[}] or [{] a []] or [[] default : 0

Note: Effective for 2-channel audio (LPCM, PPCM, Dolby Digital/dts 2-channel) and analog audio (TV, VTR, radio, CD changer).

62

CQ-VD7700U/VD7500U

Menu

DOWN MIX

(Changing Dolby digital/dts Audio to 2-

Channel Stereo Playback)

Note: This function is available only when “Dolby digital” or “dts” source is playing.

Setting Value

OFF

: Original Source Output

ON

: 2-channel conversion output default : OFF

Panel

OFF

or

ON

: Previous menu

: Exit

Operations

Remote

[]] or [[] a

[ENTER]

E

N

G

L

I

S

H

47

DR COMP

(Dynamic Range Compression)

(Maintaining the ambience even while listening at a low volume level)

Compression style selecting

( a page 73)

OFF : DR COMP OFF

STD: DR COMP ON

MIN: Made with the greatest compression, roughly equivalent to a TV broadcast.

Panel

OFF

Remote

[]] or [[] a

[ENTER]

default : OFF

SP SETUP

(Speaker Setup)

(Setting the absence/presence and size of each speaker)

FRONT

(Front speaker setting)

LARGE

: for large speakers, when bass playback is possible (at least

100 Hz or lower)

SMALL

: for small speakers, or when bass playback is not possible default: LARGE

Panel

FRONT

a

SMALL

or

LARGE

Remote

[}] or [{] a []] or [[] a

[ENTER]

CENTER

(Center speaker setting)

A center speaker (option, EAB-CF2 recommended) is required.

LARGE

: for large speakers, when bass playback is possible (at least

100 Hz or lower)

SMALL

: for small speakers, or when bass playback is not possible

NONE

: when not using a center speaker default: SMALL

Panel

CENTER

LARGE

a

NONE

Remote

[}] or [{] a []] or [[] a

[ENTER]

(continued on next page

a

)

CQ-VD7700U/VD7500U

63

E

N

G

L

I

S

H

48

MENU: Audio Settings (for VD7700U)

(continued)

: Previous menu

: Exit

Operations Menu

SP SETUP

(continued)

SURROUND

(Surround speaker setting)

Setting Value

LARGE

: for large speakers, when bass playback is possible (at least

100 Hz or lower)

SMALL

: for small speakers, or when bass playback is not possible

NONE

: when not using surround speakers default: LARGE

Panel

SURROUND

or

LARGE

a

NONE

or

SMALL

Remote

[}] or [{] a []] or [[] a

[ENTER]

SUB • W

(Subwoofer speaker setting)

A subwoofer (option, CJ-SW38 recommended) is required. A power amplifier

(option) is also required for connecting a subwoofer.

YES

: when using a subwoofer

NO

: when not using a subwoofer default: NO

Panel

SUB • W

a

Remote

NO

or

[}] or [{] a []] or [[] a

[ENTER]

YES

64

SP LEVEL

(Speaker Level)

(Adjusting the output balance of each speaker)

FRONT L

(Left front speaker output balance)

CENTER

(Center speaker output balance)

FRONT R

(Right front speaker output balance)

R

¡

SURROUND

(Right surround speaker output balance)

L

¡

SURROUND

(Left surround speaker output balance)

SUB

¡

W

(Subwoofer speaker output balance)

Setting range: –12 dB to +12 dB

(1 dB steps)

Default: ± 0 dB for all speakers

A test signal (a continuous tone) is output from each speaker for approximately two seconds.

Adjust the output balance so that the tone appears to have the same volume from each speaker.

Adjusting the output balance:

Adjust the volume of all of the other speakers to the volume level of the speaker from which the test signal appears to be the quietest.

¡ If the speaker setting is “NONE” or

“NO” for a speaker, the test signal is not output and that speaker cannot be selected. ( a page 63)

¡

Turn [VOLUME] or press [}] or

[{] (VOLUME) to adjust the volume of the test signal.

Panel

q Touch the image of the speaker you want to set.

w

[

: UP

]

: Down

Touch to select

Remote

q [}] or [{] w [[] : UP

[]] : Down

CQ-VD7700U/VD7500U

Menu

SP DELAY

(Speaker Delay)

(Adjusting the timing with which the audio from each speaker reaches the listener’s position)

CENTER

(Center speaker delay time setting)

SURROUND

(Surround speaker delay time setting)

¡ Make this adjustment while listening to sound.

¡ If the speaker setting is “NONE” for a speaker, that speaker cannot be selected. ( a page 63)

Setting Value

Setting range:

Center speaker...

0 ms to 5 ms (1 ms steps)

Surround speakers...

0 ms to 15 ms (1 ms steps)

1 ms = 0.001 seconds

Default: 0 ms for all speakers

: Previous menu

: Exit

Operations

Panel

q Touch a speaker image. (Center or

Surround) w

[

: Long

]

: Short

Remote

q [}] or [{] w [[] : Long

[]] : Short

E

N

G

L

I

S

H

49

VTR LEVEL

(Setting the VTR (VTR1/VTR2) input

Level)

Make this setting if it is not possible to adjust the volume through the connected device (on the output side).

Note: This setting is adjustable for an external device that is connected to

VTR1 or VTR2. (e.g. VCR)

Lower Higher

–6 dB –4 dB –2 dB

±0 dB

+2 dB +4 dB

+6 dB

: Input level default: ±0 dB

Notes:

¡ If the input level from

VTR1/VTR2 is too high, the audio will not be output normally. Adjust the input level so that “OVER” does not appear.

¡

After setting the input level

The volume can be adjusted by turning the volume knob or pressing [}] or [{] (VOL-

UME) on the remote control.

Panel

]

: Lower

[

: Higher

Remote

[]] : Lower

[[] : Higher

CQ-VD7700U/VD7500U

65

E

N

G

L

I

S

H

50

MENU: Audio Settings (for VD7500U)

Menu

GRAPHIC-EQ

(Adjusting the Level for Each of the

Frequency Bands: EQ=Equalizer)

The level of each of the 7 frequency bands can be adjusted, and up to 6 different levels can be stored in the memory.

Note: These equalizer settings are not applied to the sub-woofer.

Setting Value

Frequency band

60 Hz 160 Hz 400 Hz

1 kHz 3 kHz 6 kHz

16 kHz

¡ When a level adjustment has been stored in a preset button, a preset number will appear.

(The new level adjustment will overwrite the previous level adjustment, erasing it in the process.)

: Previous menu

: Exit

Operations

¡Presetting

Panel

q Make adjustments before memorizing.

w Touch and hold preset button

1

to

6

for more than 2 seconds.

Remote

q Make adjustments before memorizing.

w Press and hold preset button [1] to [6] for more than 2 seconds.

¡Preset Recalling

Panel

Adjustment range:

–12 dB to +12 dB

(in 2 dB steps)

Default: ±0 dB for each band

Remote

Press [1] to [7].

BAL/FAD

(Balance/Fader)

(Adjusting the output balance of each speaker)

SUB-WOOFER

(Adjusting Sub-woofer level)

LEVEL

(Sub-woofer level)

Balance/Fader adjustment

}

FRONT

or

{

REAR

Adjustment range:

FRONT 15 to +REAR 15

RIGHT

] or

[

LEFT

Adjustment range:

RIGHT 15 to +LEFT 15

Default: ±0

Panel

}

FRONT

RIGHT

]

Remote

[}] or [{] (Fader)

[]] or [[] (Balance)

REAR

LEFT

] [

Adjustment range:

∞, –6 to +6 default: ±0 dB

Panel

[

: UP

]

: Down

Remote

[}] or [{] a

[]] or [[]

66

LPF

(Low Pass Filter)

Note: This function also adjusts the upper cut off frequency (Low Pass

Filter) to control the thickness of bass sound.

80 Hz 120 Hz 160 Hz

(Cut off Frequency) default: 80 Hz

Panel

80 Hz

Remote

[}] or [{] a []] or [[] a

[ENTER]

CQ-VD7700U/VD7500U

Menu

H P F

(Adjusting High Pass Filter)

Setting Value

High Pass Filter

OFF

90 Hz

135 Hz

180 Hz

225 Hz

: filter off

: cuts off under 90

Hz

: under 135 Hz

: under 180 Hz

: under 225 Hz

: Previous menu

: Exit

Operations

Panel

OFF

180 Hz

or

225 Hz

Remote

[]] or [[] a

[ENTER]

E

N

G

L

I

S

H

51

DR COMP

( a page 63)

MENU: DVD Settings

Menu

LANGUAGE

(Language Setting)

MENU

(DVD menu language)

SUBTITLE

(Subtitle language)

Note: A disc supporting closed captioning and subtitles may overlap each other on the screen. In this case, turn the subtitle off.

Setting Value

ENG

FRE

SPA

: English

: French

: Spanish

OTHER

: other language

Input the language code.

default: ENG

: Previous menu

: Exit

Operations

Panel

ENG

OTHER

a

0

to

9

a

[ENTER]

Input a language code. ( a page 90)

ENG

: English

FRE

SPA

: French

: Spanish

OTHER

: other language

Input the language code.

default: ENG

Remote

[}] or [{] a []] or [[] a

[ENTER]

OTHER

[0] to [9] a

[ENTER]

Input a language code. ( a page 90)

AUDIO

(Audio language)

Note: These adjustments being executed, playback will start from the beginning of a disc.

ENG

: English

FRE

SPA

: French

: Spanish

OTHER

: other language

Input the language code.

default: ENG

67

CQ-VD7700U/VD7500U

E

N

G

L

I

S

H

52

MENU: DVD Settings

(continued)

Menu

DISPLAY

(Display Aspect and DVD Software

Mode)

DVD ASPECT

(Display aspect setting)

Setting Value

WIDE

: plays a video in wide screen

(16:9).

NARROW

: plays a video in 4:3 screen.

Panel

WIDE

: Previous menu

: Exit

Operations

or

NARROW

default: WIDE

Remote

[}] or [{] a []] or [[] a

[ENTER]

LETTER BOX

(DVD software mode)

Note: Screen aspect of the display unit is changed according to the aspect ratio setting ( a page 71) and DVD software's aspect.

PAN & SCAN

: plays wide-screen video in Pan

& Scan mode (in which the left and right edges of the screen are cut off).

LETTER BOX

: plays wide-screen video in letterbox mode (in which black bands appear at the top and bottom of the screen).

Notes:

¡ Set the software setting according to the symbol used on jacket. ( a page 29)

¡

DVD software mode setting is ignored if “PAN & SCAN” or

“LETTER BOX” is already set in the software.

default: PAN & SCAN

Panel

PAN & SCAN

or

LETTER BOX

Remote

[}] or [{] a []] or [[] a

[ENTER]

MENU: Input/output Settings

Menu

NAVI SETUP

(Navigation set up)

NAVI INPUT

(Navigation input)

Selection of the terminal that connects to the car navigation system allows you to switch to images and sounds of the car navigation system by pressing [NAVI]

(NAVIGATION).

Setting Value

: Previous menu

: Exit

Operations

RGB

: connected to the RGB input cord, or a car navigation system not connected

VTR1

: connected to VTR1-IN

VTR2

: connected to VTR2-IN default: RGB

Panel

RGB VTR1

Remote

[}] or [{] a []] or [[] a

[ENTER]

VTR2

Note: Make sure to select “RGB” when no car navigation system is connected.

68

CQ-VD7700U/VD7500U

MENU: Input/output Settings

(continued)

Menu

NAVI SETUP

(continued)

NAVI SP

(Navigation input)

NAVI MUTE

(Navigation mute level)

Select the mute level of this unit during voice guidance from the Panasonic car navigation system (available in future).

Preparation: Connect the navi mute lead.

NAVI VOLUME

(Navigation volume)

Volume adjustment of the car navigation system is executed.

Setting Value

: Previous menu

: Exit

Operations

BOTH

Lch

Rch

: L/R speaker

: L only

: R only default: BOTH

Panel

BOTH

Remote

Lch Rch

[}] or [{] a []] or [[] a

[ENTER]

OFF

: unchanged

LEVEL1

: decrease 10 dB (CQ-VD7700U) decrease 10 step (CQ-VD7500U)

LEVEL2

: decrease 20 dB (CQ-VD7700U) decrease 15 step (CQ-VD7500U)

LEVEL3

: no sound default: LEVEL1

Panel

OFF

Remote

LEVEL1 LEVEL2

[}] or [{] a []] or [[] a

[ENTER]

LEVEL3

Note: You can set the navigation mute level when “RGB” is selected as navigation input.

Adjustment range: 0 to 40 default: 30

Panel

] [

0 : the sound that a car navigation system generates does not come out.

Remote

[}] or [{] a []] or [[]

E

N

G

L

I

S

H

53

CAMERA SETUP

(Rear View Camera)

CAMERA

SCALE

(Rear view camera scale display)

Images through the rear view camera can be shown in scale display mode.

OFF

ON

: camera off

: camera on default: OFF

Panel

Remote

OFF ON

[]] or [[] a

[ENTER]

OFF

ON

: scale display off

: scale display on default: OFF

Panel

Remote

OFF ON

[]] or [[] a

[ENTER]

SCALE ADJUST

(Scale adjustment)

] or

[

: width

} or

{

: angle

Panel

] or

[

} or

{

: Wide

: Angle

Remote

[[] or []] : Wide a

[ENTER]

[}] or [{] : Angle a

[ENTER]

69

CQ-VD7700U/VD7500U

E

N

G

L

I

S

H

54

MENU: Input/output Settings

(continued)

Menu

VTR SKIP

(VTR Skip)

If a VTR is not used, the VTR mode is skipped when changing the mode.

VTR 1 SKIP

(VTR1 skip)

VTR 2 SKIP

(VTR2 skip)

Setting Value

OFF

ON

: do not skip

: skip VTR1/2 default: OFF

: Previous menu

: Exit

Operations

Panel

OFF

or

ON

Remote

[}] or [{] a []] or [[] a

[ENTER]

VIDEO-CONT

(Video control setting)

This “Video Control Setting” is required when you connect a

Panasonic car navigation system with a built-in DVD player (available in future).

REAR MONITOR

(Rear Monitor Set Up)

You can have different picture and sound on the front and rear monitors at the same time ( a page 74).

Preparation: Connect another optional rear monitor. (e.g. CY-

VMX6800U) ( a Installation

Instruction)

VTR1

: connected to VTR1-IN

VTR2

: connected to VTR2-IN default: VTR1

Notes:

¡ Select a terminal connected to the DVD output terminal of a

Panasonic car navigation system with a built-in DVD player (available in future) through an RCA cord.

¡ When you connect a Panasonic car navigation system with a built-in DVD player, connect a video control lead as well.

( a Installation Instructions)

AUTO

: same as front monitor

TV

: TV

DVD

: DVD

SD

: SD

VTR1

: VTR1

VTR2

: VTR2 default: AUTO

Panel

VTR1

or

Remote

[]] or [[] a

[ENTER]

Panel

AUTO

SD

TV

VTR1

Remote

[]] or [[] a

[ENTER]

VTR2

DVD

VTR2

70

BGC

(BackGround Camera)

( Always display background camera on the display)

This function allows the background camera view to be displayed at the all times.

Note: You can enter the BGC menu also by pressing and holding [MENU] for 2 sec. or more.

CQ-VD7700U/VD7500U

ON

OFF

: Background camera view is always on the display.

: Each mode image is on the display.

default: OFF

Panel

OFF

or

ON

Remote

[]] or [[] a

[ENTER]

Aspect Ratio

Default: NORMAL

Mode: 4 types

Press [ASP] (ASPECT) on the display unit or press [A] (ASPECT) on the remote control to change the aspect ratio as follows.

E

N

G

L

I

S

H

55

PWR

STOP

NAVIGATION

NAVI

PAUSE

MODE

PLAY

MENU

CHAPTER

OSD

TOP MENU

ST/ MONO

AUDIO

CH1

1

RETURN

RET

DVD / SD MENU RANDOM REPEAT

RAND

ANGLE

CH2

2

REP

3

EN

SCROLL

T

E

R

PAGE

SUBTITLE

SUB

TRACK

GRP

TITLE / CHAPTER

DISP

4

SCAN

5 6

7

ASPECT

P-MODE

8

0

9

SPACE MUTE

CAR AV

[A] (ASPECT)

V / DVD / SD RECEIVER

ASPECT

P·MODE

[ASP] (ASPECT)

TRACK/

CHANNEL

ENTER

D

SD CARD

NORMAL

¡ The conventional display image has a 4 to 3 ratio of horizontal to vertical.

¡ In this case, a blank area remains on the right and left sides of the display.

FULL

¡

The screen is extended horizontally as a whole to the aspect ratio of 16 to 9.

¡

The extension ratio is the same at any point on the screen.

ZOOM

¡ The screen is fully extended at the normal aspect ratio of 4 to 3.

¡ The top and bottom of the screen are slightly cut off.

JUST

¡ The screen is extended horizontally to the aspect ratio of 16 to 9.

¡ The extension ratio increases toward the right and left ends of the screen.

Notes:

¡

This adjustment is applicable to TV, VTR1, VTR2, DVD, video CD and SD-Card mode.

¡ The aspect ratio is adjustable between Full and Normal when the wallpaper is on the screen.

¡ When the rear view camera is in operation with the transmission gear shift in the reverse position, the image is shown on the “FULL” screen only.

¡ In some cases, the picture looks different from the original one due to your selection of aspect.

Cautions:

¡ This is to remind you that compression or extension of the screen using the aspect ratio (screen mode) changing function of this product for commercial purposes of profit making or viewing/listening by the public could infringe on the rights of the author protected by copyright law.

¡ If you expand a normal picture (4 to 3) by using “JUST”, “ZOOM” or “FULL” aspect to the full size of the screen, you might not see the periphery of the picture, or you might see a distorted picture. Therefore, use “NORMAL” mode to see the original picture as the author intended it.

CQ-VD7700U/VD7500U

71

E

N

G

L

I

S

H

56

Sound Settings

Touch the [SPACE] symbol on the touch panel or press [SPACE] to change the setting.

Sound Field

Settings (Space)

Effective for 2-channel audio

(LPCM, Dolby Digital/dts 2channel) and analog audio

(TV, VTR, radio, CD changer).

Pro Logic II (4-channel surround playback) selection is automatically invalid after this setting. ( a page 62)

Default: OFF (no indicator)

Setting range: 8 types + “OFF”

OFF (No

Indicator)

: no sound field effect

MULTI-CH

LIVE

: 2-channel audio is distributed to be a 5.1channel output.

: sound field effect as if in a live house

HALL

: sound field effect as if in a concert hall

: sound field effect suited to listening to jazz

JAZZ

STADIUM

: sound field effect as if in a stadium

DISCO

: sound field effect as if in a disco

VOCAL

: sound field effect suited to listening to vocals

CATHEDRAL

: sound field effect as if in a church

Notes:

¡ Not effective for Dolby Surround audio recordings and down-mixed

2-channel audio.

¡ This function can be set individually for each mode.

PWR

STOP

NAVIGATION

NAVI

PAUSE

MODE

PLAY

MENU

CHAPTER

OSD

TOP MENU

ST/ MONO

AUDIO

CH1

1

4

RETURN

RET

DVD / SD MENU RANDOM REPEAT

RAND

ANGLE

CH2

2

SCAN

5

REP

6

EN

T

E

R

SCROLL

PAGE

SUBTITLE

SUB

TRACK

GRP

TITLE / CHAPTER

3 DISP

7

ASPECT

A

P-MODE

8

0

9

MUTE

CAR AV

[SPACE]

Producing audio that is audible at low volumes

(Dynamic Range

Compression)

This function is effective for playback of Dolby

Digital/Dolby Surround DVD video. The words of an actor hardly audible during playback at a low volume, for example, will become easier to listen to by selecting DR COMP MIN.

About DVD

Video/Audio Wide

Dynamic Range

Caution: The sound of DVD audio/video covers a wide dynamic range of more than

100 dB. Thus, the reproduced sound volume of some DVD discs may be significantly low. When you increase the volume in this case, the sound may reach the peak level suddenly and it may lead to a traffic accident. To avoid such an accident, you can use the DR

COMP (Dynamic Range

Compression) function. This function can be set by the following procedure.

You can set “DR COMP” in “SETUP: Sound Setting”. Please refer to page 63 for “DR COMP” setting.

DR COMP OFF

DR COMP STD

DR COMP MIN

: movie theater mode with no compression.

: mode recommended by the software manufacturer for listening at low volume.

: mode with the greatest compression, roughly equivalent to a TV broadcast.

OFF STD MIN

Conversation level

E

N

G

L

I

S

H

57

Panel

q Turn the volume back to the previous level (decrease the volume).

w When not in operation mode, Touch the center of touch panel

[Area A] to show operation display.( a page 24).

e Touch

MENU AUDIO

.

t Readjust the volume level.

Remote

q Turn the volume back to the previous level (decrease the volume).

w Press [MENU].

e Press [}] or [{] to select

AUDIO

.

r Press [}], [{], []] or [[] to select

DR COMP a [ENTER].

t Press []] or [[] to select

MIN y Readjust the volume level.

.

72

CQ-VD7700U/VD7500U CQ-VD7700U/VD7500U

73

E

N

G

L

I

S

H

58

About Rear Monitor

Rear Monitor Set Up

You can have different pictures and sounds at the front and rear monitor at the same time.

Default: AUTO

Preparation: Connect another optional rear monitor. (e.g. CY-VMX6800U) ( a

Installation Instruction)

Rear monitor setting menu

Panel

q Touch .

w Touch .

e Touch .

r Touch a symbol to select.

Remote

q Press [MENU].

w Press [}] or [{] to select

“INPUT/OUTPUT”.

e Press [ENTER] to set .

r Press [}] or [{] to select “REAR

MONITOR”.

t Press [ENTER] to set.

y Press [[] or []] to select the setting.

u Press [ENTER] to set.

OPEN

VOLUME MUTE

CQ-VD7700U

CQ-VD7700U

IN-DASH 7" WIDESCREEN COLOR LCD MONITOR TV / DVD / SD RECEIVER

TILT

OPEN / CLOSE

TRACK/

CHANNEL

SD CARD

NAVI

NAVIGATION

DISP

POWER

ASP

ASPECT

P·MODE

DISC

[MODE] (End)

PWR

STOP

NAVIGATION

NAVI

PAUSE PLAY CHAPTER

OSD

TOP MENU RETURN

RET

DVD / SD MENU RANDOM REPEAT

RAND REP

ST/ MONO

AUDIO

CH1

1

4

ANGLE

CH2

2

SCAN

5

SUBTITLE

SUB

3

6

EN

SCROLL

T

E

R

PAGE

TRACK

GRP

TITLE / CHAPTER

DISP

7

ASPECT

A

P-MODE

8

0

9

SPACE MUTE

CAR AV

Main Unit

Monitor

TV

[]] [[]

[ENTER]

[MODE] (End)

[MENU]

AUTO

TV

DVD

S D

VTR1

VTR2

: picture and sound in the same mode as the front monitor.

: TV picture and sound

: DVD picture and sound (disc in the DVD player)

Only sound in DVD Audio, CD, MP3 player mode.

: SD picture and sound

: VTR1 picture and sound

: VTR2 picture and sound

[]] [[]

[ENTER]

VTR1/VTR2

Notes:

¡ Press [MODE] to return to regular mode.

¡ The display returns to the previous one if no operation is performed for

60 seconds after changing to the rear monitor setting menu.

¡

You can mute the sound from the rear speakers connected to this unit, so that you can have different sound of modes at the front and rear monitor.

( a

See Private Mode on next page)

¡ Picture and sound from the car navigation system connected to an RGB input cord are not available in the rear monitor.

DVD (VCD, CD, MP3)/SD

Radio CD Changer

The rear monitor does not display television picture when the main unit is in radio mode.

Different types of discs cannot be played back at the same time.

Private Mode

You can mute the sound from the rear speakers if necessary. Activation of private mode allows you to enjoy the front monitor and rear monitor

(e.g. CY-VMX6800U) independently with different input sources at the same time.

Default: OFF

Press and hold [A] (P • MODE) on the remote control for more than 2 seconds to activate the private mode function or inactivate it in turn.

E

N

G

L

I

S

H

59

“P • MODE” indicator lights when

Private Mode is activated.

PWR

STOP

NAVIGATION

NAVI

PAUSE

MODE

PLAY

MENU

CHAPTER

OSD

TOP MENU

ST/ MONO

AUDIO

CH1

1

4

RETURN

RET

DVD / SD MENU RANDOM REPEAT

RAND

ANGLE

CH2

2

SCAN

5

REP

6

EN

T

E

R

SCROLL

PAGE

SUBTITLE

SUB

TRACK

GRP

TITLE / CHAPTER

3 DISP

7

ASPECT

P-MODE

8

0

9

SPACE MUTE

CAR AV

[A] (P • MODE)

V / DVD / SD RECEIVER

TRACK/

CHANNEL

ENTER

DISC

SD CARD

ASPECT

P·MODE

[ASP] (P • MODE)

Private Mode OFF

Radio

DVD

Radio

Private Mode ON

Radio

DVD

Mute

It is recommended to use optional Over-head Monitor

(CY-VMX6800U) and headphones supplied with CY-

VMX6800U.

Notes:

¡

Be sure to set to OFF when you do not use private mode.

¡

It is not possible to choose and set SP DELAY on the sound setting menu while private mode is active. ( a page 65)

74

TV

Rear Monitor

VTR1/VTR2 DVD (VCD, CD, MP3)/SD

CQ-VD7700U/VD7500U

75

CQ-VD7700U/VD7500U

E

N

G

L

I

S

H

60

Sub-LCD Display Change

The contents on the sub-LCD display are changeable.

Press [DISP] to change the display as follows. (When the display is opened, press and hold [DISP].)

With display open

All modes with display open...

VTR 1/2, SD with display closed

Mode display (Example VTR1)

Clock time

Mode display (Example: TV mode)

LCD OFF

Clock time

DVD Audio with display closed

Mode display

LCD OFF

Power OFF

With display either open or closed

Track Number/Play time

OFF (Back light is OFF)

Group Number/Track Number

Clock time (Back light is OFF)

Clock time

LCD OFF (Back light is OFF)

With Display Closed

Radio with display closed

Mode display

LCD OFF

DVD Video with display closed

Mode display

Chapter Number/Play time

Band/preset number/frequency

Title Number/Chapter Number

Clock time

Clock time

LCD OFF

LCD OFF

76

CQ-VD7700U/VD7500U

Video CD with display closed

Mode display

Play time

Clock time

LCD OFF

CD with display closed

Mode display

Track Number/Play time

Disc Title

Track Title

Clock Time

LCD OFF

TV with display closed

Mode display

Channel

Clock time

LCD OFF

MP3 with display closed

Mode display

File Number/Play time

Folder Number/File Number

Folder Title

File Title

Clock time

LCD OFF

CD Changer with display closed

Mode display

Disc number/track number/

Play time

Clock time

LCD OFF

OPEN

VOLUME

MUTE

CQ-VD7700U

IN-DASH 7" WIDESCREEN COLOR LCD MONITOR TV / DVD / SD RECEIVER

TILT

OPEN / CLOSE

TRACK/

CHANNEL

ENTER

DISC

SD CARD

NAVI

NAVIGATION

DISP MODE

POWER

ASP

ASPECT

P·MODE

Sub-LCD Display

CQ-VD7700U/VD7500U

77

E

N

G

L

I

S

H

61

E

N

G

L

I

S

H

62

Troubleshooting

Preliminary Steps

Check and take steps as described in the tables below.

If You Suspect Something is Wrong

Immediately switch power off.

Disconnect the power cable and check that there is neither smoke nor heat from the unit before asking for repairs. Never try to repair the unit yourself because it is dangerous to do so.

Common

Problem

No power to the unit

Sound is not generated

Noise

Noise is made in step with engine revolutions.

Cautions:

¡ Do not use the unit in an irregular condition, for example, without sound, or with smoke or foul smell, which can cause a fire or electric shock. Immediately stop using the unit and call the store where you purchased it.

¡

Never try to repair the unit by yourself due to risk of electrical injury and potential damage to electrical safety equipment.

Possible cause a

Possible solution

The power cord (battery, ACC and ground) is connected in the wrong way.

a

Check the wiring.

Fuse blowout a

Eliminate the cause of fuse blowout and replace the fuse with new one.

Consult your dealer.

MUTE is set to ON.

a

Set MUTE to OFF.

The wiring of the speaker lines is not correct, or a break or poor contact exists.

a

Check the wiring in accordance with the wiring diagram.

There is an electromagnetic-wave generator such as a cellular phone near the unit or its electrical lines.

a

Keep an electromagnetic-wave generator such as a cellular phone away from the unit and the wiring of the unit. In case that noise cannot be eliminated due to the wiring harness of the car, consult your dealer.

The contact of the ground lead is poor.

a

Make sure that the ground lead is securely connected to an unpainted part of the chassis.

Alternator noise comes from the car.

a

Change the wiring position of the ground lead.

a

Mount a noise filter on the power supply.

Some operations are not executable.

No sound from speaker(s)

The speaker channels are reversed between right and left.

Some operations are not executable in particular modes such as menu mode.

a

Read the operating instructions carefully and change the mode. In case the unit is still out of order, consult your dealer.

Some sound setting (Example: BAL/FAD, P·MODE, SP SETUP or Dolby Prologic

II) is not appropriate.

a

Readjust the sound setting (BAL/FAD, P·MODE, SP SETUP or Dolby

Prologic II, etc.)

There is a break, a short circuit, poor contact or wrong wiring regarding the speaker wiring.

a

Check the speaker wiring.

The speaker wiring is confused between right and left.

a

Perform the speaker wiring in accordance with the wiring diagram.

78

Common (continued)

Problem

The sound field is not clear in the stereo mode. Central sound is not settled.

Possible cause a

Possible solution

The plus and minus terminals at right and left channels of speakers are connected reversely.

a

Perform the speaker wiring in accordance with the wiring diagram.

Display Settings

Problem

The brightness of the screen is not stable.

The picture is dark. The picture is whitish. Something is wrong with the picture.

The picture is light in color.

The display does not go back into the unit.

Red, blue, or green spots appears.

Remote Control

Problem

Possible cause a

Possible solution

“AUTO” dimmer is selected.

a

Select one of the dimmer levels from among 1 to 4 to make the dimmer adjustment become indpendent of light intensity.

The screen is not adjusted properly.

a

Make every adjustment of the screen.

The monitor stops on the way to the home position.

a

Press [ ] (OPEN/CLOSE).

This is a characteristic of liquid crystal panels and is not a problem.

Pressing buttons does not perform operations.

Possible cause a

Possible solution

Battery poles (+) (–) are reversed.

a

Insert the battery correctly.

Wrong battery.

a

Check the battery.

Battery has run down.

a

Replace the battery.

Remote control is facing in the wrong direction.

a

Direct the remote control at remote control sensor on the display unit.

E

N

G

L

I

S

H

63

TV

Problem

Unclear image due to noise

Possible cause a

Possible solution

The intensity of the radio wave is too low.

a

Change the broadcast station.

Connection or installation of the TV antenna has not been performed correctly.

a

Check the connection or installation.

CQ-VD7700U/VD7500U

79

CQ-VD7700U/VD7500U

E

N

G

L

I

S

H

64

Troubleshooting

(continued)

DVD audio/video, Video CD, CD, CD-R, CD-RW

Problem

Possible cause a

Possible solution

The disc is upside down.

a

Place the disc in the correction direction, the label side up.

The disc is inside but no sound.

The disc is ejected automatically.

The disc is dirty.

a

Clean the disc, referring to the section “Notes on Discs” (

a page 87).

The unit can only play the following types of disc: DVD video, video CD, music

CD and MP3.

Connect the optical fiber cable.

CD sound skips, tone quality is low.

Sound skip due to vibration.

The buttons do not work.

The disc is not ejected.

The disc is dirty.

a

Clean the disc, referring to the section “Notes on Discs” (

a page 87).

Mounting angle is over 30°.

a

Adjust mounting angle to less than 30°.

Unstable mounting.

a

Mount the unit securely with the mounting parts, referring to the section on installation.

Some operations are not permitted with certain discs.

(Refer to the guide provided with your disc.)

¡ Disc is defective.

¡ Mechanical trouble.

a Press [u]. If failure persists, press the reset switch ( a

page 85). If normal operation is not restored, call the store where you purchased the unit or the nearest Panasonic Servicenter.

80

DVD video

Problem

Cannot switch the audio language/subtitle language/angle.

The audio/subtitle language selected in the

DVD settings is not used.

Possible cause a

Possible solution

¡ It is not possible to switch if the disc does not have multiple audio languages/subtitle languages/angles recorded on it. (Refer to the guide provided with your disc.)

¡

Some discs permit switching through a menu screen.

¡

Sometimes, switching angles is possible only with certain scenes.

If audio or subtitles in that language are not recorded on the disc, the audio or subtitles do not switch to that language. (Some discs permit switching through a menu screen. Refer to the guide provided with your disc.)

CQ-VD7700U/VD7500U

CD

Problem

No playback or disc ejected

Sound skipping or noise

Sound skipping due to vibration

Disc unejectable

MP3

Problem

No playback.

It takes too long for playback to start.

Poor recording quality, sound skipping

Files are not played in the desired order.

Folder/file name is not displayed correctly.

Possible cause a

Possible solution

The disc is inserted upside down.

a

Insert disc correctly.

There is a flaw or foreign material on the disc.

a

Remove the foreign material, or use a flawless disc.

There is a flaw or foreign material on the disc.

a

Remove the foreign material, or use a flawless disc.

The unit is not sufficiently secured.

a

Secure the unit to the console box with the rear support strap, etc.

The unit is tilted at over 30˚ in the front-to-end direction.

a

Make the angle 30˚ or less.

A label has peeled off from the CD inside the unit.

a

Refer repair to the dealer where you purchased the unit.

The microcontroller in the unit operates abnormally due to noise or other factors.

a

Press the reset switch(

a

page 85) . If there is no reset switch, unplug the power cord and plug it again. In case the unit is still out of order, consult the dealer.

E

N

G

L

I

S

H

65

Possible cause a

Possible solution

The disc does not conform to any of the file systems supported by this player.

a

Insert a disc that conforms to the file systems supported by this player.

(

a page 44).

The MP3 file is missing the “.mp3” file name extension.

a

Make sure to add the “.mp3” extension to each MP3 file name.

The folders and files recorded on the disc are layered too much.

a

As checking of files takes longer in this case, do not record any unnecessary folders or files other than MP3s on the disc.

a

The recording quality differs depending on the encoding software used, and on settings such as the bit rate. Set the bit rate within the range specified in the specifications chart (

a

page 44).

It is recommended to set the bit rate to “128 kbps or more” and “Fixed”.

High-speed writing was executed when MP3 data was recorded on the disc.

a

Decrease writing speed as low as possible.

Files or folders are not recorded in the desired playback order.

a

Some writing software lets you specify the recording order by adding a prefix in the range of “01” - “99”, etc. to the file name. For details refer to the user manual of your writing software.

The disc does not conform to the file systems supported by this player.

a

Insert a disc that conforms to the file systems supported by this player.

(

a page 44).

a

There may be a problem with your writing software or CD recorder (CD-

R/RW drive). For details refer to the user manual of your writing software.

81

CQ-VD7700U/VD7500U

E

N

G

L

I

S

H

66

Troubleshooting

(continued)

MP3 (Continued)

Problem

Possible cause a

Possible solution

File playing time is not displayed correctly.

You turned off the ignition switch of the car during playback.

a

Playing another file will return the file playing time to normal.

Radio

Problem

Poor reception or noise

The number of auto preset stations is less than 6.

Possible cause a

Possible solution

Antenna installation or wiring of antenna cable is faulty.

a

Check whether the antenna mounting position and its wiring are correct. In addition, check to see whether the antenna ground is securely connected to the chassis.

No power is supplied to the antenna amplifier (when using a film antenna, etc.).

a

Check the wiring of the antenna battery lead.

The number of receivable stations is less than 6.

a

Move to an area where the number of receivable stations is greater, and try presetting.

Preset stations cannot be stored.

The contact of the battery lead is poor, or the battery lead is not always powered.

a

Make sure that the battery lead is connected securely, and preset stations again.

SD-Card

Problem

The Card is inserted but unit can not recognize it

The unit recognizes the SD-Card but no file can be selected.

Possible cause a

Possible solution

Not initialized SD-Card is inserted.

a

Initialize the card and record the play data with your personal computer.

SD Card is out of order.

a

Replace it with new one.

No file recorded a

Record play data on SD-Card with your Personal computer.

The name of file is not proper a

Give the proper file name to your play data ( a page 50).

Car Navigation, VCR, Camcorder, Rear View Camera, Rear Monitor

Problem

Possible cause a

Possible solution

The picture from a car navigation system is not displayed.

The connection of a car navigation system is not correct.

a

Connect it correctly.

Input setting of a car navigation system is not correct.

a

Correct the input setting.

82

Car Navigation, VCR, Camcorder, Rear View Camera, Rear Monitor (Continued)

Problem

Possible cause a

Possible solution

E

N

G

L

I

S

H

67

The picture from a VCR or a camcorder is not displayed.

A VCR or Camcorder is not connected correctly.

a

Connect a VCR or Camcorder correctly.

No sound from a VCR or a camcorder.

The picture from a rear view camera is not displayed.

The VTR1-IN and/or VTR2-IN level is excessively high. (The “OVER” display appears.) a

Adjust the VTR Input level.

Rear view camera is not connected correctly.

a

Connect a rear view camera correctly.

Input setting of camera is not correct.

a

Correct the input setting.

The picture or the sound of the rear monitor is not switchable.

“AUTO” is not selected as the rear monitor setting.

a

Select “AUTO” for the setting.

Sound Settings

Problem

No sound from left, right, front, or rear speaker.

Left and right sounds are reversed.

No sound on the speaker.

Possible cause a

Possible solution

Cables are not correctly connected.

a

Connect the cables correctly.

No sound from the subwoofer

The speaker leads are connected in reverse between right and left.

a

Connect the speaker wires to the correct one.

The speaker setting is “NO” or “NONE”.

a

Set it correctly.

Playing back a disc having a subwoofer channel

¡ Subwoofer is set to “NO” in the speaker setting.

a

Set subwoofer to “YES”.

¡ Down mix a

No technical trouble. Cancel the down mix.

¡

Private mode is set to “ON”.

a

Set private mode to “OFF”.

A disc without subwoofer channel is played back, or analog audio is played back

¡ Subwoofer is set to “NO” in the speaker setting.

a

Set subwoofer to “YES”.

¡ Sound field (SPACE) is set to “OFF”.

a

No technical trouble. Set it to other than “OFF”.

¡ A disc recorded on 1 ch, 3 ch, 4 ch, or 5 ch is played back.

a

No technical trouble. No audio is output from the subwoofer when such a disc is played back.

Note: Sound does not come out of the subwoofer with default speaker setting when SPACE is set to OFF. (However, some speaker settings allow sound output even if SPACE is set to OFF.) If SPACE is set to VOCAL, the sound output level from the subwoofer is lower than with other SPACE settings (except for OFF).

83

CQ-VD7700U/VD7500U CQ-VD7700U/VD7500U

E

N

G

L

I

S

H

68

Troubleshooting

(continued)

Error Display Messages

CD/MP3/DVD/Video CD/CD Changer/SD-Card

Display

Possible cause a

Possible solution

- E1 -

Disc is dirty, or is upside down.

a

Check disc.

- E2 -

- E3 -

- E4 -

NO DISC

NO MAGAZINE

Disc has scratches.

a

Check disc.

No operation by some cause.

a Press [u]. If failure persists, press the reset switch. (Press the reset

switch in the CD changer). If normal operation is not restored, call the store where you purchased the unit or the nearest Panasonic

Servicenter.

The type of the file that is selected is not supported.

a

Check disc.

No disc is in the player.

a

Insert disc into the disc slot.

No magazine is in the changer.

a

Load the changer with CD-loaded magazine.

REGION ERROR

An attempt was made to play a disc with a region number other than “1” or

“ALL”.

a Press [u] and check the disc.

NO CARD

No card is inserted into the card slot, the card is not inserted until it clicks, or the card is defective.

a

Make sure of card insertion.

NO FILE

X

CHECK CARD

The unit cannot recognize the play file, or there is no file on the SD card.

a

Ensure that the file name is proper and MP3/AAC files are recorded with SD-Jukebox.

You are trying to play incompatible or corrupted data. These data cannot be played.

a

Check the SD-Card.

The card cannot be played.

a

Check the SD-Card.

Notes:

¡ There may be cases when the disc numbers affected by an error are displayed before E1 and E2.

¡ Displays and the steps to be taken for errors vary in part from changer to changer. For details, refer to the Operating

Instructions for the changer used.

84

CQ-VD7700U/VD7500U

If the Unit Begins to Malfunction...

Reset switch

Insert a hard, slender stick into the hole and push the switch.

Important

Push the switch only when the unit fails to operate with any buttons. (Stored settings and adjustments are not cleared.)

If the unit fails to return to normal condition, call the nearest Panasonic Servicenter and ask for repairs.

E

N

G

L

I

S

H

69

Hide-away Unit

Reset switch

Note: If the ID-CODE has been already set, you will be asked to enter the ID-CODE right after the unit is restarted.

CQ-VD7700U/VD7500U

85

E

N

G

L

I

S

H

70

Maintenance

To Prevent Damage to the System Exterior

Do not apply pesticides, benzine, thinner or other volatile substances to the unit.

The cabinet surface primarily consists of plastic materials.

Do not wipe with benzine, thinner or similar substances because this will result in discoloration or removal of the paint.

When a cloth with a cleansing chemical is used, follow the caution points.

Do not leave the unit in contact with rubber or vinyl products for long periods of time.

Do not use cleansers which have polishing granules because this could damage the surface of the unit.

Alcohol

Thinner

Pesticide

Wax

Tape

Benzine

Adhesive

Tape

Clean Dirt by Wiping Lightly with a Soft Cloth

When the unit is dirty, wipe the surface of the display using the Wiping Cloth (supplied).

Wipe lightly.

TILT OPEN / CLOSE

86

OPEN

VOLUME MUTE

CQ-VD7700U

CQ-VD7700U

IN-DASH 7" WIDESCREEN COLOR LCD MONITOR TV / DVD / SD RECEIVER

TILT

OPEN / CLOSE

SD CARD

ENTER

DISC

NAVI

NAVIGATION

DISP MODE

POWER

ASP

ASPECT

P·MODE

Without a Wiping Cloth

When the unit is dirty, wipe with a well-wrung cloth dipped in liquid dishwashing detergent (neutral) diluted with water and then go over the same surface with a dry cloth.

(Since there is the possibility of water drops getting inside of the unit, do not directly apply cleanser to the surface.)

Note: Do not scratch the screen with your nails or other hard objects. The resulting scratches or marks will obscure the image.

Caution: If water drops or similar wet substances get inside the monitor, it may cause a malfunction.

Product Servicing

If the suggestions in the charts do not solve the problem, we recommend that you take it to your nearest authorized

Panasonic Servicenter. The product should be serviced only by a qualified technician.

Replacing the Fuse

Use fuses of the same specified rating (5 A for display unit, 15 A for hide-away unit). Using different substitutes or fuses with higher rating, or connecting the product directly without a fuse, could cause a fire or damage to this unit.

If the replacement fuse fails, contact your nearest Panasonic Servicenter for service.

CQ-VD7700U/VD7500U

Notes on Discs

How to hold the disc

¡ Do not touch the underside of the disc.

¡

Do not scratch the disc.

¡ Do not bend disc.

¡

When not in use, keep disc in the case.

Do not use irregularly shaped discs.

Disc insert

The surfaces of new discs tend to be slippery. Therefore, when using such a disc for the first time, it may not load satisfactorily even when it has been inserted into the main unit. At a time like this, insert the disc into the main unit as far as it will go until it is loaded properly.

Do not leave discs in the following places:

¡

Direct sunlight

¡ Near car heaters

¡

Dirty, dusty and damp areas

¡ On seats and dashboards

Disc cleaning

Use a dry, soft cloth to wipe from the center outward.

Do not attach any seals or labels to your discs.

Do not write on the disc label with a heavy pen or ballpoint pen.

<Right>

Label side

Do not use irregularly shaped discs.

<Wrong>

Notes on CD-Rs/RWs

¡ You may have trouble playing back some CD-R/RW discs recorded on CD recorders (CD-R/RW drives), either due to their recording characteristics or dirt, fingerprints, scratches, etc. on the disc surface.

¡ CD-R/RW discs are less resistant to high temperatures and high humidity than ordinary music CDs. Leaving them inside a car for extended periods may damage them and make playback impossible.

¡

The unit may not successfully play back a CD-R/RW that was made by the combination of writing software, a CD recorder (CD-R/RW drive) and a disc if that are incompatible with one another.

¡

This player cannot play CD-R/RW discs if the session is not closed.

¡

This player cannot play CD-R/RW discs which contain other than CD-DA or MP3 data (Video CD, etc.).

¡

Be sure to observe the handling instructions of CD-R/RW discs.

E

N

G

L

I

S

H

71

87

CQ-VD7700U/VD7500U

E

N

G

L

I

S

H

72

Definition of Terms

Digital audio output connector (Optical)

The digital audio output connector (optical) converts electrical signals into optical signals and transfers them to the amplifier. Consequently, it has a number of features including its immunity from electrical interference from external sources and its ability to prevent the generation of noise and its minimal effect on the external environment. This function is provided only with CQ-VD7500U

Dolby Digital

This fully discrete format divides the music signals into 5.1 channels: Front Left (L), Front Right (R),

Center (C), Left Surround (LS), Right Surround (RS) and Subwoofer (SW: 0.1 channel) for recording and playback. The number of channels that are recorded depends on the software (1 to 5.1 channels).

Dolby Digital 5.1

Dolby Digital 5.1 is a method of transmitting and storing 5.1-channel soundtracks via newer digital media such as DVD, digital cable, digital broadcast TV (DTV), and satellite transmissions. Unlike the Dolby Surround encode/Pro Logic decode process, which sacrifices channel separation to get surround onto any stereo soundtrack, Dolby Digital 5.1 is a discrete system that keeps the multiple channels fully separated throughout the encoding and decoding processes. In addition to having full-range Left (L), Center (C), Right (R), Left

Surround (LR), and Right Surround (RS) channels,

Dolby Digital 5.1 soundtracks carry a sixth (“.1”) channel (Subwoofer) recorded with low-frequency effects (those bass rumbles and booms you feel as well as hear in a well-equipped cinema).

Manufactured under license from Dolby

Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

Dolby Pro Logic

This format records signals from four channels [Front

Left (L), Front Right (R), Center (C), and Monaural

Surround (S)] in two channels, decodes those channels through a Dolby Pro Logic decoder, and then outputs the resulting signals in four channels.

Dolby Pro Logic II

Dolby Pro Logic II is an advanced matrix decoder that derives five-channel surround (Left, Center, Right, Left

Surround, and Right Surround) from any stereo program material, whether or not it has been specifically

88

CQ-VD7700U/VD7500U

Dolby Surround encoded. On encoded material such as movie soundtracks, the sound is more like Dolby

Digital 5.1 (see above), while on unencoded stereo material such as music CDs the effect is a wider, more involving soundfield. Among other improvements over

Pro Logic, Pro Logic II provides two full-range surround channels, as opposed to Pro Logic’s single, limited-bandwidth surround channel.

Manufactured under license from Dolby

Laboratories. “Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby

Laboratories.

dts

This format requires more data than Dolby Digital, and provides higher quality surround playback.

Similar to Dolby Digital, this fully discrete format divides the music signals into 5.1 channels: Front Left

(L), Front Right (R), Center (C), Left Surround (LS),

Right Surround (RS) and Subwoofer (SW: 0.1 channel) for recording and playback.

“DTS” and “DTS Digital Surround” are registered trademarks of Digital Theater Systems, Inc.

“DTS” and “DTS 2.0” are trademarks of Digital

Theater Systems, Inc.

G.726

G.726 is a sound data standard of compression/expansion recommended by CCITT (Consultative Committee for

International Telephony and Telegraphy). Applying this standard, the PCM (Pulse Code Modulation) sound data can be compressed or expanded effectively.

The applied software is mainly used for digital telephones, digital voice recorders, digital camcorders and so on.

Interactive DVD

An interactive DVD is DVD software which includes multiple angles, multiple plot endings, etc.

Letterbox screen

This refers to a screen on which the playback picture of wide-screen DVDs or Video CDs appears with black bands running along the top and bottom.

Pan & Scan screen

This refers to a screen on which the playback picture of wide-screen DVDs or Video CDs is cut off at the left and right sides.

LPCM (Linear PCM audio)

In this format, the audio signal is converted to digital data and recorded in two channels without compression. Because the capacity of a DVD video disc is large, it can store more data with better accuracy than a CD.

MPEG4

MPEG4 (ASF) is an audio/video format for the online streaming proposed by Microsoft Corporation. This format allows you to treat audio/video data easily on your personal computer.

Generally, ASF files are so light that they can be stored on comparatively small-capacity media such as SD memory card because they are made for online streaming.

Playback control (Video CD)

If the Video CD has “With Playback Control” or something similar written on the disc surface or on the jacket, the scenes or information to be viewed (or listened to) can be selected interactively by using the menu shown on the screen.

In these instructions, playback using the menu screen is referred to as “menu play” for video CDs. This player supports Video CDs with playback control.

Title, Chapter (DVD)

DVDs are divided into large sections (titles) and/or small sections (chapters). Each section is numbered; these numbers are called “Title number” or “Chapter number”.

Title 1 Title 2

Chapter 1 Chapter 2 …… Chapter 1 ……

Track (Video CD/CD)

Video CDs or CDs are divided into some sections

(tracks). Each section is numbered; these numbers are called “Track number”.

Track 1 Track 2 Track 3 Track

……

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

E

N

G

L

I

S

H

73

89

CQ-VD7700U/VD7500U

E

N

G

L

I

S

H

74

Language Code List

How to input the language code, refer to page 67.

Code Language Name

6565 Afar

6566 Abkhazian

6570 Afrikaans

6577 Ameharic

6582 Arabic

6583 Assamese

6588 Aymara

6590 Azerbaijani

6665 Bashkir

6669 Byelorussian

6671 Bulgarian

6672 Bihari

6678 Bengali; Bangla

6679 Tibetan

6682 Breton

6765 Catalan

6779 Corsican

6783 Czech

6789 Welsh

6865 Danish

6869 German

6890 Bhutani

6976 Greek

6978 English

6979 Esperanto

6983 Spanish

6984 Estonian

6985 Basque

7065 Persian

7073 Finnish

7074 Fiji

7079 Faroese

7082 French

7089 Frisian

7165 Irish

7168 Scots Gaelic

7176 Galician

7178 Guarani

7185 Gujarati

7265 Hausa

7273 Hindi

7282 Croatian

7285 Hungarian

Code Language Name

7289 Armenian

7365 Interlingua

7378 Indonesian

7383 Icelandic

7384 Italian

7387 Hebrew

7465 Japanese

7473 Yiddish

7487 Javanese

7565 Georgian

7575 Kazakh

7576 Greenlandic

7577 Cambodian

7578 Kannada

7579 Korean

7583 Kashmiri

7585 Kurdish

7589 Kirghiz

7665 Latin

7678 Lingala

7679 Laothian

7684 Lithuanian

7686 Latvian, Lettish

7771 Malagasy

7773 Maori

7775 Macedonian

7776 Malayalam

7778 Mongolian

7779 Moldavian

7782 Marathi

7783 Malay

7784 Maltese

7789 Burmese

7865 Nauru

7869 Nepali

7876 Dutch

7879 Norwegian

7982 Oriya

8065 Panjabi

8076 Polish

8083 Pashto, Pushto

8084 Portuguese

8185 Quechua

90

CQ-VD7700U/VD7500U

Code Language Name

8277 Rhaeto-Romance

8279 Romanian

8285 Russian

8365 Sanskrit

8368 Sindhi

8372 Serbo-Croatian

8373 Singhalese

8375 Slovak

8376 Slovenian

8377 Samoan

8378 Shona

8379 Somali

8381 Albanian

8382 Serbian

8385 Sundanese

8386 Swedish

8387 Swahili

8465 Tamil

8469 Telugu

8471 Tajik

8472 Thai

8473 Tigrinya

8475 Turkmen

8476 Tagalog

8479 Tonga

8482 Turkish

8484 Tatar

8487 Twi

8575 Ukrainian

8582 Urdu

8590 Uzbek

8673 Vietnamese

8679 Volapük

8779 Wolof

8872 Xhosa

8979 Yoruba

9072 Chinese

9085 Zulu

Specifications

Display Unit

General

Power supply

Current consumption

Dimensions (W x H x D)

Weight

: 12 V DC (11 V - 16 V), test voltage 14.4 V, negative ground

: Less than 1.5 A

: 7” x 1-15/16” x 6-1/2” (178 x 50 x 165 mm)

: 5 lbs. 1 oz. (2.3 kg)

Monitor

Liquid crystal panel

Screen dimensions (W x H x D)

Number of pixels

Valid pixel ratio

Display method

Drive method

Light source

Digital audio output (For CQ-VD7500U)

Disc Sound recording format

Dolby Digital

DTS

DVD

Linear PCM

(48 kHz 16/20/24 bit)

MPEG 1

Video CD

Linear PCM

: 7” wide

: 6-1/16” x 3-7/16” x 6-15/16” (154 x 87 x 177 mm)

: 336 960 pixels (234 vertical x 480 horizontal x 3)

: Over 99.99%

: Transparent color filter format

: TFT (Thin Film Transistor) active matrix format

: Internal light (Built-in small fluorescent lamp)

Linear PCM (2 ch)

(48 kHz sampling/16 bit only)

MPEG 1 bitstream

Linear PCM (2 ch)

(44.1 kHz sampling/16 bit)

Linear PCM (2 ch)

(44.1 kHz sampling/16 bit)

CD

Linear PCM

Optical digital audio output from connector

Dolby Digital bitstream (1 – 5.1 ch)

DTS bitstream (1 – 5.1 ch)

DTS DTS bitstream (1 – 5.1 ch)

MP3

MP3

Linear PCM (2 ch)

(32 kHz/44.1 kHz/48 kHz sampling/16 bit)

Note: When a DVD audio disc is playing, no digital audio data comes out on the optical output.

E

N

G

L

I

S

H

75

CQ-VD7700U/VD7500U

91

E

N

G

L

I

S

H

76

Specifications

(continued)

Hide-away Unit

General

Power supply

Current consumption

Maximum power output

Compatible speaker impedance

Video input signal

Audio input sensitivity

Video output signal

Pre-Amp output voltage

Pre-Amp output impedance

Dimensions (W x H x D)

Weight

: 12 V DC (11 V - 16 V), test voltage 14.4 V, negative ground

: Less than 10 A (during disc playback)

: 70 W x 4 ch + 35 W (at 16 V) (CQ-VD7700U)

: 50 W x 4 ch (at 16 V) (CQ-VD7500U)

: 4 - 8

: Composite video signal, 1.0 Vp-p (75

Ω)

: 2 Vrms

: Composite video signal, 1.0 Vp-p (75

Ω)

: 5 Vrms

: Less than 60

: 13-1/8” x 1-3/4” x 6-15/16” (334 x 44 x 176 mm)

: 5 lbs. 4 oz. (2.4 kg) (CQ-VD7700U)

4 lbs. 13 oz. (2.2 kg) (CQ-VD7500U)

FM stereo radio

Frequency range

Usable sensitivity

Stereo separation

S/N ratio

AM stereo radio

Frequency range

Usable sensitivity

Image rejection ratio

:

: 87.9 - 107.9 MHz

: 12 dBf

: 35 dB (1 kHz)

70 dB

: 530 - 1 710 kHz

:

28 dB/µV

: 50 dB

Video section

Signal format

Video output

Region number

: NTSC (Standard signal format in U.S. and Japan)

: 75

Ω, 1 Vp-p

: 1 and ALL

CQ-VD7500U Audio section

Frequency characteristics

(Pre-Amp output)

(when “LARGE” is selected)

CQ-VD7700U

Front L/R, Center, Rear (surround) L/R : 20 Hz - 88 kHz

Delay time

Dolby Digital

Center : 0 - 5 ms

: 0 - 15 ms Rear (surround) L/R

Dolby Pro Logic II

Rear (surround) L/R : 15 - 30 ms

Distortion

Front L/R

S/N ratio (during DVD playback)

: 0.015 % (1 kHz, 0 dB, PCM input)

: 95 dB

20 Hz - 20 kHz

0.015 % (1 kHz, 0 dB, PCM input)

95 dB

Above specifications comply with EIA standards.

Note: Specifications and design are subject to modification without notice due to improvements in technology.

92

CQ-VD7700U/VD7500U

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
