University of Pretoria etd, Bohensky E L (2006)

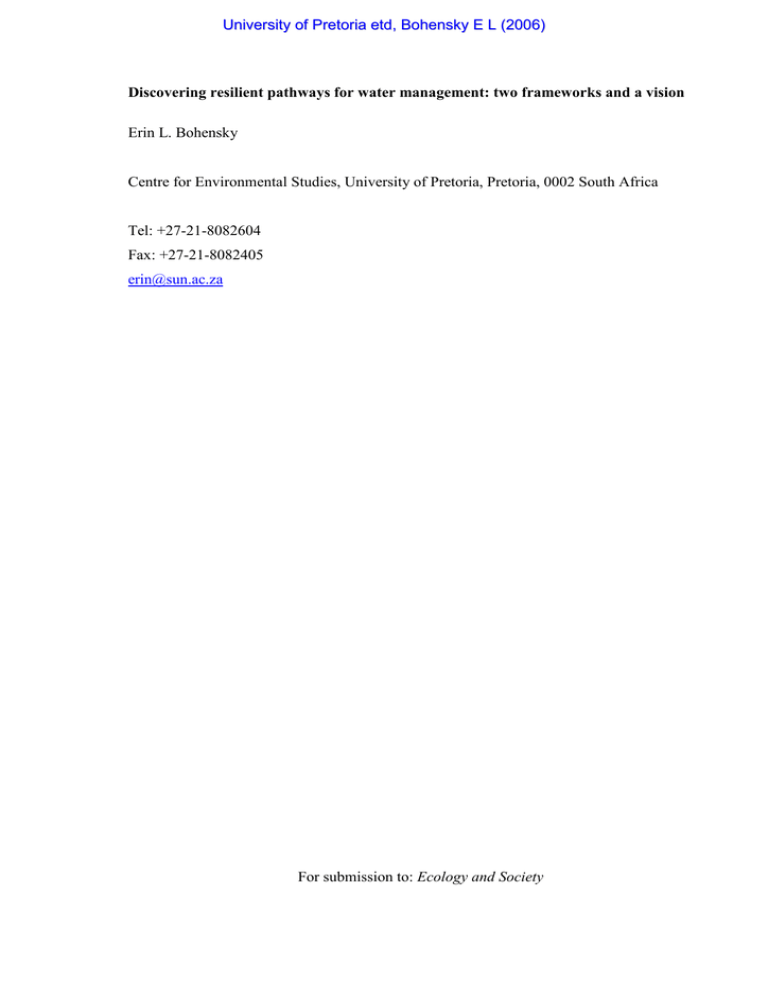

Discovering resilient pathways for water management: two frameworks and a vision
Erin L. Bohensky
Centre for Environmental Studies, University of Pretoria, Pretoria, 0002 South Africa
Tel: +27-21-8082604
Fax: +27-21-8082405
[email protected]
For submission to: Ecology and Society
University of Pretoria etd, Bohensky E L (2006)
6. Discovering resilient pathways
Abstract
Resilience is the amount of change or disturbance a system can withstand and still
maintain its essential structure, function, and identity. Because social-ecological systems
(SES) undergo constant change, managers of SES must recognize and focus on resilient
‘pathways,’ in which learning about and maintaining resilience is a dynamic process; a
journey to a more desirable and achievable future based on a long-term perspective of the
system. Several compelling frameworks and models now exist to better understand resilience
from this perspective and to improve management of practical problems. In this paper, I
compare the ability of two frameworks to discover resilient pathways, using the case of water
management in South Africa as a focal example. These are: 1) the conceptual framework of
the Millennium Ecosystem Assessment and 2) the “panarchy” model of the adaptive cycle
described by Holling and elaborated by numerous others. Current South African water policy
is guided by an overarching vision to balance efficiency, equity, and sustainability, but as of
yet, the concept of resilience has not been fully incorporated into plans to achieve this vision.
While both frameworks yield insights in this arena, each has limitations that may reduce its
usefulness to managers, especially in regard to the representation of dynamics across space
and time, changes in perception, and trade-offs. Improving these or other frameworks so that
they are more useful to management should be a top priority, in order to more rigorously
incorporate the concept of resilience into the water management discourse in South Africa,
particularly at this critical time of change and opportunity.
136
University of Pretoria etd, Bohensky E L (2006)
6. Discovering resilient pathways
Resilience in social-ecological systems: the temporal dimension
The view of humans and nature as coupled complex systems is gaining currency in
ecological and social science, and with it, theory is proliferating to understand how these
systems work and how management can consciously make them more robust (Walker et al
2002, Allison and Hobbes 2004). Increasingly, the ability to understand why management
regimes for social-ecological systems (Berkes et al. 2003) succeed or fail is seen to hinge on
the crucial property of resilience (Allison and Hobbes 2004, Ludwig and Stafford-Smith
2005). Resilience has multiple meanings, but is used here to refer to the ability of a system to
retain its essential structure and function in the face of disturbance or change (Rappaport
1968, Holling 1973, Levin 1999). This may be expressed in terms of identity, meaning the
system’s critical components, their relationships in space and time, and the innovation and/or
self-organization that maintain them (Cumming et al. 2005), or the ecosystem services the
system provides (Walker et al. 2002). Resilient systems tend to be flexible, self-organizing
(rather than controlled by external forces), and can build the capacity to learn and adapt
(Carpenter et al. 2001). Though seminal work on resilience has addressed mainly its
ecological dimensions (Holling 1973), there is an increasing recognition of the need to better
understand social aspects of resilience (Gunderson and Folke 2005), as well as relationships
between the two (Adger 2000, Cumming et al. 2005). This accompanies recent developments
in resilience theory that focus on fostering sustainability by embracing change and
transformation (Gunderson and Holling 2002, Walker et al. 2004).
Resilience has an important temporal dimension in that social-ecological systems tend
to shift over time (and correspondingly, space) between alternative configurations. It may
therefore be more useful to view resilience as a property of a particular configuration of a
system than of a system itself (Carpenter et al. 2001). These alternative system configurations
provide different combinations of ecosystem services; a lake in a eutrophic state may offer
nearby communities the service of waste disposal for agricultural runoff, while an
oligotrophic lake may offer the services of recreation and a domestic water supply that
requires little treatment (Carpenter et al. 2001). This is not to say that these services are tied
exclusively to these configurations; instead, the same services may be derived from
ecosystems under different management regimes and degrees of conversion (Balmford et al.
2002). However, disturbance and change can result in abrupt, non-linear shifts that move the
system past a threshold, beyond which services can no longer be provided as they were
previously (MA 2005). In this case, configuration x of a social-ecological system can be said
137
University of Pretoria etd, Bohensky E L (2006)
6. Discovering resilient pathways
to lack resilience to disturbance y, and is forced to transform, or flip, into another
configuration – in what may appear to be the collapse of the system as it is presently known.
Such a collapse, however, does not usually affect the entire system, but rather a particular
configuration and associated ecosystem services. Numerous empirical studies exist that
demonstrate this in a range of ecosystems under different management regimes, such as the
lakes described above (see Scheffer et al. 2001 for a review).
Because such changes may be driven by slow variables (Carpenter and Turner 2001)
and are often not observable within the average human lifetime, studies of resilience that
appropriate a ‘deep time’ perspective that incorporates a system’s past, present, and future are
of interest in social-ecological systems research (van der Leeuw and Aschan-Leygonie 2000,
Redman and Kinzig 2003). Understanding of resilience has benefited in particular from the
study of ancient societies, from which rich social-ecological histories can be reconstructed
(Janssen et al. 2003, Redman and Kinzig 2003). In addition, a long-term perspective
encapsulates the changing social contexts for managing social-ecological systems (Bohensky
and Lynam 2005); definitions of what is socially desirable are always anchored to a temporal
reference point. The ecological contexts for management also change. As Scheffer et al.
(2001) observe on the challenge of ecosystem restoration: “resilient approaches acknowledge
that recovery of systems from one regime to another must acknowledge that the path back is
likely to be very different from the one forward.”
Given the dynamic properties of resilience, the concept of “resilient pathways”
(Walker et al. 2002) offers an appropriate frame for understanding resilience in socialecological systems and managing to enhance resilience. The identification of these pathways
can be seen as a process of discovery, a journey that involves learning from the past, along
with the recognition that the future may be quite different from anything experienced before,
and the acceptance of uncertainty (Redman and Kinzig 2003). Discovering resilient pathways
is about learning by doing – improving understanding through management, and vice versa
(Lee 1993).
Resilience is becoming an integral concept in water management worldwide
(Falkenmark 2003, Folke 2003, Moench 2005) and has particular relevance to South Africa,
where much change in its water sector is now occurring (Mackay et al. 2003). However, the
potential benefits of resilience theory sit precariously alongside the danger of overwhelming
policymakers with confusing, conflicting, or - because it is not arrived at through consensus mistrusted information (Dent 2000), leading to inappropriate or limited interpretation
(Cumming et al. 2005). Mechanisms are thus needed that allow stakeholders to develop a
138
University of Pretoria etd, Bohensky E L (2006)
6. Discovering resilient pathways
shared understanding of past trajectories, and be able to link theory to practice so that they are
able to identify and navigate water management along more resilient pathways. A number of
frameworks exist, but their ability to contribute to the real-world problem of water
management in South Africa is not clear.
In this paper I evaluate the potential of two existing conceptual frameworks to assist
the discovery of resilient pathways for South African water management. The first is the
conceptual framework of the Millennium Ecosystem Assessment, an effort to provide
decision-makers with information about relationships between ecosystems and human wellbeing (MA 2003). The second is the “panarchy model” of linked adaptive cycles described by
Holling (1986, 1987, 2001) and central to the work of the Resilience Alliance
(http://www.resalliance.org), which seeks to understand the source and role of transforming
change in social-ecological systems (Gunderson and Holling 2002). Both are to some extent
already informing water policy and policy-relevant research in South Africa (see Rogers and
Biggs 1999, Rogers et al. 2000, Turton and Henwood 2002, Nel et al. 2004, Turton et al.
2005), and both enable long-term perspectives on resilience or closely related concepts. Only
the panarchy model deals explicitly with resilience, but the Millennium Assessment
framework addresses it implicitly. Below I describe the evolution of water management in
South Africa to date, and the Water Act’s fundamental vision of an efficient, equitable, and
sustainable water management future. I then explore these frameworks and how they may
help to inform this vision.
Evolution of water management in South Africa
Water management in South Africa has historically been challenged by a semi-arid
climate and the distance of mineral deposits from large rivers, which encouraged settlement
far from major water sources (Basson et al. 1997). From the mid-19th century until the present
day, water management has become increasingly complex as the relationship between people
and water changed (Turton and Meissner 2003) and human populations and their aspirations
for water use grew (Table 6.1). For much of this period, the sector’s focus was on getting
water to farms and industries, with increasingly costly technical interventions such as dams
and diversions assuring supplies and subsidies for commercial agriculture that discouraged
sustainability (WCD 2000). Until 1994, which saw the end of minority rule under the
apartheid system, water management in South Africa was rooted in highly inequitable policies
that favored White individuals and the support base of the ruling political parties of the day.
139
University of Pretoria etd, Bohensky E L (2006)
6. Discovering resilient pathways
Table 6.1. Water management in South Africa: a timeline of events
Year(s)
1800s
18201870
1872
1880
1880s1890s
1895
1903
1912
1920s
1928
1937
1935
1943
1949
1940s1970s
1950s
1956
1962-3
1965
1970s
1970
1971
1971
1975
1978
1986
Late1980s
1992
1995
1995
1998
1998
2004
2005
Event
Korana people farm on Gariep (Orange) River banks; Europeans build irrigation scheme at Upington
A large influx of settlers from around the world introduces 11 of the 12 invasive species that now
cause the greatest problems in fynbos biome
First dam constructed in Gariep basin
Gold discovered in Johannesburg; water demands rise throughout surrounding Witwatersrand region
Botanists begin to note the spread of nonnative plants over mountain slopes and losses of endemic
species in fynbos vegetation, while foresters promote mountain plantations of non-native trees
All major Witwatersrand aquifers tapped; Johannesburg experiences water shortages
Rand Water Board established
Passage of South Africa’s Irrigation and Conservation of Water Act lays foundation for future water
allocation, reserving surplus water for private property owners and establishing irrigation boards
Controversy about effects of forest plantations on water supplies begins; demand for commercial
timber products will drive high rates of afforestation with non-native hardwoods for next 60 years
Department of Irrigation conceives idea of Orange River Development Project, but considered too
costly
Passage of the Weeds Act; poor enforcement due to lack of field staff and resources
Salinity levels in Vaal Dam begin to increase due to increasing industrial activities
Annual flow of Gariep River reaches 62-year high of 25,472 million cubic metres†
Purification works built to clean or divert highly saline water in the Vaal catchment
Hydrological studies show that plantations have a negative effect on streamflow; efforts to control
invasives are launched, but are uncoordinated, erratic, and hampered by limited follow-up clearing
First survey of Basutoland (now Lesotho)’s water resources undertaken to assess viability of water
exportation to South Africa
South Africa passes Water Act no. 54 to accommodate needs of industrial expansion
Political climate enables Orange River Development Project to win approval; poor planning results in
delays and a quadrupling of initial budget
Marked acceleration of Vaal Dam salinity problem
Blackfly (Simulium chutteri) acquires pest status along Vaal, Gariep and Great Fish Rivers after
completion of Bloemhof, Gariep, Van der Kloof Dams and Orange-Fish Tunnel.
Mountain Catchment Act passed, giving responsibility for high-lying catchments to Department of
Forestry; alien plants are cleared from tens of thousands of hectares
Gariep Dam completed; storage capacity (5341 million cubic metres) equal to roughly one-third of
Gariep basin’s total runoff
Water Research Commission created to initiate and fund research projects related to water
management
Orange-Fish Tunnel begins delivering water from Gariep River to Eastern Cape Province
Vanderkloof Dam completed, the highest (108m) in South Africa
Treaty signed to implement Lesotho Highlands Water Project (LHWP) after 8 years of negotiations
Mountain catchment management responsibility passed from Department of Forestry to provinces;
lack of funding hampers integrated invasive plant control programs and plants re-invade cleared areas
Annual flow of Gariep River reaches 62-year low of 818 million cubic metres†
DWAF minister Kader Asmal founds Working for Water Programme, which hires 7,000 people and
clears 33,000 ha in its first 8 months
Katse Dam – at 185 metres, the highest in Africa - completed in Lesotho’s Maloti Mountains
South Africa’s Water Act no. 36 declares adequate water a basic human and environmental right
LHWP completed; first LHWP water is released
National Water Resources Strategy completed, paving the way for Water Act implementation; first
proposals to establish Catchment Management Agencies completed
Olifants River stops flowing into lower reaches for first time in recorded history, threatening
biodiversity in downstream Kruger National Park
Sources: Herold et al. 1992; Chutter et al. 1996; World Commission on Dams 2000; WRI 2000; Thompson et al.
2001; Turton and Meissner 2002; DWAF 2003; Metsi Consultants 2002; Myburgh and Nevill 2003.
†
Based on annual flow records from 1935-1997; mean flow for period was 6980 million cubic metres.
140
University of Pretoria etd, Bohensky E L (2006)
6. Discovering resilient pathways
Non-White individuals were restricted to certain areas, typically of higher aridity, lower
productivity, and lacking in formal water services (Turton and Meissner 2003).
In the years that followed South Africa’s democratic elections in 1994, the National
Water Act No. 36 of 1998 was penned to set the course for dramatic change in the
management of water. Founded on the principles of efficiency, equity, and sustainability, the
act defines water for basic human needs and for the maintenance of environmental
sustainability as a right, and promotes economic efficiency of water use through charges for
the financial costs of providing water to users (DWAF 2004a). The Act enforces a “Reserve”
that sets water aside for the purposes of meeting basic human and ecosystem needs. Critically,
the law devolves management of water to new institutions at the catchment level, called
Catchment Management Agencies (CMAs). While the CMAs are the pivotal institutional
entity in the new water management framework, they will work with local Catchment
Management Committees and stakeholder organizations, which will guide the process within
each catchment to decide the desired balance between protection and utilization of water
resources and to establish a course of action to achieve this. They will also be subordinate to
the national ministry, who will retain certain functions. Thus, there will be three tiers of water
management: operational (catchment), strategic (catchment or Water Management Area
(WMA)), and policy (national or regional) (MacKay et al. 2003), each operating on a different
spatial as well as temporal scale.
The discovery of resilient pathways takes on critical importance at this time of change.
Because of large-scale interventions in South Africa’s water supply and investments in
expensive water quality treatment schemes (Herold et al. 1992), the capacity of what are
actually highly transformed freshwater systems to deliver provisioning ecosystem services
(water for people, farms, and industry) may appear to be highly resilient particularly to the
many water users who are unaware of the great distances over which their water has travelled
to reach them (Snaddon et al. 1998). However, the generation of runoff is only one function of
these systems, and other ecosystem services have not fared as well. Water managers, like
other natural resource managers, have had a tendency to trade off ecosystem services in space
or time, often optimizing for a certain output and disregarding others (Gunderson 2000). In
South Africa as elsewhere, most past responses improved provisioning ecosystem services
and some regulating services (protection against drought and floods, and dilution of
pollutants), with benefits flowing to many, but certainly not the whole of society (WCD 2000,
MA 2005). These improvements have often come at the expense of supporting services (instream flows for aquatic biota), and cultural services (recreation, nature-based tourism,
141
University of Pretoria etd, Bohensky E L (2006)
6. Discovering resilient pathways
preservation of sacred sites, and cultural appreciation and use of water), and sometimes the
provisioning and regulating services that they were originally intended to secure. The building
of the Orange River Development Project in the 1960s, for example, improved water
availability for the commercial farming sector, but altered river flows so drastically that a
prolific pest blackfly (Simulium chutteri) invaded a large section of river used by livestock
farmers, and has required significant investments in mitigation ever since (Myburgh and
Nevill 2003).
At present, South African water management sits on the brink of a major
transformation. The new policies enable water users and managers to collectively decide how
to reap the multiple benefits of water, asking them to carefully define their objectives for the
systems in which they live and the pathways they will follow to get there. However, they are
faced with the formidable task of striking a balance between social equity and ecological
sustainability: How to derive benefits for all – including some 5 million South Africans who
still lack access to a safe and reliable water supply and another 16 million without sanitation
(DWAF 2004b) – without taxing the ecosystems that produce them? The pathway forward
depends to a large degree on the capacity of water users, managers, and institutions to plot a
sustainable course to govern resources in the coming years, based on a mutual vision of the
future (Rogers and Biggs 1999).
A vision for water management
A vision in terms of the South African Water Act refers to a universally-accepted
conceptualization of how water will be managed in the future and the ecosystem services that
will be maintained, so that the three Water Act principles of efficiency, equity, and
sustainability are upheld. Such a vision is expected to be achieved through the integration of
social values, scientific knowledge, and management experience in a multi-party system
(Rogers and Bestbier 1997, Rogers and Biggs 1999).
Defining a desired trajectory for water management requires a sound and shared
understanding of the biophysical processes that govern water resources and the array of
ecosystem services that they provide; it also demands an understanding of the human
(individual, social, and cultural) dependence and impacts on these services (MA 2003). To
date, more progress has probably made on the first aspect in South Africa (van Wyk et al.
2001). Initiatives such as the National Spatial Biodiversity Assessment (Driver et al. 2005),
which have analyzed the spatial distribution of freshwater biodiversity and the level of threat
142
University of Pretoria etd, Bohensky E L (2006)
6. Discovering resilient pathways
imposed by current land use, water abstraction, and other human activities, provide a
reasonably good basis for understanding ecological integrity and vulnerability (Nel et al.
2004). Efforts to actually map the full range of ecosystem services provided by freshwater in
South Africa are only beginning (Bohensky et al. 2004, Reyers et al. 2005) and must currently
be inferred from an water resources classification system (Palmer et al. 2004) that indicate the
extent of modification of each water resource in the country. As the classification process is
still being refined, only desktop estimates are presently available (Kleynhans 2000) based on
data collected in 1998 and 1999 and regional expert knowledge, but allow for a rudimentary
comparison of present, suggested, and default ecological management classes, and the
plotting of various pathways of future water management. Figure 6.1 illustrates such a
pathway, revealing how past actions have increased the range of ecosystem services in some
areas but have reduced it in others. This also suggests one possible vision for the future, and
identifies areas to target for restoration.
Present
Past (default, prior
to modification)
Future: possible attainable vision
Figure 6.1. A possible pathway of water use, based on past, present and suggested future
ecological management classes (Kleynhans 2000).
143
University of Pretoria etd, Bohensky E L (2006)
6. Discovering resilient pathways
Little work has dealt with the other side of the equation – the extent to which these
services actually reach people, growing human demands for water, and trade-offs between
services and human well-being. In moving from the present to the future of water
management, sacrifices will be made: which ones will be considered acceptable, and where
will the power to make such decisions reside? Such questions are rooted in the social
dimension of resilience. One avenue of research related to social resilience in South African
water management is Ohlsson and Turton (2000)’s exploration of social adaptive capacity.
Social adaptive capacity is defined as the ability of society to manage water scarcity (what the
authors call “first order scarcity”), usually through economic (“second order scarcity”) means.
More recent work by Turton et al. (2005) proposes a model of water governance, which unites
government, society, and science in an integrated view of the water scarcity concept. This
model shows promise as a mechanism for linking social aspects of water management to
those related to ecological resilience.
Two frameworks
Millennium Ecosystem Assessment
The Millennium Ecosystem Assessment (MA) was a four-year international work
program to bring scientific information about the relationships between ecosystems and
human well-being to decision-makers in government, institutions, communities, and private
industry (MA 2005). The program was designed around a conceptual framework that
identifies the relationships between indirect and direct drivers of ecosystem change,
ecosystem services, and human well-being (Figure 6.2). Indirect drivers include
demographics, economy, institutions, technology, and culture and religion which influence
human behaviour. These can affect human well-being directly or indirectly via direct drivers,
which include environmental processes such as climate change, land use change, hydrological
change, which in turn affect ecosystem services. Human well-being may have feedbacks on
indirect drivers. Within the framework there are opportunities for responses, or strategies and
interventions that can halt, reverse, or otherwise change a process in order to enhance human
well-being and conserve ecosystems. The interactions depicted by the framework occur at and
across various spatial and temporal scales. The Millennium Ecosystem Assessment did not
focus explicitly on resilience, but acknowledges both ecological and social aspects of
144
University of Pretoria etd, Bohensky E L (2006)
6. Discovering resilient pathways
Figure 6.2. Conceptual framework of the Millennium Ecosystem Assessment (MA 2005).
Key components of the framework are indirect drivers, direct drivers, ecosystem services, and
human well-being and poverty reduction, and the relationships between components. Note
that there are no interventions in the relationship between ecosystem services and human
well-being, which is assumed to be unalterable, although it is possible to alter this relationship
through the drivers that act on ecosystem services and human well-being.
145
University of Pretoria etd, Bohensky E L (2006)
6. Discovering resilient pathways
•
•
•
!
"
%
# $
#
&
!
$ "
#
!
"
"
$
$
7 7
$
,
-
2
$
"
$
0
0
$$
#
$ "
# $
2
$"
%
!
$
& '
( )
* (
$
# $
2
2
!
+
$$
"
!
"
' "
++ $
'
2
-
3
$4556
2
)
$
$
+
,
2
"
.
/
"
$0
$! 1
'
# ( )
'
$
2
*
$
+
$"
#
$
2
+
,
$
' "
$
#2
•
•
Figure 6.3. Adaptation of the MA conceptual framework to depict two iterations of South
African water management. An asterisk (*) denotes features that are both drivers and (direct
and indirect) responses for managing water.
146
University of Pretoria etd, Bohensky E L (2006)
6. Discovering resilient pathways
resilience in line with the definition above (MA 2005).
In Figure 6.3, the generic components of the framework shown in Figure 6.2 are
populated with the South African water example. For the sake of simplicity and clarity, only
the dynamics that are thought to be most relevant to social-ecological system resilience are
included. Because water management today is significantly shaped by numerous events and
processes that have dominated the past century, two iterations of the framework are shown,
each of which depicts an era of water management. In addition, because water management at
the national scale is linked to processes at global, regional, and local scales, two boxes are
added to Figure 6.3. in which some of the main higher- and lower-level drivers are listed.
In the first iteration, the apartheid regime and its policies (indirect drivers of change)
encourage the building of large dams and other infrastructure in support of commercial
agriculture (direct drivers of change). These effect an ecological regime shift in the most
modified catchments of the country, whereby highly altered flow regimes cause large changes
in aquatic chemistry and biota (Chutter et al. 1996). There are adverse effects on human wellbeing but also beneficial ones; the dam projects displace some communities but commercial
farms are a major source of employment (MacKay 2003). During this time, commercial
forestry plantations of non-native species in mountain catchments proliferate and reduce
streamflow (Görgens and van Wilgen 2004); they also facilitate the spread of non-commercial
invasive alien plant species (Le Maitre et al. 2004).
The transition from the first to second era comes about as part of the growing internal
and external resistance to apartheid and its economic, social, and environmental consequences
(MacKay 2003). In the second iteration, the nature of drivers shifts to some degree from
technical responses aimed at supporting commercial agriculture and industry to a broader,
integrative approach that makes legal provision for the satisfaction of basic human and
ecological needs. Since this era is still in progress, few of the effects of this new approach on
ecosystems and their services are observable at present, although efforts such as the Working
for Water Programme to restore ecosystems through invasive plant eradication have
demonstrated substantial benefits for water resources (Görgens and van Wilgen 2004). Human
well-being is expected to improve in time from the policy changes, particularly through
increased access to water supplies (DWAF 2004b) and participatory decision-making, but
there is limited evidence of improvement at present. Gains may also be offset by the past
erosion of ecological integrity and detrimental feedbacks on current and future human wellbeing, though thus far not well documented or understood. Additionally, the new water
management policies eliminate subsidies for commercial agriculture with the aim of
147
University of Pretoria etd, Bohensky E L (2006)
6. Discovering resilient pathways
internalizing some of the high costs of agriculture that were previously passed on to society
and ecosystems, but to some extent compromising the economic viability of this sector
(MacKay 2003).
To indicate the continuation of the cycle over time, the framework is amended with
the addition of an arrow from the human-well being box in the first iteration to the indirect
drivers box in the second iteration. While indirect drivers change from the first era to the
second, some of the direct drivers that operate in the first era, such as investment in
infrastructure to support supply-side water management, continue to operate in the present
and are expected to form part of the national water supply strategy for the foreseeable future
(DWAF 2004a). A second arrow is inserted to show the continued influence of the firstiteration direct drivers in the second iteration. Arrows are also drawn from the “global and
regional drivers” and “local drivers” boxes to the second iteration of the national-scale
dynamics, where these cross-scale links become apparent.
In populating the framework with this example, one observes that some elements can
be categorized as drivers and responses, depending on the reference point in space and time.
In fact, one can argue that all of the anthropogenic drivers of change in ecosystems and their
services are human responses in one form or another. Indeed, the categorization of such
elements may depend on the use of the framework: an assessment intended to identify or
improve policies may prefer to consider these as responses, whereas an assessment focused on
understanding processes may opt to label these as drivers. For the purposes of this paper, in
which the intent is closer to the latter, these elements are identified as drivers in Figure 6.3,
but are noted with an asterisk, while possible interventions in the relationships between
components are not shown.
Panarchy
The panarchy model is a theory of complex system dynamics, of which the adaptive
cycle is a central feature (Holling 1986, 1987, 2001, Holling and Gunderson 2002). The cycle
describes four phases or ecosystem functions: growth or exploitation, denoted by r, in which
recently disturbed areas are rapidly colonized; conservation (K), in which energy and material
are slowly accumulated and stored; release ( ), in which the tightly bound accumulation of
biomass becomes increasingly fragile until it is suddenly released by external agents; and
reorganization ( ), in which resources are reconfigured to take advantage of new
opportunities. While this description refers to ecosystems, it also applies to social or social148
University of Pretoria etd, Bohensky E L (2006)
6. Discovering resilient pathways
ecological systems, which likewise progress through phases of growth, conservation, release,
and reorganization (Redman and Kinzig 2003).
The cycle can be illustrated as a heuristic model best represented as a “figure of eight”
in two-dimensional space, with connectedness on the x axis and potential or capital on the y
axis (Holling and Gunderson 2002; Figure 6.4). Connectedness refers to the strength of
internal links or relationships that mediate external variability. A certain amount of
connectedness has advantages, but it is possible for a system to become overconnected, which
reduces external variability and increases system rigidity. Potential means the capability for
change through accumulated resources, whether ecological, social, or economic. The length of
the arrows between the phases indicates the speed of transition; the model suggests that the
system moves quickly from exploitation to conservation, and more slowly from conservation
to release and from release to reorganization. At this point, the system may exit from the cycle
and enter a second iteration as an alternatively configured system (Holling 1986). The cycle
then begins again. “Panarchy” refers to a series of linked and often nested cycles that evolve
through space and time (Holling et al. 2002).
Potential
Connectedness
Figure 6.4. The panarchy model (Holling 2001) is comprised of four ecosystem phases (r, K,
, and ) and the flow of events between them. Figure adapted from Moench (2005).
149
University of Pretoria etd, Bohensky E L (2006)
6. Discovering resilient pathways
Iteration 1.
Increased management rigidity, reduced
ecosystem variability, rising costs of treating
water quality and invasive species, increasing
modification of ecosystems
New South African government
elected; move to pass new water
legislation
K
Potential
r
“Get more water” era: dam building, interbasin transfers, exclusiveness
of decision making
Social and economic unsustainability of
political system precipitates collapse;
ecosystem degradation recognized
Connectedness
Paradigm shift with partial state
‘flip’; some aspects of previous era’s
legacy endure
Iteration 2.
Increasing connectedness within region and
sharing of /competition for water;
Emphasis on efficiency, equity, sustainability
principles?
CMAs dominated by powerful interest groups?
K
Potential
r
“Some, for All, Forever” era: establishment
of Catchment Management Agencies,
participatory decision-making structures
Connectedness
Figure 6.5. The panarchy model of the adaptive cycle is used to depict the dynamics in South
African water management during the previous (iteration 1) and current (iteration 2) eras.
150
University of Pretoria etd, Bohensky E L (2006)
6. Discovering resilient pathways
In Figure 6.5, the South African water management example is worked through the
panarchy model. As with the MA framework, two iterations are shown. The first depicts the
previous “get more water” era of management (Dent 2000), which has completed one full
phase of the adaptive cycle. During the exploitation phase, increasing investment is made in
large infrastructure as potential and connectedness both increase. This leads to greater
management rigidity, and through reduced ecosystem variability, increasing degradation,
though the ecosystem services of water and food production increase. Forces largely external
to the water management system, in the form of social discontent, economic decline, and
political pressure, eventually leads to the collapse of the apartheid government. As the system
reorganizes, old water laws are repealed and an extensive consultation process commences to
draft new laws.
The second iteration of the cycle begins. At this point in time, the overall system
undergoes a paradigm shift but only a partial change in configuration. The Water Act marks a
phase of reorganization, but the system is saddled with the legacy of the past era’s high-cost
responses that severely limit flexibility in achieving the Act’s efficiency, equity, and
sustainability principles: large dams, interbasin transfers, and treatment of invasive species
and pollution. The system has endured some partial crises and collapses, but none that have
overwhelmed it entirely because there has been sufficient ecological and social resilience
overall to buffer the effects of disturbance. This does not preclude the future occurrence of a
larger-scale crisis, however. Past actions have compromised many future options; freshwater
biodiversity is considered transformed in 26% of the country’s mainstem rivers to the point
that rehabilitation is no longer possible (Nel et al. 2004).
As water management moves into the second iteration, there is increasing
connectedness within the social-ecological system. The South African economy is highly
dependent on inter-basin transfers. In Gauteng Province, which generates the majority of
South Africa’s wealth, all economically-productive water is transferred from catchments
outside the province (Basson et al. 1997). South Africa is now highly reliant on the water
resources of Lesotho through a multi-billion dollar water project (Metsi Consultants 2002).
Water resources are shared with four additional neighboring countries, all with growing
demands.
Connectedness extends beyond links between surface water resources; there are
interactions between surface and ground water, for example, with groundwater becoming an
increasingly important resource in many areas, over-abstraction may deplete surface water
(Haupt 2001). There are also increasing water-atmosphere connections; in the Vaal
151
University of Pretoria etd, Bohensky E L (2006)
6. Discovering resilient pathways
catchment, salinity, already a substantial problem, is believed to have increased due to
atmospheric deposition from the area’s power plants and other industries (Herold et al. 1992).
The effect of the new Catchment Management Agencies (CMA)s on this
connectedness is unclear; in theory; the devolution of water management functions to CMAs
provides insurance against over-connectedness, as each develops its own system and style of
governance in its Water Management Area. However, there is a danger that some CMAs may
be dominated by powerful interests (Chikozho 2005), lack capacity to carry out their
functions (Pollard and du Toit 2005), or revert to the old practices of the Department of Water
Affairs and Forestry – simply becoming regional extensions of the national department rather
than reasonably autonomous entities (Dent 2005).
Analysis of frameworks
A framework should be used to understand the past or guide the future; the resilient
pathways concept suggests that it needs to do both. Bearing this is mind, can these
frameworks help to clarify the vision of the South African Water Act and ultimately achieve
it?
It is possible to trace the past era of water management through a full cycle of the MA
framework and the panarchy model. The previous era appears to be traceable through the
direct drivers box in the MA framework; many of the effects of these drivers on ecosystem
services and human well-being remain uncertain at present. The current era of water
management is traceable through the very early exploitation and growth phase in the panarchy
model; some elements are more likely to remain in the reorganization phase, while other
elements have not actually exited from the previous iteration of the cycle. Beyond these
points, only inferences may be made and possible scenarios sketched about the future course
of events.
From this exercise, several findings emerge about water management dynamics and
the application of these frameworks. The first is that cross-scale connectedness has increased
over time. In the system’s first iteration, during the “get more water” era, there is little need to
include regional or local processes in either illustration of the example. During the second
iteration, increasing awareness of global and regional change (e.g. climate, trade), and
increasing involvement of local institutions and communities in decision making, create a
need to expand upon the illustration with links to these processes. This emphasizes a
particular limitation encountered in using the MA framework that arises from the static
152
University of Pretoria etd, Bohensky E L (2006)
6. Discovering resilient pathways
relationship that the framework implies (Zermoglio et al. 2006). As noted above, the
distinction between drivers and responses can be somewhat ambiguous. In addition, issues of
temporal scale are difficult to capture with the generic framework. Links between scales may
change over time (Gunderson et al. 2002); in the example, they become more relevant in the
second iteration, where connectedness to global and regional processes increases in the postapartheid environment, while sensitivity to local processes increases with the decentralization
of decision-making.
These limitations, however, underscore an important finding about the changing
dynamics of water management: a fundamental change from the first to second iteration is
one in the managers’ understanding and acceptance of connectedness (Gunderson et al.
2002). Regional and local processes have always influenced water resource dynamics in
South Africa, but were previously ignored by managers who treated the system as closed
(Bohensky and Lynam 2005). While the MA framework does treat human behavior and
perception as an indirect driver, neither of these two frameworks seem to cater for a
distinction between “actual” and perceived dynamics, with the latter often being equally if not
more important than any physical system change.
Secondly, managers rarely have a clean slate to work upon at the beginning of a new
iteration because of the legacy effects of past management actions. Consequences of the past
still linger now, as remnants from management decisions taken today will linger in the future.
The adaptation of the panarchy model to the South African water situation suggests that some
options have been eliminated or constrained, and even as a new iteration of the cycle begins
after a partial release, the system may be too overconnected.
A third finding relates to trade-offs, which are inherent in social-ecological systems.
The MA framework suggests that improvements in ecosystem services and human well-being
are not always synergistic; more often there are trade-offs. One may be inclined to conclude though never implied by the framework - that ‘good’ drivers will lead to ‘better’ ecosystem
services and then to ‘better’ human well-being, but this is in fact a gross simplification.
Interestingly, the MA invested great efforts in assessing trade-offs (MA 2005), and that the
framework does not more explicitly accommodate their representation is somewhat
surprising. The panarchy model, by contrast, does capture an important trade-off of a different
nature, between connectedness and potential. This may manifest, for example, in the decision
to manage for productivity or to manage for sustainability (Walker et al. 2002). Note that a
system in the upper-right quadrant (high potential and connectedness) is unlikely to persist in
its current configuration.
153
University of Pretoria etd, Bohensky E L (2006)
6. Discovering resilient pathways
The emphasis of current work on ecological aspects of the vision for South African
water management suggests that the social aspects of the vision need more development. Both
frameworks, and indeed the broader study of resilience, may contribute in this regard, in that
they begin to break down the barriers that have traditionally separated the study of human and
natural systems. They do this in quite different ways, however. The MA framework includes
the crucial feedback from human well-being to drivers of ecosystem change. This is an aspect
of natural resource management and decision-making that is typically ignored and generally
very poorly understood, though so often at the center of a debate on whether impoverished (in
all senses of the word) people cause more environmental destruction than their more well-off
counterparts (MA 2003). The panarchy model, on the other hand, does not use a
compartmentalization that distinguishes ecological and human components of the system, but
rather treats them as one. The MA framework, which treats ecosystem services and human
well-being as distinct boxes or arrows, describes the elements of the system - though this may
pose a challenge for elements which may not be neatly categorized, as noted above. The
panarchy model describes its processes, fluxes, and transitions – how the relationships
captured in the framework may change over time.
It is important to note the different intentions of these frameworks; the MA framework
was developed to assist decision-makers in understanding the relationships between
ecosystems and human well-being, while the panarchy effort sought to develop an integrative
theory of adaptive change that applies to some, if not all, social-ecological systems. The MA
framework may be more accessible as a tool for identifying management responses, whereas
the panarchy model is somewhat vague as a mechanism for guiding action. Alternatively, the
two could be used together, where researchers and managers use the MA framework to define
the elements and their relationships to one another at a particular scale of space and time, and
then use the panarchy model to see how these relationships may change or gain or lose
relevance as the system evolves.
Both frameworks run the risk of being too general, but this does not make them
useless where sufficient flexibility is allowed. The Millennium Assessment framework, for
example, was considered too abstract and inaccessible to a sub-global assessment team in
Peru who worked closely with local Quechua communities, so it was modified to better reflect
their cosmologies (Zermoglio et al. 2006). The adaptive cycle and panarchy concepts have
been replicated, elaborated upon, and adapted widely by contributors to Gunderson and
Holling’s edited volume Panarchy (2002) and the journal Ecology & Society (see Redman
and Kinzig 2003, Allison and Hobbes 2004, Cumming and Collier 2005), among others (e.g.
154
University of Pretoria etd, Bohensky E L (2006)
6. Discovering resilient pathways
Peterson 2000). Such innovations are likely to strengthen both the framework and
understanding of the real-world examples studied.
Conclusion
The two frameworks explored in this paper appear able to help clarify the vision of the
South African Water Act and challenges faced in achieving it. This is an essential starting
point. Sizeable efforts are still needed to bring the understanding of resilience into sharper
focus and to unite disparate strands of resilience-related research in the South African water
sector. Thus far, most research appears to be limited to one or another part of the resilience
equation rather than the whole: resilience is discussed either in an ecological and ecosystem
services sense (MacKay 2000), or in a socio-political sense, though the word “resilience” may
not actually be used (Ohlsson and Turton 2000, Pollard and du Toit 2005, Turton et al. 2005).
In isolation, neither approach may prove to be extremely useful for moving water
management forward, with convergence of the two required somewhere in the middle, as
some of these contributions appear to recognize.
South Africa’s water sector is currently in the midst of an unprecedented
transformation, with a unique history serving as an excellent opportunity to test and contribute
to resilience theory and application from a long-term perspective. The exploration of existing
frameworks can assist managers in the discovery of resilience and clarification of a vision,
though the process of discovering resilient pathways – the journey itself – may be as
important as the outcome. Further development of such frameworks could provide
stakeholders with diverse interests a forum in which to interact around often difficult and
contentious issues, where they may finally arrive at a desirable road map for the future.
155
University of Pretoria etd, Bohensky E L (2006)
6. Discovering resilient pathways
References
Adger, W. N. 2000. Social and ecological resilience: are they related? Progress in Human
Geography. 24(3): 347–364.
Allison, H. E. and R. J. Hobbs. 2004. Resilience, adaptive capacity, and the “Lock-in Trap”
of the Western Australian agricultural region. Ecology and Society 9(1): 3. [online] URL:
http://www.ecologyandsociety.org/vol9/iss1/art3.
Balmford, A. et al. 2002. Economic reasons for conserving wild nature. Science. 297: 950953.
Basson, M.S., P.H. van Niekerk and J.A. van Rooyen. 1997. Overview of water resources
and utilization in South Africa. DWAF report P RSA/00/0197, 72pp.
Berkes, F., J. Colding, and C. Folke, editors. 2003. Navigating social-ecological systems:
Building resilience for complexity and change. Cambridge University Press, Cambridge.
Bohensky, E., B. Reyers, A. S. van Jaarsveld, and C. Fabricius, editors. 2004. Ecosystem
services in the Gariep Basin: a component of the Southern African Millennium Ecosystem
Assessment. African Sun Media, Stellenbosch, South Africa. (Also available from
http://www.millenniumassessment.org/en/subglobal.safma.aspx.)
Bohensky, E., and T. Lynam. 2005. Evaluating responses in complex adaptive systems:
insights on water management from the Southern African Millennium Ecosystem Assessment
(SAfMA).
Ecology
and
Society
10(1):
11.
[online]
URL:
http://www.ecologyandsociety.org/vol10/iss1/art11/
Carpenter, S. R., and M.G. Turner. 2001. Hares and Tortoises: Interactions of Fast and
Slow Variables in Ecosystems. Ecosystems 3: 495–497.
Carpenter, S. R., B. Walker, J. M. Anderies, and N. Abel. 2001. From Metaphor to
Measurement: Resilience of What to What? Ecosystems 4: 765–781.
Chikozho, C. 2005. Policy and institutional dimensions of integrated river basin
management: Broadening stakeholder participatory processes in the Inkomati River Basin of
South Africa and the Pangani River Basin of Tanzania. Commons southern Africa occasional
paper series No 12. Centre for Applied Social Sciences/Programme for Land and Agrarian
Studies, Harare and Cape Town. Online at http://www.cassplaas.org/.
Chutter, F.M., R.W. Palmer and J.J. Walmsley. 1996. Environmental Overview of the
Orange River. Orange River Development Project Replanning Study. DWAF report PD
00/00/5295, 193 pp.
Cumming, G. S., and J. Collier. 2005. Change and identity in complex systems. Ecology
and Society 10(1): 29. [online] URL: http://www.ecologyandsociety.org/vol10/iss1/art29/.
156
University of Pretoria etd, Bohensky E L (2006)
6. Discovering resilient pathways
Cumming, G. S., G. Barnes, S. Perz, M. Schmink, K. E. Sieving, J. Southworth, M.
Binford, R. D. Holt, C. Stickler, and T. Van Holt. 2005. An exploratory framework for the
empirical measurement of resilience. Ecosystems 8: 975–987
Dent, M. C. 2005. CMA Leadership Letter 37:
Delivery. Available from [email protected]
Capacity, Skills, Empowerment and
Dent, M. C. 2000. Strategic issues in modelling for integrated water resource management in
southern Africa. Water SA 26(4):513-519.
DWAF (Department of Water Affairs and Forestry). 2003. Hydrological Information
System, Department of Water Affairs and Forestry, Pretoria South Africa [online]
http://www.dwaf.gov.za/hydrology/cgi-bin/his/cgihis.exe/station.
DWAF (Department of Water Affairs and Forestry). 2004a. National water resources
strategy. First edition. DWAF, Pretoria.
DWAF (Department of Water Affairs and Forestry). 2004b. A decade of delivery. DWAF,
Pretoria,
South
Africa.
Available
online
at:
http://www.dwaf.gov.za/Communications/Articles/Kasrils/2004/TEN%20YEARS%20OF%2
0DELIVER%20ARTICLE.doc.
Falkenmark, M. 2003. Freshwater as shared between society and ecosystems: from divided
approaches to integrated challenges Philosophical Transactions of the Royal Society of
London Series B 358:2037-2049.
Folke, C. 2003 Freshwater for resilience: a shift in thinking. Philosophical Transactions of
the Royal Society of London Series B 358:2027–2036.
Görgens, A.H.M. and B.W. van Wilgen. 2004. Invasive alien plants and water resources in
South Africa: current understanding, predictive ability and research challenges. South African
Journal of Science 100: 27-33.
Gunderson, L.H. 2000. Ecological resilience—in theory and application. Annual Review of
Ecology and Systematics 31: 425–39.
Gunderson, L.H. and C.S. Holling, editors. 2002. Panarchy: Understanding
transformations in human and natural systems. Island Press, Washington, D.C., USA.
Gunderson, L. and C. Folke. 2005. Resilience—now more than ever. Ecology and Society
10(2): 22. [online] URL:http://www.ecologyandsociety.org/vol10/iss2/art22/.
Haupt, C. J. 2001: Water resources situation assessment: Groundwater resources of South
Africa. Department of Water Affairs and Forestry, Pretoria, South Africa.
Herold, C. E., A. Görgens, and H. R. van Vliet. 1992. The influence of atmosphere
deposition on the Vaal Dam. In: Proceedings of the Water Week Conference, Pretoria, South
Africa.
157
University of Pretoria etd, Bohensky E L (2006)
6. Discovering resilient pathways
Holling, C. S. 1973. Resilience and stability of ecological systems. Annual Review of Ecology
and Systematics 4:1-23.
Holling, C. S. 1986. The resilience of terrestrial ecosystems; local surprise and global change.
Pages 292-317 in W. C. Clark and R. E. Munn, editors. Sustainable development of the
biosphere. Cambridge University Press, Cambridge.
Holling, C. S. 1987. Simplifying the complex: the paradigms of ecological function and
structure. European Journal of Operational Research 30:139-146. Republished 1995 in
Futures 26: 598-609.
Holling, C. S. 2001. Understanding the complexity of economic, social and ecological
systems. Ecosystems 4:390-405.
Holling, C. S., and L. H. Gunderson. 2002. Resilience and adaptive cycles. Pages 25-62 in
L. H. Gunderson and C. S. Holling, editors. Panarchy: understanding transformations in
human and natural systems. Island Press, Washington, D.C., USA.
Holling, C. S., and L. H. Gunderson and G. D. Peterson. 2002. Sustainability and
panarchies. Pages 63-102 in L. H. Gunderson and C. S. Holling, editors. Panarchy:
understanding transformations in human and natural systems. Island Press, Washington,
D.C., USA.
Janssen, M. A, T. A. Kohler, and M. Scheffer. 2003. Sunk-cost effects and vulnerability to
collapse in ancient societies. Current Anthropology 44(5):722–728.
Kleynhans, C. J. 2000. Desktop estimates of the ecological importance and sensitivity
categories (EISC), default ecological management classes (DEMC), present ecological status
categories (PESC), present attainable ecological management classes (present AEMC), and
best attainable ecological management class (best AEMC) for quaternary catchments in South
Africa. DWAF report. Institute for Water Quality Studies.
Lee, K. N., editor. 1993. Compass and gyroscope: integrating science and politics for the
environment. Island Press, Washington, D.C., USA.
Levin, S. A. 1999. Fragile dominion: complexity and the commons. Perseus Books, Reading,
Massachusetts, USA.
Le Maitre, D., D. M. Richardson and R. A. Chapman. 2004. Alien plant invasions in South
Africa: driving forces and the human dimension. South African Journal of Science 100: 103112.
Ludwig, J. A., and M. D. Stafford Smith. 2005. Interpreting and correcting cross-scale
mismatches in resilience analysis: a procedure and examples from Australia’s rangelands.
Ecology
and
Society
10(2):
20.
[online]
URL:http://www.ecologyandsociety.org/vol10/iss2/art20/
MA (Millennium Ecosystem Assessment). 2003. Ecosystems and human well-being: a
framework for assessment. Island Press, Washington, D.C., USA.
158
University of Pretoria etd, Bohensky E L (2006)
6. Discovering resilient pathways
MA (Millennium Ecosystem Assessment). 2005. Ecosystems and human well-being:
synthesis.
Island
Press,
Washington,
D.C.
(Also
available
from
http://www.millenniumassessment.org/.)
MacKay, H. 2000. Moving towards sustainability: The ecological Reserve and its role in
implementation of South Africa’s water policy. Proceedings of the World Bank Water Week
Conference,
Washington,
April
2000.
Available
at
http://www.thewaterpage.com/aq_eco_main.htm
MacKay, H. M. 2003. Water policies and practices. Pages 49-83 in D. Reed and M. de Wit,
editors. Towards a just South Africa: the political economy of natural resource wealth. WWF
Macroeconomics Programme Office, Washington D.C., USA and CSIR, Pretoria, South
Africa.
MacKay, H.M., K.H. Rogers and D.J. Roux. 2003. Implementing the South African water
policy: holding the vision while exploring an uncharted mountain. Water SA 29(4): 353-358.
Metsi Consultants. 2002. Lesotho Highlands Water Project Final Report: Summary of Main
Findings for Phase I. Development Report No. LHDA-678-F-001. 122 pp.
Moench, M. 2005. Water, climatic variability and livelihood Resilience: Concepts, field
insights and policy implications. Policy Paper II by “The Resilience and Freshwater
Initiative”, Swedish Water House, Stockholm.
Myburgh, E. and E. M. Nevill. 2003. Review of blackfly (Diptera: Simuliidae) control in
South Africa. Onderstepoort Journal of Veterinary Research 70:307-317.
Nel, J., Maree, G., Roux, D., Moolman, J., Kleynhans, N., Silberbauer, M. and A.
Driver. 2004. South African National Spatial Biodiversity Assessment 2004: Technical
Report. Volume 2: River Component. CSIR Report Number ENV-S-I-2004-063. Stellenbosch:
Council for Scientific and Industrial Research.
Ohlsson, L. and A.R. Turton. 2000. The turning of a screw: Social resource scarcity as a
bottle-neck in adaptation to water scarcity. Stockholm Water Front 1:10-11.
Palmer, C.G., R.S. Berold and W.J. Muller. 2004. Environmental water quality in water
resources management. WRC Report No TT 217/04, Water Research Commission, Pretoria,
South Africa.
Peterson, G. D. 2000. Political ecology and ecological resilience: an integration of human
and ecological dynamics. Ecological Economics 35: 323–336.
Pollard, S. and D. du Toit. 2005. Achieving Integrated Water Resource Management: the
mismatch in boundaries between water resources management and water supply. Paper
presented at International workshop on ‘African Water Laws: Plural Legislative Frameworks
for Rural Water Management in Africa’, 26-28 January 2005, Johannesburg, South Africa.
Rappaport, R. A. 1968. Pigs for the ancestors: ritual in the ecology of a New Guinea people.
Yale University Press, New Haven, Connecticut, USA.
159
University of Pretoria etd, Bohensky E L (2006)
6. Discovering resilient pathways
Redman, C. L. and A. P. Kinzig. 2003. Resilience of past landscapes: resilience theory,
society, and the longue durée. Conservation Ecology 7(1):14. [online] URL:
http://www.consecol.org/vol7/iss1/art14.
Rogers, K. H. and Bestbier, R. 1997. Development of a Protocol for the Definition of the
Desired State of Riverine Systems in South Africa. Department of Environmental Affairs and
Tourism, Pretoria. Available at http://www.ccwr.ac.za/knprrp/index.html.
Rogers, K. and H. C. Biggs. 1999. Integrating indicators, endpoints and value systems in
strategic management of the rivers of the Kruger National Park South Africa. Freshwater
Biology 41:439-452.
Rogers, K., D. Roux, and H. Biggs. 2000. The value of visions and art of visionaries.
Conservation Ecology 4(1): r1. [online] URL: http://www.consecol.org/vol4/iss1/resp1.
Scheffer, M. S. Carpenter, J.A. Foley, C. Folke and B. Walker. 2001. Catastrophic shifts
in ecosystems. Nature 413: 591-6.
Snaddon, C. D., M. J. Wishart, and B. R. Davies. 1998. Some implications of inter-basin
water transfers for river ecosystem functioning and water resources management in southern
Africa. Journal of Aquatic Ecosystem Health and Management 1:159-162.
Thompson, H., C.M. Stimie, E. Richters and S. Perret. 2001. Policies, legislation and
organizations related to water in South Africa, with special reference to the Olifants River
basin. Working Paper 18 (South Africa Working Paper No. 7). Columbo, Sri Lanka:
International Water Management Institute.
Turton, A. R. and R. Henwood, editors. 2002. Hydropolitics in the developing world: a
southern African perspective. African Water Issues Research Unit, Pretoria, South Africa.
Turton, A. R. and R. Meissner. 2002. The hydrosocial contract and its manifestation in
society: A South African case study. Pages 37-60 in A. R. Turton and R. Henwood, editors.
Hydropolitics in the developing world: a southern African perspective. African Water Issues
Research Unit, Pretoria, South Africa.
Turton, A. R., H. Hattingh, M. Claassen, D. Roux and P. Ashton. 2005. Towards A Model for
Ecosystem Governance: An Integrated Water Resource Management Example. CSIREnvironmentek, Pretoria, South Africa.
van der Leeuw and Aschan-Leygonie. 2000. A long-term perspective on resilience in socionatural systems. Paper presented at the workshop on System shocks - system resilience,
Abisko, Sweden, May 22-26, 2000.
van Wyk, E., B. W. van Wilgen and D. J. Roux. 2001. How well has biophysical research
served the needs of water resource management? Lessons from the Sabie-Sand. South African
Journal of Science 97: 349-356.
Walker, B., S. Carpenter, J. Anderies, N. Abel, G. Cumming, M. Janssen, L. Lebel, J.
Norberg, G. D. Peterson, and R. Pritchard. 2002. Resilience management in social-
160
University of Pretoria etd, Bohensky E L (2006)
6. Discovering resilient pathways
ecological systems: a working hypothesis for a participatory approach. Conservation Ecology
6(1): 14. [online] URL: http://www.consecol.org/vol6/iss1/art14
Walker, B., C. S. Holling, S. R. Carpenter, and A. Kinzig. 2004. Resilience, adaptability
and transformability in social–ecological systems. Ecology and Society 9(2): 5. [online] URL:
http://www.ecologyandsociety.org/vol9/iss2/art5.
WCD (World Commission on Dams). 2000. Orange River Development Project, South
Africa case study, prepared as an input to the World Commission on Dams, Cape Town,
South Africa. Available online at: http://www.dams.org.
WRI (World Resources Institute). 2000. World Resources 2000-2001: People and
Ecosystems: The Fraying Web of Life. World Resources Institute, Washington, D.C.
Zermoglio, M. F., A. S., Van Jaarsveld, W. V. Reid, J. Romm, R. Biggs, Y. Tianxiang,
and L. Vicente. 2006. The multiscale approach. In D. Capistrano, M. Lee, C. RaudseppHearne, and C. Samper, editors. Ecosystems and Human Well-being: Multi-scale assessments.
Volume 4. Findings of the Sub-global Assessments Working Group of the Millennium
161
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
