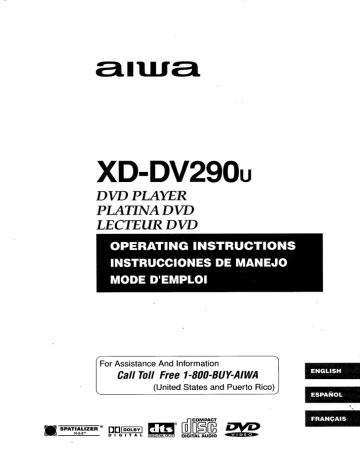

ana
XD-DV 290u
DVD PLAYER
PLATINA DVD
LECTEUR
NT INSTRUCTIONS
TY CTL TTY TS MANEJO
MODE D EMPLOI
Call Toll Free 1-800-BUY-AIWA
| For Assistance And Information
(United States and Puerto Rico) |
© SPATIALIZER * Dare] ditsi dise DVD
IGITAL DIGITAL AUDIO
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN
OR MOISTURE.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
“CAUTION:TO REDUCE THE RISK OF
ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.”
Explanation of Graphical Symbols:
The lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the
user to the presence of uninsulated "dangerous
voltage" within the product's enclosure that may
be of sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilateral trian-
gle is intended to alert the user to the presence
of important operating and maintenance (servic-
ing) instructions in the literature accompanying
the appliance.
IMPORTANT SAFETY
INSTRUCTIONS
Read the Operating Instructions carefully and completely before
operating the unit. Be sure to keep the Operating Instructions for
future reference. All warnings and cautions in the Operating
Instructions and on the unit should be strictly followed, as well as
the safety suggestions below. |
Important
This unit is designed for the NTSC color systems only.
Installation
1 Water and moisture — Do not use this unit near water, such
as near a bathtub, sink, swimming pool, or the like.
2 Heat — Do not use this unit near sources of heat, including
heating vents, stoves, or other appliances that generate heat.
This unit should not be placed in temperatures less than 5°C
(41°F) or greater than 35°C (95°F).
3 Mounting place — Place the unit:
- on a flat , even surface
- away from strong magnetic fields
- at least one meter away from any radios or receivers
Do not place heavy objects on the unit.
4 Ventilation — The unit should be situated with adequate space
around it so that proper heat ventilation is assured. Allow a
clearance of 10 cm (4 in.) from the rear and the top of the unit,
and 5 cm (2 in.) from each side.
- Do not place the unit on a bed, rug, or similar surface that
may block the ventilation openings.
- Do not install the unit in a bookcase, cabinet, or airtight rack
where ventilation may be impeded.
- To avoid internal heat build-up, do not cover the
ventilation openings on the rear panel.
| ENGLISH
5 Foreign objects and liquid — Be careful that foreign objects
or liquid do not enter the unit through the ventilation openings.
6 Carts and stands — The unit should be moved
with care when placed or mounted on a stand or
cart.
Sudden stops, excessive force, or an uneven
surface may cause the unit or cart to fall over.
7 Condensation — Moisture may form on the pickup lens when:
- This unit is moved from a cold spot to a warm spot
- A heating system has just been turned on
- The unit is used in a very humid room
- The unit is cooled by an air conditioner
When this unit has condensation inside, it may not function
normally. Should this occur, leave the unit for a few hours,
then try to operate again.
Electric power
1 Power sources — Connect this unit only to power sources
specified in the Operating Instructions, and as marked on the
unit.
2 AC power cord
- When disconnecting the AC power cord, pull it out by the AC
power plug. Do not pull the cord itself.
- Never handle the AC power plug with wet hands, as this could
result in fire or electrical shock.
- Power cords should be firmly secured to avoid being severely
bent, pinched, or walked upon. Pay particular attention to
the cord from the unit to the power socket.
- Avoid overloading AC power plugs and extension cords
beyond their capacity, as this could result in fire or electrical
shock.
3 When not in use — Unplug the AC power cord from the AC
outlet if the unit will not be used for several months or more.
When the cord is plugged in, a small electrical current continues
to flow into the unit, even if the power is turned off.
4 In case of lightning — Immediately disconnect the AC power
cord from the AC outlet.
Maintenance
Clean the unit only as recommended in the Operating Instructions.
Damage requiring service
Have this unit serviced by a qualified service technician if:
- The AC power cord or plug has been damaged
- A foreign object or liquid have entered the unit
- The unit has been exposed to rain or water
- The unit does not seem to operate normally
- The unit exhibits a marked change in performance
- The unit has been dropped, or the cabinet has been damaged
DO NOT OPEN THE CABINET AND ATTEMPT TO SERVICE THE
UNIT YOURSELF.
Owner’s record
For your convenience, record the model number and serial
number (you will find them on the rear of your set) in the
space provided below. Please refer to them when you
contact your Aiwa dealer in case of difficulty.
Model No. | Serial No. (Lot No.)
XD-DV290U
й ‚A
Welcome Table of contents
Thank you for purchasing this AIWA |
product. To optimize the performance of
this unit, please read through this
operating instructions carefully.
Preparation
Main features of this Basic CONNECHON ......-cvevvvvvs eter reer en——— 3
DVD p la ye y Optional audio connections......................eee==eeeie 5
Remote control preparation .......................—..—e.. 8
DVD — a completely new |
dimension in video entertainment : :
The audio soundtrack can be heard in Basic Operations |
up to 8 languages. Basic playback ...............e..e..eeeeereeserereeecanen eee. 9
* The multi-angie function allows you to | a | |
choose the viewing angle of the scenes ' Playing In slow-motion EEE ree se... 1 1
which were shot from a number of в ‚
different angles. (Limited to DVD Resuming playback from the same location .....11
recorded with multiple camera angles.) General Information about On Screen Display
The number of the languages recorded (OSD) menu icons ...................eeeeeeemeeeieeee. 12
| he software. ЩИ |
Is dependent on the software Detailed description of each OSD menu icon ...13
| High Quality digital audio
With the linear PCM sound of a 48 kHz/
16 bit through 96 kHz/24 bit, Digital to Other Functions
Analog Converter (DAC) audio quality | itle men | 4
exceeding that of CDs is possible. Using a title menu re ens 1
Using a DVD menu ................ee=meeieneneos nanecnnenenos 14
Many convenient features ‘ ‘
OSD (On Screen Display) Menu Icons Changing subtitie language ...................—.———.. 15
show the disc information or player Changing audio soundtrack language .............. 15
information and provide access to | и
many major functions of this unit. Viewing from another angle a unaonodananonedanaamEre aca 16
* Programming of up to 5 scenes in | | : | |
memory (markers). Producing a 3D surround effect ................. mn... 16
*» Parental lock setting to prevent play of Repeat play ........ aanereasausrece se nnenne nn an aa eee en aa ar a eee 17
discs unsuitable for some audiences | oo | ,
(DVD only). Storing markers in memory to be viewed
Compatible with CD as well — (listened to) again .......... PEER 18
as DVD Zoom feature ………..…...…..…….....……rrccssesenrenssnrencenanens 19
q J Random play .................eeeeeeereeeererereccenar ee 19
Program play .....................eeeemmeccneceeos eee ——— 20
Initial SET UP Operation
Initial settings errr ен 21
Additional Information
Notes on diSCS are нение
Disc requirements/Copyright information .......... 27
Troubleshooting ............... Necarernenoenrneneaeannema enana 28
Definition of terms .................e..reeescreraeronace ce. 29
Specifications .........................e=.eemee KK REKEN 30
Parts and controls ...................eeeeenereseeeennee enn 32
ENGLISH 2
PREPARATION
Basic connection
Connect the DVD player to your TV.
ERE CR | | | (7)
To S-VIDEO OUT
If the TV has an S-video input, connect the
| DVD player with the optional S-video cable.
To COMPONENT : To AC outlet
VIDEO OUT To AUDIO ;
(Pb/Pr/Y) jacks OUT To
VIDEO
OUT
S-video cable | aa à В |
(not supplied) To S-video input TV or monitor with audio/
\ | I ] “Video inputs
| Video cable ( supplied) To video input (yellow) ss
(red)
« E. , |
- Audio cable (supplied) To audio inputs
To video input (Pb/Pr/Y) jacks
video cable (not supplied)
* Refer to the owner's manual of your TV as well. _ Do not set the Digital Audio Output of this DVD player to
* When you connect the DVD player to your TV, be sure to turn “Dolby Digital” unless you are connecting the digital
off the power and unplug both units from the wall outlet before audio jack of this DVD player to an AV decoder that has
making any connections. | : the Dolby Digital (AC-3) decoding function. High volume
* Connect the DVD player to your TV directly. If you connect sound may damage your hearing as well as the speakers.
the DVD player to a VCR, the playback picture will be ё ; = . ”
distorted because DVD video discs are copy protected. (Refer to Selecting Digital Audio Output on page 25.)
3 ENGLISH
You can listen to the sound of audio CDs and DVDs discs in stereo.
EEE | AUDIO OUT
S-VIDEQ
CT
To S-VIDEO OUT
To AUDIO OU
(white) L If the TV h S-video input t th
"| @ МЮЕО DVD player with the optional S-video cable
Í aver wi € optiona! o-vIdeo cable.
(red) R A A | Реует р To AC outlet
(yellow) — |
N /
To S-video input
0 |
S-video cable (not supplied)
\
Audio cable (supplied)
+ Refer to the owner's manual of your TV and audio system as
well. | -
+ When you connect the DVD player to other equipment, be
sure to turn off the power and unplug all of the equipment from
the wall outlet before making any connections.
- If you place the DVD player near a tuner or radio, the radio
broadcast sound might be distorted. In this case, move the
DVD player away from the tuner and radio.
* The output sound of the DVD player has a wide dynamic
range. Be sure to adjust the receiver's volume to a moderate
listening level. Otherwise, the speakers may be damaged by
‚ а sudden high volume sound. |
* Turn off the-amplifier before you connect or disconnect the
DVD player's power cord. If you leave the amplifier power on,
the speakers may be damaged. | о
То video input (yellow)
Video cable (supplied) —
To audio inputs
of the amplifier (red)
arm
TV or monitor with audio/video inputs
(white)
Audio system
Important
Do not set the Digital Audio Output of this DVD player to
“Dolby Digital” unless you are connecting the digital
audio jack of this DVD player to an AV decoder that has
the Dolby Digital (AC-3) decoding function. High volume
sound may damage your hearing as well as the speakers.
(Refer to “Selecting Digital Audio Output” on page 25.)
ENGLISH 4
Optional audio connections
You can enjoy the high quality dynamic sound of Dolby Digital (AC-3), Dolby Pro Logic, and 2 Channel Digital Stereo.
Dolby Digital (AC-3)
Dolby Digital is the surround sound technology used in theaters showing the latest movies, and is now available to reproduce
this realistic effect in the home. You can enjoy motion picture and live concert DVD video discs with this dynamic realistic sound
by connecting the DVD player to a 6 channel amplifier equipped with a Dolby Digital (AC-3) decoder or Dolby Digital (AC-3)
processor.
Connection example
To S-video input or
Video input
S-Video cable (not supplied)
or Video cable (supplied)
To S-VIDEO OUT
or VIDEO QUT
O
|
To OPTICAL *
DIGITAL OUT \
or COAXIAL Optical cable (not supplied) or
DIGITAL OUT 75 ohm coaxial cable (not supplied) To AC outlet
Sub woofer
Receiver equipped with a
Dolby Digital (AC-3) decoder
a Front speaker (left) To digital Front speaker (right)
To enjoy Dolby Digital (AC-3) P audio input p 9
sound from this DVD player
you need the following:
* DVD video discs recorded in Dolby
Digital (AC-3)
+ 6 channel amplifier equipped with a
Dolby Digital (AC-3) decoder, or Dolby
Digital (AC-3) processor and power
amplifier |
* 5 speakers and 1 sub woofer
| Rear speaker
(left surround)
To enjoy Dolby Digital (AC-3)
sound
You need to select “Dolby Digital” on the
SET UP menu.
* Manufactured under license from Dolby Laboratories
Licensing Corporation. “Dolby”, “AC-3” and the double-D
symbol are trademarks of Dolby Laboratories Licensing
Corporation.
Confidential Unpublished Works. €1992-1997 Dolby
Laboratories, Inc. All rights reserved.
5 ENGLISH
Center speaker Rear speaker
(right surround)
* Refer to the owner's manual of your audio equipment as well.
* When you connect the DVD player to other equipment, be
sure to turn off the power and unplug all of the equipment from
the wall outlet before making any connections. |
* The output sound of the DVD player has a wide dynamic
range. Be sure to adjust the receiver's volume to a moderate
listening level. Otherwise, the speakers may be damaged by
a sudden high volume sound.
* Turn off the amplifier before you connect or disconnect the
DVD player's power cord. If you leave the amplifier power on,
the speakers may be damaged.
Dolby Pro Logic Surround
You can still enjoy the excitement of Surround Sound eve
your A/V receiver has a Dolby Pro Logic decoder. Refer to the following connection diagram.
Connection example
n if your A/V receiver does not offer Dolby Digital (AC-3) decoding. If
TV
To S-video input
or Video input
‘S-Video cable (not supplied)
or Video cable ( supplied) =
To S-VIDEO QUT or
VIDEO OUT
ET TO pile Re JUNE a
Г
To AUDIO OUT
Audio cable (supplied) To AC outlet
Connect one or two rear
speakers. |
The output sound from Front speaker (left)
the rear speakers will be
monaural even if you
connect two rear
speakers.
Receiver equipped with Dolby
Pro Logic Surround
To audio input
Front speaker (right)
Center speaker
Rear speaker (left) | Rear speaker (right)
With a receiver equipped with Dolby Digi
(AC-3)
Connect the equipment the same way as described in
“Connecting to a decoder with Dolby Digital (AC-3)
processing” on the previous page. Refer to that receiver's
tal
Do not set the Digital Audio Output of this DVD player to
“Dolby Digital” unless you are connecting the coaxial
digital audio jack of this DVD player to an AV decoder
that has the Dolby Digital (AC-3) decoding function. High
owner's manual and set the receiver so you can enjoy Dolby volume sound may damage your hearing as well as the
Pro Logic Surround sound.
speakers. (Refer to “Selecting Digital Audio Output” on
page 25.)
Optional audio connections (continued)
2 Channel Digital Stereo
You can enjoy the dynamic sound of 2 Channel Digital Stereo by connecting this DVD player to a receiver equipped with a
digital audio input and speaker system (right and left front speakers).
Connection example
To S-video input or
| Video Input
© © © : ; >
en "© Sa и S-Video cable (not supplied)
‘0 [= © or Video cable (supplied)
To OPTICAL | To S-VIDEO OUT = Jv
DIGITAL OUT or § or VIDEQ OUT |
COAXIAL | ‘ Recei ,( th
DIGITAL OUT eceiver equipped with a
digital audio input
Optical cable (not supplied) or
75 ohm coaxial cable (not supplied)
Front speaker
(left)
Front speaker
(right)
Introducing DTS Digital Surround™...the finest technology ever invented to transform existing “home theater” systems into six discrete
channels of exceptionally clear, better-than-compact disc, digital audio performance. And DTS Digital Surround is the only 5.1 surround
sound format that can deliver this revolutionary 3-dimensional experience through new music recordings on compact discs, original 5.1
soundtracks on motion picture laserdiscs, and soon, a wide variety of products on DVD.
Connection example
To S-video input
or Video input
elev)
S-video cable (not supplied) o or
Video cable ( supplied)
To OPTICAL DIGITAL $
OUT or COAXIAL ;
DIGITAL OUT
To S-VIDEO OUT
or VIDEO OUT
Receiver equipped with a
Optical cable (not supplied) or 75 DTS decoder
ohm coaxial cable (not supplied)
To digital audio input
и “
Front speaker
Front speaker (left) (right)
| right
Rear speaker
(left surround)
* Refer to the owner's manual of your receiver as well.
* When you connect the DVD player to other equipment, be
sure to turn off the power and unplug all of the equipment from
the wall outlet before making any connections. |
* The output sound of the DVD player has a wide dynamic
range. Be sure to adjust the receiver's volume to a moderate
listening level. Otherwise, the speakers may be damaged by
a sudden high volume sound.
* Turn off the receiver before you connect or disconnect the
DVD player's power cord. If you leave the receiver power on,
the speakers may be damaged.
7 ENGLISH
Center speaker
Rear speaker
(right surround)
Sub woofer
“DTS” and “DTS Digital Out” are trademarks of Digital
Theater Systems, Inc.
Remote control preparation
To prevent damage from leakage or explosion, follow the
descriptions below.
+ Insert the two R6 (size AA) batteries (not supplied) with
the O and @ marks correctly as illustrated.
- Do not mix old batteries with new ones or different
types of batteries.
- Do not throw the batteries into a fire, apply heat to
them or take them apart.
- Do not carry the batteries with keys or other metallic
objects.
RE(AA)
Remove the batteries when they have no more power, or when
you do not use the remote control for a long period of time.
Point the remote control toward the remote sensor.
_— Sa
La A
COUOOOOCOC
CGDODOOCOO0OC
DOUOOCOCOO0CO
Sp es OODOCO)
E
* The remote control may not operate when there is any
obstruction between the remote control and the remote
sensor.
* Strong ambient light sources such as a fluorescent lamp or
direct sunlight may cause unreliable operation.
* Using a TV with the same type of infrared remote control
— facing the same direction may cause incorrect operation.
+ The maximum distance for effective control between the
remote control and the remote sensor is 7 meters.
* Although you can use the remote control within an angle of up
to 30 degrees in any direction from directly in front of the
remote sensor, we recommend a narrower angle for stable
operation.
ENGLISH 8
BASIC OPERATIONS
Basic playback
Preparations
« When you want to play back DVD video discs, turn on the
TV and select the video input source connected to the DVD
player.
* When you want to enjoy the sound of DVD video discs or
audio CDs from the audio system, turn on the audio system
and select the input source connected to the DVD player.
* For connection details, see pages 3 through 7.
* Set the playback picture size according to the aspect ratio
of the connected TV.
* |f you do not have the necessary equipment to enjoy Dolby
Digital (AC-3) sound, set the Digital Audio Output at the
SET UP (Digital Audio Output) menu to “PCM”.
This section shows you the basics on how to play back a
DVD video disc.
OPEN/CLOSE
Number buttons
A/V//D/ENTER
>
POWER indicator
E |
POWER
Disc tray 4A OPEN/CLOSE
D> PLAY
1 Press POWER.
The DVD player turns on and the POWER indicator light
is changed to green color.
2 Press OPEN/CLOSE.
The disc tray opens.
* You can open the disc tray by pressing this button even
if the DVD player is in standby mode.
3 Place a disc on the disc tray with the playback
— side down.
* There are two different disc sizes. Place the disc in the
correct guide on the disc tray. If the disc is out of the
guide, it may damage the disc and cause the DVD
player to malfunction.
9 ENGLISH
4 Press > (Play) on the remote control or >PLAY
on the DVD player.
The disc tray is automatically closed and playback begins.
* |f the disc is placed in upside down (and it is a single
sided disc), the DVD display will indicate “NO DISC” or
"DISC ERROR”.
Operating status indicator
* |f you insert an audio CD, the CD indicator lights up in
the DVD display.
The title number does not appear.
» After playing back all of the chapters in the title, the DVD
player automatically stops and returns to the menu
screen.
* In case of interactive DVDs with control, a menu screen
appears on the TV screen. Perform step 5 to start play.
5 Press A/V/</)> and press ENTER, or press the
number buttons, to select the desired item.
Example of interactive DVD On-Screen Menu
TITLE3 = TITLE 4
Play of the selected item now begins.
* For further info, also refer to the jacket or case of the
disc you are playing.
After operation
When the unit is not in use, remove the disc and press
POWER to turn off the power.
* Do not move the DVD player during playback. Doing so may
damage the disc. |
* Use OPEN/CLOSE on the remote control or DVD player to
open and close the disc tray. Do not push the disc tray while it
is moving. Doing so may cause the DVD player to
malfunction.
* Do not push up the disc tray or put any objects other than
discs on the disc tray. Doing so may cause the DVD player to
malfunction.
* Keep your fingers well clear of the disc tray as it is closing.
Be especially careful with children's fingers around the closing
disc tray as there is a risk of personal injury.
* When “OQ” appears on the TV screen while a button is
pressed, it means that this function is not available on the disc
you are playing.
* Depending on the DVD disc, some operations may be
different or restricted. Refer to the jacket or case of the disc
you are playing.
RESUME
o®aoo
dogo
осо
O 000
осо
9222
ооо
00090 >
н — | (0 0 90
1 >>
1 — — Ph
| — «<
— MM
1H/<< >»/>»>!
+ |
e ©
5
o ^^
— —
D> PLAY MSTOP HIPAUSE
Press Hon the remote control or STOP on the
DVD player during playback.
For your convenience
When play is stopped, the unit records the point where was
‚ pressed (Resume function). Press RESUME, and play will
resume from this point. When the tray is opened or (Play)
is pressed again, the Resume function will be cleared.
The Resume function works only with discs for which the
elapsed playing time appears on the window display during
playback. |
This feature will be cieared when the power is turned off and
then on.
* The Resume function may not be available on some DVD
discs.
* If the player is left in the stop mode for more than 8
minutes, the power shuts off automatically.
Skipping forward
Press PI on the remote control during playback.
* A chapter (DVD) or a track (CD) is skipped forward each
time the button is pressed.
+ When you use the button on the DVD player, press
p/p] for a momentarily.
Skipping back
Press He on the remote control during playback.
* When the button is pressed once midway through a
chapter/track, the player returns to the start of that chapter/
track. When it is pressed again immediately, a chapter/
track is skipped back each time the button is pressed.
« When you use the button on the DVD player, press
|<<4/ << for a momentarily.
Press PP on the remote control during playback.
The “SCAN 1” appears on the TV screen.
* The playback speed becomes x2 the normal speed.
Pressing » (Play) again changes the playback speed to
the normal speed.
- The x2 playback does not operate in case of audio CD.
* When you use the button on the DVD player, hold down
p/P until “SCAN 1” appears.
Hold down «<< or >> on the remote control (or,
1 or >> /P>>I on the DVD player) during
playback.
« The speed of scan is relatively slow at first and becomes
faster. (The speed increases up to 3 steps in case of DVD
disc.)
To resume normal playback
Release «<< or > on the remote control (or, He </-<< or
D» /»>»>I on the DVD player).
The DVD player does not play back sound during the high speed
reverse and forward playback of DVD video discs. However, the
DVD player plays back sound during fast forward or fast reverse
playback of audio CDs.
Press II on the remote control or H PAUSE on the
DVD playder during playback.
- DVD
The player will be placed in the still picture mode.
* СО
The player will be placed in the pause mode.
To resume normal playback
Press (Play).
Press II during still playback. |
Each time you press Il, the picture advances one frame.
To resume normal playback
Press (Play). |
* The sound is muted during frame advance playback.
» The Frame advance function is operated forward only.
ENGLISH 10
Playing in slow-motion =~ Resuming playback from the
Е same location
|
You can stop playback and resume playback later from the
same location on the disc.
DO0COC
RESUME
F. SLOW
B. SLOW
000000000
OO0OOOOO0O0
SOOCOOCNUO
SSOSOCOCND
OOCOOOOCE
000000000
oo 0000co
|
Press F. SLOW or B. SLOW during playback.
Each time you press F. SLOW or B. SLOW, the playback
speed changes as follows.
1 Press IM at the location where you want to
—B. SLOW- -F. SLOW- В “interrupt playback.
‘SLOW 1 SLOW 1 * The DVD player memorizes the location where you
< = stopped playback.
_ * The DVD player stores that location in its memory, —
1/4 normal speed X1/16 normal speed | unless you turn off the player or open the disc tray.
y y * Opening the disc tray cancels this function.
-SLOW 2 SLOW 2 — 2 Press RESUME.
| The DVD player resumes playback slightly before the
X1/3 normal speed x1/8 normal speed location where you stopped playback.
-SLOW 3 SLOW 3 |
The Resume function is canceled if the DVD player is
disconnected from the wall outlet, or if power is interrupted.
x2/5 normal speed X1/4 normal speed * The Resume function may not be available on some DVD
у y discs.
| SLOW 4 SLOW 4 /
X1/2 normal speed / X1/2 normal speed
To resume normal playback
Press (PLAY).
* The sound is muted during slow-motion playback.
* Subtitles do not appear on the screen during slow motion
playback.
11 ENGLISH
General Information about 2 Press A/V to select the desired item.
| . a * The currently selected item is indicated by a yellow
On Screen Display (OSD) frame on its OSD menu icon. |
menu icons | | 3 Press <P> to select the desired setting.
* When numbers are displayed (e.g. title No.), the number
— buttons can also be used for setting instead of <>.
* For some functions, the setting will be registered
immediately; for others, ENTER must be pressed.
This unit features OSD Menu Icons showing disc information
(tile/chapter/track number, elapsed playing time, audio/
subtitle language, angle, and sound) and player information
(repeat play, play mode, marker, etc.). Some icons only show
the indicated information. Other icons allow the settings to be
changed.
To clear the OSD Menu Icons
Press ON SCREEN DISPLAY ON/OFF.
+ If no button is pressed for 12 seconds, the OSD menu icons
disappear.
* Do not display the OSD menu icons during CD playback.
rr
BOCOONO
SOCCONO
See 000000
ооо
A/V/4/P/ENTER
ON SCREEN
DISPLAY ON/OFF
О
|
1 Press ON SCREEN DISPLAY ON/OFF during
playback.
* Title function can be accessed from the stop mode.
Examples of OSD Menu Icons.
(The screens may differ depending on the disc contents.)
~ (DVD OSD) | (CD OSD) (DVD and CD OSD)
ENGLISH 12
Detailed description of each OSD menu icon
You can view information about a disc and its operational status on the TV screen.
Function В
(Press A/V to select desired item)
Selection method
Press ON SCREEN DISPLAY
ON/OFF during playback.
[TV screen] DVD OSD
To show the current title No.
and to jump to the desired title No.
«UD, or Number
ENTER
To show the current chapter No.
</p>, or Number
and to jump to the desired chapter No. ENTER
1<«/ >>!
To show the elapsed time Number
and directly select scenes by the elapsed time. ENTER
To show the current audio soundtrack language, «>»,
encoding method, channel No. AUDIO SELECT
and to change the settings.
To show the current subtitles language vb,
and to change the setting.
SUBTITLE SELECT
To show the current angle No. <>,
and to change the angle. m« ANGLE
To show the current sound (NORMAL or 3D <>,
SURROUND) SURROUND
and to change the setting.
Function
(Press A/V to select desired item)
Selection method
Press ON SCREEN DISPLAY
ON/OFF during playback.
[TV screen] CD OSD
To show the current track No.
and to jump to the desired track No.
Head >>I,
<UD, or Number
ENTER
To show the elapsed time.
(Display only)
To show the current audio (STEREO, LEFT, RIGHT) <>»,
and to select to the desired audio channel. AUDIO SELECT
To show the current sound (NORMAL or 3D SURROUND) «<»,
and to change the setting. SURROUND
Some DVD discs may not provide all of the above OSD menu
icons.
13 ENGLISH
OTHER FUNCTIONS
Using a title menu
Using a DVD menu
Some movie discs may contain two or more titles. If the disc
has a title menu recorded on it, the TITLE button can be used
to select the movie title. (The details of operation differ
depending on the disc used.)
› Selecting a title may not be possible on certain DVD discs.
Number buttons
TITLE
A/V /4/V/ENTER
>
1 Press TITLE.
A list of the titles on the disc is displayed.
Press TITLE again to resume play from the scene when
TITLE was first pressed. |
TITLE 1
Tu
TITLE 2
TITLES —e
TITLE4
2 Press A/VY/</) or the number buttons and
press ENTER or > (Play) to select desired title.
TITLE 1 a
TITLE 2
TITLE 4
TITLE 4
/
q
The selected title now starts playing.
Some DVDs have unique menu structures called DVD
menus. For example, DVDs programmed with complex
contents provide guide menus, and those recorded with
various languages provide menus for audio and
subtitle
language. Although the DVD menu's contents and operation
differ from disc to disc, the following explains the basic
operation when this feature is used.
Number buttons
MENU
1 Press MENU during play.
A/V/4/P/ENTER
The DVD menu available on the disc is now displayed.
Press MENU again to resume play from the scene when
MENU was first pressed.
2 Press A/V/4/P or the number buttons and
press ENTER to select desired item.
The selected item is now executed.
TITLE 4
ENGLISH 14
Changing subtitle language
It is possible to change the subtitle language to a different
language from the one selected at the initial settings. (See
page 22 for further info.)
This operation works only with discs on which multiple subtitle
languages are recorded.
|
0000
000000000
000000000
000000000
oc 0
|
SS
с
1 Press SUBTITLE SELECT during playback.
When no subtitles are recorded, “OFF” will be displayed
instead of the language number. |
2 Press repeatedly SUBTITLE SELECT until the
desired language is selected.
Number of the subtitle language being played back.
To eliminate the On Screen Subtitles.
Press SUBTITLE SELECT repeatedly to select OFF at step 2.
* In some cases, the subtitle language is not changed to the
selected one immediately.
* When a disc supporting the closed caption is played, the
subtitle and the closed caption may overlap each other on the
TV screen. In this case, turn the subtitle off.
* When the desired language is not selected even after pressing
the button several times, it means that the language is not
available on the disc. |
* When the power is turned on or the disc is replaced, subtitles
appears in the language selected at the initial settings. If this
language is not recorded on the disc, the disc's priority
language appears. |
15 ENGLISH
Changing audio soundtrack
language
It is possible to change the audio soundtrack language to a
different language from the one selected at the initial settings.
(See page 22 for further info.)
This operation works only with discs on which multiple audio
soundtrack languages are recorded.
AUDIO SELECT
SOLOCCONO
Co00000000
©
SAGE 008000
000000000
DVD
1 Press AUDIO SELECT during play.
Number of the audio soundtrack language being played
back.
2 Press AUDIO SELECT repeatedly until the
desired language is selected.
CD
1 Press AUDIO SELECT during play.
2 Press AUDIO SELECT repeatedly until the
desired sound is selected.
Each time you press the button, the display changes as
follows.
> STEREO LEFT — RIGHT
* When the desired language is not selected even after pressing
the button several times, it means that the language is not
available on the disc.
* When the power is turned on or the disc is replaced, the
language heard is the one selected at the initial settings. If
this language is not recorded on the disc, only the available
language on the disc will be heard.
Viewing from another angle Producing a 3D Surround
effect
Some DVDs may contain scenes which have been shot
simultaneously from a number of different angles. For these
discs, the same scene can be viewed from each of these This unit can produce a 3D Surround effect, using
different angles using the ANGLE button. (The recorded Spatializer™ N-2-2™ technology, which simulates multi-
angles differ depending on the disc used.) channel audio playback from two conventional stereo
speakers, instead of the five or more speakers normally
required to listen to multi-channel audio from a home theater
system. This feature works with DVD discs encoded with
esco. Dolby Pro Logic, Dolby Digital (AC-3).
ANGLE: 1 ANGLE: 2 ANGLE: 3
SURROUND
me ANGLE
COONCOOCNO
SOCOOOCONO
OOOCCOCOCNO
oo dUCOOE
|
(
000000000
000000000
OD ООО се
USVcoooooooo
— | 1 Press SURROUND during playback.
Each time this button is pressed, the TV screen display
changes:
1 Press «ANGLE during playback.
Number of angle being played back.
2 Press SURROUND repeatedly until the desired
sound is selected.
2 Press mi. ANGLE repeatedly until the desired
angle is selected.
* This 3D Surround effect may not be available on some DVD
discs, such as those recorded with a mono audio soundtrack.
he * Turn off the TV surround sound and other surround effects
* This function only works for dises having scenes recorded at when using this 3D surround effect.
different angles. * For best 3D Surround effect using only two speakers it is
* The ANGLE indicator on the unit lights up at scenes recorded recommended that the two speakers be positioned
— at different angles to indicate that angle switching is possible. approximately 6' to 8' apart, and the listening position should
The angle number can be programmed beforehand; the angle be 6' to 8 away from the speakers.
will be switched to the selected number when the ANGLE
indicator lights up.
ENGLISH 16
Repeat Play
~~ REPEAT
0 ag
0068 A-B
о оо!
Q 000
9000
9000
lo oo
QQ08
90990
of
Press REPEAT during playback.
Each time this button is pressed, the TV screen changes as
shown below and the disc will repeat a chapter or title (DVD)
or a track or all (CD).
DVD
Repeat of chapter
being played
Repeat of title |
being played
Cancel repeat mode |
(normal play)
CD
Repeat of track
being played
Repeat of entire |
disc contents
Cancel repeat mode | f
(normal play)
To return to normal play
Press REPEAT several times until “OFF” is displayed.
17 ENGLISH
1 Press A-B during play at the point where repeat
play is to start (A)
2 Press A-B during play at the point where repeat
play is to be concluded (B). |
i
Repeat play of the selection between points A and B
starts.
To return to normal play
Press A-B once “OFF” is displayed.
* Repeat play works only with discs for which the elapsed
playing time appears in the DVD display window during
playback. | |
Repeat play may not work correctly with some DVDs.
* A-B repeat play works only within a title (DVD).
* A-B repeat play works only with discs for which the elapsed
playing time appears in the DVD display window display
during playback. |
* Some subtitles recorded around point A or B may fail to
appear (DVD). о
* Repeat play will be canceled by pressing E, >», <<,
DI or Fé, using the OSD menu, or ejecting a disc.
Storing markers in memory to
be viewed (listened to) again
Storing a marker in the DVD memory is similar to marking
your page in a book. It allows you to quickly return to any
point on the disc.
=== ча,
0000
MARK a 2 Qo
о
MARK SEARCH S о ca
0000
CLEAR ово
о/а\5
: 5 A/V/4/W/ENTER
0
>
Press MARK during play at the starting point to be
viewed (listened to) again.
Indicates “MARKER 1/5” is stored in the memory.
Up to 5 markers can be stored in the memory.
1 Press MARK SEARCH during playback or stop.
MARKER MARKER MARKER
PICTURE 1 PICTURE 2 PICTURE 3
MARKER ‘MARKER PRESENT
PICTURE 4 PICTURE 5 PICTURE
2 Press A/V/4/} to select the marker to be
recalled/cleared.
3 Press (Play) or ENTER to recall a marker, or
press CLEAR to clear a marker.
Play resumes from the point corresponding to the selected
marker, or the selected marker is cleared.
The “PRESENT PICTURE” is not cleared.
* Those operations work only with discs for which the elapsed
playing time appears in the DVD display window during
playback or stop. |
* Some subtitles recorded around the marker may fail to appear
(DVD).
* All the markers are cleared when the power is turned off or the
disc is removed.
ENGLISH 18
Zoom Feature
The Zoom feature allows you to Zoom- In and enlarge the
picture on the screen to either 4 times (X4) or 16 times (X16)
its normal size. |
|
|
ооо) | zoom
00090
0000
0000
особе)
0000
a alt 4/V///ENTER
D\a/0 0
1 Press zoom during normal playback or still
playback.
The DVD player magnifies the image in the center of the
picture.
Each press of ZOOM changes the TV screen in the
following sequence.
.
(X16) [=
|
(Normal)
The magnification level will be displayed in the upper right
corner of the zoom area.
If you press A/V/<4/}, the zoom point shifts.
2 Press ENTER.
The selected frame is displayed in full size on the TV
screen
To resume normal playback
Press ZOOM again to cancel Zoom feature and resume
normal playback or still playback.
* Some discs may not respond to Zoom feature.
* Zoom does not work on subtitles or menus included on DVD
video discs.
19 ENGLISH
Random play
This function only works with DVD video karaoke discs and
with audio CD discs. Random does not work with DVD
movies. o
You can playback titles, chapters within a title, or tracks in
random order. (Random playback)
The DVD player automatically selects the titles in a DVD
video karaoke disc only and plays them back randomly.
00000
RANDOM
000000000
000000000
000000000
DO
|
=
SE
Press RANDOM during stop.
The DVD player starts random playback.
If you press RANDOM during normal playback, the DVD
player will randomly select another title and begin random
- playback immediately.
The RANDOM indicator in the DVD display window appears.
To resume normal playback
Press RANDOM during random playback,
The RANDOM indicator in the DVD display window
disappears.
The player plays the tracks in the disc in random order.
Press RANDOM.
The random track number appears on the TV screen.
If you press RANDOM during normal playback, the DVD
player immediately selects another track and begins random
playback. | В |
The RAMDOM indicator in the DVD display window appears.
To resume normal playback
Press RANDOM during random playback.
The RANDOM indicator in the DVD display window
disappears.
* Random playback may not be possible on certain discs.
- If you press PI during random playback, the DVD player
goes to another track randomly and starts playback.
Program play
Program play function is possible only with audio CDs. It does
not work with DVD movie discs.
The Player plays the tracks in the disc in an order you
specify... В Е
| Number buttons | ВЕ
- PROGRAM
CLEAR
A/V//)>/ENTER
1 Press PROGRAM during playback or stop mode.
The program play back screen appears on the TV screen.
* To exit the screen, press PLAY or PROGRAM.
2 Press A/Y/</) and press the number buttons
to select the desired track number.
* Repeat step 2 to select another track.
* Up to 20 tracks can be programmed.
3 Press D»> (Play) or ENTER to exit the screen.
The selected track is stored in the memory and play now
begins in the programmed sequence.
* If you press PROGRAM to exit the screen, the selected
tracks are not memorized.
After playback
Play is stopped.
ENGLISH 20
Program play (continued)
To clear the program one by one
Press A/V/</) to select the unwanted No. and then press
CLEAR. | |
To clear all the programs
Press A/VW/<4/}> to select the “Clear AIl” and press ENTER.
Press (Play) or ENTER to exit the screen. If you press
PROGRAM to exit the screen, the programs are not cleared.
(The programs are also cleared when the power is turned off
or the disc is removed.)
21 ENGLISH
INITIAL SET UP OPERATION
Initial settings
Once the initial settings have been completed, the player can
always be operated under the same conditions (especially
with DVD discs). :
The settings will be retained in the memory until they are
changed, even if the power is switched off.
a a 00 RESUME
0000
0000
9000
ооо =
0000
q A/V/<4/b/ENTER
C'HRETURN
) SETUP
1 Press SETUP in the stop mode.
The SETUP menu is displayed.
à > Original
i | English
French
German
nd | Spanish
À italy
_ English Other - - - -
He ———
DIGITAL /PCM
2 Press A/V to select the desired item.
The screen will show the current setting for the selected
item, and the alternate setting(s).
* Disc Audio (see page 22)
* Disc Subtitle (see page 22)
* Disc Menu (see page 22)
* Rating (see page 22)
* Password (see page 23)
* TV Aspect (see page 24)
* Menu Language (see page 24)
* Digital Audio Output (see page 25)
3 Press > and then A/V to select the
desired setting and press ENTER.
* Some items require additional steps. (See the respective
page.)
To exit SET UP menu |
Press SETUP, d »RETURN or RESUME.
To clear the initial settings screen
Press A/V/</) to select RESUME and press ENTER.
(Pressing SETUP, d »RETURN or RESUME also clears the
initial settings screen.)
This is to select the audio soundtrack language, subtitle
language and the language used in title menus or DVD
“menus which will always be used for every disc to be played
back.
When you play back a DVD video disc, the DVD player
automatically displays the pre-selected subtitle language if it
is included on the disc.
A/V/U/ENTER
1 Atthe SET UP screen, press A/V to select
“Disc Audio” and press » .
©) Disc Subtitle g
Disc Menu English
Rating 8
Password ===
TV Ao TT ere
Menu Language English _
2 Press A/V to select the desired language and
press ENTER. |
Original : The original language of each disc will be selected.
English: The English will be selected.
Other : Another language can be selected. You can input
4-digital language code. (Refer to the language
codes on page 31. Press CLEAR if an incorrect
language code is entered.)
The Disc Subtitle and Disc Menus are selected by the same
method.
The screen illustrated in step 1 is displayed. Press 4/V/</>
to select RESUME and press ENTER to return to the initial
settings screen.
If the language selected is not available on the disc, the original
language designated by each disc will be selected.
This is to prohibit the playing of specified DVDs which are
unsuitable for children.
* Some DVD discs contain a restriction level which enables
parents to remove scenes or prevent playback of discs by
children. DVD players are equipped with a password
designed to prevent children changing the level.
Selecting rating le level 1 (DVD only)
OCOOOCC0
O:
Ip Wo 000060
COOOODO
A/V/b/ENTER
000000000
( )
| |
1 At the SET UP screen, press A/V to select
— “Rating” and press p>.
Disc Audio English
E) Disc Subtitle English
Disc Menu English
16:9 Wide
„English
Do PCM
= Ю © 4 сло ~ с
2 Press A/V to select the desired level and press
ENTER.
Disc Audio English
@ Disc Subtitle English
1) 8 Blocked
7 Blocked
6
= №Юю & + ‘€
You cannot play DVD video discs rated higher than the level
you selected unless you cancel the parental lock function.
For example, when you select level 7, discs rated higher than
level 7 are blocked and cannot be played.
The parent lock level is equivalent to the following USA movie
ratings.
Example
Level 7: NC-17 Level 6: R Level 4: PG 13
Level 3: PG Level 1: G
If you change the level and enter a password, playback of all
DVDs with ratings higher than your selection will be blocked,
unless the correct password is entered again. For example: if
you change the level to “5”, the DVD player will not play discs
with ratings of “6”, “7” or “8” unless the correct password is
entered on the remote control.
CONTINUE
ENGLISH 22
Initial settings (continued)
If you change the rating level to higher or lower, you must
enter a 4-digit “password” to prevent playback of discs with
higher ratings.
Number buttons
A/V /D/ENTER
1 Atthe SET UP screen, press A/V to select
“password” and press №.
Disc Audio English
€) Disc Subtitle English
Disc Menu English
Rating
[a] Digital Audio Output BE PCM.
2 Press A/V to select “Change” and press
ENTER.
Disc Audio
English
English
English
TV Aspect
16:9 Wide
Menu Lane uage English
El 3] Digital Audio € Output SL PCM
3 Input a 4-digit password using the number
buttons, then press ENTER. |
Example : 1234
Do not forget your password.
Disc Audio English
Disc Subtitle English
Disc Menu English
E 5)
: Change
Clear
7 Digital Audio jo Output BR PCM |
23 ENGLISH
4 Input the 4-digit password again to verify.
5 Press ENTER.
Setting is finished and the SET UP screen is displayed.
* When the selected password | is already set, “Set” appears.
When it is not set, “- - - -” appears. | |
e The rating is locked. Any discs whose rating is higher than
the setting cannot be played back unless the correct
password is entered.
To change the settings
To change the rating level or password, enter your 4-digit
password and follow the steps on page 22 again.
‘To clear your 4-digit password
If you have forgot your password, to clear the current
password, follow the procedure below.
1 Atthe SETUP screen, press M to select
“password”.
2 Enter 6-digit number “210499” and then press
ENTER.
The 4-digit password is cleared.
3 Enter a new password. a
Refer to “Setting your password” section on the left.
4:3 Panscan : Select when a conventional TV set is
connected. The video material formatted in
| the Pan & Scan style is played back in that
Select the appropriate screen type according to your TV set; | - Style (the left and right edges are cut off).
conventional size screen (4:3) or wide-screen (16:9). Cut off
4:3 Panscan
A/Y/D/ENTER
16:9 Wide: Select when a wide-screen TV set is
connected. Е
Played in “FULL” size. (Setting the wide-
screen TV to “FULL” mode is also
necessary.) —
—
1 At the SET UP screen, press AV to select “TV
Aspect” and press p>.
_ Disc Audio English
English 16:9 Wide
English она
* Each screen shows an example when the video material for
§ > 4:3 Letterbox a wide-screen is played.
| 4:3 Panscan
1 mae (This setting does not affect the video material for
| conventional size.)
DOLBY |
GAGITAL / p
Setting is finished and the SET UP screen is displayed.
2 Press A/V to select the desired Aspect and
press ENTER.
Disc Audio English
©) Disc Subtitle English
Disc Menu English
@ Rating в 1 Atthe SET UP screen, press A/V to select
“Menu Language” and press №.
=] Digital Audio Output - 225% /PCM —
Bias Au English
@) Disc Subtitle English
Disc Menu English
@ Rating :
ETS Password
4:3 Letterbox : The video material not formatted in the Pan &
Scan style is played back in the letterbox style
(black bands appear at top and bottom of
screen).
English -
French
| Digital Audio Output | Ват /PCM
2 Press A/V to select the desired Menu Language
and press ENTER.
“Disc Audio English
@ Disc Subtitle English
Disc Menu English
да Rating 8
— Password cana
4:3 Letterbox
|& Digital Audio Output Dé /PCM
' 1 CONTINUE?
ENGLISH 24
Initial settings (continued)
Each DVD disc has a variety of audio output options. Set the
player's Digital Audio Output according to the type of audio
system you use.
o
2000000
0000000
080000000
oo 000000
A/V/D/ENTER
1 Atthe SET UP screen, press A/V to select
“Digital Audio Output” and press ».
Disc Audio English
@ Disc Subtitle English
„Disc Menu English
= ET =
„Password EN
> TV Aspect 16:9 Wide —
Menu Language English
DEL РСМ ‘
: : Stream/PCM
PCM
2 Press A/V to select the desired output and
press ENTER. |
Disc Audio English
©) Disc Subtitle English
Disc Menu English
В Rating 8
— Password = - = =
: So EEE
> TV Aspect 16:9 Wide
English
** Menu Language
25 ENGLISH
DOLBY DIGITAL/PCM:
Select “DOLBY DIGITAL/PCM if an active
digital output is supplied to Dolby Digital
decoder (or an amplifier or other equipment
with Dolby Digital decoder).
Stream/PCM: Select “Stream/PCM” if an active digital output
is supplied to an amplifier or other equipment
- with DTS decoder, Dolby Digital decoder and
MPEG decoder.
PCM: Select “PCM” if an active digital output is
supplied to an amplifier or other equipment
with linear PCM only (or MD recorder or DAT
deck).
Playback Disc OUTPUT
Stream/PCM Dolby Digital/PCM | PCM only
96kHz Linear PCM PCM PCM
PCM DVD
DTS DVD DTS bit Stream Not Output Not Output
Dolby Digital | Dolby Digital bit | Dolby Digital bit PCM
DVD | Stream Stream
MPEGDVD — |MPEGbitStream| PCM | PCM
Audio CD PCM PCM PCM
DTS Audio CD | DTS bit Stream | DTS bit Stream DTS bit Stream
e When you are not using the player's digital audio output, don't
select any of the options.
e |f an active digital audio output signal is supplied to an
receiver or other equipment without a corresponding digital
decoding capability, a very loud noise may be produced which
could permanently damage the speakers.
e The DTS DVD disc sound is played back only when the DVD
player is connected with receiver equipped with a DTS
decoder.
“DTS” and “DTS Digital Out” are trademarks of Digita! Theater
Systems, Inc.
ADDITIONAL INFORMATION
‘Notes on Discs
This section shows you how to handle, clean, and store discs.
When shipping the DVD player |
The original shipping carton and packing materials come in handy.
For maximum protection, re-pack the unit as it was originally packed
at the factory.
When setting the DVD player
The picture and sound of a nearby TV, VCR or radio may be
distorted during DVD playback. In this case, position the player
away from the TV, radio or VCR, or turn off the player after removing
the disc.
To keep the surface clean
Do not use volatile liquids, such as insecticide spray, near the
player. Do not leave rubber or plastic products in contact with the
player for a long period of time. They will leave marks on the surface.
Do not touch the playback side of the disc.
Hold the disc by the edges so that fingerprints will not get on the
surface.
Do not stick paper or tape on the disc.
To clean the cabinet
Use a soft, dry cloth. if the surfaces are extremely dirty, use a soft
cloth lightly moistened with a mild detergent solution. Do not use
strong solvents, such as alcohol, benzene or thinner, as these
might damage the surface of the player.
To obtain a clear picture
The DVD player is a high-tech, precision device. If the optical pick-
up lens and disc drive parts are dirty or worn down, the picture
quality will be poor.
Regular inspection and maintenance are recommended after every
1,000 hours of use. (This depends on the operating environment.)
For details, please contact your Aiwa dealer.
Fingerprints and dust on the disc can cause poor picture quality
and sound distortion. Before playing, clean the disc with a clean
cloth. Wipe the disc from the center out.
Do not use strong solvents such as alcohol, benzene, thinner,
commercially available cleaners or anti-static spray intended for
analog records.
After playing, store the disc in its case.
Do not expose the disc to direct sunlight or sources of heat, or
leave it in a parked car exposed to direct sunlight, as there may be
a considerable temperature increase inside the car.
e This owner's manual explains the disc instructions of this DVD
player. ‘
e Some DVD video discs have functions that may not be explained
in this owner's manual. Therefore, some instructions may differ
from this owner's manual, and there may be extra instructions.
In this case, follow the instructions displayed on the TV screen
or package. |
e “QQ” may appear on the TV screen during operation. This icon
means the function explained in this owner's manual is not
available on that specific DVD video disc.
ENGLISH 20
Disc Requirements/Copyright Information
This DVD player can play back the following discs.
Disc mark ‘ Contents Disc size | Maximum playback time |
Audio+Video . | 12cm Approx. 4 hours (single sided disc) “
(moving pictures)
| Approx. 8 hours (double sided disc)
DVD video discs DVD | - - —
| | | 8cm - + Approx. 80 minutes (single sided disc)
Approx. 160 minutes (doubled sided disc)
| COMPACT Audio 12 cm 74 minutes
Audio CDs |
— DIGITAL AUDIO 8 cm 20 minutes
You cannot playback discs other than those listed above. (Video ,
CD, CD-ROM, CD-Extra, CD-G, photo CD, and CD-i discs can not “Certain audio features of this product manufactured under a
be played on this DVD player.) license from Desper Products, Inc., |
This DVD player uses the NTSC color system, and cannot play Spatializer® 3-D Stereo, Spatializer N-2-2 (TM) and the circle-
back DVD video discs recorded in any other color system (PAL, (n-Square device are trademarks owned by Desper Products,
SECAM, etc.) Inc,.
Region Management Information
Region Management Information: This DVD Player is designed and manufactured to respond to the Region Management Information
that is recorded on a DVD disc. If the Region number described on the DVD disc does not correspond to the Region number of this
DVD player, this DVD player cannot play that disc.
The region number of this DVD player is 1.
Notes on Unauthorized Discs |
You may not be able to play back some DVD video discs on this player if they were purchased from outside your geographic area or
made for business purposes.
When you try to play back an unauthorized disc, “Check Regional Code” appears on the TV screen.
Notes on Copyright | -
It is forbidden by law to copy, broadcast, show, broadcast on n cable, play in public, and rent copyrighted material without permission.
DVD video discs are copy protected, and any recordings made from these discs will be distorted.
~ This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other
intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology
must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only, unless otherwise
authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
2 / ENGLISH
Troubleshooting
If something seems to be wrong with your DVD player, first check the items in the table below.
Symptom
Cause
Correction
No power.
* The power cord is disconnected.
Plug the power cord into the wall
outlet securely.
The power is on, but the DVD
player does not work.
* No disc is inserted.
Insert a disc. (Check that the DVD or,
audio CD indicator in the DVD display
is lit. )
is not set to receive DVD signal output.
No picture. * The TV is not set to receive DVD signal output. * Select the appropriate video input
mode on the TV so the picture from
the DVD player appears on the TV
screen.
» The video cable is not connected securely. * Connect the video cable into the
| jacks securely.
* The connected TV power is turned off. . Turn on the TV.
No sound. * The equipment connected with the audio cable * Select the correct input mode of the
audio receiver so you can listen to
the sound from the DVD player.
* The audio cables are not connected securely. . -
Connect the audio cable into the
jacks securely.
—* The power of the equipment connected with the
audio cable is turned off.
*
Turn on the equipment connected
with the audio cable.
* The Digital Audio Output is set to the wrong
position.
+
Set the Digital Audio Output to the
correct position, then turn on the DVD
- player again by pressing POWER.
The playback picture is poor.
* The disc is dirty.
Clean the disc.
The DVD player does not start
playback.
* No disc is inserted.
.
Insert a disc. (Check that the DVD,
or audio CD indicator in the DVD
| display | is lit.)
« An unplayable disc is inserted.
Insert a playable disc. (Check the disc
type, color system and Regional
code.)
* The disc is placed upside down.
Place the disc with the playback side
down.
* The disc is not placed within the guide.
Place the disc on the disc tray
correctly inside the guide.
+ The disc is dirty.
Clean the disc.
* À menu is on the TV screen.
Press SETUP to turn off the menu
screen.
* The Rating level is set.
Cancel the Rating function or change
the rating level.
The remote control does not
work properly.
* The remote control is not pointed at the remote
sensor of the DVD player.
Pointthe remote control at the remote
sensor of the DVD player.
* The remote controlis too far from the DVD player.
Operate the remote control within
about 23 ft (7 m).
* There is an obstacle in the path of the remote
control and the DVD player.
Remove the obstacie.
* The batteries in the remote control are exhausted.
Replace the batteries with new ones.
ENGLISH 28
Definition of terms
Angle
Recorded onto some DVD discs are scenes which have been
simultaneously shot from a number of different angles (the same
scene is shot from the front, form the left side, from the right side,
etc.). With such discs, the ANGLE button can be used to view the
scene from different angles.
Chapter number |
These numbers are recorded on DVD discs. A title is subdivided
into many chapters, each of which is numbered, and specific parts
of video presentations can be searched uy using these
numbers.
DVD
This refers to a high-density optical disc on which high-quality
pictures and sound have been recorded by means of digital signals.
Incorporating a new video compression technology (MPEG II) and
high-density recording technology, DVD enables esthetically
pleasing full-motion video to be recorded over long periods of time
(for instance, a whole movie can be recorded).
DVD has a structure consisting of two 0.6 mm thin discs which are
adhered to each other. Since the thinner the disc, the higher the
density at which the information can be recorded, a DVD disc has
a greater capacity than a single 1.2 mm thick disc. Since the two
thin discs are adhered to each other, there is the potential to
achieve double-sided play sometime in the future for even longer
duration play.
Subtitles |
This is the appearance of the dialogue at the bottom of the screen
which are prerecorded on some DVD discs.
Time number
This indicates the play time which has elapsed from the start of a
disc or a title. It can be used to find a specific scene quickly. (It
may not work with some discs.)
Title number
These numbers are recorded on DVD discs. When a disc contains
two or more movies, these movies are numbered at title 1, title 2,
etc.
Track number
These numbers are assigned to the tracks which are recorded on
CDs. They enable specific tracks to be located quickly.
29 ENGLISH
Specifications
DVD player
AC 120V, 60 Hz
20 W
7.7 lbs (3.5 kg)
17" x 3.2" x 12" (W/H/D)
NTSC
Semiconductor laser,
Power supply
Power consumption
Weight
External dimensions
Signal system
Laser
wavelength 650 nm
Frequency range (digital audio)
| 2 Hz to 44 kHz
Signal-to-noise ratio (digital audio) |
More than 105 dB (EIAJ)
Audio dynamic range (digital audio)
More than 95 dB (EIAJ)
Harmonic distortion (digital audio)
0.003 %
Below measurable level
(less than + 0.001 % (W. PEAK)) (ElAJ)
Temperature: 41 °F to 95 °F,
Operation status: Horizontal
~ Wow and flutter
Operating conditions
Outputs
Video output 1.0 V(p-p), 75 Q, negative sync.,
RCA jack x 1
(Y) 1.0 V(p-p), 75 Q, negative sync.,
Mini DIN 4-pin x 1
- (C) 0.286 V (p-p), 75 Q
Audio output (digital audio)
0.5 V (p-p), 75 Q, RCA jack x 1
Audio output (analog audio)
2.0 Vrms(1 kHz, 0 dB), 330 9,
RCA jack (L,R) x 2
S-video output
Supplied Accessories
* Audio cable (1)
* Video cable (1)
* Remote control (1)
* Designs and specifications are subject to change without notice.
NOTE
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communi-
cations. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try 10 correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for
help.
CAUTION | |
Modifications or adjustments to this product, which are not
expressly approved by the manufacturer, may void the user's right
or authority to operate this product.
+ Manufactured under license from Dolby Laboratories. “Dolby”,
“Pro Logic” and the double-D symbol are trademarks of Dolby
Laboratories. Confidential unpublished works. ©1992-1997
Dolby Laboratories. All rights reserved.
+ Manufactured under license from Digital Theater Systems, Inc.
US Pat. No. 5,451,942 and other worldwide patents issued and
pending. “DTS” and “DTS Digital Surround” are trademarks of
Digital Theater Systems, Inc. ©1996 Digital Theater systems,
Inc. All rights reserved. |
ENGLISH 30
Specifications (continued)
Enter the appropriate code number for the initial settings “Audio”, “Subtitle” and/or “Menu” (See page 22).
31 ENGLISH
Code Language Code Language Code Language
6565 Afar 7285 Hungarian 8084 Portuguese
6566 Abkhazian 7289 Armenian 8185 Quechua
6570 Afrikaans 7365 Interlingua 8277 Rhaeto-Romance
6577 Amharic 7378 Indonesian 8279 Romanian
6582 Arabic 7383 Icelandic 8285 Russian
6583 Assamese 7384 Italian 8365 Sanskrit
6588 Aymara 7387 Hebrew 8368 Sindhi
6590 Azerbaijani 7465 Japanese 8372 Serbo-Croatian
6665 Bashkir 7473 Yiddish 8373 | Singhalese
6669 Byelorussian 7487 Javanese 8375 Slovak
6671 Bulgarian 7565 Georgian 8376 Slovenian
6672 Bihari 7575 Kazakh 8377 Samoan
6678 Bengali; Bangla 7576 ‘Greenlandic 8378 Shona
6679 Tibetan 7577 Cambodian 8379 | Somali
6682 Breton 7578 Kannada 8381 Albanian
6765 Catalan 7579 Korean 8382 Serbian
6779 Corsican 7583 Kashmiri 8385 Sundanese
6783 Czech 7585 Kurdish 8386 Swedish
6789 Welsh 7589 Kirghiz 8387 Swahili
6865 Danish 7665 Latin 8465 | Tamil
6869 German 7678 Lingala 8469 Telugu
6890 Bhutani 7679 Laothian 8471 Tajik
6976 Greek 7684 Lithuanian 8472 Thai
6978 English 7686 | Latvian, Lettish 8473 Tigrinya
6979 Esperanto 7771 Malagasy 8475 Turkmen
6983 Spanish 7773 Maori 8476 Tagalog
6984 Estonian 7775 Macedonian 8479 Tonga
6985 Basque 7776 Malayalam 8482 | Turkish
7065 Persian 7778 Mongolian 8484 Tatar
7073 Finnish 7779 Moldavian 8487 Twi
7074 Fiji 7782 Marathi 8575 Ukrainian
7079 Faroese 7783 Malay 8582 | Urdu
7082 French 7784 Maltese 8590 Uzbek
7089 Frisian 7789 Burmese 8673 Vietnamese
7165 Irish 7865 Nauru 8679 Volapük
7168 Scots Gaelic 7869 Nepali 8779 Wolof
7176 Galician 7876 Dutch 8872 Xhosa
7178 Guarani 7879 Norwegian 8979 Yoruba
7185 Gujarati 7982 Oriya 9072 Chinese
7265 Hausa 8065 Punjabi 9085 Zulu
7273 Hindi 8076 Polish
7282 Croatian 8083 Pashto, Pushto
Parts and controls
POWER indicator | Display window | >> />>! БиНоп
IH</<«<butiton MENU button
ch —
С Ó J AN
| CJ DZ |
| A OPEN/CLOSE button STOP A/V/4/>/
| >PLAY IEPAUSE
button button
Title number indicator DVD indicator Repeat playback mode indicators
PROG. (Program) indicator CD indicator RANDOM indicator
Vo TITLE1PROG. CHP /TRK | o J TOTAL! ALLA COB; panbon
0 dodo og 00 0-00:
099 о М: О оо;
к = = = = = = = = = = = = = e me nn "= = он он он он оное он о= = = - F
Total playing time/elapsed time indicators
Chapter/track number indicator Operating status indicator
Angle icon indicator
CONTINUE mmm
| ENGLISH 32
Parts and controls (continued)
Power cord
Connect to an AC 120V,
COMPONENT VIDEO OUT(Pb/Pr/Y) jacks 60Hz outlet only.
COAXIAL DIGITAL OUT jack AUDIO OUT(R/L) jacks 1,2
4D
09 © ©
S-VIDEO OUT jack |
OPTICAL DIGITAL OUT jack VIDEO OUT jack a \—
33 ENGLISH
You will find instructions for each of the remote control functions in the appropriate sections of this instruction manual.
RESUME button
MARK SEARCH button
OPEN/CLOSE button
MARK button
Number buttons
CLEAR button
TITLE button
A/V /4/»/ENTER buttons
— RETURN button
EI button
ON SCREEN DISPLAY
ON/OFF button
POWER button
ZOOM button
REPEAT button
SURROUND button
A-B button
= ANGLE button
AUDIO SELECT button
SUBTITLE SELECT button
RANDOM button
СООО
ee
OO
EEES
+
PROGRAM button
MENU button
Su
DOC
F. SLOW button
O00
GC
B. SLOW button
=~
|
| —— SETUP button
> button
<< button
»»1 button
> button
— M button
FE button
ENGLISH 34
AIWA CO.LTD.
For Assistance and Information, Call Tol Free 1-800-BUY-AI WA (United States and Puerto Rico)
87- AV6- 901- 11
991018BTN-YX Printed in Korea
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
