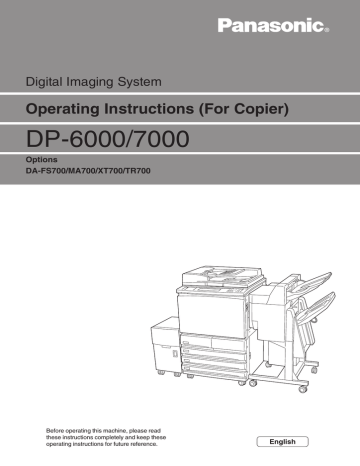

Digital Imaging System

Operating Instructions (For Copier)

DP-6000/7000

Options

DA-FS700/MA700/XT700/TR700

Before operating this machine, please read these instructions completely and keep these operating instructions for future reference.

English

TRADEMARKS/COPYRIGHTS

The following trademarks and registered trademarks are used throughout this manual.

Microsoft, MS-DOS, Windows, and Windows NT are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

i386, i486, and Pentium are either registered trademarks or trademarks of Intel Corporation.

Adobe, the Adobe logo, Adobe PostScript, Acrobat, Acrobat Reader, and Acrobat logo are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.

Apple, the Apple logo, LaserWriter, Mac, Mac logo, Macintosh, Power Macintosh, and TrueType are either registered trademarks or trademarks of Apple Computer, Inc. in the United States and/ or other countries.

Novell, Novell Client, Novell Directory Services, Novell Distributed Print Services, Netware, intraNetware, NDPS, NDS, , IPX, IPX/SPX, NDS Admin, NDS Administrator are either registered trademarks or trademarks of Novell, Inc., in the United States and/or other countries.

Panasonic Document Imaging Company has made every effort to supply trademark information about company names, products and services mentioned in this documentation. All third party and/or other trademarks identified herein are the property of their respective owners.

Copyright © 2001 by Matsushita Graphic Communication Systems, Inc.

All rights reserved.

Copyright protection claimed includes all forms and matters of copyrightable material and information now allowed by statutory or judicial law or hereinafter granted, including without limitation, material generated from the software programs that are displayed on the screen such as styles, templates, icons, screen displays, looks, etc.

Contents are subject to change without notice.

Printed in Japan.

Preface

Thank you for choosing Panasonic DP-6000/7000 Series. This manual aims to provide all the information necessary for effectively operating the copier together with notes on safety precautions and maintenance tips.

To get the most out of your copier, please read the manual carefully and completely before using the machine.

Keep this manual handy as a quick reference should you encounter any difficulties when using the copier.

In this manual, safety instructions are preceded by the symbol .

Always read and follow the instructions before performing the required procedures.

Safety Notes, Compliances Certifications, and Other Notices

Safety Notes

Your DP-6000/7000 and its supplies have been designed and tested to meet strict safety requirements. These include safety agency examination and approval, and compliance with established environmental standards.

Please read the following instructions carefully before operating the DP-6000/7000.

Failure to follow the recommendations in this section may result in personal injury or rescinding of the

Dealer's Warranty/Maintenance Agreement.

Ozone Safety

Make sure that the machine is installed in a spacious or well-ventilated room so as not to increase the amount of ozone in the air. Since ozone is heavier than air, it is recommended that air at floor level be ventilated.

Laser Safety

Use of controls, adjustments or performance procedures other than those specified herein, may result in hazardous laser radiation exposure.

This equipment complies with safety standards. With specific regard to laser safety, the equipment complies with performance standards for laser products set by government agencies as a Class I laser product and does not emit hazardous lights, the beam is totally enclosed during all modes of customer operation and maintenance.

i

ii

FCC

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Responsible Party: Matsushita Electric Corporation of America

One Panasonic Way, Secaucus, NJ 07094

Technical Support: Panasonic Document Imaging Company/

Technical Support Department

Two Panasonic Way, Secaucus, NJ 07094

1-800-225-5329

Email: [email protected]

The user could lose the authority to operate this equipment if any unauthorized changes or modifications are made to this equipment.

Shielded cables must be used with this equipment to maintain compliance with FCC regulations.

European Union

This product complies with the requirements of EC Council Directives 73/23/EEC amended by 93/68/EEC, and 89/336/EEC amended by 92/31/EEC and 93/68/EEC.

WARNING

This product is certified, manufactured and tested in compliance with strict safety and radio frequency interference regulations. Any unauthorized alteration, which includes the addition of new functions or the connection of external devices, may impact this certification. Please contact your local authorized Panasonic representative for a list of approved accessories.

WARNING

This is a Class A product. In a domestic environment this product may cause radio frequency interference in which case the user may be required to take adequate measures.

The user could lose the authority to operate this equipment if any unauthorized changes or modifications are made to this equipment.

DP-6000/7000 Series

Useful Features

Making Copies of

Odd Sizes

You can make copies by changing the length/width of your document.

Making Sorted Sets

You can select to output the copies as collated sets.

4-4 Reducing/Enlarging the

Length and Width (Independent

X-Y%)

Copying Multiple

Documents on one

Page

You can copy multiple pages onto a single sheet of paper.

4-7 Collating Copy Output

(Output/Finishing)

Copying Mixed Size

Originals

Mixed size documents can be copied simultaneously without having to specify the size of each original.

5-4 Copying Several Documents onto One Copy (Multi-Up (N Up))

5-5 Loading Mixed Size Originals

(Mixed Size Originals)

iii

iv

Creating a Binding

Margin

You can shift the copy image to create a binding margin at the edge.

Making Copies of a

Bound Document onto Separate

Sheets

You can make copies from a bound document onto separate sheets of paper.

5-7 Setting the Margins (Image

Shift)

Inserting Blank

Sheets Between

Copied

Transparencies

You can insert blank sheets as separators between the copied transparencies. Copies for distribution can also be made simultaneously.

5-6 Copying Facing Pages onto

Separate Sheets (Book Copying)

Erasing Shadows on Copies

You can erase dark lines usually found on copies made with the document cover open, or when the copies are made from bound documents.

5-9 Interleaving Blank Sheets between Transparencies

(Transparency Separators)

5-8 Erasing the Edges and

Copying All (Edge Erase/Copy All)

Specifying the Size of a Document

You can specify the area of the document you wish to copy.

Creating a

Negative-type


You can create a negative-type image on a copy by reversing the black and white areas of the original.

5-12 Selecting the Original Size

(Original Size)

5-14 Creating Negative-like

Images (Negative Image)

Creating Mirror

Images

You can create a copy containing the mirror image of a document by reversing its orientation.

Repeating an Image

You can copy an image and repeat it on a paper.

5-15 Creating Mirror Images

(Mirror Image)

5-16 Repeating an Image

(Repeat Image)

v

Making Duplex

Copies of Facing

Pages

You can make two sided copies of documents with facing pages.

Enhancing the

Sharpness of a


You can enhance or reduce the sharpness of a photo.

vi

5-17 Making Duplex Copies of

Facing Pages (Book Duplex)

Stapling/Punching

Holes in Copies

(optional)

You can staple and output the copies. Alternatively, you can punch holes in the copies.

5-13 Enhancing Sharpness

(Sharpness)

Inserting Covers

You can insert a cover such as a colored sheet as the front copy.

This feature is only available when the optional Finisher is installed.

4-8 Stapling (Stapling)

4-9 Punching Holes (Punching)

5-18 Inserting Covers (Covers)

Storing Jobs in

Memory

You can store the jobs which you frequently perform into memory.

5-21 Job Memory Operation s

Using These Operating

Instructions

This manual consists of the following chapters.

Chapter 1 Getting to Know Your Copier

This chapter contains operating instructions about your copier like information on the major components, the methods of switching the power On and Off and how to use the touch panel display.

After the copier has been properly installed, be sure to read this chapter completely before operating the machine.

Chapter 2 Loading Paper

This chapter covers the types of paper that can be used on this copier, the precautions on paper handling and the methods on how to load paper in the respective trays. Read this chapter before loading paper in the trays.

Chapter 3 Loading Documents

This chapter covers the types of original documents that can be used on this copier, the precautions on document handling and how to load the documents. Read this chapter before loading documents on the copier.

Chapter 4 Basic Features

This chapter describes the basic copying operations and nice-to-know applications so that users can perform normal copying jobs required in a typical office environment. Read this chapter before performing any copying operations.

Chapter 5 Added Features

This chapter describes how to use the special features and the many versatile ways of making copies. Read this chapter after you have understood and know how to use the features described in

Chapter 4 Basic Features

.

Chapter 6 Custom Presets

This chapter provides information required to preset the parameters of the copying features to facilitate daily operations of the copier. For instance, the default screen, the default values, the tone and the time can all be preset.

This chapter shows the contents of those parameters that can be selected and explains how to select them with the use of examples. Read this chapter before selecting the parameters.

vii

viii

Chapter 7 Troubleshooting

This chapter describes the actions to be taken in the event of errors or machine faults. Read this chapter for instructions on how to resolve these errors if they occurred.

Chapter 8 Daily Care

This chapter provides information on regular maintenance such as replacing drum/toner cartridges, checking the meters and cleaning the machine. Read this chapter when necessary.

Chapter 9 Using the Auditron Feature

This chapter explains the Auditron feature of this copier. Auditron is the feature that captures information on the number of copies made by each account user. Read this chapter when managing account data of the users.

Appendix

The appendix includes information on the specifications, the possible combinations of features, and the stapling function of the machine.

Conventions

The manual uses the following conventions.

ix

x

Safety Notes

Read these safety notes carefully before using this product to ensure that you operate the machine properly.

This section explains the graphic symbols used throughout this guide.

Warnings alert you to potential hazard that could result in serious injury or death.

Cautions alert you to operations that may result in minor injury or damage to the machine.

○ ○ ○

○ ○ ○

○ ○ ○

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

This symbol is used to alert operators to a specific operating procedure that requires close attention. Read and follow instructions carefully to ensure the task is accomplished safely.

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

○ ○

This symbol is used to alert operators to a specific operating procedure that must not be performed. Read and follow instructions carefully.

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

This symbol is used to alert operators to a specific operating procedure that should be emphasized for operating safety.

Read instructions carefully before performing the required procedure.

Precautions for Installation and Relocation

Do not place the machine in a hot, humid, dusty, or poorly ventilated environment. Prolonged exposure to these adverse conditions can cause fire or electric shocks.

Do not place the machine near heaters or volatile, flammable, or combustible materials such as curtains that may catch fire.

Place the machine on a level and sturdy surface that can withstand the machine weight of 418 lbs or 190 kg If tilted, the machine may fall over and cause injuries.

When relocating the machine, contact your local authorized Panasonic service representative.

The machine has ventilation holes on its bottom.

A poorly ventilated machine can cause excessive internal heat and fire.

The accompanying diagram shows the minimum clearances required for normal operation, consumable replacement, and maintenance to ensure your machine operates at peak performance. Your authorized Panasonic representative will provide necessary support for the proper installation of the machine.

When moving the machine, be sure to unplug the Power Cord from the outlet. If the machine is moved with the Power Cord connected, it can cause damage to the cord which could result in fire or electric shocks.

When moving the machine, do not tilt it more than indicated below. If tilted excessively, the machine may fall over and cause injuries.

After the machine is installed, be sure to lock the caster stoppers. An unlocked machine may fall over or slide and cause injuries.

Other Precautions

The machine is capable of operating normally within the following recommended environmental limits. The temperature range is 50°-95°F, humidity range is 15-85% (without condensation).

The humidity should be 47.5% or below at 95°F, and 85% at 95°F or below.

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

Sudden temperature fluctuations can affect copy quality. Rapid heating of a cold room can cause condensation inside the machine, directly interfering with image transfer.

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

Do not expose the machine to direct sunlight.

Exposure to direct sunlight can adversely affect the machine’s performance.

Power Requirements and Ground Connection

Two power specifications are listed below. The specifications that apply to your machine depend on your machine configuration. Connect the power plug only to a properly rated power outlet. Otherwise, it can cause fire or electric shocks. If in doubt, contact your local authorized Panasonic service representative.

Rated voltage: 120 VAC

Rated frequency: 60 Hz

Rated voltage: 220 - 240 VAC

Rated frequency: 50/60 Hz

Never use multi-plug adaptors to plug multiple power plugs in the same outlet. Be sure to operate the machine on a single-use receptacle. Multiple connectors can cause the outlet to overheat and cause fire.

Ensure that the plug connection is free of dust.

In a damp environment, a contaminated connector can draw a non-negligible amount of current that can generate heat and eventually cause a fire over an extended period of time.

Always use the Power Cord provided with your machine. When an extension Power Cord is required, always use a properly rated cord. In USA, it is 125 V/15 A. In other countries, contact your local authorized Panasonic service representative.

If you use a cord with an unspecified current rating, the machine or plug may emit smoke or become hot to the touch externally.

xi

xii

Do not attempt to rework, pull, bend, chafe, or otherwise damage the Power Cord. Do not place a heavy object on the cord. A damaged cord can cause fire or electric shocks.

Never touch a Power Cord with wet hands.

Danger of electric shock exists.

Stop operation immediately if your machine produces smoke, smell, excessive heat, or unusual noise, or if water is spilt onto the machine. These conditions can cause fire.

Immediately switch off and unplug the machine, and contact your local authorized Panasonic service representative.

If the Power Cord is broken or insulated wires are exposed, ask your local authorized Panasonic service representative for a replacement. Using a damaged cord can cause fire or electric shocks.

To prevent fire or electric shocks, your machine must be grounded. If in doubt, contact your local authorized Panasonic service representative.

Never connect the ground wire to any of the following:

Gas pipe, which can be ignited and explode

Telephone line ground wire or lightning rod, which can draw an excessive electric current if hit by lightning

Water faucet or pipe whose electrical conductivity is broken by a non-metal part

Do not unplug the machine while it is on.

Unplugging a live connector can deform the plug and cause a fire.

When unplugging the machine, grasp the plug instead of the cord. Forcibly pulling on a cord can damage it and cause fire or electric shocks.

Be sure to switch Off and unplug the machine before accessing the interior of the machine for cleaning, maintenance, or fault clearance.

Access to a live machine's interior can cause electric shocks.

When the machine is not used over an extended period of time, switch it Off and unplug it. If an unused machine is left connected to a power source for a long period, degraded insulation can cause electric shocks, current leakages, or fire.

Once a month, unplug the machine and check the Power Cord for the following:

The Power Cord is plugged firmly into a receptacle.

The plug is not excessively heated, rusted, or bent.

The plug and receptacle are free of dust.

The cord is not cracked or frayed.

If you notice any unusual conditions, contact your local authorized Panasonic service representative.

This machine has a ground fault interrupter. Once a month, check the protection circuit for correct operation using the following procedure. If the circuit does not operate, an electric shock can occur on a poorly grounded component. If you notice any unusual conditions, contact your local authorized Panasonic service representative.

Press the power switch to the " " position.

Press the test button below the breaker switch with the tip of a ball pen. When the breaker switch is turned from " " to " ", the circuit is OK.

Turn the breaker switch, then the power switch to the " " position.

Other Precautions

When installed at a certain location, the machine may cause interference with radio and television reception. If you notice flickering or distorted images or noises on your audio-visual units, your machine may be causing radio interference.

Switch it Off, and if the interference disappears, the machine is the cause of radio interference.

Perform the following procedures until the interference is corrected:

Move the machine, and the TV and radio away from each other.

Reposition or re-orientate the machine and/or the TV and radio.

Operating Safeguards

Unplug the machine, TV, and radio, and replug them into outlets that operate on different circuits.

Re-orientate the TV and/or radio antennas and cables until the interference stops. For an outdoor antenna, you should ask your local electrician for support.

Use coaxial cable antennas.

The machine has a built-in circuit for protection against lightning-induced surge current. If lightning strikes in your neighborhood, switch Off the machine. Disconnect the Power Cord from the machine, and reconnect them only when lightning has stopped.

Since radiation emitted inside the machine is completely confined within the protective housings and external covers, the laser beam cannot escape from the machine during any phase of user operation. Do not perform any operation apart from the instructions given in the manual. There may be a danger of laser beam leakage.

Do not place any heavy object on the machine.

An off-balance machine can fall over or the heavy object can fall, causing injuries.

Do not place any liquid container such as a vase or coffee cup on the machine.

Spilt water can cause fire or electric shocks.

Do not place any metal part such as staples or clips on the machine. If metal and flammable parts entered the machine, they can short internal components, and cause fire or electric shocks.

If debris (metal or liquid) entered the machine, switch Off and unplug the machine. Contact your local authorized Panasonic service representative.

Operating a debris-contaminated machine can cause fire or electric shocks.

Never open or remove machine covers that are secured with screws unless specifically instructed in this manual. A high voltage component can cause electric shocks.

Do not try to alter the machine configuration, or modify any parts. An unauthorized modification can cause smoke or fire.

This equipment is certified as a Class 1 laser product under IEC60825 and FDA (Food and

Drug Administration:USA). This means that the machine does not emit hazardous laser radiation.

If you make copies with the document cover open, avoid looking directly at the copy lamp.

Direct eye exposure can cause eye fatigue or damage.

Do not use a highly flammable spray near the machine. It can cause fire.

When copying a thick document, do not use excessive force to press it against the document glass. The glass may break and cause injuries.

Do not touch areas on or near the Fuser Unit that are affixed with the label, “Hot Surface”.

You can get burnt as a result. Do not forcefully remove paper that are in the Fuser Unit or wrapped around the Heat Roller. You can get burnt as a result. Switch Off the machine, and contact your local authorized Panasonic service representative.

xiii

xiv

Do not place a heavy object or lean your elbow on the touch-sensitive panel or display. The panel or display can break and the broken glass can cause injuries.

Do not staple document with punched holes

(e.g. perforated paper available in the market) as the resultant detached staples can injure your fingers.

When sliding out a Paper Tray, pull it out slowly.

If pulled out with too much force, the tray can hit and injure your knees.

When pushing back the Tray, be careful so that your fingers are not hurt by the pincers.

When opening the Transfer Unit, be careful so that your fingers are not hurt by the pincers.

Do not reach your hand to the back of the

Transfer Unit. You can injure your hand this way, or your fingers may be hurt by the pincers.

When removing jammed paper, make sure that no pieces of torn paper are left in the machine.

A piece of paper remaining in the machine can cause a fire.

If a sheet of paper cannot be removed or is wrapped around the Heat Roller, do not try to remove it by yourself. Doing so can cause injuries. Switch Off the machine immediately, and contact your local authorized Panasonic service representative.

Consumable Safeguards

Do not use papers that conduct electricity (for example, origami paper, carbon paper and coated paper). If the paper is jammed in the machine, it can result in a short circuit or fire.

It is recommended to ventilate the room to keep the environment comfortable during continuous copying runs in a small room.

When removing jammed staples, take care not to injure your fingers.

Other Precautions

When clearing a paper jam or other fault, follow the appropriate procedures given in this manual.

As the cooling fan is always switched On to prevent the machine from overheating, it is not an error. Do not block the ventilation outlets of the machine.

This DP-6000/7000 utilizes tin-lead solder, and has a fluorescent lamp containing a small amount of mercury. Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or recycling information please contact your local authorities, or the Electronics Industries Alliance:

"www.eiae.org".

Never throw a Drum Cartridge into an open flame. Toner remaining in the cartridge can cause an explosion and you can get burnt.

Never throw a Toner Cartridge into an open flame. It can cause an explosion and you can get hurt.

Never throw developer or a developer container into an open flame. It can cause an explosion and you can get hurt.

Never heat the drum in a cartridge, or scratch its surface. A heated or scratched drum can be hazardous to your health.

Other Precautions

Do not unpack consumables before use. Store consumables in a cool, dry, and clean environment, away from an open flame, and out of direct exposure to sunlight.

When using consumables, read and observe operating instructions and safeguards written on the package and container.

- Handling Instructions -

Used Drum Cartridges and Toner Cartridges should be properly disposed of. Contact your local authorized

Panasonic service representative for disposal.

Administer emergency treatment as follows:

If toner gets into your eyes, rinse them well with plenty of clean water. Consult a doctor, if necessary.

If toner adheres to your skin, wash it with soap and water, then rinse it well.

If you inhale toner, exit the area immediately and gargle with plenty of water.

If you swallow toner, induce vomiting and consult a doctor immediately.

Locations of Warning and Caution Labels

To ensure your safety in operating the copier, please read the Warning and Caution Labels pasted on the internal parts of the machine carefully.

xv

xvi

The Objective of the

International Energy Star

Program

As a member of the International

E

NERGY

S

TAR ® Program,

Panasonic confirms that this product satisfies the requirements for International

E

NERGY

S

TAR ® Program standards.

To protect the global environment and conserve energy sources, the International

Energy Star Program encourages the following product features. Panasonic confirms the DP-6000/7000 Series satisfy the requirements for this program.

Two-sided Copying Feature

To reduce the volume of copy paper used, the two-sided copying feature is set as a default for this machine. You can copy two single-sided originals on both sides of a sheet of paper. You can also make single-sided copies.

See

4-6: Copying on Two Sides (2 Sided)

of these Operating Instructions for details.

Auto Power Off Feature

This product has a power-saving feature, which turns the machine Off automatically if it is On and not operated for a certain period of time. The default auto shut-off time is set at 60 minutes and above. See

Time-Outs

in

6.1: List of Custom Preset Functions

of these Operating Instructions for details.

Sleep Mode Feature

This product has a power-saving feature, which switches the machine to the sleep mode automatically if the machine is not operated for a certain period of time. In this mode, the machine consumes minimum power. The default sleep mode start time is set as 60 minutes. See the

Operating Instructions (Printer).

Low Power Mode Feature

This product has a power-saving feature, which switches the machine to the low power mode automatically if the machine is On and not operated for a certain period of time. In this mode the machine lowers the fuser temperature and saves power consumption. The default low power mode start time is set at 15 minutes. The recovery time for low power mode is 29 seconds for machines that prints 50, 60, or 70 copies per minute. See

Time-Outs

in

6.1:

List of Custom Preset Functions

of these Operating Instructions for details.

Table of Contents

Preface

Useful Features

Using These Operating Instructions

Conventions

Safety Notes

The Objective of the International Energy Star Program

Chapter 1 Getting to Know Your Copier

1-1 Main Components and Their Functions ..................................................................................... 2

1-2 Switching On and Off ................................................................................................................. 6

Breaker Switch .............................................................................................................. 6

Switching On the Power ................................................................................................ 6

Switching Off the Power ................................................................................................ 7

Switching Off the Power Automatically .......................................................................... 7

Auto Start ...................................................................................................................... 7

1-3 Using the Touch Panel Display .................................................................................................. 8

1-4 Entering Password (When the Auditron Feature is Enabled) ................................................. 13

Entering Power Saver Mode Automatically ................................................................. 16

Using the Power Saver Mode ..................................................................................... 16

Chapter 2 Loading Paper

2-1 What Paper to Use .................................................................................................................. 18

Weights of Paper ......................................................................................................... 18

Paper Size and Tray Loading Capacity ....................................................................... 18

Types of Special Media ............................................................................................... 19

2-2 Storing and Handling Paper .................................................................................................... 20

Handling Curled Paper ................................................................................................ 20

2-3 Loading Paper ......................................................................................................................... 21

Loading Paper in Trays 1 to 4 ..................................................................................... 21

Loading Paper in Tray 5 (Bypass) ............................................................................... 23

Loading Paper in Tray 6 (High Capacity Feeder) (optional) ........................................ 24

2-4 Changing the Paper Tray Size ................................................................................................ 25

Changing the Size of Tray 1 ........................................................................................ 25

Changing the Size of Trays 2 to 4 ............................................................................... 27

Changing the Size of Tray 6 (High Capacity Feeder) (optional) .................................. 31 xvii

xviii

Chapter 3 Loading Documents

3-1 Documents .............................................................................................................................. 34

Loading Documents in the DADF ................................................................................ 34

Placing Documents on the Document Glass ............................................................... 35

Loading Documents in the DADF ................................................................................ 36

Placing Documents on the Document Glass ............................................................... 37

Screen Display When Using Document Glass ............................................................ 38

Chapter 4 Basic Features

4-1 Overview of Basic Features .................................................................................................... 40

4-2 Selecting a Paper Tray (Paper Supply) ................................................................................... 42

Size-for-Size Copying ................................................................................................. 44

Reduction or Enlargement .......................................................................................... 45

Preset Percentage Change ......................................................................................... 46

Variable Percentage Change (Variable %) .................................................................. 47

4-4 Reducing/Enlarging the Length and Width (Independent X-Y%) ............................................ 49

Specifying X/Y Percentage Change (Variable X-Y%) ................................................. 50

Specifying Original/Copy Size (Calculator%) .............................................................. 52

Automatic X/Y Percentage Change (Auto-Fit) ............................................................ 54

4-5 Copying on One Side (2 Sided) ............................................................................................... 56

4-6 Copying on Two Sides (2 Sided) ............................................................................................. 59

Making Two Sided Copies from One Sided Originals ................................................. 59

Making Two Sided Copies from Two Sided Originals .................................................. 61

4-7 Collating Copy Output (Output/Finishing) ................................................................................ 64

4-8 Stapling (Stapling) ................................................................................................................... 67

4-9 Punching Holes (Punching) ..................................................................................................... 70

4-10 Resetting the Copy Sets and Feature Settings to Their Defaults ............................................ 73

Resetting the Number of Copy Sets ............................................................................ 73

Resetting the Feature Settings .................................................................................... 73

4-11 Stopping a Copy Job ............................................................................................................... 74

4-12 Interrupting a Copy Job ........................................................................................................... 75

4-13 Programming Ahead ................................................................................................................ 76

Chapter 5 Added Features

5-1 Overview of Added Features ................................................................................................... 78

5-2 Adjusting Copy Density (Lighter/Darker) ................................................................................. 80

5-3 Making a Copy According to Original Type (Original Type) ..................................................... 82

5-4 Copying Several Documents onto One Copy (Multi-Up (N Up)) ............................................. 84

5-5 Loading Mixed Size Originals (Mixed Size Originals) .............................................................. 87

Copying on Paper Size Matching the Document Size ................................................ 88

Copying onto a Selected Paper Size .......................................................................... 89

5-6 Copying Facing Pages onto Separate Sheets (Book Copying) ............................................... 90

5-7 Setting the Margins (Image Shift) ............................................................................................ 92

5-8 Erasing the Edges and Copying All (Edge Erase/Copy All) ..................................................... 96

5-9 Interleaving Blank Sheets Between Transparencies (Transparency Separators) ................... 99

5-10 Selecting the Original Orientation (Original Orientation) ....................................................... 102

5-11 Rotating and Copying in Different Directions (Image Rotation) ............................................. 104

5-12 Selecting the Original Size (Original Size) ............................................................................ 106

5-13 Enhancing Sharpness (Sharpness) ....................................................................................... 108

5-14 Creating Negative-like Images (Negative Image) .................................................................. 110

5-15 Creating Mirror Images (Mirror Image) .................................................................................. 112

5-16 Repeating an Image (Repeat Image) .................................................................................... 114

5-17 Making Duplex Copies of Facing Pages (Book Duplex) ........................................................ 117

5-18 Inserting Covers (Covers) ..................................................................................................... 120

5-19 Making a Sample Set (Sample Set) ...................................................................................... 123

5-20 Creating a Booklet (Booklet Creation) ................................................................................... 125

5-21 Job Memory Operations ........................................................................................................ 128

Registering a Routine Job in the Job Memory .......................................................... 128

Overwriting Jobs Stored in the Job Memory ............................................................. 133

Deleting a Job Stored in the Job Memory ................................................................. 133

Copying by Using the Job Memory ........................................................................... 135

5-22 Using the Document/Copy Counter ....................................................................................... 136

Chapter 6 Custom Presets

6-1 List of Custom Preset Functions ........................................................................................... 140

Paper Tray Attributes ................................................................................................. 140

Feature Defaults ........................................................................................................ 141

Audio Tones .............................................................................................................. 142

Original Size Defaults ................................................................................................ 143

Original/Paper Size Sensing ..................................................................................... 143

Time-Outs .................................................................................................................. 144

R/E Presets ............................................................................................................... 144

Change of Access Number ....................................................................................... 145

Screen Layout ........................................................................................................... 145

System Setup ............................................................................................................ 146

Image Quality ............................................................................................................ 146

6-2 Displaying the Tools Mode Screen ........................................................................................ 147

Displaying the Tools Mode Screen ............................................................................ 147

Exiting the Tools Mode Screen .................................................................................. 148

6-3 Configuring the Machine with Tools Mode ............................................................................. 149

Selecting the Feature Defaults .................................................................................. 149

Changing the Access Number of the Administrator ................................................... 152

Configuring a Screen (Default/Basic/Customized) .................................................... 154

Chapter 7 Troubleshooting

7-1 Troubleshooting ..................................................................................................................... 164

When an Error Message is Displayed ....................................................................... 164

When Other Problems Occurred ............................................................................... 164

7-2 Paper Jams ........................................................................................................................... 168

Paper Jam at Trays 1-4 ............................................................................................. 168

Paper Jam at Tray 5 (Bypass) ................................................................................... 169

Paper Jam at Tray 6 (High Capacity Feeder) ............................................................ 170

Paper Jam at Lower Right Section of the Machine ................................................... 173

Paper Jam Inside the Machine .................................................................................. 175

Paper Jam at the Output Tray ................................................................................... 178

Paper Jam Inside the Finisher .................................................................................. 180

Paper Jam at the Finisher Tray ................................................................................. 181 xix

xx

Document Jam at the Feeding Point of the DADF .................................................... 183

Document Jam Inside the DADF ............................................................................... 184

Document Jam at the Document Tray ....................................................................... 186

Document Jam Underneath the DADF ..................................................................... 187

Chapter 8 Daily Care

8-1 Cleaning the Copier ............................................................................................................... 194

Cleaning Document Cover, Document/Scanning Glass ............................................ 194

Cleaning the DADF Film/Roller Sections .................................................................. 195

8-2 Consumables ........................................................................................................................ 197

8-3 Increasing the Toner Level .................................................................................................... 198

8-4 Replacing the Toner Cartridge ............................................................................................... 200

8-5 Replacing the Drum Cartridge ............................................................................................... 203

8-6 Replacing the Staple Cartridge ............................................................................................. 206

8-7 Emptying the Punch Scrap Container ................................................................................... 208

8-8 Checking the Billing Meter ..................................................................................................... 210

8-9 Making Clean Copies ............................................................................................................ 212

Chapter 9 Using the Auditron Feature

9-1 Auditron ................................................................................................................................. 216

9-2 Displaying the Auditron Administration Mode Screen ............................................................ 218

Displaying the Auditron Administration Mode Screen ............................................... 218

Exiting the Auditron Administration Mode .................................................................. 219

9-3 Confirming the Account Data ................................................................................................. 220

Confirming Data of Own Account .............................................................................. 220

Confirming Data of Every Account ............................................................................ 221

9-4 Editing the Account Data ....................................................................................................... 223

9-5 Deleting the Account Data ..................................................................................................... 227

9-6 Enabling/Disabling Auditron .................................................................................................. 229

9-7 Defining Automatic Display of the Password Entry Screen ................................................... 231

9-8 Changing the Auditron Access Number ................................................................................. 233

Appendix

A

B

Specifications ........................................................................................................................ 236

Possible Combinations of Features ....................................................................................... 239

C Stapling ................................................................................................................................. 243

D Options and Supplies ............................................................................................................ 245

Index 246

1

Getting to Know Your Copier

1-1 Main Components and Their Functions ........................

1-2 Switching On and Off ....................................................

1-3 Using the Touch Panel Display .....................................

1-4 Entering Password

(When the Auditron Feature is Enabled) .......................

1-5 Saving Power ................................................................

13

15

2

6

8

Getting to Know Your Copier

Main Components and

Their Functions

1

Main Components

1

2

3

Duplex Automatic

Document Feeder (DADF)

Power Switch

Output Tray (optional)

4

5

6

9

10

7

8

11

Lower Right Cover

Paper Trays 1 to 4

Front Door

Control Panel

Document Glass

Tray 6 (High Capacity Feeder) (optional)

Top Cover of Tray 6 (High Capacity Feeder)

Tray 5 (Bypass)

Automatically feeds a stack of documents, one sheet at a time, for scanning. For copying a two-sided document, side one is scanned first and the document is flipped in the DADF for side two to be scanned. The

DADF serves as the document cover when the document to be copied is placed on the document glass.

Switches On/Off the power of the machine.

Receives copies made from the machine. If the optional offset catch tray is installed, each copy set is offset from the previous copy set. This means that the edge of each set is placed to the left or right of the previous copy set to allow easy separation.

Open this cover to clear paper jams.

Load paper stock in these trays.

Open this door to clear paper jams or replace the Drum/Toner Cartridge.

Contains operating buttons, indicator lights and the touch panel display.

Set originals here.

Up to 3600 sheets of paper can be loaded.

Open this cover to clear paper jams.

Load special media and non standard size paper here.

2

1-1 Main Components and Their Functions

Getting to Know Your Copier

1

12 Finisher (optional)

13

Finisher Tray 1

14

Finisher Tray 2

Finisher Top Cover 15

16

Finisher Front Door

17 Fuser Unit

18

19

20

Transfer Unit

Drum Cartridge

Toner Cartridge

21

Breaker Switch

Enables stapling and hole-punching.

Receives copy output other than stapled, punched, or high capacity.

Receives stapled, punched, or high capacity copy output.

Open this cover to remove jammed paper.

Open this door to remove jammed paper, and replace or remove staples.

Fixes the printed image on the paper by fusing the toner. Do not touch this unit as it is extremely hot.

Transfers the toner image on the drum to the paper. Pull out this unit to clear paper jams.

Comprises devices such as a photoreceptor drum and charge corona.

Contains toner (image forming powder).

Controls the power supply to the machine. Once leakage is detected, this switch will automatically interrupt the power supply to the machine. It is usually left in the “I” position.

* Indicates that the feature may not be available on certain models.

1-1 Main Components and Their Functions

3

Getting to Know Your Copier

1

Control Panel

1

2

1

2

3

4

5

Brightness Adjustment Dial

Touch Panel Display

Settings/Meter Check Button

Password Button

Interrupt Button/Indicator

6 Power Saver (On/Off) Button

Adjusts the brightness of the Touch Panel display.

Touch the feature buttons on this panel to select the desired options for a copy, scan or print job.

Press this button to go to the Settings/Meter Check screen or screen for setting printer specifications if the printer function is installed. You can also check the meter reading.

Press this button to enter the Password (by department/account user) when the

Auditron feature is enabled.

Press this button to interrupt the current copy or print job for an urgent job. The indicator light at the upper left lights up when this button is pressed.

Press this button to reduce the power consumption of the machine and put it in the

Power Saver mode which is indicated by the illuminated button. To return to the Ready

(Copy) mode, press the lit Power Saver button.

4

1-1 Main Components and Their Functions

Getting to Know Your Copier

1

7 Clear All Button

8 Stop Button

9 Start Button

10

Clear C Button

11 Numeric Keypad

12 Communicating Indicator*

13

Job in Memory Indicator*

14

Job Status Stop Button*

15 Menu Button*

Press this button to clear all settings and return to the default screen.

Press this button to stop the current copy or print job.

Press this button to start copying or scanning.

The Auto indicator light at the upper left lights up when Auto Start is activated.

Press this button to delete a wrong character entry, and stop a copy or print job.

Use the keys to enter the number of sets to be copied, or numeric values for feature settings.

The indicator lights up when print or scan data are being transmitted.

The indicator lights up when data are accumulated in the memory of the machine.

Press this button when checking or cancelling the status of copy, print or scan jobs.

Press this button to display the menu screen.

* For models with the printer feature

1-1 Main Components and Their Functions

5

Switching On and Off

1

Breaker Switch

Switch On the power before operating the copier.

This section will show you how to switch the copier On/Off.

If the breaker trips repeatedly, contact your local authorized

Panasonic service representative.

Check the Ground Fault Interrupter once a month to ensure that it works correctly.

The Breaker Switch is normally set to the "I" position.

However, when it is not used for an extended period of time or when it is to be relocated, switch it to the "O" position.

Power requirements and ground connection

of

Safety Notes

for an explanation on the Ground Fault

Interrupter.

Switching On the Power

Turn the power switch to the

" " position.

The power is switched On.

You can change the default screen from the Basic Features screen to any other screen and the new screen will be displayed.

The machine will be in the Ready mode approximately three minutes after the power is switched On.

When the Power Saver mode is On, the display will still be Off and the

Power Saver indicator will be On.

After a while, the default screen appears on the display.

6 1-2 Switching On and Off

Getting to Know Your Copier

Switching Off the Power

Turn the power switch to the " " position.

The power is switched Off.

If the machine is switched On but has been left unused for a fixed period of time, the Power Saver feature will reduce the power consumption of the machine to conserve energy. See

1-5: Saving

Power for details.

Switching Off the Power Automatically

This feature is available for models with only the copy function. See

Time-Outs in 6-1: List of Custom

Preset Functions

on how to change the settings.

The Auto Power Off feature will be enabled if the machine has been left unused for a certain duration (factory default is 60 minutes) while the power is On.

Press the switch to the " " position to switch On the power.

The Auto Power Off feature is not available for models with the printer feature.

Auto Start

When the Auto Start feature is activated, "Please wait ... Job will start automatically." appears on the message area of the display. The indicator light at the top left corner of the Auto indicator is lit.

You can cancel the Auto Start feature by pressing the Stop button and then the Clear C button.

Load the document while the message "Please wait.." is being displayed.

Then press the Start button. The document will automatically be scanned once the machine is ready to copy. This is called the Auto Start feature.

1-2 Switching On and Off

7

1

1

Getting to Know Your Copier

Using the Touch Panel Display

1

You can select a feature shown on the Touch Panel display by touching its corresponding button on the display. Here, the Basic Features screen is used to explain the respective parts of a screen.

In this section, the Touch Panel display will be referred to as the “display”.

Feature Status Mark

The status of a feature is indicated by a mark.

Message Area

The status of the machine and its operating instructions are displayed here. The number on the right indicates the number of sets to be copied.

Feature Icon

Explanation on a feature and its settings are represented pictorially.

Select one of these buttons to change the display.

The above Paper Supply display is a sample.

Each default setting is

Tray 1 : 8.5 x 11" (A4)

Tray 2 to 4 : 11 x 17" (A3)

Tray 6 : 8.5 x 11" (A4).

Above Trays can be changed.

Feature Button

Touch this button to select or program a feature. The currently selected button is highlighted

.

Pop-up Mark

This mark indicates that the button has a pop-up screen for additional selections. Select this button to display the pop-up screen.

The features shown on the display

(includes message in the message area or the screen) will depend on the installed options and the model of the machine. In the above example, Tray 6 (High Capacity

Feeder), and Finisher are installed.

For models with the printer feature, see the

Operating Instructions (For

Printer).

8 1-3 Using the Touch Panel Display

Getting to Know Your Copier

The System Administrator can use the Tools Mode to select the screens to be displayed. See sections on

Feature Defaults

and

Screen Layout in

6-1: List of Custom Preset

Functions for details.

Changing the Display Screen

Four screens are available for selection on the display. They are the Basic

Features screen, Customized Features screen, Features Menu screen and

Stored Jobs screen.

Select the Basic Features, Customized Features, Features Menu or Stored

Jobs button located on the right-hand side of the display. The corresponding screen of the selected button will be displayed. The factory default screen when you switch On the power is the Basic Features screen.

The features on the Basic Features screen and the Customized Features screen are also shown on the Features Menu screen. Select the screen that best meets your operating requirements.

1

The screen on the right has the Tray

6 (High Capacity Feeder), and

Finisher installed.

Basic Features (factory default)

Customized Features (factory default)

The screen on the right has the

Finisher installed.

Features Menu

Stored Jobs (factory default)

1-3 Using the Touch Panel Display

9

1

Getting to Know Your Copier

Selecting a Feature

Touch a displayed button to select a feature or value. See “Chapters 4 to 6” for details.

When the feature name is displayed on the button:

When there is a pop-up mark attached to the button:

10 1-3 Using the Touch Panel Display

When there are Scroll Buttons

Getting to Know Your Copier

1

Functions of the Reset, Cancel and Close/Save Buttons

Returns all the selected features and values to their original settings when the screen was first displayed.

Cancels all the selected features and values of the displayed screen and returns to the previous screen.

Registers all the settings and returns to the previous screen.

When a Button Is Not Available

An unavailable button is dim and grey in color.

1-3 Using the Touch Panel Display

11

1

Getting to Know Your Copier

Message Pop-up and Confirmation Pop-up Screens

A message pop-up screen will be displayed to show warning or caution notes. Select Close to exit from this screen.

A confirmation pop-up screen will be displayed when an action requires your confirmation. Select either Yes or No to exit from this screen.

Message Pop-up Screen

Confirmation Pop-up Screen

Error Message Screen

An error message screen will be displayed when it is time to replace one of the consumables or when an error will result if you continue to use the copier.

This screen will also be displayed when there is paper jammed in the machine or when an internal system failure has occurred. Follow the instructions shown on the screen to resolve the problem.

12 1-3 Using the Touch Panel Display

Power Saver Screen

The display on the screen disappears and the Power Saver indicator light is

On when the Power Saver feature is activated. Press the Power Saver (On/

Off) button again to display the default screen.

Entering Password

(When the Auditron Feature is Enabled)

Chapter 9 Using the Auditron

Feature

for details on the functions and settings of the Auditron feature.

The Auditron feature allows you to control the number of copies that a department (account user) can make by assigning a password to the user.

The diagram shows the relationship between the Password Entry screen and the default screen. This section describes the procedures for entering the password when the Auditron mode is On.

1

The screen on the right has the Tray

6 (High Capacity Feeder), and

Finisher installed.

1-4 Entering Password (When the Auditron Feature is Enabled)

13

Getting to Know Your Copier

1

If you made a mistake while entering the password, press the Clear C button to clear and re-enter.

Procedure

When the Password screen is being displayed, enter your

Password by using the keypad.

Each input digit is represented by an asterisk.

Select Confirm.

You can change the maximum display time (time-out) of the default screen by using the Auditron

Administration Mode. See

9-7:

Defining Automatic Display of the

Password Entry Screen

for details.

The default screen appears.

After you have finished with your copying, press Password to return to the Password Entry screen.

14 1-4 Entering Password (When the Auditron Feature is Enabled)

Saving Power

The machine has a power-saving feature, which lowers the power consumption when copying is stopped for a period of time. This consists of two modes based on the level of power consumption.

Low Power Mode (Power Saver Mode)

Power consumption: 120 V model: 206 W, 220-240 V model:208 W

The power of the control panel and fuser unit lowers. The display is unlit.

The Power Saver light on the control panel is lit.

1

Normal power consumption during machine standby is 270 W.

When the machine is not used for a set period of time, it automatically goes into the low power mode

(Power Saver mode) (factory default is 15 minutes). In addition, after a set period of time, it shifts to the power Off mode (Sleep Mode)

(factory default is 60 minutes).

These time-out periods can be changed. See Time-Outs in 6-1: List of Custom Preset Functions

for details.

To copy, press the Power Saver (On/Off) button.

The Power Saver light is unlit and the Power Saver mode is cancelled.

Power Off Mode (Sleep Mode)

Power consumption: 120 V model: 6 W, 220-240 V model: 7 W

The power switch automatically changes to the " " position and the power is switched Off.

To copy, turn the power switch to the "I" position.

The power is switched On and the display shows the default screen.

When the machine is not used for a set period of time, it automatically goes into the low power mode

(factory default is 15 minutes). In addition, after a set period of time, it shifts to the Sleep Mode (factory default is 60 minutes).

For models which come with the printer feature, see the

Operating

Instructions (For Printer)

regarding setting the power-saving feature.

Sleep mode can be disabled. See the

Operating Instructions (For

Printer).

For Models Which Come with the Printer Feature

Low Power Mode

The power of the control panel and fuser unit lowers. The display is unlit.

The Power Saver light on the control panel is lit.

To copy, press the Power Saver (On/Off) button.

Operating Instructions (For Printer)

Sleep Mode

The power of the fuser unit is cut. The display is unlit.

The Power Saver light on the control panel is lit.

To copy, press the Power Saver (On/Off) button.

The Power Saver light is unlit and Power Saver mode is cancelled.

1-5 Saving Power

15

Getting to Know Your Copier

1

Entering Power Saver Mode Automatically

When the machine is not used for a set period of time, it automatically goes into the Low Power Mode (Power Saver Mode). In addition, after a set period of time, it shifts to the Power Off Mode (Auto Power Off Mode).

By factory default, the shift to Power

Saver mode and Auto Power Off mode after the last copy job or action is set as 15 minutes and 60 minutes respectively. These time-out periods can be changed. See

Time-

Outs in 6-1: List of Custom Preset

Functions

for details.

For models which come with the printer feature see the

Operating

Instructions (For Printer)

regarding setting the power-saving feature.

Sleep mode can be disabled. See the

Operating Instructions (For

Printer).

For Models Which Come with the Printer Feature

When the machine is not used for a set period of time, it automatically goes into the Low Power Mode. In addition, after a set period of time, it shifts to the Sleep Mode.

Using the Power Saver Mode

You can enable the Low Power Mode manually when you are not making copies for a period of time.

Procedure

Press Power Saver (On/Off).

When the machine in low power mode is not used for a set period of time, it shifts to the Power Off mode

(Auto Power Off mode), and power is cut. To copy, switch the power On again.

The power saver light is turned On and the machine is in the Power Saver

Mode.

Disabling the Power Saver Mode

Procedure

Press Power Saver (On/Off).

The power saver light is turned Off and the Power Saver Mode is disabled.

16 1-5 Saving Power

2

Loading Paper

2-1 What Paper to Use .....................................................

2-2 Storing and Handling Paper ........................................

2-3 Loading Paper ............................................................

2-4 Changing the Paper Tray Size ....................................

18

20

21

25

Loading Paper

What Paper to Use

This section describes the paper stock that can be used on this machine.

2

Weights of Paper

The Tray 6 (High Capacity Feeder) is optional.

For two-sided copying, use

15 - 34 lbs paper.

The weights of paper for the respective trays are as shown below.

Tray

Tray 1

Trays 2 to 4

Tray 5 (Bypass)

Tray 6 (High

Capacity Feeder)

Paper Weight

15 - 34 lbs

15 - 34 lbs

15 - 58 lbs

15 - 34 lbs

Paper Size and Tray Loading Capacity

Do not use paper with glue or tape on it.

For curled paper, uncurl them before loading.

You cannot make two-sided copies onto paper smaller than 5.5 x 8.5".

The applicable paper size and the loading capacity for the respective trays are shown below.

Tray Valid Paper Sizes

Tray 1 A5, A5 , B5 , A4 , 5.5 x 8.5", 8.5 x 11"

Trays 2 to 4

A5, A5 , 5.5 x 8.5", B5, B5 , A4, A4 , 8.5 x 11",

8.5 x 11" , 8.5 x 13", 8.5 x 14", B4, Pa Kai, A3, 11 x 17"

Tray 5

(Bypass)

Tray 6 (High

Capacity

Feeder)

A6, B6, A5, A5 , B5, B5 , A4, A4 , B4, A3, Pa Kai,

5.5 x 8.5", 8.5 x 11", 8.5 x 11" , 8.5 x 13", 8.5 x 14", 11 x 17"

B5 , A4 , 8.5 x 11"

Paper Tray

Capacity

1000 sheets

550 sheets each

50 sheets each

3600 sheets

18 2-1 What Paper to Use

Loading Paper

Types of Special Media

The special media mentioned on the right cannot be used for 2-Sided copying.

The types of media for the respective trays are as shown below.

Tray

Trays 2 to 4

Tray 5 (Bypass)

Special Media

Transparencies, perforated paper (30-hole)

Transparencies, perforated paper (30 hole), tracing paper, label stock

2

Do not use paper with glue or tape on it.

Special Media cannot be loaded in

Trays 1 and 6 (High Capacity

Feeder) (optional).

Load perforated paper with the holes toward the back of the tray.

Do not use conductive paper, e.g folding paper, carbonic paper and coated paper. When paper jam occurs, they can cause fire or electric shocks.

2-1 What Paper to Use

19

Loading Paper

2

Storing and Handling Paper

Observe the following when storing paper:

Always store paper in a cabinet or at a place with low humidity. Damp paper may cause jams or affect the image quality.

Always re-pack unused paper, preferably with desiccant.

Always store paper on a flat surface to prevent bending or curling.

Observe the following when handling paper:

Do not combine and load paper left-over from different reams into a tray.

Do not use folded or wrinkled paper.

Do not load mixed size paper into a tray.

Always fan transparencies or labels before loading to prevent jamming or multi-sheet feeding.

Handling Curled Paper

If the output paper curls badly and cannot be properly delivered to the output tray, remove the paper stock from the selected tray. Turn the stack of paper over in the tray so that the last sheet is now the first sheet. Then re-load the paper stock into the paper tray.

20 2-2 Storing and Handling Paper

Loading Paper

Loading Paper

During a copy job, paper can be added to a tray not selected for the current job that is in progress.

The following screen will appear when paper runs out during a copy job.

Add paper according to the displayed instructions. After adding the paper, you can resume the copy job by pressing the Start button.

2

This section will show you how to add paper to Trays 1 to 4, Tray 5 (Bypass), and Tray 6 (High Capacity Feeder).

Loading Paper in Trays 1 to 4

Add paper to Trays 1 to 4 according to the procedures shown below.

The capacity of Tray 1 is 1000 sheets while Trays 2 to 4 each has a capacity of 550 sheets.

Procedure

Pull out the empty tray until it stops.

Do not load paper above the MAX fill line.

When pulling out a paper tray, do it slowly. If pulled out with too much force, the tray can hit and injure your knees.

Align and load the paper stock against the right side of the tray with the side where the image is to be copied facing upwards.

2-3 Loading Paper

21

2

Loading Paper

Push the tray in slowly until it stops.

The message, "Ready to copy.

Press Start to continue or press C button to cancel the job." appears on the display once you have properly replenished the tray.

22 2-3 Loading Paper

Loading Paper

Loading Paper in Tray 5 (Bypass)

Load special media, non-standard size paper, which cannot be loaded in

Trays 1-4, Tray 6 (High Capacity Feeder) (optional), and Tray 5 (Bypass).

The Tray 5 (Bypass) has a capacity of 50 sheets. The paper size is as follows.

Procedure

Open Tray 5 (Bypass) by holding the grip on the left side of the machine.

2

*However, image which can be copied on the Y axis is up to 11 inches.

Load perforated paper with the holes toward the back of the tray.

When copying on OHP film

(8.5 x 11" or A4), please set the

OHP film in Landscape orientation.

If necessary, pull out the

Extension Tray.

Do not place things other than media on Tray 5 (Bypass). Also, do not make copies while holding the edge of the paper. The wrong paper size may be detected leading to paper jams.

Make sure that the Paper Guide is set so that it touches the paper.

Skewed paper will cause the copy image to be slanted.

When copies are made by placing the original on the document glass, there may be a loss of image due to error in size detection. As such, enter the size of the original with the

Original Size feature, or use the

DADF.

Do not move the Paper Guide after the Start button has been pressed and until copying has stopped.

Load paper with the side to be copied facing up and inserting them till they touch the back of the tray.

Make sure the edges of paper towards you are aligned.

Move the Paper Guide to touch the paper.

Tray 5 (Bypass) under Paper

Supply of the Basic Features screen becomes selectable.

2-3 Loading Paper

23

Loading Paper

2

Loading Paper in Tray 6 (High Capacity Feeder) (optional)

Tray 6 (High Capacity Feeder) is optional.

The capacity of Tray 6 (High

Capacity Feeder) (optional) is 3600 sheets.

Load paper in Tray 6 (High Capacity Feeder) (optional) by following the procedures below.

Procedure

Do not load paper above the MAX fill line.

Pull the tray out slowly until it stops.

When pulling out a paper tray, do it slowly. If pulled out with too much force, the tray can hit and injure your knees.

Align and load the paper against the right side of the tray with the side where the image is to be copied facing upwards.

Push the tray in slowly until it stops.

24 2-3 Loading Paper

Changing the Paper Tray Size

Changing the Size of Tray 1

2.1 What Paper to Use

for information on the types of paper stock that can be used.

Original/Paper Size Sensing of 6.1:

List of Custom Preset Functions

for information on the Tools Mode screen.

Follow the procedures shown below to change the size of Tray 1 in order to load paper stock of the desired size.

For changing paper size A5 5.5 x 8.5", you have to do it via the Tools

Mode screen.

2

Procedure

Pull Tray 1 out until it stops.

Paper jam may occur if the paper size has not been changed correctly.

When pulling out a paper tray, do it slowly. If pulled out with too much force, the tray can hit and injure your knees.

Remove any paper still in the tray.

Pinch and hold the release on the Lever as shown in the diagram. Then push the Lever to the rear of the tray.

2-4 Changing the Paper Tray Size

25

Loading Paper

2

Place paper stock of the desired size against the bottom-right corner of the tray.

Pinch and hold the release on the Lever again and push the Lever forward until it touches the edge of the paper.

Paste the new Paper Size

Label on the front of the tray.

After changing from A5 5.5 X 8.5”, there is a need to adjust settings in

Tools Mode screen. See

Original/

Paper Size Sensing of

6.1: List of

Custom Preset Functions

.

Push Tray 1 in slowly until it stops.

26 2-4 Changing the Paper Tray Size

Loading Paper

Changing the Size of Trays 2 to 4

Request assistance from your System Administrator if you need to change the size of Trays 2 to 4. Your System Administrator can follow the procedures shown below to make the changes.

After changing paper size, follow the steps from Step 9 to adjust settings on the Tools Mode screen.

Procedure

Pull out the tray that you want to change until it stops.

When pulling out a paper tray, do it slowly. If pulled out with too much force, the tray can hit and injure your knees.

Remove any paper still in the tray.

2

Use a screwdriver to remove the three screws as shown in the diagram.

2-4 Changing the Paper Tray Size

27

Loading Paper

2

Place paper stock of the desired size against the bottom-right corner of the tray.

Adjust the Paper Guides according to the size of the paper.

If the Paper Guides are not fastened properly, paper jam may occur.

Remove the paper from the tray and use a screwdriver to fasten the screws as shown in the diagram.

Check that the Paper Guides are locked at the holes with the screws tightened. Then re-load the paper.

Paste the new Paper Size

Label on the front of the tray.

Push the tray in slowly until it stops.

Refer to the procedures described on the following page to change the paper size.

28 2-4 Changing the Paper Tray Size

Loading Paper

The screen on the right has the

Auditron mode enabled. For details, refer to

Chapter 9 Using the Auditron

Feature

.

Press Settings/Meter Check on the control panel.

Select Tools Mode.

2

If you made a mistake while entering the Access Number, press the Clear

C button to clear and re-enter.

The factory default Access Number is "11111".

Changing the Access Number of the administrator in

6-3: Configuring the

Machine with Tools Mode for information on how to change the

Access Number.

Enter the Access Number of the System Administrator by using the keypad and select Confirm.

Each input digit is represented by an asterisk.

Select Paper Tray Attributes.

For models with the printer feature, the screen displayed differs.

Select Paper Sizes.

2-4 Changing the Paper Tray Size

29

Loading Paper

2

The tray can also be selected directly by touching its button on the display.

As Tray 1 and Tray 6 (High Capacity

Feeder) (optional) can automatically detect the loaded paper size, they are not shown on the screen on the right.

Select the tray that you have changed by using the buttons. Then select Change Settings.

For example, select Tray 3.

Select the desired preset paper size.

If the preset paper size is measured in inches, select Inch

Size. Then select the desired paper size.

Select Save once and Close twice.

Select Exit Tools.

The paper size of the selected tray is changed.

30 2-4 Changing the Paper Tray Size

Loading Paper

Changing the Size of Tray 6 (High Capacity Feeder) (optional)

Tray 6 (High Capacity Feeder) is optional.

This section explains the procedures for changing the paper sizes to be loaded in Tray 6 (High Capacity Feeder).

Paper sizes that can be loaded are B5 , A4 , and 8.5 x 11" .

Procedure

Paper jam may occur if paper size has not been changed correctly.

Pull Tray 6 (High Capacity

Feeder) out slowly until it stops.

2

When pulling out a paper tray, do it slowly. If pulled out with too much force, the tray can hit and injure your knees.

Remove any paper still in the tray.

Turn the screw to remove the Inner Guide.

Adjust the Inner Guide to the hole and fasten the screw. When changing to

A4 or 8.5 x 11" , proceed to Step 7.

2-4 Changing the Paper Tray Size

31

Loading Paper

When the paper size is changed to B5 , remove the Horizontal Guide from the right side of the tray.

2

When B5 is changed to A4 or

8.5x11" , remove the Horizontal

Guide from the (B5) slot and store it on the right side of the tray and tighten the screw.

Insert the Horizontal Guide into the (B5) slot and fasten the screw.

Place the paper against the bottom-right corner of the tray.

Paste the new Paper Size

Label on the front of the tray.

Push the tray in slowly until it stops. When pushing back Tray 6 (High Capacity

Feeder), do not place your hand on the front of the tray. You may hurt your fingers if you do so.

32 2-4 Changing the Paper Tray Size

3

Loading Documents

3-1 Documents ..................................................................

3-2 Loading Documents ....................................................

34

36

Loading Documents

Documents

3

Edge Erase/Copy All is not available when copying some types of documents.

Place document on the Document Glass or load it in the Duplex Automatic

Document Feeder (DADF).

Place the following types of documents on the Document Glass. They will cause jams when loaded in the DADF.

Documents that are relatively heavy, for example, brochures and booklets

Torn, wrinkled, paste-up, punched-hole, folded or curled documents

Paper-clipped or stapled documents

Documents with carbon on the reverse side

Highly transparent documents such as transparencies and tracing paper that have been pencilled

Heat-sensitive paper

Observe the precautions described in the following sections when loading documents in the DADF or when placing them on the Document Glass.

Loading Documents in the DADF

Do not load any documents that have correction fluid or carbon on them.

Do not hold on to a document while it is being fed into the scanner. This may cause a document misfeed.

Do not allow excessive sheets of documents to accumulate in the

Document Tray. Never place anything on the Document Tray as it may result in a document jam.

When opening the DADF, gently lift it up until it stops. Never force it up.

The DADF cannot detect the size of transparencies and tracing paper.

The DADF accepts the following types of documents.

34 3-1 Documents

Loading Documents

Paper Weight is a measure of the substance of paper expressed in pounds (lbs), which does not depend on the number of sheets in the ream.

Original/Paper Size Sensing

in

6-1:

List of Custom Preset Functions

for information on how to define automatic document size sensing.

• Paper Weight : 1-Sided : 10 - 34 lbs or 38 - 128 g/m

2

2-Sided : 13 - 28 lbs or 50 - 105 g/m

2

• Capacity : 50 sheets

When using the DADF, the paper sizes, which can be automatically detected by the machine are A5, A5 , B5, B5 , A4, A4 , 8.5 x 11"*,

8.5 x 11" , B4, A3, 11 x 17", and 8.5 x 13".

However, using Tools Mode, you can change A5 to 5.5 x 8.5”, A4 to 8.5 x

11”, A4 to 5.5 x 11” , B4 to 8K (267 x 388 mm), A3 to 11 x 17”, and

8.5 x 13" to 8.5 x 14".

3

Placing Documents on the Document Glass

The largest document size that can be placed on the Document Glass is shown below. There is no limit on the smallest size.

Do not load any documents that have correction fluid or carbon on them.

For highly transparent documents, they may not be automatically detected. Specify their sizes with the Original Size feature.

Original/Paper Size Sensing

in

6-1:

List of Custom Preset Functions

for information on how to define automatic document size sensing.

When using the Document Glass, the paper sizes, which can be automatically detected by the machine are A6, B6, B6 , A5, A5 , 5.5 x

8.5", 5.5 x 8.5" , B5, B5 , A4, A4 , 8.5 x 11" , 8.5 x 11", 8.5 x 14" (or

8.5 x 13"), B4, 8K (267 x 388 mm), A3, and 11 x 17".

If you make copies with the document cover open, avoid looking directly at the copy lamp. Direct eye exposure can cause eye fatigue or damage.

When copying a thick document, do not use excessive force to press it against the Document Glass. The glass may break and cause injuries.

3-1 Documents

35

Loading Documents

Loading Documents

3

Load the documents in the DADF or place it on the Document Glass.

Loading Documents in the DADF

The DADF lets you load a stack of documents for feeding to the scanner one sheet at a time, and output them after scanning. 50 sheets can be loaded each time, thus saving time of loading documents manually.

The DADF cannot be used for some types of documents. See

Loading documents in the DADF

in

3-1:

Documents for the details.

For originals of mixed sizes, see

5-5:

Loading Mixed Size Originals (Mixed

Size Originals)

.

Procedure

Align the lead edges of your documents.

Remove any paper clips, staples and Post-it

®

Notes before making copies.

Align the lead edges of your documents.

Document feeder jams may occur if the Document Guide is not positioned correctly.

Load documents face up

(side one should face up in the case of two sided copying) against the rear guide.

The confirmation light becomes lit.

Move the Document Guide to gently touch the document.

Note when copying 51 sheets of documents or more

50 documents can be loaded each time, but documents can be added for continuous scanning up to a total of 700 sheets (350 sheets for two-sided copying). During the scanning of the first document loaded, select Next Document on the screen. After scanning has ended, add documents and press Start to continue scanning other documents.

Select End Job if there are no further documents for scanning.

However, when Stapling, 1 -> 2 Sided, or Multi-Up (N Up) is selected, no documents can be added for scanning.

36 3-2 Loading Documents

Loading Documents

Placing Documents on the Document Glass

Procedure

Placing documents on the

Document Glass in 3-1: Documents for information on the types of documents that can be placed on the Document Glass.

For documents of mixed sizes, see

5-5: Loading Mixed Size Originals

(Mixed Size Originals) .

Open the document cover.

Open the document cover until the cover is completely released from the sensor rod (approximately 11.8 in

(30 cm) and above). Otherwise, the machine may not be able to accurately detect the size of the document.

Place the document face down and align it with the upper-left corner of the

Document Glass.

When copying highly transparent documents such as tracing paper or transparencies, stains on the document cover may also be copied.

To prevent this, cover the document with a piece of white paper the same size as the document before closing the document cover.

If a document is folded or curled, its size may not be correctly detected.

Put a stack of white paper of the same size on the document, and make sure it comes into close contact with the Document Glass.

You need to specify the document size if you have selected certain features. See

5-12: Selecting the

Original Size (Original Size)

for details.

For collated copying, up to 700 sheets can be continuously scanned. See

4-7: Collating Copy

Output (Output/Finishing)

for collated-copying.

By factory default, document orientation is set to Head to Top.

See

5-10: Selecting the Original

Orientation (Original Orientation)

.

Do not place the document like this if you have selected Head to Left.

Close the document cover.

When copying a thick document, do not use excessive force to press it against the

Document Glass. The glass may break and cause injuries.

Document Orientation

When a feature such as, 2 Sided, Multi-Up (N Up), Image Shift, Edge

Erase/Copy All, Repeat Image, or Stapling/Punching (optional) is selected, and if the document orientation is wrong, copies cannot be made correctly. Documents are loaded as Head to Top or Head to Left (see diagram below). After loading documents, be sure to set their orientation

(Head to Top or Head to Left) under Original Orientation on the copy screen of each feature or on the Features Menu screen.

3

3-2 Loading Documents

37

3

Loading Documents

Screen Display When Using Document Glass

See

5-12: Selecting the Original

Size (Original Size)

on how to input the document size.

The display of this screen can be enabled via the Tools Mode screen.

See

System Setup

in

6-1: List of

Custom Preset Functions

.

This screen is not displayed by factory default.

The message "Size Mismatch" may be displayed if you have pressed the

Start button after placing your document on the Document Glass and selecting the copy function.

Size here refers to the image size that is calculated based on the document size detected by the machine and the specified ratio.

The Size Mismatch message screen will be displayed if the machine is unable to detect the document size and the image size does not fit the selected paper size. This may result in image loss when the document is copied.

If the copy to be made is either option 1, 2 or 3 on the left side of the screen, check that Copy without Rotation is selected and press Start. The copy will be made without rotating the image regardless of the Image Rotation setting. (When this screen is displayed, Copy without Rotation is already selected.)

If Copy Anyway is selected, the copy will be made based on the document size detected by the machine and the selected features. Sometimes image loss may result after the image is rotated because of the loading method or the document size. In this case, first enter the area to be copied by using the Original Size feature.

"Size Mismatch" will not be displayed in the following instances.

Paper Supply or Reduce/Enlarge is set to Auto and Auto % respectively.

Independent X-Y% is selected.

A non standard size paper is selected.

The area to be copied is entered by using the Original Size feature.

Image Shift ( , Auto Center (Centre)), Multi-Up (N Up),

Repeat Image, Book Copying, or Book Duplex is selected.

38 3-2 Loading Documents

4

Basic Features

4-1 Overview of Basic Features ........................................

4-2 Selecting a Paper Tray (Paper Supply) ......................

4-3 Reducing/Enlarging (Reduce/Enlarge) .......................

4-4 Reducing/Enlarging the Length and Width

(Independent X-Y%) ..................................................

4-5 Copying on One Side (2 Sided) ..................................

4-6 Copying on Two Sides (2 Sided) .................................

4-7 Collating Copy Output (Output/Finishing) ...................

4-8 Stapling (Stapling) ......................................................

4-9 Punching Holes (Punching) ........................................

4-10 Resetting the Copy Sets and Feature Settings to Their

Defaults .......................................................................

4-11 Stopping a Copy Job ...................................................

4-12 Interrupting a Copy Job ...............................................

4-13 Programming Ahead ...................................................

40

42

43

73

74

75

76

49

56

59

64

67

70

4

Basic Features

Overview of Basic Features

The screen below has the Tray 6

(High Capacity Feeder), and

Finisher installed.

The icons and buttons on the display that are used for carrying out a basic copy job are shown in the diagram below. This diagram shows their locations on the control panel as well as the features that they have.

You will find it useful to familiarize yourself with the respective locations of the icons and buttons before operating the machine.

Paper Supply

For selecting the paper size

Reduce/Enlarge

For making reduced/ enlarged copies

2 Sided

For making 2-sided copies

Output/Finishing

(Collate/Uncollate/

Stapling/Punching)

For selecting the type of output and finishing

40

4-1 Overview of Basic Features

Basic Features

Interrupt

For interrupting the current job with an urgent job

Clear All

For clearing and returning the selected settings to their default values

4

Stop

For stopping a copy job

Keypad

For entering numerical values such as number of sets

Start

For starting a copy job

Clear C

For clearing a mistake made when entering a value with the keypad

4-1 Overview of Basic Features 41

Basic Features

Selecting a Paper Tray

(Paper Supply)

4

Before starting a copy job, select a paper tray with the required paper size.

There are two methods of selecting a paper tray:

A message will appear on the display if the auto-selected tray has no paper or the machine is unable to detect the size of the document.

Follow the displayed instructions.

A message will appear on the display if the selected tray has no paper. Follow the displayed instructions.

By factory default, Auto Paper

Selection is applicable to Tray 1,

Tray 2, and Trays 3, 4, 6 (High

Capacity Feeder) (optional).

Request the Tools Mode administrator to set the tray you wish to assign for Auto Paper Selection.

See

Paper Tray Attributes

in

6-1:

List of Custom Preset Functions

.

Auto Paper Selection (Auto)

The machine will detect the document size, match it with the percentage selected in Reduce/Enlarge and determine which paper size to use.

Operator's Selection

You will select the desired paper tray.

Procedure

Load the document.

On the Basic Features screen, select Auto in Paper Supply.

Alternatively, select the tray with the desired paper size.

For example, select 1.

Chapter 3 Loading Documents

for information on how to load documents.

The screen on the right has the Tray

6 (High Capacity Feeder), and

Finisher installed.

The factory default for Paper Supply is Auto.

Paper Supply can also be selected on the Features Menu screen.

You cannot select Auto for Paper

Supply and Auto % for Reduce/

Enlarge at the same time. Once you have selected Auto % for Reduce/

Enlarge, the Auto option in Paper

Supply is automatically disabled.

Some features cannot be selected together with this feature. See

Appendix B: Possible Combinations of Features for details.

42

4-2 Selecting a Paper Tray (Paper Supply)

Select other features if necessary.

Enter the required number of sets by using the keypad and press Start.

The copies are made on paper from the selected tray.

If Auto is selected, the copies are made on paper from the tray designated for

Auto Paper Selection.

Basic Features

Reducing/Enlarging

(Reduce/Enlarge)

Enter the vertical and horizontal ratios of the document. The machine will convert these into length and width, and produce the copy accordingly. See

4-4: Reducing/

Enlarging the Length and Width

(Independent X-Y%)

for information on the Independent X-Y% feature.

The Reduce/Enlarge feature allows you to adjust the size of your copy image. There are two methods to choose from:

Size-for-Size Copying (100%)

The copied image is the same size as the original image.

Reduction or Enlargement

You can reduce/enlarge an image by using one of the following methods:

Selecting Auto%

The machine determines the appropriate ratio for Reduce/Enlarge so that the copy image fits onto the selected paper.

4

Preset Percentage Change

You can select one of the seven preset ratios.

Variable Percentage Change (Variable %)

You can specify a reduction or enlargement ratio between 25-400%.

Original

Ledger

Legal

Letter

Invoice

Copy

Ledger

100%

121%

129%

200%

Legal

77%

100%

100%

155%

Letter

65%

79%

100%

129%

Invoice

50%

61%

65%

100%

4-3 Reducing/Enlarging (Reduce/Enlarge)

43

Basic Features

Size-for-Size Copying

You can make an exact copy of the original by selecting 100% in Reduce/

Enlarge on the Basic Features screen.

Procedure

Chapter 3 Loading Documents for information on how to load documents.

Load the document.

On the Basic Features screen, select 100% in Reduce/Enlarge.

4

The factory default for Reduce/

Enlarge is 100%.

Reduce/Enlarge can also be selected on the Features Menu screen.

The screen on the right has the Tray

6 (High Capacity Feeder), and

Finisher installed.

Some features cannot be selected together with this feature. See

Appendix B: Possible Combinations of Features

for details.

Select other features if necessary.

Enter the required number of sets by using the keypad and press Start.

The copies are made at 100%.

44 4-3 Reducing/Enlarging (Reduce/Enlarge)

Basic Features

Reduction or Enlargement

If you have selected Auto % in Reduce/Enlarge, the machine determines an appropriate reduction or enlargement ratio so that the copy image fits onto the paper from the tray which you have selected in Paper Supply.

Procedure

Chapter 3 Loading Documents for information on how to load documents.

Paper Supply can also be selected on the Features Menu screen.

The screen on the right has the Tray

6 (High Capacity Feeder), and

Finisher installed.

Load the document.

On the Basic Features screen, select the tray with the desired paper size in Paper Supply.

For example, select 4.

4

On the Basic Features screen, select Auto % in Reduce/

Enlarge.

The factory default for Reduce/

Enlarge is 100%.

Reduce/Enlarge can also be selected on the Features Menu screen.

You cannot select Auto for Paper

Supply and Auto % for Reduce/

Enlarge at the same time. Once you have selected Auto % for Reduce/

Enlarge, the Auto option in Paper

Supply is automatically disabled.

Some features cannot be selected together with this feature. See

Appendix B: Possible Combinations of Features

for details.

Select other features if necessary.

Enter the required number of sets by using the keypad and press Start.

The copies are made according to the ration that matches the paper size specified in Step 2.

4-3 Reducing/Enlarging (Reduce/Enlarge)

45

Basic Features

Preset Percentage Change

Procedure

The values of the preset ratios can be changed. If you use a ratio more frequently than those shown on the right, then you will find it convenient to change one of those preset ratios to the one that you frequently use.

See

R/E Presets

of

6.1: List of

Custom Preset Functions for information on how to change the preset ratios.

Load the document.

On the Basic Features screen, select Reduce/Enlarge.

4

Chapter 3 Loading Documents

for information on how to load documents.

The screen on the right has the Tray

6 (High Capacity Feeder), and

Finisher installed.

The factory default for Reduce/

Enlarge is 100%.

Reduce/Enlarge can also be selected on the Features Menu screen.

Select Cancel to cancel the settings.

Select the button with the desired preset ratio.

For example, select 64% 11 x 17" 8.5 x 11".

Some features cannot be selected together with this feature. See

Appendix B: Possible Combinations of Features for details.

Select Save.

Select other features if necessary.

Enter the required number of sets by using the keypad and press Start.

The copies are made according to the ratio specified in Step 3.

46 4-3 Reducing/Enlarging (Reduce/Enlarge)

Basic Features

Variable Percentage Change (Variable %)

You can make copies by selecting a ratio between 25-400%.

Procedure

Chapter 3 Loading Documents for information on how to load documents.

Load the document.

On the Basic Features screen, select Reduce/Enlarge.

Paper Supply can also be selected on the Features Menu screen.

The screen on the right has the Tray

6 (High Capacity Feeder), and

Finisher installed.

4

Select Variable %.

The factory default for Reduce/

Enlarge is 100%.

Reduce/Enlarge can also be selected on the Features Menu screen.

4-3 Reducing/Enlarging (Reduce/Enlarge)

47

Basic Features

Touch C on the screen if you made a mistake while entering the ratio.

Select Cancel to cancel the settings.

Use buttons, or the keypad displayed on the screen to enter the ratio.

For example, enter 120%.

4

Some features cannot be selected together with this feature. See

Appendix B: Possible Combinations of Features

for details.

Select Save twice.

Select other features if necessary.

Enter the required number of sets by using the keypad and press Start.

The copies are made according to the ratio specified in Step 4.

48 4-3 Reducing/Enlarging (Reduce/Enlarge)

Basic Features

Reducing/Enlarging the

Length and Width

(Independent X-Y%)

If you have also selected Auto

Center (Centre) for Image Shift, then the image will be copied onto the center of the paper as shown in the diagram on the right.

You can select a ratio between 25-

400% in 1% increments.

You can enter a length (Y) between

1-999 mm in 1 mm increment.

The machine will automatically adjust the ratio to 25% if the calculated ratio is below 25%, and

400% if the calculated ratio is above

400%.

The Independent X-Y% feature allows you to make copies with independent length or width of the original. There are three methods available.

Specifying X/Y Percentage Change (Variable X-Y%)

Y

You can make copies of the originals by selecting different ratios for X and Y. The image will be copied according to your selected values.

X

4

Specifying Original/Copy Size (Calculator %)

Copies will be made based on the ratios calculated by the machine from the input measurements of the document and the desired copy.

Automatic X/Y Percentage Change (Auto-Fit)

When this is selected with Image

Rotation Off, the resulting output will be as illustrated on the right.

The machine will make copies of the originals by calculating the X and

Y ratios so that the image can fit onto the selected paper size.

4-4 Reducing/Enlarging the Length and Width (Independent X-Y%)

49

Basic Features

Specifying X/Y Percentage Change (Variable X-Y%)

You can make copies of your original by specifying its X and Y ratios separately. The image will be copied according to the ratios that you have entered.

Procedure

On the Basic Features screen, select Reduce/Enlarge.

4

The factory default for Reduce/

Enlarge is 100%.

Reduce/Enlarge can also be selected on the Features Menu screen.

The screen on the right has the Tray

6 (High Capacity Feeder), and

Finisher installed.

Select Independent X-Y%.

Select Cancel to cancel the settings.

Select Variable X-Y%.

50 4-4 Reducing/Enlarging the Length and Width (Independent X-Y%)

You can use buttons below XY on the display to increase or decrease the ratio of X and Y simultaneously.

Select Cancel to cancel the settings.

Enter the X and Y ratios by using buttons.

For example, enter Y = 120% and X = 200%.

Basic Features

Chapter 3 Loading Documents

for information on how to load documents.

Load the original in the orientation of Head to Top, or Head to

Left.

4

Set the document orientation correctly because if it is different from the orientation of original loaded, XY is different and their reduction or enlargement becomes different as a result.

See 5-10: Selecting the Original

Orientation (Original Orientation) for details.

Select the corresponding document orientation of the original loaded.

Select Head to Top or Head to Left.

Some features cannot be selected together with this feature. See

Appendix B: Possible Combinations of Features

for details.

Select Save twice.

Select other features if necessary.

Enter the required number of sets by using the keypad and press Start.

The copies are made according to the ratios specified in Step 4.

4-4 Reducing/Enlarging the Length and Width (Independent X-Y%)

51

4

Basic Features

Specifying Original/Copy Size (Calculator %)

The machine will automatically adjust the ratio to 25% if the calculated ratio is 25% or below, and

400% if the calculated ratio is 400% and above.

The factory default for Reduce/

Enlarge is 100%.

Reduce/Enlarge can also be selected on the Features Menu screen.

The screen on the right has the Tray

6 (High Capacity Feeder), and

Finisher installed.

The machine will make copies of your original based on the ratios calculated from the measurements of the original and the copy that you have entered.

Procedure

On the Basic Features screen, select Reduce/Enlarge.

Select Independent X-Y%.

Select Cancel to cancel the settings.

Select Calculator %.

52 4-4 Reducing/Enlarging the Length and Width (Independent X-Y%)

Basic Features

Use the ruler markings surrounding the Document Glass to set the area of the original for scanning.

Select Cancel to cancel the settings.

Check that there is a button on the left of Original Size under

Y. Enter the length of the document by using the keypad.

For example, enter "210 mm".

To change the value, select Enter/

Next to move to the value you want.

Select Enter/Next.

The button moves to the left of Copy Size under Y.

Select the value of X in the same way as explained from Steps

5 to 6.

The machine calculates the XY ratio and it is displayed.

4

Load the original in the orientation of Head to Top, or Head to

Left.

Chapter 3 Loading Documents for information on how to load documents.

Set the document orientation correctly because if it is different from the orientation of original loaded, XY is different and their reduction or enlargement becomes different as a result.

See 5-10: Selecting the Original

Orientation (Original Orientation) for details.

You cannot select Save until you have entered all the measurements for the document and paper size.

Some features cannot be selected together with this feature. See

Appendix B: Possible Combinations of Features for details.

Select the corresponding document orientation of the original loaded.

Select Head to Top or Head to Left.

Select Save twice.

Select other features if necessary.

Enter the required number of sets by using the keypad and press Start.

The copies are made according to the specified copy sizes.

4-4 Reducing/Enlarging the Length and Width (Independent X-Y%)

53

Basic Features

4

Automatic X/Y Percentage Change (Auto-Fit)

The machine will make copies of your original by calculating the X and Y ratios so that the image can fit onto the selected paper size.

Procedure

On the Basic Features screen, select the tray with the desired paper size in Paper Supply.

For example, select 4.

Paper Supply can also be selected on the Features Menu screen.

The screen on the right has the Tray

6 (High Capacity Feeder), and

Finisher installed.

On the Basic Features screen, select Reduce/Enlarge.

The factory default for Reduce/

Enlarge is 100%.

Reduce/Enlarge can also be selected on the Features Menu screen.

Select Independent X-Y%.

Select Cancel to cancel the settings.

54 4-4 Reducing/Enlarging the Length and Width (Independent X-Y%)

Basic Features

Select Cancel to cancel the settings.

Select Auto-Fit.

Load the original in the orientation of Head to Top, or Head to

Left.

Chapter 3 Loading Documents

for information on how to load documents.

To disable Image Rotation, set it to

Off on the Customized Features screen or Features Menu screen.

Some features cannot be selected together with this feature. See

Appendix B: Possible Combinations of Features

for details.

5-11: Rotating and Copying in

Different Directions (Image Rotation)

Select the corresponding document orientation of the original loaded.

Select Head to Top or Head to Left.

Select Save twice.

Select other features if necessary.

Enter the required number of sets by using the keypad and press Start.

The copies are made by enlarging or reducing the original image size so that it fits onto the selected paper size.

Automatic Image Rotation

When the document orientation of the original and paper loaded differs, the image will be copied by rotating it so that they are the same.

(Factory default: Image Rotation is On.) To copy a portrait original in landscape orientation, select rotation to be off so that the desired alteration to XY ratio is achieved.

4

4-4 Reducing/Enlarging the Length and Width (Independent X-Y%)

55

4

Basic Features

Copying on One Side

(2 Sided)

The 2 Sided feature allows you to make one sided copies from one sided documents or two sided documents,

To make one sided copies from a two sided document, use the DADF.

The screen on the right has the Tray

6 (High Capacity Feeder), and

Finisher installed.

2 Sided can also be selected on the

Features Menu screen.

Procedure

On the Basic Features screen, select 2 Sided.

56 4-5 Copying on One Side (2 Sided)

Basic Features

The factory default is 1 1 Sided.

Select Cancel to cancel the settings.

Select either 1 1 Sided or 2 1 Sided.

For example, select 2 1 Sided.

When making two sided copies, use the DADF. The Document Glass can only be used for making one sided copies.

Select Cancel to cancel the settings.

Select Head to Head or Head to Toe as the image orientation of the document if you have selected 2 1 Sided.

4

Head to Head When all sides of a document have the same orientation.

Head to Toe When the orientation of side two is the reverse of side one.

4-5 Copying on One Side (2 Sided)

57

Basic Features

4

Load the original in the orientation of Head to Top, or Head to

Left.

Chapter 3 Loading Documents for information on how to load documents.

For 2 1 Sided copying, use the

DADF.

5-10: Selecting the Original

Orientation (Original Orientation) for details.

Select the corresponding document orientation of the original loaded.

Select Head to Top or Head to Left.

Some features cannot be selected together with this feature. See

Appendix B: Possible Combinations of Features for details.

Select Save.

Select other features if necessary.

Enter the required number of sets by using the keypad and press Start.

The copies are made on one side of the paper.

58 4-5 Copying on One Side (2 Sided)

Basic Features

Copying on Two Sides

(2 Sided)

You cannot make two sided copies onto paper size smaller than

5.5 x 8.5".

You cannot make two sided copies if the settings for front and back pages differ.

You cannot make two sided copies on paper that is over 28 lbs.

You can make two sided copies from one or two sided documents.

However, to make two sided copies from a two sided document, you need to have the DADF installed.

4

Making Two Sided Copies from One Sided Originals

Procedure

On the Basic Features screen, select 2 Sided.

The screen on the right has the Tray

6 (High Capacity Feeder), and

Finisher installed.

2 Sided can also be selected on the

Features Menu screen.

4-6 Copying on Two Sides (2 Sided)

59

Basic Features

The factory default is 1 1 Sided.

Select Cancel to cancel the settings.

Select 1 2 Sided.

Select Head to Head or Head to Toe as the image orientation of the copy.

4

Head to Head: When all sides of a document have the same orientation.

Head to Toe: When the orientation of side two is the reverse of side one.

Chapter 3 Loading Documents

for information on how to load documents.

60 4-6 Copying on Two Sides (2 Sided)

Load the original in the orientation of Head to Top, or Head to

Left.

Basic Features

5-10: Selecting the Original

Orientation (Original Orientation)

for details.

Select the corresponding document orientation of the original loaded, and select Save.

Select Head to Top or Head to Left.

Some features cannot be selected together with this feature. See

Appendix B: Possible Combinations of Features

for details.

If the total sheet number of your document is an odd number, the last sheet will be made a one sided copy. If you place the document on the Document Glass, then you have to repeatedly place each page and press Start to make two sided copies. If the last scanned page is side one, select End Job.

Select other features if necessary.

Enter the required number of sets by using the keypad and press Start.

The copies are made on both sides of the paper.

Making Two Sided Copies from Two Sided Originals

Procedure

4

On the Basic Features screen, select 2 Sided.

The screen on the right has the Tray

6 (High Capacity Feeder), and

Finisher installed.

2 Sided can also be selected on the

Features Menu screen.

The factory default is 1 1 Sided.

Select Cancel to cancel the settings.

When making two sided copies, use the DADF. The document glass can only be used for making one sided copies.

Select 2 2 Sided.

4-6 Copying on Two Sides (2 Sided)

61

4

Basic Features

Select Copy Result.

Select the image orientation of both the documents and the copies.

Head to Head: When all sides of a document have the same orientation.

When the copy result is where sides one and two have the same orientation.

Head to Toe: When the orientation of side two of a document is the reverse of side one.

When the copy result is such that the orientation of side two is the reverse of side one.

62 4-6 Copying on Two Sides (2 Sided)

Chapter 3 Loading Documents

for information on how to load documents.

Basic Features

Load the original in the DADF.

Load the original in the orientation of Head to Top or Head to Left.

5-10: Selecting the Original

Orientation (Original Orientation)

for details.

Select the corresponding document orientation of the original loaded.

Select Head to Top or Head to Left.

4

Some features cannot be selected together with this feature. See

Appendix B: Possible Combinations of Features

for details.

Select Save twice.

Select other features if necessary.

Enter the required number of sets by using the keypad and press Start.

The copies are made on both sides of the paper.

4-6 Copying on Two Sides (2 Sided)

63

Basic Features

Collating Copy Output

(Output/Finishing)

4

If the optional Offset Catch Tray is installed, each set is offset from the previous copy. This means that the edge of each set is placed to the left or right of the previous copy set to allow easy separation.

For paper sizes which are valid for offset, see

Offset Catch Tray

(Optional) of Appendix A:

Specifications

.

For Collated option, you can select

Face Up for output orientation and the collated sets will be delivered face up. For details, refer to

System

Setup of 6-1: List of Custom Preset

Functions

.

You can choose to output multiple sets of the copies in three ways:

Collated/Finishing

The copies are sorted according to their page sequence and the specified number of sets are delivered facing downwards.

Uncollated (per page)

The copies are sorted by page according to the copy sequence and the specified number of sets are delivered facing upwards.

64 4-7 Collating Copy Output (Output/Finishing)

Auto

The required number of collated sets is output if you load your originals into the DADF and press Start.

Basic Features

Chapter 3 Loading Documents

for information on how to load documents.

Procedure

Load the document.

Use the DADF. If the number of originals is 51 and above, divide them into smaller numbers for loading. A total of up to 700 sheets can be scanned continuously.

From the Basic Features screen, select Output/Finishing.

The screen on the right has the Tray

6 (High Capacity Feeder), and

Finisher installed.

Output/Finishing can also be selected on the Features Menu screen

The screen on the right has the finisher feature installed.

The factory default is Auto.

Select Cancel to cancel the settings.

If the punch scrap container becomes full, the Large Output feature cannot be used. See

8-7:

Emptying the Punch Scrap

Container

.

To produce collated sets from the documents loaded on the

Document Glass, select Collated/Finishing. To produce uncollated sets from the originals loaded onto the DADF, select

Uncollated.

When the Finisher is installed, select Large Output if your output is more than

500 copies. The output will be delivered to finisher Tray 2.

4

Some features cannot be selected together with this feature. See

Appendix B: Possible Combinations of Features for details.

Select Save.

Select other features if necessary.

Enter the required number of sets by using the keypad and press Start.

4-7 Collating Copy Output (Output/Finishing)

65

Basic Features

If you have selected Collated and you place your document on the

Document Glass, then you will have to repeatedly place each page and press Start to scan. Repeat this process until there are no more pages to scan. Then select End

Job.

When there is an original to be scanned next, select Next

Document, which is displayed on the screen when scanning is in progress.

4

Continuous scanning is valid up to a total of 700 sheets.

After the first original has been scanned, load the next original and press Start.

Scanning continues.

After the last original has been scanned, select End Job.

Copying starts, and the specified copy output is discharged.

66 4-7 Collating Copy Output (Output/Finishing)

Basic Features

Stapling

(Stapling)

Stapling and Large Output cannot be selected for interrupting copy job.

If the punch scrap container is full, the Stapling and Large Output features become invalid. See

8-7:

Emptying the Punch Scrap

Container

.

See

Appendix C: Stapling

.

Stapling cannot be done on the length of paper larger than A4 or

8.5 x 11”.

The Stapling feature allows you to have your copies sorted by page sequence, stapled and delivered set by set if the Finisher is installed. Up to 50 sheets of paper can be stapled together.

Applicable Paper Size/Orientation, and stapling positions are shown below.

A5 , B5

8.5 x 11”

Paper Size/Orientation

A4

B5, A4, B4, 8K (267 x 388 mm), 8.5 x 11",

8.5 x 13", 8.5 x 14",

11 x 17"

A3

4

@

You can make copies of mixed size documents on same size paper and staple them. Select Auto for Paper

Size, and Reduce/Enlarge, and On for Stapling.

* For single stapling, depending on the paper size, stapling can be made parallel to the edge of the paper.

For stapling on paper of mixed sizes (only when DADF is used):

Stapling is possible when the length of Y is the same.

Possible combinations are A5 and A4, B5 and B4, A4 and A3,

8.5 x 11" and 11 x 17".

4-8 Stapling (Stapling)

67

Basic Features

The screen on the right has the Tray

6 (High Capacity Feeder), and

Finisher installed.

Output/Finishing can also be selected on the Features Menu screen.

Procedure

On the Basic Features screen, select Output/Finishing.

Select Collated/Finishing.

4

Select Cancel to cancel the settings.

Select stapling position from Top Left, Top Right, Top Double,

Left Double or Right Double.

For example, select Top Left (top left button).

Chapter 3 Loading Documents for information on how to load documents.

When loading mixed size originals, use the DADF.

Load the original in the orientation of Head to Top, or Head to

Left.

68 4-8 Stapling (Stapling)

Basic Features

5-10: Selecting the Original

Orientation (Original Orientation)

for the details.

Select the corresponding document orientation of the original loaded, and select Save.

Select Head to Top or Head to Left.

To stop the copy job, press Stop on the control panel or touch Stop displayed on the screen. See

4-11:

Stopping a Copy Job for details.

You cannot press the Start button if a message requesting you to replace the staple cartridge is displayed. In this case, replenish the staple cartridge. See

8-6: Replacing the Staple Cartridge for details.

If Stapling feature is off in Step 3, then the copies will be delivered to finisher Tray 1.

Some features cannot be selected together with this feature. See

Appendix B: Possible Combinations of Features

for details.

Do not remove any paper from finisher Tray 2 while copying is in progress.

Copying stops when finisher Tray 2 becomes full with 100 sets or 1500 sheets (750 sheets for sizes larger than A4). Remove the copies from finisher Tray 2, then press Start to resume copying.

Confirm the settings at the lower left side of the screen and select Save.

Select other features if necessary.

Enter the required number of sets by using the keypad and press Start.

The copies are collated set by set, stapled, and delivered to finisher Tray 2.

You can remove the copies from finisher Tray 2 after all the copies are delivered and the machine stops.

4

4-8 Stapling (Stapling)

69

Basic Features

Punching Holes

(Punching)

4

The machine will stop punching holes once the punch scrap container is full. See

8-7: Emptying the Punch Scrap Container

for details.

Punching and Large Output cannot be selected for interrupting copy job.

The first copy page may slip out when copying (punching mode and no stapling mode) by using optional Finisher.

When the Finisher (optional) is installed, copies can be made and output with punched holes. Paper sizes that can be punched and the positions of holes are as follows.

Paper sizes that can be punched and the positions of holes

B5 , A4 , 8.5 x 11" paper: Holes are punched at the long edge.

B4, A3, 11 x 17" paper: Holes are punched at the short edge.

B5 , A4 , 8.5 x 11" B4, A3, 11 x 17"

70 4-9 Punching Holes (Punching)

For B5 , A4 , 8.5 x 11" size, holes cannot be punched on the short edge.

For B4, A3, 11 x 17" size, holes cannot be punched on the long edge.

Also, when punching B5 , A4 , 8.5 x 11" size paper, check that the paper of

orientation is loaded in the tray.

Punching holes on paper of mixed sizes (applicable only when DADF is used):

When Y is the same for paper of mixed sizes, punching holes is possible

However, only the following combinations are possible: B5 and B4, A4 and A3, 8.5 x 11" and 11 x 17".

Basic Features

The screen on the right has the Tray

6 (High Capacity Feeder), and

Finisher installed.

Output/Finishing can also be selected on the Features Menu screen.

Procedure

On the Basic Features screen, select Output/Finishing.

Select Collated/Finishing.

4

Select Cancel to cancel the settings.

Then select On for Punching.

Select Top Side, Left Side, or Right Side.

For example, select Left Side (left button).

4-9 Punching Holes (Punching)

71

Basic Features

Chapter 3 Loading Documents

for information on how to load documents.

For documents of mixed sizes, use the DADF.

Load the original in the orientation of Head to Top, or Head to

Left.

4

5-10: Selecting the Original

Orientation (Original Orientation)

for details.

Select the corresponding document orientation of the original loaded, and select Save.

Select Head to Top or Head to Left.

Confirm the settings at the lower left side of the screen and select Save.

Select Cancel to cancel the settings.

Some features cannot be selected together with this feature. See

Appendix B: Possible Combinations of Features for details.

To stop the copy job, press Stop on the control panel or touch Stop displayed on the screen. See

4-11:

Stopping a Copy Job for details.

If the Punching feature is Off in Step

3, copies will be output to Finisher

Tray 1.

Do not remove any paper from

Finisher Tray 2 while copies are being output.

Copying stops when Finisher Tray 2 becomes full with 100 sets or 1500 sheets (750 sheets for sizes greater than A4). Remove the copies from

Finisher Tray 2, then press Start to resume copying.

Select other features if necessary.

Enter the required number of sets by using the keypad and press Start.

The copies are punched and delivered to Finisher Tray 2.

You can remove the copies from Finisher Tray 2 after all the copies are delivered and the machine stops.

72 4-9 Punching Holes (Punching)

Basic Features

Resetting the Copy Sets and

Feature Settings to Their Defaults

If you made a mistake while entering the value for the number of sets to be copied, you can select the Clear C button from the Control Panel to clear and then re-enter the value. This button can also be used to clear settings of the previous copy job.

Select Clear All on the Control Panel to clear all settings and return them to their defaults.

Resetting the Number of Copy Sets

Procedure

4

Press Clear C.

The number of sets to be copied returns to 1.

Re-enter a value by using the keypad.

Resetting the Feature Settings

Procedure

Press Clear All.

All settings are cleared and returned to their defaults.

To cancel an auto start copy job, press Stop and then Clear All.

Time-Outs in 6-1: List of Custom

Preset Functions

for details.

Job Program Incomplete/End of Job Time-Outs

These time-out features will automatically reset all settings to their defaults if the machine has been left idle for a certain period of time.

4-10 Resetting the Copy Sets and Feature Settings to Their Defaults

73

Basic Features

Stopping a Copy Job

To stop a copy job, pressing Stop will stop the job temporarily. Press Clear

C or Clear All after that to stop the copy job.

Procedure

Press Stop.

4

If there is an Auto Start copy job, the

Auto indicator light on the top left of the Start button will be lit.

If the copy in progress screen is displayed, select Stop on the screen to halt the copy operation.

The current copy job is stopped temporarily. The screen below is displayed. A waiting copy job that uses the Auto Start feature is also stopped temporarily.

To resume copying after a copy job has been stopped, press Start.

If there are copy/print jobs, which have been temporarily stopped

(waiting for operation), you cannot proceed with the next copy job.

Press Job Status Stop to display the job status of the stopped job

(waiting for operation). To resume the stopped job, select it, and press

Start. To cancel it, press Clear C or

Clear All.

Press Clear C or Clear All.

or

The copy job is stopped.

74 4-11 Stopping a Copy Job

Basic Features

Interrupting a Copy Job

Interrupting job is up to 200 sheets for one sided documents and 100 sheets for two sided documents.

The Interrupt feature cannot be used when two jobs are programmed by using the Program Ahead feature.

You can interrupt a copy job that is in progress for an urgent job. Once the urgent job is done, the copier will resume the interrupted copy job.

Interrupting a copy job cannot be carried out under the conditions below:

• When documents are being scanned in the DADF.

• When documents are being scanned on the Document Glass up to selection of End Job.

Procedure

Press Interrupt.

The indicator light at the top left of the Interrupt button lights up indicating that the current copy job has been interrupted.

4

Load the documents of the interrupting job.

Select other features if necessary.

Enter the required number of sets by using the keypad and press Start.

The interrupting job starts.

After the interrupting job has ended, press Interrupt.

The indicator light at the top left of the Interrupt button is off indicating that the interrupt mode has been cancelled.

Press Start.

The interrupted job resumes.

4-12 Interrupting a Copy Job

75

Basic Features

Programming Ahead

4

On a model with printer function, select Exit, which is displayed in place of Program Ahead.

If there is a copy/print job, which has been temporarily stopped (waiting for operation), you cannot proceed with the second copy job. Press

Job Status Stop to display the job status of the stopped job (waiting for operation). To resume the stopped job, select it, and press

Start. To cancel it, press Clear C or

Clear All.

The Program Ahead feature allows you to make selections for, and perform scanning of jobs in advance, while preceding jobs are being output.

Procedure

While the screen below is being displayed, select Program

Ahead.

Make selections for the next job, load your documents and press Start to begin scanning.

The job will start automatically after the preceding job has been completed.

After scanning of the job to be programmed ahead is completed, the job will be placed at the end of the queue for execution.

To cancel a Program Ahead job, which has been scanned, select

Stop on the screen displayed, then press Clear C or Clear All. If the display has changed, press Job

Status Stop, and select the job to be cancelled.

Press Clear C or Clear All to cancel the job.

When Number of Documents is 51 and Above

The number of documents which can be loaded in the DADF is up to

50 sheets. You can repeat this, by adding documents, for up to a total of 700 sheets (350 sheets in the case of 2 sided documents) for continuous scanning. When the initial document is being scanned, select Next Original. When scanning has ended, add documents and select Start to continue scanning. If there are no additional documents to be scanned, select End Job. But, when Stapling, 1 2 Sided, Multi-

Up (N Up) is selected, scanning cannot be continued by adding documents.

76 4-13 Programming Ahead

5

Added Features

5-1 Overview of Added Features ......................................

5-2 Adjusting Copy Density (Lighter/Darker) ....................

5-3 Making a Copy According to Original Type

(Original Type) ............................................................

5-4 Copying Several Documents onto One Copy

(Multi-Up (N Up)) .........................................................

5-5 Loading Mixed Size Originals

(Mixed Size Originals) .................................................

5-6 Copying Facing Pages onto Separate Sheets

(Book Copying) ...........................................................

5-7 Setting the Margins (Image Shift) ...............................

5-8 Erasing the Edges and Copying All

(Edge Erase/Copy All) ................................................

5-9 Interleaving Blank Sheets Between Transparencies

(Transparency Separators) .........................................

5-10 Selecting the Original Orientation

78

80

82

84

87

90

92

96

99

(Original Orientation) ...................................................

102

5-11 Rotating and Copying in Different Directions

(Image Rotation) .........................................................

104

5-12 Selecting the Original Size (Original Size) ..................

106

5-13 Enhancing Sharpness (Sharpness) ............................

108

5-14 Creating Negative-like Images (Negative Image) .......

110

5-15 Creating Mirror Images (Mirror Image) .......................

112

5-16 Repeating an Image (Repeat Image) .........................

114

5-17 Making Duplex Copies of Facing Pages

(Book Duplex) .............................................................

117

5-18 Inserting Covers (Covers) ...........................................

120

5-19 Making a Sample Set (Sample Set) ............................

123

5-20 Creating a Booklet (Booklet Creation) ........................

125

5-21 Job Memory Operations .............................................

128

5-22 Using the Document/Copy Counter ............................

136

Added Features

Overview of Added Features

5

Paper Supply

Select this option to select the paper size.

4.2: Selecting a Paper Tray (Paper Supply)

Reduce/Enlarge

Select this option to reduce/enlarge a copy image.

4.3: Reducing/Enlarging (Reduce/Enlarge)

Lighter/Darker

Select this option to adjust the density of a copy.

5.2: Adjusting Copy Density (Lighter/Darker)

Document Type

Select this option to make a copy that matches the document type.

5-3: Making a Copy according to Original Type

(Original Type)

78

5-1 Overview of Added Features

The above screen has the Finisher installed.

2 Sided

Select this option to make two sided or one sided copies.

4-5: Copying on One Side (2 Sided)

4-6: Copying on Two Sides (2 Sided)

Output

Select this option to specify the method to output the copies.

4-7: Collating Copy Output (Output/Finishing)

4-8: Stapling (Stapling)

4-9: Punching Holes (Punching)

Image Shift

Select this option to determine the position of the document's image (up/down/left/right) on the copy and to insert the binding shift.

5-7: Setting the Margins (Image Shift)

Added Features

Edge Erase/Copy All

Select this option to make copies with the document cover open, or to make copies from booklets.

5-8: Erasing the Edges and Copying All

(Edge Erase/Copy All)

Book Copying

Select this option to make separate left-page and right-page copies from a bound document.

5-6: Copying Facing Pages onto Separate Sheets

(Book Copying)

Transparency Separators

Select this option to insert blank sheets as separators between the copied transparencies.

5-9: Interleaving Blank Sheets Between

Transparencies (Transparency Separators)

Original Size

Select this option to specify the size of the document.

5-12: Selecting the Original Size (Original Size)

Original Orientation

Select this option to specify the orientation of the loaded document.

5-10: Selecting the Original Orientation

(Original Orientation)

Image Rotation

Select this option to make copies after rotating the document image by 90 degrees.

5-11: Rotating and Copying in Different Directions

(Image Rotation)

Multi-Up (N Up)

Select this option to copy several documents onto one copy.

5-4: Copying Several Documents onto One Copy

(Multi-Up (N Up))

Mixed Size Originals

Select this option to load documents of different sizes at the same time.

5-5: Loading Mixed Size Originals

(Mixed Size Originals)

Sharpness

Select this option to enhance or reduce the sharpness of an image.

5-13: Enhancing Sharpness (Sharpness)

Sample Set

Select this option to output a sample set for verification before proceeding to output the actual copies.

5-19: Making a Sample Set (Sample Set)

Negative Image

Select this option to create negative-like copies by reversing the black and white sections of the original image.

5-14: Creating Negative-like Images

(Negative Image)

Mirror Image

Select this option to make copies by reversing the left/ right-page of the document.

5-15: Creating Mirror Images (Mirror Image)

Repeat Image

Select this option to make copies with repeated images of the original.

5-16: Repeating an Image (Repeat Image)

5

Book Duplex

Select this option to make duplex copies that are the same as the bound document.

5-17: Making Duplex Copies of Facing Pages

(Book Duplex)

Covers

Select this option to insert covers, such as colored paper, for the copies.

5-18: Inserting Covers (Covers)

Booklet Creation

Select this option to create booklets from one or twosided documents.

5-20: Creating a Booklet (Booklet Creation)

Stored Jobs

Select this option to register defined copy jobs in the

Job Memory.

5-21: Job Memory Operations

5-1 Overview of Added Features 79

Added Features

Adjusting Copy Density

(Lighter/Darker)

After you have adjusted the copy density, you can still darken the copy by increasing the toner level if you find that the copy is still too light.

See 8-3: Increasing the Toner Level .

The Lighter/Darker feature allows you to adjust the copy density by using the seven-grade density scale provided. The default is Normal.

5

See Chapter 3 Loading Documents for information on how to load documents.

Procedure

Load the document.

Select Features Menu. Then select Lighter/Darker.

The screen on the right has the

Finisher installed.

80 5-2 Adjusting Copy Density (Lighter/Darker)

Added Features

The factory default for Lighter/

Darker is Normal.

Select Cancel to cancel the settings.

You can remove the background color on the document by selecting

Background Suppression in

Original Type.

See

5-3: Making a Copy according to Original Type (Original Type)

for details.

Use the buttons in Lighter/Darker to select the desired copy density.

To make a lighter copy, touch a button near Lightest. To make a darker copy, touch a button near Darkest.

Some features cannot be selected together with this feature. See

Appendix B: Possible Combinations of Features

for details.

Select Save.

Select other features if necessary.

Enter the required number of sets by using the keypad and press Start.

The copies are made according to the copy density value selected in Step 3.

5

5-2 Adjusting Copy Density (Lighter/Darker)

81

Added Features

Making a Copy According to

Original Type

(Original Type)

The default original type can be changed by using Tools Mode. The factory default is Text & Photo with

Background Suppression

selected.

The Original Type feature allows you to make copies of photographs, text or text with photographs by selecting their matching original type.

Also, if you have selected Text or Text & Photo, you can choose to remove the background color of texts and so forth by enabling the Background

Suppression feature.

5

Chapter 3 Loading Documents for information on how to load documents.

The screen on the right has the

Finisher installed.

Procedure

Load the document.

Select Features Menu. Then select Original Type.

82 5-3 Making a Copy According to Original Type (Original Type)

Added Features

Select Cancel to cancel the settings.

Select an original type.

The factory default, Background

Suppression is being selected.

Some features cannot be selected together with this feature. See

Appendix B: Possible Combinations of Features

for details.

When the document consists of both photograph and text:

Select Text & Photo.

Select Background Suppression to remove the background color.

When the document consists of mainly text:

Select Text. Select Background Suppression to remove the background color.

When the document consists of mainly photographs:

Select Photo.

5

Confirm the settings, and select Save.

Select other features if necessary.

Enter the required number of sets by using the keypad and press Start.

The copies are made according to the document type selected in Step 3.

5-3 Making a Copy According to Original Type (Original Type)

83

5

Added Features

Copying Several Documents onto One Copy

(Multi-Up (N Up))

Two, four, or eight sheets of documents are reduced and copied onto the selected paper.

The Multi-Up (N Up) feature allows you to use the DADF to copy two, four or eight sheets of documents onto one copy.

84 5-4 Copying Several Documents onto One Copy (Multi-Up (N Up))

Added Features

The screen on the right has the

Finisher installed

If Multi-Up (N Up) is selected,

Reduce/Enlarge becomes Auto % and two, four, or eight sheets of documents are reduced to fit, and copied onto the selected paper.

Procedure

Select the tray with the desired paper size loaded from Basic

Features screen under Paper Supply.

Select Features Menu. Then select Multi-Up (N Up).

Select either 2 Up, 4 Up or 8 Up.

For example, select 2 Up.

5

Image order refers to the order in which two, four, or eight sheets of documents are copied onto one sheet of paper. See diagram on previous page.

Select a button below Image Order.

5-4 Copying Several Documents onto One Copy (Multi-Up (N Up))

85

Added Features

Loading documents in the DADF

in

3-2: Loading Documents

on how to load documents.

Load the document into the DADF.

Load the document in the orientation of Head to Top, or Head to Left.

5-10: Selecting the Original

Orientation (Original Orientation)

Select the corresponding document orientation of the original loaded, then select Save.

Select Head to Top or Head to Left.

5

Select Cancel to cancel the settings.

Some features cannot be selected together with this feature. See

Appendix B: Possible Combinations of Features

for details.

Confirm the settings, and select Save.

Select other features if necessary.

Enter the required number of sets by using the keypad and press Start.

Two documents are copied onto one piece of paper.

86 5-4 Copying Several Documents onto One Copy (Multi-Up (N Up))

Added Features

Loading Mixed Size Originals

(Mixed Size Originals)

Select Mixed Size Originals and

Auto for Paper Supply.

The Mixed Size Originals feature allows you to use the DADF to load documents of different sizes, and scan them all at the same time. Copies of these documents are output according to the sizes of their originals.

Alternatively, you can choose to make copies of these documents on a selected paper size.

When making copies matching the size of the document

5

Select Mixed Size Originals and

Auto % for Reduce/Enlarge.

When making copies on a selected paper size

5-5 Loading Mixed Size Originals (Mixed Size Originals)

87

5

Added Features

Copying on Paper Size Matching the Document Size

Loading documents in the DADF in

3-2: Loading Documents

on how to load documents.

Paper Supply can also be selected on the Features Menu screen. The factory default is Auto.

Reduce/Enlarge can also be selected from the Features Menu.

The factory default is 100%.

The screen on the right has the

Finisher installed.

Procedure

Load all documents such that they are properly inserted in the

DADF.

On the Basic Features screen, select Auto in Paper Supply and 100% in Reduce/Enlarge.

Select Features Menu. Then select Mixed Size Originals.

Select Cancel or Off to cancel the settings.

Check that On is selected.

Confirm the settings, and select Save.

Some features cannot be selected together with this feature. See

Appendix B Possible Combinations of Features

for details.

Select other features if necessary.

Enter the required number of sets by using the keypad and press Start.

Copies are made according to their respective document sizes.

88 5-5 Loading Mixed Size Originals (Mixed Size Originals)

Added Features

Copying onto a Selected Paper Size

Procedure

Load all documents such that they are properly inserted in the

DADF. Load

Loading documents in the DADF

in

3-2: Loading Documents on how to load documents.

4-2: Selecting a Paper Tray (Paper

Supply) on paper tray selection.

4-3: Reducing/Enlarging (Reduce/

Enlarge)

on reduction or enlargement.

On the Basic Features screen, select the paper tray with the desired paper size in Paper Supply.

Paper Supply and Reduce/

Enlarge can also be selected from the Features Menu.

Select Auto % in Reduce/Enlarge on the Basic Features screen.

Select Features Menu. Then select Mixed Size Originals.

The screen on the right has the

Finisher installed.

5

Check that On is selected.

Select Cancel or Off to cancel the settings.

Some features cannot be selected together with this feature. See

Appendix B: Possible Combinations of Features

for details.

Confirm the settings, and select Save.

Select other features if necessary.

Enter the required number of sets by using the keypad and press Start.

Copies of the respective documents are fitted onto the selected paper size by reducing/enlarging them accordingly.

5-5 Loading Mixed Size Originals (Mixed Size Originals)

89

Added Features

Copying Facing Pages onto

Separate Sheets

(Book Copying)

5

This feature can only be used when the document is placed on the

Document Glass.

The division section (binding shift section of the original) at the center of a bound document will be copied with a 2 to 4 mm offset.

Non standard size documents or documents whose sizes cannot be detected cannot be accurately copied as two equal portions.

The Book Copying feature allows you to make copies of a document with facing pages and binding margin.

Procedure

Select Features Menu. Then select Book Copying.

The screen on the right has the

Finisher installed.

Book Copying can also be selected on the Customized Features Menu screen.

Select Left Page Then Right, Right Page Then Left, or Top

Page Then Bottom.

For example, select Left Page Then Right.

The factory default for Book

Copying is Off.

Select Cancel to cancel the settings.

Left Page

Then Right

Right Page

Then Left

Top Page

Then Bottom

90 5-6 Copying Facing Pages onto Separate Sheets (Book Copying)

Some features cannot be selected together with this feature. See

Appendix B: Possible Combinations of Features

for details.

Confirm the settings, and select Save.

Select other features if necessary.

Place the document on the Document Glass.

Loading documents in the DADF in

3-2: Loading Documents

on how to load documents.

Added Features

If the number of sets is 1, copying will be done in the order of A to B with the first page discharged facing up.

If you have also selected 2 Sided, the following will result:

Left Page Then Right

The left page is copied onto side one and the right page is copied onto side two of the paper.

Right Page Then Left

The right page is copied onto side one and the left page is copied onto side two of the paper.

Top Page Then Bottom

The top page is copied onto side one and the bottom page is copied onto side two of the paper.

Enter the required number of sets by using the keypad and press Start.

The document with facing pages is copied on separate sheets of paper.

5-6 Copying Facing Pages onto Separate Sheets (Book Copying)

91

5

5

Added Features

Setting the Margins

(Image Shift)

The default value of Image Shift can be changed by using the Tools

Mode. The factory default is No

Shift.

When loading document on the document glass and selecting

Image Shift, be sure to input the document size. See

5-12: Selecting the Original Size (Original Size)

for method on document size input.

The Image Shift feature allows you to move the position of the original image up, down, left, right or center. Also, it allows you to set a top, bottom, left, or right margin.

Image is shifted to each corner

Image is shifted to center of paper (Auto Center (Centre))

The center of the document is shifted to match the center of the paper for copying.

Setting margin

Margin is set by shifting the document top, bottom, left, or right between 1-432 mm at 1 mm intervals for copying.

92 5-7 Setting the Margins (Image Shift)

The screen on the right has the

Finisher installed.

Added Features

Procedure

Select Features Menu. Then select Image Shift.

Select Side 1.

The factory default is No Shift.

Select Cancel to cancel the settings.

Select the position to shift the document to.

For example, set a left margin of 10 mm Set button (Right) at 10 mm.

5

• Corner Shift: Select .

• Auto Center (Centre): Select Auto Center (Centre).

• Margin: Use buttons to set up, down, left, or right margin between 0 - 432 mm.

5-7 Setting the Margins (Image Shift)

93

Added Features

Chapter 3 Loading Documents

for information on how to load documents.

Load the document.

• When loading document in DADF:

Load document in the orientation of Head to Top or Head to Left.

When the document is loaded on the document glass, and if input of the document size were not done, image shift will not be executed correctly.

See 5-12: Selecting the Original

Size (Original Size)

.

• When loading document on the Document Glass:

Load document in the orientation of Head to Top or Head to Left.

Enter the document size with Original Size from Features

Menu.

5

The factory default is Head to Top.

See 5-10: Selecting the Original

Orientation (Original Orientation) for the details.

The direction of image shift (up/ down/left/right) is determined by the document orientation. If the document orientation of the document loaded is different from that of the paper, the origin of the shift (up/down) will also be different, and hence, image shift will not be performed correctly.

Select the corresponding document orientation of the original loaded.

Select Head to Top or Head to Left.

Confirm the settings, and select Save.

94 5-7 Setting the Margins (Image Shift)

Added Features

Select Cancel to cancel the settings.

The factory default is Mirror Shift.

Normally, you should select Mirror

Shift when inserting the binding shift on a two-sided copy.

Select Side 2 when making two-sided copies, and define the image and binding shifts. Select Mirror Shift if you want side two of the document to be a mirror image of side one.

When paper is the same size as the document, and Reduce/Enlarge is at 100% (factory default), copy position will not be shifted.

Some features cannot be selected together with this feature. See

Appendix B: Possible Combinations of Features for details.

Confirm the settings, and select Save twice.

Select the paper size from Paper Supply and % from Reduce/

Enlarge.

When Image Shift, or Auto Center (Centre) is selected, select a paper size larger than the document, or adjust Reduce/Enlarge.

5

Select other features if necessary.

Enter the required number of sets by using the keypad and press Start.

Copies are made according to the image shift settings made.

5-7 Setting the Margins (Image Shift)

95

Added Features

Erasing the Edges and

Copying All

(Edge Erase/Copy All)

5

When Copy All is selected, depending on the type of document used, the edges of the copies made may contain marks or image loss may result.

The Edge Erase default value can be changed by using the Tools

Mode. The factory default is Normal

(T&B, L&R: 2 mm and

Center: 0 mm)

No copying can be done onto the 2 mm border area of the paper.

If you have selected Reduce/

Enlarge, the area for edge erase will also be reduced/enlarged.

If you have selected Book Copying,

Edge Erase will be based on the entire image of the document.

If you have also selected Multi-Up

(N Up) and Center (Centre) Erase, then Edge Erase will be based on the individual original image.

When copying with the document cover open or when copying bound documents, shadows are sometimes found at the edges or center of the copies made. These shadows can be erased with the feature, Edge Erase.

It is also possible to make a copy without erasing these shadows by selecting Copy All.

Erasing the shadows of documents (Edge Erase)

Set the amount of erase of shadows on the top, bottom, left, or right, center of the document. The part which Edge Erase is set will not be copied (that is, will be erased).

Copying onto whole area of paper (Copy All)

Amount of erase is 0 mm, and the entire page is copied.

96 5-8 Erasing the Edges and Copying All (Edge Erase/Copy All)

Added Features

The screen on the right has the

Finisher installed.

Procedure

Select Features Menu. Then select Edge Erase/Copy All.

Select Copy All to copy the entire page. To erase edges, select Variable Erase.

The factory default is Normal (T&B:

2 mm, L&R: 2 mm and Center: 0 mm).

Select Cancel to cancel the settings.

If you have selected Variable Erase, use buttons to select a value for Top & Bottom Edges (2-50 mm), Left & Right Edges

(2-50 mm) and Center (Centre) Erase (0-50 mm).

For example, select Top & Bottom Edges: 10 mm and Left & Right Edges:

10 mm.

5

5-8 Erasing the Edges and Copying All (Edge Erase/Copy All)

97

Added Features

Load document in the orientation of

Head to Top or Head to Left.

Chapter 3 Loading Documents

for information on how to load documents.

5-10: Selecting the Original

Orientation (Original Orientation) for details.

Select the corresponding document orientation of the original loaded, and select Save.

Select Head to Top or Head to Left.

5

Some features cannot be selected together with this feature. See

Appendix B: Possible Combinations of Features

for details.

Confirm the settings, and select Save.

Select other features if necessary.

Enter the required number of sets by using the keypad and press Start.

Copies are made according to the edge erase settings defined in Steps 2 and 3 .

If you make copies with the document cover open, avoid looking directly at the copy lamp. Direct eye exposure can cause eye fatigue or damage.

98 5-8 Erasing the Edges and Copying All (Edge Erase/Copy All)

Added Features

Interleaving Blank Sheets

Between Transparencies

(Transparency Separators)

Transparencies, transparency separators, and paper for distribution copies must be of the same size and loaded in the same orientation.

The sizes must be either

A4 or 8.5 x 11".

The Transparency Separators feature allows you to make copies on transparencies and output them with blank sheets of paper inserted as transparency separators between them. You can also make copies for distribution (N Sets) at the same time.

When making copies on transparencies with separators (Blank

Separators)

5

When making distribution copies besides the transparencies (Blank

Separators & N Sets)

5-9 Interleaving Blank Sheets Between Transparencies (Transparency Separators)

99

Added Features

Chapter 3 Loading Documents on how to load documents.

Procedure

Load the document.

Select Features Menu. Then select Transparency

Separators.

The screen on the right has the

Finisher installed.

5

The factory default is No

Separators.

Select Cancel to cancel the settings.

Select Blank Separators. When making distribution copies at the same time, select Blank Sep & N Sets.

For example, select Blank Sep & N Sets.

Paper for separators/distribution copies must be of the same size as the transparencies (select either A4 or 8.5 x 11").

The factory default is Tray 5

(Bypass) for transparencies. The default can be changed by using

Tools Mode screen.

Confirm the selection of the tray loaded with transparencies and the tray containing paper to be used as separators.

To change tray settings, select Paper Tray Settings.

(If not changing tray settings, proceed to Step 6.)

100 5-9 Interleaving Blank Sheets Between Transparencies (Transparency Separators)

Added Features

Select the paper tray to be used, and select Save.

The screen on the right has the Tray

6 (High Capacity Feeder) installed.

Auto, Tray 1, Tray 6 (High Capacity

Feeder) cannot be used as the tray for transparencies.

Auto, Tray 5 (Bypass) cannot used as the tray for separators and distribution sets.

Select different trays for transparencies and separators/ distribution copies.

Select Cancel to cancel the settings.

Loading Paper in Tray 5 (Bypass)

of

2-3: Loading Paper .

Some features cannot be selected together with this feature. See

Appendix B: Possible Combinations of Features

for details.

Confirm the settings, and select Save.

Load transparencies in

Tray 5 (Bypass).

Load them in the same orientation as the separators/paper used for distribution sets.

(If the tray is changed in

Step 5, load them in that tray.)

Select other features if necessary.

If Blank Sep & N Sets is selected in Step 3, enter the number of sets for distribution copies with the keypad.

Only one set of the transparencies is copied.

5

Press Start.

Copies are made on the transparencies and they are delivered with separators inserted between them.

If Blank Sep & N Sets is selected, the number of sets entered for distribution copies are also delivered.

5-9 Interleaving Blank Sheets Between Transparencies (Transparency Separators)

101

Added Features

Selecting the Original

Orientation

(Original Orientation)

The default value of Original

Orientation can be changed by using

Tools Mode. The factory default is

Head to Top.

If you have also selected Book

Copying or Book Duplex besides

Original Orientation, the following are automatically selected:

For Right Page Then Left or Left

Page Then Right

Head to Top

For Top Page Then Bottom

Head to Left

The Original Orientation feature allows you to specify the text orientation of the document if you have selected 2 Sided, Multi-Up (N Up), Image Shift,

Edge Erase/Copy All, Repeat Image or Stapling/Punching (optional).

Select Head to Left if the orientation of the document is such that the head of the document aligns with the left guide of the Document Glass.

Procedure

Load the document.

5

Chapter 3 Loading Documents for information on how to load documents.

For Head to Left, do not load documents as follows.

Select Features Menu. Then select Original Orientation.

The screen on the right has the

Finisher installed.

Original Orientation can also be selected on the Customized

Features screen.

102 5-10 Selecting the Original Orientation (Original Orientation)

Added Features

Select Cancel to cancel the settings.

Select the corresponding document orientation of the original loaded.

Select Head to Top or Head to Left.

Some features cannot be selected together with this feature. See

Appendix B: Possible Combinations of Features for details.

Select Save.

Select other features if necessary.

Enter the required number of sets by using the keypad and press Start.

Copies are made in the orientation selected in Step 3.

5

5-10 Selecting the Original Orientation (Original Orientation)

103

Added Features

Rotating and Copying in

Different Directions

(Image Rotation)

5

The default value of Image Rotation can be changed by using Tools

Mode. As the factory default of

Image Rotation is On, you do not need to enable it. See

Feature

Defaults in

6-1: List of Custom

Preset Functions

for information on how to define the settings.

When paper is loaded in Tray 5

(Bypass), Image Rotation is invalid.

The Image Rotation feature allows you to make copies in the correct orientation even if the orientation of the paper is different from the loaded document. This is because the machine will automatically rotate the image of the document to match the orientation of the paper.

The factory default of Image Rotation is set to On.

Image Rotation will be valid if any of the following conditions is met.

When document is loaded in DADF

When document is loaded on the document glass, and Auto is selected for Paper Supply, and Auto % for Reduce/Enlarge

When document is loaded on the document glass, and document size is input

When the following features are selected:

Image Shift (Corner Shift, Auto Center (Centre)), Book Copying, Multi-

Up (N Up), Repeat Image, Book Duplex

104 5-11 Rotating and Copying in Different Directions (Image Rotation)

Added Features

Chapter 3 Loading Documents

for information on how to load documents.

The screen on the right has the

Finisher installed.

Image Rotation can also be selected on the Customized

Features screen.

Procedure

Load the document.

Select Features Menu. Then select Image Rotation.

The factory default of Image

Rotation is On.

Select Off to cancel Image Rotation.

The factory default of Image Rotation is On.

5

Some features cannot be selected together with this feature. See

Appendix B: Possible Combinations of Features

for details.

Confirm the settings, and select Save.

Select other features if necessary.

Enter the required number of sets by using the keypad and press Start.

Copies are delivered with images automatically rotated if the orientations of the document and the paper are different.

5-11 Rotating and Copying in Different Directions (Image Rotation)

105

Added Features

Selecting the Original Size

(Original Size)

5

When making copies of name cards, receipts, etc., the use of Original

Size will allow the blank parts of these to be neatly copied.

If you have to make copies of non standard size documents frequently, it will be useful to customize these sizes as defaults and save their settings beforehand. In this way, you do not have to select them each time when you make copies. See

Original Size Defaults in 6-1: List of

Custom Preset Functions

for details.

The Original Size feature allows you to specify the document size to copy if you wish to copy a non standard size document or part of the document.

Also, you have to specify the size of the document to copy in the case of highly permeable media like transparencies as their document sizes cannot be easily detected by the machine.

The ruler markings around the document glass is useful for measuring the size of the document.

The document area to be copied differs as follows when the document is loaded onto the DADF or the document glass.

106 5-12 Selecting the Original Size (Original Size)

Added Features

Chapter 3 Loading Documents f or information on how to load documents.

Procedure

Load the document.

Select Features Menu. Then select Original Size.

The screen on the right has the

Finisher installed.

Original Size can also be selected from the Customised Features screen.

The factory default of Document

Size Input is Auto Detect.

Select Cancel to cancel the settings.

When copying an open bound document, specify the dimensions of the combined area of its facing pages as the document size. When copying only one side of an open bound document, specify only the area of the side that is to be copied.

You can also simply use the ruler markings on the document glass to determine the size of your original.

When buttons are pressed continuously, the screen changes rapidly.

Select the desired original size.

Use the buttons to enter the length (X) and width (Y) of the document manually. You can specify a value between 1-432 mm for the length (X) and a value between 1-297 mm for the width (Y).

5

Some features cannot be selected together with this feature. See

Appendix B: Possible Combinations of Features for details.

Confirm the settings, and select Save.

Select other features if necessary.

Enter the required number of sets by using the keypad and press Start.

Copies are made according to the size specified in Step 3.

5-12 Selecting the Original Size (Original Size)

107

Added Features

Enhancing Sharpness

(Sharpness)

The default value for Sharpness can be changed by using the Tools

Mode. The factory default is

Normal.

This feature is not available if you have selected Text for Document

Type.

The Sharpness feature allows you to enhance or reduce the sharpness of the image outline of a document if you have selected

Photo, or Text & Photo for Original Type.

5

Chapter 3 Loading Documents for information on how to load documents.

The screen on the right has the

Finisher installed.

Procedure

Load the document.

Select Features Menu. Then select Next Page.

108 5-13 Enhancing Sharpness (Sharpness)

Added Features

Select Sharpness.

Select one option between Sharper and Softer.

The factory default is Normal.

Select Cancel to cancel the settings.

Some features cannot be selected together with this feature. See

Appendix B: Possible Combinations of Features for details.

Confirm the settings and select Save.

Select the other features if necessary.

Enter the required number of sets by using the keypad and press Start.

Copies of the document image are made according to the sharpness selected in Step 4.

5

5-13 Enhancing Sharpness (Sharpness)

109

Added Features

Creating Negative-like Images

(Negative Image)

The Negative Image feature allows you to create negative-like copies by reversing the black and white regions of the document. In the case of a color document, the negative copy is achieved by reversing the brightness of the document.

5

Chapter 3 Loading Documents

for information on how to load documents.

The screen on the right has the

Finisher installed.

Procedure

Load the document.

Select Features Menu. Then select Next Page.

Select Negative Image.

110 5-14 Creating Negative-Like Images (Negative Image)

Added Features

Check that On is selected.

Select Cancel or Off to cancel the settings.

Some features cannot be selected together with this feature. See

Appendix B: Possible Combinations of Features

for details.

Confirm the settings, and select Save.

Select other features if necessary.

Enter the required number of sets by using the keypad and press Start.

Copies in the form of negative images of the document are made by reversing its black and white regions or brightness.

5

5-14 Creating Negative-Like Images (Negative Image)

111

Added Features

Creating Mirror Images

(Mirror Image)

The Mirror Image feature allows you to make copies containing mirror images of your documents.

5

Chapter 3 Loading Documents

on how to load documents.

Procedure

Load the document.

Select Features Menu. Then select Next Page.

The screen on the right has the

Finisher installed.

Select Mirror Image.

112 5-15 Creating Mirror Images (Mirror Image)

Added Features

Select Cancel or Off to cancel the setting.

Check that On is selected.

Some features cannot be selected together with this feature. See

Appendix B: Possible Combinations of Features

for details.

Confirm the settings, and select Save.

Select other features if necessary.

Enter the required number of sets by using the keypad and press Start.

A mirror image of the document is copied.

5

5-15 Creating Mirror Images (Mirror Image)

113

Added Features

Repeating an Image

(Repeat Image)

This feature is only available when the document is placed on the

Document Glass.

The factory default for Reduce/

Enlarge is 100%.

In the case of non standard size, or when you wish to repeat only a part of the image, enter the document size, and specify the the scan area.

See

5-12: Selecting the Original

Size (Original Size)

on the method of specifying the document size.

The Repeat Image feature allows you to reduce the document image and repeat it on a single sheet of copy paper. The same image can be repeated up to six times to create six identical images on both short and long edges.

To copy the image in the same size as the original, set the number of repeats so that they fit on the paper.

If Auto % is selected for Reduce/Enlarge, the repeated images will be reduced/enlarged to fit the paper selected, and copied.

5

The screen on the right has the

Finisher installed.

Procedure

Select Features Menu. Then select Next Page.

Select Repeat Image.

114 5-16 Repeating an Image (Repeat Image)

Added Features

Select Cancel to cancel the settings.

Select On.

Use the buttons to select the number of image repetitions from 1-6 for the length and width of the paper.

For example, select 2 for repetitions on both short and long edges.

3-2: Loading Documents on how to load documents.

Load the document on the Document Glass.

Load in the document with the orientation of Head to Top, or Head to Left.

5-10: Selecting the Original

Orientation (Original Orientation) for details.

Select the corresponding document orientation of the original loaded, and select Save.

Select Head to Top or Head to Left.

5

5-16 Repeating an Image (Repeat Image)

115

5

Added Features

Paper Supply and Reduce/Enlarge can also be selected on the

Features Menu screen.

The Auto option is not available for

Paper Supply.

Some parts of the repeated image will not be shown if they cannot be accommodated on the copy paper based on the selected Reduce/

Enlarge ratio.

Some features cannot be selected together with this feature. See

Appendix B: Possible Combinations of Features

for details.

Select the paper size under Paper Supply, and % under

Reduce/Enlarge.

If Auto % of Reduce/Enlarge is selected, the repeated images are reduced or enlarged to fit the selected paper.

When you wish to specify a certain Reduce/Enlarge ratio, select a paper size which the repeated images will fit into.

Confirm the settings, and select Save.

Select other features if necessary.

Enter the required number of sets by using the keypad and press Start.

Copies are made with required number of repetitions selected in Step 4.

116 5-16 Repeating an Image (Repeat Image)

Added Features

Making Duplex Copies of

Facing Pages

(Book Duplex)

This feature can only be used when the document is placed on the document glass.

You cannot make copies on paper whose size is smaller than A5 with this feature.

The Book Duplex feature allows you to make duplex copies of a bound document. The copies are assigned a page numbering sequence which is the same as the bound document. For this feature, a blank page is automatically inserted in front like the example shown in the diagram below.

The screen on the right has the

Finisher installed.

Procedure

Select Features Menu. Then select Next Page.

5

Select Book Duplex.

5-17 Making Duplex Copies of Facing Pages (Book Duplex)

117

Added Features

5-10: Selecting the Original

Orientation (Original Orientation)

for details.

Select one of the following:

• Off

• Left Page Then Right

• Right Page Then Left

• Top Page Then Bottom

Select Cancel to cancel the settings.

5

3-2: Loading Documents

on how to load documents on the document glass.

Place the bound document on the Document Glass as shown in the following diagram.

118 5-17 Making Duplex Copies of Facing Pages (Book Duplex)

Added Features

Some features cannot be selected together with this feature.

See

Appendix B: Possible Combinations of Features

for details.

Confirm the settings, and select Save.

Select other features if necessary.

Enter the required number of sets by using the keypad and press Start.

Load the next document if any, and press Start.

After the last page has been scanned, select End Job.

Copies are made and assigned with the same page number sequence as the bound document.

5

5-17 Making Duplex Copies of Facing Pages (Book Duplex)

119

Added Features

Inserting Covers

(Covers)

The Covers feature allows you to use another type of paper (for example, colored/heavy weight paper) and insert them as the first page of the copies made.

5

Chapter 3 Loading Documents

for information on how to load documents.

The screen on the right has the

Finisher installed.

Procedure

Load the document.

Select Features Menu. Then select Next Page.

120 5-18 Inserting Covers (Covers)

Added Features

Select Covers.

Select Front Cover.

The factory default is No Covers.

Select Cancel to cancel the settings.

Select the same size for paper used for covers and that use for body pages.

The factory default tray for cover paper is Tray 5 (Bypass).

The default can be changed by using Tools Mode screen.

Confirm the selection of the tray used for the cover as well as the tray used for body pages.

When using other trays, select Paper Tray Settings.

(When not changing the tray, proceed to Step 7.)

5

Auto cannot be selected for Paper

Supply.

Select the same size and orientation of paper used for covers as those for the body pages.

The screen on the right has the Tray

6 (High Capacity Feeder) installed.

Select the paper tray to be used and select Save.

5-18 Inserting Covers (Covers)

121

Added Features

5

Loading paper in Tray 5 (Bypass)

of

2-3: Loading Paper

.

Some features cannot be selected together with this feature.

See

Appendix B: Possible Combinations of Features

for details.

Confirm the settings, and select Save.

Load paper for covers in

Tray 5 (Bypass).

Load paper in the same orientation as paper used for copying the body pages.

(If another tray is selected in Step 6, load paper in that tray.)

Select other features if necessary.

Enter the required number of sets by using the keypad and press Start.

Copies with covers are delivered.

122 5-18 Inserting Covers (Covers)

Added Features

Making a Sample Set

(Sample Set)

This feature cannot be used during

Auto Start.

If you need to make many sets of a document, the Sample Set feature allows you to output only one set of the document for checking. The remaining sets will only be copied after the sample set is confirmed.

Chapter 3 Loading Documents

for information on how to load documents.

The screen on the right has the

Finisher installed.

Sample Set can also be selected on the Customized Features screen.

Procedure

Load the document.

Select Features Menu. Then select Next Page.

5

Select Sample Set.

5-19 Making a Sample Set (Sample Set)

123

Added Features

Select Cancel or Off to cancel the settings.

Check that On is selected.

5

Some features cannot be selected together with this feature. See

Appendix B: Possible Combinations of Features for details.

Confirm the settings, and select Save.

Select other features if necessary.

Enter the required number of sets by using the keypad and press Start.

Only one set is copied.

Check the sample set.

Press Start to output the remaining sets.

To change the settings, press Clear C to clear and re-select.

124 5-19 Making a Sample Set (Sample Set)

Added Features

Creating a Booklet

(Booklet Creation)

The Booklet Creation feature enables one sided or two sided documents to be copied as a booklet.

Procedure

Load the document.

Select Features Menu. Then select Next Page.

5

5-20 Creating a Booklet (Booklet Creation)

125

Added Features

Select Booklet Creation.

The factory default orientation is

Left Bind.

5

Select Head to Top or Head to Left based on the image orientation of originals loaded. If the selection is incorrect, the desired copy result will not be achieved.

Select the image orientation of the loaded originals and the desired binding location.

See below about the copy results based on the selected binding location and original orientation.

For example, select Left Bind, and Head to Left.

Orientation of document and copied image

126 5-20 Creating a Booklet (Booklet Creation)

“1” indicates the first page of the originals, and “3” indicates the third page. An odd-number page is copied on side 1, and an even-number page is copied on side 2.

Select Originals/Image Order.

Added Features

If the selection for two sided originals is incorrect, the desired copy result will not be achieved.

For two sided originals, select Head to Head or Head to Toe.

Then select Original Order or Last Original as Back Cover.

If Last Original as Back Cover is selected, the last page of the originals will be copied as the back cover of the booklet.

5

Select Cancel to cancel the settings.

Some features cannot be selected together with this feature. See

Appendix B: Possible Combinations of Features for details.

Confirm the settings, and select Save.

Select other features if necessary.

Enter the required number of sets by using the keypad and press Start.

Copies are made as a booklet.

5-20 Creating a Booklet (Booklet Creation)

127

Added Features

Job Memory Operations

5

The Stored Jobs feature allows you to save the frequently used features as a job in the job memory. Up to eight jobs can be saved and each job can be accessed by touching its corresponding button.

Registering a Routine Job in the Job Memory

This section explains the procedures for registering copy job settings in the job memory. There are two methods and both allow you to achieve the same purpose.

• Using Stored Jobs

• Using the Settings/Meter Check button

Using Stored Jobs

Procedure

Chapter 4 Basic Features and

Chapter 5 Added Features

for details.

Use the Basic Features screen, Customized Features screen and Features Menu screen to select the features that you wish to save in Stored Jobs.

Select Stored Jobs.

The currently stored jobs are displayed.

128 5-21 Job Memory Operations

Select Store Current Selections.

Added Features

Select a job number to save the selections. You can select a number from 1-8. For example, select 5.

Enter a job memory name of not more than 18 characters.

See Text Input Method on the next page for more information on how to enter the name.

Select Save.

The job programmed in Step 1 is stored in Job Number 5.

5

5-21 Job Memory Operations

129

Added Features

Text Input Method

Enter the name of job memory alphabets by using the keys shown on the screen once the Enter Job Name screen is displayed.

5

Users in Japan will find the

Katakana characters displayed on the keys when you select the

Japanese Katakana button.

To enter alphabets and numbers ............................. Select Alphanumeric

To enter symbols ...................................................... Select Symbol

To delete a character ............................................... Select Backspace

To enter a blank space ............................................. Select Space Bar

To enter lowercase or uppercase characters .......... Select Shift Case

Example: To enter “2 Up”.

5.

6.

7.

1.

2.

3.

4.

Select Alphanumeric.

Select 2.

Select Space Bar.

Select Shift Case.

Select U.

Select P.

Select Save.

130 5-21 Job Memory Operations

Added Features

Using the Settings/Meter Check button

Procedure

Press Settings/Meter Check.

Select Stored Jobs (Store/Delete).

The jobs currently stored are displayed.

The screen on the right is when the

Auditron feature is enabled. See

Chapter 9 Using the Auditron

Feature

for details.

On models with the printer feature, the screen on the right differs.

Select Store/Modify to display

Stored Jobs (Store/Delete) screen.

Store/Modify Job can also be used to change the settings of a registered job.

Select a job number from 1-8 to store or modify.

For example, select 5.

5

Chapter 4 Basic Features and

Chapter 5 Added Features

for details.

Use the Basic Features screen, Customized Features screen and Features Menu screen to select the features that you wish to save in Stored Jobs.

5-21 Job Memory Operations

131

5

Added Features

After making your selections, press Start to save the job.

Select Enter Job Name.

Select a job from job numbers 1-8 in order to change its name.

For example, select 5.

Enter a job name of not more than 18 characters.

See

Text Input Method

for more information on how to enter the name.

Select Close.

The job programmed in Step 4 is stored in Job Number 5.

Select Close until the default screen is displayed.

132 5-21 Job Memory Operations

Added Features

Overwriting Jobs Stored in the Job Memory

The procedures for overwriting the contents and name of a registered job in the job memory is the same as those used for storing the job.

Select a job number to overwrite the contents of a registered job. Select

Yes when the following screen is displayed.

The screen on the right appears after you have exited from the

Stored Jobs screen.

The job is overwritten by the new contents.

Deleting a Job Stored in the Job Memory

This section explains the procedures for deleting a registered job from the job memory.

Procedure

5

Press Settings/Meter Check.

5-21 Job Memory Operations

133

5

Added Features

The screen on the right is when the

Auditron feature is enabled. See

Chapter 9 Using the Auditron

Feature

for details.

On models with the printer feature, the screen on the right differs.

Select Store/Modify to display

Stored Jobs (Store/Delete) screen.

Select Stored Jobs (Store/Delete).

The jobs currently stored are displayed.

Select Delete Job. Then select a job number from 1-8 to delete.

For example, select 3.

Select Yes.

Select Close until the default screen is displayed.

134 5-21 Job Memory Operations

Added Features

Copying by Using the Job Memory

Stored Jobs cannot be selected when an interrupt job is in progress.

This section describes the procedures for performing copying jobs by accessing the jobs that were saved beforehand.

Procedure

Load the document.

Chapter 3 Loading Documents for information on how to load documents.

Select Stored Jobs.

The currently stored jobs are displayed.

On a model with printer function, you can copy and scan documents with the Retrieve Stored Jobs button.

See the relevant Operating

Instruction (Printer) and Operating

Instructions (Scanner) for the details.

5

Select a job number from 1-4 to retrieve its programmed selections and carry out a copy job.

For example, select 3.

Press Start.

Copies are made based on the settings programmed in the job.

5-21 Job Memory Operations

135

Added Features

Using the Document/

Copy Counter

5

The following types of copies are not recorded by the counter:

Blank paper inserted by the machine.

In the case of two sided copying, the machine will automatically insert a blank page to the copies made if the document contains odd number of pages.

Blank paper inserted as separators when copies are made on transparencies (only when blank paper is inserted).

First and last blank pages when copies are made by using Book

Duplex feature.

Paper jammed in the machine or paper not copied as the machine has stopped due to a machine fault.

Paper which is fed for fuser cleaning.

After copies have been made, the Document/Copy Counter feature allows you to check the number of sheets of documents scanned as well as the number of copies made. To make use of this feature, contact your local authorized Panasonic service representative.

Number of Originals Scanned

It shows the total number of documents scanned after the Reset button is selected.

Number of Copies Made

It shows the total number of copies made after the Reset button is selected.

Procedure

Press Settings/Meter Check.

Select Document/Copy Counter.

The screen on the right is when the

Auditron feature is enabled. See

Chapter 9 Using the Auditron

Feature

.

136 5-22 Using the Document/Copy Counter

Added Features

Select Reset to return the Number of Originals Scanned and Number of

Copies Made counters to 0.

Check the readings.

Select Close until the default screen is displayed.

The default screen returns.

5

5-22 Using the Document/Copy Counter

137

This page is intentionally left blank.

6

Custom Presets

6-1 List of Custom Preset Functions ...................................

140

6-2 Displaying the Tools Mode Screen ................................

147

6-3 Configuring the Machine with Tools Mode ....................

149

6

Custom Presets

List of Custom Preset

Functions

6

6-2: Displaying the Tools Mode

Screen

on how to display the Tools

Mode screen.

The Settings/Meter Check feature is for the System Administrator to select the feature defaults as well as customize the features for use.

The System Administrator can select and register these settings by using

Tools Mode. He must enter his Access Number to display this screen. The factory default is "11111".

For models with printer feature, items are divided into Common Settings and

Copy Mode Settings. In Copy Mode

Settings, Feature Defaults, Stored

Jobs, Image Quality, Original Size, and R/E Presets are displayed. Other items are shown in Common Settings.

Some settings are different. See the

Operating Instructions (Printer) for details.

Paper Tray Attributes

Item

Paper Sizes

Description

Set the paper size of the tray to which you wish to change.

Paper Types:

No Display*, Plain Paper, Transparency, Tracing Paper,

Colored, Noshi Paper, Side 2 Paper, Heavy Weight,

Recycled, Special-1, Special-2, and Special-3.

2-4: Changing the Paper Tray Size

Available Options

A/B Series Size

A3 , B4, A4 , A4 , B5 , B5 ,

A5 , A5

Inch Size

8K (267 x 388 mm), 11 x 17”, 8.5 x 14”,

8.5 x 13”, 8.5 x 11”, 8.5 x 11” , 5.5 x 8.5”

Trays for APS

(Auto Paper

Selection)/ATS

(Auto Tray

Switching)

APS is a feature which selects the paper tray automatically.

To enable APS for a tray, select Enable. To prevent a tray from being selected automatically, select Disable. For convenience, select Disable for trays that will not be used often (e.g. transparencies and colored paper).

When the selected tray becomes empty during copying, the

ATS feature allows the automatic switching to another tray with the same-size paper.

Enable/Disable

Enable*:

Tray 1, 2, 3, 4, 6 (High Capacity Feeder)

Disable*:

Auto Tray Switching:

Always Enable

Enable during APS*

Disable

Paper Sizes for APS

(Copy)

Select a paper size amongst those that can be loaded in

Tray 1 as the paper size for APS.

Select Enable if APS is to be used. If not, select Disable.

Enable*/Disable

* indicates the factory default. Tray 6 (High Capacity Feeder) is optional.

140

6-1 List of Custom Preset Functions

Custom Presets

Feature Defaults

Selecting the feature defaults

of

6-3:

Configuring the Machine with Tools

Mode.

Select the default values of the features. The settings of the machine will return to the default values selected here when the power is switched on, when it returns from the power saver mode or when Clear All is pressed.

Although these are the factory defaults, you can make copying more efficient by customizing frequently used features beforehand as the defaults.

Also, the defaults listed here are reflected in Basic Features, Customized

Features, and Features Menu screens.

Item

Paper Supply

Description

Select the default value of Paper Supply.

You cannot select Auto in Paper Supply if Auto % is already selected in Reduce/Enlarge.

Available Options

Auto*, 1, 3, 4, 6 (High

Capacity Feeder)

Transparency Tray

Covers Tray

Reduce/Enlarge

Image Shift (Side 1)

Image Shift (Side 2)

Edge Erase/Copy All

Image Rotation

4-2: Selecting a Paper Tray (Paper Supply)

In Transparency Separators, select the default value of the transparency tray.

5-9: Interleaving Blank Sheets between Transparencies

(Transparency Separators)

In Covers, select the default value of the paper tray for loading the cover stock.

5-18: Inserting Covers (Covers)

Tray 2, 3, 4, 5 (Bypass)*

Tray 1, 2, 3, 4, 5 (Bypass)*, 6

(High Capacity Feeder)

Select the default value for the Reduce/Enlarge feature on the Basic Features screen and the Features Menu Screen.

You cannot select Auto % in Reduce/Enlarge if Auto is already selected in Paper Supply.

You can customize the preset ratios for selection. See

R/E

Presets of this section for the details.

4-3: Reducing/Enlarging (Reduce/Enlarge)

100%*, Auto%, 50%,

64%, 78%, 129%, 154%,

200%

No Shift*, , , , , Auto

Center (Centre)

Select the default value of Image Shift (Side 1).

5-7: Setting the Margins (Image Shift)

Select the default value of Image Shift (Side 2).

5-7: Setting the Margins (Image Shift)

No Shift,

Mirror Shift*

Select the default value of Edge Erase/Copy All.

5-8: Erasing the Edges and Copying All

(Edge Erase/Copy All)

Normal (Top & Bottom/Left

& Right 2 mm)*

Variable Erase

Top & Bottom Edges 2-50 mm

Left & Right Edges 2-50 mm

On*, Off

Select the default value of Image Rotation.

5-11: Rotating and Copying in Different Directions

(Image Rotation)

* indicates the factory default. Tray 6 (High Capacity Feeder) is optional.

6

6-1 List of Custom Preset Functions 141

Custom Presets

6

Item

Original Type

Lighter/Darker

Sharpness

Original Orientation

Output

2 Sided

Booklet Tray

Description

Select the default value of Original Type.

5-3: Making a Copy according to Original Type (Original

Type)

Select the default value of Lighter/Darker.

You can define the different levels of copy density. See

Image Quality

for the details.

5-2: Adjusting Copy Density (Lighter/Darker)

Select the default value of Sharpness.

5-13: Enhancing Sharpness (Sharpness)

Available Options

Text & Photo*, Text, Photo

Darkest to Normal* to Lightest

(7 levels)

Softer, Soft,

Normal*, Sharp,

Sharper

Head to Top*,

Head to Left

Select the default value of Original Orientation.

5-10: Selecting the Original Orientation (Original

Orientation)

Select the default value for the method of copy output.

4-7: Collating Copy Output (Output)

Select default value of 2 Sided.

4-5: Copying on One Side (2-Sided Copy)

4-6: Copying on Two Sides (2-Sided Copy)

Select tray for paper to be used for booklet creation.

5-20: Creating a Booklet (Booklet Creation)

Auto*, Collated, Uncollated

1 -> 1 Sided*, 1 -> 2 Sided,

2 -> 2 Sided, 2 -> 1 Sided

Tray 2-2 , 2-3*, 3, 4

* indicates the factory default.

Audio Tones

This section describes the machine tones that you can set to inform you of a completed copy job, machine fault and so forth.

Select Off to disable the tones.

Item

Selection Tone

Conflict Tone

Hard Keypad Input Tone

Description

Sound when you have selected a button on the display correctly.

Sound when an error has occurred.

Sound when you press any button on the control panel.

Available Options

Off, Soft, Normal*. Loud

Off, Soft, Normal*. Loud

Off, On*

Machine Ready Tone

Copy Job Complete Tone

Fault Tone

After switching on the power, it will sound when the machine is ready to copy.

Off, Soft, Normal*, Loud

Sound when a copy job is completed without error.

Sound when a fault is detected, for example, the machine has run out of paper, or paper is jammed in the machine.

Off, Soft, Normal*, Loud

Off, Soft, Normal*, Loud

* indicates the factory default.

6-2 Displaying the Tools Mode Screen, and 6-3: Configuring the Machine with Tools Mode

142

6-1 List of Custom Preset Functions

Custom Presets

Original Size Defaults

Description

Select the original size defaults shown in Original Size on the

Customized Features screen or the Features Menu screen.

You can select up to 11 types of original sizes including the standard sizes (A, B and Inch series original sizes).

To enter a non standard size original, select Original Size and use the keypad to enter values for the X axis (width) and Y axis (length).

The size input is shown as Special OOO X OOO mm

Available Options

A/B Series Size

A3, B4, A4, A4 , B5, B5 , A5, A5 , B6, A6

Inch Size

8K (267 x 388 mm), 11 x 17

"

, 8.5 x 14

"

, 8.5 x 13

"

,

8.5 x 11

"

, 8.5 x 11

"

, 5.5 x 8.5

"

, 5.5 x 8.5

"

Input Size

X 1 to 432 mm, Y 1 to 297 mm

Size buttons 1 to 11:

A3*, B4*, B5 *, A4*, A4 *, A5*, A6*,

11 x 17

"

*, 8.5 x 14

"

*, 8,5 x 11

"

*,

8.5 x 11

"

*

* indicates the factory default.

6-2: Displaying the Tools Mode Screen, and 6-3: Configuring the Machine with Tools Mode

Original/Paper Size Sensing

Item

Paper Tray

Document Glass (Size 1)

Document Feeder (Size 1)

Document Feeder (Size 2)

Document Feeder (Size 3)

Document Feeder (Size 4)

Document Feeder (Size 5)

Description

You can switch automatic sensing sizes for document and paper.

The setting items that are displayed will depend on the installation of the optional letter/ legal sensor kit, and Tray 6

(High Capacity Feeder) as well as the model of the machine.

Available Options

A5*, 5.5 x 8.5"

A6*

A5*, 5.5 x 8.5"

A4*, 8.5 x 11"

A4 *, 8.5 x 11"

B4*, 8K (267 x 388 mm)

A3*, 11 x 17"

* indicates the factory default.

6-2: Displaying the Tools Mode Screen, and 6-3: Configuring the Machine with Tools Mode

6

6-1 List of Custom Preset Functions 143

Custom Presets

Time-Outs

6-2: Displaying the Tools Mode Screen, and

6-3: Configuring the Machine with Tools

This setting allows you to set the waiting time until features such as Auto

Clear and Power Saver are enabled. On a model with the printer function, the timeout settings may differ. See the

Operating Instructions (Printer)

for details.

6

Item

Copy Job Complete

Job Program Incomplete

Auto Power Saver Timer

Auto Power Off

System Admin Mode Exit

Timer

Description

Enter the time for settings of features to return to their default values automatically after a copy job is completed.

If this time is longer than one minute, then enter the time in minutes.

Available Options

1 to 59 sec, 1 to 10 min

Disable (2 min*)

Enter the time for the settings of the features to return to their default values after some settings have been changed.

If this time is longer than one minute, then enter the time in minutes.

Enter time for automatically switching to Power Saver mode after copying is done or after some settings are made.

Enter the time in minutes.

On a model with the printer function installed, power saver mode comes after low power mode and sleep mode.

7 to 59 sec, 1 to 10 min

Disable (2 min*)

1 to 240 min

(15 min*)

15 to 240 min

(60 min*)

Enter time for automatically switching off the power after a copy job is done or after some settings are made.

This feature is available in the case when Auto Power Off in System Setup is set to Enable.

Enter the time in minutes.

On a model with the printer function installed, this item is not displayed.

Enter time for automatically returning to the default screen after settings are made by using the Tools Mode.

Enter the time in minutes.

10 to 60 min

Disable (10 min*)

Auto Resume Enter time for automatically returning to the default screen after the settings are made by using the Tools Mode.

If time is longer than a minute, enter the time in minutes.

Disable (2 min*)

1 to 59 sec, 1 to 10 min

* indicates the factory default.

R/E Presets

6-2: Displaying the Tools Mode Screen, and

6-3: Configuring the Machine with Tools Mode

You can define the ratios to be displayed as fixed ratios in Reduce/Enlarge.

You can select fixed ratios from 18 types (25-400%) of ratios and place them in the six preset buttons (1-6).

Item

Presets 1 to 6

144

6-1 List of Custom Preset Functions

Available Options

25%, 35% A3 A6, 50% A3 A5, 64% 11 x 17" 8.5 x 11",

70%* A3 A4, B4 B5, 78% 8.5 x 14" 8.5 x 11", 81%* B4 A4, B5 A5

86%* A3 B4, A4 B5, 115%* B4 A3 B5 A4, 122%* A4 B4, A5 B5

127% 8.5 x 13" A3, 129% 8.5 x 11" 11 x 17", 141%* A4 A3 B5 B4,

154% 5.5 x 8.5" 8.5 x 14", 180%, 200% A5 A3, 282% A6 A3, 400%

* indicates the factory default.

Custom Presets

Change of Access Number

The factory default is

“11111”.

You can change the Access Number of the System Administrator. The

Access Number must be in numeric values between 4 to 12 digits. To change the Access Number, use the keypad to enter the new access number twice, and select Enter.

Changing the Access Number of the administrator of 6-3 Configuring the

Machine with Tools Mode

Screen Layout

This feature allows you to customize the default screen, Basic Features screen, and the Customized Features screen.

Configuring a screen (default/basic/ customized) of 6-3: Configuring the

Machine with Tools Mode

Item

Default Screen

Basic Features Screen

Customized Features

Screen

Description Available Options

Change the default screen that is displayed when the power is switched on, when it returns from the power saver mode, or when Clear All is pressed.

Configuring a screen (default/basic/customized) in 6-3:

Configuring the Machine with Using Tools Mode

Basic Features,*

Customized Features,

Features Menu,

Stored Jobs

Define the number of features to be displayed on the Basic

Features screen. These features are each allocated to their respective basic buttons.

Display 2 Features

Assign the features to the two buttons (Feature Buttons

1 and 2)

Display 3 Features*

Assign the features to Feature Button 1, Feature Button

2, and Feature Button 3.

Display 4 Features

Assign the features to Feature Button 1, Feature

Button 2, Feature Button 3, and Feature Button 4.

Configuring a screen (default/basic/customized)

in

6-3:

Configuring the Machine with Using Tools Mode

Assign the features to be displayed on the buttons of the

Customized Features screen. You can display a maximum of eight feature buttons on the Customized Features screen.

Configuring a screen (default/basic/customized)

in

6-3:

Configuring the Machine with Using Tools Mode

* indicates the factory default.

6

6-1 List of Custom Preset Functions 145

Custom Presets

6

System Setup

This feature allows you to impose restrictions on, for example, the maximum number of copies, and Auto Power Off Timer.

Item

Maximum No. of Sets

Description

Select the maximum number of sets that can be made.

Available Options

1 to 999 sets (999 sets*)

Auto Power Off Feature

Output Sets

(Collated)

Size Mismatch Warning

Output to Finisher

Set this option to enable/disable the Auto Power Off Timer in

Time-Outs.

Enable, Disable*

Set the output orientation for collated sets. In the case of

Auto, all collated output will face down. In the case of Face

Up, all collated output will face up.

Auto*, Face Up

If the document glass is used to make copies, select the copy method if the orientation of the size detected by the machine is different from the paper orientation. If you select

No, the Size Mismatch Warning screen will not be displayed and you can copy by selecting the desired copy method.

Alternatively, you can select Yes to display the Size

Mismatch Warning screen and proceed with your copy job after selecting the copy method. When Auto Correct is selected, the Size Mismatch Warning screen is not displayed. The copy job will be carried out after adjustments have been made automatically if you have selected Off for

Image Rotation.

No, Yes, Auto Correct*

If the Finisher is installed, this setting allows you to prohibit the output to the Finisher should the paper size be changed during copying.

Enable*, Disable

* indicates the factory default.

6-2: Displaying the Tools Mode Screen, and 6-3: Configuring the Machine with Tools Mode

Image Quality

Item Description Available Options

Lighter/Darker Level This setting allows you to select seven levels of copy density from the fifteen levels. The levels selected here correspond to the seven levels of copy density from Lightest-Normal-

Darkest setting.

1 to 15

(Lightest to Darkest: 2*, 4*, 6*,

7*, 10*, 12*, 14*)

* indicates the factory default.

6-2: Displaying the Tools Mode Screen, and 6-3: Configuring the Machine with Tools Mode

146

6-1 List of Custom Preset Functions

Custom Presets

Displaying the Tools Mode

Screen

Displaying the Tools Mode Screen

This section describes the procedures for displaying the Tools Mode screen.

You need to enter the Access Number of the System Administrator in order to proceed with selecting the features on the Tools Menu.

The factory default for the Access Number is "11111".

Procedure

Press Settings/Meter Check.

The screen on the right is when the

Auditron feature is enabled. See

Chapter 9 Using the Auditron

Feature

for details.

Select Tools Mode.

6

If you made an error while entering the Access Number, press the Clear

C button to clear and re-enter.

Changing the

Access Number

of the administrator

in

6-3: Configuring the

Machine with Tools Mode

for information on how to change the

Access Number.

Enter the Access Number of the System Administrator by using the keypad and select Confirm.

Each input digit is represented by an asterisk.

6-2 Displaying the Tools Mode Screen

147

Custom Presets

For models with the printer feature, the screen displayed differs.

Select an item to change its settings.

6

Exiting the Tools Mode Screen

You can return to the default screen by the following procedures once you have selected the required features.

If default time of System Admin.

Mode Exit Timer is defined in Time-

Outs, the machine will exit the mode once the set time has elapsed and the default screen will be redisplayed. The factory default is 10 minutes.

You will hear the Machine Ready

Tone when the machine returns to the default screen. This is not an error.

Procedure

Select Exit Tools on the Tools Mode screen.

The default screen re-appears.

148 6-2 Displaying the Tools Mode Screen

Custom Presets

Configuring the Machine with

Tools Mode

This section uses the three examples described below to explain the procedures for configuring Tools Mode.

Selecting the feature defaults

• Changing the Access Number of the administrator

• Configuring a screen (default/basic/customized)

Selecting the Feature Defaults

This section describes the procedures for selecting the feature defaults.

The example here is to change the default copy density to Darkest.

Procedure

Procedure

Press Settings/Meter Check.

6

The screen on the right is when the

Auditron feature is enabled. See

Chapter 9 Using the Auditron

Feature

for details.

Select Tools Mode.

6-3 Configuring the Machine with Tools Mode

149

Custom Presets

The factory default of the access number is "11111".

Enter the Access Number of the System Administrator and select Confirm.

Each input digit is represented by an asterisk.

For models with the printer feature, the screen displayed differs.

Select Feature Defaults.

6

You can also select Lighter/Darker directly by touching it.

Use to select Lighter/Darker.

Select Change Settings.

150 6-3 Configuring the Machine with Tools Mode

Select the default value of Lighter/Darker.

For example, select Darkest.

Custom Presets

Select Save.

Select Close until the screen shown in Step 4 is displayed.

Select Exit Tools.

The default value of Lighter/Darker is set.

6

6-3 Configuring the Machine with Tools Mode

151

Custom Presets

Changing the Access Number of the Administrator

This section explains the procedures for changing the Access Number of the administrator. The factory default is "11111".

If you have changed the Access Number, make sure that you keep a record of the new number.

Procedure

Press Settings/Meter Check.

6

The screen on the right is when the

Auditron feature is enabled. See

Chapter 9 Using the Auditron

Feature

for details.

Select Tools Mode.

Enter the Access Number of the System Administrator and select Confirm.

Each input digit is represented by an asterisk.

152 6-3 Configuring the Machine with Tools Mode

For models with the printer feature, the screen displayed differs.

Select Change of Access Number.

Custom Presets

If you made a mistake while entering the Access Number, press the Clear

C button to clear and re-enter.

To reset the Access Number setting, press Reset.

Enter the New Access Number by using the keypad. You can enter between 4 to 12 digits. Then select Enter.

Enter the Access Number again, and select Enter.

6

Select Close until the screen shown in Step 4 is displayed.

Select Exit Tools.

The New Access Number of the System Administrator becomes valid.

6-3 Configuring the Machine with Tools Mode

153

Custom Presets

Configuring a Screen (Default/Basic/Customized)

This section explains the procedures for changing the default screen, and customizing the Basic Features screen and the Customized Features screen.

Changing the Default Screen

This feature allows you to display the desired screen when the power is switched on, when it returns to the ready mode from the power saver mode, or when Clear All is pressed.

The factory default screen is the Basic Features screen.

Procedure

Press Settings/Meter Check.

6

The screen on the right is displayed when the Auditron feature is enabled. See

Chapter 9 Using the

Auditron Feature

for details.

Select Tools Mode.

The factory default of the Access

Number is "11111".

Enter the Access Number of the System Administrator and select Confirm.

Each input digit is represented by an asterisk.

154 6-3 Configuring the Machine with Tools Mode

For models with the printer feature, the screen displayed differs.

Select Screen Layout.

Select Change Settings in Default Screen.

Custom Presets

Select Change Settings.

Select the screen to be displayed as the default screen and select Save.

For example, select Customized Features.

6

6-3 Configuring the Machine with Tools Mode

155

Custom Presets

Then select Close until the screen shown in Step 4 is displayed.

Select Exit Tools.

The new default screen is defined.

6

Basic Features screen can display a maximum of four feature buttons.

You can select to display two, three or four features in the layouts shown below.

The factory default is Display 3

Features.

Configuring the Basic Features Screen

This feature allows you to select the number of features to be displayed on the Basic Features screen and which features to be displayed on these basic buttons.

• Display 2 Features

Assign the features to the two buttons (Feature Buttons 1 and 2)

• Display 3 Features

Assign the features to Feature Button 1, Feature Button 2 and Feature

Button 3.

• Display 4 Features

Assign the features to Feature Button 1, Feature Button 2, Feature

Button 3 and Feature Button 4.

Procedure

Press Settings/Meter Check.

The screen on the right is when the

Auditron feature is enabled. See

Chapter 9 Using the Auditron

Feature

for details.

Select Tools Mode.

156 6-3 Configuring the Machine with Tools Mode

The factory default of the access number is "11111".

Custom Presets

Enter the Access Number of the System Administrator and select Confirm.

Each input digit is represented by an asterisk.

For models with the printer feature, the screen displayed differs.

Select Screen Layout.

Select the number of features to be displayed on the Basic

Features screen and select Change Settings.

For example, select Display 4 Features.

6

6-3 Configuring the Machine with Tools Mode

157

Custom Presets

You can also select the basic button directly by touching it.

Use the buttons to select the desired basic button.

6

The buttons are displayed on two pages. Use or buttons to page up or page down.

Select No Feature if you do not wish to assign any feature to the button.

Buttons that are unavailable are dim and grey in color.

The screen on the right has the

Finisher installed.

Select Change Settings.

Select the feature to be displayed in the selected basic button and select Save.

For example, select Original Type.

Repeat Steps 6 to 8 when necessary to assign the required features to all the basic buttons.

Select Close until the screen shown in Step 4 is displayed.

Select Exit Tools.

158 6-3 Configuring the Machine with Tools Mode

Custom Presets

Select No Feature if you do not wish to assign any feature to the button.

Configuring the Customized Features Screen

This feature allows you to assign the customized features to be displayed on the Customized Features screen. You can assign a maximum of eight buttons on this screen.

The eight buttons of Customized Features are arranged as follows.

Procedure

Press Settings/Meter Check.

The screen on the right is when the

Auditron feature is enabled. See

Chapter 9 Using the Auditron

Feature for details.

Select Tools Mode.

The factory default of the access number is "11111".

Enter the Access Number of the System Administrator by using the keypad and select Confirm.

Each input digit is represented by an asterisk.

6

6-3 Configuring the Machine with Tools Mode

159

Custom Presets

For models with the printer feature, the screen displayed differs.

Select Screen Layout.

Select Change Settings in Customized Features screen.

6

You can also select the customized button directly by touching it.

Use to select the desired customized button.

Select Change Settings.

160 6-3 Configuring the Machine with Tools Mode

Custom Presets

The buttons are displayed on two pages. Use or buttons to page up or page down.

Select No Feature if you do not wish to assign any feature to the button.

Buttons that are unavailable are dim and grey in color.

The screen on the right has the

Finisher installed.

Select the feature to be displayed in the selected customized button and select Save.

For example, select Output/Finishing.

Repeat Steps 6 to 8 when necessary to assign the required features to all the customized buttons.

Select Close until the screen shown in Step 4 is displayed.

Select Exit Tools.

6

6-3 Configuring the Machine with Tools Mode

161

This page is intentionally left blank.

7

Troubleshooting

7-1 Troubleshooting ..........................................................

164

7-2 Paper Jams .................................................................

168

7-3 Document Jams ..........................................................

183

7-4 Stapler Faults ..............................................................

189

Troubleshooting

Troubleshooting

This section describes the troubleshooting methods in the event of an error.

A message will be shown on the display if paper is jammed or there is an internal machine fault. Follow the displayed instructions to identify the problems and troubleshoot. Contact your local authorized Panasonic service representative if any problem persists even after you have tried the following solutions.

When an Error Message is Displayed

If error messages are displayed when an error occurred, follow the messages to resolve the problem. If "Paper Jam" or "Document Jam" is displayed, See

7-2: Paper Jams

or

7-3: Document Jams for details.

7

When Other Problems Occurred

Symptom

"Ready to Copy", "Press Start to continue or press C button to cancel the job..." is not displayed.

The copy is dirty.

Check

Is the power cord loose?

Is the power switch in the " " position?

Is the document glass or the document cover dirty?

Measure

Check that the power cord is plugged in properly.

Check that the power switch is "|" (On).

There are black lines on the copy.

The copy is too dark.

Is the document made of a transparent material?

Is the document colored or of a rough texture such as pulp paper or blueprint?

Is the document glass dirty?

Is Lighter/Darker set at Darkest?

Clean the document glass or the document cover.

8-1: Cleaning the Copier

Marks on the document cover are copied if the document is made of a transparent material such as transparency. Place a sheet of white paper over the document.

Adjust the copy density, or select Photo for Original Type.

5-2: Adjusting Copy Density (Lighter/

Darker)

Clean the document glass.

8-1: Cleaning the Copier

Select a lighter copy density setting.

5-2: Adjusting Copy Density (Lighter/

Darker)

164

7-1 Troubleshooting

Troubleshooting

Symptom

The copy is too light.

The images on the copy are skewed.

Check

Is the density of the document too light?

Is copy density set at Lightest?

Is the document loaded correctly?

Measure

Select a darker copy density setting.

Increase toner dispensing level if copy is still light after adjusting the copy density.

5-2: Adjusting Copy Density (Lighter/

Darker)

8-3: Increasing the Toner Level

Load the document correctly.

3-2: Loading Documents

Is the document guide on the DADF at the right position?

Load the document properly and ensure that the guide touches the edge of the loaded document.

Loading documents in the DADF

in

3-2: Loading Documents

Is the paper loaded correctly in the tray?

Loaded the paper correctly.

2-3: Loading Paper

Is the paper guide of Tray 5 (Bypass) adjusted properly so that it touches the paper?

Is the paper tray set properly?

Adjust the paper guide so that it touches the paper gently.

Loading paper in Tray 5 (Bypass) of

2-3: Loading Paper

Ensure that the paper tray is pushed in completely.

2-3: Loading Paper

The copy is not made on paper of the desired size.

Is the Document Glass or document cover dirty?

Clean the document glass or document cover.

8-1: Cleaning the Copier

Is the document a transparent material?

Place the document on the document glass. Then place a sheet of white paper over the document.

Is the document placed at the right position?

Load the document correctly.

3-2: Loading Documents

7

Is the document guide of the DADF out of position?

Load document correctly by adjusting the document guide to touch the edge of it.

3-2: Loading Documents

Is the Image Rotation feature set to On?

Set Image Rotation feature to Off.

5-11: Rotating and Copying in

Different Directions (Image Rotation)

Flatten the document and reload it.

Has the document been folded like the picture on the right?

Is there anything placed on the DADF?

Remove it.

7-1 Troubleshooting 165

Troubleshooting

7

Symptom

Part of the image is missing on the copy.

Check

Is the paper damp?

Measure

If the paper is damp, either some parts of the copy are not shown or the copy is smudged and unclear. Replace it with a newly opened ream of paper.

2-3: Loading Paper

Is the paper folded or wrinkled?

Replace the undesirable paper with paper from a newly opened ream.

2-3: Loading Paper

Document is not fed.

Document is often jammed.

Is the DADF open?

Is the document too small?

Close the DADF.

The minimum size of document that can be used on the DADF is A5 or 5.5 x 8.5".

3-1: Documents

Is the right type of document used?

Is the document non standard, or are documents such as name cards, transparencies and thin paper used?

Load documents that can be handled by the DADF.

3-1: Documents

3-2: Loading Documents

Are stickers, paper clips and cellophane tapes attached to the document?

Remove the stickers, clips and cellophane tapes and copy again.

Is the document guide on the DADF in the right position?

Ensure that the document guide on the

DADF touches the edge of the document.

Loading documents in the DADF in

3-2: Loading Documents

Is part of the document torn and the pieces of paper still remaining in the

DADF?

Open the cover of the DADF to check that there are no torn paper.

7-3: Document Jams

A corner of the document is folded.

The scanning of the document was stopped halfway.

Is the document curled?

Did you load 51 sheets of documents or more on the DADF?

The copier sometimes stops, then starts again in the middle of a copy job.

This is normal operation.

Load the document again after you have uncurled the document.

The maximum number of sheets that can be loaded on the DADF is 50. When 51 sheets or more have to be loaded, divide them into multiple jobs.

Loading documents in the DADF in

3-2: Loading Documents

To maximize image quality, the unit may pause temporarily to optimize the imaging process.

166

7-1 Troubleshooting

Troubleshooting

Symptom

Paper is often jammed or wrinkled.

Check Measure

Is the paper loaded correctly in the tray?

Load the paper correctly.

2-3: Loading Paper

Is the paper tray set correctly?

Is the paper in the paper tray folded or wrinkled?

Is the paper curled?

Ensure that the paper tray is pushed in completely.

2-3: Loading Paper

Replace the undesirable paper with paper from a newly opened ream.

2-3: Loading Paper

Turn the paper over in the tray or replace the undesirable paper with paper from a newly opened ream.

2-3: Loading Paper

Are there any torn pieces of paper still remaining inside the machine or is there a foreign object in the machine?

Open the machine door or pull out the paper tray to remove the torn paper.

7-2: Paper Jams

Is the paper damp?

Replace the undesirable paper with paper from a newly opened ream.

2-3: Loading Paper

Stapling is not done.

Is out-of-spec paper loaded in the tray?

Is paper loaded above the Max fill line?

Are the staples jammed?

Replace with paper of right specifications.

2-1: What Paper to Use

2-3: Loading Paper

Load paper below the Max fill line.

2-1: What Paper to Use

7

Remove the jammed staples.

7-4: Stapler Faults

The copies are not stapled or punched at the right positions.

Even when Start is pressed, copying is unable to start, or

“Unable to start, there is a job in the queue. Select Job Status

Stop to check.“ is displayed.

Is the document set in the Head to Left orientation?

Is there a job in the queue?

Select Head to Left on the screen.

Press Job Status Stop and select the job. Press Clear C, or Clear All to cancel the job. To resume the job, press Start.

4-11: Stopping a Copy Job

Time-Outs of 6-1: List of Custom

Preset Functions

7-1 Troubleshooting 167

Troubleshooting

Paper Jams

7

Do not open the cover if you see smoke emitting as a result of a paper jam. Immediately switch off the power and disconnect the power cord. Then contact your local authorized Panasonic service representative.

Once a paper jam is detected, the machine will stop and an error message will be shown on the display.

Follow the instructions on the display to remove the jammed paper.

This section describes how to remove jammed paper from the following locations:

Trays 1-4

Tray 5 (Bypass)

Tray 6 (High Capacity Feeder)

Lower Right Cover of the Machine

Inside the Machine

Output Tray

Inside the Finisher

Finisher Tray

Sometimes paper may be jammed at more than one location. In this case, error messages will continue to be displayed even after you have removed the jammed sheet of paper from a particular location. Follow the instructions on the display to locate the other jammed sheets of paper.

When removing jammed paper, make sure that no pieces of torn paper are left in the machine. A piece of paper remaining in the machine can cause fire.

If a piece of paper is wrapped around the heat roller, or when clearing a jammed paper that is difficult or impossible to see, do not try to remove it by yourself. Doing so can cause injuries or burns. Switch off the machine immediately, and contact your local authorized Panasonic service representative.

Paper Jam at Trays 1-4

The following messages will be shown on the display if paper is jammed at

Trays 1 to 4.

The screen on the right shows the error messages indicating that paper is jammed at Tray 1. The error messages shown will depend on the tray that paper jam occurred.

168 7-2 Paper Jams

Troubleshooting

Remove the jammed paper by following the procedures shown below.

Procedure

Pull out the paper tray that is shown on the display.

Remove the jammed paper.

This message will not appear and the machine will not resume its operation if the tray is not closed properly. If sheets of paper are also jammed at other locations, other error messages will be displayed.

Push the tray in slowly until it stops.

"Ready to copy. Press Start to continue or press C button to cancel the job." is displayed once you have removed the paper and pushed the tray in.

Paper Jam at Tray 5 (Bypass)

The following messages will be shown on the display if paper is jammed at

Tray 5 (Bypass).

7

7-2 Paper Jams

169

Troubleshooting

Remove other paper loaded in the tray before clearing the paper jam.

After the jam is cleared, “Ready to copy. Press Start.” is displayed.

Procedure

Remove the jammed paper, which is fed halfway, from the tray.

If the paper is torn, check that there is no remaining pieces of paper in the machine.

Move the center lever towards you and pull out the tray until it stops.

Remove the jammed paper.

7

Push the tray all the way in.

To continue copying, reload the paper in the correct way.

Paper Jam at Tray 6 (High Capacity Feeder)

The following messages will be shown on the display if paper is jammed at

Tray 6 (High Capacity Feeder).

170 7-2 Paper Jams

Troubleshooting

Follow the instructions on the screen, and Procedures A-C to remove jammed paper.

Procedure A

Open Tray 5 (Bypass) by the grip on the left.

Move the center Lever towards you and pull out the tray until it stops.

Remove the jammed paper.

Push the tray all the way in.

7

Top cover cannot be opened when

Tray 5 (Bypass) is open. Close Tray

5 (Bypass) before opening the Top

Cover.

Procedure

B

Open the Top Cover of

Tray 6 (High Capacity

Feeder).

7-2 Paper Jams

171

7

Troubleshooting

Lift the jammed paper.

Close the Top Cover.

Procedure C

Pull out Tray 6 (High

Capacity Feeder).

Remove the jammed paper.

Push Tray 6 (High

Capacity Feeder) all the way in.

172 7-2 Paper Jams

Troubleshooting

Paper Jam at Lower Right Section of the Machine

The following messages will be shown on the display if paper is jammed at the lower right section of the machine.

When these messages appear, follow the instructions in Steps 1 and 2 to remove the jammed paper.

When these messages appear, follow the instructions from Steps 1 to 5.

7

Procedure

Push down on the Release

Latch on the Lower Right

Cover of the machine to open it.

7-2 Paper Jams

173

Troubleshooting

Remove the jammed paper slowly.

If the paper could not be removed in Step 2, pull up the

Green Lever (as indicated by the arrow on the upper right hand side of the cover) to open the Inner Cover.

Remove the jammed paper slowly.

7

If the cover is not closed completely, error messages will continue to be shown on the display and the machine will not resume its operation. If sheets of papers are still jammed at other locations, other error messages will be displayed.

"Ready to copy. Press Start to continue or press C button to cancel the job." is displayed once the jammed paper is removed.

Close the Inner Cover completely until you hear the click sound.

Close the Lower Right Cover of the machine.

174 7-2 Paper Jams

Troubleshooting

Paper Jam Inside the Machine

The following messages will be shown on the display if paper is jammed inside the machine.

The error messages shown on the right indicate that paper jam has occurred at four locations, namely,

1, 2, 3 and 4 inside the machine.

The error messages shown differ depending on the location where the error occurred.

Follow the steps below to remove jammed paper.

Procedure

Open the Front Door.

7

Turn the Green Lever at the center of the transfer unit clockwise until it is in the horizontal position.

Then pull the Transfer Unit out slowly until it stops.

When pulling out the

Transfer Unit, be careful that your fingers are not hurt by the pincers.

7-2 Paper Jams

175

7

Troubleshooting

Remove the jammed paper on the top right of the

Transfer Unit.

If the paper cannot be removed easily, turn Knob 5 counterclockwise to eject the jammed paper.

Do not put your fingers inside the

Transfer Unit. You may get hurt.

Never touch a labelled area found on or near the fuser unit. You can get burnt.

Remove the jammed paper while lifting Lever 1.

If the paper cannot be removed easily, turn Knob A counterclockwise to eject the jammed paper.

Remove the jammed paper while pushing Lever 2 downwards.

Lift Lever 3 to remove the jammed paper.

176 7-2 Paper Jams

Push Lever 4 to the right to open the paper guide on the right side of the transfer unit.

If the door is not closed completely, error messages will continue to be shown on the display and the machine will not resume its operation. If sheets of papers are still jammed at other locations, other error messages will be displayed.

"Ready to copy. Press Start to continue or press C button to cancel the job." is displayed once the jammed paper is removed.

Push in the transfer unit until it stops and turn the

Green Lever counterclockwise until you hear a click sound.

If the lever does not turn, pull out the transfer unit halfway and then push it in again.

Close the Front Door.

Troubleshooting

7

7-2 Paper Jams

177

7

Troubleshooting

Paper Jam at the Output Tray

The following messages will be shown on the display if paper is jammed at the output area during a copy job.

When these messages appear, follow the instructions from Steps 1 to

4 to remove the jammed paper.

When these messages appear, follow the instructions in Step 1 and after

Step 5 to remove the jammed paper.

Procedure

Remove the jammed paper by pulling it out slowly from the Output Tray.

If it cannot be removed, push down on the Release

Latch on the Lower Right

Cover of the machine to open it.

178 7-2 Paper Jams

Remove the jammed paper by pulling it out slowly.

Close the Lower Right

Cover of the machine.

If the cover is not closed completely, error messages will continue to be shown on the display and the machine will not resume its operation. If sheets of papers are still jammed at other locations, other error messages will be displayed.

"Ready to copy. Press Start to continue or press C button to cancel the job." is displayed once the jammed paper is removed.

If the paper cannot be removed, open the

Front Door.

Turn Knob 5 clockwise and remove the jammed paper by pulling it out slowly.

If the door is not closed completely, error messages will continue to be shown on the display and the machine will not resume its operation. If sheets of papers are still jammed at other locations, other error messages will be displayed.

"Ready to copy. Press Start to continue or press C button to cancel the job." is displayed once the jammed paper is removed.

Close the Front Door.

Troubleshooting

7

7-2 Paper Jams

179

Troubleshooting

Paper Jam Inside the Finisher

The following messages will be shown on the display if paper is jammed inside the Finisher (optional).

Follow the instructions below to remove the jammed paper.

Procedure

Hold the handle of the

Finisher and open its top cover.

7

When making large volume output, do not touch the area affixed with the CAUTION label.

Remove the jammed paper.

If the jammed paper could not be removed easily, turn

Knob 8 counter-clockwise to eject the paper.

180 7-2 Paper Jams

Troubleshooting

Close the Top Cover of the

Finisher.

If the cover is not closed completely, error messages will continue to be shown on the display and the machine will not resume its operation. If sheets of paper are still jammed at other locations, other error messages will be displayed.

Paper Jam at the Finisher Tray

The following messages will be shown on the display if paper is jammed at one of the Finisher (optional) Trays.

Follow the instructions below to remove the jammed paper.

Procedure

Lift Cover 9 at the output area of the Finisher as indicated in the diagram.

Remove the jammed paper.

7

7-2 Paper Jams

181

7

Troubleshooting

If the cover is not closed completely, error messages will continue to be shown on the display and the machine will not resume its operation. If sheets of paper are still jammed at other locations, other error messages will be displayed.

If the jammed paper could not be removed easily, open the Front Door of the

Finisher and turn Knob 10 counter-clockwise to eject the paper.

Close the Front Door.

If the message is still displayed even though the jammed paper is removed, lift up and lower Cover 9 again.

182 7-2 Paper Jams

Troubleshooting

Document Jams

The following messages will be shown on the display when the machine stops as the document is jammed at the DADF.

Follow the instructions on the display to remove the jammed document.

After you have removed the jammed document, follow the instructions on the display and load your document again in the DADF.

Document Jam at the Feeding Point of the DADF

The following messages will be shown on the display if the document is jammed at the feeding point of the DADF.

7

Procedure

Lift the Release Latch at the center of the DADF and open the Left Cover completely.

7-3 Document Jams

183

Troubleshooting

Remove the jammed document.

Close the Left Cover of the

DADF until you hear a click sound.

A torn, wrinkled, or folded document will cause it to be jammed at the

DADF. In such a case, place the document directly on the Document

Glass.

Check if the document is torn, wrinkled, or folded. If not, follow the instructions on the display and re-load the document in the DADF.

7

Document Jam Inside the DADF

The following messages will be shown on the display if the document is jammed inside the DADF.

184 7-3 Document Jams

The cover will be stationary when it is fully open.

Procedure

Lift the Release Latch at the center of the DADF and open the Left Cover completely.

Lift the Lever with the

Green Seal to open the inner cover.

Remove the jammed document.

Close the Inner Cover.

Then close the Left Cover of the DADF until you hear a click sound.

A torn, wrinkled, or folded document will cause it to be jammed at the

DADF. In such a case, place the document directly on the Document

Glass.

Check if the document is torn, wrinkled, or folded. If not, follow the instructions on the display and re-load the document in the DADF.

Troubleshooting

7

7-3 Document Jams

185

7

Troubleshooting

Document Jam at the Document Tray

The following messages will be shown on the display if the document is jammed at the Document Tray.

If the following messages are shown, refer to the descriptions in the previous section to remove the jammed document from the feeding point of the DADF. When the message(s) appear, remove the jammed document from the Document Tray.

Procedure

Remove the document from the Document Tray.

186 7-3 Document Jams

Troubleshooting

Lift the Document Tray and remove the jammed document.

Put the Document Tray slowly back in place.

A torn, wrinkled, or folded document will cause it to be jammed at the

DADF. In such a case, place the document directly on the Document

Glass.

Check if the document is torn, wrinkled, or folded. If not, follow the instructions on the display and re-load the document in the DADF.

Document Jam Underneath the DADF

The following messages are shown on the display if the document is jammed underneath the DADF.

7

7-3 Document Jams

187

Troubleshooting

Procedure

Lift the DADF slowly.

Remove the jammed document.

If the document cannot be taken out easily, turn the Knob clockwise to remove it.

Put the DADF slowly back in place.

7

A torn, wrinkled, or folded document will cause it to be jammed at the

DADF. In such a case, place the document directly on the Document

Glass.

Check if the document is torn, wrinkled, or folded. If not, follow the instructions on the display and re-load the document in the DADF.

188 7-3 Document Jams

Contact your local authorized

Panasonic service representative if the problems could not be resolved even after trying out the solutions described on the next page.

Troubleshooting

Stapler Faults

This section explains the methods used to resolve stapling problems at the

Finisher (optional). Follow the procedures on the following page to troubleshoot problems such as faulty stapler and bent staples.

Contact your local authorized Panasonic service representative if the staples are stapled on the copies in the manner as shown in the diagrams below.

7

7-4 Stapler Faults

189

Troubleshooting

Procedure

Open the Front Door of the

Finisher.

If pressing the Orange Lever does not free the staple cartridge, use your hand to remove it.

Press the Orange Lever as shown in the diagram and pull out the Staple

Cartridge.

7

Contact your local authorized

Panasonic service representative if the problems could not be resolved even after trying out the solutions described on the right.

Open the cover of the staple cartridge as shown in the diagram and remove the jammed staples.

When removing jammed staples, take care not to injure your fingers.

If the staples could not be removed, push in the direction of the arrow to remove the staples.

190 7-4 Stapler Faults

Push the Staple Cartridge in until the Orange Lever returns to its original position.

Close the Front Door of the

Finisher.

Troubleshooting

7

7-4 Stapler Faults

191

This page is intentionally left blank.

8

Daily Care

8-1 Cleaning the Copier ....................................................

194

8-2 Consumables ..............................................................

197

8-3 Increasing the Toner Level ..........................................

198

8-4 Replacing the Toner Cartridge ....................................

200

8-5 Replacing the Drum Cartridge ....................................

203

8-6 Replacing the Staple Cartridge ...................................

206

8-7 Emptying the Punch Scrap Container .........................

208

8-8 Checking the Billing Meter ..........................................

210

8-9 Making Clean Copies ..................................................

212

Daily Care

Cleaning the Copier

8

In order that clean copies can be made each time, you are recommended to clean the following areas of the machine once a month.

Document Cover/Document Glass/DADF Scanning Glass

DADF Film/Roller sections

Cleaning Document Cover, Document/Scanning Glass

Procedure

The Document Cover is the part where the DADF Belt is located.

If the Document Cover or Glass is dirty, copies made will also be dirty and it may affect the automatic sensing of document sizes.

If the Scanning Glass of the DADF is dirty, it will cause document jams and result in dirty copies being made.

Lift the DADF slowly.

DADF will be stationary if fully open.

Plastic and painted parts may be damaged if you use benzine or thinner to clean the machine.

If too much water is used, it will damage the document or cause the machine to fail.

Use a cloth that has been wrung thoroughly and does not drip. Water droplets seeping into the machine will cause it to fail.

Use a cloth made of soft material, and moistened with mild detergent.

Clean the Document Glass.

Clean the Document Cover.

Clean the DADF

Scanning Glass.

194

8-1 Cleaning the Copier

Use a dry cloth made of soft material to wipe.

Put the DADF slowly back in place.

Daily Care

Cleaning the DADF Film/Roller Sections

Procedure

If the film and roller sections of the

DADF are dirty, they will cause document jams and result in dirty copies being made.

Lift the Release Latch at the center of the DADF and open the Left Cover completely.

Cover will be stationary when fully open.

Lift the Lever with the

Green Seal to open the inner cover.

8

Plastic and painted parts may be damaged if you use benzine or thinner to clean the machine.

If too much water is used, it will damage the document or cause the machine to fail.

Use a cloth that has been wrung thoroughly and does not drip. Water droplets seeping into the machine will cause it to fail.

Use a moistened and soft cloth to clean the rollers

(total 18). Clean them by gently turning the rollers with the cloth.

8-1 Cleaning the Copier 195

Daily Care

Close the Inner Cover.

Then close the Left Cover of the DADF until you hear a click sound.

Lift the DADF slowly.

8

Do not press hard on the film as the film section is very delicate.

Clean the rollers by turning them.

Use a moistened and soft cloth to clean the film section and the roller section (total 8).

Use a dry cloth made of soft material to wipe.

Put the DADF slowly back in place.

196

8-1 Cleaning the Copier

Daily Care

Consumables

The warranty does not cover machine faults resulting from usage of Non-Panasonic recommended consumables.

Types of Consumables

The following consumables are available for this machine.

Ensure that the following consumables are used as this machine has been developed according to the strictest regulations.

Use Panasonic-recommended consumables as nonrecommended ones may affect quality and performance of the machine.

Consumables

Drum Cartridge

Toner Cartridge

Developer

Staple Cartridge

Package

One per box

One per box

One per box

5000 x 3 per box

Product Code

DQ-UH700

DQ-TX281

DQ-ZX700

FQ-SS66

Handling Consumables

Do not place the boxes of consumables vertically.

Open the consumables only when you need to use them. Do not store them in the following places:

• Hot and humid places

• Near a fire

• Under direct sunlight

• Dusty places

8

Follow the instructions and warning notes on the boxes or containers of the consumables when using them.

Keeping an extra box of consumables is recommended.

Check the product code of the consumables and contact your local authorized Panasonic service representative to place your orders.

8-2 Consumables 197

Daily Care

Increasing the Toner Level

5-2: Adjusting Copy Density

(Lighter/Darker) for information on how to adjust the copy density.

If you find that copies made are too light, you can increase the copy density by adjusting the toner level. This feature can be used besides the Lighter/

Darker feature to adjust the copy density. However, normally there is no need to use this feature because the toner quantity of the developer unit is automatically adjusted by the machine.

Procedure

Press Settings/Meter Check.

8

The screen on the right is when the

Auditron feature is enabled. See

Chapter 9 Using the Auditron

Feature for details.

Select Toner Level Adjustment.

Select Start.

198

8-3 Increasing the Toner Level

Daily Care

The following screen will be displayed for 40 seconds and the toner level will be adjusted during this time.

No copy job can be done during this time.

After the toner level is adjusted, the default screen re-appears.

8-3 Increasing the Toner Level 199

8

Daily Care

Replacing the Toner Cartridge

The Toner Cartridge contains toner that decreases each time a copy is made. When it is time for the Toner Cartridge to be replaced, the following messages will be shown on the message area of the display. In this case, follow the instructions to replace the Toner Cartridge.

8

Do not place the used Toner

Cartridge which has just been removed directly on the floor because toner still remaining in the cartridge may spill and dirty the floor.

You are recommended to spread some paper on the floor before you remove the cartridge.

Contact your local authorized

Panasonic service representative for disposal of used Toner Cartridges.

Never throw a Toner Cartridge into an open flame. It can cause an explosion and you can get burnt.

Use Panasonic-recommended Toner Cartridges as nonrecommended ones may affect quality and performance of the machine.

Procedure

Check that the machine has stopped and open the

Front Door.

200

8-4 Replacing the Toner Cartridge

Daily Care

Hold the Orange Lever and swing it to the left to open the toner cartridge holder.

Remove the Toner Cartridge slowly to avoid spilling the toner.

Turn the Toner Cartridge counter-clockwise until you hear a click sound. Then pull the cartridge toward you.

Contact your local authorized

Panasonic service representative for disposal of used Toner Cartridges.

Lift the Toner Cartridge and remove it from the toner cartridge holder.

Never touch a labelled area found on or near the fuser unit.

You can get burnt.

Gently shake the new

Toner Cartridge from left to right.

Align the mark on the holder with the mark on the new Toner Cartridge.

Then place the Toner

Cartridge on the holder.

8-4 Replacing the Toner Cartridge 201

8

8

Daily Care

Push the Toner Cartridge in and turn it clockwise until it stops.

If the door is not closed completely, error messages will be shown on the display and the machine will not resume its operation.

Hold the Orange Lever and swing it back to the original position until you hear a click sound.

Close the Front Door.

202

8-4 Replacing the Toner Cartridge

Daily Care

Replacing the Drum Cartridge

The Drum Cartridge is the photoreceptor for transferring the copy image onto the paper. If you see the following messages displayed, follow the instructions below to replace the Drum Cartridge.

When the Drum Cartridge needs to be changed, the message, “The

Drum Cartridge needs to be replaced soon. Please call for service.” will be displayed. If copying is carried on in this situation, the message, “The Drum

Cartridge needs to be replaced.

Jobs may stop printing halfway.

Please call for service.” will be displayed. In this situation, you can still continue to make copies but the image quality will deteriorate with each copy made, and finally the machine will come to a stop.

Do not touch the drum parts when you replace the Drum Cartridge.

Also, do not expose the drum to direct sunlight or a bright light.

Contact your local authorized

Panasonic service representative for disposal of used Drum Cartridges.

Never throw a Drum Cartridge into an open flame. Toner remaining in the cartridge can cause an explosion and you can get burnt.

Use Panasonic-recommended Drum Cartridges as nonrecommended ones may affect quality and performance of the machine.

Procedure

Turn the power switch to

" " to switch Off the power.

8

Open the Front Door.

8-5 Replacing the Drum Cartridge 203

8

Daily Care

Hold the Orange Lever and swing it to the left to open the toner cartridge holder.

Turn the Green Lever at the center of the transfer unit clockwise until the

Lever is in the horizontal position.

Slowly pull out about half of the Drum Cartridge while pressing the Orange

Button at the top of the

Drum Cartridge.

Never touch a labelled area found on or near the fuser unit. You can get burnt.

Contact your local authorized

Panasonic service representative for disposal of used Drum Cartridges.

Hold the handle at the top and pull the Drum Cartridge straight out.

Remove the new Drum

Cartridge from the package and align the

Drum Cartridge with the two rails.

204

8-5 Replacing the Drum Cartridge

Daily Care

Do not touch the surface of the drum as you may scratch or damage it.

Also, the drum may be dirtied in the process making it difficult for the machine to produce clean copies.

Push the drum in until you hear a click sound.

Check that the Drum Cartridge has been set properly.

Hold the Orange Lever and swing it back to the original position until you hear a click sound.

Turn the Green Lever counter-clockwise until the click sound is heard.

Close the Front Door.

Turn the Power Switch to the " | " position to switch

On the power.

Check that "Ready to copy" is displayed.

8

8-5 Replacing the Drum Cartridge 205

Daily Care

Replacing the Staple Cartridge

When it is time to replace the Staple Cartridge, the following messages will be shown on the display. Follow the procedures below to replace the Staple

Cartridge. Contact your local authorized Panasonic service representative when ordering a new Staple Cartridge.

Use Panasonic-recommended Staple Cartridges as nonrecommended ones may affect quality and performance of the machine.

Procedure

Check that the machine has stopped and open the

Front Door of the Finisher.

8

If pressing the Orange Lever does not free the cartridge, use your hand to remove it.

Press the Orange Lever as shown in the diagram and pull the Staple Cartridge out.

206

8-6 Replacing the Staple Cartridge

While pressing the position as indicated by the right arrow, pull to remove the used Staple Case.

Insert a new Staple Case into the Staple Cartridge.

Pull to remove the tab of the Staple Case as shown in the diagram.

Check that the Staple Cartridge is inserted in the correct orientation.

Push the Staple Cartridge back to its original position until you hear a click sound.

Close the Front Door of the

Finisher.

Daily Care

8

8-6 Replacing the Staple Cartridge 207

8

Daily Care

Emptying the Punch Scrap

Container

When the optional Finisher with the Puncher is installed, the following messages will be shown on the display when the punch scrap container is full. Follow the steps to dispose of the scraps in the container.

Each time you pull the punch scrap container out from the machine, make sure that all the scraps are emptied before you put the container back.

You should remove the container while the power is On. If you switch Off the power and empty the scrap container, the machine will not be able to detect that the container has been removed and the scraps disposed of.

Procedure

Open the Front Door of the

Finisher.

Pull the Punch Scrap

Container out in the direction of the arrow.

208

8-7 Emptying the Punch Scrap Container

Empty all the scraps.

You must dispose of all the scraps in the container even if you have just pulled the container out a little. This is because the machine will sense that the container has been pulled out. If you do not dispose of the scraps, the container may be full before the next punch scrap container disposal message is displayed thus causing the machine to fail.

Insert the Punch Scrap

Container and push it into the machine.

Close the Front Door of the

Finisher.

Daily Care

8

8-7 Emptying the Punch Scrap Container 209

Daily Care

Checking the Billing Meter

You can check the meter on the Settings/Meter Check screen.

8

The following types of copies are not counted:

Blank sheets inserted by the machine.

(A blank sheet is automatically inserted if the total number of sheets of the documents is an odd number for 2 Sided.)

First and last blank pages when making copies by using Book

Duplex feature.

Separators for transparencies when the Transparency

Separators feature is used.

Jammed papers or partially done copies as a result of machine fault.

Paper which is fed for fuser cleaning

On a model with the printer function installed, the number of copies printed by using this function can be displayed. To use this function, contact your local authorized

Panasonic service representative.

Current Count ....... Shows the number of copies made up till the present time.

Procedure

Press Settings/Meter Check.

Select Meter Check.

9-3: Confirming the Account Data for information on how to confirm the account data of each user when the

Auditron feature is used.

The screen on the right is displayed when the Auditron feature is enabled. See

Chapter 9 Using the

Auditron Feature for details.

210

8-8 Checking the Billing Meter

Daily Care

Check the reading.

Select Close until the default screen is shown.

The Settings/Meter Check screen clears and the default screen re-appears.

8-8 Checking the Billing Meter 211

8

Daily Care

Making Clean Copies

The paper which is fed for fuser cleaning depends on the sizes of paper loaded in the trays. Paper will be automatically fed based on the following priority:

(1) One sheet of A3

(2) Two sheets of A4

(3) Two sheets of paper in portrait orientation with greatest length.

The paper used for fuser cleaning will not be recorded by the billing meter.

Regular cleaning of the internal parts of the machine helps in producing clean copies every time. This machine is equipped with a feature that allows plain paper to be fed for automatically removing dirt, which easily accumulates on the fuser unit and other internal parts.

Procedure

If paper other than plain paper are loaded in the trays, temporarily remove them. Confirm that plain paper is loaded in any of the trays other than Tray 5 (Bypass).

Press Settings/Meter Check.

8

If your copy volume is large, it is possible to set fuser cleaning to activate automatically. Contact your local authorized Panasonic service representative.

Select Fuser Cleaning.

212

8-9 Making Clean Copies

Daily Care

Select Start.

If fuser unit is not warmed up, wait a while for cleaning to begin.

The following screen is displayed while the fuser cleaning is in progress.

No copy job can be done during this time.

After the end of fuser cleaning, the Fuser Cleaning screen re-appears.

Select Close until the default screen is shown.

The Settings/Meter Check screen clears and the default screen re-appears.

8

8-9 Making Clean Copies 213

This page is intentionally left blank.

9

Using the Auditron Feature

9-1 Auditron ......................................................................

216

9-2 Displaying the Auditron Administration Mode Screen .

218

9-3 Confirming the Account Data ......................................

220

9-4 Editing the Account Data ............................................

223

9-5 Deleting the Account Data ..........................................

227

9-6 Enabling/Disabling Auditron ........................................

229

9-7 Defining Automatic Display of the Password Entry

Screen ........................................................................

231

9-8 Changing the Auditron Access Number ......................

233

Using the Auditron Feature

Auditron

9-4: Editing the Account Data

9-6: Enabling/Disabling Auditron

When the Auditron mode is enabled, the copy volume of each account user can be calculated. This is done by assigning a Password to each account user.

The relationship between the Password Entry screen and a normal screen is as shown below.

9

Using the Auditron Mode

In the Auditron Administration Mode, select On for Auditron Mode on the

Auditron Setup screen and register a Password for every account by using the Create/Modify Accounts screen.

216

9-1 Auditron

Using the Auditron Feature

2-sided copy volume and print volume can be calculated. To use this feature, contact your local authorized Panasonic service representative.

Copy limit refers to the setting of the maximum number of copies which can be made.

The following operations can be done in the Auditron Administration mode.

Item

Reviewing the Account Data

Description

The password, copy limit and current copy volume settings can be reviewed for every account.

9-3: Confirming the Account Data

Creating/Modifying Account Data The password and copy limit of each account can be created/modified.

Up to 300 accounts can be registered.

9-4: Editing the Account Data

Deleting the Account Data

Enabling the Auditron Feature

The copy volume, copy limit and password settings of each account can be deleted for all accounts and set to zero. You can also choose to delete only the copy volume and copy limit.

9-5: Deleting the Account Data

You can choose to enable/disable the Auditron

Mode. Select On for Auditron Mode on the

Auditron Setup screen to enable it. When power is switched on after exiting from the Settings/Meter

Check screen, the Password Entry screen will be displayed.

9-6: Enabling/Disabling Auditron

Defining the Automatic Display of Password Entry Screen

Changing the Access Number

You can define the timeout period to automatically display the Password Entry screen after a copy job is completed.

9-7: Defining Automatic Display of the Password

Entry Screen

You can change the Access Number of the

Auditron Administrator using 4 to 12 digits.

9-8: Changing the Auditron Access Number

9

9-1 Auditron 217

Using the Auditron Feature

Displaying the Auditron

Administration Mode Screen

Displaying the Auditron Administration Mode Screen

This section explains the procedures for displaying the Auditron

Administration Mode screen.

Procedure

Press Settings/Meter Check.

The screen on the right has the

Auditron mode enabled.

Select Auditron Admin. Mode.

9

Enter the Access Number of the Auditron Administrator and select Confirm.

Each input digit is represented by an asterisk.

If you made a mistake while entering the Access Number, press the Clear

C button to clear and re-enter.

The factory default is “11111”.

9-8: Changing the Auditron Access

Number

for information on how to change the Access Number of the

Auditron Administrator.

The Auditron Administration Mode screen is displayed.

218

9-2 Displaying the Auditron Administration Mode Screen

Using the Auditron Feature

Exiting the Auditron Administration Mode

This section explains the procedure for exiting the Auditron Administration

Mode screen.

Procedure

Select Exit Auditron on the Auditron Administration Mode screen.

Review CE Data is used only by

Panasonic Service Representative.

9-2 Displaying the Auditron Administration Mode Screen 219

9

9

Using the Auditron Feature

Confirming the Account Data

Confirming Data of Own Account

This section explains the procedures for confirming the copy volume and copy limit of the User's Own Account.

Procedure

Press Settings/Meter Check.

The screen on the right has the

Auditron Mode enabled.

Select Accounts Meter Check.

Check the readings and select Close.

220

9-3 Confirming the Account Data

Using the Auditron Feature

Confirming Data of Every Account

This section explains the procedures for confirming the settings of the

Current Copy Volume, Password and Copy Limit of every account.

Procedure

Press Settings/Meter Check.

The screen on the right has the

Auditron Mode enabled.

Select Auditron Admin. Mode.

If you made a mistake while entering the Access Number, press the Clear

C button to clear and re-enter.

9-8: Changing the Auditron Access

Number

for information on how to change the Access Number.

Enter the Access Number of the Auditron Administrator and select Confirm.

Each input digit is represented by an asterisk.

9

9-3 Confirming the Account Data 221

Using the Auditron Feature

Review CE Data is used only by

Panasonic Service Representative.

Select Review Accounts.

Select the account number that you wish to review by using the

buttons.

The Password, Copy Limit and Copy Volume are displayed.

9

The default screen is displayed if

Auditron Mode is not enabled.

Select Close.

Select Exit Auditron.

The Password Entry screen is displayed.

222

9-3 Confirming the Account Data

Using the Auditron Feature

Editing the Account Data

When totalling the number of

2-sided copies from copying or printing, the number of accounts, which can be registered is 297 (No.

103 - 399).

This section explains the procedures for Creating/Modifying the Password and Copy Limit for each account.

299 accounts for number 101 to 399 can be registered. Account number

100 is the number for the Auditron Administrator.

Procedure

Press Settings/Meter Check.

The screen on the right has the

Auditron Mode enabled.

Select Auditron Admin. Mode.

If you made a mistake while entering the Access Number, press the Clear

C button to clear and re-enter.

9-8: Changing the Auditron Access

Number

for information on how to change the Access Number.

Enter the Access Number of the Auditron Administrator and select Confirm.

Each input digit is represented by an asterisk.

9

9-4 Editing the Account Data 223

9

Using the Auditron Feature

Review CE Data is used only by

Panasonic Service Representative.

Select Create/Modify Accounts.

Select the account number that you wish to define/change by using the buttons.

For an Account No. which has already been defined, its password, copy limit, current copy volume are displayed.

For an undefined Account No., its default values, copy limit

(default:1,000) and current copy volume (0), are displayed.

The diagram on the right shows an

Account No. which has already been defined.

Defining/Changing Account Password:

Select Key In Password.

224

9-4 Editing the Account Data

If you made a mistake while entering the Password, press the Clear C button to clear and re-enter.

When 0 is entered, all data of the specified account number will be deleted.

Using the Auditron Feature

Enter the new Password by using the keypad, and select

Enter. The Password must be within the range of 4 to 12 digits.

Select Close.

Defining/Changing Account Password:

Select Key In Copy Limit.

The diagram on the right shows an

Account No. which has already been defined.

When the total copy limit is not to be defined, select No Limit. The box displaying the total copy limit becomes blank.

Define the total copy limit by using the buttons. The total copy limit must be within the range of 1,000 to

9,999,000 in increments of 1,000 copies.

The defined copy limit is displayed.

9

Select Save.

9-4 Editing the Account Data 225

Using the Auditron Feature

Clearing the Current Copy Volume:

Select Reset.

The diagram on the right shows an

Account No. which has already been defined.

The default screen is displayed if

Auditron Mode is not enabled.

Select Close.

Select Exit Auditron.

The Password Entry screen is displayed.

9

226

9-4 Editing the Account Data

Using the Auditron Feature

Deleting the Account Data

This section explains the procedures for deleting the controlled copy volume, copy limit and password at the same time, and setting them to 0.

You can also choose to delete only the copy volume or copy limit.

Procedure

Press Settings/Meter Check.

The screen on the right has the

Auditron Mode enabled.

Select Auditron Admin. Mode.

If you made a mistake while entering the Access Number, press the Clear

C button to clear and re-enter.

9-8: Changing the Auditron Access

Number

for information on how to change the Access Number.

Enter the Access Number of the Auditron Administrator and select Confirm.

Each input digit is represented by an asterisk.

9

9-5 Deleting the Account Data 227

Using the Auditron Feature

Review CE Data is used only by

Panasonic Service Representative.

Select Auditron Setup.

Select All Data to delete the password, copy volume and copy limit of all the accounts together. Select only All Copy

Volumes or All Copy Limits to delete either the copy volume or copy limit of all accounts.

Select Yes.

The defined data disappears.

9

The default screen is displayed if

Auditron Mode is not enabled.

Select Close.

Select Exit Auditron.

The Password Entry screen is displayed.

228

9-5 Deleting the Account Data

Using the Auditron Feature

The factory default is Off.

Enabling/Disabling Auditron

This section explains the procedures for Enabling/Disabling the Auditron

Mode. If Auditron Mode is set to On in Auditron Setup, then the Auditron

Mode is enabled. In this case, the Password Entry screen will appear when the machine is switched On.

Procedure

Press Settings/Meter Check.

The screen on the right has the

Auditron Mode enabled.

Select Auditron Admin. Mode.

If you made a mistake while entering the Access Number, press the Clear

C button to clear and re-enter.

9-8: Changing the Auditron Access

Number

for information on how to change the Access Number.

Enter the Access Number of the Auditron Administrator and select Confirm.

Each input digit is represented by an asterisk.

9

9-6 Enabling/Disabling Auditron 229

9

Using the Auditron Feature

Review CE Data is used only by

Panasonic Service Representative.

Select Auditron Setup.

Select On or Off.

Select Close.

Select Exit Auditron.

The default screen is displayed if you have selected Off.

230

9-6 Enabling/Disabling Auditron

Using the Auditron Feature

Defining Automatic Display of the Password Entry Screen

The factory default is 2 minutes.

This section explains the procedures for defining the time required for the machine to return to the Password Entry screen after a copy job is completed.

Procedure

Press Settings/Meter Check.

The screen on the right has the

Auditron Mode enabled.

Press Settings/Meter Check.

If you made a mistake while entering the Access Number, press the Clear

C button to clear and re-enter.

9-8: Changing the Auditron Access

Number

for information on how to change the Access Number.

Enter the Access Number of the Auditron Administrator and select Confirm.

Each input digit is represented by an asterisk.

9

9-7 Defining Automatic Display of the Password Entry Screen 231

Using the Auditron Feature

Review CE Data is used only by

Panasonic Service Representative.

Select Auditron Setup.

Select Set Timer for Password Entry Screen Timer.

Select Disable if you want to disable the Password Entry screen feature.

When the time displayed exceeds

59 seconds, it will be changed to

minute.

Specify a time between 1-59 seconds or 1-10 minutes in 1 second/minute increments by using the buttons.

9

The default screen is displayed if

Auditron Mode is not enabled.

Select Save, and then Close.

Select Exit Auditron.

The Password Entry screen is displayed.

232

9-7 Defining Automatic Display of the Password Entry Screen

Using the Auditron Feature

Changing the Auditron Access

Number

The factory default is “11111”.

You can define the Access Number by using 4 to 12 digits.

Procedure

Select Auditron Admin. Mode.

The screen on the right has the

Auditron Mode enabled.

Select Auditron Admin. Mode.

If you made a mistake while entering the Access Number, press the Clear

C button to clear and re-enter.

Enter Access Number of the Auditron Administrator and select

Confirm.

9

9-8 Changing the Auditron Access Number 233

Using the Auditron Feature

Review CE Data is used only by

Panasonic Service Representative.

Select Change of Access No.

To change the Access Number setting, select Reset or the Clear C button.

Define the Access Number within the range of 4 to 12 digits.

Enter the New Access Number and select Enter.

Enter the same number again for confirmation and select

Enter.

9

The default screen is displayed if

Auditron Mode is not enabled.

Select Close.

Select Exit Auditron.

The Password Entry screen is displayed.

234

9-8 Changing the Auditron Access Number

Appendix

C

D

A

B

Specifications ..............................................................

236

Possible Combinations of Features ............................

239

Stapling .......................................................................

243

Options and Supplies ..................................................

245

A

Appendix

Specifications

The following are the specifications for the DP-6000/7000 series. We regret that improvements in specifications/appearance of the product may be made without prior notice.

Standard Specifications

Copier Type

Platen Type

Photosensitive Type

Copying Method

Development Method

Fusing System

Scanning Method

(for copying)

Warm-up Time

Power

Max. Power Consumption

(with all optional features installed)

Dimensions

Weight

Installation Environment

Document Size

DADF Specifications

Console

Fixed

Organic photosensitive conductor (OPC)

Indirect electrostatic

Dry development

Heat roller

3-dimensional scanning by CCD image sensors

Scanner : 400 dots/25.4 mm (400 dpi)

Recorder: 600 dots/25.4 mm (600 dpi)

120 V Model: 3 minutes or less (68°F/20°C 60% density)

220 V-240 V Model: 3 minutes or less (68°F/20°C 60% density)

120 V, 12 A or less (60 Hz); 220-240 V, 10 A or less (50/60 Hz)

120 V model: 1.4 kW

220-240V model: 1.43 kW

(W) 620 x (D) 778 x (H) 1080 mm or (W) 24.4 x (D) 30.6 x (H) 42.5"

Main unit : 407 lbs (185 kg)

Temperature: 50 to 95°F/10 to 35°C

Humidity: 15 to 85% (no condensation)

At 95°F/35°C, humidity should be below 47.5%. At 82°F/27.8°C, humidity should be below 85%.

On Document Glass Max.

Both sheets and bound documents: 297 x 420 mm

In DADF

Min.

No limit.

Max.

297 x 420 mm or 11x17" (279.4 x 431.8 mm)

Min.

148 x 210 mm or 5.5 x 8.5"

Feed : Automatic feeding from stack

Capacity : 50 sheets

Paper Weight : 1 sided, 38-128 g/m

2

or 10.1 - 34.1 lbs

2 sided, 50-105 g/m 2 or 13.3 - 28.0 lbs For B5/Invoice only, 17.0 - 28.0 lbs

236

A Specifications

Appendix

Copy Paper Size

Output Tray Capacity

First Copy Output Time

Continuous Copy Speed

(1 Sided/Size-for-Size)

Magnification

Paper Supply

Max. Continuous Copy Vol.

Density Adjustment

Tray 1

A5, A5 , 5.5” x 8.5", B5 , A4 , 8.5 x 11"

Tray 2 to 4

A5, A5 , 5.5 x 8.5", B5, B5 , A4, A4 , 8.5 x 11", 8.5 x 11" , 8.5 x 13",

8.5 x 14", B4, 8K (267 x 388 mm), A3, 11 x 17"

Tray 5 (Bypass)

A6, B6, A5, A5 , B5, B5 , A4, A4 , B4, 8K (267 x 388 mm), A3,

5.5 x 8.5", 8.5 x 11", 8.5 x 11" , 8.5 x 13", 8.5 x 14", 11 x 17"

Non standard size (Y: 100-300 mm or 3.8-11.8")

*Area which can be copied is up to 297 mm or 11.7"

(X: 148-432 mm or 5.8-17")

Image Loss Edge Erase Lead edge up to 4mm (0.2"), trail edge up to 4mm (0.2"), both up to 4mm (0.2"),

Copy All Lead edge up to 4mm (0.2"), trail edge up to 4mm (0.2"), both up to 4mm (0.2"),

500 sheets

2.7 sec (Document is on Document Glass and paper is A4 or 8.5 x 11" from Tray 1)

2.8 sec (for models with printer functions)

DP-6000 60 copies per minute ( A4 or 8.5 x 11"size)

DP-7000 70 copies per minute ( A4 or 8.5 x 11"size)

Size-for-size: 1:1 ± 0.8%

Fixed % : For USA & Canada

1:0.500, 1:0.647, 1:0.786, 1:1, 1:1.294, 1:1.545, 1:200, 1:400

Variable% : 1:0.25 to 1:4.00 (in 1% increments)

Tray

Trays 2 to 4 :

: 1000 sheets

550 sheets each

Tray 5 (Bypass) : 50 sheets

999 sheets

7 levels

First Copy Output Time refers to time taken for the first copy of a job to be output.

To maximize image quality, the unit may pause temporarily to optimize the imaging process.

A Specifications 237

A

Appendix

Tray 6 (High Capacity Feeder)

Power

Power Consumption

Size

Dimensions

Weight

Paper Supply

Paper Size

From main body of machine

21 W

(W) 356 x (D) 652 x (H) 580 mm or (W) 14.0 x (D) 25.7 x (H) 22.8"

Main body + Output Tray (extended) + High Capacity Feeder:

(W) 1370 x (D) 778 mmm or (W) 53.9 x (D) 30.6"

39 kg or 85.8 lbs

3600 sheets (20 lbs or 80g/m 2 )

A4 , B5 , 8.5 X 11"

Offset Catch Tray (Optional)

Power

Power Consumption

From main body of machine

3 W

Paper Size (Collated/Uncollated) A6*, B6*, A5*, A5 , 5.5 x 8.5"*, B5, B5 , A4, A4 , 8.5 x 11",

8.5 x 11" , 8.5 x 13", 8.5 x 14", B4, 8K (267 X 388 mm), A3, 11 x 17”,

Capacity

Dimensions

Non standard size (Length at 6.7" or 170 mm or below: cannot be offset)

* indicates paper sizes that cannot be offset

500 sheets (20 lbs or 80g/m

2

)

Main body + Offset catch tray: (W) 1014 x (D) 778 mm or (W) 39.9 x (D) 30.6"

A

Finisher (optional)

Power

Power Consumption

Size

Dimensions

Weight

Capacity

Paper Size (Stapled/Stacked)

Stapling

Punching

From main body of machine

120 V model: 72 W

220-240 V model: 79 W

(W) 700 x (D) 650 x (H) 1100 mm or (W) 27.6 x (D) 25.6 x (H) 43.3"

Main body + Tray 5 (Bypass) + Finisher: (W) 1599 x (D) 778 mm or (W) 63.0 x (D) 30.6"

55 kg or 121 lbs

Tray 1 (top tray): 500 sheets (20 lbs or 80g/m 2 )

Tray 2: 1500 sheets each (750 sheets each when paper is larger than A4.) (20 lbs or 80g/m 2 )

A6*, B6*, A5*, A5 , 5.5 x 8.5"*, B5, B5 , A4, A4 , B4, A3,

8.5 x 11", 8.5 x 11" , 8.5 x 13", 8.5 x 14", 8K (267 x 388 mm), 11 x 17",

Non standard size (Length at 6.7" or 170 mm or below: cannot be offset)

* indicates paper sizes that cannot be offset, and Large Output cannot be selected.

Valid sizes : A5 , B5 , A4 , 8.5 x 11" , B5, A4, B4, A3, 8.5 x 11”, 8.5 x 13”,

8.5 x 14”, 8K (267 X 388 MM), 11 x 17”

Number of sheets: 50 sheets

Valid sizes: B5 , A4 , 8.5 x 11" , B4, A3, 11 x 17"

Staple Cartridge

Staple Case Capacity 5000 staples x 3 /box

238

A Specifications

Possible Combinations of

Features

Appendix

B Possible Combinations of Features 239

B

Appendix

B

240

B Possible Combinations of Features

Appendix

B Possible Combinations of Features 241

B

Appendix

B

242

B Possible Combinations of Features

Appendix

Stapling

Refer to the following chart to check the paper size and the staple position.

When stapling, select the correct document orientation. If the selection is incorrect, it may not result in the desired output.

When Stapling with the Following Conditions:

Document Size: A4

Reduce/Enlarge : Auto

Document Orientation: Head to Top

Image Rotation: On

Size of Paper

Loaded in Tray

B4

B4

5.5 x 8.5"

5.5 x 8.5"

8.5 x 11"

8.5 x 11"

8.5 x 13"

8.5 x 13"

8.5 x 14"

8.5 x 14"

11 x 17"

11 x 17"

A6

A6

A5

A5

A4

A4

A3

A3

B6

B6

B5

B5

Top Right Top Left Right Double Left Double

O

O

Cannot be loaded in tray

Cannot be stapled

O

Cannot be stapled

O

Cannot be loaded in tray

O

O

O

O

O

Cannot be loaded in tray

Cannot be stapled

O

Cannot be loaded in tray

Cannot be loaded in tray

O

O

O

Cannot be stapled

O

O

O

Cannot be loaded in tray

✕ ✕

O

Cannot be loaded in tray

✕ ✕

O

Cannot be loaded in tray

O :

Staple horizontally at the paper edge

:

Staple slanted

Top Double

O

O

O

O

O

O

O

O

✕ :

Cannot be stapled

C

C Stapling 243

Appendix

When Stapling with the Following Conditions:

Document Size: A4

Reduce/Enlarge: Auto

Document Orientation: Head to Left

Image Rotation: On

C

Size of Paper

Loaded in Tray

B6

B6

B5

B5

B4

B4

5.5 x 8.5"

5.5 x 8.5"

8.5 x 11"

8.5 x 11"

A6

A6

A5

A5

A4

A4

A3

A3

8.5 x 13"

8.5 x 13"

8.5 x 14"

8.5 x 14"

11 x 17"

11 x 17"

Top Right Top Left Right Double Left Double Top Double

Cannot be loaded in tray

O

Cannot be stapled

✕ ✕

O

O

Cannot be stapled

O

Cannot be loaded in tray

O

Cannot be loaded in tray

Cannot be stapled

O

O

O

O

O

O

O

Cannot be loaded in tray

O

Cannot be loaded in tray

O

O

O

O

O

Cannot be stapled

O

Cannot be loaded in tray

O

O

O

O

Cannot be loaded in tray

O

O :

O

O

O

Cannot be loaded in tray

Stapled horizontally at the paper edge

O

O O

:

Stapled slanted

✕ :

Cannot be stapled

244

C Stapling

Appendix

Options and Supplies

The DP-6000/7000 is a digital photocopier which can produce images with great clarity. Furthermore, its copying functionality can also be greatly enhanced by the addition of the following options and supplies.

We hope you find that the wide ranging capabilities will make your office-place more productive and efficient.

Part Name Part No.

Remarks

Finisher

High Capacity Feeder

DA-FS700

DA-MA700

With 3-Hole Punch/10 Position Stapling.

Up to 3600 sheets of paper can be loaded.

Catch Tray

Offset Catch Tray

Drum Cartridge

Toner Cartridge

Staple Cartridge

DA-XT700

DA-TR700

DQ-UH700

DQ-TX281

FQ-SS66

One per box.

One per box.

5000 x 3 per box.

For Printer/Scanner

Part Name

Printer/Scanner Unit

PS3 Kit

Hard Disk for Scanner

8MB Scanner Memory

64MB Printer Memory

Token Ring (see Note)

Part No.

DA-PC700

DA-MC700

DA-HD702

DA-SM08D

DA-PM64D

DA-NE70T

Remarks

For Printer/Scanner functions.

PostScript 3 Kit (Windows/Mac OS).

For DA-PC700.

For DA-PC700.

For DA-PC700.

For DA-PC700.

May not be available, please contact your authorized Panasonic representative for details.

D

D Options and Supplies 245

Index

Numerals

2 Sided .......................................................................................... 59

A

Increasing the Toner Level .......................................................... 198

Audio Tones .............................................................................. 142

Auditron Administration Mode Screen ......................................... 218

Auditron Mode ............................................................................ 216

Auto ............................................................................................... 64

Auto-Fit ......................................................................................... 49

Auto Start ........................................................................................ 7

B

Background Suppression .............................................................. 83

Basic Features Screen .................................................................... 9

Billing Meter ................................................................................ 210

Binding Margin .............................................................................. 90

Blank Separators ........................................................................ 100

Book Copying ................................................................................ 90

Book Duplex ................................................................................. 117

Booklet Creation ......................................................................... 125

Bypass ............................................................................................ 2

C

Calculator % .................................................................................. 49

Change of Access Number ......................................................... 145

Changing the Auditron Access Number ...................................... 233

Changing the Paper Tray Size ...................................................... 25

Checking .................................................................................... 123

Clean Copies .............................................................................. 212

Clean the DADF Cover ............................................................... 194

Cleaning Document Cover .......................................................... 194

Cleaning Document/Scanning Glass .......................................... 194

Cleaning the DADF Film/Roller Sections .................................... 195

Cleaning the Copier .................................................................... 194

Clear ............................................................................................. 73

Collated ......................................................................................... 64

Combinations of Features ........................................................... 239

Confirmation pop-up Screen ......................................................... 12

Confirming the Account Data ...................................................... 220

Conventions .................................................................................. viii

Copies for Distribution ................................................................... 99

Copy All ......................................................................................... 96

Copy Limit ................................................................................... 217

Copy Volume ............................................................................... 217

Copying 51 Sheets of Documents ................................................ 36

Covers ......................................................................................... 120

Custom Preset ............................................................................ 140

Customized Features Screen ......................................................... 9

246

Index

D

DADF .............................................................................................. 2

Deleting a Job ............................................................................. 133

Deleting the Account Data .......................................................... 227

Distribution Copies ........................................................................ 99

Document Glass ............................................................................. 2

Document Jam at the Document Tray ........................................ 186

Document Jam at the Feeding Point of the DADF ...................... 183

Document Jam Inside the DADF ................................................ 184

Document Jam Underneath the DADF ....................................... 187

Document Jams .......................................................................... 183

Document/Copy Counter ............................................................ 136

Documents ................................................................................... 34

Duplex Automatic Document Feeder ............................................. 2

E

Edge Erase ................................................................................... 96

Editing the Account Data ............................................................. 223

Emptying the Punch Scrap Container ......................................... 208

Enabling/Disabling Auditron ........................................................ 229

Energy Star .................................................................................. xvii

Entering Password ........................................................................ 13

Error Message Screen .................................................................. 12

F

Facing Pages ................................................................................ 90

Feature Defaults ................................................................. 140, 141

Features Menu Screen ................................................................... 9

Front Door ....................................................................................... 2

Fuser Cleaning ........................................................................... 212

Fuser Unit ..................................................................................... 3

H

High Capacity Feeder ..................................................................... 2

I

Image Quality .............................................................................. 146

Image Rotation ............................................................................ 104

Image Shift .................................................................................... 92

Independent X-Y% ........................................................................ 49

Interrupting a Copy Job ................................................................. 75

J

Job Memory ................................................................................ 128

L

Lighter/Darker Level .................................................................... 146

Loading Documents ...................................................................... 36

Loading Paper ............................................................................... 21

Lower Right Cover .......................................................................... 2

Index

M

Margin ........................................................................................... 92

Maximum Number of Sets .......................................................... 146

Message Pop-Up Screen .............................................................. 12

Minimum Clearances ...................................................................... ix

Mirror Image ................................................................................. 112

Mixed Size Originals ..................................................................... 87

Multi-Up ......................................................................................... 84

Multi-Up (N Up) ............................................................................. 85

N

Negative Image ............................................................................ 110

Next Job ........................................................................................ 76

Number of Originals .................................................................... 136

Numeric Keypad ............................................................................. 5

O

Offset Catch Tray ............................................................................ 2

One Side ....................................................................................... 56

One Set ....................................................................................... 123

Output Tray ...................................................................................... 2

Output to Finisher ..................................................................... 146

Overwriting jobs .......................................................................... 133

P

Paper Jam at Lower Right Section of the Machine ..................... 173

Paper Jam at the Output Tray ..................................................... 178

Paper Jam at Tray 5 (Bypass) .................................................... 169

Paper Jam at Tray 6 (High Capacity Feeder) ............................. 170

Paper Jam at Trays 1-4 ............................................................... 168

Paper Jam Inside the Machine ................................................... 175

Paper Jams ................................................................................. 168

Paper Size and Tray Loading Capacity ......................................... 18

Paper Tray Attributes .................................................................. 140

Paper Trays ..................................................................................... 2

Password Button ............................................................................. 4

Power Off Timer .......................................................................... 144

Power Switch .................................................................................. 2

Program Ahead ............................................................................. 76

Punching ....................................................................................... 70

R

R/E Presets ................................................................................. 144

Reduce/Enlarge ............................................................................ 43

Reduction or Enlargement ............................................................ 43

Repeat Image .............................................................................. 114

Replacing the Drum Cartridge .................................................... 203

Replacing the Staple Cartridge ................................................... 206

Replacing the Toner Cartridge .................................................... 200

Reset ............................................................................................. 73

Review Accounts ......................................................................... 222

S

Sample Set ................................................................................. 123

Screen Layout ............................................................................. 145

Selecting a Paper Tray .................................................................. 42

Settings/Meter Check Button .......................................................... 4

Size Mismatch ............................................................................... 38

Special Media .............................................................................. 19

Specifications .............................................................................. 236

Specify the Original Size ............................................................. 106

Stapler Faults .............................................................................. 189

Stapling ......................................................................................... 67

Start Button ..................................................................................... 5

Stopping a Copy Job ..................................................................... 74

Stored Jobs ................................................................................. 128

Storing and Handling Paper .......................................................... 20

System Setup .............................................................................. 146

T

Text Input Method ....................................................................... 130

Time-Outs ................................................................................... 144

Toner level ................................................................................... 198

Tools Mode .................................................................................. 140

Transfer Unit .................................................................................... 3

Transparency Separators .............................................................. 99

Tray 5 .............................................................................................. 2

Tray 6 (High Capacity Feeder) ........................................................ 2

Troubleshooting ......................................................................... 164

U

Uncollated .................................................................................... 64

Up to 50 Sheets ............................................................................ 76

Using the Power Saver Mode ....................................................... 16

Using the Settings/Meter Check Button ...................................... 131

Using the job Memory ................................................................. 135

V

Variable % ..................................................................................... 43

Variable X-Y% .............................................................................. 49

W

Weights of Paper ........................................................................... 18

Index 247

This page is intentionally left blank.

U.S.A. only

WARRANTY

PANASONIC DOCUMENT IMAGING COMPANY MAKES NO WARRANTIES, GUARANTEES OR

REPRESENTATIONS, EXPRESSED OR IMPLIED, TO CUSTOMER WITH RESPECT TO THIS

PANASONIC MACHINE, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

PANASONIC DOCUMENT IMAGING COMPANY ASSUMES NO RISK AND SHALL NOT BE SUBJECT

TO LIABILITY FOR ANY DAMAGE, INCLUDING, BUT NOT LIMITED TO DIRECT, INDIRECT, SPECIAL,

INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSS OF PROFITS SUSTAINED BY THE

CUSTOMER IN CONNECTION WITH THE USE OR APPLICATION OF THIS PANASONIC MACHINE.

SEE YOUR DEALER FOR DETAILS OF DEALER’S WARRANTY.

For Service Call:

Panasonic Document Imaging Company

A Business Unit of Matsushita Electric Corporation of America

Two Panasonic Way

Secaucus, New Jersey 07094

Panasonic Canada Inc.

5770 Ambler Drive

Mississauga, Ontario L4W 2T3

DZSD001507 S0801

August 2001

Printed in Japan

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
