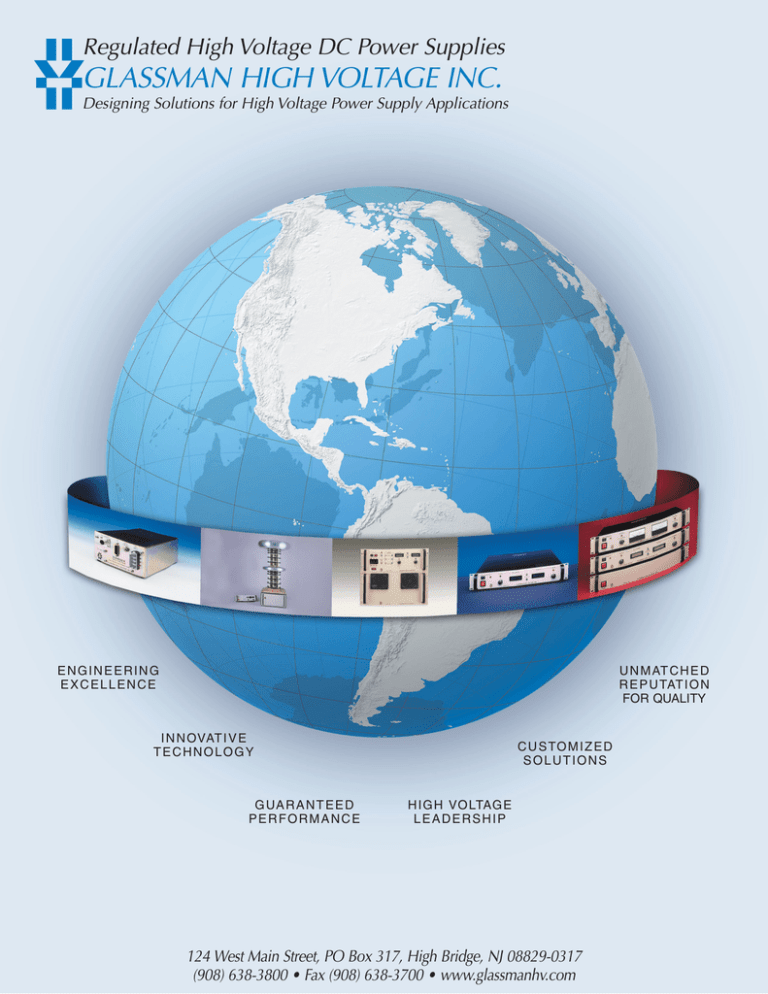

Regulated High Voltage DC Power Supplies

GLASSMAN HIGH VOLTAGE INC

.

Designing Solutions for High Voltage Power Supply Applications

E N G I N E E R I N G

E X C E L L E N C E

I N N OVAT I V E

T E C H N O L O G Y

G UA R A N T E E D

P E R F O R M A N C E

H I G H VO LTAG E

L E A D E R S H I P

C U S TO M I Z E D

S O L U T I O N S

U N M AT C H E D

R E P U TAT I O N

FOR QUALITY

124 West Main Street, PO Box 317, High Bridge, NJ 08829-0317

(908) 638-3800 • Fax (908) 638-3700 • www.glassmanhv.com

1

www.glassmanhv.com

Please visit our newly expanded website at www.glassmanhv.com to learn more about our product offerings and technology. We are constantly updating the site with new products, product updates, company news and technical information that will be of interest for high voltage users. We also provide contact information in order to reach our application design team for special requirements.

The site is simple to navigate with a product locator on the homepage that queries by desired voltage or power level in order to choose the “right solution” for your high voltage needs.

The Company

Since 1977, Glassman High Voltage has been committed to producing the finest High Voltage DC power supplies at affordable prices. More than a standard design facility, Glassman has established an enviable reputation for developing High Voltage Solutions to meet specific customer needs, by employing a combination of innovative design technology and manufacturing flexibility. For example, Glassman pioneered the use of air as the primary dielectric for power supply high voltage assemblies, eliminating the weight and serviceability problems of other dielectric medium as well as reliability constraints of solid dielectrics. Today the Glassman name is synonymous for high quality and technical innovation in the High Voltage Industry. Glassman’s service and support of it’s domestic and International customers’ is second to none in their industry, and no one offers a more thorough or extensive warranty on their products.

The industry’s primary resource for high voltage power supplies, Glassman provides a full-range of high voltage regulated DC switching power supplies for medical, industrial, and scientific application. Models range from 0 to

500 kV DC, 15W to 40 kW. and are utilized in a broad range of commercial and research settings with leading

OEM’s, National laboratories and Major

Universities.

www.glassmanhv.com

2

Glassman High Voltage DC Power Supplies… better by design!

The proper selection of a high voltage power supply for a particular application is a more difficult task than the selection of a low voltage supply. For one thing, today’s high voltage regulated power supplies are often more complex than their low voltage counterparts. The selection of high voltage supplies also requires extra attention to the design features and construction techniques that contribute to safety and protection against failures.

Any high voltage DC power supply must fulfill certain basic requirements. It must meet maximum output voltage and current needs, provide ripple suppression, static line regulation, and static load regulation that is adequate for the application, and it must operate with the available AC input line voltage and frequency. Other considerations, however, may be even more important in certain applications.

1

Basic Circuit

Design-

High Frequency

Switchmode

• Glassman’s power supply design topologies are based upon switchmode power conversion technology, while operating at frequencies approaching 60kHz. The

“switcher” is the design of choice for many industrial and medical applications because of a desirable combination of high efficiency, small size, low weight and in the case of high voltages, increased safety.

2

• Power factor (PF) is the ratio of real power to a load, as measured in watts, to the apparent power measured in volt-amperes. For sinusoidal voltages and currents, PF equals the cosine of the phase angle between the voltage applied to a load and the current passing through the load. In an ideal case, when the voltage and current are exactly in phase, the power factor is unity.

3

Arc Sensing

Circuitry

• Included as a standard feature on many Glassman power supplies, proprietary arc sensing and quench circuitry will suppress arcing conditions that can occur regularly in high voltage applications and provide maximum safety and protection for both the power supply and customer load during processing related applications, including Magnetron sputtering, Electron-beam evaporation, and Ion-beam deposition to name a few. These products are also highly utilized in the research market, as a general purpose laboratory power source.

4

• Glassman supplies are unique in that they use air as the primary dielectric medium. Many competitive supplies use oil or solid encapsulation. The use of air insulation has considerable advantages. Reduced weight is one.

More importantly, air insulation leads to improved serviceability. Individual components can be replaced, if necessary, without the need to scrap an entire assembly.

5

• We manufacture many different series of regulated high voltage power supplies and within each series there are many standard models. Such a large array of models would be a manufacturing nightmare without the use of modular construction. Many standard or modified modules are common to different models and series. This commonality provides the cost and time savings associated with volume production while still allowing the scheduling flexibility of custom assembly.

6

• Glassman High Voltage, Inc. warrants standard power supplies to be free from defects in materials and workmanship for three years from date of shipment. OEM and modified standard power supplies are warranted for one year from date of shipment. A formal warranty is available.

Welcome to Glassman High Voltage

Hello, I'm Sandy Glassman.

Allow me to introduce you to our company, our products, and most importantly, our people.

Beginning with it's inception in 1977, Glassman High Voltage has become the premier worldwide supplier of high voltage power supply technology to original equipment manufacturers and a very diverse group of research facilities. Glassman products feature our proprietary, air-insulation technology and inverter circuit designs that ensure long-term stability and reliability.

Our people have the talent, ingenuity, and dedication to meet, and exceed, your most demanding requirements. Because of our experience and creativity with high voltage technology, we are uniquely qualified to lead design and development projects for specialized equipment. You will discover that working with our sales and engineering staffs, is more like a true partnership than a vendor/customer relationship.

If the models on the following pages do not meet your requirements, please don't hesitate to contact us so that we may offer modifications or new designs. It is our commitment to excellence and innovation that has fueled our growth and customer loyalty.

If there is anything I can personally do to enhance your experience with our company, call me directly at 908-638-3800, or Email to

[email protected]

Yours truly,

Sandy Glassman

President

Designing Solutions for High Voltage Power Supply Applications

GLASSMAN HIGH VOLTAGE INC

.

124 West Main Street, PO Box 317, High Bridge, NJ 08829-0317

(908) 638-3800 • Fax (908) 638-3700 • www.glassmanhv.com • [email protected]

GLASSMAN EUROPE Limited (UK)

+44 1256 883007 FAX +44 1256 883017

E-mail: [email protected]

GLASSMAN JAPAN High Voltage Limited

+81 45 902 9988 FAX +81 45 902 2268

E-mail: [email protected]

3

©Glassman High Voltage, Inc.

Printed in the U.S.A.

4/10/02

4

Power Supply Selection Chart

SERIES STYLE VOLTAGES

RS-232

Digital Interface Option

MJ

MK

Module

Module

3 kV to 30 kV Models

1 kV to 60 kV Models

POWER

15 W

75 W

FC

WR

ER

FX

MR

ML

EL

EH

Module

Module

2U Rack

2U Rack

1U Rack

3U Rack

2U Rack

1 kV to 5 kV Models

8 kV to 60 kV Models

1 kV to 60 kV Models

1 kV to 60 kV Models

1 kV to 60 kV Models

85 kV to 125 kV Models

1 kV to 75 kV Models

300 W

300 W

45 W

100 W

120 W

250 W

300 W

1U Rack 1 kV to 60 kV Models 300 W

EW

WK

2U Rack

3U Rack

1 kV to 60 kV Models

80 kV to125 kV Models

500 W

500 W

EK

2U Rack 1 kV to 60 kV Models 600 W

PG-LR

3U Rack +

Open Stacks

GLASSMAN HIGH VOLTAGE INC.

www.glassmanhv.com

100 kV to 400 kV Models 250 W/500 W

USA (908) 638-3800

FAX (908) 638-3700

[email protected]

PK

PK

PK

KL

LK

LH

SERIES

PG

STYLE

3U Rack +

Open Stacks(s)

VOLTAGES

100 kV to 400 kV Models

WX

LX

EQ

LT

OS

3U Rack

5U Rack

2U Rack

5U Rack

3U Rack +

Open Stack

1 kV to 75 kV Models

1 kV to 150 kV Models

1 kV to 60 kV Models

1 kV to 150 kV Models

200 kV to 450 kV Models

4U Rack

5U Rack

6U Rack

6/12U Rack

9/18U Rack

1 kV to 30 kV Models

40 kV to 100 kV Models

1 kV to 100 kV Models

3 kV to 75 kV Models

80 kV to 125 kV Models

3U Rack +

Open Stack(s) 150 kV to 400 kV Models

SH

10/20U Rack 1 kV to 100 kV Models

Note: Panel Height U = 1-3/4"

2 kW

3 kW

3 kW

5 kW

4/8 kW

4/8 kW

4/8 kW

8/16 kW

POWER

500 W/1000 W

1 kW

1 kW

1.2 kW

2 kW

EUROPE (UK) (1256) 883007

FAX (1256) 883017

[email protected]

JAPAN (045) 902-9988

FAX (045) 902-2268

[email protected]

5

RS-232 Intelligent

Power Supply Serial

Interface Option

This microcontroller interface is offered as an option for Glassman High Voltage power supplies.

Its purpose is to provide remote control capability of analog program signals, analog monitor signals, and HV enable using standard RS-232 interface computer control. (Additional status indicators are provided on supplies which normally have these signals available externally.)

Specifications

INPUT:

Power is provided by the HVPS through the

“D” connector interconnection between the controller and the HVPS for all model applications except for the MJ, MK, and FC series. These models require an external power source of +20 to 30 VDC at 200 mA minimum.

RESOLUTION:

0.1%, 10 bit A/D and 12 bit D/A. The accuracy of the HV output and monitors are determined by the HVPS specifications.

PROTOCOL:

RS-232C is used with single-ended transmission over relatively short lines. This standard defines the electrical characteristics for the interfacing of Data Terminal

Equipment (DTE) and Data Communications

Equipment (DCE). For our case the host computer is the DTE and the Glassman HV

Power Supply equipment is the DCE.

Modules are 5"L x 3" W x 5" H

The power supply Interface acts strictly as a slave device. It will not transmit any messages over the data link unless it is first queried by the host computer.

The data are conveyed using ASCII encoded character strings. Scale factors are applied to the analog data by the host computer. The instruction manual provides signal information and configuration details.

The functions that can be controlled and monitored are dependent upon the functions provided for each HVPS series.

COMPUTER INTERFACE CONNECTOR

Female 9 Pin “D” connector (RS-232 port).

Instructions for wiring the mating connector for “null modem” operation are detailed in the instruction manual provided.

POWER SUPPLY INTERFACE CONNECTOR:

Female 25 Pin “D” connector. The signal connections vary as a function of the HVPS model.

ACCESSORIES:

3 foot shielded HVPS to controller interface cable including chassis return ground wire,

10 foot RS-232 “null modem” controller to host computer cable, Windows PC control software.

CONTROL SOFTWARE:

Software is provided on a 3 1/

2

" floppy diskette which allows the user to remotely operate the HVPS from a PC with MS

Windows 98 or 2000 operating systems.

The program consists of a main window and a pull down configuration menu. The main window allows programming and readback of the control signals, operation of the digital interface functions and reporting, and displays messages indicating the status of the HVPS and to report any errors.

Note: This option must be ordered with the power supply. It cannot be added to an existing supply by the user.

Contact your Glassman representative for factory upgrade availability.

7

Program Screen Outline

EUROPE (UK) (1256) 883007

FAX (1256) 883017

[email protected]

JAPAN (045) 902-9988

FAX (045) 902-2268

[email protected]

8

MJ Series

15 Watt

Regulated

High Voltage

DC Modules

Premium Performance...

Small Size and Weight...

Low Cost

The MJ Series provides premium

15 W performance at low cost in a small and lightweight package. This series, with air insulation for easy serviceability, should not be confused with competitive encapsulated units that must be discarded if faulty. Voltage ranges, depending on model, are from 0 to 3 kV through 0 to 30 kV.

Specifications

(From 5% to 100% rated voltage. All units operate down to zero output with very slight degradation of performance.)

INPUT:

105-125V RMS or 210-250V RMS (must be specified when ordering), single-phase,

48-420 Hz, <0.25 A. 3-position terminal block with cover.

OUTPUT:

Continuous, stable adjustment from 0 to rated voltage/current by external 0 to

+10 V signal, external potentiometer, or case-mounted 10-turn potentiometer with

0.05% resolution. Accuracy, 1% rated +1% setting. Repeatability better than 0.1% fs.

STORED ENERGY:

<200 millijoules, 15 kV model;

<400 millijoules, 30 kV model.

VOLTAGE REGULATION:

Better than 0.005% from no-load to full load and over specified input range.

RIPPLE:

<0.05% RMS of rated voltage at full load.

Ripple proportional to load, decreasing to approximately 0.01% at no load.

CURRENT REGULATION:

Better than 0.05% from short circuit to rated voltage at any load condition.

VOLTAGE MONITOR:

0 to +10 V equivalent to 0 to rated voltage.

Accuracy, 1% reading +1% rated.

CURRENT MONITOR:

0 to +10 V equivalent to 0 to rated current.

Accuracy, 1% reading + 0.05% rated.

STABILITY:

0.01% per hour after 1/2 hour warmup,

0.05% per 8 hours.

VOLTAGE RISE/DECAY TIME CONSTANT:

50 ms typical (100 ms max.) with a 50% resistive load using either TTL on/off or remote control.

TEMPERATURE COEFFICIENT:

0.01% per degree C.

AMBIENT TEMPERATURE:

-20 to +60 degree C, operating;

-40 to +85 degree C, storage.

POLARITY:

Available either positive or negative with respect to chassis ground.

PROTECTION:

Automatic current regulation protects against all overloads, including arcs and shorts. Fuses, surge-limiting resistors, and low energy components provide ultimate protection.

REMOTE CONTROLS:

DB15S D-subminiature with mating plug is provided for all remote functions, including common, +10 V reference, interlock, voltage and current program/monitor, TTL, ground, and local control.

EXTERNAL INTERLOCK:

Open off, closed on.

TTL ENABLE/DISABLE:

0-1.5 V off, 2.5-15 V on.

Fully compliant with the European harmonized EMI directive, EN50082-2, and with the low voltage (safety) directive, 73/23/EEC. Line harmonics are within the European harmonized standard, EN61000-3-2 specifications.

Models

Positive

Polarity

MJ3P5000

MJ5P3000

MJ10P1500

MJ15P1000

MJ20P700

MJ30P400

MJ3N5000

MJ5N3000

MJ10N1500

MJ15N1000

MJ20N700

MJ30N400

0-3 kV

0-5 kV

0-10 kV

0-15 kV

0-20 kV

0-30 kV

0-5 mA

0-3 mA

0-1.5 mA

0-1 mA

0-0.7 mA

0-0.4 mA

Case Size A: 3.25 x 5.25 x 11.5", 6.5 lbs. Case Size B: 3.25 x 5.25 x 13.75", 7.5 lbs.

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

B

B

A

A

A

A

Size

GLASSMAN HIGH VOLTAGE INC.

www.glassmanhv.com

USA (908) 638-3800

FAX (908) 638-3700

[email protected]

MK Series

75 Watt

Regulated

High Voltage

DC Modules

High Power...

Premium Performance...

Low Cost

The MK Series offers premium 75 W performance at low cost. Like their lower power brothers, the MJ Series, they are air-insulated and should not be compared with “throw-away” supplies.

MK Series feature easy serviceability.

Voltage ranges, depending on model, are from 0 to 1 kV through 0 to 60 kV.

Specifications

(From 5% to 100% rated voltage. All units operate down to zero output with very slight degradation of performance.)

INPUT:

105-125V RMS or 210-250V RMS (must be specified when ordering) standard, singlephase, 48-420 Hz, <1.5 A. Connector per

IEC 320/C14 with mating line cord.

EFFICIENCY:

Better than 75% at full load.

OUTPUT:

Continuous, stable adjustment from 0 to rated voltage/current by external 0 to +10 V signal, external potentiometer, or casemounted 10-turn potentiometer with 0.05% resolution. Accuracy, 1% rated + 1% setting. Repeatability better than 0.1% fs.

STORED ENERGY:

200 millijoules, 10 kV model;

1 Joule, 50 kV model.

VOLTAGE REGULATION:

Better than 0.005% RMS +1 mV/mA from no-load to full load and over specified input range.

RIPPLE:

<0.03% RMS of rated voltage + 0.5 V at full load.

CURRENT REGULATION:

Better than 0.05% from short circuit to rated voltage at any load condition.

VOLTAGE MONITOR:

0 to +10 V equivalent to 0 to rated voltage.

Accuracy, 1% reading + 1% rated.

CURRENT MONITOR:

0 to +10 V equivalent to 0 to rated current.

Accuracy, 1% reading + 0.05% rated.

STABILITY:

0.01% per hour after 1/2 hour warmup,

0.05% per 8 hours.

VOLTAGE RISE/DECAY TIME CONSTANT:

50 ms typical (100 ms max.) with a 75% resistive load using either TTL on/off or remote control.

TEMPERATURE COEFFICIENT:

0.01% per degree C.

AMBIENT TEMPERATURE:

-20 to +60 degree C, operating;

-40 to +85 degree C, storage.

POLARITY:

Available either positive or negative with respect to chassis ground.

Models

Polarity

MK1P75L

MK1.5P50L

MK2P37.5L

MK3P25L

MK5P15L

MK10P7.5

MK15P5

MK20P3.7

MK25P3

MK30P2.5

MK35P2

MK40P1.8

MK50P1.5

MK60P1.2

Case Size A: 4.75 x 5.19 x 11", 11 lbs.

Polarity

MK1N75L

MK1.5N50L

MK2N37.5L

MK3N25L

MK5N15L

MK10N7.5

MK15N5

MK20N3.7

MK25N3

MK30N2.5

MK35N2

MK40N1.8

MK50N1.5

MK60N1.2

EUROPE (UK) (1256) 883007

FAX (1256) 883017

[email protected]

0-20 kV

0-25 kV

0-30 kV

0-35 kV

0-40 kV

0-50 kV

0-60 kV

Voltage

0-1 kV

0-1.5 kV

0-2 kV

0-3 kV

0-5 kV

0-10 kV

0-15 kV

PROTECTION:

Automatic current regulation protects against all overloads, including arcs and shorts. Fuses, surge-limiting resistors, and low energy components provide ultimate protection.

REMOTE CONTROLS:

DB25S D-subminiature with mating plug is provided for all remote functions, including common, +10 V reference, interlock, voltage and current program/ monitor, TTL, ground, and local control.

EXTERNAL INTERLOCK:

Open off, closed on.

TTL ENABLE/DISABLE:

0-1.5V off, 2.5-15 V on.

Fully compliant with the European harmonized EMI directive, EN50082-2, and with the low voltage (safety) directive, 73/23/EEC. Line harmonics are within the European harmonized standard, EN61000-3-2 specifications.

Current

0-75 mA

Cable

RG-59

0-50 mA RG-59

0-37.5 mA RG-59

0-25 mA

0-15 mA

0-7.5 mA

0-5 mA

RG-59

RG-59

RG-8U

RG-8U

0-3.7 mA

0-3 mA

0-2.5 mA

0-2 mA

0-1.8 mA

0-1.5 mA

0-1.2 mA

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

A

A

A

A

A

A

A

A

A

A

A

Size

A

A

A

JAPAN (045) 902-9988

FAX (045) 902-2268

[email protected]

9

10

MR Series

300 Watt

Regulated

High Voltage

DC Modules

Complies With

IEC & CSA 950 And

UL 1950 Standards As

A Power Supply

Component

Modules are 3.38" H x 7.25" W x 16" D, weight less than 11 lbs. SHV version shown on left, Alden connector on right

The MR Series, with outputs from 0 to

1 kV through 0 to 5 kV, is designed to meet international safety approvals. It is packaged as a space-saving module that avoids the cost of expensive panels and displays. However, no compromises in performance and operating features have been made. The result is a power supply that offers outstanding value for a wide range of demanding applications.

Specifications

(From 5% to 100% rated voltage. All units operate down to zero output with very slight degradation of performance.)

INPUT:

103-132V RMS or 198-264V RMS (must be specified when ordering), single-phase,

48-63 Hz, <6 A. Connector per IEC 320/V1 with mating line cord.

EFFICIENCY:

Typically 85% at full load.

OUTPUT:

Continuous, stable adjustment from 0 to rated voltage and current through a combination of mounted 10-turn potentiometer, with 0.05% resolution external 0 to 10 V, or external potentiometers. Repeatability, <0.1% fs.

Accuracy, 0.25% of rated + 1% of setting.

STORED ENERGY:

<0.5 joules.

VOLTAGE REGULATION:

<0.005% for line variations. For load variations, add 1 mV/mA.

RIPPLE:

<0.02% RMS of rated voltage

+ 300 mV RMS

CURRENT REGULATION:

<0.1% of rated current from short circuit to rated voltage at any set current.

VOLTAGE MONITOR:

0 to 10 V for zero rated voltage. Accuracy,

1% reading + 0.25% of rated voltage.

CURRENT MONITOR:

0 to 10 V for zero to rated current. Accuracy,

1% reading + 0.05% of rated current.

STABILITY:

0.01% per hour after 1/2 hour warmup,

0.05% per 8 hours.

OUTPUT VOLTAGE TIME CONSTANT:

Typically 50 ms rise or decay time constant using TTL on/off or remote voltage control with a minimum of 15% resistive load.

TEMPERATURE COEFFICIENT:

0.01% per degree C.

AMBIENT TEMPERATURE:

-20 to +40 degree C, operating;

-40 to +85 degree C, storage.

POLARITY:

Available either positive or negative with respect to chassis ground.

Models (Alden connector)

Positive Negative Output Output Output

Polarity

MR1P300

MR1.5P200

MR1N300

MR1.5N200

0-1 kV

0-1.5 kV

0-300 mA

0-200 mA

Silicone wire MR2P150

MR3P100

MR5P60

MR2N150

MR3N100

MR5N60

0-2 kV

0-3 kV

0-5 kV

0-150 mA

0-100 mA

0-60 mA

Models (SHV connector)

Polarity

MR1P300L

MR1.5P200L

MR2P150L

MR3P100L

MR5P60L

GLASSMAN HIGH VOLTAGE INC.

www.glassmanhv.com

MR1N300L

MR1.5N200L

MR2N150L

MR3N100L

MR5N60L

0-1 kV

0-1.5 kV

0-2 kV

0-3 kV

0-5 kV

PROTECTION:

User-selected automatic current regulation or current trip protects against all overloads, including arcs and short circuits. Fuses, surge-limiting resistors, and low-energy components provide ultimate protection.

ACCESSORIES:

Detachable 8-foot HV cable (see Models chart for choice of output connector and wire type) and 6-foot detachable line cord provided.

REMOTE CONNECTIONS:

Common, +10 V reference, interlock, current program, current monitor, voltage program, voltage monitor, TTL HV enable, current regulation/trip, and chassis ground.

EXTERNAL INTERLOCK:

Open off, closed on.

TTL ENABLE/DISABLE:

0-1.5 V off, 2.5-15 V on.

Fully compliant with the European harmonized EMI directive, EN50082-2, and with the low voltage (safety) directive, 73/23/EEC. Line harmonics are within the European harmonized standard, EN61000-3-2 specifications.

0-300 mA

0-200 mA

0-150 mA

0-100 mA

0-60 mA

USA (908) 638-3800

FAX (908) 638-3700

[email protected]

RG - 59

ML Series

300 Watt

Regulated

High Voltage

DC Modules

Medium Power

Premium Performance...

Low Cost

The ML Series is a family of sophisticated, medium power, high voltage power supplies that complies with current international safety and EMI directives. The ML series provides wellregulated output voltages with models ranging from 8-60kVDC.

Specifications

(From 5% to 100% rated voltage. All units operate down to zero output with very slight degradation of performance.)

INPUT:

90-132VAC single-phase, 48-420Hz, 600VA maximum. Connector per IEC 320 with mating line cord terminated with NEMA

5-15 plug.

EFFICIENCY:

Typically 85% at full load.

OUTPUT:

Continuous, stable adjustment, from

0 to rated voltage or current by panel mounted 10-turn potentiometer with 0.05% resolution, or by external 0 to 10 V signals is provided. Linearity is < 1% of rated.

Accuracy is 0.1% of rated + 0.5% of setting. Repeatability is < 0.1% of rated.

CURRENT LIMITING/CURRENT TRIP:

User selectable at interface control connector for either “trip” operation or normal current limiting. If “trip” operation is selected the power supply will latch off in the event the load current exceeds the current “set” point.

STATIC VOLTAGE REGULATION:

Better than 0.005% for specified line and load variations.

DYNAMIC VOLTAGE REGULATION:

For load transients from 10% to 99% and

99% to 10%, typical deviation is 2% of output voltage with recovery to within 1% in

1ms, and to 0.1% in 2ms.

CURRENT REGULATION:

Better than 0.1% of rated current from short circuit to rated voltage at any load condition.

RIPPLE:

<0.05% rms of rated voltage at full load.

VOLTAGE MONITOR:

0 to +10 V equivalent to 0 to rated voltage.

Accuracy, 0.5% of reading + 0.1% rated.

CURRENT MONITOR:

0 to +10 V equivalent to 0 to rated current.

Accuracy, 1% of reading + 0.1% rated.

STABILITY:

0.01% per hour after 1/2 hour warm-up,

0.05% per 8 hours.

VOLTAGE RISE/DECAY TIME CONSTANT:

400ms typical with a 5% resistive load using either the HIGH VOLTAGE ENABLE input or remote programming control.

TEMPERATURE COEFFICIENT:

0.01% per °C.

AMBIENT TEMPERATURE:

-20 to +50°C, operating;

-40 to +85°C, storage.

POLARITY:

Output polarity is available as either positive or negative with respect to chassis ground.

PROTECTION:

User selected automatic current regulation or current trip protects against all overloads, including arcs and short circuits. Fuses, surge-limiting resistors, and low energy components provide ultimate protection.

INTERFACE CONTROL CONNECTOR:

Twenty-five pin “D” sub-miniature connector. As standard, all ML Series supplies provide output VOLTAGE AND

CURRENT PROGRAM/MONITOR (0-+10 V

= 0-fs), HIGH VOLTAGE ENABLE (0-1.5V off,

2.5 -15V on), HIGH VOLTAGE STATUS (high

= HV on, low = HV off), SAFETY

INTERLOCK (open = off, closed = on),

CURRENT TRIP/ LIMIT select, +10 VOLT

REFERENCE source, V/I MODE STATUS

(high = voltage mode, low = current mode),

LOCAL CONTROL, COMMON and

CHASSIS GROUND

Fully compliant with the European harmonized EMI directive, EN50082-2, and with the low voltage (safety) directive, 73/23/EEC. Line harmonics are within the European harmonized standard, EN61000-3-2 specifications.

Models

Positive

Polarity

Negative

Polarity

Output

Voltage

ML08P37.0

ML08N37.0

0 - 8 kV

ML10P30.0

ML10N30.0

0 - 10 kV

ML12P25.0

ML12N25.0

0 - 12 kV

ML15P20.0

ML15N20.0

0 - 15 kV

ML20P15.0

ML20N15.0

0 - 20 kV

ML25P12.0

ML25N12.0

0 - 25 kV

ML30P10.0

ML30N10.0

0 - 30 kV

ML40P07.5

ML40N07.5

0 - 40 kV

ML50P06.0

ML50N06.0

0 - 50 kV

ML60P05.0

ML60N05.0

0 - 60 kV

Output

Current

0 - 37 mA

0 - 30 mA

0 - 25 mA

0 - 20 mA

0 - 15 mA

0 - 12 mA

0 - 10 mA

0 - 7.5 mA

0 - 6 mA

0 - 5 mA

0.72

1.00

1.44

1.88

2.34

Stored Output Case

Energy Cable Size

0.38

RG-8U A

0.44

0.52

0.68

0.66

RG-8U

RG-8U

RG-8U

RG-8U

A

A

A

A

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

A

B

A

A

B

Case Size A: 4.75”H x 7.25”W x 14.75”L, 14 lbs. Case Size B: 4.75”H x 7.25”W x 20.50”L, 19 lbs.

EUROPE (UK) (1256) 883007

FAX (1256) 883017

[email protected]

JAPAN (045) 902-9988

FAX (045) 902-2268

[email protected]

11

12

EL Series

40/45 Watt

Regulated

High Voltage

DC Power Supplies

Laboratory Performance...

Economical Price

The EL Series was designed for the user who requires premium performance without the costly features normally associated with a laboratory-grade power supply. The result ...high voltage power supplies of superior quality at an affordable price. Except for variations in input voltage and available digital meters, there are no options, no hidden extras.

Specifications

(From 5% to 100% rated voltage. All units operate down to zero output with very slight degradation of performance.)

INPUT:

105-125 V RMS standard, single-phase,

48-420 Hz, <1 A. Connector per

IEC 320/C14 with mating line cord.

EFFICIENCY:

Better than 75% at full load.

OUTPUT:

Continuous, stable adjustment, from 0 to rated voltage by means of front panel

10-turn potentiometer. Linear to within 1% of rated. Repeatability, better than 0.1% of rated. Accuracy, 1% of rated +1% of setting. Resolution is <0.05%.

STORED ENERGY:

200 millijoules, 10 kV model; 1 Joule,

50 kV model.

VOLTAGE REGULATION:

Better than 0.005% +1 mV/mA from no-load to full load and over specified input range.

RIPPLE:

<0.03% RMS of rated voltage + 0.5 V at full load.

Dimensions: 3.5”H x 16.375”D x 19” Rack, 12 Lbs.

STABILITY:

0.01% per hour after 1/2 hour warmup,

0.05% per 8 hours.

TEMPERATURE COEFFICIENT:

0.01% per degree C.

AMBIENT TEMPERATURE:

-20 to +60 degree C, operating;

-40 to +85 degree C, storage.

POLARITY:

Available either positive, negative, or reversible polarity with respect to chassis ground.

PROTECTION:

Automatic current limiting protects against all overloads, including arcs and shorts. Fuses, surge-limiting resistors, and low energy components provide ultimate protection.

Models

EL3P15L

EL5P8L

EL10P4

EL15P3

EL3N15L EL3R15L

EL5N8L EL5R8L

EL10N4

EL15N3

EL10R4

EL15R3

EL20P2 EL20N2 EL20R2

EL30P1.5

EL30N1.5

EL30R1.5

EL40P1 EL40N1 EL40R1

EL50P0.8

EL50N0.8

EL50R0.8

EL60P0.6

EL60N0.6

EL60R0.6

0-3 kV

0-5 kV

0-10 kV

0-15 kV

0-20 kV

0-30 kV

0-40 kV

0-50 kV

0-60 kV

15 mA

8 mA

4 mA

3 mA

2 mA

1.5 mA

1 mA

0.8 mA

0.6 mA

FRONT PANEL ELEMENTS:

AC Power: ON/OFF rocker switch with indicator.

Output Kilovolt Meter: 2% full scale accuracy.

Output Milliamp Meter: 2% full scale accuracy.

Voltage Control: 10-turn with locking vernier readout.

ACCESSORIES:

Detachable 8-foot cable (see models chart for cable type) and 6 foot detachable line cord are provided.

Fully compliant with the European harmonized EMI directive, EN50082-2, and with the low voltage (safety) directive, 73/23/EEC. Line harmonics are within the European harmonized standard, EN61000-3-2 specifications.

Output Panel

RG-59

RG-59

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

3.5 in.

3.5 in.

3.5 in.

3.5 in.

3.5 in.

3.5 in.

3.5 in.

3.5 in.

3.5 in.

GLASSMAN HIGH VOLTAGE INC.

www.glassmanhv.com

USA (908) 638-3800

FAX (908) 638-3700

[email protected]

EH Series

100 Watt

Regulated

High Voltage

DC Power Supplies

Laboratory Performance...

Enhanced Features...

Economical Price

The EH Series combines the performance of a laboratory-grade power supply with the added flexibility of remote programming and monitoring capabilities. Voltage ranges are from 0 to 1 kV through 0 to 60 kV. Panel height is 3.5

inches and maximum weight is 13 lbs.

Specifications

(From 5% to 100% rated voltage. All units operate down to zero output with very slight degradation of performance.)

INPUT:

105-125 V RMS standard, single-phase,

48-420 Hz, <1.5 A. Connector per

IEC 320/C14 with mating line cord.

EFFICIENCY:

Better than 75% at full load.

OUTPUT:

Continuous, stable adjustment from

0 to rated voltage/current by external 0 to

+10 V signal, external potentiometers, or panel-mounted 10-turn potentiometers with

0.05% resolution. Accuracy, 1% rated + 1% setting. Repeatability better than 0.1% fs.

STORED ENERGY:

200 millijoules, 10 kV model;

1 Joule, 50 kV model.

VOLTAGE REGULATION:

Better than 0.005% +1 mV/mA from no-load to full load and over specified input range.

RIPPLE:

<0.03% RMS of rated voltage + 0.5 V at full load.

CURRENT REGULATION:

Better than 0.05% from short circuit to rated voltage at any load condition.

VOLTAGE MONITOR:

0 to +10 V equivalent to 0 to rated voltage. Accuracy, 1% reading

+ 1% rated.

Fully compliant with the European harmonized EMI directive, EN50082-2, and with the low voltage (safety) directive, 73/23/EEC. Line harmonics are within the European harmonized standard, EN61000-3-2 specifications.

Dimensions: 3.5”H x 16.375”D x 19” Rack, 13 Lbs.

CURRENT MONITOR:

0 to +10 V equivalent to 0 to rated current.

Accuracy, 1% reading + 0.05% rated.

Reversible models 1% of reading +0.1% of rated.

STABILITY:

0.01% per hour after 1/2 hour warmup,

0.05% per 8 hours.

VOLTAGE RISE/DECAY TIME CONSTANT:

60 ms typical (100 ms max.) with a 75% resistive load using either TTL on/off or remote control.

TEMPERATURE COEFFICIENT:

0.01% per degree C.

AMBIENT TEMPERATURE:

-20 to +60 degree C, operating;

-40 to +85 degree C, storage.

POLARITY:

Available either positive, negative, or reversible with respect to chassis ground.

PROTECTION:

Automatic current regulation protects against all overloads, including arcs and shorts. Fuses, surge-limiting resistors, and low energy components provide ultimate protection.

REMOTE CONTROLS:

Terminal block provided for all remote functions, including common, +10 V reference, interlock, voltage and current program/monitor, TTL, ground, and local control.

EXTERNAL INTERLOCK:

Open off, closed on.

TTL ENABLE/DISABLE:

0-1.5 V off, 2.5-15 V on.

Models

Output Panel

Polarity Polarity Polarity Voltage Current Cable Height

EH1P100L EH1N100L EH1R100L 0-1 kV 0-100 mA RG-59 3.5 in.

EH1.5P65L

EH1.5N65L EH1.5R65L

0-1.5 kV

EH2P50L EH2N50L EH2R50L 0-2 kV

EH3P33L

EH5P20L

EH3N33L

EH5N20L

EH3R33L

EH5R20L

0-3 kV

0-5 kV

EH10P10

EH15P6

EH20P5

EH25P4

EH10N10 EH10R10

EH15N6

EH20N5

EH25N4

EH15R6

EH20R5

EH25R4

0-10 kV

0-15 kV

0-20 kV

0-25 kV

EH30P3 EH30N3 EH30R3

EH40P2.5

EH40N2.5

EH40R2.5

EH50P2 EH50N2 EH50R2

EH60P1.5

EH60N1.5

EH60R1.5

0-30 kV

0-40 kV

0-50 kV

0-60 kV

0-65 mA

0-50 mA

0-33 mA

0-20 mA

0-10 mA

0-6 mA

0-5 mA

0-4 mA

0-3 mA

0-2.5 mA

0-2 mA

0-1.5 mA

RG-59

RG-59

RG-59

RG-59

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

3.5 in.

3.5 in.

3.5 in.

3.5 in.

3.5 in.

3.5 in.

3.5 in.

3.5 in.

3.5 in.

3.5 in.

3.5 in.

3.5 in.

13

EUROPE (UK) (1256) 883007

FAX (1256) 883017

[email protected]

JAPAN (045) 902-9988

FAX (045) 902-2268

[email protected]

14

FC Series

120 Watt

Regulated

High Voltage

DC Power Supplies

1 to 60 kV, 1.75" Panel

CE Compliant

The FC Series are sophisticated, 120 Watt, high voltage power supplies in a small and lightweight package. They are air insulated, fast response units, with tight regulation.

The FC Series are fully compliant with the

European Harmonized EMI Directive

EN50082-2 including standards EN55011

(Group 1, Class B), ENV50140, ENV50141,

ENV50204, EN61000-4-2, and EN61000-4-4.

The series are also designed to meet all applicable standards of the proposed

European Low Voltage Safety Directive,

73/23/EEC, based on IEC 1010-1.

Specifications

(From 5% to 100% rated voltage. All units operate down to zero output with very slight degradation of performance.)

INPUT:

103-132V RMS standard, single-phase,

48-420 Hz, <2.5A at 105V. Connector per

IEC 320/VI with mating line cord terminated with NEMA 5-15 plug.

EFFICIENCY:

Typically 80% at full load.

OUTPUT:

Continuous, stable adjustment from 0 to rated voltage/current by external 0 to +10 V signal, external potentiometers, or panelmounted 10-turn potentiometers with 0.05% resolution. Accuracy, 0.1% rated + 0.5% setting. Repeatability better than 0.1% of rated.

STORED ENERGY:

See Models chart.

STATIC VOLTAGE REGULATION:

Better than 0.005% for specified line variations and 0.005% + 0.5 mV/mA for load variations.

DYNAMIC VOLTAGE REGULATION

For load transients from 10% to 100% and

100% to 10%, typical deviation is 2% of output voltage with recovery to within 1% in

500 µs and to 0.1% in 1 ms.

RIPPLE:

<0.02% of rated voltage + 300 mV RMS at full load.

Dimensions: 1.75”H x 20.25”D x 19” Rack, 12 Lbs.

CURRENT REGULATION:

Better than 0.05% from short circuit to rated voltage at any load condition.

VOLTAGE MONITOR

0 to +10 V equivalent to 0 to rated voltage.

Accuracy, 0.1% reading + 0.5% rated.

CURRENT MONITOR:

0 to +10 V equivalent to 0 to rated current.

Accuracy, 0.1% of reading +0.5% rated.

STABILITY:

0.01% per hour after 1/2 hour warmup,

0.05% per 8 hours.

VOLTAGE RISE/DECAY TIME CONSTANT:

400 ms typical with a 10% resistive load using either TTL on/off or remote programming control.

TEMPERATURE COEFFICIENT:

0.01% per degree C.

AMBIENT TEMPERATURE:

-20 to +50 degree C, operating;

-40 to +85 degree C, storage.

POLARITY:

Available with either positive, negative, or reversible polarity with respect to chassis ground.

PROTECTION:

Automatic current regulation protects against all overloads, including arcs and shorts. Fuses, surge-limiting resistors,and low energy components provide ultimate protection.

REMOTE CONTROLS:

A five position terminal block and a 15 Pin

“D” connector are provided for all remote functions, including common, +10 V reference, interlock, voltage and current program/monitor, HV enable, ground, and local control. A rear panel toggle switch selects either local or remote operation.

EXTERNAL INTERLOCK:

Open off, closed on. Normally latching except for blank panel version where it is nonlatching.

REMOTE HV ENABLE:

0-1.5V off, 2.5-15V on.

ACCESSORIES:

Detachable 8 foot shielded high voltage coaxial cable (see models chart for wire type), 6 foot detachable line cord and mating

15 Pin “D” connector and shell are provided.

Models

Stored Output

Polarity Polarity Polarity Voltage Current Energy Cable

FC1P120 FC1N120 FC1R120

FC1.5P80

FC1.5N80

FC1.5R80

0-1kV

0-1.5kV

0-120mA

0-80mA

0.2J

0.45J

RG-58

RG-58

FC2P60

FC3P40

FC5P24

FC6P20

FC2N60

FC3N40

FC5N24

FC6N20

FC2R60

FC3R40

FC5R24

FC6R20

0-2kV

0-3kV

0-5kV

0-6kV

0-60mA

0-40mA

0-24mA

0-20mA

0.1J

0.2J

0.3J

0.25J

RG-58

RG-58

RG-58

RG-8U

FC8P15

FC10P12

FC12P10

FC15P8

FC8N15 FC8R15

FC10N12 FC10R12

FC12N10 FC12R10

FC15N8 FC15R8

FC20P6 FC20N6 FC20R6

FC25P4.8

FC25N4.8

FC25R4.8

FC30P4

FC40P3

FC30N4

FC40N3

FC30R4

FC40R3

FC50P2.4

FC50N2.4

FC50R2.4

FC60P2 FC60N2 FC60R2

0-8kV

0-10kV

0-12kV

0-15kV

0-20kV

0-25kV

0-30kV

0-40kV

0-50kV

0-60kV

0-15mA

0-12mA

0-10mA

0-8mA

0-6mA

0-4.8mA

0-4mA

0-3mA

0-2.4mA

0-2mA

0.3J

0.4J

0.7J

1.1J

0.85J

1J

1J

1.5J

2J

2.4J

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

GLASSMAN HIGH VOLTAGE INC.

www.glassmanhv.com

USA (908) 638-3800

FAX (908) 638-3700

[email protected]

WR Series

250 Watt

Regulated

High Voltage

DC Power Supplies

Up to 125 kV,

5.25 Inch Panel Height...

Laboratory Performance...

Enhanced Features

The WR Series provides voltage ranges from 0 to 85 kV through 0 to 125 kV. It is available with dual analog voltage and current meters, dual digital meters, or with a blank panel for OEM/system applications. Panel height is only 5.25

inches and maximum weight is less than

40 pounds.

Specifications

(From 5% to 100% rated voltage. All units operate down to zero output with very slight degradation of performance.)

INPUT:

105-125 V RMS standard, single-phase,

48-63 Hz, <6 A. Connector per

IEC 320/C14 with mating line cord.

EFFICIENCY:

Typically 85% at full load.

OUTPUT:

Continuous, stable adjustment from

0 to rated voltage/current by external 0 to

+10 V signal, external potentiometers, or panel-mounted 10-turn potentiometers with

0.05% resolution. Accuracy, 1% rated + 1% setting. Repeatability better than 0.1% fs.

STORED ENERGY:

11 Joules, maximum.

VOLTAGE REGULATION:

Better than 0.005% from no-load to full load and over specified input range.

RIPPLE:

<0.05% RMS of rated voltage at full load.

CURRENT REGULATION:

Better than 0.05% from short circuit to rated voltage at any load condition.

Dimensions: 5.25”H x 20.0”D x 19” Rack, 30 lbs.

VOLTAGE MONITOR:

0 to +10 V equivalent to 0 to rated voltage.

Accuracy, 1% reading + 1% rated.

CURRENT MONITOR:

0 to +10 V equivalent to 0 to rated current. Accuracy, 1% reading

+ 0.05% rated.

STABILITY:

0.01% per hour after 1/2 hour warmup,

0.05% per 8 hours.

VOLTAGE RISE/DECAY TIME CONSTANT:

400 ms typical with a 25% resistive load using either TTL on/off or remote programming control.

TEMPERATURE COEFFICIENT:

0.01% per degree C.

AMBIENT TEMPERATURE:

-20 to +40 degree C, operating;

-40 to +85 degree C, storage.

POLARITY:

Available either positive, negative, or reversible with respect to chassis ground.

PROTECTION:

Automatic current regulation protects against all overloads, including arcs and shorts. Fuses, surge-limiting resistors, and low energy components provide ultimate protection.

ACCESSORIES:

Detachable 8-foot shielded HV Coaxial cable

(see Model Chart for cable type) and 6-foot detachable line cord provided.

REMOTE CONTROLS:

Terminal block provided for all remote functions, including common, +10 V reference, interlock, voltage and current program/monitor, TTL, ground, and local control.

EXTERNAL INTERLOCK:

Open off, closed on. Normally latching except for blank panel version where it is non-latching.

TTL ENABLE/DISABLE:

0-1.5 V off, 2.5-15 V on.

Fully compliant with the European harmonized EMI directive, EN50082-2, and with the low voltage (safety) directive, 73/23/EEC. Line harmonics are within the European harmonized standard, EN61000-3-2 specifications.

Models

Output Panel

Polarity Polarity Polarity Voltage Current Cable Height

WR85P3.5

WR85N3.5

WR85R3.5

0-85 kV 0-3.5 mA DS2121 5.25 in.

WR100P2.5 WR100N2.5 WR100R2.5

0-100 kV

WR125P2 WR125N2 WR125R2 0-125 kV

0-2.5 mA

0-2 mA

DS2121

DS212l

5.25 in.

5.25 in.

15

EUROPE (UK) (1256) 883007

FAX (1256) 883017

[email protected]

JAPAN (045) 902-9988

FAX (045) 902-2268

[email protected]

16

ER Series

300 Watt

Regulated

High Voltage

DC Power Supplies

Laboratory Performance...

High Power Density...

Enhanced Features

The ER Series is a sophisticated, medium power, high voltage power supply. With a choice of three panel configurations...dual analog voltage and current meters, dual digital meters, or a blank panel for OEM/system applications

...it is adaptable to most environments.

Voltage ranges are 0 to 1 kV through 0 to

75 kV. Panel height is 3.5 inches and maximum weight is 18 pounds.

Specifications

(From 5% to 100% rated voltage. All units operate down to zero output with very slight degradation of performance.)

INPUT:

105-125 V RMS standard, single-phase,

48-63 Hz, <6 A. Connector per

IEC 320/C14 with mating line cord.

EFFICIENCY:

Typically 85% at full load.

OUTPUT:

Continuous, stable adjustment from

0 to rated voltage/current by external 0 to

+10 V signal, external potentiometers, or panel-mounted 10-turn potentiometers with

0.05% resolution. Accuracy, 1% rated + 1% setting. Repeatability better than 0.1% fs.

STORED ENERGY:

1.5 Joules, 20 kV model;

<4 Joules, 60 kV model.

VOLTAGE REGULATION:

Better than 0.005% +1 mV/mA from no-load to full load and over specified input range.

RIPPLE:

<0.02% RMS of rated voltage + 0.5 V at full load; models 1.5 kV and lower, 400 mV

(500 mV, Japan.)

CURRENT REGULATION:

Better than 0.05% from short circuit to rated voltage at any load condition.

VOLTAGE MONITOR:

0 to +10 V equivalent to 0 to rated voltage.

Accuracy, 1% of reading + 0.1% rated.

GLASSMAN HIGH VOLTAGE INC.

www.glassmanhv.com

Dimensions: 3.5”H x 16.375”D x 19” Rack, 18 Lbs.

CURRENT MONITOR:

0 to +10 V equivalent to 0 to rated current.

Accuracy, 1% reading + 0.05% rated.

STABILITY:

0.01% per hour after 1/2 hour warmup,

0.05% per 8 hours.

VOLTAGE RISE/DECAY TIME CONSTANT:

50 mS typical (300 ms for 75 kV model) with a 75% resistive load using either TTL on/off or remote programming control.

TEMPERATURE COEFFICIENT:

0.01% per degree C.

AMBIENT TEMPERATURE:

-20 to +40 degree C, operating;

-40 to +85 degree C, storage.

POLARITY:

Available either positive, negative, or reversible with respect to chassis ground.

Models

Positive Negative Reversible Output Output

PROTECTION:

Automatic current regulation protects against all overloads, including arcs and shorts. Fuses, surge-limiting resistors, and low energy components provide ultimate protection.

REMOTE CONTROLS:

Terminal block provided for all remote functions, including common, +10 V reference, interlock, voltage and current program/monitor, TTL, ground, and local control.

EXTERNAL INTERLOCK:

Open off, closed on. Normally latching except for blank panel version where it is non-latching.

TTL ENABLE/DISABLE:

0-1.5 V off, 2.5-15 V on.

Fully compliant with the European harmonized EMI directive, EN50082-2, and with the low voltage (safety) directive, 73/23/EEC. Line harmonics are within the European harmonized standard, EN61000-3-2 specifications.

Output Panel

Reversible

ER10P30

ER15P20

ER20P15

ER30P10

Only

ER10N30

ER15N20

ER1R300 0-1 kV 0-300 mA

ER1.5R200

0-1.5 kV 0-200 mA

ER2R150

ER3R100

0-2 kV

0-3 kV

0-150 mA

0-100 mA

ER5R60

ER6R50

ER10R30

ER15R20

ER20N15 ER20R15

ER30N10 ER30R10

ER40P7.5

ER40N7.5

ER40R7.5

ER50P6 ER50N6 ER50R6

0-5 kV

0-6 kV

0-10 kV

0-15 kV

0-20 kV

0-40 kV

0-50 kV

0-60 mA

0-50 mA

0-30 mA

0-20 mA

0-15 mA

0-30 kV 0-10 mA

0-7.5 mA

0-6 mA

ER60P5

ER75P4

ER60N5

ER75N4

ER60R5

ER75R4

0-60 kV

0-75 kV

0-5 mA

0-4 mA

RG-59

RG-59

RG-59

RG-59

RG-59

RG-58

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

DS2124

3.5 in.

3.5 in.

3.5 in.

3.5 in.

3.5 in.

3.5 in.

3.5 in.

3.5 in.

3.5 in.

3.5 in.

3.5 in.

3.5 in.

3.5 in.

3.5 in.

USA (908) 638-3800

FAX (908) 638-3700

[email protected]

FX Series

300 Watt Regulated

High Voltage

DC Power Supplies

1 to 60kV, 1.75" Panel

CE Compliant

The FX Series are sophisticated, 300 Watt, high voltage power supplies in a small and lightweight package. They are air insulated, fast response units with tight regulation.

ArcQuench and Arc sensing ensures smooth performance in dynamic load environments.

Fully compliant with the European harmonized EMI directive, EN50082-2, and with the low voltage (safety) directive, 73/23/EEC.

Specifications

(From 5% to 100% rated voltage. All units operate down to zero output with very slight degradation of performance.)

INPUT:

102-132V RMS, single-phase, 48-400 Hz,

<6 A. Connector per IEC 320 with mating line cord terminated with NEMA 5-15 plug.

EFFICIENCY:

Typically 85% at full load.

OUTPUT:

Continuous, stable adjustment, from

0 to rated voltage or current by panel mounted 10-turn potentiometers with 0.05% resolution, or by external 0 to 10 V signals is provided. Linearity is <0.1% of rated. Voltage

Accuracy is 0.5% of setting + 0.2% rated

Repeatability is <0.1% of rated.

STATIC VOLTAGE REGULATION:

Better than 0.005% for specified line variations and 0.005% + 0.5 mV/mA for load variations.

DYNAMIC VOLTAGE REGULATION:

For load transients from 10% to 100% and

100% to 10%, typical deviation is 2% of output voltage with recovery to within 1% in

500 µs and to 0.1% in 1 ms.

RIPPLE:

<0.02% of rated voltage plus 500mV RMS at full load.

CURRENT REGULATION:

Better than 0.1% from short circuit to rated voltage at any load condition.

VOLTAGE MONITOR:

0 to +10 V equivalent to 0 to rated voltage.

Accuracy, 0.5% of reading +0.2% rated.

CURRENT MONITOR:

0 to +10 V equivalent to 0 to rated current.

Accuracy, 1% of reading +0.05% rated except reversible models: 1% of reading

+ 0.1% of rated.

Dimensions: 1.75”H x 20.25”D x 19” Rack, 14 Lbs.

STABILITY:

0.01% per hour after 1/2 hour warmup,

0.05% per 8 hours.

VOLTAGE RISE/DECAY TIME CONSTANT:

50 ms typical with a 50% resistive load using either HV on/off or remote programming control.

TEMPERATURE COEFFICIENT:

0.01% per degree C.

AMBIENT TEMPERATURE:

-20 to +40 degrees C, operating;

-40 to +85 degrees C, storage.

POLARITY:

Available with either positive, negative, or reversible polarity with respect to chassis ground.

PROTECTION:

Automatic current regulation protects against all overloads, including arcs and shorts. Fuses, surge-limiting resistors, and low energy components provide ultimate protection.

ARC QUENCH:

An arc quench feature provides sensing of each load arc and quickly inhibits the HV output for approximately 20 ms after each arc.

Standard on 8 - 60 kV models; optional on

1-6 kV models.

ARC COUNT:

Internal circuitry senses the number of arcs caused by external load discharges. If the rate of consecutive arcs exceeds approximately one arc per second for five seconds, the supply will turn off for approximately

5 seconds to allow clearance of the fault.

Standard on 8 - 60 kV models; optional on

1-6 kV models.

REMOTE CONTROLS:

A three position terminal block and a 15 Pin

“D” connector are provided for all remote functions, including common, +10 V reference, interlock, voltage and current program/monitor, HV enable, ground, and local control. A rear panel toggle switch selects either local or remote operation

EXTERNAL INTERLOCK:

Open off, closed on.

REMOTE HV ENABLE:

0-1.5 V off, 2.5-15 V on.

ACCESSORIES:

Detachable 8 foot shielded high voltage coaxial cable (see Models chart for cable type), 6 foot detachable line cord, and mating

15 Pin “D” connector

Models

Positive

Polarity

Negative

Polarity

Reversible

Polarity

Output

Voltage

Output

Current

Stored Output

Energy Cable

FX1P300 FX1N300 FX1R300 0 - 1 kV 0 - 300 mA 0.35J

FX1.5P200

FX1.5N200

FX1.5R200

0 - 1.5 kV 0 - 200 mA 0.5J

RG-58

RG-58

FX2P150

FX3P100

FX5P60

FX6P50

FX8P37

FX10P30

FX12P25

FX15P20

FX2N150

FX3N100

FX5N60

FX6N50

FX8N37

FX10N30

FX12N25

FX15N20

FX2R150

FX3R100

FX5R60

FX6R50

FX8R37

FX10R30

FX12R25

FX15R20

FX20P15

FX25P12

FX20N15

FX25N12

FX20R15

FX25R12

FX30P10 FX30N10 FX30R10

FX40P7.5

FX40N7.5

FX40R7.5

FX50P6

FX60P5

FX50N6

FX60N5

FX50R6

FX60R5

0 - 2 kV

0 - 3 kV

0 - 5 kV

0 - 6 kV

0 - 150 mA 0.3J

0 - 100 mA 0.7J

0 - 60 mA

0 - 50 mA

0.4J

0.55J

0 - 8 kV 0 - 37 mA

0 - 10 kV 0 - 30 mA

0 - 12 kV 0 - 25 mA

0 - 15 kV 0 - 20 mA

0.4J

0.8J

RG-58

RG-58

RG-58

RG-8U

RG-8U

RG-8U

0.85J

RG-8U

0.75J

RG-8U

0 - 20 kV 0 - 15 mA

0 - 25 kV 0 - 12 mA

0 - 30 kV 0 - 10 mA

0 - 40 kV 0 - 7.5 mA

0 - 50 kV 0 - 6 mA

0 - 60 kV 0 - 5 mA

1.2J

1.3J

1.8J

2.4J

3.0J

3.5J

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

EUROPE (UK) (1256) 883007

FAX (1256) 883017

[email protected]

JAPAN (045) 902-9988

FAX (045) 902-2268

[email protected]

17

18

EW Series

Extended Current

500 Watt Regulated

High Voltage

DC Power Supplies

Up to 60 kV,

3.5 Inch Panel Height...

Laboratory Performance...

Enhanced Features

The EW Series is a 500 watt regulated high voltage DC power supply with an important difference...maximum current ratings are equivalent to a 600 W supply! This maximum current, which is available for all output voltages up to 84% of rated voltage, should be of significant interest for many applications. Voltage ranges are 0 to 1 kV through 0 to 60 kV.

Specifications

(From 5% to 100% rated voltage. All units operate down to zero output with very slight degradation of performance.)

INPUT:

102-132 V RMS standard, single-phase,

48-63 Hz, <10 A. Connector per IEC 320/C14 with mating line cord, terminated with

NEMA 5-15 plug.

EFFICIENCY:

Typically 85% at full load.

OUTPUT:

Continuous, stable adjustment from

0 to rated voltage/current by external 0 to

+10 V signal, external potentiometers, or panel-mounted 10-turn potentiometers with

0.05% resolution. Accuracy, 1% rated + 1% setting. Repeatability better than 0.1% fs.

STORED ENERGY:

<1.5 Joules, 20 kV; <4 Joules, 60 kV.

VOLTAGE REGULATION:

Better than 0.005% for specified line variations and 0.005% + 1 mV/mA for load variations.

RIPPLE:

<0.02% of rated voltage + 0.5 V RMS at full load.

CURRENT REGULATION:

Better than 0.05% from short circuit to rated voltage at any load condition.

VOLTAGE MONITOR:

0 to +10 V equivalent to 0 to rated voltage.

Accuracy, 1% reading + 1% rated.

Dimensions: 3.5”H x 16.375”D x 19” Rack, 18 Lbs.

CURRENT MONITOR:

0 to +10 V equivalent to 0 to rated current.

Accuracy, 1% reading + 0.05% rated for single polarity, 1% reading + 0.1% rated for reversible polarity.

STABILITY:

0.01% per hour after 1/2 hour warmup,

0.05% per 8 hours.

VOLTAGE RISE/DECAY TIME CONSTANT:

50 ms typical with a 30% resistive load using either TTL on/off or remote programming control.

TEMPERATURE COEFFICIENT:

0.01% per degree C.

AMBIENT TEMPERATURE:

-20 to +40 degree C, operating;

-40 to +85 degree C, storage.

POLARITY:

Available either positive, negative, or reversible with respect to chassis ground.

Models

Positive Negative Reversible Output Output

PROTECTION:

Automatic current regulation protects against all overloads, including arcs and shorts. Fuses, surge-limiting resistors, and low energy components provide ultimate protection.

REMOTE CONTROLS:

Terminal block provided for all remote functions, including common, +10 V reference, interlock, voltage and current program/monitor, TTL, ground, and local control.

EXTERNAL INTERLOCK:

Open off, closed on. Normally latching except for blank panel version where it is non-latching.

TTL ENABLE/DISABLE:

0-1.5 V off, 2.5-15 V on.

Fully compliant with the European harmonized EMI directive, EN50082-2, and with the low voltage (safety) directive, 73/23/EEC. Line harmonics are within the European harmonized standard, EN61000-3-2 specifications.

Output Panel

Reversible

Only

EW1R600

EW1.5R400

0-1.5 kV 0-400 mA RG-59

EW2R300

EW3R200

EW5R120

EW7P85 EW7N85 EW7R85

EW10P60 EW10N60 EW10R60

0-1 kV

0-2 kV

0-3 kV

0-5 kV

0-7 kV

0-10 kV

0-600 mA RG-59

0-300 mA

0-200 mA

0-120 mA

0-85 mA

0-60 mA

RG-59

RG-59

RG-59

RG-8U

RG-8U

EW15P40 EW15N40 EW15R40

EW20P30 EW20N30 EW20R30

EW25P24 EW25N24 EW25R24

EW30P20 EW30N20 EW30R20

0-15 kV

0-20 kV

0-25 kV

0-30 kV

0-40 mA

0-30 mA

0-24 mA

0-20 mA

RG-8U

RG-8U

RG-8U

RG-8U

EW40P15 EW40N15 EW40R15

EW50P12 EW50N12 EW50R12

0-40 kV

0-50 kV

0-15 mA

0-12 mA

EW60P10 EW60N10 EW60R10 0-60 kV 0-10 mA

Note: Product of voltage and current automatically limited to 500 W maximum.

RG-8U

RG-8U

RG-8U

3.5 in.

3.5 in.

3.5 in.

3.5 in.

3.5 in.

3.5 in.

3.5 in.

3.5 in.

3.5 in.

3.5 in.

3.5 in.

3.5 in.

3.5 in.

3.5 in.

GLASSMAN HIGH VOLTAGE INC.

www.glassmanhv.com

USA (908) 638-3800

FAX (908) 638-3700

[email protected]

19

WK Series

Extended Current

500 Watt

Regulated

High Voltage

DC Power Supplies

Up To 125 kV...

5.25 Inch Panel Height...

Laboratory Performance...

Enhanced Features

The WK Series is a 500 watt regulated

DC power supply offering output voltage ranges from 80 kV to 125 kV and an interesting “plus.” Maximum current ratings are equivalent to a 600 W supply up to 84% of rated voltage! Panel height is only 5.25 inches and weight is less than

30 pounds. The WK Series is available with dual analog output meters or, optionally, with digital meters or a blank panel for OEM/ system applications.

Specifications

(From 5% to 100% rated voltage. All units operate down to zero output with very slight degradation of performance.)

INPUT:

102-132V RMS, 48-63 Hz single phase,

<10 A. Connector per IEC 320/Vl with mating line cord and NEMA 5-15 plug.

EFFICIENCY:

Typically 83% at full load.

OUTPUT:

Continuous, stable adjustment from zero to rated voltage and current via 10-turn potentiometers, with 0.05% resolution, external 0 to 10 V, or external potentiometers. Linearity, <1% fs.

Repeatability, <0.1% fs. Accuracy, 0.25% of rated + 1% of setting.

STORED ENERGY:

9 J, 80 kV; 11 J, 100 kV; 14.5 J, 125 kV.

VOLTAGE REGULATION:

<0.005%, line or load.

RIPPLE:

<0.1% RMS of rated voltage at full load.

CURRENT REGULATION:

<0.1% of full scale from short circuit to rated voltage.

Dimensions: 5.25”H x 20”D x 19” Rack, 30 lbs.

VOLTAGE MONITOR:

0 to +10 V DC for zero to rated voltage.

Accuracy, 1% of reading + 1% of rated voltage.

CURRENT MONITOR:

0 to +10 V DC for zero to rated current.

Accuracy, 1% of reading + 0.05% (0.1% for reversible model) of rated current.

STABILITY:

0.01% per hour after 1/2 hour warmup.

0.05% per 8 hours.

OUTPUT VOLTAGE TIME CONSTANT:

Typically 400 ms rise or decay time constant for 125 kV model, using TTL on/off or remote voltage control, with 15% resistive load.

TEMPERATURE COEFFICIENT:

0.01%/degree C.

AMBIENT TEMPERATURE:

-20 to +40 degrees C, operating;

-40 to +85 degrees C, storage.

POLARITY:

Positive, negative, or reversible with respect to chassis ground.

PROTECTION:

Automatic current regulation protects against all overloads, including arcs and shorts. Fuses, surge-limiting resistors, and low-energy components provide ultimate protection.

ACCESSORIES:

Detachable 8-foot shielded HV coaxial cable

(see Model Chart for cable type) and 6-foot detachable line cord provided.

REMOTE CONTROLS:

Terminal block provided for all remote functions, including common, +10 V reference, interlock, voltage and current program/monitor, TTL, ground, and local control.

EXTERNAL INTERLOCK:

Open off, closed on. Normally latching except on blank panel version where it is non-latching.

TTL ENABLE/DISABLE:

0-1.5 V off, 2.5-15 V on.

Fully compliant with the European harmonized EMI directive, EN50082-2, and with the low voltage (safety) directive, 73/23/EEC. Line harmonics are within the European harmonized standard, EN61000-3-2 specifications.

Models

Output

Polarity Polarity Polarity Voltage Current Cable

WK80P7.5

WK80N7.5

WK80R7.5

0-80 kV 0-7.5 mA DS2121

WK100P6

WK125P5

WK100N6

WK125N5

WK100R6

WK125R5

0-100 kV

0-125 kV

Note: Product of voltage and current automatically limited to 500 W maximum.

0-6 mA

0-5 mA

DS2121

DS2121

EUROPE (UK) (1256) 883007

FAX (1256) 883017

[email protected]

JAPAN (045) 902-9988

FAX (045) 902-2268

[email protected]

20

EK Series

600W Regulated

High Voltage

DC Power Supplies

1 kV to 60 kV Rack Mount

3.5 Inch Panel Height…

Laboratory Performance…

CE and Semi S2-93

Compliant

Dimensions: 3.5”H x 20.5”D x 19” Rack, 20 lbs.

The EK family of power supplies are sophisticated, 600 watt high voltage power supplies with low ripple and noise.

They are air insulated, fast response units, with tight regulation and extremely low arc discharge currents. ArcQuench and Arc Sensing features make this model ideal for vacuum processing related applications to ensure smooth system performance and safety.

Specifications

(From 5% to 100% rated voltage. All units operate down to zero output with very slight degradation of performance.)

INPUT:

102 - 132 V RMS, single-phase, 48-63 Hz,

1200 VA maximum at full load. Connector per IEC 320/VI with mating line cord, terminated with NEMA 5-15 plug.

EFFICIENCY:

Typically greater than 85% at full load.

OUTPUT:

Continuous, stable, adjustment from

0 to rated voltage or current by panel mounted 10-turn potentiometers with

0.05% resolution, or by external 0 to 10 V signals is provided. Voltage Accuracy is

0.5% of setting + 0.2% rated

STATIC VOLTAGE REGULATION:

Better than ±0.005% for specified line variations and 0.005% + 0.5 mV/mA for no load to full load variations.

DYNAMIC VOLTAGE REGULATION:

For load transients from 10% to 99% and

99% to 10%, typical deviation is less than

2% of rated output voltage with recovery to within 1% in 500 ms and recovery to within

0.1% in 1 ms.

RIPPLE:

Better than 0.025% of rated voltage + 0.5 V

RMS at full load.

GLASSMAN HIGH VOLTAGE INC.

CURRENT REGULATION:

When in current regulation mode, better than 0.1% from short circuit to rated voltage at any load condition.

VOLTAGE MONITOR:

0 to +10 V equivalent to 0 to rated voltage.

Accuracy, 0.5% reading + 0.2% rated.

Impedance is 10 K Ohm.

CURRENT MONITOR:

0 to +10 V equivalent to 0 to rated current.

Accuracy, 1% reading + 0.05% rated for fixed polarity, 1% reading + 0.1% rated for reversible polarity. Impedance is 10 K Ohm.

STABILITY:

0.01% per hour after 1/2 hour warm-up,

0.05% per 8 hours.

VOLTAGE RISE/DECAY TIME CONSTANT:

The voltage rise time constant is 50 ms typical for all models using either HV enable or remote programming control. The voltage decay time constant is 50 ms with a 30%

Models

Positive

Polarity

Negative

Polarity

Reversible

Only

Reversible Output

Polarity Voltage

Output

Current

EK1R600 0 - 1 kV 0 - 600 mA

EK1.5R400

0 - 1.5 kV 0 - 400 mA

EK2R300

EK3R200

EK5R120

EK6R100

0 - 2 kV

0 - 3 kV

0 - 5 kV

0 - 6 kV

0 - 300 mA

0 - 200 mA

0 - 120 mA

0 - 100 mA

EK8P75 EK8N75 EK8R75

EK10P60 EK10N60 EK10R60

EK12P50 EK12N50 EK12R50

EK15P40 EK15N40 EK15R40

EK20P30 EK20N30 EK20R30

EK25P24 EK25N24 EK25R24

EK30P20 EK30N20 EK30R20

EK40P15 EK40N15 EK40R15

EK50P12 EK50N12 EK50R12

EK60P10 EK60N10 EK60R10

0 - 8 kV

0 - 10 kV

0 - 12 kV

0 - 15 kV

0 - 20 kV

0 - 25 kV

0 - 30 kV

0 - 40 kV

0 - 50 kV

0 - 60 kV

0 - 75 mA

0 - 60 mA

0 - 50 mA

0 - 40 mA

0 - 30 mA

0 - 24 mA

0 - 20 mA

0 - 15 mA

0 - 12 mA

0 - 10 mA www.glassmanhv.com

resistive load for 8 kV to 60 kV models and

50 ms with a 11% resistive load for 1 kV to

6 kV models.

TEMPERATURE COEFFICIENT:

0.01% /°C.

AMBIENT TEMPERATURE:

-20 to +40° C, operating;

-40 to +85° C, storage.

POLARITY:

Available with either positive, negative or reversible polarity with respect to chassis ground.

PROTECTION:

Automatic current regulation protects against all overloads, including arcs and short circuits. Thermal switches and RPM sensing fans protect against thermal overload. Fuses, surge-limiting resistors, and low energy components provide ultimate protection.

continued on next page

1.9

1.4

2

2.7

0.9

1.1

1.6

1.7

3.4

4

Stored Cable

Energy (J) Output

0.06

0.1

RG-58U

RG-58U

0.1

0.2

1.2

1.6

RG-58U

RG-58U

RG-58U

RG-58U

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

USA (908) 638-3800

FAX (908) 638-3700

[email protected]

ARC QUENCH:

An arc quench feature provides sensing of each load arc and quickly inhibits the HV output for approximately 20 ms after each arc. Standard on 8 - 60 kV models; optional on 1- 6 kV models.

ARC COUNT:

Internal circuitry senses the number of arcs caused by external load discharges. If the rate of consecutive arcs exceeds approximately one arc per second for five arcs, the supply will turn off for approximately

5 seconds to allow clearance of the fault.

After this period the supply will automatically return to the programmed kV value with the rise time constant indicated. If the load fault still exists the above cycle will repeat.

Standard on 8 - 60 kV models; optional on

1 - 6 kV models.

EXTERNAL INTERLOCK:

Open = off, closed = on. Normally latching except for blank front panel version where it is non-latching.

FRONT PANEL ELEMENTS:

The front panel contains all local control functions. These control functions are: AC power on/off switch and pilot light, separate

10-turn controls with locking vernier dials used to set voltage and current levels, and a high voltage ON switch. LED's indicate when high voltage is on, output polarity, and whether the supply is operating in a voltage or current regulating mode. Output levels are indicated by voltage and current digital meters.

REAR PANEL ELEMENTS:

AC power entry connector, fuses, power on indicator, ground stud, HV output connector, and remote interface terminal strip.

The signals provided on the remote interface terminal strip are as follows:

Inputs: Safety interlock, output voltage and current program signals, and high voltage enable.

Outputs: Output voltage and current monitor signals, and a +10 V reference source.

Signal common and ground reference terminals are also provided.

• Remote HV Enable/Disable:

0 - 1.5 V = OFF, 2.5 - 15 V = ON.

ACCESSORIES:

Detachable, 8 foot, shielded high voltage coaxial cable (see models chart for cable type) and 6 foot detachable line cord are provided.

Fully compliant with the European harmonized EMI directive, EN50082-2, and with the low voltage (safety) directive, 73/23/EEC. Line harmonics are within the European harmonized standard, EN61000-3-2 specifications.

21

EUROPE (UK) (1256) 883007

FAX (1256) 883017

[email protected]

JAPAN (045) 902-9988

FAX (045) 902-2268

[email protected]

22

PG Series

500/1000 Watt

Regulated

High Voltage

DC Power Supplies

PG-LR Series

250/500 Watt

Low Ripple

Regulated

High Voltage

DC Power Supplies

100 kV to 400 kV...

EFFICIENCY:

Typically 75% at full load.

OUTPUT:

Continuous, stable adjustment from

0 to rated voltage and current by means of front panel 10-turn potentiometers, external zero to +10 V signals, or external potentiometers. Linearity to within 1% of full scale.

VOLTAGE REGULATION:

Better than 0.005% + 1 V, line or load.

RIPPLE:

Better than 0.1% of rated voltage at full load.

Series PG-LR: See models chart.

CURRENT REGULATION:

Better than 100 µA from short circuit to rated voltage for any load condition; 0.005% + 1 µA for line variations.

VOLTAGE/CURRENT MONITOR:

Zero to +10 V signal for zero to rated voltage/current.

STABILITY:

0.01% + 1 V per hour after 1/2 hour warmup,

0.05% + 2 V per 8 hours.

TEMPERATURE COEFFICIENT:

0.01% per degree C + 1 V.

AMBIENT TEMPERATURE:

-20 to +60 degree C, operating;

-40 to +85 degree C, non-operating.

POLARITY:

Available with either positive, negative, or reversible (PG only) polarity with respect to chassis ground.

PROTECTION:

Automatic current regulation protects the power supply against all overload conditions, including arcs and short circuits. Fuses, surge-limiting resistors, and low energy components provide the ultimate protection.

EXTERNAL INTERLOCK:

Open off, closed on.

PG Models

Panel Stack

Polarity Polarity Polarity Voltage Current Height Height

PG100P5 PG100N5 PG100R5 0-100 kV 0-5 mA 5.25 in 22.75 in

PG100P10 PG100N10 PG100R10 0-100 kV

PG150P3 PG150N3 PG150R3 0-150 kV

PG150P6 PG150N6 PG150R6 0-150 kV

PG200P2.5 PG200N2.5 PG200R2.5

0-200 kV

0-10 mA

0-3 mA

0-6 mA

0-2.5 mA

5.25 in

5.25 in

5.25 in

5.25 in

22.75 in

29.75 in

29.75 in

34.75 in

PG200P5 PG200N5 PG200R5

PG250P1 PG250N1 PG250R1

PG250P2 PG250N2 PG250R2

PG300P1 PG300N1 PG300R1

PG300P2 PG300N2 PG300R2

PG400P1 PG400N1 PG400R1

0-200 kV

0-250 kV

0-250 kV

0-300 kV

0-300 kV

0-400 kV

0-5 mA

0-1 mA

0-2 mA

0-1 mA

0-2 mA

0-1 mA

5.25 in

5.25 in

5.25 in

5.25 in

5.25 in

5.25 in

34.75 in

40.50 in

40.50 in

50.88 in

50.88 in

63.25 in

The PG Series is available in two configurations ... as a standard PG Series or as an ultra-low ripple PG-LR Series for demanding applications, such as particle accelerators. Shown is the dual-stack

PG-LR Series with remote control unit. One stack serves as a high voltage multiplier while the second stack provides an additional lowpass ripple filter. The standard PG Series is supplied with only the multiplier stack and remote control unit.

Specifications

(From 5% to 100% rated voltage. All units operate down to zero output with very slight degradation of performance.)

INPUT:

105-125 V RMS, single-phase, 48-63 Hz,

<15 A. Series PG-LR: 208 V RMS

+/- 10%, 3-phase, 48-63 Hz, <5 A.

PG-LR Models

(same panel and stack heights as above)

PG100P2.5-LR

PG100P5-LR

PG150P2-LR

PG150P3-LR

PG200P1-LR

PG200P2-LR

PG250P1-LR

PG250P2-LR

PG300P1-LR

PG300P2-LR

PG400P1-LR

PG100N2.5-LR 0-100 kV

PG100N5-LR 0-100 kV

PG150N2-LR

PG150N3-LR

0-150 kV

0-150 kV

PG200N1-LR

PG200N2-LR

PG250N1-LR

PG250N2-LR

0-200 kV

0-200 kV

0-250 kV

0-250 kV

PG300N1-LR

PG300N2-LR

PG400N1-LR

0-300 kV

0-300 kV

0-400 kV

0-2.5 mA

0-5 mA

0-2 mA

0-3 mA

0-1 mA

0-2 mA

0-1 mA

0-2 mA

0-1 mA

0-2 mA

0-1 mA

5

10

7

3.5

7

4.5

8.5

3

6

2

4

5

9

4.5

7

5

10

6.5

12.5

7.5

15

10

GLASSMAN HIGH VOLTAGE INC.

www.glassmanhv.com

USA (908) 638-3800

FAX (908) 638-3700

[email protected]

WX Series

1000 Watt

Regulated

High Voltage

DC Power Supplies

Up to 75 kV,

5.25 Inch Panel Height...

Laboratory Performance...

Enhanced Features

The WX Series provides 1000 watts of output power with voltage ranges from 0 to 1 kV through 0 to 75 kV in a rack-panel height of only 5.25 inches. Standard models have dual analog voltage and current meters. As an option, WX is available with dual digital meters or with a blank panel for OEM/system applications. Local front panel and full remote controls are standard. Maximum weight is 30 lbs.

Specifications

(From 5% to 100% rated voltage. All units operate down to zero output with very slight degradation of performance.)

INPUT:

198-242 V RMS standard, single-phase,

48-63 Hz, <9.5 A. Connector per

IEC 320/C14 with mating line cord, terminated with NEMA 6-15 plug.

EFFICIENCY:

Typically 83% at full load.

OUTPUT:

Continuous, stable adjustment from

0 to rated voltage/current by external 0 to

+10 V signal, external potentiometers, or panel-mounted 10-turn potentiometers with

0.05% resolution. Accuracy, 1% rated + 1% setting. Repeatability better than 0.1% fs.

STORED ENERGY:

6 Joules, maximum, up to 50 kV;

9 Joules, maximum, 60 and 75 kV.

VOLTAGE REGULATION:

Better than 0.005% for specified line variations and 0.01% + 1 mV/mA for load variations.

RIPPLE:

<0.05% of rated voltage + 0.5 V RMS at full load.

CURRENT REGULATION:

Better than 0.05% from short circuit to rated voltage at any load condition.

Dimensions: 5.25”H x 20.0”D x 14” Rack, 30 lbs.

VOLTAGE MONITOR:

0 to +10 V equivalent to 0 to rated voltage.

Accuracy, 1% reading + 1% rated.

CURRENT MONITOR:

0 to +10 V equivalent to 0 to rated current.

Accuracy, 1% reading + 0.05% rated.

STABILITY:

0.01% per hour after 1/2 hour warmup,

0.05% per 8 hour.

VOLTAGE RISE/DECAY TIME CONSTANT:

50 ms typical with a 50% resistive load using either TTL on/off or remote programming control.

TEMPERATURE COEFFICIENT:

0.01% per degree C.

AMBIENT TEMPERATURE:

-20 to +45 degree C, operating;

-40 to +85 degree C, storage.

POLARITY:

Available either positive, negative, or reversible with respect to chassis ground.

Models

PROTECTION:

Automatic current regulation protects against all overloads. including arcs and shorts. Fuses, surge-limiting resistors, and low energy components provide ultimate protection.

REMOTE CONTROLS:

Terminal blocks provided for all remote functions, including common, +10 V reference, interlock, voltage and current program/ monitor, TTL, ground, and local control.

EXTERNAL INTERLOCK:

Open off, closed on. Normally latching except for blank panel version where it is non-latching.

TTL ENABLE/DISABLE:

0-1.5 V off, 2.5-15 V on.

Fully compliant with the European harmonized EMI directive, EN50082-2, and with the low voltage (safety) directive, 73/23/EEC. Line harmonics are within the European harmonized standard, EN61000-3-2 specifications.

Output Panel

Reversible

Only

WX1R1000 0-1 kV

WX2R500 0-2 kV

0-1000 mA RG-59

WX1.5R700

0-1.5 kV 0-700 mA

0-500 mA

RG-59

RG-59

WX3R350

WX5R200

0-3 kV

0-5 kV

0-350 mA RG-59

0-200 mA RG-59

WX10P100 WX10N100 WX10R100 0-10 kV 0-100 mA

WX15P70 WX15N70 WX15R70 0-15 kV 0-70 mA

RG-8U

RG-8U

WX20P50 WX20N50 WX20R50

WX30P35 WX30N35 WX30R35

WX40P25 WX40N25 WX40R25

WX50P20 WX50N20 WX50R20

WX60P15 WX60N15 WX60R15

WX75P12 WX75N12 WX75R12

0-20 kV

0-30 kV

0-40 kV

0-50 kV

0-60 kV

0-75 kV

0-50 mA

0-35 mA

0-25 mA

0-20 mA

0-15 mA

0-12 mA

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

DS2124

EUROPE (UK) (1256) 883007

FAX (1256) 883017

[email protected]

5.25 in.

5.25 in.

5.25 in.

5.25 in.

5.25 in.

5.25 in.

5.25 in.

5.25 in.

5.25 in.

5.25 in.

5.25 in.

5.25 in.

5.25 in.

JAPAN (045) 902-9988

FAX (045) 902-2268

[email protected]

23

24

LX Series

Extended Current

1000 Watt

Regulated

High Voltage

DC Power Supplies

Up To 150 kV...

8.75 Inch Panel Height

The LX Series is a 1000 watt regulated high voltage DC power supply with an important difference...maximum current ratings are equivalent to a 2000 W supply! This maximum current, which is available for all output voltages up to 50% of rated voltage, should be of significant interest for many applications. Weight is less than 47 pounds.

Specifications

(From 5% to 100% rated voltage. All units operate down to zero output with very slight degradation of performance.)

INPUT:

102-132 V RMS standard, single-phase,

48-63 Hz, <20 A. 3-position terminal block with protective cover.

EFFICIENCY:

Typically 85% at full load.

OUTPUT:

Continuous, stable adjustment from

0 to rated voltage/current by external 0 to

+10 V signal, external potentiometers, or panel-mounted 10-turn potentiometers with

0.05% resolution. Accuracy, 1% rated + 1% setting. Repeatability better than 0.1% fs.

STORED ENERGY:

<15 Joules, 60 kV; <30 Joules, 125 kV.

VOLTAGE REGULATION:

Better than 0.005% for specified line variations and 0.005% + 1 mV/mA for load variations.

RIPPLE:

<0.03% of rated voltage + 1 V RMS at full load, 0.1% (150 kV).

CURRENT REGULATION:

Better than 0.05% from short circuit to rated voltage at any load condition.

VOLTAGE MONITOR:

0 to +10 V equivalent to 0 to rated voltage.

Accuracy, 1% reading + 1% rated.

CURRENT MONITOR:

0 to +10 V equivalent to 0 to rated current.

Accuracy, 1% reading + 0.1% rated for single polarity, 1% reading + 0.15 % rated for reversible polarity.

Dimensions: 8.75”H x 20.0”D (24.0” for 150kV units) x 19” Rack, 47 lbs.

STABILITY:

0.01% per hour after 1/2 hour warmup,

0.05% per 8 hours.

VOLTAGE RISE/DECAY TIME CONSTANT:

50 ms typical to 60 kV (400 ms for higher voltages) with a 30% resistive load using either

TTL on/off or remote programming control.

TEMPERATURE COEFFICIENT:

0.01% per degree C.

AMBIENT TEMPERATURE:

-20 to +40 degree C, operating;

-40 to +85 degree C, storage.

POLARITY:

Available with either positive, negative, or reversible polarity with respect to chassis ground.

PROTECTION:

Automatic current regulation protects against all overloads, including arcs and shorts. Fuses, surge-limiting resistors, and low energy components provide ultimate protection.

ACCESSORY:

Detachable 8-foot HV cable. See models chart for cable type

REMOTE CONTROLS:

Terminal block is provided for all remote functions, including common, +10 V reference, interlock, voltage and current program/ monitor, TTL, ground, and local control.

EXTERNAL INTERLOCK:

Open off, closed on. Normally latching except for blank panel version where it is nonlatching.

TTL ENABLE/DISABLE:

0-1.5 V off, 2.5-15 V on.

Fully compliant with the European harmonized EMI directive, EN50082-2, and with the low voltage (safety) directive, 73/23/EEC. Line harmonics are within the European harmonized standard, EN61000-3-2 specifications.

Models

Positive Negative Output Panel

LX1R2000 0-1 kV 0-2000 mA

LX1.5R1300

0-1.5 kV 0-1300 mA

LX2R1000 0-2 kV 0-1000 mA

Reversible

LX8P250

Only

LX3R660

LX5R400

LX6R330

LX8N250 LX8R250

0-3 kV

0-5 kV

0-6 kV

0-8 kV

0-660 mA

0-400 mA

0-330 mA

0-250 mA

LX10P200 LX10N200 LX10R200

LX12P165 LX12N165 LX12R165

LX15P132 LX15N132 LX15R132

LX20P100 LX20N100 LX20R100

0-10 kV

0-12 kV

0-15 kV

0-20 kV

0-200 mA

0-165 mA

0-132 mA

0-100 mA

LX30P66

LX40P50

LX50P40

LX60P33

LX30N66 LX30R66

LX40N50 LX40R50

LX50N40 LX50R40

LX60N33 LX60R33

0-30 kV 0-66 mA

0-40 kV 0-50 mA

0-50 kV 0-40 mA

0-60 kV 0-33 mA

LX80P25 LX80N25 LX80R25

LX100P20 LX100N20 LX100R20

0-80 kV 0-25 mA

0-100 kV 0-20 mA

LX125P16 LX125N16 LX125R16 0-125 kV 0-16 mA

LX150P6 LX150N6 LX150R6 0-150 kV 0-6 mA

Note: Product of voltage and current automatically limited to 1000 W maximum.

GLASSMAN HIGH VOLTAGE INC.

www.glassmanhv.com

USA (908) 638-3800

8.75 in.

8.75 in.

8.75 in.

8.75 in.

8.75 in.

8.75 in.

8.75 in.

8.75 in.

8.75 in.

8.75 in.

8.75 in.

8.75 in.

8.75 in.

8.75 in.

8.75 in.

8.75 in.

8.75 in.

8.75 in.

8.75 in.

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

RG-59

RG-59

RG-59

RG-59

RG-59

RG-58

RG-8U

DS 2124

DS 2124

DS 2121

DS 2121

FAX (908) 638-3700

[email protected]

EQ Series

1.2 kW Regulated

High Voltage

DC Power Supplies

1 to 60 kV, 3.5" Panel

Single-phase 198-264 V

Input, 1420 VA

Power Factor

Corrected to >0.995.

Harmonics Well Below

IEC 555-2 Specs

The EQ Series are sophisticated, 1.2 kW, high voltage power supplies in a small and lightweight package. They are designed to meet the growing demands from both users and electric utilities for switching power supplies with excellent input power factors that draw harmonic currents below those specified in EN61000-3-2

Specifications

(From 5% to 100% rated voltage. All units operate down to zero output with very slight degradation of performance.)

INPUT:

198-264 V RMS standard, single-phase,

48-63 Hz, 1420 VA maximum. <7 A at 220 V.

Connector per IEC 320/VI with mating line cord terminated with NEMA 6-15 plug.

EFFICIENCY:

Typically 85% at full load. Power factor >0.995.

OUTPUT:

Continuous, stable adjustment from 0 to rated voltage/current by external 0 to +10 V signal, external potentiometers, or panel-mounted

10-turn potentiometers with 0.05% resolution.

Accuracy, 0.25% rated + 0.25% setting.

Repeatability better than 0.1% of setting.

STATIC VOLTAGE REGULATION:

Better than 0.005% for specified line variations and 0.005% + 0.5 mV/mA for load variations.

DYNAMIC VOLTAGE REGULATION:

For load transients from 10% to 100% and

100% to 10%, typical deviation is 2% of output voltage with recovery to within 1% in

500 µs and to 0.1% in 1 ms.

RIPPLE:

<0.02% of rated voltage + 300 mV RMS at full load.

CURRENT REGULATION:

Better than 0.05% + 100 µA from short circuit to rated voltage at any load condition.

Dimensions: 3.5”H x 20.5”D x 19” Rack, 22 lbs.

VOLTAGE MONITOR:

0 to +10 V equivalent to 0 to rated voltage.

Accuracy, 0.25% reading + 0.25% rated.

CURRENT MONITOR:

0 to +10 V equivalent to 0 to rated current.

Accuracy, 1% reading + 0.05% rated for single polarity, 1% reading + 0.1% rated for reversible polarity

STABILITY:

0.01% per hour after 1/2 hour warmup,

0.05% per 8 hours.

VOLTAGE RISE/DECAY TIME CONSTANT:

50 ms typical with a 10% resistive load using either TTL on/off or remote programming control.

TEMPERATURE COEFFICIENT:

0.01% per degree C.

AMBIENT TEMPERATURE:

-20 to +40 degree C, operating;

-40 to +85 degree C, storage.

POLARITY:

Available with either positive, negative, or reversible polarity with respect to chassis ground.

Models

Polarity Polarity Polarity Voltage

EQ1R1200 0-1kV

EQ1.5R800

0-1.5kV

EQ2R600 0-2kV

Reversible

Only

EQ3R400

EQ5R240

EQ6R200

EQ8P150 EQ8N150 EQ8R150

0-3kV

0-5kV

0-6kV

0-8kV

EQ10P120 EQ10N120 EQ10R120

EQ12P100 EQ12N100 EQ12R100

EQ15P80 EQ15N80 EQ15R80

EQ20P60 EQ20N60 EQ20R60

0-10kV

0-12kV

0-15kV

0-20kV

EQ30P40 EQ30N40 EQ30R40

EQ40P30 EQ40N30 EQ40R30

EQ50P24 EQ50N24 EQ50R24

EQ60P20 EQ60N20 EQ60R20

0-30kV

0-40kV

0-50kV

0-60kV

Current

0-1200mA

0-800mA

0-600mA

0-400mA

0-240mA

0-200mA

0-150mA

0-120mA

0-100mA

0-80mA

0-60mA

0-40mA

0-30mA

0-24mA

0-20mA

PROTECTION:

Automatic current regulation protects against all overloads, including arcs and shorts. Fuses, surge-limiting resistors, and low energy components provide ultimate protection,.

ARC COUNT:

Internal circuitry senses the number of arcs caused by flawed external load characteristics.

If the rate of consecutive arcs exceeds approximately 2 per second, the supply will turn off for approximately 2 seconds to allow clearance of the fault and then automatically resume normal operation. Custom modifications of this feature are available. Consult the factory.

REMOTE CONTROLS:

Terminal block is provided for all remote functions, including common, +10 V reference, interlock, voltage and current program/monitor,

HV enable, ground, and local control.

EXTERNAL INTERLOCK:

Open off, closed on. Normally latching except for blank panel version where it is non-latching.

REMOTE HV ENABLE:

0-1.5 V off, 2.5-15 V on.

Fully compliant with the European harmonized EMI directive, EN50082-2, and with the low voltage (safety) directive, 73/23/EEC. Line harmonics are within the European harmonized standard, EN61000-3-2 specifications.

2.0

1.6

2.0

2.1

2.8

3.4

4.1

1.2

1.4

1.3

1.6

1.0

1.1

1.0

1.1

Output

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

RG-58

RG-58

RG-58

RG-58

RG-58

RG-58

RG-8U

RG-8U

25

EUROPE (UK) (1256) 883007

FAX (1256) 883017

[email protected]

JAPAN (045) 902-9988

FAX (045) 902-2268

[email protected]

26

LT Series

2000 Watt

Regulated

High Voltage

DC Power Supplies

Up To 150 kV...

8.75 Inch Panel Height

Laboratory Performance

Enhanced Features

The LT Series is a 2000 watt regulated high voltage DC power supply with voltage ranges from 0 to 1 kV through 0 to 150 kV.

Rack-panel height is only 8.75 inches. The

LT is offered with dual analog voltage and current meters or, optionally, with dual digital meters or a blank panel for OEM/ systems applications. Weight is less than

47 pounds.

Specifications

(From 5% to 100% rated voltage. All units operate down to zero output with very slight degradation of performance.)

INPUT:

198-264 V RMS standard, single-phase,

48-63 Hz, <20 A. 3-position terminal block with protective cover.

EFFICIENCY:

Typically 85% at full load.

OUTPUT:

Continuous, stable adjustment from 0 to rated voltage/current by external 0 to +10 V signal, external potentiometers, or panel-mounted

10-turn potentiometers with 0.05% resolution. Accuracy, 1% rated + 1% setting.

Repeatability better than 0.1% fs.

STORED ENERGY:

<15 Joules, 60 kV; <30 Joules, 125 kV.

VOLTAGE REGULATION:

Better than 0.005% for specified line variations and 0.005% + 1 mV/mA for load variations.

RIPPLE:

<0.03% of rated voltage + 1 V RMS at full load, 0.1% (150 kV).

CURRENT REGULATION:

Better than 0.05% from short circuit to rated voltage at any load condition.

VOLTAGE MONITOR:

0 to +10 V equivalent to 0 to rated voltage.

Accuracy, 1% reading + 1% rated.

CURRENT MONITOR:

0 to +10 V equivalent to 0 to rated current.

Accuracy, 1% reading + 0.1% rated for single

Dimensions: 8.75”H x 20.0”D (24.0” for 150kV units) x 19” Rack, 47 lbs.

polarity, 1% reading + 0.15% rated for reversible polarity.

STABILITY:

0.01% per hour after 1/2 hour warmup,

0.05% per 8 hours.

VOLTAGE RISE/DECAY TIME CONSTANT:

50 ms typical to 60 kV (400 ms for higher voltages) with a 30% resistive load using either TTL on/off or remote programming control.

PROTECTION:

Automatic current regulation protects against all overloads, including arcs and shorts. Fuses, surge-limiting resistors, and low energy components provide ultimate protection.

ACCESSORY:

Detachable 8-foot HV cable. See models chart for cable type

TEMPERATURE COEFFICIENT:

0.01% per degree C.

AMBIENT TEMPERATURE:

-20 to +40 degree C, operating;

-40 to +85 degree C, storage.

POLARITY:

Available with either positive, negative, or reversible polarity with respect to chassis ground.

REMOTE CONTROLS:

Terminal block is provided for all remote functions, including common, +10 V reference, interlock, voltage and current program/ monitor, TTL, ground, and local control.

EXTERNAL INTERLOCK:

Open off, closed on. Normally latching except for blank panel version where it is non-latching.

TTL ENABLE/DISABLE:

0-1.5 V off, 2.5-15 V on.

Fully compliant with the European harmonized EMI directive, EN50082-2, and with the low voltage (safety) directive, 73/23/EEC. Line harmonics are within the European harmonized standard, EN61000-3-2 specifications.

Models

Positive Negative Reversible Output Output Output Panel

Polarity Polarity

LT1R2000 0-1 kV 0-2000 mA RG-59

LT1.5R1300

0-1.5 kV 0-1300 mA RG-59

8.75 in.

8.75 in.

Reversible

Only

LT2R1000

LT3R660

LT5R400

LT6R330

0-2 kV

0-3 kV

0-5 kV

0-6 kV

0-1000 mA RG-59

0-660 mA

0-400 mA

0-330 mA

RG-59

RG-59

RG-58

8.75 in.

8.75 in.

8.75 in.

8.75 in.

LT8P250 LT8N250 LT8R250

LT10P200 LT10N200 LT10R200

LT12P165 LT12N165 LT12R165

LT15P132 LT15N132 LT15R132

LT20P100 LT20N100 LT20R100

LT30P66 LT30N66 LT30R66

LT40P50

LT50P40

LT40N50

LT50N40

LT40R50

LT50R40

0-8 kV

0-10 kV

0-12 kV

0-15 kV

0-20 kV

0-30 kV

0-40 kV

0-50 kV

0-250 mA

0-200 mA

0-165 mA

0-132 mA

0-100 mA

0-66 mA

0-50 mA

0-40 mA

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

8.75 in.

8.75 in.

8.75 in.

8.75 in.

8.75 in.

8.75 in.

8.75 in.

8.75 in.

LT60P33

LT80P25

LT60N33

LT80N25

LT60R33

LT80R25

LT100P20 LT100N20 LT100R20

LT125P16 LT125N16 LT125R16

LT150P10 LT150N10 LT150R10

0-60 kV 0-33 mA

0-80 kV 0-25 mA

0-100 kV 0-20 mA

0-125 kV 0-16 mA

0-150 kV 0-10 mA

RG-8U 8.75 in.

DS 2124 8.75 in.

DS 2124 8.75 in.

DS 2121 8.75 in.

DS 2121 8.75 in.

GLASSMAN HIGH VOLTAGE INC.

www.glassmanhv.com

USA (908) 638-3800

FAX (908) 638-3700

[email protected]

OS Series

2 kW Regulated

High Voltage

DC Power Supplies

200 kV to 450 kV,

Open Stack CE Compliant

Power Factor

Corrected to > .995

Harmonics Well Below

EN61000-3-2

TEMPERATURE COEFFICIENT:

0.01%/°C.

AMBIENT TEMPERATURE:

-20 to +40° C, operating,

-40 to +85° C storage.

PROTECTION:

Automatic current regulation protects against all overloads, including arcs and short circuits.

Thermal switches protect against thermal overload. Fuses, surge-limiting resistors and low energy components provide ultimate protection.

ARC QUENCH:

An arc quench feature provides sensing of each load arc and quickly inhibits the HV output for approximately 0.25 seconds after each arc.

The OS family of power supplies are sophisticated 2 kW, open stack, power supplies with extremely low ripple and noise. They are air insulated fast response units with tight regulation. They are designed to meet the growing demands from both users and electric utilities for switching supplies with excellent input power factors that draw harmonic currents below those specified in

EN61000-3-2.

OS series models consist of a rack style driver chassis, a high voltage stack assembly, and a remote control unit. The driver chassis is provided in a cabinet which is 8.43" H X

22.56" D, onto which the high voltage stack is mounted. The dimensions of the stack vary with the output voltage rating and are given in the specifications. The rack mountable remote control provides all interface functions and is connected to the driver chassis with the 25’ long cables provided. The remote control unit is 5.25" H X 5.0" D.

Specifications

(From 5% to 100% rated voltage. All units operate down to zero output with very slight degradation of performance.)

CURRENT REGULATION:

Better than +/- 0.005% for specified line variations and 0.1% from short circuit to rated voltage at any load condition, when in current regulation mode. When in current trip mode the HV output will disable and latch off when the load current reaches the programmed current level.

VOLTAGE MONITOR:

0 to 10 V equivalent to 0 to rated voltage.

Accuracy, 0.5% of reading + 0.1% of rated.

Impedance is 10 K Ohm.

CURRENT MONITOR:

0 to 10 V equivalent to 0 to rated current.

Accuracy, 1% of reading + 0.1% of rated.

Impedance is 10 K Ohm.

STORED ENERGY:

Stored energy varies with output voltage and is tabulated in the models chart.

RIPPLE:

Ripple consists of two major components, inverter switching frequency components and line frequency related components. The inverter frequency component is dependent on the amount of load current drawn. The line frequency related component is determined by the amount of power delivered to the load. The maximum values for both components are specified in the models chart.

ARC SENSING:

Internal circuitry senses the number of arcs caused by external load discharges. If the rate of consecutive arcs exceeds approximately one arc per second for 5 arcs, the supply will turn off for approximately 5 seconds to allow clearance of the fault. After this period the supply will automatically return to the programmed kV value with the rise time constant indicated. If the load fault still exists the above cycle will repeat.

REMOTE CONTROL UNIT:

A separate control panel chassis is provided which contains all the control functions. The front panel of this assembly contains: separate

10-turn controls with locking vernier dials used to set the voltage and current levels, High Voltage ON switch, High voltage OFF/Reset switch and an AC power on/off switch and indicator.

LED’s indicate when the high voltage is on, output polarity, interlock status and whether the supply is operating in a voltage or current regulating mode. Output levels are indicated by voltage and current digital meters. The rear panel of this assembly contains: AC power on indicator, ground stud, driver/control chassis interface connectors, current limit/current trip selector switch, and remote user interface terminal strip. The signals provided on the remote user interface terminal strip are as follows:

INPUT:

198-264 V RMS single phase, 48-63 Hz,

2500 VA maximum at full load. A 3 position terminal block with protective cover is provided on the rear panel of the driver chassis.

EFFICIENCY:

Typically 80% at full load. Power factor >0.995.

OUTPUT:

Continuous stable adjustment from 0 to rated voltage or current by panel mounted 10-turn potentiometers with 0.05% resolution, or by external 0 to 10 V signals is provided.

Repeatability better than 0.1% of setting.

Accuracy is 0.1% of rated + 0.5% of setting.

VOLTAGE REGULATION:

Better than +/- 0.005% for specified line variations and 0.005% for no load to full load variations.

STABILITY:

0.01% per hour after 1/2 hour warm-up, 0.05% per 8 hours.

VOLTAGE RISE/DECAY TIME CONSTANT:

400 ms typical using either the HV ON switch or remote programming with a minimum

1.7 mA resistive load.

Inputs: Output voltage and current program signals, and high voltage enable.

Outputs: Output voltage and current monitor signals, a +10 V reference source, and a high voltage status signal.

Signal common and ground reference terminals are also provided.

Fully compliant with the European harmonized EMI directive, EN50082-2, and with the low voltage (safety) directive, 73/23/EEC. Line harmonics are within the European harmonized standard, EN61000-3-2 specifications.

Models

Positive

Polarity

Negative

Polarity

Reversible

Polarity

Output

Voltage

Output

Current

OS200P10 OS200N10 OS200R10 0 - 200 kV 0 - 10 mA

OS250P8 OS250N8 OS250R8 0 - 250 kV 0 - 8 mA

Stored High Freq Line Freq

Energy Ripple) Ripple)

(Joules) (P-P) (P-P)

70

81

OS300P6 OS300N6 OS300R6 0 - 300 kV 0 - 6 mA 100

OS350P4.5

OS350N4.5 OS350R4.5

0 - 350 kV 0 - 4.5 mA 112

100V

125V

150V

175V

10V

12.5V

15V

17.5V

OS400P3.5

OS400N3.5 OS400R3.5

0 - 400 kV 0 - 3.5 mA 131

OS450P3 OS450N3 OS450R3 0 - 450 kV 0 - 3 mA 150

200V

225V

20V

22.5V

27

EUROPE (UK) (1256) 883007

FAX (1256) 883017

[email protected]

JAPAN (045) 902-9988

FAX (045) 902-2268

[email protected]

28

KL Series

3 kW Regulated

High Voltage

DC Power Supplies

Power Factor

Corrected to > 0.99 ...

Well within IEC 555-2

Specifications

High Speed Dynamic

Voltage Regulation

Single-phase, 198-264 V

Input, 3600 VA

The KL Series is designed to meet the growing demands from both users and electric utilities for switching power supplies that exhibit improved input power factors. Power factor is defined as the ratio of real power (measured in watts) to apparent power (measured in volt-amperes.) A power factor near unity means that the user’s supply can develop the maximum possible DC output power from an AC line of a given current rating.

A power factor near unity also means that the supply does not distort the AC line voltage to a point where it could affect other equipment on the same line.

Models are available from 0 to 1 kV through 0 to 30 kV. Panel height is 7 inches and weight is less than 50 lbs.

Dimensions: 7.0”H x 20.0”D x 19” Rack, 50 lbs.

DYNAMIC VOLTAGE REGULATION:

For load transients from 10% to 100% and

100% to 10%, typical deviation is 2% of output voltage with recovery to within 1% in

500 µs and to 0.1% in 1 ms.

RIPPLE:

<0.02% of rated voltage + 500 mV RMS.

CURRENT REGULATION:

Better than 0.05% + 50 µA from short circuit to rated voltage at any load condition.

VOLTAGE MONITOR:

0 to +10 V equivalent to 0 to rated voltage.

Accuracy, 0.5% reading + 0.5% rated.

CURRENT MONITOR:

0 to +10 V equivalent to 0 to rated current.

Accuracy, 1% reading + 0.05% rated for single polarity, 1% reading + 0.1% rated for reversible polarity.

STABILITY:

0.01% per hour after 1/2 hour warmup,

0.05% per 8 hours.

VOLTAGE RISE/DECAY TIME CONSTANT:

50 ms typical with a 10% resistive load using either TTL on/off or remote programming control.

TEMPERATURE COEFFICIENT:

0.01% per degree C.

AMBIENT TEMPERATURE:

-20 to +40 degree C, operating;

-40 to +85 degree C, storage.

POLARITY:

Available with either positive, negative, or reversible polarity with respect to chassis ground.

PROTECTION:

Automatic current regulation protects against all overloads, including arcs and shorts. Fuses, surge-limiting resistors, and low energy components provide ultimate protection.

REMOTE CONTROLS:

Terminal block is provided for all remote functions, including common, +10 V reference, interlock, voltage and current program/monitor, TTL, ground, and local control.

EXTERNAL INTERLOCK:

Open off, closed on. Normally latching except for blank panel version where it is non-latching.

TTL ENABLE/DISABLE:

0-1.5 V off, 2.5-15 V on.

Fully compliant with the European harmonized EMI directive, EN50082-2, and with the low voltage (safety) directive, 73/23/EEC. Line harmonics are within the European harmonized standard, EN61000-3-2 specifications.

Specifications

(From 5% to 100% rated voltage. All units operate down to zero output with very slight degradation of performance.)

INPUT:

198-264V RMS standard, single-phase,

48-63Hz, 3500VA maximum, <16A at 220V.

3-position terminal block with protective cover.

EFFICIENCY:

Typically 87% at full load. Power factor >0.99.

OUTPUT:

Continuous, stable adjustment from 0 to rated voltage/current by external 0 to +10 V signals, external potentiometers, or panelmounted 10-turn potentiometers with 0.05% resolution. Accuracy, 1% rated + 1% setting.

Repeatability better than 0.1% of rating.

STORED ENERGY

See Models chart.

STATIC VOLTAGE REGULATION:

Better than 0.005% for specified line variations and 0.01% + 0.2 volts per ampere for load variations.

Models

Positive Negative Reversible

GLASSMAN HIGH VOLTAGE INC.

www.glassmanhv.com

Output Output

Reversible

Only

KL1R3000 0-1 kV 0-3000 mA

KL1.5R2000

0-1.5 kV 0-2000 mA

KL2R1500

KL3R1000

0-2 kV

0-3 kV

0-1500 mA

0-1000 mA

KL5R600

KL6R500

KL8P375 KL8N375 KL8R375

KL10P300 KL10N300 KL10R300

0-5 kV

0-6 kV

0-8 kV

0-10 kV

0-600 mA

0-500 mA

0-375 mA

0-300 mA

KL12P250 KL12N250 KL12R250

KL15P200 KL15N200 KL15R200

KL20P150 KL20N150 KL20R150

KL30P100 KL30N100 KL30R100

0-12 kV 0-250 mA

0-15 kV 0-200 mA

0-20 kV 0-150 mA

0-30 kV 0-100 mA

Stored Output

2.3 J

3.4 J

2.7 J

2.0 J

2.5 J

3.6 J

3.1 J

2.9 J

4.2 J

3.8 J

4.2 J

4.9 J

RG-58

RG-58

RG-58

RG-58

RG-58

RG-58

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

USA (908) 638-3800

FAX (908) 638-3700

[email protected]

LK Series

3 kW Regulated

High Voltage

DC Power Supplies

40 kV to 100 kV

Rack Mount CE Compliant

Power Factor Corrected to >.995

Harmonics Well Below

EN61000-3-2

Semi S2-93 Compliant

The LK family of power supplies are sophisticated, 3 kW, high voltage power supplies with low ripple and noise. They are air insulated, fast response units, with tight regulation and low-stored energy making them ideal for both OEM and Laboratory use. They are designed to meet the growing demands from both users and electric utilities for switching supplies with excellent input power factors that draw harmonic currents well below those specified in EN61000-3-2.

Specifications

(From 5% to 100% rated voltage. All units operate down to zero output with very slight degradation of performance.)

INPUT:

198-264 V RMS, single-phase, 48-63 Hz,

3500 VA maximum at full load. Less than 16 A at 220 VAC. A 3-position rear terminal block with protective cover is provided.

EFFICIENCY:

Typically greater than 85% at full load. Power factor >0.995.

OUTPUT:

Continuous, stable, adjustment from 0 to rated voltage or current by panel mounted 10-turn potentiometers with 0.05% resolution, or by external 0 to 10 V signals is provided. Linearity is < 1% of rated. Accuracy is 0.2% of rated

+ 0.5% of setting for voltage program and 0.2% of rated + 1% of setting for current program.

STATIC VOLTAGE REGULATION:

Better than ±0.005% for specified line variations and 0.01% for no load to full load variations.

DYNAMIC VOLTAGE REGULATION:

For load transients from 10% to 99% and 99% to 10%, typical deviation is less than 2% of rated output voltage with recovery to within 1% in

500 µs and recovery to within 0.1% in 1 ms.

RIPPLE:

Better than 0.025% RMS of rated voltage at full load.

CURRENT REGULATION:

When in current regulation mode, better than

0.1% from short circuit to rated voltage at any load condition. When in current trip mode the

Dimensions: 8.75”H x 24.0”D x 19” Rack, 55 lbs.

HV output will disable and latch off when current program level is reached.

VOLTAGE MONITOR:

0 to +10 V equivalent to 0 to rated voltage.

Accuracy, 0.5% reading + 0.2% rated.

Impedance is 10 K Ohm.

CURRENT MONITOR:

0 to +10 V equivalent to 0 to rated current.

Accuracy, 1% reading + 0.2% rated.

Impedance is 10 K Ohm.

STABILITY:

0.01% per hour after 1/2 hour warm-up, 0.05% per 8 hours.

VOLTAGE RISE/DECAY TIME CONSTANT:

200 ms typical with a 7% resistive load using either HV enable or remote programming control.

TEMPERATURE COEFFICIENT:

0.01%/ºC.

AMBIENT TEMPERATURE:

-20 to +40ºC, operating;

-40 to +85ºC, storage.

PROTECTION:

Automatic current regulation protects against all overloads, including arcs and short circuits.

Thermal switches and RPM sensing fans protect against thermal overload. Fuses, surgelimiting resistors, and low energy components provide ultimate protection.

ARC QUENCH:

An arc quench feature provides sensing of each load arc and quickly inhibits the HV output for approximately 20 ms after each arc.

ARC COUNT:

Internal circuitry senses the number of arcs caused by external load discharges. If the rate of consecutive arcs exceeds approximately one arc per second for five arcs, the supply will

Models

Positive

Polarity

LK40P75

Negative

Polarity

LK40N75

LK50P60

LK60P50

LK70P43

LK80P37

LK50N60

LK60N50

LK70N43

LK80N37

LK100P30 LK100N30

Reversible Output

Polarity Voltage (kV)

LK40R75 0 - 40 kV

LK50R60

LK60R50

LK70R43

LK80R37

0 - 50 kV

0 - 60 kV

0 - 70 kV

0 - 80 kV

LK100R30 0 - 100 kV turn off for approximately 5 seconds to allow clearance of the fault.

EXTERNAL INTERLOCK:

Open = off, closed = on. Normally latching except for blank front panel version where it is non-latching.

FRONT PANEL ELEMENTS:

The front panel contains all local control functions. These control functions are: AC power on/off switch and pilot light, separate 10-turn controls with locking vernier dials used to set voltage and current levels, HIGH VOLTAGE ON switch, and HIGH VOLTAGE OFF/RESET switch. LED's indicate when high voltage is on, output polarity, and whether the supply is operating in a voltage or current regulating mode. Output levels are indicated by voltage and current digital meters.

REAR PANEL ELEMENTS:

AC power entry terminal strip, fuses, power on indicator, ground stud, HV output connector, current limit/current trip switch, and remote interface terminal strip.

The signals provided on the remote interface terminal strip are as follows:

Inputs: Safety interlock, output voltage and current program signals, and high voltage enable.

Outputs: Output voltage and current monitor signals, and a +10 V reference source.

Signal common and ground reference terminals are also provided.

REMOTE HV ENABLE/DISABLE:

0 - 1.5 V = OFF, 2.5 - 15 V = ON.

ACCESSORIES:

Detachable, 8 foot, shielded Dielectric Sciences

DS2124 high voltage coaxial cable provided.

Fully compliant with the European harmonized EMI directive, EN50082-2, and with the low voltage (safety) directive, 73/23/EEC. Line harmonics are within the European harmonized standard, EN61000-3-2 specifications.

Output Stored Energy

Current (mA) (Joules)

0 - 75 mA 8

0 - 60 mA

0 - 50 mA

0 - 43 mA

0 - 37.5 mA

0 - 30 mA

10

12

14

16

20

EUROPE (UK) (1256) 883007

FAX (1256) 883017

[email protected]

JAPAN (045) 902-9988

FAX (045) 902-2268

[email protected]

29

30

LH Series

5 kW Regulated

High Voltage

DC Power Supplies

1 kV to 100 kV

Rack Mount

CE Compliant

The LH family of power supplies are sophisticated, 5 kW, high voltage power supplies with low ripple and noise. They are air insulated, fast response units, with tight regulation. ArcQuench and Arc Sense are features that make the LH series Ideal for Dynamic load environments.

The LH Series are fully compliant with the

European Harmonized EMI Directive

EN50082-2 and with the European Low

Voltage (Safety) Directive, 73/23/EEC.

Specifications

(From 5% to 100% rated voltage. All units operate down to zero output with very slight degradation of performance.)

INPUT:

187-264V RMS, 3-phase, 48-63 Hz, 6500 VA maximum at full load. Less than 20 A/per phase. at 208 VAC. A five position rear terminal block with protective cover is provided.

EFFICIENCY:

Typically greater than 85% at full load.

OUTPUT:

Continuous, stable, adjustment from 0 to rated voltage or current by panel mounted

10-turn potentiometers with 0.05% resolution, or by external 0 to 10 V signals is provided. Linearity is < 1% of rated. Voltage

Accuracy is 0.5% of setting + 0.2% rated.

STATIC VOLTAGE REGULATION:

Better than ±0.005% for specified line variations and 0.01% for no load to full load variations.

DYNAMIC VOLTAGE REGULATION:

For load transients from 10% to 99% and

99% to 10%, typical deviation is less than

2% of rated output voltage with recovery to within 1% in 500 µs and recovery to within

0.1% in 1 ms.

RIPPLE:

Better than 0.05% RMS of rated voltage at full load.

LH8P625

LH10P500

LH12P420

LH15P330

LH20P250

LH25P200

LH30P170

LH40P125

LH50P100

LH60P83

LH70P72

LH80P63

LH100P50

Dimensions: 10.5”H x 24.0”D x 19” Rack, 60 lbs.

CURRENT REGULATION:

When in current regulation mode, better than 0.1%, with 8-100kV models better than

0.2%, from short circuit to rated voltage at any load condition. When in current trip mode the HV output will disable and latch off when the load current reaches the programmed current level. Reset is accomplished by either cycling the AC power or

HV ON/OFF buttons, or by toggling the HV enable signal. A switch located on the rear panel allows the selection of current limit modes: constant current, or current trip.

Models

Positive

Polarity

Negative

Polarity

Reversible

Only

LH8N625

LH10N500

LH12N420

LH15N330

LH20N250

LH25N200

LH30N170

LH40N125

LH50N100

LH60N83

LH70N72

LH80N63

LH100N50

GLASSMAN HIGH VOLTAGE INC.

www.glassmanhv.com

Reversible

Polarity

LH1R5.0

LH1.5R3.3

LH2R2.5

LH3R1.7

LH5R1.0

LH6R830

LH8R625

LH10R500

LH12R420

LH15R330

LH20R250

LH25R200

LH30R170

LH40R125

LH50R100

LH60R83

LH70R72

LH80R63

LH100R50

VOLTAGE MONITOR:

0 to +10 V equivalent to 0 to rated voltage.

Accuracy, 0.5% reading + 0.2% rated.

Impedance is 10 K.

CURRENT MONITOR:

0 to +10 V equivalent to 0 to rated current.

Accuracy: 1 kV to 6 kV: 1.5% of setting plus

0.5% of rated output.8 kV to 100 kV: 1% of setting plus 0.2% of rated output. Output impedance is 10K Ohm differentially coupled.

continued on next page

Output

Voltage

Output

Current

0 - 1kV 0 - 5.0A

0 - 1.5kV

0 - 3.3A

0 - 2kV

0 - 3kV

0 - 5kV

0 - 6kV

0 - 2.5A

0 - 1.7A

0 - 1.0A

0 - 830mA

0 - 8kV 0 - 625mA 6

0 - 10kV 0 - 500mA 7.5

0 - 12kV 0 - 420mA 11

0 - 15kV 0 - 330mA 7

0 - 20kV 0 - 250mA 10

0 - 25kV 0 - 200mA 7

0 - 30kV 0 - 170mA 11

0 - 40kV 0 - 125mA 14

0 - 50kV 0 - 100mA 18

0 - 60kV 0 - 83mA 21

0 - 70kV 0 - 72mA

0 - 80kV 0 - 63mA

0 - 100kV 0 - 50mA

25

28

35

Stored

Energy

3.5

5.5

3.8

5.5

3.5

5

USA (908) 638-3800

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

DS2124

DS2124

DS2124

Output

Cable

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

DS2124

DS2124

DS2124

DS2124

DS2124

FAX (908) 638-3700

[email protected]

VOLTAGE RISE/DECAY TIME CONSTANT:

(Typical using either HV enable or remote programming control and a resistive load.)

1-6 kV: t = 50 ms with TBD% min. load.

8-20 kV: t = 50 ms with 9% min. load.

25-100 kV: t = 200 ms with 7% min load.

TEMPERATURE COEFFICIENT:

0.01%/ºC.

AMBIENT TEMPERATURE:

-20 to +40ºC,operating;

-40 to +85ºC, storage.

PROTECTION:

Automatic current regulation protects against all overloads, including arcs and short circuits. Thermal switches and RPM sensing fans protect against thermal overload. Fuses, surge-limiting resistors, and low energy components provide ultimate protection.

ARC QUENCH:

Optional on models 1 kV through 6 kV; standard on models 8 kV through 100 kV. An arc quench feature provides sensing of each load arc and quickly inhibits the HV output for approximately 20 ms after each arc.

ARC COUNT:

Optional on models 1 kV through 6 kV; standard on models 8 kV through 100 kV.

Internal circuitry senses the number of arcs caused by external load discharges. If the rate of consecutive arcs exceeds approximately one arc per second for five arcs, the supply will turn off for approximately five seconds to allow clearance of the fault. After this period, the supply will return automatically to the programmed output voltage value with the voltage rise time constant indicated. If the load fault still exists, the above cycle will be repeated

EXTERNAL INTERLOCK:

Open = off, closed = on. Normally latching except for blank front panel version where it is non-latching.

FRONT PANEL ELEMENTS:

The front panel contains all local control functions. These control functions are: AC power on/off circuit breaker and indicator light, separate 10-turn controls with locking vernier dials used to set voltage and current levels, HIGH VOLTAGE ON switch, and

HIGH VOLTAGE OFF/RESET switch. LED's indicate: when high voltage is on, output polarity, interlock, fault status, and whether the supply is operating in a voltage or current regulating mode. Output levels are indicated by voltage and current digital meters.

REAR PANEL ELEMENTS:

AC power entry terminal strip, power on indicator, ground stud, HV output connector current limit/current trip switch, remote interface terminal strip and connector.

31

EUROPE (UK) (1256) 883007

FAX (1256) 883017

[email protected]

JAPAN (045) 902-9988

FAX (045) 902-2268

[email protected]

32

PK Series

4/8/12/15 kW

Regulated

DC High Voltage

Power Supplies

Models 8 kW and higher are obtained by paralleling 4 kW models in a

“master/slave” configuration. Slave panels have separate AC power inputs and switches, and annunciators for power on, tracking, overvoltage, and bias.

Models from 0 to 3 kV through

0 to 500 kV.

Specifications.

(From 5% to 100% rated voltage. All units operate down to zero output with very slight degradation of performance.)

AC INPUT:

4,8 kW models: 3-phase 187-228V RMS ,

48-63 Hz fused for 20 A (per 4 kilowatt module). Output power derated for line unbalance > 2%. 5-position terminal block

(1 position not used) with protective cover.

Fused for 20 A, phase or line. 8 kW and higher models have an additional terminal block for each slave unit.

DC OUTPUT:

Continuous, stable adjustment from 0 to rated voltage/current by means of panel mounted 10--turn potentiometers with 0.05% resolution, or by external 0-10 V signals.

Repeatability better than 0.1% of full scale.

Accuracy is 1% of rated + 1% of setting

VOLTAGE/CURRENT OUTPUT METERS:

Dual 3-1/2 digit LCDs with on/off damping, accuracy 1% fs + 1% rdg.; dual 10-segment bar-graphs.

VOLTAGE REGULATION:

Load, better than 0.01% for no load to full load variations; Line, better than ±0.01% over specified input range.

RIPPLE:

Better than 0.1% RMS of rated voltage at full load for models to 125 kV, better than

0.05% for models 150 kV and higher.

CURRENT REGULATION:

Load, better than +/- 0.1% + 100 µA from short circuit to rated voltage at any rated load condition; line, better than +/- 0.01% over specified input range.

STABILITY:

0.01% per hour after 1/2 hour warmup;

0.05% per 8 hours.

TEMPERATURE COEFFICIENT:

0.01% per degree C.

AMBIENT TEMPERATURE:

-20 to +50 degrees C, operating;

-40 to +85 degrees C, storage.

PROTECTION:

Automatic current regulation protection reduces output voltage as required for all arc, overload, and short circuit conditions.

Fuses, surge-limiting resistors, and low stored energy provide the ultimate protection.

ACCESSORIES:

Detachable 8-foot shielded high voltage coaxial cable provided for models up to

125 kV (See models chart for cable type.)

8 kW and higher models, up to 125 kV, are provided with an additional coaxial

Models, 4 kW, Fully Enclosed

cable for each slave unit. Harness and/or interconnection cables supplied for multichassis supplies. 25-pin D-subminiature connector provided for customer interface.

ANALOG MONITORS:

Current and voltage, 0 to 10 V, directly proportional, 10 k ohms +/-1% source impedance.

DIGITAL MONITOR SIGNALS:

4 functions; Milliampere Control, Kilovolt

Control, High Voltage Enable, and No Fault.

High active, TTL or 5 V CMOS compatible.

Source, 1.0 mA at 2.5 V; sink, 2.6 mA at 0.4 V.

Fully compliant with the European harmonized EMI directive, EN50082-2, and with the low voltage (safety) directive, 73/23/EEC. Line harmonics are within the European harmonized standard, EN61000-3-2 specifications.

continued on next page

Polarity Polarity

Reversible

Only

PK3R1300

PK6R650

PK8P450 PK8N450 PK8R450

PK10P400 PK10N400 PK10R400

PK12P330 PK12N330 PK12R330

PK15P260 PK15N260 PK15R260

PK20P200 PK20N200 PK20R200

PK30P130 PK30N130 PK30R130

PK40P100 PK40N100 PK40R100

PK50P80 PK50N80 PK50R80

PK60P65

PK75P50

PK60N65

PK75N50

PK60R65

PK75R50

PK80P50 PK80N50 PK80R50

PK100P40 PK100N40 PK100R40

PK125P30 PK125N30 PK125R30

Maximum weight is 62 lbs.to 75 kV, 85 lbs. to 125 kV.

0-3 kV

0-6 kV

0-1300 mA RG-59U

0-650 mA RG-58U

0-8 kV 0-450 mA

0-10 kV 0-400 mA

DS2124

DS2124

0-12 kV 0-330 mA

0-15 kV 0-260 mA

0-20 kV 0-200 mA

0-30 kV 0-130 mA

DS2124

DS2124

DS2124

DS2124

0-40 kV 0-100 mA

0-50 kV 0-80 mA

0-60 kV 0-65 mA

0-75 kV 0-50 mA

0-80 kV 0-50 mA

0-100 kV 0-40 mA

0-125 kV 0-30 mA

DS2124

DS2124

DS2124

DS2124

DS2121

DS2121

DS2121

10.5 in.

10.5 in.

10.5 in.

10.5 in.

10.5 in.

10.5 in.

10.5 in.

10.5 in.

10.5 in.

10.5 in.

10.5 in.

10.5 in.

15.75 in.

15.75 in.

15.75 in.

GLASSMAN HIGH VOLTAGE INC.

www.glassmanhv.com

USA (908) 638-3800

FAX (908) 638-3700

[email protected]

Specifications…

continued

OPTO-ISOLATED OUTPUT:

Opto-isolated NPN transistor output, controlled by any one of the digital monitor signals. Not to be used for high voltage isolation.

DIGITAL HV ON/OFF CONTROL:

2 inputs; Enable, to activate high voltage, switch selected, high on, low off and

External, to disable high voltage, overrides local or remote enable, high for disable.

External has 2 programmable modes, level-controlled interrupt or edge-triggered shutdown. Both inputs are TTL or 5 V

CMOS compatible. Input active with 2-15 V signal. Impedance, 100 k ohms at 0-5 V,

10 k ohms at 15 V, approximate.

INTERLOCK:

Open off, closed on.

Typical Open Stack Configuration for Series PKCP and Series PK.

Models, 4 kW, Open Stack

Polarity Polarity Polarity Voltage Current Height Height

PK150P25 PK150N25 PK150R25

PK200P18 PK200N18 PK200R18

0-150 kV

0-200 kV

0-25 mA

0-18 mA

5.25 in.

5.25 in.

35.1 in.

40.1 in.

PK250P14

PK300P10

PK350P8

PK400P6

PK250N14

PK300N10

PK350N8

PK250R14

PK300R10

PK350R8

PK400N6 PK400R6

Maximum weight is 125 lbs.

0-250 kV

0-300 kV

0-350 kV

0-400 kV

0-14 mA

0-10 mA

0-8 mA

0-6 mA

5.25 in.

5.25 in.

5.25 in.

5.25 in.

45.9 in.

60.2 in.

68.6 in.

68.6 in.

Models, 8 kW, Fully Enclosed

(for models to 15 kW, consult factory)

Reversible

Only

PK8P900

PK3R2600

PK6R1300

PK8N900 PK8R900

PK10P800 PK10N800 PK10R800

PK12P660 PK12N660 PK12R660

PK15P520 PK15N520 PK15R520

PK20P400 PK20N400 PK20R400

PK30P260 PK30N260 PK30R260

PK40P200 PK40N200 PK40R200

PK50P160 PK50N160 PK50R160

PK60P130 PK60N130 PK60R130

PK75P100 PK75N100 PK75R100

PK80P100 PK80N100 PK80R100

PK100P80 PK100N80 PK100R80

PK125P60 PK125N60 PK125R60

Maximum weight is 125 lbs. to 75 kV, 170 lbs. to 125 kV.

0-3 kV

0-6 kV

0-8 kV

0-10 kV

0-12 kV

0-15 kV

0-20 kV

0-2600 mA RG-59U

0-1300 mA RG-58U

0-900 mA DS2124

0-800 mA

0-660 mA

0-520 mA

0-400 mA

DS2124

DS2124

DS2124

DS2124

0-30 kV

0-40 kV

0-50 kV

0-60 kV

0-260 mA

0-200 mA

0-160 mA

0-130 mA

0-75 kV

0-80 kV

0-100 mA

0-100 mA

0-100 kV 0-80 mA

0-125 kV 0-60 mA

DS2124

DS2124

DS2124

DS2124

DS2124

DS2121

DS2121

DS2121

21 in.

21 in.

21 in.

21 in.

21 in.

31.5 in.

31.5 in.

31.5 in.

21 in.

21 in.

21 in.

21 in.

21 in.

21 in.

21 in.

33

Models, 8 kW, Open Stack

Polarity Polarity Polarity Voltage Current Height Height

PK150P50 PK150N50 PK150R50

PK200P36 PK200N36 PK200R36

0-150 kV

0-200 kV

0-50 mA

0-36 mA

5.25 in.

5.25 in.

35.1 in.

40.1 in.

PK250P28

PK300P20

PK350P16

PK250N28

PK300N20

PK350N16

PK250R28

PK300R20

PK350R16

PK400P12 PK400N12 PK400R12

Maximum weight is 200 lbs.

0-250 kV

0-300 kV

0-350 kV

0-400 kV

0-28 mA

0-20 mA

0-16 mA

0-12 mA

5.25 in.

5.25 in.

5.25 in.

5.25 in.

45.9 in.

60.2 in.

68.6 in.

68.6 in.

EUROPE (UK) (1256) 883007

FAX (1256) 883017

[email protected]

JAPAN (045) 902-9988

FAX (045) 902-2268

[email protected]

34

SH Series

8 kW to 40 kW

Regulated

High Voltage

DC Power Supplies

1 kV to 100 kV

Rack Mount

CE and Semi S2-93

Compliant

The SH family of “Master/slave” power supplies are sophisticated, 8 kW through

40 kW, high voltage power supplies with low ripple and noise. They are air insulated fast response units with tight regulation and extremely low arc discharge currents.

ArcQuench and Arc-sense features make the SH ideal for Vacuum processing related applications.

Specifications

(From 5% to 100% rated voltage. All units operate down to zero output with very slight degradation of performance.)

(For 16 kW power supplies, unless otherwise indicated, the performance specification limits could be increased by a factor of up to 30%. For power supplies over 16 kW consult the factory.)

INPUT:

187-228 V rms, three-phase, 48-63 Hz,

11,500 VA maximum at full load (less than

35 A per phase). Inrush current is less than

45 A with a nominal decay time constant of

60 ms. Four 10-32 studs for AC line connection with a safety cover and strain relief are provided. For systems 16 kW and greater, a separate AC input connection is required for each additional slave chassis. Mains service must be protected with fuses or circuit breakers with a maximum rating of 125 A and a minimum interrupting capacity of 50,000 A.

EFFICIENCY:

Typically 85% at full load.

OUTPUT:

Continuous, stable adjustment from 0 to rated voltage/current by means of panelmounted 10-turn potentiometers (0.05% resolution), or external 0 to +10 V signals.

Repeatability better than 0.1% of setting.

VOLTAGE PROGRAMMING ACCURACY:

0.5% of setting + 0.2% of rated output.

Resolution is a function of the programming method used. External voltage programming is differentially coupled with a maximum common mode voltage of ±3 VDC.

Dimensions: 8kW models are 17.5”H x 24.0”D, 110 lbs.

VOLTAGE REGULATION:

Better than ±0.005% for specified line variations and 0.01% + 10 mV/A for no load to full load variations.

CURRENT REGULATION:

1-6kV: Better than 0.5%, 8-100kV: Better than 0.2%

VOLTAGE MONITOR:

0 to +10 V equivalent to 0 to rated voltage.

Accuracy, 0.5% of reading + 0.2% of rating.

Output impedance is 10 K Ohm differentially coupled.

CURRENT MONITOR:

0 to +10 V equivalent to 0 to rated current.

Accuracy: 1 kV to 6 kV: 1.5% of setting plus

0.5% of rated output. 8 kV to 100 kV: 1% of setting plus 0.2% of rated output. Output impedance is 10 K Ohm differentially coupled.

8kW Models

Positive

Polarity

Negative

Polarity

Reversible

Only

Reversible Output

Polarity Voltage

SH1R8.0

0 - 1kV

SH1.5R5.3

0 - 1.5kV

SH2R4.0

SH3R2.7

SH5R1.6

SH6R1.3

0 - 2kV

0 - 3kV

0 - 5kV

0 - 6kV

SH8P1.0

SH8N1.0

SH8R1.0

0 - 8kV

SH10P800 SH10N800 SH10R800 0 - 10kV

SH12P670 SH12N670 SH12R670 0 - 12kV

SH15P530 SH15N530 SH15R530 0 - 15kV

SH20P400 SH20N400 SH20R400 0 - 20kV

SH25P320 SH25N320 SH25R320 0 - 25kV

SH30P270 SH30N270 SH30R270 0 - 30kV

SH40P200 SH40N200 SH40R200 0 - 40kV

Output

Current

0 - 8 A

0 - 5.3 A

0 - 4.0 A

0 - 2.7 A

0 - 1.6 A

0 - 1.3 A

0 - 1.0 A

0 - 800 mA

0 - 670 mA

0 - 530 mA

0 - 400 mA

0 - 320 mA

0 - 270 mA

0 - 200 mA

SH50P160 SH50N160 SH50R160 0 - 50kV

SH60P130 SH60N130 SH60R130 0 - 60kV

SH70P110 SH70N110 SH70R110 0 - 70kV

SH80P100 SH80N100 SH80R100 0 - 80kV

0 - 160 mA

0 - 130 mA

0 - 110 mA

0 - 100 mA

SH100P80 SH100N80 SH100R80 0 - 100kV 0 - 80 mA

GLASSMAN HIGH VOLTAGE INC.

www.glassmanhv.com

RIPPLE:

Better than 0.025% of rated voltage +1 V

RMS at full load.

STABILITY:

0.01% per hour after 1/2 hour warm-up,

0.05% per 8 hours.

VOLTAGE RISE TIME CONSTANT:

200 ms for 8 kV to 100 kV models and 50 ms for 1 kV to 6 kV models typical, using either

HV enable or remote programming control.

VOLTAGE DECAY TIME CONSTANT:

Decay time constant is a function of the applied load. The decay time constant will be equal to the rise time constant with a minimum load of 5% of rated maximum.

continued on next page

USA (908) 638-3800

18

13

18

16

10

12

17

10

20

24

28

32

40

Stored Cable

Energy (J) Output

8

7.8

RG-8U

RG-8U

7

8

7.5

8

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

DS2121

DS2121

DS2121

DS2121

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

RG-8U

FAX (908) 638-3700

[email protected]

TEMPERATURE COEFFICIENT:

0.01%/° C.

AMBIENT TEMPERATURE:

-20 to +40° C, operating;

-40 to +85° C, storage.

POLARITY:

Available with either Positive, Negative, or

Reversible polarity with respect to chassis ground.

PROTECTION:

Automatic current regulation protects against all overloads, including arcs and short circuits. Thermal switches and rpm sensing fans protect against thermal overload. Circuit breaker, fuses, surgelimiting resistors, and low energy components provide ultimate protection.

ARC QUENCH:

Optional on models 1 kV through 6 kV; standard on models 8 kV through 100 kV. An arc quench feature provides sensing of each load arc and quickly inhibits the HV output for approximately 20 ms after each arc.

ARC COUNT:

Optional on models 1 kV through 6 kV; standard on models 8 kV through 100 kV.

Internal circuitry senses the number of arcs caused by external load discharges. If the rate of consecutive arcs exceeds approximately one arc per second for five arcs, the supply will turn off for approximately five seconds to allow clearance of the fault. After this period, the supply will return automatically to the programmed output voltage value with the voltage rise time constant indicated. If the load fault still exists, the above cycle will be repeated.

CURRENT LIMIT:

In current limit mode the power supply will regulate the load current at the programmed current level with automatic crossover between voltage and current regulating modes.

CURRENT TRIP:

A switch located on the rear of the control panel assembly allows the selection of current limit or current trip operation. When the switch is set to current trip mode, the

HV output will disable and latch off when the load current reaches the programmed current level. Reset is accomplished by either cycling the AC power, toggling the HV enable signal, or by pushing the HV off/reset and then the HV on switches.

FRONT PANEL ELEMENTS:

The front panel contains all local control functions and remote/local selector switches. These control functions are: AC power on/off circuit breaker and indicator light, separate 10-turn controls with locking vernier dials used to set voltage and current levels, high voltage on switch, and high voltage off/reset switch. LED's indicate: when high voltage is on, output polarity, interlock, fault status, and whether the supply is operating in a voltage or current regulating mode. Output levels are indicated by voltage and current digital meters.

Remote/local switches are provided for voltage and current programming and HV on/off functions.

SLAVE FRONT PANEL ELEMENTS:

(When applicable). AC power breaker/switch and indicator. Bias, tracking (overvoltage), and thermal overload/low fan speed indicators. Slave current and voltage service test points.

REMOTE CONTROL INTERFACE:

All standard SH family power supplies provide a user's remote interface. The signals provided are:

INPUTS:

Safety interlock, output voltage and current program signals, high voltage enable and connections for remote HV on and off pushbuttons.

OUTPUTS:

Output voltage and current monitor signals,

HV enable status, I/V regulation mode status, fault status, and a +10 V reference source. Signal common and ground reference terminals are also provided.

Toggle switches on the rear of the control chassis select either current limit or current trip operation and local or remote HV enable.

EXTERNAL INTERLOCK:

Open = off, closed = on. Normally latching except for “NC” option supplies where it is non-latching. The interlock indicator LED is lit when the interlock is open.

HV ENABLE:

REMOTE MODE:

0 - 1.5 V = OFF, 2.5 - 15 V = ON.

LOCAL MODE:

The HV output is permanently enabled. HV

Enable, Fault and I/V Regulation Status: Each are a set of form “C” relay contacts.

ACCESSORIES:

Detachable, 8 foot, shielded high voltage coaxial cable provided. Models 16 kW and above are provided with an additional HV cable per slave module. A 25 pin

D-subminiature connector for customer interface is provided. All chassis interconnection cables are provided.

Fully compliant with the European harmonized EMI directive, EN50082-2, and with the low voltage (safety) directive, 73/23/EEC. Line harmonics are within the European harmonized standard, EN61000-3-2 specifications.

16kW Models

(For Models Greater Than 16 kW, Please Consult Factory.)

Positive

Polarity

Negative

Polarity

Reversible

Only

Reversible Output

Polarity Voltage

Output

Current

SH1R16.0

0 - 1kV 0 - 16.0

SH1.5R10.6

0 - 1.5kV

0 - 10.6

SH2R8.0

SH3R5.4

SH5R3.2

SH6R2.6

0 - 2kV

0 - 3kV

0 - 5kV

0 - 6kV

0 - 8.0 A

0 - 5.4 A

0 - 3.2 A

0 - 2.6 A

SH8P2.0

SH8N2.0

SH10P1.6

SH10N1.6

SH8R2.0

0 - 8kV 0 - 2.0 A

SH10R1.6

0 - 10kV 0 - 1.6 A

SH12P1.3

SH12N1.3

SH12R1.3

0 - 12kV 0 - 1.3 A

SH15P1.06

SH15N1.06

SH15R1.06

0 - 15kV 0 - 1.06 A

SH20P800 SH20N800

SH25P640 SH25N640

SH30P540 SH30N540

SH40P400 SH40N400

SH20R800

SH25R640

SH30R540

SH40R400

0 - 20kV

0 - 25kV

0 - 30kV

0 - 40kV

0 - 800 mA

0 - 640 mA

0 - 540 mA

0 - 400 mA

SH50P320 SH50N320

SH60P260 SH60N260

SH70P220 SH70N220

SH80P200 SH80N200

SH50R320

SH60R260

SH70R220

SH80R200

0 - 50kV

0 - 60kV

0 - 70kV

0 - 80kV

0 - 320 mA

0 - 260 mA

0 - 220 mA

0 - 200 mA

SH100P160 SH100N160 SH100R160 0 - 100kV 0 - 160 mA

36

26

36

32

20

24

34

20

Stored Cable

Energy (J) Output

16 2X RG-8U

15.6

2X RG-8U

15

16

14

16

2X RG-8U

2X RG-8U

2X RG-8U

2X RG-8U

40

48

56

64

80

2X RG-8U

2X RG-8U

2X RG-8U

2X RG-8U

2X RG-8U

2X RG-8U

2X RG-8U

2X RG-8U

2X RG-8U

2X RG-8U

2X DS2121

2X DS2121

2XDS2121

35

EUROPE (UK) (1256) 883007

FAX (1256) 883017

[email protected]

JAPAN (045) 902-9988

FAX (045) 902-2268

[email protected]

Ordering Notes:

Series: Model: Page: Options:

______________________________________________________

______________________________________________________

______________________________________________________

______________________________________________________

______________________________________________________

______________________________________________________

______________________________________________________

______________________________________________________

______________________________________________________

______________________________________________________

______________________________________________________

______________________________________________________

______________________________________________________

______________________________________________________

______________________________________________________

______________________________________________________

______________________________________________________

GLASSMAN HIGH VOLTAGE INC.

Designing Solutions for High Voltage Power Supply Applications

www.glassmanhv.com

USA

(908) 638-3800

FAX (908) 638-3700

[email protected]

EUROPE (UK)

(1256) 883007

FAX (1256) 883017

[email protected]

JAPAN

(045) 902-9988

FAX (045) 902-2268

[email protected]

GLASSMAN U.S.A.

Glassman High Voltage, Inc.

124 West Main Street

PO Box 317

High Bridge, NJ 08829-0317

U.S.A.

Telephone: (908) 638-3800

FAX: (908) 638-3700 www.glassmanhv.com

[email protected]

GLASSMAN EUROPE

Glassman Europe Limited

21 Campbell Court

Campbell Road

Bramley

Hampshire RG26 5EG

England

Telephone: (1256) 883007

FAX: (1256) 883017 [email protected]

GLASSMAN JAPAN

Glassman Japan High Voltage Limited

Green City Building

2-17 Utsukushigaoka 5-chome

Aoba-ku, Yokohama 225-0002

Japan

Telephone: +81 45 902 9988

FAX: +81 45 902 2268 [email protected]

Printed in U.S.A.

© Glassman High Voltage, Inc. 2002

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
