Acer AL718 17" LCD Monitor

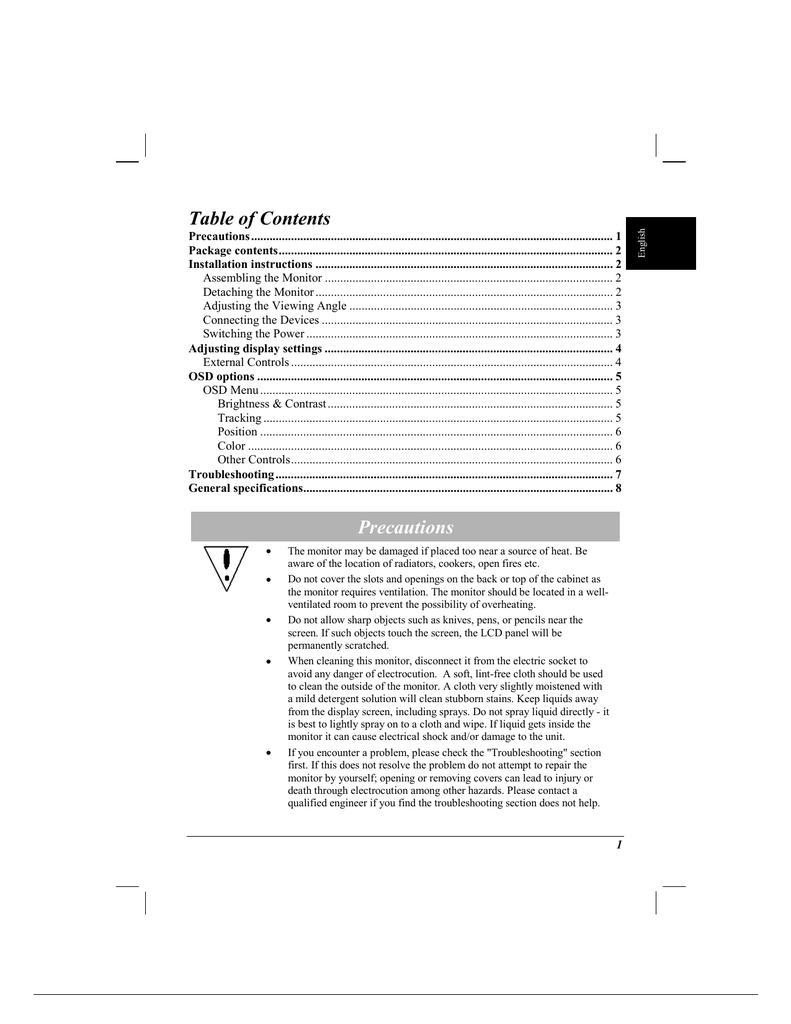

Precautions ...................................................................................................................... 1
Package contents............................................................................................................. 2
Installation instructions ................................................................................................. 2
Assembling the Monitor .............................................................................................. 2
Detaching the Monitor ................................................................................................. 2
Adjusting the Viewing Angle ...................................................................................... 3
Connecting the Devices ............................................................................................... 3
Switching the Power .................................................................................................... 3
Adjusting display settings .............................................................................................. 4
External Controls ......................................................................................................... 4
OSD options .................................................................................................................... 5
OSD Menu ................................................................................................................... 5
Brightness & Contrast ............................................................................................. 5
Tracking .................................................................................................................. 5
Position ................................................................................................................... 6
Color ....................................................................................................................... 6
Other Controls......................................................................................................... 6
Troubleshooting .............................................................................................................. 7
General specifications..................................................................................................... 8
Precautions
•
•
•
•
•
The monitor may be damaged if placed too near a source of heat. Be
aware of the location of radiators, cookers, open fires etc.
Do not cover the slots and openings on the back or top of the cabinet as
the monitor requires ventilation. The monitor should be located in a wellventilated room to prevent the possibility of overheating.
Do not allow sharp objects such as knives, pens, or pencils near the
screen. If such objects touch the screen, the LCD panel will be
permanently scratched.
When cleaning this monitor, disconnect it from the electric socket to
avoid any danger of electrocution. A soft, lint-free cloth should be used
to clean the outside of the monitor. A cloth very slightly moistened with
a mild detergent solution will clean stubborn stains. Keep liquids away
from the display screen, including sprays. Do not spray liquid directly - it
is best to lightly spray on to a cloth and wipe. If liquid gets inside the
monitor it can cause electrical shock and/or damage to the unit.
If you encounter a problem, please check the "Troubleshooting" section
first. If this does not resolve the problem do not attempt to repair the
monitor by yourself; opening or removing covers can lead to injury or
death through electrocution among other hazards. Please contact a
qualified engineer if you find the troubleshooting section does not help.
1
English
Table of Contents
English
Package contents
Power Cord
LCD Monitor
Audio Cable
User Manual
Installation instructions
Assembling the Monitor
1.
Position the monitor on top of the
stand.
2.
Connect the stand into the neck of the
monitor along the track.
Detaching the Monitor
Important
First, find a clean, flat surface to place the monitor after removing it from the stand.
Place a clean dry cloth under the monitor to protect it further.
Pull the monitor slightly up and away from the stand.
2
The viewing angle of the monitor ranges from 0°~20°.
Caution: Make sure that the computer and the monitor are both disconnected
from the power supply.
Connecting the Devices
c
Power Code
d
Audio cable
e
VGA Cable
(Attached)
Attach the monitor to the power cord which should then be
inserted into a properly grounded electric socket.
Connect the audio input socket of the LCD monitor and the
computer by means of the audio cable.
Connect the signal cable to the VGA output socket of the
graphics card on the computer. Then tighten the
thumbscrews on the connector.
WARNING: The D-Sub 15 pin plug of the VGA cable is trapezoid in shape. Make
sure the shape of the plug matches the shape of the socket it is inserted
into, and that none of the pins are bent or otherwise damaged.
Switching the Power
First, switch the power on to the monitor, then switch the power on to the computer.
When you see the LED on the power button go green, this indicates the computer is
ready for use. Allow about 10 seconds for the video signal to appear. If you do not see
the green light on the power button or a video signal, check the connections.
3
English
Adjusting the Viewing Angle
English
Adjusting display settings
External Controls
1.
AUTO
2
OSD Function
3
4
5
4
<
>
If OSD is active, press to enter a selection in
OSD. If OSD is inactive, press and the monitor
will automatically optimize the position, clock
and phase of your display.
Press to view OSD.
Press again to exit.
POWER
Power on/off
Green: power on
Orange: in sleep mode
MINUS
If OSD is active, press to select or adjust OSD
options. If OSD is inactive, press once, then
press the buttons marked < or > to adjust the
volume.
PLUS
If OSD is active, press to select or adjust OSD
options. If OSD is inactive, press once, then
press the buttons marked < or > to adjust the
volume.
English
OSD options
Please refer to "External Controls" on Page 5.
To adjust the OSD settings:
1. Press the MENU button to open the OSD menu.
2. Use the buttons marked < or >, to highlight a control, then press the AUTO
button to enter
3. Use the buttons marked < or >, to adjust the control to the desired level.
4. When you have finished making all selections, press the MENU button to exit
the OSD. (Or the adjustment will auto-save after 45 seconds.)
OSD Menu
Brightness & Contrast
BRIGHTNESS:
This adjusts the brightness of the picture on
the screen.
CONTRAST:
This adjusts dark and light shades of color
relative to each other to achieve a
comfortable contrast.
Tracking
CLOCK:
If there are any vertical stripes seen on the
background of the screen this renders them
less noticeable by minimizing their size. It
also changes the size of the horizontal
screen.
PHASE:
This removes any horizontal distortion and
makes the picture clear and sharp.
5
English
Position
V-Position:
This adjusts the vertical.
H-Position:
This adjusts the horizontal.
Color
There are three ways of adjusting color:
9300K: Bluish white
6500K: Reddish white
User defined:
You can adjust the colors red, green and blue
to the intensity you desire.
Other Controls
LANGUAGE:
Select the OSD menu language from
English, German, French, Italian and
Spanish.
OSD POSITION:
This changes the position of the OSD
window on the screen
INFORMATION:
This shows brief information on the screen.
RESET:
Recall to default settings
6
English
Troubleshooting
Problems
Power LED is not ON
Possible Solutions
•
Check to see if the power switch is in the ON
position.
•
Ensure that the Power Cord is connected.
•
Check to see if the power switch is in the ON
position.
•
Ensure that the Power Cord is connected.
•
Ensure the video cable is securely connected
to the back of the monitor and the computer.
•
Move the mouse or press any key on the
keyboard to bring the monitor out of "active
off" mode.
Picture shows inappropriate colors
•
See "Color Adjustment" to adjust RGB color
or to select color temperature.
Picture bounces or a wave pattern is
present in the picture
•
Move or switch off electrical devices that
may be causing interference.
•
Inspect the monitor's video cable and ensure
that none of the pins are bent.
•
Press select/auto key and the monitor will
automatically optimize the position of your
display.
•
See "Position adjustment".
No Picture
Image is not sized or centered
properly
Caution: Do not attempt to service the monitor yourself or open the computer
yourself. Please refer all servicing to qualified service personnel if
the problems cannot be solved in "Troubleshooting" section.
7
English
General specifications
Item
LCD Panel
Display
Max resolution
Pixel Pitch
Color
Brightness
Contrast Ratio
Response Time
View Angle of Horizontal
View Angle of Vertical
External Controls
Power Button
Control Buttons
OSD Function
Brightness Contrast
Color
Position
Tracking
Other
Video Interface
Video
Sync
Plug & Play
Power
Power Source
Power consumption during
normal operation
Power consumption during
active off operation
Dimension and Weight
Dimension (W×H×D)
Weight (Net/ Gross)
8
Specification
17-inch Flat panel active-matrix TFT LCD
SXGA 1280×1024 pixels
0.264 mm
16.2M
300 cd/m² ( Typical)
450:1 (Typical)
4ms +16ms /20ms (Tr+Tf / typical)
75° / 75°
65° / 60°
ON/ OFF
Auto, MENU, <, >
Brightness, Contrast
Color temperature
H-Position, V-Position
Clock, Phase
OSD Position, Language
Analog 0.7V
TTL (+/ -)
DDC2B
100~240V AC, 50/60 Hz
< 50W
< 1W
375 × 393 × 182 mm (with stand)
375 × 321 × 62 mm (without stand)
4.1 Kg/ 5.2 Kg
