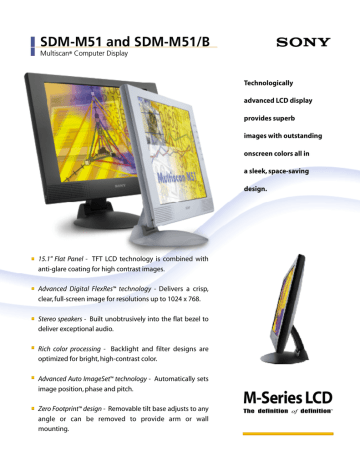

SDM-M51 and SDM-M51/B
Multiscan® Computer Display
Technologically
advanced LCD display
provides superb
images with outstanding
onscreen colors all in
a sleek, space-saving
design.
15.1" Flat Panel - TFT LCD technology is combined with
anti-glare coating for high contrast images.
Advanced Digital FlexRes™ technology - Delivers a crisp,
clear, full-screen image for resolutions up to 1024 x 768.
Stereo speakers - Built unobtrusively into the flat bezel to
deliver exceptional audio.
Rich color processing - Backlight and filter designs are
optimized for bright, high-contrast color.
Advanced Auto ImageSet™ technology - Automatically sets
image position, phase and pitch.
Zero Footprint™ design - Removable tilt base adjusts to any
angle or can be removed to provide arm or wall
mounting.
M-Series LCD
SDM-M51 and SDM-M51/B
Multiscan® Computer Display
Stereo Speakers
Model
SDM-M51 and SDM-M51/B
Color
Two-Tone Gray (SDM-M51)
Black (SDM-M51/B)
Viewable Image Size
• Multi-media applications
• Internet Content
Zero Footprint Design
• Adjustible and removable tilt base
• Arm or wall mounting
4 Port USB Hub
Space-Saving Design
LCD Panel
LCD Type
Native Resolution
Color Filters
Pixel Pitch
Screen Treatment
Colors
Diagonal 15.1”
Horizontal 12.1”
Vertical 9.1”
a-Si TFT Active Matrix
1024 x 768
RGB Vertical Stripes
0.30 mm
Anti-Glare/Hard Coating
16.19 Million (approx.)
Maximum Resolutions 1024 x 768
Luminance
200 cd/m2
Contrast Ratio
300:1
Viewing Angle
Horizontal
Vertical
140
120
Scan Range
Horizontal
Vertical
28kHz - 64kHz
48Hz - 75Hz
Preset Timings
Factory
User Adj
13
18
Response Time
Rise Time
20 ms
Fall Time
30 ms
Color Temperature Presets
5000, 6500, 9300 (default) Kelvin
Video Signal Inputs
Analog
Video Input
Sync Input
• Maximize desktop area
Sync on Grn
Analog RGB 0.7 Vp-p ± 5%,
Positive, 75 ohms (typ)
Separate HD/VD
TTL, Polarity Free
Polarity free, Ext. Composite
0.3 Vp-p ± 10%, Negative
Input Connectors
D-sub HD15
Audio Inputs / Outputs
Input Connector Stereo Minijack
Headphone Connector Stereo Minijack
Audio Input 0.5V RMS
Impedance 47k ohms
Headphone Output 1W x 1W
Speaker Output 1W x 1W
Display Dimensions (WxHxD)
15.2” x 13.6” x 7.1”
11.7" x 15.2" x 1.9" (without stand)
Display Weight
10.1 lbs.
Sony Electronics Inc.
16765 West Bernardo Drive
California 92127
For more information: 1.800.352.SONY
Web address: http://www.sony.com/displays
Power Requirements
100-220VAC, 50/60Hz
Power Management:
Normal Operation
Active Off
Power Off
22 W max. (w/ AC adapter)
2 W max.
2 W max.
Regulation and Standard Compliance
Safety Regulations: UL1950, CSA C22.2 No.950
EN60950, CPA (SISAR)
Hong Kong, CB IEC60950
EMKO's,
Human Factor:
ISO 13406-2, ISO 9241-3,7,8
CE mark:
EN55022/55024
EN61000-3-2/-3
EMI
FCC Class B
VCCI Class B
IC Class B
AS/NZS (C-Tick)
ELF/VLF
MPR-II (TUV Ergonomic Mark)
TCO 99 (SDM-M51)
TCO 95 (SDM-M51/B)
Power Management International Energy Star
Designed for
PC99, Windows® 95,98,2000
Windows NT®,
Macintosh® Compatible
Plug and Play
DDC-1, DDC-2B, DDC-2Bi
Tilt Range
0° to +70°
Front Panel User Controls
Power Switch, Menu Button
Brightness, Contrast Button
Volume
On Screen Display Controls
Phase, Pitch, Image Center
Color Temperature, Gamma, Backlight Control
Option (OSD Position)
Power Saving Delay
Multi-Language (Eng., Fre., Spa., Ital., Ger.)
Menu Lock, Volume, Reset
Operating Conditions
Temperature: 41° to 95° F (5° to 35° C)
Relative Humidity: 10% to 80% (Non-Condensing)
Storage Conditions
Temperature: -4° to 140°F (-20° to 60°C)
Relative Humidity: 5% to 95% (Non-Condensing)
Supplied Accessories
AC adapter,AC Power Cord
User's Manual (Eng., Fre., Spa., Ital., Ger.)
Rear Cover, Rubber Pads
Windows® Monitor Information Disk/Utility Disk
Macintosh® Utility Disk
MAC Adapter
HD15 Video Signal Cable
Warranty Card
Limited Warranty
Parts and Labor: 3 years
Computer Interface: The computer industry lacks standards, and therefore, there are a multitude of varying software packages and add-on hardware options. This display is not manufactured to any specific software, and Sony does not
and cannot make any warranty or representation with respect to the performance of this product with any particular software packages and/or non-Sony add-on hardware option except those mentioned in this document. Sony hereby
disclaims any representations or warranty that this product is compatible with any combination of non-Sony products you may choose to connect. While Sony representatives or Sony authorized dealers may be able to assist you and
may make recommendations, they are NOT authorized to vary or waive this disclaimer. Purchasers must determine for themselves the suitability and compatibility of the hardware and software in each and every particular instance.
©2000 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony, the Sony logo, DisplayMouse, Trinitron, Multiscan, Digital FlexRes, Auto ImageSet and Zero
Footprint Design™ are trademarks of Sony. Microsoft, the Windows Logo and Windows are registered trademarks of Microsoft Corporation. Mac and Macintosh are trademarks of Apple Inc. All other trademarks are property of their
respective owners. Features and specifications are subject to change without notice. Non-metric weights and measurements are approximate.
This monitor is Energy Star Compliant when used with a computer equipped with VESA Display Power Management Signaling (DPMS). As an International Energy Star Partner, Sony Corporation has determined that this product
meets the International Energy Star Program for energy efficiency. The Energy Star emblem does not represent EPA endorsement of any product or service. Screen images are simulated.
Printed in the USA - (04/01/01)
