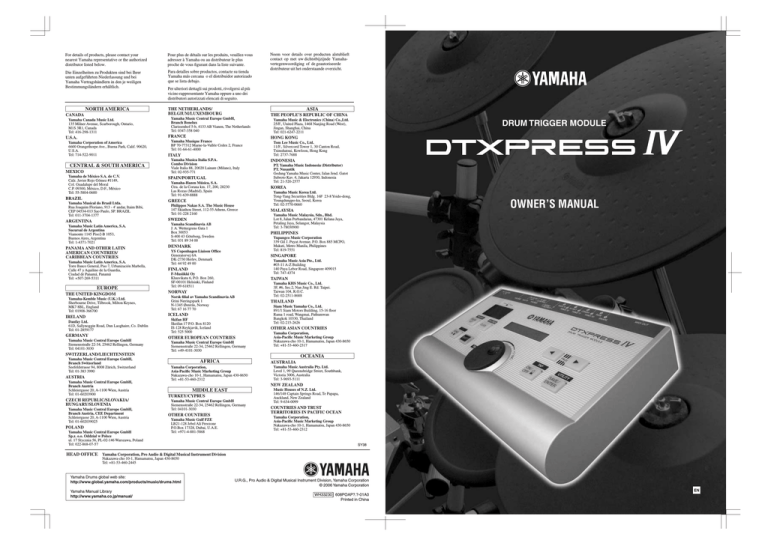

DRUM TRIGGER MODULE

OWNER’S MANUAL

EN

SPECIAL MESSAGE SECTION

This product utilizes batteries or an external power supply

(adapter). DO NOT connect this product to any power supply or adapter other than one described in the manual, on the name plate, or specifically recommended by Yamaha.

WARNING:

Do not place this product in a position where anyone could walk on, trip over ,or roll anything over power or connecting cords of any kind. The use of an extension cord is not recommended! If you must use an extension cord, the minimum wire size for a 25’ cord (or less ) is 18 AWG. NOTE: The smaller the AWG number ,the larger the current handling capacity. For longer extension cords, consult a local electrician.

This product should be used only with the components supplied or; a cart, rack, or stand that is recommended by Yamaha. If a cart, etc., is used, please observe all safety markings and instructions that accompany the accessory product.

SPECIFICATIONS SUBJECT TO CHANGE:

The information contained in this manual is believed to be correct at the time of printing. However, Yamaha reserves the right to change or modify any of the specifications without notice or obligation to update existing units.

This product, either alone or in combination with an amplifier and headphones or speaker/s, may be capable of producing sound levels that could cause permanent hearing loss. DO NOT operate for long periods of time at a high volume level or at a level that is uncomfortable. If you experience any hearing loss or ringing in the ears, you should consult an audiologist.

IMPORTANT: The louder the sound, the shorter the time period before damage occurs.

Some Yamaha products may have benches and / or accessory mounting fixtures that are either supplied with the product or as optional accessories. Some of these items are designed to be dealer assembled or installed. Please make sure that benches are stable and any optional fixtures (where applicable) are well secured BEFORE using.

Benches supplied by Yamaha are designed for seating only. No other uses are recommended.

NOTICE:

Service charges incurred due to a lack of knowledge relating to how a function or effect works (when the unit is operating as designed) are not covered by the manufacturer’s warranty, and are therefore the owners responsibility. Please study this manual carefully and consult your dealer before requesting service.

ENVIRONMENTAL ISSUES:

Yamaha strives to produce products that are both user safe and environmentally friendly. We sincerely believe that our products and the production methods used to produce them, meet these goals. In keeping with both the letter and the spirit of the law, we

Model

Serial No.

Purchase Date

PLEASE KEEP THIS MANUAL

92-BP

(bottom) want you to be aware of the following:

Battery Notice:

This product MAY contain a small non-rechargeable battery which

(if applicable) is soldered in place. The average life span of this type of battery is approximately five years. When replacement becomes necessary, contact a qualified service representative to perform the replacement.

This product may also use “household” type batteries. Some of these may be rechargeable. Make sure that the battery being charged is a rechargeable type and that the charger is intended for the battery being charged.

When installing batteries, do not mix batteries with new, or with batteries of a different type. Batteries MUST be installed correctly.

Mismatches or incorrect installation may result in overheating and battery case rupture.

Warning:

Do not attempt to disassemble, or incinerate any battery. Keep all batteries away from children. Dispose of used batteries promptly and as regulated by the laws in your area. Note: Check with any retailer of household type batteries in your area for battery disposal information.

Disposal Notice:

Should this product become damaged beyond repair, or for some reason its useful life is considered to be at an end, please observe all local, state, and federal regulations that relate to the disposal of products that contain lead, batteries, plastics, etc. If your dealer is unable to assist you, please contact Yamaha directly.

NAME PLATE LOCATION:

The name plate is located on the bottom of the product. The model number, serial number, power requirements, etc., are located on this plate. You should record the model number, serial number, and the date of purchase in the spaces provided below and retain this manual as a permanent record of your purchase.

Introduction

Thank you for purchasing the YAMAHA DTXPRESS IV.

The DTXPRESS IV is a compact drum trigger module that includes a wealth of rich, highquality drum voices and is compatible with snare pads equipped with a pad controller. It also has a comprehensive variety of features that help you build your drumming and rhythm section skills, a built-in sequencer for recording your own songs and performances, an effective

Groove Check function that helps you tighten your timing, and a versatile, multi-function metronome for enhancing your practice sessions. Moreover, it provides a large selection of preset songs that you can play along with and improve your ability in a variety of musical styles.

To get the most out of your DTXPRESS IV, please read this manual carefully. After reading through the manual, make sure to store it in a safe place so that you can refer back to it again as needed.

Accessories

Yamaha AC power adaptor (PA-3C)*

Module stand

Module stand fastening screws x 2

Owner’s Manual (this book)

* May not be included depending on your particular area. Please check with your Yamaha dealer.

About the Descriptions and Conventions in this Manual

• [DRUM KIT], [CLICK], etc.

Panel buttons and controls are indicated with [ ] (brackets).

• [SHIFT] + [DRUM KIT], etc.

This means to simultaneously hold down the [SHIFT] button and press the [DRUM KIT] button.

• [

<

]/[

>

], etc.

This means that you can use either the [

<

] button or [

>

] button in the operation.

• “Completed!”, etc.

Words in quotation marks indicate a message shown on the LCD display.

The illustrations and LCD screens as shown in this owner’s manual are for instructional purposes only, and may appear somewhat different from those on your instrument.

DTXPRESS

IV

Owner’s Manual

3

PRECAUTIONS

PLEASE READ CAREFULLY BEFORE PROCEEDING

* Please keep this manual in a safe place for future reference.

WARNING

Always follow the basic precautions listed below to avoid the possibility of serious injury or even death from electrical shock, short-circuiting, damages, fire or other hazards. These precautions include, but are not limited to, the following:

Power supply/AC power adaptor

• Only use the voltage specified as correct for the instrument. The required voltage is printed on the name plate of the instrument.

• Use the specified adaptor (PA-3C or an equivalent recommended by Yamaha) only. Using the wrong adaptor can result in damage to the instrument or overheating.

• Check the electric plug periodically and remove any dirt or dust which may have accumulated on it.

• Do not place the AC adaptor cord near heat sources such as heaters or radiators, and do not excessively bend or otherwise damage the cord, place heavy objects on it, or place it in a position where anyone could walk on, trip over, or roll anything over it.

Do not open

• Do not open the instrument or attempt to disassemble the internal parts or modify them in any way. The instrument contains no user-serviceable parts. If it should appear to be malfunctioning, discontinue use immediately and have it inspected by qualified Yamaha service personnel.

Water warning

• Do not expose the instrument to rain, use it near water or in damp or wet conditions, or place containers on it containing liquids which might spill into any openings. If any liquid such as water seeps into the instrument, turn off the power immediately and unplug the power cord from the AC outlet. Then have the instrument inspected by qualified Yamaha service personnel.

• Never insert or remove an electric plug with wet hands.

Fire warning

• Do not put burning items, such as candles, on the unit.

A burning item may fall over and cause a fire.

If you notice any abnormality

• If the AC adaptor cord or plug becomes frayed or damaged, or if there is a sudden loss of sound during use of the instrument, or if any unusual smells or smoke should appear to be caused by it, immediately turn off the power switch, disconnect the adaptor plug from the outlet, and have the instrument inspected by qualified Yamaha service personnel.

CAUTION

Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage to the instrument or other property. These precautions include, but are not limited to, the following:

Power supply/AC power adaptor

• When removing the electric plug from the instrument or an outlet, always hold the plug itself and not the cord.

• Unplug the AC power adaptor when not using the instrument, or during electrical storms.

• Do not connect the instrument to an electrical outlet using a multiple-connector.

Doing so can result in lower sound quality, or possibly cause overheating in the outlet.

Location

• Do not expose the instrument to excessive dust or vibrations, or extreme cold or heat (such as in direct sunlight, near a heater, or in a car during the day) to prevent the possibility of panel disfiguration or damage to the internal components.

• Do not use the instrument in the vicinity of a TV, radio, stereo equipment, mobile phone, or other electric devices. Otherwise, the instrument, TV, or radio may generate noise.

• Do not place the instrument in an unstable position where it might accidentally fall over.

• Before moving the instrument, remove all connected adaptor and other cables.

• When setting up the product, make sure that the AC outlet you are using is easily accessible. If some trouble or malfunction occurs, immediately turn off the power switch and disconnect the plug from the outlet. Even when the power switch is turned off, electricity is still flowing to the product at the minimum level. When you are not using the product for a long time, make sure to unplug the power cord from the wall AC outlet.

• Use only the stand/rack specified for the instrument. When attaching the stand or rack, use the provided screws only. Failure to do so could cause damage to the internal components or result in the instrument falling over.

• Do not place objects in front of the instrument's air vent, since this may prevent adequate ventilation of the internal components, and possibly result in the instrument overheating.

(3)-11

1/2

4

DTXPRESS

IV

Owner’s Manual

Connections

• Before connecting the instrument to other electronic components, turn off the power for all components. Before turning the power on or off for all components, set all volume levels to minimum. Also, be sure to set the volumes of all components at their minimum levels and gradually raise the volume controls while playing the instrument to set the desired listening level.

Maintenance

• When cleaning the instrument, use a soft, dry cloth. Do not use paint thinners, solvents, cleaning fluids, or chemical-impregnated wiping cloths.

Handling caution

• Never insert or drop paper, metallic, or other objects into the gaps on the panel.

If this happens, turn off the power immediately and unplug the power cord from the AC outlet. Then have the instrument inspected by qualified Yamaha service personnel.

• Do not place vinyl, plastic or rubber objects on the instrument, since this might discolor the panel.

• Do not rest your weight on, or place heavy objects on the instrument, and do not use excessive force on the buttons, switches or connectors.

• Do not use the instrument/device or headphones for a long period of time at a high or uncomfortable volume level, since this can cause permanent hearing loss. If you experience any hearing loss or ringing in the ears, consult a physician.

Saving data

• Never attempt to turn off the power while data is being written to Flash ROM

(while a "now storing..." message is shown). Turning the power off in this state results in loss of all user data and may cause the system to freeze (due to corruption of data in the Flash ROM). This means that this instrument may not be able to start up properly, even when turning the power on next time.

Yamaha cannot be held responsible for damage caused by improper use or modifications to the instrument, or data that is lost or destroyed.

Always turn the power off when the instrument is not in use.

Even when the power switch is in the “STANDBY” position, electricity is still flowing to the instrument at the minimum level. When you are not using the instrument for a long time, make sure you unplug the AC power adaptor from the wall AC outlet.

• This product incorporates and bundles computer programs and contents in which Yamaha owns copyrights or with respect to which it has license to use others’ copyrights. Such copyrighted materials include, without limitation, all computer software, style files, MIDI files, WAVE data, musical scores and sound recordings. Any unauthorized use of such programs and contents outside of personal use is not permitted under relevant laws. Any violation of copyright has legal consequences. DON'T MAKE, DISTRIBUTE OR USE ILLEGAL COPIES.

• Copying of the commercially available musical data including but not limited to MIDI data and/or audio data is strictly prohibited except for your personal use.

• The company names and product names in this Owner’s Manual are the trademarks or registered trademarks of their respective companies.

(3)-11

2/2

DTXPRESS

IV

Owner’s Manual

5

Main Features

The DTXPRESS IV is equipped with a high-quality 32-polyphony tone generator that produces realistic voices, includes a high-performance, multi-function metronome, a built-in sequencer and a variety of songs—all combined into a compact, portable package. The DTXPRESS IV is an exceptionally versatile instrument that can be used in a variety of situations such as live performance, personal practice, and much more.

Drum Triggers

• Built into the unit are twelve trigger input jacks and a hi-hat controller jack. The instrument also features jacks that are compatible with two-zone or three-zone pads (pads that transmit different signals depending on the area that is hit).

Moreover, the snare drum jack is compatible with pad-controller-equipped pads. This lets you adjust the ‘virtual’ snares and the tuning—just as you would with an acoustic snare drum. All in all, the DTXPRESS IV has the operability, functionality and performance that is virtually equivalent to an acoustic drum kit.

• You can connect the DTXPRESS IV to an acoustic drum kit by using drum triggers such as Yamaha DT20. The setup data such as the trigger input types and sensitivity can be customized to suit your playing preferences, style and particular setup.

• Also included in the unit are 50 preset drum kits which naturally contain acoustic drum kits, and cover a wide range of music genres, such as rock, funk, jazz, reggae, Latin, etc. Moreover, User kit memory is available for storing 20 sets.

With this, you can set up your own original drum kits using the various drum voices.

* The word “trigger” refers to the means by which hitting a pad sends a signal to the DTXPRESS IV as to what sound to play on the built-in tone generator and how loud the sound should be played.

Tone Generator

• The DTXPRESS IV is equipped with a high-quality, 16-bit AWM2 (PCM) tone generator with 32-voice polyphony that produces dynamic voices or exceptional realism. The voices—totalling 427—cover a wide range sounds, such as authentic acoustic drums, unique electronic percussion, sound effects, and much more. The instrument also features a built-in high-quality digital reverb for enhancing the sound.

High-performance Metronome

• The DTXPRESS IV provides with a comprehensive, multi-function metronome, allowing various click settings for each note value. Each note value can be assigned its own separate click sound and pitch. You can also set a timer that will determine when the click stops and set breaks which how many measures the click will play and then be muted.

• The DTXPRESS IV also features a “Tap” function that lets you set the tempo for the song or click by tapping in tempo on a pad to any tempo you like. This lets you set whatever tempo you desire for playing or practicing.

Sequencer

• The built-in sequencer contains a wide variety of 63 preset songs. Two functions that make the DTXPRESS IV great for practice are the Drum Mute Function, which mutes a specific drum part, and the Bass Solo function, which lets you play along with just the song’s bass part. The DTXPRESS IV also allows you to record your performance in real time—and allows you to play along with your recorded performance data.

• In addition to one main song that is controlled from the panel, three pad songs can be individually controlled and simultaneously played by trigger input from the pads.

Groove Check

• The Groove Check function monitors your playing and provides instant feedback on your rhythmic skills, providing a powerful way to quickly improve your technique. It includes a Rhythm Gate function that produces sounds only if your timing is accurate, and also has a Challenge mode that evaluates your playing, giving you a letter grade—and makes mastering the drums easier and more fun than ever before.

Interface

• A MIDI OUT jack on the rear panel lets you connect other devices and play sounds from an external tone generator or synchronize the metronome with an external sequencer. Also provided are an AUX IN jack, which lets you plug in and play along with an external audio device, such as a CD player or MD player, and a headphones jack for convenient practice without disturbing others.

6

DTXPRESS

IV

Owner’s Manual

Contents

Introduction ............................................................3

Accessories ...............................................................3

About the Descriptions and Conventions in this Manual ................................................................3

Main Features ...........................................................6

Controls and Functions.........................................8

Top Panel ..................................................................8

Rear Panel ................................................................9

1 Connections ....................................................10

1 Connecting the Pads ..........................................10

DTXPRESS IV Standard Set...........................10

DTXPRESS IV Special Set .............................11

Setting up with Acoustic Drums.......................11

2 Setting Up the Power Supply..............................12

3 Connecting to Speakers or Headphones............12

4 Turning the Power On.........................................13

5 Selecting the Trigger Setup ................................14

2 Time to Play .....................................................15

Adjusting the Hi-hat .................................................16

Pad Controller Settings ...........................................17

3 Playing Along With the Click .........................18

Click Out Select.......................................................20

Tap Tempo Function ...............................................21

LED Display Setting ................................................21

4 Playing Along With a Song ............................22

Pad Function Settings .............................................23

5 Using the Groove Check Function ............... 24

Groove Check Mode ............................................... 24

6 Record Your Performance............................. 26

Recording System .................................................. 26

7 Create Your Own Original Drum Kit ............. 28

Factory Set ............................................................. 35

8 Trigger Setup Edit .......................................... 36

Trigger Setup procedure ......................................... 36

Explanations of Each Display Page ........................ 37

Error Messages ................................................... 40

Trobleshooting .................................................... 40

Index ..................................................................... 42

Appendix .............................................................. 43

MIDI Data Format ................................................... 43

LCD Displays .......................................................... 44

MIDI Implementation Chart ..................................... 47

Drum Voice List ...................................................... 48

Preset Drum Kit List ................................................ 49

Preset Song List ..................................................... 49

Specifications.......................................................... 50

DTXPRESS

IV

Owner’s Manual

7

Controls and Functions

Top Panel

q i o

8.8.8.

w

~~~~~

YAMAHA

~~~~

~~~

DTXPRESS IV

~~

!0

!1

e r y u t

q

Drum Kit button (DRUM KIT)

• For entering the Drum Kit Select display. (p. 15)

• Hold the [SHIFT] button and press the [DRUM KIT] button to

enter the Trigger Setup Select page. (p. 14)

• This button can also be used to temporarily mute all sounds of all voices.

w

Click button (CLICK)

• For entering the Click (Metronome) Setting page. (p. 18)

• Hold the [SHIFT] button and press the [CLICK] button to enter

the Groove Check Setting display. (p. 24)

e

Song button (SONG

>

/

)

• For entering the Song Select page. (p. 22)

• Hold the [SHIFT] button and press the [SONG

>

/

] button to enable recording standby mode for the DTXPRESS IV.

• Press this button to start/stop song playback or recording.

r

Shift button (SHIFT)

Holding this button and pressing another specific button switches to the function printed above each button on the top panel.

t

Select buttons (

<

,

>

)

• For selecting an item you want to edit (the selected item flashes). If there are multiple pages either before or after the page currently displayed, the buttons are used to view the next or previous page. Hold the button to continuously move the flashing cursor.

• Press these two buttons together to scroll continuously back and forth through the pages. Holding the [

<

] button first and pressing the [

>

] button moves to the previous page while holding the [

>

] button first and pressing the [

<

] button moves to the next.

• Hold the [SHIFT] button and press the [

<

]/[

>

] buttons to select the trigger input you want to edit.

y

Click ON/OFF button ( ON/OFF)

• For starting/stopping the click sound (metronome). (p. 18)

• Hold the [SHIFT] button and press the [ ON/OFF] button to

enter the Tap Tempo Setting page. (p. 21)

u

Save/Enter button (SAVE/ENTER)

• For saving data or executing an operation (Enter).

• Hold the [SHIFT] button and press the [SAVE/ENTER] button to enter the Utility page, which is used to make overall settings for operating the DTXPRESS IV.

i

Click lamp

The red lamp lights on the first beat of every measure when the click or a song is playing. The other beats are indicated with a green light.

o

LED display

For indicating the tempo, the number selected in the current page,

or the click timer depending on the setting made. (p. 21)

!0

LCD display

For displaying important information and data used in operating the DTXPRESS IV.

!1

Jog dial

Rotate the jog dial to change the value selected with the cursor

(the flashed item to be edited) in the display. Rotate the dial to the right (clockwise) to increase the value, and to the left to decrease.

The jog dial can also be used to change the layer (A/B) and for

Drum mute.

Hold the [SHIFT] button and rotate the knob to change the current tempo.

8

DTXPRESS

IV

Owner’s Manual

Rear Panel

!2

!3

!5

!6

!7

!8

Controls and Functions

!2 MIDI OUT jack

For sending data from the DTXPRESS IV to an external MIDI device. With this jack, you can use the DTXPRESS IV as a control device to trigger voices from an external tone generator, or synchronize song playback or the click of the DTXPRESS IV

with the playback of an external sequencer. (p. 13)

!3 Trigger Input jacks (1SNARE thru 8KICK/9)

For connecting pads or drum triggers (Yamaha DT20, etc.) to receive trigger signals.

Connect external pads such as a snare, tom, etc., according to the

indication below each input. (p. 10, 11)

1SNARE .....................Compatible with three-zone pads and the pad controller.

2TOM1/10, 3TOM2/11, 4TOM3/12, 8KICK/9

.............................. Mono x 2 inputs

A Y-shaped cable (stereo plug—mono jack x

2; refer to the illustration below) can be used to trigger inputs 9, 10, 11, and 12 (monaural pad).

Also, if the KP65 kick pad is connected to this jack with a stereo cable, the external pad input jack on the KP65 can be used as the input for input jacks 9, 10, 11, or 12.

5RIDE, 6CRASH .....Compatible with three-zone pads.

7HI HAT .....................Compatible with stereo pads (with switches)

Y-shaped cable

Mono phone jack

Stereo phone plug

Mono phone jack

!4 Hi-hat controller jack (HI HAT CONTROL)

For connecting a hi-hat controller. (p. 10, 11)

* Use a cable with a stereo plug (shown below) when connecting a hi-hat controller.

Double insulator

!4

!9

@0 @1

!5 Output jacks (OUTPUT L/MONO, R)

For connecting the DTXPRESS IV to an external amplifier, mixer, etc.

For mono playback use the L/MONO jack. For stereo playback

connect both L and R jacks. (p. 12)

!6 Headphones jack (PHONES)

Connect a set of stereo headphones to this jack to monitor the

DTXPRESS IV. (p. 12)

!7 AUX IN jack

Connect the output of an external audio device, etc., to this jack

(stereo mini jack). (p. 13)

This is convenient for playing along with music from a CD player, etc.

* Use the volume control on the external device to adjust the volume balance.

!8 Master Volume (VOLUME)

Adjusts the DTXPRESS IV’s overall volume (output level of the signal sent via the OUTPUT jacks and PHONES jack). Rotate the knob clockwise to increase the volume, or counter-clockwise to decrease it.

!9 Power supply jack (DC IN 12V)

Connect the supplied AC power adaptor to this jack. To prevent the adaptor from becoming unplugged, secure the cable to the cable clip.

@0 Cable clip

Prevents the power cord from accidentally becoming unplugged.

(p. 12)

@1 POWER Switch

The power is turned on when the button is set to this position:

(>). The power is off when set this way: (?).

DTXPRESS

IV

Owner’s Manual

9

1

Connections

In this chapter, you’ll learn how to set up the DTXPRESS IV. Read these instructions carefully and in the following order to ensure that the instrument sounds and operates properly:

1 Connecting the Pads

2 Setting Up the Power Supply (p. 12) 3 Connecting to Speakers or Head-

phones (p. 12)

4 Turning the Power On (p. 13) 5 Selecting the Trigger Setup (p. 14)

!! IMPORTANT !!

You’ll need to change the Trigger Settings of the DTXPRESS IV according to the type of drum set you are using

(Standard Set/Special Set/Acoustic Drums, etc.). If the setting is not appropriate, problems may occur—such as improper sound, or inappropriate volume balance among the pads.

Refer to the “Selecting the Trigger Setup” section on page 14 on how to select the appropriate setup.

1 Connecting the Pads

Referring to the illustration below, connect the output cable from each pad to each Trigger Input jack located on the rear panel of the DTX-

PRESS IV. All Trigger Input jacks are conveniently labeled (

1 SNARE, etc.), so make sure each pad is connected to its corresponding

Trigger Input jack.

CAUTION

To prevent electric shock and damage to the devices, make sure the power is switched OFF on the DTXPRESS

IV and all related devices before making any connections to the DTXPRESS IV’s input and output jacks.

DTXPRESS IV Standard Set

Attaching the Module Stand

Attach the included module stand to the DTXPRESS IV using the module stand fastening screws.

DTXPRESS IV

To

6CRASH

To

5RIDE

Module stand

(included)

To

7HI HAT

Module stand fastening screws (2; included)

* Be sure to use the included screws.

NOTE

• The module stand having four holes

(included with the RS70 drum rack system) cannot be used for the DTXPRESS

IV. Use only the module stand w ith two holes included with the DTXPRESS IV.

• The hi-hat pad can also be attached to the pipe to which the DTXPRESS IV is attached.

To HI HAT

CONTROL

To

1SNARE

To

2TOM1

To

3TOM2

To

8KICK

* Foot pedal is not included in the Standard Set.

To

4TOM3

10

DTXPRESS

IV

Owner’s Manual

1 Connections

DTXPRESS IV Special Set

Attaching the Module Stand

Attach the included module stand to the DTXPRESS IV using the module stand fastening screws.

* Be sure to use the included screws.

DTXPRESS IV

Module stand

(included)

Module stand fastening screws

(2; included)

CAUTION

When assembling the Special Set, the legs of the rack must be slid backwards to maintain proper balance of the set. For details, refer to the assembly instructions of the rack system.

To

6CRASH

To

5RIDE

To

7HI HAT

* First, connect the RHH130’s [PAD] output jack to the

7 HI HAT jack on the DTXPRESS IV, then connect the

RHH130’s [HI HAT CONTROL] output jack to the HI HAT CONTROL jack on the DTXPRESS IV.

To HI HAT

CONTROL

To

2TOM1

To

3TOM2

To

1SNARE

To

8KICK

To the external pad input jack of KP65 (kick pad)

To

4TOM3

* Foot pedal is not included in the

Special Set.

Setting up with Acoustic Drums

The DTXPRESS IV can be played from an acoustic drum kit if the kit is fitted with an optional set of drum triggers (such as Yamaha DT20

Drum Triggers) and the triggers are properly connected to the input jacks of the DTXPRESS IV.

DTXPRESS

IV

Owner’s Manual

11

1 Connections

2 Setting Up the Power Supply

A special power source adaptor supplies power to the DTX-

PRESS IV.

2-1. Make sure that the power switch of the DTXPRESS IV is set to the STANDBY(?) position.

3 Connecting to Speakers or

Headphones

Since the DTXPRESS IV has no built-in speakers, you’ll need an external audio system or a set of stereo headphones to properly monitor it.

Monitor system for the DTX series

MS100DRJ, MS50DRJ, etc.

Headphones

2-2. Connect the DC plug of the included AC power adaptor to the DC IN jack on the rear panel.

To prevent the cord from being unplugged accidentally, wrap the cord around the cable clip and secure it.

OUTPUT L/MONO and R jacks

PHONES jack

CAUTION

Make sure that the power adaptor’s cord is not bent at an extreme angle when wrapping the cord around the clip. Doing this can damage or sever the cord and create a fire hazard.

2-3. Connect the other end of the power cord to an AC outlet.

WARNING

• Please use the included AC power adaptor. The use of any other adaptors may cause irregular operation or damage to the device.

• Only use the voltage specified as correct for the DTXPRESS IV. The required voltage is printed on the name plate of the DTXPRESS IV.

CAUTION

• Unplug the AC Power Adaptor when not using the DTXPRESS IV, or during electrical storms.

12

DTXPRESS

IV

Owner’s Manual

CAUTION

Whenever making connections, make sure that the plug on the cable being used corresponds to the type of jack on the device.

OUTPUT L/MONO, R jacks (standard mono phone)

These jacks allow you to connect the DTXPRESS IV to an external amplifier + speakers and produce full, amplified sound, or connect the DTXPRESS IV to audio recording equipment for recording your own performance.

* Use the DTXPRESS IV’s OUTPUT L/MONO jack when connecting to a device with a mono input.

PHONES jack (standard stereo phone jack)

Use the VOLUME knob on the rear panel to adjust the headphone volume.

CAUTION

Do not use the DTXPRESS IV at a high volume level for a long period of time, or your hearing may be damaged.

1 Connections

AUX IN jack (stereo mini phone jack)

The audio output from a MP3 player or CD player connected to the AUX IN jack can be mixed with the sound of the DTXPRESS

IV and transmitted via the OUTPUT jacks or PHONES jack. This jack can be used when you want to play along with your favorite songs.

* Use the volume control on the external device (MP3 player, etc.) to adjust the volume balance.

4 Turning the Power On

4-1. Make sure the volume settings of the DTXPRESS IV and external devices are turned down to the minimum.

4-2. Turn the power on (>) by pressing the [STANDBY/ON] switch on the rear panel of the DTXPRESS IV, then turn on the power of the amplifiers.

MIDI OUT jack

The MIDI functions on the DTXPRESS IV lets you play voices on an external tone generator with the pads of the DTXPRESS

IV, or synchronize the DTXPRESS IV’s song or click playback with the playback of an external sequencer.

About MIDI

MIDI (Musical Instrument Digital Interface) is a worldwide standard that enables you to connect instruments and computers—of different manufacturers and different types—and transmit performance and other data among them.

* Also, use a MIDI cable that is not more than 15 meters in length. Using a longer cable may result in irregular operation and other problems.

4-3. To turn off the power, press the [STANDBY/ON] switch again.

CAUTION

Even when the instrument is turned off, electricity is still flowing to the instrument at the minimum level. When you are not using the

DTXPRESS IV for a long time, make sure to unplug the AC power adaptor from the wall AC outlet.

Connecting a Mixer or MIDI Devices

Make sure that all volume settings are turned down all the way to the minimum. Then turn on the every device in your setup in the order of MIDI masters (controllers), MIDI slaves (receivers), then audio equipment (mixers, amplifiers, speakers, etc.).

When powering down the setup, first turn down the volume for each audio devices, then switch off each device in the reverse order (first audio equipment, then MIDI).

1

DTXPRESS IV (MIDI Master)

2

MIDI slave

MUSIC PRODUCTION SYNTHESIZER

8.8.8.

* ~~ ~

* ~~~

IV ~

~~~

*

*

3

Audio equipment

(first mixer, then amplifier)

DTXPRESS

IV

Owner’s Manual

13

1 Connections

5 Selecting the Trigger Setup

This setting lets you select the Trigger Setup that most closely matches the trigger output levels and functions of your pads.

Select an appropriate Trigger Setup for your drum kit from the pre-programmed Trigger Setups in the DTXPRESS IV.

Use the operation described below to select the Trigger Setup you want to use.

Procedure

5-1. Press the [SHIFT] + [DRUM KIT] buttons to view Page 1 in the Trigger Setup Select display (TRG1).

TRG1

1 ~

~~~

:SP ~

TRG1 ~~~ ååååååååå

4 ~ :STD ~ Med ~~~~~ ‚

Trigger Setup

ååååååååå

Med ~~~~~~ ‚

5-2. Rotate the jog dial to select the Trigger Setup that matches the drum kit you are using.

NOTE

• If you want to replace some of the pads from the DTXPRESS IV

Standard Set / Special Set, refer to the operation on page 36 (Trigger Setup Edit) after the above setting is done, to make sure that the settings (such as sensitivity) are appropriate for each pad.

About Connecting Pads

• The DTXPRESS IV’s input jack parameters are preset with settings suitable for pads when an appropriate Trigger Setup is selected. If you intend to connect any other type of pad or a drum trigger (Yamaha DT20, etc.) to the input jack, that jack’s parameters (sensitivity, etc.) should be changed to settings that suit the particular pad. Pad sensitivity is set in the

Trigger Setup Select display’s Page 3 [TRG3 Gain] setting

(p. 38).

• Pad-controller-equipped pads like the TP120SD, TP100, etc., can be connected to Trigger Input jack

1SNARE.

• Three-zone pads like the TP65S, PCY150S, PCY130SC, etc., can be connected to Trigger Input jacks

5RIDE and

6CRASH.

7HI HAT is a stereo input type jack. Pads equipped with trigger switches like the TP65S, PCY65S, PCY130S, etc. can be connected to this jack.

• The

2TOM1/10, 3TOM2/11, 4TOM3/12 jacks correspond to a two-trigger input that uses a stereo jack for L and

R. A Y-shaped cable (stereo plug—mono jack x 2) can be used to input two trigger signals.

• The

8KICK/9 jack accepts a two-trigger input using a stereo cable and jack for L and R signals. A Y-shaped cable

(stereo plug—mono jack x 2) can be used to input two trigger signals.

Also, if the KP65 kick pad is connected to the DTXPRESS

IV’s input jack 9 with a stereo cable, the external pad input jack on the KP65 can be used as the input for Input jack 9.

• In addition to the

8KICK/9 jack, the 2TOM1/10,

3TOM2/11, and 4 TOM3/12 jacks can be used to connect a second bass drum pedal to create a double-bass drum set.

Trigger Setup List

No.

1

2

3

4

5

6

7

|

8

11

Name

SP Med

SP Dyna

SP Easy

STD Med

STD Dyna

STD Easy

DT10/20

UserTrig for Special Drum Set for Standard Drum Set

Features

Normal setting

Wide dynamic range. This setting is designed for maximum expressive control, allowing performance subtleties over a wide dynamic range. Excessive vibration however, may result in crosstalk (sound being produced by other pads).

Controlled dynamic range delivers stable trigger detection. This setting is designed for producing a smoother, more uniform sound with reduced volume fluctuations.

Normal setting

Wide dynamic range. This setting is designed for maximum expressive control, allowing performance subtleties over a wide dynamic range. Excessive vibration however, may result in crosstalk (sound being produced by other pads).

Controlled dynamic range delivers stable trigger detection. This setting is designed for producing a smoother, more uniform sound with reduced volume fluctuations.

Use for DT10/20 drum trigger systems applied to acoustic drums.

Allows creation of custom trigger setups. (

Edit on page 36.)

* In the default setting, "1. SP Med" for Special Drum Set is selected.

→Settings are made using Trigger Setup

14

DTXPRESS

IV

Owner’s Manual

2

Time to Play

Now that your DTXPRESS IV is properly connected, it’s time to make some music!

1

Play the DTXPRESS IV

While hitting the pads, turn the VOLUME knob on the rear panel to raise the overall volume to a comfortable level.

The trigger input level will be displayed in the bar graph in the upper right corner of the display. The bar graph indicates the input levels of the following input jacks.

KIT1 ~~~ ∑åååååø¥å

1 ~ :Oak ~ Custom ~~ ‚

Bar graph

Bar graph (from left)

6

7

4

5

8

9

1

2

3

Corresponding input jacks

1 SNARE

2 TOM1/10

3 TOM2/11

4 TOM3/12

5 RIDE

6 CRASH

7 HI HAT

8 KICK

8 PAD9

2

Select a Drum Kit

A ‘Drum Kit’ is a collection of drum sounds (or voices) that play when you hit the pads. Try selecting some of the Drum

Kits (1–50) and enjoy the variety of sounds and drum setups available.

* Preset Drum Kit List (p. 49)

Rotate the jog dial to select a Drum Kit.

KIT1 ~~~ ååååååååå

1 ~ :Oak ~ Custom ~~ ‚

Drum kit Number Drum kit Name

Try out the different drum kits and select one drum kit you like.

* Some Drum Kits have pad songs and drum loops that start playback when the corresponding pad is hit.

3

Change the Volume for Each Pad

Change the volume for each pad and adjust the overall balance of the Drum Kit.

Press the [

>

] button once in the previous Drum Kit Select page.

The following display appears and the flashing cursor is at

˙

” in the LCD.

KIT2 ~~~ ƒsnare ~~ ˙

”S01:OakCustom ~ ‚

Press the [

>

] button again to move the flashing cursor to the

“S” position, the first character of “S01:OakCustom”.

KIT2 ~~~ ƒsnare ~~ ˙

”S01:OakCustom ~ ‚

Press the [

>

] button twice to view the KIT 3 page.

KIT3 ~~~ ƒsnare ~~ ˙

” ~~ Volume=120 ~~ ‚

Use the [

<

]/[

>

] buttons in this manner to select the desired item (the cursor flashes). When the page only contains a single item, pressing the [

<

]/[

>

] buttons will select the next or previous page.

* The “

” mark on the lower right side of the display indicates that a succeeding page is available. Likewise, the “

” mark on the lower left side of the display indicates that a previous page is available.

In the KIT 3 page, hit the pad for which you want to change the volume. The selected pad (input jack) is shown in the upper half of the display.

Rotate the jog dial to adjust the volume (the value is flashing) of the pad.

* Some drum voices have two voices in a layer (in other words, two voices sound at the same time when a pad is hit). In case of two-layer voices, select the

˙

or

mark in the upper right side of the display (press the [

<

]/[

>

] buttons so that the mark flashes, and use the jog dial to select) then adjust each volume.

Pad (Input jack)

KIT3 ~~~ ™tom1 ~~~ ˙

” ~~ Volume=120 ~~ ‚

Layer (

˙

/

)

Volume (0–127)

DTXPRESS

IV

Owner’s Manual

15

2 Time to Play

CAUTION

An asterisk “*” will appear next to “KIT3” in the

display once the volume is changed, indicating that the kit has been edited. This asterisk will

disappear after the Store operation (p. 34) is car-

ried out. If a different drum kit is selected, etc., before carrying out the Store operation, the current settings will return to their original condition. If you want to keep changes made to the data, make sure you carry out the Store operation.

KIT3* ~~ ™tom1 ~~~ ˙

” ~~ Volume=110 ~~ ‚

4

Change the Output Sound Quality

Use the Master Equalizer found on Utility Page 5 to change the output sound quality. Overall settings for the DTXPRESS

IV are set in the Utility pages.

First, press the [SHIFT] + [SAVE/ENTER] buttons to view the Utility pages.

Utility (Page 1)

UTIL1 ~ Hi-hat

HHofs= ~~ 0 ~ T= ~~ 5‚

Press the [

>

] button five times to view Utility Page 5.

UTIL5 ~ MasterEQ

”Lo=+ ~ 2 ~ Hi=+ ~ 2 ~ ‚

Now use the Master Equalizer (two-band shelving type) setting to change the sound quality.

“Lo=” is for the low-range gain setting (+0dB to +12dB) and

“Hi=” for the high-range gain setting (+0dB to +12dB).

Press the [

<

]/[

>

] buttons to move the flashing cursor to the item you want to set, then rotate the jog dial to set its value.

UTIL5 ~ MasterEQ

”Lo=+ ~ 8 ~ Hi=+ ~ 0 ~ ‚

You can also adjust or set the individual pad voices, tuning, reverb type/level, and other settings that fine

tune the DTXPRESS IV (p. 28).

Adjusting the Hi-hat

Hi-hat adjustment is used to determine the point at which the hi-hat closes when the hi-hat pedal (foot controller) is pressed. You can also set the threshold at which foot

‘splashes’ are produced.

* This setting is only valid when a foot controller is connected to the HI HAT CONTROL jack. The setting has no effect on a foot controller connected to any other jack.

Operation

1. Press the [SHIFT] + [SAVE/ENTER] buttons to view

Utility Page 1.

Use this display to adjust the hi-hat.

UTIL1 ~ Hi-hat

HHofs= ~~ 0 ~ T= ~~ 5‚

2. To set the point at which the hi-hat closes, move the flashing cursor to the “HHofs=” value then use the jog dial to adjust the value.

The range of adjustment is -32 to 0 to +32. Smaller values produce a shallower closing point.

UTIL1 ~ Hi-hat

HHofs=-12 ~ T= ~~ 5‚

To set the ease at which foot splashes are produced, move the flashing cursor to the “T=” value then use the jog dial to adjust the value.

Settings include “off” and a range of 1 to 127. Larger values make foot splashes that are long and easier to produce. When this is set to “off,” foot splashes are not produced.

* Too high a value will make foot splashes too easy to produce, resulting in the continuous production of foot splashes when the pedal is held down continuously.

UTIL1 ~ Hi-hat

HHofs=-12 ~ T= ~ 20‚

16

DTXPRESS

IV

Owner’s Manual

2 Time to Play

Pad Controller Settings

When a pad-controller-equipped pad (TP100, etc.) is connected, you can adjust the snares setting and tightness, tuning, or tempo by rotating the pad controller knob of the pad.

Operation (for Special Set users)

In the default setting, you can adjust the snares setting and tightness using the pad controller of the TP100 (the snare drum pad). To use functions other than the snares adjustment, change the setting as follows.

1. Press the [DRUM KIT] button to enter the Drum Kit

Select display.

KIT1 ~~~ _________

1 ~ :Oak ~ Custom ~~ ‚

2. Next, continue pressing the [>] button until Page 22 of the Drum Kit Select pages is called up.

3. Rotate the jog dial to change the value for

“PadCtl=”. You can select from the following functions.

off .......... No function is assigned.

snares .... Adjusting the snares setting and tightness (also affects the open rim sound) tuning .... Tuning adjustment (also affects the open rim sound) tempo ...... Adjusting the tempo

KIT22*

”PadCtl=tuning ~ ‚

Operation (Replacing the pad with one equipped with pad controller)

Here’s how you can use the pad with pad controller

(TP100) as a snare drum.

1. Use the TP100’s supplied cable to connect the TP100 with trigger input

1SNARE on the DTXPRESS IV.

* Use ONLY the TP100’s supplied cable. If another cable is used, the pad controller or the pad may not perform properly.

* The other trigger input jacks other than the

1SNARE are not compatible with pad-controller-equipped pads. The pad controller will not work if this type of pad is connected to a trigger input jack other than

1SNARE.

2. Press the [SHIFT] + [DRUM KIT] buttons to view the

Trigger Setup display.

TRG1 ~~~ ååååååååå

4 ~ :STD ~ Med ~~~~~ ‚

3. Next, press the [>] button once to view the following display (pad type).

Hit the snare pad to view “ƒsnare” in the upper half of the display, then rotate the jog dial to set

“Type=

~

TP1/Snr .”

TRG2* ~ ƒsnare ~~ 0%

”Type= ~ TP1/Snr ~ ‚

CAUTION

An asterisk “*” will appear next to “KIT22

in the display if the data has been changed.

This asterisk will disappear after the Store

operation (p. 34) is carried out. If a different

drum kit is selected or the power is turned off before carrying out the Store operation, the current settings will return to their original condition. If you want to keep changes made to the data, make sure to carry out the

Store operation.

CAUTION

An asterisk “*” will appear next to “TRG2” in

the display if the data has been changed.

This asterisk will disappear after the Store

operation (p. 36) is carried out. If a different

drum kit is selected or the power is turned off before carrying out the Store operation, the current settings will return to their original condition. If you want to use the selected pad again, make sure to carry out the Store operation.

4. Now you are ready to use the pad-controllerequipped pad.

See the section “Operation (for Special Set users)” in the left column to change the function you want to use for the pad controller.

DTXPRESS

IV

Owner’s Manual

17

3

Playing Along With the Click

Play the DTXPRESS IV along with the click (metronome).

The DTXPRESS IV is equipped with a high-performance metronome that gives you a comprehensive variety of settings and allows you to create complex rhythms.

1

Start the Click (Metronome)

Press the [ ON/OFF] button to start the click sound. The left lamp lights in red on the first beat of every measure when the click is playing. Other beats are indicated with the right lamp in green. The click tempo ( q

=) is also indicated on the

LED display. Press the [ ON/OFF] button again to stop.

* If tempo is not shown, change the LED display setting (p.

21) to “Disp=tempo.”

1st beat (red) Other beats (green)

123

2

Set the settings for Click Set, Tempo, Beat, etc.

By fine tuning the different note value clicks that are shown in the illustration below, the DTXPRESS IV can be used to create a variety of click patterns. The patterns you set are called Click Sets, and you can save up to 30 original patterns in the DTXPRESS IV’s memory.

Example: Beat timings used when Beat=4

Press the [CLICK] button to view Click Setting Page 1.

CLK1 ~~~~ ∫ ~ B=4 ~ ÷ç

1 ~ :User ~~~ ⁄=123‚

Use this display to select the desired Click Set, and then set the beat, tempo, timer, and the click sound’s overall volume.

Press the [

<

]/[

>

] buttons to move the flashing cursor to the item you want to set, then rotate the jog dial to set its value.

Click Setting display (page 1)

Beat

Click Master Volume

CLK1 ~~~~ ∫ ~ B=4 ~ ÷ç

1 ~ :User ~~~ ⁄=123‚

Click Set Number:

Click Set Name

Click Timer

Tempo

• Click Set Number [Range] 1 to 30

Selects the Click Set to be used.

• Beat [Range] 1 to 9

Determines the click’s time signature.

• Tempo [Range] 30 to 300

Determines the click’s tempo ( q

=).

* The tempo can also be set using the Tap Tempo Function. This function lets you set the song or click’s tempo by tapping in tempo on a pad. With this, you can set the

tempo to one that feels best to you. Refer to page 21 for

more information.

• Click Timer [Range] 0 to 600 seconds (in 30-second steps)

This function is used to automatically stop the click at the time set in this setting.

* The value (the remaining number of seconds) of the Click

Timer can be shown in the LED display. Refer to page 21

for more information.

• Click Master Volume [Range] 0 to 16

Determines the click’s overall volume.

* When the flashing cursor is not positioned here, the speaker icon will be displayed.

CAUTION

An asterisk “*” will appear next to “CLK1” in the

display if settings for beat and tempo are changed. This asterisk will disappear after the

Store operation (p. 20) is carried out. If a differ-

ent Click Set is selected, etc., before carrying out the Store Operation, the current settings will return to their original condition. If you want to keep changes made to the data, make sure to carry out the Store Operation.

CLK1* ~~~ ∫ ~ B=4 ~ ÷ç

1 ~ :User ~~~ ⁄=130‚

18

DTXPRESS

IV

Owner’s Manual

3 Playing Along With the Click

3

Create Your Own Original Click Set

Press the [

>

] button to view Click Setting Page 2.

CLK2* ~ A˘=9 ~ ⁄=9

” ~ ‹=6 ~ ßß=4 ~ Œ=2 ~ ‚

Use this display to set the individual volume levels (0 to 9) for each of the five click beats. Set the volume level to “0” if you don’t want the beat to sound. Use this page to create your own original click set.

* For details about the five click beats, see the illustration example “Beat timings used when Beat=4” in step 2 on page

18.

4

Set the Click Measure Break

Press the [

>

] button to view Click Setting Page 3.

CLK3*MeasBreak

”Meas=1 ~ Brk=3 ~~ ‚

The Click Measure Break puts a muted “break” for the number of measures decided with the “Brk” setting (off, 1 to 9) after the click has played for the number of measures determined by the “Meas” setting (1 to 9). When values are set as above, the click is played for a measure then muted for 3 measures.

* Decide the number of measures to be muted at “Brk=” then the number of measures to be played at “Meas=.”

* If the setting “Brk=off” is used, the click will not be muted.

5

Set the Click Sound Set

Press the [

>

] button to view page 4 in the Click Setting display.

CLK4*Sound

” ~ 1:Metronome ~~ ‚

The Click Sound Set is used to assign the five different click sounds that are produced by the metronome. The sounds are changed as a group.

[Range]

Metronome, Wood Block, Percussion,

Agogo, Stick, Pulse, UserClick

With the “UserClick” setting you can use the CLK5 and

CLK6 pages to fine-tune the click sound settings.

6

Set the User Click Sounds

Press the [

>

] button to view Click Setting Page 5.

Click Value Type

CLK5*Sound=¤

”E20:Click1 ~~~~ ‚

Voice Category/Voice Number: Voice Name

You can assign a different drum voice to each of the five click voices.

* This setting is only available if “

UserClick

” is selected in the CLK4 page.

First, select the click value type (

,

,

,

ßß

,

Œ

) in the upper half of the display, then move the flashing cursor to the lower half of the display and select the voice you want to assign to the click.)

First, select the voice category.

Voice Category

K : Kick

S : Snare

T : Tom

C : Cymbal

H : Hi-hat

P : Percussion

E : Effect

Next, select the voice number and voice name. If the voice number is set to “00,” the indication “NoAssign” is shown for the voice name and no sound will be produced.

7

Tuning the User Click Sounds

Press the [

>

] button to view Click Setting Page 6.

Click Value Type

CLK6*Sound=¤

” ~~ Tune=+ ~ 0.0

Tuning

You can individually tune each of the five click sounds.

* This setting is only available if “

UserClick

” is selected in the CLK4 page.

First, select the click value type in the upper half of the display, and then move the flashing cursor to the lower half of the display and set the tuning value in semitones (-24.0 to 0 to

+ 24.0).

DTXPRESS

IV

Owner’s Manual

19

3 Playing Along With the Click

8

Save an Original Click Set

After creating your own original Click Set, save it in the

DTXPRESS IV’s memory using the Store Operation described below.

CAUTION

Any changes made to the data will be lost if another Click Set is selected before carrying out the store operation. If you want to keep settings or changes, make sure to carry out the Store

Operation.

8-1.

Press the [SAVE/ENTER] button. The following display will appear.

Store Destination

CLK ~ save ~ to ~ 1

:[User ~~ ]

Click Set Name

8-2.

Rotate the jog dial to select the destination memory number (1 to 30) to which you want to store the Click

Set.

8-3.

If you want to change the Click Set name, press the

[

<

]/[

>

] buttons to move the flashing cursor to the character you want to edit, then rotate the jog dial to select the desired character. A Click Set name can contain a maximum of six characters, and these can be selected from the following list.

space

!"#$%&'()*+,-./0123456789:;<=>[email protected]

ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^_` abcdefghijklmnopqrstuvwxyz{|}≥≤

8-4.

Press the [SAVE/ENTER] button again. A prompt appears asking you to confirm the Store operation.

CLK ~ save ~ to ~ 1

~ Are ~ you ~ sure ~ ?

8-5.

Press the [SAVE/ENTER] button to actually execute the Store operation.

* To cancel the Store operation, press any button except for the [SAVE/ENTER] and [SHIFT] buttons.

(When “Are you sure?” appears in the display, the jog dial will also cancel the operation.)

The following display appears after the Store operation is complete.

~~~ Completed!

NOTE

• You can use the Factory Set operation to reset the click sets 1 through 30 to their original factory condition. However, please proceed with caution because carrying out this operation will rewrite the DTXPRESS IV’s entire contents (all

Click Sets, User Trigger Setups 8–11, User Drum Kits 51–70,

User Songs 64–83, Utility settings) with the data that was set

in the unit’s memory when it was shipped from the factory (p.

35).

Click Out Select

The DTXPRESS IV lets you select from which output jack the signal of the click (metronome) is sent. Click output and performance output can be routed to separate outputs.

Operation

1. First, press the [SHIFT] + [SAVE/ENTER] buttons to call up the Utility display.

UTIL1 ~ Hi-hat

HHofs= ~~ 0 ~ T= ~~ 5‚

2. Next, press the [>] button twice to call up the following display.

UTIL2 ~ Click

”OutSel=mix ~~~~ ‚

3. Rotate the jog dial to select the output from the outputs listed below.

mix

This is the standard output setting. The click signal is output from both the OUTPUT L and R jacks.

clickL

The click signal is output from the OUTPUT L jack only. All drum performance and song playback are output in mono via the OUTPUT R jack.

clickR

The click signal is output from the OUTPUT R jack only. All drum performance and song playback are output in mono via the OUTPUT L jack.

* The PHONES jack outputs the same signal as the OUT-

PUT jacks. The settings in this section would then also be applied to the PHONES jack’s stereo L and R.

20

DTXPRESS

IV

Owner’s Manual

3 Playing Along With the Click

Tap Tempo Function

With the Tap Tempo Function, you can set the song or click’s tempo by manually tapping in the tempo on a pad.

This lets you set the tempo to one that is most comfortable for you.

The [

<

]/[

>

] buttons can also be used to set the tempo instead of tapping on a pad.

Operation

1. Press the [SHIFT] + [ ON/OFF] button.

The Tap Tempo Setting display shown below will appear.

* The Tap Tempo function can even be used during song playback or while the click is sounding.

TAP ~ TEMPO

¤=123 ~ ≠ªªªª

2. Tap on the pad at the tempo in which you want to play the song. (Or use the [<]/[>] buttons.) Tap on the pad steadily and repeatedly—as many times as there are circles (≠ªªªª) in the display. Every time you tap a circle disappears, and the resulting tempo value is set and shown in the LED display.

* Any pad will do.

* The jog dial can also be used to change the tempo value.

3. Press the [ ON/OFF] button to hear your newly set tempo.

4. Press the [DRUM KIT], [CLICK], or [SONG >/

■] button to exit from the Tap Tempo page. In the Click Setting page and Song Select page, the tempo is set to the newly selected tempo. If the song or click is playing, the tempo will immediately change to the new tempo.

LED Display Setting

Generally, the tempo is shown in the LED display. You can change the value to be displayed to one of the following three types.

tempo ..... Shows the current tempo.

mode ........ • When pressing the [DRUM KIT] button:

Drum kit Number

• When pressing the [SHIFT] + [DRUM KIT] buttons: Trigger Setup Number

• When pressing the [SONG] button: Song

Number

• When pressing the [CLICK] button: Click

Set Number

• When pressing the [SHIFT] + [SAVE/

ENTER] buttons: Shows nothing.

• Others: Shows the current tempo.

timer ......Shows the current click timer (p. 18).

Operation

1. First, press the [SHIFT] + [SAVE/ENTER] buttons to call up the Utility pages.

UTIL1 ~ Hi-hat

HHofs= ~~ 0 ~ T= ~~ 5‚

2. Next, press the [>] button four times to call up the following page.

UTIL4 ~ LED

” ~ Disp=tempo ~~~ ‚

3. Rotate the jog dial to select the type you want to display.

Even though a parameter value other than “tempo” is shown in the LED display, when tempo is changed by one of the operations below, the new tempo briefly appears in the LED after the change is made.

• When the tempo is changed by holding the

[SHIFT] button and rotating the jog dial.

• When operating a pad controller (p. 17) whose

function is set to “tempo.”

• When hitting a specific pad whose pad function

(p. 23) is set to “inc tempo” or “dec tempo.”

DTXPRESS

IV

Owner’s Manual

21

4

Playing Along With a Song

The DTXPRESS IV contains a wide variety of 63 preset songs. Try selecting among these and play along with them—they are effective tools that help you learn how to drum and master drumming techniques. The DTXPRESS IV conveniently lets you mute the drum part of a song and have only the bass part sound during playback, so you can play the drum part yourself.

1

Select a Song

Select one of the DTXPRESS IV’s songs and listen. The

DTXPRESS IV contains 63 preset songs that, in addition to drums, include accompaniment with keyboard, brass, and other voices.

* “Preset Song List” (p. 49)

Press the [SONG

>

/

] button to view the Song Select display.

SONG1 ~~~ ⁄=123 ~ ÷ç

1 ~ :Demo ~ 1 ~~~~ ∞¢‚

Make sure the song number is flashing, then use the jog dial to select a song number (1 to 63) you want to listen to.

* When a different song is selected, the drum kit changes to one that matches the song.

SONG1 ~~~ ⁄=123 ~ ÷ç

1 ~ :Demo ~ 1 ~~~~ ∞¢‚

Song Number Song Name

2

Listen to the Song

Press the [SONG

>

/

] button and after the count, the song will start playback from the beginning.

After the song has played to the end, it will automatically start playing from the beginning again.

Press the [SONG

>

/

] button to stop playback.

* If you’ve changed the song’s tempo or its voices and want to return to the original, re-select the song.

* If a different song is selected during song playback, the new song will start playback from the beginning.

3

Adjust the Song’s Volume and Tempo

Use the [

<

]/[

>

] buttons to select the tempo value (the value flashes), and then use the jog dial to set the song’s playback tempo (q = 30–300).

Next, press the [

>

] button to move the flashing cursor to the right. The speaker icon will change to a numeric value and flash. This determines the volume (range: 0–16) for parts other than the drum. Rotate the jog dial and adjust the balance between the song accompaniment and your performance.

Tempo Song Volume

SONG1 ~~~ ⁄=130 ~ 11

1 ~ :Demo ~ 1 ~~~~ ∞¢‚

* The tempo can also be set using the Tap Tempo function.

This lets you set the song or click’s tempo by tapping in tempo on a pad. With this, you can conveniently set the

tempo to one that feels best to you. Refer to page 21 for more

information.

4

Mute the Drum Part

Try playing along with the song.

Press the [

>

] button several times so that the “

∞¢

” mark flashes in the lower right side of the display.

Next, rotate the jog dial clockwise to change the mark to

˚¡

” in the lower right side of the display, to mute the drum part of the song during playback.

SONG1 ~~~ ⁄=130 ~ ÷›

1 ~ :Demo ~ 1 ~~~~ ∞¢‚

Rotate the jog dial counterclockwise.

∞¢

Cancel the mute function.

(The drum part plays.)

Rotate the jog dial clockwise.

˚¡

Mute

(The drum part doesn’t play.)

Now play the drum part yourself.

To cancel the Drum Mute function and hear the original drums, rotate the jog dial counterclockwise to change the

˚¡

” mark to “

∞¢

” again.

* The Drum Mute setting can also be changed during song playback.

5

Adjust the Tuning

The song’s tuning can be adjusted in increments of 10 cents.

The Tuning setting is found in the Utility pages.

First, press the [SHIFT] + [SAVE/ENTER] buttons to call up the Utility pages. Next, press the [

>

] button 7 times to view the Master Tuning page shown below, then use the jog dial to adjust the tuning in semitones (-24.0 to 0 to +24.0).

UTIL6 ~ MasterTune

” ~~ Tune=+18.0

~~ ‚

22

DTXPRESS

IV

Owner’s Manual

4 Playing Along With a Song

6

Play Along with Bass Solo

The useful Bass Solo function lets you isolate just the bass part during playback and play along with it. Since this function mutes the other accompaniment parts, it lets you concentrate on mastering the important technique of ‘locking in’ with the bass and forming a tight rhythm section.

First, press the [SHIFT] + [SAVE/ENTER] buttons to call up the Utility pages.

Next, press the [

>

] button three times to call up the following page. Rotate the jog dial and select “BassSolo=on.”

UTIL3 ~ Song

” ~ BassSolo=off ~ ‚

With this set, press the [SONG

>

/

] button to start playback—only the bass part will be heard.

* You may find that with the drum part muted or the bass solo, it may be a little difficult to keep time. In this case, use the click along with the song. Using the click sound as a reference will make it easier to play along with the song.

Press the [ ON/OFF] button to have the click play in tempo along with song playback. Press the [ ON/OFF] button again to stop.

* Changing the song will normally change the drum kit to the kit that is pre-assigned to the song.

If you want to use a different drum kit when playing along with the song, press the [DRUM KIT] button to enter the Drum Kit

Select display, and then select another drum kit number.

If a different song is selected while Drum Mute is active, the drum kit will not change when a different song is selected.

Pad Function Settings

The DTXPRESS IV conveniently lets you execute important operations by hitting a specific pad—without having to press buttons on the panel. You can assign the following functions to the pads.

off ................... Normal operation.

inc ~ kitNo ..... Increases the drum kit number by 1

(increment).

dec ~ kitNo ..... Decreases the drum kit number by 1

(decrement).

inc ~ clkNo ..... Increases the click set number by 1

(increment).

dec ~ clkNo ..... Decreases the click set number by 1

(decrement).

inc ~ tempo ..... Increases the value of the tempo by 1

(increment).

dec ~ tempo ..... Decreases the value of the tempo by 1

(decrement).

clkOn/Off ..... Switches the click sound on/off.

Operation

1. First, press the [SHIFT] + [SAVE/ENTER] buttons to call up the Utility pages.

UTIL1 ~ Hi-hat

HHofs= ~~ 0 ~ T= ~~ 5‚

2. Press the [>] button several times to call up the

UTIL7 page.

UTIL7 ~~ ƒsnare

”Func=off ~~~~~~ ‚

3. To select the pad (Trigger Input Source) to which you want to assign a function, simply hit the target pad, or press the [SHIFT] + [<]/[>] buttons.

4. Rotate the jog dial to select the desired function.

Pad (trigger input source) to which a pad function is assigned

UTIL7 ~~ ™tom1

”Func=clkOn/Off‚

Function assigned to the pad

In the above setting, the click sound can be switched

ON/OFF by hitting the tom1 pad which is connected to the

2TOM1/10 jack.

DTXPRESS

IV

Owner’s Manual

23

5

Using the Groove Check Function

Another highly useful feature of the DTXPRESS IV is the Groove Check function. As you play along with a song or the click, Groove Check compares your timing with the song or click playback and lets you know how accurate your playing is.

The related Rhythm Gate function—in which the sound is cancelled if your timing is off—also offers you a great way to improve your technique.

Groove Check Mode

The Groove Check function has the following two modes.

Numeric Display Mode

In this mode, the accuracy of your drum hits is shown in numeric display.

The aspects shown in the numeric display are the average inaccuracy in the timing of each hit and the deviation in timing inaccuracy of all hits. To use this mode, select one of the modes other than “Challenge” from the Rhythm Gate settings in the GRV2 page.

* Hit timing display

If your timing is slow or you’re dragging the beat, the mark will move to the right side of the display. If your timing is fast or you’re pushing the beat, the mark will move to the left.

* Rhythm Gate range

With the Rhythm Gate function, sound is produced only if the hit is within the specified range, and sound is not produced if the hit is outside this range. The range of

Rhythm Gate can be selected from three levels according to the degree of difficulty and if this is set to off, sound is always produced, no matter what your timing is. The selected range is shown in the lower side of the upper half of the display.

* Tempo

The jog dial can be used to adjust the tempo for the song or click from 30 to 300.

* Inaccurate timing display

The average inaccuracies in timing as compared to the note value set in page GRV4 are shown in numeric display. Range: 0 (perfectly accurate), 1–9 (in units of 1/24 of a 16th note)

The deviation in timing inaccuracy is 0.0 to 9.9. Of course, the smaller this value is, more “in the pocket” your playing is.

Your hit Perfect timing

GRV1 ~ --æ√æ’æææ--

⁄=130 ~ Gr=-2œ0.0‚

Rhythm gate range

Tempo

Average inaccuracy in timing (-9 to +9)

Deviation in timing inaccuracy (0.0 to 9.9)

Challenge Mode

The DTXPRESS IV automatically evaluates the accuracy of

100 times hits over six grade levels from A to F and sets the range of Rhythm Gate according to the result. The tolerance automatically narrows if your hits are accurate and widens if your hits are inaccurate.

This mode can be used by selecting “Challenge” from the

Rhythm Gate settings in the GRV2 page.

* Hit timing display

Just as with the Numeric Display mode, your timing is displayed with an icon.

* Rhythm gate range

The set range of the Rhythm Gate is shown in the lower side of the upper half of the display.

After a pad (pads) is hit a specific number of times, the

DTXPRESS IV evaluates the accuracy of the hits and sets the range of Rhythm Gate automatically.

Hit accuracy evaluation

In the lower half of the display, the number of remaining hits and the current evaluation result (%) are shown.

The current level (evaluation) and the status change during playback. If your playing accuracy result (%) was

90% or more, the level is raised one step, and if accuracy is 60% or less, the level is lowered one step.

• Current level (evaluation): A (best) to F (worst)

• The icon and the meaning of evaluation

Ã

: Increases the strictness (as you continue playing in the same way)

: Maintains the same strictness (as you continue playing in the same way)

À

: Decreases the strictness (as you continue playing in the same way)

NOTE

• The level (evaluation) when the challenge mode begins is set to D.

* Tempo

Tempo is not shown in the Challenge mode display. To change the tempo, hold the [SHIFT] button and rotate the jog dial. You can adjust the tempo for the song or click from 30 to 300 (the tempo is shown in the LED display).

Your hit

Perfect timing

GRV1 ~ --æ√æ’æææ--

80Hits/ ~ 16%(DÀ)‚

Rhythm gate range

Remaining number of hits

The percentage in which sound is produced

Status display for evaluation

Ã

,

,

À

Current level (evaluation)

A (best) to F (worst)

Now let’s use the Groove Check function.

24

DTXPRESS

IV

Owner’s Manual

5 Using the Groove Check Function

1

Select a Song or a Click Set

First, select the song or click set that you want to play along with.

2

Set the Rhythm Gate (select a mode)

Press the [SHIFT] + [CLICK] buttons to call up page 1

(GRV1) in the Groove Check Setting pages.

GRV1 ~ --æææ’æææ--

⁄=123 ~ Gr= ~ 0œ0.0‚

Next, press the [

>

] button once to call up the GRV2 page, then rotate the jog dial to set the Rhythm Gate.

GRV2 ~ RhythmGate

”Mode=easy

Rhythm Gate setting

Rhythm Gate settings off .................Sound is always produced easy ...............Wide tolerance for sound production

(easy) normal ..........Mid-level tolerance for sound production

(average) pro .................Narrow tolerance for sound production

(difficult) challenge ...Tolerance changes by automatic evaluation (Challenge mode)

Note value set in GRV4 page

B A B A B A B

A: Range within which sound is produced. (The gate narrows as the setting changes from “easy” to “normal” to “pro.”)

B: Range within which sound will not be produced even though the pad is struck.

3

Select the Pad

Press the [

>

] button to call up the GRV3 page, then rotate the jog dial to select the pad (Trigger Input Source) that you want to check. The “ALL” setting selects all pads.

[Range]

ƒsnare, ™tom1, ... ƒ™pad12, all

GRV3

” ~ Input=ƒsnare ~ ‚

Pad (Trigger Input Source)

4

Set the Timing (note value)

Press the [

>

] button to view page GRV4, then rotate the jog dial to select the note value of the timing you want to check.

[Range]

Accent A˘, quarter note ⁄(4), eighth note Ö(8), sixteenth note Ü(16), eighth note triplet Ö3

GRV4

” ~~ Note=⁄(4)

Timing (Note value)

5

Start the Groove Check

After setup is complete, start playback of the song ([SONG

>

/

]) or the click sound ([ ON/OFF]) and go back to the

Groove Check’s main menu (the GRV1 page).

Groove Check begins as soon as you hit the pad specified in the GRV3 page.

6

Play as accurately as possible

Listen to the song or click and concentrate on playing the pads accurately. The jog dial can be used to adjust the tempo for the song or click.

If the Numeric Display mode is selected, stop the song or click and check the results. Change the Rhythm Gate setting, pad type, or note value as you like and enjoy practicing.

* The Groove Check’s results are reset the next time song or click starts playing.

If the Challenge mode is selected, when the remaining hits become zero, the final evaluation is displayed in six levels from A to F. With this evaluation, the range over which the sound is produced is set automatically. The higher the evaluation (A is the highest and F the lowest), the narrower the tolerance becomes.

* The Groove Check’s results are reset the next time song or click starts playing. The current level (evaluation) and the range over which sound is produced are also reset.

DTXPRESS

IV

Owner’s Manual

25

6

Record Your Performance

In this section, you’ll learn how to record your performance to the DTXPRESS IV’s built-in sequencer. In the song data you record, you can switch Drum Kits, change the tempo and playback in the same way as with Preset Songs.

Recording System

• Recording can be done with any of the User Songs (64–83).

However, you cannot record to Preset Songs (1–63).

• A recorded song doesn’t contain recordings of the audio

‘sounds’ of the drums, but rather the performance ‘information’ or data of precisely when and how each pad was hit. This information is called sequence data. Unlike audio data, sequence data can be freely used to change the tempo, select the voice or drum kit during playback.

• Tempo [Range] 30 to 300

Sets the click’s tempo ( q

=) when recording.

• Beat [Range] 1 to 9

Sets the click’s beat when recording.

• Quantize [Range]

,

⁄3

,

Ö

(eighth note),

Ö3

(eighth note triplet),

Ü

(sixteenth note),

Ü3

(sixteenth note triplet),

no

The Quantize function can be applied during recording and is used to align the timing of your performance with that of the nearest specified beat. The accuracy of quantization is assigned with a note value.

* A setting of “no” results in no quantization.

How Quantize Works (an example)

Recorded notes were not played in time.

Now, let’s start recording…

1

Select the Song you want to record

Press the [SONG] button to display the Song Select display, select a User Song number (64–83).

If you want to play along with a Preset Song and record it, select the desired song (1–63). In this case, the lowest numbered empty User Song will automatically be selected for recording.

CAUTION

If a User Song containing data is selected, any recorded data previously existing is overwritten and lost.

2

Set the Recording Conditions

Simultaneously hold down the [SHIFT] button and press the

[SONG

>

/

] button to call up the following Recording Conditions setting page.

* If a Preset Song is selected for recording and all User Songs already contain data, the error message “Memory full” is

shown. Use the Song Clear function (p. 27) to prepare an

empty User Song, then set the recording conditions.

In this display set the click tempo, beat, and quantize.

Press the [

<

]/[

>

] buttons to move the flashing cursor to the item you want to set, then rotate the jog dial to set its value.

Tempo

REC ~~~~~~~~ ⁄=130

Beat=4 ~ Quant=⁄3

Beat

Quantize

The Quantize Function aligns the timing.

Perfect timing

3

Start Recording

Press the [SONG

>

/

] button and after the count, recording will start. Record while listening to the click sound.

Current measure number during recording

REC ~~ Meas= ~ 10

~ Now ~ Recording.

CAUTION

Never attempt to turn off the power during recording. All User Song data may be lost.

26

DTXPRESS

IV

Owner’s Manual

6 Record Your Performance

4

Finish recording

Press the [SONG

>

/

] button to finish recording. A

“now ~ storing ~ ...” message is shown for a short time.

~ now ~ storing ~ ...

CAUTION

Never attempt to turn off the power while the

now storing ...

” message is shown; all User

Song data may be lost.

When saving is complete, a “completed!” message is shown and the Song Select page will reappear.

Even if the power is switched off, the completed song will be stored.

5

Listen to the Song

Following recording, the User Song number you recorded flashes in the Song Select page.

Press the [SONG

>

/

] button, and playback of the song you just recorded will start from its beginning.

* You can change the Drum Kit used for the recorded song. To change Drum Kits, press the [DRUM KIT] button to enter the

Drum Kit Select display (KIT1 page) and rotate the jog dial to select a different kit.

6

Give the User Song a name

The song name of the recorded User Song is shown as the song name of the Preset Song or “Untitled.” Enter your own original name for the recorded User Song.

* The song names of the Preset Songs cannot be edited.

6-1.

Press the [SAVE/ENTER] button in the Song Select page. The Song Name setting page is shown.

SONG ~ save ~ name

:[Untitled]

6-2.

Press the [

<

]/[

>

] buttons to move the flashing cursor to the character you want to edit, then rotate the jog dial to select a character. A User Song name can contain a maximum of eight characters, and these can be selected from the following list. space

!"#$%&'()*+,-./0123456789:;<=>[email protected]

ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^_` abcdefghijklmnopqrstuvwxyz{|}≥≤

6-3.

Press the [SAVE/ENTER] button again. A prompt appears asking you to confirm the Store operation.

SONG ~ save ~ name

~ Are ~ you ~ sure ~ ?

6-4.

Press the [SAVE/ENTER] button once more to actually execute the Store operation.

* To cancel the Store operation, press any button except for the [SAVE/ENTER] and [SHIFT] buttons.

(When “Are you sure?” appears in the display, the jog dial will also cancel the operation.)

When saving is complete, a “completed!” message appears and the Song Select page will reappear. The song name is confirmed.

7

Clearing a User Song

If you want to clear any unneeded User Songs, follow the operation below.

* Preset Songs cannot be deleted.

7-1.

In the Song Select page, move the flashing cursor to the song number, and use the jog dial to select the

User Song you want to delete.

7-2.

Press the [

>

] button twice to view the SONG2 page.

SONG2 ~ Clear

”Are ~ You ~ Sure ~ ?

7-3.

Press the [SAVE/ENTER] button. A “now ~ clearing ~ ...” message is shown for a short time.

CAUTION

Never attempt to turn off the power while the

message “now clearing...” is shown; all User

Song data may be lost.

7-4.

When clearing data is complete, a “completed!” message is shown and the SONG1 page will reappear.

NOTE

• If the Factory Set operation is executed, all User Songs (64–

83) will be lost. Please proceed with caution, since executing this operation will also rewrite the entire memory contents of the DTXPRESS IV (all Click Sets, User Trigger Setups 8–11,

User Drum Kits 51–70, Utility data) with the data that was set

in the unit’s memory when it was shipped from the factory (p.

35).

DTXPRESS

IV

Owner’s Manual

27

7

Create Your Own Original Drum Kit

The DTXPRESS IV lets you create your own original Drum Kit by assigning your favorite Drum

Voice to each pad and setting its tuning, pan, decay, reverb, etc.

* Drum Voice: Mainly individual percussion/drum sounds that are assigned to each of the pads.

* Drum Kit: A collection of Drum Voices assigned to pads.

1

Select a Drum Kit

Press the [DRUM KIT] button to view the Drum Kit Select display (KIT1).

KIT1 ~~~ ååååååååå

1 ~ :Oak ~ Custom ~~ ‚

About the Trigger Input Sources

The Input Source indicates the trigger data that is transmitted by the pads or drum triggers (Yamaha DT20, etc.) that are connected to trigger input jacks

1SNARE to 8KICK/9 of the DTXPRESS IV.

When mono pads TP65, KP65, PCY65/130, DT10/20, etc. are used, one

Input Source is assigned to one input jack. When stereo pads RHH130,

PCY65S, etc. are used, two Input Sources (pad input and rim switch input or 2 kinds of pad inputs, etc.) are assigned to one input jack.

When three-zone pads TP65S, TP120SD/100, PCY150S/130SC, etc., are used, three Input Sources (pad input and two rim switch inputs, etc.) will be assigned to one input jack.

Rotate the jog dial to select the Drum Kit you want to use as a starting point for your original Drum Kit. A good idea is to select a Drum Kit that is close in sound to the type of kit you intend to create.

* Preset Drum Kits (1–50) and user Drum Kits (51–70) can be used for editing as well.

2

Assign Drum Voices

In this example, we’ll create a bass drum (kick) sound.

2-1.

Press the [

>

] button to view the Drum Voice Select page (KIT2).

KIT2 ~~~ ƒsnare ~~ ˙

”S01:OakCustom ~ ‚

2-2.

To select the pad (trigger input source) you want to edit, simply hit the pad you want to edit or use the

[SHIFT] + [

<

]/[

>

] buttons.

Step on the kick pedal or press the [SHIFT] + [

<

]/

[

>

] buttons and select “äkick.” Now the pad that is connected to the

8KICK Trigger Input Jack is selected. In other words, the kick pedal’s pad input is selected.

Pad to be edited

KIT2 ~~~ äkick ~~~ ˙

”K01:OakCustom ~ ‚

Each Input Source is defined as follows.

ƒsnare

Pad input for

1SNARE jack.

ƒsnrOp

Open rim switch input for

1SNARE jack.

ƒsnrCl

Closed rim switch input for

1SNARE jack.

ƒsnrOff

Pad input for

1SNARE jack with the snares off.

ƒsnrOfOp

Open rim switch input for

1SNARE jack with the snares off.

ƒsnrOfCl

Closed rim switch input for

1SNARE jack with the snares off.

™tom1

£tom2

Ωtom3

•ride

Pad input for

2TOM1 jack.

Pad input for

3TOM2 jack.

Pad input for

4TOM3 jack.

Pad input for

5RIDE jack.

•rideE

Edge rim switch input for

5RIDE jack.

•rideC

Cup switch input for

5RIDE jack.

öcrash

Pad input for

6CRASH jack.

öcrashE

Edge rim switch input for

6CRASH jack.

öcrashC

Cup switch input for

6CRASH jack.

ühhOp

Pad input for

7HI HAT jack when the hi-hat controller is open.

ühhOpE

Edge rim switch input for

7HI HAT jack when the hihat controller is open.

ühhCl

Pad input for

7HI HAT jack when the hi-hat controller is closed.

ühhClE

Edge rim switch input for

7HI HAT jack when the hihat controller is closed.

ühhFtCl

Input when the hi-hat controller is pressed (foot close).

ühhSplsh

Foot splash input of the hi-hat controller.

äkick

“pad9

Pad input for

8KICK jack.

Pad input for

8PAD9 jack.

ƒπpad10

Pad input for

2PAD10 jack.

ƒƒpad11

Pad input for

3PAD11 jack.

Īpad12

Pad input for

4PAD12 jack.

* Mono pads do not have a rim switch function.

28

DTXPRESS

IV

Owner’s Manual

7 Create Your Own Original Drum Kit

2-3.

The letter “˙” displayed next to “äkick” indicates layer number 1, and “¶” indicates layer number 2.

Two voices can be output (in a layer) through one input source. Select the voice to be edited here.

KIT2 ~~~ äkick ~~~ ˙

”K01:OakCustom ~ ‚

Layer number

2-4.

Next, decide the Drum Voice category. Drum Voice categories are the same as those used in the user click

sound setting (p. 19).

Voice Category

K: Kick

S: Snare

T: Tom

C: Cymbal

H: Hi-hat

P: Percussion

E: Effect

Here, select “K: Kick”. Press the [

<

]/[

>

] buttons to move the flashing cursor to the Voice Category and rotate the jog dial to select “K”.

CAUTION

An asterisk “*” will appear next to “KIT” in the

display if data is changed. This asterisk will dis-

appear after the Store operation (p. 34) is carried

out. If a different Drum Kit is selected, etc., before carrying out the Store operation, the current settings will return to their original condition. If you want to keep changes made to the data, make sure to carry out the Store operation.

2-5.

Next, let’s select a Drum Voice.

Press the [

<

]/[

>

] buttons so that the voice number flashes, then rotate the jog dial and assign a Drum

Voice. The voice number and voice name will be displayed.

Here, select “K02:MapleCustm.”

* If the voice number is set to “

00

,” “

NoAssign

” is displayed as the voice name and no sound will be produced.

KIT2* ~~ äkick ~~~ ˙

”K02:MapleCustm‚

NOTE

• When Drum Voices are set for both layers 1 and 2, layer icon

˙ or ¶ is shown in the upper right hand corner of the KIT3 to

KIT10 displays. Move the flashing cursor to this icon (if necessary) and rotate the jog dial to change the layer to be edited.

• When a Drum Voice is assigned to either of the layers 1 and 2

(the other is set to “NoAssign”), the layer icon is not shown in the KIT3 to KIT10 displays. The layer which has a Drum

Voice is the target layer for editing.

• When Drum Voices are not assigned for either layer 1 or 2

(“NoAssign”), “---” will be shown in the KIT3 to KIT18 displays and the settings cannot be made.

Now you’ve selected the Drum Voice that will be used as the base for your original Drum

Voice.

Next, let’s edit this Drum Voice and create your original bass Drum Voice.

Select and set the display that you want to be edited from page 3 to page 25 in the KIT screen.

Store the data when you change the settings!

Make sure to store the data after any settings have been changed.

For information about how to save, see steps 26.

If a different drum kit is selected, etc., before carrying out the Store Operation, the current settings will return to their original condition. If you want to keep changes made to the data, make sure to carry out the Store Operation.

3

Change the Volume

This determines the volume of the Drum Voice that is output when the pad is hit. Use this to adjust the volume balance among the other pads.

Use the [

>

] button to call up the KIT3 page, then rotate the jog dial to set the volume (0–127).

KIT3* ~~ äkick ~~~ ˙

” ~~ Volume=120 ~~ ‚

4

Change the Tuning (Pitch)

This determines the tuning (pitch) of the Drum Voice.

Use the [

>

] button to call up the KIT4 page, then rotate the jog dial to set the tuning in semitones (-24.0 to 0 to +24.0).

KIT4* ~~ äkick ~~~ ˙

” ~~ Tune=~ 3.0

~~ ‚

5

Change the Pan

This determines the Drum Voice’s pan setting (the voice’s position within the stereo field).

Use the [

>

] button to call up the page KIT5, then rotate the jog dial to set the voice’s pan position.

The range is from “L64” (hard left) to “C” (center) to “R63”

(hard right). As you rotate the dial, notice the voice change its position within the stereo field according to the setting.

KIT5* ~~ äkick ~~~ ˙

” ~~~~ Pan=L ~ 5 ~~~ ‚

DTXPRESS

IV

Owner’s Manual

29

7 Create Your Own Original Drum Kit

6

Change the Decay

This determines the Drum Voice’s decay time (the time it takes the sound to fade out after being produced).

Use the [

>

] button to call up the KIT6 page, then rotate the jog dial to set the decay (-64–0–+63). Positive values produce a crisper sound.

KIT6* ~~ äkick ~~~ ˙

” ~~ Decay=+ ~ 8 ~~~ ‚

7

Change the Voice Character (Filter Setting)

This determines the filter’s cutoff frequency to change the

Drum Voice’s character (brightness).

Use the [

>

] button to call up the KIT7 page, then rotate the jog dial to set the cutoff frequency (-64–0–+63). Positive values produce a brighter sound.

KIT7* ~~ äkick ~~~ ˙

”CutOffFreq=+ ~ 4‚

8

Set the MIDI Note Number

This determines the MIDI Note Number that is transmitted when a signal is received from the input source. This affects which particular percussion or drum sound of a voice will play on a connected MIDI device.

Use the [

>

] button to call up the KIT8 page, then rotate the jog dial to set the MIDI Note Number (0–127). Displays the note number and note name (C-2–G8).

KIT8* ~~ äkick ~~~ ˙

”Note= ~~ 32/G#0 ~ ‚

* When the selected MIDI Note Number has already been assigned to another input source, an asterisk “

*

” will be displayed next to “

Note=

.”

* If the same MIDI Note Number is set to more than one pad within the same Drum Kit, the lowest numbered Input Source will take priority. In the case of the duplicate input sources, the same voice will be output.

If the setting is not available because of an already assigned

MIDI note number, “

(Note# in use)

” or “

(# in use)

” is shown in the lower half of the display.

9

Set the MIDI Channel

This determines the MIDI Transmit Channel for the MIDI note on data that is transmitted when a signal is received from the input source. This affects which particular channel will be used when playing a voice on a connected MIDI device.

Use the [

>

] button to call up the KIT9 page, then rotate the jog dial to set the MIDI Transmit Channel (1–16).

KIT9* ~~ äkick ~~~ ˙

” ~~ MIDI ~ Ch=10 ~~ ‚

10

Set the Gate Time of the MIDI Output

This determines the Gate Time (the length of time from Key

On to Key Off) for the MIDI note on data.

Use the [

>

] button to call up the KIT10 page, then rotate the jog dial to set the Gate Time (0.0s–9.9s).

KIT10* ~ äkick ~~~ ˙

”GateTime=0.3s

~ ‚

11

Set the MIDI Key On/Off

This determines whether to recognize MIDI Key Off events or not.

* This setting affects both layers

˙

and

. The

˙ /¶

indication is not shown in the upper right corner of the display.

Use the [

>

] button to call up the KIT11 page, then rotate the jog dial to set Key On/Key Off.

KIT11* ~ äkick

”KeyOff=disable‚ enable

............ Recognizes Key Off events.

disable

......... Does not recognize Key Off events.

* When this is set to “disable,” some voices may sound continuously. Press the [DRUM KIT] button to stop the sound.

12

Set the Hold Mode

Every time the pad is hit, Key On and Key Off messages are alternately sent. This means that one hit of the pad turns the sound on and the next turns it off.

* This setting affects both layers

˙

and

. The

˙ /¶

indication is not shown in the upper right corner of the display.

Use the [

>

] button to call up the KIT12 page, then rotate the jog dial to set the Hold Mode.

KIT12* ~ äkick

” ~ HoldMode=off ~ ‚

30

DTXPRESS

IV

Owner’s Manual

7 Create Your Own Original Drum Kit

on ................... Each time the pad is hit, either a MIDI Key

On or MIDI Key Off event will be transmitted alternately.

off................. Normal operation. When a pad is hit, only a

MIDI Key On event will be transmitted. After the decay time elapses, a Key Off event will be transmitted automatically.

* When this is set to “ on

,” you should also set the Key Assign

Mode to “ high

” in the KIT15 page.

13

Set the Cross Fade

This determines the Velocity Cross Fade between the layer voices

˙

and

.

* This setting affects both layers

˙

and

. The

˙

indication is not shown in the upper right corner of the display.

Use the [

>

] button to call up the KIT13 page, then rotate the jog dial to set the Cross Fade type.

KIT13* ~ äkick

” ~~ VelXFade=0 ~~ ‚

Cross Fade Type

0 .........Cross Fade function is not in effect.

˙

1

˙ ¶

6

2

˙

7

˙ ¶

3

˙

4

˙

8

˙

9

˙

5

˙

Vertical axis: Balance between layers

˙

and

Horizontal axis: Velocity

Layer

˙

Layer

14

Set the Alternate Group

This function allows you to assign different voices to the same alternate group, so that the playing of one sound in the group will automatically cancel others in the same group. A practical example of this is with the open and closed hi-hat voices. When you play an actual hi-hat—first open, then closed—the closed hi-hat naturally mutes the ringing open sound. Likewise, when the open and closed hi-hat voices are assigned to the same alternate group, the playing of one mutes the other.

* This setting has no affect on two-layer input sources. The

˙

/¶ indication is not shown in the upper right corner of the display.

Use the [

>

] button to call up the KIT14 page, then rotate the jog dial to set the Alternate Group.

KIT14* ~ äkick

” ~ AltGrp=off ~~~ ‚ off .................No cancellation

HH ~ pad ..........For the voice (ühhOp, ühhOpE, etc.) that is played when the hi-hat pad is hit.

HH ~ pdl ..........For the voice (ühhFtCl, ühhSplsh,

ühhCl, ühhClE, etc.) that is played when the hi-hat pedal is pressed.

1–9..................Alternate group number. Assigns the same group number for voices that you do not want to be output simultaneously.

15

Set the Key Assign Mode

This defines the sound output rules when multiple voices that are assigned to the same MIDI note number are simultaneously output.

* This setting affects both layers

˙

and

. The

˙ /¶

indication is not shown in the upper right corner of the display.

Use the [

>

] button to call up the KIT15 page, then rotate the jog dial to set the key assign mode.

KIT15* ~ äkick

”KeyAssign=semi‚ poly ...............Voices are output simultaneously.

semi ...............Up to three voices for this note number can be produced at one time. When a fourth voice is triggered, one of the first two voices will be muted (cancelled).

mono ...............One voice can be delivered at one time, and the previous voice will be muted (cancelled).

high ...............One voice can be delivered at one time, and the previous voice will be muted (cancelled).

However, even if the maximum number of 32 notes is exceeded, the note number selected here will not be muted.

DTXPRESS

IV

Owner’s Manual

31

7 Create Your Own Original Drum Kit

16

Set the Pad Song

When the pad is hit, the assigned pad song will start playback. In addition to one main song that is selected in the Song

Select display, a maximum of three Pad Songs can be individually set for a Drum Kit.

* This setting affects both layers

˙

and

. The

˙

indication is not shown in the upper right corner of the display.

Use the [

>

] button to call up the KIT16 page, then rotate the jog dial to set the Song Number to be assigned, the Repeat function, and the Playback mode.

KIT16* ~ äkick

”Song= ~ 45áéplay‚

Song Number

Repeat

Playback mode

Song Number off, 45–63 ... Assigns the Song Number that is assigned to the pad

Repeat Playback

áé ................... Repeats playback of the song (when the song reaches the end it will start again from the beginning, continuously).

-≥ ................... Normal playback.

Playback Mode play .............. When the pad is hit, playback of the assigned pad song will start/stop.

chse .............. When the pad is hit, one measure of the assigned pad song will start playback then pause.

ctof .............. When the pad is hit, playback of the assigned pad song will start/stop. However, if the pad song is set to “ctof,” the pad song will stop when another pad song with the “ctof” setting is started. This function allows only one

“ctof” pad song to be played at a time.

* Up to three pad songs can be set for each Drum Kit. To assign a pad song for other pads, hit the target pad, or press the [SHIFT] + [<]/[>] buttons, so that the target pad name

(trigger input source) is shown in the upper half of the display.

However, when three pad songs are set, “Song=off” is shown and the settings cannot be made.

* The tempo of the pad song is the same as that of the main song that is found in the Song Select display or the Click Setting display.

* If a function is already assigned in the UTIL7 page to the input source that the pad song is assigned, “

Song=(in use!)

” is shown and the setting in the UTIL7 takes priority.

(p. 23)

* When multiple pad songs are assigned and played back in combination, the voices within the songs may change unexpectedly or sound different than intended.

17

Set the Rim to Pad

This function is effective only when the input source is from a rim switch. When the rim is hit, pad events triggered from the same pad (trigger input jack) can be simultaneously transmitted with rim switch events. With this setting, a snare pad’s sound can be triggered at the same time as the snare’s rim shot.

* This setting affects both layers

˙

and

. The

˙

indication is not shown in the upper right corner of the display.

* When an input other than the rim switch is selected for the input source, “

RimToPad=---

” will be displayed and the settings cannot be made. The following display appears when “

ƒsnrOp

” is selected for the input source.

Use the [

>

] button to call up the KIT17 page, then rotate the jog dial to set the Rim to Pad.

KIT17* ~ ƒsnrOp

” ~ RimToPad=off ~ ‚ off

..................... Only transmits rim switch event.

on

........................Transmits both rim switch event and pad event.

18

Change the Reverb Level (1)

This determines the Reverb Send Level for the voices (layers

1, 2) triggered by the input source. This effectively allows you to adjust the reverb depth.

* This setting affects both layers

˙

and

. The

˙ /¶

indication is not shown in the upper right corner of the display.

* The actual Reverb Send Level is determined by adding the

Send Level set here to the Drum Reverb Send Level set in the KIT19 page.

Use the [

>

] button to call up the KIT18 page, then rotate the jog dial to set the Reverb Send Level (0–127).

KIT18* ~ äkick

” ~ RevSend= ~ 30 ~~ ‚

19

Change the Reverb Level (2)

This determines the Overall Reverb Send Level of the Drum

Voice.

* This setting affects the entire Drum Voice. The

˙

indication is not shown in the upper right corner of the display.

Use the [

>

] button to call up the KIT19 page, then rotate the jog dial to set the Drum Reverb Send Level (0–127).

KIT19*

” ~ RevSendDr= ~ 40‚

32

DTXPRESS

IV

Owner’s Manual

7 Create Your Own Original Drum Kit

20

Change the Reverb Type

This determines the Type of Reverb effect for each Drum Kit.

The same Reverb Type is applied to the entire Drum Kit.

* This setting affects the entire Drum Voice. The

˙

indication is not shown in the upper right corner of the display.

Use the [

>

] button to call up the KIT20 page, then rotate the jog dial to set the Reverb Type.

KIT20*

”RevType=hall1 ~ ‚ none .............. No reverb (same as thru).

hall1–5 ....... Simulates the reverb in a hall.

room1–5 ....... Simulates the reverb in a room.

stage1–5 ..... Simulates the ambience of a stage.

plate............ Simulates a steel plate reverb.

white............ A special short reverb effect.

tunnel ......... Simulates the reverb of a tunnel.

bsemnt ......... Simulates the reverb of a basement.

* The hall, room, or stage types with larger values produce a more pronounced reverb effect.

21

Change the Reverb Level (3)

This determines the Signal Return Level from the reverb effect for every Drum Kit. The same reverb type is applied to the entire Drum Kit.

By setting the level, you can adjust the reverb effect for the overall DTXPRESS IV system.

* This setting affects the entire Drum Voice. The

˙ /¶

indication is not shown in the upper right corner of the display.

Use the [

>

] button to call up the KIT21 page, then rotate the jog dial to set the Reverb Master Return level (0–127).

KIT21*

”RevMastRet= ~ 64‚

22

Set the Pad Controller

This is effective only when a pad equipped with pad controller is connected to the

1SNARE jack, and also when

“Type=TP1/Snr” is assigned in the TRG2 page (pad type) of the Trigger Setup pages.

The following settings can be made by rotating the pad controller knob.

off .................No function is assigned.

snares ..........Adjusting the snares (also effective for the open rim sound) tuning ..........Adjusting the tuning (also effective for the open rim sound) tempo.............Adjusting the tempo

For users of the DTXPRESS IV Special Set, set the Trigger

Setup to “1 :SP Med” (p. 14) to enable this function.

Depending on the Drum Kit you use, the default setting that can be adjusted by the pad controller varies.

* The

˙

indication is not shown in the upper right corner of the display.

Use the [

>

] button to call up the page KIT22, then rotate the jog dial to set the Pad Controller function.

KIT22*

”PadCtl=snares ~ ‚

23

Set the Snares

This adjusts the snares effect (the characteristic sound of the coiled wires on the bottom of an actual snare drum) of the pad connected to the

1SNARE jack.

This also applies to pads not having a pad controller.

* The

˙ /¶

indication is not shown in the upper right corner of the display.

Use the [

>

] button to call up the KIT23 page, then rotate the jog dial to set the Snares adjustment level.

KIT23*

” ~~ Snares=24 ~~~ ‚ off .................Snares off (reproduces the sound with the snares lifted off the drum)

1–24 ...............Snares are applied to the sound; the higher the value, the tighter the snares sound. (A value of “1” is the “loosest” snares setting.)

* When you change this setting, the decay setting (KIT6) for the input sources “ƒsnare” and “ƒsnrOp” also changes.

DTXPRESS

IV

Owner’s Manual

33

7 Create Your Own Original Drum Kit

24

Set the Program Change and Bank Select

When a Drum Kit is selected, this function sets the MIDI Program Change Number and the Bank Select MSB and LSB that will be transmitted. This can be set for each MIDI channel.

By transmitting a program change message, you can have the voice of an external MIDI device automatically change when switching the Drum Kit on the DTXPRESS IV.

* The

˙ /¶

indication is not shown in the upper right corner of the display.

Use the [

>

] button to call up the KIT24 page, then rotate the jog dial to make the following settings.

MIDI Channel

Program Change

Transmit On/Off

KIT24*PC ~ Ch1=on

”PC003 ~ M000L003‚

Program Change Number

Bank Select LSB

Bank Select MSB

* When the Program Change Transmit On/Off is set to “ off

,” values for PC, M and L will be “

---

” and the settings cannot be made.

MIDI Channel

1–16............... Target MIDI channel for the Program Change

Program Change Transmit On/Off on ................... Transmits.

off................. Does not transmit.

Program Change Number

001–128 ....... Transmitted program change number.

Bank Select MSB, LSB

000–127 ....... Bank select MSB number, LSB number

* For more information on Bank Select MSB and LSB, refer to the Voice List and MIDI Data Format documents, etc. of the particular external MIDI device you are using.

25

Set MIDI Volume and Pan—Control

Change

This function sets the MIDI Control Change Volume and Pan values that will be transmitted when a Drum Kit is selected.

This can be set independently for each MIDI channel.

This lets you automatically change the voice Volume and Pan on an external MIDI device when you switch the Drum Kit of the DTXPRESS IV.

* The

˙ /¶

indication is not shown in the upper right corner of the display.

Use the [

>

] button to call up the KIT25 page, then rotate the jog dial to make the following settings.

MIDI Channel

Control Change

Transmit On/Off

KIT25*CC ~ Ch1=on

”Vol=127 ~ Pan= ~ 64

Volume Pan

* When the Control Change Transmit On/Off is set to “ off

,” values for Vol and Pan will show “

---

” and the settings cannot be made.

MIDI Channel

1–16 ...............Target MIDI channel for Control Change messages

Control Change Transmit On/Off on....................Transmits.

off .................Does not transmit.

Volume

0–127 .............Sets the Volume Control Change data value that will be transmitted.

Pan

0–127 .............Sets the Pan Control Change data value that will be transmitted.

26

Save the Original Voice

To save the Drum Voice you created, use the Store operation described below and save it to the DTXPRESS IV’s memory.

Original kits can be saved as a Drum Kit to the User Drum

Kit (51–70) memory locations.

CAUTION

If you select a different Drum Kit before performing the Store operation, all changes you have made to the data will be lost. If you want to keep settings or changes, make sure to perform the

Store operation.

26-1. Press the [SAVE/ENTER] button. The following display will appear.

Store destination

KIT ~ save ~ to ~ 51

:[Oak ~ Custom ~~ ]

Edited Drum Kit name

26-2. Rotate the jog dial to select the destination user Drum

Kit number (51–70) that you want to store.

* Data cannot be stored to the Preset Drum Kits (1–50).

* You can save data to a User Drum Kit number that already contains data. However, be careful when doing this, since the previous data will be overwritten with the new data.

34

DTXPRESS

IV

Owner’s Manual

7 Create Your Own Original Drum Kit

26-3. If you want to change the Drum Kit name, press the

[

<

]/[

>

] buttons to move the flashing cursor to the character you want to edit, then rotate the jog dial to select a character. A Drum Kit name can contain a maximum of 12 characters, and these can be selected from the following list. space

!"#$%&'()*+,-./0123456789:;<=>[email protected]

ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^_` abcdefghijklmnopqrstuvwxyz{|}≥≤

26-4. Press the [SAVE/ENTER] button again. A prompt appears asking you to confirm the Store operation.

KIT ~ save ~ to ~ 51

~ Are ~ you ~ sure ~ ?

26-5. Press the [SAVE/ENTER] button once more to actually execute the Store operation.

*To cancel the Store operation, press any button except for the [SAVE/ENTER] and [SHIFT] buttons. (When

“Are you sure?” appears in the display, the jog dial will also cancel the operation.)

When the Store operation is complete, the following display appears.

~~~ Completed!

With this operation, you have now created a

Drum Kit that has an original bass Drum

Voice.

Use the same procedure to create Drum

Voices for the other pads (input sources) and create a complete custom Drum Kit of your own.

Factory Set

This operation returns all of the DTXPRESS IV’s internal settings back to their original factory defaults.

Please proceed with caution, since executing this operation will also rewrite the entire memory contents of the DTXPRESS IV (all Click Sets,

User Trigger Setups 8–11, User Drum Kits 51–70,

User Songs 64–83, Utility data) with the data that was set in the unit’s memory when it was shipped from the factory.

Operation

1. First, press the [SHIFT] + [SAVE/ENTER] buttons to call up the Utility pages.

UTIL1 ~ Hi-hat

HHofs= ~~ 0 ~ T= ~~ 5‚

2. Press the [>] button several times to call up the

UTIL8 page.

UTIL8

” ~ Factory ~ Set

3. From the page shown above, press the [SAVE/

ENTER] button to call up the prompt shown below, asking for confirmation of the Factory Set operation.

* To cancel the Factory Set operation, press any button except for the [SAVE/ENTER] and [SHIFT] buttons (the jog dial can also be used to cancel the operation).

All ~ data ~ will ~ be lost.AreYouSure?

4. Once again, press the [SAVE/ENTER] button to proceed with the operation.

~ All ~ Memory

~ Initializing...

DTXPRESS

IV

Owner’s Manual

35

8

Trigger Setup Edit

Trigger Setup Edit contains various settings related to trigger input signals received from pads or drum triggers (Yamaha DT20, etc.) that are connected to the trigger input jacks. These settings let you optimize the DTXPRESS IV for best operation and response to these signals.

If you are using drum triggers attached to acoustic drums, or pads other than those that came with the DTXPRESS IV set, you’ll need to adjust the sensitivity and assign voices to the individual trigger inputs. This section also has settings that help prevent crosstalk* and double triggering*.

* Crosstalk: The interference between trigger signals of physically adjacent pads, producing unexpected notes.

* Double triggering: The condition where a single pad hit causes multiple (usually two) triggers.

Trigger Setup procedure

If you are using pads or drum triggers other than those that came with your DTXPRESS IV Set (Standard Set/Special Set), or if you need to solve problems with double triggering or crosstalk, the Trigger Setup provides more detailed settings—such as changing the preset’s trigger setup—for individual pads.

If you’ve created a custom setup for these reasons or others, that setup can be saved to one of the Trigger Setup locations (8–11).

3

Rotate the jog dial to change the setting.

* An asterisk “

*

” will appear next to “

TRG

” in the display if data is changed. This asterisk will disappear after the Store operation is carried out.

* The Trigger Input Level produced when a pad is hit is shown on the upper right side of the display. When setting the gain, use this level as a guide to measure how hard a pad is being hit.

Trigger Input Level

TRG2* ƒsnare ~~ 0%

”Type=DT ~ Snare ~ ‚

1

Press the [SHIFT] + [DRUM KIT] buttons to call up the Trigger Setup Select page (TRG1). The currently selected Trigger

Setup is indicated in the display.

* If you want to edit a different trigger setup, use the jog dial and select the setup here.

Trigger Setup Select display (page 1)

4

To save changes you’ve made to the data, use the procedure described below to store them to a User Trigger Setup (8–11).

TRG1 ~~~ ååååååååå

1 ~ :SP ~ Med ~~~~~~ ‚

Trigger Setup Number: Setup Name

2

Use pages TRG2 through TRG8 to edit the Trigger Setup.

Press the [

<

]/[

>

] buttons to change pages and move the flashing cursor to the parameter you want to set.

* Refer to pages 37 to 39 for more information on individual

parameters.

CAUTION

If a different trigger setup is selected before executing the Store operation, all changes you have made to the data will be lost. If you want to keep settings or changes, make sure to carry out the

Store operation.

4-1.

Press the [SAVE/ENTER] button. The following display will appear.

Store destination

TRG ~ save ~ to ~ 8

:[SP ~ Med ~~ ]

To select the Trigger Input (input jack) you want to edit, simply hit the pad you want to edit or use the [SHIFT] + [

<

]/

[

>

] buttons.

Trigger Setup name

Trigger Input to be edited

TRG2 ~ ƒsnare ~~ 0%

”Type= ~ TP1/Snr ~ ‚

Previous page icon

Next page icon

Flashing cursor (parameter)

4-2.

Rotate the jog dial to select the destination trigger setup number (8–11).

4-3.

If you want to change the Trigger Setup name, press the [

<

]/[

>

] buttons to move the flashing cursor to the character you want to edit, then rotate the jog dial to select a character. A Trigger Setup name can contain a maximum of eight characters, and these can be selected from the following list.

space

!"#$%&'()*+,-./0123456789:;<=>[email protected]

ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^_` abcdefghijklmnopqrstuvwxyz{|}≥≤

36

DTXPRESS

IV

Owner’s Manual

8 Trigger Setup Edit

4-4.

Press the [SAVE/ENTER] button again. A prompt appears asking you to confirm the Store operation.

TRG ~ save ~ to ~ 8

~ Are ~ you ~ sure ~ ?

Explanations of Each Display Page

The following explanations cover the available parameters in the pages TRG1 through TRG8. To save the edited data, refer to step

4 on page 36.

TRG1 Trigger Setup Select

4-5.

Press the [SAVE/ENTER] button once more to actually execute the Store operation.

* To cancel the Store operation, press any button except for the [SAVE/ENTER] and [SHIFT] buttons.

(When “Are you sure?” appears in the display, the jog dial will also cancel the operation.)

The following display appears after the Store operation is complete.

TRG1 ~~~ ååååååååå

1 ~ :SP ~ Med ~~~~~~ ‚

[Range]

1–11

Selects the Trigger Setup Type (p. 14)

TRG2 Type (Pad Type)

~~~ Completed!

CAUTION

Never attempt to turn off the power while the

message “now storing...

” is shown. All Trigger Setup data may be lost.

TRG2 ~ ƒsnare ~~ 0%

”Type=TP1/Snr ~~ ‚

Sets the type of pad that is connected to the input jack assigned in the upper half of the display ([

1SNARE] in the example shown above).

* Values set in [TRG3 Gain, MVl (Mininimum Velocity)] (p. 38) and [TRG5 RejTime (Self Rejection Time)] (p. 38) will auto-

matically changed to the proper values for the pad type you set here.

Pad types are defined as follows.

KP KP80S/80/65/60

TP1/Snr TP100/120SD

TP2/SnrA TP65S/65 (mainly used as a snare pad) *1

TP2/SnrB TP65S/65 (mainly used as a snare pad) *1, *2

TP2/Tom TP65S/65 (mainly used as a tom pad) *1

TP3-A TP80S/80/65/60 *3

TP3-B

PCY1

PCY2

PCY3

TP80S/80/65/60 *3

PCY150S

PCY130SC

PCY130S/130

PCY4

RHH

PCY80S/80/65/60/10

RHH130

RHP ~ Pad RHP120SD/120/100/80 (pad side) *4

RHP ~ Rim RHP120SD/120/100/80 (rim side) *4

RHP ~ Kick KP120

BP BP80 *5

DT ~ Snare DT series drum trigger (for a snare drum)

DT ~ HiTom DT series drum trigger (for small toms)

DT ~ LoTom DT series drum trigger (for large toms)

DT ~ Kick DT series drum trigger (for a bass drum) misc ~ 1–6 Other manufacturer’s pads 1 to 6

DTXPRESS

IV

Owner’s Manual

37

8 Trigger Setup Edit

*1 Three-zone function (pad voice x 1, rim voice x 2) is available if a three-zone compatible pad such as the TP65S, etc. is connected to the

1SNARE, 5RIDE, or

6CRASH input.

For producing closed rim shots, the

“TP2/SnrA” has a high sensitivity setting on rim 1, while the “TP2/SnrB” has a high sensitivity setting on rim 2.

The same voice is assigned to “TP2/

Rim 2

Tom ” and “TP2/SnrA” and the left and right rim sensitivities are set to the same level.

Rim 1

*2 Rim1 and rim2 sounds on the “TP2/SnrB” are reversed from those on “TP2/SnrA”. This provides left-handed drummers with a proper setting when using a left-handed setting.

*3 When a stereo pad such as the TP80S is connected to the

1SNARE, 5RIDE, or 6CRASH input, “TP3-A” will produce the sound that is assigned to rim 1, and “TP3-B” will produce

the sound assigned to rim 2 (p. 28)

*4 When using an RHP series stereo pad, connect the pad to

Input

2TOM1/10, 3TOM2/11, 4TOM3/12, or 8KICK/9, and set the pad type in “™tom1”, “£tom2”, “Ωtom3”, or

“äkick” input to “RHP ~ pad ” and the pad type in “ƒπpad10”,

“ƒƒpad11”, “ƒ™pad12”, or ““pad9” to “RHP ~ rim .”

*5 To use the BP80 as a stereo pad, connect the pad to Input

2TOM1/10, 3TOM2/11, 4TOM3/12, or 8KICK/9.

TRG3 Gain, MVI (Minimum Velocity)

TRG3 ~ ƒsnare ~~ 0%

”Gain=65MVl= ~ 12‚

Gain [Range]

0–99

Adjusts the input gain (sensitivity) for the input jack assigned in the upper half of the page.

Setting a larger value lets a smaller input level from the pad create sound.

* This value will be automatically set after the appropriate pad type is set in [TRG2 Type (Pad Type)]. Some fine-tuning of the value will be necessary.

* Some pads are equipped with a sensitivity adjustment knob.

For details, refer to the owner’s manual that came with the particular pad.

MVI [Range]

1–127

Sets the MIDI Velocity (volume) that is transmitted when the pad is hit the softest. Large values will produce a high volume level even if the pad is hit softly. However, this will result in a narrow volume range making it difficult to adequately produce wider dynamic levels.

The Trigger Input Level will be displayed in percentage in the upper right hand corner of the display. The maximum velocity

(input level 99 percent) will be 127. The lower the level is when the pad is hit the weakest, the wider the potential dynamic range will be.

* This value is automatically set after the appropriate pad type is set in [TRG2 Type (Pad Type)]. Some fine-tuning of the value will be necessary.

TRG4 VelCurve (Velocity Curve)

TRG4 ~ ƒsnare ~~ 0%

”VelCurve=norm ~ ‚

Sets the Input Velocity Curve for the input jack assigned in the upper half of the page.

norm loud2 loud1 hard1 hard2

Strength of hit

TRG5 RejTime (Self Rejection Time)

TRG5 ~ ƒsnare ~~ 0%

” ~~ RejTime=1 ~~~ ‚

[Range]

0–9

Prevents double triggering from occurring in the input jack assigned in the upper half of the page. After an event is detected, further events will be automatically muted for a certain length of time. The larger the value, the longer time events will be muted.

TRG6 RejLvlAll (Rejection Level)

TRG6 ~ ƒsnare ~~ 0%

” ~ RejLvlAll=2 ~~ ‚

[Range]

0–9

Prevents crosstalk from occurring in the input jack assigned in the upper half of the page. Events triggered by other pads (input jacks) that are of a lower input value than what is set here will not be triggered for a certain length of time. Larger values require a greater input level in order to produce a trigger event.

TRG7 RejLvl (Specified Rejection Level)

TRG7 ~ ƒsnare ~~ 0%

”RejLv1=3Frm=56‚

RejLvl [Range]

0–9

Frm [Range]

1–6, 56 (5 and 6), 7–12

This setting is used to prevent crosstalk between the input jack assigned in the upper half of the page and the input jack assigned in the “Frm=” setting.

38

DTXPRESS

IV

Owner’s Manual

8 Trigger Setup Edit

After an triggering event occurs from the pad that is assigned in the “Frm=” setting, the pad assigned in the upper half of the display will not sound for a certain length of time unless the input level is greater than the value set here. Larger values will require a greater input level in order to produce a trigger event.

A “Frm=56” setting assigns both trigger input jacks 5 and 6.

TRG8 CopyToInput (Trigger Setup Copy)

TRG8 ~ ƒsnare

”CopyToInput= ~ 2‚

This function allows you to copy all data settings in pages [TRG2

Type (Pad Type)] through [TRG7 RejLvl (Specified Rejection

Level)] to another input jack.

CAUTION

When the Trigger Setup Copy operation is carried out, the Trigger Setup data will be replaced with the settings of the copy source.

Operation

1. Hit a pad to select the copy source (input jack) from which the data will be copied.

Rotate the jog dial and assign the copy destination (input jack).

Copy source (input jack)

TRG8 ~ ƒsnare

”CopyToInput= ~ 2‚

Copy destination (input jack)

2. Press the [SAVE/ENTER] button. A prompt appears asking confirmation of the Copy operation.

Input ~ Copy ~ to ~ 2

~ Are ~ you ~ sure ~ ?

3. Press the [SAVE/ENTER] button to actually execute the

Copy operation.

* To cancel the Copy operation, press any button except for the

[SAVE/ENTER] and [SHIFT] buttons (the jog dial can also be used to cancel the operation).

The following display appears after the Copy operation is complete.

~~~ Completed!

DTXPRESS

IV

Owner’s Manual

39

Error Messages

The DTXPRESS IV displays error messages when incorrect settings have been made or invalid operations have been detected, or when any abnormal operation or malfunction occurs.

If an error message appears, check the list below and make the appropriate corrections.

ERROR

Data ~

ERROR

Initialized

Memory ~ full

This message appears just after the power is switched on and the device cannot correctly read the data due to the Factory Reset operation being active.

The backup ROM data may have been damaged. Contact the nearest Yamaha Service Center or the dealer where you purchased the device.

You have exceeded the memory capacity of the user song.

Delete unused songs to make more memory available and try recording again.

Writing data to the backup ROM has failed.

ERROR

Can'tWriteMemory

Trobleshooting

The DTXPRESS IV does not produce sound, or does not recognize trigger inputs.

● Are the pads or drum triggers (Yamaha DT20, etc.) properly

connected to the DTXPRESS IV’s trigger input jacks? (p. 10,

11)

● Is the DTXPRESS IV properly connected to headphones or an

external audio device such as an amplifier, speaker, etc.? (p.

12)

● Check the position of the power switches and volume levels of any connected external audio devices, such as an amplifier, speaker, etc.

● The volume knob on the rear panel may be turned down (p.

15).

● Is the input level displayed when the pad is hit? (p. 38 [TRG3

Gain, MVI (Minimum Velocity)])

● Is the gain set too low? (p. 38 [TRG3 Gain, MVI (Minimum

Velocity)])

● The volume setting on the Drum Kit Select display’s “KIT3 Vol-

ume” page (p. 29) may be set to “0.”

● Is there a problem with the cable you are using?

● The drum voices for both layers

˙

and

may be set to

00:NoAssign

.” (p. 29 Step2: [KIT2])

The external tone generator does not produce sound.

● Is the MIDI cable (connector) properly connected? (p. 13)

● Is the correct MIDI connector being used? (p. 13)

● Are the MIDI note number values appropriate?

(p. 30 Steps 8 to 10: [KIT8], [KIT9], [KIT10])

● The drum voices for both layers

˙

and

may be set to

00:NoAssign

.” (p. 29 Step2: [KIT2])

A voice other than the set voice is produced.

● Is the transmitting MIDI channel set to a channel that is not

used for the drum voice (ch=10)? (p. 30, Step 9: [KIT9])

● Are two-layer voices set in the voice setting on the Drum Kit

Select display? (p. 29 Step 2: [KIT2])

Produces sound but the sensitivity is too low (volume is low).

● Is the gain set too low? (p. 38: [TRG3 Gain, MVI (Minimum

Velocity)])

● Pads with a level adjustment knob should be adjusted

(increased).

● Is the minimum velocity set too low? (p. 38: [TRG3 Gain, MVI

(Minimum Velocity)])

● Are you using a proper velocity curve? (p. 38: [TRG4 VelCurve

(Velocity Curve)])

● Is the volume of the voice you want to use too low? (p. 29 Step

3: [KIT3])

40

DTXPRESS

IV

Owner’s Manual

Trobleshooting

The trigger sound is not stable. (For acoustic drums)

● Check the entry “Produces sound but the sensitivity is too low

(volume is low)” above.

● Try selecting a larger pad type setting (DT snare → DT HiTom

→ DT LoTom → DT Kick). (p. 37: [TRG2 Type (Pad Type)])

● Is the Drum Trigger (Yamaha DT20, etc.) improperly attached with duct tape? (Is there any old adhesive remaining on the head?)

● Is the cable securely connected to the drum trigger (Yamaha

DT20, etc.) jack?

Double triggering is produced.

● Pads with a level adjustment knob should be adjusted (lowered).

● Is the gain set too high? (p. 38: [TRG3 Gain, MVI (Minimum

Velocity)])

● Use the self-rejection setting. (p. 38: [TRG5 RejTime (Self

Rejection Time)])

(KP65) Is the pad type for the input jack to which the KP65 is

connected set to Kick Pad? (p. 37: [TRG2 Pad Type])

● Are you using drum triggers (trigger sensors) made by other manufacturers? Too large a signal can result in double triggering.

● Is the head causing irregular vibrations? It may be necessary to mute the head.

● Is the sensor attached close to the center of the head? Move the sensor closer to the rim.

● Is the sensor in contact with anything else?

Crosstalk (trigger interference from different inputs) is produced.

● Is the gain set too high? (p. 38: [TRG3 Gain, MVI (Minimum

Velocity)])

● Try increasing the rejection parameter. However, avoid setting this value too high since that may cause the sound to not be produced when another pad (trigger input) is hit at the same

time. (p. 38: [TRG6 RejLvlAll (Rejection Level)])

● If crosstalk is produced with a specific trigger input, try using

specific rejection. (p. 38: [TRG7 RejLvl (Specified Rejection

Level)])

● Try placing sensors (Yamaha DT20, etc.) away from nearby drums.

Sounds are cut when you play continuously.

● The maximum polyphony of 32 voices might be exceeded. In the Drum Kit Select dispaly’s “KIT15 Key Assign Mode” page

(p. 31), set the “KeyAssign” value to “semi” or “mono.”

When two pads (drums) are played only one sound is heard.

● Raise the gain setting of the pad (trigger input) that is not pro-

ducing sound. (p. 38: [TRG3 Gain, MVI (Minimum Velocity)])

● Lower the rejection setting of the pad (trigger input) that is not

producing sound. (p. 38: [TRG6 RejLvlAll (Rejection Level)])

● Lower the specified rejection setting of the pad (trigger input)

that is not producing sound (p. 38: [TRG7 RejLvl (Specified

Rejection Level)])

● Are both pads (trigger inputs) set to the same alternate group?

(p. 31 Step 14: [KIT14])

The sound is always loud.

● Is the minimum velocities minimum value set too high? (p. 38:

[TRG3 Gain, MVI (Minimum Velocity)])

● Are you using an appropriate velocity curve? (p. 38: [TRG4

VelCurve (Velocity Curve)])

● Are you using a pad made by another manufacturer? Depending upon the manufacturer, output levels might be too large.

The DTXPRESS IV does not receive any switch or trigger signals.

● If you can access the Utility display, perform the Factory Set operation. The DTXPRESS IV will reset to its factory settings.

(p. 35: [UTIL8 Factory Set])

● Turn the POWER switch OFF then ON while holding the [

<

] and [

>

] buttons together. The DTXPRESS IV will reset to its factory settings.

The sound does not stop.

● Some voices have very long release times when the “key off”

parameter is set to “disable.” (p. 30 Step 11: [KIT11])

Press the [DRUM KIT] button to temporarily stop the sound.

The pad controller function does not work

● Have you connected a pad equipped with a pad controller, such as the TP100 or TP120SD?

● Are the pad controller settings properly set? (p. 17)

The Closed Hi-Hat voice is not produced.

● Is the proper pad type selected? If the RHH130 is used as a hi-

hat controller, the pad type must be set to “RHH.” (p. 37: [TRG2

Pad Type])

The edge or cup sections of the cymbal pad do not produce sound when struck. The choke functions do not work.

● Is the proper pad type selected? Select the appropriate pad

type for the kind of cymbal pad you are using. (p. 37: [TRG2

Pad Type])

Foot Splashes are not produced.

● Is the foot controller connected to the HI HAT CONTROL jack?

● Adjust the detection time of foot splashes. (p. 16: Adjusting the

Hi-hat)

I need to restore the original factory settings of the instrument.

● Use the Factory Set function (p. 35) to reset the DTXPRESS IV

internal settings to the initial factory settings.

DTXPRESS

IV

Owner’s Manual

41

Index

Symbols

.................................... 15

Drum voice list ...............48

DT20 .................14

,

36

,

41

.................................... 15

E

[

<

], [

>

] ............................ 8

Error messages .............40

[

ON/OFF] ..............8

,

18

*

.................16

,

17

,

18

,

29

F

˙

,

.............................. 15

Factory set .....................35

˚¡ , ∞¢

......................... 22

Filter ..............................30

A

Accessories ..................... 3

Acoustic drums .......11

,

41

Alternate group ............. 31

AUX IN ......................9

,

13

Foot controller ...............16

Foot splashes ......... 16

,

41

G

Gain ...............................38

Gate time .......................30

Groove check ................24

B

Bank select ................... 34

Bass solo ...................... 23

Beat ............................... 18

H

Headphones ............. 9

,

12

HI HAT CONTROL ..........9

Hi-hat controller ...............9

C

Cable clip ..................9

,

12

Challenge mode ............ 24

Clear ............................. 27

[CLICK] ........................... 8

Click .............................. 18

Click lamp ....................... 8

Click master volume ...... 18

I

Hi-hat pedal ...................16

Hold mode .....................30

Input level ......................15

J

Jog dial ............................8

Click measure break ..... 19

Click out select .............. 20

Click set ..................18

,

19

Click set name .............. 20

Click sound set .............. 19

Click timer ...............18

,

21

Closed rim shot ............. 38

Closing point ................. 16

K

Key assign mode ...........31

Kick pad .........................14

L

Layer ................15

,

28

,

31

LCD display .............. 8

LED display .............. 8

,

44

,

21

N

Numeric display mode .. 24

O

OUTPUT ...................9

,

12

P

Pad ............................... 28

Pad controller

................... 9

,

14

,

17

,

33

Pad function .................. 23

Pad song .................15

,

32

Pad type ........................ 37

Pad with switch .........9

,

14

Pan .........................29

,

34

PHONES ...................9

,

12

Playback mode ............. 32

Power supply ..... 9

,

12

,

13

POWER switch ............... 9

Program change ........... 34

Q

Quantize ....................... 26

R

Rear panel ...................... 9

Record .......................... 26

Rejection level .............. 38

RejLvl ............................ 38

RejLvlAll ........................ 38

RejTime ........................ 38

Repeat playback ........... 32

Reverb ....................32

,

33

Reverb type .................. 33

Rhythm gate ...........24

,

25

Rim shot ........................ 32

Rim to pad .................... 32

Connections .................. 10

Control change .............. 34

Copy .............................. 39

CopyToInput ................. 39

M

Master equalizer ............16

Cross fade ..................... 31

Crosstalk .......... 36

,

38

,

41

D

DC IN 12V .................9

,

12

Decay ............................ 30

Double triggering

....................... 36

,

38

,

41

Double-bass drum set ... 14

[DRUM KIT] ..................... 8

Drum kit ...................15

,

28

Drum kit list ................... 49

Drum kit name ............... 35

Drum voice .................... 28

Metronome ....................18

MIDI ...............................13

MIDI channel .................30

MIDI data format ............43

MIDI implementation chart

....................................47

MIDI key on/off ..............30

MIDI note number ..........30

MIDI OUT ................. 9

,

13

Minimum velocity ...........38

Module stand .......... 10

,

11

Mute ....................... 19

,

22

MVI ................................38

S

Save ................. 20

,

34

,

36

[SAVE/ENTER] ............... 8

Self rejection time ......... 38

Sensitivity ......... 14

,

38

,

40

[SHIFT] ........................... 8

Snares ....................17

,

33

[SONG > /

] .............8

,

22

Song ............................. 22

Song list ........................ 49

Song name ................... 27

Sound quality ................ 16

Speaker ........................ 12

Special set ..............11

,

14

Specifications ................ 50

Specified rejection level

....................................38

Standard set ........... 10

,

14

Stereo pad ................ 9

,

38

Stereo plug ......................9

Store operation

....................... 20

,

34

,

36

T

Tap tempo .....................21

Tempo ........17

,

18

,

21

,

22

Three-zone pad .. 9

,

14

,

38

Top panel ........................8

Trigger input jacks ...........9

Trigger input source ......28

Trigger setup .... 14

,

36

,

37

Trigger setup copy ........39

Trigger setup name .......36

Tuning

Click ...........................19

Drum voice .................29

Pad controller .............17

Song ..........................22

Type ..............................37

U

User click sound ............19

User drum kit .................34

User song ......................27

User trigger setup ..........36

Utility .............................16

V

VelCurve .......................38

Velocity curve ................38

Voice category

....................... 19

,

29

,

48

Voice character .............30

VOLUME .................. 9

,

15

Volume

Click ...........................18

Control change ..........34

Drum voice .................29

Headphone ................12

Overall .................. 9

,

15

Pad ............................15

Song ..........................22

Y

Y-shaped cable ........ 9

,

14

42

DTXPRESS

IV

Owner’s Manual

Appendix

MIDI Data Format

1. Channel Messages

The channel messages described below are sent from the drum triggers only. Other messages are sent from both the drum triggers and the sequencer.

1.1 Key On, Key Off

Note range: 0 (C-2)–127 (G8)

Velocity range: 0–127

1.2 Control Change

1.2.1 Bank select MSB, LSB–0, 32 data = 0–127

1.2.2 Foot controller–4 (Ch. 10 only)

1.2.3 Main volume–7

1.2.4 Pan–10 (left 0, right 127)

1.3 Program Change

2. System Exclusive Messages

2.1 Parameter Change

2.1.1 GM system ON

$F0 $7E $7F $09 $01 $F7 (hexadecimal)

Sets all messages (except MIDI master tuning) to their initial values.

3. System Realtime Message

3.1 Timing clock

Sends data.

3.2 Start, Stop

Sends data.

3.3 Active sensing

Sends the messages within an interval of approximately 300 msec.

DTXPRESS

IV

Owner’s Manual

43

Appendix

LCD Displays

* The above “LCD Displays” charts show you the pages available in each display.

Keep in mind that the actual displays on the instrument may be different from those shown here.

Drum Kit Settings

KIT1 ååååååååå

1 :

Oak Custom

(Page 15)

KIT2 ƒsnare ˙

S01:OakCustom

(Page 28)

KIT3 ƒsnare

” Volume=127 ‚

(Page

15, 29)

KIT4 ƒsnare

” Tune=+ 0.0

(Page 29)

KIT5 ƒsnare

” Pan= C ‚

(Page 29)

KIT6 ƒsnare

” Decay= 0 ‚

(Page 30)

KIT7 ƒsnare

”CutOffFreq= 0‚

(Page 30)

KIT8 ƒsnare

”Note= 32/G#0 ‚

(Page 30)

KIT9 ƒsnare

” MIDI Ch=10 ‚

(Page 30)

KIT10 ƒsnare

”GateTime=0.3s ‚

(Page 30)

KIT11 ƒsnare

”KeyOff=disable‚

(Page 30)

KIT12 ƒsnare

” HoldMode=off ‚

(Page 30)

KIT13 ƒsnare

” VelXFade=0 ‚

(Page 31)

KIT14 ƒsnare

” AltGrp=off ‚

(Page 31)

KIT15 ƒsnare

”KeyAssign=poly‚

(Page 31)

KIT16 ƒsnare

”Song=

45áé

play‚

(Page 32)

KIT17 ƒsnare

” RimToPad=--- ‚

(Page 32)

KIT18 ƒsnare

” RevSend= 75 ‚

(Page 32)

KIT19

” RevSendDr= 40‚

(Page 32)

KIT20

”RevType=hall2 ‚

(Page 33)

KIT21

”RevMastRet= 64‚

(Page 33)

KIT22

”PadCtl=snares ‚

(Page

17, 33)

KIT23

” Snares=32 ‚

(Page 33)

KIT24 PC Ch1=on

”PC001 M000L001‚

(Page 34)

KIT25 CC Ch1=on

”vol=127 Pan= 64

(Page 34)

KIT save to 51

:[

Oak Custom

]

(Page 34)

KIT save to 51

Are you sure ?

(Page 35)

44

DTXPRESS

IV

Owner’s Manual

Song Selection

SONG1 ⁄=

123

÷›

1 :Demo 1 ∞¢‚

(Page 22)

SONG2 Clear

”Are You Sure ?

* Displayed when a user song is selected.

(Page 27)

SONG save name

:[Untitled]

(Page 27)

SONG save name

Are you sure ?

(Page 27)

Song Recording

REC ⁄=120

Beat=4 Quant=⁄

(Page 26)

REC Meas= 10

Now Recording.

(Page 26)

Groove Check Function

GRV1 --æ√æ’æææ--

⁄=130 Gr=-2œ0.0‚

(Page 24)

Challenge Mode

GRV1 --æ√æ’æææ--

80Hits/ 16%(DÀ)‚

(Page 24)

GRV2 RhythmGate

”Mode=challenge‚

(Page 25)

GRV3

” Input=ƒsnare ‚

(Page 25)

GRV4

” Note=⁄(4)

(Page 25)

Appendix

Click Settings

CLK1 ∫ B=4 ÷›

1 :User ⁄=130‚

(Page 18)

CLK2 A˘=9 ¤=9

” ‹=6 ßß=4 Œ=2 ‚

(Page 19)

CLK3 MeasBreak

”Meas=1 Brk=3 ‚

(Page 19)

CLK4 Sound

” 1:Metronome ‚

(Page 19)

CLK5 Sound=¤

”E20

:Click1

(Page 19)

CLK6 Sound=¤

” Tune=+ 0.0

(Page 19)

CLK save to 1

:[User ]

(Page 20)

CLK save to 1

Are you sure ?

(Page 20)

DTXPRESS

IV

Owner’s Manual

45

Appendix

Utility Settings

UTIL1 Hi-hat

HHofs=-13 T=112‚

(Page 16)

UTIL2 Click

”OutSel=clickR ‚

(Page 20)

UTIL3 Song

” BassSolo=off ‚

(Page 23)

UTIL4 LED

” Disp=tempo ‚

(Page 21)

UTIL5 MasterEQ

”Lo=+ 4 Hi=+ 0 ‚

(Page 16)

UTIL6 MasterTune

” Tune=+15.7

(Page 22)

UTIL7 ƒsnare

”Func=off ‚

(Page 23)

UTIL8

” Factory Set

(Page 35)

Tap Tempo Function

TAP TEMPO

¤=123 ≠ªªªª

(Page 21)

Trigger Setup Edit

TRG1 ååååååååå

1 :SP Med ‚

(Page 14, 36)

TRG2 ƒsnare 0%

”Type=TP1/Snr ‚

(Page 17, 37)

TRG3 ƒsnare 0%

”Gain=65MVl= 12‚

(Page 38)

TRG4 ƒsnare 0%

”VelCurve=norm ‚

(Page 38)

TRG5 ƒsnare 0%

” RejTime=1 ‚

(Page 38)

TRG6 ƒsnare 0%

” RejLvlAll=2 ‚

(Page 38)

TRG7 ƒsnare 0%

”RejLvl=3Frm=56‚

(Page 38)

TRG8 ƒsnare

”CopyToInput= 1

(Page 39)

TRG save to 8

:[SP Med ]

(Page 36)

TRG save to 8

Are you sure ?

(Page 37)

46

DTXPRESS

IV

Owner’s Manual

MIDI Implementation Chart

YAMAHA [ DRUM TRIGGER MODULE ] Date:27-Mar-2006

Model DTXPRESS IV MIDI Implementation Chart Version : 1.0

Transmitted

Function ...

Basic Default 1 - 16

Channel Changed 1 - 16 x x

Recognized Remarks memorized

Default x

Mode Messages x

Altered **************

Note 0 - 127

Number : True voice **************

Velocity Note ON o 9nH,v=1-127

Note OFF x 9nH,v=0

After Key's x

Touch Ch's x

Pitch Bender x x x x x x x x x x x

0,32 o

4,7,10 o

1,2,5,6,8,11,12,13 x

16-19 x

Control 33-63 x

64-84 x

Change 91-95 x

96-101 x x x x x x

Bank Select x x x

Prog o 0 - 127

Change : True # **************

System Exclusive o

: Song Pos. x

Common : Song Sel. x

: Tune x

System :Clock o

Real Time :Commands o

:All Sound Off x

Aux :Reset All Cntrls o

:Local ON/OFF x

Mes- :All Notes OFF x sages:Active Sense o

:Reset x

Notes: x x x x x x x x x x x x x x

Mode 1 : OMNI ON, POLY Mode 2 : OMNI ON, MONO o : Yes

Mode 3 : OMNI OFF, POLY Mode 4 : OMNI OFF, MONO x : No

DTXPRESS

IV

Owner’s Manual

47

Appendix

Drum Voice List

Voice Category

K : Kick

S : Snare

T : Tom

C : Cymbal

H : Hi-hat

P : Percussion

E : Effect

Kiiiiccc k

1 OakCustom

2 MapleCustm

3 MapleVintg

4 Beech

5 BirchDry

6 BirchJazz

7 DryDeep

8 DryTight 1

9 DryTight 2

10 SoTight

11 2Head

12 BigSofty

13 RockAmb 1

14 RockAmb 2

15 BD Room 1

16 BD Room 2

17 GateKick1

18 GateKick2

19 T8 Kick

20 T9 Kick

21 CR Kick

22 T9 HrdAtk

23 T9 Long

24 Sm Kick

25 T8 Down

26 T9 Dist

27 TechKick1

28 TechKick2

29 TechKick3

30 BreakKick1

31 BreakKick2

32 BreakKick3

33 BreakKick4

34 BreakKick5

35 BreakKick6

36 VoxKick

37 KickBass

38 ResoKick1

39 ResoKick2

40 DidgerKick

41 ReversBD

S n

1 OakCustom

2 OakCusOpRm

3 OakCusClRm

4 OakCusOff

5 OakCusOffO

6 OakCusOffC

7 MapleCustm

8 MapCusOpRm

9 MapCusClRm

10 MplCusOff

11 MplCusOffO

12 MplCusOffC

13 Beech

14 BeechOpRim

15 BeechClRim

16 BeechOff

17 BeechOffOR

18 BeechOffCR

19 Metal

20 MetalOpRim

55 Tek Snare

56 LoBitSnare

57 Sm Snare1

58 Sm Snare2

59 SynSnare

60 BreakSnr 1

61 BreakSnr 2

62 BreakSnr 3

63 BreakSnr 4

64 DB Snare1

65 DB Snare2

66 DB Snare3

67 DB Snare4

68 DB Snare5

69 DB Snare6

70 Snappy

71 R&BSnare1

72 R&BSnare2

73 R&BSnare3

74 VoxSnare1

75 VoxSnare2

76 GunSnare

77 ResoSnare1

78 ResoSnare2

21 MetalClRim

22 MetalOff

23 MetalOffOp

24 MetalOffCl

25 MapleVtg

26 MapleVtgR

27 Loosy

28 LoosyRim

29 LiteWood

30 LiteWoodRm

31 RockAmb 1

32 RockAmb 2

33 RockAmb R

34 BirchDeep

35 BirchDeepR

36 Studio

37 StudioRim

38 MapleLite

39 MapleLiteR

40 DryMute

41 Brush

42 BrushRim

43 BrushOff

44 BrshOffRim

45 SnareRoll*

46 GateSnare1

47 GateSnare2

48 GateSnare3

49 GateSnare4

50 GateSnare5

51 T8 Snare1

52 T8 Snare2

53 T8 Rim

54 T9 Rim

T o

1 OakCustomH

2 OakCustomM

3 OakCustomL

4 MapleCus H

5 MapleCus M

6 MapleCus L

7 BeechCus H

8 BeechCus M

9 BeechCus L

10 Studio H

11 Studio M

12 Studio L

13 RockAmb H

14 RockAmb M

15 RockAmb L

C ym b

1 Bright18

2 Bright18Eg

3 Bright18Cp

4 Warm16

5 Warm16Edge

6 Warm16Cup

7 Dark18

8 Dark18Edge

9 Dark18Cup

10 CrCustom17

11 CrLight17

12 CrFast16

13 CrFast14

14 Bright20

15 Bright20Eg

16 Bright20Cp

17 Warm20

18 Warm20Edge

19 Warm20Cup

20 Dark20

21 Dark20Edge

22 Dark20Cup

23 RideCool

24 RideCoolCp

25 RideDry

26 RideDryCup

27 SizzleRide

28 SizzRideEg

29 SizzRideCp

30 ChinaHi

31 ChinaLoCtr

32 ChinaLoEg

33 Splash 1

34 Splash 2

35 Trash 1

36 Trash 2

37 T8 Crash

38 T9 Crash

16 MapleAmb H

17 MapleAmb M

18 MapleAmb L

19 JazzTom H

20 JazzTom M

21 JazzTom L

22 BrushTom H

23 BrushTom M

24 BrushTom L

25 T8 Tom1 H

26 T8 Tom1 M

27 T8 Tom1 L

28 T8 Tom2 H

29 T8 Tom2 M

30 T8 Tom2 L

31 T9 Tom1 H

32 T9 Tom1 M

33 T9 Tom1 L

34 T9 Tom2 H

35 T9 Tom2 M

36 T9 Tom2 L

37 Sm Tom1 H

38 Sm Tom1 M

39 Sm Tom1 L

40 Sm Tom2 H

41 Sm Tom2 M

42 Sm Tom2 L

43 PulseTom H

44 PulseTom M

45 PulseTom L

46 VoxTom

47 E.BendTom

48 E.Talking

49 DidgeriTom

50 ReverseTom

39 T8 Ride

40 T9 Ride

41 ElecCymbal

42 NoiseCym1

43 NoiseCym2

44 VoxCymbal1

45 VoxCymbal2

46 ReverseCym

H atttt

1 Dark14 Opn

2 Dark14 OpE

3 Dark14 Cls

4 Dark14 ClE

5 Dark14 Ft

6 Dark14 Sp

7 Dark13 Opn

8 Dark13 OpE

9 Dark13 Cls

10 Dark13 ClE

11 Dark13 Ft

12 Dark13 Sp

13 Bright14Op

14 Bright14OE

15 Bright14Cl

16 Bright14CE

17 Bright14Ft

18 Bright14Sp

19 Warm13Opn

20 Warm13OpE

21 Warm13Cls

22 Warm13ClE

23 Warm13Ft

24 Warm13Sp

25 Tight12Opn

26 Tight12OpE

27 Tight12Cls

28 Tight12ClE

29 Tight12Ft

30 Tight12Sp

31 T8 HH Opn

32 T8 HH Cls

33 T9 HH Opn

34 T9 HH Cls

35 CR HH Opn

36 CR HH Cls

37 Break HHOp

38 Break HHCl

39 Brack HHFt

40 NoiseHHOpn

41 NoiseHHCls

P e u o n

1 CongaHiOpn

2 CongaHiSlp

3 CongaHiOSw

4 CongaHiTip

5 CongaHiHel

6 CongaLoOpn

7 BongoHi

8 BongoLo

9 TimbalHi

10 TimbalLo

11 PailaHi

12 PailaLo

13 SurdoOpn

14 SurdoMt

15 SurdoHO

16 SurdoSw

17 PandieroOp

18 PandieroMt

19 PandieroSl

20 Tambarin1

21 Tambarin2

22 Tambarin3

57 PotDrOpn

58 PotDrCls

59 PotDrMute

60 PotDrBody

61 TablaOpen1

62 TablaOpen2

63 TablaMute

64 TablaSlp

65 BayaOpn

66 BayaMute

67 BayaBend

68 CuicaHi

69 CuicaLo

70 WhistleH

71 WhistleL

72 SleighBell

73 BellTree

74 WindChime

75 TimpaniF#2

76 Timpani B1

77 Timpani E1

78 ConctBDop

79 ConctBDmt

80 HandCymOp

81 HandCymMt

82 Gong

83 ChinaGong

84 Odaiko

85 OdaikoRim

86 Yagura

87 YaguraRim

88 Shimedaiko

89 ShimeRim

90 Atarigane

91 AtariganeM

92 AnaConga

93 AnaCowbell

94 AnaMaracas

95 AnaShaker1

96 AnaShaker2

23 Cowbell 1

24 Cowbell 2

25 Cowbell 3

26 Cowbell3Mt

27 Cowbell 4

28 Cowbell4Mt

29 Claves

30 Maracas

31 Vibraslap

32 Castanet

33 TriangleOp

34 TriangleCl

35 TriangleHO

36 TriangleSw

37 GuiroShort

38 GuiroLong

39 Agogo Hi

40 Agogo Lo

41 WoodBlockH

42 WoodBlockL

43 Shaker1

44 Shaker2

45 Caxixi1

46 Caxixi2

47 DjembeOpen

48 DjembeSlap

49 DjembeMute

50 CajonLo

51 CajonHi

52 CajonSlp

53 TalkDrOp

54 TalkDrMt

55 TalkDrSlp

56 TalkDrBend

48

DTXPRESS

IV

Owner’s Manual

Appendix

e ctttt

1 StickHit1

2 StickHit2

3 FingerSnap

4 E.Clap1

5 E.Clap2

6 E.Clap3

7 NoiseHit

8 Metal1

9 Metal2

10 Metal3

11 AmbShot

12 Tunnel

13 HiQ

14 Noise 1

15 Noise 2

16 Pulse

17 Zap

18 MetrBell 1

19 MetrBell 2

20 Click1

21 Click2

22 Vo Go!

23 Vo Hoo!

24 Vo Yoo!

25 Vo Ha!

26 Vo Uh!

27 Vo aYeah!

28 Scratch1

29 Scratch2

30 Scratch3

31 Scratch4

32 Scratch5

33 Scratch6

34 Scratch7

35 OrchHit1

36 OrchHit2

37 R&BHit1

38 R&BHit2

39 BrassHit

40 ScratchHit

41 Industry

42 CompuVoice

43 Radio

44 Thunder

45 Tire

46 Crash

47 Glass

48 GunShot1

49 GunShot2

50 Bomb

51 ResoNzClap

52 Strike

53 AmbientCym

54 SFXCymbal1

55 SFXCymbal2

56 SFXCymbal3

57 NzAmbient

58 LoDroneAmb

59 NzEcho

60 Vel-Decay1

61 Vel-Decay2

62 DlyScratch

63 Boyon

64 P!

65 E.Bass

66 SlapBass

67 Turntable*

68 Train*

69 Helicoptr*

70 Applause*

71 Police*

72 Ring*

73 FX Pad*

74 Didgerido*

75 VinylMan*

* Loop

Preset Drum Kit List

10

11

8

9

12

13

No.

1

2

3

6

7

4

5

Name

Oak Custom

Maple Custom

Beech Custom

Rock Kit

Gate Kit

Hip Hop

Break Kit

Street Beat

Brazil Kit

Sm Kit

Studio Kit

Dry Beat

SessionMastr

20

21

22

23

24

25

26

No.

14

15

16

17

18

19

Name

T8 Kit

T9 Kit

Drum&Bass

Electro

Percuss Kit

Social Cuban

SE Kit

Funky Men

Power Kit

Resonance

Industry

Jazz Kit

Brush Kit

33

34

35

36

37

38

39

No.

27

28

29

30

31

32

Name

Matsuri

AsianGypsy

LoopLoop

Scratch

VOX Kit

Vintage Kit

Room Kit

Afro Kit

Latin Club

Drum Corps

Orchestra

See View

Boyon

No.

40

41

42

43

44

45

46

47

48

49

50

Name

WikkidPocket

Reggae Kit

BrokenFunk

GoGo1988

Re-0

Elec 5/4

Backbone

Groove Kit

8/8 Craze

[email protected]

GM Standard

Preset Song List

12

13

14

15

10

11

8

9

No.

1

2

3

6

7

4

5

16

17

18

19

20

21

Genre

Demo

Rock

Shuffle

Funk

Blues

Hip Hop

R&B

Name

Demo 1

Demo 2

Demo 3

Rock 1

Rock 2

Rock 3

Rock 4

Rock 5

Rock 6

Shuffle 1

Shuffle 2

Shuffle 3

Funk 1

Funk 2

Funk 3

Blues 1

Blues 2

HipHop 1

HipHop 2

R&B 1

R&B 2

32

33

34

35

28

29

30

31

No.

22

23

24

25

26

27

36

37

38

39

40

41

42

Latin

Reggae

Soul

Ballad

Genre

Dance

Pops

Pop Rock

Jazz

Bossa Nova

Fusion

Samba

Name

Dance 1

Dance 2

Pops 1

Pops 2

PopRock1

PopRock2

Jazz 1

Jazz 2

Bossa 1

Bossa 2

Fusion 1

Fusion 2

Samba 1

Samba 2

Samba 3

Latin 1

Latin 2

Reggae

Soul

Ballad 1

Ballad 2

53

54

55

56

49

50

51

52

No.

43

44

45

46

47

48

57

58

59

60

61

62

63

Genre

Second Line

Ska

Pad Song

Name

2ndLine

Ska

8Craze A

8Craze B

BassGrv

HornGrv

Jko?Naa

PadBass

GoGo Tp

GoGo Br

GoGo Lp

Re-O

BFunk A

BFunk B

BFunk C

Elec5/4A

Elec5/4B

Elec5/4C

Backb Ld

Backb St

Backb Pf

DTXPRESS

IV

Owner’s Manual

49

Appendix

Specifications

Tone Generator block

Trigger

Sequencer

Metronome

Others

Tone Generator

Maximum Polyphony

Voices

Drum Kits

Effects

Trigger Setups

Pad Controller

Pad Functions

Pad Songs

Note Capacity

Note Resolution

Recording Type

Track

Songs

Tempo

Beat

Timing

Click Sound Sets

Click Sets

Click Timer

Training Functions

Controls

Displays

Connectors

Power Consumption

Dimensions (W x D x H)

Weight

AWM2

32

427 Drum, Percussion Voices

22 Keyboard Voices

Preset: 50

User: 20

Reverb x 19 types, Master EQ

Preset: 7

User: 4

Snares adjustment, Tuning, Tempo

Drum Kit INC/DEC, Click Set INC/DEC, Tempo INC/DEC, Click ON/OFF

Start/Stop, Chase, Cut Off

3 songs (max.) can be played simultaneously.

Approx. 16,000 notes

96 parts per quarter note

Real Time Replace

1

3 Demo Songs

41 Practice Songs

19 Pad Songs

20 User Songs

30–300 beats/minute, Tap Tempo function

1–9

Accent, Quarter note, Eighth note, Sixteenth note, Triplet

Preset: 6

User: 1

30

0–600 seconds (in 30-second steps)

Measure Break, Groove Check, Rhythm Gate

Buttons: DRUMKIT, CLICK, SONG

>

/

, SHIFT,

<

,

>

Controllers: Volume, Jog Dial

16 characters x 2 lines backlit LCD, 7-segment LED (3-digit), Tempo LED x 2

Trigger inputs 1, 5, 6, 7 (stereo phone jack L: trigger input, R: rim switch)

Trigger inputs 2, 3, 4, 8 (stereo phone jack L: trigger input, R: trigger input)

HI HAT CONTROL (stereo phone jack)

OUTPUT L/MONO, R (mono phone jack)

PHONES (stereo phone jack), AUX IN (stereo mini jack)

MIDI OUT, DC IN

13.0 W

252 x 147 x 52 mm (9-15/16" x 5-13/16" x 2-1/16")

898 g (2 lbs.)

* Specifications and descriptions in this owner’s manual are for information purposes only. Yamaha Corp. reserves the right to change or modify products or specifications at any time without prior notice. Since specifications, equipment or options may not be the same in every locale, please check with your Yamaha dealer.

50

DTXPRESS

IV

Owner’s Manual

FCC INFORMATION (U.S.A.)

1. IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!

This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product.

2. IMPORTANT:

When connecting this product to accessories and/or another product use only high quality shielded cables.

Cable/s supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA.

3. NOTE:

This product has been tested and found to comply with the requirements listed in FCC Regulations, Part 15 for Class “B” digital devices. Compliance with these requirements provides a reasonable level of assurance that your use of this product in a residential environment will not result in harmful interference with other electronic devices. This equipment generates/uses radio frequencies and, if not installed and used according to the instructions found in the users manual, may cause interference harmful to the operation of other electronic devices. Compliance with FCC regulations does not guarantee that interference will not occur in all installations. If this product is found to be the source of interference, which can be determined by turning the unit “OFF” and “ON”, please try to eliminate the problem by using one of the following measures:

Relocate either this product or the device that is being affected by the interference.

Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter/s.

In the case of radio or TV interference, relocate/reorient the antenna. If the antenna lead-in is 300 ohm ribbon lead, change the lead-in to co-axial type cable.

If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact Yamaha Corporation of America, Electronic Service Division, 6600 Orangethorpe Ave, Buena Park, CA90620

The above statements apply ONLY to those products distributed by Yamaha Corporation of America or its subsidiaries.

* This applies only to products distributed by YAMAHA CORPORATION OF AMERICA.

(class B)

IMPORTANT NOTICE FOR THE UNITED KINGDOM

Connecting the Plug and Cord

IMPORTANT. The wires in this mains lead are coloured in accordance with the following code:

BLUE : NEUTRAL

BROWN : LIVE

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured makings identifying the terminals in your plug proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.

Making sure that neither core is connected to the earth terminal of the three pin plug.

• This applies only to products distributed by Yamaha-Kemble Music (U.K.) Ltd.

(2 wires)

For details of products, please contact your nearest Yamaha representative or the authorized distributor listed below.

Pour plus de détails sur les produits, veuillez-vous adresser à Yamaha ou au distributeur le plus proche de vous figurant dans la liste suivante.

Die Einzelheiten zu Produkten sind bei Ihrer unten aufgeführten

Niederlassung und bei Yamaha Vertragshändlern in den jeweiligen

Bestimmungsländern erhältlich.

Para detalles sobre productos, contacte su tienda Yamaha más cercana o el distribuidor autorizado que se lista debajo.

NORTH AMERICA

CANADA

Yamaha Canada Music Ltd.

135 Milner Avenue, Scarborough, Ontario,

M1S 3R1, Canada

Tel: 416-298-1311

U.S.A.

Yamaha Corporation of America

6600 Orangethorpe Ave., Buena Park, Calif. 90620,

U.S.A.

Tel: 714-522-9011

CENTRAL & SOUTH AMERICA

MEXICO

Yamaha de México S.A. de C.V.

Calz. Javier Rojo Gómez #1149,

Col. Guadalupe del Moral

C.P. 09300, México, D.F., México

Tel: 55-5804-0600

BRAZIL

Yamaha Musical do Brasil Ltda.

Rua Joaquim Floriano, 913 - 4' andar, Itaim Bibi,

CEP 04534-013 Sao Paulo, SP. BRAZIL

Tel: 011-3704-1377

ARGENTINA

Yamaha Music Latin America, S.A.

Sucursal de Argentina

Viamonte 1145 Piso2-B 1053,

Buenos Aires, Argentina

Tel: 1-4371-7021

PANAMA AND OTHER LATIN

AMERICAN COUNTRIES/

CARIBBEAN COUNTRIES

Yamaha Music Latin America, S.A.

Torre Banco General, Piso 7, Urbanización Marbella,

Calle 47 y Aquilino de la Guardia,

Ciudad de Panamá, Panamá

Tel: +507-269-5311

EUROPE

THE UNITED KINGDOM

Yamaha-Kemble Music (U.K.) Ltd.

Sherbourne Drive, Tilbrook, Milton Keynes,

MK7 8BL, England

Tel: 01908-366700

IRELAND

Danfay Ltd.

61D, Sallynoggin Road, Dun Laoghaire, Co. Dublin

Tel: 01-2859177

GERMANY

Yamaha Music Central Europe GmbH

Siemensstraße 22-34, 25462 Rellingen, Germany

Tel: 04101-3030

SWITZERLAND/LIECHTENSTEIN

Yamaha Music Central Europe GmbH,

Branch Switzerland

Seefeldstrasse 94, 8008 Zürich, Switzerland

Tel: 01-383 3990

AUSTRIA

Yamaha Music Central Europe GmbH,

Branch Austria

Schleiergasse 20, A-1100 Wien, Austria

Tel: 01-60203900

CZECH REPUBLIC/SLOVAKIA/

HUNGARY/SLOVENIA

Yamaha Music Central Europe GmbH,

Branch Austria, CEE Department

Schleiergasse 20, A-1100 Wien, Austria

Tel: 01-602039025

POLAND

Yamaha Music Central Europe GmbH

Sp.z. o.o. Oddzial w Polsce

ul. 17 Stycznia 56, PL-02-146 Warszawa, Poland

Tel: 022-868-07-57

THE NETHERLANDS/

BELGIUM/LUXEMBOURG

Yamaha Music Central Europe GmbH,

Branch Benelux

Clarissenhof 5-b, 4133 AB Vianen, The Netherlands

Tel: 0347-358 040

FRANCE

Yamaha Musique France

BP 70-77312 Marne-la-Vallée Cedex 2, France

Tel: 01-64-61-4000

ITALY

Yamaha Musica Italia S.P.A.

Combo Division

Viale Italia 88, 20020 Lainate (Milano), Italy

Tel: 02-935-771

SPAIN/PORTUGAL

Yamaha-Hazen Música, S.A.

Ctra. de la Coruna km. 17, 200, 28230

Las Rozas (Madrid), Spain

Tel: 91-639-8888

GREECE

Philippos Nakas S.A. The Music House

147 Skiathou Street, 112-55 Athens, Greece

Tel: 01-228 2160

SWEDEN

Yamaha Scandinavia AB

J. A. Wettergrens Gata 1

Box 30053

S-400 43 Göteborg, Sweden

Tel: 031 89 34 00

DENMARK

YS Copenhagen Liaison Office

Generatorvej 6A

DK-2730 Herlev, Denmark

Tel: 44 92 49 00

FINLAND

F-Musiikki Oy

Kluuvikatu 6, P.O. Box 260,

SF-00101 Helsinki, Finland

Tel: 09 618511

NORWAY

Norsk filial av Yamaha Scandinavia AB

Grini Næringspark 1

N-1345 Østerås, Norway

Tel: 67 16 77 70

ICELAND

Skifan HF

Skeifan 17 P.O. Box 8120

IS-128 Reykjavik, Iceland

Tel: 525 5000

OTHER EUROPEAN COUNTRIES

Yamaha Music Central Europe GmbH

Siemensstraße 22-34, 25462 Rellingen, Germany

Tel: +49-4101-3030

AFRICA

Yamaha Corporation,

Asia-Pacific Music Marketing Group

Nakazawa-cho 10-1, Naka-ku, Hamamatsu,

Japan 430-8650

Tel: +81-53-460-2312

MIDDLE EAST

TURKEY/CYPRUS

Yamaha Music Central Europe GmbH

Siemensstraße 22-34, 25462 Rellingen, Germany

Tel: 04101-3030

OTHER COUNTRIES

Yamaha Music Gulf FZE

LOB 16-513, P.O.Box 17328, Jubel Ali,

Dubai, United Arab Emirates

Tel: +971-4-881-5868

ASIA

THE PEOPLE’S REPUBLIC OF CHINA

Yamaha Music & Electronics (China) Co.,Ltd.

25/F., United Plaza, 1468 Nanjing Road (West),

Jingan, Shanghai, China

Tel: 021-6247-2211

HONG KONG

Tom Lee Music Co., Ltd.

11/F., Silvercord Tower 1, 30 Canton Road,

Tsimshatsui, Kowloon, Hong Kong

Tel: 2737-7688
