Toshiba 6200D Desktop Specification

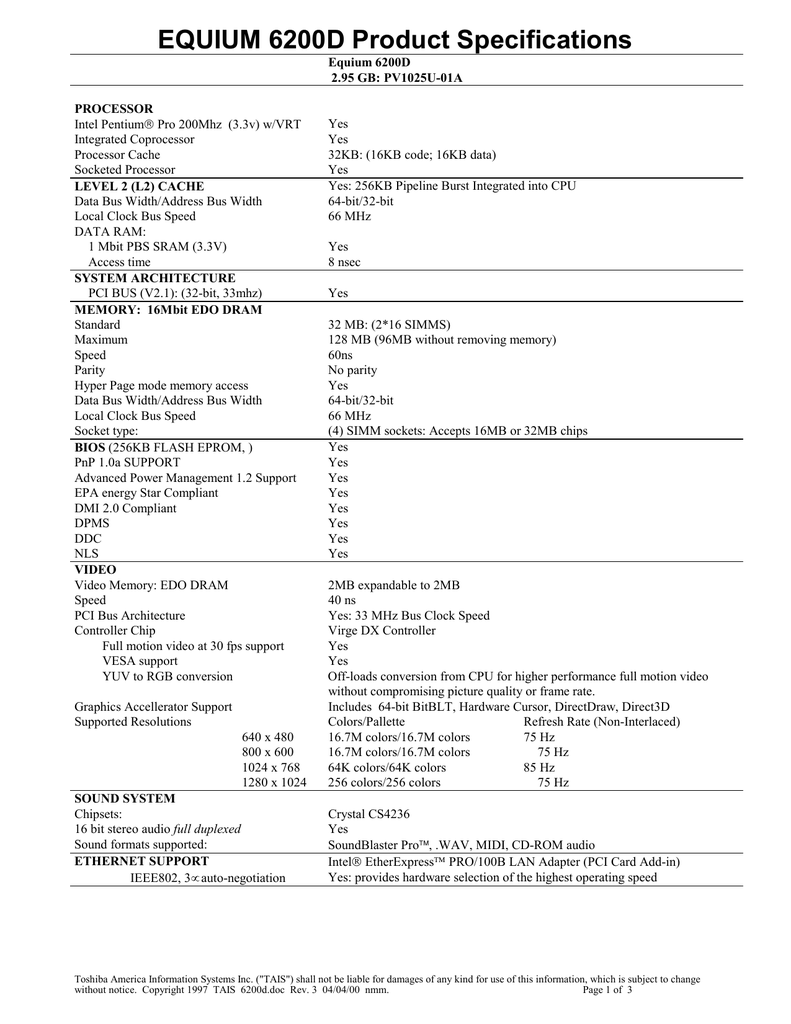

EQUIUM 6200D Product Specifications
Equium 6200D
2.95 GB: PV1025U-01A
PROCESSOR
Intel Pentium Pro 200Mhz (3.3v) w/VRT
Integrated Coprocessor
Processor Cache
Socketed Processor
LEVEL 2 (L2) CACHE
Data Bus Width/Address Bus Width
Local Clock Bus Speed
DATA RAM:
1 Mbit PBS SRAM (3.3V)
Access time
SYSTEM ARCHITECTURE
PCI BUS (V2.1): (32-bit, 33mhz)
MEMORY: 16Mbit EDO DRAM
Standard
Maximum
Speed
Parity
Hyper Page mode memory access
Data Bus Width/Address Bus Width
Local Clock Bus Speed
Socket type:
BIOS (256KB FLASH EPROM, )
PnP 1.0a SUPPORT
Advanced Power Management 1.2 Support
EPA energy Star Compliant
DMI 2.0 Compliant
DPMS
DDC
NLS
VIDEO
Video Memory: EDO DRAM
Speed
PCI Bus Architecture
Controller Chip
Full motion video at 30 fps support
VESA support
YUV to RGB conversion
Graphics Accellerator Support
Supported Resolutions
640 x 480
800 x 600
1024 x 768
1280 x 1024
SOUND SYSTEM
Chipsets:
16 bit stereo audio full duplexed
Sound formats supported:
ETHERNET SUPPORT
IEEE802, 3µ auto-negotiation
Yes
Yes
32KB: (16KB code; 16KB data)
Yes
Yes: 256KB Pipeline Burst Integrated into CPU
64-bit/32-bit
66 MHz
Yes
8 nsec
Yes
32 MB: (2*16 SIMMS)
128 MB (96MB without removing memory)
60ns
No parity
Yes
64-bit/32-bit
66 MHz
(4) SIMM sockets: Accepts 16MB or 32MB chips
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
2MB expandable to 2MB
40 ns
Yes: 33 MHz Bus Clock Speed
Virge DX Controller
Yes
Yes
Off-loads conversion from CPU for higher performance full motion video
without compromising picture quality or frame rate.
Includes 64-bit BitBLT, Hardware Cursor, DirectDraw, Direct3D
Colors/Pallette
Refresh Rate (Non-Interlaced)
16.7M colors/16.7M colors
75 Hz
16.7M colors/16.7M colors
75 Hz
64K colors/64K colors
85 Hz
256 colors/256 colors
75 Hz
Crystal CS4236
Yes
SoundBlaster Pro, .WAV, MIDI, CD-ROM audio
Intel EtherExpress PRO/100B LAN Adapter (PCI Card Add-in)
Yes: provides hardware selection of the highest operating speed
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change
without notice. Copyright 1997 TAIS 6200d.doc Rev. 3 04/04/00 nmm.
Page 1 of 3
EQUIUM 6200D Product Specifications
Equium 6200D
2.95 GB: PV1025U-01A
STORAGE
CONTROLLER TYPE
PIO Mode 4 (up to 16Mb/sec transfer rate)
HDD ( 3.5”Half-height Enhanced IDE)
Access Time
Burst Data Transfer Rate
PCI Bus Master support
FDD
CD-ROM: Toshiba XM-5702B
PCI Bus Master support
Interface
Random Access Time
Sustained Transfer Rate
Supported Disk Formats
Dual Channel, Bus Mastering PCI-EIDE (supports 4 IDE devices)
Yes
3.1 billion bytes (= 2.95 GB)
<10msec
PIO Mode 4 (16.7MB/sec)
Yes
3.5” Floppy Disk Drive
12X- speed
Yes
ATAPI ( Enhanced IDE ) w/256KB Buffer
115 ms
1.8 MB/sec
Red Book, Yellow Book, CD-ROM XA, CD-Bridge (Photo-CD, Video-CD),
CD-I, CD-I Ready, CD-G, Multisession (Photo-CD, CD-Extra, CD-E)
EXPANSION SLOTS
Number of PCI Slots ( Available/Total )
1/2
Number of ISA Slots ( Available/Total )
3/3
EXPANSION BAY
Internal Bay
One - occupied with HDD
External 5.25” Bay
One open - Two occupied with 3.5”FDD and 12X CD-ROM
EXTERNAL INTERFACES
One RJ-45 port for ethernet card (supplied)
Yes
One 9-Pin Serial (16550 UART compliant)
Yes
Universal Serial Bus ports
Supports 2 USB peripherals without external hub
One 25-Pin Parallel (IEEEP1284 compliant)
Yes: Multimode bi-directional (EPP, ECP)
One 15-Pin RGB (SVGA video)
Yes
One (PS/2) Mouse Port
Yes
One (PS/2) Windows 95 104 Keyboard
Yes
Microphone (3.5mm mini jack, monaural)
Yes
Headphone (3.5mm mini jack, stereo)
Yes
Line-in (3.5mm mini jack, stereo, 2V rms)
Yes
Line-out (3.5mm mini jack, stereo, 0.7V rms) Yes
Joystick/MIDI Port (15 pin D-sub)
Yes
AC IN (Standard 2 prong )
Yes
KEYBOARD
104-key keyboard with the Windows 95 keys
Yes
3.8mm Travel
Yes
12 dedicated function keys
Yes
Numeric keypad
Yes
POINTING DEVICE
PS/2 Mouse
Yes
POWER SUPPLY( 200Watts )
Input (Voltage/Frequency)
115-230V; 50-60Hz, Switch Selectable
Supported Safety Standards
UL/CSA, NRTL/C, VDE 0805, IEC 950, EN 60950, NEMKO
Chasis intrusion alert, Password protection, Cable lock receptacle
SECURITY
17.625” x 18.375” x 4.75”
DIMENSIONS: (L x W x D)
28 LBS
WEIGHT
BUNDLED SOFTWARE: Microsoft Windows NT Workstation v4.x; Intel LanDesk Client Manager, Plug and Play drivers;
PUMA TranXit for IRDA; Ethernet drivers (DOS, Window95, NTW, OS/2, Netware); Disk Creation utility; Mouse drivers
WARRANTY: 3 Yr. Parts & Labor (First Yr. On-site); Dedicated technical support, business hours nationwide
1. Both ports operate from a single controller allowing 128 devices total, not per port. Throughput for the Universal Serial
Bus (UBS) is 12Mbits/sec.
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change
without notice. Copyright 1997 TAIS 6200d.doc Rev. 3 04/04/00 nmm.
Page 2 of 3
EQUIUM 6200D Product Specifications
PRICING
6200D 200MHz Pentium Pro, 2.95GB HDD, 12X CD-ROM
EQUIUM MONITORS
PART #
PV1025U-01A
17” (15.8” viewable image)TekBright Multimedia Monitor (DC786MF)
Toshiba TekBright 17” (15.8” viewable image) Monitor -- 700P
Toshiba TekBright 15” (13.7” viewable image) Monitor -- 500V
17” (16.23”viewable image) Autoscan Monitor
15” (13.78”viewable image) Autoscan Monitor
PART #
PV2003U-01
PV2006U-01
PV2005U-01
DP782M-01
DP566M-01
EQUIUM ACCESSORIES (For 5160D, 5200D, 5230D, 6200D,
PART #
PRICE
$1,799
PRICE
$649
$649
$349
$599
$299
NEW!!
NEW!!
PRICE
6260M)
8MB Kingston Noteworthy EDO memory upgrade module
16MB Kingston Noteworthy EDO memory upgrade module
32MB Kingston Noteworthy EDO memory upgrade module
64MB Kingston Noteworthy EDO memory upgrade module
128MB Kingston Noteworthy EDO memory upgrade module
KTT-INF/8
KTT-INF/16
KTT-INF/32
KTT-INF/64
KTT-INF/128
$40
$70
$136
$263
$629
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change
without notice. Copyright 1997 TAIS 6200d.doc Rev. 3 04/04/00 nmm.
Page 3 of 3
