Acer n35 Instructions

Acer n35 is a multi-functional tool packed with user-friendly features and high-performance applications designed to make organizing work-related information and synchronizing it with your personal activities a time-efficient task.

Use your Acer n35 to effectively manage information related to both business and personal tasks:

Use the Microsoft® Pocket PC 2003 software to perform organizing and computing tasks
Synchronize the information on your computer with the information on your handheld using Microsoft® ActiveSync®
Get connected to the Internet with the Microsoft® Pocket Internet Explorer
Create an on-the-go backup file
Expand your handheld’s capabilities using either the built-in SD/MMC slot
Beam information to another IR-enabled device
Customize your handheld based on your personal requirements and preferences
Use GPS navigation software to plan trips and optimize routes

PDF Download

Document

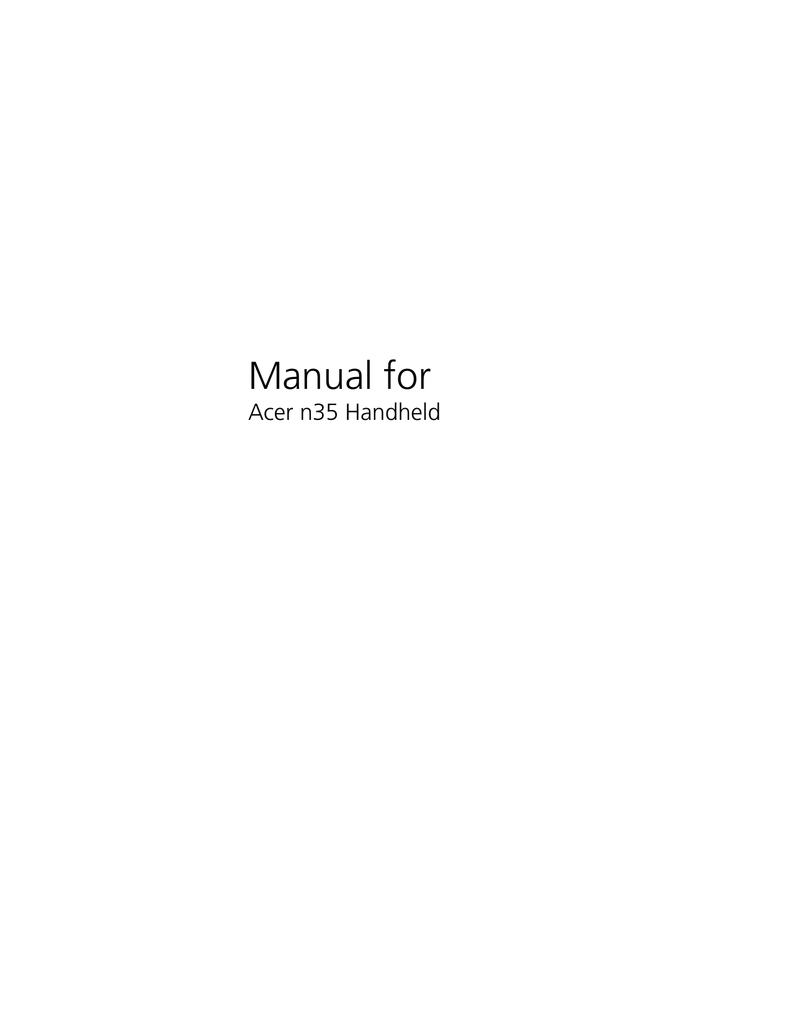

Manual for

Acer n35 Handheld

Acer n35 Handheld Manual

Original issue: Novermber 2004

Acer and the Acer logo are registered trademarks of Acer Inc.

Microsoft, ActiveSync, Outlook, Pocket Outlook, Windows, Windows NT, and the Windows logo are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Microsoft products are licensed to OEMs by Microsoft Licensing, Inc., a wholly owned subsidiary of Microsoft Corporation.

Other company’s product names or trademarks are used herein for identification purpose only and belong to their respective companies.

Changes may be made periodically to the information in this publication without obligation to notify any person of such revision or changes. Such changes will be incorporated in new editions of this Manual or supplementary documents and publications.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopy, recording, or otherwise, without the prior written permission of Acer Inc.

DISCLAIMER AND LIMITATION OF LIABILITY

Acer and its subsidiaries makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims the implied warranties of merchantability or fitness for a particular purpose. Acer and its subsidiaries assume no responsibility for any damage or loss resulting from the use of this Acer n35 Handheld Manual.

NOTES

Record the serial number, purchase date, and place of purchase information in the space provided below. The serial number is recorded on the label affixed to your Acer n35. All correspondence concerning your unit should include the serial number, and purchase information.

Acer n35 Handheld

S/N: _______________________________________

Purchase Date: ____________________________

Place of Purchase: _________________________

About this Manual

Welcome to the Acer n35 Handheld Manual. This Manual is designed to help you get up and running quickly with your new Acer n35—a Windows ® Powered Pocket PC

2003 handheld with GPS (Global Satellite Positioning) capability. It describes all you need to know about how to use your handheld as well as the application programs that come with it.

This Manual will discuss the following topics:

• A tour of the Acer n35 system

• Setup and maintenance procedures

• Viewing and entering data

• Using the application programs bundled with you handheld

• Taking advantage of your handheld’s expansion features

• Synchronising data between your handheld and your computer

• Connecting your handheld to a computer, a network, or the Internet

• Personalising your handheld with your own preference settings

This Manual introduces you to the many ways your Acer n35 can help you organise and manage both business and personal information to make your everyday activities a more productive and satisfying experience.

iii

About this Manual

F i r s t t h i n g s f i r s t

Your guides

First things first

We would like to thank you for making Acer n35 your choice for your handheld needs. Your new sleek Acer n35 is a multi-functional tool packed with user-friendly features and high-performance applications designed to make organising workrelated information and synchronising it with your personal activities a time-efficient task. We hope you enjoy using your Acer n35 as much as we enjoyed creating it for you.

Use your Acer n35 to effectively manage information related to both business and personal tasks.

• Use the Microsoft

® computing tasks

Pocket PC 2003 software to perform organising and

• Synchronise the information on your computer with the information on your handheld using Microsoft ® ActiveSync ®

• Get connected to the Internet with the Microsoft

Pocket Internet Explorer

• Create an on-the-go backup file

• Expand your handheld’s capabilities using either the built-in SD/MMC slot

• Beam information to another IR-enabled device

• Customise your handheld based on your personal requirements and preferences

• Use GPS navigation software to plan trips and optimize routes

Your guides

To help you use your Acer n35, we have designed a set of guides:

For information on:

Programs on your handheld

Refer to:

This Manual. Bundled in the Acer n35 Handheld

Companion CD, it provides online reference for using your Acer n35.

The Acer n35 Handheld Help. To view Help, tap and then Help.

The Acer n35 Handheld Companion CD.

Programs on your handheld

Additional programs that can be installed on your handheld

Connecting to and synchronising with your computer

GPS navigation operation

The Acer n35 Handheld Quick Guide.

ActiveSync Help on your computer. To view Help, click

Help and then Microsoft ActiveSync Help.

The quick start guide for the Destinator 3 software included in the box (optional and depending on SKU).

F i r s t t h i n g s f i r s t

Package contents

For information on:

Last-minute updates and detailed technical information

Up-to-date information regarding your handheld

Refer to:

The Read Me files. Located in the Microsoft ActiveSync folder on your computer and on the Acer n35

Handheld Companion CD.

http://www.acer.com/

Package contents

Your Acer n35 comes packed in a cardboard box. Carefully unpack the box and remove the contents. If any of the following items are missing or damaged, contact your dealer immediately:

• Acer n35 handheld

• Stylus

• USB Sync Cable

• AC Power Adapter

• Slip Case

• Destinator 3 navigation software and maps CD (optional dependent on SKU)

• SD card with Destinator 3 software and maps (optional and dependent on SKU)

• Acer n35 Handheld Quick Guide

• Acer n35 Handheld Companion

• End User License Agreement

• International Travellers Warranty

• Destinator 3 Quick Guide (optional depending on SKU)

Maintaining your Acer n35

This section provides information on the following:

• Proper care and usage of your handheld

• Resetting your handheld

Proper care and usage of your Acer n35

Your Acer n35’s rugged and tough construction is designed to provide you with years of reliable and trouble-free service. Observing the following general maintenance procedures will help ensure this:

Take care not to scratch the screen of your handheld. Keep the screen clean. When working with your handheld, use the supplied stylus or plastic-tipped pens intended for use with touch-sensitive screens. Never use an actual pen or pencil or other sharp object on the screen surface.

Your handheld is not waterproof and should not be exposed to rain or moisture.

Under extreme conditions, water may enter the circuitry through the front panel vi

F i r s t t h i n g s f i r s t

Maintaining your Acer n35

6 buttons or expansion slots. In general, treat your handheld as you would a pocket calculator or other small electronic device.

Take care not to drop your handheld or subject it to any strong impact. Do not place your handheld in your back pocket; if you sit on it, you may damage it.

Protect your handheld from temperature extremes. For example, do not leave your handheld on the dashboard of a car on a hot day or on a day when temperatures are below the freezing point. Also, keep it away from heaters and other sources of heat.

Do not use or store your handheld in any location that is extremely dusty, damp or wet. Always use the (included) SD dummy card to protect the connectors when not in use.

Use a soft, damp cloth to clean your handheld. If the surface of the screen becomes soiled, clean it with a soft cloth moistened with diluted window-cleaning solution.

Resetting your Acer n35

You may have to perform a reset if your handheld no longer responds to the buttons on the screen.

Performing a soft reset

A soft reset allows your handheld to get a fresh start, similar to rebooting a computer.

All records and entries are retained after a soft reset.

To perform a soft reset:

• Using the tip of your stylus, lightly press the reset button inside the hole on the buttom of your handheld.

Performing a hard reset

A hard reset will erase all records and entries stored in your handheld. Never perform a hard reset unless a soft reset does not correct your problem. When you perform your next ActiveSync operation, you can restore any data that you previously synchronised to your computer. To perform a hard reset:

vii

F i r s t t h i n g s f i r s t

Locking your Acer n35

Use the tip of your stylus to toggle the reset switch to the left (a) and back to the right

(b) on the bottom of your handheld.

NOTE: When you perform a hard reset, formats, preferences, and other settings including date and time are restored to their factory default settings. All data, records, and entries, except for those stored in the ROM storage, will be erased.

Locking your Acer n35

Your handheld is not just a financial investment but a wealthy source of personal information, some of which may be confidential so it is only logical to protect it from any unauthorized access. The security setting of your handheld gives you the option of assigning a lock password that will be required for access after a set period of inactivity.

To assign a password

On the Personal tab, tap Password.

Select a password option.

• Simple 4 digit password

• Strong alphanumeric password

Define the period of inactivity before the password will be required for access.

Enter password then retype it to confirm.

viii

Contents

About this Manual

First things first

iii

Your guides . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v

Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi

Maintaining your Acer n35 . . . . . . . . . . . . . . . . . . . . . . . . vi

Proper care and usage of your Acer n35 . . . . . . . . . . . . . . . . . vi

Resetting your Acer n35 . . . . . . . . . . . . . . . . . . . . . . . . vii

Locking your Acer n35 . . . . . . . . . . . . . . . . . . . . . . . . . viii

1 Getting started 1

System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Features summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

26-pin I/O connector . . . . . . . . . . . . . . . . . . . . . . . . . 2

Connectivity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Expansion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Design and ergonomics . . . . . . . . . . . . . . . . . . . . . . . . 2

Acer n35 tour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Front view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Left view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Right view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Top view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Bottom view . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Back View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Navigation car kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

To use car holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

To use car charger to charge your Acer n35. . . . . . . . . . . . . . . . . . 9

Preparing to use your Acer n35 . . . . . . . . . . . . . . . . . . . . . . 9

Installing the Microsoft® ActiveSync® software . . . . . . . . . . . . . .10

Connecting the computer . . . . . . . . . . . . . . . . . . . . . . .10

Charging your Acer n35 . . . . . . . . . . . . . . . . . . . . . . . .11

Setting up your Acer n35 . . . . . . . . . . . . . . . . . . . . . . .12

Performing the first synchronisation process . . . . . . . . . . . . . . .13

Command interface . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Handheld buttons and the stylus . . . . . . . . . . . . . . . . . . . .14

Today screen . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Start menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Command bar . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Pop-up menus . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Setting GPS configuration . . . . . . . . . . . . . . . . . . . . . . . .17

2 Entering data in your Acer n35 19

Using the input panel . . . . . . . . . . . . . . . . . . . . . . . . . .19

To type with the soft keyboard . . . . . . . . . . . . . . . . . . . . 20

To use Letter Recognizer . . . . . . . . . . . . . . . . . . . . . . . 20

To use Block Recognizer . . . . . . . . . . . . . . . . . . . . . . . 21

To use Transcriber . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Writing on the screen . . . . . . . . . . . . . . . . . . . . . . . . . . 21

To write on the screen . . . . . . . . . . . . . . . . . . . . . . . . 22

Drawing on the screen . . . . . . . . . . . . . . . . . . . . . . . . . 24

To create a drawing . . . . . . . . . . . . . . . . . . . . . . . . . 24

Recording a message . . . . . . . . . . . . . . . . . . . . . . . . . . 26

To create a recording . . . . . . . . . . . . . . . . . . . . . . . . 26

To play a recording . . . . . . . . . . . . . . . . . . . . . . . . . 26

Using My Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

To insert a My Text message . . . . . . . . . . . . . . . . . . . . . . 27

3 Managing applications and information 29

Opening an application . . . . . . . . . . . . . . . . . . . . . . . . . 29

Switching between applications . . . . . . . . . . . . . . . . . . . . . 29

Finding and organising information . . . . . . . . . . . . . . . . . . . . 31

To use Find . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

To use File Explorer . . . . . . . . . . . . . . . . . . . . . . . . . 32

4 Managing Microsoft® Pocket Outlook applications 33

Calendar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Scheduling an appointment . . . . . . . . . . . . . . . . . . . . . . 35

Creating a meeting request . . . . . . . . . . . . . . . . . . . . . . 36

Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Creating a contact . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Finding a contact . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Creating a task . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Creating a note . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Inbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Synchronising email messages . . . . . . . . . . . . . . . . . . . . . 42

Connecting directly to an email server . . . . . . . . . . . . . . . . . 42

Using the Message list . . . . . . . . . . . . . . . . . . . . . . . . 43

Composing a message . . . . . . . . . . . . . . . . . . . . . . . . 43

Managing email messages and folders . . . . . . . . . . . . . . . . . 44

5 Managing Microsoft® Pocket PC 2003 companion programs 45

Pocket Word . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

To create a new file . . . . . . . . . . . . . . . . . . . . . . . . . 45

To use the Pocket Word file list . . . . . . . . . . . . . . . . . . . . 46

To enter information. . . . . . . . . . . . . . . . . . . . . . . . . 46

Pocket Excel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Creating a new workbook . . . . . . . . . . . . . . . . . . . . . . 49

To create a Pocket Excel file list . . . . . . . . . . . . . . . . . . . . 49

Contents

MSN

® Messenger . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Setting up . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Working with contacts . . . . . . . . . . . . . . . . . . . . . . . .51

Chatting with contacts . . . . . . . . . . . . . . . . . . . . . . . .52

Microsoft ®

Windows Media™ Player for Pocket PC . . . . . . . . . . . . . .53

Microsoft ®

Reader for Pocket PC . . . . . . . . . . . . . . . . . . . . . .54

Using the Guidebook . . . . . . . . . . . . . . . . . . . . . . . . .54

Getting books on your Acer n35 . . . . . . . . . . . . . . . . . . . .54

Using the Library . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Opening a book . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Reading a book . . . . . . . . . . . . . . . . . . . . . . . . . . .55

Using Reader features. . . . . . . . . . . . . . . . . . . . . . . . .56

Removing a book . . . . . . . . . . . . . . . . . . . . . . . . . .57

6 Backup and restore data 59

Backup function . . . . . . . . . . . . . . . . . . . . . . . . . . .60

AutoBackup function . . . . . . . . . . . . . . . . . . . . . . . . .61

Restore function . . . . . . . . . . . . . . . . . . . . . . . . . . .61

7 Using expansion features 65

Using an SD/MMC card . . . . . . . . . . . . . . . . . . . . . . . . . .65

Inserting an SD/MMC card . . . . . . . . . . . . . . . . . . . . . . .65

Removing an SD/MMC card . . . . . . . . . . . . . . . . . . . . . .66

8 Exchanging and updating data using ActiveSync

Using ActiveSync ®

.. . . . . . . . . . . . . . . . . . . . . . . . . . . .67

9 Getting connected 69

Transferring items using infrared . . . . . . . . . . . . . . . . . . . . .69

To send information via infrared . . . . . . . . . . . . . . . . . . . .69

Connecting to the Internet . . . . . . . . . . . . . . . . . . . . . . . .70

To create a modem connection to an ISP . . . . . . . . . . . . . . . . .70

To create a wireless Ethernet connection to an ISP . . . . . . . . . . . . .71

Connecting to a network . . . . . . . . . . . . . . . . . . . . . . . . .72

To create a modem connection to a network . . . . . . . . . . . . . . .72

To create a wireless Ethernet connection to a network . . . . . . . . . . .72

Get help on connecting . . . . . . . . . . . . . . . . . . . . . . . .72

10 Using Microsoft® Pocket Internet Explorer 73

Mobile Favorites folder . . . . . . . . . . . . . . . . . . . . . . . . .73

Favorite links . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

Mobile favorites . . . . . . . . . . . . . . . . . . . . . . . . . . .73

Using Pocket Internet Explorer . . . . . . . . . . . . . . . . . . . . . .74

To view mobile favorites and channels . . . . . . . . . . . . . . . . . .74

To browse the Internet . . . . . . . . . . . . . . . . . . . . . . . .75

11 Customising your handheld 77

Adjusting handheld settings . . . . . . . . . . . . . . . . . . . . . . . 77

Adding and removing programs . . . . . . . . . . . . . . . . . . . . . 77

Adding programs . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Removing programs . . . . . . . . . . . . . . . . . . . . . . . . . 79

1 G e t t i n g s t a r t e d

System requirements d

Getting started

This chapter will discuss the following topics:

• Basic requirements

• Feature highlights of your Acer n35

• Acer n35 system tour

• Step-by-step procedures on how to prepare your handheld for use

• Basic concepts in using your handheld

System requirements

In order to install the Microsoft® ActiveSync® software and use your new Acer n35 with a computer at work or at home, be sure the system(s) meet the following minimum system and program requirements.

• Intel ® Pentium processor (minimum 233 MHz)

• 64 MB RAM

• 120 MB disk space

• CD-ROM drive

• USB port or Infrared port

• SVGA (or compatible) graphics card supporting 256 colours

• Microsoft® Windows XP, 2000, ME or 98SE

• Microsoft® Internet Explorer 4.01

Features summary

Performance

• Samsung S3C2410 Application Processor 266 MHz

• System memory:

– 64 MB SDRAM for application storage

– 32 MB Flash ROM for operating system

• Microsoft

Windows Mobile TM 2003 Software for Pocket PC Premium Edition with Outlook ® 2002

Display

• 3.5" Transflective TFT LCD

• 240 x 320 resolution

• 65536 colour support

• Microsoft

ClearType technology for clearer, crisper font display

1 G e t t i n g s t a r t e d

Features summary

Audio

• Embedded AC '97 CODEC with CD-quality stereo output

• Built-in industry standard 3.5 mm earphone jack

• Built-in microphone

26-pin I/O connector

• USB Client(for ActiveSync only)

• DC power in

Connectivity

• SIR (Serial Infrared) capability

Expansion

• SD/MMC slot (SDIO compatible)

Battery

• Rechargeable 1000 mAH Lithium iron battery

• 8 hours operation time for normal usage (when backlight is inactive)

NOTE: Length of battery operation will depend on power consumption which is based on system resource use. For example, constantly using the backlight or using power-demanding applications will shorten battery life between charges.

• 3 hour charging time from empty to full capacity

Design and ergonomics

• Stylish, light and thin design

Specifications

Height

Width

Depth

Weight

Dimensions

120 mm

72 mm

20 mm

165 g (including stylus)

• User-friendly navigation features

– Scroll wheel for one-hand operation

– Quick buttons for easy launch of commonly-used applications

– Start button for one-tap access to all available applications

Acer n35 tour

Front view

1 G e t t i n g s t a r t e d

Acer n35 tour

No.

Component

Power LED indicator

GPS LED indicator

LCD touchscreen

Quick button for

Today

Quick button for

Calendar

Description

Power LED indicator.

- status description:

• Flashing green - Charging

• Steady green - Charging complete

• Flashing red - Alarm indicator, email receiving

GPS LED indicator.

-status description:

• Flashing blue - GPS is on

Displays the applications and data stored in your handheld.

It is touch-sensitive and responds to the stylus or your finger.

Displays the Today screen. For more information on this

screen, refer to page 15.

Activates the Calendar program. For more information on

this program, refer to page 33.

1 G e t t i n g s t a r t e d

Acer n35 tour

No.

Component

4-way directional pad

Quick button for

Contacts

Quick button for

Inbox

Description

Enables 4 directions (Up, Down, Left, Right) scrolling in various menus and applications.

Activates the Contacts program. For more information on

this program, refer to page 37.

Activates the inbox program. For more information on this

program, refer to page 42.

NOTE:

If your handheld is turned off, pressing any Quick button turns on the handheld and opens the program assigned to that button.

Left view

No.

Label

Power button

Scroll wheel

Description

Press to turn on your handheld on (power LED lights up green) if it is off and returns to the last screen that was displayed and off if it is on.

Scroll up or down to display text and other information that extends beyond the area of the LCD touchscreen. Scroll through icons and pull down menus, press to open files/applications (same as double tapping with the stylus).

1 G e t t i n g s t a r t e d

Acer n35 tour

Using the backlight

If lighting conditions make it difficult for you to see the information on your handheld, use the backlight to illuminate your screen.

To activate the backlight:

• Press the power button and hold it down for about two seconds. Release the button when the backlight turns on.

• To turn off the backlight, press the power button and hold it down for two seconds. Release the button when the backlight turns off.

Right view

No.

Label

External antenna connector

Description

Connect to an external GPS antenna (optional)

1 G e t t i n g s t a r t e d

Acer n35 tour

Top view

No.

Label Description

Earphone jack Connects to audio line-out devices (earphones/headphones).

2 SD/MMC slot Accepts a Secure Digital or MultiMedia Card, allowing you to add more memory, install add-on applications or use audio or text files stored on it with internal applications. You can also use expansion cards to back up data from your handheld.

Use this to protect the SD connector when no card is installed. Dummy SDcard

IR Port

Microphone

Stylus holder

Uses infrared technology to transmit and receive data from other IR-enabled devices.

Inputs audio into your handheld.

Secures the stylus to your handheld. To use the stylus, remove from its holder and hold it as you would hold a pen or pencil.

1 G e t t i n g s t a r t e d

Acer n35 tour

Bottom view

No.

Label

Hard reset switch

26-pin I/O connector

3 Soft reset switch

Description

Toggle to return you handheld settings to the factory defaults.

See “Performing a hard reset” on page vii.

Connects your handheld to a portable or desktop computer and

DC power supply to an AC wall outlet to charge the battery.

- USB Client (for ActiveSync only)

- DC power in

A soft reset allows your handheld to get a fresh start, similar to rebooting a computer. All records and entries are retained after a soft reset.

1 G e t t i n g s t a r t e d

Navigation car kit

Back View

No.

Label

Flip-up patch antenna

Description

Flip up antenna when you do GPS navigation.

Navigation car kit

Acer n35 package includes car holder and car charger, with which you can set up a navigation system in the car.

1 G e t t i n g s t a r t e d

To use car holder

To use car holder

1. Attach gooseneck firmly to holder

2. Suction mount the car holder to windshield or any flat, smooth surface.

Alternatively, use self-adhesive power disc to mount on other surface.

3. Flip up the GPS antenna of the Acer n35 handheld then adjust it in the holder. Squeeze sides to close and hold tight (press button to release).

4. If you want your Acer n35 handheld to be charged while driving, please apply the car charger (see below for instructions).

NOTE: Never leave your handheld or the mount in extreme heat.

To use car charger to charge your Acer n35.

1. Connect car charger to the adaptor connector of the handheld.

2. Plug adaptor connector into 26-pin I/O connector of the Acer n35 handheld and plug car charger into cigarette lighter.

Preparing to use your Acer n35

Perform the following easy installation tasks to begin using your handheld:

• Install the Microsoft ® ActiveSync ® software in your computer

• Connect the cable

• Charge your handheld

• Set up your handheld

• Perform the first ActiveSync operation

1 G e t t i n g s t a r t e d

Preparing to use your Acer n35

Installing the Microsoft

ActiveSync

software

The main function of the Microsoft ® ActiveSync ® software is to synchronise the information on your computer with the information on your handheld.

Synchronisation compares the data on your handheld with your computer and updates the information on both locations. This will then served as a backup data in case something happens to your handheld.

The following instructions tells you how to install the ActiveSync

® software.

Important installation notes

• Before installing ActiveSync, make sure that your handheld cradle is not yet connected to your computer. Connect the cradle only after you have finished installing ActiveSync.

• If you don’t have Microsoft

Outlook

98 or later installed, please install

Microsoft ® Outlook ® 2002 now. Even if you have Outlook 98 or Outlook 2000 installed, you are encouraged to upgrade to Outlook 2002.

• It is recommended that users install Outlook 2002 from this CD before installing ActiveSync.

• Do not copy the ActiveSync files to your computer’s hard disk. You must use the Acer n35 Handheld Companion CD to place the files in their proper locations and to decompress the files.

To install the Microsoft ® ActiveSync ® software

Exit any open programs, including those that run at startup, and disable any virusscanning software.

Insert the Acer n35 Handheld Companion CD into the computer’s CD-ROM drive.

The CD’s welcome page appears.

Click the animated forward icon to go to the next screen.

Click the Start Here tab on the right side of the screen.

Read the instructions and installation notes indicated on the Start Here screen.

Click the buttons on the left pane to install each of the individual applications.

• Outlook 2002 (recommended)

• ActiveSync ® 3.7.1

After installation, the ActiveSync icon will appear on your computer’s system tray

(on the lower right-hand corner of the screen).

Refer to the ActiveSync software online Help for information on how to use the software. If at any time, you would like to restart this setup program, simply re-insert the CD into the CD-ROM drive.

Connecting the computer

The USB sync cable that comes with your handheld enables you to synchronise the information on your handheld with the data in your computer using ActiveSync technology.

To connect the computer

1 G e t t i n g s t a r t e d

Preparing to use your Acer n35

Plug the USB sync cable into the 26-pin I/O connector on the bottom of your handheld and plug the USB client connector into an available USB port on your computer .

Charging your Acer n35

For initial use, you need to charge your handheld for three hours. After that, you can charge it for a few minutes each day to recharge the battery to full capacity. Normally, you can use your handheld for 8 straight hours of operation (backlight inactive) before you need to recharge the battery.

To charge your Acer n35

Connect the AC adapter connector to the handheld, then plug the other end of the

AC adapter into any AC outlet.

1 G e t t i n g s t a r t e d

Preparing to use your Acer n35

Power LED status during charging:

• Charging - LED indicator flashes green

• Charging complete - LED indicator steady green

If the battery level becomes low in the course of normal use, a status icon appears on the handheld screen indicating low or very low battery status. Perform an ActiveSync operation to back up your data; then recharge the battery.

If your handheld shuts down (i.e., battery is competely drained out) you have about

72 hours (3 days) to recharge the battery before you lose all data on your handheld’s internal memory.

Setting up your Acer n35

After you have initially charged your handheld for three hours, you can now set it up.

Refer to the instructions below.

To set up your Acer n35

Turn on your handheld by pressing the power button on the left side. See "Left view" on page 4, for the location of the power button.

2 Follow the onscreen instructions to set up your handheld.

1 G e t t i n g s t a r t e d

Preparing to use your Acer n35

Performing the first synchronisation process

After completing the setup procedures you can now perform the first ActiveSync operation with the help of the 'New Partnership' setup wizard.

This wizard will help you:

• Set up a partnership so you can synchronise information between your handheld and your computer

• Customise your synchronisation settings

To perform the first synchronisation process

Connect the USB sync cable to your handheld.

1 G e t t i n g s t a r t e d

Command interface

2 Plug the USB client connector into a USB port on your computer.

The 'New Partnership' setup wizard will automatically start on your computer screen.

NOTE: If the wizard does not automatically appear, launch ActiveSync on your computer by clicking on its icon from Start>Programs.

Follow the onscreen instructions.

The first synchronisation process will automatically begin when you finish using the wizard.

After your first synchronisation, take a look at Calendar, Contacts, and Tasks on your handheld. You'll notice that information you've stored in Microsoft Outlook on your computer has been copied to your handheld, and you didn't have to type a word.

Disconnect your handheld from your computer and you're ready to go!

Once you have set up ActiveSync and completed the first synchronisation process, you can initiate synchronisation from your handheld. To switch to ActiveSync on your handheld, tap , and then tap ActiveSync.

Command interface

Handheld buttons and the stylus

Your handheld has hardware buttons that control actions and scroll functions, and a stylus for selecting items and entering information.

On your handheld, the stylus replaces the mouse.

• Tap. Touch the screen once with the stylus to open items and select options.

• Drag. Hold the stylus on the screen and drag across the screen to select text and images. Drag in a list to select multiple items.

• Tap and hold. Tap and hold the stylus on an item to see a list of actions available for that item. On the pop-up menu that appears, tap the action you want to perform.

1 G e t t i n g s t a r t e d

Command interface

Today screen

The center of the Today screen provides, at a glance, information that you need for the day. Tap an item to view or edit details.

At the top to the screen are status icons. Tap an icon to view details or change options.

These icons appear at the top of every screen on your handheld device, not just the

Today screen.

When you turn on your handheld device for the first time each day, or after hours of inactivity, the Today screen is displayed.

You can also display it by tapping and then Today.

Start menu

From the Start menu, you can select programs, settings and Help topics. To display the

Start menu, from the top of any screen tap .

1 G e t t i n g s t a r t e d

Command interface

Command bar

At the bottom of the screen is the command bar. You can use its menus and buttons to perform tasks in programs. Depending upon which program you are using, the buttons may vary from those depicted below.

• To create a new item in the current program, tap New.

• To see the name of a button, tap and hold the stylus on the button. Drag the stylus off the button so that the command is not carried out.

Pop-up menus

You can use pop-up menus to quickly select an action for an item.

1 G e t t i n g s t a r t e d

Setting GPS configuration

Setting GPS configuration

You might need to set the GPS configuration to ensure GPS signals from satellites are well-received by your Acer n35 handheld. Generally you can do that with navigation software (Destinator 3 or other third-party software). The correct GPS configuration on Acer n35 should be:

COM Port: COM8

Baud rate: 9600 bps

For details on setting the GPS configuration, please refer to the manual supplied with

the navigation software.

1 G e t t i n g s t a r t e d

Setting GPS configuration

2 E n t e r i n g d a t a i n y o u r A c e r n 3 5

Using the input panel

Entering data in your

Acer n35

You can enter data into your handheld in several ways:

• Use the input panel to enter typed text, either by using the soft keyboard or other input method.

• Write directly on the screen.

• Draw pictures on the screen.

• Speak into your handheld’s microphone to record a message.

• Use Microsoft

ActiveSync

to synchronise or copy information from your computer to your handheld.

Refer to page 67 for detailed information on using Microsoft

ActiveSync

Using the input panel

Use the input panel to enter information in any program on your handheld. You can either type using the soft keyboard or write using Letter Recognizer, Block Recognizer, or Transcriber. In either case, the characters appear as typed text on the screen.

NOTE: Transcriber is available only for the English and European Acer n35 models.

To show or hide the input panel

Tap the Input Panel button.

Tap the arrow next to the Input Panel button to see your choices.

Select an input method.

Tap to see your choices.

Input Panel button.

When you use the input panel, your handheld anticipates the word you are typing or writing and displays it above the input panel. When you tap the displayed word, it is

2 E n t e r i n g d a t a i n y o u r A c e r n 3 5

Using the input panel inserted into your text at the insertion point. The more you use your handheld, the more words it learns to anticipate.

To change word suggestion options

• To set word suggestion options such as the number of words suggested at one time, tap

Completion tab.

, Settings, Personal tab, Input, and then the Word

To type with the soft keyboard

Tap the arrow next to the Input Panel button, then Keyboard.

On the soft keyboard that is displayed, tap the keys with your stylus.

To use Letter Recognizer

With Letter Recognizer you can write letters using the stylus just as you would on paper.

Tap the arrow next to the Input Panel button, then Letter Recognizer.

Write a letter in the box.

When you write a letter, it is converted to typed text that appears on the screen.

NOTE: For specific instructions on using Letter Recognizer, with Letter Recognizer open, tap the question mark next to the writing area.

2 E n t e r i n g d a t a i n y o u r A c e r n 3 5

Writing on the screen

To use Block Recognizer

With Block Recognizer you can input character strokes using the stylus that are similar to those used on other devices.

Tap the arrow next to the Input Panel button, then Block Recognizer.

Write a letter in the box.

When you write a letter, it is converted to typed text that appears on the screen.

NOTE: For specific instructions on using Block Recognizer, with Block Recognizer open, tap the question mark next to the writing area.

To use Transcriber

With Transcriber you can write anywhere on the screen using the stylus just as you would on paper.

NOTE: Transcriber is available only for the English and European Acer n35 models.

Unlike Letter Recognizer and Block Recognizer, you can write a sentence or more of information. Then, pause and let Transcriber change the written characters to typed characters.

Tap the arrow next to the Input Panel button and then Transcriber.

Write anywhere on the screen.

NOTE: For specific instructions on using Transcriber, with the Transcriber Input Panel open, tap the question mark in the lower right hand corner of the screen.

To select and edit typed text

If you want to edit or format typed text, you must select it first.

Drag the stylus across the text to select it.

To cut, copy, and paste typed text: a Tap and hold the selected words b Tapping an editing command on the pop-up menu, or tap a command on the Edit menu.

Writing on the screen

In any program that accepts writing, such as the Notes program, and in the Notes tab of Calendar, Contacts, and Tasks, you can use your stylus to write directly on the screen. Write the way you do on paper. You can edit and format what you've written and convert the information to text at a later time.

2 E n t e r i n g d a t a i n y o u r A c e r n 3 5

Writing on the screen

To write on the screen

• Tap the Pen button to switch to writing mode. This action displays lines on the screen to help you write.

NOTE: Some programs that accept writing may not have the Pen button. See the documentation for that program to find out how to switch to writing mode.

To select and edit written text

If you want to edit or format written text, you must select it first.

Tap and hold the stylus next to the text you want to select until the insertion point appears.

Without lifting, drag the stylus across the text you want to select.

If you accidentally write on the screen, tap Tools, then Undo and try again.

-or-

You can also select text by tapping the Pen button to deselect it and then dragging the stylus across the screen.

You can cut, copy, and paste written text in the same way you work with typed text: a Tap and hold the selected words b Tapping an editing command on the pop-up menu, or tap a command on the Edit menu.

2 E n t e r i n g d a t a i n y o u r A c e r n 3 5

Writing on the screen

To convert writing to text

• Tap Tools and then Recognize.

If you want to convert only certain words, select them before tapping

Recognize on the Tools menu (or tap and hold the selected words and then tap Recognize on the pop-up menu). If a word is not recognized, it is left as writing.

If the conversion is incorrect, you can select different words from a list of alternates or return to the original writing. To do so:

1 Tap and hold the incorrect word (tap one word at a time).

2 On the pop-up menu, tap Alternates.

A menu with a list of alternate words appears.

3 Do either of the following: a Tap the word you want to use. b Tap the writing at the top of the menu to return to the original writing.

NOTE:

Hyphenated words, foreign words that use special characters such as accents, and some punctuation cannot be converted.

If you add writing to a word to change it (such as changing a " 3 " to an " 8 " ) after you attempt to recognise the word, the writing you add will not be included if you attempt to recognise the writing again.

2 E n t e r i n g d a t a i n y o u r A c e r n 3 5

Drawing on the screen

Tips for getting good recognition

• Write neatly.

• Write on the lines. Write the cross of the "t" and apostrophes below the top line so that they are not confused with the word above. Write periods and commas above the line.

• For better recognition, try increasing the zoom level to 300% using the Tools menu.

• Write the letters of a word closely and leave big gaps between words so that your handheld can easily tell where words begin and end.

Drawing on the screen

You can draw on the screen in the same way that you write on the screen. The difference between writing and drawing on the screen is how you select items and how they can be edited. For example, selected drawings can be resized, while writing cannot.

To create a drawing

Cross three ruled lines on your first stroke.

A drawing box appears.

2 E n t e r i n g d a t a i n y o u r A c e r n 3 5

Drawing on the screen

2 Subsequent strokes in or touching the drawing box become part of the drawing.

Drawings that do not cross three ruled lines will be treated as writing.

TIP: You may want to change the zoom level so that you can more easily work on or view your drawing. Tap Tools and then select a zoom level.

To select a drawing

If you want to edit or format a drawing, you must select it first.

• Tap and hold the stylus on the drawing until the selection handle appears.

• To select multiple drawings, deselect the Pen button and then drag to select the drawings you want.

To edit a drawing

• To cut, copy, and paste selected drawings:

– Tap and hold the selected drawing.

– Tap an editing command on the pop-up menu, or tap a command on the

Edit menu.

• To resize a drawing:

– Make sure the Pen button is not selected.

– Drag a selection handle until required size is attained.

2 E n t e r i n g d a t a i n y o u r A c e r n 3 5

Recording a message

Recording a message

In any program where you can write or draw on the screen, you can also quickly capture thoughts, reminders, and phone numbers by recording a message.

• In Calendar, Tasks, and Contacts, you can include a recording in the Notes tab.

• In Notes, you can either create a stand-alone recording or include a recording in a written note. If you want to include the recording in a note, open the note first.

• In Inbox, you can add a recording to an email message.

To create a recording

Hold your handheld's microphone near your mouth or other source of sound.

NOTE:

Refer to "Top view" on page 6 for the location of your handheld’s microphone.

Start recording by tapping the Record button on the Recording toolbar.

Make your recording.

To stop recording: Tap the Stop button on the Recording toolbar.

The new recording appears in the note list or as an embedded icon.

To play a recording

• Tap it in the list or tap its icon in the note.

2 E n t e r i n g d a t a i n y o u r A c e r n 3 5

Using My Text

Using My Text

When using Inbox or MSN Messenger, use My Text to quickly insert preset or frequently used messages into the text entry area.

To insert a My Text message

Tap My Text on the screen’s command bar.

Tap a message.

NOTE: You can add text after inserting a My Text message before sending it.

To edit a My Text message

In the Tools menu, tap Edit and then tap My Text Messages.

Select the message you wish to edit and make desired changes.

2 E n t e r i n g d a t a i n y o u r A c e r n 3 5

Using My Text

3 M a n a g i n g a p p l i c a t i o n s a n d i n f o r m a t i o n

Opening an application

Managing applications and information

This chapter will discuss the following topics:

• Opening and switching between applications in your handheld

• Using File Explorer to manage files

• Using the Find function to look for a specific file

Opening an application

You can open applications by doing either of the following:

• Tap , Programs, and then the program name.

If you have many applications installed on your handheld, tap the scroll bar to see all the available applications.

• Press any of the Quick buttons on the front panel of your handheld.

The icons on the buttons identify the programs.

Switching between applications

Choose from the following options to switch between applications:

• Select another program from the menu.

• Press any of the Quick buttons on the front panel of your handheld.

NOTE: Some program names have been abbreviated in check boxes and drop-down menus.

To see the full spelling of an abbreviated label, tap and hold the stylus on the label. Drag the stylus off the label so that the command is not carried out.

The following table contains a partial list of programs that are on available on your handheld.

Icon Program

ActiveSync

Usage

Synchronise information between your handheld and computer.

Calendar Keep track of your appointments and create meeting requests.

3 M a n a g i n g a p p l i c a t i o n s a n d i n f o r m a t i o n

Switching between applications

Icon Program

Contacts

Inbox

Usage

Keep track of your friends and colleagues.

Send and receive email messages.

Pocket Internet

Explorer

Browse Web and WAP sites, and download new programs and files from the Internet.

Notes

Tasks

Create handwritten or typed notes, drawings, and recordings.

Keep track of your tasks.

Pocket Excel Create new workbooks or view and edit Excel workbooks created on your computer.

MSN Messenger Send and receive instant messages with your MSN

Messenger contacts.

Pocket Word Create new documents or view and edit Word documents created on your computer.

3 M a n a g i n g a p p l i c a t i o n s a n d i n f o r m a t i o n

Finding and organising information

Finding and organising information

Using the Find function and the File Explorer window will allow you to find and manage your files easily.

To use Find

The Find function on your handheld helps you quickly locate information.

On the menu, tap Find.

Enter the text you want to find, then select a data type.

TIP: To quickly find information that is taking up storage space on your handheld, select

Larger than 64 KB in Type.

Tap Go to start the search.

Type text you want to find.

Tap here to start search.

3 M a n a g i n g a p p l i c a t i o n s a n d i n f o r m a t i o n

Finding and organising information

To use File Explorer

Use File Explorer to locate files on your handheld and to organise these files into folders.

• On the menu, tap Programs, and then File Explorer.

4 M a n a g i n g M i c r o s o f t ® P o c k e t O u t l o o k a p p l i c a t i o n s

Calendar

Managing Microsoft

Pocket Outlook applications

This chapter will discuss the basic applications included in the Microsoft

Pocket

Outlook program installed in your handheld. This discussion will include:

• Calendar - schedule meetings and remind yourself of set appointments

• Contacts - keep at hand a directory of contact information

• Tasks - make a to-do list

• Notes - create textual or recorded notes of your thoughts and ideas

• Inbox - write, edit, and view your emails on the road

You can use these programs individually or together. For example, email addresses stored in Contacts can be used to address e-mail messages in Inbox.

Calendar

Calendar enables you to conveniently manage your schedules and appointments or any other activities associated with a time and date. You can schedule appointments, including meetings and other events. Checking your appointments is easy using one of several views—Agenda, Day, Week, Month, and Year.

NOTE: Switch view options by using the View menu.

4 M a n a g i n g M i c r o s o f t ® P o c k e t O u t l o o k a p p l i c a t i o n s

Calendar

To open Calendar

• Press the Calendar Quick button on the front panel of your handheld.

Calendar will open to today’s schedule.

NOTE: You can customise the Calendar display, such as changing the first day of the week, by tapping Options on the Tools menu.

4 M a n a g i n g M i c r o s o f t ® P o c k e t O u t l o o k a p p l i c a t i o n s

Calendar

Scheduling an appointment

You can use Calendar to create or review appointments.

To create an appointment

If you are in Day or Week view, tap the desired date and time for the appointment.

Tap New.

Using the input panel, enter a description and a location.

Tap first to select the field.

If needed, tap the date and time to change them.

Enter other desired information.

You will need to hide the input panel to see all available fields.

To add notes, tap the Notes tab. You can enter text, draw, or create a recording. For more information on creating notes, see "Notes" later in this chapter.

After entering the desired information, tap OK.

TIP: If you select Remind me in an appointment, your handheld will remind you according to the options set in , Settings, Personal tab, Sounds & Reminders.

Using the Calendar summary screen

When you tap an appointment in Calendar, a summary screen is displayed. To change the appointment, tap Edit.

4 M a n a g i n g M i c r o s o f t ® P o c k e t O u t l o o k a p p l i c a t i o n s

Calendar

Creating a meeting request

You can use Calendar to set up meetings with users of Outlook or Pocket Outlook. The meeting request will be created automatically and sent either when you synchronise

Inbox or when you connect to your email server. Indicate how you want meeting requests sent by tapping Tools and then Options. If you send and receive email messages through ActiveSync, select ActiveSync.

To schedule a meeting

Create an appointment.

In the appointment details, hide the input panel, and then tap Attendees.

From the list of email addresses you've entered in Contacts, select the meeting attendees.

The meeting notice is created automatically and placed in the Outbox folder.

For more information on sending and receiving meeting requests, see the Help menu of Calendar and Inbox in your handheld.

4 M a n a g i n g M i c r o s o f t ® P o c k e t O u t l o o k a p p l i c a t i o n s

Contacts

Contacts

Contacts maintains a list of your friends’ and colleagues’ contact information. Using your handheld’s infrared (IR) port, you can quickly share some or all of this information with other device users.

To open Contacts

• Press the Contacts Quick button on the front panel of your handheld.

Contacts will open to the Contacts list.

NOTE: To change the way information is displayed in the list, tap Tools and then Options.

Creating a contact

Tap New.

Using the input panel, enter a name and other contact information.

You will need to scroll down to see all available fields.

To assign the contact to a category, scroll to and tap Categories and select a category from the list.

In the contact list, you can display contacts by category.

To add notes, tap the Notes tab. You can enter text, draw, or create a recording. For more information on creating notes, see "Notes," later in this chapter.

4 M a n a g i n g M i c r o s o f t ® P o c k e t O u t l o o k a p p l i c a t i o n s

Contacts

5 After entering the desired information, tap OK to return to the Contact list.

Finding a contact

There are four ways to find a contact:

• In the Contact list, enter a contact name in the box under the navigation bar.

To show all contacts again, clear text from the box or tap the button to the right of the box.

• In the Contact list, tap the category list (labeled All Contacts by default) and select the type of contact that you want displayed.

To show all contacts again, select All Contacts.

To view a contact not assigned to a category, select None.

• To view the names of companies your contacts work for, in the contact list, tap View > By Company.

The number of contacts that work for that company will be displayed to the right of the company name.

• Tap tap Go.

, Find, enter the contact name, select Contacts for the type, and then

Using the Contacts summary screen

When you tap a contact in the Contact list, a summary screen is displayed. To change the contact information, tap Edit.

4 M a n a g i n g M i c r o s o f t ® P o c k e t O u t l o o k a p p l i c a t i o n s

Tasks

Tasks

Use Tasks to keep track of what you have to do and prioritise them based on their importance and urgency.

To open Tasks

• Tap then, Tasks.

Tasks will open to the Tasks list.

NOTE: To change the way information is displayed in the list, tap Tools and then Options.

Creating a task

Tap New.

Using the input panel, enter a description.

You can enter a start date and due date or enter other information by first tapping the field.

If the input panel is open, you will need to hide it to see all available fields.

To assign the task to a category, tap Categories and select a category from the list.

In the task list, you can display tasks by category.

To add notes, tap the Notes tab.

You can enter text, draw, or create a recording. For more information on creating notes, see "Notes" later in this chapter.

4 M a n a g i n g M i c r o s o f t ® P o c k e t O u t l o o k a p p l i c a t i o n s

Tasks

6 After entering the desired information, tap OK to return to the task list.

TIP: To quickly create a task with only a subject, tap Entry Bar on the Tools menu. Then, tap

Tap Here to add a new task and enter your task information.

Using the summary screen

When you tap a task in the task list, a summary screen is displayed. To change the task, tap Edit.

Notes

4 M a n a g i n g M i c r o s o f t ® P o c k e t O u t l o o k a p p l i c a t i o n s

Notes

Quickly capture thoughts, reminders, ideas, drawings, and phone numbers with

Notes. You can create a written note or a recording. You can also include a recording in a note. If a note is open when you create the recording, it will be included in the note as an icon. If the note list is displayed, it will be created as a stand-alone recording.

To open Notes

• Tap then, Notes.

Notes will open to the Notes list.

Creating a note

Tap New.

Create a note by writing, drawing, typing, or recording.

NOTE: For more information about using the input panel, writing and drawing on the

screen, and creating recordings, see "2 Entering data in your Acer n35" on page 19.

4 M a n a g i n g M i c r o s o f t ® P o c k e t O u t l o o k a p p l i c a t i o n s

Inbox

Inbox

Use Inbox to send and receive e-mail messages by doing either of the following:

• Synchronise e-mail messages with Microsoft Exchange or Microsoft Outlook on your computer.

• Send and receive e-mail messages by connecting directly to an e-mail server through an Internet service provider (ISP) or a network.

Opening the Inbox

• Press the Inbox Quick button on the front panel of your handheld.

Inbox will open to the Inbox’ folder navigator.

Synchronising email messages

Email messages can be synchronised as part of the general synchronisation process.

You will need to enable Inbox synchronisation in ActiveSync.

For information on enabling Inbox synchronisation, see ActiveSync Help on your computer.

During synchronisation:

• Messages are copied from the mail folders of Exchange or Outlook on your computer to the ActiveSync folder in Inbox on your handheld. By default, you will receive messages from the past three days only, the first 100 lines of each message, and file attachments of less than 100 KB in size.

• Email messages in the Outbox folder on your handheld are transferred to

Exchange or Outlook, and then sent from those programs.

• Email messages in subfolders must be selected in ActiveSync on your computer in order to be transferred.

TIP: You can also synchronise email messages with your computer from a remote location.

For more information, see the ActiveSync Help menu in your computer.

Connecting directly to an email server

In addition to synchronising email messages with your computer, you can send and receive email messages by connecting to an email server using a modem or a network card connected to your handheld. You'll need to set up a remote connection to a network or an ISP, and a connection to your email server. For more information, refer

to "9 Getting connected" on page 69.

When you connect to the email server, new messages are downloaded to your handheld’s Inbox folder, messages in the handheld’s Outbox folder are sent, and messages that have been deleted on the email server are removed from the handheld’s Inbox folder.

Messages that you receive directly from an email server are linked to your email server rather than your computer. When you delete a message on your handheld, it is also deleted from the email server the next time you connect based on the settings you selected in ActiveSync.

4 M a n a g i n g M i c r o s o f t ® P o c k e t O u t l o o k a p p l i c a t i o n s

Inbox

You can work online or offline. When working online, you read and respond to messages while connected to the email server. Messages are sent as soon as you tap

Send, which saves space on your handheld.

When working offline, once you've downloaded new message headers or partial messages, you can disconnect from the email server and then decide which messages to download completely. The next time you connect, Inbox downloads the complete messages you've marked for retrieval and sends the messages you've composed.

Using the Message list

Messages you receive are displayed in the message list. By default, the most recently received messages are displayed first in the list.

When you receive a message, tap it to open it. Unread messages are displayed in bold.

When you connect to your email server or synchronise with your computer, by default, you'll receive messages from the last five days only, the first 100 lines of each new message, and file attachments of less than 100 KB in size. The original messages remain on the email server or your computer.

You can mark the messages that you want to retrieve in full during your next synchronisation or email server connection. Follow the steps below.

In the message list, tap and hold the message you want to retrieve.

On the pop-up menu, tap Mark for Download. The icons in the Inbox message list give you visual indications of message status.

Specify your downloading preferences when you set up the service or select your synchronisation options. You can change them at any time:

• Change options for Inbox synchronisation using ActiveSync options. For more information, see ActiveSync Help.

• To change options for direct email server connections in Inbox on your handheld. a Tap Tools and then tap Options. b On the Service tab, tap the service you want to change. c Tap and hold the service and select Delete to remove a service.

Composing a message

Tap New.

In the To field, enter an email address of one or more recipients, separating them with a semicolon, or select a name from the contact list by tapping the Address Book button.

All e-mail addresses entered in the e-mail fields in Contacts appear in the Address

Book.

Compose your message.

To enter preset or frequently used messages, tap My Text and select a message.

Tap Send when you've finished the message.

If you are working offline, the message is moved to the Outbox folder and will be sent the next time you connect.

4 M a n a g i n g M i c r o s o f t ® P o c k e t O u t l o o k a p p l i c a t i o n s

Inbox

Managing email messages and folders

By default, messages are displayed in one of five folders for each service you have created: Inbox, Deleted Items, Drafts, Outbox, and Sent Items.

• The behavior of the Deleted and Sent Items folders depends on the options you have chosen. To set these options, in the message list: a Tap Tools and then Options. b On the Message tab, select your options.

• If you want to organise messages into additional folders tap Tools, and then

Manage Folders to create new folders.

• To move a message to another folder, in the message list, tap and hold the message and then tap Move to on the pop-up menu.

Folder behavior with a direct connection to an email server

The behavior of the folders you create depends on whether you are using ActiveSync,

POP3, or IMAP4.

• If you use ActiveSync, email messages in the Inbox folder in Outlook will automatically be synchronised with your handheld. You can select to synchronise additional folders by designating them for ActiveSync. The folders you create and the messages you move will then be mirrored on the server. For example, if you move two messages from the Inbox folder to a folder named Family, and you have designated Family for synchronisation, the server creates a copy of the Family folder and copies the messages into that folder. You can then read the messages while away from your computer.

• If you use POP3 and you move email messages to a folder you created, the link is broken between the messages on your handheld and their copies on the email server. The next time you connect, the email server will see that the messages are missing from the handheld’s Inbox and delete them from the server. This prevents you from having duplicate copies of a message, but it also means that you will no longer have access to messages that you move to folders created from anywhere except your handheld.

• If you use IMAP4, the folders you create and the email messages you move are mirrored on the server. Therefore, messages are available to you anytime you connect to your email server, whether it is from your handheld or from your computer. This synchronisation of folders occurs whenever you connect to your mail server, create new folders, or rename/delete folders when connected.

5 M a n a g i n g M i c r o s o f t ® P o c k e t P C 2 0 0 3 c o m p a n i o n p r o g r a m s

Pocket Word

Managing Microsoft

®

Pocket

PC 2003 companion programs

Perform your usual computing tasks on-the-road using the Microsoft

Pocket PC 2003 companion programs which includes:

• Pocket Word

• Pocket Excel

• MSN

Messenger

• Microsoft ® Windows Media™ Player for Pocket PC

• Microsoft

Reader for Pocket PC

NOTE: Microsoft

Reader is available only for the English and European Acer n35 models.

To open a companion program on your handheld, tap Programs on the and then tap the program name.

menu,

Pocket Word

Pocket Word works with Microsoft Word on your computer to give you easy access to copies of your documents. You can:

• Create new documents on your handheld, such as letters, meeting minutes, and trip reports, or you can copy documents from your computer to your handheld.

• Synchronise documents between your computer and your handheld so that you have the most up-to-date content in both locations.

To create a new file

• Tap , Programs, Pocket Word, and then New.

A blank document appears. Or, if you've selected a template for new documents in the Options dialog box, that template appears with appropriate text and formatting already provided.

You can open only one document at a time; when you open a second document, you'll be asked to save the first. You can save a document you create or edit in a variety of formats, including:

• Word (.doc)

• Pocket Word (.psw)

• Rich Text Format (.rtf)

• Plain Text (.txt)

5 M a n a g i n g M i c r o s o f t ® P o c k e t P C 2 0 0 3 c o m p a n i o n p r o g r a m s

Pocket Word

NOTE: When you choose to create a new document, you will be prompted to save any already open document.

To use the Pocket Word file list

Pocket Word contains a list of the files stored on your handheld.

• Tap a file in the list to open it.

• To delete, make copies of, and send files, tap and hold a file in the list. Then, select the appropriate action on the pop-up menu.

To enter information

You can enter information in Pocket Word in one of four modes—typing, writing, drawing, and recording, which are displayed on the View menu. Each mode has its own toolbar, which you can show and hide by tapping the Show/Hide Toolbar button on the command bar.

If you're opening a Word document created on a computer, select Wrap to Window on the View menu so that you can see the entire document.

TIP: You can change the zoom magnification by tapping View and then Zoom. Then select the percentage you want. Select a higher percentage to enter text and a lower one to see more of your document.

5 M a n a g i n g M i c r o s o f t ® P o c k e t P C 2 0 0 3 c o m p a n i o n p r o g r a m s

Pocket Word

Typing mode

• Using the input panel, enter typed text into the document.

For more information on entering typed text, see "Using the input panel" on page 19.

• To format existing text and to edit text, first select the text. You can select text as you do in a Word document, using your stylus instead of the mouse to drag through the text you want to select.

• You can search a document to find text by tapping Edit and then Find/

Replace.

Writing mode

In writing mode, use your stylus to write directly on the screen. Ruled lines are displayed as a guide, and the zoom magnification is greater than in typing mode to allow you to write more easily.

For more information on writing and selecting writing, see "Writing on the screen" on page 21.

If you cross three ruled lines in a single stylus stroke, the writing becomes a drawing, and can be edited and manipulated as described in the following section.

NOTE: Written words are converted to graphics (metafiles) when a Pocket Word document is converted to a Word document on your computer.

5 M a n a g i n g M i c r o s o f t ® P o c k e t P C 2 0 0 3 c o m p a n i o n p r o g r a m s

Pocket Excel

Drawing mode

In drawing mode, use your stylus to draw on the screen. Gridlines appear as a guide.

When you lift your stylus off the screen after the first stroke, you'll see a drawing box indicating the boundaries of the drawing. Every subsequent stroke within or touching the drawing box becomes part of the drawing.

For more information on drawing and selecting drawings, see "Drawing on the screen" on page 24.

Recording mode

In recording mode, embed a recording into your document. Recordings are saved as

.wav files.

For more information on recording, see "Recording a message" on page 26.

For more information on using Pocket Word, tap tap Help from the menu.

> Programs > Pocket Word then,

Pocket Excel

Pocket Excel works with Microsoft Excel on your computer to give you easy access to copies of your workbooks. You can:

5 M a n a g i n g M i c r o s o f t ® P o c k e t P C 2 0 0 3 c o m p a n i o n p r o g r a m s

Pocket Excel

• Create new workbooks on your handheld, such as expense reports and mileage logs, or you can copy workbooks from your computer to your handheld.

• Synchronise workbooks between your computer and your handheld so that you have the most up-to-date content in both locations.

Creating a new workbook

• Tap , Programs, Pocket Excel, and then New.

A blank workbook appears. Or, if you've selected a template for new workbooks in the Options dialog box, that template appears with appropriate text and formatting already provided.

You can open only one workbook at a time; when you open a second workbook, you'll be asked to save the first. You can save a workbook you create or edit in a variety of formats, including:

• Pocket Excel (.pxl)

• Excel (.xls).

NOTE: When you choose to create a new document, you will be prompted to save any already open document.

To create a Pocket Excel file list

Pocket Excel contains a list of the files stored on your handheld.

• Tap a file in the list to open it.

• To delete, make copies of, and send files, tap and hold a file in the list. Then select the appropriate action from the pop-up menu.

Displaying the toolbar

Pocket Excel provides fundamental spreadsheet tools, such as formulas, functions, sorting, and filtering, in its toolbar.

5 M a n a g i n g M i c r o s o f t ® P o c k e t P C 2 0 0 3 c o m p a n i o n p r o g r a m s

Pocket Excel

• Tap View and then Toolbar.

Protecting your workbooks

If your workbook contains sensitive information, you can protect it with a password.

• Open the workbook, tap Edit, and then Password.

Every time you open the workbook, you will need to enter the password, so choose one that is easy for you to remember but hard for others to guess.

Tips for working in Pocket Excel

Note the following when working in large worksheets in Pocket Excel:

• View in full-screen mode to see as much of your worksheet as possible.

– Tap View and then Full Screen.

– To exit full-screen mode, tap Restore.

• Show and hide window elements.

– Tap View and then tap the elements you want to show or hide.

• You might want to freeze the top and left most panes in a worksheet to keep row and column labels visible as you scroll through a sheet. a Select the cell where you want to freeze panes. b Tap View and then Freeze Panes.

• Split panes to view different areas of a large worksheet. a Tap View and then Split.

b Then drag the split bar to where you want it.

To remove the split, tap View and then Remove Split.

• Show and hide rows and columns.

– To hide a hidden row or column:

5 M a n a g i n g M i c r o s o f t ® P o c k e t P C 2 0 0 3 c o m p a n i o n p r o g r a m s

MSN® Messenger a Select a cell in the row or column you want to hide.

b Tap Format, then Row or Column, and then Hide.

– To show a hidden row or column: a Tap Tools, then Go To, and then type a reference that is in the hidden row or column.

b Then tap Format, then Row or Column, and then Unhide.

For more information on using Pocket Excel, tap tap Help from the menu.

> Programs > Pocket Excel then,

MSN

Messenger

MSN ® Messenger on your handheld is an instant messaging program that lets you:

• See who is online

• Send and receive instant messages

• Have instant message conversations with groups of contacts

Requirements to use MSN Messenger

• Microsoft Passport™ account or a Microsoft Exchange email account.

• Passport to use MSN Messenger Service. If you have a Hotmail

® or MSN account, you already have a Passport.

Once you have obtained either a Microsoft Passport or a Microsoft Exchange account, you are ready to set up your account.

TIP: Sign up for a Microsoft Passport account at (http://www.passport.com/). Get a free

Microsoft Hotmail email address at (http://www.hotmail.com/).

Setting up

Before you can connect, you must enter Passport or Exchange account information.

To set up an account and sign in:

In the Tools menu, tap Options.

In the Accounts tab, enter your Passport or Exchange account information.

To sign in, tap the sign-in screen and enter your email address and password.

NOTE: If you already use MSN Messenger on your computer, your contacts will show up on your handheld without being added again.

Working with contacts

The MSN Messenger window shows all of your messenger contacts at a glance, divided into Online and Not Online categories. From this view, while connected, you can chat,

5 M a n a g i n g M i c r o s o f t ® P o c k e t P C 2 0 0 3 c o m p a n i o n p r o g r a m s

MSN® Messenger send a email, block the contact from chatting with you, or delete contacts from your list using the pop-up menu.

• To see others online without being seen, in the Tools menu, tap My Status and select Appear Offline.

• If you block a contact, you will appear offline but will remain on the blocked contact's list.

• To unblock a contact, tap and hold the contact, then tap Unblock on the popup menu.

Chatting with contacts

Tap a contact name to open a chat window.

Enter your message in the text entry area at the bottom of the screen, or tap My Text to enter a preset message.

5 M a n a g i n g M i c r o s o f t ® P o c k e t P C 2 0 0 3 c o m p a n i o n p r o g r a m s

Microsoft® Windows Media™ Player for Pocket PC

3 Tap Send.

Tips when chatting with contacts

• To invite another contact to a multi-user chat, in the Tools menu, tap Invite and tap the contact you want to invite.

• To switch back to the main window without closing a chat, tap the Contacts button.

• To revert back to your chat window, tap Chats and select the person whom you were chatting with.

• To know if the contact you are chatting with is responding, look for the message under the text entry area.

For more information on using MSN Messenger, tap then, tap Help from the menu.

> Programs > MSN Messenger

Microsoft

Windows Media

™

Player for Pocket PC

Use Microsoft

Windows Media ™ Player for Pocket PC to play digital audio and video files (Windows Media and MP3 files) that are:

• Stored on your handheld

• Copied from Microsoft Windows Media Player on your computer to your handheld

• On a network

For more information about using Windows Media Player for Pocket PC, tap then tap Help.

, and

5 M a n a g i n g M i c r o s o f t ® P o c k e t P C 2 0 0 3 c o m p a n i o n p r o g r a m s

Microsoft® Reader for Pocket PC

Microsoft

Reader for Pocket PC

Use Microsoft

Reader for Pocket PC to read eBooks on your handheld.

You can also download books from your favorite eBook Web site to your computer.

Then, use ActiveSync to copy the book files to your handheld. The books appear in the

Reader Library, where you can tap them in the list to open them.

NOTE: Microsoft

Reader is available only for the English and European Acer n35 models.

Using the Guidebook

The Guidebook contains all the information you'll need to use the Microsoft Reader.

To open the Guidebook:

• Tap Help on the Reader command bar.

-or-

• On a book page, tap and hold on the book title, and then tap Help on the pop-up menu.

Getting books on your Acer n35

You can download book files from the Web. Just visit your favorite eBook retailer and follow the instructions to download the book files.

Sample books and a dictionary are also included in the MSReader folder in the Extras folder on the Acer n35 Handheld Companion CD.

Use ActiveSync to download the files from your computer to your handheld as described in the Read Me file in the MSReader folder.

Using the Library

The Library is your Reader home page; it displays a list of all books stored on your handheld or storage device.

To open the Library:

• On the Reader command bar, tap Library.

-or-

• On a book page, tap the book title, and then tap Library on the pop-up menu.

Opening a book

• Tap a book title in the Library list.

5 M a n a g i n g M i c r o s o f t ® P o c k e t P C 2 0 0 3 c o m p a n i o n p r o g r a m s

Microsoft® Reader for Pocket PC

Tap to select a sort order.

Tap to specify the books you want to display in the list.

Tap to scroll through the Library list.

Tap to open a book.

Tap here to navigate to other parts of the Reader.

Reading a book

Each book consists of a cover page, an optional table of contents, and the pages of the book. You can:

• Annotate the book with highlighting, bookmarks, notes, and drawings.

• Search for text and look up definitions for words.

In addition to the text, each book page includes a page number and book title.

Navigation options are listed in the bottom portion of the cover page. Page through the book by:

• Using the Scroll wheel on your handheld

• Tapping the page number on each page

The first time you open a book, you'll probably want to go to the first page or to the table of contents, if there is one. Subsequently, whenever you open the book, you'll be automatically taken to the last page read.

5 M a n a g i n g M i c r o s o f t ® P o c k e t P C 2 0 0 3 c o m p a n i o n p r o g r a m s

Microsoft® Reader for Pocket PC

Tap to select a navigation option.

Drag to select text and then tap an option.

Tap arrows to turn the page, or tap and hold page # to bring up page riffle.

Using Reader features

Reading a book electronically gives you several options not available with paper books. These options are available from any book page.

Select text by dragging across the text on the page. Then, tap an option on the popup menu, as described in the following sections.

Search for text

Tap Find on the pop-up menu.

Enter the word you want to search for.

Tap the desired Find option.

Reader highlights found text on the page.

• To close Find, tap outside the box.

• To return to your original page, tap the title and then tap Return on the popup menu.

Copy text

You can copy text from books that support this feature into any program that accepts text.

On a book page, select the text you want to copy.

Tap Copy Text on the pop-up menu.

The text can be pasted into the program of your choice.

5 M a n a g i n g M i c r o s o f t ® P o c k e t P C 2 0 0 3 c o m p a n i o n p r o g r a m s

Microsoft® Reader for Pocket PC

Book annotations

To see a list of a book's annotations, including bookmarks, highlights, text notes, and drawings:

Tap Annotations Index on the book's cover page.

Tap an entry in the list to go to the annotated page.

To use bookmarks

• When you add a bookmark to a book, a color-coded bookmark icon appears in the right margin. From anywhere in the book, tap the bookmark icon to go to the bookmarked page.

NOTE: You can add multiple bookmarks to a book.

To use highlights

• When you highlight text, it appears with a colored background.

To use notes

• When you attach a note to text, you enter the text in a note pad that appears on top of the book page. A Note icon will display in the left margin. To show or hide the note, tap the icon.

To add drawings

• When you add a drawing, a Drawing icon appears in the bottom-left corner of the page, and drawing tools appear across the bottom of the page. Draw by dragging your stylus.

Removing a book

When you finish reading a book, you can delete it to conserve space on your handheld. If a copy of the book is stored on your computer, you can download it again at any time.

Tap and hold the title in the Library list.

Tap Delete on the pop-up menu.

5 M a n a g i n g M i c r o s o f t ® P o c k e t P C 2 0 0 3 c o m p a n i o n p r o g r a m s

Microsoft® Reader for Pocket PC

6 B a c k u p a n d r e s t o r e d a t a

Backup and restore data

Backup/Restore enables you to back up data files and applications from your handheld to a storage device and to restore data to your handheld. Advanced security features offer password protection of sensitive documents/applications during Backup and/or Restore operations. The expansion features of your handheld allow you to use any of the following storage devices:

• SD Card (Secure Digita Card)

• MMC card (MultiMedia Card)

• ROM storage(ROM storage is for PIM data backup and restore operations only)

During a backup or restore operation, the power button serves as a pause/resume button to control the pace of the operation.

There are three tabs (from left to right) in the program window corresponding to the three functions of Backup and Restore.

• Backup

• AutoBackup

• Restore

To launch Backup/Restore:

Insert a storage device (SD/MMC card) if you want to do backup/restore operation on a storage device.

For instructions on how to insert storage devices, please refer to "7 Using expansion features" on page 65.

Tap , Programs, and then Backup/Restore.

6 B a c k u p a n d r e s t o r e d a t a

Backup function

To perform data backup

Close all running programs except for Backup/Restore.

In the Backup tab, choose whether to accept the default filename (MyBackup) or type a new one by tapping on the keyboard icon on the bottom of the screen.

Select a storage device from the 'Backup to' pull-down menu.

Define the backup scope (default: PIM only) from ‘Option' pull-down menu.

NOTE: ROM storage is a valid backup destination only if PIM Only is defined as backup scope .

Check the password box and enter a password if you want to secure the backup file.

Tap Start to proceed with the backup process.

During the backup process, a progress screen will appear displaying backup status.

When the backup process is completed, a message box appears, saying that backup operation is completed.

6 B a c k u p a n d r e s t o r e d a t a

AutoBackup function

With AutoBackup, you can set your handheld to perform an automatic data backup when battery power is lower than 30%. For configuring in AutoBackup screen, please refer to the instructions described in "Backup function".

For

When AutoBackup is activated and the specified storage device is not attached to your handheld when 30% of battery level is reached, then no backup procedure will be performed.

NOTE: 'MyAutoBackup' is the default file name of the backup file generated by the

AutoBackup operation.

Restore function

You can only restore backup files that are generated by Backup/Restore; file format is

*.abk (Acer backup).

To perform data restoration

Close all running programs except for Backup/Restore.

6 B a c k u p a n d r e s t o r e d a t a

2 Select a source storage device from the 'Restore from' pulldown menu.

The lower half of the screen will display a list of files contained in the selected storage device. Filename, file size and date when the backup file was created are indicated in the list.

Tap a filename to select the file you wish to restore, and please note that non-.abk files are not shown.

Select file, then tap "start" button. The window will shift to display the backup file information including:

• File name - filename of the selected .abk file.

• Backup date - date when the selected .abk file was created.

• Backup option & file size.

• Main memory free size - free space in your handheld’s main storage memory.

This should be bigger than the file size of the selected .abk file for the restore process to continue.

Tap Start again to proceed with the restore process.

During the restore process, a progress screen will appear displaying restore status.

When the restore process is completed, a message box appears, saying restore operation is complete.

To delete a file from a storage device

To increase the size of available free space in a storage device, you can delete files that you no longer need.

Tap the Restore tab.

Tap a menu item to select a storage device.

From the list, tap a filename until a delete pop-up menu is displayed.

4 Tap Delete to remove the file.

6 B a c k u p a n d r e s t o r e d a t a

7 U s i n g e x p a n s i o n f e a t u r e s

Using an SD/MMC card

Using expansion features

The slim and lightweight design of your Acer n35 belies its impressive expansion feature - integrated dual use SD/MMC slot. This expansion feature allows you to:

• Install additional applications

• Increase storage capacity

• Perform backup procedures

NOTE: When using any peripheral device with your handheld, please refer to the documentation accompanying each device for information on how to install and operate it.

Using an SD/MMC card

On the top side of your handheld is an SD/MMC slot. This allows you to expand your handheld memory and perform data backup.

Refer to "Top view" on page 6 for the location of the SD/MMC slot.

Inserting an SD/MMC card

Hold your handheld securely.

Insert the card into the SD/MMC slot.

7 U s i n g e x p a n s i o n f e a t u r e s

Using an SD/MMC card

3 Push the card into the slot using your finger until you feel the card lock and hear an audible system sound. This indicates that the card is properly seated within the slot.

Removing an SD/MMC card

Hold your handheld securely.

Release the card from the slot by using your thumb to push against the top of the card, as if you were pushing it further into the slot (a). An audible system sound and a click will signal that the card has been released.

3 Gently remove the card from the slot (b).

8 E x c h a n g i n g a n d u p d a t i n g d a t a u s i n g A c t i v e S y n c ® .

Using ActiveSync®.

Exchanging and updating data using ActiveSync

.

Using ActiveSync

, you can synchronise information in Microsoft Outlook or Microsoft

Exchange on your computer with your handheld. You can also synchronise this information directly with a Microsoft Exchange server. Each time you synchronise,

ActiveSync compares the changes you made on your handheld and computer or server and updates both locations with the latest information. For example:

• Keep Pocket Outlook data up-to-date by synchronising your handheld with the Microsoft Outlook data on your computer.

• Synchronise Microsoft Word and Microsoft Excel files between your handheld and computer. Your files are automatically converted to the correct format.

For information on using ActiveSync, see ActiveSync Help on the your computer.

NOTE: By default, ActiveSync does not automatically synchronise all types of information.

Use ActiveSync options to turn synchronisation on and off for specific information types.

With ActiveSync, you can also:

• Back up and restore your handheld data.

• Copy (rather than synchronise) files between your handheld and computer.

• Control when synchronisation occurs by selecting a synchronisation mode.

For example, you can synchronise continually while connected to your computer or only when you choose the synchronise command.

• Select which information types are synchronised and control how much data is synchronised.

For example, you can choose how many weeks of past appointments you want synchronised.

Using ActiveSync

.

Before you begin synchronisation, install ActiveSync on your computer from the

Acer n35 Handheld Companion CD.

NOTE: ActiveSync is already installed on your handheld.

For more information on installing ActiveSync, see "Installing the Microsoft®

ActiveSync® software".

To open ActiveSync on your handheld, tap , and then tap ActiveSync.

8 E x c h a n g i n g a n d u p d a t i n g d a t a u s i n g A c t i v e S y n c® .

Using ActiveSync®.

For information about using ActiveSync on your computer, start ActiveSync on your computer, and then see ActiveSync Help.

9 G e t t i n g c o n n e c t e d

Connecting to the Internet

Getting connected

You can use your handheld to exchange information with other mobile devices as well as your computer, a network, or the Internet. You have the following connection options:

• Use the infrared (IR) on your handheld to send and receive data from another infrared-enabled device.

• Connect to your Internet service provider (ISP). Once connected, you can send and receive email messages by using Inbox and view Web or WAP pages by using Microsoft ® Pocket Internet Explorer.

The communication software for creating an ISP connection is already installed on your handheld. Your service provider will provide software needed to install other services, such as paging and fax services.

• Connect to the network at your company or organisation where you work.

Once connected, you can send and receive email messages by using Inbox, view Web or WAP pages by using Microsoft ® Pocket Internet Explorer, and synchronise with your computer.

• Connect to your computer to synchronise remotely. Once connected, you can synchronise information such as your Pocket Outlook information.

Transferring items using infrared

Using infrared (IR) , you can send and receive information, such as contacts and appointments to/from other IR-enabled devices.

Your n35 will receive all incoming InfraRed (IR) beams and ask you after the transmission has been established whether you wish to accept those beams.

Refer to "Left view" on page 4 for the location of your handheld’s IR port.

To send information via infrared

Switch to the program where you created the item you want to send and locate the item in the list.

Align the IR port of your handheld with that of the receiving IR-enabled device so that they are unobstructed and within a close range.

Tap and hold the item, and then tap Beam Item on the pop-up menu.

-or-

Send items (but not folders) using File Explorer.

• Tap and hold the item you want to send and then tap Beam File on the pop-up menu.

To receive information via infrared

9 G e t t i n g c o n n e c t e d

Connecting to the Internet

1 Align the IR port of your handheld with that of the sending IR-enabled device so that they are unobstructed and within a close range.

2 Have the owner of the sending device transmit the information to you. Your handheld will automatically receive it.

Connecting to the Internet

To create a modem connection to an ISP

Obtain the following information from your ISP:

• ISP server telephone number

• User name and password

• TCP/IP settings

Insert a SD Modem card (purchased seperately) into your handheld’s SD/MMC slot.

NOTE: For instructions on inserting and using a SD Modem card, see the documentation that came with the card.

Tap and then Settings.

In the Connections tab, tap Connections. Under My ISP, select Add a new modem connection.

Enter a name for the connection, such as "My Connection."

In the Select a modem list, select your modem type.

If your modem type does not appear, try re-inserting the modem card.

9 G e t t i n g c o n n e c t e d

Connecting to the Internet

You should not need to change any settings in Advanced. Most ISPs now use a dynamically-assigned address. If the ISP you are connecting to does not use a dynamically-assigned address, tap Advanced and then the TCP/IP tab, and enter the address. When finished, tap OK and then Next.

Enter the ISP phone number, and tap Next.

Enter your username, password and domain (if any), and tap Finish to complete the process.

To connect to your ISP, open the Connections main window and tap Manage Existing

Connections. Tap and hold on the applicable dial-up settings and select Connect. Your modem will dial-out and attempt to create the connection.

To create a wireless Ethernet connection to an ISP

Insert the wireless Ethernet card into your handheld. For instructions on inserting and using the Ethernet card, see the documentation that came with the card.

The first time you insert the card, a notification will appear, asking you whether the installed network card should be used to connect to The Internet or Work. Where possible, the Service Set Identifier (SSID) will be determined automatically. Select The

Internet, then either accept all default settings by tapping OK (most home networks will allow you to immediately get online without further configuration) or tap

Settings to configure the connection. Sometimes a network will require a WEP key. If so, you will be prompted for one at this point.

Select the Advanced tab from the Connections Settings. Select the Network Card tab to customize how each of your installed network card drivers connects. Highlight the driver name of the card you wish to configure. Indicate whether My network card

connects to: The Internet. Tap on the name of the driver to receive advanced options.

Configure the IP address settings in the IP Address tab.

Configure the DNS and WINS settings in the Name Servers tab.

You must remove then reinsert your network card for these settings to take effect.

Select the Network Card button from Connection Settings-Advanced to configure your wireless networks. Networks that you have already configured are preferred networks and are listed in the Wireless tab. You can select to connect to only preferred networks or have your handheld search for and connect to any available network whether it is preferred or not. Press Add New Settings... if you do not see a network you'd like to connect to.

In the General tab you can set the network name (also known as SSID); this is only editable if you are creating a new wireless network profile else you are viewing a preferred network and the SSID has already been established. Indicate whether this network will connect you to The Internet. Finally, if this is a new network profile, you can indicate whether this is a computer-to-computer network.

NOTE: To determine if authentication is needed, check your network administrator.

9 G e t t i n g c o n n e c t e d

Connecting to a network

8 To view your wireless network connection after the preceding steps have been followed, press the icon in the notification area. A green status indicator will show how strong your signal is. Tapping Turn Wireless Off will turn off your network card radio. Pressing the icon will then allow you to Turn Wireless on.

Once your network card has been configured, you will immediately be connected.

Connecting to a network

If you have access to a network at work, you can send email messages, view Intranet pages, synchronise your handheld, and access the Internet. You can connect to a network in one of three ways:

• Create a modem connection by using an RAS account.

• Use an wireless Ethernet card and a net tap to connect to the network.

If this is the method you want to use, see "To create an wireless Ethernet

connection to a network" on page 72.

Your n35 handheld supports a SD wireless Ethernet card or a SD Modem card.

To create a modem connection to a network

Follow the instructions stated in "To create a modem connection to an ISP" section, but select Add a new modem connection under My Work Network to begin.

To create a wireless Ethernet connection to a network

Follow the instructions stated in "To create a wireless Ethernet connection to an ISP" section, but connect to Work under notification bubble to begin..

End a connection

To disconnect, do one of the following:

• When connected via Infrared, move your handheld away from the computer.

• When connected via a wireless (Ethernet) card, remove the card from your handheld.

Get help on connecting

More information on the procedures described here, as well as information on additional procedures, can be found in the following locations:

• The section on "Inbox" on page 42.

• Online Help of your handheld. Tap

Help, and then Inbox or Connections.

and then Help. Tap View, All Installed

• ActiveSync Help on the your computer. In ActiveSync, click Microsoft

ActiveSync Help on the Help menu.

• For troubleshooting information, see the Pocket PC Web site at

(http://www.microsoft.com/mobile/pocketpc/).

1 0 U s i n g M i c r o s o f t ® P o c k e t I n t e r n e t E x p l o r e r

Mobile Favorites folder

Using Microsoft

Pocket Internet Explorer

Use Microsoft

Pocket Internet Explorer to view Web or WAP pages in either of these ways:

• During synchronisation with your computer, download your favorite links and mobile favorites that are stored in the Mobile Favorites subfolder of

Internet Explorer on your computer.

• Connect to an Internet service provider (ISP) or network and browse the Web.

To do this, you'll need to create the connection first, as described in "9

Getting connected" on page 69.

When connected to an ISP or network, you can also download files and programs from the Internet or intranet.

Mobile Favorites folder

Only items stored in the Mobile Favorites subfolder in the Favorites folder of Internet

Explorer on your computer will be synchronised with your handheld. This folder was created automatically when you installed ActiveSync.

Favorite links

During synchronisation, the list of favorite links in the Mobile Favorites folder on your computer is synchronised with Pocket Internet Explorer on your handheld. Both locations are updated with changes made to either list each time you synchronise.

Unless you mark the favorite link as a mobile favorite, only the link will be downloaded to your handheld, and you will need to connect to your ISP or network to view the content.

For more information on synchronisation, see ActiveSync Help on your computer.

Mobile favorites

If you are using Microsoft Internet Explorer 5.0 or later on your computer, you can download mobile favorites to your handheld. Synchronising mobile favorites downloads Web content to your handheld enable you to view pages while you are disconnected from your ISP and computer.

Use the Internet Explorer plug-in installed with ActiveSync to create mobile favorites quickly.

To create a mobile favorite

In Internet Explorer on your computer, click Tools and then Create Mobile Favorite.

To change the link name, enter a new name in the Name box.

1 0 U s i n g M i c r o s o f t ® P o c k e t I n t e r n e t E x p l o r e r

Using Pocket Internet Explorer

Optionally, in Update, select a desired update schedule.

NOTE: If you did not specify an update schedule, you will need to manually download content to keep the information updated on both your computer and handheld. Before synchronising with your handheld, in Internet Explorer on your computer, click Tools and then Synchronise. You will see the last time content was downloaded to the computer, and you can manually download content if needed.

Click OK.

Internet Explorer downloads the latest version of the page to your computer.

TIP: You can add a button to the Internet Explorer toolbar for creating mobile favorites. In

Internet Explorer on your computer, click View, Toolbars, and then Customise.

To download a mobile favorite

Right-click the mobile favorite and then click Properties.

In the Download tab, specify the number of links deep you want to download.

To conserve handheld memory, go only one level deep.

Synchronise your handheld and computer.

Mobile favorites that are stored in the Mobile Favorites folder in Internet Explorer are downloaded to your handheld.

To save handheld memory

Mobile favorites take up storage memory on your handheld. To minimise the amount of memory used, observe the following:

• In the settings for the Favorites information type in ActiveSync options, turn off pictures and sounds, or stop some mobile favorites from being downloaded to your handheld.

• Limit the number of downloaded linked pages. a In Internet Explorer on the computer, right-click the mobile favorite you want to change and then click Properties. b In the Download tab, specify 0 or 1 for the number of linked pages you want to download.

Using Pocket Internet Explorer

You can use Pocket Internet Explorer to browse mobile favorites and channels that have been downloaded to your handheld without connecting to the Internet. You can also connect to the Internet through an ISP or a network connection and browse the

Web.

To view mobile favorites and channels

Tap the Favorites button to display your list of favorites.

1 0 U s i n g M i c r o s o f t ® P o c k e t I n t e r n e t E x p l o r e r

Using Pocket Internet Explorer

2 Tap the page you want to view.

You'll see the page that was downloaded the last time you synchronised with your computer. If the page is not on your handheld, the favorite will be dimmed. You will need to synchronise with your computer again to download the page to your handheld, or connect to the Internet to view the page.

To browse the Internet

Set up a connection to your ISP or corporate network, as described in"9 Getting connected" on page 69.

To connect and start browsing, do one of the following:

• Tap the Favorites button, and then tap the favorite you want to view.

• Tap View and then Address Bar. In the address bar that appears at the top of the screen, enter the Web address you want to visit and then tap Go. Tap the arrow to choose from previously entered addresses.

• To add a favorite link while using the handheld: a Go to the page you want to add. b Tap and hold on the page.

c Tap Add to Favorites.

1 0 U s i n g M i c r o s o f t ® P o c k e t I n t e r n e t E x p l o r e r

Using Pocket Internet Explorer

1 1 C u s t o m i s i n g y o u r h a n d h e l d

Adjusting handheld settings

Customising your handheld

You can customise your handheld based on your personal requirements and preferences as well as depending on your usual work modes. Customise your handheld by doing either of the following:

• Adjust the handheld settings

• Add or remove programs

Adjusting handheld settings

You can adjust the settings of your handheld to suit the way you work.

To access Settings

Tap an available Settings option to open the corresponding adjustment page.

The Settings window has three tabs—Personal, System, and Connections, each of which has its own set of options.

The succeeding sections shows the configuration page of each the Settings options.

For detailed instructions on these pages, access the page then tap then, Help.

Adding and removing programs

Programs bundled with your handheld at the factory are stored in ROM (read-only memory). You cannot remove these programs, and you'll never accidentally lose ROM contents. ROM programs can be updated using special installation programs. All other programs and data files installed to your handheld after factory installation can be stored in RAM(random access memory) or ROM storage(a file folder in your handheld which in fact is a ROM space specially reserved for user access). The ROM storage can be accessed through File Explorer, too.

You can install any program created for your handheld, as long as it has enough memory. The most popular place to find software for your handheld is on the Pocket

PC Web site (http://www.microsoft.com/mobile/pocketpc/).

Adding programs

You could add programs to your handheld either by using ActiveSync or by downloading the program from the Internet.

1 1 C u s t o m i s i n g y o u r h a n d h e l d

Adding and removing programs

To add programs using ActiveSync

You'll need to install the appropriate software for your handheld on your computer before installing it on your handheld.

Determine your handheld and processor type so that you know which version of the software to install. a Tap and then Settings. b On the System tab, tap About. c In the Version tab, make a note of the information in Processor.

Download the program to your computer (or insert the CD or disk that contains the program into your computer).

You may see a single *.xip, *.exe, *.cab, or *.zip file, a Setup.exe file, or several versions of files for different device types and processors. Be sure to select the program designed for a Pocket PC and your handheld’s processor type.

NOTE: Read any installation instructions, Read Me files, or documentation that comes with the program. Many programs provide special installation instructions.

Connect your handheld to your computer.

Double-click the *.exe file.

• If the file is an installer, the installation wizard will begin. Follow the directions on the screen. Once the software has been installed on your computer, the installer will automatically transfer the software to your handheld.

• If the file is not an installer, you will see an error message stating that the program is valid but it is designed for a different type of computer. You will need to move this file to your handheld. If you cannot find any installation instructions for the program in the Read Me file or documentation, use

ActiveSync Explore to copy the program file to the Program Files folder on your handheld. For more information on copying files using ActiveSync, see

ActiveSync Help.

Once installation is complete, tap launch it.

, Programs, and then the program icon to

To add a program directly from the Internet

Download the program to your handheld straight from the Internet using Pocket

Internet Explorer.

1 1 C u s t o m i s i n g y o u r h a n d h e l d

Adding and removing programs

NOTE: Read any installation instructions, Read Me files, or documentation that comes with the program. Many programs provide special installation instructions.

Tap the file, such as a *.xip or *.exe file.

The installation wizard will begin.

Follow the directions on the screen.

To add a program to the Start menu

• Tap , Settings, Menus, the Start Menu tab, and then the check box for the program.

If you do not see the program listed, you can either use File Explorer on your handheld to move the program to the Start Menu folder, or use ActiveSync on your computer to create a shortcut to the program and place the shortcut in the Start Menu folder.

– Using File Explorer on your handheld a Tap , Programs, File Explorer, and locate the program (tap the folder list, labeled My Documents by default, and then My Device to see a list of all folders on your handheld). b Tap and hold the program and tap Cut on the pop-up menu. c Open the Start Menu folder located in the Windows folder, tap and hold a blank area of the window. d Tap Paste on the pop-up menu.

The program will now appear on the menu.

For more information on using File Explorer, see "To use File Explorer" on page

32.

– Using ActiveSync on your computer a Use the Explorer in ActiveSync to explore your handheld files and locate the program. b Right-click the program, and then click Create Shortcut. c Move the shortcut to the Start Menu folder in the Windows folder.

The shortcut now appears on the Start Menu.

For more information on using ActiveSync, see ActiveSync Help on your computer.

Removing programs

Tap and then Settings.

On the System tab, tap Remove Programs.

Tap the program you wish to remove, then tap the Remove button.

If the program does not appear in the list of installed programs, use File Explorer on your handheld to locate the program:

Tap and hold the program.

Tap Delete on the pop-up menu.

1 1 C u s t o m i s i n g y o u r h a n d h e l d

Adding and removing programs

ActiveSync® add program

B backlight

Backup opening

Restore function

Block Recognizer

Calendar

command interface device buttons

pop-up menus

Today screen

connectivity features

connect to Internet

connect to network help

infrared

receive

send

wireless communication

Contacts copyright

customise features

handheld settings

install/remove program add

using ActiveSync via Internet

remove

customise handheld

E email manage folders synchronise

enter data

drawing on the screen recording a message using input panel

Block Recognizer

Letter Recognizer

soft keyboard

Transcriber

using My Text

writing on the screen convert to text expansion features

Acer versatile connector

attaching expansion sleeve inserting CompactFlash card removing CompactFlash card

H handheld guides

maintenance handheld features audio

package contents resetting

vii

battery pack install

display

ergonomics

expansion

performance

handheld setup connecting cradle

installing battery

installing Microsoft ActiveSync software initial synchronisation

Inbox

infrared

input panel

Internet

Letter Recognizer

M manage applications finding information opening

organising information switching

Microsoft Pocket Internet Explorer

Mobile Favorites create mobile favorite fovorite links

using

view mobile favorites

Microsoft Pocket Outlook

Calendar

create meeting request open

schedule appointment summary screen

Contact

create contact find contact open

summary screen

Inbox

Message list open

connect to email server manage folders

synchronise email

Notes

create note open

Tasks

create task

open

summary screen

Microsoft Pocket PC 2002 companion programs

Microsoft Reader

Reader features

book annotations copy text

search text remove book

use Guidebook using Library

MSN Messenger

chat with contacts

requirements set up

create new file

File list

work with contacts

Pocket Excel

protect workbook

Pocket Word

create new file enter data

drawing mode recording mode

typing mode writing mode

File list

Windows Media Player for Pocket PC

Microsoft Pocket PC 2003 companion programs

Microsoft Reader get book

read book

Microsoft Reader

Guidebook

Library

Reader

add drawing bookmark highlight

note

Mobile Favorites folder

MSN Messenger

My Text

Notes

Pocket Excel

protect workbook

Pocket Word

R remove program

S system tour

bottom view front view

left view top view

Tasks

third-party applications

IA Album LE

Transcriber

Windows Media Player for Pocket PC

Key features

Windows® Powered Pocket PC 2003 handheld with GPS (Global Satellite Positioning) capability
Sleek design
User-friendly features
High-performance applications
Organize work-related information
Synchronize with personal activities
GPS navigation software
Built-in SD/MMC slot
IR capabilities
Customizable settings

Frequently asked questions

The key features of the Acer n35 include its Windows® Powered Pocket PC 2003 operating system, GPS capability, sleek design, user-friendly features and high-performance applications.

You can use the Microsoft® Pocket PC 2003 software on the Acer n35 to perform organizing and computing tasks, such as managing your contacts, appointments, and tasks.

Yes, you can synchronize the information on your Acer n35 with your computer using Microsoft® ActiveSync®.

Yes, the Acer n35 has GPS (Global Satellite Positioning) capability, which allows you to use GPS navigation software to plan trips and optimize routes.

Yes, you can expand the capabilities of the Acer n35 using either the built-in SD/MMC slot or by beaming information to another IR-enabled device.
