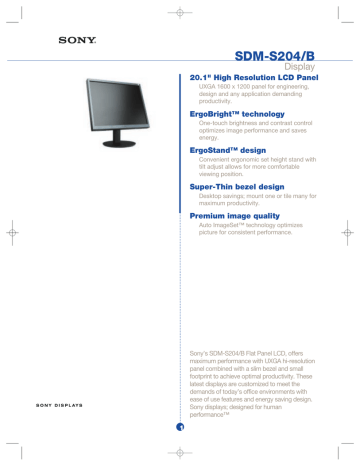

Sony SDM-S204E/B (Black) 20.1 in. Flat Panel LCD Monitor

Sony SDM-S204E/B (Black) 20.1 in. Flat Panel LCD Monitor
SDM-S204/B
Display
20.1" High Resolution LCD Panel
UXGA 1600 x 1200 panel for engineering,
design and any application demanding
productivity.
ErgoBright™ technology
One-touch brightness and contrast control
optimizes image performance and saves
energy.
ErgoStand™ design
Convenient ergonomic set height stand with
tilt adjust allows for more comfortable
viewing position.
Super-Thin bezel design
Desktop savings; mount one or tile many for
maximum productivity.
Premium image quality
Auto ImageSet™ technology optimizes
picture for consistent performance.
Sony’s SDM-S204/B Flat Panel LCD, offers
maximum performance with UXGA hi-resolution
panel combined with a slim bezel and small
footprint to achieve optimal productivity. These
latest displays are customized to meet the
demands of today’s office environments with
ease of use features and energy saving design.
Sony displays; designed for human
performance™
SDM-S204/B
Display
Model
SDM-S204/B
Color
Black
Viewable Image Size
20.1"
Panel Type
TFT Active Matrix
Native Resolution
1600 x 1200
Pixel Pitch
0.255mm
Luminance
250cd/m≤
Contrast Ratio
500:1
ErgoBright™ Technology
High: 250cd/m≤, Middle: 200cd/m≤, Low:
100cd/m≤
Horizontal Scan (kHz)
28 - 92kHz
Vertical Refresh (Hz)
48 - 85Hz
Viewing Angle
Horizontal: 170°, Vertical: 170°
Response Time
25ms (Rise/Fall)
ErgoStand™ System
Tilt Range: -5° to +20°, Swivel Range:
+/-175° (350° total), 5" Ergonomic Set
Height
Vesa Wall/Arm Mount
100mm
Video Input Connector
DVI-D, HD15 x 2
Power Management
Normal Operation: 58 watts (max.), Sleep
Mode: 2.7 watt (max.), Main Power Off: 0
watts
ErgoBright™ Power Management
High: 50W, Middle: 42W, Low: 35W
Product Measurements
Weight: 16.7 lbs. (w/ stand base), Weight:
13.7 lbs. (w/o stand base), Dimensions
(WxHxD): 17.3" x 17.6" x 9.2" (w/ stand
base), Dimensions (WxHxD): 17.3" x 14.0"
x 2.9" (w/o stand base)
Shipping Measurements
Weight: 14.3 lbs., Dimensions (WxHxD):
20.2" x 20.7" x 12.4"
Limited Warranty
3 Years (Parts, Labor, Backlight)
Supplied Accessories
AC Power Cord
DVI-D Video Signal Cable
HD15 Video Signal Cable
CD-ROM Manuals and Setup S/W for
Windows® and Macintosh®
Limited Warranty Card
Quick Setup Guide
©2004 Sony Electronics Inc. All rights reserved.
Features and specifications are subject to change
without notice. All trademarks reference herein are
trademarks of Sony or their respective owners.
