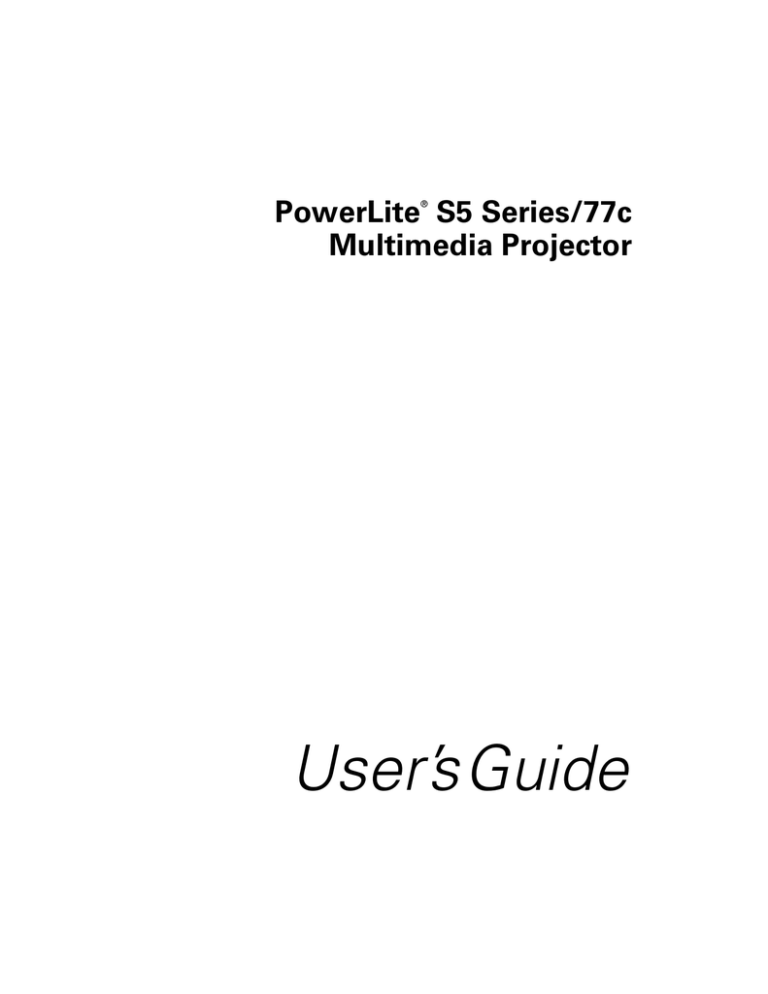

PowerLite S5 Series/77c
Multimedia Projector
®
User’s Guide
Important Safety Information
WARNING: Never look into the projector lens when the lamp is turned on; the bright light can damage your eyes.
Never let children look into the lens when it is on. Never open any cover on the projector, except the lamp and
filter covers. Dangerous electrical voltages inside the projector can severely injure you. Except as specifically
explained in this User’s Guide, do not attempt to service this product yourself. Refer all servicing to qualified service
personnel.
WARNING: The projector and its accessories come packaged in plastic bags. Keep plastic bags away from small
children to avoid any risk of suffocation.
Caution: When you replace the lamp, never touch the new lamp with your bare hands; the invisible residue left by
the oil on your hands may shorten the lamp life. Use a cloth or glove to handle the new lamp.
Copyright Notice
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in
any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior
written permission of Seiko Epson Corporation. The information contained herein is designed only for use with
this Epson product. Epson is not responsible for any use of this information as applied to other products.
Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for
damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of
this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to
strictly comply with Seiko Epson Corporation’s operating and maintenance instructions.
Seiko Epson Corporation shall not be liable for any damages or problems arising from the use of any options or
any consumable products other than those designated as Original Epson Products or Epson Approved Products by
Seiko Epson Corporation.
Trademarks
Epson and Instant Off are registered trademarks, and Epson Exceed Your Vision is a trademark of Seiko Epson
Corporation.
PowerLite and PrivateLine are registered trademarks; SizeWise is a trademark; and Epson Store and Extra Care are
service marks of Epson America, Inc.
Pixelworks, DNX, and the DNX logo are trademarks of Pixelworks, Inc.
General Notice: Other product names used herein are for identification purposes only and may be trademarks of
their respective owners. Epson disclaims any and all rights in those marks.
The contents of this manual are subject to change without notice.
© 2007 Epson America, Inc.
2
9/07
Contents
Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
Getting the Most from Your Projector . . . . . . . . . . . . . . . . . 8
Using Your Documentation . . . . . . . . . . . . . . . . . . . . . . . . . 9
Getting More Information . . . . . . . . . . . . . . . . . . . . . . . 9
Registration and Warranty . . . . . . . . . . . . . . . . . . . . . . . . . 10
Unpacking the Projector. . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Projector Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Back. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Bottom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
PowerLite S5 Series Control Panel . . . . . . . . . . . . . . . . 12
PowerLite 77c Control Panel . . . . . . . . . . . . . . . . . . . . 12
Additional Components . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Optional Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
1
Setting Up the Projector . . . . . . . . . . . . . . . . . . . .
15
16
17
18
19
20
Positioning the Projector . . . . . . . . . . . . . . . . . . . . . . . . . .
Other Installations . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting to a Computer. . . . . . . . . . . . . . . . . . . . . . . . .
Connecting with the VGA Cable . . . . . . . . . . . . . . . . .
Connecting with a VGA-5BNC Cable. . . . . . . . . . . . .
Connecting a USB Cable for Remote Presentation
Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Connecting an External Monitor . . . . . . . . . . . . . . . . . 22
Playing Sound Through the Projector . . . . . . . . . . . . . 23
3
Connecting to Video Sources . . . . . . . . . . . . . . . . . . . . . . . . 24
Connecting a Composite Video Source . . . . . . . . . . . . . 25
Connecting an S-Video Source . . . . . . . . . . . . . . . . . . . 26
Connecting an RGB Video Source. . . . . . . . . . . . . . . . . 27
Connecting a Component Video Source . . . . . . . . . . . . 28
Playing Sound Through the Projector . . . . . . . . . . . . . . 29
4
2
Projecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
3
Using the Remote Control . . . . . . . . . . . . . . . . . . . 43
Turning On Your Equipment . . . . . . . . . . . . . . . . . . . . . . . 32
Turning On the Projector . . . . . . . . . . . . . . . . . . . . . . . 32
Selecting the Image Source. . . . . . . . . . . . . . . . . . . . . . . 34
What To Do If You See a Blank Screen . . . . . . . . . . . . . 34
Adjusting the Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Focusing and Zooming Your Image
(PowerLite S5 Series). . . . . . . . . . . . . . . . . . . . . . . . 37
Focusing and Zooming Your Image
(PowerLite 77c). . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Adjusting the Height of Your Image . . . . . . . . . . . . . . . 39
Adjusting the Image Shape. . . . . . . . . . . . . . . . . . . . . . . 39
Adjusting the Brightness . . . . . . . . . . . . . . . . . . . . . . . . 40
Correcting Computer Images. . . . . . . . . . . . . . . . . . . . . 41
Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Shutting Down the Projector . . . . . . . . . . . . . . . . . . . . . . . . 42
Controlling the Picture and Sound. . . . . . . . . . . . . . . . . . . . 44
Switching Between Picture Sources . . . . . . . . . . . . . . . . 44
Adjusting the Color Mode . . . . . . . . . . . . . . . . . . . . . . . 44
Turning Off the Picture and Sound . . . . . . . . . . . . . . . . 46
Stopping Action . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Zooming Your Image. . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Changing the Image’s Aspect Ratio . . . . . . . . . . . . . . . . 48
Changing Presentation Slides . . . . . . . . . . . . . . . . . . . . . . . . 48
Replacing the Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
4
Fine-tuning the Projector . . . . . . . . . . . . . . . . . . . 51
Using the Projector’s Menu System . . . . . . . . . . . . . . . . . . .
Changing Menu Settings . . . . . . . . . . . . . . . . . . . . . . . .
Adjusting Colors and Clarity . . . . . . . . . . . . . . . . . . . . . . . .
Adjusting the Input Signal . . . . . . . . . . . . . . . . . . . . . . . . . .
Customizing Projector Features . . . . . . . . . . . . . . . . . . . . . .
Selecting Projector Setup Options . . . . . . . . . . . . . . . . . . . .
Viewing Lamp Usage and Other Information . . . . . . . . . . .
Using the Projector’s Security Features. . . . . . . . . . . . . . . . .
Creating Your Own Screen Logo. . . . . . . . . . . . . . . . . .
Setting a Password . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Turning On the Password and User’s Logo . . . . . . . . . .
Starting the Projector with a Password. . . . . . . . . . . . . .
Disabling the Projector’s Buttons . . . . . . . . . . . . . . . . .
Installing Security Locks . . . . . . . . . . . . . . . . . . . . . . . .
Restoring the Default Settings . . . . . . . . . . . . . . . . . . . . . . .
52
53
55
58
61
63
65
66
67
68
69
70
71
71
72
5
Maintenance and Transportation
..........
Cleaning the Lens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning the Projector Case . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning and Replacing the Air Filter . . . . . . . . . . . . . . . . .
Replacing the Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Resetting the Lamp Timer . . . . . . . . . . . . . . . . . . . . . . . . . .
Transporting the Projector. . . . . . . . . . . . . . . . . . . . . . . . . .
73
74
74
75
76
78
79
6
Solving Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using On-Screen Help. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
What To Do When the Lights Flash . . . . . . . . . . . . . . . . . .
Solving Problems with the Image or Sound . . . . . . . . . . . . .
Solving Password Problems . . . . . . . . . . . . . . . . . . . . . . . . .
Solving Problems with the Remote Control . . . . . . . . . . . . .
Where To Get Help. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Speak to a Support Representative. . . . . . . . . . . . . . . . .
81
82
83
85
91
92
93
93
5
A
Technical Specifications . . . . . . . . . . . . . . . . . . . . . 95
B
Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Projection Lamp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Mouse Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Safety and Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Compatible Video Formats . . . . . . . . . . . . . . . . . . . . . . . . . 98
Compatible Computer Display Formats. . . . . . . . . . . . . . . . 99
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . 101
Remote Control Information . . . . . . . . . . . . . . . . . . . . . . . 103
FCC Compliance Statement. . . . . . . . . . . . . . . . . . . . . . . . 104
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
6
-
Welcome
The PowerLite
®
S5 Series/77c is an ultra-portable projector that
offers 2000 ANSI lumens (S5 Series) or 2200 ANSI lumens (77c) of
brightness. From conference rooms to auditoriums, your full-color
presentations and videos will be bright and visible even in ordinary
indoor lighting.
Images are displayed at a native resolution of 800 × 600 pixels
(PowerLite S5 Series) or 1024 × 768 pixels (PowerLite 77c). Epson®
3LCD technology ensures accurate color and remarkable saturation,
even in well-lit rooms. Support for S-Video contributes to
theater-quality performance.
You can connect the projector to a wide range of computers, including
IBM®-compatible PCs and laptops, Apple® Macintosh,® Power
Macintosh® series (including G4 and G5 systems), PowerBook®
computers, and many iMac® and iBook® series systems. With Epson’s
patented SizeWise™ technology, the projector supports a wide range
of computer displays.
You can use any of the following video sources: HDTV, VCR, DVD
player, gaming console (such as Microsoft® Xbox,™ Sony®
PlayStation® 3, and Nintendo Wii™), camcorder, or digital camera.
The projector supports NTSC, PAL, and SECAM video formats.
You can connect up to three devices to the projector at the same time.
The source buttons let you easily switch among them. With the
projector’s Source Search button, you don’t even have to identify
your input source. Just press the button until you see the image you
want on the screen.
7
To prevent unauthorized use of the projector, you can assign a
password, create a user logo which is displayed at startup to identify
the projector, and disable the projector’s buttons through the
Operation Lock feature. For more information about security features,
see page 66.
Getting the Most from Your Projector
Depending on your presentation, you can take advantage of any or all
of these options:
■
Connecting to a laptop or other computer
If you want to connect the projector to a laptop or desktop
computer, see page 18. For additional presentation control, you
can connect a USB cable to the projector for running slide shows,
and connect an external monitor to view the presentation on your
computer simultaneously.
■
Connecting to video sources
You can connect a DVD player, VCR, HDTV, camcorder, digital
camera, and other video sources to your projector. See page 24 for
instructions.
■
Using the remote control
The remote control lets you switch from computer to video
sources, zoom in on part of your image, freeze or mute the
presentation, and adjust many other projector features. For
details, see Chapter 3.
By connecting a USB cable to your projector, you can also use the
remote control to click through computer-based presentations
(such as PowerPoint®) from up to 20 feet away. For more
information, see page 48.
8
Welcome
Using Your Documentation
Your documentation includes a Quick Setup sheet, warranty
brochures, and an Epson PrivateLine® Support card.
The Quick Setup sheet gives instructions to quickly set up your
projector and connect it to a computer or video device.
This book contains all the information you need to set up and use
your projector. Please follow these guidelines as you read through it:
■
Warnings must be followed carefully to avoid bodily injury.
■
Cautions must be observed to avoid damage to your equipment.
■
Notes contain important information about your projector.
Getting More Information
Need tips on giving presentations? How about quick steps for setting
up your projector? Here’s where you can look for help:
■
www.presentersonline.com
Includes a library of articles covering presentation tips, tricks, and
technology. The site provides templates, clip art, and sound clips,
as well as Presenters Services to use on the road. Even more
resources and services are available if you register to join the
Presenters Club—and it’s free.
■
Built-in help system
Press the Help button on the remote control or projector to get
quick solutions for common problems. See page 82 for details.
■
epson.com/support
Download FAQs (frequently asked questions) and e-mail your
questions to Epson support.
If you still need help after checking this User’s Guide and the sources
listed above, you can use the Epson PrivateLine Support service to get
help fast. Call (800) 637-7661 and enter the PIN on your PrivateLine
Support card. See page 93 for more information.
Welcome 9
Registration and Warranty
Your projector comes with a basic carry-in warranty and an
international warranty that let you project with confidence anywhere
in the world. For details, see the warranty brochures that came with
your projector.
In addition, Epson offers free Extra CareSM Road Service. In the
unlikely event of an equipment failure, you won’t have to wait for
your unit to be repaired. Instead, Epson will ship you a replacement
unit anywhere in the United States or Canada, usually via overnight
delivery. See the Extra Care Road Service brochure for details.
To register, complete the registration form that came with your
projector and mail it to Epson. Or register your product online at:
http://www.epson.com/webreg
Registering also lets you receive special updates on new accessories,
products, and services.
Unpacking the Projector
After unpacking the projector, make sure you have all these items:
Quick Setup sheet
Remote control
and batteries
Projector
Carrying case
VGA computer cable
Power cord
Password Protected
Sticker
10
Welcome
Save all packaging in case you need to ship the projector. Always use
the original packaging (or equivalent) when you need to send the
projector to another location.
Projector Parts
Front
Control panel
Kensington lock port
(on side of projector)
A/V mute slide
Air exhaust
vent
Remote control
sensor
Front adjustable foot
Foot release lever
Back
Computer (Component Video) port
S-Video port
USB port
Audio
input ports
Video
port
Monitor Out port
Remote
control sensor
Speaker
Power inlet
Rear adjustable foot
Welcome 11
Bottom
Air filter
Hole for
attaching
ceiling mount
bracket
Holes for
attaching
ceiling mount
bracket
Security lock slot
PowerLite S5 Series Control Panel
Up and Down buttons
correct keystone distortion
and select menu items
Up
button
Wide and Tele
buttons adjust
image size and
select menu
items
Lights indicate
projector status
Enter button automatically
adjusts computer image
Down
button
PowerLite 77c Control Panel
Up and Down buttons
correct keystone distortion
and select menu items
Up
button
and
buttons adjust
volume and
select menu
items
Lights indicate
projector status
Enter button automatically
adjusts computer image
12
Welcome
Down
button
Additional Components
Depending on how you plan to use the projector, you may need
additional components:
■
To receive an S-Video signal, you need an S-Video cable. One is
usually provided with your video device, or you can purchase it
from Epson. See page 14.
■
To receive a component video signal from a VCR or other video
device, you need a D-sub, 15-pin, VGA-to-component video
cable, which is available from Epson. See page 14.
■
Some older PowerBooks and Macintosh desktop models may
need a Macintosh video adapter; see your computer dealer. Older
iMac systems may need a special adapter to provide a VGA output
port; see your computer dealer.
■
To receive an audio signal, you need a commercially available
audio adapter cable; see your computer or electronics dealer.
■
To use the projector’s remote control to change presentation
slides, you need a USB cable; see your computer or electronics
dealer.
Welcome 13
Optional Accessories
To enhance your use of the projector, Epson provides the following
optional accessories:
note
To purchase a replacement
remote control, call
(562) 276-4394 (U.S.) or
(905) 709-3839 (for dealer
referral in Canada).
Product
Product number
Replacement lamp
V13H010L41
Air filter set (includes 2 filters)
V13H134A13
Component video cable
S-Video cable
ELPKC19
ELPSV01
Distribution amplifier
ELPDA01
Duet™
portable projector screen
50-inch portable screen
60-inch portable pop-up screen
80-inch portable pop-up screen
83.6-inch hanging pull-down screen
ELPSC80
ELPSC06
ELPSC07
ELPSC08
ELPSC09
ELPDC05 high resolution document imager
V12H162020
Kensington® security lock
ELPSL01
Ceiling mount (gyro lock with suspension adapter)
False ceiling plate
Suspension adapter
Security bracket/cabling for gyro lock mounts
Adjustable ceiling channel
ELPMBUNI
ELPMBFCP
ELPMBAPL
ELPMBSEC
ELPMBACC
You can purchase screens, carrying cases, or other accessories from an
Epson authorized reseller. To find the nearest reseller, call
800-GO-EPSON (800-463-7766). Or you can purchase online at
www.epsonstore.com (U.S. sales) or www.epson.ca (Canadian sales).
14
Welcome
1
Setting Up the Projector
T
his chapter tells you how to set up the projector and connect it to a
computer or video source. You can connect up to three devices
simultaneously: three video sources, or one computer and two video
sources.
You’ll find instructions for the following in this chapter:
■
Positioning the projector
■
Connecting to a computer
■
Connecting to video sources
15
Positioning the Projector
Before connecting the projector, you
need to decide where to place it. If
you’re setting up the projector yourself
and it isn’t already installed in the
room you’re using, you’ll probably
want to place it on a table in front of
the screen, as shown.
This lets you stand in the front of the room, face the audience, and
remain close enough to the equipment to be able to control it. Try to
leave as much space as possible between the projector and the screen to
get a good-size image.
Place the projector somewhere between 3 and 30 feet from the screen.
Use the figure below to help you determine exactly how far. Image size
increases with distance, but can vary depending on how you’ve
adjusted the optical zoom and other settings.
PowerLite S5 Series
29.4 feet
5.8 to 8.6 feet
2.9 to 4.2 feet
5.6 to 7.3 feet
2.7 to 3.6 feet
PowerLite 77c
28.4 to 34.2 feet
16
Setting Up the Projector
Also keep these considerations in mind:
■
Place the projector on a sturdy, level surface.
■
Make sure there is plenty of space for ventilation around and
under the projector. Do not set the projector on top of loose
papers that could block the vents under the projector.
■
Make sure the projector is within 6 feet (2 m) of a grounded
electrical outlet or extension cord.
note
You can download the
Projection Distance
Calculator program from
the Drivers and Downloads
section of Epson’s website:
epson.com/support
Try to place the projector directly in front of the center of the screen,
facing it toward the screen squarely. If the projector isn’t positioned
this way, the image will be “keystone” shaped, instead of square or
rectangular.
If you place the projector below the level of the screen, you’ll have to
tilt it up by extending the front adjustable foot, as described on
page 39. This also causes the image to lose its rectangular shape. You
can adjust the shape using the buttons on the projector (see page 39),
or using the projector’s menu system (see page 61).
On the PowerLite 77c, the Auto Keystone feature corrects the
distortion automatically. See page 62 for more information about
Auto Keystone correction. If necessary, you can adjust the image
shape manually as described on page 39.
note
The Auto Keystone feature
corrects vertical distortion
automatically (PowerLite
77c only). For more
information, see page 39.
Other Installations
You can also project from behind the screen or from the ceiling, with
the projector mounted upside-down:
Rear projection (using a
translucent screen)
Rear/ceiling projection (using
a translucent screen)
Front/ceiling projection
Setting Up the Projector 17
To project from overhead, you’ll need the optional ceiling mount
hardware. (See page 14 for ordering information.) You’ll also need to
select Front/Ceiling or Rear/Ceiling for the Projection option in the
Extended menu. To project from the rear, select Rear. See page 63 for
more information.
Connecting to a Computer
note
If you have an iBook with an
RCA video-out port, follow
the instructions for
connecting to a video device
on page 25.
You can connect the PowerLite projector to any computer that has a
standard VGA or BNC monitor port, including PC notebook and
laptop computers, Macintosh PowerBooks and iBooks, and hand-held
devices.
Follow the instructions in this section to:
■
Connect the projector to your computer with the VGA cable
included with the projector.
■
Connect the projector to your computer with a commercially
available VGA–5BNC cable.
After connecting the projector to your computer, you may also
want to:
18
Setting Up the Projector
■
Connect a USB cable to your projector so that you can use the
remote control as a wireless mouse; see page 21
■
Connect a monitor to the projector so you can view your
presentation close-up as well as on-screen (not necessary if you’re
using a laptop); see page 22
■
Connect the projector to your computer with a commercially
available audio cable to play computer audio; see page 23.
Connecting with the VGA Cable
Follow these instructions to connect to your computer with the VGA
cable that came with your projector. Before you start, make sure your
computer and the projector are turned off.
1. If you are connecting the projector to a desktop computer,
disconnect the monitor cable from your computer.
2. Locate the VGA computer cable that
came with the projector.
Connect one end of the cable to the
projector’s Computer (Component
Video) port.
VGA computer cable
Connect VGA
computer cable
3. Connect the other end of the cable to your computer’s video-out
or monitor port.
If you’re using a PowerBook or iBook and you can’t connect the
cable, you may need to use an optional Macintosh video adapter;
see your computer dealer.
4. If you want to view the display simultaneously on your computer
monitor and the projector screen, see “Connecting an External
Monitor” on page 22.
5. Tighten the screws on the connectors.
If you don’t need to make any other connections, you can plug in
your projector and turn it on. See page 32 for instructions.
If more than one device is connected to the projector, select the
correct source after projection starts by pressing the Source Search
button on the projector or remote control. See page 34.
Setting Up the Projector 19
Connecting with a VGA-5BNC Cable
VGA-5BNC cable
If your computer provides video output through BNC connectors,
follow these instructions to connect the projector to your computer
with an optional VGA-5BNC cable. Before you start, make sure your
computer and the projector are turned off.
1. Disconnect the monitor cable from your computer.
2. Connect the cable’s VGA connector to the projector’s Computer
(Component Video) port.
Connect VGA-5BNC
computer cable
3. Connect the BNC connectors to your computer’s BNC ports.
4. If you want to view the display simultaneously on your computer
monitor and the projector screen, see “Connecting an External
Monitor” on page 22.
5. Tighten the screws on the VGA connector.
If you don’t need to make any other connections, you can plug in
your projector and turn it on. See page 32 for instructions.
If more than one device is connected to the projector, select the
correct source after projection starts by pressing the Source Search
button on the projector or remote control. See page 34.
20
Setting Up the Projector
Connecting a USB Cable for Remote
Presentation Control
You can use the remote control to click through slideshow-style
presentations, such as PowerPoint, from up to 20 feet away. This
makes it easy to deliver your presentation, since you won’t need to
stand near your computer.
To use this function, you will need a USB cable, a system with a
working USB port, and the full version of one of these operating
systems:
Windows®
Macintosh
Windows 98SE, 2000, Me, XP, or
Windows Vista™
Macintosh OS X
note
For details about using the
remote control to change
presentation slides, see
page 48.
1. If you are using a desktop computer, disconnect the mouse cable
from your computer.
2. Connect the square end of the USB cable to the projector’s
USB port.
Connect USB cable
3. Connect the flat end of the cable to any available USB port on
your computer.
4. If necessary, configure your laptop to work with an external
mouse.
If you don’t need to make any other connections, you can plug in
your projector and turn it on. See page 32 for instructions.
Setting Up the Projector 21
Connecting an External Monitor
note
Some LCD monitors may
not be able to display the
image correctly. If you have
trouble displaying the
image, connect a multiscan
monitor. If you’re projecting
computer images, make sure
the computer’s refresh rate is
set to 65 Hz or greater.
If you want to see your presentation close-up as well as on the
projection screen, you can connect an external monitor to the
projector. This lets you view images on your computer monitor while
the projector is in standby mode (plugged in but not turned on) and
check your presentation or switch between picture sources even if
you’ve pressed the A/V Mute button on the remote control to turn off
projection on the screen.
Simultaneous display is possible only when the computer is connected
to the projector’s Computer (Component Video) port.
Make sure the projector and computer are off. Then connect the
monitor’s cable to the projector’s Monitor Out port, as shown:
Connect external
monitor
If you don’t need to make any other connections, you can plug in
your projector and turn it on. See page 32 for instructions.
22
Setting Up the Projector
Playing Sound Through the Projector
You can connect a commercially available computer audio adapter
cable to take advantage of the projector’s built-in speaker. You can
obtain an audio adapter cable (3.5-mm stereo miniplug to two male
RCA plugs) from a computer or electronics dealer.
1. Connect the RCA plugs on the audio adapter cable to the
corresponding L-Audio-R jacks on the projector.
Connect audio
adapter RCA plugs
2. Connect the other end of the audio cable to your laptop’s
headphone jack or
audio-out jack, or your desktop’s
speaker or audio-out port.
If you don’t need to make any other connections, you can plug in
your projector and turn it on. See page 32 for instructions.
Setting Up the Projector 23
Connecting to Video Sources
You can connect a DVD player, VCR, camcorder, digital camera,
gaming console, or any other compatible video source to your
projector. You can connect up to three video devices at one time.
note
The projector does not
support TV antenna cable
F connectors.
The projector supports HDTV, SDTV, NTSC, PAL, and SECAM,
and automatically detects the video format. It can receive composite
video, S-Video, RGB video, and component video. The type of cable
you need depends on the video source:
■
For composite video, use a commercially available RCA A/V
cable. See page 25.
■
For S-Video, use the S-Video cable supplied with your video
device or order one from Epson. See page 26.
■
For RGB video, use the VGA computer cable included with the
projector. See page 27.
■
For component video, you’ll need the optional Epson component
video cable. See page 28.
After connecting your video device to the projector, you may want to
connect an audio cable to play sound from your video equipment
through the projector’s built-in speaker. See page 29 for instructions.
24
Setting Up the Projector
Connecting a Composite Video Source
If you’re connecting a composite video device, use a commercially
available RCA A/V cable. Before starting, make sure the projector and
your DVD player or other video source are turned off.
1. Connect the yellow RCA plug on one end of the cable to the
projector’s yellow Video jack.
Connect yellow RCA
plug on A/Vcable
2. Connect the yellow plug on the other end of the cable to the
video-out port on your video source.
3. To play sound through the projector, follow the instructions
beginning on page 29.
If you don’t need to make any other connections, you can plug in
your projector and turn it on. See page 32 for instructions.
If more than one device is connected to the projector, select the
correct source after projection starts by pressing the Source Search
button on the projector or remote control. See page 34.
Setting Up the Projector 25
Connecting an S-Video Source
If your video source has an S-Video jack, you can use it to project a
higher quality video image. You’ll need an S-Video cable, which is
usually provided with your video source, or you can purchase one
from Epson (part number ELPSV01). See page 14 for ordering
information.
Before starting, make sure the projector and your DVD player or
other video source are turned off.
1. Insert one end of the S-Video cable into the projector’s S-Video
port and the other end into the S-Video output port of your video
source.
Connect
S-Video cable
2. To play sound through the projector, follow the instructions
beginning on page 29.
If you don’t need to make any other connections, you can plug in
your projector and turn it on. See page 32 for instructions.
If more than one device is connected to the projector, select the
correct source after projection starts by pressing the Source Search
button on the projector or remote control. See page 34.
26
Setting Up the Projector
Connecting an RGB Video Source
Follow these instructions to connect the projector to a video player or
satellite receiver that has an RGB video output port using the VGA
computer cable that came with the projector.
Before starting, make sure the projector and your DVD player or
other video source are turned off.
1. Connect one end of the VGA computer cable to the Computer
(Component Video) port on the projector.
Connect VGA
computer cable
2. Connect the other end to the video port on your player.
3. To play sound through the projector, follow the instructions
beginning on page 29.
If you don’t need to make any other connections, you can plug in
your projector and turn it on. See page 32 for instructions.
If more than one device is connected to the projector, select
Computer as the source after projection starts by pressing the Source
Search button on the projector or remote control. See page 34.
Setting Up the Projector 27
Connecting a Component Video Source
If your video source has component video connectors, you can use
them to project a higher quality video image. You’ll need a
component video cable, which can be purchased from Epson (part
number ELPKC19). See page 14 for ordering information.
Before starting, make sure the projector and your DVD player or
other video device are turned off.
1. Connect the large end of the component video cable to the
projector’s Computer (Component Video) port.
Connect component
video cable
2. Insert the three ends of the component video cable into the
R, G, and B ports on your video source.
3. To play sound through the projector, follow the instructions
beginning on page 29.
If you don’t need to make any other connections, you can plug in
your projector and turn it on. See page 32 for instructions.
If more than one device is connected to your projector, select
Computer (Component Video) as the source by pressing the
Source Search button on the projector or the remote control. See
page 34.
28
Setting Up the Projector
Playing Sound Through the Projector
The projector has a built-in speaker with a maximum output of 1 W.
You can play sound from your video equipment through the
projector’s speaker if your video device has an audio output port.
For RCA-Style Audio Output Ports
Most video devices have an RCA-style audio output port. In this case,
use a commercially available RCA-style audio cable to connect the
projector to your video source:
1. Connect the red and white plugs on one end of the audio cable to
the L-Audio-R jacks on the projector.
Connect audio adapter
red and white plugs
2. Connect the red and white plugs on the other end of the audio
cable to the corresponding color-coded audio output port on your
video source.
If you don’t need to make any other connections, you can plug in
your projector and turn it on. See page 32 for instructions.
Setting Up the Projector 29
For Stereo Mini-Jack Audio Output Ports
Some video devices, especially camcorders, may have a stereo
mini-jack audio output port. In this case, use a commercially available
audio adapter cable (3.5-mm stereo miniplug to two male RCA plugs)
to connect to the projector:
1. Connect the red and white plugs on the audio adapter cable to the
L-Audio-R jacks on the projector.
Connect audio adapter
red and white plugs
2. Connect the other end of the audio adapter cable to your video
device’s audio output port.
If you don’t need to make any other connections, you can plug in
your projector and turn it on. See page 32 for instructions.
30
Setting Up the Projector
2
Projecting
Once you’ve set up the projector, you’re ready to turn it on, adjust
the image, and give your presentation.
Although you can operate the projector without it, the remote control
lets you use additional features. See Chapter 3 for instructions on
using the remote. This chapter covers the following:
■
Turning on the projector and other equipment
■
Adjusting the image
■
Adjusting the volume
■
Shutting down the projector
31
Turning On Your Equipment
Make sure your projector and other equipment are set up and
connected correctly, as described in Chapter 1. Then turn on your
projector, as described below.
If you turn on your connected computer or video equipment before
starting the projector, the projector automatically detects and displays
the image source. If you turn on the projector first, or have multiple
pieces of connected equipment, you may have to select the image
source manually. See page 34.
Turning On the Projector
Follow these steps to plug in and turn on the projector:
1. Open the A/V Mute slide (lens cover).
2. Connect one end of the power cord to the projector’s power inlet.
32
Projecting
3. Connect the other end to an electrical outlet.
The power light on top of the projector turns orange, indicating
that the projector is receiving power but not yet turned on. Wait
until the light stops flashing but stays orange.
4. Turn on your computer or video source if you have not already.
5. Press the P Power button on top of the projector to turn it on.
(You can also press the Power button on the remote control.)
Power button
The projector beeps and the power light flashes green as the
projector warms up. The projector lamp comes on in about
4 seconds and the power light stays green.
■
If you’re using a computer, you should see your computer
display projected after a moment or two. If not, you need to
select the image source. See page 34.
note
If you are using the remote
control for the first time, be
sure to insert the batteries as
described on the Quick
Setup poster.
warning
Never look into the lens when
the lamp is on. This can
damage your eyes, and is
especially dangerous for
children.
(Windows only: If you see a message saying that it has found
a plug-and-play monitor, click Cancel.)
■
If you’re projecting a video, you may need to press the
Source Search button on the projector or remote control to
switch to your video source. Then press the Play button on
your DVD player or other device.
■
If you are prompted to enter a password, see page 70.
Projecting 33
To focus and adjust the image, see page 37. If a projected image fails
to appear, see “What To Do If You See a Blank Screen” on page 34.
When you’re done with your presentation, shut down the projector as
described on page 42.
Selecting the Image Source
note
The name of the selected
image source appears in the
upper right corner of the
screen.
Selecting the image source lets you switch between images input from
different pieces of equipment connected to the projector (such as a
computer and DVD player). If you don’t see the image you want,
press the Source Search button on the remote control or projector
until the correct device image is projected.
Remote control
Projector control panel
If a projected image fails to appear, see the next section for help.
Once you see your image, turn to page 37 for instructions on focusing
and making other image adjustments.
What To Do If You See a Blank Screen
If you see a blank screen or a blue screen with the message No Signal
after turning on your computer or video source, try the following:
34
Projecting
■
Make sure the cables are connected correctly, as described in
Chapter 1.
■
Make sure the power light is green and not flashing and the A/V
Mute slide is open.
■
Make sure you’ve selected the correct image source; see the
previous section. Allow a few seconds for the projector to sync up
after pressing the button.
■
Check the Signal menu to make sure the correct input source is
selected. See page 58.
If you’re using a PC laptop:
■
Hold down the Fn key and press the function key that lets you
display on an external monitor. It may have an icon such as
or it may be labelled CRT/LCD. Allow a few seconds for the
projector to sync up after pressing it. Check your laptop’s manual
or online help for details.
On most systems, the
or CRT/LCD key lets you toggle
between the LCD screen and the projector, or display on both at
the same time.
■
If you’re projecting from a laptop, and you don’t see the same
image on the projection screen and computer screen, check your
monitor settings to make sure both the LCD screen and the
external monitor port are enabled.
From the Control Panel, open the Display utility. Click the
Settings tab, then click Advanced. The method for adjusting
the settings varies by brand; you may need to click a Monitor tab,
then make sure the external Monitor port is set as your primary
display and/or enabled. See your computer’s documentation or
online help for details.
Projecting 35
If you’re using a Macintosh laptop with OS X:
You may need to set up your system to display on the projector screen
as well as the LCD screen. Follow these steps:
1. From the Apple menu, select System Preferences, then click
Display or Displays.
2. Select VGA Display or Color LCD, click Arrange or
Arrangement, and make sure Mirror Displays is checked.
Click here
Select Mirror
Displays
36
Projecting
Adjusting the Image
Once you see your image, you’ll need to make certain adjustments:
■
To focus or zoom your image, see below or page 38.
■
If the image is too high or too low, you can reposition it.
See page 39.
■
If the image isn’t square, see page 39.
■
To adjust image brightness, see page 40.
■
If a computer image displays incorrectly, see page 41.
■
To change the color mode for your image and surroundings, see
page 44.
You can make many other adjustments to the image—such as
changing the brightness, contrast, and aspect ratio—using the
projector’s menu system. See Chapter 4 for more information.
Focusing and Zooming Your Image
(PowerLite S5 Series)
Rotate the focus ring to sharpen the image.
Projecting 37
Press the Wide button on the projector to enlarge the image, or the
Tele button to reduce it.
You can also change the image size by moving the projector closer to
or farther away from the screen. You can use the E-Zoom buttons on
the remote control to zoom in on a portion of the image. See page 47
for instructions.
Focusing and Zooming Your Image
(PowerLite 77c)
Rotate the focus ring to sharpen the image, and the zoom ring to
reduce or enlarge the image.
Focus
Zoom
You can also change the image size by moving the projector closer to
or farther away from the screen. You can use the E-Zoom buttons on
the remote control to zoom in on a portion of the image. See page 47
for instructions.
38
Projecting
Adjusting the Height of Your Image
If the image is too low, you can raise it by extending the projector’s
front adjustable foot.
1. Stand behind the projector. Press up on the blue foot release
lever and lift the front of the projector to extend the front
adjustable foot.
2. Once the image is positioned where you want, release the lever to
lock the foot in position.
If the image is no longer rectangular after raising it, see the next
section.
Adjusting the Image Shape
If the projector is tilted up or down, the images that are displayed will
be distorted. To correct the distortion or “keystone” shape, do one or
more of the following:
■
If your image looks like
or
, you’ve placed the projector
off to one side of the screen, at an angle. Move it directly in front
of the center of the screen, facing the screen squarely.
note
The PowerLite 77c
automatically corrects
images that are distorted
when the projector is tilted
up or down (up to a 30°
tilt). The Keystone window
appears on the screen while
the projector makes the
correction. If the projected
image still isn’t rectangular,
follow the instructions on
this page.
Projecting 39
■
If your image looks like
or
, you need to adjust the
keystone correction value. Press the
or
buttons on the
projector to correct the shape of the image. After correction, your
image will be slightly smaller.
PowerLite S5 Series
PowerLite 77c
■
On the PowerLite 77c, you may need to turn on Auto Keystone.
See page 61 for instructions.
You can also make keystone adjustments using the projector’s Settings
menu. See page 62.
Adjusting the Brightness
The brightness of an image depends on the source you are projecting
and the amount of light in the room. If the image is too bright or not
bright enough, here are two ways you can adjust it:
40
Projecting
■
Change the Brightness setting in the Image menu. See page 56.
■
Select Low or High for the Brightness Control option in the
Settings menu. (See page 62.) Low brightness mode extends the
life of the lamp and decreases the fan noise.
Correcting Computer Images
If you’ve connected a computer and the image doesn’t look right, or it
doesn’t fit properly on the screen, press the Enter button on the
projector or the Enter/Auto button on the remote control. This
automatically resets the projector’s tracking, sync, resolution, and
position settings. You must be projecting a computer image for this
button to have any effect. Additionally, if the Auto Setup option in
the Signal menu is set to OFF, the Auto function will not work. See
page 59.
Adjusting the Volume
You can use the Vol– and Vol+ buttons on the remote control to
increase or decrease the volume for the projector’s built-in speaker.
On the PowerLite 77c, you can also use the buttons on the projector
to control the volume. Press the
button to increase the volume, or
the
button to decrease it. A volume gauge appears on the screen
while the volume is being adjusted.
note
You can also adjust the
volume using the projector’s
Settings menu. See page 61
for details.
You must adjust the volume
separately for each input
source.
PowerLite 77c only
Projecting 41
Shutting Down the Projector
note
When the projector has not
received any input signals for
30 minutes, it automatically
turns off the projector lamp
and enters “sleep mode.” This
conserves electricity, cools the
projector, and extends the life
of the lamp. If you are done
using the projector, unplug
the power cord. If you want
to start projecting again, press
the P Power button. You
can turn sleep mode on or off
through the Extended menu.
See page 64.
Turn off this product when
not in use to prolong the life
of the projector.
When you’ve finished using the projector, follow the recommended
procedure to shut it down:
1. If you’re using a computer, shut it down first; otherwise you may
not be able to see your computer’s display to shut it down
properly.
2. To turn off the projector, press the P Power button on the
projector or remote control.
You see this confirmation message:
(If you don’t want to turn it off, press
any other button or wait a few
seconds until it disappears.)
3. Press the P Power button again. The projector beeps twice, the
lamp is turned off, and the power light turns orange.
With Epson’s exclusive Instant Off® technology there’s no
cool-down period, so you can pack up and go immediately after
turning off the projector.
If you want to turn the projector on again, press the P Power
button.
4. Press up on the blue foot release lever and lower the projector to
retract the front adjustable foot.
caution
To avoid damaging the
projector or lamp,
never unplug the power
cord when the power
light is green or flashing
orange.
42
Projecting
5. Close the A/V Mute slide.
6. Unplug the power cord.
7. Turn off and disconnect any equipment
plugged into the projector.
8. If you won’t be using the projector for
awhile, store it in the soft case that came
with it or in a protective case.
33
Using the Remote Control
T
he remote control lets you access your projector’s features from
anywhere in the room—up to 20 feet away. For example, you can turn
the projector on and off, freeze the presentation, zoom in on a portion
of your image, and access the menu system. (The projector menus let
you adjust many projector settings; see Chapter 4.)
If you’re using a computer and you’ve connected a USB cable
as described in Chapter 1, you can use the remote control to change
slides in your presentation.
When using the remote control, stand within 20 feet of the projector.
Point the remote control either at the front or back of the projector or
at the screen (the projector’s front sensor can detect signals bounced
off the screen). Press the button for the function you want to use.
This chapter covers the following information:
■
Controlling the picture and sound
■
Changing slides in a presentation
■
Replacing the remote control batteries
43
Controlling the Picture and Sound
You can use the remote control to select your source, temporarily turn
off the picture and sound, freeze the action, or zoom in on the picture.
Make sure you have set up your projector and connected any
equipment as described in Chapter 1.
Switching Between Picture Sources
If you’ve connected your projector to more than one computer and/or
video source, you can use the Source Search button on the projector
or remote control to switch between the different sources.
After you select a source, the screen goes dark for a moment before the
image appears. The name of the selected source (such as Computer or
S-Video) appears briefly on the screen.
Adjusting the Color Mode
You may want to adjust the color mode to select a different setting
that is appropriate for the image you’re projecting and the
environment in which you’re projecting it. Press the Color Mode
button on the remote control.
If you’re projecting computer or RGB video images, the default color
mode is Presentation, which is appropriate for full-color
presentations in bright rooms.
44
Using the Remote Control
The following table lists the color modes available.
Color mode
Description
Best for projecting still images with vivid color in a
bright room (computer input only).
Sports
Best for watching TV in a bright room (component,
S-video, or composite video input only).
Presentation
Use when you’re projecting a full-color presentation in
a bright room.
Text
Use when you’re projecting a black and white
presentation in a bright room.
Theatre
Use when projecting movies in a dark room.
Game
Brightest mode, best for use in a bright room.
sRGB
Use when projecting computer images conforming to
the sRGB color standard.
Blackboard
Choose this fixed color mode when you need to
project against a green chalkboard.
You can also use the projector menu system to change the color mode
in the Image menu (see page 56).
Using the Remote Control 45
Turning Off the Picture and Sound
Press the A/V Mute button on the remote control or use the A/V
Mute slide on the projector to turn off the image and sound and
darken your screen. This is useful if you want to temporarily re-direct
your audience’s attention without the distraction of a bright screen.
■
To turn off the picture and sound, press the A/V Mute button or
close the A/V Mute slide on the projector. The screen goes dark.
■
To turn the image and sound back on, press the button again, or
open the AV Mute slide.
You can create an image, such as a company logo or a picture, to
display on the screen whenever you press the A/V Mute button. See
page 67 for more information.
Stopping Action
Press the Freeze button to stop the action in your video or computer
image and keep the current image on the screen. The sound will
continue, however. Also, because the source continues to transmit
signals, you won’t resume the action from the point you paused it.
Press the Freeze button again to restart it.
46
Using the Remote Control
Zooming Your Image
Follow these steps to zoom in on a portion of the image:
1. Press the E-Zoom + button on the remote control.
You see a crosshair indicating the center of the zoom-in area.
2. Use the four “arrow” buttons on the remote control to position
the crosshair in the area you want to enlarge.
3. Continue pressing the E-Zoom + button to enlarge the selected
area up to 4 times.
4. While the image is enlarged, you can:
■
Use the arrow buttons to pan about.
■
Press the E-Zoom – button to zoom out.
5. When you’re done, press the ESC button to return to the original
size.
Using the Remote Control 47
Changing the Image’s Aspect Ratio
note
You must be projecting
component, composite, or
S-Video images to change
the aspect ratio.
You can also change the
aspect ratio using the
projector’s Signal menu. See
page 58 for details.
If you’re projecting a widescreen format image, you can use the
Aspect button on the remote control to change the aspect ratio.
Follow these steps:
1. Press the Aspect button once to change the aspect ratio to 16:9
for widescreen format.
2. Press it again to return to 4:3 aspect ratio.
Changing Presentation Slides
You can use the remote control to click through slideshow-style
presentations (such as PowerPoint) from up to 20 feet away. This
gives you more flexibility, since you don’t need to stand near your
computer to change slides.
To change slides with the remote control, make sure you have
connected your computer to the projector with a USB cable as
described on page 21.
To advance slides in a PowerPoint presentation in Slide Show mode,
press the Page up button on the remote control. Press the Page
down button to go back a slide.
48
Using the Remote Control
Replacing the Batteries
The remote control uses two AA alkaline batteries. Follow these steps
when you need to replace them:
1. Press in the tab to remove the battery cover.
note
The remote control
automatically shuts off when
it detects a button being
pressed more than
30 seconds. This conserves
battery life. It can be
helpful, for example, when
the remote is in a carrying
case and the Power button
is accidentally pushed.
2. Remove the old batteries, then insert the new ones as shown.
caution
When replacing batteries,
take the following
precautions:
Replace the batteries as
soon as they run out. If a
battery leaks, wipe away
battery fluid with a soft
cloth. If fluid gets on your
hands, wash them
immediately.
■
3. Replace the battery cover. (It should click into place.)
Do not expose batteries to
heat or flame.
■
Dispose of used batteries
according to local
regulations.
■
Remove the batteries if
you won’t be using the
remote control for a long
period of time.
■
Using the Remote Control 49
50
Using the Remote Control
433
Fine-tuning the Projector
You can use the Menu button on the projector or remote control to
access on-screen menus to adjust the image, sound, and other features.
This chapter covers the following information:
■
Using the menu system
■
Adjusting image colors and clarity
■
Adjusting the input signal
■
Customizing projector features
■
Selecting projector setup options
■
Viewing lamp usage and other information
■
Using the projector’s security features
■
Restoring the default settings
51
Using the Projector’s Menu System
The six projector menus let you adjust and customize the projector
features:
52
■
The Image menu lets you modify the colors of the projected
image and fine-tune brightness, contrast, and sharpness.
■
The Signal menu lets you make adjustments to the input signal.
You can select your input source, change the image position and
aspect ratio, and adjust tracking and sync for computer images.
■
The Settings menu lets you customize the way you use the
projector. It allows you to adjust the volume and keystone
correction, set lamp brightness to high or low, and disable buttons
on the projector while you are projecting.
■
The Extended menu lets you customize the way you set up the
projector. Among the options, you can select the menu language,
set rear or ceiling projection, and record a custom image or logo
to be displayed as the startup screen or whenever you press the
A/V Mute button on the remote control.
■
The Info menu provides information about lamp status and
computer or video settings.
■
The Reset menu lets you restore the projector’s factory default
settings.
Fine-tuning the Projector
Changing Menu Settings
Use the buttons on the remote control or on the projector to access
the menus and change settings. Follow these steps:
1. Press the Menu button on the remote control or projector to
display the menu screen:
Menu options
Menus
The six menus are listed on the left, and the options available for
the highlighted menu are shown on the right.
PowerLite S5 Series
2. Use the up and down arrow buttons on the projector or remote
control to scroll through the menu list. When you’ve highlighted
the desired menu, press the Enter button on the projector (or the
Enter/Auto button on the remote control) to select it.
The highlight moves to the first option for that menu.
3. Use the up and down arrow buttons on the projector or remote
control to scroll through the list of options. (The options available
depend on which source is selected.)
PowerLite 77c
Remote control
Fine-tuning the Projector 53
4. After highlighting the option you want to adjust, use the Vol– or
Vol+ button on the remote control or left or right arrow buttons
on the projector to change the setting. In some cases, you may
have to press the Enter button to see a sub-screen for changing
the setting.
■
Press the Vol– or Vol+ button on the remote control or the
left or right arrow buttons on the projector to adjust a slider
bar.
■
To select from two or more settings, use the Vol– or Vol+
buttons or arrow buttons to highlight the desired setting,
then press Enter.
5. Press the Esc button to return to the previous menu or to close
the menu system if you are at the main menu. Your changes are
saved automatically.
6. Press the Menu button to exit the menu system.
54
Fine-tuning the Projector
Adjusting Colors and Clarity
The Image menu lets you make adjustments to the colors of the
projected image and fine-tune brightness, contrast, and sharpness.
The options available depend on which image source is selected:
Computer (analog-RGB) and RGB video
Component, composite, and S-Video
Follow these steps to adjust the appearance of your image:
1. Press the Menu button. You see the main menu.
2. Press Enter to select the Image menu.
Fine-tuning the Projector 55
