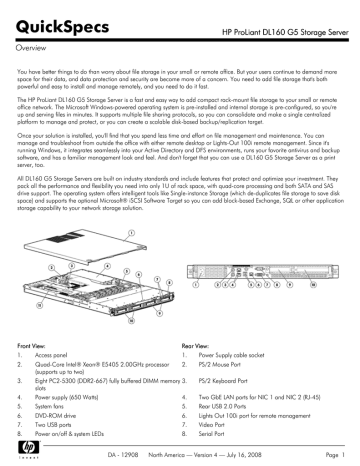

QuickSpecs
HP ProLiant DL160 G5 Storage Server
Overview
You have better things to do than worry about file storage in your small or remote office. But your users continue to demand more
space for their data, and data protection and security are become more of a concern. You need to add file storage that's both
powerful and easy to install and manage remotely, and you need to do it fast.
The HP ProLiant DL160 G5 Storage Server is a fast and easy way to add compact rack-mount file storage to your small or remote
office network. The Microsoft Windows-powered operating system is pre-installed and internal storage is pre-configured, so you're
up and serving files in minutes. It supports multiple file sharing protocols, so you can consolidate and make a single centralized
platform to manage and protect, or you can create a scalable disk-based backup/replication target.
Once your solution is installed, you'll find that you spend less time and effort on file management and maintenance. You can
manage and troubleshoot from outside the office with either remote desktop or Lights-Out 100i remote management. Since it's
running Windows, it integrates seamlessly into your Active Directory and DFS environments, runs your favorite antivirus and backup
software, and has a familiar management look and feel. And don't forget that you can use a DL160 G5 Storage Server as a print
server, too.
All DL160 G5 Storage Servers are built on industry standards and include features that protect and optimize your investment. They
pack all the performance and flexibility you need into only 1U of rack space, with quad-core processing and both SATA and SAS
drive support. The operating system offers intelligent tools like Single-instance Storage (which de-duplicates file storage to save disk
space) and supports the optional Microsoft® iSCSI Software Target so you can add block-based Exchange, SQL or other application
storage capability to your network storage solution.
Front View:
Rear View:
1.
Access panel
1.
Power Supply cable socket
2.
Quad-Core Intel® Xeon® E5405 2.00GHz processor
2.
PS/2 Mouse Port
(supports up to two)
3.
Eight PC2-5300 (DDR2-667) fully buffered DIMM memory 3.
PS/2 Keyboard Port
slots
4.
Power supply (650 Watts)
4.
Two GbE LAN ports for NIC 1 and NIC 2 (RJ-45)
5.
System fans
5.
Rear USB 2.0 Ports
6.
DVD-ROM drive
6.
Lights Out 100i port for remote management
7.
Two USB ports
7.
Video Port
8.
Power on/off & system LEDs
8.
Serial Port
DA - 12908
North America — Version 4 — July 16, 2008
Page 1
QuickSpecs
HP ProLiant DL160 G5 Storage Server
Overview
9.
10.
11.
Four (4) 3.5" hot-plug SAS/SATA hard drive bays
Four (4) 3.5" hot-plug SAS/SATA hard drive bays
Two PCIe x16 Gen2 expansion slots (one open)
What is a ProLiant
Storage Server?
9.
10.
Low Profile PCIe Slot Cover (x16 slot open)
Full-sized PCIe Slot (occupied by Smart Array E200
controller)
ProLiant Storage Servers are enhanced Windows-powered file and print server solutions for small or
medium business, branch office, workgroup, or data center IT environments. These network storage
devices are built on industry-standard HP ProLiant servers and come with either Microsoft Windows
Storage Server 2003 R2 or Windows Unified Data Storage Server 2003 operating system pre-installed.
Like many Network Attached Storage (NAS) devices, they support heterogeneous file serving
environments and are pre-configured to install in minutes. And since they're Windows-based, network
integration is easy, your antivirus and backup applications run right on the box, and management has a
familiar look and feel. So you can add storage to your network quickly and spend less time on storage
management, then get back to what matters most: running your business.
Highlights
The HP ProLiant DL160 G5 Storage Server is a Windows-powered 1U rack-mount network storage solution that delivers multiprotocol file sharing and print serving and in an affordable package. It's easy to install and manage, making it perfect for a small
workgroup, small business or remote office.
Operating System:
System
Microsoft Windows Storage Server 2003 Release 2, Standard x64 Edition
Processors:
Processors
Quad-core Intel® Xeon® processor E5405 2.00GHz
One processor standard; up to 2 supported
Memory:
Memory
1GB (2 x 512MB) standard (640GB SATA model)
2GB (2 x 1GB) standard (1TB, 2TB, 3TB SATA and 1.2TB SAS models)
Storage Controller:
Controller
Smart Array E200/128MB Controller with BBWC
Drive Support:
Support
Four internal drive bays (3.5" Large Form Factor) that support hot-plug SATA or SAS HDDs
4 x 160GB SATA LFF (640GB SATA model)
4 x 250GB SATA LFF (1TB SATA model)
4 x 500GB SATA LFF (2TB SATA model)
4 x 750GB SATA LFF (3TB SATA model)
4 x 300GB SAS LFF (1.2TB SAS model)
DVD-ROM drive to support System Restore
Network Controller:
Controller
Two embedded NC105i PCIe Gigabit Server Adapters
Expansion Slots:
Slots
Full-length, full-height PCIe x16 slot (occupied by Smart Array E200/128MB controller)
Half-length, low-profile PCIe x16 slot
Redundancy:
Redundancy
Hot-plug SAS/SATA hard disk drives
Management:
Management
Microsoft Management Console (MMC)-based user interface
DA - 12908
North America — Version 4 — July 16, 2008
Page 2
QuickSpecs
HP ProLiant DL160 G5 Storage Server
Overview
Remote system management via Remote Desktop or Telnet
HP ProLiant Lights-Out 100i remote management - Advanced Pack included
Form Factor:
Factor
Rack (1U), (1.75-inch)
Warranty:
Warranty
Protected by HP Services and a worldwide network of resellers and service providers. One-year Next Business Day, onsite limited global warranty (one year parts, one year labor, one year on-site support). Certain restrictions and
exclusions apply.
Features and Benefits
The fast and easy way to The Windows-powered operating system is pre-installed and user storage is pre-configured, so it's a
add file services to your quick, secure, and easy way to add storage to your small/remote office network. Go from out-of-the-box
network
to file serving in minutes, not hours.
A single centralized file
server platform to
manage and protect
Consolidate islands of direct-attached storage or low-capacity NAS devices to one easy-to-use Windows
platform, or create a scalable disk-based backup or replication target.
Multi-protocol file serving You can deploy in wide range of heterogeneous file serving environments with support for SMB/CIFS,
NFS, HTTP, FTP, WebDAV, AppleTalk, and NetWare protocols.
Microsoft® WindowsIt's Windows, so it integrates seamlessly into your Active Directory and DFS environments, runs your
powered operating system favorite antivirus and backup applications, and limits your learning curve with its familiar user interface.
pre-installed
Intelligent storage
management features
Make more efficient use of storage space using the file de-duplicating Single-instance Storage (SIS)
feature and enjoy the benefits of other storage-specific tools like Indexed Search, SharePoint® Services
support, Quotas, File Screening, Storage Reporting, and Distributed File System (DFS) Replication.
Remote manageability
You can manage and troubleshoot from almost anywhere at both the operating system level (with
Remote Desktop or HTTPS) and at the hardware component level (using Lights-Out 100i remote
management).
HP ProLiant industrystandard hardware
Relax-your investment is protected because you're not locked into a proprietary platform. The compact
1U rack mount platform features quad-core processing and supports four SATA or SAS 3.5" internal
hard drives.
Print server support
Don't forget that a DL160 G5 Storage Server is a Windows print server too, offering consolidation
benefits to your Windows print environment.
Microsoft® iSCSI
Software Target support
Upgrade your ProLiant Storage Server to host block-based application storage to further consolidate and
lower hardware and administrative costs.
DA - 12908
North America — Version 4 — July 16, 2008
Page 3
QuickSpecs
HP ProLiant DL160 G5 Storage Server
Standard Features
Operating System
Microsoft Windows Storage Server 2003 R2, Standard x64 Edition
64-bit processing (compatible with 32-bit applications)
Optimized for File Serving: Up to 20% faster file serving performance than a general-purpose
Windows Server 2003 R2 installation on the same hardware.
HP-enhanced File Server Management Console: Features the familiar look and feel of the
Microsoft Management Console (MMC).
HP Rapid Start-up Wizard: Simplifies and accelerates new device deployment by walking you
through basic system settings step-by-step.
Single-instance Storage (SIS): Recovers up to 35% of disk space by de-duplicating files and
reducing the amount of redundant data stored. Identifies identical files, stores a single copy of the
file in a central repository, and replaces the files with pointers to the file in the SIS common store.
Search Enhancements: Indexing Service extracts the information from a set of documents and
organizes it in a way that makes it quick and easy to access that information through the Search
function for computers running Windows 2000 or Windows XP.
File Server Resource Manager (FSRM): Provides both on-demand and scheduled reports detailing
storage use, allows administrators to create and manage folder and volume quotas, and permits
both name-based screening of files and allowing/disallowing file creation on specified folder
trees.
Windows SharePoint® Services: A powerful Web-based team collaboration environment that
provides an integrated portfolio of collaboration and communication services designed to connect
people, information, processes, and systems.
Distributed File System (DFS) Management Console: Updated DFS namespace failover, failback
and prioritization controls.
Distributed File System Replication (DFS-R): State-based, multi-master replication engine that
supports replication scheduling and bandwidth throttling. DFS-R uses a new compression
algorithm that efficiently updates files over limited bandwidth networks by replicating only the
changes needed to ensure global file consistency.
Full support of Volume Shadow Copy Service, which creates point-in-time copies of files and
folders at predetermined time intervals that can then be accessed from client computers.
Unlimited Client Access Licenses (CALs) included
Microsoft Services for Network File System (NFS)
Support for multiple file serving protocols, including SMB/CIFS, NFS, HTTP, FTP, WebDAV,
AppleTalk, and NetWare
Print Management Console: Manage multiple printers (license for unlimited printer support) from
a single console, whether locally or over the WAN
Support for any number of SATA or SAS drives and multiple network ports
Processor
Quad-Core Intel® Xeon® E5405 (2.00GHz, 80W, 1333MHz FSB)
Cache Memory
12MB (2 x 6MB) Level 2
Chipset
Intel® 5400 Chipset
DA - 12908
North America — Version 4 — July 16, 2008
Page 4
QuickSpecs
HP ProLiant DL160 G5 Storage Server
Standard Features
Memory
Type
PC2-5300 Fully Buffered DIMMs (DDR2-667)
Memory Protection
Advanced ECC
DIMM Sockets
8
Maximum configuration
32 GB (8 x 4 GB)
640GB SATA model
Standard
1 GB (2 x 512MB)
1TB SATA, 2TB SATA, 3TB SATA and 1.2TB SAS models
Standard
2 GB (2 x 1GB)
Network Controller
Two embedded NC105i PCIe Gigabit Server Adapters
Expansion Slots
Slot Number
1
Device
Bus Speed Bus Number*
Number**
Number Number
x16 PCI1
0
Express Gen2
Hot Plug
(Y/N)
No
Notes
Full-length, full
height (occupied
by SA E200)
2
x16 PCI6
3
No
3.3 volts
Low-profile, halfExpress Gen2
length
* Default bus assignment. Inserting cards with PCI bridges may alter the actual bus assignment number.
** Slots enumerate from lowest to highest Device ID by bus (starting with the lowest bus).
Storage Controller
PCI Voltage
3.3 volts
Smart Array E200 Storage Controller with 128MB Battery Backed Write Cache
RAID 0/1/5
x4 2.5G PCI Express host interface
Storage
Maximum Internal
Storage
(raw)
Hard Drives
Internal:
Optical Drive
4 x 160GB SATA 7.2K LFF HDDs (640GB SATA model)
4 x 250GB SATA 7.2K LFF HDDs (1TB SATA model)
4 x 500GB SATA 7.2K LFF HDDs (2TB SATA model)
4 x 750GB SATA 7.2K LFF HDDs (3TB SATA model)
4 x 300GB 3G SAS 15K LFF DP HDDs (1.2TB SAS model)
DVD-ROM drive
Internal hot plug LFF SATA 3 TB
Internal hot plug LFF SAS 1.2 TB
Internal plus External
12TB
(requires addition of Smart
Array E500/256MB
controller)
DA - 12908
4 x 750GB SATA
4 x 300GB SAS
4 x 750GB LFF SATA int. + 12 x 750GB LFF
SATA ext.
North America — Version 4 — July 16, 2008
Page 5
QuickSpecs
HP ProLiant DL160 G5 Storage Server
Standard Features
Interfaces
Parallel
Network RJ-45(Ethernet)
Serial
Pointing Device (Mouse)
Graphics
Keyboard
USB
Graphics
None
(2) 10/100/1000 NIC ports (plus 1 dedicated to HP ProLiant Lights Out
100i Remote Management)
1
1
1
1
5 (two front, one internal, and two rear)
NOTE: Please see the following URL for additional information regarding
USB support:
http://h18004.www1.hp.com/products/servers/platforms/usb-support.html.
Integrated on the system board:
1280 x 1024 at 8bpp (bits per pixel) or 2^8 = 256 colors or
1024 x 768 at 16bpp (bits per pixel) or 2^16 = 65536 or 64k colors
Management
Microsoft Management Console (MMC)-based user interface (also accessible via HTTPS)
Remote system management via Remote Desktop or Telnet
HP ProLiant Lights Out 100i Remote Management with Advanced Pack standard
Lights-Out 100i Remote Management allows you or your service provider to remotely control and
manage a DL160 G5 Storage Servers over a LAN or the Internet regardless of the server's state of
operation.
Remote Serial Console
Virtual Power Button
Environmental monitoring
Browser access
Command line access
IP Configuration
User Accounts
System Event Log
Network Connectivity
Integration with HP Systems Insight Manager
Advanced Pack: Virtual KVM graphic console, Virtual Media, Secure Socket Layer and Secure
Shell Security
NOTE: For more information on Lights-Out 100i, please visit: http://www.hp.com/servers/lightsout.
Form Factor
Rack Mount (1U), (1.75 in/4.45 cm)
DA - 12908
North America — Version 4 — July 16, 2008
Page 6
QuickSpecs
HP ProLiant DL160 G5 Storage Server
Standard Features
Industry Standard
Compliance
ACPI V2.0 Compliant
PCI 2.2 Compliant
PXE Support
WOL Support
Microsoft® Logo certifications
IPMI 2.0, SMASH CLP compliant
Server Power Cords
One Highline IEC power cord standard (for connection to a Power Distribution Unit)
Power Supply
650 Watts, auto-switching, PFC (Power Factor Correcting); non-redundant, non-hot-plug
UPS and PDU Power
Cord Matrix
Please see the UPS and PDU cable matrix that lists cable descriptions, requirements, and specifications
for UPS and PDU units:
http://h18004.www1.hp.com/products/servers/proliantstorage/power-protection/index.html.
System Fans
6 system fans standard; non-redundant, non-hot-plug
Rack Airflow
Requirements
Rack 10000 series Cabinets
The increasing power of new high-performance processor technology requires increased cooling
efficiency for rack-mounted servers. The 10000 Series Racks provide enhanced airflow for maximum
cooling, allowing these racks to be fully loaded with servers using the latest processors.
CAUTION: If a third-party rack is used, observe the following additional requirements to ensure
adequate airflow and to prevent damage to the equipment:
Front and rear doors: If your 42U server rack includes closing front and rear doors, you must allow
5,350 sq cm (830 square inches) of hole evenly distributed from top to bottom to permit adequate
airflow (equivalent to the required 64 percent open area for ventilation).
Side: The clearance between the installed rack component and the side panels of the rack must be a
minimum of 7 cm (2.75 inches)
CAUTION: Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This
arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling
that can lead to thermal damage.
NOTE: For additional information, refer to the Setup and Installation Guide or the Documentation CD
provided with the server, or to the server documentation located in the Support section at the following
URL: http://h18000.www1.hp.com/products/servers/proliantDL145/index.html
Telco Rack Support
Telco Rack Kit:
NOTE: Support for all 2-post Telco racks requires the use of the standard rack kit and an additional
option kit from Rack Solutions: http://www.racksolutions.com/hp
DA - 12908
North America — Version 4 — July 16, 2008
Page 7
QuickSpecs
HP ProLiant DL160 G5 Storage Server
Optional Software
Optional Software from
HP for Storage Servers
Microsoft® iSCSI Software Target - Powerful iSCSI software target solution that provides
affordable application storage provisioning, protection, and availability for small and medium
office environments. The software adds block storage capability to ProLiant Storage Servers and
creates a single platform that delivers file, print, and application storage services, all over existing
Ethernet networks. It helps administrators consolidate storage capacity, improve storage utilization,
minimize system downtime, simplify backup operations, enable rapid recovery, and provides high
availability for key applications and services.
For more information: http://h18006.www1.hp.com/products/storageworks/ms_iscsi/index.html
HP StorageWorks Storage Mirroring Software - HP StorageWorks Storage Mirroring offers a
host-based application that performs remote copy over an IP LAN/WAN. Key features include
asynchronous replication that can be scheduled to a fine granular level, Logical Unit Number
(LUN), file or byte level. Other features include multiple replication configuration options including
peer-to-peer and many-to-one. In addition, Storage Mirroring is a very cost effective disaster
recovery alternative from one host to another within a LAN, storage center, or between direct
attached storage in metro offices and regional centers. Additional configurations allow replication
from small office environments to ensure business continuity without an outside IT staff.
For more information: http://h18006.www1.hp.com/products/storage/software/sm/index.html
HP Data Protector Software - HP Data Protector software is enterprise data protection and
disaster recovery, ensuring recovery from any disruption. Data Protector integrates a variety of
techniques to eliminate backup and recovery windows. The capabilities to eliminate planned
downtime range from online backup and backup of open files to zero-downtime, zero-impact
backup. The software provides industry-leading instant recovery as well as several disaster
recovery alternatives to eliminate unplanned downtime, allowing recovery of entire data centers in
minutes.
Data Protector is enabling organizations to reduce costs by automating routine tasks to maximize
the effectiveness of the data protection staff. For the price of an entry-level product, it provides the
enterprise functionality customers need. Data Protector scales from single server to distributed
enterprise, covering an extensive range of heterogeneous applications, operating environments
and storage configurations with a single solution.
All ProLiant Storage Servers support using Data Protector as a backup software solution.
For more information on HP Data Protector:
http://h18006.www1.hp.com/products/storage/software/dataprotector/index.html
HP StorageWorks File Migration Agent - HP FMA is an automated solution designed to help
simplify Windows-based file, web, and application server administration in small business to
enterprise environments. This is accomplished through policy-based file migration and archive to
popular storage targets, including HP StorageWorks Reference Information Storage System (RISS),
HP StorageWorks File System Extender, and NAS, via Common Internet File System (CIFS).
The following Windows Storage Server features or add-ons are currently NOT supported by HP
File Archiving software:
NOTE: Single Instance Storage (SIS) - (NOT SUPPORTED)
NOTE: DFS-Replication (DFS-R) - (NOT SUPPORTED)
NOTE: File Server Resource Manager (FSRM) - Content Filter, & File Screening - (NOT
SUPPORTED)
For more information: http://h18006.www1.hp.com/products/storage/software/fma/
HP Storage Essentials NAS Manager Software - Provides comprehensive Network Attached
DA - 12908
North America — Version 4 — July 16, 2008
Page 8
QuickSpecs
HP ProLiant DL160 G5 Storage Server
Optional Software
Storage (NAS) management capabilities for HP ProLiant Storage Server. Visualize your distributed
HP NAS solutions and centrally manage their capacity, performance, events, and dependencies to
ensure NAS availability and performance and unify SAN and NAS management.
For more information on the complete line of HP Storage Essential products go to:
http://www.hp.com/go/storageessentials
DA - 12908
North America — Version 4 — July 16, 2008
Page 9
QuickSpecs
HP ProLiant DL160 G5 Storage Server
Service and Support, HP Care Pack, and Warranty Information
Warranty
The DL160 G5 Storage Server comes with a standard 1-1-1 warranty (1 year parts exchange, 1 year
labor and 1 year onsite, next business day response)
Services Included with the One year of HP Software Support, standard 9x5 business hours (software technical support and software
Product
product and documentation updates).
Service and Support
Upgrade options
Response - Upgrade on-site response from next business day to same day 4-hours
Coverage - Extend hours of coverage from 5 days x 9 hours to 7 days x 24 hours
Duration - Select duration of coverage for a minimum period of 1year or multiple years
HP offers a portfolio of services ranging from Storage Design and Architecture that provides a complete
multi-site design and implementation, to various levels of on-going maintenance support. Additionally
the basic warranty service can be enhanced and/or HP Installation services can be purchased.
Specifically HP Care Pack services include
Product number(s) Care Pack
Duration
Commercial
Direct & Enterprise
reseller channels
channels
AJ672A
HP Software
1 year
Bundled
Bundled
AJ673A
Support for Storage,
3 years
n/a
HA106A3 - 6Z5
AJ674A
9x5
4 years
n/a
HA106A4 - 6Z5
AJ675A
5 years
n/a
HA106A5 - 6Z5
AJ676A
HP Software
1 year
n/a
HA106A5 - 6Z5
Support for Storage,
3 years
n/a
HA107A1 - 6Z5
24 x 7
4 years
n/a
HA107A3 - 6Z5
5 years
n/a
HA107A4 - 6Z5
Support Plus for
1 year
UH171E
HA107A5 - 6Z5
Storage
3 years
UH173E
HA109A1 - 6Z5
4 years
n/a
HA109A3 - 6Z5
5 years
n/a
HA109A4 - 6Z5
Post Warranty
UH175PE
HA109A5 - 6Z5
Support Plus 24 for
1 year
UH172E
n/a
Storage
3 years
UH174E
HA110A1 - 6Z5
4 years
n/a
HA110A3 - 6Z5
5 years
n/a
HA110A4 - 6Z5
Post Warranty
UH176PE
HA110A5 - 6Z5
Proactive 24 (P24)
1 year
n/a
n/a
3 years
n/a
HA111A1 - 6Z5
4 years
n/a
HA111A3 - 6Z5
5 years
n/a
HA111A4 - 6Z5
6 hour CTR
1 year
UD576E
HA105A1 - 6Z5
3 years
UD577E
HA105A3 - 6Z5
4 years
n/a
HA105A4 - 6Z5
5 years
n/a
HA105A5 - 6Z5
Installation
n/a
U7986E
HA113A1 - 5D6
DA - 12908
North America — Version 4 — July 16, 2008
Page 10
QuickSpecs
HP ProLiant DL160 G5 Storage Server
Service and Support, HP Care Pack, and Warranty Information
HP Software Support
HP Software Support, 24
x7
HP Support Plus
HP Support Plus 24
HP Proactive 24
Software Product Services
Connect with HP Response Center engineers via telephone, electronic
communication, or FAX for assistance in resolving software
implementation or operations problems.
HP Services provides corrective support to resolve identifiable and
reproducible software product problems, and to help you identify
problems that are difficult to reproduce.
9x5 coverage - Service is available during standard business hours,
Monday through Friday (excluding holidays).
Provides all the benefits of the regular Software Support, plus HP
Services engineers are available around the clock 365 days per year.
Increases the performance and availability of your IT infrastructure with
comprehensive, consistent hardware and software services. HP
Services engineers deliver onsite hardware support and over-thephone software support 13 hours per day, 5 days per week.
Encompasses the HP ProLiant Storage Server products, selected multivendor hardware and provides trouble-shooting software problems
which range from the Storage Server 2003 operating system to the
available utilities. In addition, this service makes software updates
available to you at substantial savings.
Provides recovery and re-configuration assistance of the HP ProLiant
Storage Server using the recovery disk and your saved configuration
file.
Provides all the benefits of the regular Support Plus Care Pack, plus
HP Services engineers are available to deliver onsite hardware and
over-the-phone software support around-the-clock 365 days per year.
An integrated hardware and software support solution that combines
efficient problem prevention with responsive technical assistance
whenever you need it.
Improves the effectiveness of technologies across your IT infrastructure,
and also, establishes a collaborative relationship between you and HP
that strengthens your IT team and gives you rapid access to our
expertise as issues arise
Standard HP warranty ensures Software media will be free of physical defects for a period of 90
days from delivery.
These services are available to upgrade the warranty to (1 or 3) full year of 9 hours by 5 days (or
24x7) software advisory and remedial software telephone support, new version license rights, and
media and documentation distribution service.
DA - 12908
North America — Version 4 — July 16, 2008
Page 11
QuickSpecs
HP ProLiant DL160 G5 Storage Server
Service and Support, HP Care Pack, and Warranty Information
Hardware Product
Services
Installation services
On-site maintenance (includes warranty support)
Response time upgrades during the warranty period
Post-warranty coverage
RAID setup and performance consulting via statement of work
Migration service consulting via statement of work
For additional hardware installation and maintenance information, please refer to the URLs listed below:
http://www.hp.com/hps/storage/ns_nas.html
HP offers a portfolio of services ranging from Storage Design and Architecture that provides a complete
multi-site design and implementation, to various levels of on-going maintenance support. Additionally
the basic warranty service can be enhanced and/or HP Installation services can be purchased.
Our Proactive 24 annuity service (with the SAN Module) allows continuous SAN/NAS growth by ensuring
that your entire SAN/NAS is safely kept updated with analysis and recommendations on relevant,
ongoing firmware (FW) changes and it ensures rapid resolution of complex SAN/NAS issues.
Our SAN Solution Service is a one-time review of your entire SAN/NAS and all the components
(applications, HBAs, switches and FW, arrays etc) to ensure that all components are at tested, HP
Certified levels. The HP SAN Design/Architecture Service provides as broad and as deep a review and
recommendation as needed of how your SAN/NAS environment can be designed and implemented to
meet your business storage needs.
The on-going support offerings include various response times (4 hour same day, next day, etc) as well
as coverage periods (Monday - Friday, 24x7, 1 yr, 3 yr, etc). These services are available for both
hardware and software to ensure all customer support needs are met and can be purchased from either
value or volume channels.
Finally HP offers an optional migration service to assist the customer in moving to the newest product
release. This may be in the form of a defined kit and service, or may alternatively be performed on a
time & material basis.
HP Services allows the customer to leverage HP's experience in selecting and configuring the most widely
used security features, and provides an environment that is immediately more available due to increased
change control and significantly improved data security.
For more information on these and other service options, please contact any of our worldwide sales
offices or visit our Web site at: http://www.hp.com/hps/storage/ns_nas.html
Installation Services
The service deployment activities will include:
Unpacking the product, performing initial inspection, and setting up product hardware and power
connectivity
Connecting Customer-provided cables
Setting the network address and setting appropriate domain variables in the NAS operating system
Configuring the storage by creating a file share
Configuring user mapping to make the share available for access
Creating a sample file data copy or Snapshot
DA - 12908
North America — Version 4 — July 16, 2008
Page 12
QuickSpecs
HP ProLiant DL160 G5 Storage Server
Service and Support, HP Care Pack, and Warranty Information
Product number(s): Care Pack
All
Components
Duration
Commercial reseller Direct & Enterprise
channels
channels
Available
HA113A1 - 5D6
Installation for
One time
Storage (per event)
The following brick level options/components do not have individual HP Care Pack Services. These items
will be included in product HP Care Pack Services into which they are installed.
Disk Drives
Tape Drives
CD/DVD ROM
SCSI Hubs in SBBs
Bus Converters
Backplane RAID
Power Supplies
Cabling
Controllers
DA - 12908
North America — Version 4 — July 16, 2008
Page 13
QuickSpecs
HP ProLiant DL160 G5 Storage Server
Product Configuration Wizard
In the following you will be guided through a series of steps to help you configure your ProLiant Storage Server.
NOTE: Options ship separately and are not factory integrated.
Step 1 – Choose a Model
Select one of five available DL160 G5 Storage Server models.
NOTE: Models names are based on raw storage capacity, not available user storage.
HP ProLiant DL160 G5
Operating System
Microsoft Windows Storage Server 2003 Release 2, Standard x64 Edition
Storage Server Common Processor
Quad-Core Intel® Xeon® processor E5405 (2.00GHz, 80W, 1333MHz
Specifications
FSB)
Cache Memory
12MB (2 x 6MB) Level 2
Number of Processors
1
Memory Type
PC2-5300 DDR2 fully buffered DIMMs (667MHz)
Storage Controller
Smart Array E200 Storage Controller with 128MB battery-backed write cache
(BBWC); occupies one PCIe slot
Network Controller
Two embedded NC105i PCIe Gigabit Server Adapters
Expansion Slots
Two PCIe slots:
Optical Drive
Remote Management
Form Factor
Factory Racking
Full-length, full-height PCIe x16 slot (occupied by Smart Array
E200/128MB controller)
Half-length, low-profile PCIe x16 slot
DVD-ROM drive
HP ProLiant Lights Out 100i with Advanced Pack included
Rack (1U), (1.75-inch)
Factory integrates select Storage Servers with other HP products such as HP
ProLiant Servers or Enterprise Virtual Arrays.
NOTE: #0D1 will appear after the part number on the sales order if HP
factory integration is supported.
HP ProLiant DL160 G5
640GB SATA Storage
Server
AJ672A
Memory
1GB (2 x 512MB)
Internal Storage
4 x 160GB SATA 7.2K 3.5" hot-plug HDDs
HP Proliant DL160 G5
640GB SATA Storage
Server Smart Buy
AK353A
Kit Contents
Part Number AJ672A HP StorageWorks Proliant DL160 G5 640GB SATA
Storage Server.
More info on HP Smart Buys go to: http://www.hp.com/go/smartbuy/storage
HP ProLiant DL160 G5
Memory
1TB SATA Storage Server
Internal Storage
AJ673A
2GB (2 x 1 GB)
HP Proliant DL160 G5
Kit Contents
1TB SATA Storage Server
Smart Buy
AK354A
Part Number AJ673A HP StorageWorks Proliant DL160 G5 1TB SATA
Storage Server.
More info on HP Smart Buys go to: http://www.hp.com/go/smartbuy/storage
DA - 12908
4 x 250GB SATA 7.2K 3.5" hot-plug HDDs
North America — Version 4 — July 16, 2008
Page 14
QuickSpecs
HP ProLiant DL160 G5 Storage Server
Product Configuration Wizard
HP ProLiant DL160 G5
Memory
2TB SATA Storage Server
Internal Storage
AJ674A
2GB (2 x 1 GB)
HP Proliant DL160 G5
Kit Contents
2TB SATA Storage Server
Smart Buy
AK355A
Part Number AJ674A HP StorageWorks Proliant DL160 G5 2TB SATA
Storage Server.
More info on HP Smart Buys go to: http://www.hp.com/go/smartbuy/storage
HP ProLiant DL160 G5
Memory
3TB SATA Storage Server
Internal Storage
AJ675A
2GB (2 x 1 GB)
HP Proliant DL160 G5
Kit Contents
3TB SATA Storage Server
Smart Buy
AK356A
Part Number AJ675A HP StorageWorks Proliant DL160 G5 3TB SATA
Storage Server.
More info on HP Smart Buys go to: http://www.hp.com/go/smartbuy/storage
HP ProLiant DL160 G5
Memory
1.2TB SAS Storage Server
Internal Storage
AJ676A
2 GB (2 x 1 GB)
HP Proliant DL160 G5
Kit Contents
1.2TB SAS Storage Server
Smart Buy
AK357A
Part Number AJ676A HP StorageWorks Proliant DL160 G5 1.2TB SAS
Storage Server.
More info on HP Smart Buys go to: http://www.hp.com/go/smartbuy/storage
4 x 500GB SATA 7.2K 3.5" hot-plug HDDs
4 x 750GB SATA 7.2K 3.5" hot-plug HDDs
4 x 300 GB 3 G SAS 15K 3.5" DP hot-plug HDDs
Step 2 - Add Another Processor
You can add a second processor to any DL160 G5 Storage Server.
Quad-Core Intel® Xeon® processor E5405 (2.00GHz, 80W, 1333MHz FSB) Option
Processors
Kit
DA - 12908
North America — Version 4 — July 16, 2008
446077-B21
Page 15
QuickSpecs
HP ProLiant DL160 G5 Storage Server
Product Configuration Wizard
Step 3 - Add More Memory
NOTE:
NOTE The 640GB SATA model includes 1GB (2 x 512MB) of SDRAM standard while the 1TB SATA, 2TB SATA, 3TB SATA and
1.2TB SAS models include 2GB (2 x 1GB) standard. All models are expandable to 32GB.
NOTE: All models have a total of eight DIMM sockets. See 'Memory' section of QuickSpecs below for more information on memory
configuration.
Memory
1 GB FBD PC2-5300 2 x 512 MB Kit
397409-B21
(FBDIMMs)
2 GB FBD PC2-5300 2 X 1 GB Kit, Low Power
461826-B21
2 GB FBD PC2-5300 2 x 1 GB Kit
397411-B21
4 GB FBD PC2-5300 2 x 2 GB Kit, Low Power
461828-B21
4 GB FBD PC2-5300 2 x 2 GB Kit
397413-B21
8 GB FBD PC2-5300 2 x 4 GB LP Kit
466440-B21
8 GB FBD PC2-5300 2 x 4 GB Kit
397415-B21
Step 4 - Add a Network Adapter
DL160 G5 Storage Servers have one low-profile PCI Express x16 slot available for additional network ports, a backup HBA, or
external storage expandability.
NOTE: Choose only one expansion card.
NOTE: Multifunction Server Adapters support the installed Microsoft Windows Server 2003 Scalable Networking Pack, which
enables TCP Chimney offload, Receive-side Scaling (RSS), and Network Direct Memory Access (NetDMA) features.
Network Adapters
HP NC110T PCI Express Gigabit Server Adapter
434905-B21
HP NC360T PCI Express Dual Port Gigabit Server Adapter
412648-B21
HP NC364T PCI Express Quad Port Gigabit Server Adapter
435508-B21
HP NC373F PCI Express Multifunction Gigabit Server Adapter
394793-B21
HP NC373T PCI Express Multifunction Gigabit Server Adapter
394791-B21
HP NC380T PCI Express Dual Port Multifunction Gigabit Server Adapter
394795-B21
HP NC510C PCIe 10 Gigabit Server Adapter
414129-B21
NOTE: A minimum of 1 gigabyte (1 GB) of server memory is required per each
NC510C adapter.
HP NC510F PCIe 10 Gigabit Server Adapter
414126-B21
NOTE: A minimum of 1 gigabyte (1 GB) of server memory is required per each
NC510F adapter.
Step 5 – Add More Storage
DL160 G5 Storage Servers come standard with one installed Smart Array E200 controller for internal drives. They have one lowprofile PCI Express x16 slot available for additional network ports, a backup HBA, or external storage expandability.
Storage Controllers
SAS Controllers
Smart Array E500 Controller
Smart Array E500/256MB Controller
435129-B21
SAS HBAs
HP SC44Ge Host Bus Adapter
416096-B21
NOTE: For external tape support only.
DA - 12908
North America — Version 4 — July 16, 2008
Page 16
QuickSpecs
HP ProLiant DL160 G5 Storage Server
Product Configuration Wizard
External Storage
Enclosures
NOTE: Please see the following QuickSpecs for additional information:
http://h18004.www1.hp.com/products/quickspecs/12617_na/12617_na.html
(SC44Ge HBA)
SCSI HBAs
HP SC11Xe Host Bus Adapter
HP U320e SCSI Host Bus Adapter
NOTE: Please see the following QuickSpecs for Technical Specifications and
additional information:
http://h18000.www1.hp.com/products/quickspecs/12566_na/12566_na.html
(SC11Xe HBA)
HP StorageWorks Modular Smart Arrays
NOTE: Require addition of a Smart Array E500/256MB controller
HP StorageWorks Modular Smart Array 50 Enclosure (MSA50)
NOTE: Rack-mountable 10 drive (2.5" SAS/SATA) 1U enclosure with 3Gb/s SAS host
connectivity and redundant power supplies.
HP StorageWorks 60 Modular Smart Array (MSA60)
NOTE: Rack-mountable 12 drive (3.5" SAS/SATA) 2U enclosure with 3Gb/s SAS host
connectivity and redundant power supplies.
HP StorageWorks MSA60 1.8TB SAS HDD Bundle (MSA60 w/12 146GB 15K SAS
LFF HDD)
HP StorageWorks MSA60 9TB SATA HDD Bundle (MSA60 w/12 750GB 15K SATA
LFF HDD)
HP StorageWorks MSA60 3.6TB SAS HDD Bundle (MSA60 w/12 300GB 15K SAS
LFF HDD)
NOTE: The MSA60 bundles are available in the Americas, Asia Pacific (AP) and
Japan only. They are not available in Europe, Middle East and Africa.
HP StorageWorks 70 Modular Smart Array (MSA70)
NOTE: Rack-mountable 25 drive (2.5" SAS/SATA) 2U enclosure with 3Gb/s SAS host
connectivity and redundant power supplies.
HP StorageWorks MSA70 1.8TB SAS HDD Bundle (MSA70 w/25 72GB 15K SAS SFF
HDD)
HP StorageWorks MSA70 3.6TB SAS HDD Bundle (MSA70 w/25 146GB 10K SAS
SFF HDD)
NOTE: The MSA70 bundles are available in the Americas, Asia Pacific (AP) and
Japan only. They are not available in Europe, Middle East and Africa.
NOTE: Please see the following QuickSpecs for Technical Specifications additional
information:
http://h18000.www1.hp.com/products/quickspecs/12245_na/12245_na.html
(MSA50)
http://h18000.www1.hp.com/products/quickspecs/12627_na/12627_na.html
(MSA60)
http://h18000.www1.hp.com/products/quickspecs/12652_na/12652_na.html
(MSA70)
DA - 12908
North America — Version 4 — July 16, 2008
412911-B21
AH627A
364430-B21
418408-B21
AG822A
AG823A
AG824A
418800-B21
AG825A
AG893A
Page 17
QuickSpecs
HP ProLiant DL160 G5 Storage Server
Product Configuration Wizard
Hard Drives
(External Expansion)
Serial Attached SCSI (SAS) Hard Drives
Hot Plug 3.5" (LFF) SAS
HP 72GB 3G SAS 15K 3.5" DP HDD
HP 72GB 3G SAS 15K 3.5" SP HDD
HP 146GB 3G SAS 15K 3.5" DP HDD
HP 146GB 3G SAS 15K 3.5" SP HDD
HP 300GB 3G SAS 15K 3.5" DP HDD
HP 300GB 3G SAS 15K 3.5" SP HDD
Hot Plug 2.5" (SFF) SAS
HP 146GB 3G SAS 10K SFF SP HDD
HP 146GB 3G SAS 10K SFF DP HDD
HP 72GB 3G SAS 10K SFF SP HDD
HP 72GB 3G SAS 10K SFF DP HDD
HP 72GB 3G SAS 15K SFF SP HDD
HP 72GB 3G SAS 15K SFF DP HDD
HP 36GB 3G SAS 15K SFF SP HDD
HP 36GB 3G SAS 15K SFF DP HDD
NOTE: Please see the SAS Hard Drive QuickSpecs for Technical Specifications such
as capacity, height, width, interface, transfer rate, seek time, physical configuration,
and operating temperature:
http://h18000.www1.hp.com/products/quickspecs/12244_na/12244_na.html
Serial ATA (SATA) Hard Drives
Hot Plug 3.5" (LFF) SAS
HP 750GB SATA 7.2K 3.5" HDD
HP 500GB SATA 7.2K 3.5" HDD
HP 250GB SATA 7.2K 3.5" HDD
Hot Plug 2.5" (SFF) SAS
HP 120GB SATA 5.4K SFF HDD
HP 60GB SATA 5.4K SFF HDD
NOTE: SATA drives have a 1 year warranty. Please see the SATA Hard Drive
QuickSpecs for Technical Specifications such as capacity, height, width, interface,
transfer rate, seek time, physical configuration, and operating temperature:
http://h18000.www1.hp.com/products/quickspecs/12091_na/12091_na.html
384852-B21
375870-B21
384854-B21
375872-B21
416127-B21
431944-B21
431958-B21
418367-B21
375861-B21
384842-B21
431935-B21
418371-B21
431933-B21
418369-B21
432341-B21
395473-B21
349239-B21
431786-B21
379306-B21
Step 6 - Add Optional Software
Microsoft® iSCSI
Software Target
Microsoft iSCSI Software Target adds block storage capability to ProLiant Storage
Servers and creates a single platform that delivers file, print, and application storage
services, all over existing Ethernet networks. It is a powerful iSCSI software solution
that provides affordable application storage provisioning, protection, and availability
for small and medium office environments. It helps administrators consolidate storage
capacity, improve storage utilization, minimize system downtime, simplify backup
operations, enable rapid recovery, and provides high availability for key applications
DA - 12908
North America — Version 4 — July 16, 2008
Page 18
QuickSpecs
HP ProLiant DL160 G5 Storage Server
Product Configuration Wizard
and services.
Microsoft iSCSI Target Software 1 LTU
NOTE: For more information go to HP's Microsoft® iSCSI Software Target website at:
http://h18006.www1.hp.com/products/storageworks/ms_iscsi/index.html
HP StorageWorks Storage HP Storage Mirroring Software provides host-based replication and failover to IPMirroring Software
based networks. Patented replication and failover technology continuously captures
byte-level data changes as they occur in your production environment and replicates
those changes to one or more servers in any location without geographic limitations.
By replicating only the bytes that change, Storage Mirroring Software uses the
absolute minimum bandwidth required to replicate customer data. Advanced features
allow a customer to control bandwidth usage and queue data for replication during
off-peak times if desired. The software does not need special hardware to run and
utilizes existing LAN or WAN infrastructure that already exists in their environment saving time, additional investment, and maintenance. Storage Mirroring Software is
storage independent and is a great complement to ProLiant Storage Servers. The
flexibility, resource optimization, and application-specific protection enable customers
to solidify their data and disaster protection strategies using Storage Mirroring
Software
T4433A
Product Highlights:
High availability with Microsoft Windows 2000/NT/2003servers
Application aware and supported with Exchange, SQL and Oracle
Host-based remote storage copy with TCP/IP networks
Data distribution one-to-many or 'fan-out' to multiple destinations
Data migration utility for transferring large data projects
Centralize backup, data protection and recovery operations
Built in scheduler for off hours replication
Built in network bandwidth utilization management
Disaster recovery between source and destination failover sites
Powered by NSI Software's Double-Take patented 'Sequential Transfer
Asynchronous Replication' technology
Sequential transfer maintains write sequential across multiple files for data
integrity
Asynchronous replication allows hosts to continue processing for maximum
performance
Introducing a new software option (Server Recovery Option) that captures a
server's configuration information including OS, patches, drivers, and Service
Packs. The IT department can respond to a server failure and use the Server
Recover Option to re-create the boot sequence on a new server plus all of the
data captured during the replication and send that data to the production site
for replacement.
Introducing a new software feature (Full Server Failover) that creates a one-toone relationship between two servers. Should a production server fail, the server
running Full Server Failover would assume the identify of the production server.
The failover can occur over any distance and does not require "Enterprise"
versions of the operating system or applications
NOTE: DL160 G5 Storage Servers include a trial version of StorageWorks Storage
Mirroring software.
Special note about Microsoft iSCSI Software Target and replication:
DA - 12908
North America — Version 4 — July 16, 2008
Page 19
QuickSpecs
HP ProLiant DL160 G5 Storage Server
Product Configuration Wizard
All HP ProLiant Storage Servers include the Distributed File System Replication (DFS-R)
feature in the pre-installed Windows Storage Server 2003 R2 and Windows Unified
Data Storage Server 2003 operating systems. DFS-R is a file-based replication
technology that only replicates files when they are closed. Microsoft iSCSI Software
Target does not close the virtual disk files (.vhd files) while they are in use, and so
these files are not replicated during normal usage when replicating using DFS-R.
Therefore, if iSCSI Software Target virtual disk files need to be replicated, DFS-R
should not be used, and HP StorageWorks Storage Mirroring software should be
considered instead. Storage Mirroring software asynchronously replicates each write
into the file system to a secondary system, and therefore it can be used to effectively
replicate iSCSI Software Target virtual disk files.
StorageWorks Storage Mirroring Media Kit v5
StorageWorks Storage Mirroring NAS Edition 1 LTU
StorageWorks Storage Mirroring NAS Edition 10 LTU
NOTE: For more information go to the HP StorageWorks Storage Mirroring website
at: http://h18006.www1.hp.com/products/storage/software/sm/index.html
T5437A
T5442A
T5443A
Step 7 - Add a Backup Solution
Tape Drives
NOTE: For the complete listing of Tape Drive offerings, please see:
http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html
For recommended tape drive offerings for this ProLiant server see the following:
USB Tape Drives
HP StorageWorks 1U USB Rack-Mount Kit with one DAT 72 USB Tape Drive
HP StorageWorks 1U USB Rack-Mount Kit with one DAT 160 USB Tape Drive
HP ProLiant USB DAT 160 Internal Tape Drive
SAS Tape Drives
NOTE: HP recommends purchasing the HP SC44Ge HBA (416096-B21) for a
dedicated SAS HBA for tape.
HP StorageWorks Ultrium 448 SAS Internal Tape Drive
NOTE: HP recommends combining this tape drive with the 1U SAS Rack-Mount kit
(AE459A) for a complete rack-mount solution.
HP StorageWorks Ultrium 920 SAS Internal Tape Drive
NOTE: HP recommends combining this tape drive with the 1U SAS Rack-Mount kit
(AE459A) for a complete rack-mount solution.
HP ProLiant Ultrium 920 SAS Internal Tape Drive
HP StorageWorks LTO-4 Ultrium 1760 SAS Internal Tape Drive
NOTE: Please refer to the "Tape Drives, Tape Autoloaders & Tape Libraries" table in
the Storage section of this document for a list of SAS controllers with tape support.
SCSI Tape Drives
HP ProLiant Ultrium 920 SCSI Internal Tape Drive
Ultrium Tape Drives
HP StorageWorks Ultrium 232 Internal Tape Drive (Carbonite)
NOTE: HP recommends combining this tape drive with the 1U SCSI Rack-Mount kit
(A7445B) for a complete rack-mount solution.
DA - 12908
North America — Version 4 — July 16, 2008
AG594A
AG703A
EH976A
DW085A
EH847A
EH978A
EH919A
EH977A
DW064A
Page 20
QuickSpecs
HP ProLiant DL160 G5 Storage Server
Product Configuration Wizard
HP StorageWorks 1U Rack-mount kit with one Ultrium 448 (Carbonite)
HP StorageWorks 3U Rack-mount kit with one Ultrium 960 (Carbonite)
HP StorageWorks 1U SCSI Rack-mount kit with one Ultrium 920
HP StorageWorks 1U SAS Rack-mount kit with one LTO-4 Ultrium 1760
HP StorageWorks 3U SCSI Rack-Mount with 1 LTO-4 Ultrium 1840 Tape Drive
NOTE: Please see the HP StorageWorks Ultrium Tape Drive QuickSpecs for
additional options such as controllers, media, and other related items:
http://h18006.www1.hp.com/products/quickspecs/11739_na/11739_na.html
DW028B
Q1595B
EH903A
EH946A
EH926A
For an up-to-date listing of the latest O/S and software support details for HP Ultrium
tape drives, please visit: http://www.hp.com/go/connect.
Rack-Mount Tape Drive Enclosures
HP StorageWorks 1U SCSI Rack-Mount kit
NOTE: The 1U Rack-Mount Kit can support up to (2) half-height tape drives and is
compatible with multiple Single-Ended and LVD SCSI tape drives including the DAT
24, DAT 40, DAT 72, DLT VS80, DLT VS160, Ultrium 215, Ultrium 232, Ultrium 448
and Ultrium 920 tape drives.
HP StorageWorks 1U USB Rack-Mount Kit
NOTE: The 1U USB Rack-Mount Kit can support up to (2) half-height tape drives and
is compatible with the DAT 24 USB, DAT 40 USB and DAT 72 USB tape drives.
HP StorageWorks 1U SAS Rack-Mount Kit
NOTE: The 1U SAS Rack-Mount Kit can support up to (2) half-height tape drives and
is compatible with the Ultrium 448 SAS and Ultrium 920 SAS tape drives.
NOTE: Connecting hard drive cage and SAS tape to the same SAS Controller using
split cable (supplied with tape drive) deactivates 1 of the hard drive bays. Actual hard
drive bay deactivated depends on where split cable plugs into SAS drive connector.
Example: 3x SAS cable connector plugged into SAS drive connector (5-8) on the back
of the hard drive cage would mean drive bay 8 is deactivated.
HP StorageWorks 3U Rack-mount kit
NOTE: The 3U Rack-mount Kit can support up to (2) full-height or (4) half-height tape
drives and compatible with multiple LVD SCSI tape drives including DAT 40, DAT 72,
DLT VS160, SDLT 600, LTO-1 Ultrium 232, LTO-2 Ultrium 460, LTO-2 Ultrium 448,
LTO-3 Ultrium 920, LTO-3 Ultrium 960 and LTO-4 Ultrium 1840 tape drives.
NOTE: Please see the Rack-Mount Tape Drive Kits QuickSpecs for additional
information regarding these kits:
http://h18000.www1.hp.com/products/quickspecs/10854_na/10854_na.html
DA - 12908
North America — Version 4 — July 16, 2008
A7445B
A8007A
AE459A
274338-B22
Page 21
QuickSpecs
HP ProLiant DL160 G5 Storage Server
Product Configuration Wizard
HP D2D
Backup
System
HP StorageWorks D2D110 Backup System
NOTE: 1TB of Disk Storage.
HP StorageWorks D2D110 Backup System with Data Protector Express Software Kit
NOTE: 1TB of Disk Storage.
HP StorageWorks D2D120 Backup System
NOTE: 2TB of Disk Storage.
HP StorageWorks D2D120 Backup System with Data Protector Express Software Kit
NOTE: 2TB of Disk Storage.
HP StorageWorks D2D130 Backup System
NOTE:
NOTE 3TB of Disk Storage.
HP StorageWorks D2D130 Backup System with Data Protector Express Software Kit
NOTE:
NOTE 3TB of Disk Storage.
EH880A
HP StorageWorks D2D130 Backup System with LTO-3 Ultrium 920 SAS Tape Drive
NOTE: 3TB of Disk Storage.
NOTE
NOTE: Please see the HP D2D Backup Systems QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/12651_na/12651_na.html
EH952A
Tape Autoloaders
HP StorageWorks DAT Autoloader
HP StorageWorks DAT 72x10 tape autoloader
HP StorageWorks 1/8 Tape Autoloader
HP StorageWorks 1/8 G2 LTO-4 Ultrium 1760 SAS Tape Autoloader
HP StorageWorks 1/8 Ultrium 920 G2 Tape Autoloader
HP StorageWorks 1/8 G2 LTO-3 Ultrium 920 SAS Autoloader
HP StorageWorks 1/8 Ultrium 448 G2 Tape Autoloader
HP StorageWorks 1/8 Ultrium 232 G2 Tape Autoloader
HP StorageWorks 1/8 G2 Tape Autoloader Rack Kit
NOTE: Required to install the 1/8 G2 Autoloaders in a standard 19-inch rack;
includes rails and rackmount instructions
NOTE: Please reference the Tape Autoloader QuickSpecs at:
http://www.hp.com/go/automation for additional information needed to create a
complete solution; reference current compatibility information at:
http://www.hp.com/go/ebs.
DA - 12908
North America — Version 4 — July 16, 2008
EH923A
EH884A
EH924A
EH950A
EH951A
AE313B
AK377A
AH165A
AH558A
AH164A
AH163A
AH166A
Page 22
QuickSpecs
HP ProLiant DL160 G5 Storage Server
Product Configuration Wizard
Tape Libraries
HP StorageWorks MSL2024 Tape Library
HP StorageWorks MSL2024 1 LTO-4 Ultrium 1840 SCSI Drive Library
HP StorageWorks MSL2024 1 LTO-4 Ultrium 1840 4GB FC Library
HP StorageWorks MSL2024 1 LTO-4 Ultrium 1760 SAS Drive Library
HP StorageWorks MSL2024 1 Ultrium 960 Drive Library
HP StorageWorks MSL2024 1 Ultrium 960 4GB FC Library
HP StorageWorks MSL2024 1 LTO-3 Ultrium 920 SAS Drive Library
HP StorageWorks MSL2024 1 Ultrium 920 Drive Library
HP StorageWorks MSL2024 1 Ultrium 448 Drive Library
HP StorageWorks MSL4048 Tape Library
HP StorageWorks MSL4048 1 Ultrium 448 Drive Library
HP StorageWorks MSL4048 1 Ultrium 920 SAS Drive Library
HP StorageWorks MSL4048 1 Ultrium 920 Drive Library
HP StorageWorks MSL4048 1 Ultrium 960 Drive Library
HP StorageWorks MSL4048 1 Ultrium 960 4GB FC Library
HP StorageWorks MSL4048 2 LTO-4 Ultrium 1760 SAS Drive Library
HP StorageWorks MSL4048 1 LTO-4 Ultrium 1840 SCSI Drive Library
HP StorageWorks MSL4048 1 LTO-4 Ultrium 1840 4GB FC Library
HP StorageWorks MSL8096 Tape Library
HP StorageWorks MSL8096 2 Ultrium 920 SAS Drive Library
HP StorageWorks MSL8096 2 Ultrium 960 4GB FC Library
HP StorageWorks MSL8096 2 Ultrium 960 Drive Library
HP StorageWorks MSL8096 2 LTO-4 Ultrium 1760 SAS Drive Library
HP StorageWorks MSL8096 2 LTO-4 Ultrium 1840 SCSI Drive Library
HP StorageWorks MSL8096 2 LTO-4 Ultrium 1840 4GB FC Library
HP StorageWorks MSL6000 Tape Library
LTO-4 Ultrium 1840 technology
HP StorageWorks MSL6030 1 LTO-4 Ultrium 1840 SCSI Drive Library
HP StorageWorks MSL6030 1 LTO-4 Ultrium 1840 4GB FC Library
HP StorageWorks MSL6060 2 LTO-4 Ultrium 1840 SCSI Drive Library
HP StorageWorks MSL6060 2 LTO-4 Ultrium 1840 4GB FC Library
LTO-3 Ultrium 960 technology
HP StorageWorks MSL6030 1 Ultrium 960 Dr LVDS Library
HP StorageWorks MSL6030 1 Ultrium 960 Dr FC Library
HP StorageWorks MSL6030 2 Ultrium 960 Dr LVDS Library
HP StorageWorks MSL6030 2 Ultrium 960 Dr FC Library
NOTE: Please reference the MSL2024, MSL4048, MSL8096, and MSL6000 Tape
Library QuickSpecs at: http://www.hp.com/go/automation for additional information
needed to create a complete solution; reference current compatibility information at:
http://www.hp.com/go/ebs.
DA - 12908
North America — Version 4 — July 16, 2008
AJ033A
AJ034A
AK378A
AG115A
AG326B
AH559A
AH169A
AG116A
AG320A
AH560A
AH171A
AG322A
AG324B
AK380A
AJ035A
AJ036A
AH561A
AH218A
AH219A
AK382A
AJ039A
AJ040A
AJ029A
AJ030A
AJ031A
AJ032A
AD606B
AD608B
AD607B
AD609B
Page 23
QuickSpecs
HP ProLiant DL160 G5 Storage Server
Product Configuration Wizard
HP Data Protector Express HP Data Protector Express Backup Server Software Media & LTU
Software
HP Data Protector Express Backup Server Upgrade from Data Protector Express Single
Server Edition Media & LTU
NOTE: To obtain a free licensed copy of HP Data Protector Express for ProLiant
edition software, please visit the "Protect Your Data" link accessible from your ProLiant
server's System Management Homepage (SMH) software (SmartStart 7.5 or later).
NOTE: Please see the HP Data Protector Express QuickSpecs for additional
information regarding the purchase of HP Data Protector Express software:
http://h18000.www1.hp.com/products/quickspecs/12337_na/12337_na.html
BB117EA
BB117ET
Step 8 - Add UPS, Power, and Rack Options
Uninterruptible Power
Systems - Rack
HP R1.5 VA 1U UPS
USB Options
HP 1GB USB 2.0 Floppy Drive Key
HP 256MB USB 2.0 Floppy Drive Key
USB 1.44-MB External Diskette Drive
USB Floppy Drive
HP USB-P/S2 Mouse
HP Keyboard (USB) standard 2004
HP USB Internal Cable Kit
HP KVM Switch Options
2x1x16 IP Console Switch with Virtual Media
4x1x16 IP Console Switch with Virtual Media
2x16 Server Console Switch with Virtual Media
PS/2 Virtual Media Interface Adapter, 1 pack
NOTE: Requires PS/2 and one USB port on server.
Server Console Switch (KVM), 0 x 1 x 8 port
Server Console Switch (KVM), 0 x 2 x 16 port
PS/2 Interface Adapter, 1 pack
PS/2 Interface Adapter, 8 pack
USB Interface Adapter, 1 pack
Serial Interface adapter - 1 Pack with power supply
CAT5 KVM Expansion Module
HP 1x4 Console Switch
HP PS2 Server Console Cable, 6 foot, 2-Pack
HP USB Server Console Cable, 6 foot, 2-Pack
NOTE: Required for supporting USB peripherals.
NOTE: For additional information regarding KVM switches, Serial Console servers,
rack mount monitors, keyboards and all related options please see the following URL:
http://www.hp.com/go/kvm.
DA - 12908
AF419A
North America — Version 4 — July 16, 2008
442085-B21
442084-B21
DC141B
DC361B
DC369A
DT528A#xxx
451363-B21
AF601A
AF602A
AF600A
AF604A
336044-B21
336045-B21
262588-B21
262587-B21
336047-B21
373035-B21
262589-B21
AF611A
AF612A
AF613A
Page 24
QuickSpecs
HP ProLiant DL160 G5 Storage Server
Product Configuration Wizard
Step 9 - Order HPTS Service Care Packs
Service Care Packs or warranty upgrades enhance the base hardware warranty provided with your HP ProLiant Storage Server. The
Care Packs provide support for product software and operating system with extended hours of coverage and reduced response time.
And Care Packs allow the customer to budget fixed cost support rather than variable costs that include parts and labor.
Note that the standard HP warranty ensures software media will be free of physical defect for a period of 90 days from delivery.
However, all ProLiant Storage Servers come with a full year of 9 hours by 5 days software advisory and remedial software telephone
support, new version license rights, and media and documentation distribution service. Extended hours of coverage and additional
years of service are available should the customer require more support.
See "Service
Service and Support Upgrade options"
options section for more information on available Care Packs for your ProLiant Storage Server.
DA - 12908
North America — Version 4 — July 16, 2008
Page 25
QuickSpecs
HP ProLiant DL160 G5 Storage Server
Memory
Standard Memory
PC2-5300 (667MHz) Fully Buffered DIMMs with Advanced ECC Capabilities
1GB (2 x 512MB): 640GB model
2GB (2 x 1GB): 1TB SATA, 2TB SATA, 3TB SATA, and 1.2TB SAS models
Maximum Memory
32 GB
NOTE: Memory should be installed in pairs and matched for optimum performance.
NOTE: Chart does not represent all possible memory configurations.
Memory
Slot
1
2
3
4
5
Standard (640GB SATA)-- 512 MB
Empty
512MB
Empty
Empty
1GB
Standard (1TB, 2TB, 3TB
1 GB
Empty
1 GB
Empty
Empty
SATA and 1.2TB SAS)-2GB
Maximum (32 GB)
4 GB
4 GB
4 GB
4 GB
4 GB
6
Empty
7
Empty
8
Empty
Empty
Empty
Empty
4 GB
4 GB
4 GB
Memory options:
1 GB FBD PC2-5300 2X512 Kit
2GB FBD PC2-5300 2 X 1 GB Kit, Low Power
2 GB FBD PC2-5300 2X1GB Kit
4GB FBD PC2-5300 2 x 2 GB Kit, Low Power
4 GB FBD PC2-5300 2X2GB Kit
8 GB FBD PC2-5300 2 x 4 GB LP Kit
8 GB FBD PC2-5300 2X4GB Kit
DA - 12908
397409-B21
461826-B21
397411-B21
461828-B21
397413-B21
466440-B21
397415-B21
North America — Version 4 — July 16, 2008
Page 26
QuickSpecs
HP ProLiant DL160 G5 Storage Server
Storage
1, 2,
3, 4
A
Four Large Form Factor (LFF) 3.5" drive bays for SATA
or SAS hard drives
DVD-ROM
Drive Support
Removable Media
Quantity
Supported
1 Standard
Position
Supported
Front
Hard Drives
Hot Plug 3.5" (LFF) Serial Attached SCSI - SAS
Position
Quantity
Supported
Supported
300 GB 3G SAS 15K DP
4
1-4
Hot Plug 3.5" (LFF) Serial ATA - SATA
Quantity
Supported
750GB SATA 7.2K
4
500GB SATA 7.2K
250GB SATA 7.2K
160GB SATA 7.2K
Position
Supported
1-4
DVD-ROM Drive
Controller
HP Smart Array E200/128MB Controller
Controller
HP Smart Array E200/128MB Controller
External Storage
NOTE: DL160 G5 Storage Servers come standard with one installed Smart Array E200 controller for internal drives. They have one
low-profile PCI Express x16 slot available for additional network ports, a backup HBA, or external storage expandability (via Smart
Array E500/256MB).
Quantity
Position
Controller
Supported
Supported
Modular Smart Array 60
One per Smart
External
Smart Array E500 controller
Array controller
recommended
Modular Smart Array 70
One per Smart
External
Smart Array E500 controller
Array controller
recommended
Modular Smart Array 50
2 per connector
External
Smart Array E500 controller
Enclosure
(supports 1+1
cascading)
DA - 12908
North America — Version 4 — July 16, 2008
Page 27
QuickSpecs
HP ProLiant DL160 G5 Storage Server
Storage
Maximum Raw Storage Capacity
Internal SAS
1.2TB (4 x 300GB SAS Drives)
Internal SATA
3.0TB (4 x 750GB SATA Drives)
Internal plus External SATA 12TB raw (16 x 750 GB SATA)
(with addition of Smart
[1 x SA E500 connected to 1 x MSA60 full of 750 GB SATA HDDs]
Array E500/256MB
controller and MSA60
external enclosure)
Factory RAID Configuration and User Storage
Operating System Partitions
Logical Disk 1
Logical Disk 2
Logical Disk 3
Volume
Operating System
DON'T ERASE recovery
partition
User Data
RAID Level
RAID 5
RAID 5
Physical Drives
0-3
0-3
RAID 5
0-3
Tape Drives, Tape Autoloaders, Tape Libraries & D2D Backup
NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Drives listed below, please see the following:
http://h18000.www1.hp.com/products/quickspecs/north_america/10233.html
NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Autoloaders & Tape Libraries listed below,
please see the following: http://h18000.www1.hp.com/products/quickspecs/north_america/10809.html
NOTE: For complete listing of tape drive offerings see:
http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html
NOTE: SAS Tape Drives: Connecting hard drive cage and SAS tape to the same SAS Controller using split cable (supplied with tape
drive) deactivates 1 of the hard drive bays. Actual hard drive bay deactivated depends on where split cable plugs into SAS drive
connector. Example: 3x SAS cable connector plugged into SAS drive connector (5-8) on the back of the hard drive cage would
mean drive bay 8 is deactivated.
For details on connecting tape drives to this storage server, see the following:
Position
Supported
HP StorageWorks SCSI
Tape, External
LTO-1 Ultrium 232
LTO-2 Ultrium 448
LTO-2 Ultrium 460
LTO-3 Ultrium 920
LTO-3 Ultrium 960
LTO-4 Ultrium 1840
DAT 40
DAT 72
External
Controller
HP SC44Ge Host Bus Adapter
DA - 12908
North America — Version 4 — July 16, 2008
Controller/HBA
Option Kit Part
Number
416096-B21
Page 28
QuickSpecs
HP ProLiant DL160 G5 Storage Server
Storage
DAT 160
1U Rack-Mount Kit
3U Rack-Mount Kit
HP StorageWorks USB
Tape Drives, External
DAT 40 USB
DAT 72 USB
DAT 160 USB
1U USB Rack-Mount Kit
External
USB 2.0 Port
N/A
HP StorageWorks SAS
Tape Drives, External
DAT 160 SAS
LTO-2 Ultrium 448 SAS
LTO-3 Ultrium 920 SAS
1U Rack-Mount Kit
External
HP SC44Ge Host Bus Adapter *
HP Smart Array E500 Controller
HP StorageWorks SCSI
Tape Automation,
External
DAT 72X10 Autoloader
1/8 G2 Autoloader
MSL2024
MSL4048
MSL8096
MSL6000
External
HP U320e SCSI Host Bus Adapter
NOTE: Only valid for MSL tape libraries.
HP StorageWorks SAS
Tape Automation,
External
1/8 G2 Autoloader
MSL2024
MSL4048
MSL8096
External
HP SC44Ge Host Bus Adapter
NOTE: Please visit: http://www.hp.com/go/connect for details
about minimum SAS controller firmware version and SAS cabling
requirements.
416096-B21
HP StorageWorks Fibre
Tape Libraries, External
MSL2024
MSL4048
MSL8096
MSL6000
External
Please consult the EBS connectivity matrix at:
http://www.hp.com/go/ebs for detailed connectivity information
N/A
HP StorageWorks D2D
Backup Systems
D2D110
D2D120
External
Embedded Network Controller
N/A
416096-B21
435129-B21
* Recommended
DA - 12908
North America — Version 4 — July 16, 2008
AH627A
Page 29
QuickSpecs
HP ProLiant DL160 G5 Storage Server
Power Specifications
Operational Input
90Vac to 264Vac full range
Voltage Range (Vrms)
47 Hz to 63 Hz
Frequency Range
(Nominal) (Hz)
100
115
Nominal Input Voltage
(Vrms)
653.10
653.19
Max Rated Output
Wattage Rating
8.55
7.31
Nominal Input Current (A
rms)
855
840.72
Max Rated Input Wattage
Rating (Watts)
990
990
Max. Rated VA
(Volt-Amp)
76.39
77.69
Efficiency (%)
0.998
0.997
Power Factor
<3.5mA
<3.5mA
Leakage Current (mA)
60A
60A
Maximum Inrush Current
(A peak)
1mS
1mS
Maximum Inrush Current
Duration (mS)
200
220
230
240
653.08
652.96
653.08
652.96
4.12
3.77
3.6
3.46
824.12
827.5
806.3
805.71
990
990
990
990
79.25
0.983
<3.5mA
60A
78.91
0.976
<3.5mA
60A
81
0.973
<3.5mA
60A
81.04
0.969
<3.5mA
60A
1mS
1mS
1mS
1mS
ProLiant DL160 G5 Fully Configured
115V/60Hz
220V/50Hz
651
638
Fully Loaded System Input Wattage (W)
5.7
3.0
Fully Loaded System Input Current
(A rms)
2218
2174
Fully Loaded System Thermal
(BTU- Hr)
657
657
Fully Loaded System VA (Volt-Amp)
1.58
3.03
System Leakage with all power supplies
loaded (mA)
19
37
System Inrush Current with all power
supplies loaded (A)
Nema 5-15P to IEC320-C13
IEC320-C13 to IEC320-C14
Power cord requirements
NOTE: Power shown is for a fully configured system consisting of (2) CPU, (8) double-sided DIMMs, (2) HDDs, (1) CD-ROM, and
(2) PCI cards.
Power Cord
AF556A
DA - 12908
North America — Version 4 — July 16, 2008
Page 30
QuickSpecs
HP ProLiant DL160 G5 Storage Server
Technical Specifications
System Unit
Dimensions (H x W x D)
(with bezel)
Weight
(approximate)
1.70 x 17.64 x 26.85 in (4.32 x 44.80 x 68.20 cm)
Input Requirements
(per power supply)
90 to 140 VAC
180 to 264 VAC
Rated Input Current
7.31A at 115VAC
3.6A at 230VAC
Rated Input Frequency
47 to 63 Hz
Rated Input Power
855W (at 100 VAC)
840.72W (at 200 VAC)
To review typical system power ratings use the Power Calculator which is
available via the online tool located at URL:
http://h30099.www3.hp.com/configurator/calc/Power%
20Calculator%20Catalog.xls
Power Specifications
All hard drives, power
supplies, and processors
installed
Rated Line Voltage
37.00 lb (16.78 kg)
- Click on the system of interest. Example: DL380 G5
- Follow the instructions of the next screens.
Power Supply Output
Rated Steady-State Power 653.10W (at 100 VAC)
(per power supply)
653.08W (at 200 VAC)
System Inlet Temperature Operating
50° to 95° F (10° to 35° C) at sea level with an
altitude derating of 1.8°F per every 1000 ft
(1.0°C per every 305 m) above sea level to a
maximum of 10,000 ft (3050 m), no direct
sustained sunlight. Maximum rate of change is
18°F/hr (10°C/hr). The upper limit may be
limited by the type and number of options
installed.
System performance may be reduced if operating
with a fan fault or above 86°F (30°C).
Non-operating
40° to 140° F (-40° to 60° C)
Maximum rate of change is 36°F/hr (20°C/hr)
Relative Humidity
Operating
10% to 85% relative humidity (Rh), 82.4°F
(non-condensing)
(28°C) maximum wet bulb temperature, noncondensing.
Non-operating
10% to 95% relative humidity (Rh), 101.7°F
(38.7°C) maximum wet bulb temperature, noncondensing.
Altitude
Operating
10,000 ft (3050 m). This value may be limited by
the type and number of options installed.
Maximum allowable altitude change rate is 1500
ft/min (457 m/min).
Non-operating
30,000 ft (9144 m). Maximum allowable
altitude change rate is 1500 ft/min (457 m/min).
Acoustic Noise
Listed are the declared A-Weighted sound power levels (LWAd) and declared
average bystander position A-Weighted sound pressure levels (LpAm) when
the product is operating in a 23°C ambient environment. Noise emissions
DA - 12908
North America — Version 4 — July 16, 2008
Page 31
QuickSpecs
HP ProLiant DL160 G5 Storage Server
Technical Specifications
were measured in accordance with ISO 7779 (ECMA 74) and declared in
accordance with ISO 9296 (ECMA 109).
Idle
LWAd
6.86
LpAm
52.36dBA
Operating
LWAd
6.89
LpAm
52.60dBA
Embedded NC105i PCIe Network Interface
Gigabit Server Adapter
Integrated 10/100/1000BASE-T Transceiver
Combines a triple-speed IEEE 802.3TM - Compliant Media Access
Controller (MAC) with a triple-speed Ethernet transceiver.
Compliant to x1 PCIe Specification
10Base-T (Half-Duplex)
10 Mb/s
10Base-T (Full-Duplex)
20 Mb/s
100Base-TX (Half-Duplex) 100 Mb/s
100Base-TX (Full-Duplex) 200 Mb/s
1000Base-TX (Half and
2000 Mb/s
Full-Duplex)
RJ-45 connector
Performs all the physical layer functions for 10BASE-T, 100BASE-T, and
1000BASE-T Ethernet on standard Category 5 UTP
Data Transfer Method
Network Transfer Rate
Connector
Cable Support
Environment-friendly
Products and Approach
End-of-life Management
and Recycling
Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go to:
http://www.hp.com/go/green. To recycle your product, please go to:
http://www.hp.com/go/green or contact your nearest HP sales office.
Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at: http://www.hp.com/go/green. These instructions may
be used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.
DA - 12908
North America — Version 4 — July 16, 2008
Page 32
QuickSpecs
HP ProLiant DL160 G5 Storage Server
Technical Specifications
© Copyright 2008 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Windows is a US registered trademark of Microsoft Corporation. Intel is a US registered trademark of Intel Corporation.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
For hard drives, 1 GB = 1 billion bytes. Actual formatted capacity is less.
DA - 12908
North America — Version 4 — July 16, 2008
Page 33
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
